64” BLADE ASSEMBLY INSTRUCTIONS
DEVELOPED BY NORDIC PLOW
™
ASSEMBLY
TIPS
ONE YEAR LIMITED WARRANTY
For twelve months from date of purchase, Nordic Plow LLC warrants against the defects due
to workmanship or materials to the original purchaser. If a defect does exist, it will be obvious
to the eye before assembly and we will promptly replace any defective part.
The plastic components of the plow are designed to break under extreme stress to
minimize damage to the vehicle and is not considered a defect. To minimize this breakage,
we stress the user to read the tip sheets offered and review the videos available at
www.nordicplow.com. Any used and/or broken components can be replaced at a nominal
charge by calling 888-662-PLOW (7569) or by visiting our website.
Once a plow is used, it cannot be resold, and thus will not be accepted as a return.
A restocking fee equal to 20% of the purchase price plus applicable freight charges will
be assessed for any returned unopened and unused.
Nordic Plow LLC obligations under this warranty are limited to the following guidelines:
• This warranty does not cover units that have been altered / modied or damaged due to:
normal wear, improper maintenance, and/or improper use.
• This warranty does not cover any damage that may occur to the vehicle on which the product
is mounted.
• This warranty does not cover surface scratches to the plow, which is considered normal wear.
• This warranty is not transferable or assignable to subsequent purchasers.
• This warranty does not cover liability for damage to property, or injury to, or death of any
person arising out of the operation, maintenance or use of the covered product.
EXCEPT AS STATE ABOVE, NORDIC AUTO PLOW LLC MAKES NO OTHER EXPRESS OR
IMPLIED WARRANTIES. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION FOR TWELVE MONTHS FROM
THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY LAST, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT OR CONSEQUENTIAL DAMAGE ARISING FROM THE
FAILURE OF NORDIC AUTO PLOW LLC TO COMPLY WITH THIS WARRANTY OR ANY
IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT THE PURCHASE
PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY
SET OUT ABOVE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION
MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
1-888-662-7569 (PLOW)
771 W. North Avenue, West Chicago, IL 60185
www.nordicplow.com
Updated: August 2020
2
INSTRUCTIONS FAQS & TIPS
SAFETY
Read and understand the plow instructions, Warranty,
FAQs and Tips before use. Scan the QRC instructional
videos on the rst page or watch the videos on our
website before use. (www.nordicplow.com) Always
instruct other users before they use the plow.
OPERATION
Risk of Injury – Never allow children to handle the
plow. Never allow anyone to walk beside or sit on
the plow when in use. Never operate the plow over
2 to 3 mph. Keep a slow steady speed. If you hit an
obstruction, immediately stop and reverse direction.
INSTRUCTIONS CLARIFICATION

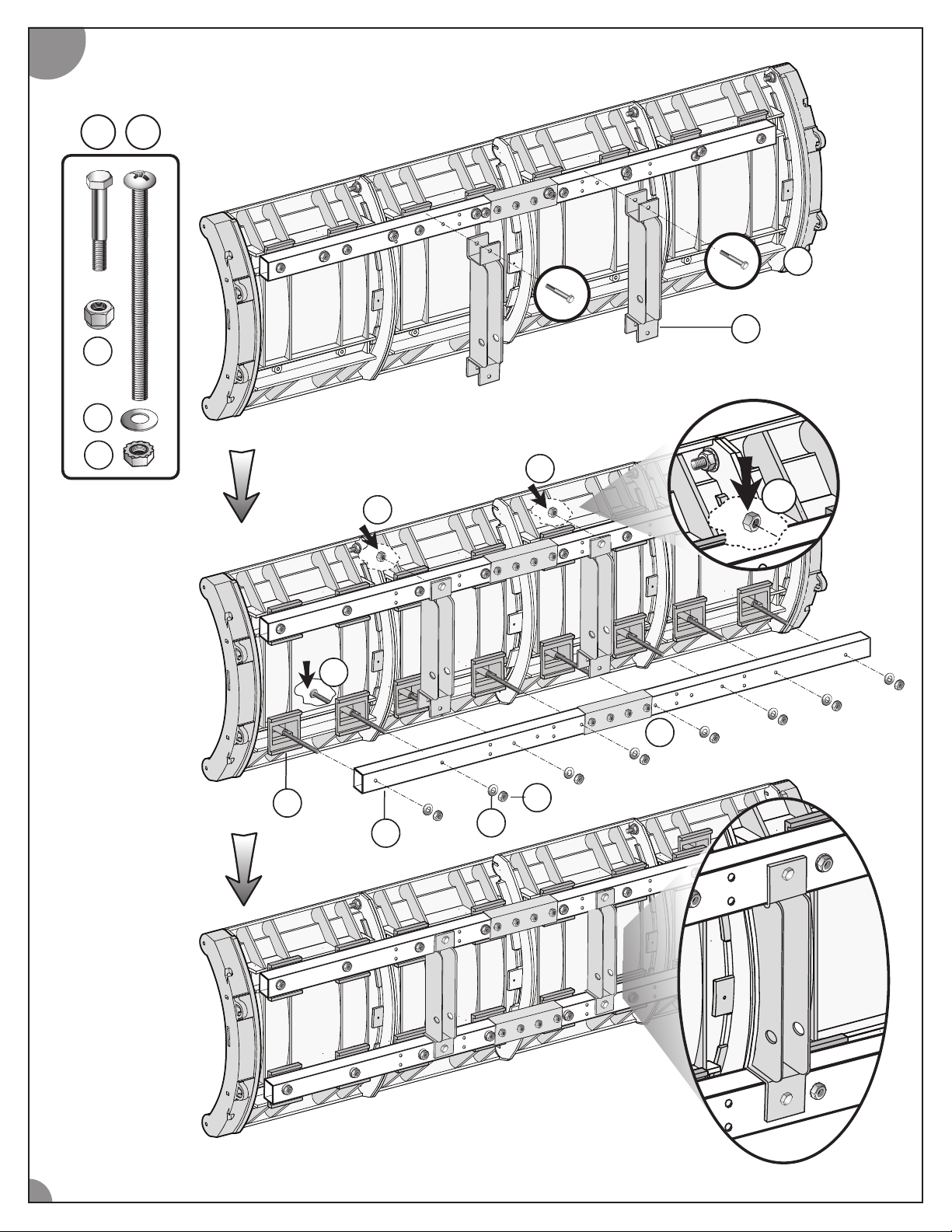

STEP 1: Make sure the extended tab on each blade
channel (ref #2) is facing the same direction.
STEP 2: Do not over tighten the self-taping screw
(ref #26).
STEP 3: Finger tighten locknuts (ref #21) at this point
in the assembly process.
FAQs
How long will the plow last?
The lightweight, rounded edge design reduces friction
and wear of the blade. The bottom edge will show
signs of pits and scratches, but this is normal and will
not degrade the reversible blade. In the event too
much wear occurs simply reverse the spanner channels
and use the opposite edge.
Where is the cutting edge?
The plows angle, combined with its weight and that
of the machine and operator, provides sufcient force
to get the job done. It may not pick up hard, packed
down snow or ice.
Can I use it on uneven surfaces?
Yes – our rounded edge is safe on paver bricks, tarps,
grass, and most uneven surfaces without causing
damage to the blade or surface being plowed.
Will the Nordic Plow leave marks on the pavement?
No – Nordic plow’s polycarbonate blade will not leave
marks on your driveway, unlike traditional steel plows
that can leave rust and scratches on the pavement.
STEP 4: The spanner channel (ref #5) has a set of holes
on one end. Make sure they are both facing the same
direction. Once everything is in place go ahead and
tighten the entire assembly. NOTE: Be sure not to over
tighten any locknuts. Over tightening can crush the
horizontal steel channel and weaken the assembly.
STEP 5: Using a ¾” wrench and socket, fully tighten
locknuts (ref #25) and then back off slightly so brackets
can easily pivot from side to side.
STEP 6: Install 2 lock rods (ref #11) down through
alignment holes as shown to keep the pivot bracket
assembly from moving side to side during installation.
Place the leading ns of the pivot bracket into the
spanner channel and install 2 Clevis pins (ref #27)
and R Clips (ref #28).
STEP 7: Attach upper spring brackets (ref #6 & 7) to
the top rail. Make sure to use the bottom two holes
when installing the brackets. Install the two springs as
shown. Tighten locknut (ref #22) onto the eyebolt
(ref #29) until there is tension on the spring.
The best tip we can give you is to
always plow at a slow safe speed. This will
protect the equipment and the driver.
Have fun and enjoy moving some snow!
3
1
2
42739
x4
42738
x2
42740
x16
720426
x4
3
7
720122R
x2
4
6
720122L
720112
x2
720120
x2
x2
5
8
13
720424
x2
14
720428
x2
9
720114
x1
12
NPTRIP7
x2
11
720118
x2
4
10
720116
x1
1/2”1/4”
1”
2”
3”
4”
584
x4
(yellow)
1615 17
43661
x6
H11201
x8
18
42744
x4
19
1594
x16
23
1”
710-0865
x2
2”
3”
25
24
26
42763
x3
20 2221
43088
x36
46978
x26
27
CLP-0500-1750/B
x2
47189
x14
1540-59
x2
28 29
BP-211
x2
712-3083
x2
N221-085
x2
5
1
20
16
21
18
20
1
2
16 18
21
21
20
2
26
26
6
3
13
3
2
1
17
14
21
4
19
17
20
21
19
19
20
21
7
4
1917
17
5
22
20
21
22
22
22
19
14
3
4
21
20
8
5
15
8
15 23
22
9
22
24
25
10
25
23
24
24
23
9
6
11
27 28
27
27
28
27
27
28
10
7
12
17 29
20
22
7
22
6
22
20
6
7
17
20
12
17
29
22
12
12
29
11
