Nordic ID SAMPO S2, SAMPO S2 ONE User Manual

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

NORDIC ID SAMPO S2

NORDIC ID SAMPO S2 ONE-

SERIES

USER GUIDE

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

2 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

TABLE OF CONTENTS

GETTING STARTED ............................................................................................................................................................ 4

1.1. GENERAL ............................................................................................................................................................. 4

1.2. DIFFERENCES BETWEEN NORDIC ID SAMPO S2 AND NORDIC ID SAMPO S2 ONE-SERIES .... 4

1.3. AVAILABLE VARIANTS .................................................................................................................................... 5

1.4. AVAILABLE ACCESSORIES ............................................................................................................................. 5

1.5. PACKAGE CONTENT ....................................................................................................................................... 5

1.6. FEATURES AND CONNECTORS OVERVIEW ............................................................................................ 6

1.7. MOUNTING ........................................................................................................................................................ 7

1.8. POWERING THE READER ............................................................................................................................... 8

1.9. PHYSICAL CONNECTORS .............................................................................................................................. 8

DC CONNECTOR ............................................................................................................................... 8

GPIO CONNECTOR ........................................................................................................................... 8

ANTENNA PORTS ........................................................................................................................... 10

USB 2.0 DEVICE WITH TYPE B CONNECTOR ......................................................................... 11

USB 2.0 HOST WITH TYPE A CONNECTOR ............................................................................ 11

ETHERNET ........................................................................................................................................ 11

DUAL BAND WLAN (OPTIONAL) ................................................................................................ 11

WWAN CELLULAR CONNECTIVITY (OPTIONAL) .................................................................. 11

SLOT FOR MINI SIM CARD (OPTIONAL) .................................................................................. 11

1.10. USER INTERFACE ....................................................................................................................................... 12

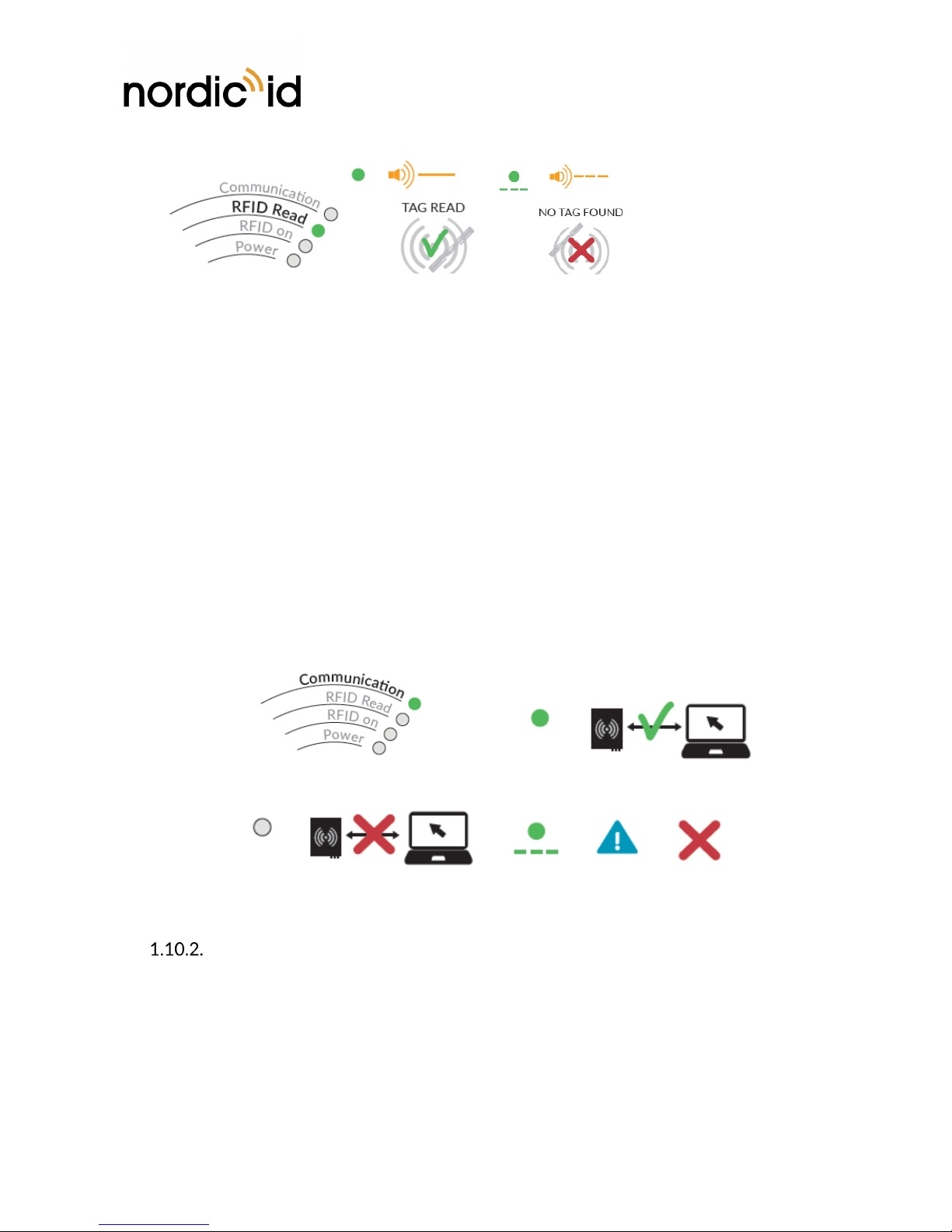

LED INDICATORS ......................................................................................................................... 12

1.10.1.1. POWER LED ................................................................................................................................ 13

1.10.1.2. RFID ON LED .............................................................................................................................. 13

1.10.1.3. RFID READ LED.......................................................................................................................... 13

1.10.1.4. COMMUNICATION LED .......................................................................................................... 14

RESET BUTTON ............................................................................................................................. 14

BUZZER ........................................................................................................................................... 15

CAPACITIVE SENSOR .................................................................................................................. 15

1.11. RF PROFILES ................................................................................................................................................ 16

1.12. ANTENNA CHARACTERISTICS ............................................................................................................... 16

USING EXTERNAL ANTENNAS WITH NORDIC ID SAMPO S2 ......................................... 16

1.13. THERMAL MANAGEMENT ...................................................................................................................... 16

SOFTWARE ....................................................................................................................................................................... 18

2.1. NORDIC ID RFID APPLICATIONS FOR NORDIC ID SAMPO S2 ........................................................ 18

NORDIC ID RFID DEMO ................................................................................................................ 18

NORDIC ID RFID CONFIGURATOR ............................................................................................ 18

NORDIC ID AR8X APPLICATION SIGNING TOOL .................................................................. 18

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

3 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

WEB MANAGEMENT INTERFACE .............................................................................................................................. 18

REGIONAL SETTINGS ..................................................................................................................................................... 19

SERVICE AND SUPPORT................................................................................................................................................ 19

WARRANTY ....................................................................................................................................................................... 19

RELATED DOCUMENTS AND CONTENT ................................................................................................................. 19

ABOUT NORDIC ID ......................................................................................................................................................... 20

VERSION HISTORY .......................................................................................................................................................... 20

APPENDICES ..................................................................................................................................................................... 21

10.1. EXAMPLE SCHEMATICS OF GPIO INTERFACE ................................................................................. 21

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

4 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

GETTING STARTED

1.1. GENERAL

Nordic ID Sampo S2 is a versatile fixed UHF RFID reader with SW controllable low and normal gain
functionalities. This reader offers both EU and US frequencies in one reader and multiple connectivity
options. This versatile reader is suitable for multiple use cases e.g. in POS and various gate options. It’s
integrated computer enables installation and operation of 3rd party applications.

Nordic ID Sampo S2 One-series is a powerful fixed UHF RFID reader with multiple connectivity options.
This versatile reader offers both EU and US frequencies in one reader and is suitable for multiple use
cases e.g. in POS and various gate options. It’s integrated computer enables installation and operation of
3rd party applications. Nordic ID Sampo S2 One-series is equipped with the new Nordic ID NUR2-1W
module.

Nordic ID Sampo S2 text is used in the user guide to cover both products unless otherwise stated.

1.2. DIFFERENCES BETWEEN NORDIC ID SAMPO S2 AND NORDIC ID

SAMPO S2 ONE-SERIES

Differences between Nordic ID Sampo S2 and Nordic ID Sampo S2 One-series have been listed in the
Table 1.

Table 1 Differences between Nordic ID Sampo S2 and Nordic ID Sampo S2 One-series

FEATURE NORDIC ID SAMPO S2 NORDIC ID SAMPO S2 ONE-SERIES

UHF RFID module NUR-05WL2 NUR2-1W

Supported standard ISO 18000-63 (EPC Class 1

Gen2v2) AES authentication in
accordance with ISO/IEC 29167­10 supported

ISO 18000-63 (EPC Class 1 Gen2v2)
AES authentication and sensor tags to
be supported

Radiated power Normal mode: 1W (30dBm) ERP

Low-gain mode: 100mW (20dBm)
ERP

2W (33dBm) ERP

Conducted power for
external antenna ports

500mW (27dBm) 1W (30dBm)

Nominal reading
distance

Up to 5m Up to 10m

Nominal reading speed 200 tags/s Up to 1000 tags/s

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

5 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

1.3. AVAILABLE VARIANTS

Nordic ID Sampo S2 is available in 3 different variants that are:

Table 2 Nordic ID Sampo S2 variant

CODE DESCRIPTION

NPG00003 Nordic ID Sampo S2 / UHF RFID (USB / LAN 10 /100&PoE)

NPG00004 Nordic ID Sampo S2 / UHF RFID (USB / LAN 10 /100&PoE / WLAN)

NPG00005

Nordic ID Sampo S2/ UHF RFID (USB / LAN 10 /100&PoE / WLAN / WWAN
(3G))

Nordic ID Sampo S2 One-series is available in 3 different variants that are:

CODE DESCRIPTION

NPG00006 Nordic ID Sampo S2 One-series / UHF RFID (USB / LAN 10 /100&PoE)

NPG00007 Nordic ID Sampo S2 One-series / UHF RFID (USB / LAN 10 /100&PoE / WLAN)

NPG00008

Nordic ID Sampo S2 One-series / UHF RFID (USB / LAN 10 /100&PoE / WLAN
/ WWAN (3G))

1.4. AVAILABLE ACCESSORIES

CODE DESCRIPTION

ACN00142 Nordic ID Power supply 100-240 VAC, 50-60 Hz / 24 VDC for Nordic ID AR and

Sampo S2 readers, EU (Includes power supply and cable)

ACN00143 Nordic ID Power supply 100-240 VAC, 50-60 Hz / 24 VDC for Nordic ID AR and

Sampo S2 readers, UK (Includes power supply and cable)

ACN00145 Nordic ID Power supply 100-240 VAC, 50-60 Hz / 24 VDC for Nordic ID AR and

Sampo S2 readers, US (Includes power supply and cable)

CWH00045 Nordic ID External antenna cable (Length 1m, SMA-male -connectors)

CWH00020 Nordic ID External antenna cable (Length 3m, SMA-male -connectors)

CWH00019 Nordic ID External antenna cable (Length 5m, SMA-male -connectors)

CWH00042 Nordic ID External antenna cable (Length 10m, SMA-male -connectors)

1.5. PACKAGE CONTENT

Nordic ID Sampo S2 package contains following items

• Nordic ID Sampo S2 / Nordic ID Sampo S2 One-series

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

6 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

• Installation kit

• Safety and regulations guide

1.6. FEATURES AND CONNECTORS OVERVIEW

WLAN and WWAN (3G) variants of Nordic ID Sampo S2 UHF RFID reader include internal WLAN and
WWAN antennas.

Picture 1 Connector panel of Nordic ID Sampo S2

NOTE! Power supply not included

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

7 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

1.7. MOUNTING

Nordic ID Sampo S2 and Nordic ID Sampo S2 UHF RFID readers can be mounted using assembly holes
of the reader. Dimensional drawing about the assembly holes can be find from Figure 1.

Nordic ID Sampo S2 One-series UHF RFID reader can be mounted also with M5 threaded screws to any
VESA 75 and VESA 100 mounting equipment (sold separately).

Figure 1 Assembly holes of Nordic ID Sampo S2 and Nordic ID Sampo S2 One-series readers

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

8 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

1.8. POWERING THE READER

Nordic ID Sampo S2 can be powered via DC power supply (sold separately) or ethernet port if the network
supports power over Ethernet (PoE) feature or PoE injector is being used. Regardless of what powering
method is used, the data communication can be handled via USB connection or if IP connectivity is
required then via WWAN, WLAN or ethernet. Nordic ID Sampo S2 powers up automatically when
connected to DC power supply or PoE.

The rated maximum power consumptions for Nordic ID Sampo S2 reader are:

• Powered via 802.3af PoE: 12W

• Powered via DC power supply (sold separately): 20W (12-24V DC)

1.9. PHYSICAL CONNECTORS

Nordic ID Sampo S2 includes the following physical connectors:

• DC connector for supplying power if PoE capability is not used (power supply sold separately)

• GPIO connector (4 optically isolated inputs and outputs)

• 3 pcs SMA female antenna connectors for connecting external antennas to the reader

• USB 2.0 device mini B connector (USB HID profile supported)

• USB 2.0 host Type A connector

• Ethernet 10/100Mbps with 802.3af support

• Dual band WLAN (optional)

• WWAN cellular connectivity (optional)

• Slot for mini SIM card (optional)

DC CONNECTOR

DC connector is used to power up the reader using Nordic ID provided power supplies. More information
about the Nordic ID power supplies can found from table 0. Supported input voltage is 12 – 24V DC.

GPIO CONNECTOR

Nordic ID Sampo S2 includes a multipurpose GPIO connector that contains the following functionalities:

• RS-232 serial port

• 4 x opto-isolated inputs

• 4 x opto-isolated outputs

• +5VDC supply

NOTE! WLAN and 3G are disabled If the reader is powered via the PoE. 802.3af PoE can’t
provide enough power to the reader to keep WLAN and 3G features working as expected.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

9 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

• 12VDC / 24 VDC supply

12VDC if the reader is powered via PoE and 24VDC if the reader is powered via external power supply.
The multipurpose GPIO connector can be accessed via DE15 connector located on rear panel of the
reader. Pin-out of the DE15 connector can be seen in Figure 2. Functions and electrical specification of
the GPIO connector can be found from

Table 3 and Table 4.

Figure 2 Pin-out of DE15 connector

Table 3 Signal of GPIO connector

PIN SIGNAL NAME

DESCRIPTION

1 5V output

5V DC output, switchable on/off

2 RS232 TX RS232 output

3 RS232 RX RS232 input

4 Ground Ground

5 Output 0 Isolated output 0

6 Output 1 Isolated output 1

7 Output 2 Isolated output 2

8 Output 3 Isolated output 3

9 V- Isolated ground for inputs and outputs

10 Input 0 Isolated input 0

11 Input 1 Isolated input 1

12 Input 2 Isolated input 2

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

10 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

13 Input 3 Isolated input 3

14 V+ Pull-up voltage for outputs, 10kΩ pull up resistors

15 12V / 24V output 12V out with POE powered and 24V out with external power supply

Table 4 Electrical specifications of the signals

SIGNAL NAME

VOLTAGE

MIN (V)

VOLTAGE

NOMINAL (V)

VOLTAGE

MAX (V)

CONDITIONS

5V out 5 <200mA

RS232 TX, high 5 5,4 3KΩ load to Ground

RS232 TX, low -5,4 -5 3KΩ load to Ground

RS232 RX, high 2,4 25

RS232 RX, low -25 0,6

Ground 0

Outputs 0 - 3, high 30 10KΩ pull up to V+

Outputs 0 - 3, low 0 0,6 max 25mA, max 150mW

V- 0

Inputs 0 - 3, high 3 30

Between V+ and V-, max

6mA at 30V

Inputs 0 - 3, low 0 0,7 Between V+ and V-

V+ 30 Between V+ and V-

12V / 24V output 12 / 24 <200mA

Example schematics about how to create non-isolated and isolated solutions can be found from section

10.1.

ANTENNA PORTS

Nordic ID Sampo S2 includes 3pcs SMA female antenna connectors for connecting external antennas to
the reader. Impedance of antenna ports is 50Ω and maximum radiated output power is

• Nordic ID Sampo S2: 27dBm

• Nordic ID Sampo S2 One-series: 30dBm

The antenna ports can be configured independently via NUR API.

NOTE! If 5V or 12V / 24V output is used, connect pins 4 and 9 together.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

11 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

USB 2.0 DEVICE WITH MINI B CONNECTOR

Nordic ID Sampo S2 includes USB 2.0 device mini B connector for connecting reader to host device.
Nordic ID Sampo S2 supports also USB HID class which means the reader can act as a standard USB input
device for host devices.

USB 2.0 HOST WITH TYPE A CONNECTOR

Nordic ID Sampo S2 includes USB 2.0 host Type A connector for connecting peripheral USB devices to
the reader. The USB 2.0 host Type A connector can be used to connect needed USB peripherals to the
reader to expand its functionalities. Maximum current out from the USB 2.0 host Type a connector is
500mA.

ETHERNET

Nordic ID Sampo S2 includes standard RJ-45 ethernet connector. The reader supports 10/100Mbps
speed class and 802.3af PoE.

DUAL BAND WLAN (OPTIONAL)

Certain variants of Nordic ID Sampo S2 include dual band WLAN supporting 2.4GHz and 5.0GHz
frequency bands. WLAN antenna is built-in, so no external WLAN antenna needed. Nordic ID Sampo S2
can work as a WLAN access point to other WLAN devices thus enabling simple and cost-efficient network
of several readers and devices.

WWAN CELLULAR CONNECTIVITY (OPTIONAL)

Certain variants of Nordic ID Sampo S2 include WWAN connectivity supporting 2G and 3G cellular
networks. WWAN antenna is built-in, so no external WWAN antenna needed. WWAN connectivity
needs a SIM card to be functional. Please find more information about how the SIM card is inserted to
the Nordic ID Sampo S2 from section 1.9.9.

SLOT FOR MINI SIM CARD (OPTIONAL)

The WWAN variant of Nordic ID Sampo S2 includes a slot for mini SIM card. Mini SIM card is to be
inserted in the slot in a right orientation to be functional. The correct insertion orientation of mini SIM
card can be seen from the Picture 2.

NOTE! Web management interface can’t be access using USB connector. Web management

interface can be accessed only using ethernet, WLAN and WWAN connections.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

12 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

Picture 2 Insertion orientation of mini SIM card

1.10. USER INTERFACE

User interface of Nordic ID Sampo S2 consists of 4 LED indicators and a reset button on the back of the
reader.

LED INDICATORS

Nordic ID Sampo S2 has four programmable LEDs for user indications. Location of the LEDs can be seen from

Picture 3. It’s possible to enable/disable all the LEDs via web management UI and/or reader API. By
default the LEDs are enabled. LEDs of the reader are:

1. Power LED

2. RFID On LED

3. RFID Read LED

4. Communication LED

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

13 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

Picture 3 Location of LEDs

1.10.1.1. POWER LED

By default, Power LED indicates if the power is supplied to the device via DC power supply or PoE.

1.10.1.2. RFID ON LED

RFID On LED indicates whether the RFID reading is ON or OFF. Functionality of the RFID On LED can
be configured via NUR API if needed.

1.10.1.3. RFID READ LED

RFID Read LED indicates when tag is read. Functionality of the RFID Read LED can be configured via
NUR API if needed.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

14 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

1.10.1.4. COMMUNICATION LED

Communication LED indicates whether the reader has established USB, ethernet, WLAN or WWAN
connection. Functionality of the Communication LED can be configured via NUR API if needed.
Functionality of the Communication LED differs depending on whether USB or TCP/IP (ethernet, WLAN
and WWAN) connection is used.

• USB connection in use

o LED off: The USB cable is unplugged.
o LED on: The USB cable is connected.

• Ethernet, WLAN or WWAN connection in use

o LED off: The reader has no IP address. In addition, the red error LED is blinking.
o LED blinking: The reader has IP address, but the host application is not connected
o LED on: The reader has IP address and the host application is connected.

RESET BUTTON

Reset button of Nordic ID Sampo S2 contains the following functionalities:

• Rebooting the reader
o Press the reset button 2s (orange NOTIFICATION LED starts blinking once the reset

button is pressed) and release it once 3 green LEDs are lit

• Boot to recovery mode*

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

15 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

o Once the reset button is pressed over 5s red NOTIFICATION LED starts blinking again

but faster and green CONNECTION LED is lit

o Release the reset button before 10s is elapsed to enter to the recovery mode. This mode

can be entered once 5-10s is elapsed from starting to press the reset button.

• Factory reset
o Once the reset button is pressed over 10s red NOTIFICATION LED starts blinking even

faster and green RFID LED is lit

o Release the reset button before 15s is elapsed to set reader to factory defaults. This

mode can be entered once 10-15s is elapsed from starting to press the reset button.

* Recovery mode can be used to repair the reader

BUZZER

Nordic ID Sampo S2 includes a buzzer for sound indications. The buzzer can be controlled via SW.

CAPACITIVE SENSOR

Nordic ID Sampo S2 includes a capacitive sensor for triggering reading. The capacitive sensor can be
controlled via SW. Location of the capacitive sensor can be found from Figure 3. Diameter of the
capacitive sensor is 27mm.

Figure 3 Location of capacitive sensor

NOTE! Pressing the reset button >15s will perform a normal boot in case one keeps pressing the

reset button by mistake.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

16 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

NOTE! The reading range depends on used tag and environment

1.11. RF PROFILES

This section applies only to Nordic ID Sampo S2 One-series reader. Nordic ID NUR2-1W UHF RFID
module supports three different kind of RF profiles. The profiles are Robust, Nominal and High speed. It’s
important to select the correct RF profile based on use case and environment. More detailed description
about the RF profiles can be found below:

• Robust

o Robust RF profile is intended to be used in challenging environments. It provides the best

filtering against the interfering signals coming from nearby reader(s), other signal sources
and from reflective environment. This profile uses link frequency of 250 kHz and Miller
4 coding scheme providing read rates up to 200 tags/s. Due to the low data speed and
best filtering the Robust RF profile provides the best sensitivity.

• Nominal

o Nominal RF-profile is the default setting of readers containing Nordic ID NUR2-1W UHF

RFID module. It uses link frequency of 300 kHz and Miller 2 coding providing read rates
up to 350 tags/s.

• High speed

o High speed RF profile is intended to be used in use cases where the highest read rates

are required. It uses link frequency of 400 kHz and FM0 coding and provides read rates
up to 1000 tags/s. Due to the high data speed the profile is quite sensitive to
interferences.

1.12. ANTENNA CHARACTERISTICS

Nordic ID Sampo S2 reader includes an internal wideband circularly polarized UHF RFID antenna.
Nominal reading distances are:

• Nordic ID Sampo S2 in normal mode: 5 m / 16 ft

• Nordic ID Sampo S2 in low-gain mode: 1.5 m / 5 ft

• Nordic ID Sampo S2 One-series: 10 m / 33 ft

USING EXTERNAL ANTENNAS WITH NORDIC ID SAMPO S2

Sometimes there can be challenging areas in the reading environment that needs extra coverage. For this
purpose, there are 3 SMA female connectors (AUX1, AUX2 & AUX3) in the Nordic ID Sampo S2 reader.
The external antennas can be enabled/disabled via SW and be used to improve reading performance and
accuracy if needed.

1.13. THERMAL MANAGEMENT

Nordic ID Sampo S2 reader includes sophisticated thermal management features that do prevent
overheating issues if reader is used in too warm environments. The reader monitors temperatures of

NOTE! Read rates will depend from the environment, reader settings, tag population and tag type.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

17 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

onboard computer and UHF RFID module and adjusts operation points based on the temperature
information.

Onboard computer starts mitigation scheme (for example clock frequencies of CPUs are dropped) when
temperature of the onboard computer reaches 85°C.

Thermal mitigation scheme of the UHF RFID module follows following temperatures:

• 80°C – UHF RFID reading operations are suspended for 100ms. Suspend time is increased 20ms

by every °C temperature rises until the temperature reaches 90°C. The thermal mitigation
scheme is turned off once the temperature drops below 80°C. High temperature warning
message (TEMP_HIGH) is sent via NUR API to host. The warning message contains also current
temperature information.

• 90°C – UHF RFID reading operations are shut down until temperature goes below 90°C. Once

the temperature is below 90°C, above mentioned mitigation scheme is taken in use. Over
temperature warning message (TEMP_OVER) is sent via NUR API to host. The warning message
contains current temperature information.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

18 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

SOFTWARE

All documentation about SW, SW features and application development can be find from GitHub.

https://github.com/NordicID/ar8x_samples

2.1. NORDIC ID RFID APPLICATIONS FOR NORDIC ID SAMPO S2

Nordic ID provides following Windows tools to test and configure the reader. The tools are available via
Nordic ID Support pages:

http://www.nordicid.com/en/downloads/

NORDIC ID RFID DEMO

Nordic ID RFID Demo application is for conducting the reading tests. It allows connecting the devices and
commencing the reading procedure. The application provides statistics on the reading performance and
logging capabilities for more thorough evaluation. As the Nordic ID RFID Configurator, this application
also allows adjusting the RFID parameters on the fly for better understanding how they impact on the
reading performance. The difference however is that altered settings cannot be stored permanently into
the device. The settings are reverted to defaults upon power cycle.

NORDIC ID RFID CONFIGURATOR

Nordic ID RFID Configurator is meant for configuring the reader settings. The settings can be e.g. related
to network settings or RFID reading parameters and stored into the device as new defaults. Note that
e.g. the RFID reading parameters can be assigned to the reader by the host application after successfully
connected to the device also. The RFID Configurator is also the tool for updating the device firmware if
seen necessary.

NORDIC ID AR8X APPLICATION SIGNING TOOL

To provide more security to the SW platform, the application zip-files need to be signed with Nordic ID
provided signing tool. The public key generated to the zip-file will be then verified against the list of files
when installing the zip-file to the reader. This makes sure that only valid content from the zip-file can be
installed.

The tool in question is called Nordic ID Application Signing Tool. The tool can be used to sign pre-built
zip-files, as also to create new zip-files from scratch.

WEB MANAGEMENT INTERFACE

Nordic ID Sampo S2 includes a web management interface which can be accessed with a web browser.
The web management interface is used to configure the reader and manage applications. Documentation
about web management interface can be find from GitHub.

https://github.com/NordicID/ar8x_samples

NOTE! Web management interface cannot be accessed using USB connectors. Web management

interface can be accessed only using ethernet, WLAN and WWAN connections.

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

19 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

REGIONAL SETTINGS

Nordic ID UHF RFID readers support operating frequency range between 860 - 960MHz. Some of the
readers cover full operating frequency band and some of them have two sub bands that are 868 ETSI
band (865.6 - 867.6 MHz) and 915 FCC band (902 - 928 MHz). Regional organizations as ETSI and FCC
have set rules and requirements for operating frequencies, output power and other RF parameters for
the UHF RFID readers to comply local regional requirements.

Nordic ID has created a set of regional settings in order to fulfil local regulations. Nordic ID is required to
ensure that compliance of Nordic ID products will remain after production. Solution for this is that
products including UHF RFID functionality are set and locked in production based on customer order e.g.
if a product is ordered to Europe, it will be locked to ETSI region. And, if a product is ordered to Australia
region, it is locked to Australia region. When a product is locked to individual region, it will comply local
regulations of the region.

SERVICE AND SUPPORT

For technical enquiries regarding Nordic ID devices or software development, please contact our
Technical Support:

E-mail: [e-mail]

Telephone: [phone]

As a manufacturer, Nordic ID stands responsible for providing repair services for its devices during and
after the warranty period. Together with partners Nordic ID serves customers globally. When your Nordic
ID device needs repair, always use Nordic ID Service or our authorized service partners. We want to make
sure that your Nordic ID product serves you the best possible way, and by using our preferred service
partners the quality of the service is trustworthy and the spare parts are original. This way the existing
product warranty remains, and you receive a 3-month service warranty for the repaired devices.

Nordic ID works together with full support and primary support partners. Full support partners can handle
both warranty and non-warranty repairs on behalf of Nordic ID in their own regions. In addition, Nordic
ID has a network of smaller repair centers, primary support partners, who offer the first line of support
to their customers locally.

For any enquiries about Nordic ID repair service please contact:

E-mail: [e-mail]
Telephone: [phone]

WARRANTY

Nordic ID warrants that the Products are at the time of delivery free from defects in materials and
workmanship, provided the Products remain unmodified and are operated under normal and proper
conditions. Warranty period is the longer of twenty-four (24) months from the date of delivery in case
the Customer is end-customer or twenty-seven (27) months from the date of manufacture in case the
Customer is reseller. Spare parts are warranted against defects in workmanship and materials for a period
of ninety (90) days from the date of delivery to Customer.

For more detailed information about the warranty can be found from Nordic ID Sales Terms.

RELATED DOCUMENTS AND CONTENT

Documents mentioned below can be found from Nordic ID Support pages (link):

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

20 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

• Nordic ID Sampo S2 Datasheet

• Nordic ID Sampo S2 Quick Guide

• Nordic ID Safety and Regulations Guide

• Nordic ID GitHub account for developers (https://github.com/NordicID)

ABOUT NORDIC ID

Nordic ID is at the center of today’s real-time item tracking and reliable RFID technology. We help
organizations fight the damaging effects of item loss, facilitate streamlined business procedures, and stay
ahead of the competition.

We are ready to help you take advantage of our wide range of products and services designed to fit your
needs. Contact us now, and we will help you to tackle your challenges and get your business to the next
level.

Nordic ID Group

Salo IoT Center

Joensuunkatu 7

FI-24100 Salo

FINLAND

tel. [phone]
fax [phone]

www: www.nordicid.com

E-mail: [e-mail]

VERSION HISTORY

Version Date Modifications

1.0 19.1.2018 The first version

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

21 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0

APPENDICES

10.1. EXAMPLE SCHEMATICS OF GPIO INTERFACE

Nordic ID Group | Salo IoT Center | Joensuunkatu 7 | FI-24100 Salo |Finland

Office [phone] | Fax + 358 2 727 7720 | [e-mail]

22 / 22

2018-01-19

Nordic ID Sampo S2 User Guide

Version 1.0
