Manual for Nordic Cab Explorer Babyseat

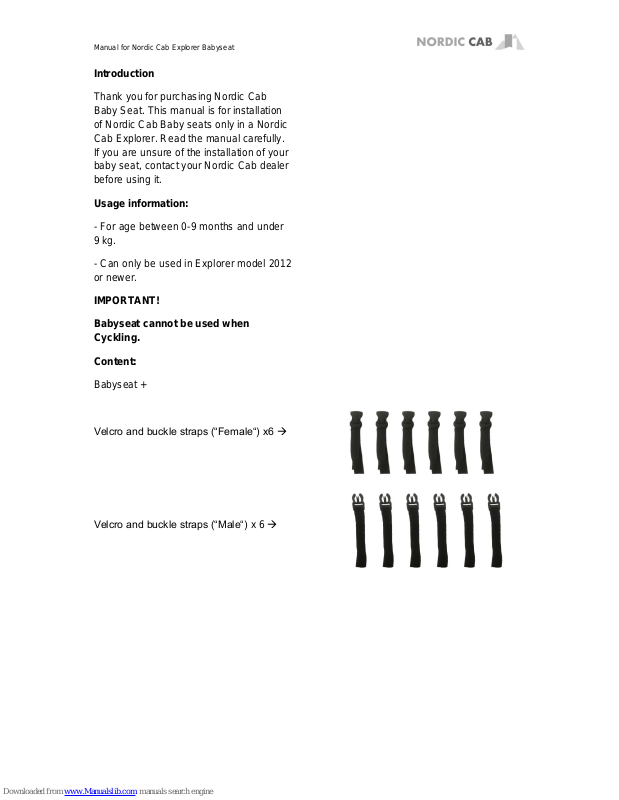

Introduction
Thank you for purchasing Nordic Cab
Baby Seat. This manual is for installation
of Nordic Cab Baby seats only in a Nordic
Cab Explorer. Read the manual carefully.
If you are unsure of the installation of your
baby seat, contact your Nordic Cab dealer
before using it.
Usage information:
- For age between 0-9 months and under
9 kg.
- Can only be used in Explorer model 2012
or newer.
IMPORTANT!
Babyseat cannot be used when
Cyckling.
Content:
Babyseat +
Velcro and buckle straps (“Female“) x6
Velcro and buckle straps (“Male“) x 6
Page 2
Manual for Nordic Cab Explorer Babyseat
1. Fasten the bottom straps
(“Female“)
2. Fasten the mid straps (“Female“)
3. Fasten the top straps (“Female“)
Page 3
Manual for Nordic Cab Explorer Babyseat
4.Safety harness.
a) Remove the shoulder pads from Explorers
safety belt. Fix the shoulder pads on baby's
shoulder straps.
b) Secure the shoulder straps to the safety
lock. “Important “! Adjust the shoulder straps
when the child is placed in the baby seat
c) This is what the safety belt should look like
when the shoulder pads are fitted correctly.
IMPORTANT!
- Make sure the child is securely fixed in the
safety belt before using the trailer.
a)
b)
c)
Page 4
Manual for Nordic Cab Explorer Babyseat
5. Assembly of Baby seat in trailer
a) Remove the grey cover on the baby seat.
Attach 3 pairs of male clips through baby seat
the way you look at the picture a).
b) Now you can fix baby seat into the carriage
with the clips. If you have trouble attaching
clips, you can adjust the length of the “male
“clip with the Velcro.
IMPORTANT!
- Always ensure that the seat is secure and
fixed in the trolley before it is put into use.
a)
b)
