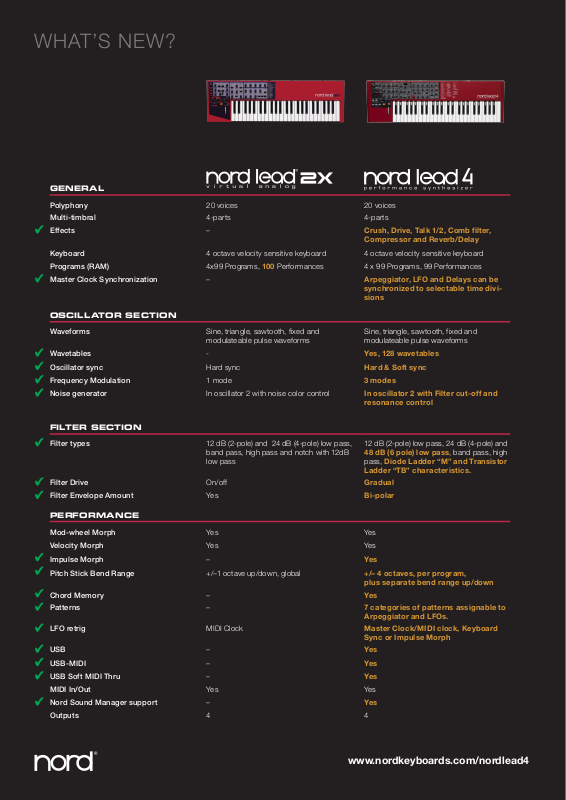

WHAT’S NEW?
GENERAL
Polyphony 20 voices 20 voices
Multi-timbral 4-parts 4-parts
Effects – Crush, Drive, Talk 1/2, Comb filter,
Keyboard 4 octave velocity sensitive keyboard 4 octave velocity sensitive keyboard
Programs (RAM) 4x99 Programs, 100 Performances 4 x 99 Programs, 99 Performances
Master Clock Synchronization – Arpeggiator, LFO and Delays can be
OSCILLATOR SECTION
Waveforms Sine, triangle, sawtooth, fixed and
modulateable pulse waveforms
Wavetables - Yes, 128 wavetables
Oscillator sync Hard sync Hard & Soft sync
Frequency Modulation 1 mode 3 modes
Noise generator In oscillator 2 with noise color control In oscillator 2 with Filter cut-off and
Compressor and Reverb/Delay
synchronized to selectable time divisions
Sine, triangle, sawtooth, fixed and
modulateable pulse waveforms
resonance control
F I LT E R S E C T I O N
Filter types 12 dB (2-pole) and 24 dB (4-pole) low pass,
band pass, high pass and notch with 12dB
low pass
Filter Drive On /of f Gradual
Filter Envelope Amount Yes Bi-polar
PERFORMANCE
Mod-wheel Morph Yes Yes
Velocity Morph Yes Yes
Impulse Morph – Yes
Pitch Stick Bend Range +/–1 octave up/down, global +/– 4 octaves, per program,
Chord Memory – Ye s
Patterns – 7 categories of patterns assignable to
LFO retrig MIDI Clock Master Clock/MIDI clock, Keyboard
USB – Yes
USB-MIDI – Yes
USB Soft MIDI Thru – Yes
MIDI In/Out Yes Yes
Nord Sound Manager support – Ye s
Outputs 4 4
12 dB (2-pole) low pass, 24 dB (4-pole) and
48 dB (6 pole) low pass, band pass, high
pass, Diode Ladder “M” and Transistor
Ladder “TB” characteristics.
plus separate bend range up/down
Arpeggiator and LFOs.
Sync or Impulse Morph
www.nordkeyboards.com/nordlead4
