Nord Grand Specifications

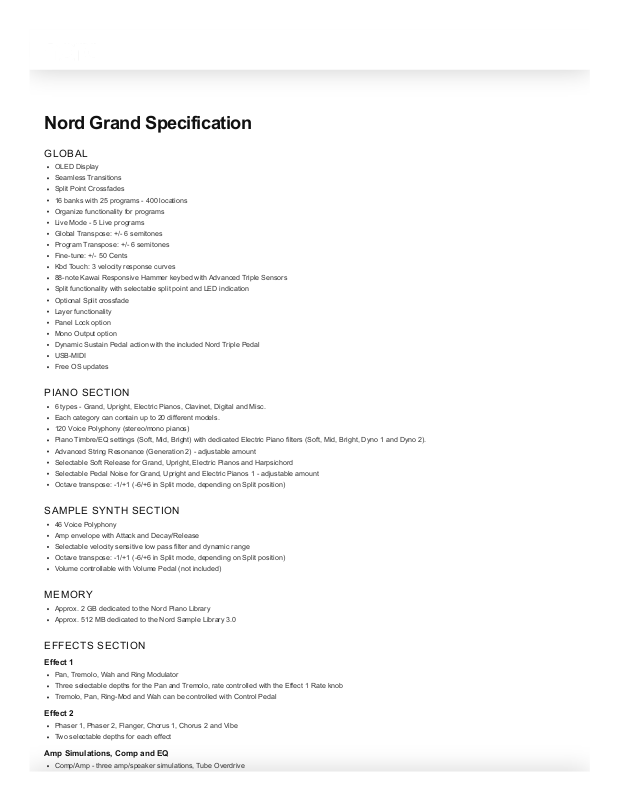

Nord Grand Specification

GLOBAL

OLED Display

Seamless Transitions

Split Point Crossfades

16 banks with 25 programs - 400 locations

Organize functionality for programs

Live Mode - 5 Live programs

Global Transpose: +/- 6 semitones

Program Transpose: +/- 6 semitones

Fine-tune: +/- 50 Cents

Kbd Touch: 3 velocity response curves

88-note Kawai Responsive Hammer keybed with Advanced Triple Sensors

Split functionality with selectable split point and LED indication

Optional Split crossfade

Layer functionality

Panel Lock option

Mono Output option

Dynamic Sustain Pedal action with the included Nord Triple Pedal

USB-MIDI

Free OS updates

PIANO SECTION

6 types - Grand, Upright, Electric Pianos, Clavinet, Digital and Misc.

Each category can contain up to 20 different models.

120 Voice Polyphony (stereo/mono pianos)

Piano Timbre/EQ settings (Soft, Mid, Bright) with dedicated Electric Piano filters (Soft, Mid, Bright, Dyno 1 and Dyno 2).

Advanced String Resonance (Generation 2) - adjustable amount

Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord

Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount

Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

SAMPLE SYNTH SECTION

46 Voice Polyphony

Amp envelope with Attack and Decay/Release

Selectable velocity sensitive low pass filter and dynamic range

Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

Volume controllable with Volume Pedal (not included)

MEMORY

Approx. 2 GB dedicated to the Nord Piano Library

Approx. 512 MB dedicated to the Nord Sample Library 3.0

EFFECTS SECTION

Effect 1

Pan, Tremolo, Wah and Ring Modulator

Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob

Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe

Two selectable depths for each effect

Amp Simulations, Comp and EQ

Comp/Amp - three amp/speaker simulations, Tube Overdrive

Drive/Compression amount controlled with the Drive knob

Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Master Effects

Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode

Dedicated Delay Effect - Rate, Amount and Tap-tempo function

CONNECTIONS

2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced

1 Monitor input - 1/8", 3,5 mm stereo jack

1 Headphone output - ¼", 6,35 mm stereo jack

1 Piano pedal input - ¼", 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc

1 Volume Pedal input - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.

MIDI In, MIDI Out - 5 pin DIN connectors

USB - type B connector - for transferring sounds and USB MIDI

IEC C14 power connector

DIMENSIONS

Nord Grand: 1286 mm (50.7"), 168 mm (6.6"), 387 mm (15,2")

Nord Triple Pedal: 264 mm (10.4"), 224 mm (8.8"), 70 mm (2.8")

WEIGHT

Nord Grand: 20,9 kg (46.0 lbs)

Pedal: 2 kg (4.4 lbs)

INCLUDED ACCESSORIES

Nord Triple Pedal

User Manual

Power cord

Nord Piano Library v5 DVD-ROM

OPTIONAL ACCESSORIES

Nord Piano Monitor

Nord Keyboard Stand V2

Nord Soft Case

Nord Music Stand

Dust Cover

Specifications subject to change without notice. *Steinway, Wurlitzer, Hohner, Clavinet, Farfisa and Vox are trademarks of their respective owners and are not affiliated or

associated with Clavia. These trademarks are mentioned here as a reference to a sound only.
