Nord Electro 6 User Manual

Download

USER MANUAL

Nord Electro 6

English

OS version: 1.0x

Edition: B

Part number: 50482 Copyright Clavia DMI AB Edition: B

CAUTION - ATTENTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE SHOCK ELECTRIQUE

NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

ATTENTION:POUR EVITER LES RISQUES DE CHOC ELECTRIQUE, NE

PAS ENLEVER LE COUVERCLE.

AUCUN ENTRETIEN DE PIECES INTERIEURES PAR L´USAGER.

CONFIER L´ENTRETIEN AU PERSONNEL QUALIFE.

AVIS: POUR EVITER LES RISQUES D´INCIDENTE OU D´ELECTROCUTION,

N´EXPOSEZ PAS CET ARTICLE A LA PLUIE OU L´HUMIDITET.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specied by the manu- facturer.

12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate nor- mally, or has been dropped.

The lightning ash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated voltage within the products en- closure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

Le symbole éclair avec le point de èche à l´intérieur d´un triangle équilatéral est utilisé pour alerter l´utilisateur de la presence à l´intérieur du coffret de ”voltage dangereux” non isolé d´ampleur

sufsante pour constituer un risque d`éléctrocution.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Le point d´exclamation à l´intérieur d´un triangle équilatéral est employé pour alerter l´utilisateur de la présence d´instructions importantes pour le fonctionnement et l´entretien (service) dans le livret d´instructions accompagnant l´appareil.

Instructions pertaining to a risk of re, electric shock or injury to persons.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Trademarks: The Nord logo is a trademark of Clavia DMI AB. All other trademarks mentioned in this publication are the properties of their respective holders.

No naked ame sources, such as lighted candles, should be placed on the apparatus;

Do not use the apparatus in tropical climates.

WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.

The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on the apparatus.

The maims plug is used as the disconnect device and shall remain readily operable.

Il convient de ne pas placer sur l´appareil de sources de ammes nues, telles que des bougies allumées;

L´appareil n’est pas destiné á étre utilisé sous un climat tropical.

L´appareil ne doit pas étre exposé á des égouttements d´eau ou des éclaboussures et de plus qu´aucun objet rempli de liquide tel que des vases ne doit étre placé sur l´appareil.

Lorsque la prise du résau d’alimentation est utilisée comme dispositif de déconnexion, ce dispositif doit demeuré aisément accessible.

Warning - When using electric products, basic precautions should always be followed, including the following:

Additional Safety Information

1. INTRODUCTION | 3

TABLE OF CONTENTS

1 INTRODUCTION .......................................................................... 5

Thank you! ........................................................................................................5

Features .............................................................................................................5

Nord Online ......................................................................................................5

About the User Manual ..............................................................................5

Reading the manual in PDF Format ...................................................................5

Restoring the factory presets .............................................................................5

OS upgrades .....................................................................................................5

Free sounds ......................................................................................................5

Disclaimer..........................................................................................................5

2 OVERVIEW ......................................................................................... 6

The Electro 6 panel ......................................................................................6

Organ section – page 10 ...................................................................................6

Piano section – page 14 ....................................................................................6

Program section – page 16 ...............................................................................6

Sample Synth section – page 19 .......................................................................6

Effects section – page 20 ..................................................................................6

3 GETTING STARTED ................................................................. 7

Hooking it up ...................................................................................................7

Panel controls .................................................................................................7

Dials and knobs ................................................................................................7

Buttons .............................................................................................................7

The Shift button ................................................................................................7

Soft buttons ......................................................................................................7

Programs ...........................................................................................................7

Select a program ...............................................................................................7

List view .............................................................................................................8

Edit a program ................................................................................................8

Select a new piano sound .................................................................................8

Turn off Memory Protection ....................................................................8

Store a program .............................................................................................8

Live Mode .........................................................................................................8

Activate effects ..............................................................................................9

Activating the Rotary Speaker............................................................................9

Create a split ..................................................................................................9

Assign the Piano to the upper zone ..................................................................9

Set the Sample Synth to the lower zone ............................................................9

Load a Sample ...............................................................................................9

Set up a Split cross-fade (Split Width) ...........................................................9

Create a two manual B3 ............................................................................9

4 ORGAN .................................................................................................10

On/Off, Level and Zone Select .........................................................................10

Octave Up/Down .............................................................................................10

Sustped And Ctrlped .......................................................................................10

Drawbars and buttons ..............................................................................10

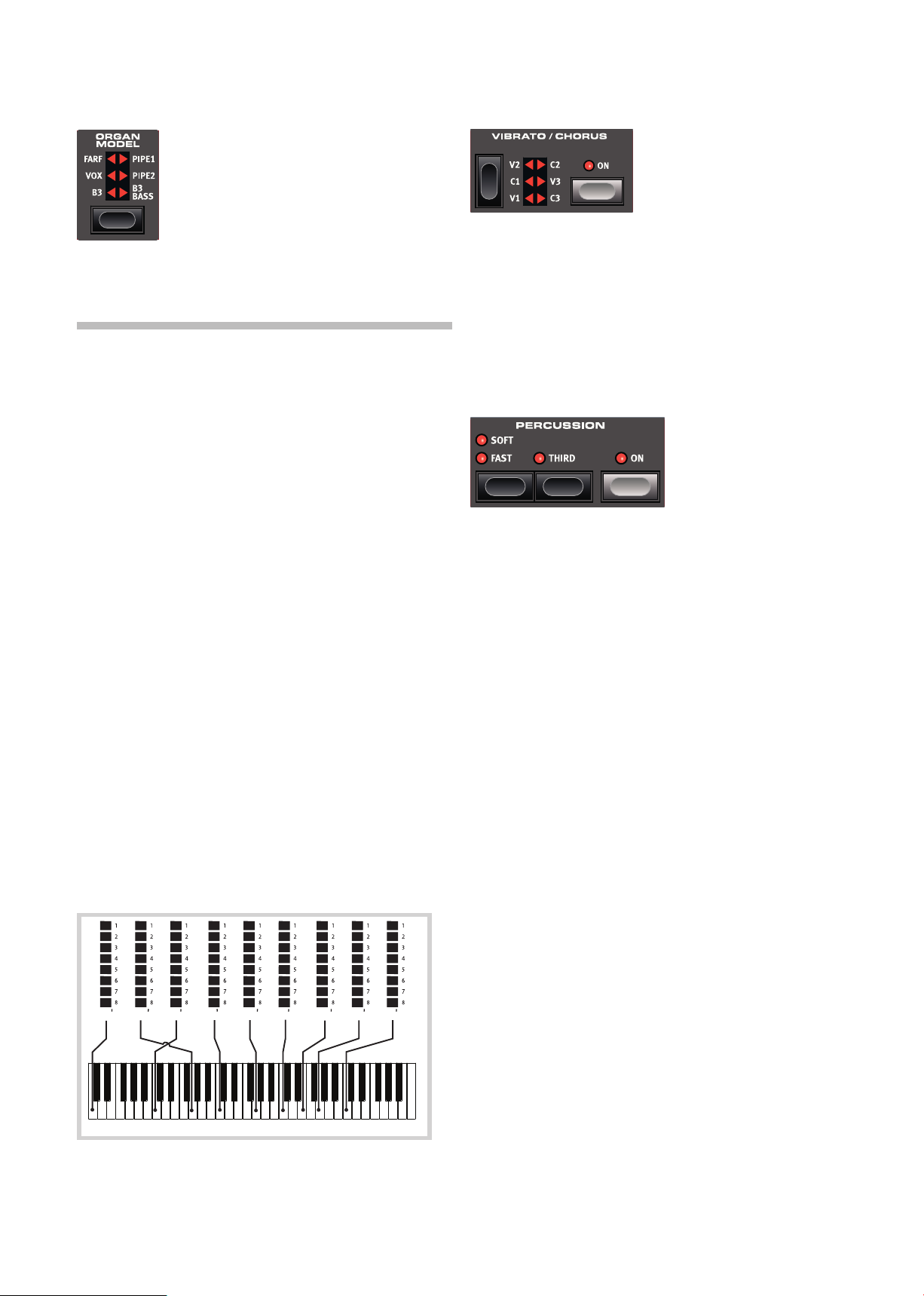

Selecting an Organ model ..............................................................................11

The B3 model ..............................................................................................11

B3 drawbars ...................................................................................................11

Percussion ......................................................................................................11

Key click control ..............................................................................................11

The Vox model ..............................................................................................12

Vox drawbars ..................................................................................................12

Vibrato ............................................................................................................12

The Farf model..............................................................................................12

Farf registers ...................................................................................................12

Vibrato ............................................................................................................13

Pipe Organs ...................................................................................................13

Pipe 1 ..............................................................................................................13

Pipe 2 ..............................................................................................................13

Pipe 1&2 Chorus .............................................................................................13

Pipe 1&2 registers ...........................................................................................13

Preset ................................................................................................................13

Manual Organ ...............................................................................................13

Dual Organ .....................................................................................................13

Edit Lower Manual ...........................................................................................13

Rotary Speaker ............................................................................................13

5 PIANO ................................................................................................... 14

On/Off, Level and Zone Select .........................................................................14

Octave Up/Down .............................................................................................14

Sustped and CtrlPed .......................................................................................14

About the Piano sounds ..........................................................................14

About Piano size .............................................................................................14

Piano Select ...................................................................................................14

Category and model ........................................................................................14

List view ..........................................................................................................15

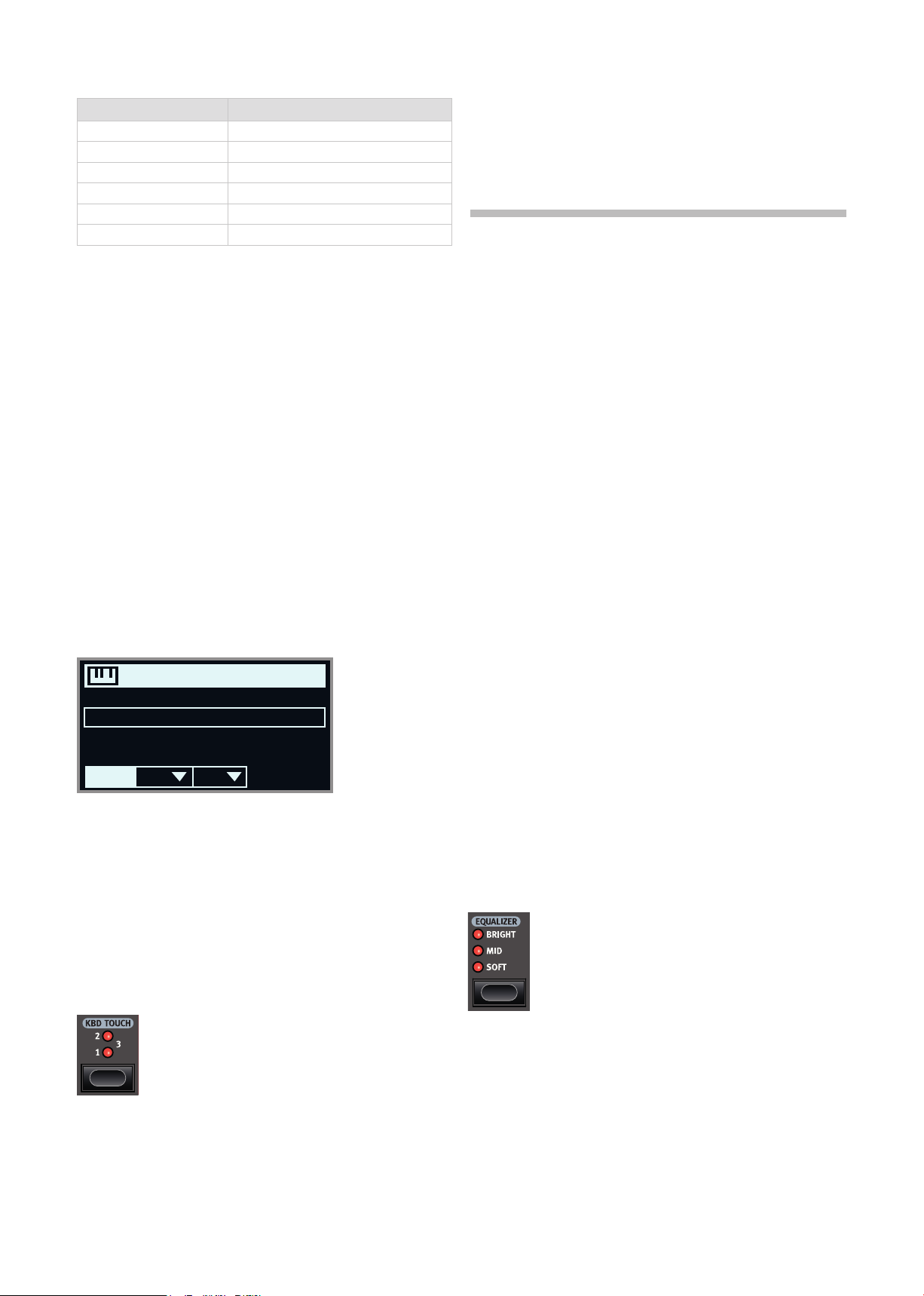

KBD Touch .....................................................................................................15

Piano Info ...................................................................................................15

Mono...............................................................................................................15

String Res and Soft Release ................................................................15

String Resonance ............................................................................................15

Soft Release ....................................................................................................15

Equalizer .........................................................................................................15

Piano EQ Settings ...........................................................................................15

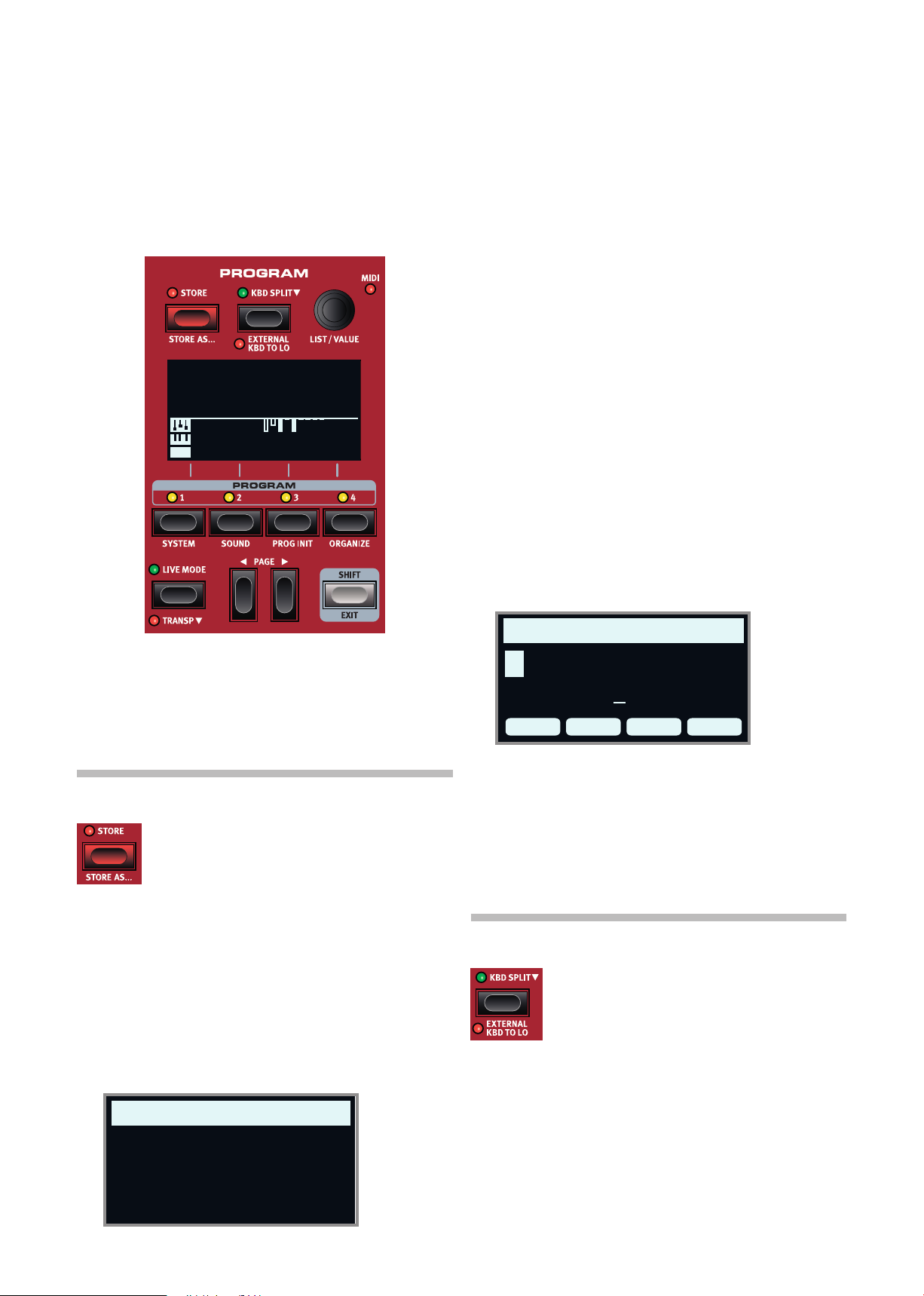

6 PROGRAM ........................................................................................16

Store ..................................................................................................................16

Storing a program ...........................................................................................16

Naming a program (Store As...) .......................................................................16

KBD split ..........................................................................................................16

Keyboard Split settings ..................................................................................16

Choosing a split position .............................................................................17

Split Width settings .....................................................................................17

External KBD to Lo ..........................................................................................17

Shift / Exit button .........................................................................................17

Live programs ...............................................................................................17

Transpose On/Set .......................................................................................17

Program Buttons .........................................................................................17

What is a program? .........................................................................................17

Prog Init ...........................................................................................................17

Program dial .................................................................................................17

Program List, Abc and Cat ..............................................................................18

Numeric Pad Navigation mode ........................................................................18

MIDI LED indicator ......................................................................................18

Page buttons .................................................................................................18

Organize ...........................................................................................................18

Select a program or page ................................................................................18

Swap, Copy and Insert operations ..................................................................18

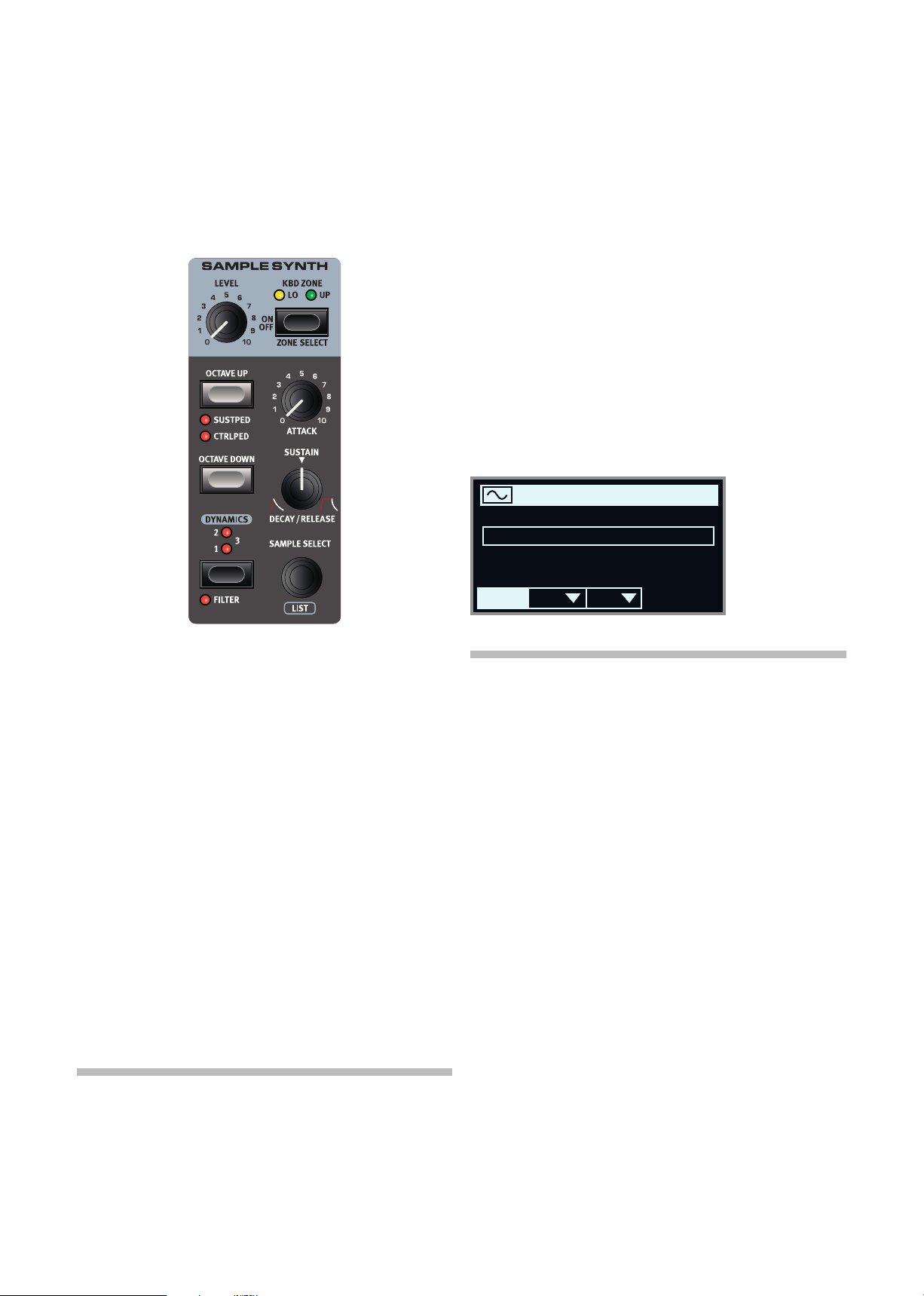

7 SAMPLE SYNTH.........................................................................19

On/Off, Level and Zone Select .........................................................................19

Octave Up/Down .............................................................................................19

Sustped and Ctrlped .......................................................................................19

About the Sample Synth .........................................................................19

Selecting a Sample ..........................................................................................19

List view .....................................................................................................19

4 | NORD ELECTRO 6 USER MANUAL OS V1.0X

Shaping the sound .....................................................................................19

Dynamics ........................................................................................................19

Filter ................................................................................................................19

Attack, Sustain and Decay/Release .................................................................19

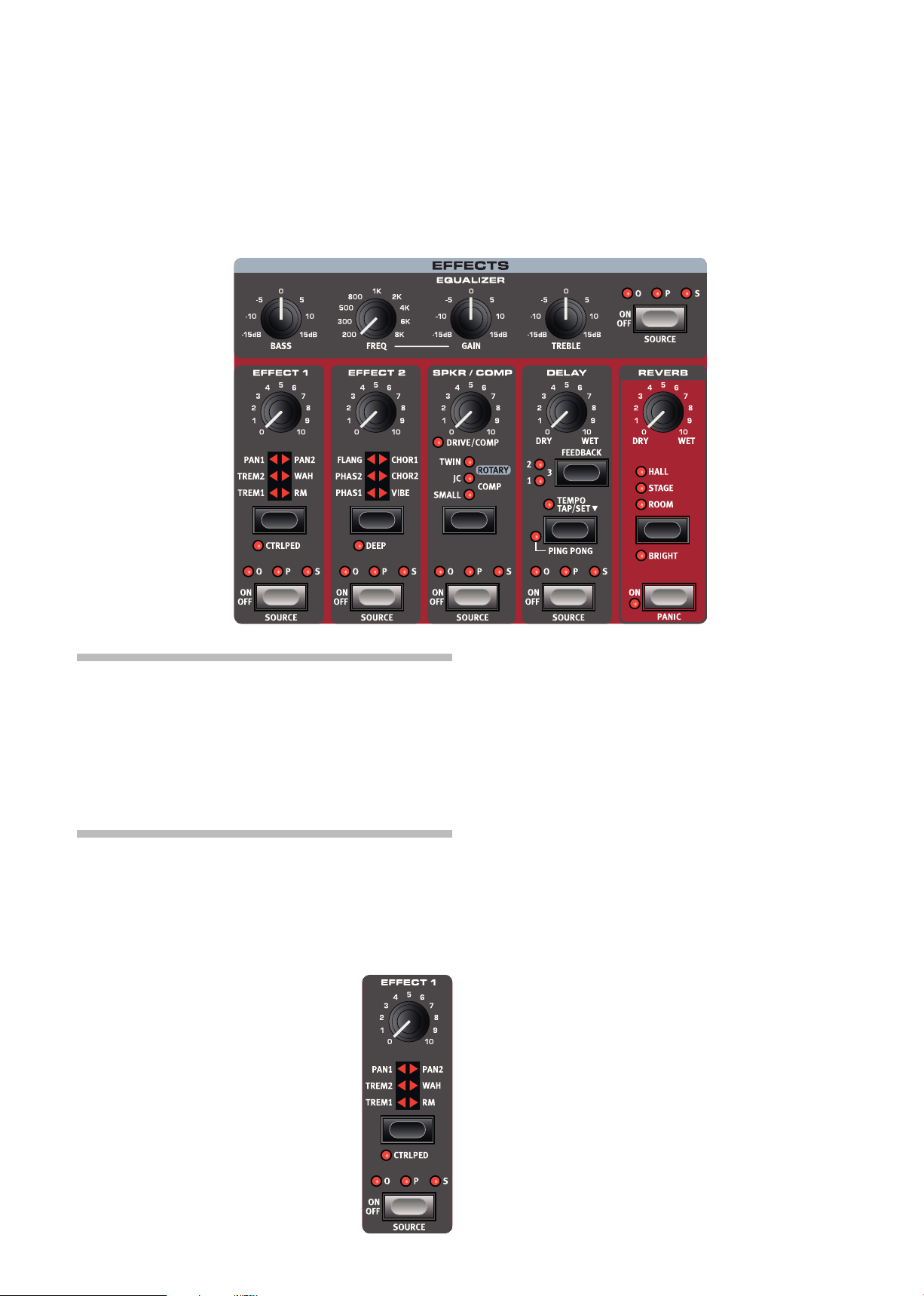

8 EFFECTS .............................................................................................20

Activating effects ........................................................................................20

Effect 1 ............................................................................................................20

Trem (Tremolo) .................................................................................................20

Pan (Auto Pan) ................................................................................................20

RM (Ring Modulation) ......................................................................................20

Ctrlped ............................................................................................................20

Effect 2 ............................................................................................................21

Phaser 1 & 2 ...................................................................................................21

Flanger ............................................................................................................21

Chorus 1 & 2 ...................................................................................................21

Vibe .................................................................................................................21

Deep ...............................................................................................................21

Delay .................................................................................................................21

Tempo Tap ......................................................................................................21

Spkr/Comp ...................................................................................................21

Drive/Comp .....................................................................................................21

Amp model......................................................................................................21

Rotary ............................................................................................................21

Rotary menu settings.......................................................................................22

Comp ..............................................................................................................22

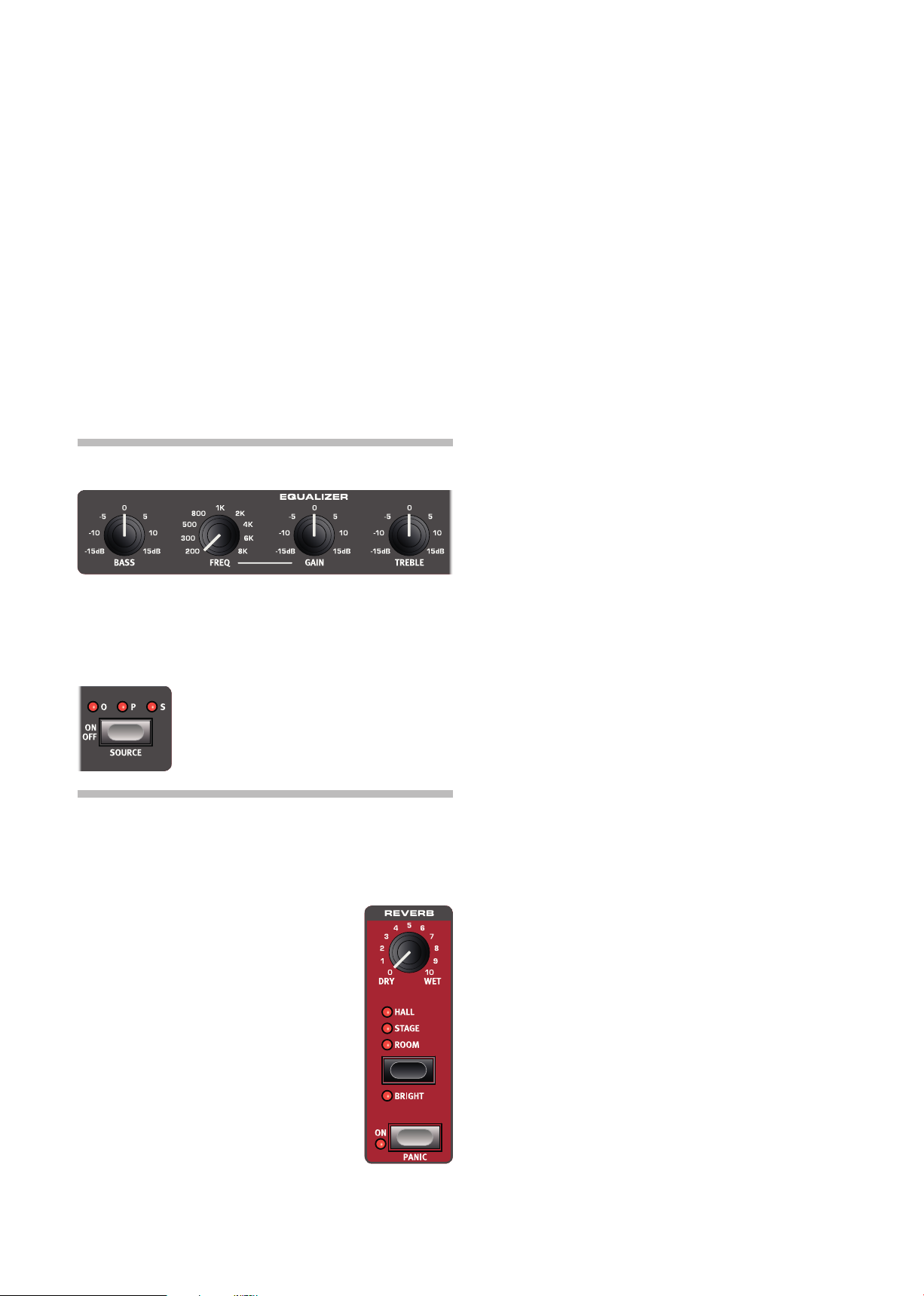

Equalizer ..........................................................................................................22

Reverb ..............................................................................................................22

Panic ...............................................................................................................22

9 MIDI ...........................................................................................................23

MIDI functions ...............................................................................................23

Global MIDI ....................................................................................................23

Recording an Electro 6 performance to a MIDI sequencer or DAW ..................23

External keyboard to Lo ...................................................................................23

MIDI Messages .............................................................................................23

Note On/Off ................................................................................................23

Controllers ..................................................................................................23

Keyboard Velocity .......................................................................................24

Program Change .........................................................................................24

Local Control On/Off ..................................................................................24

Panic ..................................................................................................................24

11 - Channel ...................................................................................................27

Global ........................................................................................................27

External KBD ..............................................................................................27

12 - Control/Program Change Mode ...............................................................27

CC (Control Change) ..................................................................................27

PC (Program Change) .................................................................................27

13 - Transpose MIDI At ....................................................................................27

Sound Menu ..................................................................................................27

1 - Piano String Res Level ...............................................................................27

2 - B3 Organ Tonewheel Mode ........................................................................27

3 - B3 Organ Click Level ..................................................................................27

4 - B3 Organ Keyboard Trigger Point ...............................................................27

5 - Rotary Speaker ..........................................................................................27

6 - Rotary balance ...........................................................................................27

7 - Rotary Rotor ..............................................................................................27

Spd (Speed) ...............................................................................................27

Acc (Acceleration) .......................................................................................27

8 - Rotary Horn ...............................................................................................27

Spd (Speed) ..............................................................................................27

Acc (Acceleration) .......................................................................................27

12 CONNECTIONS ........................................................................28

Audio connections ......................................................................................28

Headphones ...................................................................................................28

Left & Right Out ...............................................................................................28

Monitor In ........................................................................................................28

MIDI connections ........................................................................................28

MIDI In ............................................................................................................28

MIDI Out .........................................................................................................28

USB connection ...........................................................................................28

Pedal connections ......................................................................................28

Sustain Pedal ..................................................................................................28

Control Pedal ..................................................................................................28

Rotor Pedal .....................................................................................................28

II APPENDIX: MIDI CONTROLLER LIST .................29

III INDEX ................................................................................................... 30

10 NORD SOUND MANAGER ..........................................25

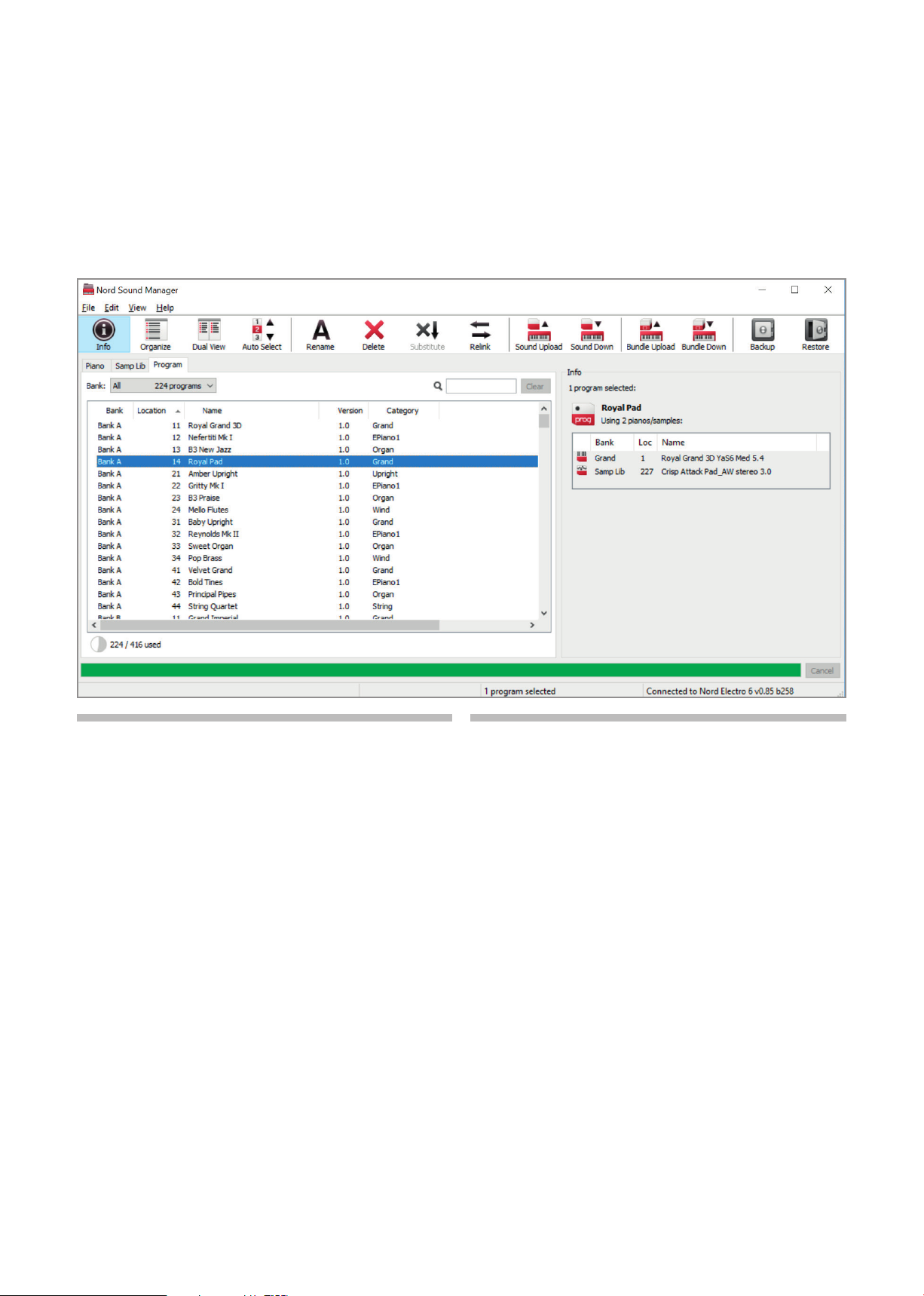

About Nord Sound Manager .................................................................25

System requirements ................................................................................25

11 MENUS ..............................................................................................26

System Menu ................................................................................................26

1 - Memory Protect .........................................................................................26

2 - Program Selection Mode ............................................................................26

3 - Global Transpose .......................................................................................26

4 - Fine Tune ...................................................................................................26

5 - Seamless Prog Change ..............................................................................26

6 - Output Routing mode ................................................................................26

7 - Sustain Pedal ............................................................................................26

Type............................................................................................................26

Func (Function) ...........................................................................................26

8 - Rotor Pedal ................................................................................................26

Type............................................................................................................26

Func (Function) ...........................................................................................26

9 - Control Pedal .............................................................................................26

Type............................................................................................................26

Gain ............................................................................................................27

10 - Local Control ...........................................................................................27

1. INTRODUCTION | 5

INTRODUCTION

THANK YOU!

Thank you for choosing the Nord Electro 6!

The Nord Electro 6 combines our award-winning emulations of vintage electro mechanical and acoustic instruments in one ultra-portable package. With three independent sound sections, a new streamlined user inter face and the addition of seamless transitions, we’re proud to present the most powerful and ﬂexible Electro ever.

FEATURES

The Nord Electro 6 has the following main features:

 Organ section with faithful reproductions of three classic organ mod-

els, B3, Vox and Farf, as found in our acclaimed C2D combo organ. There are also two Pipe organ models, each with its own distinct character.

 Physical drawbars on the 61 and 73 key D models. Digital LED draw-

bars on the 73 key HP model.

 Piano section with acoustic Grand and Upright pianos, tine and

reed based Electric pianos, Digital piano sounds, Clavinet and Harpsichord sounds and a Layer category with rich sounding piano combinations. The memory capacity for the Piano section in the Electro 6 is 1 GB.

 Sample Synth section with 512 MB of sample memory and intuitive

envelope and dynamics controls.

 Comprehensive Effects section.

 Seamless Transitions: Sustaining notes will not be cut off when

changing programs.

 Keyboard split functionality with dual manual organ mode and

optional split widths, allowing sounds to smoothly cross-fade over split point.

 Three models: Nord Electro 6D 73 and 6D 61 with semi weighted

“waterfall” keybeds and physical drawbars, and Nord Electro 6 HP 73 witha lightweighthammer actionkeybed and digital LED draw-

bars.

» Nord World: Nord releated news stories and videos

» User Manuals for download

» Tutorials can be found at nordkeyboards.com/tutorials

Follow Nord Keyboards on Facebook, Instagram, Twitter and YouTube. Feel free to tag your content with our ofﬁcial hashtag #iseenord.

ABOUT THE USER MANUAL

The manual is arranged mainly as a reference manual. In many cases you’ll also get tips on how to practically use the various features in a musical context.

READING THE MANUAL IN PDF FORMAT

This manual is available as a digital PDF ﬁle. It can be downloaded, free of charge, from the Nord Electro 6 section on our website.

RESTORING THE FACTORY PRESETS

The factory programs, samples and pianos are available as individual Nord Sound Manager backup ﬁles for download from our website. There is also a complete backup of the entire instrument and its factory content, in case it needs to be restored to its original state at some point.

OS UPGRADES

The latest OS (Operating System) version for the Nord Electro 6 is always available for download from our website. Please visit our website from time to time, to make sure you have the latest version in your unit.

FREE SOUNDS

Since the Nord Electro 6 is designed as an open system, each and every piano and sample in the Nord Electro 6 can be replaced. This is done using the Nord Sound Manager application which is available as a free download from our website.

NORD ONLINE

On the website nordkeyboards.com you will ﬁnd:

» Information about the Nord Electro 6 and other Nord instruments

» Latest Operating Systems for download

» Free software: Nord Sound Manager, Nord Sample Editor and

drivers

» Nord Piano Librar y sounds for free download

» Nord Sample Library sounds for free download

The Nord Electro 6 is compatible with the continuously expanding Nord Piano Library and the Nord Sample Library. When new sounds become available, these can be download for free from the Sound Libraries section of our website.

DISCLAIMER

Any trademarks and brand names mentioned in this manual are the property of their respective owners and are not afﬁliated or associated with Clavia. These trademarks and brand names are only mentioned to describe certain sound qualities reproduced by the Nord Electro 6.

6 | NORD ELECTRO 6 USER MANUAL OS V1.0X

260

Synth Bass 5

A:14

OVERVIEW

EightyNine

B3 Ballad EP1 Sml

ORGAN PIANO PROGRAM SAMPLE SYNTH EFFECTS

THE ELECTRO 6 PANEL

The Nord Electro 6 is designed to be a musically inspiring yet easy-touse instrument. Let’s have a quick look at all its panel sections:

ORGAN SECTION – PAGE 10

The dedicated Organ section, with its nine drawbars for real-time adjustments to the Organ sound, uses our latest B3 tonewheel Organ model, as found in the acclaimed Nord C2D Combo Organ.

The B3 model is based on the analysis of the signals generated by each of the 91 spinning discs inside several original instruments, and its virtual circuitry reacts not only to the panel settings but also to the real time performance, simulating important foldback, compression and energy robbing characteristics. The Rotary Speaker simulation is derived from the Nord C2D which brings the Electro 6’s organs to life with remarkable realism.

Two carefully modelled emulations of famous transistor organs from the 1960’s – the Vox Continental and the Far f (Farﬁsa) Compact – are also included. Finally, there are two distinct Pipe Organ models including a “Principal” Pipe model with two variations that deliver a wide range of versatile pipe/church organ sounds.

Any Organ model can be used in a single or dual manual conﬁguration, each manual having an additional preset for quick switching between two distinct sounds.

PIANO SECTION – PAGE 14

The Nord Electro 6 beneﬁts from the ever-growing Nord Piano Library and includes a wide range of piano and keyboard sounds including Grand, Upright and Electric pianos as well as Digital piano and Layer sounds right out of the box. New sounds are regularly made available free of charge on the www.nordkeyboards.com website.

Among the Piano section’s panel controls are buttons for activating the

Advanced String Resonance feature (for acoustic pianos), adjusting the keyboard velocity response or quickly altering the sound character using the Piano and Clavinet Equalizer settings.

PROGRAM SECTION – PAGE 16

A program on the Nord Electro 6 contains settings for all sound engines and effects. The center area of the instrument – the Program section – is where programs are navigated and stored, and various performance features and settings menus are accessed. All this is aided by the large OLED display, which also shows Organ drawbar settings and the name of any selected Piano and/or Sample sound.

SAMPLE SYNTH SECTION – PAGE 19

The Nord Sample Library gives Electro 6 owners access to a huge free library of world-class sounds, including the famous vintage Mellotron and Chamberlin sounds. A large selection of samples are included from the start and the Sample Synth section is where these are browsed and loaded. A number of functions for adjusting the character and response of the sample are accessed directly via the panel.

EFFECTS SECTION – PAGE 20

The Effects section puts a wide selection of classic effects at your ﬁngertips:

The Effects 1 and 2 units provide essential modulation effects such as Tremolo, Chorus and Phaser – modelled after legendary stomp boxes and effects units. The Delay effect can be used for anything from subtle ambience or slap-back effects to almost endless soundscapes.

Classic ampliﬁer simulations, the Rotary Speaker and a punchy Compressor effect are found in the Amp/Spkr section. A versatile EQ with sweepable Mid range frequency can be applied to any of the Electro 6 sound engines.

Finally, the lush Reverb – with an optional Bright mode – provides an array of small and large room simulations for instant atmosphere.

PROGRAM INIT

Select section to initialize

Org Dual Org Piano Synth

3. GETTING STARTED | 7

GETTING STARTED

Let’s spend a few minutes getting acquainted with the most fundamental features of the Nord Electro 6. In this chapter some of the most common tasks and scenarios will be described in a stepwise fashion.

HOOKING IT UP

1 Connect the Nord Electro 6 power cord to the unit and a mains

power supply, connect the sustain pedal and a set of headphones or a sound system.

2 Make sure to turn on the Nord Electro 6 ﬁrst, before the sound

system. Please be careful with the output volume!

For more information on all the connections of the Electro 6, see the Connections section on page 28.

PANEL CONTROLS

DIALS AND KNOBS

The dials on the Nord Electro 6 are knobs without ﬁxed start and stop positions, used for navigating parameters and settings. The PROGRAM dial is one such example. In this manual, dials are sometimes also referred to as encoders.

THE SHIFT BUTTON

Many panel controls on the Nord Electro 6 have a second- ary function, which is printed immediately below it. These additional functions are accessed by pressing and holding SHIFT while operating the control.

The Shift button is also used to EXIT a menu or to cancel an ongoing Store operation.

SOFT BUTTONS

One menu or settings page, or the Program Init window (shown below) may contain several related options in which case “soft buttons” are used for focusing a setting or performing a task. Soft buttons are placed at the bottom of the display and are controlled with the PROGRAM 1-4 buttons. As an example; in the scenario below, pressing the Program 3 button will initialize the panel to a Piano program.

BUTTONS

Potentiometer-type knobs are used for many parameters on the Nord Electro 6. When a program is loaded the physical positions of these knobs will in most cases not correspond to the actual parameter values. As soon as a knob is turned however, its associated parameter value will “snap” to the knob’s position.

 Hold the SHIFT button and turn a knob to view the stored setting of

a parameter without changing it.

Selector buttons are used to select one setting in an

array. They have a set of round or triangular LEDs to indicate its current setting. Press the button several times to cycle through the possible options.

ON/OFF buttons are used for activating a function or a group of functions such as effects and have a LED close to them to indicate the on/off status and sometimes also the source or zone.

M The On/Off buttons of the Effects shown here also have a selector

functionality. Press once to turn the Effect on, and press immediately again to select the “next” source.

PROGRAMS

The Program area is located at the center of the panel with an OLED display in the middle. One program contains complete settings of every parameter on the panel and is stored in the program memory of the Electro 6, with enough room for 416 programs.

Programs are organized into 26 banks, labeled A-Z. All programs can be edited and replaced as you wish.

M A complete set of the factory programs is available on the www.

nordkeyboards.com website. This means that the program memory can always be restored to its original state.

SELECT A PROGRAM

1 Programs are selected by pressing any of the four PROGRAM but-

tons, located below the display. The PAGE 3/4 buttons are used to navigate program pages – a page being a group of 4 programs. A Program bank on the Nord Electro 6 can contain 16 programs divided into 4 program pages.

2 Programs can also be navigated by turning the PROGRAM dial.

8 | NORD ELECTRO 6 USER MANUAL OS V1.0X

STORE PROGRAM TO

A:11

Royal Grand 3D

Program EPiano1

G:31 Lullaby Upright G:32 Ballad Reeds G:33 B3 Silk G:34 Graceful Duo

Num Abc Cat

LIST VIEW

Any dial that has LIST written below it - such as the Program dial - can be used to access a useful list view.

1 Press SHIFT and turn the PROGRAM dial to enter a list view of all the

Programs.

2 Browse to any program, using the PROGRAM dial. All 26 program

banks can be accessed when in List mode.

3 Try out the Abc and Cat soft buttons respectively. Note that in Abc

mode, all programs are shown in a list sorted by name and in Cat mode as a list sorted by Category.

4 Press SHIFT again to EXIT the List view.

2 Memory Protect is the ﬁrst setting of the System menu. If the dis-

play shows a different setting, use the Page3button to navigate to the Memory Protect setting.

3 Change this setting to Off by turning the PROGRAM dial. 4 Press EXIT (Shift button) to exit the System menu.

M This setting, like most other System settings, will be permanently

stored until it is changed again.

Read more about menu settings on page 26.

STORE A PROGRAM

1 Press the STORE button to the left of the display once, to begin the

process of storing the current program.

2 The STORE LED will begin to ﬂash and the display will ask you for

the location to where you want to store the program.

 List views for the Piano and Sample dials work in a similar way.

EDIT A PROGRAM

Editing a program is as easy as turning a knob or pressing a button to change an existing setting. Let’s give it a quick try:

1 Dial up the ﬁrst program (A:11, a piano based program) for this

exercise.

 The controls for the Piano instrument are located immediately to

the left of the Program area on the panel. Notice that the Piano section of the Program area display shows the name of the selected piano sound.

SELECT A NEW PIANO SOUND

2 Turn the PIANO SELECT dial to browse the piano sounds. Sounds

are organized according to their type (for instance Grand and Upright).

3 Try selecting a piano sound from the LIST view, accessed by

pressing SHIFT and turning the PIANO SELECT dial. Use Shift again to EXIT the list view.

Note that changing any parameter on the panel causes an “E” to appear next to the program number in the display. This is to show that the program has been edited but not yet saved. If another program is loaded before a Store operation is performed, any edits are lost and the program will have its original settings the next time it is loaded.

TURN OFF MEMORY PROTECTION

When the Nord Electro 6 is shipped from factory its memory is protected to prevent accidental overwriting of original programs. Memory protection can be turned off by toggling a setting located in the System menu.

1 Hold SHIFT and press the SYSTEM (Program 1) button below the

display.

3 If you want to store the edited version to the current location,

replacing the original, simply press STORE again. If not, use the dial, PROGRAM and/or PAGE 3/4 buttons to select a different location.

 The program in the selected location becomes active on the

keyboard, allowing it to be auditioned before it is replaced by the program being stored.

4 When you have found a suitable location for your program, press

STORE again to conﬁrm the store operation.

M Press Shift/Exit once to abort an ongoing Store process if you

change your mind.

Read more about Store and how to name a program in the Program chapter, on page 16.

LIVE MODE

The eight LIVE programs, divided into two pages – A:1-4 and B:1-4 – differ from other programs in that all edits made to them are instantly stored, without the need for a manual Store operation.

1 Press LIVE MODE and use the PROGRAM and PAGE buttons to

navigate the eight Live programs.

2 Make an edit, such as activating one of the effects sections, to one

of the programs.

3 Select a different Live program and then return to the one that was

edited. Note that the edit was automatically stored.

Press the Live Mode button again to exit Live Mode and return to the Program banks.

If Live Mode is active and you wish to store the settings permanently as a program in one of the Program banks, you can do so using the standard Store methods (see above). Conversely, programs can also be stored into any of the eight Live Mode memory locations by pressing LIVE MODE and selecting one of the Live program locations.

ACTIVATE EFFECTS

KEYBOARD SPLIT

Split Position

C4 Off

WidthPos

1 Activate the reverb by pressing the Reverb ON button. 2 Adjust the DRY/WET balance with the knob above the reverb

selector.

3 Activate the delay effect by pressing the Delay ON/OFF button once. 4 The LEDs above the button indicate which sound engine is routed

to the effect (O = Organ, P = Piano and S = Sample Synth). Press SHIFT and the Delay SOURCE button until the P LED is lit, if it is not

already.

 Double-clicking the On Off / Source button is a shortcut for quickly

changing the source for any effects unit.

5 Try the RATE, FEEDBACK and DRY/WET controls, to alter the charac-

ter and intensity of the Delay effect.

3. GETTING STARTED | 9

SET THE SAMPLE SYNTH TO THE LOWER ZONE

6 Turn ON the Sample Synth section. Hold SHIFT and press Sample

Synth ZONE SELECT so that the LO LED is lit. This will assign the Sample Synth to the lower half of the keyboard.

LOAD A SAMPLE

1 Turn the SAMPLE SELECT dial and select a sample from the Sample

bank, perhaps a bass sound. The location and name of the sample are shown at the bottom of the display.

When a sample is selected, preset settings for the Sample Synth envelope, Dynamics and Filter settings are also loaded. These parameters can subsequently be adjusted manually as desired. Descriptions of these controls are found in the Sample Synth reference chapter, starting on page 19.

ACTIVATING THE ROTARY SPEAKER

The Rotary Speaker – being most commonly used with the Organ – has its speed controls located next to that section. The effect itself is located in the SPKR/COMP unit however, and is activated and assigned just as the Delay effect described above.

 Pressing the Rotary Speed control when the effect is Off will auto-

matically turn on the Rotary Speaker and assign it to the left-most of the currently active sound engines.

CREATE A SPLIT

1 Make sure that the Piano section is turned on. 2 To activate Split mode, press the KBD SPLIT button, located in the

top row above the Program area display.

3 To adjust the position of the Split point, press and hold the KBD

SPLIT button.

M The “6“ symbol indicates that this button has functions which are

accessed by keeping the button pressed down.

4 There are two settings for the split point; position and width. Make

sure that the Position setting is focused (by pressing the Pos soft button) and set the split point to C4 using the dial.

The keyboard is now divided into two zones, the split point being indicated with a green LED above the keyboard.

ASSIGN THE PIANO TO THE UPPER ZONE

5 Hold SHIFT and press the Piano ZONE SELECT button so that only

the UP LED is lit.

This assigns the Piano to the upper zone of the keyboard. Feel free to use the OCTAVE SHIFT buttons in the Piano section for accessing a different range of the piano sound.

SET UP A SPLIT CROSS-FADE (SPLIT WIDTH)

As a ﬁnal step, let’s adjust the split point so that the split Sample Synth and Piano sounds will transition gradually between one another:

2 Again, press and hold the KBD SPLIT button, located in the top row

above the Program area display.

3 Press the Width soft button. The Split width for each split point can

now be adjusted.

4 Set the width value to “Lrg” (large) by turning the dial. Let go of the

KBD SPLIT button.

Playing across the Split point will now “cross-fade” between the lower and the upper sound. Note that the split LED above the keyboard is lit with a red light, indicating that a large split width is being used. With a small width the LED will be yellow, and with width set to “off” the LED will be green.

CREATE A TWO MANUAL B3

Setting up an Organ split, with two independent manuals, can be done very quickly. Let’s try out the Program Init feature which will conﬁgure the Organ section correctly, and turn off other active sound engines:

1 Press PROG INIT (Shift + Program 3 button). The display now pres-

ents four initialize options to choose from.

2 Press the Dual Org soft button (Program 2 button). 3 Make sure the ORGAN MODEL selector is set to B3 and press the

ROTARY Slow/Fast control to automatically turn on the Rotary Speaker effect.

A keyboard split has now been created, providing one Organ manual to the left of the split point – referred to as the Lower manual – and another to the right which is referred to as Upper. Both Organ KB Zone LEDs are now lit with a yellow color, meaning that the Organ is active across the whole keyboard, in a Dual Organ split conﬁguration.

4 Set the drawbars, Percussion, and other Organ settings for the

Upper manual as desired.

5 Press the EDIT LOWER button to focus the Lower manual for editing

and adjust the drawbars. Note that the display shows drawbar settings for both manuals, but that the non-focused ones are “grayed out”.

M A two manual B3 using an external keyboard for one of the man-

uals can also be easily set up, by using the External KBD to Lo function. Read more about this on page 17.

10 | NORD ELECTRO 6 USER MANUAL OS V1.0X

ORGAN

The Nord Electro 6 features ﬁve organ models, all digitally modeled: A B3 tonewheel organ with a dedicated B3 Bass mode, two transistor organs and two Pipe organ models, including a “principal pipe” section.

ON/OFF, LEVEL AND ZONE SELECT

The Organ section is turned On or Off by pressing its ON/OFF button. The LEVEL knob controls the output volume of the Organ.

Press ZONE SELECT (Shift + On/Off) to assign the Organ to either or both of the two keyboard zones. The KBD ZONE LEDs show which zones the Organ section is assigned to.

OCTAVE UP/DOWN

Use OCTAVE UP/DOWN to transpose the Organ section up or down by octaves (+/- 12 semitones). When assigned to the entire keyboard it can be transposed one octave up or down. When assigned to a smaller zone the available transpose values will vary, but always give access to the entire range of the Organ.

M To use Octave Up/Dn for the lower manual, in Dual Organ mode,

Edit Lower mode needs to be active.

SUSTPED AND CTRLPED

SUSTPED (Shift + Octave Shift Up) activates an attached sustain pedal for the Organ section.

CTRLPED (Shift + Octave Shift Up) assigns an attached control pedal as volume control for the Organ section. With the B3/B3 Bass models it

functions as a traditional Swell pedal which also changes the character of the sound when the Rotary Speaker Drive is used.

Read more about how to conﬁgure pedals on page 26.

DRAWBARS AND BUTTONS

The drawbars on the Nord Electro 6HP model are represented by buttons and LED chain graphs. The Nord Electro 6D models use “real” mechanical drawbars.

When a program is loaded, the physical drawbars will in most cases not correspond to their stored settings. As soon as a drawbar is moved however, its setting will be the same as that of the physical position.

M There is one exception to the behaviour described above: Any

program stored with Manual Organ activated will use the actual drawbar positions when it is loaded.

The digital drawbars behave similarly to their mechanical counterparts. On the B3, B3 Bass, Vox and Pipe models you “pull out” and “push in” the drawbars using the drawbar buttons. With the Farf model, drawbar buttons act as rocker switches, toggling each register on or off.

The buttons are special in the way that they auto-increment/decrement the drawbar value when they are held down. If you hold a drawbar button the corresponding drawbar setting will continue to increment or decrement (within its range) until you release the button.

M The Program section display always shows the current drawbar

settings for the Organ section.

4. ORGAN | 11

16 5

⅓ ⅔ ⅗

8 4 2 1⅓1 1

SELECTING AN ORGAN MODEL

Use the ORGAN MODEL selector button to select your preferred Organ model: B3, VOX, FARF, PIPE1, PIPE2 or B3 BASS.

With the B3 Bass setting, its drawbars are placed on the “upper” manual in non-Dual Organ mode, making it possible to create B3 Bass and Piano/Sample

Synth splits. In Dual Organ mode the bass drawbars are found on the lower manual, with a standard set of B3 drawbars on the upper manual, as expected.

THE B3 MODEL

The B3 model is based on a digital model of the classic electro-mechanical tonewheel organ. This simulation utilizes innovative and advanced methods to capture every nuance of the original sound. Here are some examples:

• An extremely accurate digital model of the original chorus and vibrato scanner.

• Modeling of the individual random contact bounces for each harmonic.

• Modeling of the unique frequency characteristics of the built-in pre-ampliﬁer, which forms the “body” of the sound.

• Simulation of the energy robbing on the tone wheels that results in the typical “compressed” sound.

• Authentic tuning of the tonewheels according to the original design.

• Extremely fast keyboard response.

• Full polyphony.

B3 DRAWBARS

The harmonic intervals for the B3 tonewheel organ are printed on the panel below the drawbars.

VIBRATO & CHORUS

The original vibrato and chorus scanner in a tonewheel organ consists of a modulated delay line in combination with a rotating scanner. For the Vibrato effect, phase shift is applied to the signal. For the Chorus effect, the phase-modulated signal is added to the original signal.

Three different types of choruses (C1 - C3) and three different types of vibratos (V1 - V3) are available. Select one of these types by pressing the Vibrato/Chorus selector button.

PERCUSSION

Press the PERCUSSION ON button to add an extra attack to the B3 sound by having a single envelope generator controlling either the 2nd or 3rd harmonic.

The envelope “opens up” for a short moment in the beginning of the sound when you press the key(s).

The percussion is a single-triggered non-legato effect. By “single-triggered” we mean that the percussion is only present when you hit the keys when no other note is sounding. In other words, if you play a note or a chord and then add more notes without releasing the previously pressed keys, there will be no percussion effect in the new notes. You have to release all keys to be able to play new notes with the percussion effect.

For basic drawbar operation, please refer to “Drawbars and Buttons” on the previous page. Each drawbar represents a partial with a ﬁxed harmonic interval in relationship with the played note.

The illustration below shows the pitch interval among the nine drawbars when the key of C3 is played. Note that the 5 ⅓’ drawbar is a 5th above the fundamental harmonic (8’) but in many situations is perceived as sounding below it.

The SOFT button toggles between Normal and Soft percussion level. The FAST button toggles between Slow and Fast decay times.

The THIRD button toggles between using the 2nd or 3rd partial as the source for the percussion effect.

M The Percussion effect is only available for the B3 organ model.

KEY CLICK CONTROL

The key click produced by the random contact bounces is an important audio artifact in the original B3 instrument and quickly became a desirable effect among musicians. The click level can be adjusted in the Sound menu, read more about this on page 27.

 Do not forget to try out the three tonewheel modes that are also

available in the Sound menu. These will dramatically change the sound of the B3 model from a squeaky clean unit to a battered, old workhorse.

12 | NORD ELECTRO 6 USER MANUAL OS V1.0X

THE VOX MODEL

The original Vox™ organ is probably the most famous of all the transistor based combo organs that emerged in the early 60’s. Transistor technology made it possible to manufacture compact and portable organ instruments. Compared to the mighty sound of tonewheel based organs, transistor organs generally sounded reedier and weaker, but this one had a distinctive sound character which together with the portability and cool design (inverse colored keyboard and chrome “Z-frame” stand) made the instrument massively popular at the time. The sound is timeless and recreated faithfully by the Nord Electro 6.

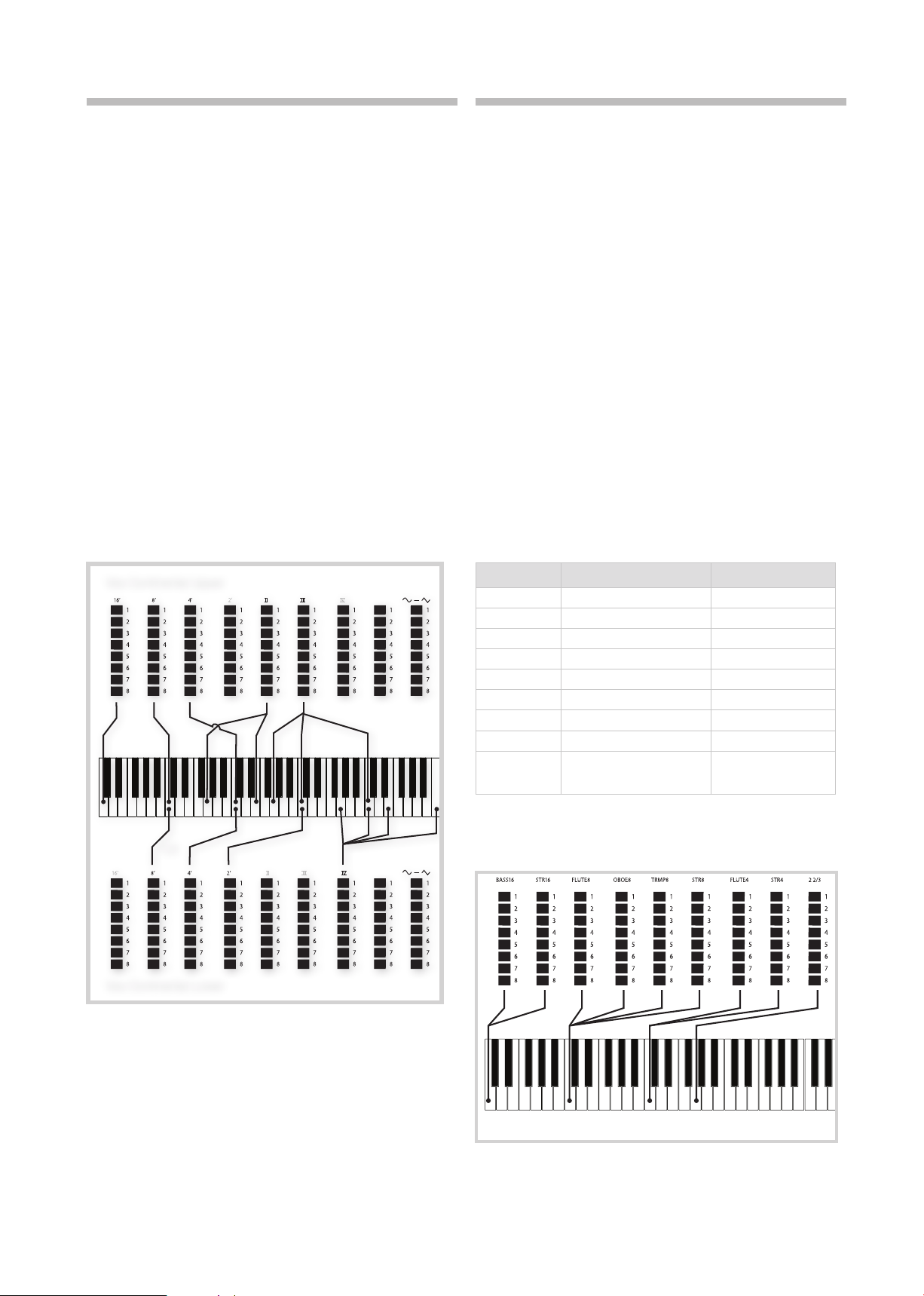

VOX DRAWBARS

The labels used for the Vox drawbars are printed on the row directly above the drawbar LEDs.

For basic drawbar operation, please refer to “Drawbars and buttons” on page 10.

The seven drawbars to the left control the level of each partial. Each partial has a ﬁxed harmonic interval relating to the played note. The illustration below shows the pitch interval of the drawbars when the key of C3 is played. The intervals vary for the upper and lower manual on the original instrument, and the Nord Electro 6 implements a combination of the two for both manuals.

THE FARF MODEL

The typical “buzzy” sound of this vintage instrument is one of the most distinct and easily recognizable organ sounds ever created; yet it is actually possible to get quite a wide range of sounds out of the instrument. Note that the voices aren’t supposed to replicate the instruments they are named after, but rather to describe the basic tonal characteristic of the voice: Flute = soft, Oboe = reedy, Trumpet = brassy etc.

FARF REGISTERS

The labels used for the FARF drawbars/registers are printed on the upper row, above the drawbar LEDs or drawbars.

The drawbars act as on/off switches, or “register selectors” when the Farf model is selected. Instead of drawbars, the original instrument used rocker switches for selecting instrument voices (in reality different ﬁlter settings) in various footage (octave) ranges. On the Electro 6 HP model, drawbar LEDs 5-8 are lit up for an activated voice, and LEDs 1-4 are for a deactivated voice. On the Electro 6 D models, pulling the drawbars more than half way out will activate the corresponding register.

As usual, the Program section display will show current drawbar settings for the Organ section. The table below shows the original register name.

Vox Continental Upper

Vox Continental Lower

Drawbar Voice Panel Name

1 Bass 16 BASS16

2 Strings 16 STR16

3 Flute 8 FLUTE8

4 Oboe 8 OBOE8

5 Trumpet 8 TRMP8

6 Strings 8 STR8

7 Flute 4 FLUTE4

8 Strings 4 STR4

9 A bright voice, an octave

The illustration below shows the pitch interval between each voice when the key of C3 is played. Though some voices have the same pitch, they differ in tonal character.

and a ﬁfth above the fundamental

2 2/3

The rightmost drawbar controls the mix between a ﬁltered signal sounding soft and dark, and an unﬁltered signal sounding bright and intense.

VIBRATO

There are several types of vibrato and choruses available for the Vox model, which is activated using the ON button in the Vibrato section. The V3 setting is the one that is modeled after the original instrument.

4. ORGAN | 13

260

Live A:3

VIBRATO

The original instrument has two basic vibrato modes; “Light” and “Heavy”, with different rates for each mode. There are several types of vibrato and choruses available for the Farf model on the Nord Electro 6, which are activated using the ON button in the Vibrato section.

The V1, V2 and the V3 settings are the ones that are modeled after the original instrument’s.

PIPE ORGANS

PIPE 1

The PIPE1 organ model is not designed to imitate any existing instrument, but rather to be a useful and appealing “all-purpose” organ, which works equally well with or without Rotary speaker. In some ways its sound is similar to that of the B3 organ – but without any of its electromechanical behaviors and artifacts.

PIPE 2

The PIPE2 organ model faithfully recreates a principal pipe section - the sets of metal pipes, or ranks, that commonly make up the backbone of a pipe or church organ. While other ranks may attempt to recreate the sounds of other instruments (ﬂutes, trumpets, strings etc.) the principal sound is non-imitative and unique to the pipe organ.

MANUAL ORGAN

The MANUAL ORGAN (Shift + Octave Down) can be thought of as a separate – program independent – organ, the settings of which are in always sync regardless of which program it is loaded from. Additionally the actual positions of the drawbars are always used when Manual Organ is activated or loaded from a program.

 By using Manual Organ and the External KBD to Lo feature (see

page 17), a separate keyboard could be used to control the organ on a per-program basis in a manner where the current drawbar positions are always used, and all other organ settings remain the same, regardless of which program is loaded.

DUAL ORGAN

Press DUAL ORGAN (Shift + Edit Lower Manual) to instantly create a double manual organ setup, with the keyboard split into two zones. The lower (LO) manual will be on the left side of the split point and the upper (UP) manual to the right.

To adjust the keyboard split position, press down on the KBD SPLIT button in the Program area and use the dial. See page 16 for more information on this.

EDIT LOWER MANUAL

PIPE 1&2 CHORUS

Activating VIBRATO/CHORUS for the Pipe 1 or 2 model will switch to a variation which is tuned with less precision. This produces chorus-like effects, slight dissonances and arguably more realism when combining registers.

Press the EDIT LOWER MANUAL button to focus the lower manual for editing and drawbar interaction. To return to the upper manual, simply press the button again. In Dual Organ mode the drawbar representations in the display will show which manual is currently focused by “graying out” the other one. The example below shows a Live program set up as a Dual Organ split in B3 Bass mode, with the upper manual focused for editing.

PIPE 1&2 REGISTERS

The pipe lengths available for both Pipe models correspond to those of the B3 model, ranging from 16 feet to 1 foot.

PRESET

To switch between the two drawbar settings press the PRESET button. The Preset LED being lit indicates that the Preset is active.

In order to modify the Preset, press down on the button – as indicated by the ”6” symbol – while adjusting the drawbars and other settings.

When in the non-Preset mode, the current drawbar positions can be stored to the Preset by pressing COPY TO PRESET (Shift + Preset).

There are two sets of drawbars available for each Organ manual – the default drawbar set (Preset LED not lit) and the Preset. This provides a quick way of changing between two organ sound variations, without having to change programs.

M The Edit Lower Manual control is only available in Dual Organ

mode.

ROTARY SPEAKER

The Rotary Speaker controls are logically placed next to the Organ section. Its settings are described in detail in the Effects chapter on page 21.

14 | NORD ELECTRO 6 USER MANUAL OS V1.0X

PIANO

be downloaded from the www.nordkeyboards.com website and added to the Nord Electro 6 by using the Nord Sound Manager.

Right out of the box, the Nord Electro 6 features a ﬁne collection of carefully selected acoustic and electric pianos, digital piano sounds and piano layers. A lot of effort was made to ensure a nuanced response and sound, matching the original models as closely as possible.

The available memory size for piano sounds is 1 Gigabyte.

M When you download piano instruments with the Nord Sound

Manager, these will always automatically be placed into their corresponding category.

A program “knows” which piano to use by referencing to the category and the model number. If a program references a piano that isn’t currently downloaded onto the Nord Electro 6, the display will read “Piano not found”. If this happens; either navigate to another instrument model from the same or another category (using the Piano Select dial) and select to use this piano instead, or use the Nord Sound Manager application to download the missing instrument to the Electro 6.

ON/OFF, LEVEL AND ZONE SELECT

The Piano section is turned On or Off by pressing its ON/OFF button. The LEVEL knob controls the volume of the Piano sound.

Press ZONE SELECT (Shift + On/Off), to assign the Piano to one or both of the two keyboard zones. The KBD ZONE LEDs indicate which of the zones the Piano section is assigned to. Read more about Split set-ups on page 16.

OCTAVE UP/DOWN

Use OCTAVE UP/DOWN to transpose the Piano section up or down by octaves (+/- 12 semitones). When assigned to the entire keyboard it can be transposed one octave up or down. When assigned to only one zone the available transpose values will vary, but always provide access to the entire range of the Piano.

SUSTPED AND CTRLPED

SUSTPED (Shift + Octave Up) activates any attached sustain pedal for the Piano section. Read more on how to conﬁgure an attached pedal in the Menus chapter, on page 26.

CTRLPED (Shift + Octave Up) assigns an attached control pedal as volume control for the Piano section.

ABOUT PIANO SIZE

Nord Piano Library sounds come in up to four different sizes. Below is an overview of how they differ in functionality:

Sml Med Lrg XL

Stereo sampled

Detailed velocity mapping

String resonance for middle range

String resonance for entire range

Fully mapped keyboard

Small (Sml) piano ﬁles use the least amount of space in the piano memory as they do not contain any pedal-down String Resonance samples at all.

The Medium (Med) versions include pedal-down String Resonance samples for the important middle region of the range.

The Large (Lrg) versions have the pedal-down String Resonance samples all across the keyboard.

Many pianos are also available in an Extra Large (XL) version. These are “fully mapped” across the keyboard, meaning that each key on the Nord now matches its exact equivalent on the original instrument. This naturally imposes a substantial increase in size.

3 3 3 3

3 3

Both the sustain and control pedal can be active at the same time, indicated by both LEDs being lit.

ABOUT THE PIANO SOUNDS

The Pianos in the Nord Electro 6 are organized into six categories. Each category can contain several instrument models. New piano sounds can

PIANO SELECT

CATEGORY AND MODEL

Use the PIANO SELECT dial to choose which piano sound you want to use. These are the six categories into which all piano sounds are placed:

5. PIANO | 15

AllNum Abc Cat

CATEGORY DESCRIPTION

Grand Acoustic and electric grand pianos

Upright Upright pianos

Electric Electric Pianos (tine and reed based)

Clav/Hps Clavinets and Harpsichords

Digital Digital piano sounds

Layer Layered piano sounds

M Pianos can not be moved from one category to another.

The name of the selected model is shown at the bottom of the Program section display, indicated by a keyboard icon.

ABOUT THE CLAVINET

On the original Clavinet D6, different pick-up combinations were selected by pressing a number of rocker switches. This functionality is faithfully simulated by the Nord Electro 6, which means that all original Clavinet D6 pickup selections are available.

PICK-UP TYPE DESCRIPTION

Clav Model A: Only the “neck” pick-up; a warmer, less bright sound. Clav Model B: Only the “bridge” pick-up; a bright sound. Clav Model C: Both pick-ups on and in phase; a very full sound. Clav Model D: Both pick-ups 180 degrees out of phase; the fundamen-

tal is almost cancelled out and the sound becomes thin.

LIST VIEW

MONO

In MONO mode (Shift + KBD Touch) all stereo sampled pianos will be played back in mono. The mono versions of our piano sounds are specially designed to provide optimal sound, even in mono.

STRING RES AND SOFT RELEASE

STRING RESONANCE

String Resonance refers to the acoustic phenomenon that occurs when strings, or parts of strings, resonate at their fundamental or harmonic frequencies when other strings are played.

When STRING RES is turned on, all notes you play will affect each other to reproduce the wonderful acoustics that occurs inside an acoustic grand or upright piano.

Also, when the sustain pedal is pressed down the fact that all dampers are being lifted will further add to the resonance effect.

The sound level of the string resonance effect can be set in the Sound menu, see page 27.

M If a piano is selected that isn’t compatible with the String Reso-

nance feature, this function will be disabled. This applies to e.g. small (Sml) versions of the grand pianos and uprights, and the electric, digital and layer pianos.

Pressing SHIFT and turning the PIANO SELECT dial activates the LIST view for piano sounds.

Piano Grand 2/5

1 Royal Grand 3D Med 2 Velvet Grand Med 3 Grand Imperial Med 4 Studio Grand 2 Med

The list itself shows the currently selected model, indicated by a rectangle, as well as the preceding and following models.

The Piano list top row displays the current category name (“Grand” in this case), the number of models of that type (5), and the index of the currently selected model (2). The default sort order is numerical, but pianos can also be browsed alphabetically or by category, by pressing the Abc or Cat soft button respectively.

KBD TOUCH

Pianos from the Nord Piano Libary typically have a very wide dynamic range, and their dynamic response can be adjusted according to what ﬁts your personal style or the context of your performance.

The default KBD TOUCH setting (all LEDs being off) facilitates playing softly yet expressively. With each increment of the Kbd Touch setting (1, 2 and 3) less effort is required to play loudly.

PIANO INFO

Pressing PIANO INFO (Shift + Octave Down) will display some additional info about the currently selected model, such as its version number and its exact size.

SOFT RELEASE

Activating SOFT RELEASE will add a slightly longer and less pronounced release to the piano sound. This is equivalent to what happens when you adjust the damper tension in an acoustic or an electromechanical instrument. The added release is individual for every note and responds dynamically to the force with which you play.

M Some Piano types, such as Clavinets and Harpsichords do not

support the Soft Release feature. In these cases the button will be disabled.

EQUALIZER

PIANO EQ SETTINGS

The EQUALIZER is used for instantly altering the frequency content and character of the selected piano sound:

The SOFT setting ﬁlters out much of the high frequencies and emphasizes the lower range, resulting in a subdued and mellow sound.

The MID mode de-emphasizes both high and low frequency ranges, making for a focused and cutting sound with a prominent mid-range.

The BRIGHT mode emphasizes the high frequency range, producing a bright, brilliant sound which is also useful for bringing out the “ping” in electric pianos.

CLAV EQ SETTINGS

An original Clavinet is equipped with 4 additional rocker switches, which control the onboard EQ. Most of these settings combinations are available on the Nord Electro 6. Use the EQUALIZER button to select your preferred combination of the ﬁlter settings.

16 | NORD ELECTRO 6 USER MANUAL OS V1.0X

STORE PROGRAM TO

A:14

EightyNine

uvxyzABCDEFGHIJKLMNO

STORE PROGRAM AS

ABC DelCat Ins

ightyNine

260

Ballad EP1 Sml

Synth Bass 5

A:14 EightyNine

PROGRAM

2 To select a different store location use the dial and/or PROGRAM

1-4 and PAGE 3/4 buttons. A program can also be stored to one

of the Live program locations by pressing the LIVE MODE button and then selecting the desired Live program. The program at the selected destination can always be auditioned by playing the keyboard.

M To cancel an ongoing Store operation, press EXIT.

3 When a suitable location has been selected, press STORE again to

conﬁrm the operation.

NAMING A PROGRAM (STORE AS...)

The PROGRAM section provides access to performance functions such as loading and storing programs, access to Live programs, keyboard split functionality and more. This is also where menus containing System and Sound settings are found. The menus and their settings are covered in a separate chapter, starting on page 26.

STORE

The STORE button is used for storing an edited program to any location in the program banks. Storing a program will overwrite the existing data in the selected memory location.

M When the Nord Electro 6 is shipped from factory its memory is

protected, to avoid accidental overwriting of programs. To be able to store Programs, the Memory Protect parameter needs to be set to “Off” in the System menu. Read more about this on page 26.

STORING A PROGRAM

Here is how to store a program without changing its name:

1 Press the STORE button once. The Store LED will start blinking, and

the display will show the name of the program and its location.

1 To store and name your program press STORE AS... (Shift + Store). 2 The ABC soft button brings up a row of alphanumeric characters.

Use the dial to set the character for the current position. Let go of the ABC button to move the cursor ahead. The dial or PAGE 3/4buttons can be used to move the cursor freely. The Ins soft button is used for inserting a blank space at the cursor position and the Del soft button is used for deleting the selected character.

3 To assign your program a category hold down the Cat soft button

and select any of the 20 categories from the list.

4 Press STORE to bring up the Store Program To screen. Use the dial

and/or PAGE 3/4and Program buttons to select a location.

5 When a suitable location has been selected, press STORE again.

 Naming programs can also be done with the Nord Sound Manager.

KBD SPLIT

The Nord Electro 6 keyboard can be split into two zones, referred to as LO (Lower) and UP (Upper), separated by the split point. Each sound engine (Organ, Piano or Sample Synth) can be assigned to either or both of these zones.

A single press on the KBD SPLIT button will simply turn the split on or off. After a split has been activated, use the ZONE SELECT buttons (Shift + KBD Zone) in each instrument section to assign it to one or more zones. The LO and UP Zone LEDs above the Zone Select button indicates the current assignment.

KEYBOARD SPLIT SETTINGS

Pressing down on the KBD SPLIT button, as indicated by the “6“ symbol, will open up the Keyboard Split settings page in the display.

6. PROGRAM | 17

CHOOSING A SPLIT POSITION

Use the dial to choose one of the 6 keyboard split positions, C3-F5, on the Keyboard Split position page. LEDs are provided above the keyboard, indicating which split position is active.

SPLIT WIDTH SETTINGS

Normally the transition between two keyboard zones is immediate, with no overlap between the sounds selected for each zone. By setting a Width, sounds can instead be mixed or “cross-faded” across the split point, creating a smoother transition between the sounds.

To adjust split Width, keep the KBD SPLIT button held down and press the Width soft button, corresponding to the PROGRAM 2 button. There are three different settings, selectable by turning the dial:

LIVE PROGRAMS

The Nord Electro 6 has eight easy-to-access Live programs. These programs are special in that edits to them are automatically stored. When exiting a Live Program or powering off the machine all edits are saved, without the

need for a manual Store operation. To select a Live Program, press LIVE MODE and then any of the 1-4 buttons in the Program area. Use the PAGE buttons to navigate between the two Live pages.

A Live program can be stored to a location in the program banks using the standard methods. Conversely, a regular program can also be stored into a Live program location.

KEYBOARD SPLIT

Split Width

C4 Lrg

WidthPos

Off: With the Off setting there is no cross-fade between sounds.

Sml: The Sml setting represents a total width of 12 semitones. The

sound below the split point fades out across 6 notes above it and sounds above the split point will similarily reach 6 notes below it.

Lrg: The Lrg setting provides a width of 24 semitones, 12 below the split point and 12 above it.

EXTERNAL KBD TO LO

The EXTERNAL KBD TO LO feature allows for playing and controlling the Electro 6 sound engines from an external keyboard connected to its MIDI input. This can be handy in live situations where a secondary keyboard can be used as a controller for parts of the Nord Electro 6, on a per-program basis.

M When a sound engine is in External KBD to Lo mode its KB Zone

LEDs will be lit with a red light - indicating that it is not controlled from the internal keyboard.

In External KBD to Lo mode the UP keyboard zone corresponds to the entire Nord Electro 6 keyboard.

TRANSPOSE ON/SET

The Nord Electro 6 can be transposed in +6/-6 semitone steps on a per-program basis. Hold down TRANSP (Shift + Live Mode) and set the value by turning the dial. Pressing TRANSP turns off or on a transposition. Transpose settings are saved and recalled as part of a program.

 To set up a transpose that affects all programs, use the Global

Transpose parameter in the System Menu.

PROGRAM BUTTONS

The PROGRAM 1-4 buttons give you immediate access to a range of four programs – a Page – within the current program bank. They are also used as soft buttons when operating menu settings. Read more about soft button functionality on page 7.

WHAT IS A PROGRAM?

A Program contains references to the selected piano and/or sample sounds, and all settings made on the panel except for Master Level. A program does not store settings made in the System or Sound menus.

SYSTEM AND SOUND MENUS

Press SYSTEM (Shift + Program 1) or SOUND (Shift + Program 2) to enter the System or Sound menu. The System menu is also home to all MIDI settings. To read more all available menu settings, turn to page 26.

All parameter controls for externally controlled sound engines are still accessible from the Nord Electro 6. This means that Organ drawbars, Piano settings etc. can be adjusted as usual. The External KBD to Lo setting is stored with a Program, along with all other panel settings.

M The MIDI Channel for the External Keyboard feature is set in the

System menu. Read more on page 27.

SHIFT / EXIT BUTTON

Many controls have a secondary function which is accessed by holding SHIFT and pressing the button or turning the dial. Shift functions are always printed below

the corresponding control. For example, holding Shift and pressing the Program 2 button will open up the Sound Menu. The Shift button is also used to EXIT menus, or for cancelling Store operations.

PROG INIT

The PROG INIT (Shift + Program 3 button) functions can be used to quickly initialize the panel to one of four basic conﬁgurations:

Org/Piano/Synth: Activates the selected sound engine, and sets it as Source for all effects. Other sound engines are deactivated.

Dual Org (Organ Split): Activates the Organ section and KBD Split, and turns on the Dual Organ function. It also sets Source to O (Organ) for all effects. All other sound engines are deactivated.

PROGRAM DIAL

The PROGRAM dial to the right of the Display is used to select programs, to set parameter values and to enter characters in program names. Pressing SHIFT while turning the dial activates the LIST function, which will display all programs in a list.

18 | NORD ELECTRO 6 USER MANUAL OS V1.0X

Program EPiano1

G:31 Lullaby Upright G:32 Ballad Reeds G:33 B3 Silk G:34 Graceful Duo

Num Abc Cat

260

Ballad EP1 Sml

Synth Bass 5

A:1-

EightyNine

num

Page Organize

G:31 Lullaby Upright G:32 Ballad Reeds G:33 B3 Silk G:34 Graceful Duo

Prog Page Select

Prog Organize

G:31 Lullaby Upright G:32 Ballad Reeds G:33 B3 Silk G:34 Graceful Duo

Prog Page Select

Prog Ballad Reeds

G:33 B3 Silk G:34 Graceful Duo G:41 Velvet Bop G:42 Clock Tines

Paste Swap

Insert

PROGRAM LIST, ABC AND CAT

The LIST (Shift + Program dial) view provides great overview when browsing programs linearly (Num selected in the display) but also presents two additional sort modes: Abc (Program 2) and Cat (Program 3).

Abc sorts the list alphabetically while Cat will display all programs of the selected category. To select a speciﬁc character or category, hold down the Abc or Cat soft button respectively (as indicated by the “6“ symbol) and use the dial.

M The List sort mode is remembered until List view is entered again.

NUMERIC PAD NAVIGATION MODE

ORGANIZE

The ORGANIZE (Shift + Program 4) view allows for copying or moving programs within the program banks. This can be done either on a per-program basis, when the Prog view is focused, or an a page basis – handling sets of 4 programs at a time – when Page view is selected.

Page operations are especially useful when preparing a set list or similar, as groups of programs that are used within the same song can then be arranged in a speciﬁc order.

SELECT A PROGRAM OR PAGE

1 Press ORGANIZE (Shift + Program 4) and press either Prog (Pro-

gram 1) or Page (Program 2), depending on what sort of operation should be performed.

2 Use the dial to select the program or page which should be moved

or copied to a different location and press Select.

There are two distinct options for how programs and banks are navigated: The default Page Based mode and the Numeric Pad mode. Which mode is used is determined in the System Menu (see page 26).

In Numeric Pad mode the Program 1-4 buttons are used for entering any program number (11-44) within the current bank, rather than directly switching between the 4 programs on a page. As an example, to select program 12 within the current bank, ﬁrst press Program button 1 (to select page 1) and then Program button 2 (to select program 2 within that page). Here are some additional points to keep in mind:

• In Numeric Pad mode the PAGE buttons switch between banks.

• The Program dial can be used for switching programs incrementally, just as in Page Based mode.

• A “num” symbol in the top right corner of the display indicates that Numeric Pad navigation is active.

In this example, the Program 1 button has been pressed. The dash (-) indicates that another digit can be entered, to select program 11-14.

M In Page view, the program range, i.e. "G:31-34", is displayed but

only the name of the ﬁrst program is shown for each page.

SWAP, COPY AND INSERT OPERATIONS

3 Select the destination location for the operation, using the dial. The

name of the source program/page is shown at the top of the display.

4 There are now three options – Paste, Swap or Insert – available:

Paste (Program 2): The previously selected program or page will be

copied and pasted to the location selected with the dial, overwriting the program or page at the destination.

MIDI LED INDICATOR

The MIDI LED, located in the top right corner of the Program section, blinks as incoming MIDI messages are received by the MIDI In port, or over USB.

PAGE BUTTONS

Program pages – or banks, when in Numeric Pad navigation mode – are navigated with the PAGE 3/4 buttons. Each bank (A-Z) holds 4 pages, with 4 programs in each page. They are also used for navigating

menu settings, and for moving between categories/ characters when browsing lists in Cat or Abc mode.

Swap (Program 3): The previously selected program or page will swap places with the one selected with the dial.

Insert (Program 4): The previously selected program or page will be

inserted at the position selected with the dial.

E Insert operations should be used with some caution as programs

between the source and destination locations are shifted one step up or down and renumbered. As a result, this also changes what programs are part of each page within the affected range.

5 Press the soft button corresponding to the desired operation to

complete the task. The initial Organize display is now presented again, allowing for another program or page to be selected.

M Programs and pages can also be organized using the Nord Sound

Manager.

7. SAMPLE SYNTH | 19

Num Abc Cat

SAMPLE SYNTH

SELECTING A SAMPLE

Use the SAMPLE SELECT dial to scroll through the available samples. The position and name of the selected sample is shown in the Program area display. Which sample is selected is stored in the program, when a Store operation is performed.

LIST VIEW

Pressing SHIFT while turning the SAMPLE SELECT dial allows for browsing all samples in a list. The Abc and Cat soft buttons can be used for displaying samples based on name or category. To ﬁlter out only the samples from a certain category, press down on the Cat soft button and select the desired category using the PROGRAM dial.

ON/OFF, LEVEL AND ZONE SELECT

The Sample Synth section is turned On or Off by pressing its ON/OFF button. The LEVEL dial controls the volume of the Sample Synth section. Press ZONE SELECT (Shift + On/Off) to assign the Sample Synth to any of the active keyboard zones. The KBD ZONE LEDs indicate which zones the Sample Synth is assigned to. Read more about this on page 16.

OCTAVE UP/DOWN

Use OCTAVE UP/DOWN to transpose the Synth section up or down by octaves (+/- 12 semitones). When assigned to the entire keyboard it can be transposed one octave up or down. When assigned to only one zone the available transpose values will vary, but always provide access to the entire range of the synthesizer.

SUSTPED AND CTRLPED

SUSTPED (Shift + Octave Up) activates any attached sustain pedal for the Synth section.

CTRLPED (Shift + Octave Up) assigns any attached control pedal as a volume control for the Synth section.

Sample Ens Strings

OrchStrings Leg HiVib

OrchStrings Marc HiVib

OrchStrings Tremolo

OrchStrings Pizzicato

SHAPING THE SOUND

There are several ways to ﬁne-tune the sound and behaviour of a loaded sample, in order to make it more or less dynamic and responsive. Each sample comes with preset values for the parameters below, which are automatically loaded when a sample is selected. Of course, all controls can still be adjusted manually as desired.

DYNAMICS

With the DYNAMICS control four different levels of velocity response can be selected. If this funcion is turned off (no LED being lit) samples will always play back at full velocity. When active, the 1, 2 and 3 settings provide increasing degrees of dynamic range.

FILTER

Press FILTER (Shift + Dynamics) to apply a velocity sensitive low pass ﬁlter to the Sample Synth. The ﬁlter reacts to how hard the key is being played and gives the sound a more dampened quality when played softly and a brighter character when more force is applied to the key.

Read more on how to conﬁgure attached pedals on page 26.

ABOUT THE SAMPLE SYNTH

The versatile Sample Synth section can hold up to 512 MB of samples and comes with a large selection right out of the box. Additional samples can be found in the Nord Sample Library section of the www.nordkeyboards.com website, and are downloaded to the instrument using the Nord Sound Manager software. To further the possibilities, custom samples can be created from any sound source using the Nord Sample Editor application, also found on the Nord website.

ATTACK, SUSTAIN AND DECAY/RELEASE

These controls allow for setting the contour, or envelope, of the Sample Synth sound:

ATTACK controls the time it takes for the sample to reach its full level while DECAY/RELEASE determines how quickly the sample fades after having been triggered. At 12 o’clock the sound is in SUSTAIN mode, meaning that a sample will sound as long as the key is being pressed. Settings past 12 o’clock give samples an increasingly long tail after the key has been released.

20 | NORD ELECTRO 6 USER MANUAL OS V1.0X

EFFECTS

ACTIVATING EFFECTS

To enable an effect, press its ON/OFF button. The LEDs above the button indicate which sound engine the effect is assigned to; O = Organ, P = Piano and S = Sample Synth. Press SOURCE (Shift + On/Off) to change the sound engine assignment.

 Source can also be changed by double-clicking the Source button.

EFFECT 1

The EFFECT 1 unit offers six different types of modulation effects. Use its Selector button to switch between the available settings.

TREM (TREMOLO)

TREM (Tremolo) provides a volume modulation that continuously varies the volume of the output signal. Tremolo is a very common effect to use with electric pianos.

There are three intensities, TREM 1, 2 and 3 (1+2) to choose from.

PAN (AUTO PAN)

PAN is an automatic panning modulation that smoothly moves the signal between the left and right sides of the stereo panorama.

There are three different intesities, PAN 1, 2 and 3 (1+2) to choose from.

WAH

The WAH (Wah-Wah) effect gives the sound a characteristic, “Quack”like character and can be extremely useful on electric pianos and Clavinets. The Wah-Wah modulation is a lowpass type of ﬁlter that can be swept across the frequency range using the Effect 1 knob. During the sweep, the ﬁlter’s characteristics also changes.

The Wah effect uses the signal’s amplitude to control the ﬁlter sweep range, making the effect “velocity sensitive” (technically referred to as an “envelope follower”).

 This effect can also be used as a traditional Pedal Wah with an ex-

pression pedal connected to the Control Pedal jack, if the CTRLPED mode for Effect 1 is engaged.

RM (RING MODULATION)

Ring Modulation (RM) is a type of modulation where two signals are multiplied with each other, resulting in an in-harmonic “bell like” sound. On the Nord Electro 6 the instrument signal is multiplied with a sine wave.

The Ring Modulation amount is ﬁxed, and its rate is controlled by the Effect 1 knob.

CTRLPED

All effects in the Effect 1 section can be controlled by a pedal connected to the Ctrl Ped input jack, achieved by pressing CTRLPED (Shift + Effect 1 selector). For the Tremolo and Pan effects, the pedal controls the effect amount – something which can not be done from the panel.

For Wah and RM, the pedal mirrors the Effect 1 knob which in case of the Wah makes it behave as a traditional Pedal Wah, and with the RM effect provides pedal control of the modulation rate.

8. EFFECTS | 21

TEMPO TAP

EFFECT 2

EFFECT 2 provides a selection of modulation effects, including two types of Phaser, a Flanger, two Chorus types and a Vibe effect. Each effect has its rate controlled by the Effect 2 knob.

Use TAP to set a delay time matching the tempo of a song. Simply tap the Tempo button in the tempo you wish the delay to sync to a number of times, and the delay time will be adjusted automatically.

PHASER 1 & 2

The PHASER effect produces a characteristic “sweep” effect, commonly used with electric piano sounds. The digital models for the phasers of the Nord Electro 6 are inspired by classic units such as the Bi Phase and the Small Stone.

FLANGER

The FLANGER produces a dramatic comb ﬁlter effect, giving the sound a “swooshy” and resonant quality.

CHORUS 1 & 2

The versatile CHORUS effect gives the impression of “widening”, or with more extreme settings severely detuning, the sound – achieved by blending a number of modulated copies of the audio signal. There are two Chorus types, the second being more bold in character.

VIBE

The VIBE effect draws its inspiration from a classic foot pedal effect and produces a sound with both pitch-bending and phasing qualities. The effect is created through a digital model of a staggered series of phasing ﬁlters, unlike the usually aligned ﬁlters of a normal phasing effect.

DEEP

Engaging DEEP mode (Shift + Effect 2 selector) increases the modulation amount for any Effect 2 selection.

DEL AY

The DELAY unit produces echo/repeat effects. The Delay time is set by tapping the TEMPO button, or by pressing down on it and SET the tempo using the Program section dial.

The FEEDBACK button determines the number of delay repeats, or taps. At the lowest setting (LED unlit) only the initial tap is heard, while the 1, 2 and 3 settings give an increasingly long feedback tail.

The DRY/WET knob adjusts the balance between the dry signal and the delay repeats.

PING PONG

Press PING PONG (Shift + Tempo) to activate Ping Pong mode. This causes delay repeats to alternate between the left and right channels. If short delay times are used, these repeats will be “asymmetrical” and produce delays that are more like early reﬂections in reverb units.

SPKR/COMP

The SPKR/COMP unit combines sophisticated ampliﬁer and speaker cabinet simulations – including the Rotary Speaker – with a useful compressor effect.

DRIVE/COMP

When no Amp Model or Comp is selected the DRIVE knob provides a tube style overdrive effect or, if an amp is selected, controls the amount of overdrive for that Amp model. If the Drive LED is lit, it indicates that overdrive is active.

AMP MODEL

The three different ampliﬁer/speaker simulations – four if counting the Rotary – are selected with the Selector button in the Amp Model section:

Amp Model Description

SMALL

TWIN

ROTARY

The ROTARY effect accurately reproduces the sound of the rotating horn and bass rotor, as well as the characteristics of the built-in ampliﬁer of the original rotary construction.

• As a nice shortcut, the Rotary effect is automatically activated when the Rotary speed control (SLOW/STOP, FAST) to the left of the Organ section is operated – if the Spkr/Comp unit is turned off. The source for the Rotary effect will be set to the leftmost of the active sound engines.

• Switch between fast and slow rotor speeds by pressing the SLOW/ STOP, FAST button.

• To stop the rotors, press the STOP MODE button and set the speed to SLOW/STOP (this does not deactivate the Rotary Speaker – it only stops the rotors). When the Slow/Stop button is pressed again the rotors will accelerate to the Fast speed setting. This functionality mimics the behavior of an early, one speed rotary speaker.

• The rotor acceleration rate, the time it takes to go from slow to fast and vice versa, can be adjusted on the Sound menu, read more on page 27. The DRIVE knob in the Spkr/Comp section controls the amount of overdrive. This simulates the pre-ampliﬁer overdrive of the original rotary speakers.

A sustain pedal or a foot switch that is connected to the Rotor pedal input can control the rotor speed. On the Nord Electro 6 D models, the optional Nord Half Moon Switch can be used for switching Rotary speed in an even more traditional fashion.

A simulation of a Roland Jazz Chorus speaker cabinet, powered by a tube amp.

A simulation of a Wurlitzer 200A internal speaker, powered by a tube amp.

A simulation of a Fender Twin tube ampliﬁer and speaker cabinet.

22 | NORD ELECTRO 6 USER MANUAL OS V1.0X

M The Rotary Drive is dependent on the level of the input signal. If

the instrument routed to the Rotary is set to a very low level, the amount of available drive will be signiﬁcantly reduced. This is also how it works with the “real articles” – when the organ level is raised, e.g. by using a swell pedal, the amount of distortion also increases.

ROTARY MENU SETTINGS

There are several parameters in the Sound Menu that allow for detailed adjustments of the behaviour and sound of the Rotary Speaker. Read more about on this on page 27.

COMP

The COMP (Compressor) effect reduces the dynamic range of the sound, making low level signals louder and high level signals more quiet. This produces a tight, punchy sound and makes the overall level easier to control in a live mix situation.

EQUALIZER

The 3-band equalizer features bass, sweepable midrange and treble controls. The BASS frequency is 100 Hz, the TREBLE frequency is 4 kHz and the MID frequency can be set between 200 Hz to 8 kHz, using its FREQ knob. The boost/cut range is +/- 15 dB.

Select which sound engine the Equalizer should be assigned to by pressing SOURCE (Shift + On/Off) until the LED for the desired source (Organ = O, Piano = P and Sample Synth = S) is lit.

REVERB

The REVERB unit simulates the natural sound reﬂections in various acoustic environments. The Reverb is a “global” effect, which is to say that it will always be applied to all active sound engines.

The HALL reverb has the response and character of a spacious hall, with a long decay. The STAGE reverb has a medium decay time while the ROOM reverb is a smaller ambience with a short decay time.

In BRIGHT mode (Shift + Reverb selector) more high frequency content is preserved in the Reverb signal.

The DRY/WET control sets the balance between the unprocessed and the processed signal.

M If using the Rotary effect, a “copy” of the Re-

verb will be routed into the Rotary speaker, and applied to the sound source using the Rotary effect.

PANIC

The PANIC function (Shift + Reverb On) is not related to the Reverb effect, but will terminate all currently sounding notes - including those received over MIDI.

9. MIDI | 23

MIDI

board by assigning it to the LO KBD Zone (Shift + On/Off). Sound

MIDI FUNCTIONS

The Nord Electro 6 can be used as a master keyboard to control other hardware units or software sound sources, and it is also possible to control all or only parts of the Nord Electro 6 from a separate keyboard or MIDI device.

GLOBAL MIDI

engines set to UP are controlled as usual from the Nord Electro 6.

E If the Electro 6 is transposed using the on-panel Transpose, the

incoming MIDI on the External Keyboard channel will also be

transposed – regardless of how the “Transpose MIDI at” setting is

conﬁgured in the System menu.

Below are two examples of how this functionality can be used in practice - in this case using a Nord Lead A1 as the external controller:

The Global MIDI channel is used both for transmitting and receiving MIDI information, at the same time. It allows for external control over every aspect of the Nord Electro 6 – much like playing its own keyboard – and is used for sending keyboard, pedal and panel actions to another MIDI device or sequencer.

M Global MIDI can be turned off in the System menu.

RECORDING AN ELECTRO 6 PERFORMANCE TO A MIDI SEQUENCER OR DAW

Here is how to record a Electro 6 performance including any pedal actions and parameter adjustments to a DAW or MIDI sequencer.

1 Set the DAW or sequencer track to route back incoming MIDI on

the Global channel.

2 Set Local in the System menu to Off on the Nord Electro 6. 3 Select the Program on the Nord Electro 6 that you wish to use. 4 Start the recording on the sequencer.

The MIDI output on the Global channel will not care about any splits; it will produce MIDI note numbers from the entire keyboard.

M If any Transpose value is applied, either by the on-panel Transpose

function or the Global Transpose setting in the System menu, its effect on MIDI depends on the “Transpose MIDI at” setting, also in the System menu. This setting is further described on page 27.

EXTERNAL KEYBOARD TO LO

Ex. 1: Nord Electro 6 in Dual Organ mode with ext. keyboard

Organ KBD Zone: LO+UP (Dual Organ), Piano & Synth: Off

MIDI IN

Playing Upper Organ manual

Ex. 2: Nord Electro 6 for Organ, ext. keyboard for Piano and Synth

Organ KBD Zone: UP, Piano & Synth KBD Zone: LO

MIDI IN

Playing Organ section

Playing Lower Organ manual

Playing Piano and Sample Synth as a layer

MIDI OUT

MIDI MESSAGES

The following MIDI messages can be transmitted and received by the Nord Electro 6:

With this function it is possible to use an external keyboard to control sound engines and/or one of the Organ manuals, which in turn will not be controlled from the Nord Electro 6 keyboard. These settings are stored per program which makes it an ideal feature for live usage. Below is an example of how to set it up.

1 Press EXTERNAL KBD TO LO (Shift + KBD Split). 2 Connect an external MIDI keyboard to the MIDI In jack of the Nord

Electro 6.

3 Set the External Keyboard MIDI channel to that of the transmitting

MIDI device, in the Nord Electro 6 System menu (see page 26 for details). The default setting is channel 16.

4 Select one or more sound engines to control from the external key-

NOTE ON/OFF

• Note On and Note Off messages are transmitted and received.

CONTROLLERS

From the System menu it can be determined whether the Nord Electro 6 should transmit and/or receive Control Change messages.

• If a Control/Expression pedal is connected to the Control Pedal Input, this is transmitted and received as Controller 11 (Expression).

• If a sustain pedal is connected to the Sustain Pedal Input, this is transmitted and received as Controller 64 (Sustain Pedal).

24 | NORD ELECTRO 6 USER MANUAL OS V1.0X

• Almost all other controls (knobs and buttons) on the front panel are also transmitted and received as Control Change messages. This can be used for recording front panel actions into a MIDI sequencer. For a full list of which parameters correspond to which Controller number, refer to page 29.

KEYBOARD VELOCITY

The Nord Electro 6 transmits and receives Keyboard Velocity messages. Organ sounds will always be played back at nominal level regardless of incoming MIDI Velocity data. Release velocity is transmitted, but ignored on MIDI In.

PROGRAM CHANGE

Loading a program, Live program, Piano or Sample will send a Program Change message on the global MIDI channel, each content type identiﬁed by its Bank MSB value. Conversely, incoming Program Change messages will select the corresponding content on the Electro 6. The message consists of three parts, as deﬁned in the table below:

Program Piano Sample Live

Bank MSB (CC# 0) 0 3 4 6

Bank LSB (CC# 32) 0-25 0-5 0-X 0-1

Program Change 0-15 0-X 0-49 0-3

X = the amount of relevant values depends on the number of pianos/ samples in memory.

M A Program Change message that reaches the Nord Electro 6

unaccompanied by Bank Select messages will take effect in the currently selected Program or Live bank.

In the System Menu, you can select if the Nord Electro 6 should send and/or receive Program Change messages on the Global channel. See page 26 for further details.

LOCAL CONTROL ON/OFF

If Local Control is set to Off, the keyboard and the panel on the Nord Electro 6 will be “disconnected” from its sound engines. Use the Off setting when the instrument is set up in a MIDI loop, for instance when using it in conjunction with a DAW or seqencer.

If Local Control is set to On, together with a MIDI loop, “double-triggered” notes would occur when playing – one triggered directly by the internal keyboard and the other one being echoed back to the Electro 6 over MIDI. Local Control On/Off is set in the System menu, which is described on page 26.

PANIC

If hanging notes are experienced when using the Nord Electro 6 in a MIDI setup, or if all sound should be terminated for some other reason, use the PANIC (Shift + Reverb On) function. This will execute an internal “All Notes Off” message, and reset incoming CC messages.

5. NORD SOUND MANAGER | 25

NORD SOUND MANAGER

ABOUT NORD SOUND MANAGER

Nord Sound Manager is an essential application for any Nord Electro 6 owner, and allows for organizing, altering and backing up content within the various memory areas on the Nord Electro 6. These are some of the common tasks performed through the Nord Sound Manager:

• Organizing and naming Programs

• Downloading new Piano sounds to the Piano partition

• Downloading new Samples to the Sample partition

• Uploading Programs from the Nord Electro 6 to a computer

• Uploading bundles containing programs and their associated piano and sample ﬁles

• Performing backups of the entire instrument

• Restoring the entire instrument to a previous state

The Nord Sound Manager and the user manual for the application can be found at the www.nordkeyboards.com website, in the Software area.

SYSTEM REQUIREMENTS

Mac OS X 10.6 or later Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10.

Nord USB Driver version v3.0 or later required for Windows.

26 | NORD ELECTRO 6 USER MANUAL OS V1.0X

MENUS

Any settings that are made in the System and Sound menus will take immediate effect, and will be stored until they are changed again.

M The MIDI Local On/Off setting is an exception and will always revert

to Local On when the Nord Electro 6 is powered up.

Enter a menu by holding SHIFT and pressing SYSTEM or SOUND, (Program buttons 1 and 2). Menus are navigated with the PAGE 3 and 4 buttons and settings are changed with the PROGRAM dial. Soft buttons are used to access additional settings, where applicable. Exit a menu by pressing EXIT (Shift).

SYSTEM MENU

1 - MEMORY PROTECT

The memory protection setting is On when a Nord Electro 6 leaves the factory, preventing accidental overwriting of programs. Setting this to Off enables Store operations. Menu settings and Live programs are not affected by this setting.

Range: On (default), Off

2 - PROGRAM SELECTION MODE

Program navigation can be set up to work in two distinct ways: Page Based or using “Numeric Pad” input. In the default Page Based mode the 1-4 Program buttons correspond to the four programs within the current page. In Numeric Pad mode these buttons are used for numeric input, giving access to all 16 programs (11-44) within the current back. In Numeric Pad mode, the Page buttons function as Bank buttons.

Range: Page Based (default), Numeric Pad

3 - GLOBAL TRANSPOSE

6 - OUTPUT ROUTING MODE

In Stereo mode, all sounds are sent to both audio outputs. When set to Main:L Organ:R, Piano and Sample Synth sounds are set to the Left output and Organ sounds to the Right.

Range: Stereo (Default), Main:L Organ:R

7 - SUSTAIN PEDAL

TYPE

This allows you to select the type of pedal connected to the SUSTAIN PEDAL jack, in case the functionality of the pedal is reversed (when the pedal is up, sustain is on and vice versa). The Auto setting can automatically determine the pedal type.

Range: Open, Closed, Auto (Default)

FUNC (FUNCTION)

A connected sustain pedal can be used for controlling both sustain and Rotary speed. The three possible settings are; Sustain only, Sustain + Rotor Hold (fast rotor speed when the pedal is down) and Sustain + Rotor Toogle (toggles between fast and slow with each pedal press).

Range: Sustain (Default), Sus+Rotor Hold, Sus+Rotor Toggle

8 - ROTOR PEDAL

TYPE

This allows for changing the type/polarity of a switch pedal connected to the ROTOR PEDAL input, to reverse its functionality. On the Nord Electro 6D models, this can also be set to Half Moon Switch. The Auto setting can automatically determine the pedal type.

Range: Open, Closed, Half Moon Switch (on D models), Auto (Default)

This setting allows for transposing the entire Nord Electro 6 in semitone steps. This setting will be added to any on-panel transpose value stored with a program.

Range: +/- 6 semitones (default value is “none”)

4 - FINE TUNE

Fine Tune can be used to ﬁne tune the pitch of the Nord Electro 6 in ﬁner increments.

Range: +/- 50 Cents (+/- half a semitone). Default value is “0”

5 - SEAMLESS PROG CHANGE

This setting determins how transitions are handled when changing programs. When set to On, sustaining notes and effects tails will be preserved when changing programs. With the Off setting, all ongoing sound is terminated when changing programs.

Range: Off, On (Default)

FUNC (FUNCTION)

This allows for changing the functionality of a connected rotor pedal. With Rotor Hold the rotor speed is fast as long as the pedal is down, going back to slow when the pedal is released. Rotor Toggle means that the fast/slow rotor speed is switched with each pedal depression.

Range: Rotor Hold (default), Rotor Toggle

9 - CONTROL PEDAL

TYPE

The Nord Electro 6 accepts many of the most commonly available control pedals through its CONTROL PEDAL input. Select a setting here that matches the pedal being used.

 If a connected pedal is operated while in this menu, a percentage

indicating the range of the connected pedal is displayed.

Range: Roland EV7 (default), Yamaha FC-7, Korg, Fatar/Studiologic

11. ME N US | 27

GAIN

This setting allows for adding some gain to the pedal signal. This can be useful if an attached pedal does not reach its maximum level or setting.

Range: 1 - 10

10 - LOCAL CONTROL

MIDI Local Control determines if the Nord Electro 6 keyboard and panel will control internal sound engines and programs or only transmit MIDI. Local Control On is the normal “play mode”. When Local Control is in Off mode, front panel and keyboard actions are transmitted via MIDI only.

Range: On (Default), Off

M Local always defaults back to “On” every time the Nord Electro 6 is

powered on

11 - CHANNEL

GLOBAL

This sets the transmitting and receiving MIDI channel for the Global Channel. The Global Channel transmits all keyboard, pedal and panel actions as MIDI signals. It can also be used as a receiving channel with full control of the entire Electro 6.

Range: 1-16, Off (Default 1)

2 - B3 ORGAN TONEWHEEL MODE

Sets the level of tonewheel crosstalk and cable leakage artifacts of the B3 organ model.

Range: Clean, Vintage 1 (default), Vintage 2

3 - B3 ORGAN CLICK LEVEL

This sets the level of the Key Click for the B3 organ model.

Range: Low, Normal (default), High

4 - B3 ORGAN KEYBOARD TRIGGER POINT

This setting allows for changing how the Nord Electro 6 keyboard triggers the B3 sound. When “High” is selected, it will be triggered before the key is fully depressed, which is more similar to how a real B3 works.

Range: High, Low (Default)

5 - ROTARY SPEAKER

There are two available settings for the 122 Rotary speaker. With the 122 setting the “virtual microphones” are placed further away, while with 122 Close they are placed closer to the cabinet.

Range: 122 (Default), 122 Close

EXTERNAL KBD

This sets the channel for receiving MIDI from an external keyboard when using the “External KBD to Lo” function - see page 17.

Range: 1-16, Off (Default 16)

12 - CONTROL/PROGRAM CHANGE MODE

CC (CONTROL CHANGE)

This allows you to set if you want your Nord Electro 6 to transmit and/or receive MIDI Controller Messages or not on the Global channel.

Range: Off, Send, Receive, Send & Receive (Default)

PC (PROGRAM CHANGE)

This setting determines whether your Nord Electro 6 transmits and/or receives MIDI program Change Messages, on the Global channel.

Range: Off, Send, Receive, Send & Receive (Default)

13 - TRANSPOSE MIDI AT

When set to In, active transpose values (global and/or set per program) are not applied to outgoing MIDI, but only to incoming MIDI data. In Out mode sent MIDI notes are transposed but not incoming ones.

Range: In (Default), Out

SOUND MENU

1 - PIANO STRING RES LEVEL

6 - ROTARY BALANCE

This parameter determines the sonic balance, expressed as a percentage, between the bass rotor and the treble horn of the Rotary Speaker.

Range: 70/30, 60/40, 50/50 (default), 40/60, 30/70

7 - ROTARY ROTOR

SPD (SPEED)

This determines the speed of the rotary speaker woofer rotor.

Range: Low, Normal (default), High

ACC (ACCELERATION)

This determines the acceleration and deceleration time of the rotary speaker woofer rotor.

Range: Low, Normal (default), High

8 - ROTARY HORN

SPD (SPEED)

This determines the speed of the rotary speaker treble horn.

Range: Low, Normal (default), High

ACC (ACCELERATION)

This determines the acceleration and deceleration time of the rotary speaker treble horn.

Range: Low, Normal (default), High

Sets the level of the String Resonance feature that can be turned on for selected pianos (acoustic Med, Lrg and XL sizes).

Range: +/- 6 dB (0 dB default)

28 | NORD ELECTRO 6 USER MANUAL OS V1.0X

CONNECTIONS

AUDIO CONNECTIONS

General guide on audio connections: Before turning on your ampliﬁer, make all audio connections. Always turn on the ampliﬁer last, and when shutting down, always turn off your ampliﬁer or active speakers ﬁrst.

E Using your Nord Electro 6 at high volumes can damage your

hearing.

HEADPHONES

1/4 inch stereo headphone jack. Audio is always output through the Headphones output, regardless of Output Routing settings.

LEFT & RIGHT OUT

1/4 inch unbalanced line level outputs for ampliﬁer or recording equipment. The Nord Electro 6 is a stereo instrument with separate signal paths for left and right audio channels.

When shipped, the Nord Electro 6 is conﬁgured to output all audio through the Left & Right outputs. Refer to the System Menu section on page 26 for other possible settings.

MONITOR IN

1/8 inch jack for connecting devices such as smartphones, tablets or computers to the Nord Electro 6. This is useful for playing and rehearsing to pre-recorded music or a metronome, or to use an additional sound source on stage. The Monitor In signal is routed to the Headphones and Left & Right outputs.

E The Nord Electro 6 Master Level control does not affect the level

of the Monitor In signal.

USB CONNECTION

The USB port is used for connecting the Nord Electro 6 to a computer. The connection can be used for transferring MIDI, for OS updates and for connecting to applications such as the Nord Sound Manager or Nord Sample Editor. These applications, and the latest OS version can always be found for download at www.nordkeyboards.com.

M MIDI over USB and standard 5 pin MIDI connectors are both

active at the same time. There is no need to choose between the two options in a menu or similar.

PEDAL CONNECTIONS

SUSTAIN PEDAL

1/4 inch connector for all common types of sustain pedals. Sustain pedal polarity can be detected automatically or set manually in the System menu, see page 26.

CONTROL PEDAL

1/4 inch connector for an expression pedal of continuous type, used for controlling volume, B3 swell and/or Effect 1. Most of the common expression pedal makes and models are supported, and can be selected in the System menu, see page 26.

ROTOR PEDAL

1/4 inch connector for a switch or sustain type pedal used for controlling the Rotary Speed parameter. On the Nord Electro 6 D models, this is where the optional Nord Half Moon Switch is attached. The connected pedal or switch can be conﬁgured in the System menu, see page 26.

MIDI CONNECTIONS

MIDI IN

The 5 pin MIDI In connection is used for receiving MIDI data sent from external devices such as controller keyboards, sequencers and computers.

MIDI OUT

The 5 pin MIDI Out connection will send MIDI data to devices such as external sound modules and computers.

APPENDIX | 29

APPENDIX: MIDI CONTROLLER LIST

Nord Electro 6 Parameter MIDI CC #

Bank Select MSB Program 0

Bank Select MSB Live 6

Bank Select MSB Piano 3

Bank Select MSB Sample 4

Bank Select LSB 32

Sustain 64

Ctrl Pedal (Expression) 11

KBD Split / Ext. KBD To Lo / Dual Organ 3

Organ Enable 9

Organ Octave Shift 12

Organ Sustain Pedal 47

Organ Ctrl Pedal 48

Organ Level 13

Organ Model 14

Organ Preset 15

Organ Drawbar 1 16

Organ Drawbar 2 17

Organ Drawbar 3 18

Organ Drawbar 4 19

Organ Drawbar 5 20

Organ Drawbar 6 21

Organ Drawbar 7 22

Organ Drawbar 8 23

Organ Drawbar 9 24

Organ Percussion Enable 25

Organ Vibrato Type 26

Organ Vibrato Enable 27

Organ Percussion Harmonic 28

Organ Percussion Speed 29

Organ Percussion Level 30

Organ Edit Lower Manual 8

Piano Enable 33

Piano Level 34

Piano Octave Shift 35

Piano Sustain Pedal 49

Piano Ctrl Pedal 50

Piano Type 36

Piano Model 37

Piano Variation 38

Piano EQ 40

Nord Electro 6 Parameter MIDI CC #

Sample Synth Level 43

Sample Synth Octave Shift 44

Sample Synth Sustain Pedal 45

Sample Synth Ctrl Pedal 46

Sample Synth Attack 68

Sample Synth Decay/Release 69

Sample Synth Dynamics 72

Sample Synth Filter 73

Effect 1 Enable 82

Effect 1 Type 83

Effect 1 Source 84

Effect 1 Ctrl Ped 85

Effect 1 Rate 86

Effect 2 Type 87

Effect 2 Source 88

Effect 2 Deep 89

Effect 2 Rate 90

Effect 2 Enable 91

Delay Source 92

Delay Amount 93

Delay Feedback 95

Delay Enable 97

Delay Ping-pong 98

Amp/Spkr Type 100

Amp/Spkr Drive 101

Amp/Spkr Enable 118

Amp/Spkr Source 119

EQ Bass 102

EQ Mid 103

EQ Treble 104

EQ Enable 105

EQ Source 106

EQ Mid Frequency 107

Rotary Speed 108

Reverb Bright 112

Reverb Amount 113

Reverb Type 115

Reverb Enable 116

Sample Synth Enable 42

30 | NORD ELECTRO 6 USER MANUAL OS V1.0X

INDEX

III

Acc (Rotary Horn) 27 Acc (Rotary Rotor) 27 Audio Connections 28

B3 11 B3 Organ Key Click Level 27 B3 Organ Tonewheel Mode 27 Bass (EQ) 22

CC (MIDI Menu) 27 Ch 1 and 2 Out 28 Chorus 1 & 2 21 Chorus (Organ) 11 Clav EQ 15 Clavinet 15 Compressor 22 Connections 28

Delay (Ef fect) 21 Digital (Piano) 15 Drawbars 10 Drive 21

Effect 1 20 Effect 2 21 Effects Section 20 Electric (Piano) 15 Exit (but ton) 17 External KBD to Lo 17, 27

Farf 12 Fine Tune 26 Flanger 21 Func (Rotor Pedal) 26 Func (Sustain Pedal) 26

Gain (Ctrl Pedal) 27 Global (MIDI) 23 Global (MIDI Channel) 23, 27 Global Transpose 26 Grand 15

Headphones 28

Insert (Organize) 18

JC (Amp Model) 21

KBD Touch 15 Keyboard Split 17 Key click (B3) 11

List view (Piano) 15 Live Mode 17 Local Control (MIDI) 24, 27

Memory Protection 26 Menus 26 Mid (EQ) 22 MIDI 23 MIDI Controller List 29 MIDI (LED) 18 MIDI messages 23 Model (Piano) 14 Monitor In 28 Mono 15

Nord Piano Library 14 Nord Sound Manager 25 Numeric Pad (program selection mode) 18, 26

Organ 10 Organize 18 Organ Keyboard Trigger Point 27 Output Routing 26

Page Based (navigation mode) 18 Page Based (program selection mode) 18, 26 Page (buttons) 18 Panel MIDI control 23 Panic 24 Paste (Organize) 18 PC (MIDI Menu) 27 Percussion (B3) 11 Phaser 1 & 2 21 Piano 14 Piano Info 15 Piano Select 14 Piano size 14 Piano String Res Level 27 Ping Pong 21 Pi pe1 13 Pipe2 13 Prog Init 17 Program 17

Program (buttons) 17 Program Change 24 Program dial 17 Program (Section) 16

Reverb 22 Rotary Horn 27 Rotary Rotor 27 Rotary Speaker 22 Rotor Pedal 26

Seamless Transitions (Seamless Prog Change) 26 Shift (button) 17 Small (Amp Model) 21 Soft buttons 7, 26 Soft Release 15 Sound Menu 27 Speed (Rotary Horn) 27 Speed (Rotary Rotor) 27 Split 16 Split Position 17 Store As 16 String Resonance 15 Sustain Pedal 26 Swap (Organize) 18

Tap Tempo (Delay) 21 Transpose 17 Transpose MIDI At (MIDI Menu) 27 Treble (EQ) 22 Tre m ( Tremo l o) 20 Twin (Amp Model) 21 Type (Ctrl Pedal) 26 Type (Rotor Pedal) 26 Type (Sustain Pedal) 26

Upright 15

Vibe 21 Vox 12

Wah (Wah-Wah) 20 www.nordkeyboards.com 5

Zone Select 16

FCC Information (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modications

not expressly approved by Clavia may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/ or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment is found to be the source of interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modication to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.
