nord Electro 3 User Manual

User Manual

Nord Electro 3

OS Version 1.x

Part No. 50316 Copyright Clavia DMI AB 2009 Print Edition 1.1

The lightning ash with the arrowhead symbol within an equilateral triangle is intended to al ert the user to the presence of uninsulated voltage within the products enclosure that may be of sufcient magnitude to constitute

a risk of electric shock to persons.

Le symbole éclair avec le point de èche à l´intérieur d´un triangle équilatéral est utilisé pour alerter l´utilisateur de la presence à l´intérieur du coffret de ”voltage dangereux” non isolé d´ampleur sufsante pour constituer un risque d`éléctrocution.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Le point d´exclamation à l´intérieur d´un triangle équilatéral est employé pour alerter l´utilisateur de la présence d´instructions importantes pour le fonctionnement et l´entretien (service) dans le livret d´instructions accompagnant l´appareil.

Instructions pertaining to a risk of re, electric shock or injury to persons.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

CAUTION AVIS

RISK OF ELECTRIC SHOCK

DO NOT OPE

RISQUE DE SHOCK ELECTRIQUE

NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL.

ATTENTION :POUR EVITER LES RISQUES DE CHOC

ELECTRIQUE, NE PAS ENLEVER LE COUVERCLE.

AUCUN ENTRETIEN DE PIECES INTERIEURES PAR L´USAGER.

CONFIER L´ENTRETIEN AU PERSONNEL QUALIFE.

AVIS : POUR EVITER LES RISQUES D´INCIDENTE OU

D´ELECTROCUTION, N´EXPOSEZ PAS CET ARTICLE A LA PLUIE

OU L´HUMIDITET.

Warning - When using electric products, basic

precautions should always be followed, including the following:

1. Read all the instructions and observe the graphic symbols above before using the product.

2. Do not use this product near water - for example near a bathtub, washbowl, kitchen sink, in a wet basement, near or in a swimming pool, a swamp or the like.

3. This product should be used only with a cart or a stand that is recommended by the manufacturer.

4. This product, either alone or in combination with an amplier and headphones or speakers may be perfectly capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

5. The product should be located so that its location or position does not interfere with or obstruct its normal ow of ventilation.

6. The product should be located away from heat sources such as radiators, heat registers or other products that produce heat.

7. The product should be connected to a power supply only of the type described in these operation instructions or as marked on the product.

8. The power supply cord of the

product should be unplugged from the outlet when the product is left unused for a long period of time.

9. Care should be taken so that objects do not fall, or liquids are not spilled into the enclosure through openings.

10. The product should be serviced by qualied service personnel when: A. The power supply cord has been damaged; or B. Objects have fallen or liquids have been spilled onto the product; or C. The product has been exposed to rain; or D. The product does not appear to operate normally or exhibits a marked change in performance; or E. The product has been dropped or the enclosure has been damaged.

11. Do not attempt to service the product beyond those means described in this operating manual. All other servicing should be referred to qualied service personnel.

12. To completely disconnect the apparatus from the mains, remove the mains plug.

13. Ensure possible protective earthing connections of other equipment when the apparatus is connected to multimedia systems.

13. Where the Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

Trademarks: The Nord logo is a registred trademark of Clavia DMI AB. All other trademarks mentioned in this publication are the properties of their respective holders. Specications and appearances are subject to change without notice.

 | 3

1Introduction

Thank you! .................... 4

About this manual............. 4

Disclaimer ..................... 4

Presets, OS & int. memory ... 4

Factory presets ................ 4

Restori ng the factor y presets ........ 4

OS upgrades ..................4

2Overview and Connections

Knobs & buttons .............. 5

Knobs .......................... 5

Selector buttons .................. 5

On/Of f buttons ................... 5

Shift b utton ...................... 5

Drawbars........................ 5

3Connections

Audio connections............. 6

Headphones . . . . . . . . . . . . . . . . . . . . . 6

Left Ou t and Right O ut ............. 6

Monitor In ....................... 6

USB Connection.................. 6

MIDI Connections.............. 6

MIDI Out ........................ 6

MIDI In .......................... 6

Pedal Connections............. 7

Sustai n Pedal .................... 7

Rotor Peda l ...................... 7

Control Pe dal .................... 7

4Getting Started

About the programs ........... 8

Select a program .............. 8

Edit a program ................ 8

Storing a program............. 8

The Live buffer ................ 9

Octave Shift ................... 9

Adding effects ................. 9

Let’s try the w ah effec t ............. 9

Activate a n ampliﬁe r emulatio n ....... 9

Selecting a piano or a sample 9

Using the Organ...............10

The Rotar y effect ..............10

5Nord Electro 3 Reference

Master le vel knob .................11

Organ section .................11

Organ Mo del butto n ...............11

The B3 model ....................11

The VX m odel ....................11

The Far f model ...................11

Rotar y Speed ....................12

Vibrato/Chorus ...................12

Percussion ......................12

Preset/Split ......................12

Using an a dditiona l MIDI keyboa rd....12

The draw bars ....................13

Organ Pre sets ...................13

Store your ow n organ preset.........13

Piano section ..................13

Clavine t sound ...................13

Pick-up ty pe .....................13

Pick-up Type De scription ...........13

Clav EQ .........................14

Samp Env .......................14

Piano Type.......................14

Mono...........................14

Model ..........................14

Program section ..............14

Up/Down b uttons .................14

Display..........................14

Store/Sto re Org. Prese t ............14

Prog A - Prog B ...................15

Live ............................15

Instrum ent sele ctors ...............15

Shift............................15

Octave Shift......................15

Effects .........................15

EQ .............................15

Effect 1 .........................15

Effect 2 .........................16

Speaker/Comp ...................16

Reverb..........................16

Gain............................16

6The Menus

System Menu ..................17

Memor y Protect – On, Off ...........17

Output R outing ...................17

Transpose .......................17

Fine Tune........................17

Sustai n Pedal Polar ity ..............17

Sustai n Pedal Conﬁ guration .........17

Rotor Peda l Polarit y ...............17

Rotor Peda l Mode .................17

Ctrl Ped al Type ...................17

Ctrl Ped al Mode ..................18

Organ Trig Mo de ..................18

Drawba r Speed ...................18

MIDI Menu.....................18

MIDI Cha nnel.....................18

Lower Channel ...................18

Local Co ntrol.....................18

Control C hange (CC) M ode..........18

Program C hange Mod e.............18

MIDI Spl it Mode...................18

Send CC (Co ntrol Change mes sages) 18

Dump One.......................18

Dump All ........................18

Sound Menu ...................18

Treble Horn S peed ................18

Treble Horn Ac celerat ion............18

Bass Rotor S peed .................19

Bass Rotor A ccelera tion ............19

Perc. Fast De cay..................19

Perc. Slow D ecay .................19

Perc. Norm L evel..................19

Perc. Sof t Level ...................19

Tonewheel M ode..................19

Perc Draw bar 9 Cance l.............19

Key Click Le vel ...................19

7Nord Electro 3 Manager

System re quireme nts .............20

Overview ..................... 20

The Toolbar ..................... 20

The Tabs . . . . . . . . . . . . . . . . . . . . . . . 20

Partit ion Memor y Indicator ..........21

Right-Clicking ....................21

Upload..........................21

Download .......................21

Rename.........................21

Delete ..........................21

File Formats......................21

The Quick Tour ................21

Transfer pia nos ...................21

Deleti ng a piano ..................21

Downlo ad a new piano .............21

Upload f rom the Nord El ectro 3 ..... 22

Upload a p artitio n from the Ele ctro 3 . 22

Downlo ad a complete b ank ........ 22

Organi ze the progra m partiti on...... 22

NE3 Manager reference ...... 23

Too lba r ........................ 23

Sound Up ...................... 23

Sound Dow n.................... 23

Rename........................ 2 3

Delete ......................... 2 3

Bank Up ....................... 23

Bank Dow n ..................... 23

Backup ........................ 23

Restore ........................ 23

Menus ........................ 23

File............................ 23

Sound Up load (Ctrl+U ) ............ 23

Sound Dow nload (Ctrl +D) ..........24

Bank Upl oad (Ctrl +S hift+U) .........24

Bank Dow nload (Ctr l +Shift+D) .......24

Backup (C trl +B) ..................24

Restore (C trl +R) ..................24

Clean De leted Space ..............24

Format..........................24

Exit (C trl +Q) .....................24

Edit ............................24

Rename ( Ctrl +N)..................24

Delete ..........................24

Select A ll (Ctrl +A) .................24

Invert S electio n ...................24

View............................24

Free Locat ions (Ctrl +F ).............24

Help............................24

About ..........................24

Tabs ...........................24

Loc - Locat ion ................... 25

Name.......................... 25

Size ........................... 25

Ver – Version N umber ............. 25

Right-Click...................... 25

Upload......................... 25

Download ...................... 25

Rename........................ 25

Delete ......................... 25

Footer Are a..................... 25

Partit ion Memor y Indicator ......... 25

Cancel B utton ................... 25

Progres s Bars ................... 25

Messa ge/Text Are a............... 25

Updates a nd piano sa mples ........ 25

8Nord Sample Editor

Nord Sample Editor........... 26

Non-destructive editing............ 26

System Requirements............. 26

Getting Started............... 26

Project, s ample me mory .......... 26

WYDIWYH...................... 26

Working o fﬂine .................. 26

Sample, Zone ................... 26

Sample Instrument ............... 26

Sample editing, ..................27

Gener ate, upload, dow nload.........27

Installation ....................27

Install ation of the US B driver .........27

Install , Windows PC ...............27

Install , Mac OSX ..................27

The Quick Tour .............. 28

First Li ght ...................... 28

Download Sample Instruments...... 28

Upload Sample Instruments . . . . . . . . 28

Create a new S ample Ins trument ....28

Adding Au dio ﬁles ................ 2 9

Single Sample Per File Assign....... 30

Editing ......................... 30

Looping.........................31

Gener ate a Sample In strument ......31

Menu Reference .............. 32

File Men u....................... 32

Edit Men u ...................... 33

Instrum ent Menu ................. 33

Settin gs Menu ................... 33

Manage r Menu ..................3 3

Help Men u...................... 33

Tab Reference ................ 33

Common a rea ................... 33

Audio File/Assign Tab ........ 34

Single S ample Per Fi le Assign ......35

Multi Sa mple Per Fil e Assign .......3 5

Manual S ample As sign ............ 35

Sample Loop/Stop Tab .......3 6

Long Loop .......................37

Short L oop ......................37

No Loop ........................37

Sample Start Tab............. 38

Sample Alt Star t Tab ......... 3 8

Instrument Tab ............... 38

Sample G ain grid ................ 38

Keyboar d Gain grap h ............. 39

Detune......................... 39

Sample Zone.................... 39

Auto Map....................... 39

Play Mode ...................... 3 9

Samp Preset Tab .............4 0

Manager tab.................. 40

Manage r Toolbar .................4 0

File Types an d Names ..............41

9MIDI functions

About th e MIDI impl ementati on ..... 42

Keyboar d velocit y ................ 42

Program change ................. 42

MIDI Sys ex (System Exc lusive) ...... 42

Nord Electro 3with a seq. ... 42

Connections .................... 42

Local On /Off .................... 42

MIDI Cha nnel.................... 42

Program C hange................. 42

Controllers...................... 42

Control lers and “ch asing” .......... 42

Program & Controller dumps. 43

Sendin g program du mps .......... 4 3

Sendin g MIDI Contr oller dum ps ..... 4 3

Recei ve MIDI SysE x dumps ........ 43

MIDI Con troller lis t................ 4 3

MIDI imp lementat ion char t ......... 4 4

10Index

Index .......................... 45

Nord Electro 3 User Manual

Thank you!

We’d ﬁrst like to thank you for purchasing the Nord Electro 3. Our goal when we developed the Nord Electro instruments was to create the best emulations of traditional electromechanical keyboard instruments on the market, and to make these instruments compact and lightweight. With the Electro 3 we have taken our commitment a step further, by upgrading the organ, the piano and the effects sections and also by introducing the ability to use sampled instruments from the Nord Sample Library in the Nord Electro 3.

This allows us to e.g. include some of the fabulous Mellotron sounds in the factory sound bank. Each and every piano and sample in the Nord Electro 3 can be replaced by you, using the free Nord Electro 3 Sound Manager application. New pianos and other sounds are found on the enclosed Nord DVD and on the www.nordkeyboards.com web site.

No compromises, just a good selection of outstanding, classic keyboard sounds with true feel, from a natural keyboard response to the authentic sound quality – that is what we have been pursuing during the development. To make a great tool you have to put all the focus on a few things and that is exactly what we tried to achieve. We hope that you will have as much fun owning and using the instrument, as we had developing it.

About this manual

You are probably very eager to start using your new instrument, and we sure don’t want to keep you from having fun. We will try to cover all the essential aspects on how to use the Electro 3 in the very ﬁrst few pages of this manual. After that follows the reference section where all the functions are explained in detail.

Disclaimer

All trademarks and brand names mentioned in this manual are the property of their respective owner’s and are not afﬁliated or associated with Clavia. These trademarks and brand names are only mentioned to describe the types of sounds reproduced by Nord Electro 3.

Factory presets, OS and internal memory

The operating system, programs and pianos and samples in Nord Electro 3 are stored in a Flash memory. A Flash memory keeps the data also when the power is turned off. Another big advantage is that you can replace data in the Flash memory at any time. This means that you will be able to download OS upgrades, pianos and samples and programs to your Nord Electro 3 from a computer. The Nord Electro 3 features a USB port for quick and easy download of new piano and/or instrument samples.

The internal sound memory of Nord Electro 3 consists of 128 programs, numbered 1A, 1B, 2A. 2B ~ 64B. In addition there is the Live buffer memory, which will continuously store any changes as they are made, and remember these settings after the power is turned off.

Factory presets

All of the 128 factory Programs of Nord Electro 3 can be replaced. To make sure you don’t accidentally overwrite Programs you want to keep, it’s a good idea to back up your sounds regularly on a computer using the Electro Manager application.

Restoring the factory presets

The factory Programs are available as Electro Manager ﬁles for download at the Nord web site at www.nordkeyboards.com or on the included Nord DVD.

OS upgrades

The latest OS version for Nord Electro 3 is available for download at www.nordkeyboards.com

1

Introduction

4 | NordElEctro3UsErMaNUalosv1.X

The front panel of the Nord Electro 3 has four main areas, Organ, Piano, Program and Effects. We’ll familiarize ourselves brieﬂy with

the panel here and describe the functions in detail in the following chapters.

On the left part of the panel is the Master Level knob, the organ model selector and the Rotary Speed section. The Master level controls the entire instruments output level at the two output jacks and the headphone output. This control is not programmable, that particular functionality is instead available in the effects section with the Gain control.

The Organ section is lit and active when the Organ selector in the Program area is activated.

Moving towards the middle of the panel, the Piano section behaves just as the organ. The controls are lit when the Piano selector is active.

The Program section contain the parameters and functions that are used to select and store programs, to set the System, MIDI and Sound functions and to select the instrument to be used with the Organ or Piano selectors. We’ll describe the functions in this area in greater detail starting at page 14.

The Effect section contains the functions of the effects. Please refer to page 15 for more information.

The functions and settings of the System, MIDI and Sound menus are conveniently printed to the right on the panel.

Knobs & buttons

Knobs

The knobs control the continuously variable parameters in the Nord Electro 3.

A parameter value can be totally different from the knob’s physical M position when you load a Program. As soon as you start turning the knob, the value will ‘snap’ to the knob’s physical position.

Selector buttons

Selector buttons are used to activate one setting in an array. Selector buttons have a set of round or triangular LEDs to indicate the current setting. Press the button several times to cycle through the possible options.

Holding Shift and pressing a selector button (with the exception  of the Type button) will cycle through the settings in a counter clockwise fashion.

On/Off buttons

On/Off buttons are used for activating a parameter or a group of parameters such as effects.

Shift button

Some buttons have a secondary function, which will be available if you hold down Shift while pressing the button. The name of the secondary function is printed below the button. Shift is also used together with the Up/Down buttons when you want to change a setting in the System, MIDI or Sound menus.

Drawbars

The nine drawbars of Nord Electro 3 are represented by up/down buttons and LED chain graphs instead of ordinary mechanical drawbars. This gives you a big advantage; when you change presets, the correct drawbar settings are shown immediately by the LEDs.

2

Overview and Connections

 2ovErviEwaNdcoNNEctioNs | 5

Audio connections

Headphones

This is where you connect a ¼" stereo connector from a pair of headphones.

Left Out and Right Out

The left and right line level outputs from the Nord Electro 3 are unbalanced. Use ¼" connectors to connect the Nord Electro 3 to an ampliﬁer or recording equipment.

The Nord Electro 3 is a stereo instrument, with separate signal paths for the left and right audio channels. To properly experience the Electro 3, use both outputs in a stereo operation.

The System functions allow you to separate the pianos/samples and the organ sounds in the left and right outputs. Read more about this functionality on page 17.

General guide on audio connections:

• Make all the connections before you turn on the power to your amplier.

• Turn on the power to your amplier last.

• Turn off the power to your amplier rst.

Playing at a high volume level can result in hearing impairments E such as permanent hearing loss.

Monitor In

Use this to connect and monitor a signal from an mp3 or a CD player at the Nord Electro 3’s headphone output. This allows you to e.g. rehearse with the Electro 3 to pre-recorded music.

Signals connected to this input will not be processed with the M Electro 3’s effects or appear at the Electro 3’s left and right output jacks.

USB Connection

The USB connection is used for the Nord Electro to communicate with a personal computer in order to update the OS or to add or replace any of the piano and/or sampled sounds. The computer can run the Nord Electro Manager application, or be used to transfer the operating system if the unit needs to be updated.

Computers running Microsoft Windows operating systems need M a driver for the USB connection to work. The driver can be found on the enclosed Nord DVD, or at the www.nordkeyboards.com website.

MIDI Connections

MIDI Out

MIDI connection used for sending keyboard and panel generated MIDI data from the Nord Electro 3 to other equipment such as sound modules or computers.

MIDI In

MIDI connection used to receive MIDI data to the Nord Electro 3 from other equipment such as keyboards or computers.

3

Connections

6 | NordElEctro3UsErMaNUalosv1.X

Pedal Connections

The Nord Electro 3 has three pedal inputs; one for a sustain pedal, one for a rotor speed control pedal and one for a control pedal (an expression type pedal, which can be used to control various parameters).

Sustain Pedal

¼" connector for a switch type pedal. When a connected pedal is operated, the notes you play will be sustained.

Rotor Pedal

¼" connector for a switch type pedal. When a connected pedal is operated, the rotary speed will change.

Two types of pedal polarities can be used with these inputs; you M select the one that applies to each pedal, in the System menu which is described on page 17.

It is possible to use only one pedal connected to the sustain pedal  input to control sustain for piano sounds and rotary speed selection for organ sounds (see page 17 for details on how to conﬁgure this).

Control Pedal

¼" stereo connector for a pedal of the potentiometer type (also known as expression pedals). A connected pedal can be used as a swell pedal for the organs, a volume pedal for pianos and samples and also as a controller for two of the effects: the P-wah and the ring modulator (RM).

When connecting an expression pedal to the Control Pedal input, you should use a stereo cable with a Tip-Ring-Sleeve connector. Please note that the pedal must have a stereo output jack. The resistance range of a control pedal should be 10 or 50 kOhm. To simplify setup, the most common pedal models (Roland, Yamaha, Ernie Ball and Fatar) are pre-conﬁgured in the Nord Electro 3, and you simply select the type of pedal which you want to use in the System menu. The System Menu is described on page 17.

 3coNNEctioNs | 7

About the programs

Complete sound settings are stored in the Program memory of the Nord Electro 3. This memory area has 128 locations that are numbered 1A, 1B, 2A, 2B, etc up to 64B. Every program can be edited and replaced as you wish. A complete set of the factory programs are available on the Nord DVD and on our website.

Select a program

Press the Up or Down button repeatedly until you’ve selected the desired program number. The program will be loaded immediately.

Press the Prog A or Prog B buttons to quickly switch between the program number A or program number B. Press Shift and Up/Down to scroll continuously in the program bank.

Edit a program

Editing a program is just as easy as grabbing a knob and change a setting, or press a button to select a different setting. The knob’s physical position isn’t always as the stored setting in the program that is active, but as soon as you start turning a knob, the parameter will snap to the knob’s position.

When you have edited a program, a dot will appear in the lower right display corner next to the program number. This will alert you to the fact that the program has been edited but not yet saved. If you select a new program without saving, any edits you have made will be lost and the program will have its original settings the next time you select it.

Storing a program

If you are happy with an edit that you have made, you should probably save or Store the program.

Press the

1 Store button.

The program number LEDs starts ﬂashing.

There is a Memory Protect function that is set to On when the M Electro 3 leaves the Nord Factory. This has to be turned Off in the System Menu before you can save a program.

Press

2 Shift + System and use the Up/Down buttons to select

the Memory Protect Option – this is the very ﬁrst option in the System menu. Set the memory protection to Off by pressing and holding Shift and the Up or Down buttons. Exit the System menu by pressing the Prog A / System button again.

The setting of the memory protection will be remembered even if M the Electro 3 is turned off.

Select a new location where you want to store the program.

3

Use the Up/Down buttons and the Prog A and Prog B buttons to navigate to a new program location if you do not want to overwrite the original program.

Press the

4 Store button a second time to conﬁrm your choice.

The edited program has now replaced the previous one in the location you speciﬁed.

To cancel the procedure, press the Shift button before you press M Store the second time.

With Memory Protect set to Off, a double tap on the Store button M will store a Program in its original location.

4

Getting Started

Let’s take a few minutes to get familiar with the Electro 3. The user interface is designed to be as intuitive as possible, and to perform as well as you do in a live situation. We hope that you soon will feel conﬁdent in using it, and by following this short chapter, we will go through most of the functions.

8 | NordElEctro3UsErMaNUalosv1.X

The Live buffer

The special Live buffer can be described as a “live program memory”. If you activate the Live button, all changes to the panel settings you make will be continuously saved. If you switch the power off, or select another program, the settings are still stored in the Live memory, so when you power up next time (or return to the Live memory) all settings will be exactly as they were when you left them.

If the Live memory is selected and you decide you wish to store the settings permanently as a program you can do so using the standard methods (see above). You can also store programs into the Live memory location, in which case the program settings will replace the current Live memory settings.

Octave Shift

Press either of the Octave Shift buttons to shift the pitch up or down in whole octaves within the instrument’s note range. Each instrument has a ﬁnite note range, read more about this on page 15.

Adding effects

Select a program, e.g. number 1A 1 which is a Grand Piano with a hint of reverb.

Turn on

2 Effect 2 (the On LED should

be lit) and press repeatedly on the Effect 2 selector.

The effect options are indicated with the selector LEDs and changes in a cyclical, clockwise fashion for each time the selector is pressed.

Some of the effects have three options that indicate the depth of the effect. Flang 1 is the shallowest version, Flang 2 is a more pronounced effect and when both Flang 1 and Flang 2 LEDs are lit, you have selected the most dramatic tremolo effect.

Turn the

3 effect rate knob.

This changes the rate of the active effect.

Hold

4 Shift and press repeatedly on the effect selector.

This allows you to reverse through the effect selections.

Turn

5 off the effect.

If you now continue to press on the effect selector after the effect is turned off, the effect setting will change even though the effect is not active.

This method can be used to select a certain effect setting while  playing, without affecting the sound until you actually activate the effect.

Let’s try the wah effect

Turn on 1 Effect 1 and activate the A-Wa.

The A-Wa is a dynamic Wah-wah effect. It will affect the sound depending on the volume of the signal.

Play a few notes with varying velocity while turning the

2 Effect 1

knob.

The P-Wa is a manual Wah-wah effect that can be controlled  manually by turning the knob while playing or by using a control pedal connected to the Control Pedal input on the rear panel.

Activate an amplier emulation

Press the 1 Speaker/Comp button to activate the Amp emulation.

The Speaker/Comp LED will be lit.

Press repeatedly on the selector to cycle through the various options.

2

The knob controls the drive for the three amps and the rotary simulator, and the amount when the compressor is selected.

Selecting a piano or a sample

Make sure that the 1 Piano instrument selector is active.

Press repeatedly on the

2 Piano Type selector to cycle through the

six types.

Select the

3 Grand and press the

Model button.

This allows you to select the various Grand’s within this particular type.

Press the

4 Type selector again until

the Samp Lib is activated.

Use the Model selector to select one of the samples that are included in the Electro 3 from the factory.

Press the

5 Samp Env button repeat-

edly.

This will cycle through the four options for the sample’s attack and velocity settings.

Press and hold

6 Shift and the Samp

Env button.

This allows you to select one of the four available release time settings.

This button doubles as the Clavinet M EQ selector, when the Clavinet type is active.

 4GEttiNGstartEd | 9

Using the Organ

Press the 1 Organ instrument selector.

This activates the Organ section.

Press the

2 Organ Model selector

repeatedly to cycle through the three organs – the B3, Vox and Farﬁsa emulations.

The settings for the three organ sounds are made using the digital drawbars. The Farﬁsa uses these in a switch mode, with only two settings for each.

Make a setting with the drawbars and

3

then press the Preset/Split button.

This activates the second preset, which allows you to keep two different settings for an organ sound available from the panel at any time. The settings of both Presets 1 and 2 are stored in the Electro 3’s program memory.

Press and hold

4 Shift and the Preset/Split button.

This activates the organ split mode. The keyboard will be split at C4. The lower half will use the Preset 1/Lo setting; the upper half will use the Preset 2/Up setting.

If you press and hold both the Shift and the Preset/Split buttons  for a couple of seconds, the Split LED will begin to ﬂash and you can press a key on the keyboard to set a new split point as long as these buttons are held down. The key you press will be the ﬁrst upper manual key.

The Rotary effect

The rotary effect adds some great sonic drama to the organs, but can of course be used with any other sound as well. The Electro 3 rotary has three available speeds: fast, slow and stop. Stop does not disengage the effect; it only stops the rotating speakers

Make sure that the

1 Speaker/Comp

effect is activated and select the Rotary by pressing the effect selector.

The drive knob now controls the overdrive of the rotary ampliﬁer.

Press the

2 Slow/Stop button in the

Rotary Speed section to the left on the panel, to cycle between the Fast and Slow speeds of the rotary.

The rotors will speed up and slow down, producing a nice swirly effect without the negative side effects that e.g. alcohol intake might induce.

Press the

3 Stop mode button to activate this one-speed mode.

The Stop Mode LED will be lit.

Press repeatedly on the

4 Slow/Stop button to cycle between

Fast and Stop.

The rotary will now emulate the functionality of an early, one speed original rotary speaker that had only the fast and the stopped rotary speed options.

If you connect a foot switch to the rotor pedal input, you can  control the rotary speed with this pedal.

This ﬁnishes our little tour; we hope that you now have the initial knowledge on how to operate most of the functions on the panel. The following chapter is the reference section, with the chapter on the Nord Electro Manager application after that, on page 20.

10 | NordElEctro3UsErMaNUalosv1.X

Master level knob

This control sets the overall output level of the Electro 3, at the line and the headphone outputs. This is not a programmable control. If you want to program an output level for a particular program, this can be achieved with the Gain control.

Organ section

The Organ section in the Nord Electro 3 features emulations of three classic organ models; a Hammond B3 (B3 model), a Vox Continental II (Vx model) and a Farﬁsa Compact DeLuxe (Farf model).

Organ Model button

You select which organ model to use, with the Organ Model button.

The B3 model

This model is a digital simulation of the classic mechanical tone wheel organ. This simulation utilizes innovative and advanced methods to capture every nuance of the original sound, for example:

An extremely accurate digital model of the original chorus and vibrato • scanner.

Modeling of the individual random contact bounces for each harmonic.•

Modeling of the unique frequency characteristics of the built-in pre-• ampliﬁer which forms the “body” of the sound.

Simulation of the energy robbing in the tone wheel architecture that • creates the typical “compressed” sound.

Authentic tuning of the tone wheels according to the original design•

Extremely fast keyboard response.•

Full polyphony.•

Each drawbar represents a partial with a ﬁxed harmonic interval relating to the played note. Note that the Sub3 drawbar is a 5th above the fundamental harmonic although, in most situations it is perceived as sounding below the fundamental harmonic.

Do not forget to try out the four tonewheel modes that are avail-  able in the Sound menu. These will dramatically change the sound of the B3 model from squeaky clean to a battered, old work horse.

The VX model

The original instrument is probably the most famous of all the transistor-based combo organs that emerged in the early 60’s. Transistor technology made it possible to manufacture much more compact and portable organ instruments. Compared to the mighty sound of tonewheel based organs, transistor organs generally sounded reedier and weaker, but this one had a distinctive, timeless sound and is recreated faithfully in the Nord Electro 3.

The labels used for the VX model drawbars are printed on the row directly above the drawbar led’s. For basic drawbar operation, please refer to “The Drawbars” on page 13. The drawbars on the Electro 3’s VX emulation control the level of each available partial, in the same fashion as on a dual manual original Continental. The upper manual uses the 16, 8, 4, II and III registers and the lower manual uses the 8, 4, 2 and IV registers. Each register represents a ﬁxed harmonic interval, or groups of intervals (the II, III and IV) in a relationship to the played note.

The two rightmost drawbars control the sum of all partials in the form of a ﬁltered, soft and dark sounding signal (the sine icon), and an unﬁltered signal with a bright and intense sound (the triangular icon).

If these drawbars are both fully set to the lowest level, the organ M will produce no sound.

The Farf model

This typical “buzzy” sound of this vintage instrument is one of the most distinct and easily recognizable organ sounds ever created, yet it is actually possible to get quite a wide range of sounds out of the instrument.

The labels used for the Farf model drawbars are printed on the upper row above the drawbars. The drawbars act as on/off switches, or “Register selectors” when the Farf model is selected.

5

Nord Electro 3 Reference

 5NordElEctro3rEfErENcE | 11

The drawbar LEDs 5-8 are lit up for an activated voice, and drawbar LEDs 1-4 are lit up for a deactivated voice. The illustration below shows the registers.

Rotary Speed

The rotary speaker speed is controlled with the rotary speed buttons or with an external pedal connected to the rotor pedal input on the rear panel.

Press the Slow/Stop button to change the rotation from Slow to Fast and vice versa.

To stop the rotors, press the Stop Mode button to activate the Stop Mode and then the Slow/Stop button (this does not deactivate the Rotary Speaker simulation - it only stops the rotors). When you press the Slow/Stop button again the rotors will accelerate to the Fast speed setting. This functionality mimics the behavior of an early, one speed original rotary speaker.

A connected pedal can be set to change the speeds only when it is held down or to function like a switch, changing the speed every time you press it. This functionality is set in the System menu, read more on this on page 17.

The actual rotary simulation is activated at the Effects section, with M the Speaker/Comp selector.

Vibrato/Chorus

The Vibrato/Chorus section mimics the behavior of the original organs, which means that these parameters functionality depends on which model is active. Select the desired vibrato or chorus type by repeatedly pressing the Mode button. The Vibrato/Chorus section is common for both the upper and lower presets, if the split function is active..

B3 – The original tonewheel organ’s vibrato and chorus scanner consists of a tapped delay line in combination with a rotating scanner. For the Vibrato effect, phase shift is applied to the signal. For the Chorus effect, a phase modulated signal is added to the original signal. Three different types of choruses (C1- C3) and three different types of vibratos (V1-V3) are available.

VX - There is only one type of vibrato available for the VX model, which is activated using the ON button in the Vibrato section.

Farf - This model has two basic vibrato modes; “Light” and “Heavy”, with two different rates for each mode.

Percussion

The Percussion effect adds extra attack to the B3 sound by having a single envelope generator controlling either the 2nd or the 3rd harmonic. The envelope “opens up” for a short moment in the beginning of the sound when you press the key(s). The percussion will only affect the upper manual if the Split function is active.

The Percussion is a single-triggered non-legato effect. It is only present when you hit the keys when no other note is sounding. In other words, if you play a note or a chord and then add on more notes without releasing the previously pressed keys, there will be no percussion effect in the new notes. You have to release all keys to be able to play new notes with the percussion effect.

The percussion effect is activated and deactivated by pressing the On button. The Soft/Fast button toggles between normal or soft percussion levels and fast or slow decay times, providing four available combinations. The Third button toggles between using the 2nd or 3rd partial as the source for the percussion effect. The percussion decay times (and levels) can be ﬁne-tuned for Fast and Slow mode individually. Please refer to “The Sound Menu” on page 18 for details.

With the original instrument, you could not use the percussion M effect and 9th drawbar simultaneously. However with the Nord Electro 3 you have a choice. You can use the percussion and 9th drawbar together or chose to mimic the original organ behavior by turning off the 9th drawbar whenever the percussion is activated. Read more on the Perc Drawbar setting in the Sound menu on page 18.

Preset/Split

Use the 1/Lo and 2/Up buttons to store and recall two separate settings for the organ section.

Press the Shift and the Split button to divide the Nord Electro 3 keyboard into two sections, the Lower Manual and Upper Manual sections. By default, the split point on the keyboard is between the keys B3 and C4. You can, however, also set the split point manually by holding Shift + pressing Split, the split LED starts to ﬂash, then while still holding the buttons press the desired key. A set split point is saved as part of the parameters in a program.

Using an additional MIDI keyboard in a dual manual fashion

You can connect an additional MIDI keyboard to the Electro 3 to use the organ in a dual manual fashion, with the external keyboard operating as the lower manual.

Connect the external MIDI keyboard’s MIDI out to the Electro 3’s

1

MIDI in.

Set the MIDI channel of the external keyboard to the channel that 2 is set in the MIDI menu, the Lower Channel setting.

The default Lower MIDI channel in the Electro 3 is 2.

Select the

3 MIDI Split option in the MIDI Menu and set this to On.

Read more on how to change settings in the MIDI Menu on page 18.

12 | NordElEctro3UsErMaNUalosv1.X

On the Electro 3, press and hold Shift and the Split button.4

This will activate the organ split mode, but since MIDI Split is set to On, the Electro 3’s keyboard will only play the upper part without being split.

Press the Preset/Split button to cycle between the 1/Lo and the

5

2/Up settings.

Adjust the drawbars for the lower, external keyboard when the 1/Lo LED is lit and for the Electro 3’s keyboard when the 2/Up LED is lit.

The drawbars

The drawbars of the Nord Electro 3 are represented by buttons and LED graphs. This gives you a big advantage: when you change the program, the correct drawbar settings are recalled immediately and shown by the LEDs.

The drawbars of Nord Electro 3 behave similar to their mechanical counterparts, i.e. with the B3 and VX models you “pull out” and “push in” the drawbars using the Drawbar buttons. The buttons are special in the way that they auto-increment/decrement the drawbar value when held. If you hold a Drawbar button the corresponding drawbar value will continue to change (within its range) until you release the button. The speed of the automatic change can be set in the System menu, read more about this on page 17.

While holding a Drawbar button, you can press its sibling button to  momentarily auto-increment/decrement in the opposite direction.

Organ Presets

The Drawbar buttons can be used to access 17 different organ presets plus a Random setting (RND) for each of the three organ models. These presets contain the drawbar settings, the vibrato/chorus and the percussion parameters.

Press Shift + the corresponding Drawbar button to select one of these presets. The Random function will generate a new random preset every time you activate it.

Store your own organ preset

Here is how to store your own organ preset:

Use the upper drawbar and lower drawbar buttons, and the

1

vibrato/chorus and percussion sections to create the organ setting you want to store.

Press and hold Shift and the Store/Store Org. Preset button. 2

The display will ﬂash O. pr.

Setect a desired location to store by pressing one of the Organ 3 Preset buttons.

The display will show the selected preset number.

Conﬁrm your intentions by pressing Store once more.

4

This procedure may be aborted by pressing any button (except Store or one of the preset buttons) on the panel.

Organ presets can be managed using the Nord Electro Manager, M read more about this on page 20.

Piano section

The Piano section of the Nord Electro 3 is divided into six different types; each type can contain several instru-

ment models. You can freely add new piano instruments and samples via USB using the Nord Electro 3 Manager utility (see “Nord Electro 3 Manager” on page 20).

Right out of the box, Nord Electro 3 features a ﬁne collection of carefully selected acoustic and electromechanical pianos, harpsichords and sampled instruments. A lot of effort was put in to ensure that the response and sound of the sampled instruments matches every nuance of the real article. Each piano instrument has been multi sampled in a vast amount of velocity levels. That’s one reason why they all sound and feel so authentic.

The Piano section also includes the ability to use samples from the Nord Sample Library, like e.g. the Mellotron sounds that have been licensed by Clavia.

Clavinet sound

On an original Clavinet D6 you can select different pick-up and ﬁlter combinations by pressing a number of rocker switches. This functionality is very faithfully simulated in the Nord Electro 3, which means that you get all the possible original Clavinet D6 sound variations (plus an additional four) by selecting different pick-up and ﬁlter combinations. Here’s how it works:

Pick-up type

A Clavinet D6 has two separate pick-ups, one on the “neck” and one on the “bridge”. By selecting either one pick-up or both in different combinations you can alter the character of the sound quite drastically. When the Clavinet is selected in the Nord Electro 3, you use the Model button in the Piano Select section to select one of the four pick-up variations:

Pick-up Type Description

Clav Model 1 (CA) Only the “neck” pick-up; a warmer, less bright sound.

Clav Model 2 (CB) Only the “bridge” pick-up; a bright sound. Clav Model 3 (DA) Both pick-ups on and in phase; a very full sound. Clav Model 4 (DB) Both pick-ups 180 degrees out of phase; the

fundamental is almost cancelled out and the sound becomes thin.

 5NordElEctro3rEfErENcE | 13

Clav EQ

The two Clav EQ buttons works as ﬁlter selectors. By selecting different combinations of the Brilliant/Treble and Medium/Soft ﬁlter indicators you can reproduce all 15 possible ﬁlter variations, exactly like on the original D6. Use the Shift button together with the Clav EQ button to access the Med and Soft settings.

Samp Env

When the Samp Lib type is active, the Samp Env LEDs and button can be used to set a desired velocity response and attack and release time behavior that affects the playback of the samples.

When none of the Attack LEDs are lit, the sample playback is not affected by any additional attack from the Electro 3 and it does not respond to keyboard velocity. Slow At – select this when you want to play the samples with a slower attack. Vel Dyn - select this when you want to control the volume and the timbre of the samples with velocity from the keyboard. When both LEDs are lit, both the slow attack and the velocity option are active.

Press and hold the Shift button and operate the Samp Env button to set the desired release times. When none of the Release LEDs are lit, the sample playback is not affected by any additional release.

Rel 1: Short release Rel 2: Medium release Rel 1&2: Long release

Piano Type

Use the Type selector to choose which piano sound you want to use. Each type may consist of several models; press repeatedly on the model selector to cycle through the models within a selected type.

Category Description

Grand Acoustic and electric grand pianos

Upright Upright pianos

E Piano Electric Pianos

Wurl Wurlitzer electric pianos

Clav/Hps Clavinets and Harpsichords

Samp Lib Samples

Mono

If you press Shift + Mono when a stereo instrument is selected, the stereo samples will be played back in mono instead.

Model

Press repeatedly on the model selector to cycle through the available models within a selected type.

The type of a piano has been set by the lemmings at the Nord M factory. You cannot move a piano from one type to another.

Program section

The Program section is where you select the program, where the Store functions are activated and where you enter the system, MIDI and sound menus.

Up/Down buttons

The Up/Down buttons to the left of the display have several functions in the Nord Electro 3. Press repeatedly to select one of the 128 programs; the number and sub-letter of the program will be presented in the display. Press Shift together with Up/Down to scroll through every location (1A, 1B, 2A etc).

If you have activated any of the three menus, the System, MIDI or Sound menu, these buttons are then used to select a function, and together with the Shift button to change the value of a selected function. Read more about the menus on page 17.

Display

The LED display will show the active program number. If you edit a program, a dot will appear next to the program number, at the bottom right of the display.

If you have activated any of the three menus, the System, MIDI or Sound menu, the setting for each menu item is shown with the LEDs.

Store/Store Org. Preset

The red Store button is used when storing Programs and Organ Presets.

Press the Store button once and the current program number will

1

start to ﬂash.

Select the desired location with the Up/Down buttons and press

2

Store again to conﬁrm your intentions and to store the current settings to the selected location.

Press any button to abort the store procedure. 3

Press Shift + Store. 4

The display will ﬂash O. pr.

Select a desired location to store by pressing one of the Organ

5

Preset buttons.

The display will show the selected preset number.

Conﬁrm your intentions by pressing Store once more.

6

This procedure may be aborted by pressing the Shift button.

In order to be able to store settings the Memory Protection must M be turned off. Read more about this on page 17.

14 | NordElEctro3UsErMaNUalosv1.X

Prog A - Prog B

After you have selected a program number, you can quickly switch between program number A and B by using the Prog A and Prog B buttons.

Live

If you press the Live button, all changes to panel settings you make will be continuously saved in the “Live Buffer”. If you switch the power off, or select another program, the settings are still stored in the Live memory, so when you power up next time (or return to the Live memory) all settings will be exactly as you left them.

Instrument selectors

Press one of the Instrument Selectors to play either the organ or the piano/sample sounds.

Only the active section will have its corresponding functions lit  and active. It is however possible to e.g. play with the pianos, and adjust the organ settings, and then quickly activate these by pressing the organ instrument selector.

Shift

Many buttons have a second function, printed in darker text just below the button or knob. You access these additional functions and parameters by holding Shift while pressing a button.

Octave Shift

The two Octave Shift buttons can be used to transpose the keyboard two octaves up or down (if the selected instrument supports this). A ﬂashing Octave Shift LED at the right or left position indicates +/- 2 octaves note shift.

Each instrument in Nord Electro 3 has a ﬁnite note range:

The Organ extends one octave below and one octave above an 88 • note keyboard range.

The Piano and Samples extends one octave below an 88 key range, • but not above.

Effects

The Effects section of Nord Electro 3 can be used for processing the Organ and Piano/Sample sounds. It’s fully programmable and you can conﬁgure your effects separately for each program.

You have the possibility in every program, to store the on or off  setting of the effects, also for the instrument not being used as the active in the program. This allows you to quickly change from e.g. a piano performance with some effects turned on, to an organ performance with another set of effects turned on, by just pressing the appropriate instrument selector.

Press and hold Shift and press the Effect selector to cycle through  the effects in a counter clockwise fashion.

This is a 3-band EQ with treble, bass and a sweepable midrange. The frequency ranges can be boosted/attenuated with +/- 15 dB.

Effect 1

Effect 1 offers four different types of effects: Tremolo, Auto-Panning, 2 types of Wah-Wah and a ring modulator (RM).

The tremolo and the auto-panning have 3 selectable depths. Pan1 is less dramatic than Pan2, and Pan 3 (both Pan LEDs lit) is the most dramatic.

The Rate knob control the rate of the effect.

The A-Wa is a wah-effect where a lowpass ﬁlter sweep across the frequency range is controlled by the volume of the signal. This means that you can use the velocity on the keyboard to control the amount of “Quack!” in the sound. The Rate knob sets the frequency range of the sweep.

The P-Wa uses the Rate knob to control a lowpass ﬁlter sweep across the frequency range. If a control pedal is connected, this sweep is instead controlled by the pedal action, and the Rate knob will then have no effect.

 5NordElEctro3rEfErENcE | 15

Ring Modulation (RM) is a an effect that multiplies two signals with each other. In the Electro 3, these are the instrument audio signal and a modulation sine wave. The results can be range from a subtle coloring to screaming, inharmonic, bell type sounds. The Rate knob controls the frequency of the sine wave, also perceived as a “modulation rate”.

A connected control pedal will control the amount of the ring modulation. If no control pedal is connected, the amount defaults a medium setting and the Rate knob can be used to produce a manually controlled ring modulation effect.

Effect 2

Effect 2 offers three types of modulation effects: Phaser, Flanger and Chorus.

Each of these effects has 3 selectable depths in the same fashion as the tremolo and pan in the Effects 1 section. The Rate knob control the rate of the effect.

Speaker/Comp

This section contains the speaker/amp emulations, the rotary speaker emulation and a compressor.

Small, JC and Twin emulates three different kinds of ampliﬁer and

speaker cabinets. The amount of drive is controlled by the Speaker/ Comp knob .

Rotary simulates a rotary speaker including its built-in ampliﬁer. The knob sets the amount of overdrive of the rotary ampliﬁer; the speed of the rotating speaker is set with the rotary speed controls on the left side of the panel.

Comp is a compressor that will even out the dynamics of what you play, making low level sounds louder and high level sounds lower in volume. This produces a tight, punchy sound and makes the overall level easier to control in a live mix situation. When this effect is active, the Drive/Comp knob controls the amount of compression applied.

Reverb

The Reverb section simulates the natural sound reﬂections in various acoustic environments. You can choose between ﬁve reverb types with various lengths and densities, indicated by the three LEDs that light up one or two at a time. The Dry/Wet knob sets the balance between the unprocessed and the processed signal.

Gain

This is the programmable Gain control which allows you to adjust the output level of each of the individual programs.

16 | NordElEctro3UsErMaNUalosv1.X

System Menu

Memory Protect – On, Off

This is set to “On” when the Nord Electro 3 leaves the factory, meaning that you cannot save any changes to the programs. Set this to Off when you wish to store your own programs. The System, MIDI or Sound menu settings and the Live memory are not protected by this setting.

Range: On (default), off

Output Routing

If you want to process your sound using external effects or separate ampliﬁer systems, it can be convenient to route organ and piano sounds to separate outputs of the Nord Electro 3.

Range: St - Stereo Output. All instruments use the left and right outputs (default setting).

SO - Separated Output. All organs are routed to left output, pianos/samples are routed to the right output.

SP - Split Output. Tonewheel organ is routed to the left output. Vx and Farf organs and pianos/samples are routed to right output.

Transpose

Transpose allows you transpose the pitch of the Electro 3 up or down in semitone steps.

Range: -/+ 6 semitones (default = 0).

Fine Tune

This allows you to ﬁne tune the pitch of the Nord Electro 3.

Range: +/- 50 cent (default = 0).

Sustain Pedal Polarity

This allows you to change the polarity of a connected sustain pedal, in case the functionality of your pedal is reversed (i.e. when the pedal is up, sustain is on and vice versa).

Range: CL - Close (default), OP - Open.

Sustain Pedal Conguration

If you’re using a single sustain pedal connected to the Sustain Pedal input you may want to use it for sustain with piano sounds and as a Rotor Speed switch with organ sounds. In this case, select “rt” (rotor toggle) with the Up/Down buttons.

If you’re using two separate sustain pedals: one in the Sustain Pedal Input and one in the Rotor Speed Input you probably want to use the sustain pedal in the Sustain Pedal input for sustain also when using Organ sounds. In this case, select ‘SU’ (sustain).

Range: SU (default), rt.

Rotor Pedal Polarity

This allows you to change the polarity of a sustain type pedal connected to control Rotor Speed, in case the functionality of your pedal is reversed (i.e. when the pedal is up, Rotor Speed is fast and vice versa).

Range: CL - Close (default), OP - Open.

Rotor Pedal Mode

If you are using a sustain pedal connected to control Rotor Speed this allows you to set how this should operate. “Hold” means that the Rotor Speed is fast for as long as the pedal is down and reverts back to slow when the pedal is released (or vice versa depending on the set pedal polarity).

“Toggle” means that the fast/slow rotor speed is switched each time you activate the pedal, like an on/off switch pedal.

Range: Hd - Hold, (default), tO - Toggle.

Ctrl Pedal Type

Different makes of control pedals have different speciﬁcations (resistance, offset and linearity). To simplify setup and to optimize the response of the pedal for the Nord Electro 3, the most common pedal makes are preconﬁgured, and you simply select the type of pedal you connect.

Roland, Yamaha and Fatar are linear control pedals with different scaling and offset. Ernie Ball pedals (“ErnieB”) are marketed as volume pedals, with a logarithmic response, but the response is rescaled internally in the Nord Electro 3 to make them work nicely as control pedals. They may need a Y-cable (stereo plug -> 2 mono plugs) to work with the Nord Electro 3.

Range: FA - Fatar, Er - Ernie Ball, YA - Yamaha, rO - Roland (default)

6

The Menus

Any settings that you change in the System, MIDI or Sound menu will take immediate effect on a global basis, and will be stored until you change them the next time. Enter the menus by pressing and holding Shift and the System, MIDI or Sound button (Prog A, Prog B or Live). Select a function with the Up/Down buttons and change the setting by pressing and holding Shift and the Up or Down button. Exit the menus by pressing a second time on the Prog A, B or Live button.

The only exception to this is the MIDI Local On/Off setting which always reverts to Local On every time the Electro 3 is powered up. M

 6thEMENUs | 17

Ctrl Pedal Mode

A connected control pedal can be used to control several things. It can be used as a solitary organ swell pedal (swell is a combination of volume and frequency control), as a combined organ swell/volume pedal for the samples type, and ﬁnally as a swell/volume pedal for all the instrument sections (incl. the pianos) in the Nord Electro 3.

Range: O – Organ swell (default), S – Organ swell/sample volume, P - Organ swell/sample volume, piano volume

A connected control pedal will always be active if the P-Wa or the M RM effect is activated, regardless of the Ctrl Pedal Mode setting.

Organ Trig Mode

This allows you to change how the Nord Electro keyboard triggers the organ sounds. When “Fast” is selected, you will trigger organ sounds before the key reaches the end of its travel. This mode closely mimics the way a vintage tonewheel organ trigger its notes.

Range: F- Fast (default), n- normal

Drawbar Speed

This sets the speed with which the drawbars will increase or decrease the values when the drawbar buttons are held down.

Range: F- Fast (default), S- slow

MIDI Menu

MIDI Channel

This sets the MIDI Channel that the Nord Electro 3 transmits and responds to.

Range: 1-16, OF - off (default = 1)

Lower Channel

This sets the MIDI channel that the Lower Manual of the Nord Electro 3 organ section transmits and responds to when the organ split and the MIDI split modes are active.

Range: 1-16, OF - off (default = 2)

Local Control

This allows you to set if the Nord Electro 3 keyboard and front panel controls should control internal Programs or only send note and controller messages via MIDI. Local On is the normal “mode”. In Local Off mode, the front panel and keyboard action are transmitted via MIDI only and does not control the internal sound(s) directly.

Range: On (default), Off

Local defaults back to mode On every time the Nord Electro 3 is M powered on.

Control Change (CC) Mode

This setting speciﬁes how the front panel’s knobs and buttons are handled in the MIDI communication with MIDI Control Change messages. You can select if the panel controls and functions should either send or receive, or both or if Control Change messages should be ignored.

Range: Sr (send & receive - default), r (receive only), S (send only), Off

Program Change Mode

Speciﬁes how the Nord Electro 3 should handle MIDI Program Change messages.

Range: Sr (send & receive - default), r (receive only), S (send only), Off

MIDI Split Mode

If MIDI Split mode is On and the Organ is set to a split operation, the lower manual will be exclusively controlled via incoming MIDI information to the Electro 3’s MIDI input. If you connect an external MIDI keyboard, the Electro 3 can then be used in a dual manual fashion.

Range: On, Off (default)

Send CC (Control Change messages)

You can perform a dump of all the active Program’s parameters as MIDI Controllers. Press the Store button to perform the dump.

Dump One

This allows you to perform a MIDI SysEx dump of the currently selected Program. Press the Store button to perform the dump.

Dump All

This allows you to perform a MIDI SysEx dump of all the Programs in the Electro 3. Press the Store button to perform the dump.

In the MIDI chapter, on page 42 is a description on how the Electro 3 receives a Sys Ex dump.

Sound Menu

Treble Horn Speed

Sets the speed setting (in the fast and slow speed modes) of the rotary speaker simulation’s treble horn.

Range: H - High, n - Normal (default), L - Low

Treble Horn Acceleration

Sets the acceleration and retardation time of the rotary speaker simulation’s treble horn.

Range: H - High, n - Normal (default), L - Low

18 | NordElEctro3UsErMaNUalosv1.X

Bass Rotor Speed

Sets the speed setting (in the fast and slow speed modes) of the rotary speaker simulation’s bass rotor.

Range: H - High, n - Normal (default), L - Low

Bass Rotor Acceleration

Sets the acceleration and retardation time of the rotary speaker simulation’s bass rotor.

Range: H - High, n - Normal (default), L – Low

Perc. Fast Decay

Sets the fast mode decay time of the Tonewheel percussion effect.

Range: L - Long, n - Normal (default), S- Short

Perc. Slow Decay

Sets the slow mode decay time of the Tonewheel percussion effect.

Range: L - Long, n - Normal (default), S- Short

Perc. Norm Level

Sets the level of the percussion effect in its normal setting.

Range: H - High, n - Normal (default), L – Low

Perc. Soft Level

Sets the level of the percussion effect in its soft setting.

Range: H - High, n - Normal (default), L – Low

Tonewheel Mode

Sets the level of tonewheel crosstalk and cable leakage artifacts of the B3 organ model.

Range: u3 – Vintage 3, u2 - Vintage2, u1 - Vintage1 (default), Cl – Clean

Perc Drawbar 9 Cancel

If this is set to cancel, the 9th drawbar will be muted when the percussion is activated, to mimic the behavior of an original organ.

Range: C – Cancel, n – Normal (default).

Key Click Level

This sets the amount of Key Click for B3 organ model.

Range: High, Normal (default), Low

 6thEMENUs | 19

Overview

You can work with the contents of the Piano partition, the Sample partition, the Program partition and the Organ Preset partition. These are all accessed from the tabs, conveniently labeled Piano, Samp lib, Programs and Organ Presets. Below the tabs is a drop down menu, with which you select one of the banks in the Piano partition.

If no Nord Electro 3 is connected to the computer, pages and M memory locations will be grayed out.

The actions that take place in the Nord Electro 3 Manager will E affect the memories in the Nord Electro 3. The Manager is online with a connected Electro at all times; any changes that you

perform in the Manager will immediately be executed in the Nord Electro 3. If you e.g. delete a Piano or a Program from the list in the Nord Electro 3 Manager, that same Piano or Program will also be deleted from the Nord Electro 3 Flash memory.

The Toolbar

The Toolbar gives you direct access to some of the more frequently used functions in the Nord Electro 3 Manager. Clicking on an icon will activate one of these functions, and a dialogue will often appear asking for conﬁrmation or further instructions from you.

The Tabs

Select the partition that you wish to work in with the Tabs. The Piano tab allows you to change the content of the Nord Electro 3 Piano partition, the Samp Lib tab is the sample partition, the Program tab allows you to organize the programs and the Organ Preset tab gives you access to the Organ preset partition. The individual pianos, samples, programs or organ presets will be referred to as “sounds” in this manual and in the application itself.

Press Ctrl+Tab on the computer keyboard to cycle between the  three tabs.

Piano sounds can not be moved between the banks in the piano M partition.

The lists can be ordered according to location, name, size, version and date, in ascending and descending order. Just click on a headline to select a preferred view.

7

Nord Electro 3 Manager

The Nord Electro 3 Manager is the application that allows you to organize the various memory areas, the partitions in the Nord Electro 3. It is also used to download pianos, samples or programs to the Nord Electro 3 or to upload any of these items - called sounds - from the Nord Electro 3 memory to the computer hard drive. The Nord Electro 3 Manager provides access to various methods to download the sounds to the Electro 3 and a function to backup and restore the entire Nord Electro 3 memory.

System requirements

The Nord Electro 3 Manager is compatible with computers running Mac OSX 10.4 or later, Windows XP and Windows Vista. If you run the Nord Electro 3 Manager on a Windows computer, you also need a Clavia USB Driver of version 2.14 or later installed.

Nord Electro 3 OS Updates, USB drivers and instructions on how to install these are available at the www.nordkeyboards.com website and on M the DVD that accompanies this unit.

20 | NordElEctro3UsErMaNUalosv1.X

Partition Memory Indicator

The memory indicator at the bottom of the window indicates how much memory is being used in the selected partition. The red area shows the used memory, green indicates space that is available for new sounds.

Right-Clicking

If you right-click on a sound, a context menu will provide the following options:

Upload

This will upload the selected sound from the Nord Electro 3 to the computer hard drive in a folder of your choice.

Download

This is only available if you right-click on an empty location that does not contain a sound. This allows you to choose a ﬁle on the hard drive, to be downloaded to the location in the Nord Electro 3.

When a Nord Electro 3 leaves the factory, every program location M is ﬁlled with programs. You need to use the Delete function to get any empty locations, which are displayed without any characters in their name.

Rename

This allows you to rename a Program. Characters supported are: a-z, A-Z, 0-9 and a hyphen (-) and the name can contain up to 16 characters. Any other characters will not be displayed in the Electro Manager lists.

Pianos or samples cannot be renamed, this option will not be M available if you right-click on any of these items.

Delete

This will delete the selected sound(s) from the Nord Electro 3 memory.

File Formats

The Nord Electro 3 Manager creates and uses ﬁles with the following extensions:

.npno - These are the piano samples from the Nord Piano Library.•

.nsmp - These are the sample ﬁles from the Nord Sample library.•

.nepg - These are the Program ﬁles. •

.neop – These are the Organ Preset ﬁles.•

.neb - This is the extension used for the Nord Electro 3 backup ﬁles.•

Just as any other computer ﬁle on your hard drive, these ﬁles may be renamed, emailed, copied, moved, lost or even stored in a safe location if an evil computer crash suddenly decides to take your hard drive for ride.

The Quick Tour

Let’s get acquainted with some of the functions in the Nord Electro 3 Manager.

Transfer piano samples to the Electro 3

When the Nord Electro 3 leaves the factory, the Piano partition is ﬁlled with piano sounds. In order to be able to download additional pianos, you may have to delete some of the factory pianos. If you ever want to reload any deleted pianos, they are available on the DVD that was included with the Nord Electro 3, or available as a download from the www.nordkeyboards.com web site, in the Libraries area.

Deleting a piano from the Nord Electro 3

Connect the Nord Electro 3 to the computer and launch the Nord 1 Electro 3 Manager.

The Piano tab will open and the current content of the Piano parti-

2

tion in the Electro will be displayed.

Select a piano to delete and press the Delete icon in the toolbar.

3

You can also right-click on the sound and choose the Delete option or use the backspace or delete keys on the computer keyboard.

You will be asked to conﬁrm your intentions and then the piano in

4

the Electro will be deleted.

Download a new piano

Using drag and drop: Open the folder on the computer hard drive 1 where the new piano is located.

Make sure that the Electro Manager window and the folder are

2

visible on the screen.

Drag the new piano to the white area in the Electro Manager piano 3 list.

The Clean Deleted Space process will start to prepare the mem-

4

ory and then the new piano will be downloaded to the Electro. If there isn’t enough free space, a message will appear in the lower left text area in the Nord Electro 3 Manager.

The pianos are categorized and can only be added to the correct M bank; electric pianos can not be added to the grand bank, the grand’s cannot be dropped in the clavinet bank etc.

 7NordElEctro3MaNaGEr | 21

If the Free Locations option is active in the View menu, you can  drop a sound on any free location in the bank. If this function is not active, the new sound will be automatically placed at the ﬁrst free location in the bank. The various locations are selected using the Type selector on the Nord Electro 3.

Using the Toolbar or menu command: Click on the Sound Down

1

icon in the toolbar. The same command is also available in the File menu: Sound Download (Ctrl-D).

Browse to the folder on the hard drive where the desired sound is 2 located, select it and click Open. The piano will now be added to its bank.

These methods can also be used with any sample, individual  programs or organ preset that you wish to add.

Upload one or several sounds from the Nord Electro 3 to the hard drive

Select the desired partition that holds the sounds that you wish to 1 store on the computer hard drive.

Select the bank and the sound. Shift-click will allow you to select

2

several consecutive sounds; Ctrl-click will allow you to select nonconsecutive sounds. Here we have selected a few of the Pianos:

Click on the Sound Up tool or right-click on the selected sound(s) 3 and select Upload. The dialogue will prompt you to browse to the desired destination folder on the hard drive. The upload process may take a few moments depending on the size of the sounds.

Upload a complete partition or bank of sounds from the Electro 3 to the hard drive

Make sure that the desired partition (bank) is focused in the Nord 1 Electro 3 Manager. You will also have the opportunity to change the source bank in an upcoming dialogue.

Click on the Bank Up tool, or select the File/Bank Upload menu

2

command (Ctrl-Shift-U). Verify that the source bank is correct and browse to the desired destination folder on the computer hard drive.

You can also select All at the bottom of the Piano bank list drop down. This will upload the entire content of the partition to the computer hard drive.

If the Create Subfolders option is checked, a folder structure - partition/ bank/sounds - will automatically be created in the destination folder.

Download a complete bank of sounds from the hard drive to the Electro 3

Click on the Bank Down tool, or select the File/Bank Download 1 menu command (Ctrl-Shift-D).

Verify that the destination bank is correct and browse to the 2 desired source folder on the computer hard drive.

When you click on Download a dialogue appears to inform you M that the content of the destination bank in the Nord Electro 3 will be replaced with that of the source ﬁle.

If you select All in the destination bank drop down, you can replace all the sounds in a partition with those on a folder structure on the hard drive. If Search Subfolders is active, you can browse to the top folder of a structure as the parent of the source ﬁles.

Organize the program partition

By using drag and drop, you can organize the content of the Program partition with its 128 programs.

Make sure that Free Locations is activated in the View menu.

1

Select and drag a program from the destination location to the 2 desired location. If you drop a sound on a free location, the sound will be moved from the source location. If you drop on a location that is occupied, the two sounds will trade places.

22 | NordElEctro3UsErMaNUalosv1.X

Nord Electro 3 Manager reference

Toolbar

Sound Up

Use this function to upload one or several sounds from the Nord Electro 3 to the computer hard drive.

Sound Down

Use this function to download one or several sounds from the computer hard drive to the next available location in the selected partition.

Rename

Allows you to rename a program or an organ preset. 16 characters can be used, and the supported characters are: a-z, AZ, 0-9 and the hyphen (-). Any other characters will not be displayed in the Electro 3 Manager lists.

Pianos or samples cannot be renamed so this function is not M available if you have selected any of these items.

Delete

Allows you to delete one or several selected sounds. You will be asked to conﬁrm your intentions. You may also use the delete or backspace key on the computer keyboard to perform this action.

Any Program in the Nord Electro 3 that used that particular piano M or sample that you deleted will probably not sound at all, since it will be missing an important component.

The space that a deleted Piano or Sample occupied is not immediately available to other sounds, even though it is gone from the list and its location is free. The Flash memory needs to be cleaned to free up the space where the deleted sounds have been. When you add a new piano or sample the cleaning process will be initiated automatically. You also have the option to manually start the cleaning process with the Clean Deleted Space command from the File menu.

A ﬂashing number in the Nord Electro 3 piano type LED indicates M that the Piano that the current Program tried to use is not available in the Flash memory. Select another piano type or download the missing piano sample to the Stage.

Bank Up

This function will upload an entire bank of pianos, samples, programs or organ presets to the computer hard drive. The default source will be the currently active bank, but you may choose another partition and bank if you wish. Click on the Choose Folder button to select the destination on the hard drive.

If the Create Subfolders option is checked, a folder structure will automatically be created in the destination folder.

If a folder with the same name as the source partition/bank M already exists in the location on the hard drive, this folder’s entire content will be replaced by the uploaded ﬁles from the Nord Electro 3.

Bank Down

This function will download an entire bank of pianos, samples, programs or organ presets from the computer hard drive to the Nord Electro 3. The default destination will be the currently active bank, but you may choose another partition and bank if you wish. Click on the Choose Folder button to select the source on the hard drive.

The destination bank in the Electro 3 will be replaced by the con- E tent of the source folder.

Backup

This will make a backup of all the Pianos, Samples, Programs, Organ Presets and Menu settings (System, MIDI & Sound menus) in the Nord Electro 3. The ﬁle that is created on the hard drive will have the extension .neb. Backing up the entire memory content in this manner will take some time, depending on the sizes of the samples.

Backing up from the Nord Electro 3 Manager is done in an incre-  mental manner. Unless you change the name or the location of the back up ﬁle, only the pianos, samples and/or programs/presets that have been changed since the previous backup will be saved.

The Nord Electro 3 Manager will suggest a location for the backup, the ﬁrst time this function is activated (in My Documents/Nord Electro 3 Manager ﬁles/). If you rather save the backup ﬁle elsewhere, use the browser to pick another location.

Restore

To restore a previously saved backup ﬁle to the Electro 3, select this option and browse to a backup ﬁle on the hard drive (ﬁle extension .neb) and click Open.

The restore function will begin after you have clicked Open and E conﬁrmed your intentions in the dialogue. All the content of a connected Nord Electro 3 will then be irrevocably replaced by the content of the backup ﬁle.

Menus

In the Nord Electro 3 Manager, the usual Windows and Mac OSX keyboard commands can be used. The menus can be accessed by pressing the Alt key and the underlined letter in the menu bar.

Most of the commands can also be accessed by pressing the Ctrl (on the Mac - Command) key together with the letter shown next to the command name in the menus.

File

Sound Upload (Ctrl+U)

Use this function to upload one or several sounds from the Nord Electro 3 memory to a folder on the computer hard drive.

 7NordElEctro3MaNaGEr | 23

Sound Download (Ctrl +D)

Use this function to download one or several sounds from the computer hard drive to the next available location in the selected partition.

Bank Upload (Ctrl +Shift+U)

This allows you to upload an entire bank or partition (pianos, samples, programs or organ presets) to a folder on the computer hard drive. Select the desired source (partition and bank) and the destination folder.

If you select All, all the banks in the partition will be uploaded. The hierarchical folder structure of the chosen partition - partition/bank/sounds

- will be automatically created in the destination folder.

Bank Download (Ctrl +Shift+D)

Use this function to download an entire bank (or all banks) from the hard drive to the Nord Electro 3.

Please note that you need to match the format of the source and the destination, it is e.g. not possible to download a set of pianos to any of the sample banks.

The content of the source folder will replace the selected bank in M the Nord Electro 3.

Backup (Ctrl +B)

This will make a backup of all the Pianos, Samples, Programs, Organ Presets and Menu settings (System, MIDI & Sound menus) in the Nord Electro 3.

The ﬁle that is created on the hard drive will have the extension .neb.

Backing up the entire memory content in this manner will take some time, depending on the sizes of the samples.

Backing up from the Nord Electro 3 Manager is done in an incre-  mental manner. Unless you change the name or the location of the back up ﬁle, only the samples and/or programs/patches that have been changed since the previous backup will be saved.

Restore (Ctrl +R)

To restore a previously saved backup ﬁle to the Stage, select this option and browse to a backup ﬁle on the hard drive (ﬁle extension .neb) and click Open.

Clean Deleted Space

This function will clean up the space where any previously deleted pianos, samples, or programs have been. This is done in order to make this deleted memory space available to new additions.

Cleaning is automatically done if you download a new piano, M program or synth patch to the Nord Electro 3, but this menu command makes it possible to manually start the cleaning process.

Format

This is a radical function; it will format the entire partition that is in focus. All the sound in the partition will be deleted. You will be asked to conﬁrm your intentions.

Exit (Ctrl +Q)

Exits the Nord Electro 3 Manager application.

Edit

Rename (Ctrl +N)

Allows you to rename a program or organ preset. 16 characters can be used, and the supported characters are: a-z, AZ, 0-9 and the hyphen (-). Any other characters will not be displayed in the Electro 3 Manager lists.

Pianos or samples cannot be renamed so this function is not M available if you have selected these items.

Delete

Allows you to delete a selected item(s) from the Nord Electro 3 memory. You will be asked to conﬁrm your intentions.

Select All (Ctrl +A)

Select all items in a bank/partition.

Invert Selection

This will deselect the original selection and then select all the other items in the list.

View

Free Locations (Ctrl +F)

When this option is checked, the lists will show all the available locations in the selected partition/bank and not only the occupied ones. This will for instance make it easier to drag a ﬁle to a speciﬁc free location in the middle of the list. If this is unchecked, only the occupied locations will be shown.

Help

About

Brings up the About box with a information regarding the version of the Nord Electro 3 Manager.

Tabs

Piano – Samp Lib - Program – Organ Presets

Use the tabs to select the desired partition. Type Ctrl+Tab on the computer keyboard to cycle between the four tabs. The drop down menu is used to select the desired bank within the Piano or Organ Preset partitions. The content of the partition will be presented in the list.

24 | NordElEctro3UsErMaNUalosv1.X

Loc - Location

The banks are organized in locations; the amount of locations varies for the different bank types.

Name

The name of the item.

Size

Shows the ﬁle size of the pianos and the samples. This may be useful if you need to know how much space e.g. a particular piano occupies in the Piano partition. This unit is not shown in the program or organ preset list.

Ver – Version Number

Version number of the piano, the sample or the program.

Right-Click

If you right-click on a sound or an empty location, a context menu will appear.

Upload

This will upload the selected sound from the Nord Electro 3 to the computer hard drive in a folder of your choice.

Download

This is only available if you right-click on an empty location that does not contain a sound. This allows you to choose a ﬁle on the hard drive to be downloaded to the location in the Nord Electro 3.

When a Nord Electro 3 leaves the factory, every program location M is ﬁlled. You need to use the Delete function to get any empty locations.

Rename

Allows you to rename a program. 16 characters can be used, and the supported characters are: a-z, AZ, 0-9 and the hyphen (-). Any other characters will not be displayed in the Electro 3 Manager lists.

Pianos or samples cannot be renamed so this function is not M available if you have selected these items.

Delete

This will delete the selected sound from the Nord Electro 3 memory.

Footer Area

The footer area is located at the bottom of the Nord Electro 3 Manager window.

Partition Memory Indicator

This indicates the usage of the selected partition’s memory. The red area shows the used memory and the green area indicates space that is available for additional sounds.

The Piano partition is 186 MB in size, the Samp Lib partition is 68 MB.

Cancel Button

Use this function if you need to cancel a process that is in progress. Certain functions like e.g. a restore process cannot be cancelled.

Progress Bars

The two progress bars indicate the progress of an ongoing process. The upper bar shows the progression of the individual processes, and the lower indicates the status of the entire task.

Message/Text Area

The left part of the text area will present any conﬁrmations or error messages from the Nord Electro 3 Manager.

The right part will indicate of a Nord Electro 3 is connected to the computer and in communication with the Nord Electro 3 Manager. The OS version of the connected Electro 3 will also be displayed here.

Updates and piano samples

Please visit our website at http://www.nordkeyboards.com to download any updates of the Nord Electro 3 Manager and sounds that have been released for the Nord Electro 3. These items will be available as free downloads in the Nord Electro 3 download area.

 7NordElEctro3MaNaGEr | 25

8

Nord Sample Editor

What is the Nord Sample Editor?

The Nord Sample Editor is the application that allows you to edit, create and load collections of samples to and from the sample memory area of a Sample Library compatible Nord instrument.

The Nord Sample Editor will assist you in your editing efforts; it contains powerful tools for various actions that can be applied to a sample. These tools will for instance help you in setting a start point of a sample, creating a loop and other tasks that are essential in making the samples ready for use in the Nord Electro 3. The Editor also has functions for automatic mapping of samples across the keyboard and much more.

Non-destructive editing

Any editing that takes place in the Nord Sample Editor software is completely non-destructive. The audio ﬁles on your hard disk will not be altered in any way even though the Nord Sample Editor will e.g. truncate samples before they are downloaded to the Nord instrument. The Editor links to the audio ﬁles, any alterations that you do to an original audio ﬁle will also affect how that ﬁle “behaves” in the Nord Sample Editor.

You should however try to keep a backup of, or use copies of the original audio ﬁles when you start to assemble the sample content for the Nord Electro 3. If you edit any audio ﬁle that is used by the Nord Sample Editor with some other application, that edit will also affect that particular ﬁle in the Nord Sample Editor.

System Requirements

Windows PC

The Nord Sample Editor requires a computer with a CPU running at 233 MHz or better with a minimum of 512 MB RAM and Windows XP or Vista. Additionally you need one free USB (1.1) port plus a DVD ROM drive if you want to install the software from the DVD, a keyboard, a mouse and a graphics display with an on-screen resolution of 1024 by 768 pixels and a 16-bit color or better graphics card.

Mac

The Nord Sample Editor requires a Mac with one USB-port, a DVD ROM unit to install the software, at least 512 MB RAM and OSX 10.4 or later.

You will also need a Sample Library compatible Nord instrument to be able to download the samples. The Nord units that are compatible with the Sample Editor and the Nord Sample Library are: Nord Wave with OS v2.x and later and the Nord Electro 3 with OS 1.x or later.

Getting Started

Let’s begin with a brief description of the terminology used in this chapter, followed by a typical workﬂow scenario to give you an overview of the functions of the Nord Sample Editor.

Project, sample memory

All the parts that are needed to assemble a sample waveform in the Nord Electro 3 – references to audio ﬁles, samples, mappings, start-, stop- and loop markers etc. - are organized in Projects.

All Project related settings is done on your computer, and you can preview edits via the computer audio card. A Project links to the actual audio ﬁles on the hard drive, if you e.g. delete or edit an audio ﬁle that is included in a Project, that Project will be affected.

You can save Project ﬁles on the hard drive, just like any other computer ﬁle. When you are satisﬁed with a Project, you can generate a Sample Instrument, which can be downloaded to the Flash memory in the Nord Electro 3.

WYDIWYH

What You Do Is What You Hear. Every function in the Nord Sample Editor can be applied to a sample in real time. If the sample is playing back through the computer audio card, you can e.g. listen to how the loop changes if you move the loop markers or if you adjust the crossfade settings or the start point of the sample.

Working ofine

Project or sample editing does not require a connected Nord unit; you can create and edit Projects using only the computer and then connect to the unit at some other time in order to download the result of the Project to the Nord Electro 3.

Sample, Zone

When an audio ﬁle is added to a Project, it can be used as the source for one or several samples. A sample can be assigned to a range on the keyboard; this range is called a Zone. The sample parameters that determine the range of its zone is the Root Key and the Upper Key.

Sample Instrument

A set of samples with zone settings is a Sample Instrument; the maximum number of zones in a Sample Instrument is 91. The Sample Instrument (also known as SI in this manual) can be selected in the Nord Wave oscillator 2 as a waveform and by choosing the SampLib type and model in the Electro 3.

Any kind of sample may be assigned to any zone, which means that a Sample Instrument can consist of several different sounds, mapped across the keyboard. You can e.g. create a drum type Sample Instru-

26 | NordElEctro3UsErMaNUalosv1.X

ment with one sound for each key, or create multiple splits by assigning different samples to different keyboard ranges – e.g. bass samples in the lower register, followed by piano samples higher up on the keyboard. The Nord Sample Editor has some very useful functions that will assist you in the mapping process.

Sample editing, loop markers, crossfade

Setting a starting point for a sample to e.g. eliminate any unwanted audio at the beginning, is a one-click function in the Nord Sample Editor.

The Editor has some very powerful loop functions that make creating perfect, seamless loops a breeze. The loop makes it possible to use shorter samples that still can be played for a duration that is longer than the sample itself. The loop functions also includes a crossfade option that can be monitored in real time, with various options for the length, crossfade curves etc.

Generate, upload, download

When a Project is completed, you can generate a Sample Instrument and automatically download the wave data to the Flash memory in the Nord Electro 3. The real estate of the Flash memory has a ﬁxed capacity and to keep track on how much room you have left, there is an indicator in the Nord Sample Editor that will help you to manage the available space.

Installation

Installation of the USB driver

Before the Nord Electro 3 can communicate with a Windows PC, you need to install a Clavia USB driver for the Windows operating system. Mac users may skip this paragraph. To install the USB driver, follow these instructions:

Insert the ‘Nord DVD’ installation DVD into the DVD-ROM drive or

1

get the driver from the Electro 3 download area at www.nordkeyboards.com.

Connect the USB cable between the Nord Electro 3 and the com-

2

puter and switch on the unit

The ‘Found New Hardware’ wizard should appear, accompanied by its reassuring alert sound.

Let the wizard search the installation DVD for the USB driver and

3

install it, or point the wizard to the folder where the driver is.

Install the Nord Sample Editor, Windows PC

Insert the ‘Nord DVD’ into the DVD-ROM drive.1

Run the Install Nord Sample Editor v1.xx.exe and follow the 2 instructions in the setup program.

The Nord Sample Editor will be installed in the Program Files folder

3

on the hard disk.

During the installation you will have the option to select an alternative location for the application.

Conﬁrm every window in the installation procedure by clicking on

4

the Next button. The installation may be aborted at any time by clicking on Cancel.

When the installation is complete, click the Close button to return to the Windows desktop.

Install the Nord Sample Editor, Mac OSX

Insert the ‘Nord DVD’ into the DVD-ROM drive.1

Open the image ﬁle (.dmg) that is located in the Nord Sample 2 Editor folder and drag the Nord Sample Editor v1.xx.app to the Applications folder.

When new versions of the Nord Sample Editor are released, they  will be available as a free download at www.nordkeyboards.com.

 8NordsaMplEEditor | 27

The Quick Tour

Let us go through a few things we know you are curious about and get acquainted with the Nord Sample Editor at the same time.

Nord Sample Editor Audio File/Assign tab with an audio ﬁle, with assigned samples

First Light

Make sure that the Nord Electro 3 is powered up, and connected 1 to the computer to a USB port.

Launch the Nord Sample Editor from the Program Files folder or

2

the Start Menu (PC) or from the Applications folder (Mac OSX).

During the start-up procedure, the Editor will automatically try and establish contact with the Nord Electro 3.

If a Nord Electro 3 is not connected, you can still work on a Project with sample editing, mapping and other functions. When the Editor ﬁnds a Nord Electro 3, this will be indicated at the lower, right corner of the Editor window and the Manager tab will open automatically. A list with all the current Samples in the Flash memory will appear in the Nord Sample Editor window.

In order for the Nord Sample Editor to be able to playback  samples, you need to select a driver for your audio card. This is done in the Settings/Audio menu.

On a XP or Vista system, select an available Direct X driver. In M order to be compatible with as many XP and Vista computer systems as possible, the Nord Sample Editor uses Direct X drivers.

Download Sample Instruments

You can ﬁnd new Sample Instruments at the www.nordkeyboards.com website. These can be downloaded from the website free of charge. Here’s how to download a Sample Instrument from the computer hard drive to the Nord unit:

Browse to www.nordkeyboards.com and go to the Nord Sample

1

Library area.

Select the Sample Instrument(s) that you wish to get and save the 2 ﬁle (or folder) to a location on your hard drive and unzip it.

The ﬁle extension of the ﬁle will be .nsmp for Sample Instruments. Read more about the different ﬁle formats that the Nord Sample Editor uses on page 41.

In the Nord Sample Editor, open the Manager tab.

3

Select the Show Free Locations option in the Manager menu and 4 you will see a grid with all the available memory locations.

To add new Sample Instruments to the Nord Electro 3, just drag the ﬁles from the hard drive to an empty location in the list of Sample Instruments in the Browser tab.

Audio ﬁles have to be added to a Project in the Audio File/Assign E tab and “generated” to become a Sample Instrument before they can be used in the Nord Electro 3. Only Sample Instruments in the .nsmp format can be downloaded using the method described above.

Upload Sample Instruments

Using the Nord Sample Editor, it is very easy to upload SI:s from the Nord Electro 3 to the computer hard drive. These actions also take place in the Manager tab.

Open the Manager tab. 1

Right-click on a sample and select Upload. 2

The data will be saved in the same folder as the Editor application lives in or in a folder chosen by you. Sample Instruments will be saved as .nsmp ﬁles. Read more about the ﬁle types the Editor uses on page 41.

By combining the techniques for down- and uploading the Sample  Instruments, you are now able to share Sample Instruments with other Nord Wave or Electro 3 users if you wish.

Create a new Sample Instrument

Time to get creative; let’s create a new Sample Instrument.

Copy the NW_demo1.wav ﬁle from the Nord DVD to the folder 1 where the Nord Sample Editor is installed.

You may of course use any other audio ﬁle in the .wav format but this particular ﬁle will demonstrate a very powerful feature of the Nord Sample Editor.

Open a new Project from the File menu.

2

Only one Project can be open in the Editor, you will be prompted to save any changes before any Project that has been edited is closed.

A quick way to open a new Project is to hit Ctrl+N on the comput-  er keyboard. Ctrl+S will save the current Project. The name you give to a Project will also be the name of the Sample Instrument that is downloaded to the Nord Electro 3.

28 | NordElEctro3UsErMaNUalosv1.X

Select the Audio File/Assign tab. 3

Click on the Add button below the Audio Files area or type Ctrl+F. 4 Browse to the location of the NW_demo1.wav ﬁle and click Open.

The two progress bars at the lower left corner of the Project window will indicate that the ﬁle(s) are added to the Project. The amount of time it takes to add one or several ﬁles will vary, depending on the ﬁle size(s) and your computer.

You can select and add several samples at once, as long as they  are in the same location on your hard drive. To add all the audio ﬁles from an entire folder, use the Add Folder (Ctrl+D) command from the File menu.

When a ﬁle has been added, you will see a representation of its

5

content as a waveform graph in the Editor window.

Please note that the NW_demo1.wav is one ﬁle, which consists of several recorded notes from a Nord C1 organ. Nothing fancy, just some simple sounds to show you a cool feature. Let’s do some magic now and have the Editor create several samples, mapped in Zones across the keyboard from this audio ﬁle.

Locate the section labeled Multi Sample Per File Assign at the 6 lower part of the Editor window. Set the Start Note to C2, the interval to 1 semi, the Threshold to -45 dB and then click on Assign.

When the Nord Sample Editor has completed the analysis of the ﬁle, samples with Root Key and Upper Key settings are created and these settings are translated into zones. These zones will be indicated in the Keyboard Grid at the top of the Editor window.

The sample that is highlighted in yellow is the focused sample. 7

This means that this sample is active for further editing and ready for playback.

Pressing the space bar on the computer keyboard, or clicking on  the u symbol in the Player at the upper right corner will start the playback of the ﬁle.

The dot-marker on a key (

8 ) in the keyboard display indicates

that this is the Root Key of a sample. The sample is also assigned to the corresponding range that surrounds the dot-marked key, indicated in grey or blue.

If you right-click on a dotted key, you can disable a sample temporarily from the Project which will be indicated with a circle ( ). You can also de-assign the sample – this means that it will be removed from the Project.

Disabling a sample from a zone is a great way to determine how  many samples you need in order to cover a particular range of a multi sampled instrument or sound. Any settings that have been made to a sample will be kept even if it is disabled. When you reenable a sample, these settings will be restored.

You can use the arrow keys on the computer keyboard to quickly  move the focus from one sample to another.

Save the Project by selecting Save in the File menu or type Ctrl+S

9

on the computer keyboard.

Adding Audio les with individual samples

You may want to add audio ﬁles that only contain one sample each. Here is how you assign individual samples to Zones:

Open a new Project, select the Audio Files/Assign tab and click

1

the Add button.

The Nord Electro 3 can use stereo or mono audio ﬁles as sample  sources, with up to 44.1 kHz sample rate, 24 bits resolution.

Navigate to a folder that contain the audio ﬁles you wish to use,

2

select the ﬁles and click Open to add them to the Project.

The ﬁles will be listed, one by one in the Audio Files area. Select

3

the ﬁrst ﬁle that you wish to assign to a zone.

 8NordsaMplEEditor | 29

The waveform graph will show a representation of the audio ﬁle.

Click and drag to select the entire waveform in the graph, and 4 look at the Manual Sample Assign area in the lower part of the window.

Enter the Root Key; the key where the sample will play back at its

5

original pitch, and click Assign.

Select the next ﬁle and click and drag in the waveform graph to 6 select the entire audio snippet.

Enter the Root Key for the next sample/zone.

7

The ﬁrst zone that you create will span a range of two octaves  above the Root Key. The range of a zone is determined by two parameters, the Root Key and the Upper Key for each sample. The range is also depending on any other sample that may be assigned further down on the keyboard. A zone’s lower key will reach all the way down to any previous sample’s Upper Key or the F0 key if it is the “ﬁrst” sample assigned. A sample will always reach down to the previous sample’s Upper Key.

A zone in a range cannot be empty, i.e. without an assigned  sample. If you want to have some keys that are silent somewhere in a Sample Instrument, just make a selection in the waveform graph of an area that is silent (or Add an audio ﬁle that is short, and contains no audio data). Then map this silent sample to a range of keys.

Single Sample Per File Assign

If you have audio ﬁles on your hard drive where the ﬁle name contains an identiﬁer or marker of the ﬁle’s pitch, the Single Sample Per File Assign function can automatically map these samples.

Use the Add function to add some audio ﬁles to the Project.

1

The Single Sample Per File Assign function can use identiﬁers that refer to a pitch name – if the ﬁle name is e.g. cello_C#4.wav – or note number – like e.g. cello_39.wav.

Select all the ﬁles in the File List that has these indicators and click 2 on Assign.

The samples will be mapped to zones according to the markers in 3 the ﬁle names.

Editing

Let’s continue to edit a sample; in order to prepare it a bit more before we download the Sample Instrument to the Nord Electro 3:

Make sure that you have at least one sample in the Project and 1 that this sample is assigned to a zone and in focus.

Click on the Instrument tab.

2

This is where you can adjust the gain, and ﬁne-tune the pitch of the entire Sample Instrument or any individual samples. You adjust these functions by entering values in the input boxes or by using the increment/decrement buttons.

Move the focus by using the horizontal arrow keys on the com-  puter keyboard.

Click on the Sample Start tab.

3

This is where you can adjust the starting point of the sample. This is useful if you have audio ﬁles that contain unwanted material before the actual sound begins. The Nord Sample Editor will automatically place a starting point when a sample is assigned to a zone.

30 | NordElEctro3UsErMaNUalosv1.X

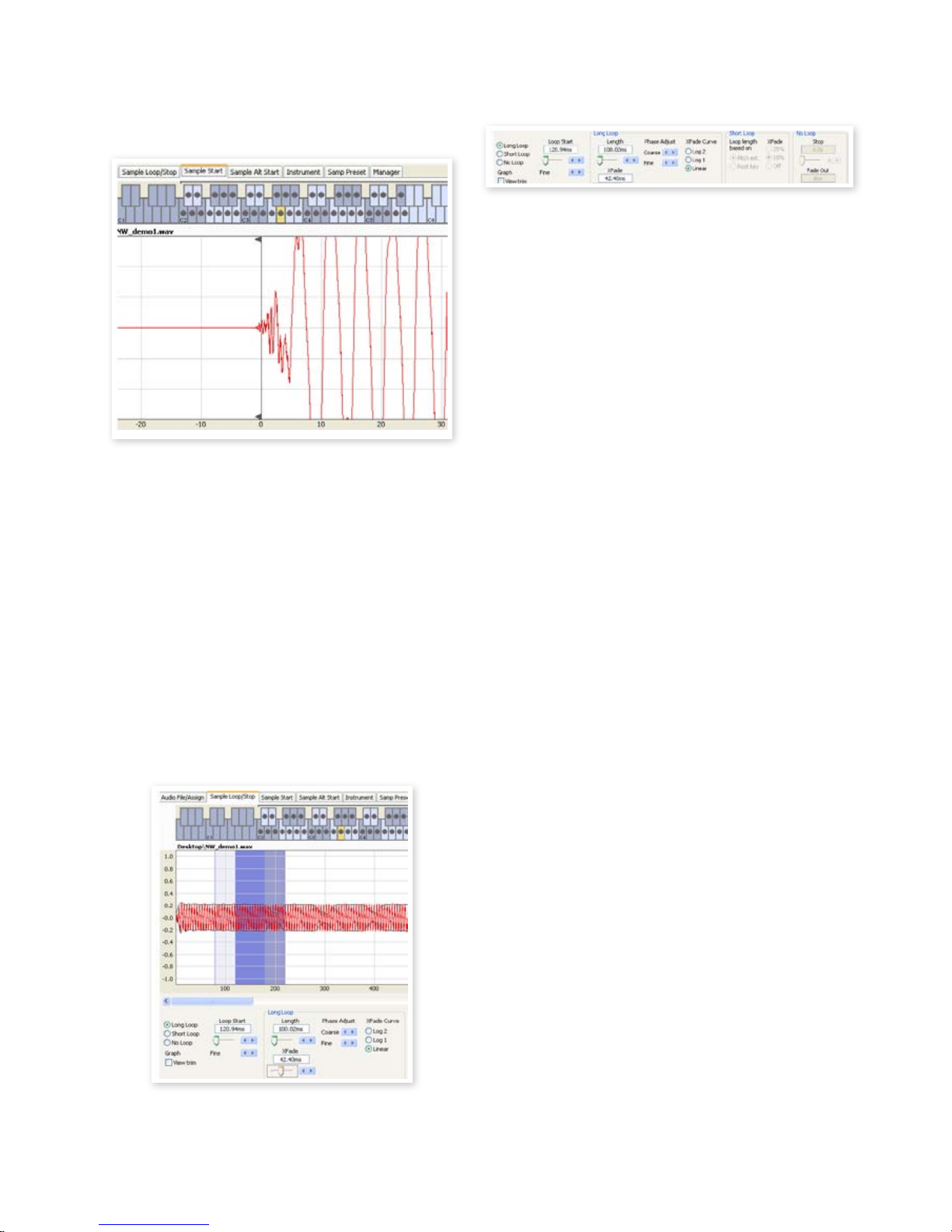

This marker can easily be changed if you prefer to have manual control of this function. You can manually set the start point by entering a value in the Start input box, using the slider or by simply clicking in the waveform graph.

When the Sample Start tab is opened, the Editor will zoom in  closer in the waveform graph to make it easier to distinguish noise from the actual sound. You can change the zoom settings by using the buttons below the waveform graph for the horizontal axis, and the slider or the buttons to the right, for the vertical axis.

Looping

Loops are very useful in order to make a sample play back or sound beyond its own length. Loops will also reduce a sample’s size, since everything after the loop end marker will be discarded when you download a Sample Instrument to the Nord Electro 3.

Let’s take a closer look at a loop.

A loop is automatically generated when a sample is assigned to a zone.

To view or edit the loop settings, just click on the Sample Loop/

1

Stop tab. The loop is indicated in the waveform graph as a colored area.

To set a new beginning of the loop - the loop Start marker - just click on the waveform graph. To set the length of the loop, just right-click anywhere to the right of the indication of the loop start. You can also enter values for these parameters in the input boxes or use the sliders.

There are three loop options available, Long Loop, Short Loop and No Loop.

The Long Loop option is useful for various instrument samples and sounds which contains non-periodic variations. When you select this option, a loop start marker and a loop end marker are created. These two loop markers will be separated by the actual loop section which is indicated as the blue area in the waveform graph.

The long Loop option will also include a crossfade to ensure that the loop will sound as smooth as possible. The two segments of the crossfade are indicated as the light grey area immediately before the loop start marker, and the darker area before the loop end marker.

Hit the space bar on the computer keyboard to start the playback  and adjust the settings for the crossfade or move the loop markers by clicking in the waveform graph. What You Do Is What You Hear, any change you make will be monitored in real time during playback.

The Short Loop option will create a loop from one single period in the sample. This option can be successful on sounds where the harmonic content changes a lot. It can also be very efﬁcient in reducing the size of a sample. If you have concerns about making as many samples ﬁt in the Nord Electro 3 as possible, this should be explored.

The Short Loop option uses either a pitch estimate or the Root Key as the reference for its length, since the length will have consequences on the pitch of the sound when it is looping.

If you can ﬁnd a smooth short loop early in a sample, the envelope  generators in the Nord Electro 3 can be used to emulate a natural decay, and you can save lots of space in the Flash memory.

The No Loop option may seem self explanatory, but the important thing here is to remember that no sample data after the end marker will be downloaded to the Flash memory. Click on the waveform graph to position the end marker.

Please go to page 36 for a detailed description of all the functions in the Loop/Stop tab.

Generate a Sample Instrument

When you have added all the audio ﬁles to the Project and are satisﬁed with the sample edits, it is time to create a Sample Instrument and to download this to the Nord Electro 3.

If you haven’t saved your Project, now would be a good time to 1 do so.

By saving and giving a Project a name, you are also providing the name for the Sample Instrument when it is downloaded to the Flash memory.

If you change your mind about the current name on the Project,  use Save As… to give it a new one. A Sample Instrument that is created from an unsaved Project will get the default name “Untitled” in the Nord Electro 3.

Go to the Instrument Menu and select Generate Only.

2

A Sample Instrument with all the samples, zones and edits that you have made in this Project will be generated and automatically saved to the hard drive as a “Project name”.nsmp ﬁle.

 8NordsaMplEEditor | 31

If you select Generate and Download, the Sample Instrument will 3 also be downloaded to the Flash memory in the Nord Electro 3.

Sample Instruments are added incrementally to the Flash memory, to the ﬁrst available free location.

All of the tabs – except the Manager tab – have an Instrument  area, up to the right in the Editor window. If Download is checked, the Sample Instrument will automatically be downloaded to the Nord Electro 3 when it is generated.

This concludes our guided tour; we hope you have enjoyed the show so far. The rest of this chapter contains the Editor Reference section where all the functions in the Nord Sample Editor will be explained in detail.

Menu Reference

File Menu

In the Nord Sample Editor, the usual Windows XP and Mac OSX keyboard commands are available. The dropdown menus can be accessed by pressing the Alt key and the underlined letter in the menu bar.

Most of the commands can also be accessed by pressing the Ctrl (Command on the Mac) key together with the letter shown next to the command name in the drop-down menus.

New Project [Ctrl+N]

Creates a new, empty Project window.

Open Project... [Ctrl+O]

Brings up the ﬁle selector and allows you to open a Project ﬁle from a storage device on the computer. If another Project is already open you will be prompted to save any unsaved changes before it is closed.

Save Project [Ctrl+S]

This command will save the current Project to a storage device on the computer. A Project ﬁle has the extension .nwiproj.

Save Project As...

This command will prompt you for a ﬁle name and destination folder before saving the Project to a storage device on the computer. This is useful for renaming a Project ﬁle before saving it, leaving any original Project intact on the storage device.

Close Project [Ctrl+W]

Closes the current Project. You will be prompted to save any unsaved changes before it is closed.

Add Files... [Ctrl+F]

Brings up the Add Files dialog where you select the audio ﬁles to be added to your project. Multiple ﬁles can be selected. The same functionality is available in the Audio File/Assign tab by pressing the Add button. The added audio ﬁles will appear in the Audio File/Assign tab, in the Audio Files list.

Audio data is not copied to the actual Project when you add a E ﬁle; a Project has only references to the audio ﬁles. Any changes you make to an original audio ﬁle on the hard drive will affect your project.

Add Folder... [Ctrl+D]

Brings up the Add Folder dialog where you can browse to and select an entire folder to be added to your project. All supported audio ﬁles within that folder will be added. The added audio ﬁles will appear in the Audio File/Assign tab, in the Audio Files list.

The Nord Sample Editor can use audio ﬁles in the .wav format, up to a 24 bit, 44.1 kHz resolution.

Exit [Ctrl+Q]

Closes the Nord Sample Editor. You will be prompted to save any unsaved changes to an open Project.

32 | NordElEctro3UsErMaNUalosv1.X

Edit Menu

Select All [Ctrl+A]

This command will select all available items, e.g. all the audio ﬁles or all the Sample Instruments.

Instrument Menu

Generate And Download [Ctrl+G]

Creates a Sample Instrument from the current Project and stores it on the hard drive as an .nsmp ﬁle. The Sample Instrument will also be downloaded to the ﬁrst available location in a connected Nord Electro 3.

This process automatically encodes the samples with Clavia’s proprietary lossless compression algorithm, in order to reduce the sizes of the samples. Samples will also be cropped before the sample start points and after the loop end marker.

The duration of this process may take several minutes depending on the amount of samples being used. You can use this ﬁle to share your Sample Instrument with other Nord Wave or Nord Electro 3 users.

Generate Only [Ctrl+Y]

Creates a Sample Instrument from the current Project and stores it on the hard drive as an .nsmp-ﬁle. This process automatically encodes the samples with Clavia’s proprietary lossless compression algorithm, in order to reduce the sizes of the samples.

The audio will also be cropped before the start points and after the loop end marker. The duration of this process may last several minutes depending on the amount of samples being used. The ﬁle is saved in the same folder as your Project. Use this ﬁle type if you want to share your Sample Instrument with other Nord Wave or Nord Electro 3 users.

Settings Menu

Audio...

Brings up the Audio Settings dialog box where you select the driver for any audio card that is connected to or installed in your computer. The output level can also be set in this dialog. The selected audio card will be used to play back samples by the Nord Sample Editor.

The Nord Sample Editor is compatible with Direct X drivers on a XP or Vista system, and with the native Mac OSX drivers.

Manager Menu

Sound Upload

Use this function to upload one or several sounds from the Nord Electro 3 to the computer hard drive

Sound Download

Use this function to download one or several Sample Instruments from the computer hard drive to the Nord Electro 3.

Delete

Allows you to delete a selected Sample Instrument from the Nord Electro 3 memory.

Show Free Locations

When this option is checked, the list will show all the available locations in the memory and not only the occupied ones. This will for instance make it easier to drag a ﬁle to a speciﬁc free location in the middle of the list. If this is unchecked, only the occupied locations will be shown.

Refresh

This function refreshes the content of the current window in the Nord Sample Editor.

Clean Deleted Space

This function will clean up the space where any deleted Sample Instruments have been before they were removed. If nothing has been deleted, this button will be blanked out.

Format

This is a radical function; it will format the entire Sample memory and prepare it for some brand new content. You will be asked to conﬁrm this action.

Help Menu

About...

Brings up the About box with information regarding the version of the Nord Sample Editor.

Tab Reference

Each of the tabs opens up a set of functions that will assist you in mapping the samples, setting the start point of samples, loop the samples and to manage the Sample Instruments in the Flash memory in the Nord Electro 3.

You can select the different tabs one after each other, by typing  Ctrl+Tab on the computer keyboard.

Common area

The common area will be present at the top of all the tabs except for the Manager tab. It contains functions that are used to view the mapping, to change the focus of the samples, to generate a Sample Instrument and to start and stop playback.

The Keyboard Grid

The Keyboard Grid represents the total keyboard range that the Zones can cover - from F0 to C8. The middle C on the Nord Electro 3 - when the Octave Shift is set to 0 - is the C4 key, MIDI Note Number 60.

A key with a • dot (

) indicates the Root Key - a sample is assigned to this key and the sample plays back at its original pitch. The Zone that this sample is assigned to is presented in a color scheme, with alternating blue and gray colors to separate the Zones from each other.

 8NordsaMplEEditor | 33

A key with a • circle ( ) indicates that the sample that has been mapped to this zone is de-assigned, but may be re-assigned with its settings intact.

A key that is • yellow indicates that this sample is in focus - this sample is the active sample that you edit with the other functions in the Nord Sample Editor.

If a Nord Electro 3 is connected to the computer, any keys you play on the unit, will be indicated in the keyboard area of the Editor.

You can use the horizontal arrow keys on the computer keyboard to move the focus. When a sample is in focus, the audio ﬁle that the sample originated from will be automatically selected in the Audio File list and the corresponding part of the waveform in the graph will be also is presented in the yellow color.

Instrument area

This is a shortcut to the Generate functions that also is available in the Instrument Menu. If the Download box is checked, clicking on the Generate button will generate a Sample Instrument from the current Project, and automatically download this to the Nord Electro 3.

Player

This contains two standard transport buttons, for starting and stopping the playback of the sample in focus. You can also set the output level of the audio card in your computer with the slider. Pressing the space bar on the computer keyboard will also start and stop the playback.

The Footer

The footer area is located at the bottom of the Nord Sample Editor window.

The footer contains mostly informational stuff, and a Cancel button that can be used to abort some of the ongoing processes.

Progress bars

When you start a task in the Nord Sample Editor, the execution may take a few moments, depending on what it is you want to do. One major task may consist of several smaller tasks, and the progress of these is displayed with the Progress bars.

Cancel button

Use this button to cancel any ongoing task that the Nord Sample Editor is in the process of performing.

Upper Progress bar

The upper Progress bar will show the progress of the current task being performed, the name of which is displayed in the message area, to the immediate right of the Progress bar.

Lower Progress bar

The lower Progress bar will show the progress of an ongoing task.

Nord Electro 3

In the lower right corner is an indication that tells you if a Nord Electro 3 is connected to the computer, or not.

Audio File/Assign Tab

This area is used to add audio ﬁles to your project, and assign sections within the audio ﬁle to be used as samples.

Several scenarios to automatically analyze and assign samples are available in the Nord Sample Editor. You can either add a group of audio ﬁles, where each ﬁle contains a single note and has a name identifying the note by name or number, or you can add a single ﬁle containing several notes one after the other.

Audio Files

This section contains the list of audio ﬁles that are included in the current Project. The list will be empty when you create a new Project, if you open a previously saved Project there may be ﬁles in the list.

It is in this list that you select the referenced audio ﬁle you wish to use to create samples and assign these samples to Zones. When a ﬁle is selected, a graphical representation of its waveform will appear in the waveform graph if the Enabled box is checked.

Only audio ﬁles or parts of the audio ﬁles that have been assigned as samples in the Project are included when a Sample Instrument is generated.

Name

The ﬁles in the list may be sorted alphabetically in an ascending or descending manner by selecting Name and changing direction by clicking on the arrow.

Add Button

Brings up the Add Files dialog where you choose audio ﬁles, to be added to your project. Multiple ﬁles can be selected.

A Project uses references to the audio ﬁles on the hard drive, and M does not copy or load any actual audio data. Any changes that you do to the original audio ﬁles will also affect the Project.

Remove Button

To remove an audio ﬁle from the Project, click on the Remove button. This will also remove any samples from the Project that are associated with this audio ﬁle.

Enabled box

To temporarily remove an audio ﬁle from the Project, un-check the Enabled box. All samples from the audio ﬁle in the Project will be disabled. All the Zones that have these samples assigned to them will be removed. The neighboring zones will cover the ranges, which the disabled samples used to occupy. The settings of the disabled samples

34 | NordElEctro3UsErMaNUalosv1.X

and zones will be retained, when the box is checked, the samples and zones will be restored.

Waveform graph

This is a visual representation of the audio ﬁle that is selected in the ﬁle list. This graph will appear in other tabs as well, with minor alterations in order to assist you in the editing process. If the audio ﬁle is in mono, a single graph is drawn, if the audio ﬁle is in stereo, the left and right channel will be presented in two parallel graphs. You can select a part of, or an entire audio ﬁle by a standard click-and-drag procedure with the mouse.

If the entire duration of the audio ﬁle will not ﬁt in the waveform graph, you can scroll the content of the graph by using the scroll bar below the graph display.

Waveform Graph Colors

Colors are used to deﬁne areas and elements in the graph. The actual waveform data is drawn in red. An undeﬁned area is illustrated by a gray background; a selected (but unassigned) area will have a dark blue background.

If you right-click on a selected area, you can assign this selection as a sample, with the Root Key setting from the Manual Sample Assign area.

When one or several parts of a audio ﬁle has been assigned as one or several samples, this will be indicated in the waveform with alternating lighter and darker colors, in the same fashion as the zones are indicated in the Keyboard Grid. If the sample is in focus, this will be illustrated with a yellow color.

Zoom buttons and slider

Zoom in on the waveform using the zoom buttons and the zoom slider.

The buttons below the graph labeled All, 50, 20 etc are the zoom buttons for the X-axis - the duration of the audio expressed in seconds. If you select All, the entire duration will ﬁt in the graph, if you e.g. select 2, 2 seconds of the audio will ﬁt in the graph. Clicking on the 50m, 20m or 10m buttons will show 50, 20, and 10 milliseconds sections of the audio ﬁle.

The zoom factor for the Y-axis - the amplitude - is done with the selectors and/or the slider at the lower, right corner. The level of 1.0 represents the full amplitude - 0 dBFS- relative to the bit depth of the audio ﬁle.

Single Sample Per File Assign

This function allows you to easily map samples to a Zone, where the Root Key of the sample is based on a certain string of characters in the audio ﬁle’s ﬁlename.

Name

This function use a naming convention where the pitch or note name is indicated in the actual ﬁle name. A ﬁle that has the name celloC#4.wav will be mapped with the Root Key on C sharp, in the middle octave when the Octave Shift on the Nord Wave is set to 0. The function can interpret the Root Key, a sharp sign (#) and the octave.

Number

Uses a number in the ﬁle name and interprets this as a Root Key number. The middle C, C4 on the Nord Electro 3 keyboard - when the Octave Shift on the Nord Electro 3 is set to 0 - is key number 60.

Select one or several audio ﬁles in the Audio File list and click on Assign to assign the samples to Zones. You can use the Ctrl key (or right-click) to select nonconsecutive ﬁles in the list.

Multi Sample Per File Assign

This function can create several samples and assign these to zones from a single audio ﬁle with recordings of several individual notes, one after the other.

Start Note

Set this to the match the pitch of the ﬁrst recorded note in the audio ﬁle.

Range: F0 - C8

Interval

Set this to match the intervals between the recorded notes in the audio ﬁle.

Range -48 - 48 semitones

Threshold

The threshold setting is used to distinguish or separate the individual notes from one and another in the audio ﬁle.

Range: -80 - 0 dB

Remap button

Select this to map the audio ﬁle again.

Assign button

This activates the assignment of the selected audio ﬁle, using the settings you have entered for the parameters for the Multi Sample Assign function.

Manual Sample Assign

This function can create and assign a sample from a selection in the current audio ﬁle. Click and drag in the waveform graph to select a part of, or the entire current audio ﬁle.

Root Key

This is the note where the sample will play back at its original pitch (or speed if the sample is non-pitched or a performance loop). If you make consecutive selections, the setting will increase in steps of one semi tone for each time you have assigned a sample.

You can also use this setting to adjust the Root Key of a mapped sample. Put the sample in focus and adjust the value to the next available key.

Range: F0 - C8

 8NordsaMplEEditor | 35

It is not possible to assign two samples to the same key. 

Range Begin

This will indicate where the selection you have made in the graph begins. Use the increment/decrement buttons to adjust the beginning of the selection.

Range End

This will indicate where the selection you have made in the graph ends. Use the increment/decrement buttons to adjust the end of the selection.

Assign button

This activates the assignment of the selected audio ﬁle, using the settings you have entered for the parameters for the Manual Sample Assign function.

Deassign

This deactivates the assignment of the sample that is in focus.

Enabled box

This enables or disables the assignment of the sample in focus. It will default to the checked state when you click the Assign button. Uncheck it to temporarily disable an assignment to the sample in focus. The sample and the settings will be kept in the Project, just check the box again to put it right back in business.

Deassign All

Clicking on this button will permanently de-assign the mapping of the focused sample, and also all the other samples that originates from the same audio ﬁle. Use this function with care, to quickly start with a clean slate with a previously mapped audio ﬁle.

Sample Loop/Stop Tab

In this tab are the functions that will assist you in ﬁnding a loop for the sample that is currently in focus, as indicated by the yellow color in the Keyboard Grid. As soon as an audio ﬁle or a selection from an audio ﬁle

is assigned as a sample, loop markers will automatically be created by the Nord Sample Editor.

A loop in a sample consists of two positional markers in the audio, the loop start and the loop end markers. Visualize the playback of a sample as a horizontal journey from the start of the waveform at the extreme left, towards the end at the right.

Somewhere along the line you will pass the loop start marker, making a mental note of its location. You continue to travel towards the end of the audio ﬁle but when you reach the loop end marker, you immediately go back to the loop start marker and resume the path towards the end. And then you hit the loop end marker again, go back to the loop start, and so on.

Creating a perfect, seamless loop can sometimes be a bit difﬁcult. Sometimes the audio at the loop start is very different compared to the audio at the loop end marker, which will produce audible and perhaps unwanted artifacts in the sound.

In order to minimize certain loop artifacts, a crossfade function can be used. This uses audio that is before the loop start marker, and mixes this with audio that is before the loop end marker when the loop is playing back.

A crossfade has usually several parameters to set the length of the crossfade, and to adjust the taper of how these two sound bites will blend into each other during playback. This can help to smooth things out and create a better sounding loop.

Any audio data after the loop end point will be automatically E discarded by the Nord Sample Editor when you create the Sample Instrument from the Project.

Waveform graph colors

The waveform graph presents the loop by showing certain areas in different colors. The position of the loop start marker is at the left edge of the blue area. The position of the loop end marker is at the right end of the darker blue area.

36 | NordElEctro3UsErMaNUalosv1.X

A crossfades ﬁrst section is indicated with the light blue area that is before the loop start, to the left of the blue area. The crossfades end section is the darkest area immediately to the left of the loop end marker. As these settings are changed by you, the indication in the graph will change as well.

You can set the position of the loop start marker by clicking anywhere in the graph. If you right-click to the right of the loop start marker, you can set a new loop end marker – and change the actual loop length.

View Trim

The graph in the Sample Loop/Stop tab can be augmented with a more detailed display of the waveform at the loop start and the loop end markers. This is activated by checking the View Trim box at the lower, left corner of the Editor window.

The red waveform shows the audio immediately before and at the loop end marker. The green waveform is the audio at, and immediately after the loop start marker. If these two waveforms meet at the same level, chances are good that this will indicate a loop without any clicks in it.

If a crossfade is used, the two waveforms will be superimposed on top of each other, like the illustration above. This provides a nice visual conﬁrmation of what happens if you ﬁne-tune the length.

Start with the crossfade set to a small value and see how these two  waveforms are presented. When the two colored peaks and valleys are in phase with each other, chances are good that you have a pretty good loop. Any changes you do can always be monitored in real time if you activate the playback.

Loop Options

There are three available loop options: Long Loop which is the default loop that is applied to a sample when it is assigned to a zone, Short Loop which creates a loop with a single waveform period and ﬁnally the No Loop, which gives you an opportunity to set an end marker to the sample.

Loop Start

You can enter a loop start position expressed in seconds in the value box, conﬁrming this by pressing enter, using the slider or ﬁne-tune the position with the increment/decrement buttons. Clicking in the graph will also position the loop start marker.

Long Loop

This section contains the settings for the Long Loop parameters.

Length

You can enter a loop length expressed in seconds in the value box, conﬁrming this by pressing enter, using the slider or set the length with the increment/decrement buttons, in a coarse- or a ﬁne-tune fashion.

Right-clicking in the graph will position the loop end marker, which together with the position of the loop start marker sets the loop length. Make sure that you right-click to the right of the loop start, it is not possible to position the loop end before the loop start marker.

Xfade

You can enter a crossfade length expressed in seconds in the value box, conﬁrming this by pressing enter or by using the slider. Any changes you do will be immediately heard if you are playing back the sample and also presented in the waveform graph. To disable the crossfade, set the crossfade length to 0.

Xfade Curve

There are three available curves for the crossfade: Log1, Log2, and Linear. These are used to compensate for any amplitude changes that might occur in a crossfade as a result of cancellations when harmonics are out of phase with each other.

Short Loop

When using the Short Loop option, the loop length is set to a single waveform period. As the length of a single period is relative to the pitch of the sample, you can use an algorithm that analyzes the pitch of the sample, or use a length correlating to the pitch of the sample’s Root Key.

Loop Length based on

These are the two alternatives on how to determine what constitutes as a single period in the sample. If a short loop produces a different pitch than the actual sample, you may need to try the Root Key option.

The Pitch Estimate is the default, but there may be occasions when this is unsuitable. If a sample has strong harmonics (that are stronger than the fundamental), the Root Key option may be better suited.

Xfade

The short loop also has provisions for using a crossfade, with a selection of ﬁxed lengths: 25% or 10% of the loop length. Set this to Off if no crossfade should be used.

No Loop

This provides you with the option to set a marker where the sample will end. You can also set a fade out time.

Stop

You can enter the position of where the sample will end expressed in seconds in the value box, conﬁrming this by pressing enter or by using the slider. You can also click in the graph to set the sample end marker when this loop option is selected.

Fade Out

Enter the Fade Out time expressed in seconds in the value box, conﬁrming this by pressing enter or by using the slider. This is the time in seconds leading up to the sample end during which the amplitude will gradually fade out.

Apply on All

The loop settings that you have made can be applied to all other samples in the project. In order to compensate for any artifacts that might occur when you e.g. play a chord, as a result of several loops with identical settings, you have the option to apply a variation to the loop length.

 8NordsaMplEEditor | 37

Loop Length Variation

Set the variation to the loop length to all the individual samples loops, expressed as a percentage. Enter the value in the box, conﬁrm this by pressing enter or use the slider.

Apply Loop

Click this button to apply the variation setting to all of the loops in the current project.

Sample Start Tab

When the Sample Start tab is opened, the waveform graph will zoom in to give you a better view of what is happening at the very beginning of the sample. As soon as a sample is assigned by the Nord Sample Editor, a Start point will be automatically set. This will be indicated in the Start tab by the marker.

Start

Enter the start position in the sample expressed in seconds in the value box, conﬁrming this by pressing enter or by using the slider. You can also set a start point by clicking in the waveform.

Use the zoom controls if you need to back out of the view, or get closer to the actual waveform representation.

Sample Alt Start Tab

This tab allows you to set the alternate start marker of the sample in the same fashion as the “normal” sample start. This alternate start point will be activated when you select the Skip Samp Attack function on the Nord Wave panel.

The alternate sample start functionality is not available in a M Nord Electro 3.

Instrument Tab

This is where you can change individual settings to all the samples that are mapped in the current Project. You can adjust the amplitude with the gain controls, tune the samples and apply a couple of powerful functions that will assist you with the ﬁnal mapping of the samples. The familiar Keyboard Grid is here to assist you with a clear overview of how the samples are mapped across the keyboard range.

Sample Gain grid

All the individual samples will be presented here, as zones or slices that correspond to the map settings that are presented in the Keyboard Grid. The sample in focus will be indicated in yellow, the other samples in a alternating pattern of blue and gray to provide you with an easy-touse overview.

The zones can be changed by clicking and dragging on the zone boundaries in the grid, grab the upper limit of a zone and move it to a new key.

One zone’s Upper Key cannot be pushed on top of or above M another zone’s Root Key.

The amplitude of any individual sample is indicated with the black horizontal marker in each slice. With the controls below this grid, you can adjust the global gain of the entire Sample Instrument or an individual gain for every sample. This can be used to increase or attenuate the overall loudness of the Sample Instrument.

Reset All

Click on this to reset all the samples to their original amplitude, as they were when they were added to the Project.

Normalize All

This allows you to set all the samples to the 0 dB amplitude in the grid. This represents the maximum amplitude in the audio ﬁle, in relation to the bit depth of the audio. There is however headroom available in the Nord Sample Editor and the Nord Electro 3, that allows you to increase the amplitude beyond this level if you need.

38 | NordElEctro3UsErMaNUalosv1.X

Global Gain

This can set a global increase or attenuation of the amplitude of the entire Sample Instrument. Any individual amplitude differences between the samples will not be altered. Set the value expressed in dB:s in the value box, conﬁrming this by pressing enter, or with the increment/ decrement buttons.

Range: -9.0 to + 9.0 dB

Sample Gain

This allows you to change the amplitude on each individual sample. The amplitude after a gain change will be indicated with the horizontal line in the Grid. Set the value expressed in dB:s in the value box, conﬁrming this by pressing enter, or with the increment/decrement buttons.

Range: -9.0 to + 9.0 dB

Keyboard Gain graph

This graph will reﬂect any changes that you make with the Keyboard Gain controls. These settings will affect the entire Sample Instrument, and can be used to apply various adjustments that will change the amplitude across the range of the keyboard. If for example the lower range in the Sample Instrument is too loud, you can apply an attenuation that begins at a chosen octave. The sample in focus will be indicated as a yellow slice.

Reset All

This will reset any settings that you have made using the octave gain controls.

Octave gain controls

Allows you to apply a gain change to a range, which will start at the preset keys C1, C2, C3 etc.

C4 represents the middle C on the Nord Electro 3, when the Octave Shift control is set to 0. Set the value expressed in dB:s in the value box, conﬁrming this by pressing enter, or with the increment/decrement buttons.

Ranges: -9.0 to + 9.0 dB

Detune

You can change the overall tuning of the samples, either on a global scale or for any individual samples. This provides you with the means to ﬁx any problems with samples that are out of tune, or to adjust an

entire Sample Instrument. The unit is in cents, 100 cent is the range between two semitones.

Reset All

This will reset any changes that you have made using the Detune controls.

Global Detune

Sets the overall tuning of the Sample Instrument. Enter the value expressed in cents in the value box, conﬁrming this by pressing enter, or with the increment/decrement buttons.

Range: -50 to 50 cents

Sample Detune

This allows you to detune the sample in focus in the Sample Instrument. Set the value expressed in cents in the value box, conﬁrming this by pressing enter, or with the increment/decrement buttons. Each and every sample in the Project can be detuned.

Range: -50 to 50 cents

Sample Zone

These controls makes it very easy to change the focused sample’s Root Key and Upper Key, in order to edit the assignment. The focused sample will be highlighted in yellow, and you can quickly select focus by clicking on the keys in the Keyboard grid or by scrolling through the samples using the horizontal arrow keys on the computer keyboard.

Root Key

Sets a new Root Key for the focused sample. There can only be one sample assigned to each Root Key, the value will automatically skip to the next available note.

Range: F0 to C8

Upper Key

Sets a new Upper Key for the focused sample. The available range may be limited by samples that occupy a Root Key higher up on the keyboard. The Upper Key can not be a key that is located lower than the Root Key on the keyboard.

Range: F0 to C8

Enabled

This allows you to disable and re-enable the focused sample.

Transpose

Use the buttons to transpose the entire Sample Instrument in semi tone steps.

Auto Map

This function can be used to quickly enable and disable samples at certain intervals in order to reduce the amount of memory used by the Sample Instrument. This is a great way to quickly experiment with the Sample Instrument without having to delete and/or re-assign samples.

Interval

Set the interval or range between the samples that will be kept enabled.

 8NordsaMplEEditor | 39

The end result will depend on how the original ranges are mapped. Samples will not be moved from one key to another, any gaps across the keyboard range will be ﬁlled by any adjacent samples. A setting of 0 will disable all the samples.

Range: 0 to 48 semi tones

Map

Map the samples according to the Interval setting.

Play Mode

This allows you to choose if a sample should be pitched according to the standard 12 tone interval when you play the keys it has been assigned to, or to play back at its original pitch, regardless of what key you play.

If you e.g. have some drum samples that span several keys, they could be set to Unpitched if you want them to play at the same, original pitch.

Samp Preset Tab

This tab allows you to set some functions to be applied to the Sample Instrument. Some of these functions will also determine the automatically activated settings of the Samp Env functions, for the Sample Instrument.

Velocity Controlled Dynamics

The functions in this area determines how a Sample Instrument should respond when the Vel Dyn selection is active in the Samp Env section.

Amplitude

This allows you to determine if the amplitude of the Sample Instrument should respond to keyboard velocity.

Range: None, Low, High

Filter

This allows you to determine if a keyboard velocity controlled low pass ﬁlter should be applied to the Sample Instrument.

Range: None, 600Hz, 150Hz

Attack Time

This controls if a velocity controlled attack time should be applied to the Sample Instrument. Higher velocities will shorten the attack time.

Range: None, Short, Long

The Slow AT setting that can be activated in the Samp Env sec- M tion on the panel is a separate, non-velocity sensitive, long attack.

Vel Dyn Enabled

Check this box if you wish to have the velocity sensitivity turned on in the Nord Electro 3 as the default setting when the Sample Instrument is selected.

Decay Time

This can apply an amplitude decay to a sound, in order to e.g. have a amplitude decay on a looped sound.

Range: None, Short, Long

Release Time

This sets the default release time that should be activated in the Samp Env section when this Sample Instrument is selected.

Range: Short, Medium 1. Medium 2, Long

Octave Shift

This sets the default octave shift that will be activated when this Sample Instrument is selected.

Manager tab

This is where you ﬁnd the function of the Nord Sample Editor to manage the content of the Sample Instrument memory. If no Nord Electro 3 is connected to the computer, the memory locations will be grayed out.

The actions that take place in the Manager tab will affect the E memories in the unit. The Nord Sample Editor is online with the Nord at all times, so any changes that you perform in the Editor will immediately be echoed in the Nord Wave or Electro 3. If you e.g. delete a Sample Instrument from the list in the Nord Sample Editor, that same SI will also be deleted from the Nord Electro 3 memory, without any warnings or conﬁrmation dialogs.

Manager Toolbar

The icons on the Tool bar gives you instant access to three functions.

Sound Up

This will upload a selected Sample Instrument to the computer hard drive. It will be saved as a .nsmp ﬁle.

Sound Down

This allows you to choose a ﬁle on the hard drive, to be downloaded to the next available free location in the Nord Electro 3.

Delete

This will delete the selected Sample Instrument from the Nord Electro 3 memory.

40 | NordElEctro3UsErMaNUalosv1.X

Instruments list

There are 50 possible locations for Sample Instruments in the Nord Electro 3 memory. The Flash capacity is 68 MB, and this is of course allocated dynamically. You can have one Sample Instrument, that contains one sample that is using up all the memory capacity, or you can have 50 Sample Instruments with several samples each, as long as the combined sizes of these are kept within the 68 MB limit.

When you generate a Sample Instrument from a Project in the Nord Sample Editor, and download this to the Nord Electro 3, this Sample Instrument will be saved at the ﬁrst available location in the Flash memory.

If the locations are occupied one after the other in a consecutive manner, it will then appear at the end of the list in the Manager tab. If there is an empty location in the middle of the list, it will be saved to this location.

The Sample Instrument list may be ordered by location, alphanumerical by name, according to sizes, or versions by clicking on the appropriate heading.

Right-click

If you right-click on a Sample Instrument in the list, you will get the following options:

Upload – This will upload the Sample Instrument to the computer hard drive. It will be saved as a .nsmp ﬁle.

Just as any other computer ﬁle on your hard drive, this .nsmp ﬁle may be renamed, emailed, copied, moved, lost or even stored in a safe location if an evil computer crash suddenly decides to take your hard drive for ride.

If you want to rearrange the order of the Sample Instruments, E there are a few things to consider. A Program in the Nord Electro 3 that uses a Sample Instrument does not know what the sound of the SI is. The Program is only referring to a Sample Instrument location number.

Download – This is only available if you right-click on an empty location that does not contain a sound. This allows you to choose a ﬁle on the hard drive, to be downloaded to the location in the Nord Electro 3.

Delete – This will delete the Sample Instrument from the Nord Electro 3 memory. Any Program in the Nord Electro 3 that used that particular Sample Instrument will probably sound very different, since it will be missing an important component.

A ﬂashing number in the Model display on the panel indicates that E the Sample Instrument location that the current Program tried to use is not available in the Flash memory.

Location

The Sample Instruments in the list are numbered; these numbers correspond to what you select with the Type selector in the Nord Electro 3.

Name

The Sample Instrument gets its name from the name of the Project that gave birth to it. If a Project has not been saved – being nameless that is - and you generate a Sample Instrument, it will get the default name: Untitled.

If a Sample Instrument is uploaded to the computer hard drive, the resulting .nsmp ﬁle name will be same as the SI name. Change the ﬁle name, and the SI name is also changed when that ﬁle is downloaded to the Nord Electro 3.

Two Sample Instruments in the Nord Electro 3 cannot have the E exact same name. If you happen to generate two Sample Instruments without e.g. having saved the Projects, then the second Sample Instrument called Untitled will overwrite the ﬁrst one that had that same name. If you try to drag an .nsmp ﬁle from the hard drive to the list and it has the same name as a SI in the list, that operation will not be allowed and you’ll get a notice about this in the message area on the footer in the Editor window.

File Types and Names

Files associated with the Nord Electro 3 and the Nord Sample Editor use the following extensions:

.nwiproj – Nord Sample Editor Project le

This is a ﬁle containing the Project settings. Audio ﬁles are not included in this ﬁle - any changes to the original audio ﬁles will affect you project. This ﬁle type will be created when you save a Project.

These ﬁles will be needed if you want to change any settings in a particular Sample Instrument at a later stage, so save often and keep copies in a safe location.

.nsmp - Nord Sample Instrument le

This is a ﬁle containing the cropped and encoded audio and the Project settings for one Sample Instrument.

This ﬁle type will be created and saved to the hard drive when you generate a Sample Instrument from the Instrument menu (or with the Generate button in the Editor window).

You can also create .nsmp ﬁles when you upload Sample Instruments from the Nord Electro 3, in the Manager tab in the Editor.

Use this ﬁle type to share Sampled Instruments with other Nord Electro 3 users. The .nsmp ﬁle can not be opened or edited; it can only be down- or uploaded to and from a Nord Sample compatible unit.

To edit any content or setting in a Sample Instrument you must go back to the original Nord Sample Editor Project ﬁle (.nwiproj), do the edits there and then re-generate the Sample Instrument.

Size

Indicates the size of the Sample Instrument. This may be useful if you are short on memory and wants to know if a particular SI occupies a certain amount of space in the Flash memory.

Ver

Version number of the .nsmp ﬁle.

Footer Memory Indicator

This will give you a numerical and a visual indication of how the Flash memory space is being used. Red indicates the spaced used by the samples, green is the space that is free to use for new Sample Instruments.

 8NordsaMplEEditor | 41

About the MIDI implementation

The following MIDI messages can be transmitted and received from the Nord Electro 3:

Note On/Off

Note On and Note Off messages are transmitted and received.•

Controllers

In the MIDI Menu (see page 18), you can select if the Nord Electro 3 should transmit and/or receive Control Change messages.

Incoming MIDI Controller 7 controls the overall volume of the Electro 3.•

Incoming MIDI Controller 10 controls the panning of the Electro 3. •

If you have a control pedal connected to the control pedal input, this • is transmitted as Controller 11 (Expression).

If you have a pedal connected to the sustain pedal input, this is • transmitted as Controller 64 (Sustain Pedal).

If you have a pedal connected to the rotor pedal input, this pedal is • transmitted as Controller 90.

Almost all other controls (knobs and buttons) on the front panel are • also transmitted (and received) as Control Change messages. This can be used to record your actions on the front panel into a MIDI sequencer. For a full list of which parameters correspond to the Controller numbers, see the MIDI implementation on the next page.

Keyboard velocity

The Nord Electro 3 can transmit and receive keyboard velocity messages. Organ sounds will always be played back at nominal level regardless of incoming MIDI Velocity data. Release velocity is also transmitted.

Program change

In the MIDI Menu (see page 18), you can select if the Nord Electro 3 should send and/or receive Program Change messages.

When you select a Program, a Program Change message is transmitted via MIDI. If a Program Change message is received on the selected MIDI Channel, the Nord Electro 3 will change Program accordingly.

The 128 Program locations send and respond to MIDI Program Change values 0-127.

MIDI Sysex (System Exclusive)

Individual Programs or all Programs can be transmitted and received as a System Exclusive dump.

Using the Nord Electro 3 with a sequencer

Connections

Connect the MIDI Out on the Nord Electro 3 to the MIDI In on your 1 sequencer.

Connect the MIDI Out from your sequencer to the MIDI In on the 2 Nord Electro 3.

Local On/Off

Local Off may be used when you use a sequencer to record and play back from Nord Electro 3. If the sequencer echoes back incoming MIDI data, the Nord Electro 3 may respond twice to every note and other message/action if e.g. the keyboard and the sequencer sends the same MIDI information to the unit. Local On/Off is set on the “MIDI menu” see page 18.

MIDI Channel

The MIDI channel(s) that the Nord Electro 3 uses are set up in the MIDI menu - see “MIDI menu” on page 18. If you use the Organ model in the split/lower manual conﬁguration, the lower manual can receive on a separate MIDI channel.

Program Change

Usually you select a Program Change value for a track in the sequencer track settings. The 128 program locations send and respond to Program Change values 0-127.

If you want to record a Program Change message, activate recording in the sequencer and simply select the program on the Nord Electro 3.

Controllers

When you record actions with knobs and buttons, make sure that the sequencer “echoes” the changes back on the correct MIDI Channel, or your changes won’t have any effect.

Some notes about controllers and “chasing”

Consider a situation where you record a Controller message, e.g. a Drawbar opening, in the middle of your sequencer song. Then you “rewind” the sequencer to a position before the recorded Drawbar opening. The problem is that the Nord Electro 3’s Drawbar will remain opened, although it really should be as it was before you recorded the opening.

To solve this, you could record a “snapshot” of all Controller settings of the Nord Electro 3 Program at the beginning of your sequencer song. See “Sending MIDI Controller dumps” below.

9

MIDI functions

42 | NordElEctro3UsErMaNUalosv1.X

Program and Controller dumps

To dump a Program SysEx, or MIDI Controller data via MIDI, either to another Nord Electro 3 or for recording the data into another MIDI device, proceed as follows:

Sending program dumps

Connect the MIDI OUT on the Nord Electro 3 to the MIDI In on the 1 receiving device.

Set up the receiving device to accept MIDI SysEx and MIDI Con-

2

troller data.

Press Shift + MIDI and select the “Dump One” or “Dump All” menu

3

item using the Up/Down buttons.

If needed, set the receiving MIDI device to “recording mode”.4

Press the Store button to send the dump to the MIDI Out of Nord 5 Electro 3. The display will stop ﬂashing once the dump has been sent.

For the programs that use the organ sounds, the complete M settings for the sound will be dumped as MIDI SysEx but for programs using pianos or Samples, all parameters will be sent but NOT the actual instrument samples.

Therefore, when dumping back a program that uses a piano sound, make sure the actual instrument samples are also available in the Nord Electro 3. Otherwise the parameters in the SysEx message will be applied to another available piano instrument.

Sending MIDI Controller dumps

Set up as in steps 1 and 2 in the preceding description.1

Press Shift + MIDI and select the ‘Send CC” menu item using the 2 Up/Down buttons.

Press the Store button to send the dump to the MIDI Out of Nord 3 Electro 3. The Display will stop ﬂashing once the dump has been sent.

Receive MIDI SysEx dumps

Here is how to receive a MIDI SysEx Dump:

Connect the MIDI Out on the transmitting device to the MIDI IN on

1

the Nord Electro 3.

Initiate the transmission on the transmitting device.2

If the dump contained all Programs (All), it will replace all programs currently stored in the Nord Electro 3. If the dump contained only a single program, it will be temporarily placed in the currently selected program memory location. A dot will appear to in the lower, right corner to indicate an unsaved edit. You will then have to store the program manually to a memory location using the Store function (see “Storing Programs” on page 8).

MIDI Controller list

The following is a list of the MIDI Controller numbers used for all knobs and buttons on the front panel:

Nord Electro Parameter

MIDI

Controller

Drawbars - Preset 2/Upper

Drawbar 1 16

Drawbar 2 17

Drawbar 3 18

Drawbar 4 19

Drawbar 5 20

Drawbar 6 21

Drawbar 7 22

Drawbar 8 23

Drawbar 9 24

Drawbars - Preset 1/Lower

Drawbar 1 70

Drawbar 2 71

Drawbar 3 72

Drawbar 4 73

Drawbar 5 74

Drawbar 6 75

Drawbar 7 76

Drawbar 8 77

Drawbar 9 78

Organ Model Sel 9

Preset/Manual Sel 3

Perc Decay 88

Perc Level 89

Sustain Pedal 64

Control Pedal 11

Rotary Speed 82

Rotary Stop Mode 79

Vib Mode 84

Vib On/Off 85

Perc On/Off 87

Perc Hard 95

Samp Attack Sel 33

Samp Release Sel 34

Clav EQ Brill On/Off 103

Clav EQ Treble On/Off 104

Clav EQ Medium On/Off 105

Clav EQ Soft On/Off 106

Inst Sel (Organ/Piano) 13

Piano Type 12

Piano Model 44

Piano Mono 83

Oct Shift Organ Upper 27

Oct Shift Organ Lower 28

Oct Shift Piano 29

EQ On/Off 115

EQ Treble 113

EQ Mid 116

EQ Mid Freq 117

EQ Bass 114

Gain 7

Effect 1 Rate 63

Effect 1 Sel 60

Effect 1 On/Off 69

Effect 2 Rate 62

Effect 2 Sel 61

Effect 2 On/Off 80

Speaker/Comp Drive 111

Speaker/Comp Sel 81

Speaker/Comp On/Off 86

Reverb Wet/Dry 102

Reverb Sel 96

Reverb On/Off 97

 9MidifUNctioNs | 43

MIDI implementation chart

Function Transmitted Recognized Remarks

Basic Channel

Default Channel

1 - 16

Mode Default

Message

Altered

Mode 3

Note

Number True Voice

0-127 0-127

Velocity Note ON

Note Off

O, v= 1 - 127

After Key’s

Touch Channel

Pitch Bender X X

Control Change O O

Program Change

True#

O, 0-127 O, 0-127

System Exclusive O O

System Song Pos

Common Song Sel

Tune

X X X

System Clock

Realtime Commands

Aux Local on/off

Message All notes off

Active Sense

Reset

Number True Voice

Mode 1: Omni On, Poly - Mode 2: Omni O, Mono - Mode 3: Omni Off, Poly - Mode 4: Omni Off, Mono - O = Yes - X = No

Model: Nord Electro 3 OS v1.x Date: 2008-12-15

44 | NordElEctro3UsErMaNUalosv1.X

 10iNdEX | 45

Index

10

Index

Symbols

1/Lo 12

2/Up 12

Add Button 34

Add Files 32

Add Folder 32

Apply Loop 38 Assign button 35, 36

Audio Files 34

Audio Settings 33

Auto Map 39

Auto-Panning 15

A-Wa 15

B3 11 Backup 23, 24

Bank Down 23

Bank Download 24

Bank Up 23

Bank Upload 24

Bass Rotor 19

Cancel 25

Cancel button 34

Cent 39

Chorus 16

Circle 34

Clav EQ 14

Clavinet 13

Clean Deleted Space 24

Close Project 32

Common area 33

Compressor 16

Control Change 18

Control Pedal 7

Ctrl

+D 32

+F 32

+G 33

+N 32

+O 32

+Q 32

+S 32

, 33

+W 32

+Y 33

Ctrl Pedal 17

Deassign 36

Deassign All 36 Delete 23, 24, 41

Detune 39

Dot 33

Download 22

Drawbars 13

Drawbar Speed 18

Edit 8 Effects 9, 15

Electro 3 Manager 20

Enabled box 34

EQ 15 Exit 24, 32

Factory presets 4

Fade Out 37

Farf 11

File format 32

File Menu 32

Fine Tune 17

Flanger 16

Footer area 34

Format 24

Free Locations 24

Gain 16

Generate 33

Global Detune 39

Global Gain 39

Headphones 6

Instrument 15

Instrument Menu 33 Interval 35, 39

Invert Selection 24

Keyboard Gain graph 39

Keyboard Grid 33

Key Click Level 19

LED 14

Left Out 6
