Page 1
PARTS LIST
900 SERIES
962
962IM
963
963IM
PART NO.619701
NORCOLD 03/25/2008
982
982F
982IM
982FIM
983
983IM
Page 2
DOOR - UPPER (FREEZER) - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
1618128 PANEL RETAINER-UPPER DOOR XXXX
2618511 HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK XXXX
3618144 HINGE BUSHING-DOOR HINGE/BLACK XXXX
4618205 DOOR LINER ASSY-UPPER/GRAY DOOR GASKET XXXX
620076 DOOR LINER ASSY-UPPER/WHITE DOOR GASKET (USE 619627) XXXX
5618160 CAP-HINGE PLUG/BLACK XXXX
6619569 BOLT-CAP SHOULDER/TORX HEAD XXXX
7618235 DOOR HANDLE ASSY-UPPER DOOR/RH SWING/BLACK (USE 619574) XXXX
8618119 STORAGE LATCH-DOOR/BLACK (USE 619648) XXXX
9618510 HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK XXXX
10619006 BIN-DOOR SHELF/SMALL/CLEAR XXXX
11619008 DIVIDER-DOOR BIN/CLEAR XXXX
900 SERIES PARTS LIST - PAGE 2
Page 3
DOOR - LOWER (FRESH FOOD) - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
1 618132 PANEL RETAINER-LOWER D OOR X X
618129 PANEL RETAINER-LOWER DOOR XX
2619569BOLT-CAP SHOULDER/TORX HEAD XXXX
3618511HINGE-DOOR SIDE/TOP RH/BTM LH/BLACK XXXX
4618144HINGE BUSHING-DOOR HINGE/BLACK XXXX
5 618210 DOOR LINER ASSY-LOWER/6 FT/GRAY DOOR GASKET X X
620077 DOOR LINER ASSY-LOWER/6 FT/WHITE DR GASKET (USE 619629) X X
618270 DOOR LINER ASSY-LOWER/8 FT/GRAY DOOR GASKET (USE 630255) X X
620081 DOOR LINER ASSY-LOWER/8 FT/WHITE DR GASKET (USE 619631) X X
6618230DOOR HANDLE ASSY-LOWER DOOR/RH SWING/BLACK (USE 619573) XXXX
7618119STORAGE LATCH-DOOR/BLACK (USE 619648) XXXX
8618160CAP-HINGE PLUG/BLACK XXXX
9618510HINGE-DOOR SIDE/TOP LH/BTM RH/BLACK XXXX
10619005BIN-DOOR SHELF/LARGE/CLEAR XXXX
11619006BIN-DOOR SHELF/SMALL/CLEAR XXXX
12619008DIVIDER-DOOR BIN/CLEAR XXXX
900 SERIES PARTS LIST - PAGE 3
Page 4

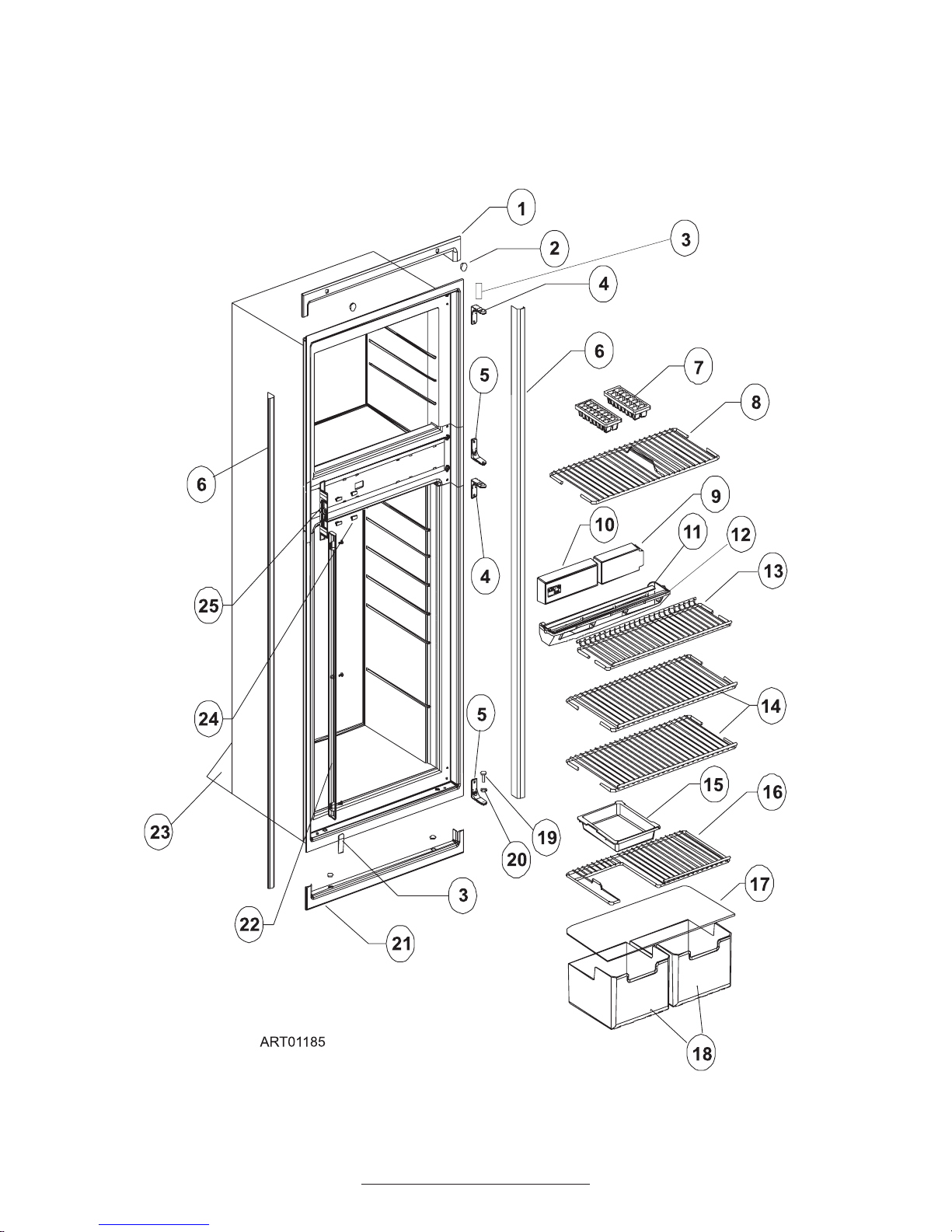

CABINET ASSEMBLY - FRONT VIEW - 900 SERIES
900 SERIES PARTS LIST - PAGE 4
Page 5
CABINET ASSEMBLY - FRONT VIEW - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
1618124TRIM PIECE-CABINET/TOP/WITHOUT BRASS INSERTS XXXX
619687 TRIM PIECE ASSY-TOP/WITH INSERTS/BLACK (USE 622319) XXXX
2618170HOLE PLUG-FOR TOP TRIM PIECE/BLACK XXXX
3618171COVER-HINGE HOLE/WHITE/2 POINT XXXX
619301COVER-HINGE HOLE/WHITE/3 POINT XXXX
4618988HINGE-CABINET SIDE/FREEZER/SLOTTED/PAINTED XXXX
619336HINGE-CABINET/3 POINT/TOP LH/BTM RH/BLACK XXXX
5618988HINGE-CABINET SIDE/FREEZER/SLOTTED/PAINTED XXXX
619335HINGE-CABINET/3 POINT/TOP RH/BTM LH/BLACK XXXX
6 61813 3 TRIM PIECE-CABINET/SIDE/6' (USE 622295) X X
618134 TRIM PIECE-CABINET/SIDE/8' (USE 622296) X X
7 61630422 ICE CUBE TRAY-PLASTIC X X
8618172SHELF-WIRE/FREEZER (USE 620249) XXXX
9 618112 FRONT BOX XXXX
10 618245 CONTROL ASSY-OPTICAL/900 SERIES (USE 625386 FOR EG2/ 625387 FOR EG3) XXXX
11618176LOUVER-DRIP TRAY/WHITE (USE 623250) XXXX
12618137DRIP TRAY-INSIDE (USE 623250) XXXX
13618239SHELF-WIRE/SHORT (USE 620269) XXXX
14618114SHELF-WIRE/FULL (USE 620270) XXXX
15617756TRAY-SHELF/WHITE/CUT OUT XXXX
16618177SHELF-WIRE/CUT OUT (USE 620268) XXXX
17618158CRISPER COVER-GLASS SHELF XXXX
18619007BIN-ICE/CRISPER/CLEAR XXXX
19 618145 HINGE PIN-DOOR XXXX
20618144HINGE BUSHING-DOOR HINGE/BLACK XXXX
21618136TRIM PIECE-CABINET/BOTTOM (USE 622323) XXXX
22 618181 RETAINER-SHELF XXXX
2361586722BRACE-CABINET/BACK XXXX
24 618184 PLUG-FACADE/BLACK XXXX
619381HOLE PLUG-DIVIDER/BLACK XXXX
25618167STRIKE PLATE-BLACK XXXX
900 SERIES PARTS LIST - PAGE 5
Page 6

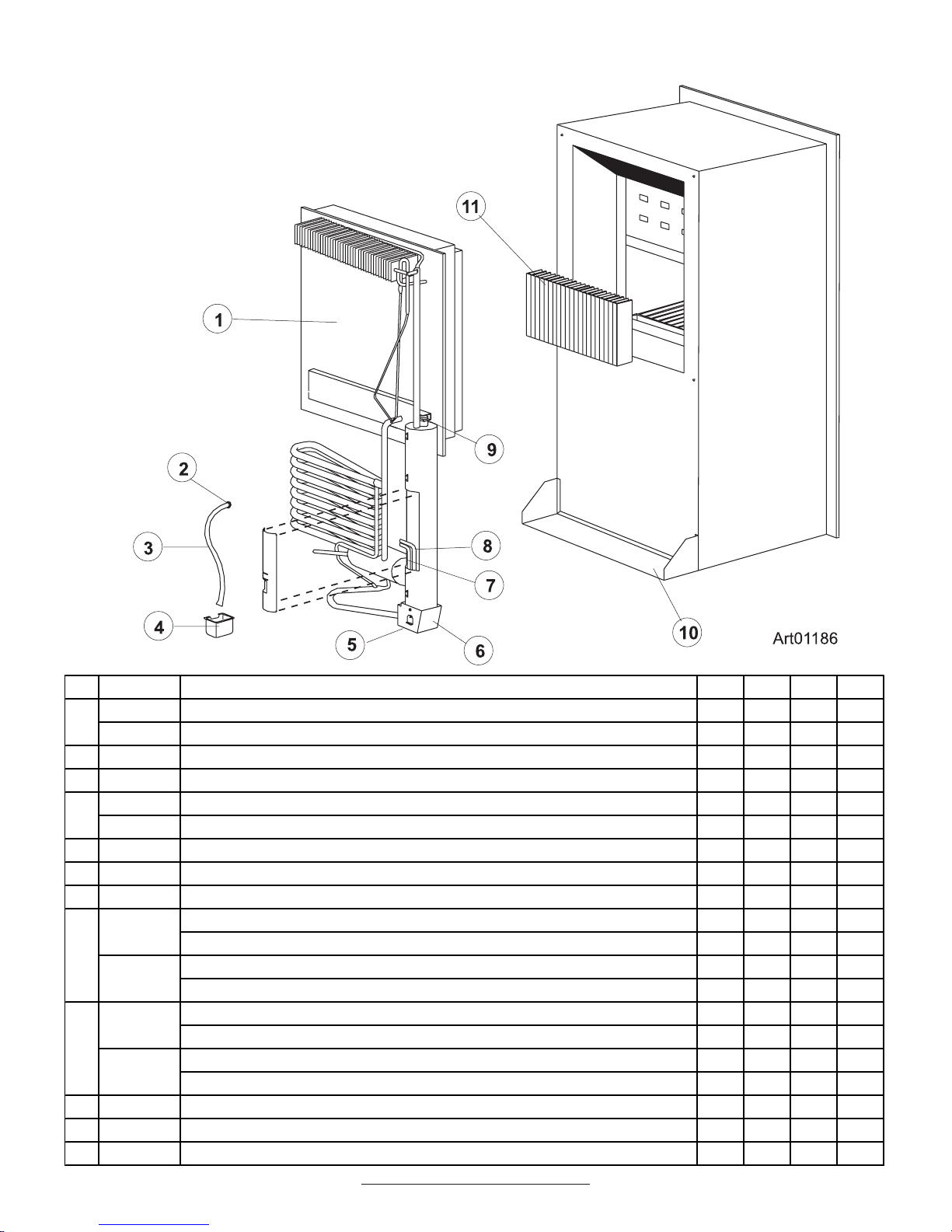

CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
1 632307 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X X
632314 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X X
NS618111BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) XXXX
2 61505122 HOSE CLAMP XXXX
3 618217 DRAIN HOSE-26" (USE 622390) X X
618242 DRAIN HOSE-32" (USE 622391) XX
461710922DRIP CUP-REAR/METAL (USE 622546) XXXX
561712637COVER ASSY-BURNER BOX XXXX
6 61695322 BASE-BURNER BOX XXXX
7 621702 HEATER-AC/96 SERIES (COOLING UN IT SERIAL# 11231023 & BELOW) X X
HEATER-AC/98 SERIES (COOLING UNIT SERIAL# 11232007 & BELOW) X X
630811 HEATER-AC/BACKER/96 SERIES (COOLING UNIT SERIAL# 11231024 & ABOVE) X X
HEATER -AC/BACKER /98 SERIES (COOLING UNIT SERIAL# 11232008 & ABOVE) X X
8 626832 HEATER-DC/96 SERIES (COOLING UNIT SERIAL# 11231023 & BELOW) EG3 EG3
HEATER-DC/98 SERIES (COOLING UNIT SERIAL# 11232007 & BELOW) EG3 EG3
630812 HEATER-DC/BACKER/96 SERIES (COOLING UNIT SERIAL# 11231024 & ABOVE) EG3 EG3
HEATER -DC/BACKE R/98 SERIES (COOLING U NIT SERIAL# 11232008 & ABOVE) EG3 EG3
961695022CAP-HEAT DEFLECTOR XXXX
1061586722BRACE-CABINET/BACK XXXX
11 61686823 FINS XXXX
900 SERIES PARTS LIST - PAGE 6
Page 7

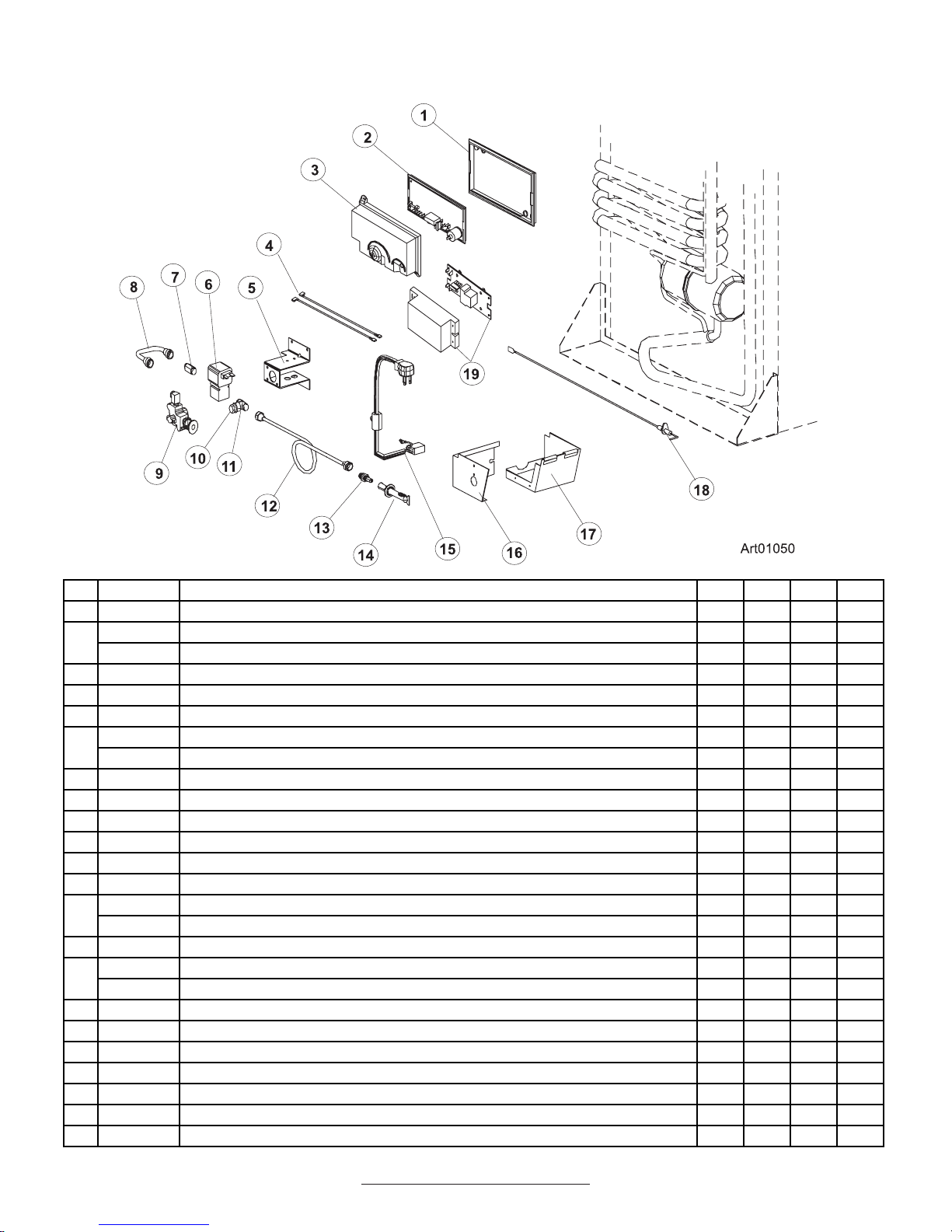

CONTROLS - REAR VIEW - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
1618186BASE-POWER BOARD XXXX
2 618198 POWER BOARD-EG 2 (USE 625386) EG2 EG2 EG2 EG2
618224 POWER BOARD-EG3 (USE 625387) EG3 EG3 EG3 EG 3
3618185COVER-POWER SUPPLY XXXX
4618287WIRE-WHITE/6"/GAS VALVE (USE 621448) XXXX
561694022BRACKET-MOUNTING/GAS VALVE XXXX
661551822GAS VALVE-ASCO (USE 621444) XXXX
621444 KIT-GAS VALVE/BURNER TUBE ASSY XXXX
761546822CONNECTOR-MALE (NOT SHOWN) XXXX
861694622UNION TUBE (NOT SHOWN) XXXX
961694922MANUAL SHUT OFF VALVE ASSY-KINCO BALON (USE 621444) XXXX
1061445322PLUG-1/8"/FOR PRESSURE TAP XXXX
11 61594422 PRESSURE TAP XXXX
12 618252 BURNER TUBE XXXX
13 618283 ORIFICE-JEWELED/.015" (USE 621957) X X
618284 OR IFICE-JEWELE D/.0155" (USE 621957) X X
14 61705222 BURNER ASSY-5 SLOT (USE 621957) XXXX
15 61554422 CORD-AC POWER/BLACK X X
618406 CORD-AC POWER/IM IM IM
1661712637COVER ASSY-BURNER BOX XXXX
17 61695322 BASE-BURNER BOX XXXX
1861692222ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25" XXXX
19 618516 DAUGHTER BOARD-EG3 (NOT SHOWN)(USE 625387) EG3 EG3 EG3 EG3
NS 618606 WIRE-EG3/12 VOLT (NOT SHOWN) EG3 EG3 EG3 EG3
NS 618602 WIRE-EG3/GROUND (NOT SHOWN) EG3 EG3 EG3 EG3
NS 618605 WIRE-EG3/SENSE (NOT SHOWN) EG3 EG3 E G3 EG3
900 SERIES PARTS LIST - PAGE 7
Page 8

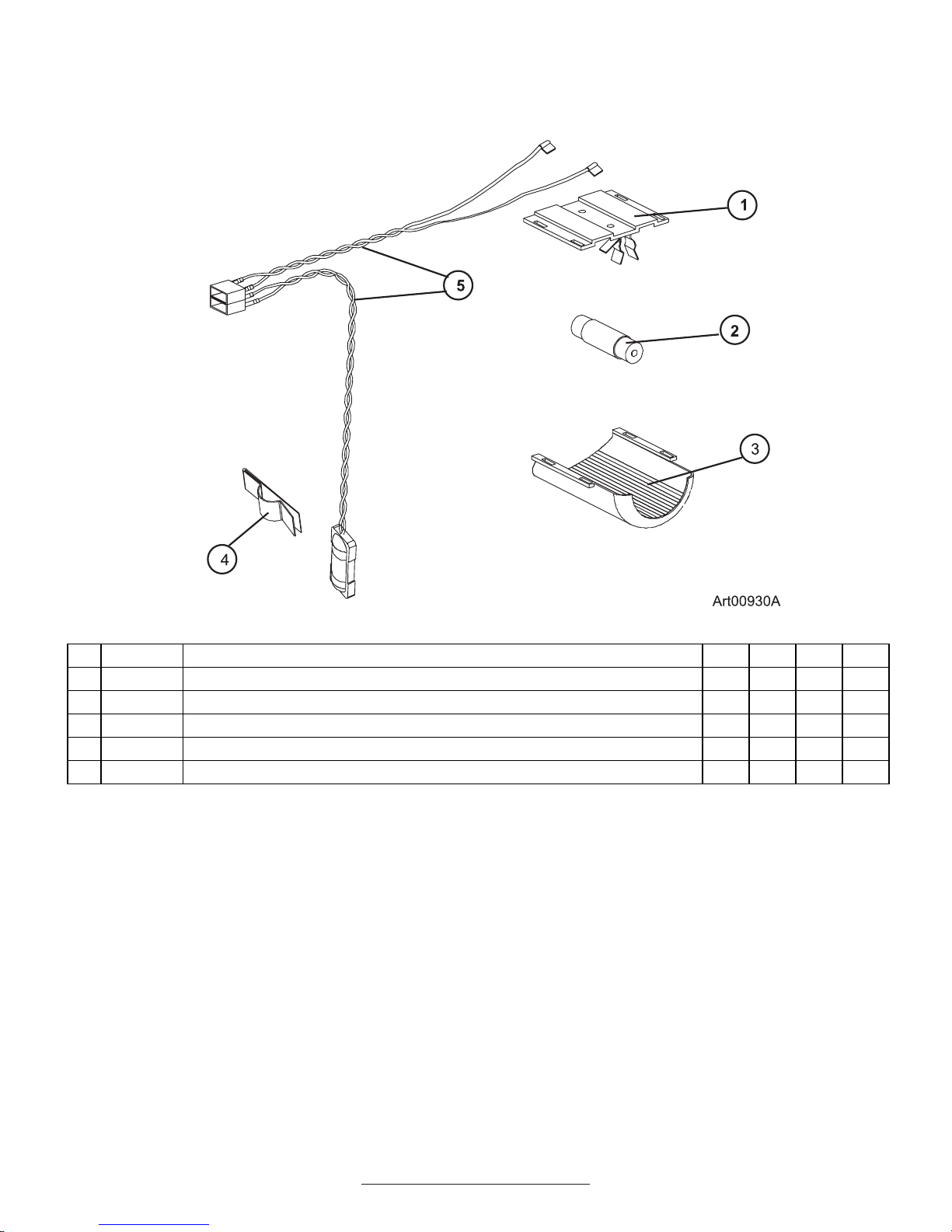

INTERIOR LIGHT & THERMISTER ASSEMBLY - 900 SERIES
NO. PART # DESCRIPTION 96 96IM 98 98IM
161629722LAMP BRACKET ASSY XXXX
261628922LAMP-GE #214-2/DC LIGHT BULB XXXX
3618190COVER-LAMP BRACKET (USE 621827) XXXX
461689122CLIP-THERMISTER MOUNTING/FIN XXXX
5618548LAMP THERMISTER WIRE ASSY XXXX
Continued on Page 13
900 SERIES PARTS LIST - PAGE 8
Page 9

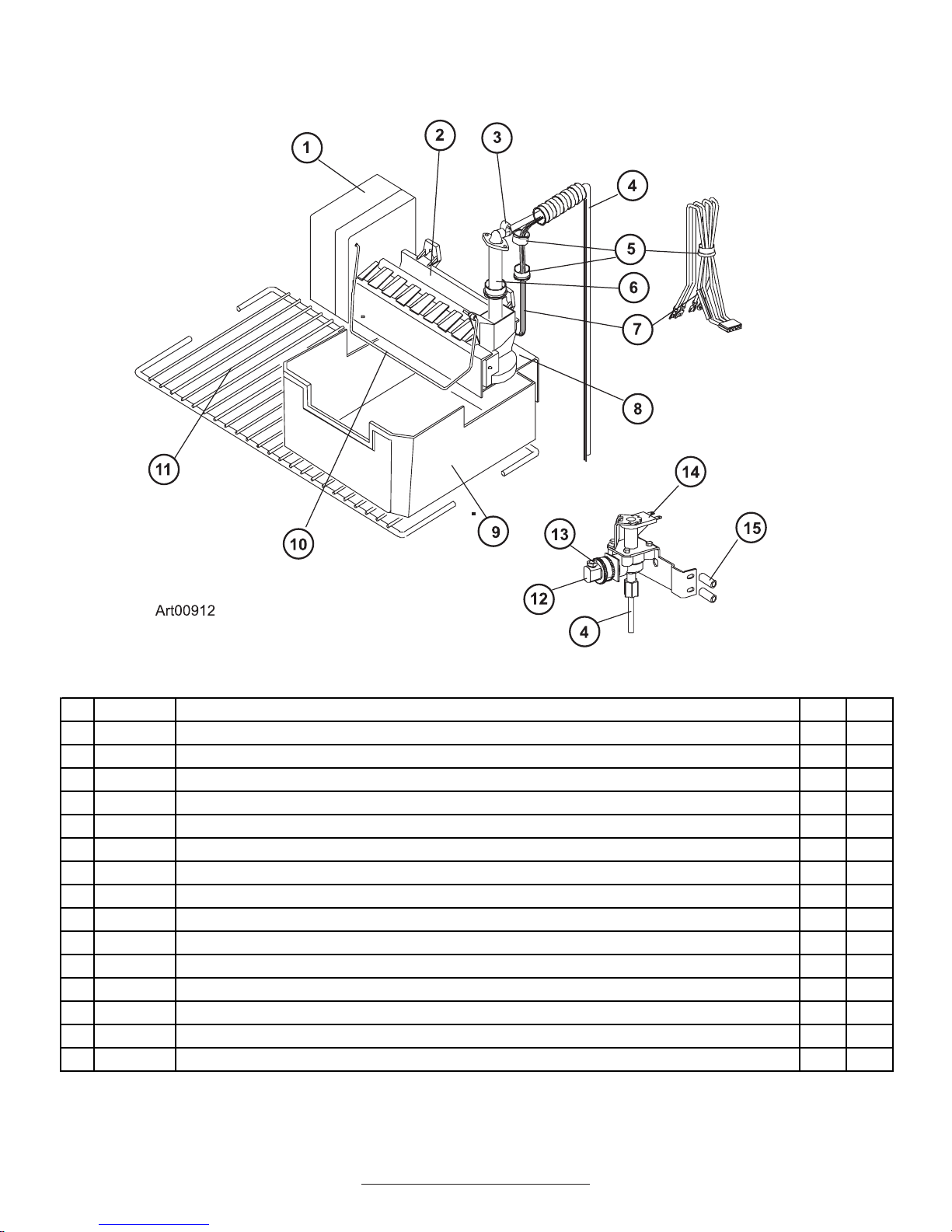

ICE MAKER PARTS - 900 SERIES
NO. PART # DESCRIPTION 96IM 98IM
1 61656822 COVER-FRONT/ICE MAKER IM IM
2 621266 ICE MAKER IM IM
3 61690822 CLAMP-TUBING/IM IM IM
4 617869 TUB E-WATER FEED/IM/68" (USE 621429) IM IM
5 61346822 SNAP BUSHING IM IM
6 620038 FITTING-WATER TUBE/IM/4.63" (USE 620659) IM IM
7 618407 WIRING HAR NESS -IM IM IM
8 617831 BRACKET-MOUNTING/ICE MAKER/RELOCATED IM IM
9 619007 BIN-ICE/CR IS PER/CLE AR IM IM
10 61656922 SHUT OFF ARM/IM IM IM
11 618172 SHELF-WIRE/FREEZER (USE 620249) IM IM
12 61679622 GARDEN HOSE ADAPTER-STRAIGHT/IM IM IM
13 61678722 NU T-COMPR ESSIO N/WATE R VALVE FITTING / IM (USE 622991) IM IM
14 618253 WATER VALVE-BRACKET INCLUDED IM IM
15 618169 SPACER-WATER VALVE /NYLON IM IM
900 SERIES PARTS LIST - PAGE 9
Page 10
FAN MODEL PARTS - 982F, 982FIM
PART # DESCRIPTION 982F 982FIM
618857 BR ACK ET-D C F AN FF
619016 BRACKET-FAN SUPPORT FF
61417922 CABLE TIE-NYLON FF
618856 FAN-EXTERNAL DC FF
618093 THERMOSTAT-DC FAN/THERMO DISC FF
618950 WIRE MOUNT-ADHESIVE FF
618700 WIRE-BLACK/24"/18 GA FF
619017 WIRE-BLACK/6"/18 GA FF
618701 WIRE-RED/36"/18 GA FF
618978 WIRE-R ED/6"/18 GA/12V FAN FF
618699 WIRE-RED/60"/18 GA/WITH FU SE HOLDER FF
900 SERIES PARTS LIST - PAGE 10
