Page 1
PARTS LIST
9100 SERIES
9162
9163
9182
9182F
PART NO.619701
NORCOLD 03/25/2008
9183
Page 2
DOOR - UPPER (FREEZER) - 9100 SERIES
NO. PART # DESCRIPTION 916 918
1 618128 PANEL RETAINER-UPPER DOOR X X
2 618511 H INGE-DOOR SIDE/TOP RH/BTM LH/BLACK X X
3 618144 H INGE BUSHING-DOOR HINGE/B LACK X X
4 618205 D OOR LINER ASS Y-UPPER/GRAY DOOR GASKET X X
620076 D OOR LINER ASS Y-UPPER/W HITE DOOR GASK ET (USE 619627) X X
5 618160 CAP-HINGE PLUG/BLACK XX
6 619569 B OLT-CAP SHOULDER/TORX HEAD X X
7 618235 D OOR HANDLE ASSY-UPPER DOOR /RH SWING/BLACK (USE 619574) X X
8 618119 STORAGE LATCH -DOOR/BLACK (US E 619648) X X
9 618510 H INGE-DOOR SIDE/TOP LH/BTM RH/BLACK X X
10 618618 R AIL-UPPER DOOR XX
9100 SERIES PARTS LIST - PAGE 2
Page 3
DOOR - LOWER (FRESH FOOD) - 9100 SERIES
NO. PART # DESCRIPTION 916 918
1 618132 PANEL RETAINER-LOWER DOOR X
618129 PANEL RETAINER-LOWER DOOR X
2 619569 BOLT-CAP SHOULDER/TORX HEAD X X
3 618511 HINGE-DOOR SIDE/TOP RH /BTM LH/BLACK X X
4 618144 H INGE BUSHIN G-DOOR HIN GE/BLACK X X
5 618210 DOOR LINER ASSY-LOWER/6 FT/GRAY DOOR GASKET X
620077 DOOR LINER ASSY-LOWER/6 FT/WHITE DR GASKET (USE 619629) X
618270 DOOR LINER ASSY-LOWER/8 FT/GRAY DOOR GASKET (USE 630255) X
620081 DOOR LINER ASSY-LOWER/8 FT/WHITE DR GASKET (USE 619631) X
6 618230 DOOR HAND LE ASSY-LOWER DOOR/RH SWING/BLACK (USE 619573) X X
7 618119 STORAGE LATCH-DOOR/BLACK (USE 619648) X X
8 618160 CAP-HINGE PLUG/BLACK XX
9 618510 HINGE-DOOR SIDE/TOP LH/BTM R H/BLACK X X
10 618578 RAIL-LOWER DOOR XX
11 618619 B IN-DOOR SHELF/SMALL/WHITE (2 PER 916 & 3 PER 918) 2 3
9100 SERIES PARTS LIST - PAGE 3
Page 4

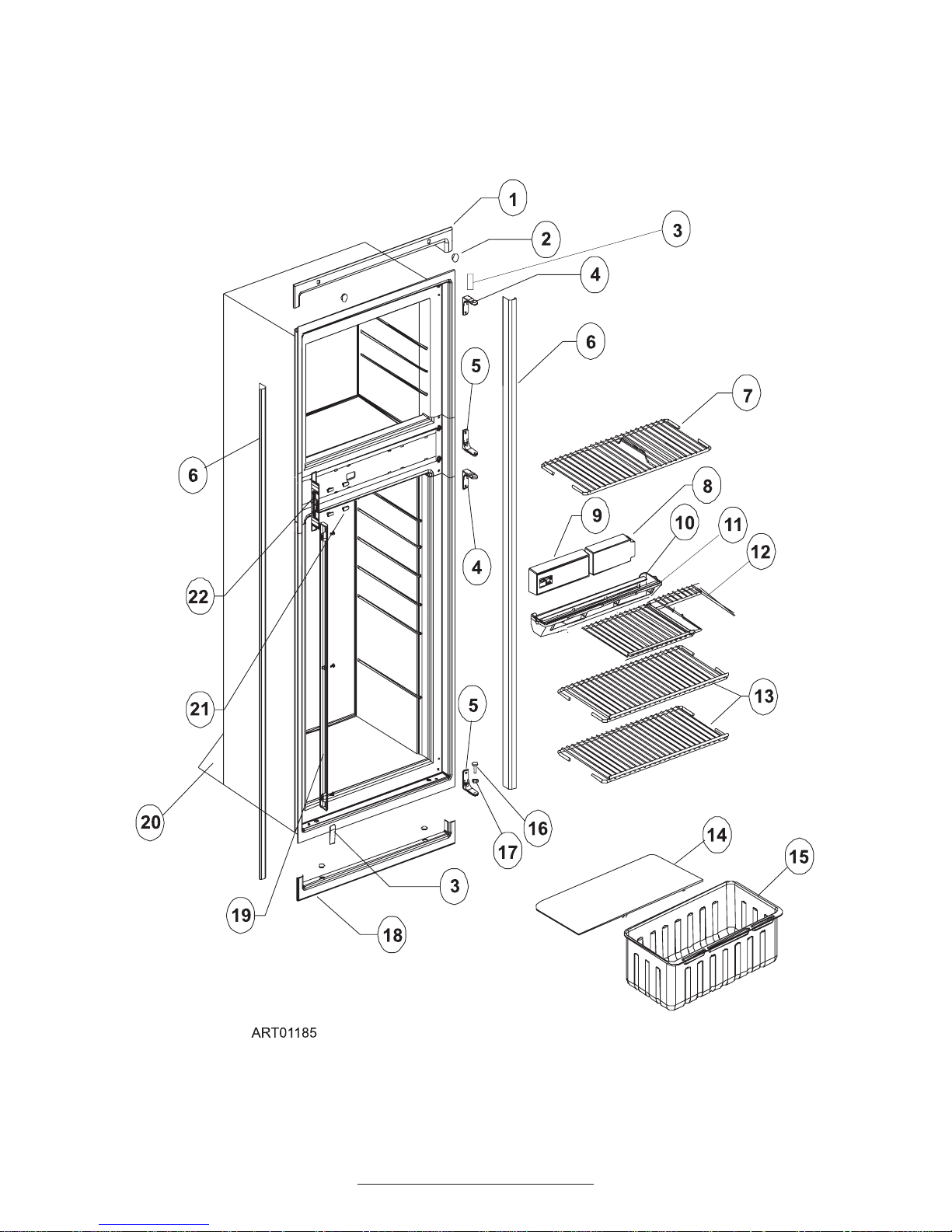

CABINET ASSEMBLY - FRONT VIEW - 9100 SERIES
9100 SERIES PARTS LIST - PAGE 4
Page 5
CABINET ASSEMBLY - FRONT VIEW - 9100 SERIES
NO. PART # DESCRIPTION 916 918
1 618124 TRIM PIECE-CABIN ET/TOP/WITHOUT BRASS INSERTS X X
619687 TRIM PIECE ASSY-TOP/WITH IN SERTS/BLACK (USE 622319) X X
2 61 8170 HOLE PLUG- FOR TOP TRIM PIECE/BLACK X X
3 618171 COVER-HINGE HOLE/WHITE/2 POIN T X X
619301 COVER-HINGE HO LE/WHITE/3 POIN T X X
4 618988 H INGE-CABI NET SID E/F RE EZER/SLOTTED/PAINTED X X
619336 HINGE -CABINET/3 POIN T/TOP LH/BTM RH/BLACK X X
5 618988 H INGE-CABI NET SID E/F RE EZER/SLOTTED/PAINTED X X
619335 HINGE -CABINET/3 POIN T/TOP RH/BTM LH/BLACK X X
6 618133 TRIM PIECE-CABINET/SIDE/6' (USE 622295) X
618134 TRIM PIECE-CABINET/SIDE/8' (USE 622296) X
7 618620 SHELF-WIRE/FREEZER (USE 620250) X X
8 618112 FRONT BOX XX
9 618588 CONTR OL ASSY-OPTICAL (USE 625386 FOR EG2/625387 FOR EG3) X X
10 618176 LOUVER-DRIP TRAY/WHITE (USE 623250) X X
11 618137 DRIP TRAY-INSIDE (USE 623250) XX
12 618624 SHELF-WIRE/CUT OUT (US E 620272) X X
13 618589 SHELF-WIRE/FULL (USE 620273) 23
14 618158 CRISPER COVER-GLASS SHELF XX
15 618571 CRISPER-WHITE/FULL XX
16 618145 HINGE PIN-DOOR XX
17 618144 HINGE BUSH ING-DOO R HINGE/BLACK X X
18 618136 TRIM PIECE-CABINET/BOTTOM (USE 622323) X X
19 618181 RETAINER-SHELF XX
20 61586722 BRACE-CABINET/BACK XX
21 618184 PLUG-FACADE/BLACK XX
619381 HOLE PLUG-DIVIDER/BLACK XX
22 618167 STRIKE PLATE-BLACK XX
9100 SERIES PARTS LIST - PAGE 5
Page 6
CABINET ASSEMBLY - REAR VIEW - COOLING UNIT AREA - 9100 SERIES
NO. PART # DESCRIP TION 916 918
1 632307 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X
632314 NSC SYSTEM PACK-COOLING UNIT (BACKER HEATER) X
NS 618111 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT (NOT SHOWN) X X
2 61505122 HOSE CLAMP XX
3 618217 DRAIN HOSE-26" (USE 622390) X
618242 DRAIN HOSE-32" (USE 622391) X
4 61710922 DR IP CUP-REAR/METAL (USE 622546) X X
5 61712637 COVER ASSY-BURNER BOX XX
6 61695322 BASE-BURNER BOX XX
7 621702 HEATER-AC (COOLING UNIT SERIAL# 11231023 & BELOW) X
HEATER-AC (COOLING UNIT SERIAL# 11232007 & BELOW) X
630811 HEATE R-AC/BACKER (COOLING UNIT SERIAL# 11231024 & ABOVE) X
HEATER-AC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) X
8 626832 HEATER-DC/ (COOLING UNIT SERIAL# 11231023 & BELOW) EG3
HEATER-DC (COOLING UNIT SERIAL# 11232007 & BELOW) EG3
630812 HEATER-DC/BACKE R (COOLIN G UNIT SERIAL# 11231024 & ABOVE) EG3 EG3
HEATER-DC/BACKER (COOLING UNIT SERIAL# 11232008 & ABOVE) EG3
9 61695022 CAP-HEAT DEFLECTOR XX
10 61586722 BRACE-CABIN ET/BACK XX
11 61686823 FINS XX
9100 SERIES PARTS LIST - PAGE 6
Page 7

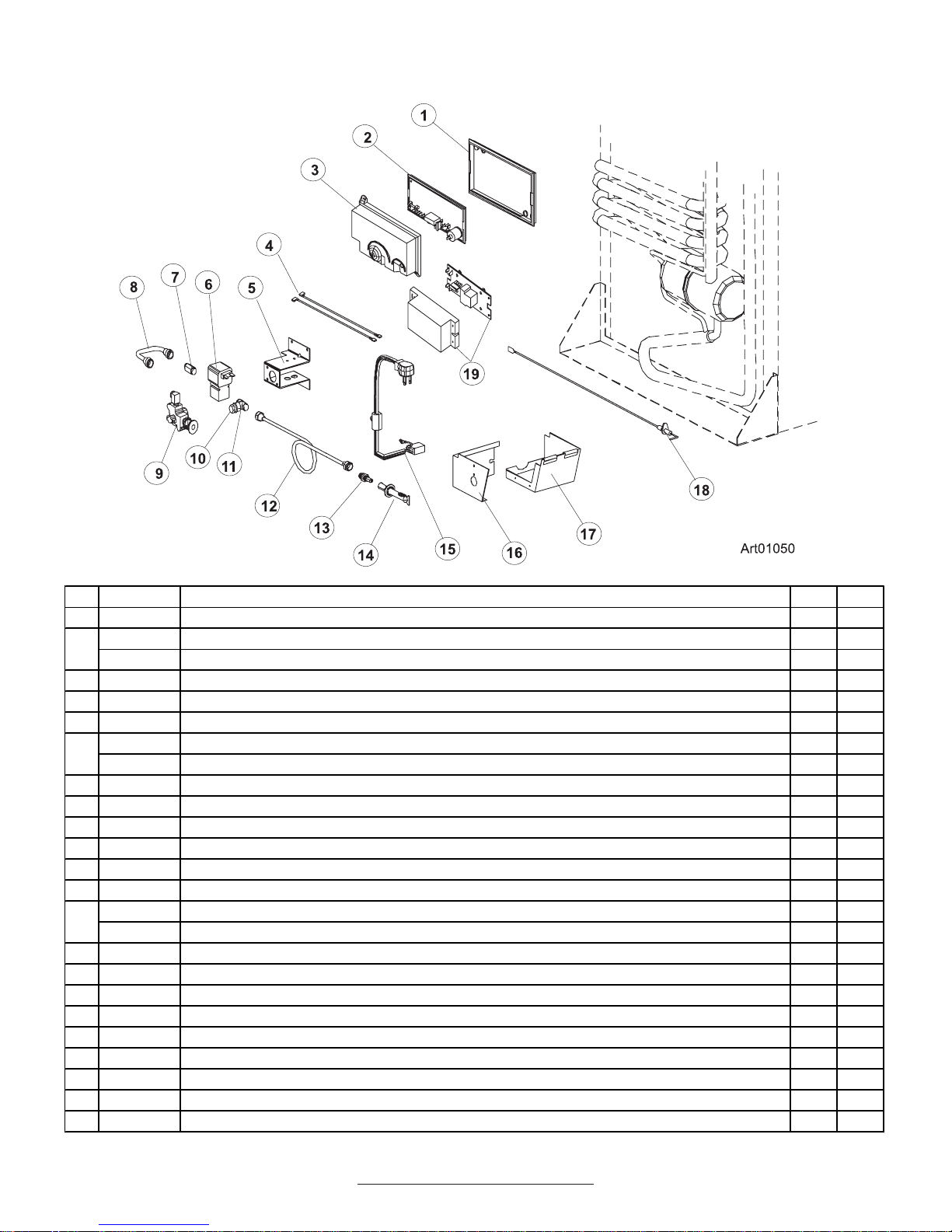

CONTROLS - REAR VIEW - 9100 SERIES
NO. PART # DESCRIP TION 916 918
1 618186 BASE-POWER BOARD XX
2 618574 POWER BOARD-EG2 (USE 625386) EG2 EG2
618575 POWER BOARD-EG3 (USE 625387) EG3 EG3
3 618185 COVER-POWER SU PPLY XX
4 618287 WIRE-WH ITE/6"/GAS VALVE (US E 621448) X X
5 61694022 BR ACKET-MOUNTING/GAS VALVE X X
6 61551822 GAS VALVE-ASCO (USE 621444) XX
621444 KIT-GAS VALVE/BURNER TUBE ASSY X X
7 61546822 CONNECTOR-MALE (NOT SHOWN) XX
8 61694622 UNION TUBE (NOT SHOWN) XX
9 61694922 MANUAL SHUT OFF VALVE ASSY-KINCO BALON (USE 621444) X X
10 61445322 PLUG-1/8"/FOR PRESSURE TAP XX
11 61594422 PRESSURE TAP XX
12 618252 BURNER TUBE XX
13 618283 ORIFICE-JEWELED/.015" (USE 621957) X
618284 ORIFICE-JEWELED/.0155" (USE 621957) X
14 61705222 BURNER ASSY-5 SLOT (USE 621957) X X
15 61554422 CORD-AC POWER/BLACK XX
16 61712637 COVER ASSY-BURNER BOX XX
17 61695322 BASE-BURNER BOX XX
18 61692222 ELE CTRODE-SPAR K/SENSE/SINGLE ELECTRODE/0.25" X X
19 618516 DAUGHTER BOARD-EG3 (NOT SHOWN) (USE 625387) EG3 EG3
NS 618606 WIRE-EG3/12 VOLT (NOT SHOWN) EG3 EG3
NS 618602 WIRE-EG3/GROUND (NOT SHOWN) EG3 EG3
NS 618605 WIRE-EG3/SENSE (NOT SHOWN) EG3 EG3
9100 SERIES PARTS LIST - PAGE 7
Page 8

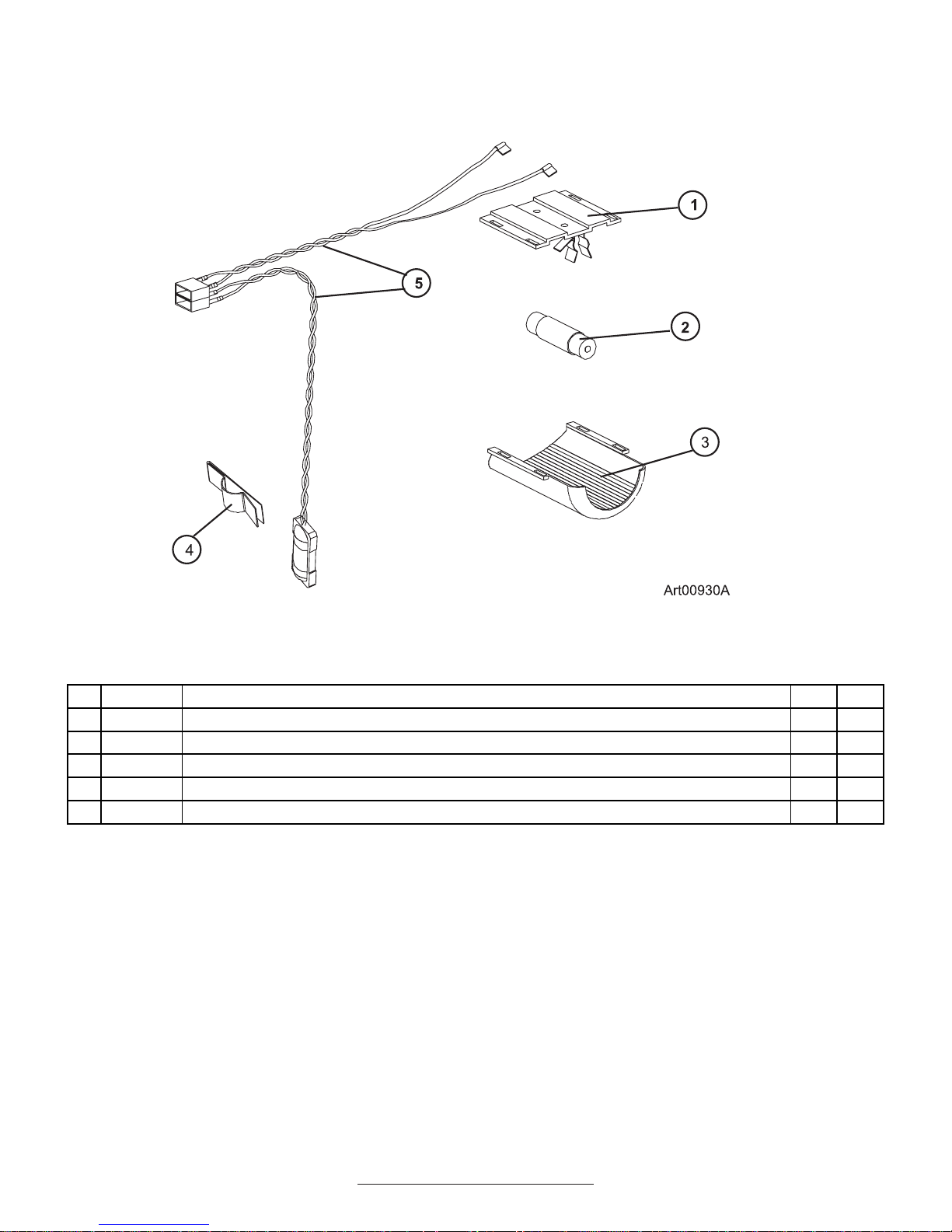

INTERIOR LIGHT & THERMISTER ASSEMBLY - 9100 SERIES
NO. PART # DESCRIPTION 916 918
1 61629722 LAMP BRACKET ASSY XX
2 61628922 LAMP-GE #214-2/DC LIGHT BULB XX
3 61627922 COVER-LAMP (USE 621827) XX
4 61689122 CLIP-THERMISTER MOUNTING/FIN XX
5 618548 LAMP THERMISTER WIRE ASSY XX
9100 SERIES PARTS LIST - PAGE 8
Page 9
FAN MODEL PARTS - 9182F
PART # DESCRIPTION 9182F
618857 BRACKET-DC FAN F
619016 BRACKET-FAN SUPPORT F
61417922 CABLE TIE -NYLON F
618856 FAN-EXTERNAL DC F
618093 THER MOSTAT-DC FAN/THERMO DISC F
618950 WIRE MOUNT-ADHESIVE F
618700 WIRE-BLACK/24"/18 GA F
619017 WIRE-BLACK/6"/18 GA F
618701 WIRE-RED/36"/18 GA F
618978 WIRE-RED/6"/18 GA/12V FAN F
618699 WIRE-RED/60"/18 GA/WITH FUSE HOLDER F
9100 SERIES PARTS LIST - PAGE 9
