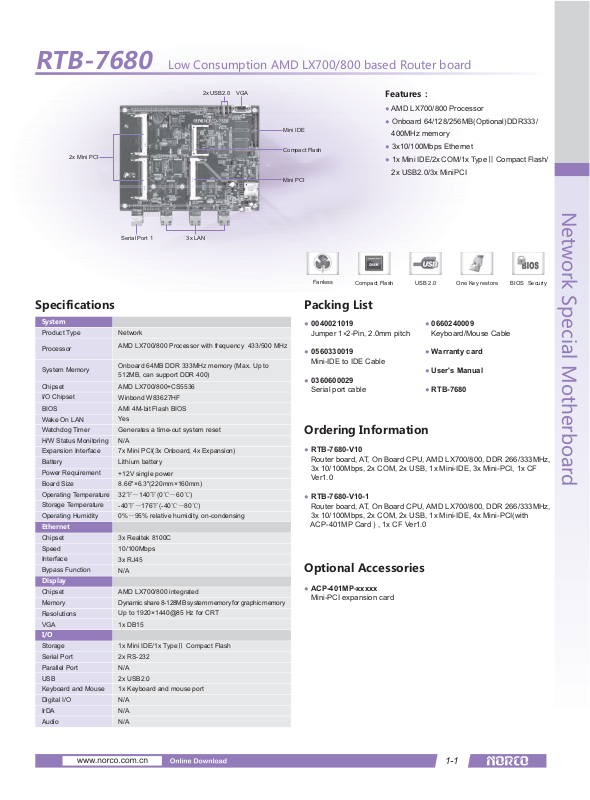

NORCO RTB-7680 User Manual

RTB-7680

Low Consumption AMD LX700/800 based Router board

2x Mini PCI

Specifications

System

Product Type

Processor

System Memory

Chipset

I/O Chipset

BIOS

Wake On LAN

Watchdog Timer

H/W Status Monitoring

Expansion Interface

Battery

Power Requirement

Board Size

Operating Temperature

Storage Temperature

Operating Humidity

Ethernet

Chipset

Speed

Interface

Bypass Function

Display

Chipset

Memory

Resolutions

VGA

I/O

Storage

Serial Port

Parallel Port

USB

Keyboard and Mouse

Digital I/O

IrDA

Audio

VGA2x USB2.0

Serial Port 1 3x LAN

Network

AMD LX700/800 Processor with frequency 433/500 MHz

Onboard 64MB DDR 333MHz memory (Max. Up to
512MB, can support DDR 400)

AMD LX700/800+CS5536

Winbond W83627HF

AMI 4M-bit Flash BIOS

Yes

Generates a time-out system reset

N/A

7x Mini PCI(3x Onboard, 4x Expansion)

Lithium battery

+12V single power

8.66"×6.3"(220mm×160mm)

32 140 (0 60 )℉～ ℉ ℃～ ℃

-40 176 (-40 80 )℉～ ℉ ℃～ ℃

0% 95% relative humidity, on-condensing～

3x Realtek 8100C

10/100Mbps

3x RJ45

N/A

AMD LX700/800 integrated

Dynamic share 8-128MB system memory for graphic memory

Up to 1920×1440@85 Hz for CRT

1x DB15

1x Mini IDE/1x Type Compact FlashⅡ

2x RS-232

N/A

2x USB2.0

1x Keyboard and mouse port

N/A

N/A

N/A

Features：

AMD LX700/800 Processor

●

Onboard 64/128/256MB(Optional)DDR333/

Mini IDE

Compact Flash

Mini PCI

Fanless

Compact Flash

●

400MHz memory

3x10/100Mbps Ethernet

●

1x Mini IDE/2x COM/1x Type Compact Flash/

●

Ⅱ

2x USB2.0/3x MiniPCI

USB 2.0

One Key restore BIOS Securiy

Packing List

●

0040021019

Jumper 1 2-Pin, 2.0mm pitch

●

0560330019

×

●

0660240009

Keyboard/Mouse Cable

●

Warranty card

Mini-IDE to IDE Cable

●

●

0360600029

Serial port cable

User's Manual

●

RTB-7680

Ordering Information

●●RTB-7680-V10

Router board, AT, On Board CPU, AMD LX700/800, DDR 266/333MHz,
3x 10/100Mbps, 2x COM, 2x USB, 1x Mini-IDE, 3x Mini-PCI, 1x CF
Ver1.0

RTB-7680-V10-1

Router board, AT, On Board CPU, AMD LX700/800, DDR 266/333MHz,
3x 10/100Mbps, 2x COM, 2x USB, 1x Mini-IDE, 4x Mini-PCI(with

ACP-401MP Card),1xCFVer1.0

Optional Accessories

● ACP-401MP-xxxxx

Mini-PCI expansion card

Network Special Motherboard

1-1
