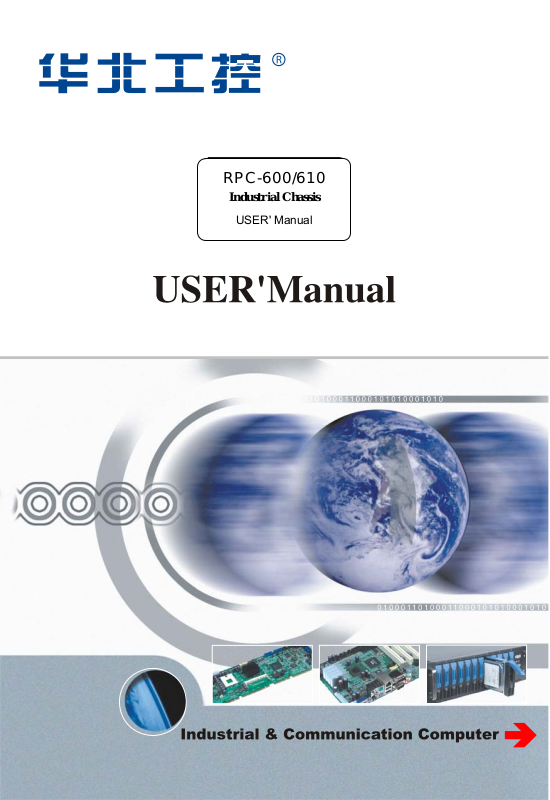

Norco RPC-600, RPC-610 User Manual
RPC-600/610
Industrial Chassis
USER' Manual
Headquarters (China）：86-0755-27331166
Shenzhen：86-0755-27331166
Beijing：86-010-82671166
Shanghai：86-021-61212088
Chengdu：86-028-85259319
Shenyang：86-024-23960846
Xi’an：86-029-88338386
Wuhan：86-027-87858983
TianJin：86-022-23727100
Singapore：65-68530809
Website：www.norco.com.cn
RPC-600/610
Industrial Chassis
USER' Manual
Shenzhen NORCO Intelligent Technology CO.,LTD.
RPC-600/610 Industrial Chassis
Equipment Classification：
Trade Name：Shenzhen NORCO Intelligent Technology CO., LTD..
Model Name：RPC-600/610
Responsible Party：
Type of Product：Industrial Chassis
Manufacturer：
Shenzhen NORCO Intelligent Technology CO.,LTD.
FCC Class B Subassembly
Shenzhen NORCO Intelligent Technology CO.,LTD.
Content
Chapter 1 Product Introduction......................................................................................1
1.1 Overview ....................................................................................................................1
1.2 Specification ..............................................................................................................1
1.3 Backplane information..............................................................................................2
1.4 Power optional...........................................................................................................2
1.5 Ordering Information ................................................................................................3
Chapter 2 Installation Guide............................................................................................4
2.1 Structure view............................................................................................................4
2.1.1 Outline Dimensions ...............................................................................................4
2.1.2 Front Panel Diagram .............................................................................................5
2.1.3 Back Panel Diagram .............................................................................................7
2.1.4 Internal Structure Diagram ...................................................................................8
2.2 System Setup ............................................................................................................9
2.2.1 Removing the cover ..............................................................................................9
2.2.2 Install HDD .............................................................................................................9
2.4 Replacing the filter ..................................................................................................12
2.5 Back window FAN Install（optional）..................................................................13
Appendix............................................................................................................................15
Appendix A: Backplanes ..............................................................................................15
Appendix B: Safety Instructions ..................................................................................22
Packing List
Thank you very much for choosing our products, completely check your
package as the following item checklist first, if you find any component missing or
damaged, please contact your retailer.
■ RPC-600/610
■ Key
■ Power cable (BS)
■ 5’ to 3 tray
■ Air Filter
■ Screw
■ Flexible adjust card clamp
■ Manual
1pcs
1set
1pcs
1set
1bag
1pcs
4pcs
1pcs
Chapter 1
Product Introduction
RPC-600/610
Industrial chassis
Chapter 1 Product Introduction
1.1 Overview
RPC-600/610 is an improved 4U 19’ rackmount chassis, It is fully compatible
with P3/P4 commercial mainboard; embedded industrial backplane; the Drive Disk
Enclosure contains 1x3.5’ drive bays and 3x5.25’ driver bay. Front panel with
dual-USB port. Built-in high-speed air-intake fan supports abundant cooling and
streamline ventilation. It is easy to clean. The bracket bay features anti-vibration
capability. Can be widely applied to many fields, such as industrial control, CTI, DVR
etc.
1.2 Specification
Physics
Construction: high strength 1.2mm carbon structural steel, meet FCC and CE Class
B spec
Technics: surface machining of spray-paint, high temperature firing
Color: White/Black (Optional)
Dimension: 488mm×471mm×177mm (W×D×H)
Chassis
Configuration:4U,RackMount，meet the EIARS-310C standards
Drive bay: 1x3.5’ drive bays, 3x5.25’ driver bay
Cooling FAN: 1x8025 fan with air filter on front panel
Control: Front reset button, power switch and keyboard-lock
Port: 2xUSB port
Backplane support: Industrial Backplane or ATX PC board
Indicators: LEDs for power On/Off and HDD
Power: AT/ATX (Optional)
Vibration: 1 Grms (5 ~ 500 Hz)
Shock: 10G (with 11 ms duration, half sine wave)
Applications: industrial control, CTI, DVR etc.
1
RPC-600/610
Environment
Temperature: -20℃－60℃ (-4-140F)
Humidity: 5%－95%@ 40°C, (no condensing)
Acoustic Noise: Less than 56 dB sound pressure at 5 ~ 28°C (41 ~ 82°F)
1.3 Backplane information
Industrial chassis
Model system slots
PBP-08P4
PBP-09P6
PBP-13L4
PBP-14I
PBP-14P4
PBP-15P7
PBP-15P12
single
single
single
single 14ISA 315.5×173.5
single
single
single 12PCI/3 PICMG 317×270
1.4 Power optional
Model
PWR-300
PWR-350
Power Input Output
300W
350W
4PCI/2 PICMG/2
ISA
6PCI/2 PICMG/1
ISA
4PCI/2 PICMG/7
ISA
4PCI/2 PICMG/8
ISA
7PCI/2 PICMG/6
ISA
Characters
180～
260VAC 47～
63Hz
180～
260VAC 47～
63Hz
Dimension（mm）
217×192
270×190.5
270×308
323×270
317×270
+3.3V@20A ,+5V@20A
+12V1@12A ,+12V2@12A，
-5V@0.5A,-12V@0.8A
+3.3V@28A ,+5V@25A
+12V1@15A ,+12V2@15A，
-5V@0.1A,-12V@0.8A
2
RPC-600/610
1.5 Ordering Information
Model Color Back Window
Industrial chassis
RPC-600/610
Black/White AT/ATX
3
