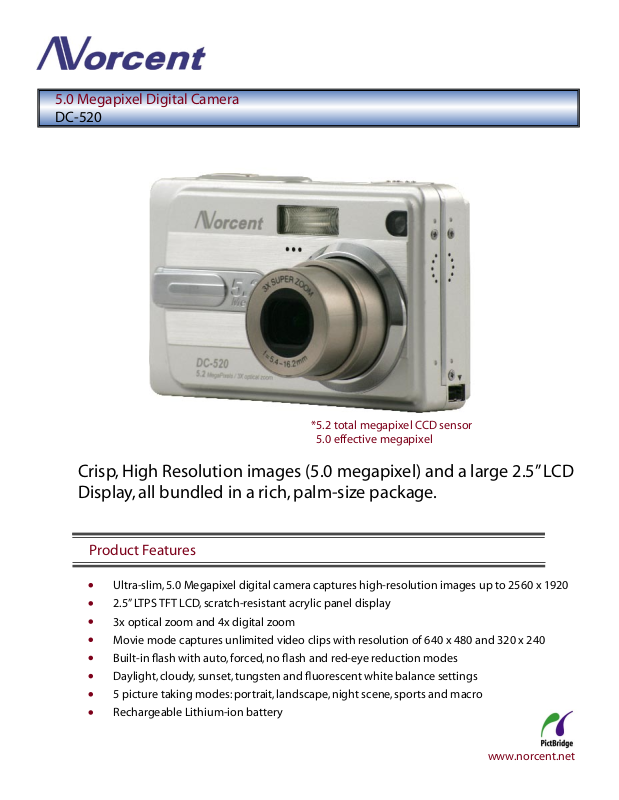

5.0 Megapixel Digital Camera

DC-520

*5.2 total megapixel CCD sensor

5.0 effective megapixel

Crisp, High Resolution images (5.0 megapixel) and a large 2.5” LCD
Display, all bundled in a rich, palm-size package.

Product Features

Ultra-slim, 5.0 Megapixel digital camera captures high-resolution images up to 2560 x 1920

•

2.5” LTPS TFT LCD, scratch-resistant acrylic panel display

•

3x optical zoom and 4x digital zoom

•

Movie mode captures unlimited video clips with resolution of 640 x 480 and 320 x 240

•

Built-in flash with auto, forced, no flash and red-eye reduction modes

•

Daylight, cloudy, sunset, tungsten and fluorescent white balance settings

•

5 picture taking modes: portrait, landscape, night scene, sports and macro

•

Rechargeable Lithium-ion battery

•

www.norcent.net

5.0 Megapixel Digital Camera

DC-520

Product Specifications

Special Features

Effective Pixels I Approx. 5.0 million pixels
Image sensor I 5.2 Total Megapixel CCD sensor
Image resolution I Still image: 2560 x 1920, 2048 x 1536,
1280 x 960, 640 x 480
Video clip: 640 x 480, 320 x 240
Image quality I Still image: SUPER FINE, FINE, NORMAL
Recording media I 16 MB internal memory (9 MB for
image storage) SD memory card
(optional, up to 512MB)
Compression format I MPEG 4 SP (Video), IMA-ADPCM (Audio)
File format I JPEG, TIFF, ASF (Video)
Lens I F-no.: 2.8 (Wide) / 4.9 (Tele)
Focal length: 5.4mm-16.2mm
Focus range I Normal: 0.5m-infinity
Wide: 0.06m-0.4m (in Macro mode)
Tele: 0.35m-0.5m (in Macro mode)
LCD monitor I 2.5” LTPS color LCD
Flash mode I AUTO FLASH, FORCED FLASH, RED EYE, NO FLASH
Self-timer I 3-second delay, 10-second delay
Exposure compensation I -2.0EV- +2.0EV (in 0.3EV increments)
White balance I AUTO, DAYLIGHT, CLOUDY, SUNSET,
TUNGSTEN, FLUORESCENT
ISO sensitivity I AUTO, 50, 100, 200
Zoom I 3X optical zoom
4X digital zoom (Capture mode)
8X digital zoom (Playback mode)
Shutter speed 1/2 - 1/1000 sec.
Image capturing I Single, 5 images continuously, AEB
Flash effective range I 2.5m
Video output I NTSC / PAL
Interface I DC-IN 5V terminal ( Via conversion adapter)
A/V OUT terminal (Via conversion adapter)
USB port
Power I Rechargeable lithium-ion battery (650mAh, optional)
AC power adapter (5V, optional)
Operating conditions I Operating temperature: -5oC to +40oC
Storage temperature: -20oC to +60oC
Dimension (WxHxD) I Approx. 88.5 x 54.5 x 24 mm (without protruding parts)

Weight I Approx. 130g (without the battery and SD card)

UPC# 803802321010
