Noontec MS300 User Manual

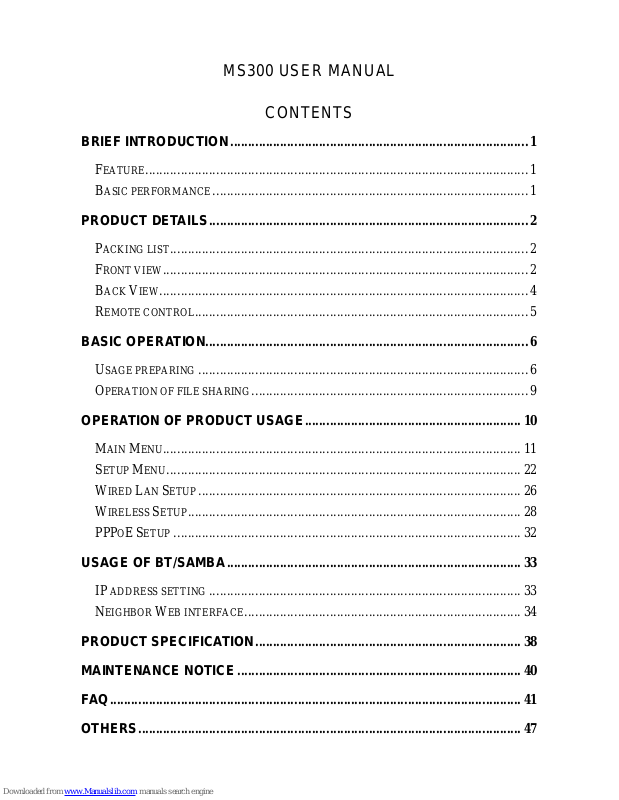

MS300 USER MANUAL

CONTENTS

BRIEF INTRODUCTION....................................................................................1

FEATURE............................................................................................................1

BASIC PERFORMANCE .........................................................................................1

PRODUCT DETAILS..........................................................................................2

PACKING LIST.....................................................................................................2

FRONT VIEW.......................................................................................................2

BACK VIEW........................................................................................................4

REMOTE CONTROL..............................................................................................5

BASIC OPERATION...........................................................................................6

USAGE PREPARING .............................................................................................6

OPERATION OF FILE SHARING..............................................................................9

OPERATION OF PRODUCT USAGE.............................................................10

MAIN MENU.....................................................................................................11

SETUP MENU....................................................................................................22

WIRED LAN SETUP ...........................................................................................26

WIRELESS SETUP..............................................................................................28

PPPOE SETUP ..................................................................................................32

USAGE OF BT/SAMBA...................................................................................33

IP ADDRESS SETTING ........................................................................................33

NEIGHBOR WEB INTERFACE..............................................................................34

PRODUCT SPECIFICATION ...........................................................................38

MAINTENANCE NOTICE................................................................................40

FAQ....................................................................................................................41

OTHERS............................................................................................................47

1

Brief introduction

Feature

The product is a new kind of multimedia player. It has unique cylindrical
structure with LCD monitor.The product can provide good watching.
Meanwhile, it can also store and play many kinds of video files. The product,
which is facilitated with many ports, can show you pictures and videos with
high definition. The product is also supporting the internet service,and you
can browse video,photos and news ,you can also download network movies.
It is really your desirable entertainment product.

Basic performance

Video- AVI, MPG,TS/M2TS/TP/TRP,ISO,IFO,VOB,DAT,MP4, MOV,

WMV,MKV, RM/RMVB,FLV
Audio- MP3, WMA,WAV,AAC,OGG, Dolby digital,DTS digital
Image-JPG/BMP/PNG/GIF
USB HOST- Connection USB mass storage device
HDMI-HDMI high definition port
1080P output -Full HD 1080P (1920x1080) decoder output

Network– WLAN(optional)(IEEE 802.11 b/g/n),RJ45 port,10/100Mbit/s
External DVD - Support USB external DVD drive to play DVD movies

2

Product details

Packing list

Check the accessories after receive the product. If there are some missing,
please contact immediately with your supplier to insure your consumer’s
right.

No. Name Quantity

1 Media player 1 pcs
2 Power Adapter 1 pcs
3 Remote Controller 1 pcs
4 AV cable 1 pcs
5 User Manual 1 pcs

Front view

3

Front Panel Information

Element Description Remark

① IR

Infrared receiver

Receives signals from the
remote control. Point the tip
of the remote control to the
infrared receiver and
ensure that the path
between the two is
unobstructed.

②

Card

reader

Three in one card

reader

supports memory cards
including MS, SD, and MMC.
Gently insert the memory
card into the reader with the
arrow side upward until there
goes a “click” sound.

③

USB

HOST1

Outside USB port

Supports multiple external
USB storage devices

④ Power Power LED

Orange light when switch on,
red light when stand-by.

⑤ LCD

LCD monitor

Displays menu and
playback information
synchronously including
playback time ,flie
name ,setup menu and so
on.

4

Back View

Port definition

Port Port definition

Instruction

① AV

Composite

video output port

Outputs composite video
and audio

② DC IN Power port Inputs power
③ Optical

Audio output

port

Outputs digital audio signal

④ HDMI

High definition

port

Outputs digital signal via
HDMI port

⑤ LAN Network port

connects to network via
internet port

⑥

USB

HOST2

Outside USB

port

reads and writes outside
USB storage via USB port

5

Remote control

BUTTON FUNCTION

POWER

Turn on and off in the stand by mode

TV SYSTEM

Press to switch between NTSC

, PAL, 480P, 576P,

720P 50HZ, 720P 60HZ, 1080I 50HZ and 1080I 60

HZ,

1080P 50HZ,1080P 60HZ.

OPTION

Opens the options menu in the browser t

o rename or

delete the file

INFO

Press to display time, title, information of chapter when

play video and photo

MUTE Turn on or shut audio output

COPY

Enter the copy mode

SELECT

Press to select copy files or folders in the copy mode

CONFIRM

No role for the time being

AUDIO

Switch the output of audio format

RETURN

Return to the previous menu

SETUP Opens the settings menu

OK

Press this button confirms a selection and starts the
playback of a media file.
Press shortly to move cursor up
Press shortly to move cursor down
Press shortly to move cursor left
Press shortly to move cursor right

FR

Press to fast rewind from current play and again to

select the speed

FF

Press to fast forward from current play and again to

select the speed

PREV

Press to return to previous file

NEXT

Press to go to next file

PAUSE/STEP

Pause the playback or playback by step

STOP Ends the playback of a media file

6

VOL+

Press to increase the volume

VOL-

Press to decrease the volume

0-9

Press to input digital

SLOW

Press to have slow motion:（1X, 3/4X，1/2X，1/4X ，1/8X，
1/16X.Press OK to resume regular play mode.

GOTO

Press to play the video at the chapter after setting

schedule

ZOOM

Press to zoom when playing back photos or Video

programs
Photo zoom levels: 2X,4X,8X,16X
Video zoom levels: 1X,2X,3X,4X,8X

GUIDE Switches to the main menu.

REPEAT

Press to set repeat option: chapter, Title or off

SUBTITLE

Switch the subtitle if the file supported

ALL

Presses this key, show all files

MUSIC

Presses this key, show all audio files


Presses this key, show all picture files

MOVIES

Presses this key, show all video files

Basic operation

Usage preparing

1，Power connection

Take out power adapter from the package and connect product to power.

2，Connection of TV audio and video output

The product is designed with multi-output, including composite( AV) ,
HDMI,and Optical.Individuals can select different interface according various
needs. The product can detect video output automatically, making the
operation friendly and convenient. Please refer to the following instruction for
connection to avoid any problem.

7

Composite output connection(AV)

Plug the yellow connector into the AV output of product and AV input of TV,
and plug the red and white connector into the audio input of TV or HIFI. Turn
on the TV and select AV mode. Turn on the product and TV displays the
interface of initiation.

HDMI output mode

HDMI is a output with best audio and video effect which outputs digital video
and audio composited at the same time. Connect HDMI cable to output of
product and display device with HDMI input. Select HDMI mode in TV until it
displays the interface of initiation.

8

Optical output mode

Optical output：Connect the product optical connector with the other one from
video or audio device by optical cable. Then enter the product's audio

interface, select the Digital Output option "SPDIF LPCM" or "SPDIF RAW".
It is available to enjoy 5.1 high quality sounds through a multi channel
decoder/amplifier with optical input.

3,Connection and setup of network

The product can play the files stored in the PC directly through network.
Please connect the RJ45 cable according to the following illustration. The
network connects well when the LED of network status blinks.

9

Connect the video output. Press “setup” key or select “setup” menu in the
initiation interface. Select “Network” option in the setup window and press

“OK” to confirm. It is available for both automatic and manual IP setup. Press
“setup” key again to exist after setup. Please see " Wired Lan Setup" for

more details.Before access the PC through network by the product, the

media files must be shared in the network.

4, The use of USB HOST interface

Player with ability to expand large-capacity.The USB HOST port can read
external mobile hard disk, USB Flash Drive, digital cameras, card readers
and other data storage devices. To direct play a variety of high-definition
formats high-fidelity audio and video files stored in external storage devices.
To watch HD movies and digital photos are more palatable, at the same time
the output digital audio signals to audio equipment can feel the shock of
high-fidelity sound effects.

Operation of file sharing

Operation of file sharing under Windows

Two conditions are necessary for a successful play of network connection.

1. Folder sharing and safety setup

2. Set the same gateway and subnet mark address.

Procedure of file sharing under Windows XP

1. Select the folder need to be shared, right click mouse and select the

option” Sharing and safety”, lift click the mouse.

2. Select “sharing” in the property option and select “share this folder on the

10

network” and click “Apply” for confirming to exist.

3. Open” Control panel- Management tool-Computer management-Local

users and groups” and click “Users” option. Right click Guest and select
“Properties”.

4. Select 'users can not change your password' and 'password never

expires'. keep the other checkboxes unchecked.

5. Open” Control panel- Network connection”, and select “Local Area

connection” and right click to select “Properties”.

6. In the Pop-up window, select ‘Internet protocol (TCP/IP)’

7. Set up the relevant IP address, subnet mask and gateway, can also

choose to automatically design.

8. Completion of Windows XP network sharing.

9. Finally, please close the Windows Network Connection Firewall

Operation of file sharing under Windows Vista

1． Please make sure that the Vista operation system is installed as

Administrator supper user.

2． From the desktop select ”start- setup-control panel-select user account”
3． Open User account and select” open a new account” and name it “Guest”
4． Select the folder need to share and right click the mouse, then select the

“sharing” option.

5． Open the shared folder and add guest account to the list
6． Give the right to all the users after adding the Guest into the list.
7． Select “sharing”, and then the folder is shared.
8． Finish sharing

9. Operate the device as the same as operate in XP system

Operation of product usage

Note: While connect the power supply for the first time, the device will power

11

on automatically and appear the below menu:
Please read the following instructions carefully to understand the function of
each option.

Main Menu

The main menu allows you browse and play music, photo and movie files
stored on external USB devices, Memory cards,Network.
Press “ ” and “ ” to select the device on which the media is stored.
Choose from USB (for media stored on an external flash disk), Memory cards
and Network or press MOVIES, PHOTO, MUSIC or ALL button on the remote
control to browser movie, photo, music files stored on USB device, Memory
cards and Network .Press OK button to confirm and play the files in the
selected device.

File Range function

To make file browsing and playing easier, there is a function to range all files
into different folders named “All”, “Music”, “Photo” and “Movie”, individuals
can switch to any folder by pressing “All”, “Music”, “Photo” and “Movies” four
buttons on the remote control.

Browsing Music

Press the MUSIC button on the remote control to enter the music play mode.
Press “ ” and “ ”to select the folder containing your audio files. A
thumbnail strip appears at the bottom of the screen, along with song
information. Press “ ” and “ ” to select the file you want to play and press
OK. This browsing music function supports MP3,WMA,WAV,AAC,OGG,
Dolby digital , DTS digital …format Playback.

12

Browsing Photos

Press the PHOTO button on the remote control to enter the photo play mode.
Press “ ” and “ ” to select the folder containing your photo files. Enter the
folder press “ ” and “ ” to select the photo you want to view and press OK
the photo is displayed full screen.

While browsing a photo, you can press “ ” and “ ” to rotate a photo in any
angle. Beside rotating a photo, you can press ZOOM to zoom in/out that
photo, four zoom levels(2X,4X.8X16X) are available.This browsing photos
function supports High Definition Photo (JPG,BMP,PNG,GIF) Playback.

If the SLIDESHOW is enabled in the Setup (“Photo Setup” menu) ,then
press Setup button to return to the pictures you want to playback, the
slideshow will start automatically.

If you want to playback some music during the slideshow, simply make
sure that you copy your music file(s) in the same directory as the pictures.
Then choose the “Folder” option in Background Music (“Photo
Setup ”menu). Press the OK button to playback your slideshow with the
music background.

Note:

1. While listening to audio files, you can browse the photos at the same
time.

2. If you press ZOOM during playback slideshow ,the slideshow will
automatically stop.

3. When playing photos , press “ ” and “ ” to adjust the brightness of
LCD screen which is showing pictures.

13

Browsing Movies

Press the MOVIES button on the remote control to enter the movie play
mode.
Press “ ” and “ ” to select the folder(s) containing your movie files. Enter
the folder press “ ” and “ ” to select the movie you want to view and press
OK. The movie is played full screen.
This browsing movies function supports High Definition Video
(720P,1080i,1080P) Playback.
For example:

1. MPEG1(DAT ,MPG)

2. MPEG2(VOB, MPG, TS)

3. MPEG4(AVI,DIVX,XVID)

4. H.264(AVI,MKV,MOV,MP4)

5. RM/RMVB,ISO,FLV
Note:When play the HD Video, you can according the movie resolution to
adjust HD Video output. See “Creating HD Resolution of SETUP menu” for
more details.

Subtitle

The product supports subtitle documents in formats of SSA, SMI, SRT, SUB
and so on. When the video being played supports the corresponding subtitle
format, the subtitle can be switched, displayed, or hidden through pressing
the SUBTITLE controlling key. Meanwhile, the size and position of the
subtitle can also be adjusted through direction keys. When the movie is
played with the subtitle showed on the screen, you can press “ ” and “ ” to
change the subtitle’s position in the screen, and press “ ” and “ ” to
change the size of the subtitle, with “ ” to enlarge and “ ” to reduce.

14

Browsing All

Press ALL button on the remote control to enter browsing all file.
Press “ ” and “ ”to select the folder(s) containing your all files(Beside
Music ,Photo and Movie). Enter the folder press “ ” and “ ”to select the
file you want to view and press OK to play.

External DVD

The player supports USB connected external DVD drive. The product can
play DVD through connecting to external drive by USB. Meanwhile, content in
DVD can also be copied to the hard disk, and then operations like backup
information and so on can be done.
Connect the USB CD drive to the peripheral port of the product through USB
data line, then choose “External DVD ” in the homepage of the product and
enter. If there is playable CD in the drive, and the “USB DVD plug in” option in
the product’s system is on, the drive will start playing the CD automatically. In
the playing process, you can press “STOP” in the remote control to stop
playing, then press “Return” to return to the product’s main interface, and
then press “STOP” in the main interface to control the “OPEN” or “CLOSE”
operations in the drive.

15

NETWORK

My Shortcut
When you are browsing network, you can choose the computer name from
menu or you can set “Specific File Server IP” and access it from “My
Shortcut” in the menu.
My shortcut is the easiest way to get files from a computer previously
configured.

1) Press [OPTION] into My_Shortcuts interface. Then, choose Add, Modify,
Delete, Return.

2) Input Net User ID, Password, Specific File Server IP address.

3) When you complete settings, you can add a new shortcut.

4) Select it and input the password, you can browse photos, listen to music,
and watch videos through the network account.
Note: When datas are connected on computer with a HDD, USB device or
Card reader Network through the network, you can also browse photos, listen
to music or watch videos from these devices.

UPNP

UPNP means Universal Plug and Play, based on TCP/IP protocol as well as
new internet protocols aim at communication between facilities. All the
facilities connected to the internet can communicate without being interrupted
by gateway, so that communication in the internet can become more fluently,
documents transmission can become more convenient and internet
applications which cannot be used before can be operated. These are all the
convenience brought by UPNP. The Product supports UPNP. Before using
UPNP function, please make sure that connected computer in LAN has
software that supports UPNP. If not, please install a software or shared
software that supports UPNP gateway protocol. For example, connect the

16

player to the family LAN, and then share multimedia documents in Media
Player 11 to access the living room through UPNP.

Steps to proceed:
1/ Connect the product to the Network. Refer to network connection
instructions to connect the player.

2/ Install software supporting UPNP gateway protocol. Before using UPNP
function, you need to install software that support UPNP gateway protocol.

3/ Share documents through software settings. Open the software’s interface,
choose “Media Base” in main interface, and then choose “add to the media
base” in the pull-down menu. After adding some documents or folders to the
media base, choose “media share”. You can also set the types and positions
for the shared documents, such as “music, picture or video” and so on.

4/ Use the Product UPNP function. Choose UPNP option in the main
interface of the Product to enter, and then the player can search out
computers installed with UPNP software in LAN. Enter your computer, and
you can see multimedia documents shared through Media Player 11 in your
computer. Using UPNP is more convenient and faster than using the player’s
network function. The product can access to computers without being
interrupted by gateway, avoiding operations like inputting user name,
password and so on.

File Edit Menu

Press “ ” and “ ”to select the file or folder, press OPTION to display the
Edit tab.

Return Select to return to the main screen.

To rename a file, do the followings:

1. Press “ ” and “ ” on the remote control to select the

17

Rename

Rename tab from the menu bar.

2. Press OK on the remote control. The name entry screen
appears.

3. Use the navigation arrows to select letters and numbers.
Select CAPS to toggle between uppercase and lowercase
letters. Press <- to delete a letter. Press -> to insert a
space. Press OK to input each letter or number.

4. Once you have entered the new name, select OK and
press OK to confirm all changes.

If you want to cancel the naming during the process, press
Return.

Delete

To delete a title, do the following:

1. Press “ ” and “ ” on the remote control to select the
Delete tab from the menu bar.

2. Press OK to confirm and delete the file.

3. A confirmation message appears. Press “ ” or“ ”and
select OK.

4. Press OK to delete the selected file. To cancel delete,
select Return.

File Copy

The File Copy allows individuals to copy files between USB and Memory
cards, NET. Select “COPY” on the remote control .It is very easy to copy files
between various devices.

Copying operation

Step 1: Select Source Device
Press “ ” and “ ”to select the device which need to copy at first after

18

entering the File copy interface,. Then press “ ”to select Destination Device,
press “ ” to return.

Step 2: Select Destination Device
Press “ ” and “ ” to select the device of the Destination after go to
Destination sector. Then press “ ”o next step, and press “ ” to return.

Step 3: Select copy files or folders
At Source sector, press “ ” and “ ”to select and press “SELECT” to select
file or folders which need to copy. “√”.appears at right side of selected file or
folder.Then press “ ”o next step, and press “ ” to return. Can only choose
a maximum of eight file or folder

Step 4: Select the folders of Destination
Press “ ” and “ ” to select a target folder at the destination sector. Then
press “ ”to next step, and press “ ” to return.

Step 5: Copy Status
At top menu, select OK to copy, select No to cancel.
After copy finishing, the system will display “File Copy is completed!”, or will
display “File Copy failed!”
Select “OK” to browse the copied files, or select “No” to return to Video.

Internet Services

If the product is connected well to the Internet (details referring to the wired
lan setup or wireless setup), you can enjoy internet services. Internet
Services includes various kinds of services on line, by which you can browse
Video, News, and Photos on the internet without using your PC.Select the
Internet Services in the guide menu and press ENTER key to confirm. As a
result ， you can access to the interface of Inernet

19

services management , which includes Gougou,
YouTube,Sina,Phoenix,People,BBC, CNN, NPR, Flickr, Picasa and so on.
Note: the firmware of product may be updated anytime, please refer to the
instruction of actual delivery.

Video

If you want to browse video,you just need to click the video website icon
( Such as YouTube, Youku,Gougou) on the main interface by pressing the
navigation key on the remote control and pressing ENTER key to confirm.
Select any one of the videos that you want to watch ,thus you can watch all
kinds of wonderful video files on line. If you want to browse videos, the
system will display a great many varieties of videos, thus you can choose
your favorite video to playback.
For example , after entering the YouTube interface, you can use the following
functions: Recnetly Added ,Recently Featured, Top Favorites and so on.
Press the / key to select your favorite video and press ENTER key to
confirm,Thus you are able to watch your favorite video to playback.

Download Management

If you want to download films from internet, please enter Gougou video,then
press the navigation button on the remote control to select download
management and press ENTER button to enter.Then the system enters the
interface of media library.It is the management interface of download
files,which are sorted in different ways,such as Show All,Sort by title, Sort by
date. Once you have searched out the media souce file , the screen will
display the file’s download information, including the state ,file
name ,size,progess and speed. For example,if you have searched out The
Founding of a Republic in Gougou video, the interface will display the file’s
download information .

·PUASE : if you want to stop the downloading , firstly please choose the file,
press navigation button to choose Show All and press ENTER
button ,then the screen will pop the menu including three

20

options :Delete,Pause ,Previous. Then you can select Puase and the files’
downloading state is changed into be paused .

·RESTART: if you want to restart downloading ,firstly please choose the
file,then press navigation button to choose Show All and press ENTER
button, then the screen will pop the menu including three options :
Delete,Restart ,Previous, then you can select Restart and the files’
downloading state is changed into be restarted.

·FULLSCREEN: if the file’s downloading progress is 100%, it indicates that
the file’s downloading is completed. If you want to playback the film in
fullscreen, firstly please choose the file,then press navigation button to
choose Show All and press ENTER button ,then the screen will pop the menu
including three options: Fullscreen, Delete ,Previous, then you can select
FullScreen and the file can be playbacked in fullscreen.

·Sort by Tiltes: the files are sorted by titles. If you download the movie
epsodes, the files are put in order by titles.

·Sort by Date: the files are sorted by downloading date.They are arranged
according to the download date.
NOTE:

1.After choosing the file, you can press button on the remote
control to enter the file’s interface in full screen.Then according to the relative
prompt to operation.

2. The content of Internet is provided by internet service providers.The
product just provides the click platform,and can not guarantee whether the
service provider could provide the service of transmitting data continuously.

News

If you want to browse news,you just need to click the news website icon
( Such as BBC News, CNN News, NPR News) on the main interface by
pressing the navigation key on the remote control and pressing ENTER key
to confirm. Then you can enter news management interface.For example ,if
you click the BBC News icon ,you will find the interface which includs News
Front Page, Business News , Asia-pacific,etc. Press the / key to select

21

your favorite news and press ENTER key to confirm,then you are able to
browse various kinds of news , referring to sports,finace,entertainment and
so on.

Photos

If you want to browse photos,you just need to click the photos website icon
(Flickr or Picasa) on the main interface by pressing the navigation key on the
remote control and pressing ENTER key to confirm. Then you can enter
photos management interface.
For example ,select the flickr photos website and press ENTER key to
confirm. Then you can enter photos management interface ,where you can
find the titles on the upper left corner :search photos ,previous page,and next
page.

If you want to search photos ,just click the title Search Photos, the screen will
display a keybord interface used to input the content you want to seach
（such as dog）,and press ENTER key to confirm, so you are able to browse
all the photos about dog ,when you just need press navigation key to select
you are interested.
Previous / Next page: the option is used to turn previous or next page.

Weather

Press the navigation button on the remote control to select the Weather and
press OK button to confirm. Then you can enter the interface of weather
forecast management ,where you can find out the weather forecast of many
areas in world, including Asia,Europe,and USA.Choose any one of the titles
and press OK button to enter ,you will find detailed information of different
countries’and place’s weather forcast.For example ,if you want to know about
the weather in Hongkong, just select Asia and press OK button to
confirm ,then select China , the screen will display all the city’s names. At this
time ,pess navigation button on the remote until you find Hongkong . Press
OK button to confirm ,the screen will display the weather of Hongkong.

22

Setup Menu

Select” Setup” option or directly press “Setup” button on the remote controller
to enter the setup menu. It is possible to configure Photo, Audio, Video,
Network and System.
Select any option by pressing “ ” and “ ”on the remote controller, and
press OK to confirm or press “Return” to exit. Press “Setup” button again on
remote control to exit from setup menu.

Changing System Settings

Menu Language

Setting screen display language, Simplified Chinese,

English, Traditional Chinese

, Spanish, French,

German, Italian, Dutch, Russian.

Text Encoding

Setting text encoding language, Unicode (UTF8),

Simplified Chinese (GBK), Traditional Chinese (BIG5),

Western, Turkish, Central European, Cyrillic, SE

Europan different languages and so on.

Please select

the corresponding text encoding, might be

garbled

characters.

Screen Saver

Off /On.,sellect to turn on or off screen saver.

DVD Auto-Play

Set DVD drive to play on or off automatically.

LCD Show Picture

Turn on or off the function of LCD showing picture

Login Control

ON/OFF. If l

ogin control is ON,you are aquired to input

the username and password when you login the

neighbor web, otherwise you can directly login without

inputting anyting.

BT/Samba Info

Showing player BT/Samba installation information.

System Update

View the current software version and update

the

software of the product.

Restore Default

To restore the factory’s default settings

Changing Video Settings

Movie Preview

Off/On,when it is on ,the movie can be previewed on

the

23

lower right corner of the screen.

Resume Play

When the film is stoppred

, the product will record the location

of the suspension, for the next play, it

can resume play to

continue from where it left off the last play.

Seamless
playback

ON/OFF If se

lecting seamless playback, the movie which

has many chapters of HD movie in the same folder can be

playback successively without buffer.

Aspect Ratio

Select to set aspect ratio.
Press / to select from Pan Scan 4:3, Letter Box

4:3, or

16:9. Press OK to confirm.

Pan Scan 4:3, Display a wide picture on the entire screen

and cuts off the redundant portions when a standard 4:3 TV

is connected.

Letter Box 4:3, Display a wide picture with two black borders

on top and bottom of 4:3 screen when a standard

4:3 TV is

connected.

16:9: Compress the image to convert the whole image when

a 16:9 TV is connected.
16:10:

Compress the image to convert the whole image when

a 16:10 TV is connected.

Zoom Out Tun on /off the function of zooming out.

Brightness

Select to set brightness levels.
Press / to adjust brightness. The new setting is

previewed onscreen. Press OK to confirm.

Contrast

Select to set contrast levels.
Press / to adjust contrast. The new setting is previewed

on screen. Press OK to confirm.

Contrast Select to set contrast levels.
Hue Select to set hue levels.

TV System

Select to adjust TV system. HDMI Auto，

NTSC , PAL ,

480P ,576P ,720P 50HZ ,720P 60HZ

,1080i 50HZ,1080i

24

60HZ, 1080P 50HZ,1080P 60HZ.
Press / to set the TV system, depending on y

our viewing

preferences. Press OK to confirm.

1080P 24Hz

On/Off ,the setting is used for the better visual effect when

video’s playing,which can keep the pace with the films.

Changing Audio Settings

Night Mode

There are “On” “off” and “Comfort” modes.
In comfort mode, it restrict the volume automatically so that
it would not affect the people’s rest or working.

Digital
output

HDMI LPCM
The digital audio signal which is decoded by the product
outputs through HDMI 2.0 channel.

HDMI LPCM MULTI CH

The digital audio signal which is decoded by the product
outputs through HDMI 5.1 channel.

HDMI RAW
The raw digital signal of the multimedia data directly output
through HDMI,at this time the remote control has no
function of adjusting the volume.

SPIDF LPCM
The digital audio signal which is decoded by the product
output through optical.

SPIDIF RAW
The raw digital signal of multimedia data directly output
through optical,at this time the remote control has no
function of adjusting the volume.

NOTE: If selecting HDML LPCM/RAW, there is no signal output through

25

optical .If selecting SPDIF LPCM/RAW, there is no signal output through
HDMI.

Changing Photos Settings

Press “ ” and “ ” on the remote control to select the Photos tab from the
menu.

Slide Show

Select to set slide show time.
Press “ ” and “ ” to select the interval your require.
Press OK to confirm.

Transition

Effect

Select to set the transition effect of photos.
Press “ ” and “ ”

to select the transform of photo you

require:

1) OFF

2) Cross Fade – fade in and fade out

3) Left to Right- from left to right

4) Top to Bottom- from top to bottom

5) Waterfal l- like a steep descent of water from a height

6) Snake – like snake motion

7) Dissolve – like water dissolve

8) Strip Left Down – like strip cov

er from top of left to bottom

of right

9) All Effect Shuffle – shuffle in and out
Press OK to confirm.

Ken Burns

To turn on/off the function of ken burns,if it’

s on ,the photo has

no playing effect and can not zoom in when playing photos.

Background

Music

Select to play the music file under the same folder.
Press “ ” and “ ”

to select the position of the background

music. Select “off” to close the function.
Press OK to confirm.

26

Changing Network Settings

Check the following items before use this function:
Connection between product and network
Network protocol is available
PC firewall must be shut down
Files are shared
Auto：Automatically set IP address

Wired Lan

Setup

Manual:select IP address, subnet mark address and default

gateway. It is available through navigation and numeric key

and press “enter” for confirming
Connceting the configure files: threre are 3 modes in all.

Infrastructure（AP）： Select the way of point to plane,via

a

wireless router and wireless card can search out

the signal

coverage of wireless signal sources, access to SSID choice for

a visit.

Wireless

Lan

Setup

Peer to Peer（Ad Hoc）：Select the way of point to plane, d

o not

need a wireless router with a wireless signal source within the

region to establish one to one relationship with each other’s
visit.

PPPoE

setup

Plug the LAN port using the cable,then input the username and
Password (provided by the ISP)

in the box.Then press ENTER

key to confirm.Then select Wired Interface to connect. When

the connection is success, the system can get a IP address.

You can playback streamingly the multimedia files from network and have file
copy function through network.

Wired Lan Setup

Access the player to LAN, and press “Setting” in the remote control to enter
the setting interface of the player. Select “Network” and enter “Wired Network
Setting”. You can choose automatic or manual mode to do the setting.

27

DHCP IP (AUTO): To get the IP address of the domain name server
automatically. Select DHIP and then choose “OK” according to the operation
clues. The player can search and get IP addresses automatically. If the
connection is successful, the gained IP addresses will be shown on the
screen. If no IP address is shown on the screen, the connection is
unsuccessful, thus you need to check the network connected to see if it has
been set according to the requirements. Then try to get IP addresses again.

FIX IP (MANUAL): To set the fixed IP address, subnet masks and default
gateway and so on manually. Please input information by navigating keys
and number keys and finally press “OK” to make confirmation and start
testing. Parameters of the network connection of the product will be shown if
the connection is successful.

1. Select “Network” in the home page of the product. If there are open

groups in the sharable wire network, other sharable working group
folders, such as WORKGROUP, will exist besides MY _SHORTCUTS
and MY_NEIGHBORS. Select and enter corresponding folder, then you
can play multimedia content shared in the network of the computer.

2. If there are no other sharable folders, select “MY_SHORTCUTS” and

enter. Press "OPTION" in the remote control, and choose “Add” in the
open window to create a new shortcut for computers that have set
network share. Input your user name, password and IP address of the
appointed document server. User name is GUEST or EVERYONE and
the IP address of the appointed document server is the IP address of the
computer that has set network share. There can be many sharable
computers in the wire network, input the IP address of the computer you
want to access.

3. If the connection is tested to be successful, save the setting. Choose the

newly created shortcut to enter. Input username GUEST or EVERYONE
and password, and then you can access to the appointed IP address and
get the shared content in that computer.

28

4. The product can play multimedia documents in the shared content. If

videos are played, there will be network connection speed shows on the
screen. Higher speed indicates that the network is more stable and the
quality of the video will be better. The product can also connect TV in the
living room with computer in the study through wire network connection,
thus wonderful movies shared in the computer can be played in the large
TV screen, creating a new experience of home theater.

Wireless Setup

If it is the first time for you to use wireless network function, please do the
following setting:
Access your player to the Local Area Network (LAN), and press “Setting” in
the remote control to enter the player’s setting interface.

1. Select “Network” and enter "Wireless network setting", choose the file

name of the connecting configuration. Then the clue of “Press ‘OK’ in the
remote control to connect, and press ‘OK’ to test the selected connection”
will show on the lower part of the screen. Press “OK” to connect. There
are two connection modes to choose: "AP" and “Ad Hoc”.

2. If select “AP” mode, the player can detect wireless signal sources within

the searching scope of the configured wireless network card and the
interface will show all the detected wireless SSID.

3. If select “Ad Hoc” mode, the player can access to sharable content in

specific objects. For example, the product and computers can connect
and exchange data through choosing “Ad Hoc” mode without using
wireless Routers.

4. Connect the product’s antenna with a USB wireless network card, put

through the antenna, and then you can set the wireless network
according to the following steps. If no external antenna is configured to
the product, a USB wireless network card that supports 802.11 b/g/n
protocol will be needed to insert into the USB HOST interface of the
product. Then “WIFI PLUG IN” will show on the screen. Thus you can

29

start to set the product’s wireless network. The following is detailed
description for the operations of two wireless network connection modes:

Infranstructure(AP) setting

1. Select “AP” to get SSID names. You can choose automatic update and

the product will search all the wireless SSID within the searching scope
of the wireless network card automatically.

2. After the searching finished, all the searched SSID will be shown on the

screen. Choose the server’s SSID you want to access, test the
connection and save the setting information. On the bottom right corner,
there will be a green symbol showing the signal strength.

3. Select “Network” in the home page of the product. If there are open

groups in the sharable wireless network, other sharable working group
folders, such as WORKGROUP, will exist besides MY _SHORTCUTS
and MY_NEIGHBORS. Select and enter corresponding folder, then you
can play multimedia content shared in the network of the computer.

4. If there are no other sharable folders, select “MY_SHORTCUTS” and

enter. Press "Edit" in the remote control, and choose “Add” in the open
window to create a new shortcut for computers that have set network
share. Input your user name, password and IP address of the appointed
document server. User name is GUEST or EVERYONE and the IP
address of the appointed document server is the IP address of the
computer that has set network share. There can be many sharable
computers in the wireless network, input the IP address of the computer
you want to access.

5. If the connection is tested to be successful, save the setting. Choose the

newly created shortcut to enter. Input username GUEST or EVERYONE
and password, and then you can access to the appointed IP address
and get the shared content in that computer.

6. The product can play multimedia documents in the shared content. If

videos are played, there will be network connection speed shows on the
screen. Higher speed indicates that the network is more stable and the

30

quality of the video will be better. The product can also connect TV in the
living room with computer in the study through AP wireless network
connection, thus wonderful movies shared in the computer can be
played in the large TV screen, creating a new experience of home
theater.

Peer to Peer (Ad Hoc) setting

Ad Hoc mode can build a peer-to-peer network structure without wireless AP.
Computers configured with wireless network card can connect with each
other wirelessly through this mode. The network building process for Ad Hoc
wireless LAN is very simple as it leaves out wireless AP. But the transmission
distance for wireless network card is generally around 40m in indoor
environment, when the distance exceeds this effective transmission distance,
communication cannot be realized. So this mode is suitable for simple and
provisional wireless connection requirements.

The operations introduced below will show you how to connect the product
with computer through Ad Hoc mode.

1. Firstly, set the product’s wireless network, select “Ad Hoc” and enter.

2. Set the product’s wireless SSID name in the wireless network. You can

edit the name whatever you like. Other computers configured with
wireless network card can see the SSID name of your product through
searching.

3. Select security modes for your wireless network: open system or WEP

(Wireless Equivalent Privacy). If you choose open system, other
computers configured with wireless network card can connect with your
product freely when searching out it. If you choose WEP, you need to set
the shared key (10-25 numbers), and then other computers can connect
with your product after inputting network key.

4. Set the IP address of your host, making sure that the address will not

31

conflict with IP addresses of other wireless facilities. When the above
three settings are finished, press “OK” to save your setting and start
testing. If the connection is tested to be successful, interface showing
network information will be displayed. Then you can check the set
parameters.

5. When the setting of Ad Hoc wireless network for the product is finished,

you need to start the wireless network function of the computers which
your product needs to connect. This description is for operations under
WINDOWS XP system, and operations under other WINDOWS
operating systems are similar to this.

6. Select “My Computer” in the desktop, choose “Management” by clicking

right key on the mouse to enter the computer management interface.
Double click “Service and Application” to enter the program. Select
“Service” and enter.

7. Double click “Wireless Zero Configuration” in the last third one of the

“Service” options to enter its window of attribute. Then select “Startup” in
the routine options of the window, and click “OK”, thus the wireless
network function of the computer is opened.

8. If your computer configures with internal wireless network card (such as

most of notebook PCs) and has started the wireless network function, it
can search out the product’s SSID and connect with the product. If your
computer doesn’t have internal wireless network card (such as most of
desktops), you can insert a USB wireless network card that supports

802.11 protocol into the computer’s USB interface and install drive for the
network card. You should inactivate wired network of the computer
before configuring the wireless network.

9. Then there will be an icon representing wireless network and showing in

the status bar in the bottom right corner of the computer’s desktop. Click
the icon, and a status window of the wireless network connection will
show. Click “Check the Wireless Network”, then wireless network SSID
within the searching scope will be shown on the interface.

10. Select the product’s SSID and the computer’s Ad Hoc connection icon in

32

the window of wireless network connection, and click “Connect”. There
will be a clue to indicate that the connection is successful if the wireless
network Ad Hoc connection is done. Then click “Support” in the window
of wireless network connection status to see IP address and so on
network information gain from the wireless network. Do remember the
computer’s wireless IP address because you need to use it when the
player needs to access to the computer.

11. Enter “Network” in the homepage of the product, select

“MY_SHORTCUTS” folder and enter. Press “Edit” in the remote control
and choose “Add” to create a new shortcut for accessing to other
computers, and then input user name, password and IP address of the
appointed document server. User name is GUEST or EVERYONE and
the IP address of the appointed document server is the wireless network
IP address of the computer that has built Ad Hoc connection with the
product. There can be many computers building Ad Hoc connection with
the player at the same time, input the IP address of the computer you
want to access.

12. Save the setting and choose the newly created shortcut to enter. Input

user name GUEST or EVERYONE and password, and then you can
access to the appointed IP address and get the shared content in that
computer.

13. The product can play multimedia documents in the shared content. If

videos are played, there will be network connection speed shows on the
screen. Higher speed indicates that the network is more stable and the
quality of the video will be better. The product can also connect TV in the
living room with computer in the study through Ad Hoc wireless network
connection, thus wonderful movies shared in the computer can be played
in the large TV screen, creating a new experience of home theater

PPPoE Setup

PPPoE (Point-to-Point Protocol over Ethernet) is a protocol used by many
ADSL Internet Service Providers. If your ISP uses PPPoE, but has given you

33

a router, you may need a PPPoE client on your Linux box. DHCP may work
fine. The product ,as a PPPoE client for Linux and Solaris systems to connect
to PPPoE service providers.
The product is ideal for users with a DSL "modem" whose Internet service
provider uses PPPoE. Before you use this function , check whether or not
you really need it.
If your product is connected to network via DSL and PPPoe, the DSL service
provider will provide a username and password for you to log in. After
passing security authentication by telecom operators, the user can get the IP
address and then the product is connected to internet.
The operations for PPPoe setup as following:
Step 1: Firstly use a telephone line to connect to the modem which supports
PPPoe , then connect the product to the modem via RJ45 port.
Step 2: Select the option “PPPoe setup” in the network setup in SETUP
menu.Input the net user ID and password which are provided by telecom
operators .Then press ENTER button to confirm.
Step 3: For several minutes,the user can get a IP address which is configured
by ethernet .It indicates the net connection is success.

Usage of BT/SAMBA

The product supports the function of BT/SAMBA by which you can download
films on the internet conveniently. Before using this function, it must connect
the product’s LAN port to the internet by using the network cable .Then enter
SETUP menu to select the NETWORK option to achieve a IP. The following
is about how to get IP and how to use BT/SAMBA..

IP address setting

You can obtain a product's IP address to accordance with Wired Lan Setup in
front of introduced.

34

1. 1). Obtain IP address automatically

The system will obtain the IP address automatically via DHCP protocol if
the local network has DHCP server available.

2). Use static IP address
Acquire a unique IP address, Subnet mask, and Default gateway
information from your network system. Then fill in.

2. 1).Obtain DNS server address automatically The system will get DNS
server addresses from DHCP server if available

2).Use static DNS server addresses Specify DNS server address.

Neighbor Web interface

When you get BT Player’s IP address, launch your web browser ,type the
correct IP address in the browser, you can into Neighbor web interface. The
Username is admin and the initialization password is 123.

At Home page, the “Neighbor web” will display BT Player’s status and
storage device.Here you can choose the storage device in USB device or
card.

BitTorrent Download

At Home page, Select “BitTorrent Download” into download interface.

35

36

Add new torrent

Select into add new torrent file page.
At “add new torrent” page, click browse key to choose torrent file path from

local PC. When you select a torrent file, press “Open” key to add.
Next , click “Yes” to confirm your select file and back BitTorrent download
page, otherwise click “No” do nothing and back BitTorrent download page.
When select “Yes”, the page will display “torrent added…You will
automatically redirect to webtorrenthome page” before back download page.

Click “start” to begin download

Click every torrent file name, at the bottom of page will display the torrent file
information.

And you can double click every file, when the left of little frame display ,it
means the files be choose.

Then you can operate to select “start” ,”stop” ,”delete” ,”Refresh” and sort
order “up” and “down”.
BitTorrent Setting
Press “Setting” into BitTorrent setting page.

37

Set BT storage, Max download rate, Max upload rate and seeding setting in
this setting page.

When setting completed, Click to save or Click to return or

Click to come back default setting.

Visit neighbor

At home page, select “Visit negibor” to browser the HDD files. If the player’s
Login Control is on, you need to input the username is admin and the
initialization password is 123.

Account Management
At Home page, Select “Account Management” into Account Management
page.
If click “Account Management” is not into this page, please confirm Login
control is set to ON. Please see the “Login control” for more detail.
The Username is Admin and the initialization password is 123. Please setting
password according your favorite .

38

login password can be modify at here. Please input password twice and click
“Enter” to confirm. When modify is succeed, press “Confirm” at the pop menu
and return. Please note the User name cannot be change.

Product Specification

USB host Support multiple USB storage

Network

connection

RJ45 10/100M connection;
WLAN (optional) (IEEE 802.11 b/g/n)

Video

output

Composite video /HDMI

Audio

output

Stereo/digital HDMI/Optical

Audio MP3,WMA,WAV,AAC,OGG,Dolby digital,DTS digital

Video

Video decode：
MPEG 1/2/4, Divx,Xvid, H.264,VC-1,RM/RMVB
Format:

39

WMV,MKV,MOV,AVI,MPG,MP4,TS/M2TS/TP/TRP,ISO,IFO,
VOB,DAT.RM/RMVB,FLV

Subtitle SSA，SMI，SRT，SUB, IDX+SUB

Picture JPG/BMP/PNG/GIF

Power

adapter

AC input：100V～240V， 50/60HZ
DC output：12V, 2A

Dimension 110.0×100.0×100.0mm

Weight About 495g

Supported video, audio and picture formats as follows

DECODE FORMARTS RESOLUTION

DAT 320×240

MPEG-1

MPG 720×576

VOB 720×576

MPG 1920×1080P

MPEG-2

TS/M2TS/TP/TRP

1920×1080P

DIVX, XVID

AVI 1920×1080P
AVI 1920×1080P

MP4 1920×1080P

MPEG-4

MKV 1920×1080P

VC-1 WMV 1920×1080P

AVI 1920×1080P

MP4 1920×1080P

MOV 1920×1080P

H.264

MKV 1920×1080P

VIDEO

RM/RMVB RM/RMVB 1920×1080P

MP3 Support

WMA Support

AUDIO

WAV Support

40

AAC Support

OGG Support

Dolby digital Support

DTS digital Support

JPG/JPEG

Support
BMP Support
PNG Support


GIF Support(support a static display only)

Note: Up to the improvement, the appearance and specification will be
changed accordingly without notice.

Maintenance notice

To protect the normal use of all accessories, please kindly make sure
understand and py attention to following points.

l Power input AC100~240V,output DC 12V/2A.
l Under normal working status, power adapter will keep warming, but

body temperature of 60 degree or under is normal.

l Please be sure of aeration under normal working status, do not put the

device in bed, sofa, or similar area where cooling effect is no good.

l Please do not teardown personally, but send it back to the pointed

service agent, or there will be danger of electronic shock.

l Please pull out the cable and shut the device immediately when cable

broken or liquid in, and send to pointed agent for repair.

l We advise to use the product in the environment of room temperature.

The range of environment temperature is 0~40℃.

41

FAQ

This chapter gives you information on how to solve some problems that may
occur with your player.

Q: I have connected the Player to my television. Why is no picture
showing on my television or no sound coming from my television?

A: This problem may have several causes. Please check the following items:

1) Please ensure that you have selected the correct AV source on your
television set.

2) Please check that you have connected the correct cable for the output of
the video and audio signals. Information on the correct connection of the
Player to your home entertainment system can be found in the " Connection
of TV audio and video output " chapter in the basic operation instructions.
3）When the player is connected to HDMI or optical ,please choose the
correct option in Setup menu.You can also refer to Audio Settings in Setup
Menu chapter.
Repeat this procedure until the picture is correctly displayed on your
television.

Q: My Player is connected correctly to my television. I can no longer
see my media files in the browser or they are only partially listed in the
"Browser".

A: A special media filter is active if you press one of four buttons( as

ALL ,MUSIC,PHOTO,MOVIES )on the remote control. Only media files that
correspond to the active media filter are displayed on your television.

If you select e.g. the media filter "Music ", no picture files are shown in the
browser. If you want to see all supported media files, please choose the
media filter "All ".
a) Unsupported format.
Your Player supports a great variety of media file formats, a detailed list can
be found at the end of these instructions. If you try to play a file that uses an

42

unsupported file format,a message will be displayed. If you want to check the
utilized audio and video format for amedia file, you can refer to
“specification”chapter.
b) The chosen media source is not connected to the PLAYER
If you select a media source that is not currently connected to the Player,
such as a USB stick, this source will be displayed as empty. As soon as a
device is connected, the content appears in the respective path.
If no folders or files are displayed for a resource connected via the network,
check the settings for your network and your network shares. Please check
the user name and password, if they are required for access, and also the
firewall settings of your computers.

Q:I want to copy files onto an external data storage device with my
Player, but I always get an error message.

A:To use the copy function of your Player, the device (or the partition), that
you want to copy the data onto, must be formatted with one of the following
file systems:FAT, FAT32, NTFS, ext3. Please use only targets formatted with
FAT, FAT32, NTFS or ext3 for copying onto.

Q:I want to perform a firmware update for my Player but my television
goes blank.

A:In some cases, the display via HDMI is not correct during a firmware
update.

Please make sure that your Player is also connected to your television via the
composite video connection during the firmware update, not only via HDMI,
and select the composite video input as the active input of your television.

Q:I want to access files with the Player that I have shared in my network.
My home network ist working correctly, but the Player does not list the
files.

A: If you do not have access to the shared files, please check the following
points:

43

1) Check if the network cable is connected properly at both sides, i.e. to the
Player
and to your network.

2) Make sure that the computer that you want to access is running and not in
a standby or idle mode.

3) Check the network and file sharing settings on your computer.

4) Check that you have entered the correct user name and password. Please
note that they are case sensitive.

5) Make sure that your firewall settings permit the Player to access your
computer.

6) If you want to access files that are stored on a USB data storage device
which is connected to a router and thus made available as network storage,
please note that you must set up a connection to the drive using "My_Sho
rtcuts ". To do so, you must enter the IP address of your router as well as the
user name and the password necessary to access the network storage.

Q:How is it possible that the playback of a file from a shared folder in
the network is aborted?

A: The energy saving settings of the computer or the NAS interrupt the
connection.

If the energy saving settings of your computer or your NAS are active, then
they can go into an idle state or a sleep mode even though they are being
accessed via the network. During a sleep mode no data is transferred via the
network. Please adjust the energy saving settings of the media source so that
it does not go into a sleep mode while you play files via the network.

Q:Why is it possible that there are interruptions when playing movies
from my local network?

A: Sometimes, there are several devices in a network that have to share the
maximum data transfer rate possible via a network connection (shared
medium). If there are several connections active in the network you use the
Player in (e.g. to the internet, a shared printer, etc.), it is possible that this

44

lowers the data transfer rate available for the streaming of the data to the
Player to a level that is insufficient for the playback of e.g. a DVD file or
an HD movie file. Should you experience such problems, please try to reduce
the amount of data transferred by other users of your network.

Q: While using the Player, it no longer responds to my commands.

A: This problem may have several causes. Please check the following items:

1) Please aim the remote control in the direction of the Player so that direct
visual contact between these two devices exists and ensure that the infrared
receiver of the remote control and the Player are not covered.

2) Check the battery in the remote control and, if necessary, replace it with a
new one.

Q: I have connected the Player to my TV via HDMI and I want to change
the video output signal, but the video output resolution I want to use is
not available.

A: This problem may have several causes. Please check the following items:

1).Your TV does not support all possible video output resolutions.
Go to the settings menu of your Player and select "HDMI Auto " under the
menu item "TV system ". Your Player will try to automatically select the best
possible video output resolution for your TV.

2).In some rare cases it is possible that not all options supported by the TV
are selectable. This problem can occurr when the TV is switchen on from its
standby mode, regardless of the current operating status of the PLAYER
In order to be able to select all video output resolutions supported by your TV,
disconnect your Player from the power supply and reconnect it after a few
seconds. Now all available video output resolutions are shown in the settings
menu.

Q:Why can't I hear any sound on my television when I connect it via
HDMI?

A: This problem may have several causes. Please check the following items:

a) An audio output format that is not supported by your television is

45

selected.

b) The volume is to low / Mute is active.
Please select the correct digital output mode in the Setup Menu. Go to the
audio settings menu and select the menu entry "Digital-Audio -Out " and
choose the option "HDMI LPCM/RAW" if your television set does not
support real surround sound. You can also refer to the Audio Settings.

Q:Why mustn't I disconnect the Player from the mains supply without
having switched if off beforehand?

A:The loading or saving of the current system settings takes approx. 10
seconds when the Player is turned on or off. If the player is disconnected
from the mains supply without having beem switched off beforehand, settings
and data may be lost. Please always switch off the Player by pressing the
power button on the device or on the remote control and wait until the power
button on the Player lights up red.

Q: Why is the power button still lit in blue even though I have switched
it off?

A: The loading or saving of the current system settings takes approx. 10
seconds. The illumination of the power button changes to red only after all
settings have been saved and the Player has entered the standby mode. If
you want to, you can then disconnect the Player from the mains supply.

Q:The language of the user interface has been changed. How do I
change the language?

A: In order to change the selected language, enter the "Settings " menu by
pressing the "SETUP" button on your remote control. Select the right menu
("System ") and press the OK button on your remote control. The available
languages are displayed. Please mark the desired language and confirm
your choice by pressing the OK button.

46

Q: I have adjusted the settings of the Player under "Settings" and would
like to restore the factory defaults.

A: As described in the " Changing System Settings" chapter, execute the
menu item "Restore defaults ". The Player will be reset to the factory defaults.
The saved files are not deleted when you do this.

Q： When I try to disconnect the USB device, I keep on getting The
device Generic volume cannot be stopped right now. Try stopping the
device again later message, what should I do?

A：Close any program that might be accessing data on the player, including
Windows® Explorer. If it does not work, close all programs and wait for
another 20 seconds, then try the green arrow icon again. If it still does not
work, you should shut down the player and disconnect the USB cable.

Q：During power on, why the TV will have a short flash, blue screen or
screensaver?

A：This is normal, when the system initialize, it will setup the corresponding
parameters so it can output the correct video signal to the TV, during the
initializing time, the TV will receive incorrect signals or the signals will not be
stable and will cause the TV screen to flash, some TV will treat it as no signal,
and will display a blue screen or screensaver.

Q: After the player is connected to the Internet ,Why can’t I download
movies or browse some video or news ?

A: This problem may have several causes. Please check the following items:

1.Some network function can not be used in home (eg, YouTube video,cnn
news ,bbc news and so on),the detaills please refer to the local network .

2. Please don’t do other operations during the process of downloading files.

3. Please restart the product it you can not search the wireless IP address.

4. When the round icon appears before the current file name on the
downloading page,please press OK button on the remote control and then
choose RESTART to reconnect afer you have selected the duty.

47

Others

The accessories of products may be different, for this series products are
various according to different series and models.
Please refer to packing list or contact your agent for information.
Pleas understand no advance notice for further product improvement, outlook
design and specification update.
The illustration may be a little different from the real product.

Statement: Manufactured under license from Dolby laboratories “Dolby” and

the double-D symbol are trademarks of Dolby laboratories
