Nonin Onyx II 9560 Instruction Manual

Download

Page 1

REP

Instructions for Use—English

• do not apply the pulse oximeter on the same arm as a blood pressure cuff, arterial catheter or infusion line(s) (IVs)

• excessive light, such as sunlight or direct home lighting

• excessive motion

• moisture in the device

• improperly applied device

• finger is outside recommended size range

• poor pulse quality

• venous pulsations

• anemia or low hemoglobin concentrations

• cardiogreen and other intravascular dyes

• carboxyhemoglobin

• methemoglobin

• dysfunctional hemoglobin

• artificial nails or fingernail polish

0123

Onyx® II Model 9560 Finger Pulse Oximeter

Indications for Use

The Nonin Onyx II Model 9560 Finger Pulse Oximeter is a small, lightweight, portable, wireless device indicated for use in measuring and displaying functional oxygen saturation of arterial hemoglobin (%SpO patients who are well or poorly perfused. It is intended for spot-checking of adult and pediatric patients on fingers (other than the thumb) between 0.3 – 1.0 inch (0.8 – 2.5 cm) thick. The device’s intended use environments include hospitals, clinics, long-term care facilities, skilled nursing facilities, emergency medical services and home healthcare services.

Caution: Federal law (USA) restricts this device to sale by or on the order of a licensed practitioner.

Contraindications

• Do not use the device in an MR environment, in an explosive atmosphere, or on infant or neonatal patients.

• This device is not defibrillation proof per IEC 60601-1.

Warnings

• Use the Model 9560 within its designated range (approximately 328 feet/100 meters, spherical radius, line of sight when connected to a class I device, from patient module to the display). Moving outside this range may cause missing, lost, and/ or inaccurate data.

• This device is intended only as an adjunct in patient assessment. It must be used in conjunction with other methods of assessing clinical signs and symptoms.

• The device must be able to measure the pulse properly to obtain an accurate SpO hindering the pulse measurement before relying on the SpO2 measurement.

• Operation of this device below the minimum amplitude of 0.3% modulation may cause inaccurate results.

• General operation of the device may be affected by the use of an electrosurgical unit (ESU).

• The use of accessories other than those specified in these instructions may result in increased electromagnetic emission and/or decreased immunity of this device.

• This device should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, the device should be observed carefully to verify normal operation.

• Keep the oximeter away from young children. Small items such as the battery door, battery, and lanyard are choking hazards.

• Certain activities may pose a risk of injury, including strangulation, if the lanyard should become wrapped around your neck.

Cautions

• This device has no audible alarms and is intended only for spot-checking.

• This device is designed to determine the percentage of arterial oxygen saturation of functional hemoglobin. Factors that may degrade pulse oximeter performance or affect the accuracy of the measurement include the following:

measurement. Verify that nothing is

) and pulse rate of

• The device may not work when circulation is reduced. Warm or rub the finger, or re-position the device.

• This device’s display will go blank after 30 seconds of no readings or poor readings.

• In some circumstances, the device will interpret motion as good pulse quality. Minimize patient motion as much as possible.

• Clean the device before applying it to a patient.

• Do not sterilize, autoclave, or immerse this device in liquid. Do not pour or spray any liquids into the device.

• Do not use caustic or abrasive cleaning agents, or any cleaning products containing ammonium chloride or isopropyl alcohol.

• A flexible circuit connects the two halves. Do not twist or pull the flexible circuit or overextend the device’s spring. Do not hang the lanyard from the device’s flexible circuit.

• A functional tester cannot be used to assess the accuracy of a pulse oximeter monitor.

• This equipment complies with IEC 60601-1-2 for electromagnetic compatibility for medical electrical equipment and/or systems. This standard is designed to provide reasonable protection against harmful interference in a typical medical installation. However, because of the proliferation of radio-frequency transmitting equipment and other sources of electrical noise in health care and other environments, it is possible that high levels of such interference due to close proximity or strength of a source might disrupt the performance of this device. Medical electrical equipment needs special precautions regarding EMC, and all equipment must be installed and put into service according to the EMC information specified in this manual.

• Portable and mobile RF communications equipment can affect medical electrical equipment.

• Batteries may leak or explode if used or disposed of improperly. Remove batteries if the device will be stored for more than 30 days. Do not use different types of batteries at the same time. Do not mix fully charged and partially charged batteries at the same time. These actions may cause the batteries to leak.

• Follow local, state, and national governing ordinances and recycling instructions regarding disposal or recycling of the device and device components, including batteries.

• In compliance with the European Directive on Waste Electrical and Electronic Equipment (WEEE) 2002/96/EC, do not dispose of this product as unsorted municipal waste. This device contains WEEE materials; please contact your distributor regarding take-back or recycling of the device. If you are unsure how to reach your distributor, please call Nonin for your distributor’s contact information.

Nonin Medical, Inc.

13700 1st Avenue North

Plymouth, Minnesota 55441-5443 USA

+1 (763) 553-9968 (outside US and Canada) +46 650 401500 (Europe) (800) 356-8874 (US and Canada)

Fax: +1 (763) 553-7807 +46 650 401514 (Europe)

E-mail: info@nonin.com infointl@nonin.se (Europe)

www.nonin.com

MPS, Medical Product Service GmbH Borngasse 20

Nonin and Onyx are registered trademarks of Nonin Medical, Inc. U.S. Patents 5,490,523; 5,792,052

D-35619 Braunfels, Germany

Page 2

Declaration of Conformity with FCC and Canadian Ministry of Health Rules for

0123

Electromagnetic Compatibility

• Nonin Medical, Inc., of 13700 1st Avenue North, Plymouth, Minnesota, 55441, declares under its sole responsibility that Model 9560, to which this declaration relates, comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Ministry of Health (Canada), Safety Code 6: standards include a substantial safety margin designed to ensure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.

Federal Communications Commission (FCC) Notice

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from the outlet where the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for assistance.

• RF Exposure: For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metallic components and provide a separation distance of 15 mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided.

• The Model 9560 is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the United States FCC. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies. This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003.

• The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Nonin Medical, Inc. may void the user’s authority to operate the equipment.

A Guide to Symbols

Symbol Definition of Symbol

Follow Instructions for Use.

Consult Instructions for Use

Caution!

Type BF Applied Part (patient isolation from electrical shock)

UL Mark for Canada and the United States with respect to electric shock, fire, and mechanical hazards only in accordance with IEC 60601-1, UL 60601-1 and CAN/CSA-C22.2 No. 601.1.

CE Marking indicating conformance to EC Directive No. 93/42/EEC concerning medical devices

Radio Equipment Class Identifier

Serial Number

Battery Orientation

Non-ionizing electromagnetic radiation. Equipment includes RF transmitters. Interference may occur in the vicinity of equipment marked with this symbol.

Indicates separate collection for electrical and electronic equipment (WEEE).

Page 3

Symbol Definition of Symbol

Remote Alarms; Not for Continuous Monitoring.

Protected against vertically falling water drops when enclosure is tilted up to 15 degrees and

IP32

ingress of solid foreign objects greater than or equal to 2.5 mm (0.1 in.) in diameter per IEC 60529.

Bluetooth

Indoor use (France only)

Continua Certified™ signifies that this product has been tested and proven to be interoperable with other products that carry the “Continua Certified” symbol.

RoHS Compliant (China)

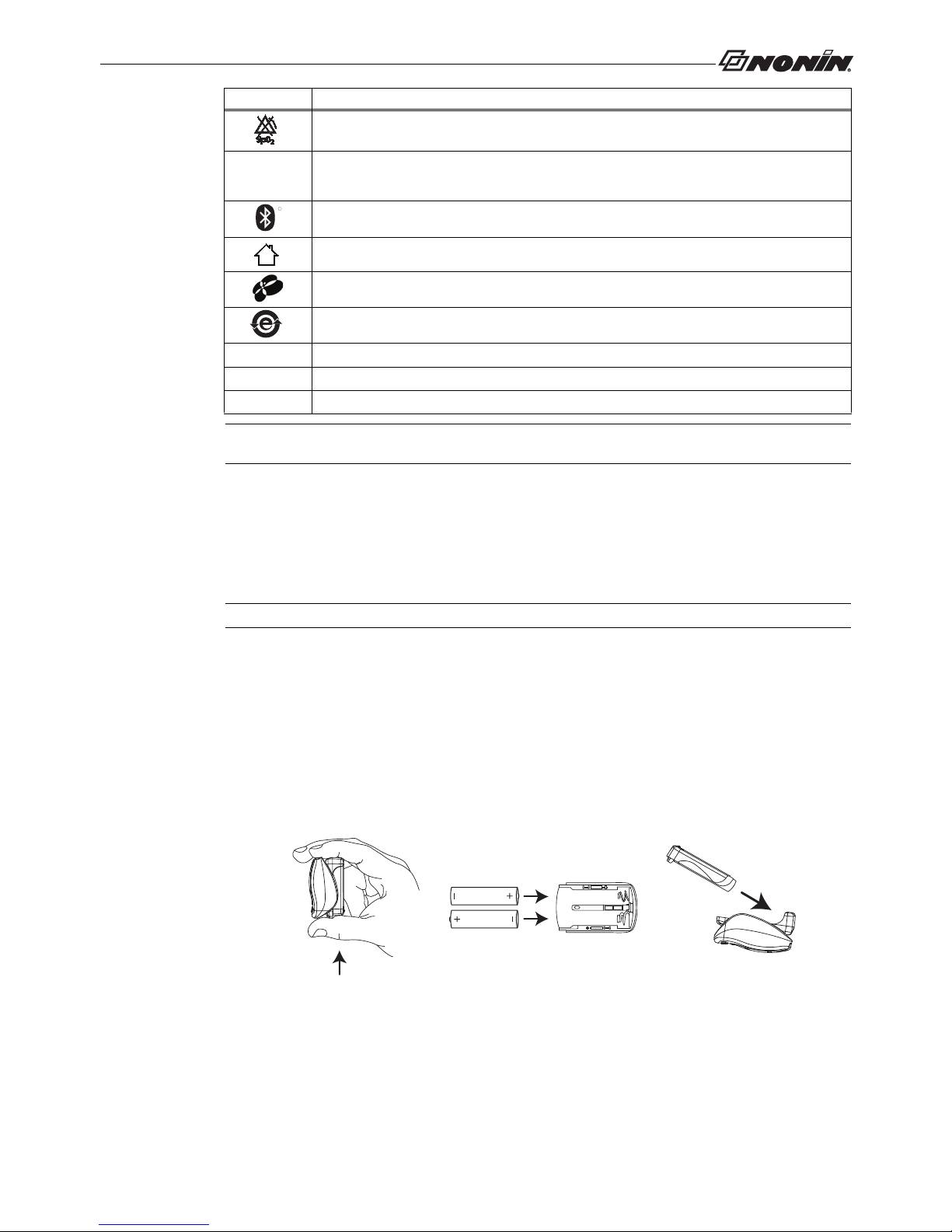

Installing Batteries

BDA

Ver

NOTE: Where applicable, an additional label bearing your country radio communications license information will

appear on the side of your device. This is not a serial number or device identifier.

Two 1.5 volt AAA-size batteries power the Model 9560 for approximately 600 spot checks. Nonin recommends using alkaline batteries (included with each new Model 9560). When batteries are low, the numeric displays flash once per second. Remove batteries if the device will be stored for more than 30 days. Replace low batteries as soon as possible, using the instructions below.

NOTE: Rechargeable batteries may be used; however, they require more frequent replacement.

1. Hold the Model 9560 as shown in figure A. To release the device’s battery tray, press upward and then pull outward slightly with the thumb.

2. Remove the old batteries from the battery tray. Dispose of the batteries properly.

3. Insert two new 1.5 volt AAA-size batteries. Follow the polarity markings (+ and -) as illustrated in figure B.

Proper positioning of the batteries is essential for operation.

4. Carefully guide the battery tray back onto the device. Press downward and then push inward slightly to resecure the battery tray. Do not force it into place; it fits only when properly positioned.

5. Visually inspect to ensure that the battery cover is properly placed.

6. Insert your finger in the device to verify operation. See the Activating the Onyx II 9560 and Verifying Operation section for more information.

Personal Identification Number

Bluetooth Device Address

Versi on

Page 4

Activating the Onyx II 9560 and Verifying Operation

Pulse Quality

Indicator

The Model 9560 contains numeric Light-Emitting Diodes (LEDs) that display oxygen saturation and pulse rate. A tricolor LED display (pulse quality indicator, shown at left) provides a visual indication of the pulse signal quality, while blinking at the corresponding pulse rate. This display changes colors to alert you to changes in pulse quality that may affect the readings:

• Green indicates a good pulse signal.

• Yellow indicates a marginal pulse signal.

• Red indicates an inadequate pulse signal.

Activate the Model 9560 by inserting the patient’s finger into the device. The device detects the inserted finger and automatically illuminates the displays. Correct positioning of the finger is critical for accurate measurements.

NOTE: While on the finger, do not press the device against any surface and do not squeeze or hold it together. The internal spring provides the correct pressure; additional pressure may cause inaccurate readings.

1. Insert the patient’s finger, nail side up, into the 9560 until the fingertip touches the built-in stop guide.

2. Make sure the finger is lying flat (not on its side) and is centered within the device. For best results, keep the device at the patient’s heart or chest level.

3. If the device does not turn on, remove the finger and wait a few seconds before reinserting it.

When a finger is inserted, the device performs a brief startup sequence. Verify that all LEDs illuminate during the startup sequence. If any LED is not lit, do not use the Model 9560; contact Nonin Technical Service for repair or replacement. After the startup sequence, the device begins sensing the pulse (indicated by the blinking pulse quality indicator). Allow the device to stabilize and observe about 4 seconds of continuous green-colored pulse quality before relying on the displayed values. It is common for the displayed values to fluctuate slightly over a period of several seconds. If the pulse quality indicator blinks yellow or red, try another finger.

A minus sign (-) appears in the left-most digit of the %SpO removed. The last measured SpO off. The device will automatically shut off (to conserve battery life) approximately 10 seconds after the finger is removed, or after a 2-minute period of inadequate pulse signals.

When the Model 9560 is placed on the finger and powered on, and not in a connection with an electronic medical record (EMR) system, it will be available for a wireless connection (Bluetooth) for a minimum of 90 seconds. It will remain in this mode until:

• a successful wireless connection occurs with your EMR system,

• two minutes have passed without a successful wireless connection with your EMR system, or

• the Model 9560 is powered off.

and pulse rate values display for 10 seconds while the device automatically turns

display when the Model 9560 senses the finger has been

Using the Lanyard and Carrying Case

WARNING: Certain activities may pose a risk of injury, including strangulation, if lanyard should become wrapped around your neck.

CAUTION: A flexible circuit connects the two halves. Do not twist or pull the flexible circuit or

overextend the device’s spring. Do not hang the lanyard from the device’s flexible circuit.

A lanyard and carrying case are provided for convenience. The device will function with or without the lanyard.

If lanyard use is desired, thread the lanyard as shown below.

Page 5

Onyx II 9560 Care, Maintenance, and Cleaning

CAUTIONS:

The advanced digital circuitry within the Model 9560 requires no calibration or periodic maintenance other than battery replacement. Field repair of the Model 9560 circuitry is not possible. Do not attempt to open the Model 9560 case or repair the electronics. Opening the case will damage the Model 9560 and void the warranty. Do not open the Model 9560 more than 90°, and do not twist or pull on the device when cleaning.

Cleaning the Onyx II Model 9560

• Clean the device before applying it to a patient.

• Do not sterilize, autoclave, or immerse this device in liquid. Do not pour or spray any liquids into the device.

• Do not use caustic or abrasive cleaning agents, or any cleaning products containing ammonium chloride or isopropyl alcohol.

1. Wipe the surfaces with a soft cloth dampened with a 10% bleach solution (household bleach [5.25% sodium hypochlorite]). Do not use undiluted bleach or any cleaning solution other than those recommended here, as permanent damage could result.

2. Dry with a soft cloth, or allow to air dry. Ensure that all surfaces are completely dry.

Testing Summary

SpO2 accuracy and low perfusion testing was conducted by Nonin Medical, Inc. as described below.

SpO2 Accuracy Testing

SpO2 accuracy testing is conducted during induced hypoxia studies on healthy, non-smoking, light-to-dark-skinned subjects in an independent research laboratory. The measured arterial hemoglobin saturation value (SpO sensors is compared to arterial hemoglobin oxygen (SaO co-oximeter. The accuracy of the sensors is in comparison to the co-oximeter samples measured over the SpO range of 70-100%. Accuracy data is calculated using the root-mean-squared (A ISO 80601-2-61 and ISO 9919, Standard Specification for Pulse Oximeters for Accuracy.

) of the

) value, determined from blood samples with a laboratory

value) for all subjects, per

rms

Low Perfusion Testing

This test uses an SpO2 Simulator to provide a simulated pulse rate, with adjustable amplitude settings of various

levels. The module must maintain accuracy in accordance with ISO 80601-2-61 and ISO 9919 for pulse rate

SpO

and SpO

at the lowest obtainable pulse amplitude (0.3% modulation).

Page 6

Specifications

Oxygen Saturation Display Range: 0% to 100% SpO

Pulse Rate Display Range: 18 to 321 beats per minute (BPM)

Declared Accuracy:

The table below shows A

values measured using the Onyx II 9560 in a clinical study in non-motion conditions.

rms

Accuracy Summary by Decade

Decade

Oxygen Saturation

)

rms

Low Perfusion Oxygen

Saturation (A

rms

)

70 – 80% ±2 ±2

80 – 90% ±2 ±2

90 – 100% ±2 ±2

70 – 100% ±2 ±2

This graph shows plots of the error (SpO2 – SaO2) by SaO2 using the 9560 with a linear regression fit and upper 95% and lower 95% limits of agreement. Each sample data point is identified by subject from a clinical study in non-motion conditions.

Pulse Rate Declared Accuracy Range (A

rms

*):

20 to 250 BPM ±3 digits

Low Perfusion Pulse Rate Declared Accuracy Range

*):

rms

40 to 240 BPM ±3 digits

Measurement Wavelengths and Output Power**:

Red: Infrared:

660 nanometers @ 0.8 mW maximum average 910 nanometers @ 1.2 mW maximum average

Temperature:

Operating: 23 °F to 104 °F / -5 °C to 40 °C

Storage/Transportation: -40 °F to 158 °F / -40 °C to 70 °C***

Humidity:

Operating: 10% to 95% non-condensing

Storage/Transportation: 10% to 95% non-condensing

Altitude:

Operating: Up to 40,000 feet / 12,192 meters

Hyperbaric Pressure: Up to 4 atmospheres

Battery Life:

Operating: Two 1.5 volt AAA-size batteries power the Model 9560 for approximately

600 spot checks.

Storage: 12 months, minimum

Classifications per IEC 60601-1 / CAN/CSA-C22.2 No. 601.1/ UL 60601-1:

Degree of Protection: Type BF-Applied Part

Enclosure Degree of Ingress Protection: IP3

Mode of Operation: Continuous

This product complies with ISO 10993-1, Biological evaluation of medical devices – Part 1: Evaluation and testing.

This device is not made with natural rubber latex.

*± 1 A

represents approximately 68% of measurements.

rms

**This information is especially useful for clinicians performing photodynamic therapy. *** When the Model 9560 is transferred from a non-operating temperature/humidity condition, allow one hour of stabilization to operating temperature/

humidity specifications prior to use.

Page 7

Antenna:

Type: L-shaped PWB whip-type antenna

Transmitter:

Bluetooth Compliance: Version 2.0

Operating Frequency: 2.4 to 2.4835 GHz

Output Power: <20 dBm

Operating Range: 328 feet/100-meter radius indoors (line of sight when connected to a

Network Topology: Star

Operation: Bluetooth Slave

Antenna Type: Internal

Modulation Type: Frequency Shift Keying

Frequency Hopping Spread Spectrum:

Band Width: 1 MHz

class I device)

Warranty

NONIN MEDICAL, INCORPORATED, (Nonin) warrants to the purchaser, for a period of 4 years from the date of purchase, each Model 9560 exclusive of the batteries, spring, carrying case, lanyard, and lanyard lock.

Nonin shall repair or replace any Model 9560 found to be defective in accordance with this warranty, free of charge, for which Nonin has been notified by the purchaser by serial number that there is a defect, provided notification occurs within the applicable warranty period. This warranty shall be the sole and exclusive remedy by the purchaser hereunder for any Model 9560 delivered to the purchaser which is found to be defective in any manner whether such remedies be in contract, tort or by law.

This warranty excludes cost of delivery to and from Nonin. All repaired units shall be received by the purchaser at Nonin’s place of business. Nonin reserves the right to charge a fee for a warranty repair request on any Model 9560 found to be within specifications.

Model 9560 is a precision electronic instrument and must be repaired by trained Nonin personnel only. Any sign or evidence of opening the Model 9560, field service by non-Nonin personnel, tampering, or any kind of misuse of the Model 9560, shall void the warranty. All nonwarranty work shall be done at Nonin’s standard rates and charges in effect at the time of delivery to Nonin.

Nonin Medical, Inc.

13700 1st Avenue North

Plymouth, Minnesota 55441-5443 USA

+1 (763) 553-9968

(800) 356-8874 (USA and Canada)

Fax: +1 (763) 553-7807

E-mail: technicalservice@nonin.com

Nonin Medical AB

Fibervägen 2

82450 Hudiksvall, Sweden

+46 650 401500 (Europe)

Fax: +46 650 401514

E-mail: serviceintl@nonin.se

www.nonin.com

Page 8

Manufacturer’s Declaration

Refer to the following tables for specific information regarding this device’s compliance to IEC 60601-1-2.

Table 1: Electromagnetic Emissions

Emissions Test Compliance Electromagnetic Environment—Guidance

This device is intended for use in the electromagnetic environment specified below. The customer and/or user of this device

RF Emissions

CISPR 11

RF Emissions

CISPR 11

Harmonic Emissions

IEC 61000-3-2

Voltage Fluctuations/Flicker Emissions

IEC 61000-3-3

should ensure that it is used in such an environment.

Group 2

Class B

N/A

This device must emit electromagnetic energy in order to perform its intended function. Nearby electronic equipment may be affected.

This device is suitable for use in all establishments, including domestic and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.

Table 2: Electromagnetic Immunity

Immunity Test IEC 60601 Test Level

This device is intended for use in the electromagnetic environment specified below. The customer and/or user of this device should ensure that it is

Electrostatic Discharge (ESD)

IEC 61000-4-2

Electrical Fast Transient/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Voltage dips, short interruptions, and voltage variations on power supply input lines

IEC 61000-4-11

Power Frequency (50/60 Hz) Magnetic Field

IEC 61000-4-8

NOTE: U

is the AC mains voltage before application of the test level.

±6 kV contact

±8 kV air

±2 kV for power supply lines

±1 kV for input/output lines

±1 kV differential mode

±2 kV common mode

±5% U

(>95% dip in UT) for 0.5 cycle

±40% U

(60% dip in UT) for 5 cycles

±70% U

(30% dip in UT) for 25 cycles

<5% U

(>95% dip in UT) for 5 sec.

3 A/m 3 A/m

used in such an environment.

Compliance

Level

±6 kV contact

±8 kV air

N/A

Electromagnetic Environment—Guidance

Floors should be wood, concrete, or ceramic tile. If floors are covered with synthetic material, relative humidity should be at least 30%.

Mains power quality should be that of a typical commercial or hospital environment.

Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

Page 9

d1.17P=

d2.33P=

d1.17P=

d2.33P=

Table 3: Guidance and Manufacturer’s Declaration—Electromagnetic Immunity

Immunity Test

This device is intended for use in the electromagnetic environment specified below. The customer and/or user of this device should ensure that it is

Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

Conducted RF IEC 61000-4-6

Radiated RF IEC 61000-4-3

Radiated RF per ISO 9919 clause 36 and ISO 80601-2-61 clause

202.6.2.3

a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio,

AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the device.

b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [3] V/m.

NOTES:

IEC 60601 Test

Level

3 Vrms 150 kHz to 80 MHz

3 V/m 80 MHz to 2.5 GHz

20 V/m 80 MHz to 2.5 GHz

Compliance

Level

used in such an environment.

N/A

[3] V/m

[20] V/m

80 MHz to 800 MHz

800 MHz to 2.5 GHz

where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).

Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey

Interference may occur in the vicinity of equipment marked with the following symbol:

Electromagnetic Environment—Guidance

Recommended Separation Distance

, should be less than the compliance level in each frequency range.

• At 80 MHz and 800 MHz, the higher frequency range applies.

• These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.

The following table details the recommended separation distances between portable and mobile RF communications equipment and this device.

Table 4: Recommended Separation Distances

This device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. Users

of this device can help prevent electromagnetic interference by maintaining a minimum distance between portable and

mobile RF communication equipment (transmitters) and the device as recommended below, according to maximum output

Rated Maximum Output

Power of Transmitter

0.01 0.12 0.12 0.23

0.1 0.37 0.37 0.74

1 1.2 1.2 2.3

10 3.7 3.7 7.4

100 12 12 23

power of the communications equipment.

Separation Distance According to Frequency of Transmitter

150 kHz to 80 MHz

80 MHz to 800 MHz

800 MHz to 2.5 GHz

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTES:

• At 80 MHz and 800 MHz, the higher frequency range applies.

• These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.
