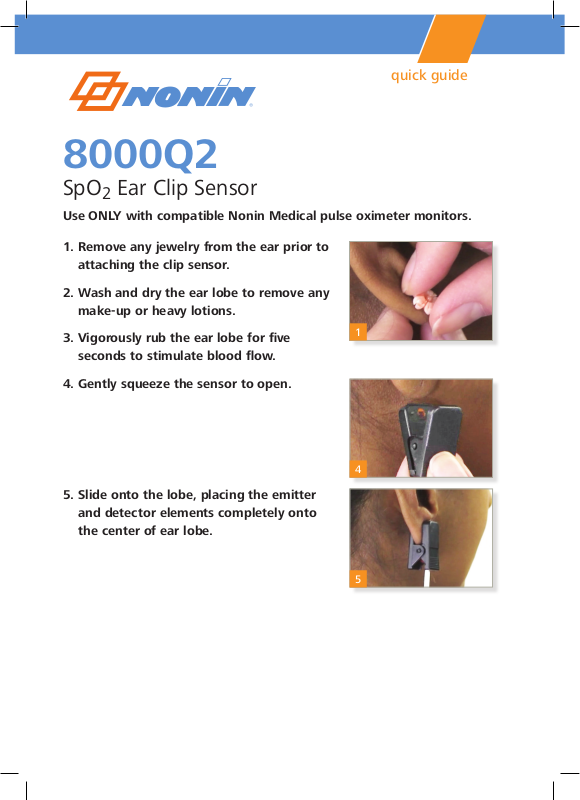

quick guide
8000Q2
SpO2 Ear Clip Sensor
Use ONLY with compatible Nonin Medical pulse oximeter monitors.
1. Remove any jewelry from the ear prior to
attaching the clip sensor.
2. Wash and dry the ear lobe to remove any
make-up or heavy lotions.
3. Vigorously rub the ear lobe for five
seconds to stimulate blood flow.
4. Gently squeeze the sensor to open.
5. Slide onto the lobe, placing the emitter
and detector elements completely onto
the center of ear lobe.
1
4
5
Page 2
8000Q2 SpO2 Ear Clip Sensor
ADDITIONAL GUIDANCE
A. Check sensor position and skin at site every 6 to 8 hours.
B. If signal quality is low on the oximeter:
1. Check connection at oximeter.
2. Check that ear is warm and has good blood flow.
3. Use the other ear.
C. Clean sensor between patients or as needed.
1. Use soft cloth with 10% bleach/90% water solution ( household bleach <
10% sodium hypochlorite ).
2. Do not use ammonium chloride-based cleaning fluids.
3. Do not overextend the hinge.
4. Wipe away from connector plug. Do not submerge or immerse sensor or
connector plug.
5. Allow to completely dry before next use.
THIS GUIDE IS FOR REFERENCE ONLY. Refer to the Instructions for Use for complete
information, warnings, cautions and specifications for the product you are using.
Visit nonin.com for more information and video tutorials.
