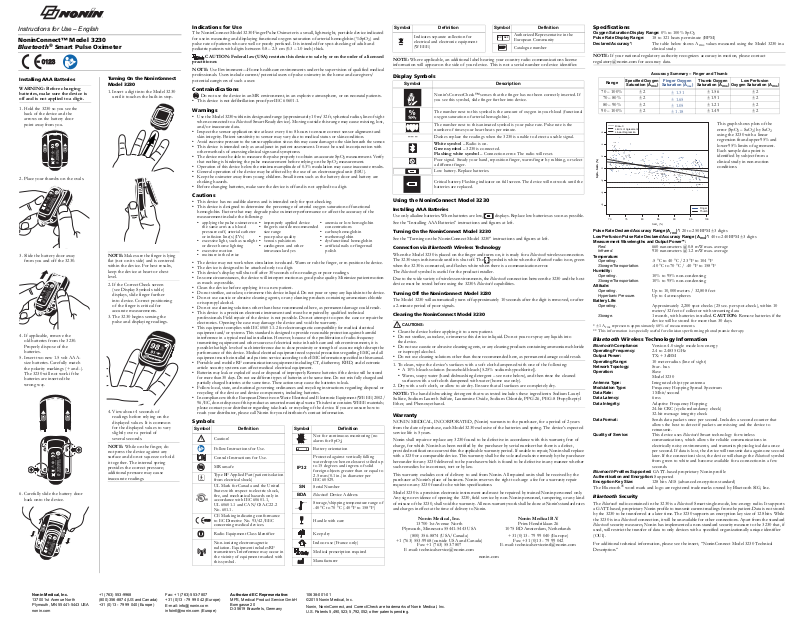

Page 1
01230123
Installing AAA Batteries
WARNING: Before changing
batteries, make sure the device is
off and is not applied to a digit.
1.
Hold the 3230 so you see the
back of the device and the
arrows on the battery door
point away from you.
.
2. Place your thumbs on the ovals.
3. Slide the battery door away
from you and off the 3230.
4. If applicable, remove the
old batteries from the 3230.
Properly dispose of the
batteries.
5. Insert two new 1.5 volt AAAsize batteries. Carefully match
the polarity markings (+ and -).
The 3230 will not work if the
batteries are inserted the
wrong way.
6. Carefully slide the battery door
back onto the device.
IP32
IP32
IP32
IP32
I
P
32
Turning On the NoninConnect
Model 3230
1. Insert a digit into the Model 3230
until it touches the built-in stop.
NOTE: Make sure the finger is lying
flat (not on its side) and is centered
within the device. For best results,
keep the device at heart or chest
level.
2. If the CorrectCheck screen
(see Display Symbols table)
displays, slide finger further
into device. Correct positioning
of the finger is critical for
accurate measurements.
3. The 3230 begins sensing the
pulse and displaying readings.
4. View about 4 seconds of
readings before relying on the
displayed values. It is common
for the displayed values to vary
slightly over a period of
several seconds.
NOTE: While on the finger, do
not press the device against any
surface and do not squeeze or hold
it together. The internal spring
provides the correct pressure;
additional pressure may cause
inaccurate readings.
Instructions for Use – English
NoninConnect™ Model 3230
Bluetooth® Smart Pulse Oximeter
CAUTIONS:
!
!
MRMR
01230123
MR
• applying the pulse oximeter on
the same arm as a blood
pressure cuff, arterial catheter
or infusion line(s) (IVs)
• excessive light, such as sunlight
or direct home lighting
• excessive motion
• moisture in the device
• improperly applied device
• finger is outside recommended
size range
• poor pulse quality
• venous pulsations
• cardiogreen and other
intravascular dyes
• anemia or low hemoglobin
concentrations
• carboxyhemoglobin
• methemoglobin
• dysfunctional hemoglobin
• artificial nails or fingernail
polish
REFREF
Nonin Medical, Inc.
13700 1st Avenue North
Plymouth, Minnesota 55441-5443 USA
(800) 356-8874 (USA/Canada)
+1 (763) 553-9968 (outside USA and Canada)
Fax: +1 (763) 553-7807
E-mail: technicalservice@nonin.com
Nonin Medical B.V.
Prins Hendriklaan 26
1075 BD Amsterdam, Netherlands
+31 (0)13 - 79 99 040 (Europe)
Fax: +31 (0)13 - 79 99 042
E-mail: technicalserviceintl@nonin.com
nonin.com
Accuracy Summary – Finger and Thumb
Range
Specified Oxygen
Saturation (A
rms
)
Thumb Oxygen
Saturation (A
rms
)
Low Perfusion
Oxygen Saturation (A
rms
)
70 – 100% ± 2 ± 1.56 ± 2
70 – 80% ± 2 ± 1.91 ± 2
80 – 90% ± 2 ± 1.21 ± 2
90 – 100% ± 2 ± 1.49 ± 2
Finger Oxygen
Saturation (A
rms
)
± 1.31
± 1.65
± 1.05
± 1.18
This graph shows plots of the
error (SpO
2
– SaO2) by SaO2
using the 3230 with a linear
regression fit and upper 95% and
lower 95% limits of agreement.
Each sample data point is
identified by subject from a
clinical study in non-motion
conditions.
Indications for Use
The NoninConnect Model 3230 Finger Pulse Oximeter is a small, lightweight, portable device indicated
for use in measuring and displaying functional oxygen saturation of arterial hemoglobin (%SpO
) and
2
pulse rate of patients who are well or poorly perfused. It is intended for spot-checking of adult and
pediatric patients with digits between 0.8 – 2.5 cm (0.3 – 1.0 inch) thick.
CAUTION: Federal law (USA) restricts this device to sale by or on the order of a licensed
practitioner.
NOTE: Use Environment—Home healthcare environments under the supervision of qualified medical
professionals. Users include current/potential users of pulse oximetry in the home and caregivers/
potential caregivers of such a user.
Contraindications
MR
Do not use the device in an MR environment, in an explosive atmosphere, or on neonatal patients.
• This device is not defibrillation proof per IEC 60601-1.
Symbol Definition Symbol Definition
Indicates separate collection for
electrical and electronic equipment
(WEEE)
EC
Authorized Representative in the
REP
European Community
Catalogue number
NOTE: Where applicable, an additional label bearing your country radio communications license
information will appear on the side of your device. This is not a serial number or device identifier.
Display Symbols
Symbol Description
Nonin’s CorrectCheck™ senses that the finger has not been correctly inserted. If
you see this symbol, slide finger further into device.
Specifications
Oxygen Saturation Display Range: 0% to 100% SpO
Pulse Rate Display Range: 18 to 321 beats per minute (BPM)
Declared Accuracy*: The table below shows A
clinical study.
NOTE: If your national regulatory authority recognizes accuracy in motion, please contact
regulatory@nonin.com for accuracy data.
2
values measured using the Model 3230 in a
rms
Warnings
• Use the Model 3230 within its designated range (approximately 10 m/32 ft, spherical radius, line of sight
when connected to a Bluetooth Smart Ready device). Moving outside this range may cause missing, lost,
and/or inaccurate data.
• Inspect the sensor application site at least every 6 to 8 hours to ensure correct sensor alignment and
skin integrity. Patient sensitivity to sensor may vary due to medical status or skin condition.
• Avoid excessive pressure to the sensor application site as this may cause damage to the skin beneath the sensor.
• This device is intended only as an adjunct in patient assessment. It must be used in conjunction with
other methods of assessing clinical signs and symptoms.
• The device must be able to measure the pulse properly to obtain an accurate SpO
that nothing is hindering the pulse measurement before relying on the SpO
measurement. Verify
2
measurement.
2
• Operation of this device below the minimum amplitude of 0.3% modulation may cause inaccurate results.
• General operation of the device may be affected by the use of an electrosurgical unit (ESU).
• Keep the oximeter away from young children. Small items such as the battery door and battery are
choking hazards.
• Before changing batteries, make sure the device is off and is not applied to a digit.
Cautions
• This device has no audible alarms and is intended only for spot-checking.
•
T
his device is designed to determine the percentage of arterial oxygen saturation of functional
hemoglobin. Factors that may degrade pulse oximeter performance or affect the accuracy of the
measurement include the followi
•
The device may not work when circulation is reduced. Warm or rub the finger, or re-position the device.
ng:
• The device is designed to be attached only to a digit.
• This device’s display will shut off after 30 seconds of no readings or poor readings.
• In some circumstances, the device will interpret motion as good pulse quality. Minimize patient motion
as much as possible.
• Clean the device before applying it to a new patient.
Do not sterilize, autoclave, or immerse this device in liquid. Do not pour or spray any liquids into the device.
•
•
Do not use caustic or abrasive cleaning agents, or any cleaning products containing ammonium chloride
or isopropyl alcohol.
•
Do not use cleaning solutions other than those recommended here, as permanent damage could result.
• This device is a precision electronic instrument and must be repaired by qualified technical
professionals. Field repair of the device is not possible. Do not attempt to open the case or repair the
electronics. Opening the case may damage the device and void the warranty.
•
This equipment complies with IEC 60601-1-2 for electromagnetic compatibility for medical electrical
equipment and/or systems. This standard is designed to provide reasonable protection against harmful
interference in a typical medical installation. However, because of the proliferation of radio-frequency
transmitting equipment and other sources of electrical noise in health care and other environments, it is
possible that high levels of such interference due to close proximity or strength of a source might disrupt the
performance of this device. Medical electrical equipment needs special precautions regarding EMC, and all
equipment must be installed and put into service according to the EMC information specified in this manual.
• Portable and mobile RF communications equipment including CT, diathermy, RFID, and electronic
article security systems can affect medical electrical equipment.
Batteries may leak or explode if used or disposed of improperly. Remove batteries if the device will be stored
•
for more than 30 days. Do not use different types of batteries at the same time. Do not mix fully charged and
partially charged batteries at the same time. These actions may cause the batteries to leak.
• Follow local, state, and national governing ordinances and recycling instructions regarding disposal or
recycling of the device and device components, including batteries.
In compliance with the European Directive on Waste Electrical and Electronic Equipment (WEEE) 2002/
•
96/EC, do not dispose of this product as unsorted municipal waste. This device contains WEEE materials;
please contact your distributor regarding take-back or recycling of the device. If you are unsure how to
reach your distributor, please call Nonin for your distributor’s contact information.
Symbols
Symbol Definition Symbol Definition
Caution!
Follow Instructions for Use. Battery orientation
Consult Instructions for Use.
MR unsafe
IP32
Type BF Applied Part (patient isolation
from electrical shock)
UL Mark for Canada and the United
States with respect to electric shock,
fire, and mechanical hazards only in
SN
BDA
accordance with IEC 60601-1,
UL 60601-1 and CAN/CSA-C22.2
No. 601.1.
-40°C
CE Marking indicating conformance
to EC Directive No. 93/42/EEC
concerning medical devices.
Radio Equipment Class Identifier Keep dry
Non-ionizing electromagnetic
radiation. Equipment includes RF
transmitters. Interference may occur in
the vicinity of equipment marked with
this symbol.
Not for continuous monitoring (no
alarm for SpO2)
Protected against vertically falling
water drops when enclosure is tilted up
to 15 degrees and ingress of solid
foreign objects greater than or equal to
2.5 mm (0.1 in.) in diameter per
IEC 60529.
Serial Number
Bluetooth Device Address
+70°C
Storage/shipping temperature range of
-40 °C to 70 °C (-40 °F to 158 °F)
Handle with care
Indoor use (France only)
Medical prescription required
Manufacturer
The number next to this symbol is the amount of oxygen in your blood (functional
oxygen saturation of arterial hemoglobin).
The number next to this animated symbol is your pulse rate. Pulse rate is the
number of times your heart beats per minute.
– – –
Dashes replace the readings when the 3230 is unable to detect a usable signal.
White symbol – Radio is on.
Green symbol – 3230 is connected.
Flashing white symbol – Connection error. The radio will reset.
Poor signal. Steady your hand, reposition finger, warm finger by rubbing, or select
a different finger.
Low battery. Replace batteries.
Critical battery. Flashing indicator on full screen. The device will not work until the
batteries are replaced.
Using the NoninConnect Model 3230
Installing AAA Batteries
Use only alkaline batteries. When batteries are low, displays. Replace low batteries as soon as possible.
See the “Installing AAA Batteries” instructions and figures at left.
Turning On the NoninConnect Model 3230
See the “Turning on the NoninConnect Model 3230” instructions and figures at left.
Connection via Bluetooth Wireless Technology
When the Model 3230 is placed on the finger and turns on, it is ready for a Bluetooth wireless connection.
The 3230 stays in this mode until it is shut off. The symbol is white when the Bluetooth radio is on, green
when the 3230 is connected, and flashes white when there is a communication error.
The Bluetooth symbol is useful for the product installer.
Due to the wide variety of wireless environments, the Bluetooth connection between the 3230 and the host
device must be tested before using the 3230’s Bluetooth capabilities.
Turning Off the NoninConnect Model 3230
The Model 3230 will automatically turn off approximately 10 seconds after the digit is removed, or after
a 2-minute period of poor signals.
Cleaning the NoninConnect Model 3230
• Clean the device before applying it to a new patient.
• Do not sterilize, autoclave, or immerse this device in liquid. Do not pour or spray any liquids into
the device.
• Do not use caustic or abrasive cleaning agents, or any cleaning products containing ammonium chloride
or isopropyl alcohol.
• Do not use cleaning solutions other than those recommended here, as permanent damage could result.
1. To clean, wipe the device’s surfaces with a soft cloth dampened with one of the following:
• A 10% bleach solution (household bleach [5.25% sodium hypochlorite]).
• Warm, soapy water (hand dishwashing detergent – see note below), and then rinse the cleaned
surfaces with a soft cloth dampened with water (home use only).
2. Dry with a soft cloth, or allow to air dry. Ensure that all surfaces are completely dry.
NOTE: The hand dishwashing detergent that was tested includes these ingredients: Sodium Lauryl
Sulfate, Sodium Laureth Sulfate, Lauramine Oxide, Sodium Chloride, PPG-26, PEG-8 Propylheptyl
Ether, and Phenoxyethanol.
Warranty
NONIN MEDICAL, INCORPORATED, (Nonin) warrants to the purchaser, for a period of 2 years
from the date of purchase, each Model 3230 exclusive of the batteries and spring. The device’s expected
service life is 5 years.
Nonin shall repair or replace any 3230 found to be defective in accordance with this warranty, free of
charge, for which Nonin has been notified by the purchaser by serial number that there is a defect,
provided notification occurs within the applicable warranty period. If unable to repair, Nonin shall replace
with a 3230 or a comparable device. This warranty shall be the sole and exclusive remedy by the purchaser
hereunder for any 3230 delivered to the purchaser which is found to be defective in any manner whether
such remedies be in contract, tort or by law.
This warranty excludes cost of delivery to and from Nonin. All repaired units shall be received by the
purchaser at Nonin’s place of business. Nonin reserves the right to charge a fee for a warranty repair
request on any 3230 found to be within specifications.
Model 3230 is a precision electronic instrument and must be repaired by trained Nonin personnel only.
Any sign or evidence of opening the 3230, field service by non-Nonin personnel, tampering, or any kind
of misuse of the 3230, shall void the warranty. All non-warran
and charges in effect at the time of delivery to Nonin.
ty work shall be done at Nonin’s standard rates
Bias=0
Limits of Agreement
Linear Regression
9
13
9
13
13
8
8
8
13
13
8
8
13
8
8
8
8
8
8
8
12
8
12
8
11
4
4
12
12
8
12
12
8
8
4
12
12
12
(%)
(%)
2
2
− SaO
− SaO
2
2
SpO
SpO
4
11
8
44
11
8
11
4
8
6
12
6
12
12
11
4
12
4
11
4
11
11
6
1111
6
6
12
−6−4−20246
70 75 80 85 90 95 100
Pulse Rate Declared Accuracy Range (A
Low Perfusion Pulse Rate Declared Accuracy Range (A
3
3
9
14
9
3
3
9
14
3
8
13
13
12
13
12
2
8
12
12
4
2
12
4
12
7
7
3
14
9
2
14
8
14
4
13
13
3
8
14
13
12
2
2
4
2
8
13
13
14
2
11
11
4
8
14
4
8
14
8
4
12
2
8
11
14
2
8
8
7
2
2
2
2
4
11
8
2
11
11
11
7
11
14
14
6
13
4
13
14
11
11
12
6
3
14
6
14
12
13
13
4
7
14
66
12
3
11
4
5
12
2
14
5
12
11
7
13
13
14
14
3
12
7
3
5
11
12
12
2
2
5
5
12
11
77
7
2
12
2
4
14
2
4
4
5
14
8
8
8
14
13
13
12
12
8
13
13
13
13
8
8
SaO2 (%)
10
14
10
14
8
14
10
4
3
9
11
11
9
7
4
7
7
10
8
10
12
12
3
9
33
11
8
6
6
7
3
12
9
7
12
9
8
3
7
13
12
4
12
3
3
11
13
14
10
9
14
12
11
4
3
6
3
13
13
2
12
14
555
555
13
2
4
3
8
13
11
5
4
8
3
8
8
3
2
6
5
4
4
2
1010
14
10
6
10
4
4
10
14
14
7
14
7
7
7
12
8
14
7
4
4
3
4
3
3
11
7
7
7
7
12
5
5
7
11
10
6
3
3
11
11
4
4
11
10
3
10
14
11
11
10
14
10
3
13
11
5
5
13
14
3
2
14
14
13
5
2
5
13
5
5
8
4
2
2
)*: 20 to 250 BPM ±3 digits
rms
6
6
12
9
12
9
14
1414
4
12
6
3
9
444
6
9
7
7
8
12
7
7
8
8
9
3
7
7
9
9
9
6
9
9
9
9
9
3
333
12
7
7
8
9
12
12
12
14
2
9
6
2
3
3
3
11
2
9
3
11
2
6
9
6
11
11
3
11
3
3
9
3
3
2
6
2
3
4
5
5
11
14
6
14
8
11
13
13
5
5
2
2
5
5
5
5
11
2
2
5
5
5
14
88
13
14
5
13
5
5
8
13
13
13
5
5
13
13
22
5
13
4
2
2
4
5
2
4
2
Finger
Thumb
)*: 40 to 240 BPM ±3 digits
rms
Measurement Wavelengths and Output Power**:
Red. 660 nanometers @ 0.8 mW max. average
Infrared. 910 nanometers @ 1.2 mW max. average
Temperature:
Operating. -5 °C to 40 °C / 23 °F to 104 °F
Storage/Transportation. -40 °C to 70 °C / -40 °F to 158 °F
Humidity:
Operating. 10% to 95% non-condensing
Storage/Transportation. 10% to 95% non-condensing
Altitude:
Operating. Up to 10,000 meters / 32,808 feet
Hyperbaric Pressure. Up to 4 atmospheres
Battery Life:
Operating. Approximately 2,200 spot checks (25 sec. per spot-check), within 10
meters/32 feet of collector with streaming data
Storage. 1 month, with batteries installed. CAUTION: Remove batteries if the
device will be stored for more than 30 days.
* ±1 A
** This information is especially useful for clinicians performing photodynamic therapy.
represents approximately 68% of measurements.
rms
Bluetooth Wireless Technology Information
Bluetooth Compliance: Version 4.0 single mode low energy
Operating Frequency: 2.4 to 2.4835 GHz
Output Power: TX: +3 dBM
Operating Range: 10 meter radius (line of sight)
Network Topology: Star - bus
Operation: Slave
Model 3230
Antenna Type: Integrated chip type antenna
Modulation Type: Frequency Hopping Spread Spectrum
Data Rate: 1 Mbit/second
Data Latency: 6 ms
Data Integrity: Adaptive Frequency Hopping
24-bit CRC (cyclic redundancy check)
32-bit message integrity check
Data Format: Sends data packets once per second. Includes a second counter that
allows the host to detect if packets are missing and the device to
retransmit.
Quality of Service: This device uses Bluetooth Smart technology for wireless
communications, which allows for reliable communications in
electrically noisy environments, and transmits physiological data once
per second. If data is lost, the device will transmit data again one second
later. If the connection is lost, the device will change the Bluetooth symbol
from green to white and become available for a connection in a few
seconds.
Bluetooth Profiles Supported: GATT-based proprietary Nonin profile
Authentication and Encryption: Supported
Encryption Key Size: 128 bits AES (advanced encryption standard)
The Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc.
Bluetooth Security
The Bluetooth radio contained in the 3230 is a Bluetooth Smart single-mode, low-energy radio. It supports
a GATT-based, proprietary Nonin profile to transmit current readings from the patient. Data is not stored
by the 3230 to be transferred at a later time. The 3230 supports an encryption key size of 128 bits. While
the 3230 is in a Bluetooth connection, it will be unavailable for other connections. Apart from the standard
Bluetooth security measures, Nonin has implemented a non-standard security measure to the 3230 that, if
used, will restrict the transfer of data to only devices with a specified organizationally unique identifier
(OUI).
For additional technical information, please see the insert, “NoninConnect Model 3230 Technical
Description.”
Nonin Medical, Inc.
13700 1st Avenue North
Plymouth, MN 55441-5443 USA
nonin.com
+1 (763) 553-9968
(800) 356-8874 (US and Canada)
+31 (0)13 - 79 99 040 (Europe)
Fax: +1 (763) 553-7807
+31 (0)13 - 79 99 042 (Europe)
E-mail: info@nonin.com
infointl@nonin.com (Europe)
Authorized EC Representative:
MPS, Medical Product Service GmbH
Borngasse 20
D-35619 Braunfels, Germany
10638-001-01
©2015 Nonin Medical, Inc.
Nonin, NoninConnect, and CorrectCheck are trademarks of Nonin Medical, Inc.
U.S. Patents 5,490,523; 5,792,052; other patents pending.
Loading...
