Nomadix AG-2000W, AG-2000WA User Manual

Nomadix AG-2000w

Copyright © 2003 Nomadix, Inc. All Rights Reserved.

This product also includes software developed by: The University of California, Berkeley and its contributors; Carnegie Mellon
University, Copyright © 1998 by Carnegie Mellon University All Rights Reserved; Go Ahead Software, Inc., Copyright © 1999 Go
Ahead Software, Inc. All Rights Reserved; Livingston Enterprises, Inc., Copyright © 1992 Livingston Enterprises, Inc. All Rights
Reserved; The Regents of the University of Michigan and Merit Network, Inc., Copyright 1992 – 1995 All Rights Reserved; and
includes source code covered by the Mozilla Public License, Version 1.0 and OpenSSL.

™

Part Number: 200-1026-001-B (August, 2003)

Trademarks

The symbol, , AG-2000w™, AG-2000wa™ and
Nomadix Service Engine™ are trademarks of Nomadix, Inc. All other trademarks and

brand names are marks of their respective holders.

Product Information

Telephone: [phone]
Fax: [phone]
For technical support information, see the Appendix in this User’s Guide.

Write your product serial number in this box:

S/N

31355 Agoura Road, Westlake Village, CA 91361, USA (head office)

Written and Illustrated by Bill Wareing

This User’s Guide is protected by U.S. copyright laws. You may not transmit, copy,
modify, or translate this manual, or reduce it or any part of it to any machine readable
form, without the express permission of the copyright holder.

DISCLAIMER

Nomadix, Inc. makes no warranty, either express or implied, including but not limited to
any implied warranties of merchantability and fitness for a particular purpose, regarding
the product described herein. In no event shall Nomadix, Inc. be liable to anyone for
special, collateral, incidental, or consequential damages in connection with or arising from
the use of Nomadix, Inc. products.

FCC RADIATION EXPOSURE STATEMENT

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance
of about eight inches (20cm) between the radiator and your body.

This transmitter must not be co-located or operated in conjunction with any other antenna
or transmitter.

NOTIFICATIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. Also note that the communication connections for this device are not for use in
Telephone-Network Voltage (TNV) circuits.

This Class B digital apparatus meets all requirements of the Canadian Interference­Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le
matériel brouilleur du Canada.

WARNING

Risk of electric shock; do not open;

no user-serviceable parts inside.

Risque de choc electrique; ne pas
ouvrir; ne pas tenter de démonter

l’appareil.

CAUTION

Read the instruction manual prior to

operation.

Lire le mode d’emploi avant

utilisation.

NOMADIX AG-2000W™ / AG-2000WA™

Table of Contents

Introduction ..........................................................................................................7

About this User’s Guide ............................................................................................. 7

Organization................................................................................................................ 7

Why Choose Wireless?............................................................................................... 8

Welcome to the Nomadix AG-2000w and AG-2000wa............................................. 9

Product Definitions.............................................................................................. 9

Ensuring Compatibility........................................................................................ 9

Offering Speed and Efficiency ........................................................................... 10

Optimizing Performance.................................................................................... 10

Providing Effective Security .............................................................................. 11

Enabling Flexible Deployment Options............................................................. 11

WAN Connectivity:.................................................................................... 11

User Connectivity:...................................................................................... 11

Product Configuration and Licensing ............................................................... 11

Key Features and Benefits ........................................................................................ 12

Transparent Connectivity .................................................................................. 12

Local Content and Services ............................................................................... 13

Access Control and Authentication ................................................................... 13

Security .............................................................................................................. 13

Billing Enablement ............................................................................................ 13

5-Step Service Branding .................................................................................... 14

NSE Core Functionality............................................................................................ 15

Access Control................................................................................................... 16

Bandwidth Management .................................................................................... 16

Bridge Mode ...................................................................................................... 17

Command Line Interface ................................................................................... 17

Dynamic Address Translation™ ....................................................................... 17

Dynamic Transparent Proxy.............................................................................. 17

End User Licensee Count .................................................................................. 18

External Web Server Mode................................................................................ 18

Home Page Redirect.......................................................................................... 18

iNAT™............................................................................................................... 19

Information and Control Console...................................................................... 20

Internal Web Server........................................................................................... 20

International Language Support ....................................................................... 21

IP Upsell ............................................................................................................ 21

Logout Pop-Up Window .................................................................................... 21

MAC Filtering.................................................................................................... 22

Multi-Level Administration Support .................................................................. 22

Table of Contents i

NOMADIX AG-2000W™ / AG-2000WA™

NTP Support ...................................................................................................... 22

Portal Page Redirect ......................................................................................... 22

Port Mapping..................................................................................................... 23

RADIUS-driven Auto Configuration.................................................................. 23

RADIUS Client................................................................................................... 23

RADIUS Proxy (not available with the AG-2000w) .......................................... 24

Remember Me and RADIUS Re-Authentication................................................ 24

Secure Management........................................................................................... 24

Secure Socket Layer (SSL)................................................................................. 25

Secure XML API ................................................................................................ 26

Session Rate Limiting (SRL) .............................................................................. 26

Session Termination Redirect............................................................................ 26

Smart Client Support ......................................................................................... 26

SNMP Nomadix Private MIB............................................................................. 27

Tri-Mode Authentication ................................................................................... 27

URL Filtering .................................................................................................... 27

Walled Garden................................................................................................... 28

Web Management Interface............................................................................... 28

Optional NSE Modules............................................................................................. 29

Hospitality Module (not available with the AG-2000w).................................... 29

PMS Integration.......................................................................................... 29

Billing Records Mirroring .......................................................................... 29

Credit Card Module........................................................................................... 30

Wholesale Roaming Module.............................................................................. 30

High Availability Module .................................................................................. 30

Network Architecture (Sample)................................................................................ 31

Product Specifications .............................................................................................. 32

Online Help (WebHelp)............................................................................................ 36

Notes, Cautions, and Warnings................................................................................. 36

Chapter 1: Installing the AG-2000w................................................................ 37

Unpacking the AG-2000w ........................................................................................ 38

Installation Workflow ............................................................................................... 39

Connecting the System ............................................................................................. 40

Installation Considerations ....................................................................................... 41

Logging In to the Command Line Interface ............................................................. 42

The Management Interfaces (CLI and Web) ............................................................ 43

Making Menu Selections and Inputting Data with the CLI ............................... 43

Menu Organization (Web Management Interface)............................................ 44

Inputting Data – Maximum Character Lengths................................................. 45

Online Documentation and Help....................................................................... 46

Quick Reference Guide............................................................................................. 46

Establishing the Start Up Configuration................................................................... 47

Assigning Login User Names and Passwords ................................................... 48

ii Table of Contents

NOMADIX AG-2000W™ / AG-2000WA™

Setting the SNMP Parameters (optional) .......................................................... 49

Enabling the Logging Options (recommended)................................................. 50

Assigning the Location Information and IP Addresses ..................................... 51

Establishing the Basic Configuration for Subscribers .............................................. 53

Setting the DHCP Options................................................................................. 53

Setting the DNS Options .................................................................................... 55

Archiving Your Configuration Settings.................................................................... 56

Installing the Nomadix Private MIB......................................................................... 57

Chapter 2: System Administration .................................................................. 59

Enabling Wireless Connectivity ............................................................................... 59

Choosing a Remote Connection ............................................................................... 60

Using the Web Management Interface (WMI)................................................... 60

Using an SNMP Manager.................................................................................. 61

Using a Telnet Client......................................................................................... 62

Logging In................................................................................................................. 62

About Your Product License .................................................................................... 62

Configuration Menu.................................................................................................. 63

Defining the AAA Services {AAA} ..................................................................... 63

Enabling AAA Services with the Internal Web Server .............................. 66

Enabling AAA Services with an External Web Server .............................. 69

Establishing Secure Administration {Access Control}...................................... 71

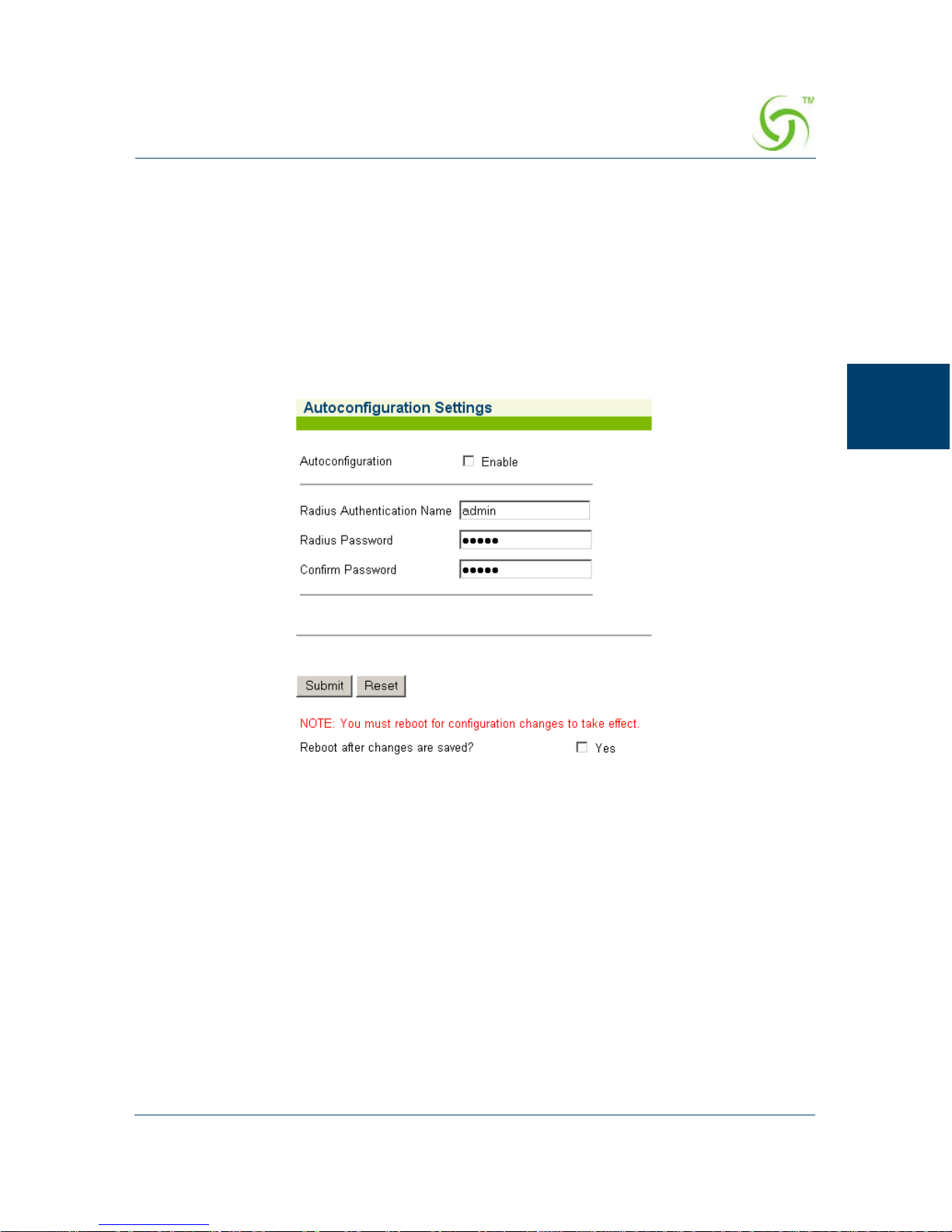

Defining Automatic Configuration Settings {Auto Configuration} ................... 73

Enabling Auto Configuration ..................................................................... 74

Setting Up Bandwidth Management {Bandwidth Management}....................... 76

Establishing Billing Records “Mirroring” {Bill Record Mirroring}................ 77

Managing the DHCP Service Options {DHCP}................................................ 79

Managing the DNS Options {DNS} ................................................................... 83

Setting the Home Page Redirection Options {Home Page Redirect}................ 85

Enabling Intelligent Address Translation (iNAT) ............................................. 86

Establishing Your Location {Location} ............................................................. 88

Managing the System and Billing Log Options {Logging}................................ 90

Assigning Passthrough Addresses (Passthrough Addresses)............................ 91

Defining the RADIUS Client Settings {RADIUS Client} ................................... 92

Miscellaneous Options ............................................................................... 94

Defining the RADIUS Routing Settings {RADIUS Routing} ............................. 95

Adding a RADIUS Service Profile............................................................. 96

Adding a Realm Routing Policy................................................................. 98

Managing SMTP Redirection {SMTP} ............................................................ 101

Managing the SNMP Communities {SNMP}................................................... 102

Displaying Your Configuration Settings {Summary} ...................................... 104

Setting the System Date and Time {Time} ....................................................... 105

Setting Up URL Filtering {URL Filtering}...................................................... 106

Enabling Secure Management {VPN Tunnel} ................................................. 107

Table of Contents iii

NOMADIX AG-2000W™ / AG-2000WA™

Network Info Menu ................................................................................................ 110

Displaying ARP Table Entries {ARP} ............................................................. 110

Displaying DAT Sessions {DAT}..................................................................... 110

Displaying the Host Table {Hosts}.................................................................. 111

Displaying ICMP Statistics {ICMP}................................................................ 111

Displaying the Network Interfaces {Interfaces} .............................................. 112

Displaying the IP Statistics {IP}...................................................................... 113

Displaying the Routing Tables {Routing}........................................................ 114

Displaying the Active IP Connections {Sockets}............................................. 115

Displaying the Static Port Mapping Table {Static Port-Mapping}................. 115

Displaying TCP Statistics {TCP} .................................................................... 116

Displaying UDP Statistics {UDP}................................................................... 117

Subscriber Administration Menu............................................................................ 118

Adding Subscriber Profiles {Add} ................................................................... 118

Displaying Current Subscriber Connections {Current}.................................. 120

Deleting Subscriber Profiles by MAC Address {Delete by MAC}................... 121

Deleting Subscriber Profiles by User Name {Delete by User} ....................... 122

Displaying the Currently Allocated DHCP Leases {DHCP Leases} .............. 123

Deleting All Expired Subscriber Profiles {Expired} ....................................... 123

Finding Subscriber Profiles by MAC Address {Find by MAC}....................... 124

Finding Subscriber Profiles by User Name {Find by User} ........................... 125

Listing Subscriber Profiles by MAC Address {List by MAC}.......................... 126

Listing Subscriber Profiles by User Name {List by User}............................... 127

Displaying Current Profiles and Connections {Statistics}.............................. 128

Subscriber Interface Menu...................................................................................... 129

Defining the Billing Options {Billing Options} ............................................... 129

Setting Up the Information and Control Console {ICC Setup} ....................... 133

Assigning Buttons .................................................................................... 135

Assigning Banners.................................................................................... 136

Pixel Sizes ................................................................................................ 138

Time Formats............................................................................................ 138

Defining Languages {Language Support} ....................................................... 139

Defining the Subscriber’s Login UI {Login UI}.............................................. 141

Subscriber Login Screen (Sample)........................................................... 144

Defining Subscriber UI Labels {Subscriber Labels}....................................... 146

Defining Subscriber Error Messages {Subscriber Errors} ............................. 147

Defining Subscriber Messages {Subscriber Messages} .................................. 149

System Menu .......................................................................................................... 152

Adding an ARP Table Entry {ARP Add} ......................................................... 152

Deleting an ARP Table Entry {ARP Delete} ................................................... 153

Enabling the Bridge Mode Option {Bridge Mode} ......................................... 154

Exporting Configuration Settings to the Archive File {Export} ...................... 155

Importing the Factory Defaults {Factory} ...................................................... 156

Viewing the History Log {History}.................................................................. 157

iv Table of Contents

NOMADIX AG-2000W™ / AG-2000WA™

Importing Configuration Settings from the Archive File {Import}.................. 158

Establishing Login Access Levels {Login} ...................................................... 159

Defining the MAC Filtering Options {Mac Filtering}..................................... 161

Testing a Remote Host {Ping} ......................................................................... 162

Rebooting the System {Reboot} ....................................................................... 163

Adding a Route {Route Add} ........................................................................... 164

Deleting a Route {Route Delete} ..................................................................... 165

Establishing Session Rate Limiting {Session Limit}........................................ 166

Adding Static Ports {Static Port-mapping Add}.............................................. 167

Deleting Static Ports {Static Port-mapping Delete}........................................ 169

Updating the AG-2000w Firmware {Upgrade}............................................... 170

Defining the Wireless Configuration {Wireless Configuration} ..................... 171

Chapter 3: The Subscriber Interface............................................................. 175

Overview................................................................................................................. 175

Authorization and Billing ....................................................................................... 176

The AAA Structure ........................................................................................... 177

Process Flow (AAA) ........................................................................................ 178

Internal and External Web Servers.................................................................. 179

Language Support............................................................................................ 179

Home Page Redirection................................................................................... 179

Subscriber Management ......................................................................................... 179

Subscriber Management Models ..................................................................... 180

Configuring the Subscriber Management Models........................................... 181

Information and Control Console (ICC)................................................................. 182

ICC Pop-Up Window....................................................................................... 182

Chapter 4: Quick Reference Guide................................................................ 183

Web Management Interface (WMI) Menus............................................................ 183

Main Page........................................................................................................ 183

Configuration Menu Items............................................................................... 184

Network Info Menu Items................................................................................. 185

Subscriber Administration Menu Items ........................................................... 186

Subscriber Interface Menu Items..................................................................... 187

System Menu Items .......................................................................................... 188

Alphabetical Listing of Menu Items (WMI)........................................................... 189

Default (Factory) Configuration Settings ............................................................... 191

Product Specifications ............................................................................................ 193

Sample AAA Log ................................................................................................... 197

Message Definitions (AAA Log) ...................................................................... 197

Sample SYSLOG Report ........................................................................................ 198

Sample History Log ................................................................................................ 198

Keyboard Shortcuts................................................................................................. 199

Table of Contents v

NOMADIX AG-2000W™ / AG-2000WA™

RADIUS Attributes................................................................................................. 200

Authentication-Request.................................................................................... 201

Authentication-Reply (Accept)......................................................................... 202

Accounting-Request ......................................................................................... 203

Selected Detailed Descriptions........................................................................ 204

Nomadix Vendor Specific Attributes................................................................ 205

Setting Up the SSL Feature .................................................................................... 206

Prerequisites.................................................................................................... 206

Obtain a Private Key File (cakey.pem) ........................................................... 207

Installing Cygwin and OpenSSL on a PC........................................................ 207

Private Key Generation ................................................................................... 211

Create a Certificate Signing Request (CSR) File ............................................ 214

Create a Public Key File (server.pem)............................................................ 215

Setting Up AG-2000w™ for SSL Secure Login............................................... 218

Setting Up the Portal Page .............................................................................. 219

Mirroring Billing Records ...................................................................................... 219

Sending Billing Records .................................................................................. 220

XML Interface.................................................................................................. 220

Chapter 5: Troubleshooting............................................................................ 223

General Hints and Tips ........................................................................................... 223

Management Interface Error Messages .................................................................. 223

Common Problems ................................................................................................. 225

Appendix: Technical Support......................................................................... 227

Contact Information................................................................................................ 227

Glossary of Terms ............................................................................................229

Index ..................................................................................................................245

vi Table of Contents

NOMADIX AG-2000W™ / AG-2000WA™

Introduction

About this User’s Guide

This User’s Guide provides information and procedures that will enable system
administrators to install, configure, manage, and use the Nomadix AG-2000w and
AG-2000wa products successfully and efficiently. Use this guide to take full
advantage of product functionality and features. For convenience, all references in
this document are to the AG-2000w when data and procedures are common across the
AG-2000w and AG-2000wa products. When information is specific to either
product, these instances are clearly highlighted.

Organization

This User’s Guide is organized into the following chapters:

Chapter 1 – Installing the AG-2000w This chapter provides instructions for

installing the AG-2000w and establishing the start-up configuration.

Chapter 2 – System Administration. This chapter provides all the instructions and

procedures necessary to manage and administer the AG-2000w following a
successful installation.

Chapter 3 – The Subscriber Interface. This chapter provides an overview and

sample scenario for the AG-2000w’s subscriber interface. It also includes an outline
of the authorization and billing processes utilized by the system.

Chapter 4 – Quick Reference Guide. This chapter contains product reference

information, organized by topic and functionality. It also contains a full listing of all
product configuration elements, sorted alphabetically and by menu.

Chapter 5 – Troubleshooting. This chapter provides information to help you resolve

common hardware and software problems. It also contains a list of error messages
associated with the management interface.

Appendix – Technical Support. The appendix informs you how to obtain technical

support. You should refer to the troubleshooting procedures contained in Chapter 5
before contacting Nomadix, Inc. directly.

Glossary of Terms. The glossary provides an explanation of terms directly related to

the product technology. Glossary entries are organized alphabetically.

Index. The index is a valuable information search tool. Use the index to locate

specific topics and categories contained in this User’s Guide.

Introduction 7

NOMADIX AG-2000W™ / AG-2000WA™

Why Choose Wireless?

Wireless Local Area Networks (WLANs) are cellular computer networks that
transmit and receive data with radio signals instead of wires. Wireless LANs are used
increasingly in both home and office environments, and Public-access locations such
as airports, coffee shops and universities. Innovative ways to utilize WLAN
technology are helping people to work and communicate more efficiently and with
increased mobility and flexibity. The absence of cabling and other fixed infrastructure
have proven to be beneficial for users and cost-effective for service providers.

Wireless users can use the same applications they use on a wired network. Wireless
adapter cards used on laptop and desktop systems support the same protocols as
Ethernet adapter cards.

It may sometimes be desirable for mobile network devices to link with conventional
Ethernet LANs to connect with servers, printers or the Internet supplied through the
wired LAN. A wireless Access Point (AP) is a device used to provide this link.

Wireless LAN technology is used for many different purposes:

 Mobility:

Productivity increases when people have access to data in any location
within the operating range of the WLAN. Management decisions based on
real-time information can significantly improve worker efficiency.

 Low Implementation Costs:

WLANs are easy to set up, manage, change and relocate. Networks that
frequently change can benefit from the ease of WLAN implementations.
WLANs can operate in locations where the installation of physical wiring
may be impractical.

 Installation and Network Expansion:

Installing a WLAN can be fast and easy and can eliminate the need to route
cabling through walls and ceilings. Wireless technology allows the network
to go where wires cannot go—even outside the home or office.

 Inexpensive Solution:

Wireless networking devices are as competitively priced as conventional
Ethernet networking devices.

 Scalability:

WLANs can be configured in a variety of ways to meet the needs of specific
applications and installations. Configurations are easily changed and range
from peer-to-peer networks (suitable for a small number of users) to larger
infrastructure networks that can accommodate hundreds or thousands of
users, depending on the number of wireless devices deployed.

See also, “Defining the Wireless Configuration {Wireless Configuration}” on

page 171.

8 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Welcome to the Nomadix AG-2000w and AG-2000wa

The Nomadix AG-2000w and AG-2000wa are cost-effective, integrated Wi-Fi™
HotSpot connectivity devices that combine our full suite of Public-access features
with a powerful Wi-Fi Access Point—maximizing range and coverage to create a
superior solution for single-cell HotSpot locations.

Product Definitions

 The AG-2000w supports the IEEE 802.11b and the faster 802.11g wireless

standards within the 2.4 G.Hz band.

 In addition to 802.11b and 802.11g, the AG-2000wa also supports the

802.11a wireless standard within the 5 GHz band.



For convenience and clarity, all future references in this User’s Guide
are to the AG-2000w only, when data and procedures are common
across both the AG-2000w and AG-2000wa products. When
information is specific to either product, these instances are clearly
highlighted.

Ensuring Compatibility

The AG-2000w is compatible with most popular operating systems, including
Macintosh, Linux and Windows, and can be easily integrated into a large network.

Nomadix AG-2000w

By strictly adhering to IEEE standards, the AG-2000w allows users to securely access
the data they want, when and where they want it, and enjoy the freedom that wireless
networking delivers.

Introduction 9

NOMADIX AG-2000W™ / AG-2000WA™

Offering Speed and Efficiency

The AG-2000w is a tri-mode, dualband Access Point providing the most expanded
user bandwidth available in an Access Point. Wireless clients can now connect to the
AG-2000w using any one of its 14 non-overlapping channels to transfer data at
speeds never before achievable in a wireless device.

The AG-2000w operates seamlessly and simultaneously in the 2.4 GHz frequency
spectrum supporting the 802.11b and the faster (up to 54 Mbps) 802.11g wireless
standards, while the AG-2000wa also operates in the 5 GHz spectrum supporting the

802.11a wireless standard at speeds up to 54 Mbps—effectively eliminating
interference by other devices that may be operating in the 2.4 GHz frequency range.

Both 802.11a and 802.11g wireless standards utilize OFDM (Orthogonal Frequency
Division Multiplexing) technology. OFDM works by splitting the radio signal into
multiple smaller sub-signals that are then transmitted simultaneously at different
frequencies to the receiver. OFDM reduces the amount of crosstalk (interference) in
signal transmissions, allowing you to transfer large files quickly or even watch a
movie in MPEG format over your network without any noticeable delays.

In addition to its compatibility with 802.11a (AG-2000wa) and 802.11g devices, the
AG-2000w is compatible with 802.11b devices. For HotSpots that already use

802.11b devices, the AG-2000w is the ideal way to expand an existing network,
enabling even more users to communicate with each another, access data and connect
to the Internet.

By offering transfer rates up to 54 Mbps, the AG-2000w enables large data packets to
travel from the router to a remote desktop or roaming laptop PC at up to five times the
speed of previous wireless devices.

See also, “Defining the Wireless Configuration {Wireless Configuration}” on

page 171.

Optimizing Performance

Network administrators can partition system usage by segmenting the users on the
wireless network according to frequency band. For example, with the AG-2000wa,
users who require special networking privileges (access to sensitive information,
specific departments or videoconferencing) can use just the 802.11a channels while
other employees use the 802.11b and 802.11g channels. This type of user
segmentation optimizes the product’s performance and delivers the best network
experience to all of its users.

10 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Providing Effective Security

The AG-2000w is ideal for network administrators who require additional
management, firewall, and other network security features. All of the system settings
are easily accessible from the product’s embedded Web-based user interface.

The AG-2000w incorporates the 802.1x standard for wireless user authentication,

WPA (Wi-Fi Protected Access), and WEP (Wired Equivalent Privacy).

Enabling Flexible Deployment Options

The AG-2000w enables a wide variety of network deployment options by supporting
IEEE 802.11a/b/g for maximum flexibility in the types of users supported, and the 10/
100 WAN interface enables connectivity into a variety of backhaul types.

WAN Connectivity:

 T1/E1
 Cable
 Satellite
 ADSL/SDSL/VDSL
 ISDN

User Connectivity:

 Supports IEEE 802.11a/b/g

Product Configuration and Licensing

All Nomadix Access Gateway products, including the AG-2000w, are powered by
our patented and patent-pending suite of embedded software, called the Nomadix
Service Engine™ (NSE). The AG-2000w employs our NSE core software package
with the option to purchase additional modules to expand the product’s functionality.

This User’s Guide covers all features and functionality provided with the NSE core
package, as well as the additional optional modules. Your product license must
support the optional NSE modules if you want to take advantage of the expanded
functionality. The following note will preface procedures that directly relate to
optional modules:



See also:

 “NSE Core Functionality” on page 15.
 “Optional NSE Modules” on page 29.

Your product license may not support this feature.

Introduction 11

NOMADIX AG-2000W™ / AG-2000WA™

Key Features and Benefits

The AG-2000w allows carriers to deploy Wi-Fi service into a wide range of large or
small Public-access locations while keeping deployment costs low.

Key features and benefits include:

Transparent Connectivity

Resolving configuration conflicts is difficult and time consuming for network users
who are constantly on the move, and costly to the solution provider. In fact, most
users are reluctant to make changes to their computer’s network settings and won’t
even bother. This fact alone has prevented the widespread deployment of broadband
network services.

Our patented Dynamic Address Translation™ (DAT) functionality offers a true “plug
and play” solution by providing transparent broadband network access and the ability
to acquire new customers onsite—no need for configuration changes to the client
computer or any client-side software.

DAT greatly reduces provisioning and technical support costs and enables carriers to
deliver an easy to use, customer-friendly service.

12 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Local Content and Services

The Portal Page feature intercepts the user’s browser settings and directs them to a
Web site to securely sign up for service or log in if they have a pre-existing account.
Nomadix offers both pre and post authentication redirects of the user’s browser
providing maximum flexibility in branding for both the carrier and the HotSpot
owner.

Access Control and Authentication

The AG-2000w allows for the creation of a unique “Walled Garden” enabling users to
access certain predetermined Web sites before they have been authenticated and paid
for their service. All traffic to the Internet is blocked until authentication has been
completed creating an additional level of security in the network.

Nomadix simultaneously supports the secure browser-based Universal Access
Method, IEEE 802.1x, and Smart Clients for companies such as Adjungo Networks,
Boingo Wireless, GRIC and iPass.

Security

The patent-pending iNAT™ (Intelligent Network Address Translation) feature creates
an intelligent mapping of IP Addresses and their associated VPN tunnels—by far the
most reliable multi-session VPN passthrough to be tested against diverse VPN
termination servers from companies such as Cisco, Checkpoint, Nortel and Microsoft.
Nomadix’ iNAT feature allows multiple tunnels to be established to the same VPN
server, creating a seamless connection for all users at the Public-access location.

The AG-2000w supports WPA, 64/128-bit WEP security and automatic re-keying for
protection of the data between the AG-2000w and the user, and supports multiple
SSIDs for segmentation of the network.

The AG-2000w provides fine-grain management of DoS (Denial of Service) attacks
through its Session Rate Limiting (SRL) feature, and MAC filtering for improved
network reliability.

Billing Enablement

The AG-2000w supports a variety of billing models to enable the deployment of
profitable Public-access networks.

The AG-2000w supports billing plans that use credit cards or scratch cards, or plans
that enable monthly subscriptions—then facilitates billing by a host of different
parameters including time, volume, IP address type, or bandwidth. The AG-2000w
can also offer incentive-based billing.

Introduction 13

NOMADIX AG-2000W™ / AG-2000WA™

5-Step Service Branding

A network enabled with the Nomadix AG-2000w (or any other Nomadix Access
Gateway) offers a 5-Step service branding methodology for Public-access operators
and their partners, comprising:

1. Initial Flash Page branding.

2. Initial Portal Page Redirect (Pre-Authentication). Typically, this is used to

redirect the user to a venue-specific Welcome and Login page.

3. Home Page Redirect (Post-Authentication). This redirect page can be

tailored to the individual user (as part of the RADIUS Reply message, the
URL is received by the NSE) or set to re-display itself at freely configurable
intervals.

4. The Information and Control Console (ICC) contains multiple opportunities

for an operator to display its branding or the branding of partners during the
user’s session. As an alternative to the ICC, a simple pop-up window
provides the opportunity to display a single logo.

5. The “Goodbye” page is a post-session page that can be defined either as a

RADIUS VSA or be driven by the Internal Web Server (IWS) in the NSE.
Using the IWS option means that this functionality is also available for other
post-paid billing mechanisms (for example, post-paid PMS).

14 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

NSE Core Functionality

Powering Nomadix’ family of Access Gateways, the Nomadix Service Engine (NSE)
delivers a full range of features needed to successfully deploy Wi-Fi Public-access
networks. These “core” features solve issues of connectivity, security, billing, and
roaming in a Wi-Fi Public-access network.

The NSE’s core package of features includes:

 Access Control
 Bandwidth Management
 Bridge Mode
 Command Line Interface
 Dynamic Address Translation™
 Dynamic Transparent Proxy
 End User Licensee Count
 External Web Server Mode
 Home Page Redirect
 iNAT™
 Information and Control Console
 Internal Web Server
 International Language Support
 IP Upsell
 Logout Pop-Up Window
 MAC Filtering
 Multi-Level Administration Support
 NTP Support
 Portal Page Redirect
 Port Mapping
 RADIUS Client
 RADIUS-driven Auto Configuration
 Remember Me and RADIUS Re-Authentication
 Secure Management
 Secure Socket Layer (SSL)
 Secure XML API
 Session Rate Limiting (SRL)
 Session Termination Redirect
 Smart Client Support
 SNMP Nomadix Private MIB
 Tri-Mode Authentication
 URL Filtering
 Walled Garden
 Web Management Interface

Introduction 15

NOMADIX AG-2000W™ / AG-2000WA™

Access Control

For IP-based access control, the NSE incorporates a master access control list that
checks the source (IP address) of administrator logins. A login is permitted only if a
match is made with the master list contained within the NSE. If a match is not made,
the login is denied, even if a correct login name and password are supplied.

The access control list supports up to 50 (fifty) entries in the form of a specific IP
address or range of IP addresses.

The NSE also offers access control based on the interface being used. This feature
allows administrators to block access from Telnet, Web Management, and FTP
sources.

Bandwidth Management

The NSE optimizes bandwidth by limiting bandwidth usage symmetrically or
asymmetrically on a per device (MAC address / User) basis, and manages the WAN
Link traffic to provide complete bandwidth management over the entire network. You
can ensure that every user has a quality experience by placing a bandwidth ceiling on
each device accessing the network, so every user gets a fair share of the available
bandwidth.

With the Nomadix Information and Control Console (ICC) feature enabled,
subscribers can increase or decrease their own bandwidth dynamically (by the minute,
or on an hourly, daily, weekly, or monthly basis), and also adjust the pricing plan for
their service (see graphic).

Bandwidth selection
(pull down)

Information and Control Console (ICC)

16 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Bridge Mode

This feature allows complete and unconditional access to devices. When Bridge
Mode is enabled, your NSE-powered product is effectively transparent to the network
in which it is located.

The NSE forwards any and all packets (except those addressed to the NSE network
interface). The packets are unmodified and can be forwarded in both directions. The
Bridge Mode function is a very useful feature when troubleshooting your entire
network as it allows administrators to effectively “remove” your product from the
network without physically disconnecting the unit.

Command Line Interface

The Command Line Interface (CLI) is a character-based user interface that can be
accessed remotely. Until your Nomadix product is up and running on the network, the
CLI is the Network Administrator’s window to the system. Software upgrades can
only be performed from the CLI (unless you have purchased our standalone
Centralized Management System (CMS) application (not available with the AG­2000w). See also, “The Management Interfaces (CLI and Web)” on page 43.

Dynamic Address Translation™

Dynamic Address Translation (DAT) enables transparent broadband network
connectivity, covering all types of IP configurations (static IP, DHCP, DNS),
regardless of the platform or the operating system used—ensuring that everyone gets
access to the network without the need for changes to their computer’s configuration
settings or client-side software. The NSE supports both PPTP and IPSec VPNs in a
manner that is transparent to the user and that provides a more secure standard
connection. See also, “Transparent Connectivity” on page 12.

Dynamic Transparent Proxy

The NSE directs all HTTP and HTTPS proxy requests through an internal proxy
which is transparent to subscribers (no need for users to perform any reconfiguration
tasks). Uniquely, the NSE also supports clients that dynamically change their browser
status from non-proxy to proxy, or vice versa. In addition, the NSE supports proxy
ports 80, 800-900, 911 and 990 as well as all unassigned ports (for example, ports
above 1024), thus ensuring far fewer proxy related support calls than competitive
products.

Introduction 17

NOMADIX AG-2000W™ / AG-2000WA™

End User Licensee Count

The NSE supports a range of simultaneous user counts depending on the Nomadix
Access Gateway you choose. In addition, various user count upgrades are available
for each of our NSE-powered products that allow you to increase the simultaneous
user count.

External Web Server Mode

The External Web Server (EWS) interface is for customers who want to develop and
use their own content. It allows you to create a “richer” environment than is possible
with your product’s embedded Internal Web Server.

The advantages of using an External Web Server are:

 Manage frequently changing content from one location.
 Serve different pages depending on site, sub-location (for example, VLAN),

and user.

 Take advantage of the comprehensive Nomadix XML API to implement

more complex billing plans.

 Recycle existing Web page content for the centrally hosted portal page.

If you choose to use the EWS interface, Nomadix Technical Support can provide you
with sample scripts. See also, “Contact Information” on page 227.

Home Page Redirect

The NSE supports a comprehensive HTTP redirect logic that allows network
administrators to define multiple instances to intercept the browser’s request and
replace it with freely configurable URLs.

Portal page redirect enables redirection to a portal page
process. This means that anyone will get redirected to a Web page to establish an
account, select a service plan, and pay for access. Home Page redirect enables
redirection to a page

after the authentication process (for example, to welcome a

specific user to the service—after the user has been identified by the authentication
process. See also, “Portal Page Redirect” on page 22.

before the authentication

18 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

iNAT™

Nomadix invented a new way of intelligently supporting multiple VPN connections
to the same termination at the same time (iNAT™), thus solving a key problem of
many Public-access networks.

Nomadix’ patent-pending iNAT™ (intelligent Network Address Translation) feature
contains an advanced, real-time translation engine that analyzes all data packets being
communicated between the private address realm and the public address realm.

The NSE performs a defined mode of network address translation based on packet
type and protocol (for example, GRE, ISAKMP etc.). UDP packet fragmentation is
supported to provide more seamless translation engine for certificate-based VPN
connections.

If address translation is needed to ensure the success of a specific application (for
example, multiple users trying to access the same VPN termination server at the same
time), the packet engine selects an IP address from a freely definable pool of publicly
routable IP addresses. The same public IP address can be used as a source IP to
support concurrent tunnels to different termination devices—offering unmatched
efficiency in the utilization of costly public IP addresses. If the protocol type can be
supported without the use of a public IP (for example, HTTP, FTP), our proven
Dynamic Address Translation™ functionality continues to be used.

Some of the benefits of iNAT™ include:

 Improves the success rate of VPN connectivity by misconfigured users, thus

reducing customer support costs and boosting customer satisfaction.

 Maintains the security benefits of traditional address translation technologies

while enabling secure VPN connections for mobile workers accessing
corporate resources from a Public-access location.

 Dynamically adjusts the mode of address translation during the user's

session, depending on the packet type.

 Supports users with static private IP addresses (for example, 192.168.x.x) or

public (different subnet) IP addresses without any changes to the client IP
settings.

 Dramatically heightens the reusability factor of costly public IP addresses.

Introduction 19

NOMADIX AG-2000W™ / AG-2000WA™

Information and Control Console

The Nomadix Information and Control Console (ICC) is a HTML-based pop-up
window that is presented to subscribers with their Web browser. The ICC allows
subscribers to select their bandwidth and billing options quickly and efficiently from
a simple pull-down menu. For credit card accounts, the ICC displays a dynamic
“time” field to inform subscribers of the time remaining on their account.

Information and Control Console (ICC)

Additionally, the ICC contains multiple opportunities for an operator to display its
branding or the branding of partners during the user’s session, as well as display
advertising banners and present a choice of redirection options to their subscribers.

See also:

 “5-Step Service Branding” on page 14.
 “Logout Pop-Up Window” on page 21.
 “Information and Control Console (ICC)” on page 182.

Internal Web Server

The NSE offers an embedded Internal Web Server (IWS) to deliver Web pages stored
in flash memory. These Web pages are configurable by the system administrator by
selecting various parameters to be displayed on the internal pages. When providers or
HotSpot owners do not want to develop their own content, the IWS is the answer. A
banner at the top of each IWS page is configurable and contains the customer's
company logo or any other image file they desire.

To support PDAs and other hand-held devices, the NSE automatically formats the
IWS pages to a screen size that is optimal for the particular device being used.

See also:

 “5-Step Service Branding” on page 14.
 “International Language Support” on page 21.

20 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

International Language Support

The NSE allows you to define the text displayed to your users by the IWS without any
HTML or ASP knowledge. The language you select determines the language
encoding that the IWS instructs the browser to use. See also, “Internal Web Server”

on page 20.

The available language options are:

 English
 Chinese (Big 5)
 French
 German
 Japanese (Shift_JIS)
 Spanish
 Other, with drop-down menu

IP Upsell

System administrators can set two different DHCP pools for the same physical LAN.
When DHCP subscribers select a service plan with a public pool address, the NSE
associates their MAC address with their public IP address for the duration of the
service level agreement. The opposite is true if they select a plan with a private pool
address. This feature enables a competitive solution and is an instant revenue
generator for ISPs.

The IP Upsell feature solves a number of connectivity problems, especially with
regard to L2TP and certain video conferencing and online gaming applications.

Logout Pop-Up Window

As an alternative to the Information and Control Console (ICC), the NSE delivers a
HTML-based pop-up window with the following functions:

 Provides the opportunity to display a single logo.
 Displays the session’s elapsed/count-down time.
 Presents an explicit Logout button.

See also, “Information and Control Console” on page 20.

Introduction 21

NOMADIX AG-2000W™ / AG-2000WA™

MAC Filtering

MAC Filtering enhances Nomadix' access control technology by allowing system
administrators to block malicious users based on their MAC address. Up to 50 MAC
addresses can be blocked at any one time. See also, “Session Rate Limiting (SRL)” on

page 26.

Multi-Level Administration Support

The NSE allows you to define 2 concurrent access levels to differentiate between
managers and operators, where managers are permitted read/write access and
operators are restricted to read access only.

Once the logins have been assigned, managers have the ability to perform all write
commands (Submit, Reset, Reboot, Add, Delete, etc.), but operators cannot change
any system settings. When Administration Concurrency is enabled, one manager and
three operators can access the AG-2000w platform at any one time.

NTP Support

The NSE supports Network Time Protocol (NTP), an Internet standard protocol that
assures accurate synchronization (to the millisecond) of computer clock times in a
network of computers. NTP synchronizes the client’s clock to the U.S. Naval
Observatory master clocks. Running as a continuous background client program on a
computer, NTP sends periodic time requests to servers, obtaining server time stamps
and using them to adjust the client's clock.

Portal Page Redirect

The NSE contains a comprehensive HTTP page redirection logic that allows for a
page redirect
(Home Page Redirect). As part of the Portal Page Redirect feature, the NSE can send
a defined set of parameters to the portal page redirection logic that allows an External
Web Server to perform a redirection based on:

 AG-2000w ID and IP Address
 Origin Server
 Port Location
 Subscriber MAC address
 Externally hosted RADIUS login failure page

This means that the network administrator can now perform location-specific service
branding (for example, an airport lounge) from a centralized Web server.

before (Portal Page Redirect) and/or after the authentication process

See also, “Home Page Redirect” on page 18.

22 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Port Mapping

This feature allows the network administrator to setup a port mapping scheme that
forwards packets received on a specific port to a particular static IP (typically private
and misconfigured) and port number on the subscriber side of the NSE. The
advantage for the network administrator is that free private IP addresses can be used
to manage devices (such as Access Points) on the subscriber side of the NSE without
setting them up with Public IP addresses.

RADIUS-driven Auto Configuration

Nomadix’ unique RADIUS-driven Auto Configuration functionality utilizes the
existing infrastructure of a mobile operator to provide an effortless and rapid method
for configuring devices for fast network roll-outs. Once configured, this methodology
can also be effectively used to centrally manage configuration profiles for all
Nomadix devices in the public access network.

Two subsequent events drive the automatic configuration of Nomadix devices:

1. A flow of RADIUS Authentication Request and Reply messages between

the Nomadix gateway and the centralized RADIUS server that specifies the
location of the meta configuration file (containing a listing of the individual
configuration files and their download frequency status) are downloaded
from an FTP server into the flash of the Nomadix device.

2. Defines the automated login into the centralized FTP server and the actual

download process into the flash.

Optionally, the RADIUS authentication process and FTP download can be secured by
sending the traffic through a peer-to-peer IPSec tunnel established by the Nomadix
gateway and terminated at the NOC (Network Operations Center). See also, “Secure

Management” on page 24.

RADIUS Client

Nomadix offers an integrated RADIUS (Remote Authentication Dial-In User
Service) client with the NSE allowing service providers to track or bill users based on
the number of connections, location of the connection, bytes sent and received,
connect time, etc. The customer database can exist in a central RADIUS server, along
with associated attributes for each user. When a customer connects into the network,
the RADIUS client authenticates the customer with the RADIUS server, applies
associated attributes stored in that customer's profile, and logs their activity
(including bytes transferred, connect time, etc.). The NSE's RADIUS implementation
also handles vendor specific attributes (VSAs), required by WISPs that want to
enable more advanced services and billing schemes, such as a per device/per month
connectivity fee. See also, “RADIUS-driven Auto Configuration” on page 23.

Introduction 23

NOMADIX AG-2000W™ / AG-2000WA™

RADIUS Proxy (not available with the AG-2000w)

The RADIUS Proxy feature relays authentication and accounting packets between the
parties performing the authentication process. Different realms can be set up to
directly channel RADIUS messages to the various RADIUS servers. This
functionality can be effectively deployed to:

 Support a wholesale WISP model directly from the edge without the need

for any centralized AAA proxy infrastructure.

 Support EAP authenticators (for example, WLAN APs) on the subscriber-

side of the NSE to transparently proxy all EAP types (TLS, SIM, etc.) and to
allow for the distribution of per-session keys to EAP authenticators and
supplicants.

Complementing the RADIUS Proxy functionality is the ability to route RADIUS
messages depending on the Network Access Identifier (NAI). Both prefix-based (for
example, ISP/[e-mail]) and suffix-based ([e-mail]) NAI routing
mechanisms are supported. Together, the RADIUS Proxy and NAI Routing further
support the deployment of the Wholesale Wi-Fi™ model allowing multiple providers
to service one location. See also, “RADIUS Client” on page 23.

Remember Me and RADIUS Re-Authentication

The NSE’s Internal Web Server (IWS) stores encrypted login cookies in the browser
to remember logins, using Usernames and Passwords between Access Points. This
“Remember Me” functionality creates a more efficient and better user experience in
wireless networks.

The RADIUS Re-Authentication buffer has been expanded to 720 hours, allowing an
even more seamless and transparent connection experience for repeat users.

Secure Management

There are many different ways to configure, manage and monitor the performance
and up-time of network devices. SNMP, Telnet, HTTP and ICMP are all common
protocols to accomplish network management objectives. And within those objectives
is the requirement to provide the highest level of security possible.

While several network protocols have evolved that offer some level of security and
data encryption, the preferred method for attaining maximum security across all
network devices is to establish an IPSec tunnel using 3DES between the NOC
(Network Operations Center) and the edge device (early VPN protocols such as PPTP
have been widely discredited as a secure tunneling method).

24 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

As part of Nomadix’ commitment to provide outstanding carrier-class network
management capabilities to its family of public access gateways, we offer secure
management through the NSE’s standards-driven, peer-to-peer IPSec tunneling with
strong data encryption. Establishing the IPSec tunnel not only allows for the secure
management of the Nomadix gateway using any preferred management protocol, but
also the secure management of third party devices (for example, WLAN Access
Points and 802.3 switches) on private subnets on the subscriber side of the Nomadix
gateway. See also, “Enabling Secure Management {VPN Tunnel}” on page 107.

Two subsequent events drive the secure management function of the Nomadix
gateway and the devices behind it:

1. Establishing an IPSec tunnel to a centralized IPSec termination server (for

example, Nortel Contivity). As part of the session establishment process, key
tunnel parameters are exchanged (for example, Hash Algorithm, Security
Association Lifetimes, etc.).

2. The exchange of management traffic, either originating at the NOC or from

the edge device through the IPSec tunnel. Alternatively, AAA data such as
RADIUS Authentication and Accounting traffic can be sent through the
IPSec tunnel. See also, “RADIUS-driven Auto Configuration” on page 23.

The advantage of using IPSec is that all types of management traffic are supported,
including the following typical examples:

 ICMP - PING from NOC to edge devices
 Telnet - Telnet from NOC to edge devices
 Web Management - HTTP access from NOC to edge devices
 SNMP

 SNMP GET from NOC to subscriber-side device (for example, AP)
 SNMP SET from NOC to subscriber-side device (for example, AP)
 SNMP Trap from subscriber-side device (for example, AP) to NOC

Secure Socket Layer (SSL)

This feature allows for the creation of an end-to-end encrypted link between your
NSE-powered product and wireless clients by enabling the Internal Web Server
(IWS) to display pages under a secure link—important when transmitting AAA
information in a wireless network when using RADIUS.

SSL requires service providers to obtain digital certificates from VeriSign™ to create
HTTPS pages. Instructions for obtaining certificates are provided by Nomadix.

Introduction 25

NOMADIX AG-2000W™ / AG-2000WA™

Secure XML API

XML (eXtensible Markup Language) is used by the subscriber management module
for user administration. The XML interface allows the NSE to accept and process
XML commands from an external source. XML commands are sent over the network
to your NSE-powered product which executes the commands, and returns data to the
system that initiated the command request. XML enables solution providers to
customize and enhance their product installations.

This feature allows the operator to use Nomadix' popular XML API using the built-in
SSL certificate functionality in the NSE so that parameters passed between the
Gateway and the centralized Web server are secured via SSL.



If you plan to implement XML for external billing, please contact
technical support for the XML specification of your product. Refer to

“Contact Information” on page 227.

Session Rate Limiting (SRL)

Session Rate Limiting (SRL) significantly reduces the risk of “Denial of Service”
attacks by allowing administrators to limit the number sessions any one user can take
over a given time period and, if necessary, then block malicious users.

Session Termination Redirect

Once connected to the Public-access network, the NSE will automatically direct the
customer to a Web site for local or personalized services, or to establish an account
and pay for services through its Home Page Redirect functionality. In addition, the
NSE also provides pre and post authentication redirects as well as one at session
termination. See also, “Home Page Redirect” on page 18.

Smart Client Support

The NSE supports authentication mechanisms used by Smart Clients by companies
such as Adjungo Networks, Boingo Wireless, GRIC and iPass.

26 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

SNMP Nomadix Private MIB

Nomadix’ Access Gateways can be easily managed over the Internet with an SNMP
client manager (for example, HP OpenView or Castle Rock).

To take advantage of the functionality provided with Nomadix’ private MIB
(Management Information Base), simply import the

nomadix.mib file from the

Accessories CD (supplied with the product) to view and manage SNMP objects on
your product.

See also:

 “Using an SNMP Manager” on page 61
 “Installing the Nomadix Private MIB” on page 57.

Tri-Mode Authentication

The NSE enables multiple authentication models providing the maximum amount of
flexibility to the end user and to the operator by supporting any type of client entering
their network and any type of business relationship on the back end. For example, in
addition to supporting the secure browser-based Universal Access Method (UAM)
via SSL, Nomadix is the only company to simultaneously support port-based
authentication using IEEE 802.1x and authentication mechanisms used by Smart
Clients.

See also:

 “Access Control and Authentication” on page 13.
 “Smart Client Support” on page 26.

URL Filtering

The NSE can restrict access to specified Web sites based on URLs defined by the
system administrator. URL filtering will block access to a list of sites and/or domains
entered by the administrator using the following three methods:

1. Host IP address (for example, 1.2.3.4).

2. Host DNS name (for example, www.yahoo.com).

3. DNS domain name (for example, *.yahoo.com, meaning all sites under the

yahoo.com hierarchy, such as finance.yahoo.com, sports.yahoo.com, etc.).

The system administrator can dynamically add or remove up to 300 specific IP
addresses and domain names to be filtered for each property.

Introduction 27

NOMADIX AG-2000W™ / AG-2000WA™

Walled Garden

The NSE provides up to 300 IP passthrough addresses (and/or DNS entries), allowing
you to create a “Walled Garden” within the Internet where unauthenticated users can
be granted or denied access to sites of your choosing.

Web Management Interface

Nomadix’ Access Gateways can be managed remotely via the built-in Web
Management Interface where various levels of administration can be established. See
also, “Using the Web Management Interface (WMI)” on page 60.

28 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Optional NSE Modules

Hospitality Module (not available with the AG-2000w)

The optional Hospitality Module provides the widest range of Property Management
System (PMS) interfaces to enable in-room guest billing for HSIA (High Speed
Internet Access) service. This module also includes 2-Way PMS interface capability
for in-room billing in a Wi-Fi enabled network. In addition, the Hospitality Module
includes the Bill Mirror functionality for posting of billing records to multiple
sources. With this module, the NSE also supports billing over a TCP/IP connection to
select PMS interfaces.

PMS Integration




By integrating with a hotel’s PMS, your NSE-powered product can post charges for
Internet access directly to a guest’s hotel bill. In this case, the guest is billed only
once. The NSE outputs a call accounting record to the PMS system whenever a
subscriber purchases Internet service and decides to post the charges to their room.
Nomadix’ Access Gateways are equipped with a dedicated PMS port to facilitate
connectivity with a customer’s Property Management System.

Billing Records Mirroring



NSE-powered devices can send copies of credit card (and optionally, PMS) billing
records to external servers that have been previously defined by system
administrators. The NSE assumes control of billing transmissions and the saving of
billing records. By effectively “mirroring” the billing data, the NSE can send copies
of billing records to predefined “carbon copy” servers. Additionally, if the primary
and secondary servers are not responding, the NSE can store up to 2,000 billing
records. The NSE regularly attempts to connect with the primary and secondary
severs. When a connection is re-established (with either server), the NSE sends the
cached information to the server. Customers can be confident that their billing
information is secure and that no transaction records are lost.

Your product license may not support this feature.

Some Property Management Systems may require you to obtain a
license before integrating the PMS with your Nomadix Access Gateway
product. Check with the PMS vendor.

Your product license may not support this feature.

Introduction 29

Credit Card Module

NOMADIX AG-2000W™ / AG-2000WA™



The optional Credit Card Module provides a secure interface over SSL to enable
billing via a credit card for HSIA. This module also includes the Billing Records
Mirroring functionality for posting of billing records to multiple sources.

See also:

 “Secure Socket Layer (SSL)” on page 25.
 “Billing Records Mirroring” on page 29.

Your product license may not support this feature.

Wholesale Roaming Module



The optional Wholesale Roaming Module provides advanced NAI (Network Access
Identifier) routing capabilities, enabling multiple service providers to share a HotSpot
location, further supporting a Wi-Fi wholesale model. This functionality allows users
to interact only with their chosen provider in a seamless and transparent manner.

Your product license may not support this feature.

High Availability Module



The optional High Availability Module offers enhanced network uptime and service
availability when delivering high-quality Wi-Fi service by providing Fail-Over
functionality. This module allows a secondary Nomadix Access Gateway to be placed
in the network that can take over if the primary device fails, ensuring Wi-Fi service
remains uninterrupted.

30 Introduction

Your product license may not support this feature.

NOMADIX AG-2000W™ / AG-2000WA™

Network Architecture (Sample)

The AG-2000w is an ideal solution for single cell Public-access environments. Other
Nomadix products (for example, HotSpot Gateway and Universal Subscriber
Gateway II) are more suited to dual cell and multi cell Public-access environments.

Introduction 31

Product Specifications

PUBLIC-ACCESS

User Support:

Nomadix recommends a maximum of 50 users per unit

Dynamic Address Translation
Home Page Redirection (Pre and Post Authentication)
iNAT (for seamless VPN connectivity)
SMTP Redirection
Full Authorization, Authentication and Accounting Support
RADIUS Client
Bandwidth Management
Information and Control Console
Global Roaming Support

M

EDIA ACCESS CONTROL

CSMA/CA

NOMADIX AG-2000W™ / AG-2000WA™

Specifications

P

ORTS

10/100Base-T Ethernet, RJ-45 (UTP)

W

IRELESS

802.11b Specifications:

Frequency band: 2.4GHz - 2.4835GHz
Data Rates: 11, 5.5, 2, 1 Mbps
Modulation: Direct Sequence Spread Spectrum
(CCK, DQPSK, DBPSK)

802.11g Specifications:

Frequency band: 2.4GHz - 2.482GHz
Data Rates: 54, 48, 36, 24, 18, 12, 6 Mbps
Modulation: Orthogonal Frequency Division Modulation
(64 QAM, 16 QAM, QPSK, BPSK)

802.11a Specifications:

Frequency band: 5.150GHz - 5.350GHz
Data Rates: 54, 48, 36, 24, 18, 12, 9 Mbps
Modulation: Orthogonal Frequency Division Modulation
(64 QAM, 16 QAM, QPSK, BPSK)

32 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Specifications

NETWORKING

IEEE 802.3 / 3u
IEEE 802.1d
PoE per IEEE 802.3af
DHCP Server
DHCP Relay
DHCP Client
RADIUS Client (MD-5, PAP, CHAP, MS-CHAPv1, v2)
PPPoE Client

S

ECURITY

64-bit/128-bit WEP with dynamic keying
iNAT
MAC Address Filtering and Session Limiting

A

NTENNA TYPE

802.11b/g: 2dBi

802.11a: 3dBi

A

UTHENTICATION

Internal data base
Universal Access Method (UAM) using SSL
Smart Client Support:

Adjungo Networks, Boingo Wireless, iPass, GRIC

IEEE 802.1x (SIM / MD-5 / TLS / TTLS / PEAP)

M

ANAGEMENT

Multi-Level Administration Controls
Access Control Lists
Web Administration UI
SNMP v2c
Secure XML API
Auto Confirguration and Upgrades
Syslog/AAA Log

P

OWER

100 to 240 VAC w/ +/-10% margin
50/60 Hz w/ +2%, -4% margin
EN61000-3-2 compliant

Introduction 33

NOMADIX AG-2000W™ / AG-2000WA™

Specifications

ENVIRONMENT

Operating temperature: 0 - 40°C
Operating humidity: 10 - 90% RH non-condensing
Storage temperature: -25 - 60°C
Storage humidity: 5 - 95% RH non-condensing

R

EGULATORY

FCC Part 15
CE Mark
CE/R&TTE: EN301328 / EN301893 / EN301489-1, EN301489-17
VCCI Class B, Telec
UL 1950, CSA22.2 No 950, TÜV/GS(EN60950)

For further information on the certifications for the AG-2000w
product, visit http://www.nomadix.com/downloads.

C

OMPATIBILITY

Communicates with all Wi-Fi certified wireless adapters

P

HYSICAL

9.25(L) x 6.25(W) x 1.5(H) inches

91.2(L) x 54(W) x 36.4(H) mm
Weight: 500 grams
Wall Mountable

LED

S

Power Indicator
10/100, ACT/Link

34 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Specifications

TRANSMITTER OUTPUT POWER

11g TX Power Specification:

 Typical RF Output Power at each Data Rate and at room

temperature: 25

 +13dBm at 54Mbps
 +15dBm at 48Mbps
 +17dBm at 36Mbps
 +18dBm at 24, 18, 12, 9, & 6Mbps
 ALC loop to control transmit power within 0.9dB tolerance in

room temperature

11b TX Power Specification:

 Typical 18dBm at 11, 5.5, 2, & 1Mbps at room temperature

25 degree C

 ALC loop to control transmit power within 0.9dB tolerance in

room temperature

°C

11a TX Power Specification:

 Typical RF Output Power at each Data Rate and at room

temperature: 25

 +13dBm at 54Mbps
 +15dBm at 48Mbps
 +17dBm at 36Mbps
 +18dBm at 24, 18, 12, 9, & 6Mbps
 ALC loop to control transmit power within 0.9dB tolerance in

°C

room temperature

Introduction 35

NOMADIX AG-2000W™ / AG-2000WA™

Online Help (WebHelp)

The AG-2000w incorporates an online Help system called “WebHelp” which is
accessible through the Web Management Interface (when a remote Internet
connection is established following a successful installation). WebHelp can be viewed
on any platform (for example, Windows, Macintosh, or UNIX-based platforms) using
either Internet Explorer or Netscape Navigator (see note).



WebHelp is useful when you have an Internet connection to the AG-2000w and you
want to access information quickly and efficiently. It contains all the information you
will find in this User’s Guide.

For more information about WebHelp and other online documentation resources, go
to “Online Documentation and Help” on page 46.

WebHelp is best viewed using Internet Explorer, version 4.0 or higher.

Notes, Cautions, and Warnings

The following symbols are used throughout this User’s Guide:





This symbol is used for general notes and additional information that
may be useful to you.

This symbol is used for cautions and warnings. Cautions and warnings
provide important information to eliminate the risk of a system
malfunction or possible damage.

36 Introduction

NOMADIX AG-2000W™ / AG-2000WA™

Installing the AG-2000w

This chapter provides installation instructions for the hardware and software
components of the AG-2000w. It also includes an overview of the management
interface, some helpful hints for system administrators, and procedures for the
following tasks:

 Connecting the system.

 Logging in to the Command Line Interface.

 Establishing the AG-2000w’s start up configuration.

 Establishing the basic configuration for subscribers.

 Archiving your configuration settings.

 Installing the Nomadix Private MIB.

1



Once you have installed your AG-2000w and established the
configuration settings, you should write the settings to an archive file. If
you ever experience problems with the system, your archived settings
can be restored at any time. See “Archiving Your Configuration

Settings” on page 56.

Nomadix AG-2000w

Installing the AG-2000w 37

NOMADIX AG-2000W™ / AG-2000WA™

Unpacking the AG-2000w

When you unpack the unit, you will find the following items in the carton:

Item Qty

PoE power entry module 1

Power supply 1

Power supply AC cord 1

Plastic anchor 2

Wall mounting screws 2

Rubber feet 4

Protective cardboard ends 2

AG-2000w or AG-2000wa unit 1

End User License Agreement (EULA) 1

Accessories CD-ROM (containing this User’s Guide, README
file, Quick Start Guide, NOMADIX private MIB file, and any
other useful accessories.

Customer welcome letter 1

1

38 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Installation Workflow

This Installation Workflow illustrates the steps that are required to install and
configure the AG-2000w successfully. Review this flowchart before attempting to
install the AG-2000w on the customer’s network.

Place the AG-2000w on a flat and stable work surface and connect the power cord.

Connect the AG-2000w to a “live” network.

Start a Telnet session to communicate with the AG-2000w via the product’s

When prompted, accept to the Nomadix End User License Agreement (EULA). You must

accept the EULA before the AG-2000w can connect with the Nomadix License Key Server.

When the key is successfully received from the server, your AG-2000w will reboot.

IP address (172.30.30.172) or its default DHCP address.

Log in to the Command Line Interface.

Establish your AG-2000w’s start-up configuration settings.

Network

Log in to the AG-2000w and use the graphical Web Management Interface

(WMI) to configure the product's features. You have now established a basic

configuration for the AG-2000w that enables "Plug and Play" Internet

connectivity.

Export your configuration settings to an archive file.

Installing the AG-2000w 39

NOMADIX AG-2000W™ / AG-2000WA™

Connecting the System

Use this procedure to connect the system. See also, “Installation Considerations” on

page 41.

1. Place the AG-2000w on a flat and stable work surface.

2. Connect the system (see graphic), including the power cord and adapter, and

Ethernet cable.

to Power Cord
(via adapter)



40 Installing the AG-2000w

A straight-through cable is required when connecting the AG-2000w to
a Router or Switch. A cross-over cable is required when connecting the
AG-2000w directly to an Ethernet adapter on a computer.

to Router or Switch

(see note)

NOMADIX AG-2000W™ / AG-2000WA™

Installation Considerations

Designed with an indoor range of up to 328 feet (100 meters), the AG-2000w wireless
gateway allows you to access your network using a wireless connection from virtually
anywhere. However, the number, thickness and location of walls, ceilings or other
objects that the wireless signals must pass through may limit the range. Typical ranges
vary depending on the types of materials and background RF (radio frequency) noise
at your location. The key to maximizing the wireless range is to follow these basic
guidelines:

1. Keep the number of walls and ceilings between the AG-2000w and your

receiving device to a minimum—each wall or ceiling can reduce the product’s
range from between 3 and 90 feet (1 to 30 meters). Position your devices so that
the number of walls or ceilings is minimized.

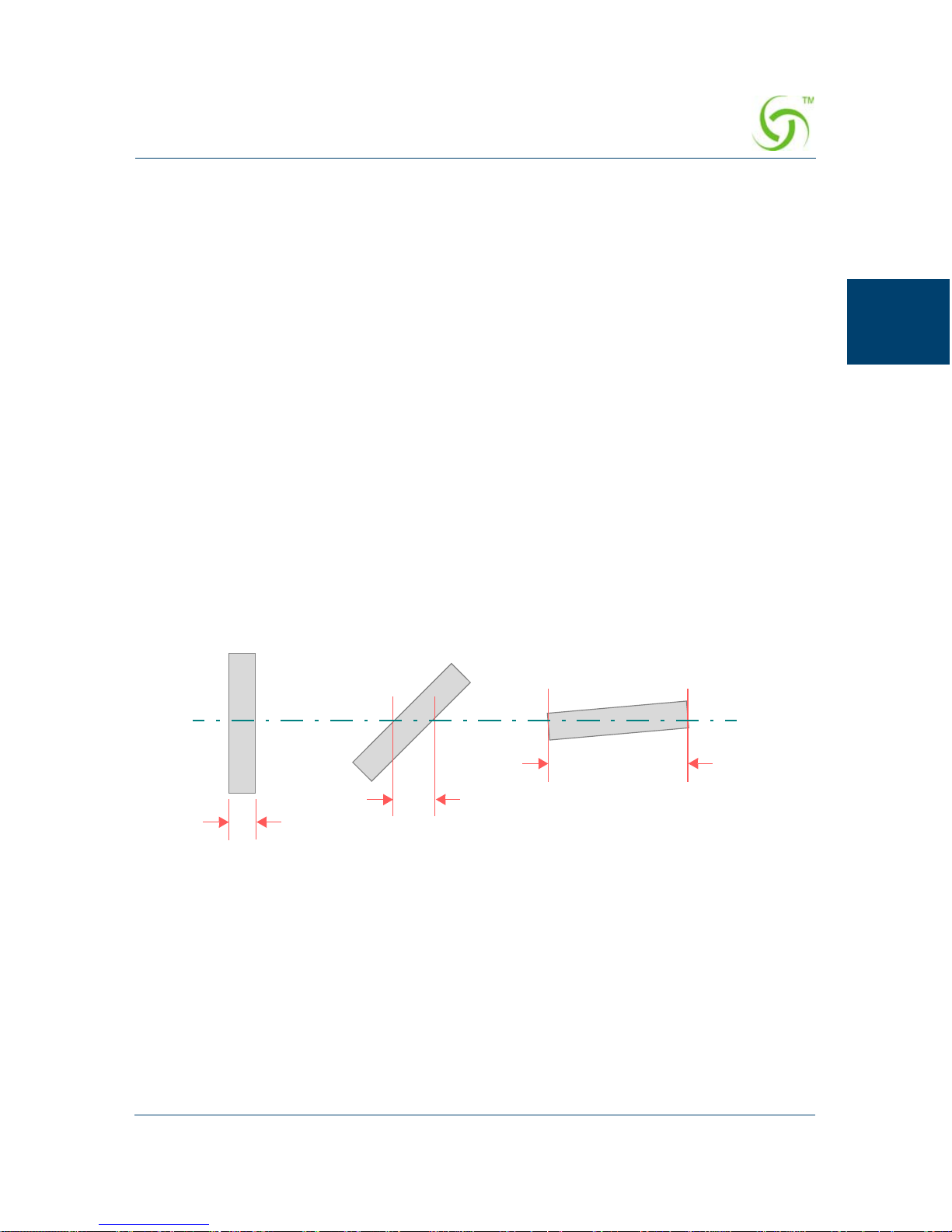

2. Be aware of the direct line between each device. For example:

A wall that is 1.5 feet thick (half a meter) at 90° is actually almost 3 feet thick (or
1 meter) when viewed at a 45° angle. At an acute 2° degree angle the same wall
is over 42 feet (or 14 meters) thick! For best reception, try to ensure that your
wireless devices are positioned so that signals will travel straight through a wall
or ceiling.

90° 45°

< 3 feet

1.5 feet

3. Building materials can make all the difference—a solid metal door or aluminum

2°

> 42 feet

wall studs may have a negative effect on signal range. Try to position wireless
devices so that the signal passes through drywall (between studs) or open
doorways and not other materials.

4. Keep the AG-2000w away from electrical devices or appliances that generate RF

noise. We recommend maintaining a distance of at least 3 to 6 feet (or 1 to 2
meters).

Installing the AG-2000w 41

NOMADIX AG-2000W™ / AG-2000WA™

Logging In to the Command Line Interface

Use this procedure to initialize the system and log in to the Command Line Interface
(CLI). The character-based CLI is used at initial start-up.

1. Start a Telnet session to communicate with the AG-2000w via the product’s

management IP address (172.30.30.172) or its default DHCP address.

2. When connected to the AG-2000w, a login prompt appears on your screen.

The default login user name is “admin.” The password is “admin.” Login names
and passwords are case-sensitive.

3. Enter admin when prompted for a user name and password. The AG Menu

appears when you have logged in to the management interface successfully. If
this is an initial installation which requires the AG-2000w to receive a license
key from the Nomadix License Key Server, you must accept the End User
License Agreement (EULA).

42 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

The Management Interfaces (CLI and Web)



The CLI is the administrator’s initial window to the system. This is where you
establish all the AG-2000w start-up configuration parameters, depending on the
customer’s network architecture.

The AG Menu is your starting point. From here, you access all the system
administration items from the four primary menus available: configuration, network
info, subscribers, and system. The AG Menu also includes a “logout” option for
logging out of the system.



The AG-2000w supports various methods for managing the system
remotely. These include, an embedded graphical Web Management
Interface (WMI), an SNMP client, or Telnet. However, until the unit is
installed and running, system management is performed from the
product’s embedded Command Line Interface (CLI).

Although the basic functional elements are the same, the CLI and the
WMI have some minor content and organizational differences. For
example, in the WMI the “subscribers” menu is divided into
“Subscriber Administration” and “Subscriber Interface.” See also,

“Menu Organization (Web Management Interface)” on page 44.

Making Menu Selections and Inputting Data with the CLI

The CLI is character-based. It recognizes the fewest unique characters it needs to
correctly identify an entry. For example, in the AG Menu you need only enter
access the Configuration menu, but you must enter
and

sy to access the System menu (because they both start with the letter “s”).

You may also do any of the following:

 Enter b (back) or press Esc (escape) to return to a previous menu.
 Press Esc to abort an action at any time.
 Press Enter to redisplay the current menu.
 Press ? at any time to access the CLI’s Help screen.

When using the CLI, if a procedure asks you to “enter sn,” this means you must type

sn and press the Enter key. The system does not accept data or commands until you

hit the Enter key.

Installing the AG-2000w 43

su to access the Subscribers menu

c to

NOMADIX AG-2000W™ / AG-2000WA™

Menu Organization (Web Management Interface)

When you have successfully installed and configured the AG-2000w from the CLI,
you can then access the AG-2000w from its embedded Web Management Interface
(WMI). The WMI is easier to use (point and click) and includes some items not found
in the CLI. You can use either interface, depending on your preference.

The following “composite” screen shows how the AG-2000w’s WMI menus (folders)
are organized (shown here side-by-side for clarity and space).

Note: Your browser preferences or
Internet options should be set to
compare loaded pages with cached
pages.

44 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Inputting Data – Maximum Character Lengths

The following table details the maximum allowable character lengths when inputting
data:

Data Field Max. Characters

All Messages (billing options) 72

All Messages (subscriber error messages) 72

All Messages (subscriber login UI) 72

All Messages (subscriber “other” messages) 72

Description of Service (billing options Plan) 140

Home Page URL 237

Host Name and Domain Name (DNS settings) 64

IP / DNS Name (passthrough addresses) 237

Label (billing options plan) 16

Location settings (all fields) 99

Partner Image File Name 12

Password (adding subscriber profiles) 128

Port Description (finding ports by description) 63

Redirection Frequency (in minutes) 2,147,483,647

(recommend 3600)

Reservation Number 24

Username (adding subscriber profiles) 96

Valid SSL Certificate DNS Name 64

Installing the AG-2000w 45

NOMADIX AG-2000W™ / AG-2000WA™

Online Documentation and Help

The Web Management Interface (WMI) incorporates an online help system which is
accessible from the main window.

Click here to access the
online Help system

Other online documentation resources, available from our corporate Web site
(www.nomadix.com), include a full PDF version of this User’s Guide (viewable with
Acrobat™ Reader, version 4.0 or higher), white papers, technical notes, and business
cases. The PDF version of this User’s Guide and associated README files are also
available on the “Accessories” CD-ROM supplied with your AG-2000w.

Quick Reference Guide

This manual contains a “Quick Reference Guide” on page 183 which provides
information to help you navigate and use the management interfaces (CLI and Web)
quickly and efficiently. It also contains the product specifications, a listing of the
factory default settings, sample log reports, listings of commands (by menu and
alphabetical), and some common keyboard shortcuts.

46 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Establishing the Start Up Configuration

The CLI allows you to administer the AG-2000w’s start-up configuration settings.



When establishing the start-up configuration for a new installation, you
do not have remote access capability because the AG-2000w is not yet
configured. Once the installation is complete (see “Installation

Workflow” on page 39) and the system is successfully configured, you

will have the additional options of managing the AG-2000w remotely
from the system’s Web Management Interface, an SNMP client manager
of your choice, or a simple Telnet interface.

The start up configuration must be established before connecting the AG-2000w to a
customer’s network. The “start up” configuration settings include:

 Assigning a Login Name and Password – You must assign a unique login

user name and password that enables you to administer and manage the AG­2000w securely.



 Setting the SNMP Parameters – The SNMP (Simple Network

User names and passwords are case-sensitive.

Management Protocol) parameters must be established before you can use
an SNMP client (for example, HP OpenView) to manage and monitor the
AG-2000w remotely.

 Enabling the Logging Options – Servers must be assigned and set up if you

want to create system and AAA (billing) log files, and retrieve error
messages generated by the AG-2000w.

 Assigning the Network Interface IP Address – This is the public IP

address that allows administrators and subscribers to see the AG-2000w on
the network. Use this address when you need to make a network connection
with the AG-2000w.

 Assigning the Subnet Mask – The subnet mask defines the number of IP

addresses that are available on the routed subnet where the AG-2000w is
located.

 Assigning the Default Gateway IP Address – This is the IP address of the

router that the AG-2000w uses to transmit data to the Internet.

Installing the AG-2000w 47

NOMADIX AG-2000W™ / AG-2000WA™

Assigning Login User Names and Passwords

When you initially powered up the AG-2000w and logged in to the Management
Interface, the default login user name and password you used was “admin.” The AG­2000w allows you to define 2 concurrent access levels to differentiate between
managers and operators, where managers are permitted read/write access and
operators are restricted to read access only. Once the logins have been assigned,
managers have the ability to perform all write commands (Submit, Reset, Reboot,
Add, Delete, etc.), but operators cannot change any system settings. When
Administration Concurrency is enabled, one manager and three operators can access
the AG-2000w at any one time (the default setting for this feature is “disabled”).

1. Enter sy (system) at the AG Menu.

The System menu appears.

2. Enter lo (login).

The system prompts you for the current login. If this is the first time you are
changing the login parameters since initializing the AG-2000w, the default login
name and password is “admin.”



3. When prompted, confirm the current login parameters and enter new ones.

The system accepts up to 11 characters (any character type) for user
names and passwords. All user names and passwords are case-sensitive.

SAMPLE SCREEN RESPONSE

System>lo

Enable/Disable Administration Concurrency [disabled ]: e

Current login: admin
Current password: *****

Enter new manager login: newmgr
Enter new password: *******
Retype new password: *******

The administrative login and password were changed

Enter new operator login: newop
Enter new operator password: *****
Retype new operator password: *****

The operator login and password were changed

You must use the new login user name(s) and password(s) to access the system.

48 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Setting the SNMP Parameters (optional)

You can address the AG-2000w using an SNMP client manager (for example, HP
OpenView). SNMP is the standard protocol that regulates network management over
the Internet. To do this, you must set up the SNMP communities and identifiers. For
more information about SNMP, see “Using an SNMP Manager” on page 61.



1. Enter c (configuration) at the AG Menu. The Configuration menu appears.

2. Enter sn (snmp).

3. Enable the SNMP daemon, as required. The system displays any existing SNMP

If you want to use SNMP, you must manually turn on SNMP.

contact information and prompts you to enter new information. If this is the first
time you have initialized the SNMP command since removing the AG-2000w
from its box, the system has no information to display (there are no defaults).

4. Enter the SNMP parameters (communities and identifiers). The SNMP

parameters include your contact information, the get/set communities, and the IP
address of the trap recipient. Your SNMP manager needs this information to
enable network management over the Internet.

5. If you enabled the SNMP daemon, you must reboot the system for your changes

to take effect. In this case, enter

SAMPLE SCREEN RESPONSE

Configuration>sn

Enable the SNMP Daemon? [Yes]:
Enter new system contact: [e-mail]
[Nomadix, Westlake Village, CA]
Enter new system location: Office, Westlake Village, CA
Enter read/get community [public ]:
Enter write/set community [private ]:
Enter IP of trap recipient [0.0.0.0 ]: 10.11.12.13

y (yes) to reboot your AG-2000w.

SNMP Daemon Enabled
System contact [e-mail]
System location Office, Westlake Village, CA
Get (read) community public
Set (write) community private
Trap recipient 10.11.12.13

Reboot to enable new changes? [yes/no] y

Rebooting ...

You can now address the AG-2000w using an SNMP client manager.

Installing the AG-2000w 49

NOMADIX AG-2000W™ / AG-2000WA™

Enabling the Logging Options (recommended)

System logging creates log files and error messages generated at the system level.
AAA logging creates activity log files for the AAA (Authentication, Authorization,
and Accounting) functions. You can enable either of these options.



Although the AAA and billing logs can go to the same server, we
recommend that they have their own unique server ID number assigned
(between 0 and 7). When managing multiple properties, the properties
are identified in the log files by their IP addresses.

When system logging is enabled, the standard SYSLOG protocol (UDP) is used to
send all message logs generated by the AG-2000w to the specified server.

1. Enter log (logging) at the Configuration menu.

The system displays the current logging status (enabled or disabled).

2. Enable or disable the system and/or AAA logging options, as required.

If you enable either option, go to Step 3, otherwise logging is disabled and you
can terminate this procedure.

3. Assign a valid ID number (0-7) to each server.

4. Enter the IP addresses to identify the location of the system and AAA SYSLOG

servers on the network (the default for both is 0.0.0.0).

When logging is enabled, log files and error messages are sent to these servers
for future retrieval. To see sample reports, go to “Sample SYSLOG Report” on

page 198 and “Sample AAA Log” on page 197.

SAMPLE SCREEN RESPONSE

Configuration>log

Enable/disable system logging [disabled ]: enable
Enter system SYSLOG number (0-7) [0 ]: 1
Enter system SYSLOG server IP [0.0.0.0 ]: 8.9.10.11
Enable/disable AAA logging [disabled ]: enable
Enter AAA SYSLOG number (0-7) [0 ]: 2
Enter AAA SYSLOG server IP [0.0.0.0 ]: 9.10.11.12

System logging Enabled
System SYSLOG number 1
System SYSLOG server IP 8.9.10.11

AAA logging Enabled
AAA SYSLOG number 2
AAA SYSLOG server IP 9.10.11.12

50 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Assigning the Location Information and IP Addresses

The “location” command in the Configuration menu establishes the AG-2000w’s
location settings, the network interface IP address, the subnet mask, and the default
gateway IP address. All of these “location” parameters must be set up as part of the
system’s start up configuration (otherwise the AG-2000w will not be “visible” on the
network).

1. Enter c (configuration) at the AG Menu.

The Configuration menu appears.

2. Enter loc (set Location options).

The system displays the Company Name. If the name displayed is not correct (or
no name is entered), enter it now.

3. When prompted, enter the company’s address (line by line - 6 lines).

4. When prompted, enter a valid email address for this company.

The system now displays the current network interface IP address and prompts
you for a valid address. The network interface IP address is the public IP address
that allows administrators to see the AG-2000w on the network. Use this address
when you need to make a network connection with the AG-2000w (see note).



5. When prompted, enter a valid network interface IP address.

After assigning the network interface IP address, the system displays the current
subnet mask (the default mask is 255.255.255.0). The subnet mask defines the
number of IP addresses that are available on the routed subnet where the AG­2000w is located.



6. Enter a valid subnet mask.

After assigning the subnet mask, the system displays the current default gateway
IP address (the factory default is 10.0.0.1). This is the IP address of the router
that the AG-2000w uses to transmit data to the Internet.

7. Enter a valid default gateway IP address.

If the DHCP Client is enabled, you can skip the remaining steps in this
procedure. Continue only if the DHCP Client is disabled.

The network interface acts as a multifunctional “translator.” For
example, if a subscriber’s computer is setup statically for a network with
a gateway address of 10.1.1.1, the AG-2000w emulates the gateway to
accommodate this subscriber while emulating other gateways to
accommodate other subscribers.

Installing the AG-2000w 51

NOMADIX AG-2000W™ / AG-2000WA™

8. After establishing all “Location” settings, you must reboot the AG-2000w for

your changes to take effect..

SAMPLE SCREEN RESPONSE

Configuration>loc

Please enter your company name [companyname ]: newname
Please enter your address <Line 1> [line1address ]: newline1

<Line 2> [line2address ]: newline2

<City> [city ]: newcity

<State> [state ]: newstate

<Zip> [zip ]: newzip

<Country> [country ]: newcountry

Please enter your email address [[e-mail] ]: [e-mail]

Enable/disable DHCP Client [enabled ]:
Enter network interface IP [10.0.0.10 ]: 192.168.0.2
Enter subnet mask [255.255.255.0 ]: 255.255.255.192
Enter default gateway IP [10.0.0.1 ]: 172.30.30.172

The system must be reset to function properly. Reboot? [yes/no]: y

Company Name: newname
Address: newline1

newline2
newcity
newstate
newzip

newcountry
Email: [e-mail]
DHCP Client enabled
Network interface IP 192.168.0.2
Subnet mask 255.255.255.192
Default gateway IP 192.168.0.1
Rebooting ...

Your new settings are displayed and the AG-2000w reboots. When the system
restarts, the Telnet interface is enabled (based on your new configuration settings
which are saved to the AG-2000w’s on-board flash memory).

9. Go to “Establishing the Basic Configuration for Subscribers” on page 53.

52 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Establishing the Basic Configuration for Subscribers

When you have successfully established the start up configuration and installed the
unit onto the customer’s network, connect to the AG-2000w via Telnet. You must
now set up the basic configuration parameters for subscribers, including:

 Setting the DHCP Options – DHCP (Dynamic Host Configuration

Protocol) allows you to assign IP addresses automatically (to subscribers
who are DHCP enabled). The AG-2000w can “relay” the service through an
external DHCP server or it can be configured to act as its own DHCP server.

 Setting the DNS Options – DNS (Domain Name System) allows

subscribers to enter meaningful URLs into their browsers (instead of
complicated numeric IP addresses). DNS converts the URLs into the correct
IP addresses automatically.

Setting the DHCP Options

When a device connects to the network, the DHCP server assigns it a “dynamic” IP
address for the duration of the session. Most users have DHCP capability on their
computer. To enable this service on the AG-2000w, you can either enable the DHCP
relay (routed to an external DHCP server IP address), or you can enable the AG­2000w to act as its own DHCP server. In both cases, DHCP functionality is necessary
if you want to automatically assign IP addresses to subscribers.



1. Enter c (configuration) at the AG Menu.

The Configuration menu appears.

2. Enter dh (dhcp).



The AG-2000w’s adaptive configuration technology provides Dynamic
Address Translation (DAT) functionality. DAT is automatically
configured to facilitate “plug-and-play” access to subscribers who are
misconfigured with static (permanent) IP addresses, or subscribers that
do not have DHCP capability on their computers. DAT allows all users
to obtain network access, regardless of their computer’s network
settings.

By default, the AG-2000w is configured to act as its own DHCP server
and the relay feature is “disabled..”. Please verify that your DHCP
Server supports DHCP packets before enabling the relay. Not all
devices containing DHCP servers (for example, routers) support DHCP
Relay functionality.

Installing the AG-2000w 53

NOMADIX AG-2000W™ / AG-2000WA™



When assigning a DHCP Relay Agent IP address for the DHCP Relay,
ensure that the IP address you use does not conflict with devices on the
network side of the AG-2000w.



Although you cannot enable the DHCP relay and the DHCP service at
the same time, it is possible to “disable” both functions from the
Command Line Interface. In this case, a warning message informs you
that no DHCP services are available to subscribers.

3. Follow the on-screen instructions to set up your DHCP options. For example:

SAMPLE SCREEN RESPONSE

Configuration>dh

Enable/Disable IP Upsell [disabled ]:
Enable/Disable DHCP Relay [disabled ]:
Enable/Disable DHCP Server [enabled ]:
Enter external Subnet-based DHCP Service [disabled ]:

IP Upsell Disabled
DHCP Relay Disabled
External DHCP Server IP 0.0.0.0
DHCP Relay Agent IP 0.0.0.0
DHCP Server Enabled
DHCP Server Subnet-based Disabled

Server-IP Server-Netmask Start-IP End-IP Lease Type IPUp

208.11.0.4 255.255.0.0 208.11.0.5 208.11.0.7 20 PRIV NO

10.0.0.4 255.255.255.0 10.0.0.5 10.0.0.250 30 PRIV NO *

* Default IP Pool

DHCP IP Pools Configuration:

0 - Show IP Pools
1 - Add a new IP Pool
2 - Modify an IP Pool
3 - Remove an IP Pool
4 - Exit this menu

Select the DHCP Pool configuration mode [0]:



After setting up your DHCP options, the system must be rebooted for
your changes to take effect.

54 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Setting the DNS Options

DNS allows subscribers to enter meaningful URLs into their browsers (instead of
complicated numeric IP addresses) by automatically converting the URLs into the
correct IP addresses. You can assign a primary, secondary, or tertiary (third) DNS
server. The AG-2000w utilizes whichever server is currently available.




Use the following procedure to set the DNS configuration options.

1. Enter c (configuration) at the AG Menu.

The Configuration menu appears.

2. Enter dn (dns) at the Configuration menu.

The system displays the current domain (the default is “nomadix”).

3. Enter a valid domain name (the Internet domain that DNS requests will utilize).

4. Enter the host name (the DNS name of the AG-2000w). The host name must not

contain any spaces.

After assigning the host name, the system requests IP addresses for the primary,
secondary, and tertiary DNS servers (the default for the DNS primary address is

0.0.0.2).



If the DHCP Client is enabled, you must configure DNS.

You must configure DNS if you want to enter meaningful URLs instead
of numeric IP addresses into any of the AG-2000w’s configuration
screens.

The secondary and tertiary DNS servers are only utilized if the primary
DNS server is unavailable.

5. Enter the IP addresses for the DNS servers (located at the customer’s network

operating center where DNS requests are sent).

Installing the AG-2000w 55

NOMADIX AG-2000W™ / AG-2000WA™

6. You must now reboot the system for your settings to take effect. Enter y (yes) to

reboot the AG-2000w.

SAMPLE SCREEN RESPONSE

Configuration>dn

Enter domain [domainname ]: newdomainname
Enter host name <no spaces> [dnshostname ]: newhostname
Enter primary DNS [0.0.0.2 ]: 20.21.22.23
Enter secondary DNS [0.0.0.0 ]: 21.22.23.24
Enter tertiary DNS [0.0.0.0 ]: 22.23.24.25

The system must be reset to function properly. Reboot? [yes/no]: y

Domain newdomainname
Host Name newhostname
Primary DNS 20.21.22.23
Secondary DNS 21.22.23.24
Tertiary DNS 22.23.24.25
Rebooting ...

The DNS options have been established. DNS will now convert subscriber
browser URLs into the correct IP addresses automatically.

Archiving Your Configuration Settings

Once you have installed your AG-2000w and established the configuration settings,
you should write the settings to an archive file. If you ever experience problems with
the system, your archived settings can be restored at any time.

Refer to the following procedures:

 “Exporting Configuration Settings to the Archive File {Export}” on

page 155.

 “Importing Configuration Settings from the Archive File {Import}” on

page 158.

56 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

Installing the Nomadix Private MIB

The Nomadix Private MIB is supplied on the “Accessories” CD-ROM, delivered with
your AG-2000w. After importing the nomadix.mib file from the CD-ROM you will be
able to view and manage SNMP objects on your AG-2000w.

Procedure

1. Import the nomadix.mib file into your SNMP client manager.

2. Connect to the AG-2000w from a node on the network that is accessible via the

AG-2000w’s network port. Be sure to enable the SNMP daemon on the AG­2000w (available on the CLI or Web Management Interface, under the
Configuration menu –

3. All variables defined by Nomadix start with the following prefix:

iso.org.dod.internet.private.enterprises.nomadix

4. You should now be able to define queries and set the SNMP values on your AG-

2000w. If necessary, consult this User’s Guide or your SNMP client manager’s
documentation for further details.

snmp).



We recommend that you change the predefined community strings in
order to maintain a secure environment for your AG-2000w.

Installing the AG-2000w 57

Notes

Use this page for your notes.

NOMADIX AG-2000W™ / AG-2000WA™

58 Installing the AG-2000w

NOMADIX AG-2000W™ / AG-2000WA™

System Administration

This chapter provides all the instructions and procedures necessary for system
administrators to manage the AG-2000w on the customer’s network (after a
successful installation).

The system administration procedures in this chapter are organized as they are listed
under their respective Web Management Interface (WMI) menus (Configuration,
Network Info, Subscriber Administration, Subscriber Interface, and System).

2



Now that the AG-2000w has been installed and configured successfully,
this User’s Guide moves away from the Command Line Interface (CLI)
and documents the AG-2000w from the Web Management Interface
(WMI) viewpoint.

Enabling Wireless Connectivity

The AG-2000w operates seamlessly and simultaneously in the 2.4 GHz frequency
spectrum supporting the 802.11b and the faster (up to 54 Mbps) 802.11g wireless
standards, while the AG-2000wa also operates in the 5 GHz spectrum supporting the

802.11a wireless standard at speeds up to 54 Mbps—effectively eliminating
interference by other devices that may be operating in the 2.4 GHz frequency range.

Before you can use your AG-2000w in a wireless environment, you must configure
the unit for wireless connectivity. To configure the AG-2000w using the product’s
embedded Web Management Interface, go to “Defining the Wireless Configuration

{Wireless Configuration}” on page 171.

See also:

 “Why Choose Wireless?” on page 8.
 “Offering Speed and Efficiency” on page 10.
 “Optimizing Performance” on page 10.
 “802.11x” on page 229.

System Administration 59

NOMADIX AG-2000W™ / AG-2000WA™

Choosing a Remote Connection

Once installed and configured for the customer’s network, the AG-2000w can be
managed and administered remotely with any of the following interface options:

 Embedded Web Management Server – providing a powerful and flexible

Web interface for network administrators.

 SNMP Manager – allowing remote “Windows” management using an

SNMP client manager (for example, HP OpenView). However, before you
can use SNMP to access the AG-2000w, you must set up the appropriate
SNMP communities. For more information, refer to “Managing the SNMP

Communities {SNMP}” on page 102.

 Tel ne t C l i e nt – for “character-based” administration and management, using

the Command Line Interface (CLI).



Choose an interface connection, based on your preference.

To use any of the remote connections (Web, SNMP, or Telnet), the
network interface IP address for the AG-2000w must be established
(you did this during the installation process).

Using the Web Management Interface (WMI)

The Web Management Interface (WMI) is a “graphical” version of the Command
Line Interface, comprised of HTML files. The HTML files are embedded in the AG­2000w and are dynamically linked to the system’s functional command sets. You can

access the WMI from any Web browser.



To connect to the Web Management Interface, do the following:

1. Establish a connection to the Internet.

2. Open your Web browser.

Your browser preferences or Internet options should be set to compare
loaded pages with cached pages.

3. Enter the network interface IP address of the AG-2000w (set up during the

installation process).

4. Log in as usual (supplying your user name and password).

60 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

To access any menu item from the WMI, simply click on the item you want. The
corresponding work screen then appears in the right side frame. From here you can
control the features and settings related to your selection. Although the appearance is
very different from the Command Line Interface, the information displayed to you is
basically the same. The only difference between the two interfaces is in the method
used for making selections and applying your changes (selections are checkable
boxes, and applying your changes is achieved by pressing the
Pressing the

Reset button resets the screen to its previous state (clearing all your

Submit button).

changes without applying them).

Using an SNMP Manager

Once the SNMP communities are established, you can connect to the AG-2000w via
the Internet using an SNMP client manager (for example, HP OpenView). SNMP is
the standard protocol used in the Network Management (NM) system. This system
contains two primary elements:

 Manager – The console (client) through which system administrators

perform network management functions.

 Agent – An SNMP-compliant device which stores data about itself in a

Management Information Base (MIB). The AG-2000w is an example of
such a device.

The AG-2000w contains managed objects that directly relate to its current operational
state. These objects include hardware configuration parameters and performance
statistics.

Managed objects are arranged into a virtual information database, called a
Management Information Base (MIB). SNMP enables managers and agents to
communicate with each other for the purpose of accessing these MIBs and retrieving
data. See also, “Installing the Nomadix Private MIB” on page 57.

The following example shows a (partial) SNMP screen response.

System Administration 61

NOMADIX AG-2000W™ / AG-2000WA™

Using a Telnet Client

There are many Telnet clients that you can use to connect with the AG-2000w. Using
Telnet provides a simple terminal emulation that allows you to see and interact with
the AG-2000w’s Command Line Interface.

As with any remote connection, the network interface IP address for the AG-2000w
must be established (you did this during the installation process).

Logging In

To access the AG-2000w’s Web Management Interface, use the Manager or Operator
login user name and password you defined during the installation process (refer to

“Assigning Login User Names and Passwords” on page 48).



User names and passwords are case-sensitive.

About Your Product License

Some features included in this chapter will not be available to you unless you have
purchased the appropriate product license from Nomadix. In this case, the following
statement will appear either immediately below the section heading or when the
feature is mentioned in the body text:

Your product license may not support this feature.

You can upgrade your product license at any time.

62 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Configuration Menu

Defining the AAA Services {AAA}

This procedure shows you how to set up the AAA (Authentication, Authorization,
and Accounting) service options. AAA Services are used by the AG-2000w to
authenticate, authorize, and subsequently bill subscribers for their use of the
customer’s network. The AG-2000w currently supports several AAA models which
are discussed in “Subscriber Management” on page 179.

1. From the Web Management Interface, click on Configuration, then AAA.

The Authentication, Authorization, and Accounting Settings screen appears:

More screen image ...

System Administration 63

... AAA screen image continued:

NOMADIX AG-2000W™ / AG-2000WA™

2. Enable or disable AAA Services.

If you enable AAA Services, go to Step 3, otherwise this feature is disabled and
you can exit the procedure.

3. Enable or disable the XML Interface, as required.

XML (eXtensible Markup Language) is used by the AG-2000w’s subscriber
management module for port location and user administration. Enabling the
XML interface allows the AG-2000w to accept and process XML commands
from an external source. XML commands are sent over the network to the AG­2000w. The AG-2000w parses the query string, executes the commands specified
by the string, and returns data to the system that initiated the command request.

64 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

4. If you enabled the XML Interface feature, enter the XML IP (server) address.

5. Enable or disable Print Billing Command, as required. If this feature is enabled,

you must enable the XML interface and enter the IP address for the XML
interface (Step 3 and Step 4).

6. Enable or disable the AAA Passthrough Port feature, as required.

System administrators can set the AG-2000w to pass-through HTTPS traffic, in
addition to standard port 80 traffic, without being redirected. When access to a
non-HTTPS address (for example, a Search Engine or News site) has been
requested, the subscriber is then redirected as usual.

7. If AAA passthrough is enabled, enter the corresponding port number.



8. Enable or disable the 802.1x Authentication Support feature, as required.



9. Enable or disable the Origin Server (OS) parameter encoding for Portal Page

and EWS

10. Select the authorization mode you want to use:

 Internal Web Server

 External Web Server

11. Depending on which authorization mode you choose, go to the following sub-

The p ort n umber must be di fferent than 80, 2 111 , 1111, o r 1112 .

Both AAA and RADIUS Authentication must be enabled for 802.1x
Authentication support.

feature, as required.

sections in this procedure:

 Enabling AAA Services with the Internal Web Server – The IWS is

“flashed” into the system’s memory and the subscriber’s login page is served
directly from the AG-2000w. In this mode, the login page consists of a
simple request for the subscriber’s ID (user name) and password.

 Enabling AAA Services with an External Web Server – In the EWS

mode, the AG-2000w redirects the subscriber’s login request to an external
server (transparent to the subscriber). The login page served by the EWS
reflects the “look and feel” of the solution provider’s network and presents
more login options.

System Administration 65

NOMADIX AG-2000W™ / AG-2000WA™

Enabling AAA Services with the Internal Web Server

You are here because you want to enable the AAA Services with the AG-2000w’s
Internal Web Server. The AG-2000w maintains an internal database of authorized

subscribers, based on their MAC (hardware address) and user name (if enabled). By
referring to its database record, also known as an authorization table, the AG-2000w
instantly recognizes new subscribers on the network.

You can configure the AG-2000w to handle new subscribers in various ways (see the
table on this page). With the IWS, you also have the option of enabling SSL support
(if your license includes the SSL support feature and you have the certificate files

server.pem, cakey.pem and cacert.pem on the flash).

After selecting the Internal Web Server authorization mode, you have the option of
enabling or disabling the Usernames and New Subscribers features. These features
work in conjunction with each other to determine how new subscribers are handled.
Refer to the following table:

Usernames

Disabled Enabled Allows new subscribers to enter the system

Enabled

(optional)

Enabled Disabled New subscribers are not allowed. Only

Disabled Disabled You will not use this combination unless you

1. Select the Internal Web Server.

New

Subscribers

Enabled Allows new subscribers or authentication by

System Response

without giving a user name and password.

their user name and password.

existing subscribers are allowed after
authenticating their user name and password.

want to lock out all subscribers.

66 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

2. Enable or disable the SSL Support feature, as required. If you enable SSL

Support, you must provide a valid

For more information about setting up SSL, go to “Setting Up the SSL Feature”

on page 206.

SSL support allows for the creation of an end-to-end encrypted link between the
AG-2000w and its clients by enabling the Internal Web Server (IWS) to display
pages under a secure link—important when transmitting AAA information in a
network. Adding SSL support to the AG-2000w requires service providers to
obtain digital certificates from VeriSign™ to create HTTPS pages. Instructions
for obtaining certificates are provided by Nomadix.

Certificate DNS Name.





3. If you want to designate a portal page, you must enable the Portal Page feature,

otherwise leave this feature disabled.



4. If you enabled the Portal Page feature, provide the following supporting

information:

 Portal Page URL
 Parameter Passing (enabled or disabled)

 Portal XML POST URL
 Portal XML Post Port
 Support GIS Clients (enabled or disabled—see following note)

 Block IWS Login Page (enabled or disabled)

To enable SSL Support, your AG-2000w’s flash must include the
server.pem, cakey.pem, and cacert.pem certificate files (the
“cacert.pem” file is provided with your AG-2000w). For assistance,
contact “Technical Support” on page 227.

You must reboot the AG-2000w every time you enable or disable SSL
Support.

The Portal Page IP or DNS address are added to the IP passthrough list
automatically



System Administration 67

GIS stands for Generic Interface Specification, a document written by
iPass. Enabling the Smart Client option in the AG-2000w automatically
supports all GIS compliant clients using the Internal Web Server.
Enabling “Support for GIS Clients” under the Portal Page feature
means that the AG-2000w will defer the managment of the GIS clients to
the Portal Page server.

NOMADIX AG-2000W™ / AG-2000WA™

5. Enable or disable the Usernames feature, as required (refer to table on page 66).

Some subscribers may want additional account flexibility and security for their
services (for example, if they use more than one computer and their MAC
address changes). In this case, a subscriber can define a unique user name and
password which they can use from any machine or location (without being re­charged). Subscribers who choose this option are prompted for their user name
and password whenever they try to access the Internet. Solution providers can
charge a fee for this service.

6. Enable or disable the New Subscribers feature (refer to table on page 66).



7. If you enabled New Subscribers, enable or disable the Relogin After Timeout

option.

8. You can now enable or disable the Credit Card Service. When this feature is

enabled, subscribers are prompted for their credit card information (for billing
purposes). The AG-2000w is configured to use either Authorize.net or
Chainfusion (selected from a pull-down menu). You will need to open a merchant
account with Authorize.net, Chainfusion or Datacenter (Luxembourg) before this
feature can be used.

Please contact Nomadix Technical Support for assistance. Refer to “Contact

Information” on page 227.



9. If you enabled the Credit Card Service, define which service you require
Authorize.net or Chainfusion) from the pull-down menu.

(

New Subscribers must be enabled before enabling the Credit Card
Service.

All data communications between the AG-2000w and the credit card
server are encrypted by the SSL (Secure Sockets Layer) protocol. The
AG-2000w never “sees” subscriber credit card numbers. Your product
license key must support this feature.



10. If the Credit Card Service is enabled, enter the information for the following

fields:

68 System Administration

DNS must be configured if you want to enter meaningful URLs instead
of numeric IP addresses into any of the AG-2000w’s configuration
screens (for example, the Credit Card Server URL in the following step).

 Credit Card Server URL
 Credit Card Server IP
 Merchant ID (a valid ID issued by the credit card reconciliation service

provider – Authorize.net or Chainfusion).

NOMADIX AG-2000W™ / AG-2000WA™

11. Enable or disable the SIM Compliant feature, as required. With this feature

enabled, you can change the transaction key at your discretion. To change the
transaction key, simply enter the key in the
re-enter the key in the

Verify Transaction Key box.

Change Transaction Key box, then



12. Enable or disable Smart Client Support, as required (if enabled, your license key

must support this feature).

13. You can assign a session idle timeout parameter for subscribers (see following

note). To assign an idle timeout, simply enter a numeric value (in seconds) in the

Subscriber Idle Timeout box (the default is 1200).



14. If you enabled or disabled SSL Support on this screen, you must click the check

box for Reboot after changes are saved? (the AG-2000w must be rebooted
every time the SSL Support feature is enabled or disabled).

15. Click on the Submit button to save your changes, or click on the Reset button if

you want to reset all the values to their previous state.

Enabling AAA Services with an External Web Server

You are here because you want to enable the AAA Services with an External Web
Server (EWS). In the EWS mode, the AG-2000w redirects the subscriber’s login

request to an external server.

The SIM Compliant option refers to Authorize.net's Simple Integration
Method.

Subscriber Idle Timeout does not apply to RADIUS subscribers.

1. Select the External Web Server.

After enabling the External Web Server you must enter a Secret Key. The Secret
Key ensures that the response the AG-2000w gets from the EWS is valid.

2. Enter the Secret Key (The AG-2000w and the external authorization server must

use the same secret key).



3. Enter the IP Address for the External Web Server.

4. Enter a valid External login page URL.

System Administration 69

DNS must be configured if you want to enter meaningful URLs instead
of numeric IP addresses into any of the product’s configuration screens
(for example, the External login page URL in the following step).

NOMADIX AG-2000W™ / AG-2000WA™

5. You can assign a session idle timeout parameter for subscribers (see following

note). To assign an idle timeout, simply enter a numeric value (in seconds) in the

Subscriber Idle Timeout box (the default is 1200).



6. Click on the Submit button to save your changes, or click on the Reset button if

you want to reset all the values to their previous state (making changes to the
EWS settings does not require a system reboot).

Subscriber Idle Timeout does not apply to RADIUS subscribers.

70 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Establishing Secure Administration {Access Control}

The AG-2000w allows you to block administrator access to interfaces (Telnet, WMI
and FTP) and incorporates a master access control list that checks the source (IP
address) of administrator logins. A login is permitted only to the interfaces that have
not been blocked, and only if a match is made with the master “Source IP” list
contained on the AG-2000w. If a match is not made with the “Source IP list,” the
login is denied, even if a correct login name and password are supplied. The access
control list for source IPs supports up to 50 (fifty) entries in the form of a specific IP
address or range of IP addresses.

This procedure allows you to enable the “Access Control” feature and block
administrator access to specific interfaces, and add or remove administrator “Source
IP” addresses.

1. From the Web Management Interface, click on Configuration, then Access

Control.

The Access Control screen appears:

2. Enable or disable administrator access to any of the following interfaces:

 Telnet
 Web Management
 FTP

System Administration 71

NOMADIX AG-2000W™ / AG-2000WA™





3. Click the check box for Access Control if you want to enable this feature, then

click on the

If you enabled Access Control, administrator access is restricted only to the IP
addresses shown under the “Currently Access is Permitted for IPs” listing. If you
want to add to or remove IP addresses from the list, go to Step 4 through Step 8.



4. To add an IP address (or range of IP addresses) to the list, enter the “starting” IP

address in the

5. If you are adding a range of IP addresses to the access control list, you must now

enter the “ending” IP address in the Access Control End IP field. If you are
adding a single IP address, enter

Blocking or unblocking interface access will terminate the current
session.

Do not enable the blocking of all interfaces without setting up and
enabling SNMP. Enabling the blocking of all interfaces and disabling
SNMP will completely block access to the AG-2000w administration
interface. For assistance, contact Nomadix Technical Support.

Submit button to save your change.

The Access Control list can contain up to 50 (fifty) valid administrator
IP addresses or up to 50 (fifty) ranges of IP addresses.

Access Control Start IP field.

None in the Access Control End IP field.

6. Click on the Add button to add the IP address (or range of IP addresses) to the

list.

7. To remove an IP address (or range of IP addresses) from the list, enter the

“starting” IP address in the

If you are removing a range of IP addresses from the access control list, you must
now enter the “ending” IP address in the
removing a single IP address, enter

8. Click on the Remove button to remove the IP address (or range of IP addresses)

from the list.



72 System Administration

If you enabled Access Control and have “locked yourself out,” of the
system (for example, because you’ve forgotten your password), you
must disable the Access Control feature from the Command Line
Interface, or change the range of allowed IP addresses to access the
management interfaces. If necessary, contact Nomadix Technical
Support. Go to “Contact Information” on page 227.

Access Control Start IP field.

Access Control End IP field. If you are

None in the Access Control End IP field.

NOMADIX AG-2000W™ / AG-2000WA™

Defining Automatic Configuration Settings {Auto Configuration}

The AG-2000w allows you to define parameters to enable the automatic
configuration of the system. See also: “RADIUS-driven Auto Configuration” on

page 23.

1. From the Web Management Interface, click on Configuration, then Auto

Configuration.

The Autoconfiguration Settings screen appears:

2. Enable or disable Autoconfiguration, as required.

3. If you enabled Autoconfiguration, you must enter the following information into

the corresponding fields:

 RADIUS Authentication Name
 Radius Password
 Confirm Password

Click on the check box for Reboot after changes are saved? to reboot the

4.

system when you submit your changes.

5. Click on the Submit button to save your changes, or click or the Reset button to

reset all data to its previous state.

System Administration 73

NOMADIX AG-2000W™ / AG-2000WA™

Enabling Auto Configuration

As shown in the diagram below, two subsequent events drive the automatic
configuration of Nomadix devices:

1. A flow of RADIUS Authentication Request and Reply messages between

the Nomadix gateway and the centralized RADIUS server that specifies the
location of the meta configuration file (containing a listing of the individual
configuration files and their download frequency status) are downloaded
from an FTP server into the flash of the Nomadix device.

2. Defines the automated login into the centralized FTP server and the actual

download process into the flash.

Step 1: RADIUS Authen Req/
Response message to
determine location of meta
configuration file

Step 2: FTP download of
configuration files (secure)

The Auto-Configuration setup requires a few basic steps to be completed by both the
field engineer and the NOC administrator.

Administrative Steps to Enable Auto-Config

Typically, these tasks are performed either at a device pre-staging center or by the
field engineer.

1. Establish a WAN connection and electronically accept the EULA.

2. Setup RADIUS Server parameters (go to “Defining the RADIUS Client

Settings {RADIUS Client}” on page 92).

3. Setup Username and Password for RADIUS Authentication.

74 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Administrative Steps to Enable Auto-Config for the NOC Administrator

1. Add NAS IP address.

2. Add Nomadix Auto-Config VSA to the Nomadix dictionary file on the

RADIUS server.

3. Create a RADIUS profile with the configuration VSA.

4. Create an FTP server with the configuration files.

The following diagram shows a sample RADIUS configuration file, meta file and
illustration of the FTP server setup.

The Nomadix device will automatically initiate one reboot to enable the new settings.
Configuration updates for network maintenance can be accomplished by simply
enabling the Auto-Configuration option and rebooting the device (for example, using
SNMP). See also, “Defining Automatic Configuration Settings {Auto

Configuration}” on page 73.

System Administration 75

NOMADIX AG-2000W™ / AG-2000WA™

Setting Up Bandwidth Management {Bandwidth Management}

The AG-2000w allows system administrators to manage the bandwidth for
subscribers, defined in Kbps (Kilobits per seconds) for both upstream and
downstream data transmissions. With the ICC feature enabled, subscribers can
increase or decrease their own bandwidth dynamically (by the minute, or on an
hourly, daily, weekly, or monthly basis), and also adjust the pricing plan for their
service.

1. From the Web Management Interface, click on Configuration, then Bandwidth

Management.

The Bandwidth Management screen appears:

2. If required, click the check box for Bandwidth Management Enabled.

3. If you enabled Bandwidth Management, enter the uplink and downlink speeds (in

Kbps) in the appropriate fields.



4. If you made any changes to the settings on this screen, you must click the check

box for Reboot after changes are saved? (the AG-2000w must be rebooted).

5. Click on the Submit button to save your changes and reboot the system, or click

on the

76 System Administration

Setting the uplink or downlink speeds to anything greater than 100,000
Kbps is meaningless, because communication with the AG-2000w is
established at 100 Mbps (100,000 Kbps).

Reset button if you want to reset all the values to their previous state.

NOMADIX AG-2000W™ / AG-2000WA™

Establishing Billing Records “Mirroring” {Bill Record Mirroring}



The AG-2000w can send copies of credit card transaction billing records to external
servers that have been previously defined by system administrators. The AG-2000w
assumes control of billing transmissions and saving billing records. By “mirroring”
the billing data, the AG-2000w can also send copies of billing records to predefined
“carbon copy” servers. Additionally, if the primary and secondary servers are down,
the AG-2000w can store up to 2,000 credit card transaction records. When a
connection is re-established (with either server), the AG-2000w sends the stored
information to the server—no records are lost!

For more information about the bill record mirroring feature, go to “Mirroring Billing

Records” on page 219.

1. From the Web Management Interface, click on Configuration, then Bill Record

Mirroring

The Credit Card Mirroring Settings screen appears:

The Bill Record Mirroring feature contained in the Credit Card and
Hospitality optional modules is optional. Your product license may not
support this feature.

.

System Administration 77

NOMADIX AG-2000W™ / AG-2000WA™

2. If you want to enable the billing records “mirroring” functionality for credit card

transactions (and you have purchased the appropriate product license), click on
the check box for

3. Enter the property identification code in the Property ID field.

4. Enter the communication parameters for the primary server that is to be used for

Enable CC Mirroring.

mirroring, including:

 Primary IP
 URL

 Secret Key



5.

Repeat Step 4 for the secondary server (if any) and all carbon copy servers.

6. Define the “fail-safe” provisions, including:

The AG-2000w and the “mirror” servers must use the same secret key.

 Retransmit Method – Alternate, or do not alternate.
 Number of Retransmit Attempts – This tells the system how many

times it should attempt to retransmit billing records before suspending
the task.

 Retransmit Delay – This specifies the time delay between each

retransmission.

7. Click on the Submit button to save your changes, or click on the Reset button if

you want to reset all the values to their previous state.

78 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Managing the DHCP Service Options {DHCP}

When a device connects to the network, the DHCP server assigns it a “dynamic” IP
address for the duration of the session. Most users have DHCP capability on their
computer. To enable this service on the AG-2000w, you can either enable the DHCP
relay (routed to an external DHCP server IP address), or you can enable the AG­2000w to act as its own DHCP server. In both cases, DHCP functionality is necessary
if you want to automatically assign IP addresses to subscribers.

1. From the Web Management Interface, click on Configuration, then DHCP.

The DHCP Settings screen appears:



System Administration 79

Nomadix’ patented Dynamic Address Translation (DAT) functionality is
automatically configured to facilitate “plug-and-play” access to
subscribers who are misconfigured with static (permanent) IP
addresses, or subscribers that do not have DHCP capability on their
computers. DAT allows all users to obtain network access, regardless of
their computer’s network settings.

NOMADIX AG-2000W™ / AG-2000WA™

2. DHCP Services is enabled by default. Do not disable it unless you want to lose

all your DHCP services.



3. To route DHCP through an external server, enable the DHCP Relay.

4. If you enabled the DHCP Relay feature, you must assign a valid DHCP Server IP

address (the default is 0.0.0.0) and a valid

The DHCP Relay Agent allows the AG-2000w to request a specific range of IP
addresses from different IP pools from the DHCP Server. Leaving these fields
blank forces the system to use the IP pool that contains IP addresses that are on
the same subnet as the AG-2000w.





5. If you want the AG-2000w to act as its own DHCP Server (you did not enable

the DHCP Relay), enable it now.

6. If required, enable the IP Upsell feature.

By default, the AG-2000w is configured to act as its own DHCP server
and the relay feature is “disabled.” If you want the AG-2000w to act as
its own DHCP server, do not enable the relay. Go directly to Step 8.

DHCP Relay Agent IP address.

You must disable the DHCP server before enabling the DHCP relay.
Both features cannot be enabled concurrently.

If the DHCP Relay Agent IP address is set for an address that is already
used or the IP address of the server, the other system will get an IP
conflict and will not have Internet access.

System administrators can set two different DHCP pools for the same physical
LAN. When DHCP subscribers select a service plan with a public pool address,
the AG-2000w associates their MAC address with their public IP address for the
duration of the service level agreement. The opposite is true if they select a plan
with a private pool address. This feature enables a competitive solution and is an
instant revenue generator for ISPs. The IP Upsell functionality solves a number
of connectivity problems, especially with regard to L2TP and certain video
conferencing and online gaming applications.

80 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

7. If you want to add a new DHCP Pool, click on the Add button.

The Add DHCP Pools screen appears:

8. Enter a valid DHCP Server IP address for the DHCP server.

9. Enter the DHCP Server Netmask.

10. Enter the starting and ending IP addresses for the DHCP address pool you want

to use:

 DHCP Pool Start IP
 DHCP Pool Stop IP

Enter the DHCP Lease Minutes.

11.

System Administration 81

NOMADIX AG-2000W™ / AG-2000WA™

12. Select Public Pool or Private Pool, as required.



13. If required, make this an IP Upsell Pool and/or the Default Pool by checking the

appropriate boxes.



14. When finished establishing your DHCP Pools, click on the Back to Main DHCP

Configuration Page

15. You must now reboot the system for the new settings to take effect. Click the

check box for
button to save your changes and reboot the system, or click on the Reset button if
you want to reset all the values to their previous state.

When the system restarts, DHCP is enabled and configured. Skip the remaining
steps in this procedure and go to “Managing the DNS Options {DNS}” on

page 83.

16. The existing lease pool and lease table are deleted and the AG-2000w reboots.

The AG-2000w can issue IP addresses to any DHCP enabled subscriber who
enters the network.

A “public” IP address will not be translated by DAT.

Do not allow pools to overlap.

to return to the previous page.

Reboot after changes are saved? then click on the Submit

82 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Managing the DNS Options {DNS}

DNS allows subscribers to enter meaningful URLs into their browsers (instead of
complicated numeric IP addresses) by automatically converting the URLs into the
correct IP addresses. You can assign a primary, secondary, or tertiary (third) DNS
server. The AG-2000w utilizes whichever server is currently available.

Use the following procedure to set the DNS configuration options.

1. From the Web Management Interface, click on Configuration, then DNS.

The Domain Name System (DNS) Settings screen appears:

2. Enter the Host Name (the DNS name of the AG-2000w).



3. Enter a valid Domain name (the Internet domain that DNS requests will utilize).

System Administration 83

The host name must not contain any spaces.

NOMADIX AG-2000W™ / AG-2000WA™

4. Enter the IP addresses for the DNS servers (located at the customer’s network

operating center where DNS requests are sent). Servers include:

 Primary DNS Server
 Secondary DNS Server
 Tertiary DNS Sever



5. When finished, you must reboot the system for the new settings to take effect.

Click on the check box for

The secondary and tertiary DNS servers are only utilized if the primary
DNS server is unavailable.

Reboot after changes are saved? to reboot the

system after saving your changes.

6. Click on the Submit button to save your changes and reboot the system, or click

on the

Reset button if you want to reset all the values to their previous state.

84 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Setting the Home Page Redirection Options {Home Page Redirect}

This procedure shows you how to redirect the subscriber’s browser to a specified
home page. Subscribers may also be redirected to a page specified by the solution
provider, without any interaction with the credit card authentication process.



1. From the Web Management Interface, click on Configuration, then Home Page

Redirect.

The Home Page Redirection Settings screen appears:

2. Click on the check box for Home Page Redirection to enable this feature.

You must configure DNS if you want to enter meaningful URLs instead
of numeric IP addresses into any of the AG-2000w’s configuration
screens.

If you enable home page redirection, you must provide a URL for the redirected
home page.

3. Enter the URL of the redirected home page in the Home Page URL field.

4. If required, click on the check box for Parameter Passing.

Parameter passing allows the AG-2000w to track a subscriber’s initial Web
request (usually their home page) and pass the information on to the solution
provider. The solution provider uses this information to ensure that the subscriber
can return to their home page easily.

5. In the Redirection Frequency field, specify the frequency (in minutes) for home

page redirection. This is the interval at which the subscriber is redirected to the
solution provider’s home page automatically.

6. Click on the Submit button to save your changes, or click on the Reset button if

you want to reset all the values to their previous state.

System Administration 85

NOMADIX AG-2000W™ / AG-2000WA™

Enabling Intelligent Address Translation (iNAT)

Our patent-pending iNAT™ feature contains an advanced, real-time translation
engine that analyzes all data packets being communicated between the private and
public address domains. The Nomadix iNAT engine performs a defined mode of
network address translation based on packet type and protocol (for example, GRE,
IKE etc…).

1. From the Web Management Interface, click on Configuration, then iNAT.

The iNAT screen appears:

2. Enable of disable the iNAT feature, as required.

3. If you enabled iNAT, you have the option of enabling or disabling the following

VPN protocols:

 PPTP
 IPSEC

86 System Administration

NOMADIX AG-2000W™ / AG-2000WA™



At the time of this writing, Session Rate Limiting (SRL) appears in the
iNAT menu. However, the Session Rate Limiting feature will have its
own dedicated menu item. If the iNAT screen does not display the SRL
feature, skip Step 4 and Step 5 and refer to “Establishing Session Rate

Limiting {Session Limit}” on page 166.

4. Click on the check box for Session Rate Limiting to enable (or disable) this

feature, as required.

5. Enter values for the following session “limiting” parameters:

 Mean Rate
 Burst Size
 Time Interval (in seconds)

6. Click on the Submit button to save your options.

Use the

iNAT Start and iNAT End fields to enter an IP address or range of IP

addresses (up to 50), then click on the Add button to add the IP address(es), or
click on the

Remove button to delete the IP address(es) from the database.

System Administration 87

NOMADIX AG-2000W™ / AG-2000WA™

Establishing Your Location {Location}

This command sets up your location and the corresponding IP addresses for the
network interface, subnet, and default gateway. You *must* provide your full location
information.

1. From the Web Management Interface, click on Configuration, then Location.

The Location Settings screen appears:

2. Enter your location information in the following fields:

 Company Name
 Address (Line 1 and Line 2)

 City, State, Zip, and Country

 E-mail Address

88 System Administration

NOMADIX AG-2000W™ / AG-2000WA™





3. Enable or disable the DHCP Client, as required. If you are using a DHCP Client,

you can skip Step 4 through Step 6.

4. Enter a valid IP address in the Network IP Address field.

The Network IP Address is the public IP address that allows administrators to see
the AG-2000w on the network. Use this address when you need to make a
network connection with the AG-2000w.



5. Enter a valid IP address in the Subnet Mask field.

You must reboot the system if you make changes to any of the following
IP settings.

You may lose your connection if you change the IP settings incorrectly
(using invalid IP addresses). If you “misconfigure” the AG-2000w and
network connectivity is lost, you can still access the AG-2000w from the
Admin IP address (172.30.30.172).

All IP addresses must be established, otherwise the AG-2000w will not
be “visible” on the network.

The subnet mask defines the number of IP addresses that are available on the
routed subnet where the AG-2000w is located.

6. Enter a valid default gateway IP address in the Default Gateway field.

The default gateway is the IP address of the router that the AG-2000w uses to
transmit data to the Internet.

7. When finished, you must reboot the system for the new settings to take effect.

Click on the check box for
system after saving your changes.

8. Click on the Submit button to save your changes and reboot the system, or click

on the

Reset button if you want to reset all the values to their previous state.

Reboot after changes are saved? to reboot the

System Administration 89

NOMADIX AG-2000W™ / AG-2000WA™

Managing the System and Billing Log Options {Logging}

System logging creates log files and error messages generated at the system level.
AAA logging creates activity log files for the AAA (Authorization, Authentication,
and Accounting) functions. You can enable either of these options.



1. From the Web Management Interface, click on Configuration, then Logging.

The Log Settings screen appears:

Although the AAA and billing logs can go to the same server, we
recommend that they have their own unique server ID number assigned
(between 0 and 7). When managing multiple properties, the properties
are identified in the log files by their IP addresses.

2. If required, click on the check box for System Log to enable system logging.

When system logging is enabled, the standard SYSLOG protocol (UDP) is used
to send all message logs generated by the AG-2000w to the specified SYSLOG
server.

3. Enter a unique number (between 0 and 7) in the System Log Number field. This

ID number is assigned to the System Log Server.

4. Enter a valid IP address in the System Log Server IP field.

5. If required, repeat Steps 2 through 4 for the AAA Log feature.

6. Click on the Submit button to save your changes, or click on the Reset button if

you want to reset all the values to their previous state.

When logging is enabled, log files and error messages are sent to these servers
for future retrieval. To see sample reports, go to “Sample SYSLOG Report” on

page 198 and “Sample AAA Log” on page 197.

90 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Assigning Passthrough Addresses (Passthrough Addresses)

The AG-2000w allows up to 52 IP passthrough addresses and DNS names. This
feature allows users to “pass through” the AG-2000w and access predetermined
services (for example, the redirected home page) at the solution provider’s discretion,
even though they may not have subscribed to the broadband Internet service. This is
useful if solution providers want to openly promote selected services to all users, even
if they are not currently subscribing (paying) for access.



1. From the Web Management Interface, click on Configuration, then

Passthrough Addresses.

The Passthrough Address Settings screen appears:

The AG-2000w is supplied with “Hotmail®” as a default passthrough
setting.

2. If required, enable Passthrough Addresses, then click on the Submit button.

3. In the IP/DNS Name field, enter the IP address or DNS name of the pass-through

you want to add or remove from the system.



4. If adding this pass-through, click on the Add button, otherwise click on Remove

to delete this pass-through from the list.

System Administration 91

The system only accepts route DNS names (for example,
www.nomadix.com). Do not include protocol, port, or path information.

NOMADIX AG-2000W™ / AG-2000WA™

Defining the RADIUS Client Settings {RADIUS Client}

The AG-2000w supports Remote Authentication Dial-In User Service (RADIUS).
RADIUS is an authentication and accounting system used by many Internet Service

Providers.



Nomadix offers an integrated RADIUS client, allowing service providers to track or
bill users based on the number of connections, location of the connection, bytes sent
and received, connect time, etc. The customer database can exist in a central RADIUS
server, along with associated attributes for each user. When a customer connects into
the network, the RADIUS client authenticates the customer with the RADIUS server,
applies associated attributes stored in that customer's profile, and logs their activity
(including bytes transferred, connect time, etc.).

The AG-2000w's RADIUS implementation also handles vendor specific attributes
(VSAs), required by WISPs that want to enable more advanced services and billing
schemes, such as a per device/per month connectivity fee.

The “Usernames” function must be enabled for a RADIUS login. See
also, “Defining the AAA Services {AAA}” on page 63.

92 System Administration

All subscribers attempting to gain access to the
network are validated by RADIUS.

NOMADIX AG-2000W™ / AG-2000WA™

For additional RADIUS information, see also:

 “Defining the RADIUS Routing Settings {RADIUS Routing}” on page 95.
 “RADIUS Attributes” on page 200.

1. From the Web Management Interface, click on Configuration, then RADIUS

Client.

The RADIUS Client Settings screen appears:

2. Under the Server Selection options, choose the Routing Mode:

 Disabled (to disable RADIUS authentication)
 Realm-Based (for Realm routing)
 Fixed (for routing to predefined RADIUS servers)

System Administration 93

NOMADIX AG-2000W™ / AG-2000WA™

3. Select the Default RADIUS Service Profile from the pull-down menu.

Miscellaneous Options

4. In the “Miscellaneous Options” category, enter a value for the time (in seconds)

in the

Default User Idle Timeout field. This value determines how much “idle”

time elapses before the subscriber’s session times out and they must login again.

5. The AG-2000w can reauthenticate “repeat” subscribers who return to the system

within 720 hours. To enable this feature, click on the check box for

Automatic Subscriber Reauthentication

6. If you want to enable the URL redirection feature, click on the check box for

Enable URL Redirection.

7. For a Network Access Server (NAS), if you want to send a NAS identifier with

your account access request, click on the check box for
then define the NAS identifier in the

8. To send the NAS IP address with your account request, click on the check box for

Send NAS IP.

9. To send a NAS port type with your account request, click on the check box for

Send NAS Port type, then define the NAS port in the NAS Port Type field.

.

Send NAS identifier,

NAS identifier field.

Enable

10. To send the Framed IP address with your account request, click on the check box

for

Send Framed IP.

11. If required, check the box for Enable Session-Terminate-End-Of-Day When

Authorized

(to allow business policies that want to terminate the session at

midnight of every day).

12. If required, check the box for Enable Byte Count Reset On Account Start (to

reset the transmitted and received byte count for a subscriber once an
“accounting start” is sent). This function prevents counting Walled Garden traffic
if the billing plan is using bytes sent/received as a charge criterion.

13. If required, check the box for Enable Goodbye URL (if you want the system to

display a post session “goodbye” page). The “goodbye” page can be defined as a
RADIUS VSA or be driven by the AG-2000w’s Internal Web Server (IWS).

14. If required, check the box for Enable WAN 802.1q Attribute. To enable the

default 802.1q tag, click on the check box for

System Traffic



15. Click on the Submit button to save your changes, or click on the Reset button if

Changing the default tag number may result in a loss of connectivity.

and, if necessary, enter the tag number (see caution).

Enable Default 802.1q Tag for

you want to reset all the values to their previous state.

94 System Administration

NOMADIX AG-2000W™ / AG-2000WA™

Defining the RADIUS Routing Settings {RADIUS Routing}

Use this procedure when setting up RADIUS Service Profiles (up to 10) and Realm­based Routing Policies (up to 50).

For additional RADIUS information, see also:

 “Defining the RADIUS Client Settings {RADIUS Client}” on page 92.
 “RADIUS Attributes” on page 200.

1. From the Web Management Interface, click on Configuration, then RADIUS

Routing.

The RADIUS Routing Settings screen appears:

System Administration 95

NOMADIX AG-2000W™ / AG-2000WA™

Adding a RADIUS Service Profile

2. To add a RADIUS Service Profile, click on the appropriate Add button.

The Add RADIUS Service Profile screen appears:

3. Enter a name of your choice for this service profile in the Unique Name field.

Authentication

This category requires input for enabling RADIUS authentication and requires you to
define IP addresses, ports, and secret keys for the primary and secondary RADIUS
servers (the secondary server is optional).

4. Enable or disable the RADIUS Authentication Service, as required, by clicking

on the

5. If you enabled the RADIUS Authentication Service, enter the primary RADIUS

Enable RADIUS Authentication Service check box.

authentication server IP address in the

96 System Administration

Primary IP field.
