Nolangroup S p A NCOM10 Users manual

EN

USER INSTRUCTIONS AND SAFETY

Firmware Version: 1.00

Congratulations on your purchase of an N-Com product.

N-Com BX5 was made using the most advanced technologies and the best
materials. Long-running tests and thorough system development have allowed the
highest audio quality to be achieved.

For additional information about BX5, and to download high-definition instructions
as well as the latest

Firmware

version, visit the website www.n-com.it

REFERENCE STANDARDS

The products of the N-Com line are in compliance with standards as per the table
below:

The Bluetooth system complies with the main safety requirements

BX5

and other applicable provisions of Directive 99/5/CE, Directive
2002/95/CE, Directive 2011/65/CE, Directive 2002/96/CE

Battery
charger

Directive 2006/95, 2004/108, 2002/95/CE, 2011/65/CE, 2002/96/CE,
2009/125/CE

Battery Directive 2006/66
The Declarations of Compliance can be downloaded from the website www.n­com.it (Download section).

FccID: XXXXX

XXXXX

Bluetooth is a registered trademark property of Bluetooth SIG, Inc

Contents

1. WARNINGS AND SAFETY ................................................................................................................... 4

1.1.Road safety ................................................................................................................................................................4

1.2.Switching on the system in safe environments .........................................................................................4

1.3.Interferences..............................................................................................................................................................4

1.4.Appropriate use .......................................................................................................................................................4

1.5.Qualified personnel ................................................................................................................................................5

1.6.Accessories and batteries.................................................................................................................................... 5

1.7. Disposal .....................................................................................................................................................................6

2. CONTENT OF THE PACKAGING ........................................................................................................ 7

3. INSTALLATION ...................................................................................................................................... 8

3.1.Preliminary operations – Jet helmets or Flip-up helmets .....................................................................8

3.2.Preliminary operations – Full-face helmets ................................................................................................. 8

3.3.Installing the microphone – jet helmets or flip-up helmets ..............................................................10

3.4.Installing the microphone – full-face helmets .........................................................................................10

3.5.Installing the battery and the right-hand side speaker .......................................................................11

3.6.Positioning the e-box ..........................................................................................................................................12

3.7.Installing the adhesive keyboard ...................................................................................................................13

4. REMOVING THE SYSTEM.................................................................................................................. 15

5. BASIC FUNCTIONS ............................................................................................................................. 16

5.1.N-Com Wizard and N-Com App....................................................................................................................16

5.1.Pairing up with Bluetooth devices.................................................................................................................16

6. MOBILE PHONE ..................................................................................................................................17

6.1.Friend Number .......................................................................................................................................................17

6.2.Managing two mobile phones (or Bluetooth devices).........................................................................17

7. MUSIC VIA BLUETOOTH – A2DP BLUETOOTH PROTOCOLL .................................................... 18

8. MUSIC VIA CABLE ..............................................................................................................................18

9. SATELLITE NAVIGATOR FOR MOTORCYCLES ..............................................................................18

9.1.Navigators on Smartphone (Smart Navi System)...................................................................................19

10. FM RADIO ............................................................................................................................................19

11. AUTO ON / OFF FUNCTION............................................................................................................. 19

12. RIDER-PASSENGER INTERCOM....................................................................................................... 19

12.1.Rider-Passenger intercom pairing up .......................................................................................................19

12.2.Rider-Passenger intercom function............................................................................................................19

13. BIKE TO BIKE INTERCOM ..................................................................................................................20

13.1.Bike-to-Bike Intercom Affiliation (Standard configuration) ............................................................20

13.2.Bike to bike intercom function .....................................................................................................................20

14. “UNIVERSAL INTERCOM” INTERCOM ............................................................................................ 21

14.1.Pairing up the UNIVERSAL INTERCOM.....................................................................................................21

14.2.UNIVERSAL INTERCOM function.................................................................................................................21

15. SETTING MODE .................................................................................................................................. 22

16. BATTERY AND RECHARGE................................................................................................................ 23

16.1.Low battery signal ..............................................................................................................................................23

16.2.Charging the system .........................................................................................................................................23

17. SCHEMA RIASSUNTIVO COMANDI – Configurazione standard ..............................................24

18. LIMITED WARRANTY ......................................................................................................................... 26

18.1.Warranty coverage.............................................................................................................................................26

18.2.Exclusions and limitations of the coverage ............................................................................................26

18.3.Validity of this limited warranty ...................................................................................................................27

18.4.Procedure for the forwarding of claims ...................................................................................................27

18.5.Product identification .......................................................................................................................................28

19. WARRANTY REGISTRATION FORM ................................................................................................29

1. WARNINGS AND SAFETY

Read this User Manual carefully, as well as the User Manuals for other N-Com kits that you will be using
with the N-Com BX5. Read the simple rules listed below. Failure to comply with these rules may lead to
dangerous situations.

Caution: The product cannot be used in official or non-official competitions, motordromes, circuits,

racing tracks and the like.

Caution: Installation of the N-Com BX5 system results in a weight increase of approximately 85g, which

is added to the weight of the helmet and of the other accessories.

Warning: The electronic components of the N-Com system mounted inside the helmet are not

waterproof. Consequently, make sure the inside of the helmet, including the comfort padding, does
not get wet in order to avoid damage to the system. If it does, remove the N-Com system and the
helmet comfort padding and let it air dry. Remove the battery from its housing and let it dry.

1.1. Road safety

Always obey all Traffic Regulations in force. While riding the motorcycle, your hands should always be
engaged in actually riding the vehicle. Any operation to the N -Com system must be carried out with the
vehicle stopped. Specifically:

 Set your cell phone on automatic answer (see the cell phone instructions to do this).
 If your cell phone is not equipped with this function, first stop your vehicle in a safe area, in

compliance with Traffic Regulations and then answer the call.

 Do not make any calls while riding. Stop your vehicle in a safe place in compliance with Traffic

Regulations, and then make the call.

 Adjust the volume so that it does not cause a disturbance or distraction while riding and at the

same time allows you to distinctively hear background noises.

 Do not operate your cell phone or other devices connected to N-Com while riding your

motorcycle.

 In all cases, obey the Traffic Regulations and remember that riding the motorcycle has absolute

priority over any other manoeuvre.

1.2. Switching on the system in safe environments

 When using the N-Com system, comply with all limitations and instructions related to the use of

cell phones.

 Do not turn on your cell phone or the N-Com system whenever their use is forbidden or when the

devices can cause interference or dangerous situations.

 Turn off while refuelling. Do not use the N-Com system in filling stations. Do not use the device

near combustible materials or chemical products.

 Turn off in proximity to explosive materials.

1.3. Interferences

Read this User Manual carefully, as well as the simple rules listed below. Failure to comply with these
rules may lead to dangerous situations.

1.4. Appropriate use

Use the device only in the normal position, as described in the product documentation. Do not attempt
to disassemble, tamper with or modify any part of the N-Com system.
4

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected

to it before you use the system on the road.

Caution: Adjusting the volume to very high levels may cause damage to your hearing.

Caution: Adjust the volume of the N-Com system (where provided) and of the audio sources connected

to it so as to avoid audio reproduction at high volumes. Constant exposure to high audio volumes
may damage your hearing.

Caution: An incorrect installation of the system in the helmet may alter the aerodynamic and safety

characteristics of the helmet itself, thus creating dangerous conditions. Install the N-Com system
according to the instructions provided in the product documentation. In case of doubt, please
contact your local N-Com dealer.

Warning: Listening to other equipment should not interfere with driving the vehicle, which must be the

top priority at all times. Carry out all operations on the electronic equipment and on the N-Com
system with the vehicle stopped, in compliance with Traffic Regulations.

Caution: The N-Com system allows reception of the FM radio signal. Any radio licence fees are to the

user’s charge.

1.5. Qualified personnel

 Only qualified personnel can carry out technical assistance on this product. In case of any

malfunction, always turn to your local dealer.

 The helmet is a safety device. Tampering with it and/or with the electronic system inside the

helmet, in addition to invalidating the product warranty, can also lead to dangerous situations.

1.6. Accessories and batteries

 Only use the type of batteries, battery chargers and accessories approved by Nolan for the specific

model.

 The use of a battery type different from the recommended one may lead to dangerous situations

and invalidate the warranty.

 Contact your local dealer to see about the availability of approved accessories.
 When disconnecting the power supply cable of any accessory or of the battery charger, always

grab and pull the plug not the cable.

 Do not use batteries for purposes other than the prescribed ones.
 Never use batteries or battery chargers that turn out to be damaged.
 Do not short-circuit the battery.
 Keep the battery at a temperature between 0° / +45°C (charging); -20° / +60 °C (in use).
 Danger of fire or explosion: do not throw the batteries into a fire nor expose them to high

temperatures!

 Do not throw out batteries together with household refuse. The batteries should be disposed of in

compliance with local regulations

 Do not wear the helmet while the battery is recharging.
 The helmet should never be left within the reach of unsupervised children in order to prevent

damage to their health caused by access to the batteries.

Battery XXXXX
Battery charger XXXXX

BX5

5

1.7. Disposal

Refer to this user manual and to manuals related to other parts of the N-Com system in order to
disassemble the system from the helmet. Once the system has been disassembled, dispose of it
according to the following instructions:

 The presence of a crossed-out wheelie bin indicates that in the European Union the

product is subject to separate collection at the end of its useful life.

 Do not dispose of these products together with undifferentiated urban waste.

 The proper disposal of obsolete equipment contributes to preventing possible negative

consequences on people’s health and on the environment.

 For more detailed information on the disposal of obsolete equipment, contact your municipality, a

waste disposal service or the store where the product was purchased.

6

2. CONTENT OF THE PACKAGING

The N-Com BX5 package contains:


BX5

e-box

USB jack wire


Rechargeable battery

Key

Adesive Keyboard

Battery charger

Adhesive strips for

cable

Multimedia Wire2

Microphone

Microphone

foam

Microphone securing

Adhesive strips for

stickers

loudspeakers

Screw Microphone securing

clip

7

3. INSTALLATION

Important: Prior to installing the N-Com system, it is recommended to write down the identification

code affixed to the product (see chapter XX).

3.1. Preliminary operations – Jet helmets or Flip-up helmets

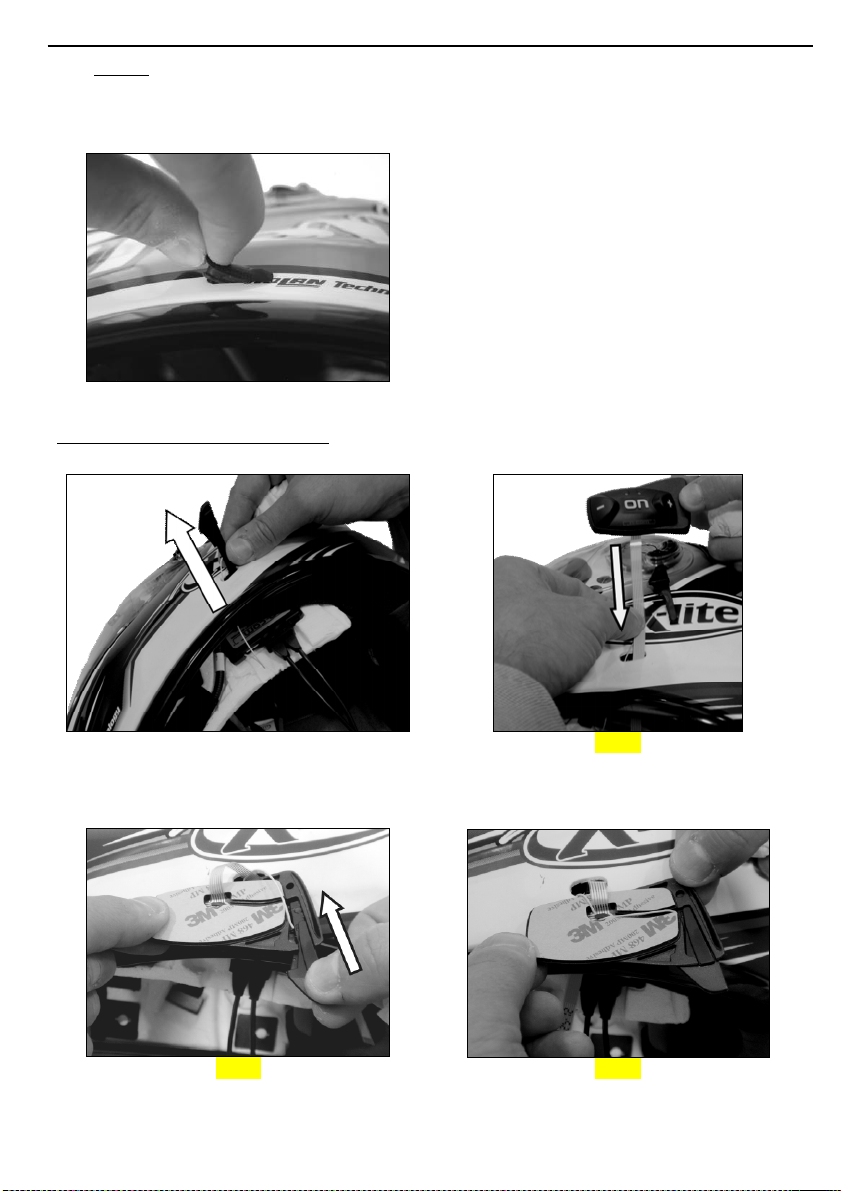

You can download the installation video from www.n-com.it X-Series Download section.

Fig. 1

Fig. 2

Fig. 3

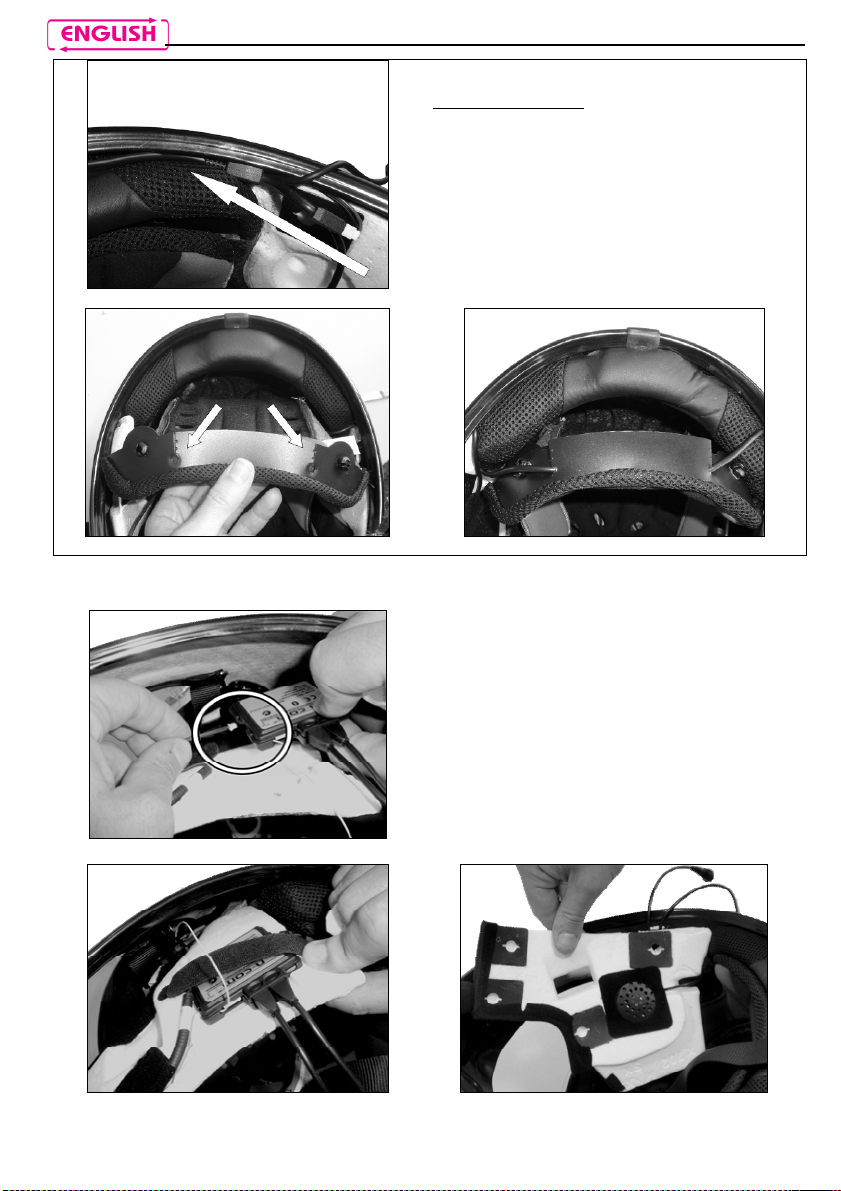

 Open the helmet chin guard (only on Flip-up helmets).
 Pull out both comfort cheek pads, left and right, from the helmet. (Fig. 1)
 Remove the noise reducers from the cheek pads (if present) and cut the insert using a pair of scissors,

following the pre-cut dots. Reposition the noise reducers in the removable cheek pads.

 Take out the rear section of the comfort padding, pulling on the neck roll until it is released from the

shell. Reposition the padding on the outside of the helmet for the time being.

 Unhook the press-stud of the polystyrene cheek pads by pulling toward the inside of the helmet (Fig.

2), then remove the cheek pad by pulling it upward.

Warning: in case the polystyrene cheek pad is damaged during this operation, please contact your local

dealer to replace it.

 Cut out the round foam insert that covers the speaker housing from the polystyrene cheek pad using a

pair of scissors, following the pre-cut dots. (Fig. 3).

3.2. Preliminary operations – Full-face helmets

Fig. 4

Fig. 5

Fig. 6a

8

BX5

Fig. 6b

Fig. 7

 Remove both comfort cheek pads, left and right, from the helmet (see specific instructions in the

helmet user manual). (Fig. 4)

 Open the visor.

 Remove the rear section of the comfort padding, pulling on the neck roll until it is released from the

shell (see specific instructions in the helmet user manual).Reposition the padding on the outside of
the helmet for the time being. (Fig. 5)

 Remove the chin guard by pulling on the special red tab (Fig. 6a), then remove the plug from the

chin guard. (Fig. 6b)

 Gently remove the polystyrene cheek pads by pulling them upward. (Fig. 7)

Warning: In case the polystyrene cheek pad is damaged during this operation, please contact your

local dealer to replace it.

Only for X701 – X603 - X602 helmets

 Take the polystyrene cheek pads that have

just been removed and, using a pair of
scissors, remove the round insert by cutting
the fabric securing points. (Fig. 8)

:

 Keep the foam used to cover the speakers

housing in case you wish to use the helmet
without the Bluetooth Kit system.

Fig. 8

Fig. 9 helmets X702GT - X701 – X603

Fig. 10 helmets X702

 In case the helmet is equipped with noise reducers on the comfort padding, lift them up.

 Take the comfort padding, left-hand and right-hand side and, if equipped, cut the pre-drilled tab as

shown in fig. 9 and fig. 10.

9
