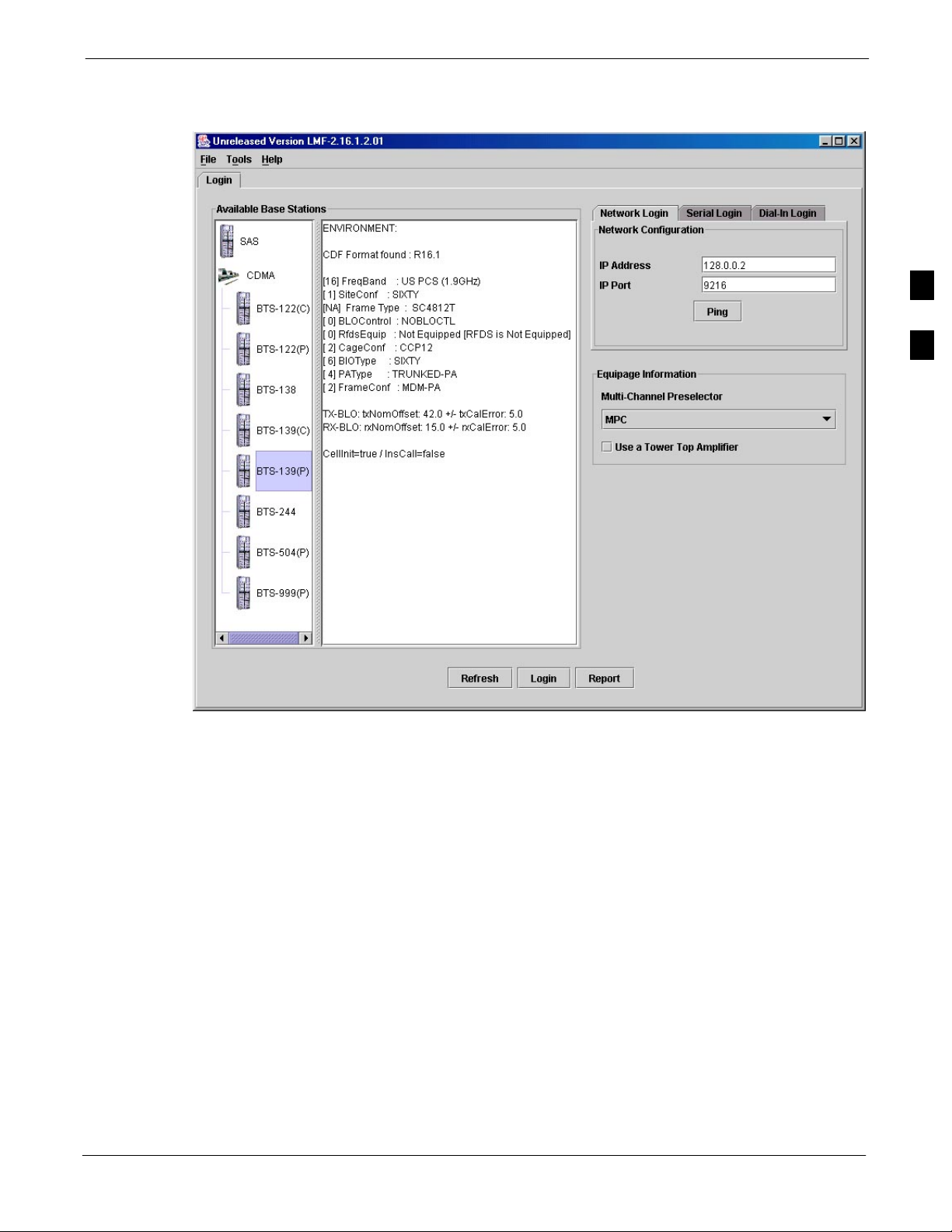

Figure 3-4: BTS Login screen – identifying circuit and packet BTS files

Using the LMF68P09258A31–A

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-21

Using the LMF

68P09258A31–A

Figure 3-5: Self–Managed Network Elements (NEs) state of a packet mode SC4812T

3-22

1X SCt 4812T BTS Optimization/ATP

Oct 2003

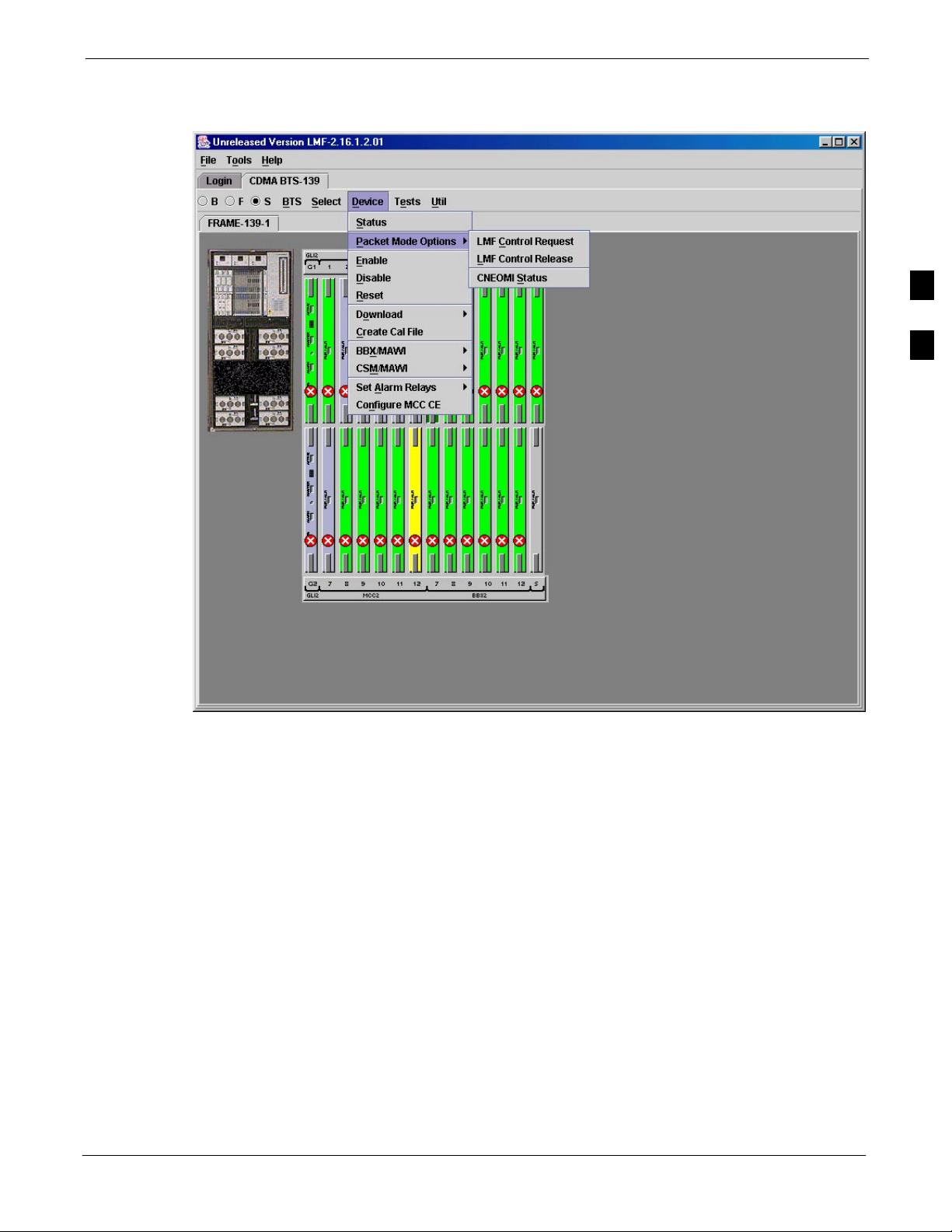

Figure 3-6: Available packet mode commands

Using the LMF68P09258A31–A

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-23

Using the LMF

68P09258A31–A

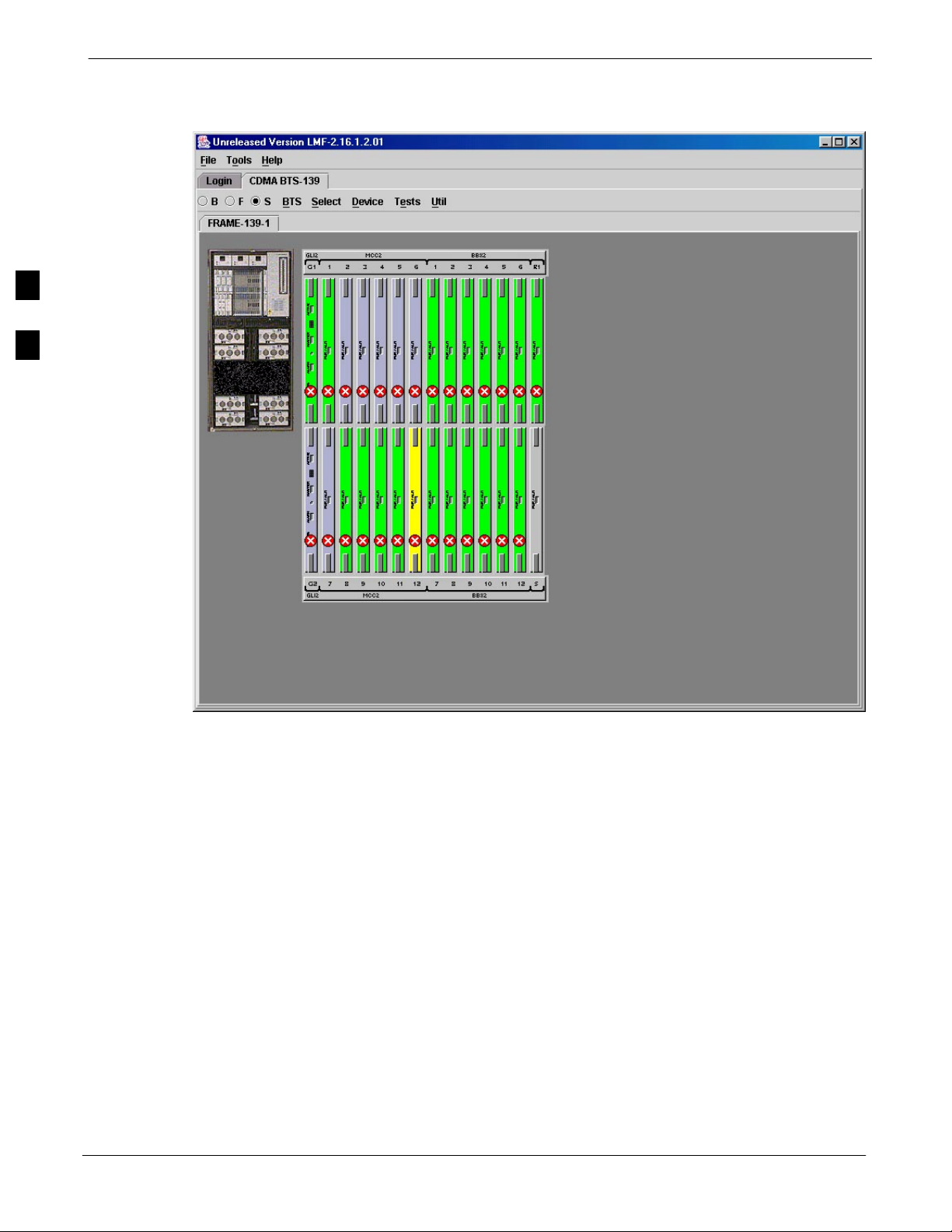

Figure 3-7: Packet mode site with MCC–1 and BBX–1 under LMF control

3-24

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Command Line Interface Overview

The LMF also provides Command Line Interface (CLI) capability. Activate the CLI by clicking on a shortcut icon on the desktop. The CLI can not be launched from the GUI, only from the desktop icon.

Both the GUI and the CLI use a program known as the handler. Only one handler can be running at one time. Due to architectural limitations, the GUI must be started before the CLI if you want the GUI and CLI to use the same handler. When the CLI is launched after the GUI, the CLI automatically finds and uses an in–progress login session with a BTS initiated under the GUI. This allows the use of the GUI and the CLI in the same BTS login session. If a CLI handler is already running when the GUI is launched (this happens if the CLI window is already running when the user starts the GUI, or if another copy of the GUI is already running when the user starts the GUI), a dialog window displays the following warning message:

The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application? Yes No

Using the LMF68P09258A31–A

This window also contains Yes and No buttons. Selecting Ye s starts the application. Selecting No terminates the application.

CLI Format Conventions

The CLI command syntax is as follows:

S verb S device including device identifier parameters S switch S option parameters consisting of:

– keywords

– equals signs (=) between the keywords and the parameter values

– parameter values

Spaces are required between the verb, device, switch, and option parameters. A hyphen is required between the device and its identifiers. Following is an example of a CLI command.

measure bbx–<bts_id>–<bbx_id> rssi channel=6 sector=5

Refer to LMF CLI Commands for a complete explanation of the CLI commands and their usage.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-25

Using the LMF

68P09258A31–A

Logging into a BTS

Logging into a BTS establishes a communication link between the BTS and the LMF. An LMF session can be logged into only one BTS at a time.

Prerequisites

Before attempting to log into a BTS, ensure the following have been completed:

S The LMF is correctly installed on the LMF computer.

S A bts-nnn folder with the correct CDF/NECF and CBSC files exists. S The LMF computer was connected to the BTS before starting the

Windows operating system and the LMF software. If necessary, restart the computer after connecting it to the BTS in accordance with Table 3-5 and Figure 3-3.

CAUTION

Be sure that the correct bts–#.cdf/necf and cbsc–#.cdf file are used for the BTS. These should be the CDF/NECF files that are provided for the BTS by the CBSC. Failure to use the correct CDF/NECF files can result in invalid optimization. Failure to

use the correct CDF/NECF files to log into a live (traffic–carrying) site can shut down the site.

BTS Login from the GUI Environment

Follow the procedure in Table 3-6 to log into a BTS when using the GUI environment.

Table 3-6: BTS GUI Login Procedure

n Step Action

1 Start the CDMA LMF GUI environment by double clicking on the WinLMF desktop icon (if the

LMF is not running).

NOTE

If a warning similar to the following is displayed, select No, shut down other LMF sessions which may be running, and start the CDMA LMF GUI environment again:

The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application?

Yes No

2 Click on the Login tab (if not displayed).

3 If no base stations are displayed in the Available Base Stations pick list, double click on the

CDMA icon.

4 Click on the desired BTS number. For explanation of BTS numbering, see Figure 3-4.

5 Click on the Network Login tab (if not already in the forefront).

6 Enter the correct IP address (normally 128.0.0.2 for a field BTS) if not correctly displayed in the

IP Address box.

. . . continued on next page

3-26

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Using the LMF68P09258A31–A

Table 3-6: BTS GUI Login Procedure

n ActionStep

NOTE

128.0.0.2 is the default IP address for MGLI–1 in field BTS units. 128.0.0.1 is the default IP address for MGLI–2.

7 Type in the correct IP Port number (normally 9216) if not correctly displayed in the IP Port box.

8 Click on Ping.

– If the connection is successful, the Ping Display window shows text similar to the following:

Reply from 128 128.0.0.2: bytes=32 time=3ms TTL=255

– If there is no response the following is displayed:

128.0.0.2:9216:Timed out

If the MGLI fails to respond, reset and perform the ping process again. If the MGLI still fails to respond, typical problems are shorted BNC to inter–frame cabling, open cables, crossed A and B link cables, missing 50–Ohm terminators, or the MGLI itself.

9 Change the Multi-Channel Preselector (from the Multi-Channel Preselector pick list), normally

MPC, corresponding to your BTS configuration, if required.

NOTE

When performing RX tests on expansion frames, do not choose EMPC if the test equipment is connected to the starter frame.

10 Click on the Use a Tower Top Amplifier, if applicable.

11 Click on Login. (A BTS tab with the BTS and frame numbers is displayed.)

NOTE

S If you attempt to login to a BTS that is already logged on, all devices will be gray. S There may be instances where the BTS initiates a log out due to a system error (i.e., a device

failure).

S If the MGLI is OOS_ROM (blue), it will have to be downloaded with code before other devices

can be seen.

S If the MGLI is OOS–RAM (yellow), it must be enabled before other installed devices can be

seen.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-27

Using the LMF

68P09258A31–A

BTS Login from the CLI Environment

Follow the procedure in Table 3-7 to log into a BTS when using the CLI environment.

NOTE

If the CLI and GUI environments are to be used at the same time, the GUI must be started first and BTS login must be performed from the GUI. Refer to Table 3-6 to start the GUI environment and log into a BTS.

Table 3-7: BTS CLI Login Procedure

n Step Action

1 Double–click the WinLMF CLI desktop icon (if the LMF CLI

environment is not already running).

NOTE

If a BTS was logged into under a GUI session before the CLI environment was started, the CLI session will be logged into the same BTS, and Step 2 is not required.

2 At the /wlmf prompt, enter the following command:

where:

host = MGLI card IP address (defaults to address last logged into for this BTS or 128.0.0.2 if this is first login to this BTS)

port = IP port of the BTS (defaults to port last logged into for this BTS or 9216 if this is first login to this BTS)

A response similar to the following will be displayed:

LMF> 13:08:18.882 Command Received and Accepted COMMAND=login bts–33

13:08:18.882 Command In Progress

13:08:21.275 Command Successfully Completed REASON_CODE=”No Reason”

3-28

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Logging Out

Using the LMF68P09258A31–A

Logging out of a BTS is accomplished differently for the GUI and CLI operating environments.

NOTE

The GUI and CLI environments use the same connection to a BTS. If a GUI and the CLI session are running for the same BTS at the same time, logging out of the BTS in either environment will log out of it for both. When either a login or logout is performed in the CLI window, there is no GUI indication that the login or logout has occurred.

Logging Out of a BTS from the GUI Environment

Follow the procedure in Table 3-8 to logout of a BTS when using the GUI environment.

Table 3-8: BTS GUI Logout Procedure

n Step Action

1 Click on BTS on the BTS tab menu bar.

2 Click the Logout item in the pull–down menu (a Confirm Logout

pop–up message will appear).

3 Click on Ye s or press the <Enter> key to confirm logout. The Login

tab will appear.

NOTE

If a logout was previously performed on the BTS from a CLI window running at the same time as the GUI, a Logout Error pop–up message appears stating the system should not log out of the BTS. When this occurs, the GUI must be exited and restarted before it can be used for further operations.

Oct 2003

4 If a Logout Error pop–up message appears stating that the system

could not log out of the Base Station because the given BTS is not logged in, click OK and proceed to Step 5.

5 Select File > Exit in the window menu bar, click Ye s in the Confirm

Logout pop–up, and click OK in the Logout Error pop–up which appears again.

6 If further work is to be done in the GUI, restart it.

NOTE

S The Logout item on the BTS menu bar will only log you out of the

displayed BTS.

S You can also log out of all BTS sessions and exit LMF by clicking

on the File selection in the menu bar and selecting Exit from the File menu list. A Confirm Logout pop–up message will appear.

1X SCt 4812T BTS Optimization/ATP

3-29

Using the LMF

68P09258A31–A

Logging Out of a BTS from the CLI Environment

Follow the procedure in Table 3-9 to logout of a BTS when using the CLI environment.

Table 3-9: BTS CLI Logout Procedure

n Step Action

NOTE

If the BTS is also logged into from a GUI running at the same time and further work must be done with it in the GUI, proceed to Step 2.

1 Log out of a BTS by entering the following command:

logout bts–<bts#>

A response similar to the following will be displayed:

LMF> 13:24:51.028 Command Received and Accepted

COMMAND=logout bts–33 13:24:51.028 Command In Progress 13:24:52.04 Command Successfully Completed

REASON_CODE=”No Reason”

2 If desired, close the CLI interface by entering the following

command:

exit

A response similar to the following will be displayed before the window closes:

Killing background processes....

3-30

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Establishing an MMI Communication Session

Equipment Connection – Figure 3-8 illustrates common equipment connections for the LMF computer. For specific connection locations on FRUs, refer to the illustration accompanying the procedures which require the MMI communication session.

Initiate MMI Communication – For those procedures which require MMI communication between the LMF and BTS FRUs, follow the procedures in Table 3-10 to initiate the communication session.

Using the LMF68P09258A31–A

Table 3-10: Establishing MMI Communications

Step Action

1 Connect the LMF computer to the equipment as detailed in the applicable procedure that requires the

MMI communication session.

2 If the LMF computer has only one serial port (COM1) and the LMF is running, disconnect the LMF

from COM1 by performing the following:

2a – Click on Tools in the LMF window menu bar, and select Options from the pull–down menu list.

–– An LMF Options dialog box will appear.

2b – In the LMF Options dialog box, click the Disconnect Port button on the Serial Connection tab.

3 Start the named HyperTerminal connection for MMI sessions by double clicking on its Windows

desktop shortcut.

NOTE

If a Windows desktop shortcut was not created for the MMI connection, access the connection from the Windows Start menu by selecting:

Programs > Accessories > Hyperterminal > HyperTerminal > <Named HyperTerminal Connection (e.g., MMI Session)>

4 Once the connection window opens, establish MMI communication with the BTS FRU by pressing

the LMF computer <Enter> key until the prompt identified in the applicable procedure is obtained.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-31

Using the LMF

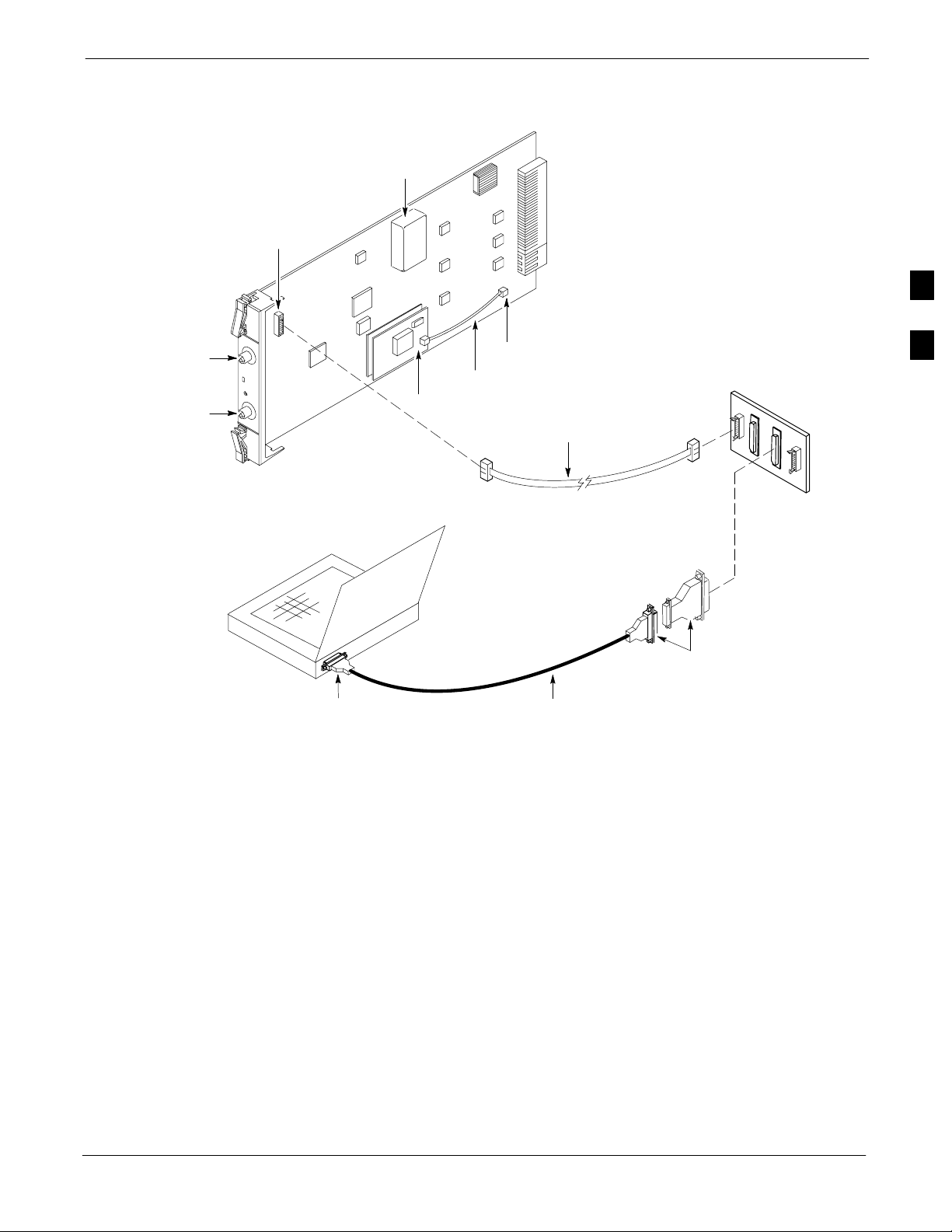

Figure 3-8: CDMA LMF Computer Common MMI Connections

To FRU MMI port

68P09258A31–A

8–PIN

8–PIN TO 10–PIN

LMF COMPUTER

COM1

COM2

RS–232 CABLE (P/N 30–09786R01)

RS–232 CABLE

DB9–TO–DB25 ADAPTER

NULL MODEM

BOARD

(TRN9666A)

FW00687

Online Help

Task oriented online help is available in the LMF by clicking on Help in the window menu bar, and selecting LMF Help from the pull–down menu.

3-32

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Pinging the Processors

Pinging the BTS

Pinging the Processors68P09258A31–A

For proper operation, the integrity of the Ethernet LAN A and B links must be be verified. Figure 3-9 represents a typical BTS Ethernet configuration. The drawing depicts one link (of two identical links), A and B.

Ping is a program that routes request packets to the LAN network modules to obtain a response from the specified “targeted” BTS.

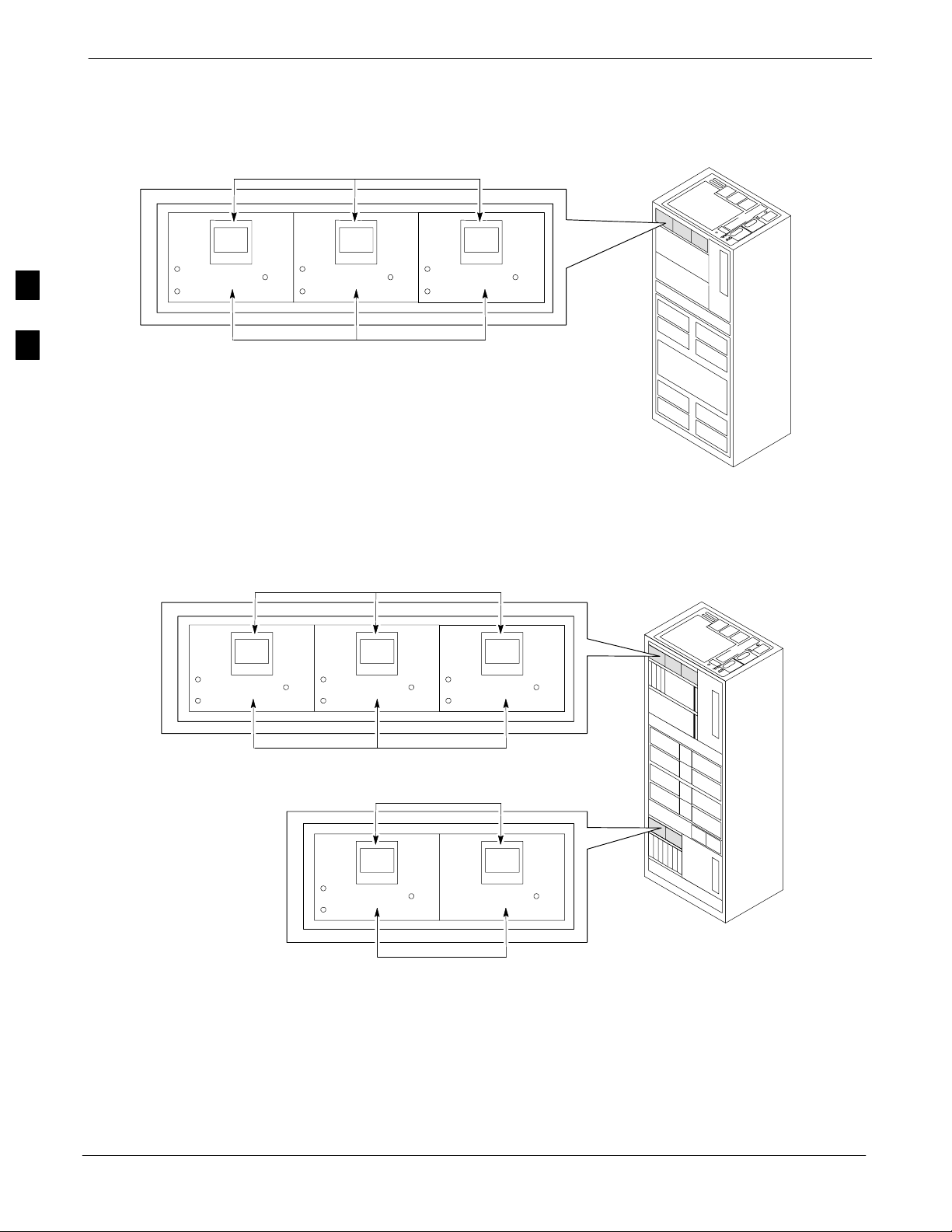

Figure 3-9: BTS Ethernet LAN Interconnect Diagram

50Ω

SIGNAL GROUND

C–CCP

CAGE

OUT

C–CCP

CAGE

OUT

50Ω

OUT

CHASSIS GROUND

SIGNAL GROUND

Oct 2003

LMF CONNECTOR

BTS

(STARTER)

Follow the procedure in Table 3-11 and refer to Figure 3-9 as required to ping each processor (on both LAN A and LAN B) and verify LAN redundancy is operating correctly.

CAUTION

Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD.

1X SCt 4812T BTS Optimization/ATP

BTS

(EXPANSION)

FW00141

3-33

Pinging the Processors

68P09258A31–A

NOTE

IMPORTANT: The Ethernet LAN A and B cables must be installed on each frame/enclosure before performing this test. All other processor board LAN connections are made via the backplanes.

Table 3-11: Pinging the Processors

n Step Action

1 If you have not already done so, connect the LMF to the BTS (see Table 3-5 on page 3-17).

2 From the Windows desktop, click the Start button and select Run.

3 In the Open box, type ping and the <MGLI IP address> (for example, ping 128.0.0.2).

NOTE

128.0.0.2 is the default IP address for MGLI–1 in field BTS units. 128.0.0.1 is the default IP address for MGLI–2.

4 Click on the OK button.

5 If the connection is successful, text similar to the following is displayed:

Reply from 128 128.0.0.2: bytes=32 time=3ms TTL=255

If there is no response the following is displayed:

Request timed out

If the MGLI fails to respond, reset and perform the ping process again. If the MGLI still fails to respond, typical problems are shorted BNC to inter-frame cabling, open cables, crossed A and B link cables, missing 50–Ohm terminators, or the MGLI itself.

3-34

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Download the BTS

Overview

Download the BTS68P09258A31–A

Before a BTS can operate, each equipped device must contain device initialization (ROM) code. ROM code is loaded in all devices during manufacture or factory repair, or, for software upgrades, from the CBSC using the DownLoad Manager (DLM). Device application (RAM) code and data must be downloaded to each equipped device by the user before the BTS can be made fully functional for the site where it is installed.

ROM Code

NOTE

Downloading ROM code to BTS devices from the LMF is NOT routine maintenance nor a normal part of the optimization process. It is only

done in unusual situations where the resident ROM code in the device does not match the release level of the site operating software AND the CBSC cannot communicate with the BTS to perform the download.

If you must download ROM code, the procedures are located in

Appendix G.

Before ROM code can be downloaded from the LMF, the correct ROM code file for each device to be loaded must exist on the LMF computer. ROM code must be manually selected for download.

The ROM code file is not available for GLI3s. GLI3s are ROM code loaded at the factory.

ROM code can be downloaded to a device that is in any state. After the download is started, the device being downloaded will change to OOS_ROM (blue). The device will remain OOS_ROM (blue) when the download is completed. A compatible revision–level RAM code must then be downloaded to the device. Compatible code loads for ROM and RAM must be used for the device type to ensure proper performance. The compatible device code release levels for the BSS software release being used are listed in the Version Matrix section of the SCt CDMA Release Notes (supplied on the tape or CD–ROM containing the BSS software).

RAM Code

Oct 2003

Before RAM code can be downloaded from the LMF, the correct RAM code file for each device must exist on the LMF computer. RAM code can be automatically or manually selected depending on the Device menu item chosen and where the RAM code file for the device is stored in the LMF file structure. The RAM code file will be selected automatically if the file is in the <x>:\<lmf home directory>\cdma\loads\n.n.n.n\code folder (where n.n.n.n is the download code version number that matches the “NextLoad” parameter of the CDF file). The RAM code file in the code folder must have the correct hardware bin number for the device to be loaded.

RAM code can be downloaded to a device that is in any state. After the download is started, the device being downloaded changes to OOS-ROM (blue). When the download is completed successfully, the device will change to OOS-RAM (yellow).

1X SCt 4812T BTS Optimization/ATP

3-35

Download the BTS

68P09258A31–A

When code is downloaded to an MGLI or GLI, the LMF automatically also downloads data and then enables the MGLI. When enabled, the MGLI will change to INS_ACT (bright green). A redundant GLI will not be automatically enabled and will remain OOS_RAM (yellow). When the redundant GLI is manually commanded to enable through the LMF, it will change state to INS_SBY (olive green).

For non–MGLI devices, data must be downloaded after RAM code is downloaded. To download data, the device state must be OOS–RAM (yellow).

The devices to be loaded with RAM code and data are:

S Master Group Line Interface (MGLI2 or MGLI3) S Redundant GLI (GLI2 or GLI3) S Clock Synchronization Module (CSM) (Only if new revision code

must be loaded)

S Multi Channel Card (MCC24E, MCC8E or MCC–1X) S Broadband Transceiver (BBX2 or BBX–1X) S Test Subscriber Interface Card (TSIC) – if RFDS is installed

NOTE

The MGLI must be successfully downloaded with code and data, and put INS before downloading any other device. The download code process for an MGLI automatically downloads data and enables the MGLI before downloading other devices. The other devices can be downloaded in any order.

3-36

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Verify GLI ROM Code Loads

Step Action

1 If it has not already been done, start a GUI LMF session and log into the

BTS ( refer to Table 3-6).

2 Select all GLI devices by clicking on them, and select Device > Status

from the BTS menu bar.

Download the BTS68P09258A31–A

Devices should not be loaded with a RAM code version which is not compatible with the ROM code with which they are loaded. Before downloading RAM code and data to the processor cards, follow the procedure in Table 3-12 to verify the GLI devices are loaded with the correct ROM code for the software release used by the BSS.

Prerequisite

Identify the correct GLI ROM code load for the software release being used on the BSS by referring to the Version Matrix section of the SCt CDMA Release Notes (supplied on the tapes or CD–ROMs containing the BSS software).

Table 3-12: Verify GLI ROM Code Loads

3 In the status report window which opens, note the number in the ROM

Ver column for each GLI.

4 If the ROM code loaded in the GLIs is not the correct one for the software

release being used on the BSS, perform the following:

4a – Log out of the BTS as described in Table 3-8 or Table 3-9, as

applicable.

4b – Disconnect the LMF computer.

4c – Reconnect the span lines as described in Table 5-7.

4d – Have the CBSC download the correct ROM code version to the BTS

devices.

5 When the GLIs have the correct ROM load for the software release being

used, be sure the span lines are disabled as outlined in Table 3-4 and proceed to downloading RAM code and data.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-37

Download the BTS

Download RAM Code and Data to MGLI and GLI

Follow the procedure in Table 3-13 to download the firmware application code for the MGLI. The download code action downloads data and also enables the MGLI.

Prerequisite

S Prior to performing this procedure, ensure a code file exists for each of

the devices to be loaded.

S The LMF computer is connected to the BTS (refer to Table 3-5), and

is logged in using the GUI environment (refer to Table 3-6).

68P09258A31–A

n Step Action

1 Be sure the LMF will use the correct software release for code and

data downloads by performing the following steps:

1a – Click on Tools in the LMF menu bar, and select Update

1b – Click on the BTS to be loaded.

1c – Click the button next to the correct code version for the software

1d – Click Save.

1e – Click OK to close each of the advisory boxes which appear.

2 Prepare to download code to the MGLI by clicking on the device.

3 Click Device in the BTS menu bar, and select Download >

Code/Data in the pull–down menus.

– A status report is displayed confirmimg change in the device(s)

Table 3-13: Download and Enable MGLI

NextLoad > CDMA from the pull–down menus.

–– The BTS will be highlighted.

release being used.

–– A black dot will appear in the button circle.

status.

3-38

4 Click OK to close the status window.

– The MGLI will automatically be downloaded with data and

enabled.

5 Once the MGLI is enabled, load and enable additional installed GLIs

by clicking on the devices and repeating Steps 3 and 4.

6 Click OK to close the status window for the additional GLI devices.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Download Code and Data to Non–GLI Devices

Downloads to non–GLI devices can be performed individually for each device or all equipped devices can be downloaded with one action.

Download the BTS68P09258A31–A

NOTE

Follow the procedure in Table 3-14 to download RAM code and data to non–GLI devices.

Table 3-14: Download RAM Code and Data to Non–GLI Devices

n Step Action

1 Select the target CSM, MCC, and/or BBX device(s) by clicking on

them.

2 Click Device in the BTS menu bar, and select Download >

Code/Data in the pull–down menus.

3 Click OK to close the status report window when downloading is

completed.

– When downloading multiple devices, the download may

fail for some of the devices (a time out occurs). These devices can be downloaded separately after completing the multiple download.

– CSM devices are RAM code–loaded at the factory. RAM

code is downloaded to CSMs only if updating to a newer software version.

– A status report displays the result of the download for each

selected device.

NOTE

After a BBX, CSM or MCC is successfully downloaded with code and has changed to OOS-RAM, the status LED should be rapidly flashing GREEN.

NOTE

The command in Step 2 loads both code and data. Data can be downloaded without doing a code download anytime a device is OOS–RAM using the command in Step 4.

4 To download just the firmware application data to each device, select

the target device and select: Device>Download>Data

BBX Cards Remain OOS_ROM

If BBX cards remain OOS_ROM (blue) after power–up or following code load, refer to Table 6-4, steps 9 and 10.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-39

Download the BTS

68P09258A31–A

Select CSM Clock Source

CSMs must be enabled prior to enabling the MCCs. Procedures in the following two sub-sections cover the actions to accomplish this. For additional information on the CSM sub–system, see “Clock Synchronization Manager (CSM) Sub–system Description” in the CSM System Time – GPS & LFR/HSO Verification section of this chapter.

Select CSM Clock Source

A CSM can have three different clock sources. The Clock Source function can be used to select the clock source for each of the three

inputs. This function is only used if the clock source for a CSM needs to be changed. The Clock Source function provides the following clock source options:

S Local GPS S Mate GPS S Remote GPS S HSO (only for sources 2 & 3) S HSO Extender S HSOX (only for sources 2 & 3) S LFR (only for sources 2 & 3) S 10 MHz (only for sources 2 & 3) S NONE (only for sources 2 & 3)

Prerequisites

S MGLI is INS_ACT (bright green) S CSM is OOS_RAM (yellow) or INS_ACT (bright green)

Follow the procedure in Table 3-15 to select a CSM Clock Source.

Table 3-15: Select CSM Clock Source

n Step Action

1 Select the applicable CSM(s) for which the clock source is to be

selected.

2 Click on Device in the BTS menu bar, and select CSM/MAWI >

Select Clock Source... in the pull–down menu list.

– A CSM clock reference source selection window will appear.

3 Select the applicable clock source in the Clock Reference Source

pick lists. Uncheck the related check boxes for Clock Reference Sources 2 and 3 if you do not want the displayed pick list item to be used.

4 Click on the OK button.

– A status report is displayed showing the results of the operation.

5 Click on the OK button to close the status report window.

3-40

NOTE

1X SCt 4812T BTS Optimization/ATP

For non–RGPS sites only, verify the CSM configured with the GPS receiver “daughter board” is installed in the CSM–1 slot before continuing.

Oct 2003

Enable CSMs

Download the BTS68P09258A31–A

NOTE

– CSMs are code loaded at the factory. This data is retained

in EEPROM. The download code procedure is required in the event it becomes necessary to code load CSMs with updated software versions. Use the status function to determine the current code load versions.

– The CSM(s) to be enabled must have been downloaded

with code (Yellow, OOS–RAM) and data.

Each BTS CSM system features two CSM boards per site. In a typical operation, the primary CSM locks its Digital Phase Locked Loop (DPLL) circuits to GPS signals. These signals are generated by either an on–board GPS module (RF–GPS) or a remote GPS receiver (R–GPS). The CSM2 card is required when using the R–GPS. The GPS receiver (mounted on CSM–1) is the primary timing reference and synchronizes the entire cellular system. CSM–2 provides redundancy but does not have a GPS receiver.

The BTS may be equipped with a remote GPS, LORAN–C LFR, HSO 10 MHz Rubidium source, or HSOX for expansion frames, which the CSM can use as a secondary timing reference. In all cases, the CSM monitors and determines what reference to use at a given time.

Follow the procedure in Table 3-16 to enable the CSMs.

Table 3-16: Enable CSMs

n Step Action

1 Click on the target CSM (CSM–2 first, if equipped with two CSMs).

2 From the Device pull down, select Enable.

– A status report is displayed confirming change in the device(s) status.

– Click OK to close the status report window.

NOTE

– The board in slot CSM 1 interfaces with the GPS receiver. The enable sequence for this board can

take up to one hour (see below).

– FAIL may be shown in the status report table for a slot CSM 1 enable action. If

Lock is shown in the Description field, the CSM changes to the Enabled state after phase lock is

achieved.

* IMPORTANT

– The GPS satellite system satellites are not in a geosynchronous orbit and are maintained and

operated by the United States Department of Defense (D.O.D.). The D.O.D. periodically alters satellite orbits; therefore, satellite trajectories are subject to change. A GPS receiver that is INS contains an “almanac” that is updated periodically to take these changes into account.

– If a GPS receiver has not been updated for a number of weeks, it may take up to an hour for the

GPS receiver “almanac” to be updated.

– Once updated, the GPS receiver must track at least four satellites and obtain (hold) a 3–D position

fix for a minimum of 45 seconds before the CSM will come in service. (In some cases, the GPS receiver needs to track only one satellite, depending on accuracy mode set during the data load).

Waiting For Phase

. . . continued on next page

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-41

Download the BTS

Table 3-16: Enable CSMs

n ActionStep

68P09258A31–A

NOTE

– If equipped with two CSMs, CSM–1 should be bright green (INS–ACT) and CSM–2 should be

dark green (INS–STY)

– After the CSMs have been successfully enabled, observe the PWR/ALM LEDs are steady green

(alternating green/red indicates the card is in an alarm state).

3 If more than an hour has passed, refer to CSM Verification, see Figure 3-11 and Table 3-20 to

determine the cause.

Enable MCCs

Follow the procedure in Table 3-17 to enable the MCCs.

NOTE

n Step Action

Enable Redundant GLIs

The MGLI and primary CSM must be downloaded and enabled (IN–SERVICE ACTIVE) before downloading and enabling the MCC.

Table 3-17: Enable MCCs

1 Select the MCCs to be enabled or from the Select pull–down menu

choose MCCs.

2 Click on Device in the BTS menu bar, and select Enable in the

pull–down menu list.

– A status report is displayed showing the results of the enable

operation.

3 Click on OK to close the status report window.

Follow the procedure in Table 3-18 to enable the redundant GLI(s).

Table 3-18: Enable Redundant GLIs

3-42

n Step Action

1 Select the target redundant GLI(s).

2 From the Device menu, select Enable.

– A status report window confirms the change in the device(s)

status and the enabled GLI(s) is green.

3 Click on OK to close the status report window.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

CSM System Time – GPS & LFR/HSO Verification

CSM & LFR Background

The primary function of the Clock Synchronization Manager (CSM) boards (slots 1 and 2) is to maintain CDMA system time. The CSM in slot 1 is the primary timing source while slot 2 provides redundancy. The CSM2 card (CSM second generation) is required when using the remote GPS receiver (R–GPS). R–GPS uses a GPS receiver in the antenna head that has a digital output to the CSM2 card. CSM2 can have a daughter card as a local GPS receiver to support an RF–GPS signal.

The CSM2 switches between the primary and redundant units (slots 1 and 2) upon failure or command. CDMA Clock Distribution Cards (CCDs) buffer and distribute even–second reference and 19.6608 MHz clocks. CCD–1 is married to CSM–1 and CCD–2 is married to CSM 2. A failure on CSM–1 or CCD–1 cause the system to switch to redundant CSM–2 and CCD–2.

In a typical operation, the primary CSM locks its Digital Phase Locked Loop (DPLL) circuits to GPS signals. These signals are generated by either an on–board GPS module (RF–GPS) or a remote GPS receiver (R–GPS). The CSM2 card is required when using the R–GPS. DPLL circuits employed by the CSM provide switching between the primary and redundant unit upon request. Synchronization between the primary and redundant CSM cards, as well as the LFR or HSO back–up source, provides excellent reliability and performance.

Front Panel LEDs

Each CSM board features an ovenized, crystal oscillator that provides

19.6608 MHz clock, even second tick reference, and 3 MHz sinewave reference, referenced to the selected synchronization source (GPS, LORAN–C Frequency Receiver (LFR), or High Stability Oscillator (HSO), T1 Span, or external reference oscillator sources).

The 3 MHz signals are also routed to the RDM EXP 1A & 1B connectors on the top interconnect panel for distribution to co–located frames at the site.

Fault management has the capability of switching between the GPS synchronization source and the LFR/HSO backup source in the event of a GPS receiver failure on CSM–1. During normal operation, the CSM–1 board selects GPS as the primary source (see Table 3-20). The source selection can also be overridden via the LMF or by the system software.

The status of the LEDs on the CSM boards are as follows:

S Steady Green – Master CSM locked to GPS or LFR (INS). S Rapidly Flashing Green – Standby CSM locked to GPS or LFR

(STBY).

S Flashing Green/Rapidly Flashing Red – CSM OOS–RAM attempting

to lock on GPS signal.

Oct 2003

S Rapidly Flashing Green and Red – Alarm condition exists. Trouble

Notifications (TNs) are currently being reported to the GLI.

1X SCt 4812T BTS Optimization/ATP

3-43

CSM System Time – GPS & LFR/HSO Verification

68P09258A31–A

Low Frequency Receiver/High Stability Oscillator (LFR/HSO)

The CSM and the LFR/HSO – The CSM performs the overall configuration and status monitoring functions for the LFR/HSO. In the event of GPS failure, the LFR/HSO is capable of maintaining synchronization initially established by the GPS reference signal.

LFR – The LFR requires an active external antenna to receive LORAN–C RF signals. Timing pulses are derived from this signal, which is synchronized to Universal Time Coordinates (UTC) and GPS time. The LFR can maintain system time indefinitely after initial GPS

lock.

HSO – The HSO is a high stability 10 MHz oscillator with the necessary interface to the CSMs. The HSO is typically installed in those geographical areas not covered by the LORAN–C system. Since the HSO is a free–standing oscillator, system time can only be maintained for 24 hours after 24 hours of GPS lock

Upgrades and Expansions: LFR2/HSO2/HSOX

NOTE

LFR2/HSO2 (second generation cards) both export a timing signal to the expansion or logical BTS frames. The associated expansion or logical frames require an HSO–expansion (HSOX) whether the starter frame has an LFR2 or an HSO2. The HSOX accepts input from the starter frame and interfaces with the CSM cards in the expansion frame. LFR and LFR2 use the same source code in source selection (see Table 3-19). HSO, HSO2, and HSOX use the same source code in source selection (see Table 3-19).

Allow the base site and test equipment to warm up for 60 minutes after any interruption in oscillator power. CSM board warm-up allows the oscillator oven temperature and oscillator frequency to stabilize prior to test. Test equipment warm-up allows the Rubidium standard timebase to stabilize in frequency before any measurements are made.

3-44

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM Frequency Verification

Null Modem Cable

Figure 3-10: Null Modem Cable Detail

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

The objective of this procedure is the initial verification of the CSM boards before performing the RF path verification tests. Parts of this procedure will be repeated for final verification after the overall optimization has been completed.

A null modem cable is required. It is connected between the MMI port of the primary CSM and the null modem board. Figure 3-10 shows the wiring detail for the null modem cable.

9–PIN D–FEMALE 9–PIN D–FEMALE

GND

TX RTS CTS

RSD/DCD

DTR

DSR

3 2 7 8 1 4 6

ON BOTH CONNECTORS SHORT PINS 7, 8; SHORT PINS 1, 4, & 6

GND

RTS

CTS

RSD/DCD

DTR

DSR

FW00362

Prerequisites

Ensure the following prerequisites have been met before proceeding:

S The LMF is NOT logged into the BTS. S The COM1 port is connected to the MMI port of the primary CSM via

a null modem board.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-45

CSM System Time – GPS & LFR/HSO Verification

68P09258A31–A

Test Equipment Setup: GPS & LFR/HSO Verification

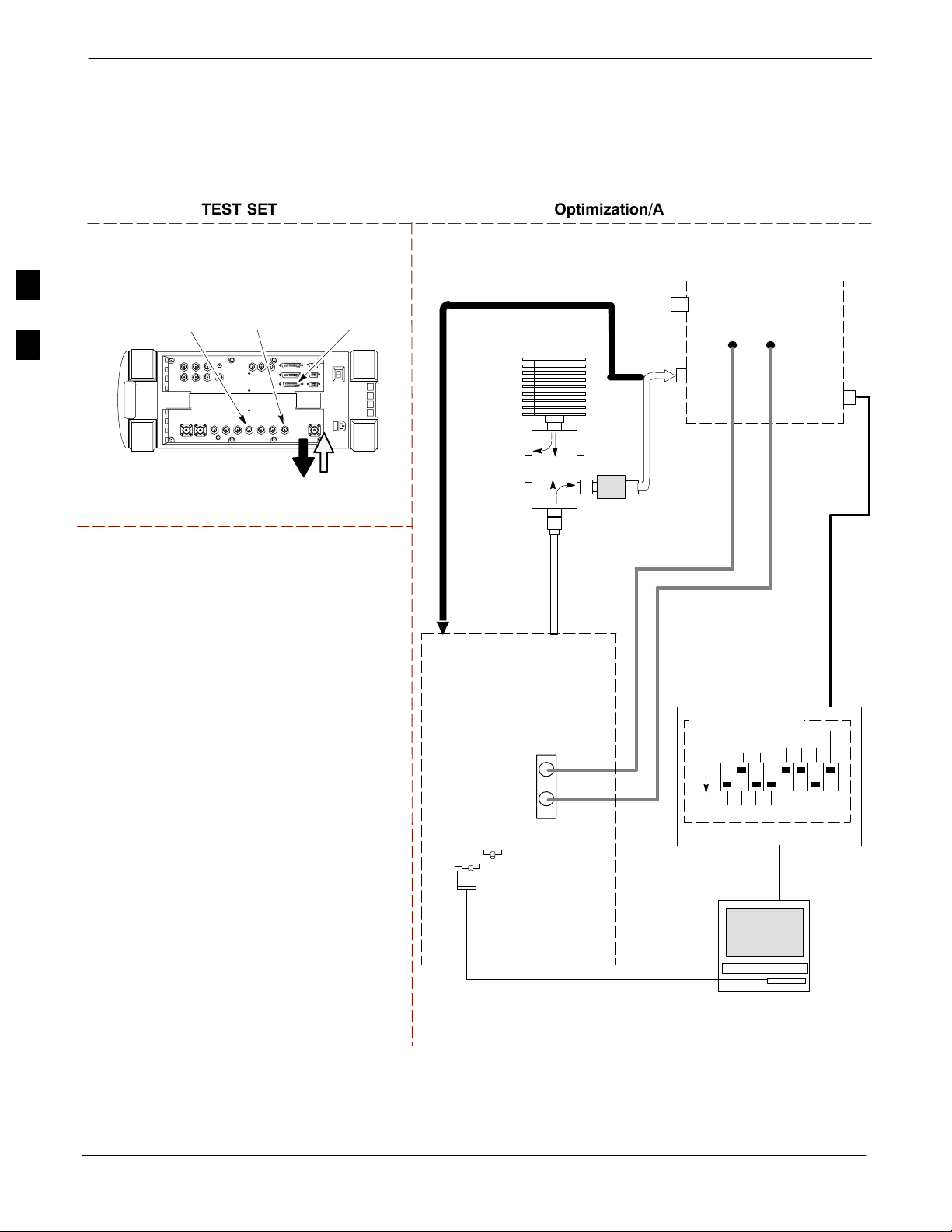

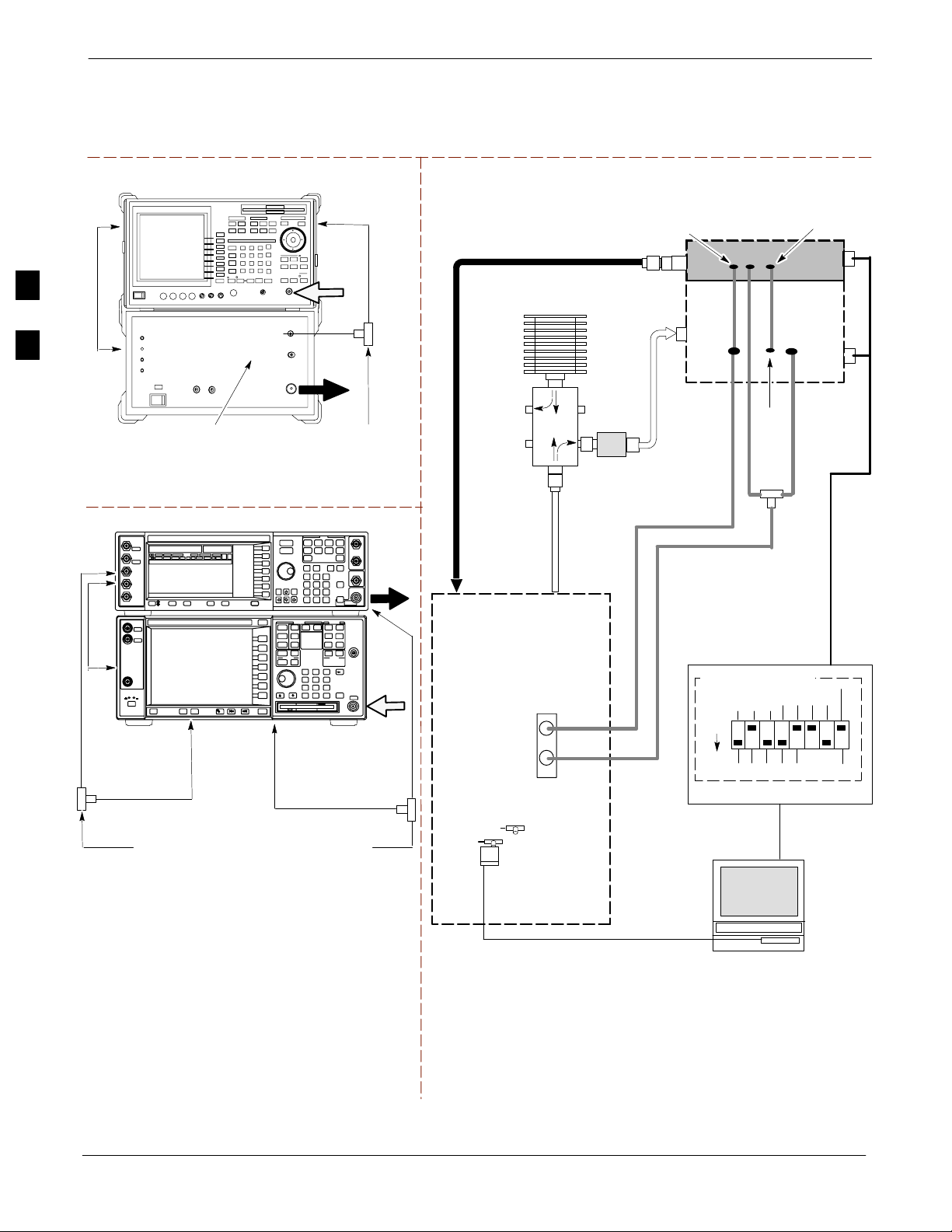

Follow the procedure in Table 3-19 to set up test equipment while referring to Figure 3-11 as required.

Table 3-19: Test Equipment Setup (GPS & LFR/HSO Verification)

Step Action

1 Perform one of the following operations:

S For local GPS (RF–GPS), verify a CSM board with a GPS receiver is installed in primary CSM

slot 1 and that CSM–1 is INS.

2 Remove CSM–2 (if installed) and connect a serial cable from the LMF COM 1 port (via null modem

3 Reinstall CSM–2.

4 Start an MMI communication session with CSM–1 by using the Windows desktop shortcut icon (see

This is verified by checking the board ejectors for kit number SGLN1145 on the board in slot 1.

S For Remote GPS (RGPS), verify a CSM2 board is installed in primary slot 1 and that CSM–1 is

INS. This is verified by checking the board ejectors for kit number SGLN4132ED (or later).

board) to the MMI port on CSM–1.

Table 3-3)

NOTE

The LMF program must not be running when a Hyperterminal session is started if COM1 is being used for the MMI session.

5 When the terminal screen appears, press the <Enter> key until the CSM> prompt appears.

3-46

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Figure 3-11: CSM MMI terminal connection

REFERENCE OSCILLATOR

CSM board shown

removed from frame

MMI SERIAL

PORT

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

EVEN SECOND

TICK TEST POINT

REFERENCE

19.6 MHZ TEST

POINT REFERENCE

(NOTE 1)

LMF NOTEBOOK

NOTES:

1. One LED on each CSM: Green = IN–SERVICE ACTIVE Fast Flashing Green = OOS–RAM Red = Fault Condition Flashing Green & Red = Fault

COM1

ANTENNA COAX CABLE

GPS RECEIVER

GPS RECEIVER ANTENNA INPUT

9–PIN TO 9–PIN

RS–232 CABLE

RS–232 SERIAL MODEM CABLE

DB9–TO–DB25 ADAPTER

NULL MODEM

BOARD

(TRN9666A)

FW00372

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-47

CSM System Time – GPS & LFR/HSO Verification

68P09258A31–A

GPS Initialization/Verification

Follow the procedure in Table 3-20 to initialize and verify proper GPS receiver operation.

Prerequisites

Ensure the following prerequisites have been met before proceeding:

S The LMF is not logged into the BTS. S The COM1 port is connected to the MMI port of the primary CSM via

a null modem board (see Figure 3-11).

CAUTION Connect the GPS antenna to the GPS RF connector ONLY.

S The primary CSM and HSO (if equipped) have been warmed up for at

least 15 minutes.

Damage to the GPS antenna and/or receiver can result if the GPS antenna is inadvertently connected to any other RF connector.

3-48

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

Table 3-20: GPS Initialization/Verification

Step Action

1 To verify that Clock alarms (0000), Dpll is locked and has a reference source, and

GPS self test passed messages are displayed within the report, issue the following MMI

command

bstatus

– Observe the following typical response:

Clock Alarms (0000):

DPLL is locked and has a reference source. GPS receiver self test result: passed

Time since reset 0:33:11, time since power on: 0:33:11

2 Enter the following command at the CSM> prompt to display the current status of the Loran and the

GPS receivers.

sources

– Observe the following typical response for systems equipped with LFR:

N Source Name Type TO Good Status Last Phase Target Phase Valid –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

LocalGPS Primary 4 YES Good 00Yes 1 LFR CHA Secondary 4 YES Good –2013177 –2013177 Yes 2 Not Used

Current reference source number: 0

– Observe the following typical response for systems equipped with HSO:

Num Source Name Type TO Good Status Last Phase Target Phase Valid ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

0 Local GPS Primary 4 Yes Good 3 0 Yes

HSO Backup 4 No N/A timed–out* Timed–out* No

NOTE

“Timed–out” should only be displayed while the HSO is warming up. “Not–Present” or “Faulty” should not be displayed. If the HSO does not appear as one of the sources, then configure the HSO as a back–up source by entering the following command at the CSM> prompt:

ss 1 12

After a maximum of 15 minutes, the Rubidium oscillator should reach operational temperature and the LED on the HSO should now have changed from red to green. After the HSO front panel LED has changed to green, enter source by confirming that the bold text below matches the response of the “sources” command.

The HSO should be valid within one (1) minute, assuming the DPLL is locked and the HSO rubidium oscillator is fully warmed.

sources <cr> at the CSM> prompt. Verify that the HSO is now a valid

0 Local GPS Primary 4 Yes Good 3 0 Yes

HSO Backup 4 Yes N/A xxxxxxxxxx xxxxxxxxxx Yes

3 HSO information (underlined text above, verified from left to right) is usually the #1 reference source.

If this is not the case, have the OMCR determine the correct BTS timing source has been identified in the database by entering the

csm csmgen refsrc command.

display bts csmgen command and correct as required using the edit

. . . continued on next page

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-49

CSM System Time – GPS & LFR/HSO Verification

68P09258A31–A

Table 3-20: GPS Initialization/Verification

Step Action

4 If any of the above mentioned areas fail, verify:

– If LED is RED, verify that HSO had been powered up for at least 5 minutes. After oscillator

temperature is stable, LED should go GREEN Wait for this to occur before continuing !

– If “timed out” is displayed in the Last Phase column, suspect the HSO output buffer or oscillator

is defective

– Verify the HSO is FULLY SEATED and LOCKED to prevent any possible board warpage

5 Verify the following GPS information (underlined text above):

– GPS information is usually the 0 reference source.

– At least one Primary source must indicate “Status = good” and “Valid = yes” to bring site up.

6 Enter the following command at the CSM> prompt to verify that the GPS receiver is in tracking mode.

gstatus

– Observe the following typical response:

24:06:08 GPS Receiver Control Task State: tracking satellites. 24:06:08 Time since last valid fix: 0 seconds. 24:06:08 24:06:08 Recent Change Data: 24:06:08 Antenna cable delay 0 ns. 24:06:08 Initial position: lat 117650000 msec, lon –350258000 msec, height 0 cm (GPS) 24:06:08 Initial position accuracy (0): estimated. 24:06:08 24:06:08 GPS Receiver Status: 24:06:08 Position hold: lat 118245548 msec, lon –350249750 msec, height 20270 cm 24:06:08 Current position: lat 118245548 msec, lon –350249750 msec, height 20270 cm (GPS) 24:06:08 8 satellites tracked, receiving 8 satellites, 8 satellites visible. 24:06:08 Current Dilution of Precision (PDOP or HDOP): 0. 24:06:08 Date & Time: 1998:01:13:21:36:11 24:06:08 GPS Receiver Status Byte: 0x08 24:06:08 Chan:0, SVID: 16, Mode: 8, RSSI: 148, Status: 0xa8 24:06:08 Chan:1, SVID: 29, Mode: 8, RSSI: 132, Status: 0xa8 24:06:08 Chan:2, SVID: 18, Mode: 8, RSSI: 121, Status: 0xa8 24:06:08 Chan:3, SVID: 14, Mode: 8, RSSI: 110, Status: 0xa8 24:06:08 Chan:4, SVID: 25, Mode: 8, RSSI: 83, Status: 0xa8 24:06:08 Chan:5, SVID: 3, Mode: 8, RSSI: 49, Status: 0xa8 24:06:08 Chan:6, SVID: 19, Mode: 8, RSSI: 115, Status: 0xa8 24:06:08 Chan:7, SVID: 22, Mode: 8, RSSI: 122, Status: 0xa8 24:06:08 24:06:08 GPS Receiver Identification: 24:06:08 COPYRIGHT 1991–1996 MOTOROLA INC. 24:06:08 SFTW P/N # 98–P36830P 24:06:08 SOFTWARE VER # 8 24:06:08 SOFTWARE REV # 8 24:06:08 SOFTWARE DATE 6 AUG 1996 24:06:08 MODEL # B3121P1115 24:06:08 HDWR P/N # _ 24:06:08 SERIAL # SSG0217769 24:06:08 MANUFACTUR DATE 6B07 24:06:08 OPTIONS LIST IB 24:06:08 The receiver has 8 channels and is equipped with TRAIM.

. . . continued on next page

3-50

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

Table 3-20: GPS Initialization/Verification

Step Action

7 Verify the following GPS information (shown above in underlined text):

– At least 4 satellites are tracked, and 4 satellites are visible.

– GPS Receiver Control Task State is “tracking satellites”. Do not continue until this occurs!

– Dilution of Precision indication is not more that 30.

Record the current position base site latitude, longitude, height and height reference (height reference to Mean Sea Level (MSL) or GPS height (GPS). (GPS = 0 MSL = 1).

If steps 1 through 7 pass, the GPS is good.

NOTE

If any of the above mentioned areas fail, verify that:

– If Initial position accuracy is “estimated”

visible (1 satellite must be tracked and visible if actual lat, log, and height data for this site has been entered into CDF file).

– If Initial position accuracy is “surveyed”,

accurate. GPS will not automatically survey and update its position.

– The GPS antenna is not obstructed or misaligned.

– GPS antenna connector center conductor measures approximately +5 Vdc with respect to the

shield.

– There is no more than 4.5 dB of loss between the GPS antenna OSX connector and the BTS frame

GPS input.

– Any lightning protection installed between GPS antenna and BTS frame is installed correctly.

(typical), at least 4 satellites must be tracked and

position data currently in the CDF file is assumed to be

9 Enter the following commands at the CSM> prompt to verify that the CSM is warmed up and that GPS

acquisition has taken place.

debug dpllp

Observe the following typical response if the CSM is not warmed up (15 minutes from application of power) (If warmed–up proceed to step 10)

CSM>DPLL Task Wait. 884 seconds left. DPLL Task Wait. 882 seconds left.

DPLL Task Wait. 880 seconds left. ...........etc.

NOTE

The warm command can be issued at the MMI port used to force the CSM into warm–up, but the reference oscillator will be unstable.

. . . continued on next page

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-51

CSM System Time – GPS & LFR/HSO Verification

68P09258A31–A

Table 3-20: GPS Initialization/Verification

Step Action

10 Observe the following typical response if the CSM is warmed up.

c:17486 off: –11, 3, 6 TK SRC:0 S0: 3 S1:–2013175,–2013175 c:17486 off: –11 c:17470 off: –11 c:17486 off: –11 c:17470 off: –11 c:17470 off: –11

, 3, 6 TK SRC:0 S0: 3 S1:–2013175,–2013175 , 1, 6 TK SRC:0 S0: 1 S1:–2013175,–2013175 , 3, 6 TK SRC:0 S0: 3 S1:–2013175,–2013175 , 1, 6 TK SRC:0 S0: 1 S1:–2013175,–2013175 , 1, 6 TK SRC:0 S0: 1 S1:–2013175,–2013175

11 Verify the following GPS information (underlined text above, from left to right):

– Lower limit offset from tracked source variable is not less than –60 (equates to 3µs limit).

– Upper limit offset from tracked source variable is not more than +60 (equates to 3µs limit).

– TK SRC: 0 is selected, where SRC 0 = GPS.

12 Enter the following commands at the CSM> prompt to exit the debug mode display.

debug dpllp

LFR Initialization/Verification

The LORAN–C LFR is a full size card that resides in the C–CCP Shelf. The LFR is a completely self-contained unit that interfaces with the CSM via a serial communications link. The CSM handles the overall configuration and status monitoring functions of the LFR.

The LFR receives a 100 kHz, 35 kHz BW signal from up to 40 stations (8 chains) simultaneously and provides the following major functions:

S Automatic antenna pre-amplifier calibration (using a second

S A 1 second ±200 ηs strobe to the CSM

If the BTS is equipped with an LFR, follow the procedure in Table 3-21 to initialize the LFR and verify proper operation as a backup source for the GPS.

NOTE

differential pair between LFR and LFR antenna)

If CSMRefSrc2 = 2 in the CDF file, the BTS is equipped with an LFR. If CSMRefSrc2 = 18, the BTS is equipped with an HSO.

3-52

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

mode. A typical response is:

8290W 58/61 dB 6 S/N Flag: 8970X 73/79 dB 22 S/N Fl

9610W 47/49 dB –4 S/N Flag:E

9940W 49/56 dB 4 S/N Flag:E 9960W 51/60 dB 0 S/N Fl

Table 3-21: LFR Initialization/Verification

Step Action Note

1 At the CSM> prompt, enter lstatus <cr> to verify that the LFR is in tracking

CSM> lstatus <cr> LFR Station Status: Clock coherence: 512 > 5930M 51/60 dB 0 S/N Flag: 5930X 52/64 dn –1 S/N Flag: 5990 47/55 dB –6 S/N Flag: 7980M 62/66 dB 10 S/N Flag: 7980W 65/69 dB 14 S/N Flag: . PLL Station . > 7980X 48/54 dB –4 S/N Flag: 7980Y 46/58 dB –8 S/N Flag:E 7980Z 60/67 dB 8 S/N Flag: 8290M 50/65 dB 0 S/N Flag: 8290W 73/79 dB 20 S/N Flag: 8290W 58/61 dB 6 S/N Flag: 8970M 89/95 dB 29 S/N Flag: 8970W 62/66 dB 10 S/N Flag:

8970Y 73/79 dB 19 S/N Flag: 8970Z 62/65 dB 10 S/N Flag: 9610M 62/65 dB 10 S/N Flag: 9610V 58/61 dB 8 S/N Flag: 9610W 47/49 dB –4 S/N Fla 9610X 46/57 dB –5 S/N Flag:E 9610Y 48/54 dB –5 S/N Flag:E 9610Z 65/69 dB 12 S/N Flag: 9940M 50/53 dB –1 S/N Flag:S 9940W 49/56 dB –4 S/N Flag:E 9940Y 46/50 dB–10 S/N Flag:E 9960M 73/79 dB 22 S/N Flag:

9960X 51/63 dB –1 S/N Flag: 9960Y 59/67 dB 8 S/N Flag: 9960Z 89/96 dB 29 S/N Flag:

LFR Task State: lfr locked to station 7980W LFR Recent Change Data:

Search List: 5930 5990 7980 8290 8970 9940 9610 9960 > PLL GRI: 7980W

LFR Master, reset not needed, not the reference source. CSM>

ag:

This must be greater than 100 before LFR becomes a valid source.

This shows the LFR is locked to the selected PLL station.

This search list and PLL data must match the configuration for the geographical location of the cell site.

2 Verify the following LFR information (highlighted above in boldface type):

– Locate the “dot” that indicates the current phase locked station assignment (assigned by MM).

– Verify that the station call letters are as specified in site documentation as well as M X Y Z

assignment.

– Verify the signal to noise (S/N) ratio of the phase locked station is greater than 8.

3 At the CSM> prompt, enter sources <cr> to display the current status of the the LORAN receiver.

– Observe the following typical response.

0 Local GPS Primary 4 Yes Good –3 0 Yes 1 LFR ch A Secondary 4 Yes 2 Not used

Current reference source number: 1

Oct 2003

Good –2013177 –2013177 Yes

. . . continued on next page

1X SCt 4812T BTS Optimization/ATP

3-53

CSM System Time – GPS & LFR/HSO Verification

Table 3-21: LFR Initialization/Verification

Step NoteAction

4 LORAN–C LFR information (highlighted above in boldface type) is usually the #1 reference source

(verified from left to right).

68P09258A31–A

NOTE

If any of the above mentioned areas fail, verify:

– The LFR antenna is not obstructed or misaligned.

– The antenna pre–amplifier power and calibration twisted pair connections are intact and < 91.4 m

(300 ft) in length.

– A dependable connection to suitable Earth Ground is in place.

– The search list and PLL station for cellsite location are correctly configured .

NOTE

LFR functionality should be verified using the “source” command (as shown in Step 3). Use the underlined

5 Close the Hyperterminal window.

responses on the LFR row to validate correct LFR operation.

HSO Initialization/Verification

The HSO module is a full–size card that resides in the C–CCP Shelf. This completely self contained high stability 10 MHz oscillator interfaces with the CSM via a serial communications link. The CSM handles the overall configuration and status monitoring functions of the HSO. In the event of GPS failure, the HSO is capable of maintaining synchronization initially established by the GPS reference signal for a limited time.

The HSO is typically installed in those geographical areas not covered by the LORAN–C system and provides the following major functions:

S Reference oscillator temperature and phase lock monitor circuitry S Generates a highly stable 10 MHz sine wave. S Reference divider circuitry converts 10 MHz sine wave to 10 MHz

TTL signal, which is divided to provide a 1 PPS strobe to the CSM.

3-54

1X SCt 4812T BTS Optimization/ATP

Oct 2003

CSM System Time – GPS & LFR/HSO Verification68P09258A31–A

Prerequisites

S The LMF is not logged into the BTS. S The COM1 port is connected to the MMI port of the primary CSM via

a null modem board.

S The primary CSM and the HSO (if equipped) have warmed up for 15

minutes.

If the BTS is equipped with an HSO, follow the procedure in Table 3-22 to configure the HSO.

Table 3-22: HSO Initialization/Verification

Step Action

1 At the BTS, slide the HSO card into the cage.

NOTE

The LED on the HSO should light red for no longer than 15-minutes, then switch to green. The CSM must be locked to GPS.

2 On the LMF at the CSM> prompt, enter sources <cr>.

– Observe the following typical response for systems equipped with HSO:

0 Local GPS Primary 4 Yes Good 0 0 Yes 1 HSO Backup 4 Yes N/A xxxxxxx –69532 Yes 2 Not used

Current reference source number: 0

When the CSM is locked to GPS, verify that the HSO “Good” field is Yes and the “Valid” field is Yes.

3 If source “1” is not configured as HSO, enter at the CSM> prompt: ss 1 12 <cr>

Check for Good in the Status field.

4 At the CSM> prompt, enter sources <cr>.

Verify the HSO valid field is Yes. If not, repeat this step until the “Valid” status of Yes is returned. The HSO should be valid within one (1) minute, assuming the DPLL is locked and the HSO Rubidium oscillator is fully warmed.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-55

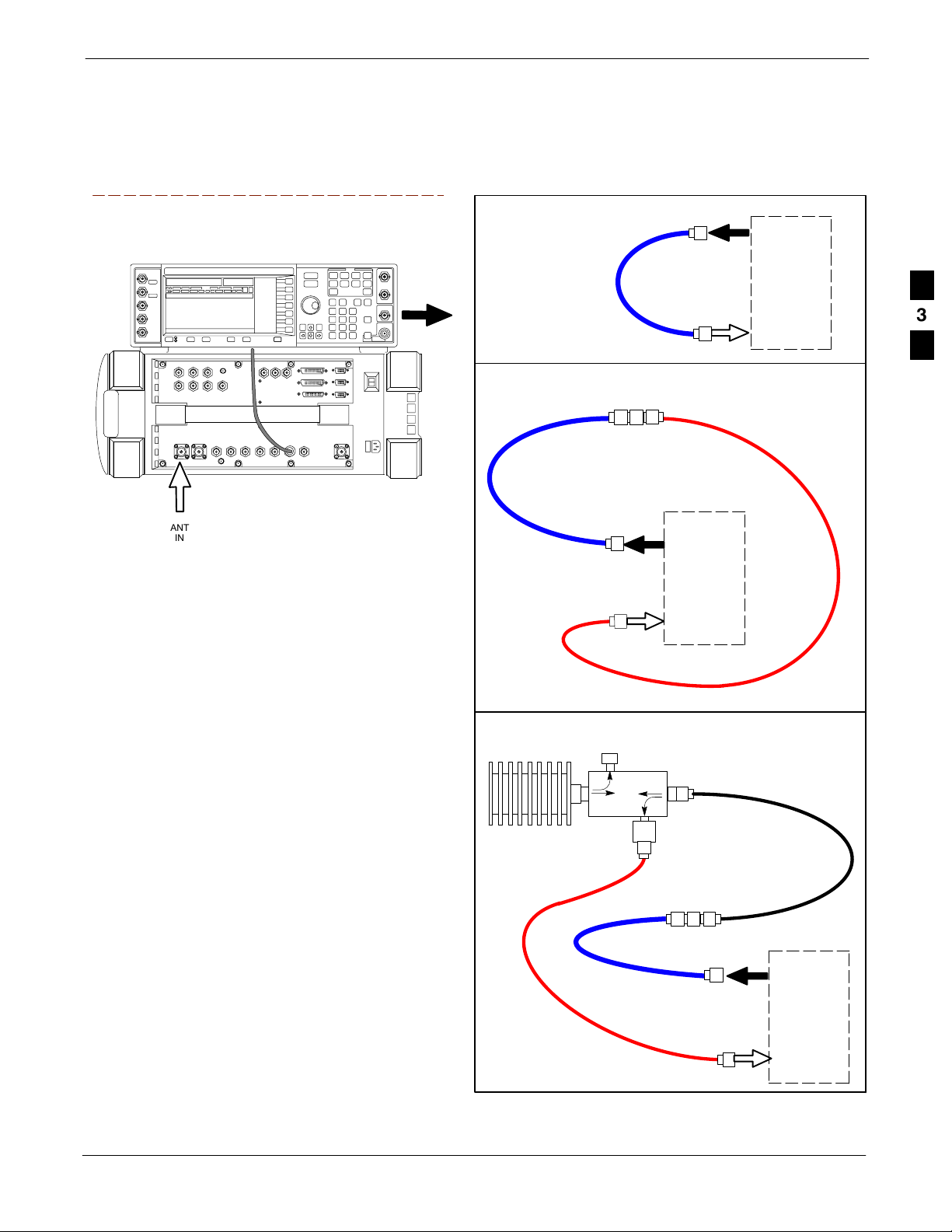

Test Equipment Set-up

Connecting Test Equipment to the BTS

The following equipment is required to perform optimization:

S LMF S Test set S Directional coupler and attenuator S RF cables and connectors

68P09258A31–A

S Null modem cable (see Figure 3-10) S GPIB interface box

Refer to Table 3-23 and Table 3-24 for an overview of connections for test equipment currently supported by the LMF. In addition, see the following figures:

S Figure 3-16 and Figure 3-17 show the test set connections for TX

calibration.

S Figure 3-19 and Figure 3-20 show test set connections for IS–95 A/B

optimization/ATP tests.

S Figure 3-21 shows test set connections for IS–95 A/B and

CDMA 2000 optimization/ATP tests.

S Figure 3-23 and Figure 3-24 show typical TX and RX ATP setup with

a directional coupler (shown with and without RFDS).

Test Equipment GPIB Address Settings

All test equipment is controlled by the LMF through an IEEE–488/GPIB bus. To communicate on the bus, each piece of test equipment must have a GPIB address set which the LMF will recognize. The standard address settings used by the LMF for the various types of test equipment items are as follows:

3-56

S Signal generator address: 1 S Power meter address: 13 S Communications system analyzer: 18

Using the procedures included in the Verifying and Setting GPIB Addresses section of Appendix F, verify and, if necessary, change the GPIB address of each piece of employed test equipment to match the applicable addresses above

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Supported Test Equipment

Test Equipment Set-up68P09258A31–A

CAUTION

To prevent damage to the test equipment, all TX test connections must be through the directional coupler and in-line attenuator as shown in the test setup illustrations.

IS–95 A/B Testing

Optimization and ATP testing for IS–95A/B may be performed using one of the following test sets:

S CyberTest S Advantest R3465 and HP 437B or Gigatronics Power Meter S Hewlett–Packard HP 8935 S Hewlett–Packard HP 8921 (W/CDMA and PCS Interface for

1.7/1.9 GHz) and HP 437B or Gigatronics Power Meter

The equipment listed above cannot be used for CDMA 2000 testing.

CDMA2000 1X Operation

Optimization and ATP testing for CDMA2000 1X sites or carriers may be performed using the following test equipment:

S Advantest R3267 Analyzer with Advantest R3562 Signal Generator S Agilent E4406A with E4432B Signal Generator

Test Equipment Preparation

S Agilent 8935 series E6380A communications test set (formerly HP

8935) with option 200 or R2K and with E4432B signal generator for 1X FER

The E4406A/E4432B pair, or the R3267/R3562 pair, should be connected together using a GPIB cable. In addition, the R3562 and R3267 should be connected with a serial cable from the Serial I/O to the Serial I/O. This test equipment is capable of performing tests in both IS–95 A/B mode and CDMA 2000 mode if the required options are installed.

S Agilent E7495A communications test set

Optional test equipment

S Spectrum Analyzer (HP8594E) – can be used to perform cable

calibration.

See Appendix F for specific steps to prepare each type of test set and power meter to perform calibration and ATP.

Agilent E7495A communications test set requires additional setup and preparation. This is described in detail in Appendix F.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-57

Test Equipment Set-up

Test Equipment Connection Charts

To use the following charts to identify necessary test equipment connections, locate the communications system analyzer being used in

COMMUNICATIONS SYSTEM ANALYZER columns, and read down

the the column. Where a dot appears in the column, connect one end of the test cable to that connector. Follow the horizontal line to locate the end connection(s), reading up the column to identify the appropriate equipment and/or BTS connector.

IS–95A/B–only Test Equipment Connections

68P09258A31–A

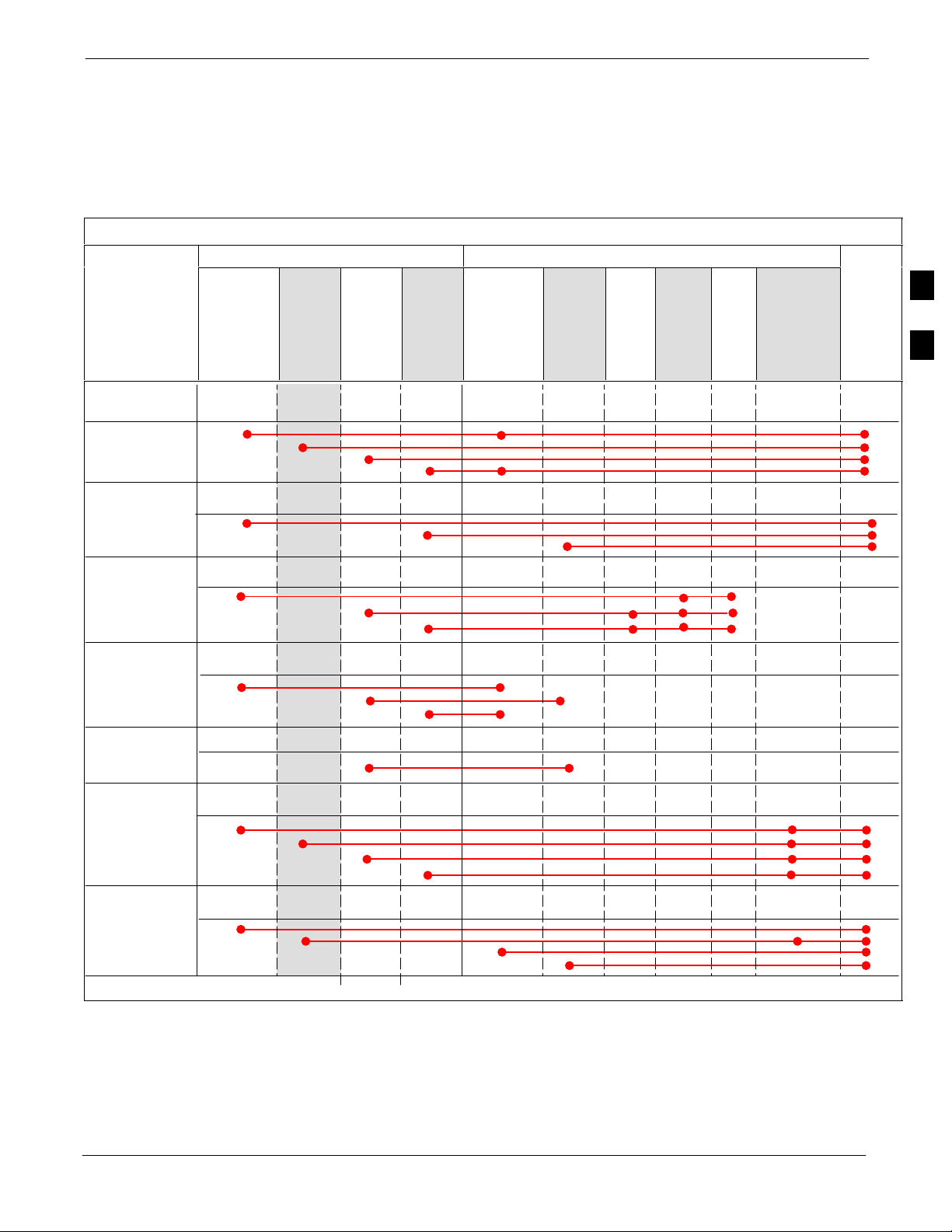

Table 3-23 depicts the interconnection requirements for currently available test equipment supporting IS–95A/B only which meets Motorola standards and is supported by the LMF.

Table 3-23: IS–95 A/B Test Equipment Setup

COMMUNICATIONS SYSTEM ANALYZER ADDITIONAL TEST EQUIPMENT

SIGNAL

EVEN SECOND

SYNCHRONIZATION

19.6608 MHZ CLOCK

CONTROL

IEEE 488 BUS

Cyber–

Test

EVEN

SEC REF

TIME

BASE IN

IEEE

488

Advant-

est

R3465HP8935HP8921A

EVEN SEC

SYNC IN

CDMA

TIME BASE

GPIB HP–IB HP–IB GPIB

EVEN

SECOND

SYNC IN

EXT

REF IN

EVEN

SECOND

SYNC IN

CDMA

TIME

BASE IN

HP–IB HP–IB

HP 8921

W/PCS

EVEN

SECOND

SYNC IN

CDMA

TIME

BASE IN

Power

Meter

GPIB Inter-

face LMF

SERIAL

PORT

30 dB Direction-

al Coupler & 20

dB Pad*

BTS

SYNC

MONITOR

FREQ

MONITOR

3-58

TX TEST

CABLES

RX TEST

CABLES

IN/OUT

RF GEN

OUT

INPUT

50–OHMRFIN/OUT

RF OUT

50–OHM

IN/OUT

IN/OUTRFIN/OUT

DUPLEX

OUT

RF OUT

ONLY

1X SCt 4812T BTS Optimization/ATP

30 DB COUPLER

AND 20 DB PAD

TX1–6

RX1–6

Oct 2003

SIGNAL

EVEN SECOND

SYNCHRONIZATION

Test Equipment Set-up68P09258A31–A

CDMA2000 1X/IS–95A/B–capable Test Equipment Connections

Table 3-24 depicts the interconnection requirements for currently available test equipment supporting both CDMA 2000 1X and IS–95A/B which meets Motorola standards and is supported by the LMF.

Table 3-24: CDMA2000 1X/IS–95A/B Test Equipment Interconnection

COMMUNICATIONS SYSTEM ANALYZER ADDITIONAL TEST EQUIPMENT

Advant-

Agilent

8935 (Op-

tion 200

or R2K)

EXT

TRIG IN

Agilent

E7495A

EVEN SECOND SYNC IN

Advan

test

R3267

EXT TRIG

Agilent

E4406A

TRIGGER

Agilent

E4432B

Signal

Generator

PATTERN

TRIG IN

est R3562 Signal

Genera-

tor

EVEN SECOND SYNC IN

Power

Meter

GPIB Inter-

face LMF

30 dB

Directional

Coupler &

20 dB Pad*

BTS

SYNC

MONI

TOR

19.6608 MHZ CLOCK

CONTROL

IEEE 488 BUS

10 MHZ

SIGNAL SOURCE

CONTROLLED

SERIAL I/O

TX TEST

CABLES

RX TEST

CABLES

MOD TIME

BASE IN

IEEE

488

10 MHZ IN

IN/OUT

DUPLEX

OUT *

PORT 2

RF IN

PORT 1 RF OUT

EXT REF

GPIB HP–IB GPIB

10 MHZ

OUT

SERIAL

I/O

RF IN TX1–6

RF OUT

50–OHM

HP–IB

10 MHZ OUT

(SWITCHED)

RF INPUT

50 OHM

RF OUT

ONLY

GPIB

10 MHZ IN

RF OUTPUT

50 OHM

RF OUTPUT

50–OHM

EXT REF

HP–IB

SYNTHE

REF IN

SERIAL

I/O

RF IN/OUT

RF OUT 50 OHM

SERIAL

PORT

30 DB COUPLER

AND 20 DB PAD

FREQ

MONITOR

RX1–6

* WHEN USED ALONE, THE AGILENT 8935 WITH OPTION 200 OR R2K SUPPORTS IS–95A/B RX TESTING BUT NOT CDMA2000 1X RX TESTING.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-59

Test Equipment Set-up

Equipment Warm-up

68P09258A31–A

NOTE

WARNING

To assure BTS stability and contribute to optimization accuracy of the BTS, warm-up the BTS test equipment prior to performing the BTS optimization procedure as follows:

– Agilent E7495A for a minimum of 30 minutes

– All other test sets for a minimum of 60 minutes

Time spent running initial or normal power-up, hardware/ firmware audit, and BTS download counts as warm-up time.

Before installing any test equipment directly to any BTS TX OUT connector, verify there are no CDMA channels keyed.

– At active sites, have the OMC-R/CBSC place the antenna

(sector) assigned to the LPA under test OOS. Failure to do so can result in serious personal injury and/or equipment damage.

Automatic Cable Calibration Set–up

Figure 3-12 through Figure 3-15 show the cable calibration setup for various supported test sets. The left side of the diagram depicts the location of the input and output ports of each test set, and the right side details the set up for each test.

Manual Cable Calibration

If manual cable calibration is required, refer to the procedures in Appendix F.

3-60

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Figure 3-12: IS–95A/B Cable Calibration Test Setup – CyberTest, Agilent 8935, Advantest R3465, and HP 8921A

Test Equipment Set-up68P09258A31–A

SUPPORTED TEST SETS

Motorola CyberTest

RF GEN OUTANT IN

Note: The Directional Coupler is not used with the Cybertest Test Set. The TX cable is connected directly to the Cybertest Test Set.

A 10dB attenuator must be used with the short test cable for cable calibration with the CyberTest Test Set. The 10dB attenuator is used only for the cable calibration procedure, not with the test cables for TX calibration and ATP tests.

Agilent 8935 Series E6380A

(formerly HP 8935)

CALIBRATION SET UP

A. SHORT CABLE CAL

B. RX TEST SETUP

N–N FEMALE ADAPTER

SHORT CABLE

TEST

SET

TEST

SET

RX CABLE

ANT

DUPLEX

OUT

Advantest Model R3465

Hewlett–Packard Model HP 8921A

RF IN/OUT

Note: For 800 MHZ only. The HP8921A cannot be used to calibrate cables for PCS frequencies.

DUPLEX

OUT

RF OUTPUT

50–OHM

RF INPUT

50–OHM

FW00089

C. TX TEST SETUP

100–WATT (MIN) NON–RADIATING

RF LOAD

TX CABLE

DIRECTIONAL COUPLER (30 DB)

20 DB PAD FOR 1.9 GHZ

SHORT CABLE

N–N FEMALE ADAPTER

TX CABLE

TEST

SET

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-61

Test Equipment Set-up

Figure 3-13: IS–95A/B and CDMA 2000 1X Cable Calibration Test Setup – Agilent E4406A/E4432B and Advantest R3267/R3562

68P09258A31–A

SUPPORTED TEST SETS

Agilent E4432B (Top) and E4406A (Bottom)

OUTPUT

50 OHM

A. SHORT CABLE CAL

CALIBRATION SET UP

SHORT CABLE

TEST

SET

B. RX TEST SETUP

INPUT 50

Advantest R3267 (Top) and R3562 (Bottom)

RF IN

OHM

SHORT CABLE

N–N FEMALE ADAPTER

TEST

SET

RX CABLE

EXT TRIG IN

MOD TIME BASE IN

(EXT REF IN)

RF OUT

REF FW00089

C. TX TEST SETUP

100–WATT (MIN) NON–RADIATING

RF LOAD

TX CABLE

DIRECTIONAL COUPLER (30 DB)

20 DB PAD FOR 1.9 GHZ

SHORT CABLE

N–N FEMALE ADAPTER

TX CABLE

TEST

SET

3-62

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Figure 3-14: CDMA2000 1X Cable Calibration Test Setup – Agilent 8935/E4432B

Test Equipment Set-up68P09258A31–A

SUPPORTED TEST SETS

Agilent E4432B (Top) and 8935 Series E6380A (Bottom)

ANT

NOTE:

10 MHZ IN ON REAR OF SIGNAL GENERATOR IS CONNECTED TO 10 MHZ REF OUT ON SIDE OF CDMA BASE STATION TEST SET.

RF OUTPUT

50 Ω

CALIBRATION SET UP

A. SHORT CABLE CAL

SHORT CABLE

B. RX TEST SETUP

N–N FEMALE ADAPTER

SHORT CABLE

TEST

SET

TEST

SET

RX CABLE

Oct 2003

D. TX TEST SETUP

100–WATT (MIN) NON–RADIATING

RF LOAD

TX CABLE FOR TX TEST CABLE CALIBRATION

RX CABLE FOR DRDC RX TEST CABLE CALIBRATION

1X SCt 4812T BTS Optimization/ATP

50 Ω ΤERM.

SHORT CABLE

DIRECTIONAL COUPLER (30 DB)

20 DB IN–LINE ATTENUATOR

N–N FEMALE ADAPTER

TX CABLE

TEST

SET

3-63

Test Equipment Set-up

Figure 3-15: CDMA2000 1X Cable Calibration Test Setup – Agilent E7495A

68P09258A31–A

SUPPORTED TEST SETS

Agilent E7495A

Use only

Agilent supplied

Ext Ref

Power REF

GPIO

50 MHz

Sensor

Port 2

RF In

Serial 1

Serial 2

Even Second

Sync In

GPS

Antenna

power adapter

Port 1

RF Out / SWR

A. SHORT CABLE CAL

D. RX and TX TEST SETUP

100–WATT (MIN) NON–RADIATING

RF LOAD

CALIBRATION SET UP

10 DB PAD

SHORT CABLE

10 DB PAD

50 Ω ΤERM.

SHORT CABLE

DIRECTIONAL COUPLER (30 DB)

20 DB IN–LINE ATTENUATOR

10 DB PAD

N–N FEMALE ADAPTER

TEST

SET

TX CABLE

PORT 2

RF IN

PORT 1 RF OUT

TX CABLE FOR TX TEST CABLE CALIBRATION

RX CABLE FOR DRDC RX TEST CABLE CALIBRATION

10 DB PAD

TEST

SET

3-64

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Set-up for TX Calibration

Figure 3-16 through Figure 3-18 show the test set connections for TX calibration.

Figure 3-16: TX Calibration Test Setup – CyberTest (IS–95A/B) and Agilent 8935 (IS–95A/B and CDMA2000 1X), and Advantest R3465

TEST SETS TRANSMIT (TX) SET UP

Test Equipment Set-up68P09258A31–A

Motorola CyberTest

FRONT PANEL

NOTE: THE DIRECTIONAL COUPLER IS NOT USED WITH THE CYBERTEST TEST SET. THE TX CABLE IS CONNECTED DIRECTLY TO THE CYBERTEST TEST SET.

IN/OUT

Agilent 8935 Series E6380A (formerly HP 8935)

HP–IB TO GPIB BOX

RF IN/OUT

100–WATT (MIN) NON–RADIATING RF LOAD

30 DB DIRECTIONAL COUPLER

2O DB PAD (FOR 1.7/1.9 GHZ)

TX TEST CABLE

TX ANTENNA

PORT OR TX

RFDS

DIRECTIONAL

COUPLERS

ANTENNA PORT

POWER

SENSOR

OUT

TEST SET

INPUT/

OUTPUT

PORTS

TX TEST CABLE

* A POWER METER CAN BE USED IN PLACE OF THE COMMUNICATIONS TEST SET FOR TX CALIBRATION/AUDIT

COMMUNICATIONS

DIP SWITCH SETTINGS

BAUD RATE

POWER

METER

(OPTIONAL)*

TEST SET

CONTROL

IEEE 488

GPIB BUS

DATA FORMAT

GPIB CABLE

S MODE

Advantest Model R3465

Oct 2003

BTS

LAN

10BASET/ 10BASE2 CONVERTER

GPIB CONNECTS TO BACK OF UNIT

INPUT

50–OHM

1X SCt 4812T BTS Optimization/ATP

UNIVERSAL TWISTED

PAIR (UTP) CABLE

(RJ45 CONNECTORS)

GPIB ADRS

RS232–GPIB

INTERFACE BOX

CDMA

LMF

INTERNAL PCMCIA

ETHERNET CARD

RS232 NULL MODEM CABLE

REF FW00094

G MODE

3-65

Test Equipment Set-up

Figure 3-17: TX Calibration Test Setup – Agilent E4406A and Advantest R3567 (IS–95A/B and CDMA2000 1X)

TEST SETS TRANSMIT (TX) SET UP

68P09258A31–A

Advantest Model R3267

100–WATT (MIN) NON–RADIATING RF LOAD

30 DB DIRECTIONAL COUPLER

TX TEST CABLE

* A POWER METER CAN BE USED IN PLACE OF THE COMMUNICATIONS TEST SET FOR TX CALIBRATION/AUDIT

Agilent E4406A

RF IN

RF INPUT

50 Ω

2O DB PAD (FOR 1.7/1.9 GHZ)

TX TEST CABLE

TX ANTENNA

PORT OR TX

RFDS

DIRECTIONAL

COUPLERS

ANTENNA PORT

POWER

SENSOR

OUT

TEST SET

INPUT/

OUTPUT

PORTS

DIP SWITCH SETTINGS

(OPTIONAL)*

COMMUNICATIONS

TEST SET

DATA FORMAT

BAUD RATE

POWER

METER

CONTROL

IEEE 488

GPIB BUS

GPIB CABLE

S MODE

BTS

LAN

UNIVERSAL TWISTED

PAIR (UTP) CABLE

(RJ45 CONNECTORS)

LAN

10BASET/ 10BASE2 CONVERTER

GPIB ADRS

RS232–GPIB

INTERFACE BOX

CDMA

LMF

INTERNAL PCMCIA

ETHERNET CARD

RS232 NULL MODEM CABLE

REF FW00094

G MODE

3-66

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Test Equipment Set-up68P09258A31–A

Figure 3-18: TX Calibration Test Setup – Agilent E7495A (IS–95A/B and CDMA2000 1X)

TEST SETS TRANSMIT (TX) SET UP

Agilent E7495A

Port 2 RF In

PORT 2

RF IN

Power REF

GPIO

Serial 1

Serial 2

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

50 MHz

Sensor

Ext Ref

Even Second

Sync In

GPS

Antenna

Use only

Agilent supplied

power adapter

Port 1

RF Out / SWR

PORT 1 RF OUT

NOTE: IF BTS IS EQUIPPED WITH DUPLEXED RX/TX SIGNALS, CONNECT THE TX TEST CABLE TO THE DUPLEXED ANTENNA CONNECTOR.

100–WATT (MIN.) NON–RADIATING

RF LOAD

50 Ω TERM .

ANTENNA

CONNECTOR

ANTENNA

CONNECTOR

BTS

DIRECTIONAL COUPLER (30 DB)

2O DB IN–LINE ATTENUATOR

TX TEST CABLE

POWER

SENSOR

TX TEST CABLE

POWER METER

PORT 1 RF OUT

COMMUNICATIONS SYSTEM ANALYZER

PORT 2 RF IN

ETHERNET HUB

INTERNAL

ETHERNET

CARD

SYNC

MONITOR

CSM

LAN

10BASET/ 10BASE2 CONVERTER

UNIVERSAL TWISTED PAIR (UTP)

CABLE (RJ45 CONNECTORS)

CDMA

LMF

INTERNAL PCMCIA ETHERNET CARD

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-67

Test Equipment Set-up

68P09258A31–A

Setup for Optimization/ATP

Figure 3-19 and Figure 3-21 show test set connections for IS–95 A/B optimization/ATP tests. Figure 3-21 and Figure 3-22 show test set connections for IS-95 A/B/C optimization/ATP tests.

Figure 3-19: Optimization/ATP Test Setup Calibration – Agilent 8935

TEST SET Optimization/ATP SET UP

NOTE: IF BTS RX/TX SIGNALS ARE

DUPLEXED (4800E): BOTH THE TX AND RX

Agilent 8935 Series E6380A (formerly HP 8935)

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

FREQ MONITOR

19.6608 MHZ CLOCK REFERENCE FROM CSM BOARD

HP–IB TO GPIB BOX

TEST CABLES CONNECT TO THE DUPLEXED ANTENNA GROUP.

100–WATT (MIN)

RX TEST CABLE

NON–RADIATING

RF LOAD

TEST SET

INPUT/

OUTPUT

PORTS

CDMA

TIMEBASE

COMMUNICATIONS TEST SET

EVEN SECOND/SYNC IN

RF IN/OUT

30 DB

DIRECTIONAL COUPLER

RX ANTENNA

PORT OR RFDS

RX DIRECTIONAL

COUPLER

ANTENNA PORT

MONITOR

LAN

10BASET/ 10BASE2 CONVERTER

TX ANTENNA

PORT OR RFDS

TX DIRECTIONAL

ANTENNA PORT

BTS

FREQ

SYNC

TX TEST CABLE

COUPLER

CSM

RF IN/OUT

2O DB PAD FOR 1.7/1.9 GHZ (10 DB PAD FOR 800 MHZ)

DIP SWITCH SETTINGS

RS232–GPIB

INTERFACE BOX

IEEE 488

GPIB BUS

DATA FORMAT

BAUD RATE

GPIB ADRS G MODE

RS232 NULL MODEM CABLE

S MODE

3-68

UNIVERSAL TWISTED

PAIR (UTP) CABLE

(RJ45 CONNECTORS)

1X SCt 4812T BTS Optimization/ATP

CDMA

LMF

INTERNAL PCMCIA

ETHERNET CARD

REF FW00096

Oct 2003

Figure 3-20: Optimization/ATP Test Setup – HP 8921

TEST SETS Optimization/ATP SET UP

Test Equipment Set-up68P09258A31–A

Hewlett–Packard Model HP 8921A W/PCS Interface (for 1700 and 1900 MHz)

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

IN/OUT

FREQ MONITOR

19.6608 MHZ CLOCK REFERENCE FROM CSM BOARD

RF OUT

ONLY

GPIB

CONNECTS

TO BACK OF

UNITS

Hewlett–Packard Model HP 8921A (for 800 MHz)

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

IN/OUT

FREQ MONITOR

19.6608 MHZ CLOCK REFERENCE FROM CSM BOARD

RF OUT

ONLY

GPIB

CONNECTS

TO BACK OF

UNIT

NOTE: IF BTS RX/TX SIGNALS ARE DUPLEXED (4800E): BOTH THE TX AND RX TEST CABLES CONNECT TO THE DUPLEXED ANTENNA GROUP.

100–WATT (MIN)

RX TEST CABLE

30 DB

DIRECTIONAL COUPLER

RX ANTENNA

PORT OR RFDS

RX DIRECTIONAL

COUPLER

ANTENNA PORT

NON–RADIATING

RF LOAD

TX TEST CABLE

TX ANTENNA

PORT OR RFDS

TX DIRECTIONAL

COUPLER

ANTENNA PORT

2O DB PAD FOR 1.7/1.9 GHZ (10 DB PAD FOR 800 MHZ)

BTS

FREQ

MONITOR

SYNC

MONITOR

CSM

LAN

10BASET/ 10BASE2 CONVERTER

OUT

TEST SET

INPUT/

OUTPUT

PORTS

HP PCS INTERFACE

(FOR 1700 AND 1900 MHZ ONLY)

COMMUNICATIONS TEST SET

CDMA

TIMEBASE

DIP SWITCH SETTINGS

RS232–GPIB

INTERFACE BOX

EVEN SECOND/SYNC IN

IEEE 488

GPIB BUS

BAUD RATE

DATA FORMAT

GPIB ADRS G MODE

S MODE

RS232 NULL MODEM CABLE

GPIB CABLE

Oct 2003

UNIVERSAL TWISTED

PAIR (UTP) CABLE

(RJ45 CONNECTORS)

1X SCt 4812T BTS Optimization/ATP

CDMA

LMF

INTERNAL PCMCIA

ETHERNET CARD

REF FW00097

3-69

Test Equipment Set-up

Figure 3-21: IS–95A/B and CDMA2000 1X Optimization/ATP Test Setup – Advantest R3267/3562, Agilent E4432B/E4406A

TEST SETS Optimization/ATP SET UP

Advantest R3267 (Top) and R3562 (Bottom)

10 MHZ REF OUT

TO EXT TRIG ON REAR OF SPECTRUM ANALYZER

NOTE: IF BTS RX/TX SIGNALS ARE DUPLEXED: BOTH THE TX AND RX TEST CABLES CONNECT TO THE DUPLEXED ANTENNA GROUP.

BASEBAND GEN. REF. IN

OUT

68P09258A31–A

SIGNAL GENERATOR

MHZ

RF IN

EXT TRIG IN

MOD TIME BASE IN SYNTHE REF IN

NOTE:

SYNTHE REF IN ON REAR OF SIGNAL GENERATOR IS CONNECTED TO 10 MHZ REF OUT ON REAR OF SPECTRUM ANALYZER.

(EXT REF IN)

FREQ MONITOR

19.6608 MHZ CLOCK REFERENCE FROM CSM BOARD

RF OUT

SYNC MONITOR EVEN SEC TICK PULSE REFERENCE FROM CSM BOARD

BNC

“T”

TEST CABLE

30 DB

DIRECTIONAL COUPLER

Agilent E4432B (Top) and E4406A (Bottom)

OUTPUT

MHZ

OUT

TO PATTERN TRIG IN ON REAR OF SIGNAL GENERATOR

BNC

“T”

TO TRIGGER IN ON REAR OF TRANSMITTER TESTER

SYNC MONITOR EVEN SEC TICK PULSE REFERENCE FROM CSM BOARD

TO EXT REF IN ON REAR OF TRANSMITTER TESTER

FREQ MONITOR

19.6608 MHZ CLOCK REFERENCE FROM

CSM BOARD

50 Ω

INPUT

50 Ω

BASEBAND GEN. REF. IN ON REAR OF

SIGNAL

GENERATOR

BNC

“T”

RX ANTENNA

PORT OR RFDS

RX DIRECTIONAL

COUPLER

ANTENNA PORT

LAN

BTS

FREQ

MONITOR

SYNC

MONITOR

LAN

10BASET/ 10BASE2 CONVERTER

100–WATT (MIN)

NON–RADIATING

RF LOAD

TX TEST CABLE

TX ANTENNA

PORT OR RFDS

TX DIRECTIONAL

COUPLER

ANTENNA PORT

19.6608 MHZ CLOCK

CSM

COMMUNICATIONS TEST SET

2O DB PAD FOR 1.7/1.9 GHZ (10 DB PAD FOR 800 MHZ)

EXT REF

10 MHZ OUT

BNC

“T”

DIP SWITCH SETTINGS

DATA FORMAT

BAUD RATE

GPIB ADRS G MODE

RS232–GPIB

INTERFACE BOX

RS232 NULL MODEM CABLE

CDMA

EVEN SECOND/ SYNC IN

IEEE 488

GPIB BUS

S MODE

GPIB CABLE

LMF

3-70

UNIVERSAL TWISTED

PAIR (UTP) CABLE

(RJ45 CONNECTORS)

NOTE:

FOR MANUAL TESTING, GPIB MUST BE CONNECTED BETWEEN THE ANALYZER AND THE SIGNAL GENERATOR

1X SCt 4812T BTS Optimization/ATP

INTERNAL PCMCIA

ETHERNET CARD

REF FW00758

Oct 2003

Figure 3-22: IS–95A/B and CDMA2000 1X Optimization/ATP Test Setup – Agilent E7495A

Test Equipment Set-up68P09258A31–A

TEST SET

Agilent E7495A

Port 2

RF In

PORT 2

RF IN

Power REF

GPIO

Serial 1

Serial 2

SYNC MONITOR EVEN SEC TICK

PULSE REFERENCE

FROM CSM BOARD

50 MHz

Sensor

Ext Ref

Even Second

Sync In

GPS

Antenna

Use only

Agilent supplied

power adapter

Port 1

RF Out / SWR

PORT 1 RF OUT

ATP TEST SET UP

NOTE: IF BTS IS EQUIPPED

WITH DUPLEXED RX/TX SIGNALS, CONNECT THE TX TEST CABLE TO THE DUPLEXED ANTENNA CONNECTOR.

100–WATT (MIN.) NON–RADIATING

RF LOAD

50 Ω TERM

RX TEST

TX TEST

ANTENNA

CONNECTOR

ANTENNA

CONNECTOR

BTS

RX TEST

RF INPUT 50 Ω OR INPUT 50 Ω

TX TEST

DIRECTIONAL COUPLER (30 DB)

2O DB IN–LINE ATTENUATOR

POWER METER

PORT 1 RF OUT

COMMUNICATIONS SYSTEM ANALYZER

PORT 2 RF IN

NOTE: USE THE SAME CABLE SET FOR TX AND RX ATP. SWITCH THE CABLES DURING ALL ATP TESTS AS SHOWN.

INTERNAL

ETHERNET

TEST CABLES

ETHERNET HUB

CARD

SYNC

MONITOR

CSM

LAN

10BASET/ 10BASE2 CONVERTER

UNIVERSAL TWISTED PAIR (UTP)

CABLE (RJ45 CONNECTORS)

CDMA

LMF

INTERNAL PCMCIA ETHERNET CARD

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-71

Test Equipment Set-up

ATP Setup with Directional Couplers

Figure 3-23 shows a typical TX ATP setup.

Figure 3-23: Typical TX ATP Setup with Directional Coupler

68P09258A31–A

TX ANTENNA DIRECTIONAL COUPLERS

COBRA RFDS Detail

TX RF FROM BTS FRAME

(RFM TX)

(RFM RX)

RF FEED LINE TO DIRECTIONAL COUPLER REMOVED

RFDS RX (RFM TX) COUPLER OUTPUTS TO RFDS FWD(BTS) ASU2 (SHADED) CONNECTORS

Connect TX test cable between Appropriate test sets and the port names for all model test sets are described in Table 3-23 and

the directional coupler input port

and the appropriate TX antenna

directional coupler connector. Table 3-24.

COMMUNICATIONS TEST SET

40W NON–RADIATING

RF LOAD

NOTE:

THIS SETUP APPLIES TO BOTH STARTER AND COMPANION FRAMES.

TEST DIRECTIONAL COUPLER

TX TEST CABLE

OUTPUT

PORT

RVS (REFLECTED)

PORT 50–OHM TERMINATION

FWD

(INCIDENT)

PORT

30 DB

DIRECTIONAL

COUPLER

BTS INPUT PORT

REF

FW00116

TX TEST CABLE

3-72

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Figure 3-24: Typical RX ATP Setup with Directional Coupler

Figure 3-24 shows a typical RX ATP setup.

Test Equipment Set-up68P09258A31–A

RX ANTENNA DIRECTIONAL COUPLERS

RX RF FROM BTS FRAME

Appropriate test sets and the port names for all model test sets are described in Table 3-23 and Table 3-24.

COMMUNICATIONS TEST SET

OUT

(RFM TX)

(RFM RX)

COBRA RFDS Detail

RFDS TX (RFM RX) COUPLER OUTPUTS TO RFDS FWD(BTS) ASU1 (SHADED) CONNECTORS

RF FEED LINE TO TX ANTENNA REMOVED

Connect RX test cable between the test set and the appropriate RX antenna directional coupler.

NOTE:

THIS SETUP APPLIES TO BOTH STARTER AND EXPANSION FRAMES.

RX Test Cable

FW00115

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-73

Test Set Calibration

Background

68P09258A31–A

Proper test equipment calibration ensures that the test equipment and associated test cables do not introduce measurement errors, and that measurements are correct.

NOTE

CAUTION

NOTE

This procedure must be performed prior to beginning the optimization. Verify all test equipment (including all associated test cables and adapters actually used to interface all test equipment and the BTS) has been calibrated and maintained as a set.

If the test equipment set being used to optimize or test the BTS has been calibrated and maintained as a set, this procedure does not need to be performed.

If any piece of test equipment, test cable, or RF adapter that makes up the calibrated test equipment set has been replaced, the set must be re-calibrated. Failure to do so can introduce measurement errors, resulting in incorrect measurements and degradation to system performance. Motorola recommends repeating cable calibration before testing at each BTS site.

Calibration of the communications system analyzer (or equivalent test equipment) must be performed at the site before calibrating the overall test equipment set. Calibrate the test equipment after it has been allowed to warm–up and stabilize for a minimum of 60 minutes.

Calibration Procedures Included

Automatic

Procedures included in this section use the LMF automated calibration routine to determine path losses of the supported communications analyzer, power meter, associated test cables, adapters, and (if used) antenna switch that make up the overall calibrated test equipment set. After calibration, the gain/loss offset values are stored in a test measurement offset file on the LMF computer.

Manual

Agilent E4406A Transmitter Tester – The E4406A does not support the power level zeroing calibration performed by the LMF. If this instrument is to be used for Bay Level Offset calibration and calibration is attempted with the LMF Calibrate Test Equipment function, the LMF will return a status window failure message stating that zeroing power is not supported by the E4406A. Refer to the Equipment Calibration section of Appendix F for instructions on using the instrument’s self–alignment (calibration) function prior to performing Bay Level Offset calibration.

Power Meters – Manual power meter calibration procedures to be performed prior to automated calibration are included in the Equipment Calibration section of Appendix F.

3-74

1X SCt 4812T BTS Optimization/ATP

Oct 2003

GPIB Addresses

IP Addresses

Test Set Calibration68P09258A31–A

Cable Calibration – Manual cable calibration procedures using the HP 8921A and Advantest R3465 communications system analyzers are provided in the Manual Cable Calibration section of Appendix F, if needed.

GPIB addresses can range from 1 through 30. The LMF will accept any address in that range, but the numbers entered in the LMF Options window GPIB address box must match the addresses of the test equipment. Motorola recommends using 1 for a CDMA signal generator, 13 for a power meter, and 18 for a communications system analyzer. To verify and, if necessary, change the GPIB addresses of the test equipment, refer to the Setting GPIB Addresses section of Appendix F.

For the Agilent E7495A Communications Test Set, set the IP address and complete initial setup as described in Appendix F (Specifically, see Table F-1 on page F-3).

Selecting Test Equipment

Serial Connection and Network Connection tabs are provided in the LMF Options window to specify the test equipment connection method.

The Serial Connection tab is used when the test equipment items are connected directly to the LMF computer through a GPIB box (normal setup). The Network Connection tab is used when the test equipment is to be connected remotely via a network connection or the Agilent E7495A Communications Test Set is used. Refer to Appendix F (Specifically, see Table F-1 on page F-3).

Prerequisites

Ensure the following prerequisites have been met before proceeding:

S Test equipment is correctly connected and turned on. S GPIB addresses set in the test equipment have been verified as correct

using the applicable procedures in Appendix F. (GPIB not applicable with Agilent E7495A)

S LMF computer serial port and test equipment are connected to the

GPIB box. (GPIB not applicable with Agilent E7495A)

Selecting Test Equipment

Oct 2003

Test equipment may be selected either manually with operator input or automatically using the LMF autodetect feature.

1X SCt 4812T BTS Optimization/ATP

3-75

Test Set Calibration

68P09258A31–A

Manually Selecting Test Equipment in a Serial Connection Tab

Test equipment can be manually specified before, or after, the test equipment is connected. The LMF does not check to see if the test equipment is actually detected for manual specification. Follow the procedure in Table 3-25 to select test equipment manually.

Table 3-25: Selecting Test Equipment Manually in a Serial Connection Tab

n Step Action

1 In the LMF window menu bar, click Tools and select Options... from the pull–down menu. The

LMF Options window appears.

2 Click on the Serial Connection tab (if not in the forefront).

3 Select the correct serial port in the COMM Port pick list (normally COM1).

4 Click on the Manual Specification button (if not enabled).

5 Click on the check box corresponding to the test item(s) to be used.

6 Type the GPIB address in the corresponding GPIB address box (refer to the Setting GPIB

Addresses section of Appendix F for directions on verifying and/or changing test equipment GPIB addresses). Motorola–recommended addresses are:

1 = signal generator 13 = power meter 18 = communications system analyzer

* IMPORTANT

When test equipment items are manually selected by the operator, the LMF defaults to using a power meter for RF power measurements. The LMF will use a communications system analyzer for RF power measurements only if a power meter is not selected (power meter checkbox not checked).

7 Click on Apply. (The button darkens until the selection has been committed.)

NOTE

With manual selection, the LMF does not attempt to detect the test equipment to verify it is connected and communicating with the LMF.

To verify and, if necessary, change the GPIB address of the test equipment, refer to Appendix F.

8 Click on Dismiss to close the LMF Options window.

3-76

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Test Set Calibration68P09258A31–A

Automatically Selecting Test Equipment in Serial Connection Tab

When using the auto-detection feature to select test equipment, the LMF examines which test equipment items are actually communicating with the LMF. Follow the procedure in Table 3-26 to use the auto-detection feature.

Table 3-26: Selecting Test Equipment Using Auto-Detect

n Step Action

1 In the LMF window menu bar, click Tools and select Options... from the pull–down menu. The

LMF Options window appears.

2 If it is not in the forefront, click on the Serial Connection tab.

3 Select the correct serial port in the COMM Port pick list (normally COM1).

4 If it is not selected (no black dot showing), click on the Auto–Detection button.

5 If they are not already displayed in the box labeled GPIB address to search, click in the box and

type in the GPIB addresses for the test equipment to be used, separating each address with commas and no spaces. (Refer to the Setting GPIB Addresses section of Appendix F for instructions on verifying and/or changing test equipment GPIB addresses.)

NOTE

During the GPIB address search for a test equipment item to perform RF power measurements (that is, for TX calibration), the LMF will select the first item it finds with the capability to perform the measurement. If, for example, the address sequence 13,18,1 is included in the GPIB addresses to search box, the power meter (GPIB address 13) will be used for RF power measurements. If the address sequence 18,13,1 is included, the LMF will use the communications system analyzer (GPIB address 18) for power measurements.

6 Click Apply. The button will darken until the selection has been committed. A check mark will

appear in the applicable Manual Configuration section check boxes for detected test equipment items.

7 Click Dismiss to close the LMF Options window.

Detecting Test Equipment when using Agilent E7495A

Check that no other equipment is connected to the LMF. Agilent E7495A equipment must be connected to the LAN to detect it. Then perform the procedures described in Appendix F (Specifically, see Table F-1 on page F-3, Table F-2, and Table F-3 on page F-4).

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-77

Test Set Calibration

Calibrating Test Equipment

68P09258A31–A

The calibrate test equipment function zeros the power measurement level of the test equipment item that is to be used for TX calibration and audit. If both a power meter and an analyzer are connected, only the power meter is zeroed.

NOTE

Prerequisites

The Agilent E4406A transmitter tester does not support power measurement level zeroing. Refer to the Equipment Calibration section of Appendix F for E4406A calibration.

S LMF computer serial port and test equipment are connected to the

GPIB box.

S Test equipment to be calibrated has been connected correctly for tests

that are to be run.

S Test equipment has been selected in the LMF (Table 3-25 or

Table 3-26)

Calibrating test equipment

Follow the procedure in Table 3-27 to calibrate the test equipment.

Table 3-27: Test Equipment Calibration

n Step Action

1 From the Util menu, select Calibrate Test Equipment

from the pull–down menu. A Directions window is displayed.

2 Follow the directions provided.

3 Click on Continue to close the Directions window and

start the calibration process. A status report window is displayed.

4 Click on OK to close the status report window.

3-78

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Calibrating Cables Overview

Test Set Calibration68P09258A31–A

The LMF Cable Calibration function is used to measure the path loss (in dB) for the TX and RX cables, adapters, directional couplers, and attenuators that make up the cable configurations used for testing. A communications system analyzer is used to measure the loss of both the TX test cable and the RX test cable configurations. LMF cable calibration consists of the following processes:

Measure the loss of a short cable

This is done to compensate for any measurement error of the communications system analyzer. The short cable, which is used only for the calibration process, is connected in series with both the TX and RX test cable configurations when they are measured.

The measured loss of the TX and RX test cable configurations minus the measured loss of the short cable equals the actual loss of the configurations. This is done so that any error in the analyzer measurement is eliminated from both the TX and RX measurements.

Measure the loss of the short cable plus the RX test cable configuration

The RX test cable configuration normally consists only of a coax cable with type–N connectors that is long enough to reach from the BTS RX connector to the test equipment.

When the BTS antenna connectors carry duplexed TX and RX signals, a directional coupler is required and an additional attenuator may also be required (for certain BTS types) for the RX test cable configuration. These additional items must be included in the path loss measurement.

Measure the loss of the short cable plus the TX test cable configuration

The TX test cable configuration normally consists of two coax cables with type–N connectors, a directional coupler, a termination load with sufficient rating to dissipate the BTS output power, and an additional attenuator, if required by the BTS type. The total path loss of the TX test configuration must be as required for the BTS (normally 30 or 50 dB).

The Motorola Cybertest analyzer differs from other communications system analyzers because the required attenuation/load is built into the test set. Because of this, the Cybertest TX test configuration consists only of the required length coax cable.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-79

Test Set Calibration

Calibrate Test Cabling using Communications System Analyzer

Cable Calibration is used to calibrate both TX and RX test cables. Appendix F covers the procedures for manual cable calibration.

68P09258A31–A

NOTE

LMF cable calibration cannot be accomplished using an HP8921 analyzer for 1.7/1.9 GHz. A different analyzer type or the signal generator and spectrum analyzer method (Table 3-29 and Figure 3-25) must be used. Cable calibration values must be manually entered into the LMF cable loss file if the signal generator and spectrum analyzer method is used. To use the HP8921A for manual test cable configuration calibration for 800 MHz BTSs, refer to the Manual Cable Calibration section of Appendix F.

Prerequisites

S Test equipment is turned on and has warmed up for at least 60

minutes. Agilent E7495A requires only 30 minute warmup.

S Test equipment has been selected in the LMF (Table 3-25 or

Table 3-26).

S Test equipment has been calibrated and correctly connected for the

type of test cable configuration to be calibrated.

Calibrating cables

Refer to Figure 3-12, Figure 3-13, or Figure 3-14 and follow the procedure in Table 3-28 to calibrate the test cable configurations.

Table 3-28: Test Cabling Calibration using Comm. System Analyzer

n Step Action

1 Click Util in the BTS menu bar, and select Cable

Calibration... in the pull–down menu. A Cable Calibration window is displayed.

2 Enter one or more channel numbers in the Channels box

NOTE

Multiple channels numbers must be separated with a comma, no space (i.e., 200,800). When two or more channels numbers are entered, the cables are calibrated for each channel. Interpolation is accomplished for other channels as required for TX calibration.

3 Select TX and RX Cable Cal, TX Cable Cal, or RX

Cable Cal in the Cable Calibration pick list.

4 Click OK, and follow the directions displayed for each

step. A status report window will be displayed with the results of the cable calibration.

3-80

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Test Set Calibration68P09258A31–A

Calibrate Test Cabling Using Signal Generator & Spectrum Analyzer

Follow the procedure in Table 3-29 to calibrate the TX/Duplexed RX cables using a signal generator and spectrum analyzer. Refer to Figure 3-25, if required. Follow the procedure in Table 3-30 to calibrate the Non–Duplexed RX cables using the signal generator and spectrum analyzer. Refer to Figure 3-26, if required.

Table 3-29: Calibrating TX/Duplexed RX Cables Using Signal Generator & Spectrum Analyzer

Step Action

1 Connect a short test cable between the spectrum analyzer and the signal generator as shown in

Figure 3-25, detail “A” (top portion of figure).

2 Set signal generator to 0 dBm at the customer frequency of:

869–894 MHz for North American Cellular or 1930–1990 MHz for North American PCS

3 Use spectrum analyzer to measure signal generator output (see Figure 3-25, A) & record the value.

4 Connect the spectrum analyzer’s short cable to point B, (as shown in the lower right portion of the

diagram) to measure cable output at customer frequency of:

869–894 MHz for North American Cellular or 1930–1990 MHz for North American PCS Record the value at point B.

Calibration factor = (value measured with detail “A” setup) – (value measured with detail “B” setup)

Example: Cal factor = –1 dBm – (–53.5 dBm) = 52.5 dB

NOTE

The short cable is used for calibration only. It is not part of the final test setup. After calibration is completed, do not re-arrange any cables. Use the test cable configuration as is to ensure test procedures use the correct calibration factor.

Figure 3-25: Cal Setup for TX/Duplexed RX Test Cabling Using Signal Generator & Spectrum Analyzer

Signal

Generator

Spectrum

Analyzer

SHORT TEST CABLE

40W NON–RADIATING

Spectrum

Analyzer

SHORT TEST CABLE

RF LOAD

ONE 20DB 20 W IN

LINE ATTENUATOR

50 OHM TERMINATION

30 DB

DIRECTIONAL

COUPLER

FW00293

THIS WILL BE THE CONNECTION TO

THE TX PORTS DURING TX BAY LEVEL

OFFSET TEST AND TX ATP TESTS.

Signal

Generator

Oct 2003

THIS WILL BE THE CONNECTION TO THE HP8481A POWER SENSOR DURING TX BAY LEVEL OFFSET TEST AND TO THE PCS INTERFACE BOX INPUT PORT DURING TX ATP TESTS.

1X SCt 4812T BTS Optimization/ATP

CABLE FROM 20 DB @ 20W ATTENUATOR TO THE PCS INTERFACE OR THE HP8481A POWER SENSOR.

3-81

Test Set Calibration

68P09258A31–A

Table 3-30: Calibrating Non–Duplexed RX Cables Using a Signal Generator &Spectrum Analyzer

Step Action

NOTE

When preparing to calibrate a BTS with Duplexed TX and RX the RX cable calibration must be done using calibration setup in Figure 3-25 and the procedure in Table 3-29.

1 Connect a short test cable between the spectrum analyzer and the signal generator as shown in

Figure 3-26, detail “A” (top portion of figure).

2 Set signal generator to –10 dBm at the customer’s RX frequency of:

824–849 for North American Cellular or 1850–1910 MHz band for North American PCS

3 Use spectrum analyzer to measure signal generator output (see Figure 3-26, A) and record the value.

4 Connect the test setup, as shown in the lower portion of the diagram (see Figure 3-26, B) to measure

the output at the customer’s RX frequency of:

824–849 for North American Cellular or 1850–1910 MHz band for North American PCS Record the value at point B.

Calibration factor = (value measured with detail “A” setup) – (value measured with detail “B” setup)

Example: Cal factor = –1 dBm – (–53.5 dBm) = 52.5 dB

NOTE

Figure 3-26: Cal Setup for Non–Duplexed RX Test Cabling Using Signal Generator & Spectrum Analyzer

Signal

Generator

Spectrum

Analyzer

SHORT TEST CABLE

Spectrum

Analyzer

CONNECTION TO THE RX PORTS

DURING RX MEASUREMENTS.

Signal

Generator

CONNECTION TO THE HP PCS INTERFACE OUTPUT PORT DURING RX MEASUREMENTS.

LONG CABLE 2

BULLET

CONNECTOR

SHORT TEST CABLE

3-82

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Setting Cable Loss Values

Test Set Calibration68P09258A31–A

Cable loss values for TX and RX test cable configurations are normally set by accomplishing automatic cable calibration using the LMF and the applicable test equipment. The LMF stores the measured loss values in the cable loss files. The cable loss values can also be set or changed manually. Follow the procedure in Table 3-31 to set cable loss values.

CAUTION

If cable calibration was performed without using the LMF, cable loss values must be manually entered in the LMF database. Failure to do this will result in inaccurate BTS calibration and reduced site performance.

Prerequisites

S LMF is logged into the BTS

Table 3-31: Setting Cable Loss Values

Step Action

1 Click Util in the BTS menu bar, and select Edit > Cable Loss in the pull–down menus.

–A tabbed data entry pop–up window will appear.

2 Click on the TX Cable Loss tab or the RX Cable Loss tab, as required.

3 To add a new channel number, perform the following:

3a – Click on the Add Row button.

3b – Click in the Channel # or Loss (dBm) column, as required.

3c – Enter the desired value.

4 To edit existing values, click in the data box to be changed and change the value.

5 To delete a row, click on the row and then click on the Delete Row button.

6 For each tab with changes, click on the Save button to save displayed values.

Click on the Dismiss button to close the window.

NOTE

S Values entered or changed after the Save button was used will be lost when the window is

dismissed.

S If cable loss values exist for two different channels the LMF will interpolate for all other channels. S Entered values will be used by the LMF as soon as they are saved. It is not necessary to log out and

log back into the LMF for changes to take effect.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-83

Test Set Calibration

Setting TX Coupler Loss Values

If an in–service TX coupler is installed, the coupler loss (e.g., 30 dB) must be manually entered so it will be included in the LMF TX calibration and audit calculations and RX FER Test. Follow the procedure in Table 3-32 to set coupler loss values.

Prerequisites

S LMF is logged into the BTS S Path loss, in dB, of the TX coupler must be known

68P09258A31–A

Setting loss values

Table 3-32: Setting TX Coupler Loss Value

Step Action

1 Click Util in the BTS menu bar, and select Edit > Coupler

Loss... in the pull–down menus.

–A tabbed data entry pop–up window will appear.

2 Click on the TX Coupler Loss tab or the RX Coupler Loss

tab, as required

3 Click in the Loss (dBm) column for each carrier that has a

coupler and enter the appropriate value.

4 To edit existing values, click in the data box to be changed

and change the value.

5 For each tab with changes, click on the Save button to save

displayed values.

Click on the Dismiss button to close the window.

NOTE

S Values entered or changed after the Save button is used will

be lost when the window is dismissed.

S The In–Service Calibration check box in the Tools >

Options > BTS Options tab must be checked before

entered TX coupler loss values will be used by the TX calibration and audit functions.

S New or changed values will be used by the LMF as soon as

they are saved. Logging out and logging in again are not required to cause saved changes to take effect.

3-84

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Bay Level Offset Calibration

Introduction

Bay Level Offset (BLO) calibration is the central activity of the optimization process. BLO calibration compensates for normal equipment variations within the BTS RF paths and assures the correct transmit power is available at the BTS antenna connectors to meet site performance requirements.

RF Path Bay Level Offset Calibration

Bay Level Offset Calibration68P09258A31–A

Calibration identifies the accumulated gain in every transmit path (BBX slot) at the BTS site and stores that value in a BLO database calibration table in the LMF. The BLOs are subsequently downloaded to each BBX.

For starter frames, each receive path starts at a BTS RX antenna port and terminates at a backplane BBX slot. Each transmit path starts at a BBX backplane slot, travels through the Power Amplifier (PA) and terminates at a BTS TX antenna port.

For expansion frames each receive path starts at the BTS RX port of the cell site starter frame, travels through the frame-to-frame expansion cable, and terminates at a backplane BBX slot of the expansion frame. The transmit path starts at a BBX backplane slot of the expansion frame, travels though the PA and terminates at a BTS TX antenna port of the same expansion frame.

Calibration identifies the accumulated gain in every transmit path (BBX slot) at the BTS site and stores that value in a BLO database. Each transmit path starts at a C–CCP shelf backplane BBX slot, travels through the PA, and ends at a BTS TX antenna port. When the TX path calibration is performed, the RX path BLO is automatically set to the default value.

At omni sites, BBX slots 1 and 13 (redundant) are tested. At sector sites, BBX slots 1 through 12, and 13 (redundant) are tested. Only those slots (sectors) actually equipped in the current CDF are tested, regardless of physical BBX board installation in the slot.

When to Calibrate BLOs

Oct 2003

Calibration of BLOs is required:

S After initial BTS installation S Once each year S After replacing any of the following components or associated

interconnecting RF cabling: – BBX board – C–CCP shelf – CIO card – CIO to Power Amplifier backplane RF cable – PA backplane –PA – TX filter / TX filter combiner – TX thru-port cable to the top of frame

1X SCt 4812T BTS Optimization/ATP

3-85

Bay Level Offset Calibration

TX Path Calibration

68P09258A31–A

The TX Path Calibration assures correct site installation, cabling, and the first order functionality of all installed equipment. The proper function of each RF path is verified during calibration. The external test equipment is used to validate/calibrate the TX paths of the BTS.

WARNING

Before installing any test equipment directly to any TX OUT connector you must first verify that there are no CDMA channels keyed. Have the OMC–R place the sector assigned to the LPA under test OOS. Failure to do so can result in serious personal injury and/or equipment damage.

CAUTION

NOTE

Always wear a conductive, high impedance wrist strap while handling any circuit card/module. If this is not done, there is a high probability that the card/module could be damaged by ESD.

At new site installations, to facilitate the complete test of each CCP shelf (if the shelf is not already fully populated with BBX boards), move BBX boards from shelves currently not under test and install them into the empty BBX slots of the shelf currently being tested to insure that all BBX TX paths are tested.

– This procedure can be bypassed on operational sites that are

due for periodic optimization.

– Prior to testing, view the CDF file to verify the correct

BBX slots are equipped. Edit the file as required to include BBX slots not currently equipped (per Systems Engineering documentation).

BLO Calibration Data File

NOTE

During the calibration process, the LMF creates a bts–n.cal calibration (BLO) offset data file in the bts–n folder. After calibration has been completed, this offset data must be downloaded to the BBXs using the Download BLO function. An explanation of the file is shown below.

Due to the size of the file, Motorola recommends that you print out a hard copy of a bts.cal file and refer to it for the following descriptions.

The CAL file is subdivided into sections organized on a per slot basis (a slot Block).

Slot 1 contains the calibration data for the 12 BBX slots. Slot 20 contains the calibration data for the redundant BBX. Each BBX slot header block contains:

S A creation Date and Time – broken down into separate parameters of

createMonth, createDay, createYear, createHour, and createMin.

S The number of calibration entries – fixed at 720 entries corresponding

to 360 calibration points of the CAL file including the slot header and actual calibration data.

3-86

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Bay Level Offset Calibration68P09258A31–A

3–Sector

Carrier

3–Sector

2nd

Carrier

3–Sector

S The calibration data for a BBX is organized as a large flat array. The

array is organized by branch, sector, and calibration point.

– The first breakdown of the array indicates which branch the

contained calibration points are for. The array covers transmit, main receive and diversity receive offsets as follows:

Table 3-33: BLO BTS.cal File Array Assignments

Range Assignment

C[1]–C[240] Transmit

C[241]–C[480] Main Receive

C[481]–C[720] Diversity Receive

NOTE

Slot 385 is the BLO for the RFDS.

– The second breakdown of the array is per sector. Configurations

supported are Omni, 3–sector or 6–sector.

Table 3-34: BTS.cal File Array (Per Sector)

BBX Sectorization TX RX RX Diversity

Slot[1] (Primary BBXs 1 through 12)

1 (Omni)

6 Sector,

3–Sector

1st

Carrier

C[1]–C[20] C[241]–C[260] C[481]–C[500]

C[21]–C[40] C[261]–C[280] C[501]–C[520]

C[41]–C[60] C[281]–C[300] C[521]–C[540]

Carrier

6 Sector,

Carrier

3–Sector

3rd

Carrier

3–Sector

2nd

Carrier

3–Sector

4th

Carrier

C[61]–C[80] C[301]–C[320] C[541]–C[560]

C[81]–C[100] C[321]–C[340] C[561]–C[580]

C[101]–C[120] C[341]–C[360] C[581]–C[600]

C[121]–C[140] C[361]–C[380] C[601]–C[620]

C[141]–C[160] C[381]–C[400] C[621]–C[640]

C[161]–C[180] C[401]–C[420] C[641]–C[660]

C[181]–C[200] C[421]–C[440] C[661]–C[680]

C[201]–C[220] C[441]–C[460] C[681]–C[700]

C[221]–C[240] C[461]–C[480] C[701]–C[720]

Oct 2003

1X SCt 4812T BTS Optimization/ATP

. . . continued on next page

3-87

Bay Level Offset Calibration

3–Sector

Carrier

3–Sector

2nd

Carrier

3–Sector

BBX RX DiversityRXTXSectorization

68P09258A31–A

Table 3-34: BTS.cal File Array (Per Sector)

Slot[20] (Redundant BBX–13)

1 (Omni)

6 Sector,

Carrier

6 Sector,

Carrier

3–Sector

1st

Carrier

3–Sector

3rd

Carrier

3–Sector

2nd

Carrier

3–Sector

4th

Carrier

C[1]–C[20] C[241]–C[260] C[481]–C[500]

C[21]–C[40] C[261]–C[280] C[501]–C[520]

C[41]–C[60] C[281]–C[300] C[521]–C[540]

C[61]–C[80] C[301]–C[320] C[541]–C[560]

C[81]–C[100] C[321]–C[340] C[561]–C[580]

C[101]–C[120] C[341]–C[360] C[581]–C[600]

. . . continued on next page

C[121]–C[140] C[361]–C[380] C[601]–C[620]

C[141]–C[160] C[381]–C[400] C[621]–C[640]

C[161]–C[180] C[401]–C[420] C[641]–C[660]

C[181]–C[200] C[421]–C[440] C[661]–C[680]

C[201]–C[220] C[441]–C[460] C[681]–C[700]

C[221]–C[240] C[461]–C[480] C[701]–C[720]

S Ten calibration points per sector are supported for each branch. Two

entries are required for each calibration point.

S The first value (all odd entries) refer to the CDMA channel

(frequency) where the BLO is measured. The second value (all even entries) is the power set level. The valid range for PwrLvlAdj is from 2500 to 27500 (2500 corresponds to –125 dBm and 27500 corresponds to +125 dBm).

S The 20 calibration entries for each sector/branch combination must be

stored in order of increasing frequency. If less than 10 points (frequencies) are calibrated, the largest frequency that is calibrated is repeated to fill out the 10 points.

Example:

C[1]=384, odd cal entry

= 1 ‘‘calibration point”

C[2]=19102, even cal entry

C[3]=777, C[4]=19086, . . C[19]=777, C[20]=19086, (since only two cal points were calibrated this

would be repeated for the next 8 points)

S When the BBX is loaded with image = data, the cal file data for the

BBX is downloaded to the device in the order it is stored in the cal file. TxCal data is sent first, C[1] – C[240]. Sector 1’s ten calibration points are sent (C[1] – C[20]) followed by sector 2’s ten calibration points (C[21] – C[40]), etc. The RxCal data is sent next (C[241] – C[480]), followed by the RxDCal data (C[481] – C[720]).

S Temperature compensation data is also stored in the cal file for each

set.

3-88

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Bay Level Offset Calibration68P09258A31–A

Test Equipment Set-up for RF Path Calibration

Follow the procedure in Table 3-35 to set up test equipment.

Table 3-35: Set Up Test Equipment for RF Path Calibration

Step Action

1 If it has not already been done, refer to the procedure in Table 3-5 (on page 3-17) to interface the LMF

computer terminal to the frame LAN A connector.

2 If it has not already been done, refer to Table 3-6 (on page 3-26) to start a GUI LMF session.

3 If required, calibrate the test equipment per the procedure in Table 3-27 (on page 3-78).

NOTE

Verify the GPIB controller is properly connected and turned on.

! CAUTION

To prevent damage to the test equipment, all transmit (TX) test connections must be via the 30 dB directional coupler for 800 MHz with an additional 20 dB in–line attenuator for 1.7/1.9 GHz.

4 For TX path calibration, connect the test equipment as shown in Figure 3-16, Figure 3-17, or

Figure 3-19, depending on the communications analyzer being used.

Transmit (TX) Path Calibration Description

The assigned channel frequency and power level (as measured at the top of the frame) for transmit calibration are derived from the site CDF files. For each BBX, the channel frequency is specified in the CDF file parameter and the power is specified in the SIFPilotPwr CDF file parameter for the sector associated with the BBX (located

ParentSECTOR field of the ParentCARRIER CDF file

If both the BTS–x.cdf and CBSC–x.cdf files are current, all information will be correct on the LMF. If not, the carrier and channel will have to be set for each test.

NOTE

under the parameter).

The calibration procedure attempts to adjust the power to within +0.5 dB of the desired power. The calibration will pass if the error is less than

1.5 dB.

The TX Bay Level Offset at sites WITHOUT the directional coupler option, is approximately 42.0 dB ±3.0 dB.

S At sites WITHOUT RFDS option, BLO is approximately

42.0 dB ±4.0 dB. A typical example would be TX output power measured at BTS (36.0 dBm) minus the BBX TX output level (approximately –6.0 dBm) would equate to 42 dB BLO.

ChannelList

Oct 2003

The TX Bay Level Offset at sites WITH the directional coupler option, is approximately 41.4 dB ±3.0 dB. TX BLO = Frame Power Output minus BBX output level.

S Example: TX output power measured at RFDS TX coupler

(39.4 dBm) minus the BBX TX output level (approximately –2.0 dBm) and RFDS directional coupler/cable (approximately –0.6 dBm) would equate to 41.4 dB BLO.

1X SCt 4812T BTS Optimization/ATP

3-89

Bay Level Offset Calibration

68P09258A31–A

TX Calibration and the LMF

The LMF Tests > TX > TX Calibration... and Tests > All Cal/Audit... selections perform TX BLO calibration testing for installed BBX(s). The All Cal/Audit... selection initiates a series of actions to perform TX calibration, and if calibration is successful, download BLO and perform TX audit. The TX Calibration... selection performs only TX calibration. When TX Calibration... is used, BLO download and TX audit must be performed as separate activities. The CDMA Test Parameters window which opens when TX Calibration... or All Cal/Audit... is selected contains several user–selectable features which

are described in the following subsections.

Rate Set Drop-down Pick List

The Rate Set Drop–down Box is enabled if at least one MCC card is selected for the test. The available options for TX tests are 1 = 9600, and 3 = 9600 1X. Option 3 is only available if 1X cards are selected for the test. The available transfer rate options for RX tests are 1 = 9600 and 2 = 14400. Option 2 is only available if no 1X cards are selected.

Verify BLO

In both the TX Calibration and All Cal/Audit dialog boxes, a Verify BLO checkbox is provided and checked by default. After the actual TX calibration is completed during either the TX Calibration or All Cal/Audit process, the BLO derived from the calibration is compared to

a standard, acceptable BLO tolerance for the BTS. In some installations, additional items may be installed in the transmit path. The additional change in gain from these items could cause BLO verification failure and, therefore, failure of the entire calibration. In these cases, either the Verify BLO checkbox should be unchecked or the additional path losses should be added into each applicable sector using the Util>Edit>TX Coupler Loss... function.

3-90

Single-Sided BLO Checkbox

Another option that appears in the pull–down menu is Single–sided BLO. Normally valid BLO values are some value plus–or–minus some

offset. The ranges that we currently use for calibration are wider than necessary to accommodate the redundant BBX. The lower half of that range is where non–redundant BBXs should be. When Single–sided BLO is selected, the result is only considered a success if it is in the lower half of the range. If it was normally a success from 37–47 (which is 42 "5), Single–sided BLO would make it a success only if the result was from 37–42. To get the more stringent conditions, the operator checks Single–sided BLO when calibrating non–redundant transceivers. Single–sided BLO carries the likelihood of more failures. This option should only be used by experienced CFEs.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Bay Level Offset Calibration68P09258A31–A

Test Pattern Drop-down Pick List

The Tests > TX > TX Calibration... menu window has a Test Pattern pull–down menu. This menu has the following choices:

S Pilot (default) – performs tests using a pilot signal only. This pattern

should be used when running in–service tests. It only requires a BBX to do the test.

S Standard – performs the tests using pilot, synch, paging and six

traffic channels. This pattern should be used on all non–in–service tests. Standard requires a BBX and an MCC. Standard uses gain values specified by the IS97 standard.

S CDFPilot –performs the tests using the pilot signal, however, the gain

is specified in the CDF file. Advanced users may use CDFPilot to generate a Pilot pattern using the value specified by the PilotGain parameter in the CDF file instead of a pre–determined value.

S CDF – performs the tests using pilot, synch, paging and six traffic

channels, however, the gain for the channel elements is specified in the CDF file. Advanced users may use CDF to generate a standard pattern. Instead of using the values specified by IS97, the settings for the following CDF parameters are used:

Set-up for TX Calibration

n Step Action

1 Delete the existing calibration file (if any) from the BTS folder on LMF

2 To edit the nominal TX BLO, from the Util menu, select Edit > TX

– PilotGain

– PchGain

– SchGain

– NomGain1Way

The workaround in Table 3-36 allows the user to manually set the BLO limits to ensure that the redundant BBX BLO test does not fail due to the preset offset being incorrectly set for the frame under test. A future LMF release will correct this problem.

Table 3-36: Initial Set-up for TX Calibration

laptop from the location C:\wlmf\cdma\bts–#, where # is the BTS number.

Nominal Offset. In the TX Cal Parameter window, make any necessary changes to ensure the Tx BLO Nominal Offset (in dB) is correct:

– For 800 MHz, the value is 45.0 (dB), OR

– For 1900 MHz, the value is 43.0 (dB).

Oct 2003

3 Download the data, which includes BLO values, to all the BBXs. From the

Device menu, select Download > Data

1X SCt 4812T BTS Optimization/ATP

3-91

Bay Level Offset Calibration

TX Calibration

68P09258A31–A

WARNING

CAUTION

Before installing any test equipment directly to any TX OUT connector, first verify there are no CDMA BBX channels keyed. Failure to do so can result in serious personal injury and/or equipment damage.

Always wear an approved anti–static wrist strap while handling any circuit card or module. If this is not done, there is a high probability that the card or module could be damaged by ESD.

All Cal/Audit and TX Calibration Procedure

The LMF All Cal/Audit and TX calibration procedures are essentially identical, except for the step that selects the type of procedure desired (Refer to Step 4 in Table 3-37).

Prerequisites

Before running this procedure, be sure that the following have been done:

S The card in slot CSM 1, GLIs, MCCs, and BBXs have correct code

and data loads.

S Primary CSM and MGLI are INS_ACT (bright green). S All BBXs are OOS_RAM (yellow). S If running calibration or audit using a test pattern other than Pilot,

MCCs are INS_ACT (bright green).

S Test equipment and test cables are calibrated and connected for TX

calibration.

S LMF is logged into the BTS in the GUI environment.

NOTE

Verify all BBX boards removed and repositioned have been returned to their assigned shelves/slots. Any BBX boards moved since they were downloaded will have to be downloaded again.

All Cal Audit/TX Path Calibration procedure

Follow the procedure in Table 3-37 to perform the All Cal/Audit and TX path calibration test.

Table 3-37: All Cal/Audit and TX Calibration Procedure

n Step Action

1 If it has not already been done, configure test equipment for TX calibration by following the

procedure in Table 3-35.

2 Click on the BBX(s) to be calibrated.

3 If the Test Pattern to be used is Standard, CDFPilot, or CDF, select at least one MCC (refer to

“Test Pattern Drop–down Pick List” under “TX Calibration and the LMF” in this section).

. . . continued on next page

3-92

1X SCt 4812T BTS Optimization/ATP

Oct 2003

n ActionStep

4 For All Cal Audit...

– Click Tests in the BTS menu bar, and select TX > All Cal/Audit... from the pull–down

menus. A CDMA Test Parameters window will appear.

For TX Calibration

– Click Tests in the BTS menu bar, and select TX > TX Calibration from the pull–down

menus. A CDMA Test Parameters window will appear.

Select the appropriate carrier(s) and sector(s) (carrier-bts#-sector#-carrier#) from those displayed in the Channels/Carrier pick list.

NOTE

To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select multiple carrier(s)–sector(s).

Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.

NOTE

If necessary, the correct channel number may be manually entered into the Carrier # Channels box.

Bay Level Offset Calibration68P09258A31–A

Table 3-37: All Cal/Audit and TX Calibration Procedure

7 If at least one MCC was selected in Step 3, select the appropriate transfer rate (1 = 9600, 3 = 9600

1X) from the drop–down list in the Rate Set box.

NOTE

The rate selection of 3 is only available if 1X cards are selected for the test.

8 If Verify BLO is to be used during the calibration, leave the checkbox checked (default).

If Single–Sided BLO is to be used during the calibration, click on the checkbox.

* IMPORTANT

Single–Sided BLO should only be used for primary BBXs. Do not check the box when calibrating the redundant BBX.

10 In the Test Pattern box, select the test pattern to use for the calibration from the drop–down list

(refer to “Test Pattern Drop–down Pick List” under “TX Calibration and the LMF” in this section – see page 3-91).

11 Click OK to display the status report window followed by a Directions pop-up window.

12 Follow cable connection directions as they are displayed. When the calibration process is

completed, results will be displayed in the status report window.

13 Click on the Save Results or Dismiss button, as desired, to close the status report window.

Exception Handling

Oct 2003

In the event of a failure, the calibration procedure displays a FAIL message in the status report window and provides information in the Description field.

Recheck the test setup and connection and re–run the test. If the tests fail again, note specifics about the failure, and refer to Chapter 6, Troubleshooting.

1X SCt 4812T BTS Optimization/ATP

3-93

Bay Level Offset Calibration

Download BLO Procedure

68P09258A31–A

After a successful TX path calibration, download the bay level offset (BLO) calibration file data to the BBXs. BLO data is extracted from the CAL file for the Base Transceiver Subsystem (BTS) and downloaded to the selected BBX devices.

NOTE

Prerequisites

If a successful All Cal/Audit was completed, this procedure does not need to be performed, as BLO is downloaded as part of the All Cal/Audit.

Ensure the following prerequisites have been met before proceeding:

S BBXs being downloaded are OOS–RAM (yellow). S TX calibration is successfully completed.

Follow the steps in Table 3-38 to download the BLO data to the BBXs.

Table 3-38: Download BLO

n Step Action

1 Select the BBX(s) to be downloaded.

2 Click Device in the BTS menu bar, and select Download

> BLO from the pull–down menus. A status report window displays the result of the download.

NOTE

Selected device(s) do not change color when BLO is downloaded.

3 Click on OK to close the status report window.

Calibration Audit Introduction

The BLO calibration audit procedure confirms the successful generation and storage of the BLO calibration offsets. The calibration audit procedure measures the path gain or loss of every BBX transmit path at the site. In this test, actual system tolerances are used to determine the success or failure of a test. The same external test equipment set up is used.

NOTE

3-94

1X SCt 4812T BTS Optimization/ATP

RF path verification, BLO calibration, and BLO data download to BBXs must have been successfully completed prior to performing the calibration audit.

Oct 2003

TX Path Audit

Bay Level Offset Calibration68P09258A31–A

Perform the calibration audit of the TX paths of all equipped BBX slots per the procedure in Table 3-39

TX Audit Test

WARNING

NOTE

If a successful All Cal/Audit was completed, this procedure does not need to be performed, as BLO is downloaded as part of the All Cal/Audit.

The Tests menu item, TX Audit, performs the TX BLO Audit test for a BBX(s). All measurements are made through the appropriate TX output connector using the calibrated TX cable setup.

Prerequisites

Before running this test, ensure that the following have been done:

S CSM–1, GLIs, and BBXs have correct code load and data load. S Primary CSM and MGLI are INS. S All BBXs are OOS_RAM.

S Test equipment and test cables are calibrated and connected for TX

BLO calibration.

S LMF is logged into the BTS.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-95

Bay Level Offset Calibration

68P09258A31–A

TX Path Audit procedure

After a TX calibration has been performed, or if verification of BLO data in the CAL file is required, follow the procedure in Table 3-39 to perform a BTS TX path audit.

Table 3-39: BTS TX Path Audit

n Step Action

1 If it has not already been done, configure test equipment for TX path audit by following the procedure

in Table 3-35 (TX audit uses the same configuration as TX calibration).

2 Select the BBX(s) to be audited.

3 If the Test Pattern to be used is Standard, CDFPilot or CDF, select at least one MCC (refer to

“Test Pattern Drop–down Pick List” under “TX Calibraton and the LMF” in this section).

4 Click Tests in the BTS menu bar, and select TX>TX Audit... from the pull–down menus. A

CDMA Test Parameters window will appear.

5 Select the appropriate carrier(s) (carrier-bts#-sector#-carrier#) from those displayed in the

Channels/Carrier pick list.

NOTE

To select multiple items, hold down the Shift or Ctrl key while clicking on pick list items to select multiple carrier(s)–sector(s).

6 Verify that the correct channel number for the selected carrier is shown in the Carrier # Channels

box. If it is not, obtain the latest bts–#.cdf (or bts–#.necf) and cbsc–#.cdf files from the CBSC.

NOTE

The correct channel number may be manually entered into the Carrier # Channels box.

7 If at least one MCC was selected in Step 2, select the appropriate transfer rate (1 = 9600, 3 = 9600

1X) from the drop–down list in the Rate Set box.

NOTE

The rate selection of 3 is only available if 1X cards are selected for the test.

8 Select Verify BLO (default) or Single–sided BLO.

NOTE

Single–sided BLO is only used when checking non–redundant transceivers.

9 In the Test Pattern box, select the test pattern from the drop–down list (refer to “Test Pattern

Drop–down Pick List” – see page 3-91).

10 Click OK to display the status report window followed by a Directions pop-up window.

11 Follow the cable connection directions as they are displayed. When the calibration process is

completed, results will be displayed in the status report window.

12 Click on the Save Results or Dismiss button, as desired, to close the status report window.

3-96

Exception Handling

In the event of a failure, the calibration procedure displays a FAIL message in the Status Report window and provides information in the Description field. Recheck the test setup and connection and re–run the test. If the tests fail again, note specifics about the failure, and refer to Chapter 6, Troubleshooting.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

All Cal/Audit Test

Bay Level Offset Calibration68P09258A31–A

The Tests menu item, All Cal/Audit, performs the TX BLO Calibration and Audit test for a XCVR(s). All measurements are made through the appropriate TX output connector using the calibrated TX cable setup.

NOTE

WARNING

If the TX calibration portion of the test passes, the BLO data is automatically downloaded to the BBX(s) before the audit portion of the test is run.

Prerequisites

Before running this test, ensure that the following have been done:

S CSM–1, GLIs, BBXs have correct code and data loads. S Primary CSM and MGLI are INS. S All BBXs are OOS_RAM. S Test equipment and test cables are calibrated and connected for TX

BLO calibration.

S LMF is logged into the BTS.

Follow the procedure in Table 3-40 to perform the All Cal/Audit test.

Table 3-40: All Cal/Audit Test

n Step Action

1 Select the BBX(s) to be tested.

NOTE

If STANDARD, CDFPilot, or CDF is selected for the TEST PATTERN, then at least one MCC must be also selected.

2 From the Tests menu, select All Cal/Audit.

3 Select the appropriate carrier(s) displayed in the Channels/Carrier pick list.

Press and hold the <Shift> or <Ctrl> key to select multiple items.

4 Type the appropriate channel number in the Carrier n Channels box.

5 If at least one MCC was selected in Step1 select the appropriate transfer rate (1 = 9600, 3 = 9600

1X) from the drop–down list in the Rate Set box.

NOTE

The rate selection of 3 is only available if 1X cards are selected for the test.

6 Select Verify BLO or Single–sided BLO.

NOTE

Single–sided BLO is only used when checking non–redundant transceivers.

7 In the Test Pattern box, select the test pattern from the drop–down list (refer to “Test Pattern

Drop–down Pick List” – see page 3-91).

8 Click on OK.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

. . . continued on next page

3-97

Bay Level Offset Calibration

n ActionStep

9 Follow the cable connection directions as they are displayed. A status report window displays the

test results.

10 Click on Save Results or Dismiss to close the status report window.

Create CAL File

68P09258A31–A

Table 3-40: All Cal/Audit Test

The Create Cal File function gets the BLO data from BBXs and creates/updates the CAL file for the BTS. If a CAL file does not exist, a new one is created. If a CAL file already exists, it is updated. After a BTS has been fully optimized, a copy of the CAL file must exist so it can be transferred to the CBSC. If TX calibration has been successfully performed for all BBXs and BLO data has been downloaded, a CAL file exists. Note the following:

S The Create Cal File function only applies to selected (highlighted)

BBXs.

WARNING

The user is not encouraged to edit the CAL file as this action can cause interface problems between the BTS and the LMF. To manually edit the CAL file, you must first logout of the BTS. If you manually edit the CAL file and then use the Create Cal File function, the edited information is lost.

Prerequisites

Before running this test, the following should be done:

S LMF is logged into the BTS. S BBXs are OOS_RAM with BLO downloaded.

3-98

Creating a CAL File

Table 3-41: Create CAL File

n Step Action

1 Select the applicable BBXs.

NOTE

The CAL file is only updated for the selected BBXs.

2 Click on the Device menu.

3 Click on the Create Cal File menu item. A status report

window displays the results of the action.

4 Click OK to close the status report window.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

RFDS Set–up and Calibration

RFDS Description

RFDS Set–up and Calibration68P09258A31–A

NOTE

RFDS Parameter Settings

The RFDS is not available for the –48 V BTS at the time of this publication.

The optional RFDS performs RF tests of the site from the CBSC or from an LMF. The RFDS consists of the following elements:

S Antenna Select Unit (ASU) S Fixed Wireless Terminal Interface Card (FWTIC) S Subscriber Unit Assembly (SUA)

For complete information regarding the RFDS, refer to the CDMA

CDMA RFDS Hardware Installation; 68P64113A93, CDMA RFDS User’s Guide; 68P64114A51, and the LMF Help function on–line documentation.

The bts–#.cdf file includes RFDS parameter settings that must match the installed RFDS equipment. The paragraphs below describe the editable parameters and their defaults. Table 3-42 explains how to edit the parameter settings.

S RfdsEquip – valid inputs are 0 through 2.

0 = (default) RFDS is not equipped 1 = Non-Cobra/Patzer box RFDS 2 = Cobra RFDS

NOTE

S TsuEquip – valid inputs are 0 or 1

0 = (default) TSU not equipped 1 = TSU is equipped in the system

S MC1....4 – valid inputs are 0 or 1

0 = (default) Not equipped 1 = Multicouplers equipped in RFDS system

(9600 system RFDS only)

S Asu1/2Equip – valid inputs are 0 or 1

0 = (default) Not equipped 1 = Equipped

S TestOrigDN – valid inputs are ’’’ (default) or a numerical string up to

15 characters. (This is the phone number the RFDS dials when originating a call. A dummy number needs to be set up by the switch, and is to be used in this field.)

Any text editor may be used to open the bts–#.cdf file to verify, view, or modify data. Because the bts–#.cdf file is generated on a Unix system, a more sophisticated editor, such as MicroSoft WordPad, will display file content in a more easily–read format than many simple text editors.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-99

RFDS Set–up and Calibration

68P09258A31–A

Checking and Setting RFDS Parameters

Follow the procedure in Table 3-42 to review and/or edit RFDS parameters.

Table 3-42: RFDS Parameter Settings

Step Action

1 Important! Log out of the BTS prior to performing this procedure.

2 Using a text editor, verify the following fields are set correctly in the bts–#.cdf file:

EXAMPLE:

Asu1Equip = 1 Asu2Equip = 0 (1 if system is non-duplexed) Mc1Equip = 0 Mc2Equip = 0 Mc3Equip = 0 Mc4Equip = 0 RfdsEquip = 2 TestOrigDN = ’123456789’ TsuEquip = 1

NOTE

The above is an example of entries extracted from the bts–#.cdf file that should have been generated by the OMC–R and copied to the LMF. These fields will have been set by the OMC–R if the RFDSPARM database is modified for the RFDS.

3 Save changes and/or quit the editor.

4 Log into the BTS using an LMF GUI session (refer to Table 3-6).

5 If no changes were made to the bts–#.cdf file fields listed in Step 2, proceed to Step 6. If changes were

made, continue with Step 8.

NOTE

To make certain the complete data download is accepted, the MGLI should be OOS_RAM (yellow) when RFDS parameter settings are downloaded.

6 When changes are made to RFDS parameters in the bts–#.cdf file, data must be downloaded to the

MGLI by performing the following:

6a – To be sure it does not take control when the MGLI is disabled, manually disable the redundant

GLI card by unseating it from the backplane connectors and sliding it partially out of the shelf

slot. 6b – Click on the MGLI.

6c – Click on Device in the BTS menu bar, and select Disable from the pull–down menu. A status

report window shows the status of the operation. 6d – When the operation is complete, click OK to close the status report window.

6e – Click on the MGLI (now OOS_RAM (yellow)).

6f – Click on Device in the BTS menu bar, and select Download > Data from the pull–down menus

(selected devices do not change color when data is downloaded). A status report window shows

the status of the download. 6g – Click OK to close the status report window.

6h – Click on the MGLI.

. . . continued on next page

3-100

1X SCt 4812T BTS Optimization/ATP

Oct 2003

RFDS Set–up and Calibration68P09258A31–A

Table 3-42: RFDS Parameter Settings

Step Action

6i – Click on Device in the BTS menu bar, and select Enable from the pull–down menu. A status

report window shows the status of the operation.

– When the operation is complete, click OK to close the status report window.

! CAUTION

When the MGLI changes to INS_ACT, data will automatically be downloaded to the RFDS. During this process, the RFDS LED will slowly begin flashing red and green for approximately 2–3 minutes. DO NOT attempt to perform any functions with the RFDS until the LED remains steady green.

6k – Re–seat the redundant GLI card into the backplane connectors and lock it in place with the ejector

tabs.

6l – Once the redundant GLI initializes, download data to it by selecting the card and, in the BTS

menu bar, clicking Device and selecting Download > Data from the pull–down menus.

7 Any MCCs that were INS_ACT when the MGLI was disabled must be disabled, downloaded with

data, and re–enabled as follows:

7a – Select the devices to be reset by clicking on them or using Select from the BTS menu bar and

clicking on MCCs in the pull–down menu. 7b – In the BTS menu bar, click on Device and select Disable from the pull–down menu. A status

report window shows the status of the operation. 7c – Click OK to close the status report window.

7d – Repeat Step 7a to select the MCCs.

7e – Click on Device in the BTS menu bar and select Download > Data from the pull–down menu.

(Selected devices do not change colot when data is downoaded.)

– A status report window shows the status of the download. 7f – Click on OK to close the status report window.

7g – When data download is complete, enable the MCCs by following the procedure in Table 3-17.

8 Click on the RFDS tab.

9 Status the RFDS TSU by performing the following:

9a – Click on the SUA to select it.

9b – Click on TSU in the BTS menu bar, and select Status TSU from the pull–down menu. A status

report shows the software version number for the TSIC and SUA.

9c – Click OK to close the status report window.

NOTE

If the LMF displays an error message, check the following:

S Ensure AMR cable is correctly connected from the BTS to the RFDS. S Verify RFDS has power. S Verify RFDS status LED is green. S Verify entries in RFDS fields of the bts–#.cdf file are correct (refer to Step 2). S Status the MGLI and ensure it is communicating (by Ethernet) with the LMF, and is in the proper

state (INS_ACT (bright green)).

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-101

RFDS Set–up and Calibration

RFDS TSU NAM Programming

The Number Assignment Module (NAM) information needs to be programmed into the TSU before it can receive and process test calls, or be used for any type of RFDS test. The RFDS TSU NAM must be programmed with the appropriate system parameters and phone number during hardware installation. The TSU phone and TSU MSI must be recorded for each BTS used for OMC–R RFDS software configuration.

68P09258A31–A

NOTE

The user will only need to program the NAM for the initial install of the RFDS.

Explanation of Parameters used when Programming the TSU NAM

Table 3-43 defines the parameters used when editing the tsu.nam file.

Table 3-43: Definition of Parameters

Access_Overload_Code Slot_Index System ID Network ID

Primary_Channel_A Primary_Channel_B Secondary_Channel_A Secondary_Channel B

Lock_Code Security_Code Service_Level Station_Class_Mark

IMSI_11_12 IMSI_MCC

These parameters are obtained from the switch.

These parameters are the channels used in operation of the system.

Do not change.

These fields are obtained at the OMC using the following command:

OMC000>disp bts–# imsi

If the fields are blank, replace the IMSI fields in the NAM file to 0, otherwise use the values displayed by the OMC.

MIN Phone Number This field is the phone number assigned to the mobile. The ESN and

MIN should be entered into the switch as well.

NOTE

This field is different from the TODN field in the bts–#.cdf file. The MIN is the phone number of the RFDS subscriber, and the TODN is the number the subscriber calls.

3-102

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Valid NAM Ranges

RFDS Set–up and Calibration68P09258A31–A

Table 3-44 provides the valid NAM field ranges. If any of the fields are missing or out of range, the RFDS errors out.

Table 3-44: Valid NAM Field Ranges

Valid Range

NAM Field Name

Minimum Maximum

Access_Overload_Code 0 15

Slot_Index 0 7

System ID 0 32767

Network ID 0 32767

Primary_Channel_A 25 1175

Primary_Channel_B 25 1175

Secondary_Channel_A 25 1175

Secondary_Channel_B 25 1175

Lock_Code 0 999

Security_Code 0 999999

Service_Level 0 7

Station_Class_Mark 0 255

IMSI_11_12 0 99

IMSI_MCC 0 999

MIN Phone Number N/A N/A

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-103

RFDS Set–up and Calibration

68P09258A31–A

Set Antenna Map Data

The antenna map data must be entered manually if an RFDS is installed. Antenna map data does not need to be entered if an RFDS is not installed. The antenna map data is only used for RFDS tests and is required if an RFDS is installed.

Prerequisite

S Logged into the BTS

Follow the procedure in Table 3-45 to set antenna map data for the

Step Action

1 Click on Util in the BTS menu bar, and select Edit > Antenna Map... from the pull–down menus. A

tabbed data entry pop–up window will appear.

2 In the data entry pop–up window, click on the TX Antenna Map or RX Antenna Map tab to select

the antenna map to be edited.

RFDS.

Table 3-45: Set Antenna Map Data

3 Locate the carrier and sector number for which data is to be entered or edited, and click in the column

where entry or editing is needed.

Enter/edit Antenna # and Antenna Label column data as needed for each carrier.

NOTE

Refer to the CDMA Help > Utility Menu > Edit–Antenna Map... section of LMF Help function on–line documentation for antenna map examples.

5 For each tab with changes, click on the Save button to save displayed values.

Click on the Dismiss button to close the window.

NOTE

S Values entered or changed after the Save button was used will be lost when the window is

dismissed.

S Entered values will be used by the LMF as soon as they are saved. It is not necessary to log out and

log back into the LMF for changes to take effect.

3-104

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Set RFDS Configuration Data

If an RFDS is installed, the RFDS configuration data must be manually entered.

Prerequisite

S LMF is logged into the BTS

RFDS Set–up and Calibration68P09258A31–A

NOTE

Follow the procedure in Table 3-46 to set the RFDS Configuration Data.

Table 3-46: Set RFDS Configuration Data

Step Action

1 Click on Util in the BTS menu bar, and select Edit > RFDS Configuration... from the pull–down

menus. A tabbed data entry pop–up window will appear.

2 In the data entry pop–up window, click on the TX RFDS Configuration or RX RFDS Configuration

tab, as required.

3 To add a new antenna number, perform the following:

3a – Click on the Add Row button.

3b – Click in the Antenna #, Cal Antenna, Scap Antenna, or Populate [Y/N] columns, as required.

3c – Enter the desired data.

4 To edit existing values, click in the data box to be changed and change the value.

The entered antenna# index numbers must correspond to the antenna# index numbers used in the antenna maps.

NOTE

Refer to the CDMA Help > Utility Menu > Edit–RFDS Configuration... section of LMF Help function on–line documentation for RFDS configuration data examples.

5 To delete a row, click on the row and then click on the Delete Row button.

6 For each tab with changes, click on the Save button to save displayed values.

Click on the Dismiss button to close the window.

NOTE

S Values entered or changed after the Save button was used will be lost when the window is

dismissed.

S Entered values will be used by the LMF as soon as they are saved. It is not necessary to log out and

log back into the LMF for changes to take effect.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-105

RFDS Set–up and Calibration

68P09258A31–A

RFDS Calibration

The RFDS Calibration option is used to calibrate the RFDS TX and RX paths.

TX Path Calibration – For a TX antenna path calibration the BTS XCVR is keyed at a pre–determined power level and the BTS power output level is measured by the RFDS. The power level is then measured at the TX antenna directional coupler by the power measuring test equipment item being used (power meter or analyzer). The difference (offset) between the power level at the RFDS and the power level at the

TX antenna directional coupler is used as the TX RFDS calibration offset value.

RX Path Calibration – For an RX antenna path calibration the RFDS is keyed at a pre–determined power level and the power input level is measured by the BTS BBX. A CDMA signal at the same power level measured by the BTS BBX is then injected at the RX antenna directional coupler by the communications system analyzer. The difference (offset) between the RFDS–keyed power level and power level measured at the BTS BBX is the RFDS RX calibration offset value.

RFDS calibration and the CAL file – The TX and RX RFDS calibration offset values are written to the CAL file in the slot[385] Block.

TSIC channel frequency – For each RFDS TSIC, the channel frequency is determined at the lower third and upper third of the appropriate band using the frequencies listed in Table 3-47.

WARNING

Prerequisites

S Test equipment has been selected.

Table 3-47: RFDS TSIC Calibration Channel Frequencies

System Channel Calibration Points

800 MHz (A and B) 341 and 682

1.9 GHz 408 and 791

Before installing any test equipment directly to any TX OUT connector, verify that there are no CDMA channels keyed. Failure to do so can result in serious personal injury and/or equipment damage.

3-106

S Test equipment and test cables have been calibrated. S TX calibration has been performed and BLO data has been

downloaded to the BBXs.

S Test equipment and test cables are connected for TX calibration. S Antenna map data has been entered for the site. S BBXs are OOS–RAM.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

RFDS Set–up and Calibration68P09258A31–A

RFDS Calibration Procedure

Follow the procedure in Table 3-48 to perform RFDS calibration.

Table 3-48: RFDS Calibration Procedure

Step Action

1 In the LMF, select the CDMA BTS–xxx tab.

2 If the BTS Control button is not selected (no black dot showing), click on the B button in the BTS

menu bar to select it.

3 Select the BBX(s) assigned to the carrier(s) and sector(s) which will be used in RFDS calibration

(refer to Table 1-6 for BBX carrier and sector assignments).

4 Click on RFDS in the BTS menu bar, and select RFDS Calibration... from the pull–down menu. An

RFDS Calibration set–up window will be displayed.

5 In the Tests to Perform box, select TX Calibration or RX Calibration, as required

6 Enter the appropriate channel number(s) (refer to Table 3-47) in the Channel Field box. To enter more

than one channel number, use the following methods:

– Separate non–sequential channel numbers with a comma and no spaces;

for example: 247,585,742.

– Enter a range of sequential channels by typing the first and last channel numbers in the range

separated by a dash and no spaces; for example: 385–395.

7 If the frame is equipped with TX combiners, click in the Has Combiners checkbox.

8 Select the appropriate carrier(s) and sector(s) from the Carriers pick list (hold down the Shift or Ctrl

key while clicking on pick list items to select multiple carrier(s)–sector(s)).

9 Select the appropriate Rx branch (Main, Diversity or Both) in the drop–down list if performing RX

calibration.

10 Click on the OK button. A status report window is displayed, followed by a Directions pop-up

window.

11 Follow the cable connection directions as they are displayed.

12 When the test is completed, test results are displayed in the status report window.

13 Click on the OK button to close the status report window.

14 Click on the Frame tab.

15 Select the MGLI by clicking on it.

16 Download updated RFDS offset data to the MGLI (see Step 6 in Table 3-42).

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-107

RFDS Set–up and Calibration

Program TSU NAM

68P09258A31–A

The NAM must be programmed before it can receive and process test calls, or be used for any type of RFDS test.

Prerequisites

Ensure the following prerequisites have been met before proceeding:

S MGLI is INS. S TSU is powered up and has a code load.

Step Action

1 Select the RFDS tab.

2 Select the SUA (Cobra RFDS) or TSU (GLI based RFDS).

3 Click on TSU in the BTS menu bar, and select Program TSU NAM from the pull–down menu. A

NAM programming window will appear.

4 Enter the appropriate information in the boxes (see Table 3-43 and Table 3-44).

5 Click on the OK button to display the status report.

6 Click on the OK button to close the status report window.

Program NAM Procedure

Follow the procedure in Table 3-49 to program the TSU NAM.

Table 3-49: Program the TSU NAM

3-108

1X SCt 4812T BTS Optimization/ATP

Oct 2003

BTS Redundancy/Alarm Testing

Objective

This section tests the redundancy options that could be included in the cell site. These tests verify, under a fault condition, that all modules equipped with redundancy switch operations to their redundant partner and resume operation. An example would be to pull the currently active CSM and verify the standby CSM takes over distribution of the CDMA reference signal.

BTS Redundancy/Alarm Testing68P09258A31–A

Test Equipment

Redundancy/Alarm Test

Redundancy covers many BTS modules. Confirm the redundant options included in the BTS, and proceed as required. If the BTS has only basic power supply redundancy, the tests and procedures detailed in the following tables should be bypassed.

S Table 3-52. Miscellaneous Alarm Tests (BTS Frame) S Table 3-53. BBX Redundancy Tests (BTS Frame) S Table 3-54. CSM, GPS, & LFR/HSO Redundancy Alarm Tests S Table 3-55. PA Redundancy Test S Table 3-56. MGLI/GLI Redundancy Test

During redundancy verification of the test, alarms reported by the master GLI (displayed via the alarm monitor) will also be verified/noted.

The following pieces of test equipment are required to perform this test:

S LMF S Communications Test Set

Oct 2003

Perform each of the following tests to verify BTS redundancy and to confirm all alarms are received and reported by the BTS equipment. The procedures should be performed on the following modules/boards:

S Power supply/converter modules in all frames S Distribution shelf modules in the BTS frame S C–CCP shelf modules in the BTS frame (except MCCs) S PA modules in the BTS frame S AMR Customer defined input/output tests

1X SCt 4812T BTS Optimization/ATP

3-109

BTS Redundancy/Alarm Testing

Test Equipment Setup

68P09258A31–A

Follow the procedure in Table 3-50 to set up test equipment:

NOTE

All alarm tests are performed using TX antenna 1

Table 3-50: Test Equipment Setup for Redundancy/Alarm Tests

Step Action

1 Interface the LMF computer to the BTS LAN A connector on

the BTS frame (refer to Table 3-5, page 3-17).

2 Login to the BTS.

3 Set up test equipment for TX Calibration at TXOUT1 (see

Figure 3-16).

NOTE

If site is not equipped for redundancy, remove all GLI and BBX boards installed in any redundant slot positions at this time.

4 Display the alarm monitor by selecting Util>Alarm Monitor.

5 Unequip all customer defined AMR alarms reported via the

AMR Alarm connector (A & B) by clicking on MGLI, then selecting Device>Set Alarm Relays>Unequipped.

NOTE

During configuration of MGLI alarm reporting, spurious alarms may report. Allow the BTS to stabilize for 10 seconds. If any alarms are actively being reported after the BTS has stabilized, determine the cause before proceeding further.

3-110

1X SCt 4812T BTS Optimization/ATP

Oct 2003

BTS Redundancy/Alarm Testing68P09258A31–A

Power Supply Redundancy

Follow the steps in Table 3-51 to verify redundancy of the power supply modules. Alarms reported by the master GLI (displayed via the alarm monitor) are also verified.

Table 3-51: Power Supply/Converter Redundancy (BTS Frame)

Step Action

1 Select the MGLI (highlight) and from the pulldown menu select:

Device>BBX/MAWI>Set Redundant Sector>Carrier–#–1–1

Device>BBX/MAWI>Set Pilot Only>Carrier–#–1-1

Device>BBX/MAWI>Set Pilot Gain>Carrier–#-1-1 and Pilot Gain = 262

2 Select (highlight) BBX–1 and from the pulldown menu select Device>BBX/MAWI>Key.

3 Set XCVR gain to 40 and enter the correct XCVR channel number.

4 Remove PS–1 from the power distribution shelf (see Figure 3-27).

– Observe that an alarm message is reported via the MGLI as displayed on the alarm monitor.

– Verify no other modules went OOS.

5 Re-install PS–1.

Observe the alarm clears on the alarm monitor.

6 Repeat steps 4 and 5 for PS–2 and PS–3.

NOTE

For +27 V systems, skip to step 7 through step 10.

7 On –48 V systems, remove PS–4 (see Figure 3-28).

– Observe that an alarm message is reported via the MGLI as displayed on the alarm monitor.

– Verify no other modules went OOS.

8 Re-install PS–4.

Observe the alarm clears on the alarm monitor.

9 Repeat steps 7 and 8 for PS–5 through PS–9.

10 Verify that all PWR/ALM LEDs are GREEN.

11 Select BBX-1 and Device>BBX/MAWI>Dekey

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-111

BTS Redundancy/Alarm Testing

68P09258A31–A

Figure 3-27: SC 4812T C–CCP Shelf

PS–1

19 mm Filler Panel

PS–2

PS–3

AMR–1

GLI2–1GLI2–2

MCC–1

MCC–2

MCC–3

MCC–4

MCC–5

MCC–6

BBX–2

BBX2–1

BBX–3

BBX–4

BBX–5

BBX–6

BBX–RSwitch

MPC/EMPC–1MPC/EMPC–2

CIO

CSM–1

HSO/LFR

CSM–2

CCD–2 CCD–1

AMR–2

38 mm Filler Panel

MCC–7

MCC–8

MCC–9

MCC–10

Figure 3-28: –48 V BTS Power Conversion Shelf

REAR

FRONT

AMR

PS–4

FAN

MODULE

PWR/ALM

PS–5

PS–6

REAR

FRONT

PS–7

FAN

MODULE

PWR/ALM

PS–8

PS–9

MCC–11

BBX–7

MCC–12

BBX–8

BBX–9

BBX–11

BBX–10

BBX–12

L P

NOTE: MCCs may be MCC8Es, MCC24s, or MCC–1Xs. BBXs may be BBX2s or BBX–1Xs. GLIs may be GLI2s or GLI3s.

FW00295

3-112

1X SCt 4812T BTS Optimization/ATP

FW00501

Oct 2003

BTS Redundancy/Alarm Testing68P09258A31–A

Miscellaneous Alarm/Redundancy Tests

Follow the steps in Table 3-52 to verify alarms reported by the master GLI are displayed via the alarm monitor if a BTS frame module failure occurs.

Table 3-52: Miscellaneous Alarm Tests

Step Action

1 Select Util>Alarm Monitor to display the alarm monitor window.

2 Perform the following to verify fan module alarms:

• Unseat a fan module (see Figure 3-29 or Figure 3-30).

• Observe an alarm message was reported via the MGLI (as displayed on the alarm monitor).

• Replace fan module and verify the alarm monitor reports that the alarm clears.

• Repeat for all other fan modules in the BTS frame.

NOTE

Follow Step 3 for Starter Frames and Step 4 for Expansion Frames.

3 Starter Frames Only: Perform the following to verify MPC module alarms.

• Unseat MPC modules (see Figure 3-27) one at a time.

• Observe that an alarm message was reported via the MGLI as displayed on the alarm monitor.

• Replace the MPC modules and verify the alarm monitor reports the alarm clears.

4 Expansion Frames Only: Perform the following to verify EMPC module alarms.

• Unseat EMPC modules (see Figure 3-27) one at a time

• Observe that an alarm message was reported via the MGLI as displayed on the alarm monitor.

• Replace the EMPC modules and verify the alarm monitor reports that the alarm clears.

5 If equipped with AMR redundancy, perform the following to verify AMR module redundancy/alarms.

• Unseat AMR 2 (see Figure 3-27).

• Observe that an alarm message is reported via the MGLI (as displayed on the alarm monitor).

• Repeat Steps 1 through 3 and/or 4.

• Replace the AMR module and verify the alarm monitor reports that the alarm clears.

• Unseat AMR 1 and observe an alarm message was reported via the MGLI (as displayed on the alarm

monitor).

• Replace the AMR module and verify the LMF reports the alarm has cleared.

NOTE

All PWR/ALM LEDs should be GREEN at the completion of this test.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-113

BTS Redundancy/Alarm Testing

Figure 3-29: +27 V BTS C-CCP Fan Modules

LATCHES

68P09258A31–A

REAR

FRONT

MODULE

PWR/ALM

FAN

REAR

FRONT

MODULE

PWR/ALM

FAN

REAR

FRONT

MODULE

PWR/ALM

FAN

FAN MODULES

FW00130

Figure 3-30: –48 V BTS C-CCP and Power Conversion Shelf Fan Modules

LATCHES

REAR

FRONT

MODULE

PWR/ALM

FAN

REAR

FRONT

MODULE

PWR/ALM

FAN

REAR

FRONT

MODULE

PWR/ALM

FAN

BBX Redundancy

3-114

FAN MODULES

LATCHES

REAR

FRONT

MODULE

PWR/ALM

FAN

REAR

FRONT

MODULE

PWR/ALM

FAN

FW00489

FAN MODULES

Follow the steps in Table 3-53 to verify redundancy of the BBXs in the C–CCP shelf. Alarms reported by the master GLI (displayed via the alarm monitor) are also verified. This test can be repeated for additional

sectors at the customer’s discretion.

1X SCt 4812T BTS Optimization/ATP

Oct 2003

BTS Redundancy/Alarm Testing68P09258A31–A

Table 3-53: BBX Redundancy Alarms

Step Action

n WARNING

Any BBXs enabled will immediately key-up. Before enabling any BBX, always verify that the TX output assigned to the BBX is terminated into a 50 W non-radiating RF load! Failure to do so could result in serious personal injury and/or damage to the equipment.

1 Enable the primary, then the redundant BBX assigned to ANT 1 by selecting the BBX and

Device>BBX/MAWI>Key.

2 Observe that primary BBXs key up, and a carrier is present at each respective frequency.

3 Remove the primary BBX.

4 Observe a carrier is still present.

The Redundant BBX is now the active BBX for Antenna 1.

5 Replace the primary BBX and reload the BBX with code and data.

6 Re-enable the primary BBX assigned to ANT 1 and observe that a carrier is present at each respective

frequency.

7 Remove the redundant BBX and observe a carrier is still present.

8 The Primary BBX is now the active BBX for ANT 1.

9 Replace the redundant BBX and reload the BBX with code and data.

10 Re-enable the redundant BBX assigned to ANT 1 and observe that a carrier is present at each

respective frequency:

11 De-key the Xcvr by selecting Device>BBX/MAWI>Dekey.

12 Repeat Steps 1 through 11 for additional BBXs/antennas, if equipped.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-115

BTS Redundancy/Alarm Testing

CSM, GPS, & LFR/HSO Redundancy/Alarm Tests

Follow the procedure in Table 3-54 to verify the manual redundancy of the CSM, GPS, and LFR/HSO boards. Verification of alarms reported is also covered.

68P09258A31–A

NOTE

Table 3-54: CSM, GPS, & LFR/HSO, Redundancy/Alarm Tests

Step Action

DO NOT perform the procedure in Table 3-54, unless the site is configured with a LORAN–C or HSO timebase as a backup for the GPS.

n WARNING

1 Enable the primary, then the redundant BBXs assigned to ANT 1 by selecting the BBX and

Device>BBX/MAWI>Key.

2 Disconnect the GPS antenna cable, located on top of the BTS frame.

This forces the LORAN–C LFR or HSO board timebase to become the CDMA timing source.

3 Observe a CDMA timing reference alarm and source change is reported by the alarm monitor.

4 Allow the LFR/HSO to become the active timing source.

S Verify the BBXs remain keyed and INS. S Verify no other modules went OOS due to the transfer to LFR/HSO reference. S Observe the PWR/ALM LEDs on the CSM 1 front panel are steady GREEN.

5 Reconnect the GPS antenna cable.

6 Allow the GPS to become the active timing source.

S Verify the BBXs remain keyed and INS. S Verify no other modules went OOS due to the transfer back to the GPS reference. S Observe the PWR/ALM LEDs on CSM 1 are steady GREEN.

7 Disable CSM 1 and enable CSM 2.

S Various CSM source and clock alarms are now reported and the site comes down. S Alarms clear when the site comes back up.

8 Allow the CSM 2 board to go INS_ACT.

S Verify the BBXs are dekeyed and OOS, and the MCCs are OOS_RAM. S Verify no other modules went OOS due to the transfer to CSM 2 reference. S Observe the PWR/ALM LEDs on CSM 2 front panels are steady GREEN.

NOTE

It can take up to 20 minutes for the CSM to re-establish the GPS link and go INS. MCCs go OOS_RAM.

9 Key BBXs 1 and R and observe a carrier is present.

10 Repeat Steps 2 through 6 to verify CSM source redundancy with CSM 2.

. . . continued on next page

3-116

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Table 3-54: CSM, GPS, & LFR/HSO, Redundancy/Alarm Tests

Step Action

* IMPORTANT

DO NOT ENABLE the redundant CSM.

11 Disable CSM 2 and enable CSM 1.

S Various CSM Source and Clock alarms are reported and the site comes down. S Alarms clear when the site comes back up.

12 De-key the Xcvr by selecting Device>BBX/MAWI>Dekey.

13 Allow the CSM 1 board to go INS_ACT.

S Verify the BBXs are de-keyed and OOS. S Verify no other modules went OOS due to the transfer to CSM 1 reference. S Observe PWR/ALM LEDs on the CSM 1 front panels are steady GREEN.

14 Disable the primary and redundant BBXs.

BTS Redundancy/Alarm Testing68P09258A31–A

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-117

BTS Redundancy/Alarm Testing

Power Amplifier (PA) Redundancy Test

Follow the procedure in Table 3-55 to verify redundancy of the Power Amplifiers (PA).

68P09258A31–A

WARNING

First verify there are no BBX channels keyed BEFORE moving the antenna connection. Failure to do so can result in serious personal injury and/or equipment damage.

Table 3-55: Power Amplifier Redundancy Test

Step Action

1 From the pulldown menu select:

Device>BBX/MAWI>Set Redundant Sector>Carrier–#–1–1

Device>BBX/MAWI>Set Pilot Only>Carrier–#–1-1

Device>BBX/MAWI>Set Pilot Gain> Carrier–#-1-1 and Pilot Gain = 262

2 Key-up the BBX assigned to the PAs associated with the sector under test (gain = 40).

3 Adjust the communications test set spectrum analyzer, as required, to observe the overall carrier

amplitude and IM Shelf and note for reference. These figures will be required later.

NOTE

See Figure 3-19 for test equipment setup, if required.

4 Push-in and release the breaker supplying the 1st PA of the pair.

NOTE

After power is removed, IM suppression takes a few seconds to settle out while compensating for the removal of the 1st PA. The overall gain decreases by approximately 6 dB. The process must be complete before proceeding.

5 Verify:

• The other PA module did not go OOS due to the loss of the PA.

• The overall carrier amplitude is reduced by approximately 6 dB and IM suppression on the analyzer

display remains basically unchanged.

• PA fault message is reported via the MGLI and displayed on the alarm monitor.

6 Re-apply power to the PA module and observe the alarm has cleared on the alarm monitor.

NOTE

All PWR/ALM LEDs should be GREEN at completion of test.

7 Repeat Steps 4 through 6 to verify the 2nd PA of the pair.

8 De-key the BBX.

n WARNING

First verify there are no BBX channels keyed when moving the antenna connection. Failure to do so can result in serious personal injury and/or equipment damage.

9 Repeat Steps 1 through 8 to verify PAs assigned to sectors 2 and 3 (if equipped). Move the test cable

on top of the BTS to TX OUT 2 and TX OUT 3 antenna connectors as required.

3-118

1X SCt 4812T BTS Optimization/ATP

Oct 2003

MGLI/GLI Redundancy Test

BTS Redundancy/Alarm Testing68P09258A31–A

CAUTION

Table 3-56: MGLI/GLI Redundancy Test (with MM Connection Established)

Step Action

This test can only be performed when the MM path is established by the MM (not just with LAPD link connected). Attempting to force the GLIs to “hot swap” under alarm monitor control, when isolated from the MM, causes MGLIs to hang up.

NOTE

S This test assumes the alarm monitor is NOT connected to the BTS and the T1/E1 span is connected

and communication is established with the MM.

S BOTH GLIs must be INS before continuing.

1 Verify the BBXs are enabled and a CDMA carrier is present.

2 Identify the primary and redundant MGLI pairs.

3 Pull the MGLI that is currently INS–ACT and has cage control.

4 Observe the BBX remains GREEN, and the redundant MGLI is now active.

5 Verify no other modules go OOS due to the transfer of control to the redundant module.

6 Verify that the BBXs are enabled and a CDMA carrier is present.

7 Reinstall the MGLI and have the OMCR/CBSC place it back in-service.

8 Repeat Steps 1 through 7 to verify the other MGLI/GLI board.

Oct 2003

1X SCt 4812T BTS Optimization/ATP

3-119

Alarms Testing

68P09258A31–A

Alarms Testing

Alarm Verification

ALARM connectors provide Customer Defined Alarm Inputs and Outputs. The customer can connect BTS site alarm input sensors and output devices to the BTS, thus providing alarm reporting of active sensors as well controlling output devices.

The SC 4812T is capable of concurrently monitoring 36 input signals coming into the BTS. These inputs are divided between 2 Alarm

connectors marked ‘ALARM A’ and ‘ALARM B’ located at the top of the frame (see Figure 3-31). The ALARM A connector is always functional; ALARM B is functional when an AMR module is equipped in the AMR 2 slot in the distribution shelf. ALARM A port monitors input numbers 1 through 18, while ALARM B port monitors input numbers 19 through 36 (see Figure 3-32). State transitions on these input lines are reported to the LMF and OMCR as MGLI Input Relay alarms.

ALARM A and ALARM B connectors each provide 18 inputs and 8 outputs. If both A and B are functional, 36 inputs and 16 outputs are available. They may be configured as redundant. The configuration is set by the CBSC.

Alarm Reporting Display

The Alarm Monitor window can be displayed to list alarms that occur after the window is displayed. To access the Alarm Monitor window, select Util>Alarm Monitor.

The following buttons are included:

S The Options button allows for a severity level (Warning, Minor, and

Major) selection. The default is all levels. To change the level of

alarms reported click on the Options button and highlight the desired alarm level(s). To select multiple levels press the <Ctrl> key (for individual selections) or <Shift> key (for a range of selections) while clicking on the desired levels.

S The Pause button pauses/stops the display of alarms. When the Pause

button is clicked the name of the button changes to Continue. When the Continue button is clicked, the display of alarms continues. Alarms that occur between the time the Pause button is clicked and the Continue button is clicked are not displayed.

S The Clear button clears the Alarm Monitor display. New alarms that

occur after the Clear button is clicked are displayed.

S The Dismiss button dismisses/closes the Alarm Monitor display.

3-120

1X SCt 4812T BTS Optimization/ATP

Oct 2003

Nokia Solutions and Networks T5EL1 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
