SCt300 BTS Hardware Installation, ATP and FRU Procedures

Software Release 2.15.x.x

English DEC 2000

68P09224A55–1

SCt300

CDMA

PRELIMINARY

Notice

While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country.

Copyrights

This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product.

Usage and Disclosure Restrictions

License Agreement

The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law . No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc.

High Risk Activities

Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traf fic Control, Life Support, or W eapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.

T rademarks

and Motorola are registered trademarks of Motorola, Inc.

Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies.

Printed on

Recyclable Paper

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

PRELIMINARY

REV010600

SCt300 BTS Hardware Installation, A TP and FRU Procedures

List of Figures v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Tables xi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Foreword xvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Safety xx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History xxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Patent Notification xxiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1: Introduction

Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Tools and Materials 1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATP Tools and Materials 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

T able of Contents

Software Release 2.15.x.x

FRU Tools and Materials 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Identification 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation and ATP Order 1-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 2: Site Preparation

Site Preparation Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Inspections 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prepare Site for the Arrival of the Equipment 2-6. . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions and Clearances 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 3: Installing Mounting Bracket and Remote GPS

Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unpacking the Equipment and Inspecting for Damage 3-2. . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Wall 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Ceiling 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . .

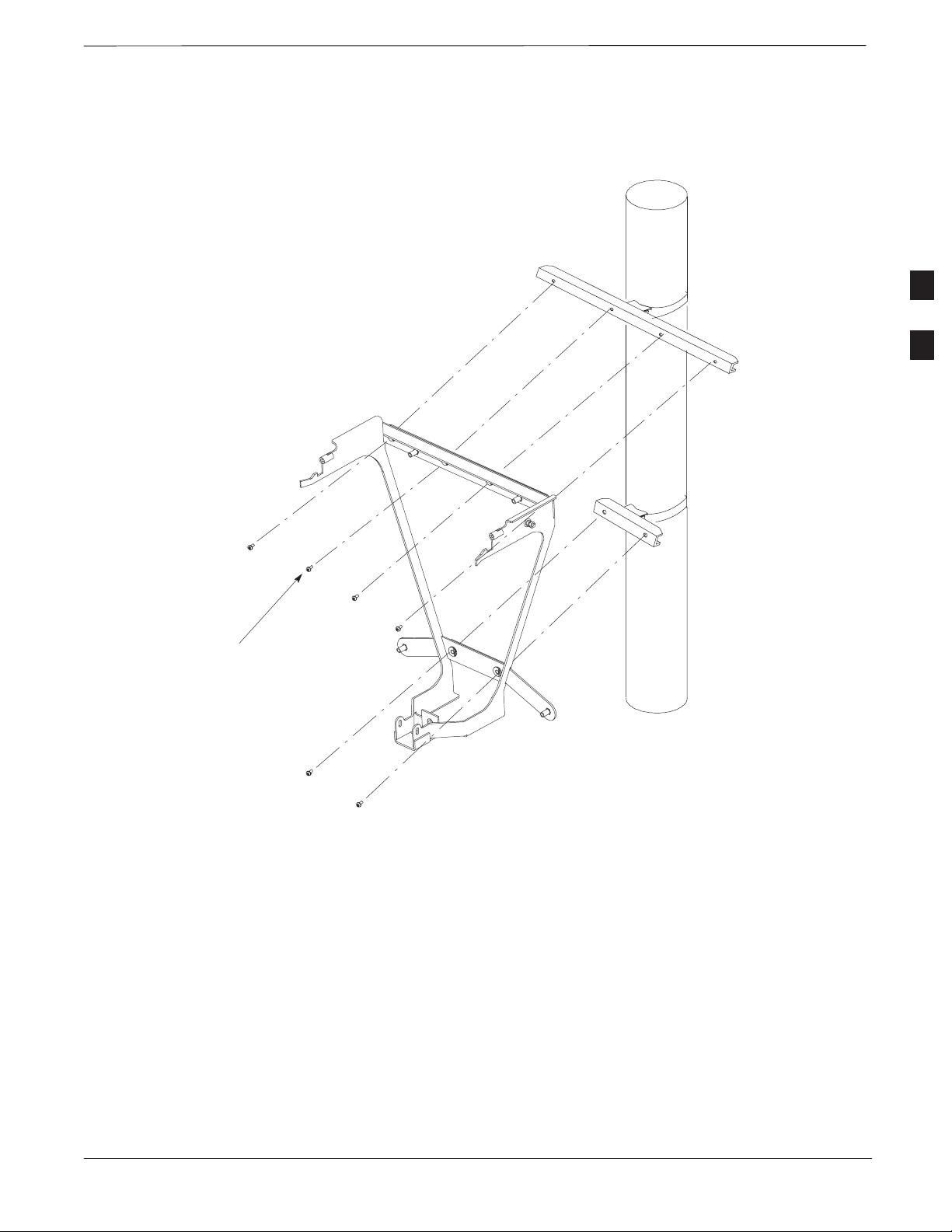

Attaching the Mounting Bracket to a Pole 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Rack 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching Back Solar Cover to Mounting Bracket 3-19. . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

Remote GPS Head Installation 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

T able of Contents – continued

Chapter 4: Preparing Site Cabling for Sites Equipped with Customer–Supplied Site I/O Interface

Cabling Overview 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cable Descriptions 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Cabling for BTS With Customer–Supplied Site I/O Interface 4-8. . . . . . . . . .

Power, Ground, and Battery Cabling for Sites Equipped With

Customer–Supplied Site I/O Interface 4-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna Cabling for Sites Equipped With

Customer–Supplied Site I/O Interface 4-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site I/O , Span Line, RGPS and Modem Cabling for Sites Equipped With

Customer–Supplied Site I/O Interface 4-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RGPS Cabling for Multi–BTS Configurations 4-31. . . . . . . . . . . . . . . . . . . . . . . . .

Span Line Daisy Chain Cabling 4-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 5: Preparing Site Cabling for Sites Equipped with Optional Primary Surge Suppressor

Cabling Overview 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Cabling for BTS With Optional Primary Surge Suppressor 5-2. . . . . . . . . . . .

Attaching Surge Suppressor to Mounting Bracket 5-10. . . . . . . . . . . . . . . . . . . . . . .

Power, Ground and Battery Cabling for Sites Equipped With

Optional Primary Surge Suppressor 5-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna Cabling for Sites Equipped With Optional Primary Surge Suppressor 5-18 Site I/O, Span Line, RGPS and Modem Cabling for Sites Equipped With

Primary Surge Suppressor 5-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RGPS Cabling for Multi–BTS Configurations Equipped with

Optional Primary Surge Suppressor 5-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Span Line Daisy Chain Cabling for Sites Equipped with

Optional Primary Surge Suppressor 5-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 6: Installing the Unit and Installation Check Off List

Unit Installation Overview 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connector Locations 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching Back Fin Cover to Unit 6-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching Optional Installation Handles to the Unit 6-6. . . . . . . . . . . . . . . . . . . . .

Attaching Unit to Mounting Bracket 6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Earth Ground Cabling 6-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching Front Fin Cover to Unit 6-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Site I/O Junction Box to the Unit 6-15. . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Short Duration Battery to the Unit (optional) 6-17. . . . . . . . . . . . . . .

Short Duration Battery Cabling 6-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Power Cabling 6-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

T able of Contents – continued

DC Power Cabling 6-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna Cabling for Sites Equipped With

Customer–Supplied Site I/O Interface 6-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna Cabling for Sites Equipped with

Optional Primary Surge Suppressor 6-30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MIB Cabling for Multi–Unit Configurations 6-38. . . . . . . . . . . . . . . . . . . . . . . . . . .

SU Cabling 6-44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Terminating Unused Connections 6-51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Powering on Unit and Mounting the Solar Cover 6-52. . . . . . . . . . . . . . . . . . . . . . .

Site Cleanup 6-56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Completion Checklist 6-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 7: Optimization and Optional Acceptance Test Procedures (ATP)

ATP Overview 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Preparation 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment and LMF Connection 7-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Configuration 7-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Software 7-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Setup 7-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Selection 7-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Meter Calibration 7-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Cable Calibration 7-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Create CAL File 7-42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF Path Audit 7-44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Acceptance T ests 7-46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CDMA Operating Frequency Programming Information – North American

PCS Bands 7-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX & RX Acceptance Tests 7-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Generate an ATP Report 7-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Copy LMF CAL File to CBSC 7-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prepare to Leave the Site 7-63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 8: Optimization and Optional Acceptance Test Procedures (ATP) for Frequency Hopping Pilot Beacon (FHPB)

DEC 2000

ATP Overview 8-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Create CAL File 8-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF Path Audit 8-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Acceptance T ests 8-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Acceptance T ests 8-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

iii

T able of Contents – continued

Generate an ATP Report 8-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Copy LMF CAL File to CBSC 8-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 9: Field Replaceable Unit (FRU) Procedures

Field Replaceable Unit (FRU) Overview 9-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shut Down & Restoring BTS Signaling 9-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site I/O Junction Box Replacement Procedure 9-13. . . . . . . . . . . . . . . . . . . . . . . . .

Short Duration Battery Replacement Procedures 9-16. . . . . . . . . . . . . . . . . . . . . . . .

Remote GPS Replacement Procedures 9-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Full Unit Replacement Procedures 9-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix A: Outdoor Grounding Guidelines Overview

Outdoor Grounding Guidelines Summary A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

List of Figures

SCt300 BTS Hardware Installation, A TP and FRU Procedures

Software Release 2.15.x.x

Figure 1-1: MicroCell Unit Mounted on a Wall 1-4. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-2: Primary Surge Suppressor Mounted on a Wall 1-5. . . . . . . . . . . . . . . .

Figure 1-3: MicroCell Unit Mounted on a Rack 1-6. . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-4: Primary Surge Suppressor Mounted on a Rack 1-7. . . . . . . . . . . . . . . .

Figure 1-5: MicroCell Unit Mounted on a Pole 1-8. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-6: Primary Surge Suppressor Mounted on a Pole 1-9. . . . . . . . . . . . . . . .

Figure 1-7: PicoCell Unit Mounted on a Ceiling 1-10. . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-8: RS232–IEEE488 Converter Serial Cable Configuration 1-18. . . . . . . . .

Figure 1-9: General Block Diagram Showing the Port Names 1-22. . . . . . . . . . . . .

Figure 1-10: General Block Diagram Showing the Unit, Site I/O Interface, and

External Items 1-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-11: Microcell and Picocell Unit 1-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-12: Site I/O Junction Box and Cable 1-24. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-13: Primary Surge Suppressor (Optional) 1-25. . . . . . . . . . . . . . . . . . . . . .

Figure 1-14: AC Installation Box (Optional) 1-25. . . . . . . . . . . . . . . . . . . . . . . . . . .

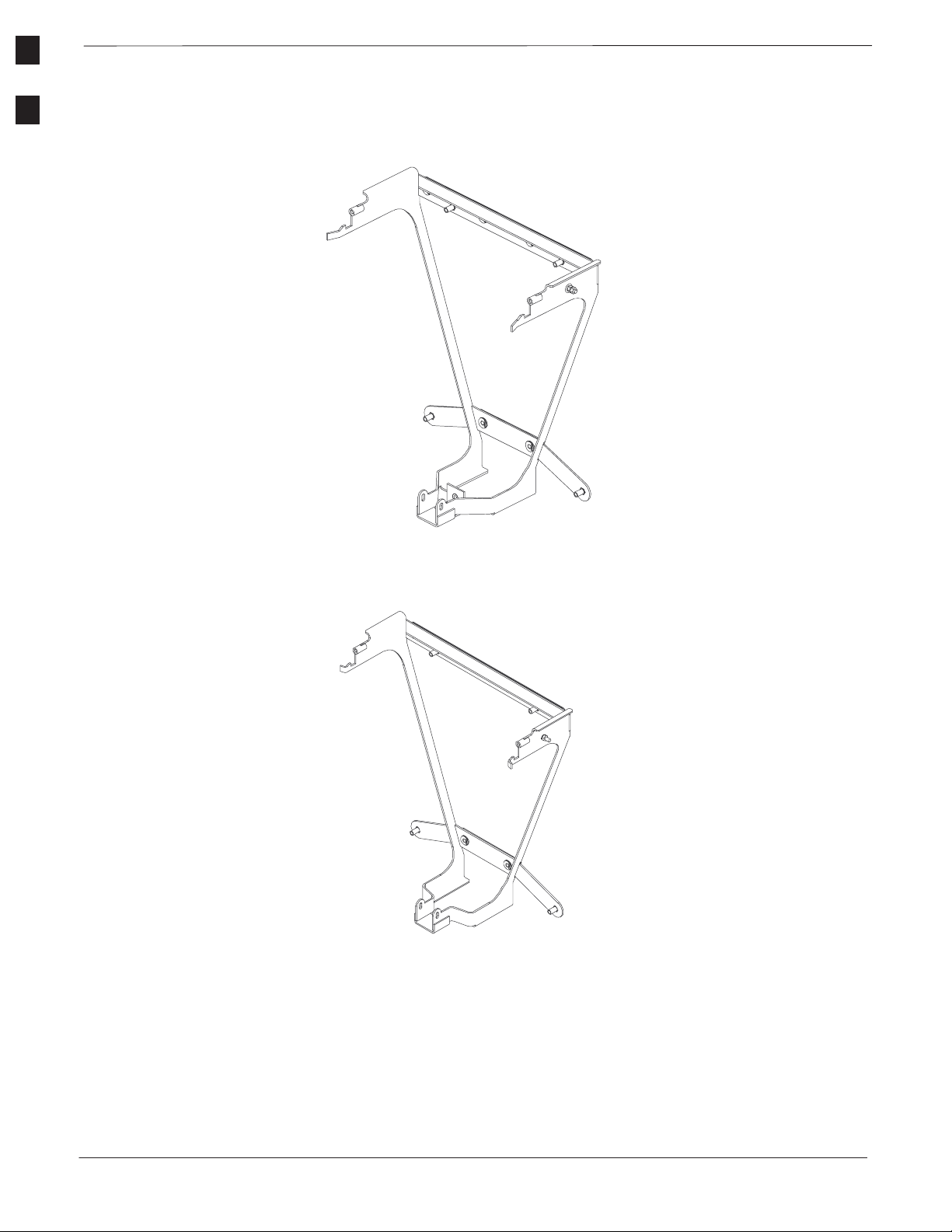

Figure 1-15: Mounting Bracket for both Microcell and

Primary Surge Suppressor 1-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-16: Mounting Bracket for Picocell 1-26. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-17: Adapters for Rack Mounting 1-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-18: Adapters for Pole Mounting 1-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-19: Adapter for Ceiling Mounting (Optional) 1-29. . . . . . . . . . . . . . . . . . .

Figure 1-20: Installation Handles for Lifting Unit (Optional) 1-29. . . . . . . . . . . . . .

Figure 1-21: Short Duration Battery (Optional) 1-29. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-22: Front and Back Solar Covers for MicroCell 1-30. . . . . . . . . . . . . . . . .

Figure 1-23: Front and Back Solar Covers for Surge Suppressor 1-30. . . . . . . . . . .

Figure 1-24: Front and Back Fin Covers for MicroCell and

PicoCell (PicoCell shown) 1-31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-1: Securing Lights with Tape 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-2: Overall Dimensions of MicroCell and PicoCell Units 2-10. . . . . . . . . .

DEC 2000

Figure 2-3: Overall Dimensions of Primary Surge Suppressor 2-11. . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

List of Figures – continued

Figure 2-4: Installation and Functional Clearances for MicroCell Units

(with Solar Covers) 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-5: Installation and Functional Clearances for MicroCell Units

(without Solar Covers) 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-6: Installation and Functional Clearances for PicoCell Units

(without Solar Covers) 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-7: Installation and Functional Clearances for Primary Surge Suppressor

(without Solar Covers) 2-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-8: Installation and Functional Clearances for Primary Surge Suppressor

(with Solar Covers) 2-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-9: Installation and Functional Clearances for

PicoCell Unit Mounted to Ceiling 2-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-10: Concept of Functionality Clearances for MicroCell and

PicoCell Units 2-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-1: Holes to Use to Mount the Bracket to the Wall 3-4. . . . . . . . . . . . . . . .

Figure 3-2: Securing Mounting Bracket to a Wall 3-8. . . . . . . . . . . . . . . . . . . . . . .

Figure 3-3: Picocell Ceiling Mounting Bracket 3-10. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-4: Securing Mounting Bracket to the Adapter 3-11. . . . . . . . . . . . . . . . . . .

Figure 3-5: Pole Adapter and Straps 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-6: Attaching Mounting Bracket to a Pole 3-15. . . . . . . . . . . . . . . . . . . . . .

Figure 3-7: Attaching the Mounting Bracket to a Rack 3-18. . . . . . . . . . . . . . . . . . .

Figure 3-8: Attaching MicroCell Back Solar Cover to Mounting Bracket 3-20. . . .

Figure 3-9: Installing the Remote GPS Head 3-22. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-1: Site Cabling for One Microcell 4-8. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-2: Site Cabling for Two Microcells 4-9. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-3: Site Cabling for Three Microcells 4-10. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-4: Site Cabling for Four Microcells 4-11. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-5: Site Cabling for One Picocell 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-6: Site Cabling for Two Picocells 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-7: Site Cabling for Three Picocells 4-14. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-8: Site Cabling for Four Picocells 4-15. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-9: AC Input Cable Connector Information 4-17. . . . . . . . . . . . . . . . . . . . .

Figure 4-10: DC Input Cable Connector Information 4-18. . . . . . . . . . . . . . . . . . . .

Figure 4-11: AC Installation Box 4-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-13: Antenna Cabling Details 4-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-14: Antenna Cabling for Three Microcells 4-22. . . . . . . . . . . . . . . . . . . . .

Figure 4-15: Antenna Cabling for Maximum of Four Microcells or Picocells 4-23.

Figure 4-16: Site I/O Cabling Details (MicroCell Unit Shown) 4-25. . . . . . . . . . . .

Figure 4-17: Site I/O Interface Cabling for

RGPS (Synchronous) Configurations 4-33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

List of Figures – continued

Figure 4-18: Site I/O Interface Cabling for

HSO (Non–Synchronous) Configurations 4-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 4-18: Site I/O Interface Cabling for Span Line Daisy Chain Cabling 4-37. . Figure 5-1: Site Cabling for One Microcell with Primary Surge Suppressor 5-2. . Figure 5-2: Site Cabling for Two Microcells with Primary Surge Suppressor 5-3. Figure 5-3: Site Cabling for Three Microcells with Primary Surge Suppressor 5-4 Figure 5-4: Site Cabling for Four Microcells with Primary Surge Suppressor 5-5.

Figure 5-5: Site Cabling for One Picocell with Primary Surge Suppressor 5-6. . . .

Figure 5-6: Site Cabling for Two Picocells with Primary Surge Suppressor 5-7. . . Figure 5-7: Site Cabling for Three Picocells with Primary Surge Suppressor 5-8. . Figure 5-8: Site Cabling for Four Picocells with Primary Surge Suppressor 5-9. . .

Figure 5-9: Attaching the Surge Suppressor to the Mounting Bracket 5-11. . . . . . .

Figure 5-10: AC Input Cable Connector Information 5-13. . . . . . . . . . . . . . . . . . . .

Figure 5-11: DC Input Cable Connector Information 5-14. . . . . . . . . . . . . . . . . . . .

Figure 5-12: Primary Surge Suppressor AC Input Power Connection Locations 5-16

Figure 5-14: Antenna Cabling Details 5-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-15: Antenna Cabling for one Microcell with

Primary Surge Suppressor 5-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-16: Antenna Cabling for Two Microcells with

Primary Surge Suppressor 5-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-17: Antenna Cabling for Three Microcells with

Primary Surge Suppressor 5-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-18: Antenna Cabling for Four Microcells with

Primary Surge Suppressor 5-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-19: Antenna Cabling for one Picocell with

Primary Surge Suppressor 5-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-20: Antenna Cabling for Two Picocells with

Primary Surge Suppressor 5-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-21: Antenna Cabling for Three Picocells with

Primary Surge Suppressor 5-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-22: Antenna Cabling for Four Picocells with

Primary Surge Suppressor 5-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-22: Site I/O Cabling Details with

Optional Primary Surge Suppressor (MicroCell Unit Shown) 5-25. . . . . . . . . . . . . .

Figure 5-23: Punchdown Block Location 5-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

Figure 5-24: Punchdown Block 5-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-26: Site I/O Interface Cabling for

RGPS (Synchronous) Configurations 5-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-27: Site I/O Interface Cabling for

HSO (Non–Synchronous) Configurations 5-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 5-27: Site I/O Interface Cabling for

Span Line Daisy Chain Cabling 5-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

vii

List of Figures – continued

Figure 6-1: Location of MicroCell Unit Connectors 6-2. . . . . . . . . . . . . . . . . . . . .

Figure 6-2: Location of PicoCell Unit Connectors 6-3. . . . . . . . . . . . . . . . . . . . . . .

Figure 6-3: Location of Primary Surge Suppressor Connectors 6-4. . . . . . . . . . . . .

Figure 6-4: Attaching Back Fin Cover to Unit (Picocell Shown) 6-5. . . . . . . . . . .

Figure 6-5: Attaching the Installation Handles to the Unit (Picocell Shown) 6-7. .

Figure 6-6: Attaching the Unit to the Mounting Bracket 6-10. . . . . . . . . . . . . . . . . .

Figure 6-7: Detail Location of Ground Stud 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-8: Grounding Stud on Mounting Bracket 6-13. . . . . . . . . . . . . . . . . . . . . .

Figure 6-9: Attaching Front Fin Cover to Unit (Picocell Shown) 6-14. . . . . . . . . . .

Figure 6-10: Attaching the Site I/O Junction Box to the Unit 6-16. . . . . . . . . . . . . .

Figure 6-11: Attaching the Short Duration Battery to the Unit 6-18. . . . . . . . . . . . .

Figure 6-12: Battery Cable Installation 6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-14: AC Power Cabling Details 6-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-14: DC Power Cabling Details 6-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-16: Antenna Cabling Details for MicroCell and PicoCell Unit 6-26. . . . . .

Figure 6-17: Antenna Cabling for Two Microcells 6-27. . . . . . . . . . . . . . . . . . . . . .

Figure 6-18: Antenna Cabling for Three Microcells 6-27. . . . . . . . . . . . . . . . . . . . .

Figure 6-19: Antenna Cabling for Four Microcells 6-28. . . . . . . . . . . . . . . . . . . . . .

Figure 6-20: Antenna Cabling for Two Picocells 6-28. . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-21: Antenna Cabling for Three Picocells 6-29. . . . . . . . . . . . . . . . . . . . . . .

Figure 6-22: Antenna Cabling for Four Picocells 6-29. . . . . . . . . . . . . . . . . . . . . . .

Figure 6-23: Installation of Third and Fourth Antenna Lightning Arrestors 6-31. . . Figure 6-24: Antenna Cabling Details for MicroCell and

PicoCell Unit Equipped with Primary Surge Suppressor 6-32. . . . . . . . . . . . . . . . . .

Figure 6-25: Antenna Cabling for Two Microcells Equipped with

Primary Surge Suppressor 6-33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-26: Antenna Cabling for Three Microcells Equipped with

Primary Surge Suppressor 6-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-27: Antenna Cabling for Four Microcells Equipped with

Primary Surge Suppressor 6-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-28: Antenna Cabling for Two Picocells Equipped with

Primary Surge Suppressor 6-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-29: Antenna Cabling for Three Picocells Equipped with

Primary Surge Suppressor 6-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

Figure 6-30: Antenna Cabling for Four Picocells Equipped with

Primary Surge Suppressor 6-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-31: MIB Cabling for Two Units 6-42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-32: MIB Cabling for Three Units 6-42. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-33: MIB Cabling for Four Units 6-43. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

List of Figures – continued

Figure 6-34: SU Cabling Details for Single MicroCell or Picocell 6-48. . . . . . . . . .

Figure 6-35: SU Cabling Details for Two Units 6-49. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-36: SU Cabling Details for Three Units 6-49. . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-37: SU Cabling Details for Four Units 6-50. . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-38: Lock Positions on Primary Surge Suppressor 6-54. . . . . . . . . . . . . . . .

Figure 6-39: Location of AC Power Breakers on Primary Surge Suppressor 6-54. .

Figure 6-40: Front Solar Cover 6-55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-1: Front Solar Cover (MicroCell Illustrated) 7-2. . . . . . . . . . . . . . . . . . . .

Figure 7-2: Location of AC and DC Power Breakers 7-3. . . . . . . . . . . . . . . . . . . . .

Figure 7-3: Location of AC Power Breakers Inside Primary Surge Suppressor 7-4 Figure 7-4: How To Remove The Diagnostic Access Cover (Microcell shown) 7-5

Figure 7-5: Detail Location of the Diagnostic Access Area for MicroCell 7-6. . . .

Figure 7-6: Detail Location of the Diagnostic Access Area for PicoCell 7-6. . . . .

Figure 7-7: BTS to LMF connection 7-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-8: 15–Pin MMI/LMF Serial Connector 7-8. . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-9: R3465 Communications Test Set Timing Signal Detail

(Advantest R3465) 7-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-10: Communications Test Set Timing Signal Detail

(CyberTest, HP 8935, HP 8921) 7-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-11: LMF to Test Equipment Connection 7-13. . . . . . . . . . . . . . . . . . . . . . .

Figure 7-12: RS232–IEEE488 Converter Serial Cable Configuration 7-14. . . . . . . .

Figure 7-13: Power Meter Detail 7-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-14: Cable Calibration Test Setup 7-41. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-15: North America PCS Frequency Spectrum (CDMA Allocation) 7-48. . Figure 7-16: North American Cellular Telephone System Frequency Spectrum

(CDMA Allocation). 7-51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-17: TX ATP Setup (CyberTest, HP 8935 and Advantest R3465 7-56. . . . .

Figure 7-18: TX ATP Setup (HP 8921A) 7-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-19: RX ATP Setup (CyberTest, HP 8935 and Advantest) 7-58. . . . . . . . . .

Figure 7-20: RX ATP Setup (HP 8921A) 7-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 7-21: How To Replace The Diagnostic Access Cover (Microcell shown) 7-65

Figure 9-1: FRU Items 9-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

Figure 9-2: Front and Back Solar Covers for MicroCell 9-3. . . . . . . . . . . . . . . . . .

Figure 9-3: Front and Back Fin Covers for MicroCell and

PicoCell (PicoCell shown) 9-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 9-4: Site I/O Junction Box Replacement 9-15. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 9-5: Battery Replacement 9-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 9-6: RGPS Head Replacement 9-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

List of Figures – continued

Figure 9-7: Unit Replacement (MicroCell shown) 9-24. . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

List of Tables

SCt300 BTS Hardware Installation, A TP and FRU Procedures

Software Release 2.15.x.x

Table 1-1: Tools and Materials for Pole Mounting 1-13. . . . . . . . . . . . . . . . . . . . . . .

Table 1-2: Tools and Materials for Rack Mounting 1-13. . . . . . . . . . . . . . . . . . . . . .

Table 1-3: Mounting Bracket Tools and Materials for Concrete Wall Mounting 1-14

Table 1-4: Tools and Materials for Concrete Ceiling 1-15. . . . . . . . . . . . . . . . . . . . .

Table 1-5: Tools Required to Perform FRU Procedures 1-21. . . . . . . . . . . . . . . . . . .

Table 2-1: Procedure to Prepare the Site for the BTS 2-7. . . . . . . . . . . . . . . . . . . .

Table 2-2: Installation Dimensions for the MicroCell and PicoCell Units 2-8. . . .

Table 2-3 Minimum Clearances MicroCell and PicoCell Units 2-9. . . . . . . . . . . . .

Table 2-4 Minimum Clearances for Surge Suppressor 2-9. . . . . . . . . . . . . . . . . . . .

Table 3-1: Mounting Bracket Tools and Materials for Concrete Wall Mounting 3-5 Table 3-2: Procedure to Drill Holes in the Wall for

Mounting Bracket Installation 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-3: Procedure to Secure the Mounting Bracket to a Wall 3-7. . . . . . . . . . . .

Table 3-4: Tools and Materials for Concrete Ceiling 3-10. . . . . . . . . . . . . . . . . . . . .

Table 3-5: Procedure to Secure the Mounting Bracket to the Adapter 3-11. . . . . . . .

Table 3-6: Tools and Materials for Pole Mounting 3-12. . . . . . . . . . . . . . . . . . . . . . .

Table 3-7: Procedure for Attaching the Mounting Bracket to a Pole 3-13. . . . . . . . .

Table 3-8: Tools and Materials for Rack Mounting 3-16. . . . . . . . . . . . . . . . . . . . . .

Table 3-9: Procedure to Attach the Mounting Bracket to a Rack 3-16. . . . . . . . . . . .

Table 3-10: Procedure to attach Back Solar Cover to Mounting Bracket 3-19. . . . .

Table 3-11: Installing the RGPS Head 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-1: Cable Descriptions and Part Numbers 4-2. . . . . . . . . . . . . . . . . . . . . . . .

Table 4-2: Microcell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AL 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-3: Microcell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AM 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-4: Picocell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AN 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-5: Picocell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AP 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-6: Microcell/Picocell Expansion Kit for Units 2 to 3

Current 2m MIB B – T448AR 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

List of Tables – continued

Table 4-7: Microcell/Picocell Expansion Kit for Units 2 to 3

Long 5m MIB B – T448AS 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-8: Microcell/Picocell Expansion Kit for Units 3 to 4

Current 2m MIBs B and C – T448AT 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-9: Microcell/Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AU 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-10: Picocell Expansion Kit for Units 3 to 4

Current 2M MIBs B and C – T448AV 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-11: Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AW 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-12: RGPS Synchronization Cable Kit – SGKN4351A 4-7. . . . . . . . . . . .

Table 4-13: RGPS Synchronization Cable Kit – SGKN4352A 4-7. . . . . . . . . . . .

Table 4-14: Cables Needed for Power, Earth Ground, and Battery Connections 4-17

Table 4-15: AC Input Cable Information 4-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-16: DC Input Cable Information 4-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-17: Procedure to Install Earth Ground Cable 4-18. . . . . . . . . . . . . . . . . . . . .

Table 4-18: Procedure to Install AC Input Cable(s) (Indoor Applications) 4-19. . . .

Table 4-19: Procedure to Install AC Installation Box

(Optional – Required for Outdoor Installations) 4-19. . . . . . . . . . . . . . . . . . . . . . . .

Table 4-20: AC Installation Box Cabling 4-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-21: Procedure to Install DC Input Cable(s) 4-20. . . . . . . . . . . . . . . . . . . . . .

Table 4-24: Cables Needed for Antenna Connections 4-21. . . . . . . . . . . . . . . . . . . .

Table 4-25: Pin and Signal Information for Cable C (Antenna Cable) 4-21. . . . . . .

Table 4-26: Cables Needed for Antenna Connections 4-24. . . . . . . . . . . . . . . . . . . .

Table 4-27: Pin/Signal Information for Site I/O Cable 4-26. . . . . . . . . . . . . . . . . . . .

Table 4-28: Connecting the RGPS to the Site I/O Cable 4-29. . . . . . . . . . . . . . . . . .

Table 4-29: Cable Descriptions and Part Numbers 4-31. . . . . . . . . . . . . . . . . . . . . . .

Table 4-30: RGPS Synchronization Cable Kit – SGKN4351A 4-31. . . . . . . . . . . .

Table 4-31: RGPS Synchronization Cable Kit – SGKN4352A 4-31. . . . . . . . . . . .

Table 4-32: Multi–BTS Cable Run List 4-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-31: Cable Descriptions and Part Numbers 4-36. . . . . . . . . . . . . . . . . . . . . . .

Table 4-32: Cable Run List for Span Line Daisy Chain Cabling 4-38. . . . . . . . . . . .

Table 5-1: Procedure to Attach the Surge Suppressor to the Mounting Bracket 5-10

xii

Table 5-2: Cables Needed for Power, Earth Ground, and Battery Connections 5-13.

Table 5-3: AC Input Cable Information 5-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-4: DC Input Cable Information 5-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-5: Procedure to Install the Master Ground Cable on a

BTS Equipped with Optional Primary Surge Suppressor 5-14. . . . . . . . . . . . . . . . .

Table 5-6: Procedure to Install Earth Ground Cable on a

BTS Equipped with Optional Primary Surge Suppressor 5-15. . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

List of Tables – continued

Table 5-7: Procedure to Install AC Input Cable(s) on a

BTS Equipped with Optional Primary Surge Suppressor 5-15. . . . . . . . . . . . . . . . .

Table 5-8: Procedure to Install DC Input Cable(s) 5-17. . . . . . . . . . . . . . . . . . . . . . .

Table 5-11: Cables Needed for Antenna Connections 5-18. . . . . . . . . . . . . . . . . . . .

Table 5-12: Pin and Signal Information for Cables C and D (Antenna Cable) 5-18. Table 5-13: Procedure to Install Antenna Cabling for Sites Equipped with

Primary Surge Suppressor 5-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-12: Cables Needed for Antenna Connections 5-24. . . . . . . . . . . . . . . . . . . .

Table 5-13: Procedure to Install Site I/O Cable Between Site I/O Junction Box and

Optional Primary Surge Suppressor 5-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-14: Pin/Signal Information for Site I/O Cable and Punchdown Block 5-28.

Table 5-15: Connecting the RGPS to the Site I/O Cable 5-30. . . . . . . . . . . . . . . . . .

Table 5-18: Cable Descriptions and Part Numbers 5-32. . . . . . . . . . . . . . . . . . . . . . .

Table 5-19: RGPS Synchronization Cable Kit – SGKN4351A 5-32. . . . . . . . . . . .

Table 5-20: RGPS Synchronization Cable Kit – SGKN4352A 5-32. . . . . . . . . . . .

Table 5-21: Multi–BTS RGPS Cable Run List for Primary Surge Suppressor 5-36.

Table 5-20: Cable Descriptions and Part Numbers 5-37. . . . . . . . . . . . . . . . . . . . . . .

Table 5-21: Cable Run List for Span Line Daisy Chain Cabling 5-39. . . . . . . . . . . .

Table 6-1: Procedure to Attach Rear Fin Cover to Units 6-5. . . . . . . . . . . . . . . . . .

Table 6-2: Installation Handle Kit – SGLN5754 6-6. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-3: Procedure to Attach the Installation Handles to the Unit 6-6. . . . . . . . .

Table 6-4: Procedure to Attach the Unit to the Mounting Bracket 6-9. . . . . . . . . . .

Table 6-5: Ground Cable Description and Part Number 6-11. . . . . . . . . . . . . . . . . . .

Table 6-6: Procedure to Attach the Earth Ground Cables 6-11. . . . . . . . . . . . . . . . .

Table 6-7: Procedure to Attach Front Fin Cover to Unit 6-14. . . . . . . . . . . . . . . . . .

Table 6-8: Procedure to Attach the Site I/O Junction Box to the Unit 6-15. . . . . . . .

Table 6-9: Procedure to Attach a Site I/O Cap to the Unit (optional) 6-16. . . . . . . .

Table 6-10: Procedure to Attach the Short Duration Battery to the Unit 6-17. . . . . .

Table 6-11: Procedure to Connect the Short Duration Battery Cable to Unit 6-19. .

Table 6-13: AC Input Cable Description and Part Number 6-21. . . . . . . . . . . . . . . .

Table 6-14: Procedure to Connect AC Power to the Unit 6-21. . . . . . . . . . . . . . . . .

Table 6-14: DC Input Cable Description and Part Number 6-23. . . . . . . . . . . . . . . .

Table 6-15: Procedure to Connect DC Power to the Unit 6-23. . . . . . . . . . . . . . . . .

DEC 2000

Table 6-17: Cable Descriptions and Part Numbers 6-25. . . . . . . . . . . . . . . . . . . . . . .

Table 6-18: Cable Descriptions and Part Numbers 6-30. . . . . . . . . . . . . . . . . . . . . . .

Table 6-19: Procedure to Install Antenna Lightning Arrestors 6-30. . . . . . . . . . . . . .

Table 6-20: MIB Terminators 6-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-21: Microcell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AL 6-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

xiii

List of Tables – continued

Table 6-22: Microcell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AM 6-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-23: Picocell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AN 6-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-24: Picocell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AP 6-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-25: Microcell/Picocell Expansion Kit for Units 2 to 3

Current 2m MIB B – T448AR 6-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-26: Microcell/Picocell Expansion Kit for Units 2 to 3

Long 5m MIB B – T448AS 6-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-27: Microcell/Picocell Expansion Kit for Units 3 to 4

Current 2m MIBs B and C – T448AT 6-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-28: Microcell/Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AU 6-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-29: Picocell Expansion Kit for Units 3 to 4

Current 2M MIBs B and C – T448AV 6-41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-30: Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AW 6-41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-31: Cables Needed for SU Connections 6-44. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-32: Microcell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AL 6-44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-33: Microcell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AM 6-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-34: Picocell Expansion Kit for Units 1 to 2

Short MIB A (Cubicle) – T448AN 6-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-35: Picocell Expansion Kit for Units 1 to 2

Long MIB A (Non–Cubicle) – T448AP 6-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-36: Microcell/Picocell Expansion Kit for Units 2 to 3

Current 2m MIB B – T448AR 6-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-37: Microcell/Picocell Expansion Kit for Units 2 to 3

Long 5m MIB B – T448AS 6-46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-38: Microcell/Picocell Expansion Kit for Units 3 to 4

Current 2m MIBs B and C – T448AT 6-46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-39: Microcell/Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AU 6-46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-40: Picocell Expansion Kit for Units 3 to 4

Current 2M MIBs B and C – T448AV 6-47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-41: Picocell Expansion Kit for Units 3 to 4

Longer 5M MIBs B and C – T448AW 6-47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

xiv

Table 6-42: Install the SU Cable on One MicroCell or PicoCell 6-47. . . . . . . . . . . .

Table 6-43: Install SU Cabling for Multi–BTS Configurations 6-48. . . . . . . . . . . . .

Table 6-44: Terminations of Unused Connectors 6-51. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-45: Terminations of Unused Connectors 6-51. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-46: Procedure to Power on the Unit and Mount the Solar Cover 6-52. . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

List of Tables – continued

Table 6-47: Procedure to Power on the Surge Suppressor, the Unit, and

Mount the Solar Cover 6-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-47: Installation Completion Checklist 6-58. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-1: Procedure for Removing Diagnostic Access Cover 7-5. . . . . . . . . . . . .

Table 7-2: 15–Pin MMI/LMF Serial Cable Information 7-8. . . . . . . . . . . . . . . . . .

Table 7-3: Interfacing test equipment to the BTS 7-9. . . . . . . . . . . . . . . . . . . . . . . .

Table 7-4: Connect the Communication Test Set and Power Meter to the LMF 7-13

Table 7-5: Create a HyperTerminal Connection 7-15. . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-6: Establishing MMI Communication 7-17. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-7: Updating Default Channel Setting to Customer Operating Channel 7-18

Table 7-8: Verify BTS Sync Mode 7-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-9: Verify DPLL Tracking 7-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-10: Verify Default Startup Coordinates 7-22. . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-11: Create Site–Specific BTS Directory 7-24. . . . . . . . . . . . . . . . . . . . . . . .

Table 7-12: Start the LMF and Login to the BTS 7-25. . . . . . . . . . . . . . . . . . . . . . .

Table 7-13: Update BTS Specific CDF File Device Load Version 7-26. . . . . . . . . .

Table 7-14: Download/Enable MAWI 7-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-15: System Status LED States 7-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-16: Selecting Test Equipment Manually in a Serial Connection Tab 7-30. .

Table 7-17: Selecting Test Equipment Using Auto-Detect 7-31. . . . . . . . . . . . . . . . .

Table 7-18: Test Equipment Calibration 7-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-19: R3465 Calibration Procedure 7-33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-20: Gigatronics Power Meter GPIB Address Procedure 7-35. . . . . . . . . . . .

Table 7-21: Test Equipment Setup 7-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-22: Test Equipment Selection 7-37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-23: Calibrate the Power Meter 7-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-24: Automated Cable Calibration 7-40. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-25: Create CAL File 7-43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-26: RF Path Audit 7-45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-27: 1900 MHz TX and RX Frequency vs. Channel 7-49. . . . . . . . . . . . . . .

Table 7-28: 800 MHz TX and RX Frequency vs. Channel 7-51. . . . . . . . . . . . . . . .

Table 7-29: TX Acceptance Test Outline 7-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

Table 7-30: TX Test Using Backup Synchronization 7-53. . . . . . . . . . . . . . . . . . . . .

Table 7-31: RX ATP Test 7-55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-32: Generate an ATP Report 7-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-33: Copy Files from LMF to a Diskette 7-61. . . . . . . . . . . . . . . . . . . . . . . .

Table 7-34: Copying CAL Files from Diskette to the CBSC 7-62. . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

List of Tables – continued

Table 7-35: Remove External Test Equipment 7-63. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-36: Reset BTS and Remote Site Initialization 7-63. . . . . . . . . . . . . . . . . . . .

Table 7-37: Bring BTS into Service 7-64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 7-38: Remove LMF 7-64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-1: Create CAL File 8-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-2: RF Path Audit 8-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-3: TX Acceptance Test Outline 8-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-4: TX Test Using Backup Synchronization 8-8. . . . . . . . . . . . . . . . . . . . . .

Table 8-5: Generate an ATP Report 8-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-6: Copy Files from LMF to a Diskette 8-12. . . . . . . . . . . . . . . . . . . . . . . . .

Table 8-7: Copying CAL Files from Diskette to the CBSC 8-13. . . . . . . . . . . . . . . .

Table 9-1: Login and Access Alarm Window Procedure 9-4. . . . . . . . . . . . . . . . . .

Table 9-2: Shut Down Signaling Functions 9-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-3: Restore Signaling Operations 9-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-4: Item Number Replacement List 9-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-5: Remove the Failed Site I/O Junction Box 9-14. . . . . . . . . . . . . . . . . . . . .

Table 9-6: Install the Replacement Site I/O Junction Box 9-14. . . . . . . . . . . . . . . . .

Table 9-7: Item Number Replacement List 9-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-8: Remove the Failed Short Duration Battery 9-17. . . . . . . . . . . . . . . . . . . .

Table 9-9: Install the Replacement Short Duration Battery 9-17. . . . . . . . . . . . . . . .

Table 9-10: Item Number Replacement List 9-19. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-11: Remove the Failed RGPS Head 9-19. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-12: Install the Replacement RGPS Head 9-20. . . . . . . . . . . . . . . . . . . . . . . .

Table 9-13: Item Number Replacement List 9-21. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-14: Remove the Failed Unit 9-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 9-15: Install the New Unit 9-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

xvi

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Foreword

Scope of manual

Text conventions

This manual is intended for use by cellular telephone system craftspersons in the day-to-day operation of Motorola cellular system equipment and ancillary devices. It is assumed that the user of this information has a general understanding of telephony, as used in the operation of the Public Switched Telephone Network (PSTN), and is familiar with these concepts as they are applied in the cellular mobile/portable radiotelephone environment. The user, however, is not expected to have any detailed technical knowledge of the internal operation of the equipment.

This manual is not intended to replace the system and equipment training offered by Motorola, although it can be used to supplement or enhance the knowledge gained through such training.

The following special paragraphs are used in this manual to point out information that must be read. This information may be set-off from the surrounding text, but is always preceded by a bold title in capital letters. The four categories of these special paragraphs are:

NOTE

Presents additional, helpful, non-critical information that you can use.

IMPORTANT

Presents information to help you avoid an undesirable situation or provides additional information to help you understand a topic or concept.

CAUTION

Presents information to identify a situation in which equipment damage could occur, thus avoiding damage to equipment.

WARNING

Presents information to warn you of a potentially hazardous situation in which there is a possibility of personal injury.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

xvii

Foreword – continued

Changes to manual

The following typographical conventions are used for the presentation of software information:

S In text, sans serif BOLDFACE CAPITAL characters (a type style

without angular strokes: i.e., SERIF versus SANS SERIF) are used to name a command.

S In text, typewriter style characters represent prompts and the

system output as displayed on an operator terminal or printer.

S In command definitions, sans serif boldface characters represent those

parts of the command string that must be entered exactly as shown and typewriter style characters represent command output responses as displayed on an operator terminal or printer.

S In the command format of the command definition, typewriter

style characters represent the command parameters.

Changes that occur after the printing date are incorporated into your manual by Cellular Manual Revisions (CMRs). The information in this manual is updated, as required, by a CMR when new options and procedures become available for general use or when engineering changes occur. The cover sheet(s) that accompany each CMR should be retained for future reference. Refer to the Revision History page for a list of all applicable CMRs contained in this manual.

Receiving updates

Technical Education & Documentation (TED) maintains a customer database that reflects the type and number of manuals ordered or shipped since the original delivery of your Motorola equipment. Also identified in this database is a “key” individual (such as Documentation Coordinator or Facility Librarian) designated to receive manual updates from TED as they are released.

To ensure that your facility receives updates to your manuals, it is important that the information in our database is correct and up-to-date. Therefore, if you have corrections or wish to make changes to the information in our database (i.e., to assign a new “key” individual), please contact Technical Education & Documentation at:

MOTOROLA, INC. Technical Education & Documentation 1 Nelson C. White Parkway Mundelein, Illinois 60060 U.S.A.

Phone:

Within U.S.A. and Canada 800-872-8225. . . . .

Outside of U.S.A. and Canada +1-847-435–5700. .

FAX: +1-847-435–5541. . . . . . . . . . . . . . . . . . . . . .

xviii

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Foreword – continued

Reporting manual errors

24-hour support service

In the event that you locate an error or identify a deficiency in your manual, please take time to write to us at the address above. Be sure to include your name and address, the complete manual title and part number (located on the manual spine, cover, or title page), the page number (found at the bottom of each page) where the error is located, and any comments you may have regarding what you have found. We appreciate any comments from the users of our manuals.

If you have any questions or concerns regarding the operation of your equipment, please contact the Customer Network Resolution Center for immediate assistance. The 24 hour telephone numbers are:

Arlington Heights, IL 800-433-5202. . . . . . . . . .

Arlington Heights, International +1–847-632-5390. .

Cork, Ireland 44–1793–565444. . . . . . . . . . . . . . . . .

Swindon, England 44–1793–565444. . . . . . . . . . . . .

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

xix

General Safety

Remember! . . . Safety depends on you!!

Ground the instrument

The following general safety precautions must be observed during all phases of operation, service, and repair of the equipment described in this manual. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment. Motorola, Inc. assumes no liability for the customer’s failure to comply with these requirements. The safety precautions listed below represent warnings of certain dangers of which we are aware. You, as the user of this product, should follow these warnings and all other safety precautions necessary for the safe operation of the equipment in your operating environment.

To minimize shock hazard, the equipment chassis and enclosure must be connected to an electrical ground. If the equipment is supplied with a three-conductor ac power cable, the power cable must be either plugged into an approved three-contact electrical outlet or used with a three-contact to two-contact adapter. The three-contact to two-contact adapter must have the grounding wire (green) firmly connected to an electrical ground (safety ground) at the power outlet. The power jack and mating plug of the power cable must meet International Electrotechnical Commission (IEC) safety standards.

Do not operate in an explosive atmosphere

Keep away from live circuits

Do not service or adjust alone

Do not operate the equipment in the presence of flammable gases or fumes. Operation of any electrical equipment in such an environment constitutes a definite safety hazard.

Operating personnel must:

S not remove equipment covers. Only Factory Authorized Service

Personnel or other qualified maintenance personnel may remove equipment covers for internal subassembly, or component replacement, or any internal adjustment.

S not replace components with power cable connected. Under certain

conditions, dangerous voltages may exist even with the power cable removed.

S always disconnect power and discharge circuits before touching them.

Do not attempt internal service or adjustment, unless another person, capable of rendering first aid and resuscitation, is present.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

General Safety – continued

Do not substitute parts or modify equipment

Dangerous procedure warnings

Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification of equipment. Contact Motorola Warranty and Repair for service and repair to ensure that safety features are maintained.

Warnings, such as the example below, precede potentially dangerous procedures throughout this manual. Instructions contained in the warnings must be followed. You should also employ all other safety precautions that you deem necessary for the operation of the equipment in your operating environment.

WARNING

Dangerous voltages, capable of causing death, are present in this equipment. Use extreme caution when handling, testing, and adjusting.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

xxi

Revision History

Manual Number

Manual Title

Version Information

68P09224A55

SCt300 BTS Hardware Installation, ATP and FRU Procedures Software Release 2.15.x.x

The following table lists the manual version, date of version, and remarks on the version.

Version

Level

1 SEP 2000 Draft version for Engineering review.

Cellular Manual Revision Information

Revision

Level

CMR No. N.A. No CMRs apply to this manual

Date of Issue Remarks

The following table lists Cellular Manual Revision (CMR) number, date of CMR, and remarks on the CMR.

Date of Issue Remarks

xxii

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Patent Notification

Patent numbers

4128740 4661790 4860281 5036515 5119508 5204876 5247544 5301353 4193036 4667172 4866710 5036531 5121414 5204977 5251233 5301365 4237534 4672657 4870686 5038399 5123014 5207491 5255292 5303240 4268722 4694484 4872204 5040127 5127040 5210771 5257398 5303289 4282493 4696027 4873683 5041699 5127100 5212815 5259021 5303407 4301531 4704734 4876740 5047762 5128959 5212826 5261119 5305468 4302845 4709344 4881082 5048116 5130663 5214675 5263047 5307022 4312074 4710724 4885553 5055800 5133010 5214774 5263052 5307512 4350958 4726050 4887050 5055802 5140286 5216692 5263055 5309443 4354248 4729531 4887265 5058136 5142551 5218630 5265122 5309503 4367443 4737978 4893327 5060227 5142696 5220936 5268933 5311143 4369516 4742514 4896361 5060265 5144644 5222078 5271042 5311176 4369520 4751725 4910470 5065408 5146609 5222123 5274844 5311571 4369522 4754450 4914696 5067139 5146610 5222141 5274845 5313489 4375622 4764737 4918732 5068625 5152007 5222251 5276685 5319712 4485486 4764849 4941203 5070310 5155448 5224121 5276707 5321705 4491972 4775998 4945570 5073909 5157693 5224122 5276906 5321737 4517561 4775999 4956854 5073971 5159283 5226058 5276907 5323391 4519096 4797947 4970475 5075651 5159593 5228029 5276911 5325394 4549311 4799253 4972355 5077532 5159608 5230007 5276913 5327575 4550426 4802236 4972432 5077741 5170392 5233633 5276915 5329547 4564821 4803726 4979207 5077757 5170485 5235612 5278871 5329635 4573017 4811377 4984219 5081641 5170492 5235614 5280630 5339337 4581602 4811380 4984290 5083304 5182749 5239294 5285447 D337328 4590473 4811404 4992753 5090051 5184349 5239675 5287544 D342249 4591851 4817157 4998289 5093632 5185739 5241545 5287556 D342250 4616314 4827507 5020076 5095500 5187809 5241548 5289505 D347004 4636791 4829543 5021801 5105435 5187811 5241650 5291475 D349689 4644351 4833701 5022054 5111454 5193102 5241688 5295136 RE31814 4646038 4837800 5023900 5111478 5195108 5243653 5297161 4649543 4843633 5028885 5113400 5200655 5245611 5299228 4654655 4847869 5030793 5117441 5203010 5245629 5301056 4654867 4852090 5031193 5119040 5204874 5245634 5301188

This product is manufactured and/or operated under one or more of the following patents and other patents pending:

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

xxiii

Patent Notification – continued

Notes

xxiv

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Chapter 1: Introduction

T able of Contents

Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Scope of this document 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual order 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site cleanliness 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site manager 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System diagrams 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configurations 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Tools and Materials 1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials for Installing the Mounting Bracket on a Pole 1-13. . . Tools and Materials for Installing the Mounting Bracket on a Rack 1-13. . . Tools and Materials for Installing the Mounting Bracket on a

Concrete Wall 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials for Installing the Mounting Bracket on a

Concrete Ceiling 1-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATP Tools and Equipment 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Policy 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test equipment calibration 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test cable calibration 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Warm–up 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment List 1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Optional Equipment 1-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FRU Tools and Materials 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of FRUs 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials Required to Perform FRU Procedures 1-21. . . . . . . . .

Unit Identification 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

Installation and ATP Order 1-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Order 1-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ATP Order 1-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

Table of Contents – continued

Notes

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Introduction

Scope of this document

Manual order

This document provides information pertaining to the hardware installation, cabling installation, ATP and Field Replaceable Unit (FRU) procedures of the Motorola MicroCell and PicoCell SCt300 CDMA Base Transceiver Subsystem (BTS) equipment.

The FRU procedures do not cover the replacement of modules inside the unit.

An individual SCt300 BTS unit will be referred to as the “unit” for the remainder of this document. A BTS site that contains one or more SCt300 BTS units will be referred to as the “BTS” for the remainder of this document.

For detailed installation information of non-Motorola equipment, refer to the vendor manuals provided with such equipment.

The installation order is the order of the manual starting at Chapter 1 and continuing through Chapter 5. After hardware installation has been completed, run the ATP for the system by following the procedures defined in Chapter 6 of this manual.

Chapter 1

“Introduction” — This is a brief outline of the manual. Also provided is a list of additional documents and tools necessary to complete the procedures.

Chapter 2

“Site Preparation” — This chapter contains the necessary information to verify the condition of the site.

Chapter 3

“Installing Mounting Bracket and Remote GPS” — This chapter contains the necessary information to install the MicroCell/Surge Suppressor or PicoCell mounting bracket on a wall, pole, rack or ceiling.

Chapter 4

“Preparing Site Cabling for Sites Equipped with Customer–Supplied Site I/O Interface” — This chapter contains the procedures for installing the external cabling for sites equipped with the customer–supplied Site I/O interface.

Chapter 5

“Preparing Site Cabling for Sites Equipped with optional Primary Surge Suppressor” — This chapter contains the procedures for installing the external cabling for sites equipped with the optional Primary Surge Suppressor.

DEC 2000

Chapter 6

“Installing the Unit and Installation Check Off List” — This chapter contains procedures for installing the unit, mounting the Solar Cover to the chassis and final Installation Check Off List.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-1

Introduction – continued

Chapter 7

“Acceptance Test Procedures (Optional)” – This chapter outlines the ATP used for a field audit after a BTS initial installation, if necessary.

Chapter 8

“Acceptance Test Procedures for Frequency Hopping Pilot Beacon (Optional)” – This chapter outlines the ATP used for a field audit of units configured as a Frequency Hopping Pilot Beacon.

Chapter 9

“Field Replaceable Unit (FRU) Procedures” – This chapter provides the FRU procedures for the BTS system.

Appendix A

“Outdoor Grounding Guidelines Overview” — This chapter overviews the grounding information for external units. Use this chapter for general reference purposes only. It is not meant to replace local code specifications or site specific directions.

Site cleanliness

Site manager

System diagrams

While performing the procedures provided in this document, be sure that:

S for an internal installation, the site is kept clean and free of tracked-in

dirt

S all packing material has been removed from the equipment. S all tools not currently in use are picked-up as the installation

progresses.

S all trash is removed from the site at the end of each day and after the

installation is complete.

S equipment is covered with a tarpaulin whenever possible. S use a shop-vac whenever you perform an internal installation

procedure that generates dust, such as drilling or cutting.

The site manager is the person in charge of and responsible for the full site. The installer will be verifying a variety of conditions with the site manager.

1-2

Figure 1–1 through Figure 1-7 show the MicroCell, PicoCell and optional Primary Surge Suppressor units mounted on a wall, rack, pole, frame and ceiling (PicoCell only).

PicoCell units are the only units that can be mounted on the ceiling. The MicroCell and Primary Surge Suppressor units can not be mounted on the ceiling.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Introduction – continued

Configurations

The MicroCell, PicoCell and Primary Surge Suppressor can be mounted indoors (internal) or can be mounted outdoors (external).

The MicroCell and PicoCell support single–carrier, omni configurations.

The cover configurations for the MicroCell and PicoCell units are:

S Use solar covers on the Microcell and optional Primary Surge

Suppressor for all outside mounting applications.

S Use fin covers on the Microcell or Picocell for indoor applications. S The Primary Surge Suppressor uses solar covers only.

The battery configurations for the MicroCell and PicoCell units are:

S Short duration battery

The power configurations for the MicroCell and PicoCell units are:

S AC power only S DC power only S AC power with short duration battery

The synchronization configurations for the MicroCell and PicoCell units are:

S Remote GPS Receiver – synchronous operation with High Stability

Oscillator (HSO) backup.

S Internal High Stability Oscillator (HSO) only – non–synchronous

operation.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-3

Introduction – continued

Figure 1-1: MicroCell Unit Mounted on a Wall

SYSTEM CABLING IS NOT SHOWN. FIN AND SOLAR COVERS REMOVED FOR CLARITY .

1-4

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

Introduction – continued

Figure 1-2: Primary Surge Suppressor Mounted on a Wall

DEC 2000

SYSTEM CABLING IS NOT SHOWN. SOLAR COVERS REMOVED FOR CLARITY.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

1-5

PRELIMINARY

Introduction – continued

Figure 1-3: MicroCell Unit Mounted on a Rack

1-6

SYSTEM CABLING IS NOT SHOWN. FIN AND SOLAR COVERS REMOVED FOR CLARITY .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Introduction – continued

Figure 1-4: Primary Surge Suppressor Mounted on a Rack

DEC 2000

SYSTEM CABLING IS NOT SHOWN. FIN AND SOLAR COVERS REMOVED FOR CLARITY .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

1-7

PRELIMINARY

Introduction – continued

Figure 1-5: MicroCell Unit Mounted on a Pole

BACK SOLAR COVER

SYSTEM CABLING IS NOT SHOWN. FRONT SOLAR COVER IS REMOVED FOR CLARITY .

1-8

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

Introduction – continued

Figure 1-6: Primary Surge Suppressor Mounted on a Pole

BACK SOLAR COVER

DEC 2000

SYSTEM CABLING IS NOT SHOWN. FRONT SOLAR COVER IS REMOVED FOR CLARITY .

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-9

Introduction – continued

Figure 1-7: PicoCell Unit Mounted on a Ceiling

ONLY THE PICOCELL UNIT MAY BE MOUNTED ON THE CEILING

SYSTEM CABLING IS NOT SHOWN. FIN AND SOLAR COVERS REMOVED FOR CLARITY .

1-10

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

Required Documents

The following documents are required to perform the installation, ATP and FRU procedures of the cell site equipment:

S SCt300 BTS Hardware Installation, ATP and FRU – 68P09224A55

(This manual)

S Site Document (generated by Motorola Systems Engineering), which

includes: – site specific documentation – channel allocation – contact list (customer) – ancillary/expendable equipment list – site wiring lists – contact list (Motorola support) – job box inventory

S Demarcation Document (Scope of Work agreement) S Grounding Guidelines for Cellular Radio Installations

(Motorola part number 68P81150E62)

S CDMA LMF Operator’s Guide; 68P64114A78. S Installation manuals for non-Motorola equipment (for reference

purposes).

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-11

Installation Tools and Materials

Introduction

Many of the tools and materials depend on the style of the wall, pole, rack or ceiling that the mounting bracket is being installed on. The tools and materials required to install the BTS hardware are specified for each mounting style. Due to the variability of mounting styles, additional tools and materials may be required to meet specific site needs. This is outside of the scope of this document and must be evaluated on a site to site basis.

Also, for each procedure, a tools and materials list is provided within the procedure.

Motorola kit T393AA is available for most installation styles and methods. Motorola kit T393AA contains:

S Torque driver wrench, 1/4–in. hex female drive, 0–10 N–m S T20 Torx Tamper Bit, 1/4–in. hex S T30 Torx Tamper Bit, 1/4–in. hex S Flathead bit S Torque ratchet wrench 3/8–in. drive, 0–10 N–M (Utica part number

TCI–150 R/A 3/8–in. or equivalent)

S 5/16 Breakaway 9–in. lb. S 13/16 Breakaway 38–in. lb. S Wire Crimping Tool S Installation Handles, Motorola Part Numbers (Left Handle

0787668C01) and (Right Handle 0787668C02)

S Screws M6x19 (Motorola Part Number 0387541C03) S Buckle Strap Tool

1-12

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Installation T ools and Materials – continued

(pp)

T ools and Materials for Installing the Mounting Bracket on a Pole

The following tools and materials are required to properly and safely install the the mounting bracket on a pole.

Table 1-1: Tools and Materials for Pole Mounting

Hand Tools Materials Power Tools

Safety Glasses MicroCell or PicoCell

mounting kit

Bucklestrap Cutting Tool (Motorola

part number 6604809N01)

T30 TORX tamper bit, 1/4–in. hex

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

Ball Peen (Metal Working) Hammer

Heavy Gloves T ape Measure

T ools and Materials for Installing the Mounting Bracket on a Rack

The following tools and materials are required to properly and safely install the mounting bracket on a rack.

Table 1-2: Tools and Materials for Rack Mounting

Hand Tools Materials Power Tools

T30 Torx tamper bit, 1/4–in. hex MicroCell or PicoCell

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

Four machine screws 12–24

5/8-in. self tapping (customer

electrical tape

(customer supplied)

Mounting Kit

supplied)

No Power Tools Required

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

Chalk or marker to mark

location on rack

(customer supplied)

electrical tape

(customer supplied)

1-13

PRELIMINARY

Installation T ools and Materials – continued

T ools and Materials for Installing the Mounting Bracket on a Concrete Wall

The following tools and materials are required to properly and safely install the mounting bracket on a concrete wall.

Table 1-3: Mounting Bracket Tools and Materials for Concrete Wall Mounting

Hand Tools Materials Power Tools

T30 Torx tamper bit, 1/4–in hex metal shim material Hilti wall drilling rig

15/16-in. (23.8 mm) socket, a ratchet

wrench, and an 18-in. (45.7 cm)

breaker bar

safety glasses MicroCell or PicoCell

chalk for marking outline on wall electrical tape

tape measure

4-ft (1.22 m) bubble level

rubber mallet

ear plugs

dust mask

Hilti anchors (for each

bracket)

Mounting Kit

(customer supplied)

Hilti DCM 18–14 metric bit

shop vacuum

1-14

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Installation T ools and Materials – continued

T ools and Materials for Installing the Mounting Bracket on a Concrete Ceiling

The following tools and materials are required to properly and safely install the the ceiling adapter on a concrete ceiling.

Table 1-4: Tools and Materials for Concrete Ceiling

Hand Tools Materials Power Tools

T30 Torx tamper bit, 1/4–in. hex metal shim material Hilti wall drilling rig

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

15/16-in. (23.8 mm) socket, a ratchet

wrench, and an 18-in. (45.7 cm)

breaker bar

safety glasses Ceiling Mounting Kit*

chalk for marking outline on ceiling electrical tape

tape measure

4-ft (1.22 m) bubble level

rubber mallet

ear plugs

dust mask

*Optional. Not shipped with unit.

Hilti anchors (qty. of 4 for

each bracket)

PicoCell Mounting Kit shop vacuum

(customer supplied)

Hilti DCM 18–14 metric bit

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-15

ATP Tools and Materials

Policy

To ensure consistent, reliable and repeatable test results, test equipment meeting the following technical criteria should be used to perform the ATP on the BTS equipment.

NOTE

During manual testing, you can substitute supported test equipment with other test equipment models not supported by the LMF. However, they must meet the same technical specifications.

It is the responsibility of the customer to account for any measurement variances and /or additional losses / inaccuracies that can be introduced as a result of these substitutions. Before beginning the ATP or

troubleshooting, make sure that the test equipment needed is on hand and operating properly.

T est equipment calibration

T est cable calibration

Equipment Warm–up

Optimum system performance and capacity depend on regular test equipment service, calibration, and characterization. Follow the original equipment manufacture (OEM) recommended maintenance and calibration schedules closely.

Equipment test cables are very important in the ATP. It is recommended that the cable calibration be run at every BTS with the test cables attached. This method compensates for test cable insertion loss within the test equipment itself. No other allowance for test cable insertion loss needs to be made during the performance of tests.

Another method is to account for the loss by entering it into the Local Maintenance Facility (LMF) during the optimization procedure. This method requires accurate test cable characterization in a lab environment. The cable should be tagged with the characterization information prior to field optimization.

After arriving at the a site, the test equipment should be plugged in and turned on to allow warm up and stabilization to occur for as long as possible. The following pieces of test equipment must be warmed–up for a minimum of 60 minutes prior to the ATP.

1-16

S Communications Test Set S Power Meter

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

A TP Tools and Materials – continued

T est Equipment List

The following pieces of test equipment are required during the ATP. Common assorted tools like screwdrivers and keys are not listed but are still required. Read the owners manual on all of the following major pieces of test equipment to understand their individual operation prior to use in optimization.

CDMA LMF Hardware Requirements

A CDMA LMF computer platform that meets the following requirements (or better) is recommended:

S Notebook computer S PCMCIA to Serial I/O Adapter S 266 MHz (32 bit CPU) Pentium processor

NOTE

Always refer to specific OEM test equipment documentation for detailed operating instructions.

S 4 Gbyte internal hard disk drive S Color display with 1024 x 768 (recommended) or 800 x 600 pixel

resolution

S 128 MB RAM S CD ROM drive S 3 1/2 inch floppy drive S Serial port (COM 1) S Parallel port (LPT 1) S PCMCIA Ethernet interface card (for example, 3COM Etherlink III)

with a 10Base–T–to–coax adapter

S Windows 98 or higher operating system

NOTE

If 800 x 600 pixel resolution is used, the CDMA LMF window must be maximized after it is displayed.

RS232 to GPIB Interface

One National Instruments GPIB–232–CT with Motorola CGDSEDN04X RS232 serial cable or equivalent; used to interface the LMF to the test equipment.

DEC 2000

A Standard RS–232 cable can be used with the following modifications:

S Pin 8 (CTS) does not have to be jumpered/shorted to the others as

it is a driver output. The DTR is already a driver output signal. The other pins are to receivers. Short pins 7, 1, 4, 6 on each cable end:

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-17

A TP T ools and Materials – continued

Figure 1-8: RS232–IEEE488 Converter Serial Cable Configuration

9–pin D (female) 9–pin D (female)

GND 5 5 GND

RX 3

RTS 7 7 RTS CTS 8

RSD/DCD 1 1 RSD/DCD

DTR 4 4 DTR

DSR 6 6 DSR

ON BOTH CONNECTORS SHORT PINS 7 AND 8; SHORT PINS 1, 4 AND 6

2 TX 3 RXTX 2

8 CTS

Communications Test Set w/JCDMA PCMCIA Card

This procedure requires one of the following test sets:

S Motorola CyberTest S Advantest R3465 and HP 437B or Gigatronics 8541C Power Meter S Hewlett–Packard HP 8935 S Hewlett–Packard HP8921 (w/CDMA and PCS interface for 1.7/1.9

GHz) and HP 437B or Gigatronics Power Meter.

S RF power meter (average and code domain) S RF signal generator (capable of CDMA modulation) S Spectrum Analyzer S CDMA code domain analyzer

NOTE

As of the writing of this manual, the Advantest CDMA communications test set is the ONLY CDMA analyzer approved by Motorola for automated BTS testing.

GPIB cables

Two Hewlett Packard 10833A or equivalent; 1 or 2 meters long used to interconnect test equipment and LMF terminal.

Power meter

This procedure requires one of the following power meters:

S Gigatronics Model 8541C with 80601A power sensor capable of

measuring from –70 dBm to +23 dBm; supported by the LMF to perform BTS Total Power measurement.

1-18

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

A TP Tools and Materials – continued

S Hewlett–Packard Model HP437B with HP8481A power sensor

capable of measuring from –30 dBm to 20 dBm.

RF attenuators

30 dB, 10 Watt minimum RF attenuator to attenuate the transmitter output for Microcell tests.

BTS serial cable

One BTS serial cable to connect LMF to MMI/LMF connector.

Male N to male N cables

The following male N to male N cables are necessary to do this procedure:

S One male N to male N cable. The short RF test cable used for cable

calibration.

S Two male N to male N cables. The transmit RF test cable and the

receive RF test cable used for ATP.

Male BNC to male N cable

One male BNC to male N cable. This cable is used to allow self–calibration of the Communication Test Set.

Male BNC to male cable

One male BNC to male cable. This cable connects the 2 Second Reference to the external trigger of the Communication Test Set.

Male BNC to Male SMA cable

Two male BNC to male SMA cables. These cables are is used to connect the BTS 19.6608 MHz and 2 Second Reference to the Communication Test Set.

Ohm load

One male N 50 Ohm load to terminate the unused antenna port for Microcell receive testing.

15 to 9–pin DSUB Adapter

One 15 to 9–pin DSUB adapter. This allows connection between the MMI/LMF connector on the BTS and the DB9 cable.

Female N to female N adapter

DEC 2000

One female N to female N adapter. This allows connection between the short RF test cable and the transmit RF test cable or the receive RF test cable.

BNC–T connectors

One female and one male port BNC–T connector. This connects the 2 Second Reference to the external trigger of the Communication Test Set.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-19

A TP T ools and Materials – continued

Optional Equipment

NOTE

None of the optional equipment specified here is supported by the LMF in automated tests. It is meant to serve as a list of additional equipment that might be required during maintenance and troubleshooting operations.

Digital multimeter

Fluke Model 8062A with Y8134 test lead kit or equivalent; used for precision DC and AC measurements, requiring 4–1/2 digits.

Frequency counter

Stanford Research Systems SR620 or equivalent. If direct measurement of the 19.6608 MHz references is required.

Spectrum analyzer

Spectrum Analyzer (HP8594E with CDMA personality card) or equivalent. Required for manual tests other than standard tests performed by the LMF.

Span line (JT1) verification equipment

As required for local application

RF test cable (if not provided with test equipment)

Motorola model TKN8231A. Used to connect test equipment to the BTS during ATP or general troubleshooting procedures.

Oscilloscope

Tektronics model 2445 or equivalent. Used for waveform viewing, timing and measurements during general troubleshooting procedures.

CDMA subscriber mobile or portable radiotelephone

CDMA compatible with power supply and antenna. Used to provide test transmission and reception during BTS maintenance and troubleshooting. Two radios will be required for system and drive around testing after BTS installation and optimization.

1-20

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

FRU Tools and Materials

Introduction

List of FRUs

The following is a list of the FRUs for the Microcell and Picocell units and a list of the tools and materials necessary to perform the FRU installation and removal procedures:

The following is a list of FRUs for the unit:

1. Site I/O Junction Box with Primary Surge Suppressor – Kit T450AE

2. Site I/O Junction Box without Primary Surge Suppressor – Kit T450AA

3. RGPS Head – Kit T472AP

4. Short Duration Battery – Kit T348AE

5. Primary Surge Suppressor – Kit T449AA

6. AC Installation Box – Kit T449AB

PicoCell

1. A Band BTS with HSO – Kit SG1476AA

2. A Band BTS without HSO – Kit SG1477AA

3. B Band BTS with HSO – Kit SG1484AA

4. B Band BTS without HSO – Kit SG1485AA

5. Fin Cover – Kit T389AA

MicroCell

1. A Band BTS with HSO – Kit SG1478AA

2. A Band BTS without HSO – Kit SG1479AA

3. B Band BTS with HSO – Kit SG1486AA

4. B Band BTS without HSO – Kit SG1487AA

5. Solar Cover – Kit T451AA

6. Fin Cover – Kit T389AB

T ools and Materials Required to Perform FRU Procedures

The following is a list of tools and materials required to perform the FRU installation procedures.

Table 1-5: Tools Required to Perform FRU Procedures

Hand Tools Materials Power Tools

T30 Torx tamper bit, 1/4–in. hex Applicable FRU None Required T20 Torx tamper bit, 1/4–in. hex Installation handles

Torque driver wrench, 1/4–in hex

female drive, 0–10 N–M

13 mm torque wrench

(optional)

5/16 breakaway torque wrench

13/16 breakaway torque wrench

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

1-21

PRELIMINARY

Unit Identification

Overview

Figure 1-9 and Figure 1-10 show the various components of the MicroCell and PicoCell systems.

Figure 1-9: General Block Diagram Showing the Port Names

(MicroCell Unit Shown)

SITE I/O JUNCTION BOX

DC POWER

BREAKER

DC INPUT

MIB C

MIB B

MIB A

ANTENNA A

AC POWER

BREAKER

AC INPUT

SU RF

SU 2

SU 1

ANTENNA B

(MICROCELL ONLY)

1-22

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Unit Identification – continued

Figure 1-10: General Block Diagram Showing the Unit, Site I/O Interface, and External Items

(MicroCell Unit Shown)

POWER

RGPS

SPAN

ANT

MICROCELL

ONLY

ANT

TX/RX

MICROCELL

ONLY

MIB

TERMINATOR

SITE I/O

INTERF ACE

CUSTOMER

INPUTS

PHONE

(MODEM)

POWER

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-23

Unit Identification – continued

Figure 1-11: Microcell and Picocell Unit

MICROCELL UNIT

PICOCELL UNIT

Figure 1-12: Site I/O Junction Box and Cable

1-24

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Unit Identification – continued

Figure 1-13: Primary Surge Suppressor (Optional)

Figure 1-14: AC Installation Box (Optional)

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-25

Unit Identification – continued

Figure 1-15: Mounting Bracket for both Microcell and Primary Surge Suppressor

Figure 1-16: Mounting Bracket for Picocell

1-26

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Unit Identification – continued

Figure 1-17: Adapters for Rack Mounting

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-27

Unit Identification – continued

Figure 1-18: Adapters for Pole Mounting

BUCKLESTRAP

CHANNEL CLAMP

DETAIL A

UPPER CHANNEL

EXTRUSION

CHANNEL CLAMP

LOWER CHANNEL

EXTRUSION

SEE DETAIL A

1-28

CHANNEL EXTRUSION

SCt300 BTS Hardware Installation, ATP and FRU Procedures

BUCKLESTRAP

CHANNEL CLAMP

DEC 2000

PRELIMINARY

Unit Identification – continued

Figure 1-19: Adapter for Ceiling Mounting (Optional)

Figure 1-20: Installation Handles for Lifting Unit (Optional)

Figure 1-21: Short Duration Battery (Optional)

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

1-29

PRELIMINARY

Unit Identification – continued

Figure 1-22: Front and Back Solar Covers for MicroCell

FRONT COVER

Figure 1-23: Front and Back Solar Covers for Surge Suppressor

FRONT COVER

BACK COVER

1-30

BACK COVER

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Unit Identification – continued

Figure 1-24: Front and Back Fin Covers for MicroCell and PicoCell (PicoCell shown)

BACK COVER

FRONT COVER

0149–O_IL.doc

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-31

Installation and ATP Order

Installation Order

The pieces of the MicroCell, PicoCell and Primary Surge Suppressor units should be installed in the following order.

1. Unpack and inspect hardware.

2. Install mounting hardware and bracket(s).

3. Install back solar cover to mounting bracket (required for outdoor installations and optional for indoor applications).

4. Install back fin cover to unit (required for indoor installations).

5. Install RGPS.

6. Prepare site cabling.

7. Attach installation handles to unit (optional).

8. Attach and secure unit to mounting bracket.

9. Attach and secure Primary Surge Suppressor to mounting bracket (optional).

10. Remove installation handles (if used).

11. Remove Site I/O dust cover.

12. Attach Site I/O junction box to unit.

13. Attach all ground cabling to unit(s).

14. Attach all cables to unit(s).

15. Install short duration battery (if required).

16. Attach front solar cover (optional).

17. Attach front fin cover (optional).

A TP Order

1-32

The ATP for the MicroCell and PicoCell units is performed in the following sequence:

1. BTS preparation.

2. Connecting the LMF to the BTS.

3. Connecting test equipment to the BTS and LMF.

4. Establishing an MMI communications session.

5. Setting customer operating channel.

6. Synchronization verification.

7. Install LMF program and binaries.

8. Start LMF and log on to BTS.

9. Update BTS–specific CDF file device load version.

10. Download and enable MAWI.

11. Test equipment setup (R3465 Calibration/GPIB address & clock setup).

12. Test equipment selection.

13. Power meter calibration.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Installation and ATP Order – continued

14. Test cable calibration.

15. Create CAL file.

16. RF path audit.

17. TX and RX Acceptance tests.

18. Generate an ATP Report.

19. Copy LMF CAL file to CBSC.

20. Terminate LMF session/leave the site.

Frequency Hopping Pilot Beacon A TP Order

The Frequency Hopping Pilot Beacon (FHPB) ATP for the MicroCell and PicoCell units is performed in the following sequence:

1. Create CAL file.

2. RF path audit.

3. TX Acceptance tests.

4. Generate an ATP Report.

5. Copy LMF CAL file to CBSC.

6. Terminate LMF session/leave the site.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1-33

Installation and ATP Order – continued

Notes

1-34

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Chapter 2: Site Preparation

T able of Contents

Site Preparation Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

External Installation Versus Internal Installation 2-1. . . . . . . . . . . . . . . . . .

Verifications and Procedures 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Manager 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Verifications and Inspections 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Inspections 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection Overview 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Deficiencies 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What to Inspect 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Antenna and Tower Inspections 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Structural Inspections and Verifications 2-3. . . . . . . . . . . . . . . . . . . . . . . .

Environmental Inspections (indoor only) 2-5. . . . . . . . . . . . . . . . . . . . . . .

Grounding Inspections 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prepare Site for the Arrival of the Equipment 2-6. . . . . . . . . . . . . . . . . . . . . . . . . .

Description 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Arrival 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Securing Fluorescent Lights 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure to Prepare the Site for the Equipment 2-7. . . . . . . . . . . . . . . . . .

Dimensions and Clearances 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MicroCell and PicoCell Overview 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions and Clearances 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Dimensions 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unit Clearances 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

Table of Contents – continued

Notes

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Site Preparation Overview

Overview

External Installation Versus Internal Installation

Verifications and Procedures

This chapter provides the procedures and information to verify that the site is ready to have the equipment installed. It also provides procedures to ensure the safety of the installation personnel, protect the equipment from damage, and verify the site layout parameters.

The MicroCell and PicoCell systems can be installed outdoors (external) or indoors (internal). The site preparation depends on the type of installation and the site characteristics. Most preparations apply to both types (indoor and outdoor) of installations. It is stated when a preparation applies to only one type of installation.

All indoor installations must be in a restricted access location.

The verifications and procedures provided in this chapter are:

S External site inspections S Internal site inspections S Preparing site for the arrival of equipment S Site layout verification

Site Manager

Verifications and Inspections

The site manager is the person in charge of and responsible for the full site.

Verifications typically have the installer check with the site manager that a condition has been previously checked or procedure previously performed and meets a stated specification.

Inspections typically have the installer personally checking that a condition or item meets stated specifications.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-1

Site Inspections

Inspection Overview

Deficiencies

What to Inspect

Inspect the site to verify that the necessary equipment has been properly installed. Also, as part of the inspection, verify that the equipment is adequate to support the Motorola equipment. Not all inspections may apply to every site. The site characteristics determine which inspections apply.

NOTE

Installation of ancillary equipment (e.g., power supplies, terminal blocks, etc.) may be the responsibility of the installer. Refer questions to your Motorola Program Manager.

Notify responsible persons of any deficiencies as soon as possible, if the installer is not responsible for correcting the noted deficiencies. Deficiencies may need to be corrected before any installation can start.

The following external items should be inspected and compared against any related site-specific documentation.

S Towers S Antennas S External ground systems S Clearances for units S Mounting Structures

Antenna and T ower Inspections

2-2

Additionally, for all sites the incoming power should be inspected and compared against any related site-specific documentation.

Documentation

The vendor responsible for supplying the towers should leave the installation documentation at the site after the tower has been erected. Review this documentation and compare it with any related site-specific documents.

Inspection

Inspect the following:

S Tower painting S Tower lighting (beacons) S Antenna and transmission line installation S Grounding.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Site Inspections – continued

Structural Inspections and Verifications

Wall loading capacity

Verify with the site manager that the wall loading capacity has been previously checked by a qualified Civil Engineer and meets the specifications stated in the site-specific documentation.

Pole loading capacity

Verify with the site manager that the pole loading capacity has been previously checked and meets the specifications stated in the site-specific documentation.

Ceiling loading capacity

Verify with the site manager that the ceiling loading capacity has been previously checked and meets the specifications stated in the site-specific documentation.

Site power

Verify with the site manager that site power has been previously checked and meets the specifications stated in the site-specific documentation.

Cabling rack

For indoor installations inspect the cable rack for proper installation. The cable racks should be at least 7 ft from the floor. The cable racks should be electrically tied together with 6 AWG wire, except cable racks that are in an isolated ground zone.

DEC 2000

Fire protection

For indoor installations verify with the site manager that some type of fixed fire suppression equipment is installed. The possible types are:

S Halon gas system, recommended for cell sites because:

– Halon extinguishes a fire without removing oxygen from a room. – Halon is clean, allowing for quick cleanup after a fire. – Halon will not damage the cell site equipment.

S CO

(carbon dioxide) system.

S Sprinkler system. “Dry pipe” sprinkler systems that remove all power

to a room before filling the overhead sprinklers with water are recommended.

WARNING

In addition to the fixed fire suppression equipment, there should be at least two 5-lb ABC class portable fire extinguishers on the premises before equipment installation begins.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-3

Site Inspections – continued

Fire Fighting Procedures

Cellular infrastructure equipment contains various materials which can

decompose into toxic compounds during intense heat. When fire fighting conditions are severe, wear full protective clothing, including helmet, self–contained, positive pressure or pressure demand breathing apparatus, bunker coat and pants, bands around arms, waist and legs, face mask, and protective covering for exposed areas of the head.

Product Disposal

IMPORTANT

The Material Safety Data Sheet (MSDS) for Fluorinert FC–84 suggests reclaiming the fluid if feasible. Contact the following office for information:

3M Center – Performance Materials Division Building 223–6S–04 St. Paul, MN 55144 800–833–5045

The Material Safety Data Sheet (MSDS) for Lead Acid Batteries states the spent battery should be sent to a secondary lead smelter for recycling.

The cooling system of the SCt300 BTS product contains Fluorinert FC–84. The cooling system is sealed before shipment and should not be incinerated.

IMPORTANT

The short duration battery is a lead acid battery. Do not incinerate.

2-4

Antenna cables and ports

Inspect the antenna cables and ports to verify that:

S All antenna cables have been properly labeled. S Antenna ports have been properly weatherproofed. S An adequate number of ports exist to handle all of the required

antenna runs.

S Lightning arrestors have been installed at the site (sites equipped with

optional Primary Surge Suppressor do not require this). Lightning arrestors are shipped with the optional Primary Surge Suppressor and Primary Surge Suppressor expansion kit.

S For some systems, special ports may be required (refer to the

site-specific information for further details).

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Site Inspections – continued

Environmental Inspections (indoor only)

Alarms

Verify with the site manager that any of the following alarms called out in the site-specific documentation have been installed and previously checked for meeting the site-specific documentation specifications.

S vandalism S surface water S intrusion S fire S building high/low temperatures S any customer-specific options.

The interface of the alarms to the Motorola equipment will be part of the cell site equipment installation.

Temperature control

Verify with the site manager that the cell site building has been previously checked for the ability to maintain a temperature range as specified by Motorola. The life span of electronic equipment is shortened by environmental variations, even though it is designed to operate in extreme temperatures.

Grounding Inspections

For external installations

For outside installations refer to the site specific documentation.

For internal installations

For indoor installations refer to the Grounding Guideline for Cellular Radio Installations (68P81150E62) for all grounding inspection

procedures. Verify the following:

S All ground cables have a bend radius of 20 cm (8 inches) or more. S Metallic lines (span, phone[modem], RGPS, power and antenna) that

enter or leave the site should be equipped with a 3-electrode gas tube protector. The ground side of the gas tubes should be tied to the Master Ground Bus (MGB). This is not necessary if your site is equipped with the Primary Surge Suppressor.

S All installed cable racks (in the same ground zone) are jumpered

together.

WARNING

Cable racks in an Isolated Ground Zone (IGZ) are not to be connected to a cable rack in a non-IGZ. For more information on IGZ, see Grounding Guideline for Cellular Radio Installations, Motorola part number 68P81150E62.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-5

Prepare Site for the Arrival of the Equipment

Description

This information covers various topics not all of which are needed at every site. Based on the site characteristics execute the steps that apply to your site. Before installing the equipment, do the following to ensure the safety of installation personnel and to protect the equipment.

Equipment Arrival

Before the equipment arrives, indicate to the transport company an area at the site where the equipment can be unloaded and, if necessary, unpacked. The equipment should be carefully delivered to the site, along with all equipment dollies and padding required to safely move the equipment from the unloading area to the cell site. The following should also be provided, outdoor weather protection, temporary lighting and power for lighting and power tools.

Securing Fluorescent Lights

Figure 2-1 illustrates the use of tape to secure fluorescent tubes. Secure any fluorescent tubes that may be hit or damaged by any unit, cable, or personnel.

Figure 2-1: Securing Lights with Tape

2-6

Apply masking tape to keep fluorescent tubes in place in the fixtures.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

0150–O_IL.doc

DEC 2000

Prepare Site for the Arrival of the Equipment – continued

Procedure to Prepare the Site for the Equipment

Table 2-1: Procedure to Prepare the Site for the BTS

Step Action

1 If some type of protective padding is available install it

around any existing equipment at the site that could be damaged during installation of the units.

2 Hang plastic sheets around intended work areas to prevent

dust and debris from damaging co-located equipment during installation.

3 Secure any fluorescent tubes in place using masking tape.

(Refer to Figure 2-1.)

NOTE

This will prevent the tubes from being inadvertently jarred from the fixtures during the installation of equipment or cables.

4 Locate the demarcation blocks for external utilities.

Verify that they are shown on the Site Engineering documents, and determine the required cable routing back to the equipment frames.

5 Verify the following:

S DC power is available and meets the site documentation

specifications (if applicable).

S AC power is available and meets the site documentation

specifications (if applicable).

S Cable rack is installed per site document specifications.

DEC 2000

S Outdoor cable runs are installed and meet local building

codes.

S Span line termination tie points are available. S Customer input termination tie points are available. S Phone tie-in points (modem) are available. S Phone access is available (if applicable). S There is clear access to move the equipment to the desired

mounting area.

S There is sufficient space for installation and service access

to the equipment.

S Customer supplied shelters are installed.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-7

Dimensions and Clearances

MicroCell and PicoCell

Overview

This information covers the dimensions and clearances associated with the MicroCell and PicoCell Units.

Dimensions and Clearances

Table 2-2, Table 2-3, Figure 2-2 through Figure 2–7 show the installed dimensions and recommended clearances for each item.

Table 2-2: Installation Dimensions for the MicroCell and PicoCell

Units

Item Height Width Depth Weight

MicroCell

(fully

installed)

MicroCell

(unit only)

PicoCell

(fully

installed)

PicoCell

(unit only)

Primary

Surge

Suppressor

(fully

installed)

Primary

Surge

Suppressor

(unit only)

730 mm

28.76 in.

590 mm

23.22 in. 525 mm

20.66 in.

510 mm

20.08 in. 730 mm

28.76 in.

510 mm

20.08 in.

590 mm

23.25 in.

450 mm

17.71 in. 500 mm

19.68 in.

450 mm

17.71 in. 590 mm

23.25 in.

465 mm

18.32 in.

254 mm

10.01 in.

150 mm

5.90 in.

144 mm

5.66 in.

110 mm

4.33 in.

254 mm

10.01 in.

125 mm

4.93 in.

38.5 kg

84.7 lbs

24 kg

52.8 lbs

30.5 kg

67.1 lbs

15 kg

33 lbs

19.17 kg

42.26 lbs

11 kg

24.26 lbs

2-8

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Dimensions and Clearances – continued

Table 2-3 Minimum Clearances MicroCell and PicoCell Units

Vertical Mounting

Item Front Back Left Right Top Bottom

Installation and

Maintenance

Requirements

Functional

Requirements

(with solar cover)

Functional Requirements (without solar

cover)

Item Front Back Left Right Top Bottom

Installation and

Maintenance

Requirements

Functional Requirements (without solar

cover)

* Within these boundaries, area must remain 75% unobstructed. This is the open surface area at any cross section.

** Within these boundaries, area must remain 25% unobstructed. This is the open surface area at any cross section. See Figure 2-10.

600 mm

23.62 in.

0 0 100 mm

200 mm

7.87 in.

*1000 mm

39.37 in.

0 100 mm

Ceiling Mounting (PicoCell Only)

100 mm

3.93 in.

0 *1000 mm

200 mm

3.93 in.

0 0 0 600 mm

39.37 in.

7.87 in.

200 mm **50 mm

*1000 mm

39.37 in.

0 0

1.96 in.

0 0

**50 mm

1.96 in.

23.62 in.

Item Front Back Left Right Top Bottom

Installation and

Maintenance

Requirements

Functional Requirements (without solar

cover)

Functional Requirements

(with solar cover)

DEC 2000

Table 2-4 Minimum Clearances for Surge Suppressor

Vertical Mounting

600 mm

23.62 in.

0 0 100 mm

0 0 0 0 0 0

SCt300 BTS Hardware Installation, ATP and FRU Procedures

0 200 mm

7.87 in.

3.93 in.

200 mm

7.87 in.

100 mm

3.93 in.

0 0

PRELIMINARY

2-9

Dimensions and Clearances – continued

Unit Dimensions

The unit dimensions are shown below.

Figure 2-2: Overall Dimensions of MicroCell and PicoCell Units

MicroCell Unit

450mm (17.71in.)

254 mm (10.01 in.)

730mm (28.76 in.)

590mm (23.22in.)

590 mm (23.25 in.)

144mm (5.66in.)

150mm (5.90in.)

PicoCell Unit

450mm (17.71in.)

500mm (19.68in.)

510mm (20.08 in.)

525mm (20.66in.)

110mm (4.33in.)

2-10

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Dimensions and Clearances – continued

Figure 2-3: Overall Dimensions of Primary Surge Suppressor

125 mm (4.93 in.)

Without Solar Cover

465 mm (18.32 in.)

510 mm (20.08 in)

With Solar Cover

254 mm (10.01 in.)

590 mm (23.25 in.)

730mm (28.76 in.)

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-11

Dimensions and Clearances – continued

Unit Clearances

The unit clearances are shown below.

Figure 2-4: Installation and Functional Clearances for MicroCell Units (with Solar Covers)

MICROCELL WITH SOLAR COVERS

0 mm Functional Clearance in Front of Microcell With Solar Cover

600 mm from front of unit for FRU installation and removal

50 mm air exhaust area

100 mm clearance for installation handles

50 mm air intake area

200 mm clearance for tool access

2-12

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Dimensions and Clearances – continued

Figure 2-5: Installation and Functional Clearances for MicroCell Units (without Solar Covers)

MICROCELL WITHOUT SOLAR COVERS

50 mm Air Intake (Functional)

600 mm from front of unit for FRU installation and removal

50 mm air exhaust area

DEC 2000

100 mm clearance for installation handles

50 mm air intake area

200 mm clearance for tool access

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

2-13

Dimensions and Clearances – continued

Figure 2-6: Installation and Functional Clearances for PicoCell Units (without Solar Covers)

PICOCELL WITHOUT SOLAR COVERS

50 mm Air Intake Area (Functional)

600 mm from front of unit for FRU installation and removal

50 mm air exhaust area

2-14

100 mm clearance for installation handles

50 mm air intake area

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

200 mm clearance for tool access

0196–O_IL.doc

DEC 2000

Dimensions and Clearances – continued

Figure 2-7: Installation and Functional Clearances for Primary Surge Suppressor (without Solar Covers)

PRIMARY SURGE SUPPRESSOR WITHOUT SOLAR COVERS

600 mm from front of unit for unit installation and removal

DEC 2000

200 mm clearance for tool access

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

200 mm clearance for tool access

2-15

Dimensions and Clearances – continued

Figure 2-8: Installation and Functional Clearances for Primary Surge Suppressor (with Solar Covers)

PRIMARY SURGE SUPPRESSOR WITH SOLAR COVERS

600 mm from front of unit for FRU installation and removal

2-16

200 mm clearance for tool access

SCt300 BTS Hardware Installation, ATP and FRU Procedures

200 mm clearance for tool access

PRELIMINARY

DEC 2000

Dimensions and Clearances – continued

Figure 2-9: Installation and Functional Clearances for PicoCell Unit Mounted to Ceiling

200mm

600mm

For PicoCell horizontal mounting assume unit is in a volume (400H x 600W x 500D)

100mm

600mm

INST ALLA TION CLEARANCES

as shown below. Additional clearances are measured from edge of the volume.

CEILING

500mm

400mm

1000mm

DEC 2000

1000mm

CEILING

600mm

FUNCTIONALITY CLEARANCES

500mm

400mm

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

1000mm

2-17

Dimensions and Clearances – continued

Figure 2-10: Concept of Functionality Clearances for MicroCell and PicoCell Units

THIS ILLUSTRATION SHOWS THE CONCEPT OF HOW THE AREA ABOVE AND BELOW THE SCt340 BTS SHOULD BE AT LEAST 25% UNOBSTRUCTED. THERE IS NO BOX AROUND THE UNIT. BOX IS USED FOR ILLUSTRATION PURPOSES ONLY

2-18

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Chapter 3: Installing Mounting Bracket and Remote GPS

T able of Contents

Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure order 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Unpacking the Equipment and Inspecting for Damage 3-2. . . . . . . . . . . . . . . . . . .

Objective 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How System is Packed 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspecting for Damage 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Wall 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mounting Bracket Hole Locations 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials for Concrete Wall Mounting 3-5. . . . . . . . .

Procedure to Drill Holes in the Wall 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Securing Mounting Bracket to a Wall 3-7. . . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Ceiling 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mounting Bracket Hole Locations 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials for Installing the Mounting Bracket on a Ceiling 3-10.

Securing Mounting Bracket to Adapter 3-11. . . . . . . . . . . . . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Pole 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools and Materials for Pole Mounting 3-12. . . . . . . . . . . . . . . . .

Procedure to Attach the Mounting Bracket to a Pole 3-13. . . . . . . . . . . . . .

Attaching the Mounting Bracket to a Rack 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials for Installing the Mounting Bracket on a Rack 3-16. . .

Procedure to Attach the Mounting Bracket to a Rack 3-16. . . . . . . . . . . . . .

Attaching Back Solar Cover to Mounting Bracket 3-19. . . . . . . . . . . . . . . . . . . . . . .

Objective 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

When to Use the Cover 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required tools 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Procedure 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Remote GPS Head Installation 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Objective 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tools and Materials 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Procedure 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

Table of Contents – continued

Notes

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Overview

This chapter provides the information and procedures to:

S Unpack the equipment and inspect for damage. S Install rack, pole or ceiling adapters. S Install the mounting bracket on a wall, pole, rack or ceiling.

Procedure order

S Attach the unit and covers to the mounting bracket.

The process of installing the mounting bracket and Remote GPS receiver requires that the following procedures be completed in the order shown.

1. Unpack the equipment and inspect for damage.

2. Install the mounting hardware on a wall, rack, pole or ceiling.

3. Attach the back solar cover.

4. Install the Remote GPS head.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-1

Unpacking the Equipment and Inspecting for Damage

Objective

The objective of this procedure is to unpack the equipment and inspect it for damage.

How System is Packed

A unit is shipped in two boxes. Box 1 contains site installation specific

components and box 2 contains the unit itself. All of the following are shipped in box 1.

Box 1

S Solar or fin covers S Universal mounting bracket S Rack mounting adapters and hardware S Pole mounting adapters and hardware S Ceiling mounting adapter (Optional Kit T391AA) S External cables (AC input, DC input and SU) S Lower pin S Site I/O junction box and cable assembly S Terminations S AC Installation Box (required for outdoor applications)

Box 2

S Microcell or Picocell unit

Box 3 (Optional)

S Primary Surge Suppressor S Solar covers S Mounting bracket S Rack mounting adapters and hardware S Pole mounting adapters and hardware S Ground cables

The following are shipped separately:

S Short duration battery (optional) (Kit T392AA)

Inspecting for Damage

3-2

SCt300 BTS Hardware Installation, ATP and FRU Procedures

S Remote GPS receiver (optional)

Before installing any equipment, inspect it for damage. Report any damage found to the Site Manager.

Only remove the equipment from the shipping containers when you are ready to install.

DEC 2000

PRELIMINARY

Unpacking the Equipment and Inspecting for Damage – continued

Inspect items for:

S dents S scratches S bent pins in connectors S squareness of bracket S damage to heatsink fins S isolating pads, washers on mounting bracket S frayed cabling or chafed connectors

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-3

Attaching the Mounting Bracket to a Wall

Objective

The objective of this procedure is to attach the mounting bracket on a concrete wall.

CAUTION

Mounting Bracket Hole Locations

Figure 3-1 shows the holes to use to attach the mounting bracket to a wall.

Figure 3-1: Holes to Use to Mount the Bracket to the Wall

For all applications always consult a licensed Civil Engineer to determine the exact (Zone 3 and/or Zone 4) compliance of your specific site.

NOTE

If your site requires the optional Primary Surge Suppressor, then you must install two mounting brackets.

3-4

HOLES TO BE USED T O MOUNT THE BRACKET

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Attaching the Mounting Bracket to a W all – continued

Required Tools and Materials for Concrete Wall Mounting

CAUTION

Do not use toggle bolts in sheet rock (dry wall). They will not hold the system and they will damage the wall.

Due to the many types of walls that the BTS could potentially be mounted to, it is impossible to detail all types in the context of this manual. For this reason, the installers must use good judgement and get recommendations from qualified personnel regarding the type of mounting bolts that are appropriate for the particular walls on which the BTS will be mounted.

Concrete wall

The following tools and materials are required to properly and safely install the the mounting bracket on a concrete wall.

Table 3-1: Mounting Bracket Tools and Materials for Concrete Wall Mounting

Hand Tools Materials Power Tools

T30 Torx tamper bit, 1/4–in hex metal shim material Hilti wall drilling rig

Torque driver wrench, 1/4–in hex

female drive, 0–10 N–M

15/16-in. (23.8 mm) socket, a ratchet

wrench, and an 18-in. (45.7 cm)

breaker bar

safety glasses electrical tape

chalk for marking outline on wall

Hilti anchors (for each

bracket)

MicroCell or PicoCell

Mounting Kit

Hilti DCM 18–14 metric bit

shop vacuum

tape measure

4-ft (1.22 m) bubble level

rubber mallet

ear plugs

dust mask

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-5

Attaching the Mounting Bracket to a W all – continued

Procedure to Drill Holes in the W all

WARNING

Safety glasses, dust masks, and ear plugs must be worn by all installation personnel, including those in the immediate vicinity of the personnel operating the drilling equipment.

Table 3-2: Procedure to Drill Holes in the Wall for Mounting Bracket

Installation

Step Action

1 Verify with the site manager that the wall has been previously

checked and is capable of supporting the weight of the system.

2 Hold the bracket in position and mark the mounting hole

locations.

3 Prepare a standard 3/8” electric drill or the Hilti wall drilling

rig.

4 Install the appropriate bit in the drill using the following

information:

S For concrete walls use the Hilti DCM 18–14 metric bit and

Hilti anchors.

5 Begin to drill by using short bursts until the bit has a “bite”

into the wall.

6 Run the drill at full speed to the appropriate depth. Check the

depth of the hole by using the shop vacuum to collect the debris.

* IMPORTANT

For concrete installation, the hole MUST be at least 5 in. (12.7 cm) deep. Anchors can not be removed once they are

tapped into the hole. 7 Repeat steps 5 through 6 for each mounting hole. 8 Proceed to the “Procedure to Secure the Mounting Bracket to

a Wall”, Table 3-3.

3-6

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Attaching the Mounting Bracket to a W all – continued

Securing Mounting Bracket to a Wall

Refer to Figure 3-1 and Figure 3-2 and follow the procedure in Table 3-3 to secure the mounting bracket to a wall.

Table 3-3: Procedure to Secure the Mounting Bracket to a Wall

Step Action

* IMPORTANT

Use the shoulder washers attached to the mounting bracket in

each mounting hole to electrically isolate the mounting

bracket from the wall. 1 Insert a Hilti anchor into each mounting hole. Tap each

anchor using a rubber mallet until each anchor is completely

seated in a hole. 2 Position the mounting bracket on the wall over the mounting

holes. Start, but do not tighten all bolts.

! CAUTION

Only put shims under the bracket where the isolation pad is

present. Do not place shims so that they will contact the bare

metal of the frame. 3 Place a 4-ft (1.22 m) level on the bracket from top-to-bottom.

Then, using metal shim material, level the bracket. 4 Use a 15/16-in. (23.8 mm) socket, a ratchet wrench, and an

18-in. (45.7 cm) breaker bar, to tighten the red cap of each

anchor bolt until the red cap shears off.

NOTE

When the red cap shears off, the anchor bolt has been

tightened to the correct torque.

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-7

Attaching the Mounting Bracket to a W all – continued

Figure 3-2: Securing Mounting Bracket to a Wall

PLACE SCREW THROUGH HOLES

LAG SCREW CONCRETE ANCHOR

(FROM TOP TO BOTTOM) LAG SCREW, AND PLASTIC SHOULDER WASHER THREADED INTO PILOT HOLE THROUGH MOUNTING PLATE.

STUD

WALL

BRACKET (FOR CLARITY , THE REST OF THE BRACKET IS NOT SHOWN)

(FROM TOP T O BOTT OM) BOLT AND PLASTIC SHOULDER WASHER THREADED INTO ANCHOR THROUGH MOUNTING BRACKET

0156–O_IL.doc

3-8

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Attaching the Mounting Bracket to a Ceiling

Objective

The objective of this procedure is to attach the adapter and mounting bracket to a ceiling.

IMPORTANT

Due to the many types of ceilings that the BTS may be mounted to, it is impossible to detail all types in the context of this manual. For this reason, the installers must use good judgement and get recommendations from qualified personnel regarding the type of mounting bolts that are appropriate for the particular ceiling mount for the BTS.

You can only mount the Picocell to a ceiling.

CAUTION

For all applications always consult a licensed Civil Engineer to determine the exact (Zone 3 and/or Zone 4) compliance of your specific site.

CAUTION

The top surface of the ceiling adapter must be mounted horizontally. The bubble level indicator in the center of the bracket must have the bubble in the center of the inner black circle after mounting the adapter. Failure to do so could cause damage to the unit and would void the warranty.

Mounting Bracket Hole Locations

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

The ceiling adapter has been provided with multiple mounting options dependent on special site requirements. Specific holes to complete the installation are site specific. They are to be provided by site installation teams in accordance with a Civil Engineer to determine the exact compliance for your specific site. The ceiling mounting bracket is provided for correct installation angle only. Figure 3-1 shows some of the holes that can be used to attach the adapter to the ceiling.

3-9

PRELIMINARY

Attaching the Mounting Bracket to a Ceiling – continued

Figure 3-3: Picocell Ceiling Mounting Bracket

MOUNTING PROVISIONS – EXACT USE IS SITE SPECIFIC

Tools and Materials for Installing the Mounting Bracket on a Ceiling

Concrete ceiling

The following tools and materials are required to properly and safely install the the ceiling adapter on a concrete ceiling.

Table 3-4: Tools and Materials for Concrete Ceiling

Hand Tools Materials Power Tools

15/16-in. (23.8 mm) socket, a ratchet

wrench, and an 18-in. (45.7 cm)

breaker bar

safety glasses Hilti anchors (qty. of 4 for

T30 Torx tamper bit, 1/4–in. hex Ceiling Mounting Kit shop vacuum

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

ear plugs chalk for marking outline on

4-ft (1.22 m) bubble level PicoCell Mounting Kit

metal shim material Hilti wall drilling rig

Hilti DCM 18–14 metric bit

each bracket)

electrical tape

ceiling

3-10

rubber mallet

tape measure

dust mask

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

Attaching the Mounting Bracket to a Ceiling – continued

Securing Mounting Bracket to Adapter

Once the adapter has been secured to the ceiling, the procedure in Table 3-5 must be followed to mount the bracket to the adapter.

Table 3-5: Procedure to Secure the Mounting Bracket to the Adapter

Step Action

1 Verify that isolating pads and bracket–mounted shoulder

washers are installed on the bracket. If not, contact the site

manager. 2 Position the mounting bracket on the ceiling adapter and align

the mounting holes. See Figure 3-4. 3 Use a T30 Torx tamper bit to start but not tighten the M6x19

screws in each mounting hole. Begin with the outer holes and

work toward the center. 4 Use a T30 Torx tamper bit to torque each M6x19 screw to

5 N–M.

Figure 3-4: Securing Mounting Bracket to the Adapter

DEC 2000

M6x19 SCREWS

SCt300 BTS Hardware Installation, ATP and FRU Procedures

3-11

PRELIMINARY

Attaching the Mounting Bracket to a Pole

Objective

The objective of this procedure is to attach the mounting bracket to a pole.

WARNING

The mounting pole structure must be reviewed for its ability to support the weight of the MicroCell [38.5 kg

(84.7 lbs.)]; PicoCell [30.5 kg (67.1 lbs.)] and Primary Surge Suppressor [19.17 kg (42.26 lbs.)] under high winds, earthquakes, etc.

S Installing the BTS on an inadequate pole may result in

serious personal injury even death or damage to the equipment.

S Placement of the BTS should not present a hazard to

pedestrians by impeding passage, nor to field service personnel by being placed near high voltage or other hazardous conditions.

Required Tools and Materials for Pole Mounting

Table 3-6: Tools and Materials for Pole Mounting

Hand Tools Materials Power Tools

Safety Glasses MicroCell or PicoCell

Bucklestrap Cutting Tool (Motorola

part number 6604809N01)

T30 Torx tamper bit, 1/4–in. hex

S All cabling must be constrained in or on the pole in

accordance to local building codes.

CAUTION

For all applications always consult a licensed Civil Engineer to determine the exact (Zone 3 and/or Zone 4) compliance of your specific site.

The following tools and materials are required to properly and safely install the mounting bracket to a pole.

No Power Tools Required

Mounting Kit electrical tape

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

Ball Peen (Metal Working) Hammer

Heavy Gloves T ape Measure

3-12

SCt300 BTS Hardware Installation, ATP and FRU Procedures

DEC 2000

PRELIMINARY

Attaching the Mounting Bracket to a Pole – continued

Procedure to Attach the Mounting Bracket to a Pole

Follow the procedure in Table 3-7 to attach the mounting bracket to a pole.

Table 3-7: Procedure for Attaching the Mounting Bracket to a Pole

Step Action

1 Verify that the isolator pads are in place on the bracket. 2 Verify the safety of the installation location. 3 Place the bucklestrap through the channel clamp as shown in

Figure 3-5. 4 Place the channel clamp and bucklestrap on the pole

approximately where the upper portion of the BTS is to be

located. See Figure 3-5. 5 Slide and center the upper channel extrusion on the channel

clamp. See Figure 3-5. 6 Wrap the bucklestrap around the pole and through the fitting

on the end of the band. Pull the band until it is makes

concentric contact with the pole. 7 Start but do not tighten the lower channel extrusion to the

mounting bracket. Use 2 M6x19 tamper–resistant screws. 8 Before you tighten the lower strap, attach the mounting

bracket to the top channel extrusion. 9 Slide the bucklestrap through the channel clamp and slide the

channel clamp on the lower channel extrusion. Wrap the

bucklestrap around the pole and through the fitting.

DEC 2000

10 Secure the bucklestrap with the bucklestrap tool. Refer to the

instructions included with the bucklestrap tool.

11 Use a T30 Torx tamper bit to tighten the six M6x19 screws to

5.0 N–m. 12 Center the channel clamp on to the lower extrusion. 13 Place the bucklestrap through the lower channel clamp. 14 Use the bucklestrap tool to secure the lower strap.

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-13

Attaching the Mounting Bracket to a Pole – continued

Figure 3-5: Pole Adapter and Straps

BUCKLESTRAP PAR T NUMBER 4209993S04

CHANNEL CLAMP PAR T NUMBER 4209992S01

UPPER CHANNEL EXTRUSION PAR T NUMBER 0709991S02

CHANNEL CLAMP PAR T NUMBER 4209992S01

CHANNEL

EXTRUSION

SIDE VIEW OF CHANNEL CLAMP AND BAND

CHANNEL CLAMP

BUCKLESTRAP

LOWER CHANNEL EXTRUSION PAR T NUMBER 0709991S03

0159–O_IL.doc

3-14

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Attaching the Mounting Bracket to a Pole – continued

Figure 3-6: Attaching Mounting Bracket to a Pole

M6x19 SCREWS PAR T NUMBER 0387541C03

DEC 2000

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

3-15

Attaching the Mounting Bracket to a Rack

Objective

The objective of this procedure is to attach the mounting bracket to a 19-in. rack.

Rack must conform to EIA–RS–310–C or JIS–C–6010 standards.

T ools and Materials for Installing the Mounting Bracket

on a Rack

The following tools and materials are required to properly and safely install the mounting bracket on a rack.

Table 3-8: Tools and Materials for Rack Mounting

Hand Tools Materials Power Tools

Torque driver wrench, 1/4–in. hex

female drive, 0–10 N–M

T30 Torx tamper bit, 1/4–in. hex Four machine screws 12–24

Procedure to Attach the Mounting Bracket to a Rack

MicroCell or PicoCell

Mounting Kit

5/8-in. self tapping (customer

supplied)

Chalk or marker to mark

location on rack

electrical tape

(customer supplied)

To attach the mounting bracket to a rack follow the procedure in Table 6-10.

Table 3-9: Procedure to Attach the Mounting Bracket to a Rack

Step Action

1 Verify that isolating pads and washers are installed in the

bracket. If not, contact the site manager.

2 Use the mounting bracket as a guide to mark the holes in the

rack to be used to mount the upper adapter.

No Power Tools Required

3-16

3 Use two self–tapping machine screws (customer supplied) to

attach the upper rack adapter (Motorola part number 0709994S01) to the rack.

4 Use a T30 Torx tamper bit and two M6x19 screws to attach

but do not tighten the lower rack adapter to the mounting bracket.

5 Use a T30 Torx tamper bit and four M6x19 screws to attach

the mounting bracket to the upper rack adapter. Do not tighten.

. . . continued on next page

SCt300 BTS Hardware Installation, ATP and FRU Procedures

PRELIMINARY

DEC 2000

Nokia T6AQ2, T5AP1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
