Nokia T6AP1, T5AP2 Users manual

Download

t !"!

Release 2.15.x.x and CDMA LMF Build 2.15.x.x

English 08/15/2000

68P09250A99–1

""



Notice

While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others.

It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country.

Copyrights

This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product.

Usage and Disclosure Restrictions

License Agreement

The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

Copyrighted Materials

Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law . No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc.

High Risk Activities

Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traf fic Control, Life Support, or W eapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.

T rademarks

and Motorola are registered trademarks of Motorola, Inc.

Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies.

Printed on

Recyclable Paper

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE



REV010600

List of Figures iv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Tables vi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Information xi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Foreword xii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Safety xv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History xvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Patent Notification xviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1: Introduction

Optimization Manual Scope and Layout 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Purpose of the Optimization 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

When to Optimize 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

T able of Contents

SC 4812ETL BTS Optimization/A TP

Release 2.15.x.x and CDMA LMF Build 2.15.x.x

Required Test Equipment and Software 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents and Related Publications 1-12. . . . . . . . . . . . . . . . . . . . . . . . .

Terms and Abbreviations 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Equipment Identification 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cabinet Identification 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Internal Assembly Location and Identification 1-17. . . . . . . . . . . . . . . . . . . . . . . . .

BTS Sector Configurations 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 2: Preliminary Operations

Preliminary Operations: Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Power Up 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 3: Optimization/Calibration

Optimization/Calibration – Introduction 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Isolate Span Lines/Connect LMF 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing the LMF 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LMF to BTS Connection 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using CDMA LMF 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

Pinging the Processors 3-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

T able of Contents – continued

Download the BTS 3-30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CSM System Time – GPS & LFR/HSO Verification 3-37. . . . . . . . . . . . . . . . . . . . .

Test Equipment Setup 3-47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Set Calibration 3-55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bay Level Offset Calibration 3-64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Setup and Calibration 3-76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarms Testing 3-85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 4: Automated Acceptance Test Procedure (ATP)

Automated Acceptance Test Procedure – Introduction 4-1. . . . . . . . . . . . . . . . . . . .

Acceptance Tests – Test Set Up 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Abbreviated (All–inclusive) Acceptance Tests 4-4. . . . . . . . . . . . . . . . . . . . . . . . . .

Individual Acceptance Tests–Introduction 4-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Spectral Purity Transmit Mask Acceptance Test 4-9. . . . . . . . . . . . . . . . . . . . .

TX Waveform Quality (Rho) Acceptance Test 4-12. . . . . . . . . . . . . . . . . . . . . . . . . .

TX Pilot Time Offset Acceptance Test 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Code Domain Power/Noise Floor Acceptance Test 4-15. . . . . . . . . . . . . . . . . . .

RX FER Acceptance Test 4-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Generating an ATP Report 4-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 5: Leaving the Site

Updating Calibration Data Files 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prepare to Leave the Site 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 6: Basic Troubleshooting

Basic Troubleshooting Overview 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Installation 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Download 6-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Calibration 6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Transmit ATP 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: Receive ATP 6-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting: CSM Checklist 6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SCCP Backplane Troubleshooting 6-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS – Fault Isolation 6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Module Front Panel LED Indicators and Connectors 6-22. . . . . . . . . . . . . . . . . . . . .

Basic Troubleshooting – Span Control Link 6-29. . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix A: Data Sheets

Appendix A: Optimization (Pre–ATP) Data Sheets A-1. . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

T able of Contents – continued

Appendix A: Site Serial Number Check List A-13. . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix B: FRU Optimization/ATP Test Matrix

Appendix B: FRU Optimization/ATP Test Matrix B-1. . . . . . . . . . . . . . . . . . . . . . .

Appendix C: BBX Gain Set Point vs. BTS Output Considerations

Appendix C: BBX2 Gain Set Point vs. BTS Output Considerations C-1. . . . . . . . .

Appendix D: CDMA Operating Frequency Information

CDMA Operating Frequency Programming Information – North American PCS Bands . D-1

Appendix E: PN Offset/I & Q Offset Register Programming Information

Appendix E: PN Offset Programming Information E-1. . . . . . . . . . . . . . . . . . . . . .

Appendix F: Test Equipment Preparation

Test Equipment Preparation F-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual Cable Calibration F-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix G: Download ROM Code

Downloading ROM Code with the LMF G-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

iii

List of Figures

SC 4812ETL BTS Optimization/A TP

Release 2.15.x.x and CDMA LMF Build 2.15.x.x

Figure 1-1: Typical Logical BTS Configurations 1-15. . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-2: SC4812ETL Cabinet 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-3: Internal Assemblies and FRUs

(Cabinet doors not shown for clarity) 1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-4: SCCP Shelf 1-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-5: RF Interface Panel 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-6: RFDS and DRDC Details 1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 1-7: SC4812ETL LPA Configuration with Combiners/Filters 1-24. . . . . . . .

Figure 2-1: Backplane DIP Switch Settings 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

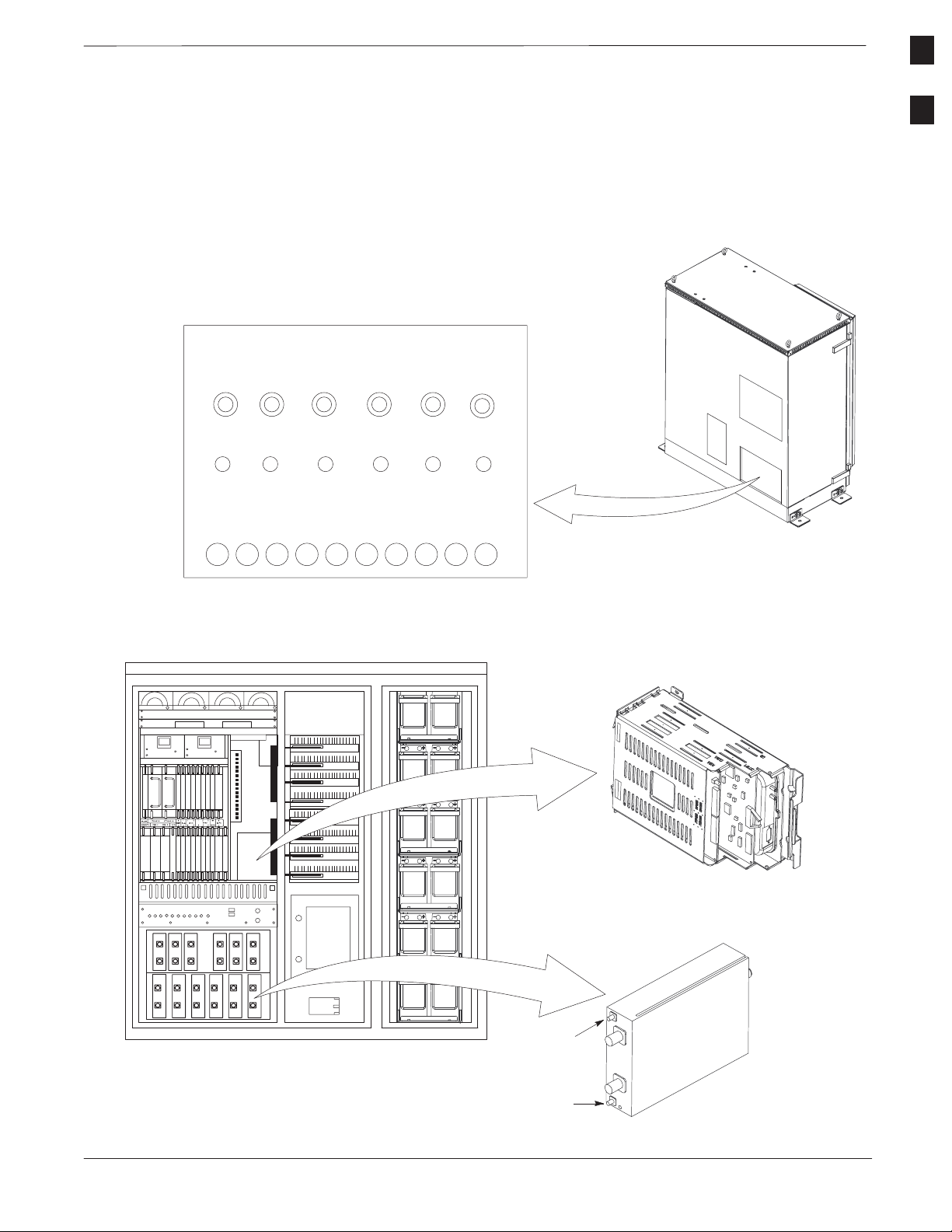

Figure 2-2: AC Load Center External Power Connections 2-5. . . . . . . . . . . . . . . .

Figure 2-3: Cabinet Power Subassemblies 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-4: ACLC Circuit Breaker Panel 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-5: DC Power Distribution Assembly 2-7. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-6: Meter Alarm Panel 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 2-7: Temperature Compensation Panel 2-10. . . . . . . . . . . . . . . . . . . . . . . . . .

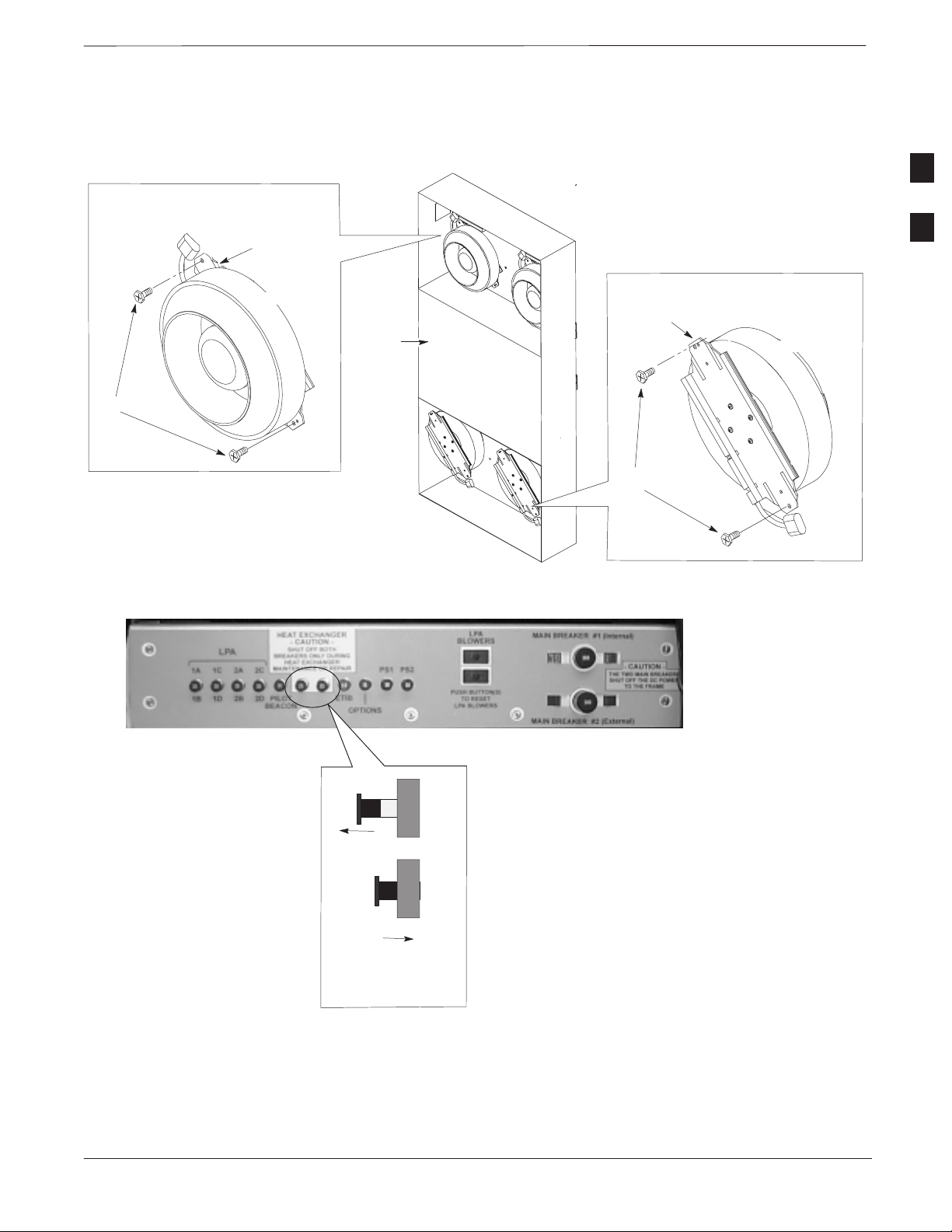

Figure 2-8: Heat Exchanger Blower Assembly 2-13. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-1: Back and Front View of the CSU 3-5. . . . . . . . . . . . . . . . . . . . . . . . . .

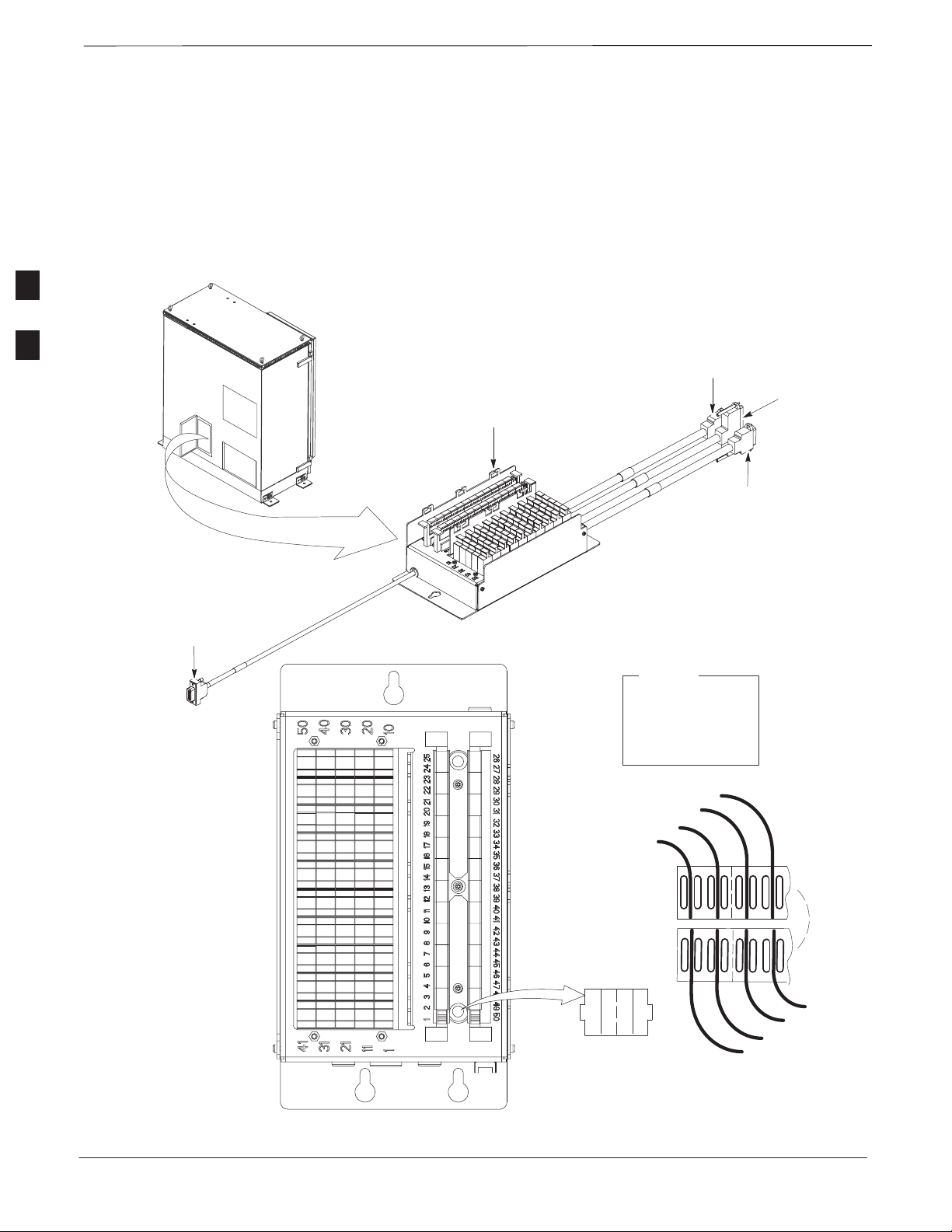

Figure 3-2: 50 Pair Punch Block 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-3: CDMA LMF Folder Structure 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-4: BTS Folder Name Syntax Example 3-16. . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-5: CAL File Name Syntax Example 3-16. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-6: CDF Name Syntax Example 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-7: Code Load File Name Syntax Example 3-18. . . . . . . . . . . . . . . . . . . . . .

Figure 3-8: DDS File Name Syntax Example 3-19. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-9: LMF Connection Detail 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-10: CDMA LMF Computer Common MMI Connections 3-27. . . . . . . . . .

Figure 3-11: BTS Ethernet LAN Interconnect Diagram 3-28. . . . . . . . . . . . . . . . . . .

Figure 3-12: CSM MMI Terminal Connection 3-40. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-13: Cable Calibration Test Setup 3-50. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

List of Figures – continued

Figure 3-14: TX Calibration Test Setup (CyberTest and HP 8935) 3-51. . . . . . . . . .

Figure 3-15: TX Calibration Test Setup HP 8921A and Advantest 3-52. . . . . . . . . .

Figure 3-16: Optimization/ATP Test Setup Calibration (CyberTest, HP 8935

and Advantest) 3-53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-17: Optimization/ATP Test Setup HP 8921A 3-54. . . . . . . . . . . . . . . . . . .

Figure 3-18: Calibrating Test Equipment Setup for TX Cable Calibration

(Using Signal Generator and Spectrum Analyzer) 3-60. . . . . . . . . . . . . . . . . . . . . . .

Figure 3-19: Calibrating Test Equipment Setup for RX ATP Test

(Using Signal Generator and Spectrum Analyzer) 3-61. . . . . . . . . . . . . . . . . . . . . . .

Figure 3-20: Battery Overtemperature Sensor 3-90. . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 3-21: Location of Connector J8 on the Meter Alarm Panel 3-92. . . . . . . . . .

Figure 4-1: TX Mask Verification Spectrum Analyzer Display 4-11. . . . . . . . . . . . .

Figure 4-2: Code Domain Analyzer CD Power/Noise Floor

Display Examples 4-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure 6-1: CSM Front Panel Indicators & Monitor Ports 6-23. . . . . . . . . . . . . . . . .

Figure 6-2: GLI2 Front Panel Operating Indicators 6-26. . . . . . . . . . . . . . . . . . . . . .

Figure 6-3: MCC24 Front Panel LEDs and LED Indicators 6-28. . . . . . . . . . . . . . .

Figure 6-4: MGLI/GLI Board MMI Connection Detail 6-30. . . . . . . . . . . . . . . . . . .

Figure D-1: North America PCS Frequency Spectrum (CDMA Allocation) D-1. . . Figure D-2: North American Cellular Telephone System Frequency Spectrum

(CDMA Allocation). D-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-1: HP8921A/600 Cables Connection for 10 MHz Signal and GPIB

without Rubidium Reference F-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-2: HP8921A Cables Connection for 10 MHz Signal and GPIB

with Rubidium Reference F-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-3: Cable Connections for Test Set without 10 MHz

Rubidium Reference F-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-4: Cable Connections for Test Set with 10 MHz

Rubidium Reference F-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-5: Cable CalibrationUsing HP8921 with PCS Interface F-13. . . . . . . . . . .

Figure F-6: Cable Calibration using Advantest R3465 F-16. . . . . . . . . . . . . . . . . . .

Figure F-7: Power Meter Detail F-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Figure F-8: Gigatronics 8542C Power Meter Detail F-20. . . . . . . . . . . . . . . . . . . . .

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

List of Tables

SC 4812ETL BTS Optimization/A TP

Release 2.15.x.x and CDMA LMF Build 2.15.x.x

Table 1-1: Non–Standard Terms and Abbreviations 1-13. . . . . . . . . . . . . . . . . . . . . .

Table 1-2: SCCP Shelf/Cage Card/Module Device ID Numbers (Top Shelf) 1-15. . Table 1-3: SCCP Shelf/Cage Card/Module Device ID Numbers

(Bottom Shelf) 1-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-4: BTS Sector Configuration 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 1-5: Sector Configurations 1-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-1: Initial Installation of Boards/Modules 2-1. . . . . . . . . . . . . . . . . . . . . . . .

Table 2-2: Initial Inspection and Setup 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-3: AC Voltage Measurements 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-4: Pre–power DC Power Distribution System Test 2-8. . . . . . . . . . . . . . . .

Table 2-5: Applying AC Power 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-6: Cabinet DC Power–Up Tests 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 2-7: Battery Charge Test (Connected Batteries) 2-11. . . . . . . . . . . . . . . . . . . .

Table 2-8: Battery Discharge Test 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-1: Pin–Out for 50 Pin Punch Block 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-2: T1/E1 Span Isolation 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-3: CD ROM Installation 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-4: Copying CBSC CDF Files to the LMF Computer 3-11. . . . . . . . . . . . . .

Table 3-5: Create HyperTerminal Connection 3-13. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-6: Connect the LMF to the BTS 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-7: BTS GUI Login Procedure 3-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-8: BTS CLI Login Procedure 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-9: BTS GUI Logout Procedure 3-25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-10: BTS CLI Logout Procedure 3-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-11: Establishing MMI Communication 3-26. . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-12: Pinging the Processors 3-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-13: Download and Enable MGLI and GLI Devices 3-32. . . . . . . . . . . . . . .

Table 3-14: Download RAM Code and Data to Non–GLI Devices 3-33. . . . . . . . . .

Table 3-15: Select CSM Clock Source 3-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

List of Tables – continued

Table 3-16: Enable CSMs 3-35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-17: Enable MCCs 3-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-18: Test Equipment Setup (GPS & LFR/HSO Verification) 3-39. . . . . . . . .

Table 3-19: GPS Initialization/Verification 3-41. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-20: LORAN–C Initialization/Verification 3-45. . . . . . . . . . . . . . . . . . . . . . .

Table 3-21: Test Equipment Setup 3-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-22: Selecting Test Equipment Manually in a Serial Connection Tab 3-56. .

Table 3-23: Selecting Test Equipment Using Auto-Detect 3-57. . . . . . . . . . . . . . . . .

Table 3-24: Test Equipment Calibration 3-58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-25: Cable Calibration 3-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-26: Calibrating TX Cables Using Signal Generator and

Spectrum Analyzer 3-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-27: Calibrating RX Cables Using a Signal Generator and

Spectrum Analyzer 3-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-28: Setting Cable Loss Values 3-62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-29: Setting TX Coupler Loss Values 3-63. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-30: BLO BTS.cal file Array Branch Assignments 3-66. . . . . . . . . . . . . . . .

Table 3-31: BTS.cal File Array (Per Sector) 3-67. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-32: Test Equipment Setup (RF Path Calibration) 3-68. . . . . . . . . . . . . . . . .

Table 3-33: BTS TX Path Calibration 3-70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-34: Download BLO 3-71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-35: TX Path Audit 3-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-36: All Cal/Audit Test 3-74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-37: Create CAL File 3-75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-38: RFDS Parameter Settings 3-77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-39: Definition of Parameters 3-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-40: Valid NAM Field Ranges 3-79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-41: Set Antenna Map Data 3-80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-42: Set RFDS Configuration Data 3-81. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-43: RFDS TSIC Calibration Channel Frequencies 3-82. . . . . . . . . . . . . . . .

Table 3-44: RFDS Calibration 3-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-45: Program NAM Procedure 3-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

Table 3-46: Heat Exchanger Alarm 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-47: Door Alarm 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-48: AC Fail Alarm 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-49: Minor Alarm 3-87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-50: Single Rectifier Fail or Minor Alarm 3-87. . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

vii

List of Tables – continued

Table 3-51: Multiple Rectifier Failure or Major Alarm 3-88. . . . . . . . . . . . . . . . . . .

Table 3-52: Single Rectifier Fail or Minor Alarm 3-88. . . . . . . . . . . . . . . . . . . . . . .

Table 3-53: Multiple Rectifier Failure or Major Alarm 3-88. . . . . . . . . . . . . . . . . . .

Table 3-54: Battery Over Temperature Alarm 3-89. . . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-55: Rectifier Over Temperature Alarm 3-91. . . . . . . . . . . . . . . . . . . . . . . . .

Table 3-56: Check Before Leaving the Site 3-92. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-1: Set Up Test Equipment – TX Output Verify/Control Tests 4-3. . . . . . . .

Table 4-2: All TX/RX ATP Test Procedure 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-3: All TX ATP Test Procedure 4-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-4: All RX ATP Test Procedure 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-5: Test Spectral Purity Transmit Mask 4-10. . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-6: Test Waveform Quality (Rho) 4-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-7: Test Pilot Time Offset 4-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-8: Test Code Domain Power/Noise Floor 4-16. . . . . . . . . . . . . . . . . . . . . . .

Table 4-9: Test FER 4-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 4-10: Generating an ATP Report 4-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-1: Copying CAL Files to a Diskette 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-2: Copying CAL Files from Diskette to the CBSC 5-1. . . . . . . . . . . . . . . .

Table 5-3: Remove External Test Equipment 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-4: Reset BTS Devices and Remote Site Initialization 5-3. . . . . . . . . . . . . .

Table 5-5: Bring Modules into Service 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-6: Remove LMF 5-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 5-7: Connect T1 Span/Modem Cable 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-1: Login Failure Troubleshooting Procedures 6-2. . . . . . . . . . . . . . . . . . .

Table 6-2: Troubleshooting a Power Meter Communication Failure 6-2. . . . . . . .

Table 6-3: Troubleshooting a Communications Analyzer

Communication Failure 6-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-4: Troubleshooting Code Download Failure 6-4. . . . . . . . . . . . . . . . . . . . .

Table 6-5: Troubleshooting Data Download Failure 6-4. . . . . . . . . . . . . . . . . . . . .

Table 6-6: Troubleshooting Device Enable (INS) Failure 6-5. . . . . . . . . . . . . . . . .

Table 6-7: LPA Errors 6-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

Table 6-8: Troubleshooting BLO Calibration Failure 6-7. . . . . . . . . . . . . . . . . . . .

Table 6-9: Troubleshooting Calibration Audit Failure 6-8. . . . . . . . . . . . . . . . . . . .

Table 6-10: Troubleshooting TX Mask Measurement Failure 6-9. . . . . . . . . . . . . .

Table 6-11: Troubleshooting Rho and Pilot Time Offset

Measurement Failure 6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-12: Troubleshooting Code Domain Power and Noise Floor

Measurement Failure 6-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

List of Tables – continued

Table 6-13: Troubleshooting Carrier Measurement Failure 6-10. . . . . . . . . . . . . . . .

Table 6-14: Troubleshooting Multi-FER Failure 6-11. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-15: No GLI2 Control via LMF (all GLI2s) 6-16. . . . . . . . . . . . . . . . . . . . . .

Table 6-16: No GLI2 Control through Span Line Connection (Both GLI2s) 6-16. .

Table 6-17: MGLI2 Control Good – No Control over Co–located GLI2 6-16. . . . .

Table 6-18: MGLI2 Control Good – No Control over AMR 6-17. . . . . . . . . . . . . . .

Table 6-19: MGLI2 Control Good – No Control over Co–located GLI2s 6-17. . . . .

Table 6-20: BBX2 Control Good – No (or Missing) Span Line Traffic 6-17. . . . . . .

Table 6-21: No MCC24 Channel Elements 6-17. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-22: No DC Input Voltage to Power Supply Module 6-18. . . . . . . . . . . . . . .

Table 6-23: No DC Input Voltage to any SCCP Shelf Module 6-19. . . . . . . . . . . . .

Table 6-24: No DC Input Voltage to any SCCP Shelf Module 6-19. . . . . . . . . . . . .

Table 6-25: RFDS Fault Isolation – All tests fail 6-20. . . . . . . . . . . . . . . . . . . . . . . .

Table 6-26: RFDS Fault Isolation – All RX and TX paths fail 6-20. . . . . . . . . . . . .

Table 6-27: RFDS Fault Isolation – All tests fail on single antenna path 6-21. . . . .

Table 6-28: Troubleshoot Control Link Failure 6-29. . . . . . . . . . . . . . . . . . . . . . . . .

Table 6-29: Set BTS Span Parameter Configuration 6-31. . . . . . . . . . . . . . . . . . . . .

Table A-1: Verification of Test Equipment Used A-1. . . . . . . . . . . . . . . . . . . . . . . .

Table A-2: Site Checklist A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-3: Preliminary Operations A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-4: GPS Receiver Operation A-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-5: LFR Receiver Operation A-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-6: LPA IM Reduction A-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-7: TX BLO Calibration (3–Sector: 1–Carrier, 2–Carrier and 4–Carrier

Non–adjacent Channels) A-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-8: TX Bay Level Offset Calibration (3–Sector: 2–Carrier

Adjacent Channels) A-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-9: TX Antenna VSWR A-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-10: RX Antenna VSWR A-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table A-11: CDI Alarm Input Verification A-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table B-1: When RF Optimization Is required on the BTS B-1. . . . . . . . . . . . . . . .

08/15/2000

Table B-2: When to Optimize Inter–frame Cabling B-2. . . . . . . . . . . . . . . . . . . . . .

Table B-3: SC 4812ET BTS Optimization and ATP Test Matrix B-4. . . . . . . . . . .

Table C-1: BBX2 Gain Set Point vs. Actual BTS Output (in dBm) C-1. . . . . . . . .

Table D-1: 1900 MHz TX and RX Frequency vs. Channel D-2. . . . . . . . . . . . . . . .

Table D-2: 800 MHz TX and RX Frequency vs. Channel D-4. . . . . . . . . . . . . . . . .

Table E-1: PnMaskI and PnMaskQ Values for PilotPn E-3. . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

List of Tables – continued

Table F-1: HP8921A/600 Communications Test Set Rear Panel Connections Without

Rubidium Reference F-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-2: HP8921A/600 Communications Test Set Rear Panel Connections With

Rubidium Reference F-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-3: System Connectivity F-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-4: Setting HP8921A GPIB Address F-6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-5: Pretest Setup for HP8921A F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-6: Pretest Setup for HP8935 F-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-7: Advantest R3465 GPIB Address and Clock Setup F-9. . . . . . . . . . . . . .

Table F-8: Pretest Setup for Advantest R346 F-9. . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-9: Calibrating Test Cable Setup (using the HP PCS Interface) F-10. . . . . . .

Table F-10: Procedure for Calibrating Test Cable Setup Using

Advantest R3465 F-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table F-11: Power Meter Calibration Procedure F-17. . . . . . . . . . . . . . . . . . . . . . . .

Table F-12: Calibrate Gigatronics 8542 Power Meter F-19. . . . . . . . . . . . . . . . . . . .

Table G-1: Download ROM and RAM Code to Devices G-2. . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Product Information

Model & Options Charts

Refer to the SC 4812ET Lite Field Replaceable Units manual (68P TBS) for detailed model structure and option information

This document covers only the steps required to verify the functionality of the Base Transceiver Subsystem (BTS) equipment prior to system level testing, and is intended to supplement site specific application instructions. It also should be used in conjunction with existing product manuals. Additional steps may be required.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Foreword

Scope of manual

Text conventions

This manual is intended for use by cellular telephone system craftspersons in the day-to-day operation of Motorola cellular system equipment and ancillary devices. It is assumed that the user of this information has a general understanding of telephony, as used in the operation of the Public Switched Telephone Network (PSTN), and is familiar with these concepts as they are applied in the cellular mobile/portable radiotelephone environment. The user, however, is not expected to have any detailed technical knowledge of the internal operation of the equipment.

This manual is not intended to replace the system and equipment training offered by Motorola, although it can be used to supplement or enhance the knowledge gained through such training.

The following special paragraphs are used in this manual to point out information that must be read. This information may be set-off from the surrounding text, but is always preceded by a bold title in capital letters. The four categories of these special paragraphs are:

NOTE

Presents additional, helpful, non-critical information that you can use.

IMPORTANT

Presents information to help you avoid an undesirable situation or provides additional information to help you understand a topic or concept.

CAUTION

Presents information to identify a situation in which equipment damage could occur, thus avoiding damage to equipment.

WARNING

Presents information to warn you of a potentially hazardous situation in which there is a possibility of personal injury.

xii

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Foreword – continued

Changes to manual

The following special paragraphs are used in tables in the manual to point out information that must be read.

NOTE

Presents additional, helpful non-critical information that you can use.

* IMPORTANT

Presents information to help you avoid an undesirable situation or provide additional information to help you understand a topic or concept.

! CAUTION

Presents information to identify a situation where equipment damage could occur and help you avoid damaging your equipment.

n WARNING

Presents information to warn you of a potentially hazardous situation where there is a possibility of personal injury (serious or otherwise).

Receiving updates

Changes that occur after the printing date are incorporated into your manual by Cellular Manual Revisions (CMRs). The information in this manual is updated, as required, by a CMR when new options and procedures become available for general use or when engineering changes occur. The cover sheet(s) that accompany each CMR should be retained for future reference. Refer to the Revision History page for a list of all applicable CMRs contained in this manual.

Technical Education & Documentation (TED) maintains a customer database that reflects the type and number of manuals ordered or shipped since the original delivery of your Motorola equipment. Also identified in this database is a “key” individual (such as Documentation Coordinator or Facility Librarian) designated to receive manual updates from TED as they are released.

To ensure that your facility receives updates to your manuals, it is important that the information in our database is correct and up-to-date. Therefore, if you have corrections or wish to make changes to the information in our database (i.e., to assign a new “key” individual), please contact Technical Education & Documentation at:

MOTOROLA, INC. Technical Education & Documentation 1 Nelson C. White Parkway Mundelein, Illinois 60060 U.S.A.

08/15/2000

Phone:

Within U.S.A. and Canada 800-872-8225. . . . .

Outside of U.S.A. and Canada +1-847-435–5700. .

FAX: +1-847-435–5541. . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

xiii

Foreword – continued

Reporting manual errors

In the event that you locate an error or identify a deficiency in your manual, please take time to write to us at the address above. Be sure to include your name and address, the complete manual title and part number (located on the manual spine, cover, or title page), the page number (found at the bottom of each page) where the error is located, and any comments you may have regarding what you have found. We appreciate any comments from the users of our manuals.

xiv

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

General Safety

Remember! . . . Safety depends on you!!

Ground the instrument

The following general safety precautions must be observed during all phases of operation, service, and repair of the equipment described in this manual. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the equipment. Motorola, Inc. assumes no liability for the customer’s failure to comply with these requirements. The safety precautions listed below represent warnings of certain dangers of which we are aware. You, as the user of this product, should follow these warnings and all other safety precautions necessary for the safe operation of the equipment in your operating environment.

To minimize shock hazard, the equipment chassis and enclosure must be connected to an electrical ground. If the equipment is supplied with a three-conductor ac power cable, the power cable must be either plugged into an approved three-contact electrical outlet or used with a three-contact to two-contact adapter. The three-contact to two-contact adapter must have the grounding wire (green) firmly connected to an electrical ground (safety ground) at the power outlet. The power jack and mating plug of the power cable must meet International Electrotechnical Commission (IEC) safety standards.

Do not operate in an explosive atmosphere

Keep away from live circuits

Do not service or adjust alone

Do not operate the equipment in the presence of flammable gases or fumes. Operation of any electrical equipment in such an environment constitutes a definite safety hazard.

Operating personnel must:

S not remove equipment covers. Only Factory Authorized Service

Personnel or other qualified maintenance personnel may remove equipment covers for internal subassembly, or component replacement, or any internal adjustment.

S not replace components with power cable connected. Under certain

conditions, dangerous voltages may exist even with the power cable removed.

S always disconnect power and discharge circuits before touching them.

Do not attempt internal service or adjustment, unless another person, capable of rendering first aid and resuscitation, is present.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

General Safety – continued

Use caution when exposing or handling the CRT

Do not substitute parts or modify equipment

Dangerous procedure warnings

Breakage of the Cathode–Ray Tube (CRT) causes a high-velocity scattering of glass fragments (implosion). To prevent CRT implosion, avoid rough handling or jarring of the equipment. The CRT should be handled only by qualified maintenance personnel, using approved safety mask and gloves.

Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification of equipment. Contact Motorola Warranty and Repair for service and repair to ensure that safety features are maintained.

Warnings, such as the example below, precede potentially dangerous procedures throughout this manual. Instructions contained in the warnings must be followed. You should also employ all other safety precautions that you deem necessary for the operation of the equipment in your operating environment.

WARNING

Dangerous voltages, capable of causing death, are present in this equipment. Use extreme caution when handling, testing, and adjusting.

xvi

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Revision History

Manual Number

Manual Title

Version Information

68P09250A99–1

SC 4812ETL BTS Optimization/ATP Release 2.15.x.x and CDMA LMF Build 2.15.x.x

The following table lists the manual version , date of version, and remarks on the version.

Version

Level

–1 08/15/2000 Initial draft

Date of

Issue

Remarks

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

xvii

Patent Notification

Patent numbers

4128740 4661790 4860281 5036515 5119508 5204876 5247544 5301353 4193036 4667172 4866710 5036531 5121414 5204977 5251233 5301365 4237534 4672657 4870686 5038399 5123014 5207491 5255292 5303240 4268722 4694484 4872204 5040127 5127040 5210771 5257398 5303289 4282493 4696027 4873683 5041699 5127100 5212815 5259021 5303407 4301531 4704734 4876740 5047762 5128959 5212826 5261119 5305468 4302845 4709344 4881082 5048116 5130663 5214675 5263047 5307022 4312074 4710724 4885553 5055800 5133010 5214774 5263052 5307512 4350958 4726050 4887050 5055802 5140286 5216692 5263055 5309443 4354248 4729531 4887265 5058136 5142551 5218630 5265122 5309503 4367443 4737978 4893327 5060227 5142696 5220936 5268933 5311143 4369516 4742514 4896361 5060265 5144644 5222078 5271042 5311176 4369520 4751725 4910470 5065408 5146609 5222123 5274844 5311571 4369522 4754450 4914696 5067139 5146610 5222141 5274845 5313489 4375622 4764737 4918732 5068625 5152007 5222251 5276685 5319712 4485486 4764849 4941203 5070310 5155448 5224121 5276707 5321705 4491972 4775998 4945570 5073909 5157693 5224122 5276906 5321737 4517561 4775999 4956854 5073971 5159283 5226058 5276907 5323391 4519096 4797947 4970475 5075651 5159593 5228029 5276911 5325394 4549311 4799253 4972355 5077532 5159608 5230007 5276913 5327575 4550426 4802236 4972432 5077741 5170392 5233633 5276915 5329547 4564821 4803726 4979207 5077757 5170485 5235612 5278871 5329635 4573017 4811377 4984219 5081641 5170492 5235614 5280630 5339337 4581602 4811380 4984290 5083304 5182749 5239294 5285447 D337328 4590473 4811404 4992753 5090051 5184349 5239675 5287544 D342249 4591851 4817157 4998289 5093632 5185739 5241545 5287556 D342250 4616314 4827507 5020076 5095500 5187809 5241548 5289505 D347004 4636791 4829543 5021801 5105435 5187811 5241650 5291475 D349689 4644351 4833701 5022054 5111454 5193102 5241688 5295136 RE31814 4646038 4837800 5023900 5111478 5195108 5243653 5297161 4649543 4843633 5028885 5113400 5200655 5245611 5299228 4654655 4847869 5030793 5117441 5203010 5245629 5301056 4654867 4852090 5031193 5119040 5204874 5245634 5301188

This product is manufactured and/or operated under one or more of the following patents and other patents pending:

xviii

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Chapter 1: Introduction

T able of Contents

Optimization Manual Scope and Layout 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual Scope and Layout 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Assumptions and Prerequisites 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Document Composition 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Purpose of the Optimization 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Why Optimize? 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Is Optimization? 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

What Happens During Optimization 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . .

When to Optimize 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

New Installations 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Expansion 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Periodic Optimization 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Repaired Sites 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Test Equipment and Software 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Policy 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Calibration 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Cable Calibration 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Warm–up 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Test Equipment and Software 1-6. . . . . . . . . . . . . . . . . . . . . . . .

Optional Equipment 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents and Related Publications 1-12. . . . . . . . . . . . . . . . . . . . . . . . .

Required Documents 1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Related Publications 1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Terms and Abbreviations 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS Equipment Identification 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Equipment Overview 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Logical BTS 1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Major Components 1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Internal Assemblies and FRUs 1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sector Configuration 1-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Table of Contents – continued

Notes

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Optimization Manual Scope and Layout

Manual Scope and Layout

This document provides information pertaining to the optimization and audit tests of the Motorola SC4812ET Lite RF Base Transceiver Station (BTS) equipment frame and its associated internal and external interfaces. The following subjects are addressed: preliminary background information; optimization, and alarm/redundancy tests; Acceptance Test Procedures (ATP) to verify site operation and regulation compliance; site turnover; troubleshooting.

Most applications use the same test procedure for all equipment variations. However, decision break points are provided throughout the procedure when equipment–specific tests are required. For example, when tests using external test equipment are performed instead of those using the RFDS, additional test procedures and illustrations are provided to cover both applications.

This optimization procedure consists of a group of task-oriented tests. Each major test category (Audit, Initial power–up, Calibration tests, etc.) is described in chapters which are broken down into multi-page “maps.”

Assumptions and Prerequisites

Each “map” typically consists of pages containing all the information necessary to perform the test (including all required input levels, output levels, CDMA Local Maintenance Facility (CDMA LMF) commands, and test points required). Also described are some of the main concepts you must understand in the test process. Whenever possible, graphics, flowcharts, or other examples complement the information/steps.

This document assumes that the BTS frames and cabling have been installed per the covers the physical “bolt down” of all SC series equipment frames, and

BTS Hardware Installation Manual – 68P09252A36, which covers

the BTS–specific cabling configurations.

BTS Frame Installation Manual – 68P09226A18, which

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-1

Optimization Manual Scope and Layout – continued

Document Composition

This document covers the following major areas:

S Introduction, consisting of preliminary background information (such

as component and subassembly locations and frame layouts) to be considered by the Cellular Field Engineer CFE before performing optimization or tests.

S Preliminary Operations, consisting of jumper configuration of BTS

sub–assemblies, pre–power–up tests, initial application of power to the BTS equipment frames, and initial power–up tests.

S Optimization/Calibration, consisting of procedures for downloading

all BTS processor boards, test equipment setup, RF path verification, BLO calibration and calibration audit, and Radio Frequency Diagnostic System (RFDS) calibration.

S Acceptance Test Procedures (ATP), consisting of automated ATP tests,

executed by the CDMA LMF, and used to verify all major TX and RX performance characteristics on all BTS equipment. This chapter also covers generating an ATP report.

S Prepare to Leave the Site, discussing site turnover after ATP is

completed.

S Basic Troubleshooting, consisting of procedures to perform when an

ATP fails, as well as when incorrect results are obtained during logon, test equipment operation, calibration, and GPS operation.

S Appendices that contain pertinent PN offset, frequency programming,

and output power data tables, along with additional data sheets that are filled out manually by the CFE at the site.

1-2

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Purpose of the Optimization

Why Optimize?

What Is Optimization?

What Happens During Optimization

Proper optimization and calibration ensures that:

S Accurate downlink RF power levels are transmitted from the site. S Accurate uplink signal strength determinations are made by the site.

Optimization compensates for the site-specific cabling and normal equipment variations. Site optimization guarantees that the combined losses of the new cables and the gain/loss characteristics and built-in tolerances of each BTS frame do not accumulate and cause improper site operation.

Optimization identifies the accumulated loss (or gain) for each receive and transmit path at the BTS site, and stores these values in a database.

S A receive path (RX) starts at the ancillary equipment frame RFDS RX

directional coupler antenna feedline port and travels through the RX input port on the top of the frame, through the bandpass filter, MPC and additional splitter circuitry, ending at a Broad Band Transceiver (BBX) backplane slot in the CDMA Channel Processor (CCP) shelf.

S A transmit path (TX) starts at the BBX backplane slot, is routed

through the BBX I/O to the TX Combiner, travels through the ELPA, and ends either at an antenna port on top of the frame or RFDS TX directional coupler antenna feedline port.

Six of the seven BBX2 boards in each S–CCP shelf are optimized to specific RX and TX antenna ports. The seventh BBX2 board acts in a redundant capacity for BBX2 boards 1 through 6, and is optimized to all antenna ports. A single value is generated for each complete path, thereby eliminating the accumulation of error that would occur from individually measuring and summing the gain and loss of each element in the path.

BTS equipment factors in these values internally, leaving only site–specific antenna feed line loss and antenna gain characteristics to be factored in by the CFE when determining site ERP output power requirements.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-3

When to Optimize

New Installations

After the initial site installation, the BTS must be prepared for operation. This preparation includes verifying hardware installation, initial power–up, downloading of operating code, verifying GPS operation and verifying transmit and receive paths.

Next, the optimization is performed. Optimization includes performance verification and calibration of all transmit and receive RF paths, and download of accumulated calibration data.

A calibration audit of all RF transmit paths may be performed any time after optimization to verify BTS calibration.

After optimization, a series of manual pre–Acceptance Test Procedure (ATP) verification tests are performed to verify alarm/redundancy performance.

After manual pre–ATP verification tests, a series of ATPs are performed to verify BTS performance. An ATP is also required before the site can be placed in service.

Site Expansion

Periodic Optimization

Repaired Sites

Optimization is also required after expansion of a site.

Periodic optimization of a site may also be required, depending on the requirements of the overall system.

IMPORTANT

Refer to Appendix B for a detailed FRU Optimization/ATP Test Matrix outlining the minimum tests that must be performed any time a BTS subassembly or RF cable associated with it is replaced.

1-4

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Required Test Equipment and Software

Policy

To ensure consistent, reliable, and repeatable optimization test results, test equipment and software meeting the following technical criteria should be used to optimize the BTS equipment. Test equipment can, of course, be substituted with other test equipment models if the equipment

meets the same technical specifications. It is the responsibility of the customer to account for any measurement

variances and/or additional losses/inaccuracies that can be introduced as a result of these substitutions. Before beginning optimization or

troubleshooting, make sure that the test equipment needed is on hand and operating properly.

T est Equipment Calibration

Optimum system performance and capacity depend on regular equipment service, calibration, and characterization prior to BTS optimization. Follow the original equipment manufacture (OEM) recommended maintenance and calibration schedules closely.

T est Cable Calibration

Equipment Warm–up

Equipment test cables are very important in optimization. It is recommended that the cable calibration be run at every BTS with the test cables attached. This method compensates for test cable insertion loss within the test equipment itself. No other allowance for test cable insertion loss needs to be made during the performance of tests.

Another method is to account for the loss by entering it into the CDMA LMF during the optimization procedure. This method requires accurate test cable characterization in a shop. The cable should be tagged with the characterization information prior to field optimization.

After arriving at the a site, the test equipment should be plugged in and turned on to allow warm up and stabilization to occur for as long as possible. The following pieces of test equipment must be warmed up for a minimum of 60 minutes prior to using for BTS optimization or RFDS calibration procedures:

S Communications test set. S Rubidium time base. S Power meter.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-5

Required Test Equipment and Software – continued

Required T est Equipment and Software

The following test equipment and software is required for the optimization procedure. You will also need common assorted tools such as screwdrivers and frame keys. Read the owner’s manual for all of the test equipment to understand its individual operation before using the tool in the optimization.

NOTE

Always refer to specific OEM test equipment documentation for detailed operating instructions.

CDMA LMF Hardware Requirements

A CDMA LMF computer platform that meets the following requirements (or better) is recommended:

S Notebook computer S 266 MHz (32 bit CPU) Pentium processor S 4 Gbyte internal hard disk drive S SVGA 12.1–inch active matrix color display with 1024 x 768

(recommended) or 800 x 600 pixel resolution

S 64 MB RAM minimum (128 MB recommended) S 20X CD–ROM drive S 3 1/2 inch floppy drive S 56kbps V.90 modem S Serial port (COM 1) S Parallel port (LPT 1) S PCMCIA Ethernet interface card (for example, 3COM Etherlink III)

with a 10BaseT–to–coax adapter

S Windows 98 Second Edition (SE) operating system

NOTE

If 800 x 600 pixel resolution is used, the CDMA LMF window must be maximized after it is displayed.

1-6

CDMA LMF Software

The CDMA LMF is a graphical user interface (GUI) based Local Maintenance Facility (LMF). This software product is specifically designed to provide cellular communications field personnel the vehicle to support the following CDMA Base Transceiver Stations (BTS) operations:

S Installation

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Required Test Equipment and Software – continued

S Maintenance S Calibration S Optimization

Ethernet LAN Transceiver

(part of

CGDSLMFCOMPAQNOV96)

S PCMCIA Ethernet Adpater + Ethernet UTP Adapter

3COM Model – Etherlink III 3C589B

used with

S Transition Engineering Model E–CX–TBT–03 10BaseT/10Base2

Converter (or equivalent)

NOTE

Xircom Model PE3–10B2 or its equivalent can also be used to interface the CDMA LMF Ethernet connection to the RFM frame.

RS–232 to GPIB interface

S National Instruments GPIB–232–CT with Motorola CGDSEDN04X

RS232 serial cable or equivalent; used to interface the CDMA LMF to the test equipment.

S A standard RS–232 cable can be used with the following

modifications:

–Pin 8 (CTS) does not have to be jumpered/shorted to the others as it

is a driver output. The DTR is already a driver output signal. The other pins are to receivers. Short pins 7, 1, 4, 6 on each cable end:

9–pin D (female) 9–pin D (female)

GND 5 5 GND

RX 3

RTS 7 7 RTS

RSD/DCD 1 1 RSD/DCD

DTR 4 4 DTR

DSR 6 6 DSR

Model SLN2006A MMI interface kit

2 TX 3 RXTX 2

S Motorola Model TRN9666A null modem board. Connectors on

opposite sides of the board must be used as this performs a null modem transformation between cables. This board can used for 10–pin to 8–pin, 25–pin to 25–pin, and 10–pin to 10–pin conversions.

S Motorola 30–09786R01 MMI cable or equivalent ; used to interface

the CDMA LMF serial port connection to the GLI, CSM, ETIB board, and module debug serial ports.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-7

Required Test Equipment and Software – continued

Communications system analyzer CDMA/analog

The following communications system analyzers are supported by the LMF:

S Motorola CyberTest S Advantest R3465 Analyzer with R3561L Signal Generator S Hewlett Packard Model HP 8921A/600 Analyzer including 83203B

CDMA Interface, manual control system card, and 83236A/B PCS Interface for 1900 MHz BTSs.

S Hewlett Packard Model HP 8935 Analyzer

or a combination of test equipment supported by the CDMA LMF and used during optimization and testing of the RF communications portion of BTS equipment.

The analyzer provides the following functions:

S Frequency counter . S Deviation meter. S RF power meter (average and code domain). S RF signal generator (capable of DSAT/CDMA modulation). S Audio signal generator. S AC voltmeter (with 600–ohm balanced audio input and high

impedance input mode).

S Noise measurement meter. S C–Message filter. S Spectrum analyzer . S CDMA code domain analyzer.

GPIB cables

Hewlett Packard 10833A or equivalent; one or two meters long, used to interconnect test equipment and CDMA LMF terminal.

Power meter

S Hewlett Packard Model HP437B with HP8481A power sensor capable

of measuring from –30 dBm to 20 dBm,

S Gigatronics 8542B power meter.

1-8

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Required Test Equipment and Software – continued

Timing reference cables

S Two Huber & Suhner 16MCX/11BNC/K02252D or equivalent; right

angle MCX–male to standard BNC–male RG316 cables; 10 ft. long are required to interconnect the HP8921A/600 Communications Analyzer to SGLN4132A and SGLN1145A CSM board timing references,

S Two BNC–male to BNC–male RG316 cables; 3 meters (10 feet) long,

used to interconnect the HP8921A/600 Communications Analyzer to SGLN4132B and SGLN1145B (and later) CSM front panel timing references in the RF Modem Frame.

Digital multimeter

Fluke Model 8062A with Y8134 test lead kit or equivalent; used for precision DC and AC measurements to four decimal places.

Directional coupler

Narda Model 3020A 20 dB coupler terminated with two Narda Model 375BN–M loads, or equivalent.

RF attenuators

S 20 dB Fixed attenuator, 20 Watt (Narda 768–20), used in conjunction

with calibration of test cables or during general troubleshooting procedures.

S 10 dB Fixed attenuator, 20 Watt (Narda 768–10), for cable calibration

with a Cybertest CDMA analyzer.

Miscellaneous RF adapters, loads, etc.

As required to interface test cables and BTS equipment and for various test setups. Should include at least (2) 50 Ohm loads (type N) for calibration and (1) RF short.

RF load

100W non–radiating RF load used (as required) to provide dummy RF loading during BTS transmit tests.

High–impedance conductive wrist strap

08/15/2000

Motorola Model 42–80385A59; used to prevent damage from ESD when handling or working with modules.

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-9

Required Test Equipment and Software – continued

Optional Equipment

This section provides a list of additional equipment that might be required during maintenance and troubleshooting operations.

NOTE

Not all optional equipment specified in this section will be supported by the CDMA LMF in automated tests.

Duplexer

Filtronics Low IM Duplexer (Cm035–f2) or equivalent; used during Spectral Purity Receive band noise tests.

Frequency counter

Stanford Research Systems SR620 or equivalent; used if direct measurement of the 3 MHz or 19.6608 MHz references is required.

Spectrum analyzer

Spectrum Analyzer (HP8594E with CDMA personality card) or equivalent; required for manual tests other than standard Receive band spectral purity and TX LPA IM reduction verification tests performed by the CDMA LMF.

LAN tester

Model NETcat 800 LAN troubleshooter (or equivalent); used to supplement LAN tests using the ohm meter.

Span line (T1/E1) verification equipment

As required for the local application.

RF test cable (if not provided with test equipment)

Motorola Model TKN8231A; used to connect test equipment to the BTS transmitter output during optimization or during general troubleshooting procedures.

Oscilloscope

Tektronics Model 2445 or equivalent; used for waveform viewing, timing, and measurements, or during general troubleshooting procedures.

2–way splitter

1-10

Mini–Circuits Model ZFSC–2–2500 or equivalent; used to provide the diversity receive input to the BTS.

CDMA subscriber mobile or portable radiotelephone

Safco Model 2136–150 with power supply and antenna; used to provide test transmission and reception during BTS maintenance and

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Required Test Equipment and Software – continued

troubleshooting. Do not substitute other models that do not feature special test modes. Two radios will be required for system and drive–around testing after optimization and BTS ATP are completed.

RF circulator

Circulator (FERROCOM 5809866C01) or equivalent; can substitute for a duplexer during Receive sensitivity FER testing in conjunction with Safco CDMA mobile.

High stability 10 MHz rubidium standard

Stanford Research Systems SR625 or equivalent. Required for CSM and LFR/HSO frequency verification.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-11

Required Documents and Related Publications

Required Documents

The following documents are required to perform optimization of the cell site equipment:

S Site Document (generated by Motorola Systems Engineering), which

includes: – General site information – Floor plan – RF power levels – Frequency plan (includes Site PN and operating frequencies) – Channel allocation (paging, traffic, etc.) – Board placement – Site wiring list – Site–specific CDF file

S Demarcation Document (Scope of Work Agreement)

Related Publications

S Equipment manuals for non-Motorola test equipment S CDMA LMF Operator’s Guide (Motorola part number 68P64114A21)

Additional, detailed information about the installation, operation, and maintenance of the SC4812ET Lite BTS is included in the following publications:

1-12

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Terms and Abbreviations

Overview

Standard terms and abbreviations used in this manual are defined in Cellular Glossary of Terms and Acronyms – 68P09213A95. Any non–standard terms or abbreviations included in this manual are listed in Table 1-1.

Table 1-1: Non–Standard Terms and Abbreviations

Term or Abbreviation Definition

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-13

BTS Equipment Identification

Equipment Overview

The SC4812ETL BTS consists of a single, outdoor, weatherized cabinet containing RF and power components. The BTS is functionally similar to the two–cabinet SC4812ET, but provides more flexibility in site selection because of its smaller footprint and lighter weight. The BTS is powered by 220 Vac, rectified internally to +27 Vdc, and can support two carriers in a 3–sector configuration. An SC4812ETL starter frame with the maximum of one SC4812ETL expansion frame can support 4 carriers in a 3–sector configuration. Six– sector operation is not supported with any SC4812ETL configuration.

The BTS cabinet houses the fan modules, RF compartment heat exchanger, Simplified CDMA Channel Processor shelf (S–CCP), RF Linear Power Amplifier (LPA) modules, LPA trunking modules, bandpass filters, 2:1 combiners, and Duplexer/Receive Filter/Directional Couplers (DRDC). Power components include a +27 Vdc Power Distribution Assembly (PDA), backup batteries, battery heaters, rectifiers, an AC Load Center (ACLC), and one duplex GFCI 115 Vac utility outlet.

Logical BTS

A logical BTS can consist of up to two SC4812ETL frames. When the LMF is connected to frame 1 of a logical BTS, access is available to all devices in all of the frames that make up the logical BTS. A logical BTS CDF file that includes equippage information for all of the logical BTS frames and their devices is required. A CBSC file that includes channel data for all of the logical BTS frames is also required.

The first frame of a logical BTS has a –1 suffix (e.g., BTS–812–1) and the second frame of the logical BTS is numbered with the suffix, –101 (e. g. BTS–812–101). When the CDMA LMF is logged into a BTS, a FRAME tab is displayed for each frame. If there is only one frame for the BTS, there will only be one tab (e.g., FRAME–282–1 for BTS–282). If a logical BTS has more than one frame, there will be a separate FRAME tab for each frame (e.g. FRAME–438–1, and FRAME–438–101 for BTS–438 that has both frames). If an RFDS is included in the CDF file, an RFDS tab (e.g., RFDS–438–1) will be displayed.

Actions (e.g., ATP tests) can be initiated for selected devices in one or more frames of a logical BTS. Refer to the Select devices help screen for information on how to select devices.

1-14

SCCP Shelf Card/Module Device ID Numbers

All cards/modules/boards in the frames at a single site, assigned to a single BTS number, are also identified with unique Device ID numbers dependent upon the Frame ID number in which they are located. Refer to Table 1-2, Table 1-3, and Figure 1-4 for specific SCCP Shelf Device ID numbers.

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

BTS Equipment Identification – continued

Table 1-2: SCCP Shelf/Cage Card/Module Device ID Numbers

(Top Shelf)

Frame

Power

(PS–1)

(PS–2)

1 – – 1 1 1 2 1 2 3 R1 –

101 – – 101 101 101 102 101 102 103 R101 –

Table 1-3: SCCP Shelf/Cage Card/Module Device ID Numbers (Bottom Shelf)

Frame

HSO/

CSM–1CSM–2CCDACCD

LFR

1 – 1 2 – – – 2 2 3 4 4 5 6 – –

101 – 101 102 – – – 102 102 107 108 107 108 109 – –

Card/Module ID Number (Left to Right)

AMR–1GLI2–1MCC2 BBX2 BBX2–RMPC/

EMPC

–1

Card/Module ID Number (Left to Right)

AMR–2GLI2–2MCC2 BBX2 SW MPC/

EMPC

–2

Figure 1-1: Typical Logical BTS Configurations

Two Frame Configuration

BTSSP AN 1

Frame

BTSSP AN 110

Frame

101

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-15

Cabinet Identification

Major Components

Figure 1-2 illustrates the features of the BTS Cabinet, the single major component of the Motorola SC4812ETL.

Figure 1-2: SC4812ETL Cabinet

Main Door

Battery Compartment Door

(Can only be opened after Main Door is open)

Power Entry

and

Network Interface Compartment

SCCP Shelf Backplane

Rear Access Panel

RF Interface Panel

SC4812ETL0001–1

1-16

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Internal Assembly Location and Identification

Internal Assemblies and FRUs

Figure 1-3 shows the location of the internal assemblies and Field Replaceable Units (FRU). A brief description of each item is found in the following paragraphs.

Figure 1-3: Internal Assemblies and FRUs

(Cabinet doors not shown for clarity)

Rectifiers

Rectifier Meter

Alarm Panel

CSU

SCCP Fans

SCCP Shelf

Span I/O

Board

LPAC

ETIB

RFDS

LPA Trunking

Module

External Blower

Assembly

LPAs

DC PDA

Filter/Combiner

Shelf (Bandpass

filters shown)

DRDC

Shelf

08/15/2000

ACLC GFCI Utility

Outlet

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Backup Batteries

(Heaters underneath batteries)

SC4812ETL0002–1

1-17

Internal Assembly Location and Identification – continued

Duplexer/Directional Coupler (DRDC)

The DRDC combines, in a single module, the functions of antenna duplexing, receive band pass filtering, and surge protection (see Figure 1-6).

Filter/Combiner Shelf (Bandpass Filters or 2:1 Combiners)

The Filter/Combiner Shelf holds the transmit band pass filters or 2:1 combiners, depending on system configuration.

Simplified CDMA Channel Processor (SCCP) Shelf

The SCCP shelf contains the following (see Figure 1-4):

S High Stability Oscillator (HSO)/LFR (Optional) card S Clock Synchronization Manager (CSM) on 2 cards (one with GPS

receiver, if ordered).

S CDMA Clock Distribution (CCD) cards (2) S Power Supply cards (2) S Multicoupler Preselector Cards (MPC) (2) S Alarm Monitoring and Reporting (AMR) cards (2) S Multi–Channel CDMA (MCC24) cards (up to 4) S Broadband Transceiver (BBX2) cards (up to 6 with one redundant) S Combined Input/Output (CIO) (1) S Group Line Interface (GLI2) cards (2) S BBX2 Switch card (1) S Filler Panel S Fan Module (2)

1-18

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Internal Assembly Location and Identification – continued

Figure 1-4: SCCP Shelf

CSM

Power Supply

CSM

Power Supply

19mm Filler Panel

HSO

FILLER

HSO/LFR CSM 1 CSM 2

FILLER

HSO/LFR CSM 101 CSM 102

POWER 1 POWER 2

CCDCCD

AMR

GLI2 GLI2

CCD

BBX2

1 2

MCC

3 4

101 102

MCC

BBX2

SWITCH

BBX2

MCC24

BBX2

MCC24

121

AMR GLI2

101

AMR

GLI2

102

102 103 104 104 105 106

MPC

CIO

MPC

1 2 3

BBX2

4 5 6

101 102 103

BBX2

SWITCH

R101

SWITCH

MPC

FRAME 1

FRAME 101 (Expansion Frame)

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

SC4812ETL0003–1

1-19

Internal Assembly Location and Identification – continued

Punch Block

The Punch Block is the interface between the cabinet and the T1/E1 span lines, the Customer I/O, alarms, multi–cabinet timing (RGPS and RHSO), and Pilot Beacon control (optional).

Span I/O Board

The Span I/O Board provides the interface for the span lines from the CSU to the SCCP backplane (see Figure 1-3).

RF Diagnostic Subsystem (RFDS)

The RFDS provides the capability for remotely monitoring the status of the SC4812ETL RF transmit and receive paths (Figure 1-6).

Heat Exchanger

The heat exchanger provides cooling to the cabinet RF compartment. The fan speed of the heat exchanger adjusts automatically with temperature. The heat exchanger is located in the cabinet main door.

SC4812ETL Interface Board (ETIB) and LPA Control (LPAC) Board

The ETIB is an interconnect module with status LEDs, MMI receptacles, and secondary surge protection for the LPA modules. The LPAC board provides the interface for LPA connections (See Figure 1-3).

SC4812ETL Trunking Modules

The trunking modules contain a complex, passive RF network that allows RF signals to share the resources of a bank of four LPAs. They also provides DC power and digital interconnect (See Figure 1-3).

Batteries

The batteries provide +24Vdc backup to the cabinet should AC power be lost. The cabinet can accommodate a total of 12 12V batteries, configured in six series–connected strings of two batteries each. The time duration of backup provided depends on system configuration (See Figure 1-3).

Battery Heaters

The battery heater pads warm the batteries to provide improved cold–weather performance. A separate heater pad is required for each battery string, and is located between each battery string and its respective support shelf. The number of heaters is dependent on system configuration (See Figure 1-3).

1-20

Rectifiers

The rectifiers convert AC power supplied to the cabinet to +27Vdc to power the cabinet and maintain the charge of the backup batteries (See Figure 1-3).

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Internal Assembly Location and Identification – continued

AC Load Center (ACLC)

The ACLC is the cabinet entry point for AC power. It incorporates AC power distribution and surge protection (See Figure 1-3).

Figure 1-5: RF Interface Panel

A1 A2 A3 B1 B2 B3

Figure 1-6: RFDS and DRDC Details

SC48120004–1

RFDS

08/15/2000

BTS

CPLD

ANT

CPLD

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

DRDC

SC48120005–1

1-21

BTS Sector Configurations

Sector Configuration

There are a number of ways to configure the BTS frame. Table 1-4 outlines the basic requirements. For more detailed information also see Table 1-5 and Figure 1-7. When carrier capacity is greater than two, a 2:1 cavity combiner must be used. For one or two carriers, bandpass filters or cavity combiners may be used, depending on sectorization and channel sequencing.

Table 1-4: BTS Sector Configuration

Number of

Carriers

1 3 N/A Bandpass Filter or Cavity Combiner (2:1) 2 3 Non–adjacent Bandpass Filter, Cavity Combiner (2:1) 2 3 Adjacent Bandpass Filter (preferred), Cavity Combiner (2:1)

Number of

Sectors

Channel Spacing Filter Requirements

The matrix in Table 1-5 shows a correlation between the various sector configurations and BBX cards.

1-22

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

BTS Sector Configurations – continued

Table 1-5: Sector Configurations

Configuation Description

3–Sector / 1 Carrier

The configuration below maps RX and TX with bandpass filters or 2:1 combiners for a 3–sector/1–carrier frame.

ANT A1 ANT A2 ANT A3 ANT B1 ANT B2 ANT B3

TX1 / RXA1 TX2 / RXA2 TX3 / RXA3 TX4 / RXB1 TX5 / RXB2 TX6 / RXB3 Carrier #

BBX2–1 BBX2–2 BBX2–3 N/A N/A N/A 1

3–Sector / 2–NON–ADJACENT Carriers

The configuration below maps RX and TX with 2:1 cavity combiners for 3–sectors/2–carriers for non–adjacent channels.

ANT A1 ANT A2 ANT A3 ANT B1 ANT B2 ANT B3

TX1 / RXA1 TX2 / RXA2 TX3 / RXA3 TX4 / RXB1 TX5 / RXB2 TX6 / RXB3 Carrier #

BBX2–1 BBX2–2 BBX2–3 N/A N/A N/A 1 BBX2–4 BBX2–5 BBX2–6 N/A N/A N/A 2

3–Sector / 2–NON–ADJACENT Carriers

The configuration below maps RX and TX with bandpass filters for 3–sectors/2–carriers for non–adjacent channels.

ANT A1 ANT A2 ANT A3 ANT B1 ANT B2 ANT B3

TX1 / RXA1 TX2 / RXA2 TX3 / RXA3 TX4 / RXB1 TX5 / RXB2 TX6 / RXB3 Carrier #

BBX2–1 BBX2–2 BBX2–3 N/A N/A N/A 1

N/A N/A N/A BBX2–4 BBX2–5 BBX2–6 2

3–Sector / 2–ADJACENT Carriers

The configuration below maps RX and TX with bandpass filters for 3–sectors/2–carriers for adjacent channels.

ANT A1 ANT A2 ANT A3 ANT B1 ANT B2 ANT B3

TX1 / RXA1 TX2 / RXA2 TX3 / RXA3 TX4 / RXB1 TX5 / RXB2 TX6 / RXB3 Carrier #

BBX2–1 BBX2–2 BBX2–3 N/A N/A N/A 1

N/A N/A N/A BBX2–4 BBX2–5 BBX2–6 2

3–Sector / 2–ADJACENT Carriers

The configuration below maps RX and TX with optional 2:1 cavity combiners for 3–sectors/2–carriers for adjacent channels. Note that dual 2:1 cavity combiners are used (6 total).

ANT A1 ANT A2 ANT A3 ANT B1 ANT B2 ANT B3

TX1 / RXA1 TX2 / RXA2 TX3 / RXA3 TX4 / RXB1 TX5 / RXB2 TX6 / RXB3 Carrier #

BBX2–1 BBX2–2 BBX2–3 N/A N/A N/A 1

N/A N/A N/A BBX2–4 BBX2–5 BBX2–6 2

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

1-23

BTS Sector Configurations – continued

Figure 1-7: SC4812ETL LPA Configuration with Combiners/Filters

Table 1-5

Configuration Numbers 1, 3, 4

Bandpass Filters

3–Sector

CARRIER 1

SECTOR 1, 2, 3

CARRIER 2

SECTOR 1, 2, 3

Table 1-5

Configuration Numbers 2, 5

2:1 Cavity Combiners

3–Sector

SC4812ETL0011–1

1-24

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Chapter 2: Preliminary Operations

T able of Contents

Preliminary Operations: Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cell Site Types 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CDF 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Equipage Verification 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Installation of Boards/Modules 2-1. . . . . . . . . . . . . . . . . . . . . . . . . .

Setting Frame SCCP Shelf Configuration Switch 2-2. . . . . . . . . . . . . . . . .

Initial Power Up 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Required Tools 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cabling Inspection 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initial Inspection and Setup 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power–Up Sequence 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Application Pre-test 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Applying AC Power 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Cabinet Power Up Tests 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery Charge Test (Connected Batteries) 2-11. . . . . . . . . . . . . . . . . . . . . .

Battery Discharge Test 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Table of Contents – continued

Notes

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Preliminary Operations: Overview

Introduction

Cellsite T ypes

CDF

Site Equipage Verification

This section first verifies proper frame equipage. This includes verifying module placement, jumper, and dual in–line package (DIP) switch settings against the site-specific documentation supplied for each BTS application. Next, pre-power up and initial power-up procedures are presented.

Sites are configured as 3–sectored with one or two carriers. Each type has unique characteristics and must be optimized accordingly.

The Cell-site Data File (CDF) contains site type and equipage data information and passes it directly to the LMF during optimization. The number of BTS frames, BBX2 and MCC24 boards, and linear power amplifier assignments are some of the equipage data included in the CDF.

Review the site documentation. Match the site engineering equipage data to the actual boards and modules shipped to the site. Physically inspect and verify the equipment provided for the BTS or Modem frame and ancillary equipment frame.

CAUTION

Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD. After removal, the card/module should be placed on a conductive surface or back into the anti–static bag it was shipped in.

Initial Installation of Boards/Modules

Table 2-1: Initial Installation of Boards/Modules

Step Action

1 Refer to the site documentation and slide all boards and modules into the appropriate shelves as

required. DO NOT SEAT the boards and modules at this time.

2 As the actual site hardware is installed, record the serial number of each module on a “Serial Number

Checklist” in the site logbook.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-1

Preliminary Operations: Overview – continued

Setting Frame SCCP Shelf Configuration Switch

If the frame is a Starter BTS, the backplane switch settings behind the right–hand SCCP shelf fan module should be set to the ON position (see Figure 2-1).

The switch setting must be verified and set before power is applied to the BTS equipment.

Figure 2-1: Backplane DIP Switch Settings

OFF

STAR TER FRAME

FAN MODULE

REMOVED

OFF

RIGHT / LEFT

BOTTOM / TOP

EXPANSION FRAME 1 SETTING

MODEM_FRAME_ID_1

MODEM_FRAME_ID_0

SC 4812ETL

SCCP SHELF

SC4812ETL0006–1

2-2

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Initial Power Up

Introduction

Required T ools

Cabling Inspection

The following information is used to check for any electrical short circuits and to verify the operation and tolerances of the cell site and BTS power supply units before applying power for the first time. It contains instructional information on the proper initial power up procedures for the SC4812ETL. Please pay attention to all cautions and warning statements in order to prevent accidental injury to personnel.

The following tools are used in the procedures.

S DC current clamp (600 Amp capability with jaw size to accommodate

2/0 cable).

S Hot Air Gun – (optional for part of the Alarm Verification) S Digital Multimeter (DMM)

Using the site-specific documentation generated by Motorola Systems Engineering, verify that the following cable systems are properly connected:

S Receive RF cabling – up to six RX cables S Transmit RF cabling – up to three TX cables

IMPORTANT

For DC power applications (+27 V):

S The positive power cable is red. S The negative power cable is black. (The black power

cable is at ground potential.)

Initial Inspection and Setup

CAUTION

Ensure all battery shelf circuit breakers (Figure 2-3) for unused battery positions are off (pulled out) before and during the entire power up process. Leave these breakers in the off position when leaving the site.

Table 2-2: Initial Inspection and Setup

Step Action

1 Verify that ALL AC Load Center (ACLC) and DC Power Distribution Assembly (PDA) circuit

breakers are turned OFF.

2 Confirm that the external 220 Vac supply is correctly connected to the ACLC input.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-3

Initial Power Up – continued

CAUTION

Failure to properly connect the external AC power cable

Power–Up Sequence

The first task in the power–up sequence is to apply external AC power to the cabinet. Once power is applied, a series of AC Voltage measurements is required.

Table 2-3: AC Voltage Measurements

Step Action

1 Gain access to the ACLC external power connection terminals from the rear of the cabinet by opening

the power entry compartment access door and removing the ACLC rear cover (see Figure 2-2).

2 Measure the AC voltage from terminal L1 to neutral. Voltage should be in the nominal range of 115 to

120 Vac.

will damage the surge protection module inside the AC load center .

3 Measure the AC voltage from terminal L1 to ground. Voltage should be in the nominal range of 115 to

120 Vac.

4 Measure the AC voltage from terminal L2 to neutral. Voltage should be in the nominal range of 115 to

120 Vac.

5 Measure the AC voltage from terminal L2 to ground. Voltage should be in the nominal range of 115 to

120 Vac.

6 Measure L1 – L2 – should be from 208 to 240 Vac.

CAUTION

If the AC voltages are in excess of 120 V (or exceed 200 V) when measuring between terminals L1 or L2 to neutral or ground, STOP and DO NOT proceed until the cause of the higher voltages are determined. The cabinet WILL be damaged if the Main breaker is turned on with excessive voltage on the inputs.

2-4

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Initial Power Up – continued

Figure 2-2: AC Load Center External Power Connections

G = Ground N = Neutral L1 = Line 1 L2 = Line 2

Battery compartment

+ DC feedthroughs

Remove torx screw to remove ACLC rear cover.

(Power entry compartment door not shown for clarity)

SC4812ETL0007–1

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-5

Initial Power Up – continued

Figure 2-3: Cabinet Power Subassemblies

AC Rectifiers

Meter Alarm

Panel With

TCU

SCCP Fans

SCCP Shelf

External Blower

Assembly

ETIB

RFDS

LPAs

Battery Shelf

Circuit Breakers

DC PDA

ACLC GFCI Utility

Outlet

Backup Batteries

(Heaters underneath batteries)

SC4812ETL0002–2

2-6

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Initial Power Up – continued

Figure 2-4: ACLC Circuit Breaker Panel

Figure 2-5: DC Power Distribution Assembly

LEDs

SC4812ETL0008–1

Power Application Pre-test

08/15/2000

SC4812ETL0009–1

Before applying any power to the BTS cabinet, follow the procedure in Table 2-4 to verify there are no shorts in the DC power distribution system.

NOTE

The following procedure is required only on initial BTS power–up or following maintenace when any major power components (e.g., DC PDA, ACLC) were replaced or DC power cables were disconnected.

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-7

Initial Power Up – continued

Table 2-4: Pre–power DC Power Distribution System Test

Step Action

1 Physically verify that circuit breakers on the ACLC (Figure 2-4) and DC PDA (figure Figure 2-5), and

all battery shelf circuit breakers (Figure 2-3), are OFF.

2 Visually ensure that all AC rectifier modules (Figure 2-3) are not powered (DC, Power, and bar graph

LEDs are not lighted).

3 Inside the battery compartment, measure the voltage between the + (red) and – (black) battery bus

bars. There should be no 27 Vdc present.

4 In the cabinet RF and LPA compartments, unseat all circuit boards/ modules (except CCD and CIO

cards) in the SCCP shelf and Linear Power Amplifier (LPA) shelves, but leave them in their respective slots.

5 Inside the battery compartment, measure the resistance between the + (red) and – (black) battery bus

bars. Verify that the resistance measures >

500 Ω.

S If reading is < 500 Ω, a short may exist somewhere in the DC distribution path supplied by the

breaker. Isolate the problem before proceeding. A reading > 3 M missing) bleeder resistor (installed across the filter capacitors behind the breaker panel).

Ω could indicate an open (or

On the DC PDA, set the Main Breaker #1 (Internal) to the ON position by pushing it in, and repeat

step 5.

* IMPORTANT

If, after inserting any board/module, the ohmmeter stays at 0 Ω, a short probably exists in that board/module. Replace the suspect board/module and repeat the test. If test still fails, isolate the

problem before proceeding. 7 Repeat step 6 for Main Breaker #2, and each LPA circuit breaker. 8

! CAUTION

Verify the correct power/converter modules by observing the locking/retracting tabs appear as follows:

–

(in +27 volt systems)

Insert and lock the PS1 DC–DC converter module into its slot, and repeat step 5.

S A typical response is that the ohmmeter will steadily climb in resistance as capacitors charge, finally

indicating approximately 500

9 Repeat step 8 for the PS2 converter module and all remaining modules in the SCCP shelf.

10 On the DC PDA, set the LPA 1A–1B circuit breaker to the ON position by pushing it in, and repeat

step 5.

11 Repeat step 10 for each of the three remaining LPA circuit breakers. 12 Seat all LPAs into their respective slots in the shelves one at a time. Repeat step 5 after seating each

LPA.

Ω.

2-8

S A typical response is that the ohmmeter will steadily climb in resistance as capacitors charge,

stopping at approximately 500

Ω..

SC 4812ETL BTS Optimization/ATP

. . . continued on next page

08/15/2000

PRELIMINARY

Initial Power Up – continued

Table 2-4: Pre–power DC Power Distribution System Test

Step Action

13 Seat the Pilot Beacon, Heat Exchanger, ETIB, and Options circuit breakers to ON one at a time.

Repeat step 5 after pushing in each circuit breaker.

14 Set all DC PDA circuit breakers to OFF (pulled out).

Applying AC Power

Once AC voltage measurements are complete, apply AC power to the Power Cabinet. Table 2-5 provides the procedure for applying AC power.

Table 2-5: Applying AC Power

Step Action

1 After cabinet AC input voltages are verified as correct, turn the Main AC breaker (located on the front

of the AC Load Center) ON. Observe that all eight (8) green LEDs on the front of the ACLC are illuminated (see Figure 2-4).

2 On the ACLC, Turn RECT. 1 and RECT. 2 AC branch breakers ON. All the installed rectifier

modules (see Figure 2-3) will start up, and the green DC and PWR LEDs should light on each.

3 Turn the Meter Alarm Panel module, ON (see Figure 2-6). The Meter Alarm Panel voltage meter

should read approximately 27.4 +

0.2 VDC.

4 Turn the Temperature Compensation Panel (TCP) ON, (see Figure 2-7). Verify that the Meter Alarm

Control Panel does not have any alarm LEDs illuminated.

5 Check the rectifier current bargraph displays (green LED display on the rectifier module). None

should be illuminated at this point.

NOTE

If batteries are fitted, turn on the two battery heater AC breakers on the AC Load Center.

Figure 2-6: Meter Alarm Panel

AMP

AMPS

–

TEST POINTS

PWR

OFF

VOLT

–

TEST POINTS

VOLT

08/15/2000

FRONT VIEW

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-9

Initial Power Up – continued

Figure 2-7: Temperature Compensation Panel

TEMPERATURE COMPENSATION PANEL

OFF

1/2 A 250V

SENSOR COM

SENSE

–

FRONT VIEW

25_ c

V ADJ

Power Cabinet Power Up T ests

Table 2-6 lists the step–by–step instructions for Power Up Tests.

Table 2-6: Cabinet DC Power–Up Tests

Step Action

1 Ensure ALL DC PDA circuit breakers are OFF (pulled out). 2 Be sure the procedures in Table 2-4 (if required) and (Table 2-5) have been performed. 3 Probe the VOLT TEST POINTS on the Meter Alarm Panel while pressing the 25° C set button on the

TCP (see Figure 2-7). The voltage should read 27.4 +

0.2 VDC. Adjust Master Voltage on Meter

Alarm Panel if necessary. Release the TCP 25° C set button.

4 Depending on the ambient temperature, the voltage reading may now change by up to + 1.5 V

compared to the reading just measured. If it is cooler than 25_C, the voltage will be higher, and if it is warmer than 25_C, the voltage will be lower.

5 If the BTS is equipped with a internal backup batteries, close (push in) DC PDA Main Breaker #1

(Internal) and proceed to step 7.

6 If the BTS is connected to an external BOE containing backup batteries, close (push in) DC PDA

Main Breaker #2 (External).

7 Inside the power entry compartment at the rear of the cabinet, measure the voltage between the + (red)

terminals of the filtered DC battery compartment feedthrough (Figure 2-2) and chassis ground, observing that the polarity is correct. The voltage should be the same as the measurement in step 2.

8 Measure the voltage between the + (red) and – (black) battery bus bars in the battery compartment.

Place the probe at the bottom of the bus bars where the cables are connected. The DC voltage should measure the same as the previous step.

9 On the DC PDA(see Figure 2-5) set the circuit breakers to the ON position by pushing them in one at

a time in the following sequence:

S PS1 and PS2 circuit breakers S LPA circuit breakers (four breakers, labeled 1A–1B through 2C–2D). S HEAT EXCHANGER circuit breakers (two breakers) S ETIB circuit breaker S PILOT BEACON circuit breaker S OPTION circuit breaker

2-10

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Initial Power Up – continued

Battery Charge T est (Connected Batteries)

Table 2-7 lists the step–by–step instructions for testing the batteries.

Table 2-7: Battery Charge Test (Connected Batteries)

Step Action

1 Close the battery shelf circuit breakers (Figure 2-3) for connected batteries ONLY. This process should

be completed quickly to avoid individual battery strings with excess charge current

NOTE

If the batteries are sufficiently discharged, the battery circuit breakers may not engage individually due to the surge current. If this condition is observed, turn off the Meter Alarm Panel power switch, and then engage all the connected battery circuit breakers, the Meter Alarm Panel power switch should then be turned ON.

Using the DC current probe, measure the current in each of the battery string connections to the

battery cabinet bus bars. The charge current may initially be high but should quickly reduce in a few minutes if the batteries have a typical new battery charge level.

NOTE

The bar graph meters on the AC rectifier modules can be used as a rough estimate of the total battery charge current. Each rectifier module bar graph has eight (8) LEDs to represent the output current. Each illuminated LED indicates that approximately 12.5% (1/8 or 8.75 Amps) of the rectifiers maximum (70 Amps) current is flowing.

EXAMPLE: Question: A system fitted with three (3) rectifier modules each have three bargraph LEDs

illuminated. What is the total output current into the batteries? Answer: Each bargraph is approximately indicating 12.5% of 70 Amps, therefore, 3 X 8.75 equals

26.25 Amps. As there are three rectifiers, the total charge current is equal to (3 X 26.25 A) 78.75 Amps.

This charge current calculation only applies at this part of the start up procedure, when the RF Cabinet is not powered on, and the power cabinet heat exchanger is turned off.

3 The current in each string should be approximately equal (+ 5 amps). 4 Allow a few minutes to ensure that the battery charge current stabilizes before taking any further

action. Recheck the battery current in each string. If the batteries had a reasonable charge, the current in each string should reduce to less than 5A.

5 Recheck the DC output voltage. It should remain the same as measured in step 4 of the Power Up

Test.

NOTE

If discharged batteries are installed, all bargraphs may be illuminated on the rectifiers during the charge test. This indicates that the rectifiers are at full capacity and are rapidly charging the batteries. It is recommended in this case that the batteries are allowed to charge and stabilize as in the above step before commissioning the site. This could take several hours.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

2-11

Initial Power Up – continued

Battery Discharge T est

Perform the test procedure in Table 2-8 only when the battery current is

Step Action

1 Turn the battery test switch on the Meter Alarm Panel, ON (see Figure 2-6). The rectifier output

voltage and current should decrease by approximately 10% as the batteries assume the load. Alarms for the Meter Alarm Panel may occur.

2 Measure the individual battery string current using the DC current probe. The battery discharge

current in each string should be approximately the same (within +

3 Turn Battery Test Switch OFF.

less than 5 A per string. Refer to Table 2-7 on the procedures for checking current levels.

Table 2-8: Battery Discharge Test

5 A).

CAUTION

Failure to turn OFF the Battery Test Switch before leaving the site will result in low battery capacity and reduce battery life.

2-12

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Initial Power Up – continued

Figure 2-8: Heat Exchanger Blower Assembly and Circuit Breakers

Heat Exchanger

Top (Internal) Blower

Assembly

Blower Power

Cord

T–30 Screw

Mounting

Bracket

Fan Module

Core

DC PDA

Bottom (Ambient) Blower

Mounting

Bracket

Fan Module

T–30 Screw

Blower

Power

Cord

08/15/2000

OUT=OFF

IN=ON

Heat Exchanger

Blower Assembly

Circuit Breaker

Side View

SC 4812ETL BTS Optimization/ATP

2-13

PRELIMINARY

Initial Power Up – continued

Notes

2-14

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Chapter 3: Optimization/Calibration

T able of Contents

Optimization/Calibration – Introduction 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Optimization Process 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cell Site Types 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cell Site Data File (CDF) 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BTS System Software Download 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Site Equipage Verification 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Isolate Span Lines/Connect LMF 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Isolate BTS from T1/E1 Spans 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configure Channel Service Unit 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarm and Span Line Cable Pin/Signal Information 3-6. . . . . . . . . . . . . . .

T1/E1 Span Isolation 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preparing the LMF 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LMF Installation and Update Procedures 3-9. . . . . . . . . . . . . . . . . . . . . . .

Copy CBSC CDF Files to the LMF Computer 3-10. . . . . . . . . . . . . . . . . . .

Creating a Named HyperTerminal Connection for MMI Communication . . . . . .

3-12

Folder Structure Overview 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

wlmf Folder 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

cdma Folder 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

bts–nnn Folders 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

bts–nnn.cal File 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

bts–nnn.cdf File 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

cbsc File 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

loads Folder 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

version Folder 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

code Folder 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

data Folder 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

LMF to BTS Connection 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LMF to BTS Connection 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using CDMA LMF 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Basic CDMA LMF Operation 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Logging Into a BTS 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Logging Out 3-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Establishing an MMI Communication Session 3-25. . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Table of Contents – continued

Online Help 3-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pinging the Processors 3-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pinging the BTS 3-27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Download the BTS 3-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Overview 3-29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Download RAM Code and Data to MGLI and GLI 3-31. . . . . . . . . . . . . . .

Download RAM Code and Data to Non–GLI Devices 3-32. . . . . . . . . . . . .

CSM System Time – GPS & LFR/HSO Verification 3-36. . . . . . . . . . . . . . . . . . . . .

Select CSM Clock Source 3-33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Enable CSMs 3-33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Enable MCCs 3-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock Synchronization Manager (CSM) System Time 3-36. . . . . . . . . . . . .

Low Frequency Receiver/

High Stability Oscillator 3-36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CSM Frequency Verification 3-38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Setup (GPS & LFR/HSO Verification) 3-38. . . . . . . . . . . .

GPS Initialization/Verification 3-39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LORAN–C Initialization/Verification 3-44. . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Setup 3-46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting Test Equipment to the BTS 3-46. . . . . . . . . . . . . . . . . . . . . . . .

Equipment Warm-up 3-48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Set Calibration 3-54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Background 3-54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Purpose 3-54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting Test Equipment 3-55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manually Selecting Test Equipment in a Serial Connection Tab 3-55. . . . .

Automatically Selecting Test Equipment in a Serial Connection Tab 3-56. .

Calibrating Test Equipment 3-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calibrating Cables 3-57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calibrating Cables with a CDMA Analyzer 3-58. . . . . . . . . . . . . . . . . . . . .

Calibrating TX Cables Using a Signal Generator and

Spectrum Analyzer 3-59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calibrating RX Cables Using a Signal Generator and

Spectrum Analyzer 3-60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting Cable Loss Values 3-61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting TX Coupler Loss Value 3-62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bay Level Offset Calibration 3-63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction 3-63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RF Path Bay Level Offset Calibration 3-63. . . . . . . . . . . . . . . . . . . . . . . . . .

When to Calibrate BLOs 3-63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Path Calibration 3-64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BLO Calibration Data File 3-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Equipment Setup: RF Path Calibration 3-67. . . . . . . . . . . . . . . . . . . . .

Transmit (TX) Path Calibration 3-67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Download BLO Procedure 3-69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Calibration Audit Introduction 3-71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Table of Contents – continued

Transmit (TX) Path Audit 3-71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX Audit Test 3-72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

All Cal/Audit Test 3-73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Create CAL File 3-74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Setup and Calibration 3-75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Description 3-75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Parameter Settings 3-75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS TSU NAM Programming 3-77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Explanation of Parameters used when Programming the TSU NAM 3-77. .

Valid NAM Ranges 3-78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Set Antenna Map Data 3-79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Set RFDS Configuration Data 3-80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RFDS Calibration 3-81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Program TSU NAM 3-83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarms Testing 3-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarm Verification 3-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarm Reporting Display 3-84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Heat Exchanger Alarm Test 3-85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Door Alarm 3-85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AC Fail Alarm 3-85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Minor Alarm 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rectifier Alarms 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Single Rectifier Failure (Three Rectifier System) 3-86. . . . . . . . . . . . . . . . .

Multiple Rectifier Failure 3-86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Single Rectifier Failure

(Six Rectifier System) 3-87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multiple Rectifier Failure (Six Rectifier System) 3-87. . . . . . . . . . . . . . . . .

Battery Over Temperature Alarm (Optional) 3-88. . . . . . . . . . . . . . . . . . . . .

Rectifier Over Temperature Alarm 3-90. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Before Leaving the site 3-91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

Table of Contents – continued

Notes

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Optimization/Calibration – Introduction

Introduction

This chapter provides procedures for downloading system operating software, set up of the supported test equipment, CSM reference verification/optimization, and transmit/receive path verification.

IMPORTANT

Optimization Process

After a BTS is physically installed and the preliminary operations (power up) have been completed, the CDMA LMF is used to calibrate and optimize the BTS. The basic optimization process can be accomplished as follows:

Before using the LMF, use an editor to view the ”CAVEATS” section in the ”readme.txt” file in the c:\wlmf folder for any applicable information.

S Download MGLI2–1 with code and data and then enable MGLI2–1. S Use the status function and verify that all of the installed devices of

the following types respond with status information: CSM2, BBX2, GLI2, and MCC (and TSU if RFDS is installed). If a device is installed and powered up but is not responding and is colored gray in the BTS display, the device is not listed in the CDF file. The CDF file will have to be corrected before the device can be accessed by CDMA LMF.

S Download code and data to all devices of the following types:

– CSM2 – BBX2 – GLI2 (other than MGLI2–1) – MCC

08/15/2000

S Download the RFDS TSIC (if installed). S Verify the operation of the GPS and HSO signals. S Enable the following devices (in the order listed):

– Secondary CSM (slot 2) – Primary CSM (slot 1) – All MCCs

S Connect the required test equipment for a full optimization. S Select the test equipment. S Calibrate the TX and RX test cables if they have not previously been

calibrated using the CDMA LMF that is going to be used for the optimization/calibration. The cable calibration values can also be entered manually.

S Select all of the BBXs and all of the MCCs and use the full

optimization function. The full optimization function performs TX

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-1

Optimization/Calibration – Introduction – continued

calibration, BLO download, TX audit, all TX tests, and all RX tests for all selected devices.

S If the TX calibration fails, repeat the full optimization for any failed

paths.

S If the TX calibration fails again, correct the problem that caused the

failure and repeat the full optimization for the failed path.

S If the TX calibration and audit portion of the full optimization passes

Cell Site T ypes

Cell Site Data File (CDF)

for a path but some of the TX or RX tests fail, correct the problem that caused the failure and run the individual tests as required until all TX and RX tests have passed for all paths.

Sites are configured as Omni/Omni or Sector/Sector (TX/RX). Each type has unique characteristics and must be optimized accordingly.

The CDF includes the following information:

S Download instructions and protocol S Site specific equipage information S C–CCP shelf allocation plan

– BBX2 equipage (based on cell–site type) including redundancy – CSM equipage including redundancy – Multi Channel Card 24 (MCC24 or MCC8E) channel element

allocation plan. This plan indicates how the C–CCP shelf is configured, and how the paging, synchronization, traffic, and access channel elements (and associated gain values) are assigned among the (up to 12) MCC24s or MCC8Es in the shelf.

S CSM equipage including redundancy S Effective Rated Power (ERP) table for all TX channels to antennas

respectively. Motorola System Engineering specifies the ERP of a transmit antenna based on site geography, antenna placement, and government regulations. Working from this ERP requirement, the antenna gain, (dependent on the units of measurement specified) and antenna feed line loss can be combined to determine the required power at the top of the BTS frame. The corresponding BBX2 output level required to achieve that power level on any channel/sector can also be determined.

3-2

NOTE

Refer to the CDMA LMF Operator’s Guide, 68P64114A21, for additional information on the layout of the LMF directory structure (including CDF file locations and formats).

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Pre–Optimization: Introduction – continued

BTS System Software Download

BTS system software must be successfully downloaded to the BTS processor boards before optimization can be performed. BTS operating code is loaded from the LMF computer terminal.

IMPORTANT

Site Equipage Verification

The CDF is normally obtained from the CBSC on a DOS formatted diskette, or through a file transfer protocol (ftp) if the LMF computer has ftp capability. Refer to the CDMA LMF Operator’s Guide, 68P64114A21, or the LMF Help screen, for more information.

If you have not already done so, use an editor to view the CDF, and review the site documentation. Verify the site engineering equipage data in the CDF to the actual site hardware.

Before using the LMF for optimization/ATP, the correct bts–#.cdf and cbsc–#.cdf files for the BTS must be obtained from the CBSC and put in a bts–# folder in the LMF. Failure to use the correct CDF files can cause wrong results. Failure to use the correct CDF files to log into a live (traffic carrying) site can shut down the site.

CAUTION

Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD. Extreme care should be taken during the removal and installation of any card/module. After removal, the card/module should be placed on a conductive surface or back into the anti–static bag in which it was shipped.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-3

Span Lines – Interface and Isolation

Isolate BTS from T1/E1 Spans

IMPORTANT

Configure Channel Service Unit

Each frame is equipped with one 50 pair punch block for spans, customer alarms, remote GPS, and power cabinet alarms. See Figure 3-2 and refer to Table 3-1 for the physical location and pin call–out information. To disable the span, pull the surge protectors for the respective span.

Before connecting the LMF to the frame LAN, the OMC/CBSC must disable the BTS and place it OOS to allow the LMF to control the BTS. This prevents the CBSC from inadvertently sending control information to the BTS during LMF based tests.

The M–PATH 537 channel service unit (CSU) provides in–band SNMP–managed digital service access to T1 and fractional T1 lines. M–PATH units plug into the ADC Kentrox 2–slot frame (see Figure 3-1).

Remote M–PATH management is available via SNMP over an in–band data link on the T1 line (using a facility data link or 8–64 Kbps of a DS0 channel). The unit at the near end of the management path can be an SNMP manager or another M–PATH CSU.

At active sites, the OMC/CBSC must disable the BTS and place it out of service (OOS). DO NOT remove the span surge protectors until the OMC/CBSC has disabled the BTS.

3-4

Each 19 inch rack can support two CSU M–PATH 537 modules. Each M–PATH 537 module supports a single span connection.

Programming of the M–PATH is accomplished through the DCE 9–pin connector on the front panel of the CSU shelf. Manuals and a Microsoft Windows programming disk is supplied with each unit.

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Span Lines – Interface and Isolation – continued

Setting the Control Port

Whichever control port is chosen, it must first be set up so the control port switches match the communication parameters being used by the control device. If using the rear–panel DTE control port, set the shelf–address switch SA5 to “up” (leave the switch down for the rear–panel DCE control port).

For more information, refer to the Kentrox Installation Guide, manual number 65–77538001 which is provided with each CSU.

Plug one of the cables listed below into the Control Port connectors:

Part Number Description of Cable

01–95006–022 (six feet) DB–9S to DB–9P 01–95010–022 (ten feet) The control port cables can be used to connect the shelf to:

S A PC using the AT 9–pin interface S A modem using the 9–pin connector

S Other shelves in a daisy chain

Figure 3-1: Back and Front View of the CSU

To/From Network

T1 DDS T1 DDS

NETWORK NETWORK

DCE Connector

(Craft Port)

To/From

GLI

DTE DCEDATA PORT DATA PORT

T1 TERMINAL T1 TERMINAL

CONTROL

PORT

SLOT 1 SLOT 2

To/From

Network

GROUP

ADDRESS

Back View

Front View

SLOT 1SLOT 2

To/From

GLI

SHELF

ADDRESS

REF. FW00212

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-5

Span Lines – Interface and Isolation – continued

Alarm and Span Line Cable Pin/Signal Information

See Figure 3-2 and refer to Table 3-1 for the physical location and pin call–out information for the 50–pin punch block.

Figure 3-2: 50 Pair Punch Block

TO MODEM

CONNECTOR

STRAIN RELIEVE INCOMING

CABLE TO BRACKET WITH

TIE WRAPS

CONNECTOR

TO ALARMS

CONNECTOR

TO SP AN

Cabinet Power Entry

Compartment

TO RGD/RGPS

CONNECTOR

LEGEND

1T = PAIR 1 – TIP 1R = PAIR 1 –RING ” ” ” ” ” ”

3-6

TOP VIEW OF PUNCH BLOCK

SC 4812ETL BTS Optimization/ATP

1T 1R 2T 2R

49R

50T

50R

SC4812ETL0010–1

08/15/2000

PRELIMINARY

49T

Span Lines – Interface and Isolation – continued

POWER CABINET

LFR / HSO

PILOT BEACON

Table 3-1: Pin–Out for 50 Pin Punch Block

Site Component

Power Cab Control – NC 1T Blue Power Cab Control – NO 1R Blk/Blue Power Cab Control – Com 2T Y ellow Reserved 2R N/C Rectifier Fail 3T Blk/Yellow AC Fail 3R Green

POWER CABINET

LFR / HSO

Power Cab Exchanger Fail 4T Blk/Grn Power Cab Door Alarm 4R White Power Cab Major Alarm 5T Blk/Whit Battery Over T emp 5R Red Power Cab Minor Alarm 6T Blk/Red Reticifier Over T emp 6R Brown Power Cab Alarm Rtn 7T Blk/Brn LFR_HSO_GND 7R EXT_1PPS_POS 8T EXT_1PPS_NEG 8R CAL_+ 9T CAB_– 9R LORAN_+ 10T LORAN_– 10R Pilot Beacon Alarm – Minor 11T Pilot Beacon Alarm – Rtn 11R Pilot Beacon Alarm – Major 12T Pilot Beacon Control – NO 12R Pilot Beacon Control–COM 13T Pilot Beacon Control – NC 13R

Signal Name Pin Color

. . . continued on next page

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-7

Span Lines – Interface and Isolation – continued

CUSTOMER

SPAN

Table 3-1: Pin–Out for 50 Pin Punch Block

Site Component

Customer Outputs 1 – NO 14T Customer Outputs 1 – COM 14R Customer Outputs 1 – NC 15T Customer Outputs 2 – NO 15R Customer Outputs 2 – COM 16T Customer Outputs 2 – NC 16R Customer Outputs 3 – NO 17T Customer Outputs 3 – COM 17R

CUSTOMER

OUTPUTS / INPUTS

Customer Outputs 3 – NC 18T Customer Outputs 4 – NO 18R Customer Outputs 4–COM 19T Customer Outputs 4 – NC 19R Customer Inputs 1 20T Cust_Rtn_A_1 20R Customer Inputs 2 21T Cust_Rtn_A_2 21R Customer Inputs 3 22T Cust_Rtn_A_3 22R Customer Inputs 4 23T Cust_Rtn_A_4 23R Customer Inputs 5 24T Cust_Rtn_A_5 24R Customer Inputs 6 25T Cust_Rtn_A_6 25R Customer Inputs 7 26T Cust_Rtn_A_7 26R Customer Inputs 8 27T Cust_Rtn_A_8 27R Customer Inputs 9 28T Cust_Rtn_A_9 28R Customer Inputs 10 29T Cust_Rtn_A_10 29R RVC_TIP_A 30T RVC_RING_A 30R XMIT_TIP_A 31T XMIT_RING_A 31R RVC_TIP_B 32T RVC_RING_B 32R XMIT_TIP_B 33T XMIT_RING_B 33R RVC_TIP_C 34T RVC_RING_C 34R XMIT_TIP_C 35T XMIT_RING_C 35R RVC_TIP_D 36T RVC_RING_D 36R XMIT_TIP_D 37T XMIT_RING_D 37R RVC_TIP_E 38T RVC_RING_E 38R XMIT_TIP_E 39T XMIT_RING_E 39R RVC_TIP_F 40T RVC_RING_F 40R XMIT_TIP_F 41T XMIT_RING_F 41R

. . . continued on next page

ColorPinSignal Name

3-8

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Span Lines – Interface and Isolation – continued

RGPS

Table 3-1: Pin–Out for 50 Pin Punch Block

Site Component

GPS_POWER_1+ 42T Blue GPS_POWER_1– 42R Bk/Blue GPS_POWER_2+ 43T Y ellow GPS_POWER_2– 43R Bk/Y ellow GPS_RX+ 44T White GPS_RX– 44R White GPS_TX+ 45T Green GPS_TX– 45R Green Signal Ground (TDR+) 46T Red Master Frame (TDR–) 46R Bk/Red GPS_lpps+ 47T Brown GPS_lpps– 47R Bk/Brn

one Line

scellaneous

T elco_Modem_T 48T T elco_Modem_R 48R Chasis Ground 49T Reserved 49R Reserved 50T Reserved 50R

ColorPinSignal Name

T1/E1 Span Isolation

Table 3-2 describes the action required for span isolation.

Table 3-2: T1/E1 Span Isolation

Step Action

1 Have the OMC/CBSC disable the BTS and place it OOS. 2 To disable the span lines, use Table 3-1 to locate the pins for the span or spans which must be disabled

and remove the respective surge protector(s).

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-9

Preparing the LMF

Overview

Before optimization can be performed, the CDMA LMF must be installed and configured on a computer platform meeting Motorola–specified requirements (see Recommended Test Equipment and Software in Chapter 1).

IMPORTANT

Software and files for installing and updating the CDMA LMF are provided on CD ROM disks. The following items must be available:

For the CDMA LMF graphics to display properly, the computer platform must be configured to display more than 256 colors. See the operating system software instructions for verifying and configuring the display settings.

S CDMA LMF Program on CD ROM S CDMA LMF Binaries on CD ROM S Configuration Data File (CDF) for each supported BTS (on floppy

disk)

S CBSC File for each supported BTS (on floppy disk)

The following section provides information and instructions for installing and updating CDMA LMF software and files.

LMF Installation and Update Procedures

NOTE

First Time Installation Sequence:

S Install Java Runtime Environment (JRE) (First) S Install U/WIN K–shell emulator (Second) S Install LMF software (Third) S Install BTS Binaries (Fourth) S Install/create BTS folders (Fifth)

Follow the procedure in Table 3-3 to:

1. Install the CDMA LMF program using the CDMA LMF CD ROM

2. Install binary files using the CDMA LMF CD ROM

Table 3-3: CD ROM Installation

n Step Action

1 Insert the CDMA LMF CD ROM disk into your disk drive.

S If the Setup screen appears, follow the instructions displayed on the screen. S If the Setup screen is not displayed, proceed to Step 2.

2 Click on the Start button

3-10

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Preparing the LMF – continued

n ActionStep

3 Select Run. 4 Enter d:\autorun in the Open box and click OK.

NOTE

(If applicable, replace the letter d with the correct CD ROM drive letter.)

5 Follow the directions displayed in the Setup screen.

Copy CBSC CDF Files to the LMF Computer

Table 3-3: CD ROM Installation

Before logging on to a BTS with the CDMA LMF computer to execute optimization/ATP procedures, the correct bts-#.cdf and

cbsc-#.cdf files must be obtained from the CBSC and put in a bts-# folder in the CDMA LMF computer. This requires creating

versions of the CBSC CDF files on a DOS–formatted floppy diskette and using the diskette to install the CDF files on the CDMA LMF computer.

IMPORTANT

When copying CDF files, comply with the following to prevent BTS login problems with the Windows LMF:

S The numbers used in the bts-#.cdf and

cbsc-#.cdf filenames must correspond to the

locally–assigned numbers for each BTS and its controlling CBSC.

S The generic cbsc–1.cdf file supplied with the Windows

LMF will work with locally numbered BTS CDF files. Using this file will not provide a valid optimization unless the generic file is edited to replace default parameters (e.g., channel numbers) with the operational parameters used locally.

The procedure in Table 3-4 lists the steps required to transfer the CDF files from the CBSC to the CDMA LMF computer. For any further information, refer to the CDMA LMF Operator’s Guide (Motorola part no. 68P64114A21) or the CDMA LMF Help screen.

Table 3-4: Copying CBSC CDF Files to the LMF Computer

Step Action

1 Login to the CBSC workstation. 2 Insert a DOS–formatted floppy diskette in the workstation drive. 3 Type eject –q and press the Enter key.

08/15/2000

SC 4812ETL BTS Optimization/ATP

. . . continued on next page

3-11

PRELIMINARY

Preparing the LMF – continued

Table 3-4: Copying CBSC CDF Files to the LMF Computer

Step Action

4 Type mount and press the Enter key.

NOTE

S Look for the “floppy/no_name” message on the last line displayed. S If the eject command was previously entered, floppy/no_name will be appended with a number.

5 Change to the directory, where the files to be copied reside, by typing cd <directoryname>

6 Type ls and press the Enter key to display the list of files in the directory. 7 With Solaris versions of Unix, create DOS–formatted versions of the bts–#.cdf and cbsc–#.cdf files on

Use the explicit floppy/no_name reference displayed when performing step 7.

(e.g., cd bts–248) and pressing the Enter key.

the diskette by entering the following command:

unix2dos <source filename> /floppy/no_name/<target filename> (e.g., unix2dos bts–248.cdf /floppy/no_name/bts–248.cdf).

NOTE

S Other versions of Unix do not support the unix2dos and dos2unix commands. In these cases, use

the Unix cp (copy) command. The copied files will be difficult to read with a DOS or Windows text editor because Unix files do not contain line feed characters. Editing copied CDF files on the CDMA LMF computer is, therefore, not recommended.

S Using cp, multiple files can be copied in one operation by separating each filename to be copied

with a space and ensuring the destination directory (floppy/no_name) is listed at the end of the command string following a space (e.g., cp bts–248.cdf cbsc–6.cdf /floppy/no_name).

8 Repeat steps 5 through 7 for each bts–# which must be supported by the CDMA LMF computer. 9 When all required files have been copied to the diskette type eject and press the Enter key.

10 Remove the diskette from the CBSC drive. 11 If it is not running, start the Windows operating system on the CDMA LMF computer. 12 Insert the diskette containing the bts–#.cdf and cbsc–#.cdf files into the CDMA LMF computer. 13 Using MS Windows Explorer, create a corresponding bts–# folder in the wlmf\cdma directory for each

bts–#.cdf/cbsc–#.cdf file pair copied from the CBSC.

14 Use MS Windows Explorer to transfer the cbsc–#.cdf and bts–#.cdf files from the diskette to the

corresponding wlmf\cdma\bts–# folders created in step 13.

3-12

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Preparing the LMF – continued

Creating a Named HyperTerminal Connection for MMI Communication

Table 3-5: Create HyperTerminal Connection

Confirming or changing the configuration data of certain BTS Field Replaceable Units (FRU) requires establishing an MMI communication session between the CDMA LMF computer and the FRU. Using features of the Windows operating system, the connection properties for an MMI session can be saved on the CDMA LMF computer as a named Windows HyperTerminal connection. This eliminates the need for setting up connection parameters each time an MMI session is required to support optimization.

Once the named connection is saved, a shortcut for it can be created on the Windows desktop. Double–clicking the shortcut icon will start the connection without the need to negotiate multiple menu levels.

Follow the procedures in Table 3-5 to establish a named HyperTerminal connection and create a Windows desktop shortcut for it.

Step Action

1 From the Windows Start menu, select:

Programs > Accessories

2 Select Communications, double click the Hyperterminal folder, and then double click on the

Hypertrm.exe icon in the window which opens.

NOTE

S If a Location Information Window appears, enter the required information, then click on the

Close button. (This is required the first time, even if a modem is not to be used.)

S If a You need to install a modem..... message appears, click on NO.

3 When the Connection Description box opens:

– Type a name for the connection being defined (e.g., MMI Session) in the Name: window, – Highlight any icon preferred for the named connection in the Icon: chooser window, and – Click OK.

NOTE

For CDMA LMF computer configurations where COM1 is used by another interface such as test equipment and a physical port is available for COM2, select COM2 in the following step to prevent conflicts.

4 From the Connect using: pick list in the Connect To box displayed, select Direct to Com 1 or Direct

to Com 2 for the RS–232 connection port, and click OK.

. . . continued on next page

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-13

Preparing the LMF – continued

Table 3-5: Create HyperTerminal Connection

Step Action

5 In the Port Settings tab of the COM# Properties window displayed, configure the RS–232 port

settings as follows:

S Bits per second: 9600 S Data bits: 8

S Parity: None S Stop bits: 1 S Flow control: None

6 Click OK. 7 Save the defined connection by selecting:

File > Save

8 Close the HyperTerminal window by selecting:

File > Exit

9 Click the Yes button to disconnect when prompted.

10 If the Hyperterminal folder window is still open, proceed to step 12. 11 Select Communications and double click the Hyperterminal folder. 12 Highlight the newly–created connection icon by clicking on it. 13 Right click and drag the highlighted connection icon to the Windows desktop and release the right

mouse button.

14 From the popup menu which appears, select Create Shortcut(s) Here. 15 If desired, reposition the shortcut icon for the new connection by dragging it to another location on the

Windows desktop.

16 Close the Hyperterminal folder window by selecting:

File > Close

3-14

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Preparing the LMF – continued

Folder Structure Overview

The CDMA LMF uses a wlmf folder that contains all of the essential data for installing and maintaining the BTS. The following list outlines the folder structure for CDMA LMF. Except for the bts-nnn folders, these folders are created as part of the CDMA LMF installation.

wlmf

Folder

Figure 3-3: CDMA LMF Folder Structure

(C:)

wlmf

folder

cdma

folder

BTS–nnn

required for each BTS where bts–nnn is the unique BTS number; for example, bts–163.)

loads

folders (A separate folder is

folder

version folder (A separate folder is required for each different version; for example, a folder name 2.8.1.1.1.5.)

code

data

folder

cdma

Folder

bts–nnn Folders

08/15/2000

The wlmf folder contains the CDMA LMF program files.

The cdma folder contains the bts–nnn folders and the loads folder. It also contains a default cbsc–1.cdf file that can be copied to a bts–nnn folder for use, if one cannot be obtained from the CBSC (Centralized Base Station Controller) when needed.

Each bts–nnn folder contains a CAL file, a CDF file and a cbsc file for the BTS. Other files required by CDMA LMF may also be located in the bts–nnn folder. A bts–nnn folder must be created for each BTS that is to be logged in to. The bts–nnn folder must be correctly named (for example: bts–273) and must be placed in the cdma folder. Figure 3-4 shows an example of the file naming syntax for a BTS folder.

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-15

Preparing the LMF – continued

Figure 3-4: BTS Folder Name Syntax Example

bts–259

BTS Number

bts–nnn.cal

File

The CAL (Calibration) file contains the bay level offset data (BLO) that is used for BLO downloads to the BBX devices. The CAL file is automatically created and updated by the CDMA LMF when TX calibration is performed. Figure 3-5 details the file name syntax for the CAL file.

Figure 3-5: CAL File Name Syntax Example

bts–259.cal

BTS Number

bts–nnn.cdf

File

The CDF file contains data that defines the BTS and data that is used to download data to the devices. A CDF file must be placed in the applicable BTS folder before the CDMA LMF can be used to log into that BTS. CDF files are normally obtained from the CBSC using a floppy disk. A file transfer protocol (ftp) method can be used if the CDMA LMF computer has that capability. Figure 3-6 details the file name syntax for the CDF file.

3-16

Figure 3-6: CDF Name Syntax Example

bts–259.cdf

BTS Number

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Preparing the LMF – continued

cbsc

File

The cbsc–#.cdf (Centralized Base Station Controller) file contains data for the BTS. If one is not obtained from the CBSC, a copy of the default cbsc–1.cdf file located in the cdma folder can be used.

IMPORTANT

loads

version

code

Folder

The loads folder contains the version folder(s). It does not contain any files.

The version folder(s) contains the code and data folders. It does not contain any files. The name of version folders is the software version number of the code files that are included in its code folder. Version folders are created as part of the CDMA LMF installation and CDMA LMF updates. Each time the CDMA LMF is updated, another version folder will be created with the number of the software version for the code files being installed.

Using the generic cbsc–1.cdf file will not provide a valid optimization unless the generic file is edited to replace default parameters with local operational parameters (e.g., CDMA channel numbers must be changed from the default “384” to those used locally by the BTS).

08/15/2000

The code folder contains the binary files used to load code into the devices. A unique binary code file is required for each device type in the BTS to be supported with the CDMA LMF. Current version code files for each supported device created in this folder from the CDMA LMF CD ROM as part of the CDMA LMF installation/update process. Figure 3-7 shows an example of the file naming syntax for a code load file.

SC 4812ETL BTS Optimization/ATP

3-17

PRELIMINARY

Preparing the LMF – continued

Figure 3-7: Code Load File Name Syntax Example

bbx_ram.bin.0600

Device Type

The device bin number can be determined by using the Status

function after logging into a BTS. If the device does not have a bin number , one of the following default numbers must be used.

GLI=0100 LCI=0300 MCC=0C00 BBX=0600 BDC=0700 CSM=0800 TSU=0900 LPAC=0B00 MA WI=0D00

Hardware bin number If this number matches

the bin number of the device, the code file will automatically be used for the download*

If a code file with the correct version and bin numbers is not found, a file selection window will appear.

data Folder

The data folder contains a DDS (Device Definition Structure) data file for each supported device type. The DDS files are used to specify the CDF file data that is used to download data to a device. Current version DDS files for each supported device type are created in this folder from the CDMA LMF CD ROM as part of the CDMA LMF installation or update process. Figure 3-8 shows an example of the file naming syntax for a code load file.

3-18

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Preparing the LMF – continued

Figure 3-8: DDS File Name Syntax Example

csm.dds.0800

Device Type

The device bin number can be determined by using the Status

function after logging into a BTS. If the device does not have a bin number , one of the following default numbers must be used.

Device Bin Type Number If this number matches the bin

number of the device, the DDS file will automatically be used for the download*

GLI=0100 LCI=0300 MCC=0C00 BBX=0600 BDC=0700 CSM=0800 TSU=0900 LPAC=0B00

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-19

LMF to BTS Connection

The CDMA LMF computer is connected to the LAN A or B connector located behind the frame lower air intake grill. Figure 3-9 below shows the general location of these connectors.

Table 3-6: Connect the LMF to the BTS

Step Action

1 To gain access to the LAN connectors, open the LAN cable and utility shelf access panel, then pull

apart the hook–and–loop tape covering the BNC “T” connector. If desired, slide out the utility shelf

for the LMF computer.

2 Connect the CDMA LMF computer to the LAN A (left–hand) BNC connector via PCMCIA Ethernet

Adapter.

NOTE

Xircom Model PE3–10B2 or equivalent can also be used to interface the CDMA LMF Ethernet connection to the BTS frame connected to the PC parallel port, powered by an external AC/DC transformer. In this case, the BNC cable must not exceed three feet in length.

* IMPORTANT

The LAN shield is isolated from chassis ground. The LAN shield (exposed portion of BNC connector)

must not touch the chassis during optimization.

Figure 3-9: LMF Connection Detail

NOTE:

Open LAN CABLE ACCESS door . Pull apart V elcro tape and gain access to the LAN A or LAN B LMF BNC connector.

LMF COMPUTER TERMINAL WITH

MOUSE

3-20

LMF BNC “T” CONNECTIONS

ON LEFT SIDE OF FRAME

(ETHERNET “A” SHOWN;

ETHERNET “B” COVERED

WITH VELCRO TAPE)

PCMCIA ETHERNET

ADPATER & ETHERNET

UTP ADAPTER

10BASET/10BASE2

CONVERTER

DIRECTLY TO BNC T

CONNECTS

UNIVERSAL TWISTED

PAIR (UTP) CABLE (RJ11

CONNECTORS)

115 VAC POWER

CONNECTION

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

SC4812ETL0012–1

08/15/2000

Using CDMA LMF

Basic CDMA LMF Operation

The CDMA LMF allows the user to work in the two following operating environments which are accessed using the specified desktop icons:

S Graphical User Interface (GUI) using the WinLMF icon S Command Line Interface (CLI) using the WinLMF CLI icon

The GUI is the primary optimization and acceptance testing operating environment. The CLI environment provides additional capability to the user to perform manually controlled acceptance tests and audit the results of optimization and calibration actions.

Basic operation of the CDMA LMF in either environment includes performing the following:

S Selecting and Deselecting BTS devices S Enabling devices S Disabling devices S Resetting devices S Obtaining device status

Logging Into a BTS

The following additional basic operation can be performed in a GUI environment:

S Sorting a status report window

For detailed information on performing these and other CDMA LMF operations, refer to the CDMA LMF Operator’s Guide – 68P64114A21.

IMPORTANT

Unless otherwise noted, LMF procedures in this manual are performed using the GUI environment.

WARNING

Be sure that the correct bts–#.cdf and cbsc–#.cdf file is used for the BTS. These should be the CDF files that are provided for the BTS by the CBSC. Failure to use the correct CDF files can result in invalid optimization.

Failure to use the correct CDF files to log into a live (traffic–carrying) site can shut down the site.

08/15/2000

Logging into a BTS establishes a communications link between the BTS and the CDMA LMF. You may be logged into one or more BTSs at a time, but only one CDMA LMF may be logged into each BTS.

Before attempting to start the CDMA LMF computer and the CDMA LMF software, confirm the CDMA LMF computer is properly connected

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-21

Using CDMA LMF – continued

to the BTS (see Table 3-6). Follow the procedures in Table 3-7 to log into a BTS.

Prerequisites

Before attempting to login to a BTS, ensure the following have been completed:

S The CDMA LMF is correctly installed and prepared.

S A bts-nnn folder with the correct CDF and CBSC files exists. S The CDMA LMF computer was connected to the BTS before starting

the Windows operating system and the CDMA LMF software. If necessary, restart the computer after connecting it to the BTS in accordance with Table 3-6 and NO TAG.

BTS Login from the GUI Environment

Follow the procedures in Table 3-7 to log into a BTS when using the GUI environment.

Table 3-7: BTS GUI Login Procedure

n Step Action

1 Start the CDMA LMF GUI environment by double–clicking on the WinLMF desktop icon (if the

LMF is not running).

NOTE

If a warning similar to the following is displayed, select No, shut down other LMF sessions which may be running, and start the CDMA LMF GUI environment again:

The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application?

3-22

Yes No

2 Click on Login tab (if not displayed). 3 Double click on CDMA (in the Available Base Stations pick list). 4 Click on the desired BTS number. 5 Click on the Network Login tab (if not already in the forefront). 6 Enter correct IP address (normally 128.0.0.2) for a field BTS, if not correctly displayed in the IP

Address box. 7 Type in the correct IP Port number (normally 9216) if not correctly displayed in the IP Port box. 8 Change the Multi-Channel Preselector from the Multi-Channel Preselector pick list (normally

MPC) to a device corresponding to your BTS configuration, if required. 9 Click on the Use a Tower Top Amplifier, if applicable.

. . . continued on next page

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Using CDMA LMF – continued

Table 3-7: BTS GUI Login Procedure

n ActionStep

10 Click on Login. (A BTS tab with the BTS is displayed.)

NOTE

S If you attempt to log into a BTS that is already logged on, all devices will be gray.

S There may be instances where the BTS initiates a log out due to a system error (i.e., a device

failure).

S If the MGLI is OOS–ROM (blue), it must be downloaded with RAM code before other devices

can be seen.

S If the MGLI is OOS–RAM (yellow), it must be enabled before other installed devices can be

seen.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-23

Using CDMA LMF – continued

BTS Login from the CLI Environment

Follow the procedures in Table 3-8 to log into a BTS when using the CLI environment.

IMPORTANT

Table 3-8: BTS CLI Login Procedure

n Step Action

1 Double–click the WinLMF CLI desktop icon (if the LMF CLI environment is not already

running).

If the CLI and GUI environments are to be used at the same time, the GUI must be started first and BTS login must be performed from the GUI. Refer to Table 3-7 to start the GUI environment and log into a BTS.

NOTE

If a BTS was logged into under a GUI session before the CLI environment was started, the CLI

session will be logged into the same BTS, and step 2 is not required. 2 At the /wlmf prompt, enter the following command:

where:

host = MGLI card IP address (defaults to address last logged into for this BTS or 128.0.0.2 if this

is first login to this BTS)

port = IP port of the BTS (defaults to port last logged into for this BTS or 9216 if this is first login

to this BTS)

<bts#> <host> <port>

Logging Out

3-24

A response similar to the following will be displayed:

LMF> 13:08:18.882 Command Received and Accepted COMMAND=login bts–33

13:08:18.882 Command In Progress

13:08:21.275 Command Successfully Completed REASON_CODE=”No Reason”

Logging out of a BTS is accomplished differently for the GUI and CLI operating environments.

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Using CDMA LMF – continued

IMPORTANT

Logging Out of a BTS from the GUI Environment

Follow the procedure in Table 3-9 to logout of a BTS when using the GUI environment.

Table 3-9: BTS GUI Logout Procedure

n Step Action

1 Click on Select on the BTS tab menu bar. 2 Click the Logout item in the pulldown menu (a Confirm Logout pop-up message will appear). 3 Click on Yes (or press the Enter key) to confirm logout. The Login tab will appear.

The GUI and CLI environments use the same connection to a BTS. If a BTS is logged into in both the GUI and CLI environments at the same time, logging out of the BTS in either environment will log out of it for both. When the logout is performed in the CLI window, there is no GUI indication that logout has occurred.

NOTE

If a logout was previously performed on the BTS from a CLI window running at the same time as

the GUI, a Logout Error popup message will appear stating the system could not log out of the

BTS. When this occurs, the GUI must be exited and restarted before it can be used for further

operations.

4 If a Logout Error popup message appears stating that the system could not log out of the Base

Station because the given BTS is not logged in, click OK and proceed to step 5. 5 Select File > Exit in the window menu bar, click Yes in the Confirm Logout popup, and click

Yes in the Logout Error popup which appears again. 6 If further work is to be done in the GUI, restart it.

NOTE

S The Select menu on the BTS tab will only log you out of the displayed BTS.

S You can also log out of all BTS sessions and exit CDMA LMF by clicking on the File selection

in the menu bar and selecting Exit from the File menu list. A Confirm Logout pop–up message will appear.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-25

Using CDMA LMF – continued

Logging Out of a BTS from the CLI Environment

Follow the procedure in Table 3-10 to logout of a BTS when using the CLI environment.

Table 3-10: BTS CLI Logout Procedure

n Step Action

* IMPORTANT

If the BTS is also logged into from a GUI running at the same time and further work must be done

with it in the GUI, proceed to step 2. 1 Logout of a BTS by entering the following command:

logout bts–

A response similar to the following will be displayed:

LMF> 13:24:51.028 Command Received and Accepted COMMAND=logout bts–33

13:24:51.028 Command In Progress

13:24:52.04 Command Successfully Completed REASON_CODE=”No Reason”

2 If desired, close the CLI interface by entering the following command:

exit

A response similar to the following will be displayed before the window closes:

Killing background processes....

Establishing an MMI Communication Session

<bts#>

For those procedures which require MMI communication between the CDMA LMF and BTS FRUs, follow the procedures in Table 3-11 to initiate the communication session.

Figure 3-10 illustrates common equipment connections for the CDMA LMF computer. For specific connection locations on FRUs, refer to the illustration accompanying the procedures which require the MMI communication session.

Table 3-11: Establishing MMI Communication

Step Action

1 Connect the CDMA LMF computer to the equipment as detailed in the applicable procedure which

requires the MMI communication session.

2 Start the named HyperTerminal connection for MMI sessions by double clicking on its Windows

desktop shortcut.

. . . continued on next page

3-26

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

08/15/2000

Using CDMA LMF – continued

Table 3-11: Establishing MMI Communication

Step Action

NOTE

If a Windows desktop shortcut was not created for the MMI connection, access the connection from the Windows Start menu by selecting:

Programs > Accessories > Hyperterminal > HyperTerminal > <Named HyperTerminal Connection (e.g., MMI Session)>

3 Once the connection window opens, establish MMI communication with the BTS FRU by pressing

the CDMA LMF computer Enter key until the prompt identified in the applicable procedure is obtained.

Figure 3-10: CDMA LMF Computer Common MMI Connections

T o FRU MMI port

CDMA LMF COMPUTER

Online Help

8–PIN

COM1 COM2

8–PIN TO 10–PIN RS–232 CABLE (P/N 30–09786R01)

RS–232 CABLE

DB9–TO–DB25 ADAPTER

NULL MODEM

BOARD

(TRN9666A)

Task oriented online help is available in CDMA LMF by clicking on Help in the menu bar.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-27

Pinging the Processors

Pinging the BTS

For proper operation, the integrity of the Ethernet LAN A and B links must be be verified. NO TAG represents a typical BTS Ethernet configuration. The drawing depicts one (of two identical) links, A and B.

Ping is a program that sends request packets to the LAN network modules to get a response from the specified “target” module.

Follow the steps in Table 3-12 to ping each processor (on both LAN A and LAN B) and verify LAN redundancy is working properly.

CAUTION

Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD.

Figure 3-11: BTS Ethernet LAN Interconnect Diagram

OUT

50Ω

SIGNAL GROUND

CHASSIS GROUND

RFGPS

RGD/RGPS

50Ω

SIGNAL GROUND

RFGPS

RGD/RGPS

3-28

SC4812ETL

(MASTER)

50Ω

SIGNAL GROUND

50 Pair

Punch

Block

LAN

(Alarms/

Spans)

Spans

Alarms

Modem

IN OUT

A B

SC 4812ETL BTS Optimization/ATP

SC4812ETL

(EXPANSION)

SIGNAL GROUND

50Ω

Spans

Alarms

Modem

LAN

IN OUT

A B

(Alarms/

CHASSIS GROUND

SC4812ETL0013–1

08/15/2000

PRELIMINARY

50 Pair

Punch

Block

Spans)

Map Title Goes Here – continued

IMPORTANT

Table 3-12: Pinging the Processors

Step Action

1 From the Windows desktop, click the Start button and select Run. 2 In the Open box, type ping and the GLI2 IP address (for example, ping 128.0.0.2).

The Ethernet LAN A and B cables must be installed on each frame/enclosure before performing this test. All other processor board LAN connections are made via the backplanes.

NOTE

128.0.0.2 is the default IP address for the GLI2 in field BTS units.

3 Click on the OK button. 4 If the targeted module responds, text similar to the following is displayed:

Reply from 128 128.0.0.2: bytes=32 time=3ms TTL=255

If there is no response the following is displayed:

Request timed out

If the GLI2 fails to respond, it should be reset and re–pinged. If it still fails to respond, typical problems are shorted BNC to inter-frame cabling, open cables, crossed A and B link cables, or the GLI2 itself.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-29

Download the BTS

Overview

Before a BTS can operate, each equipped device must contain device initialization (ROM) code. ROM code is loaded in all devices during manufacture or factory repair. Device application (RAM) code and data must be downloaded to each equipped device by the user before the BTS can be made fully functional for the site where it is installed.

ROM Code

Downloading ROM code to BTS devices from the CDMA LMF is NOT routine maintenance or a normal part of the optimization process. It is

only done in unusual situations where the resident ROM code in the device does not match the release level of the site operating software AND the CBSC can not communicate with the BTS to perform the download. An example would be a BTS loaded with Release 9.2 software where a GLI loaded with Release 2.8.1 ROM code must be installed to replace a malfunctioning MGLI.

Before ROM code can be downloaded from the CDMA LMF, the correct ROM code file for each device to be loaded must exist on the LMF computer. ROM code must be manually selected for download.

ROM code can be downloaded to a device that is in any state. After the download is started, the device being downloaded will change to OOS–ROM (blue). The device will remain OOS–ROM (blue) when the download is completed. The same Revision–level RAM code must then be downloaded to the device. For example, if Release 2.9.2.1.1 ROM code is downloaded, Release 2.9.2.1.1 RAM code must be downloaded.

Procedures to load ROM code are located in Appendix G.

RAM Code

3-30

Before RAM code can be downloaded from the CDMA LMF, the correct RAM code file for each device must exist on the LMF computer. RAM code can be automatically or manually selected depending on the Device menu item chosen and where the RAM code file for the device is stored in the CDMA LMF file structure. The RAM code file will be selected automatically if the file is in the \lmf\cdma\loads\n.n.n.n\code folder (where n.n.n.n is the version number of the download code that matches the “NextLoad” parameter of the CDF file). The RAM code file in the code folder must have the correct hardware bin number.

RAM code can be downloaded to a device that is in any state. After the download is started, the device being loaded will change to OOS-ROM (blue). When the download is completed successfully, the device will change to OOS-RAM (yellow). When code is downloaded to an MGLI or GLI, the CDMA LMF automatically also downloads data and then enables the MGLI. When enabled, the MGLI will change to INS (green).

For non–GLI devices, data must be downloaded after RAM code is downloaded. To download data, the device state must be OOS–RAM (yellow).

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY

Download the BTS – continued

The devices to be loaded with RAM code and data are:

S Master Group Line Interface (MGLI2) S Redundant GLI (GLI2) S Clock Syncronization Module (CSM) (Only if new revision code must

be loaded)

S Multi Channel CDMA (MCC24) card S Broadband Transceiver (BBX2) S RFDS Test Subscriber Interface Card (TSIC), if equipped

IMPORTANT

RAM code downloading requires a few minutes. After the download starts, the non–GLI device being loaded changes to OOS–ROM (blue). If the download is completed successfully, the non–GLI device changes to OOS–RAM (yellow).

The MGLI must be successfully downloaded with RAM code and data, and in INS (green) status before downloading any other device. The RAM code download process for an MGLI automatically downloads data and then enables the MGLI.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-31

Download the BTS – continued

Download RAM Code and Data to MGLI and GLI

Follow the steps outlined in Table 3-13 to download the RAM code and data to the MGLI and other installed GLI devices.

CAUTION

Release 2.9.x RAM code must NOT be downloaded to a device loaded with Release 2.8.x ROM code, and Release

2.8.x RAM code must NOT be downloaded to a device loaded with Release 2.9.x ROM code.

All devices in a BTS must have the same Release–level ROM and RAM code before the optimization and ATP procedures can be performed.

If a newly–installed Release 8–equipped BTS is to be upgraded to Release 2.9.x, the optimization and Acceptance Test Procedures (ATP) should be accomplished with the Release 2.8.x code and software. Following the optimization, the site code and software should be upgraded to Release 2.9.x by the CBSC. It is not necessary to perform the optimization and ATPs again after the upgrade.

If a replacement device with Release 2.8.x ROM code must be used in a Release 2.9.x–equipped BTS, the device ROM code can be changed using the CDMA LMF before the performing the BTS optimization and ATPs. A device

loaded with Release 2.9.x ROM code can not be converted back to Release 2.8.x ROM code in the field without Motorola assistance.

Prerequisites

S Prior to performing these procedures, ensure a code file exists for each

of the devices to be loaded.

S The CDMA LMF computer is connected to the BTS (refer to

Table 3-6), and is logged in using the GUI environment (refer to Table 3-7).

Table 3-13: Download and Enable MGLI and GLI Devices

Step Action

1 From the Util pull down menu, select Tools, then Update NextLoad. 2 Select the correct code version and click Save. 3 Download code to the MGLI by clicking on the device. 4 From the Device pull down menu, select Download Code.

A status report is displayed confirming change in the device(s) status. Click OK to close the status window. (The MGLI will automatically be downloaded with data and enabled.)

3-32

SC 4812ETL BTS Optimization/ATP

. . . continued on next page

08/15/2000

PRELIMINARY

Download the BTS – continued

Table 3-13: Download and Enable MGLI and GLI Devices

Step Action

5 Once the MGLI is enabled, load and enable additional installed GLIs by clicking on the devices and

repeating step 4.

6 Click OK to close the status window for the additional GLI devices.

Download RAM Code and Data to Non–GLI Devices

Downloads to non–GLI devices can be performed individually for each device or all installed devices can be downloaded with one action. RAM code and data are downloaded to non–GLI devices in separate steps.

IMPORTANT

Follow the steps in Table 3-14 to download RAM code and data to non–GLI devices.

CSM devices are RAM code–loaded at the factory. RAM code is downloaded to CSMs only if a newer software version needs to be loaded.

NOTE

When downloading to multiple devices, the download may fail for some of the devices (a time–out occurs). These devices can be loaded individually after completing the multiple download.

Table 3-14: Download RAM Code and Data to Non–GLI Devices

Step Action

1 Select the target CSM, BDC, MCC, BBX, and ELPA Gateway device(s). 2 From the Device pull down menu, select Download Code.

A status report is displayed that shows the results of the download for each selected device.

3 Click OK to close the status report window when downloading is completed.

NOTE

After a BBX, CSM, MCC, or ELPA Gateway device is successfully loaded with RAM code and has changed to the OOS–RAM state (yellow), the status LED should be rapidly flashing GREEN.

4 To download data, select the target CSM, BDC, MCC, BBX, and ELPA Gateway device(s). 5 From the Device pull down menu, select Download Data.

A status report is displayed that shows the results of the download for each selected device.

6 Click OK to close the status report window when downloading is completed.

08/15/2000

SC 4812ETL BTS Optimization/ATP

PRELIMINARY

3-33

Download the BTS – continued

Select CSM Clock Source

A CSM can have three different clock sources. The Select CSM Source function can be used to select the clock source for each of the three inputs. This function is only used if the clock source for a CSM needs to be changed. The Clock Source function provides the following clock source options.

S Local GPS

S Remote GPS S HSO (only for source 2 & 3) S LFR (only for source 2 & 3) S 10 MHz (only for source 2 & 3) S NONE (only for source 2 & 3)

Prerequisites

MGLI=INS_ACT (green), CSM= OOS_RAM (yellow) or INS_ACT (green)

Table 3-15: Select CSM Clock Source

Step Action

1 Select the applicable CSM(s). 2 Click on the Device menu. 3 Click on the Clock Source menu item. 4 Click on the Select menu item. A clock source selection window is displayed. 5 Select the applicable clock source in the Clock Refer ence Source pick lists. Uncheck the related

check box if you do not want the displayed pick list item to be used.

6 Click on the OK button. A status report window is displayed showing the results of the selection

action.

7 Click on the OK button to close the status report window.

Enable CSMs

3-34

Each BTS CSM system features two CSM boards per site. In a typical operation, the primary CSM locks its Digital Phase Locked Loop (DPLL) circuits to GPS signals. These signals are generated by either an on–board GPS module (RF–GPS) or a remote GPS receiver (R–GPS). The GPS receiver interfaced to CSM 1 is used as the primary timing reference and synchronizes the entire cellular system. CSM 2 provides clock syncronization redundancy, but does not have a GPS receiver.

The BTS may be equipped with a LORAN–C Low Frequency Receiver (LFR) High Stability Oscillator (HSO), or external 10 MHz Rubidium source which the CSM can use as a secondary timing reference. In all cases, the CSM monitors and determines what reference to use at a given time.

SC 4812ETL BTS Optimization/ATP

08/15/2000

PRELIMINARY
