CHAPTER 1 System Overview

1.1 Introduction

This chapter provides:

• A basic understanding of how a wireless router system functions

• How wireless systems self-configure

Wireless router networks bypass the wired local loop with fast “always­on” wireless Internet access.

The Nokia AIR™ Operating System (OS) provides intelligence, security
and ease of use to make wireless networks practical, simple to deploy,and
cost effective. Wireless Internet or intranet access across a network is
completely transparent to the end user.

The Nokia RoofTop™ Wireless Routers, Models R242/242A, are both
wireless Internet access devices and IP routers. The wireless router units
operate in a mesh network where line of sight access is required to only
one other wireless router.

Nokia RoofTop™ Wireless Routing Installation Guide 1

1.1.1 Configuration

When the units are configured and deployed, they adapt to the network
automatically to learn the network topology. The operating system then
builds and maintains the network topology and routing tables, and
continually updates them as the network changes.

Line of sight problems, common in point-to-multipoint networks, are
eliminated by routing traffic through other units. If a node cannot connect
directly to the AirHead, m ultihop routing protocols forward traffic
through another wireless router.

Operating system protocols optimize wireless links providing hop-by-hop
data integrity and efficient, intelligent multicasting. Protocols control
channel scheduling, neighbor authentication, and link maintenance, as
well as optimize routing in the wireless environment. By scheduling
traffic streams to non-conflicting transmission times and Radio
Frequency (RF) channels, quality-sensitive and/or bandwidth intensive
applications co-exist with standard applications.

1.1.2 Installation Components

Each installation consists of a Nokia RoofTop™ Wireless Router, RF
cabling, lightning protection, and an amplifier (optional). The antennas
mount on the roof, or in a location in line of sight to other antennas in the
network. RF cabling is run from the antenna to the wireless router, which
is mounted indoors.

A successful installation requires:

• Site analysis and proper planning (section 2.3)

• Placement of the antenna with line of sight to at least one antenna

in the network (section 2.3)

• Using appropriate antenna and cabling (Sections 2.4 and 2.5)

• Proper installation technique, including grounding and

weatherproofing (Section 2.6)

2 Nokia RoofTop™ Wireless Routing Installation Guide

Introduction

• Proper placement and mounting of the wireless router (Section

3.1)

• Proper use of cabling between the wireless router and the

subscribers’ PC/network (Section 3.1.7)

Nokia RoofTop™ Wireless Routing Installation Guide 3

4 Nokia RoofTop™ Wireless Routing Installation Guide

CHAPTER 2 Antenna Installation

2.1 Introduction

Chapter topics include:

• Site Analysis

• Line of Sight Analysis

• Antenna Selection

• Cables

• Outdoor Installation Procedures

• Safety Guidelines

• Required Installation Components

• Polarization

• Test Installation

• Grounding

• Weatherproofing

• Indoor Installation Procedures

Nokia RoofTop™ Wireless Routing Installation Guide 5

2.2SiteAnalysis

The goals of site analysis are:

2.2.1 RF Link Feasibility

Wireless routers operate in a “mesh” network—line of sight is required to
only one other radio in the network. The IP routing capability allows all
units to act as repeaters for other units.

Survey all obstructions to potential sites. For most installations use an
omnidirectional antenna. This assures maximum connectivity and allows
the unit to forward packets for existing and future needs.

NOTE: To maintain broadband data rates, it is recommended that

networks be kept within three hops.

• To determine the feasibility of RF links at each site

• To determine the antenna and cable requirements necessary to

provide service

2.2.1.1 Site Survey Steps

1. Determine if there are Line of Sight (LOS) paths for each proposed

link. Line of sight exists if there are no obstructions (for example,
trees, buildings, etc.) between the antennas. For best results, there
should be no obstructions between the two antennas. For long
distance paths there should be no obstacles close to the RF path.

2. Determine t he antenna location and maximum possible antenna

height. The height of the antenna is often dependent on the physical
limitations of the site. For example, an antenna mast can be placed on
a rooftop, an antenna can be installed on an existing structure or
tower, or the mast and antenna can be installed on the ground.

6 Nokia RoofTop™ Wireless Routing Installation Guide

Site Analysis

3. Determine the RF paths between the antenna at the site and the

antennas at adjacent sites. For a directional link with a single antenna,
there is only one RF path. For an omnidirectional antenna, determine
all RF paths. The RF path can be determined by knowing the relative
bearing f rom the current s ite to adjacent sites.

4. The feasibility of an RF link can be estimated based on:

• Distances between the potential sites

• The line of sight for the RF paths

• Antenna RF gains

• Cable losses

5. After one or more sites have been installed and are operational, test

each new site before completing the installation.

6. After determining the feasibility of the RF link, consider the

following:

• Hardware and tools necessary to complete the installation

• Wireless router installation location

• The RF cable routing between the wireless router and the antenna

• Power for the wireless router

• Ethernet cable routing

• Antenna grounding and lightning arrestor requirements

Nokia RoofTop™ Wireless Routing Installation Guide 7

2.3 Line of Sight Analysis

A quality antenna installation includes:

• Clear visual line of sight between antennas

• Clear radio line of sight between antennas

• Antenna and cable selection and mounting based on the site

requirements and limitations

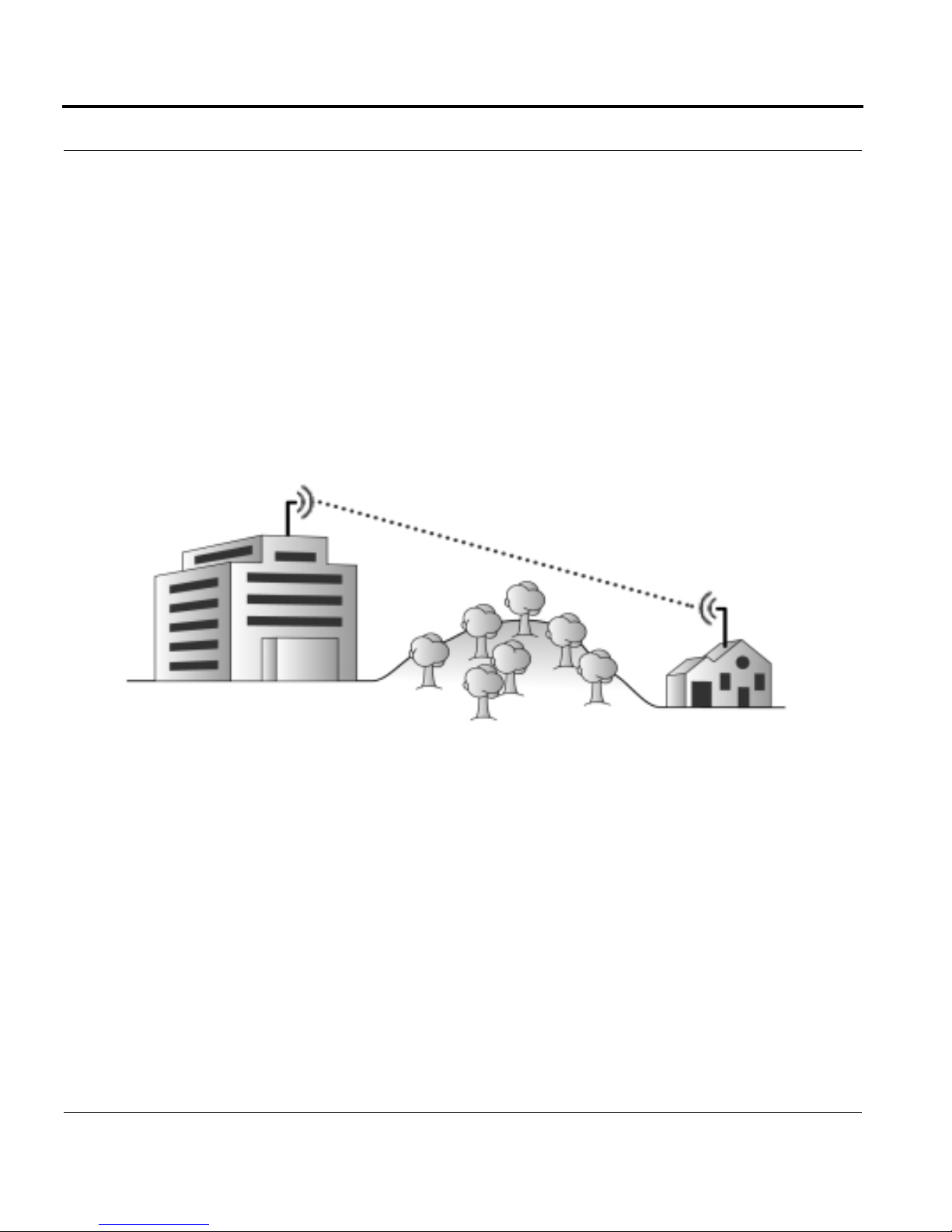

2.3.1 Visual Line of Sight

Visual line of sight exists when an imaginary straight line can be drawn
between two antennas without passing through any physical obstructions.
Verifying visual line of sight is the first step in planning. Observation
points must be high enough to allow the viewer to see over obstructions.

8 Nokia RoofTop™ Wireless Routing Installation Guide

Line of Sight Analysis

2.3.2 Radio Line of Sight

Fresnel Zone

Provide a clear radio path by raising the antenna as high as possible and
away from objects near the radio path. A radio wave is not like a laser
with a narrow, pointed beam. RF waves fan out from a single source and
are diffracted or absorbed by objects that are near the visual line of sight.
This area is called the Fresnel Zone. Clear radio line of sight exists when
there are no physical obstructions in the Fresnel Zone.

2.3.3 Fresnel Zone

Elevate antennas as high as practical above physical obstacles to avoid
obstructing the Fresnel Zone, the elliptical area adjacent to the path, that
could reflect unwanted signals into the primary path and reduce signal
levels. The Fresnel Zone must be considered when installing antennas.

2.3.4 Antenna Height

All antennas have a limited vertical radiation pattern. If nearby antennas
are placed at different heights, verify that the vertical line of sight angle
falls within the antenna specifications for a good link.

Nokia RoofTop™ Wireless Routing Installation Guide 9

2.4 Antenna Selection

2.4.1 Omnidirectional Antennas

Omnidirectionalantennas radiate spherically, providing equal coverage in
all directions, and are best for multi-point links and forwarding sites.
Because they receive and transmit signals in all directions, they are the
best antenna for most installations.

Omnidirectional Antennas - Radiation Pattern

Side View Top View

2.4.2 Directional Antennas

Directional antennas focus their RF beam in narrow patterns in one
direction. Directional antennas provide communications over longer
ranges than omnidirectional antennas, but are much more limited in the
areas they cover. Directional antennas maximize link distances. They are
also effective for simple, dedicated, point-to-point links.

NOTE: Directional antennas limit future growth and prevent the wireless

modem from repeating signals to other units. They should be used only
where an omnidirectional antenna will not work.

10 Nokia RoofTop™ Wireless Routing Installation Guide

Antenna Selection

Directional Antennas - Radiation Pattern Side View

Nokia RoofTop™ Wireless Routing Installation Guide 1 1

2.5 Cables

Nokia provides two types of RF cabling for wireless router installations:

1. Low Loss RF Cable - rigid low attenuation cable for long cable runs.

2. Flexible Jumper Cables - flexible cables, up to six feet long, that

connect the wireless router to the low loss RF cable or connect
amplifier components with the wireless router and antenna.

NOTE: Only use the RF cables provided by Nokia. Using cables or RF

equipment other than that provided by Nokia may void the user’s
authority to operate the equipment.

12 Nokia RoofTop™ Wireless Routing Installation Guide

Outdoor Installation Procedures

2.6 Outdoor Installation Procedures

WARNING: Use extreme caution when installing antennas in areas

with overhead power lines. Outdoor antennas and their supporting
masts, guy wires, and cables are electrical conductors. Contact with
high-voltage electrical wires can cause serious injury or death.

2.6.1 Safety Guidelines

• Plan the entire procedure before starting

• If necessary, obtain appropriate assistance

• Wear a hard hat and gloves

• Wear heavy toe boots to protect your feet from falling objects

• Do not install antennas on windy or rainy days

• Assemble the antenna components at or near the final site

• Ground the antenna support structure prior to erecting the antenna

• Firmly anchor the base of the support structure

• Keep the antenna at least twice the mast height from power lines

• If you start to drop an antenna, let it fall and back away from it

• Installations must be performed by a professional

• Maintain the required distance from the antenna

while the wireless router is on (for more information on the MPE
distance, please refer to Appendix D).

• Install antennas at least six feet (two meters) above ground

2.6.2 Required Installation Components

• RF cabling

• Lightning protector

Nokia RoofTop™ Wireless Routing Installation Guide 13

• Antenna

• Antenna mounting hardware

• Antenna mast and hardware

2.6.3 Polarization

Polarization refers to the direction of antenna element alignment. For
antennas to properly communicate with each other, all antenna must be
aligned (polarized) in the same direction.

2.6.3.1 Omnidirectional Antenna

This vertically polarized antenna can only be mounted vertically.

2.6.3.2 Directional Panel Antenna

• Polarization is identified by an arrow on the rear panel

• Radiates from the front side and away from the mounting bracket

• Can be vertically or horizontally polarized; the elements can be

vertical or horizontal

NOTE: If you have a combination of vertical omnidirectional antennas

and directional antennas, the directional antennas must be polarized
vertically.

2.6.4 Test Installation

Connect and test all of the equipment prior to completing the permanent
installation. After confirming operation, disassemble only as much of the
equipment as is necessary to permanently reinstall it.

14 Nokia RoofTop™ Wireless Routing Installation Guide

Outdoor Installation Procedures

2.6.5 Grounding

WARNING: Because antennas are elevated metal objects with

connections to ground, they attract lightning. Attach an effective
ground to the antennas to provide a path for the lightning. Effective
antenna grounding also minimizes electrical noise and interference,
which can degrade system performance.

1. Provide a good, very low resistance wire connection from the antenna

mount and wireless router to earth ground.

2. Use #12 copper or aluminum wire connected to the metal antenna

support and a ground rod next to the building.

Antenna

Electrical Service Equipment

Ground Rod

Weatherproof Connection

Antenna Lead-in Wire

Lightning Arrestor

Grounding Conductors
#12 Copper or Aluminum

Ground Clamps

Grounding diagram

Nokia RoofTop™ Wireless Routing Installation Guide 15

3. Mount the antenna on a mast or tower that is well grounded to earth.

4. Weatherproof all ground connectors to prevent corrosion, which

interferes with the grounding connection.

5. Connect all power and antenna grounds to a common single point

such as an equipment rack, cabinet enclosure chassis, or antenna
tower. Connect this single-point ground to a solid ground connection
to earth.

6. Install a lightning arrestor where the antenna cable enters the building

or cabinet. Ground the lightning arrestor to a single point chassis
ground. Follow the instructions provided by the manufacturer.

2.6.6 Weatherproofing

Good weatherproofing is the key to antennas that work well in all weather
conditions. If water or moisture enters a cable or connector, it
significantly reduces signal levels and often ruins the cable and/or
connectors.

All connections that may be exposed to outdoor weather conditions or
moisture, including condensation must be weatherproofed.

NOTE: Whenever possible, connect and weatherproof the cables,

antennas, and any accessories on the ground. Minimize the amount of
work performed on a roof or a ladder.

2.6.6.1 Weatherproofing Supplies

• Self-vulcanizing weatherproofing tape (available from Nokia)

• Scissors

2.6.6.2 Weatherproofing Steps

For all outdoor connections, use the following procedures to
weatherproof the connections.

16 Nokia RoofTop™ Wireless Routing Installation Guide

Outdoor Installation Procedures

1. Connect the antenna and RF cable. Only connect cables at this step,

attaching other m ounting hardware will make applying the
weatherproofing tape more difficult. See the NOTE for an exception.

NOTE: When using a flat rectangular antenna mounting bracket you must

attach the antenna to the mounting bracket before weatherproofing, or
you will be unable to attach the antenna to the mount, because the
weatherproofing will prevent the antenna from passing through the
antenna mounting hole.

Mounting Bracket

2. Cut an 8-inch section of the weatherproofing tape and remove the

black plastic film from the back of the tape.

3. Stretch and apply the tape to the connection, wrapping the tape in the

direction of the connector threading. Pull the tape tight while
wrapping.

Nokia RoofTop™ Wireless Routing Installation Guide 17

4. Apply the tape so that it covers the bottom of the antenna and the top

of the connector without gaps. To be certain that there are no gaps
apply the tape so that it overlaps half the width of the tape on each
wrap. (The gaps can allow water to enter the connector and cable).

5. Continue applying the tape to at l east 2” below the connector.

6. Squeeze the tape against the antenna and connector to remove any air

gaps.

7. Attach the antenna to the mast or other mounting solution.

8. Attach the antenna to the mast or other structural support

18 Nokia RoofTop™ Wireless Routing Installation Guide

Outdoor Installation Procedures

Properly weatherproofed antenna connection.
Antenna mounting brackets may vary.

NOTE: Be careful when weatherproofing RF connectors. Do not stress or

bend the cable during the process.

2.6.7 Weatherproofing Flexible RF Jumper Cables

When using flexible RF jumpers in the installation, weatherproof all
connectors and connections that are exposed or could potentially be
exposed to outdoor conditions (including condensation). Use the same
technique described for weatherproofing antenna connections. Extend the
weatherproofing tape at least two inches beyond each connection on the
cable.

Nokia RoofTop™ Wireless Routing Installation Guide 19

2.6.8 Amplifier Weatherproofing

The amplifier is designed to be m ounted outdoors. The connectors must
be weatherproofed using the same technique described for
weatherproofing antenna connections. To prevent rain or snow from
falling directly on the connectors, mount the amplifier with the
connectors facing down. The DC injector is designed to be mounted
indoors and must be protected from moisture and excessive heat and cold.

20 Nokia RoofTop™ Wireless Routing Installation Guide

2.7 Indoor Installation Procedures

The procedures for an indoor installation are the same as those for an
outdoor installation as described in section 2.6, with the following
exceptions:

2.7.1 Weatherproofing

An indoor installation does not require weatherproofing as described in
section 2.6.6. All equipment must be installed away from moisture from
outsidedoors, open windows, faucets, and so on. Do not install equipment
in bathrooms.

Indoor Installation Procedures

2.7.2 Antennas

For indoor directional panel antenna installations, install the antenna at
least six feet (two meters), high and six feet from human access.

2.7.3 Grounding

The antenna may be appropriately grounded in the building. It does not
require a ground rod connection as described in section 2.6.5.

Nokia RoofTop™ Wireless Routing Installation Guide 21

22 Nokia RoofTop™ Wireless Routing Installation Guide

CHAPTER 3 W ir eless Router Installation

3.1 Introduction

A wireless router system consists of two or more antennas, antenna
cables, and wireless routers. One of the units is the AirHead which
connects with wire to the Internet. All other units are Subscriber units that
connect to remote computers or LANs. This chapter describes how to
connect the system and verify the hardware installation.

3.1.1 Preinstallation Requirements

• Professionalinstallers are responsible for moving and re-installing all

• All antenna installations on towers require licensed tower climbers.

• Use only Nokia approved accessories for all installations.

• Ground the antenna support to a ground rod or other suitable earth

• Avoid placing the wireless router unit in excessively hot, cold, dusty,

Nokia RoofTop™ Wireless Routing Installation Guide 23

equipment.

ground.

wet, or humid environments.

• The wireless router must be installed with its mounting bracket

whether it is placed on a wall or desktop. The holder provides
ventilation and helps drain spilled liquids.

• Place the wireless routers DC power unit out of the way, or tape it to

the side of a vertical surface to prevent it from being stepped on or
damaged.

• The wireless router can cause interference to (and interfere with)

other devices operating in the 2.4 to 2.4835 GHz radio spectrum.

• Changing the Ethernet configuration from a LAN connection to a

direct PC connection requires changing from a standard Ethernet
cable to a crossover cable.

NOTE: The Nokia RoofTop™ Wireless Router and its associated

components a re Class B devices that must be installed by a professional.

3.1.2 Physical Location

Wireless routers must be installed indoors.
Install the wireless router as close to the entry point of the RF cable into

the building as is practical. Keep the cable length from the antenna to the
wireless router as short as possible.

Ambient temperature must be 32-104 degrees Fahrenheit. Avoid
mounting the wireless router in an environment that gets extremely hot.

3.1.3 Physical Mounting

The wireless router installs in its mounting bracket. Securely attach the
mounting bracket to a wall or flat surface with two screws. Typical
mounting is vertical with the mounting flange and cable strain relief
facing down. This forces the RF cable to bend and extend below the
wireless router, creating a “drip loop”. Drip loops prevent water from
running down the RF cable and into the wireless router.

24 Nokia RoofTop™ Wireless Routing Installation Guide

Introduction

Mounting Bracket

3.1.4 Connection Options

There are two ways to connect the wireless router to the subscriber’s
network/PC:

1. Network connection

2. Direct Personal Computer connection

3.1.4.1 Network

Use a standard Ethernet cable with an RJ45 connector at the wireless
router and the appropriate connector at your LAN Ethernet connection.

Nokia RoofTop™ Wireless Routing Installation Guide 25

3.1.4.2 Network Connection

Connect an Ethernet crossover cable between the wireless router and the
Personal Computer Ethernet connection. Use an RJ45 connector at the
wireless router and the appropriate connector for your Personal Computer
Ethernet connection.

3.1.5 Amplifiers

Amplifiers may be used in some installations. An Amplifier kit consists
of the amplifier, which is mounted next to the antenna, and a DC injector,
which requires AC power, and is mounted indoors next to the wireless
router. Flexible RF jumpers connect the antenna cable to the amplifier
and connect the wireless router to the DC injector. Low-loss RF cable
connects t he DC injector to the amplifier, usually through a small jumper
cable.

NOTE: Use only amplifiers supplied by Nokia and certified for use with

the wireless router. Use of any other amplifier is a violation of FCC rules.

26 Nokia RoofTop™ Wireless Routing Installation Guide

Antenna

Introduction

Amplifier

DC Injector (Mounts Indoors)

Amplifier Wiring

Nokia RoofTop™ Wireless Routing Installation Guide 27

3.2 Front Panel

Wireless Router

Front Panel

3.2.1 LED Indicators

1. LAN: Blinking indicates packets are being transmitted between the

wireless router and the LAN or PC.

2. Radio: Blinking indicates packet transmission and reception over the

wireless interface.

3. Anchor: If the configured device is the AirHead, there will be no

indicationuntil another wireless router is configured. If the device is a
remote, the following LED indications occur:

28 Nokia RoofTop™ Wireless Routing Installation Guide

Front Panel

• LED steady on: The link to the next-hop (neighbor) in the path to the

AirHead has a Data Rate of two Mbps and the path is <=3 hops.

• Slow Flash - The link to the next-hop (neighbor) in the path to the

AirHead has a Data Rate of one Mbps and the path is <=3 hops.

•FastFlash-Either

• Connected to one or more neighbors but not to an AirHead, or

• Connected to an AirHead with four or more hops in the path.

• LED off - The router has no neighbors.

4. Power Steady on: the wireless router is on.

3.2.2 Configuration

Refer to the Nokia Wireless Router Manager Configuration Guide for
configuration instructions.

Nokia RoofTop™ Wireless Routing Installation Guide 29

3.3 Rear Panel

Wireless Router

Rear Panel Connections

1. Antenna Connector: Connect a small vertical antenna directly to the

antenna jack or connect a cable to an external antenna. The connector
is a reverse-polarized TNC female unit. You may need a jumper
converter to attach cables to the wireless router. Most cables are
supplied with reverse-polarized TNC male connectors. For systems
with an amplifier, connect a small jumper cable to the DC Injector
“T o Radio” connector.

2. LAN: The LAN interface is a standard 10/100 BaseT Ethernet RJ45

jack. Connect the LAN interface on the wireless router to either:

• The network using a standard Ethernet cable, or

• A PC via an Ethernet crossover cable.

See Appendix A for a wiring description for the Ethernet crossover
cable.

3. Power Port: Connects the wireless router to the 12 VDC power

connector.

4. Strain Relief: For the 12 VDC power cable.

30 Nokia RoofTop™ Wireless Routing Installation Guide

APPENDIX A Cables

Ethernet Crossover Cable

The wiring for an Ethernet Crossover cable for 10Base-T is as follows:
RJ45 Plug
Pin 1 (Tx+) to Pin 3 (Rx+)
Pin 2 (Tx-) to Pin 6 (Rx-)
Pin3(Rx+)toPin1(Tx+)
Pin6(Rx-)toPin2(Tx-)

Nokia RoofTop™ Wireless Routing Installation Guide 31

32 Nokia RoofTop™ Wireless Routing Installation Guide

APPENDIX B Network Planning Guidelines

This appendix includes Network Planning Guidelines for Nokia
RoofTop™ Wireless Routers.

To maintain broadband speeds in a Nokia RoofTop™ Wireless network
follow these guidelines:

• Keep networks within three hops of the AirHead

• Do not connect more than 40 subscriber units to each AirHead

• Do not connect more than 6 networks to each AirHead

NOTE: Subscribers that are one hop away from the AirHead that act as a
relay for customers behind them should have 2Mbps links.

NOTE: Subscribers who are two or three hops from the AirHead can
have 1Mbps links without negatively affecting their performance, provided
they do not act as a repeater for more than two other subscribers.

Nokia RoofTop™ Wireless Routing Installation Guide 33

34 Nokia RoofTop™ Wireless Routing Installation Guide

APPENDIX C Technical Specifications

This appendix describes technical specifications for Nokia RoofTop™
Wireless Routers R242/242A.

Nokia RoofTop Wireless Router Models R242 & R242A Indoor­Mounted Unit

Data Capacity per Cell 12 Mbps

(6x2 Mbps per channel)
AirHeads per Cell
Routers per Cell
Routers per AirHead

Up to 6

Up to 240

Up to 40
Antenna Type (Typical 8 dBi Omnidirectional (external)
Link Range (Typical)

1 Mbps Data Rate
2 Mbps Data Rate

Nokia RoofTop™ Wireless Routing Installation Guide 35

0.75 Mile

0.25 Mile

Nokia RoofTop Wireless Router Models R242 & R242A Indoor­Mounted Unit (Continued)

Radio/Modem Specifications

Frequency Band
Radio Type

Modulation
Transmit Power (typical)
Receiver Sensitivity (10

-5

1 Mbps Data Rate

2 Mbps Data Rate
Interfaces and Connectors

Ethernet

Phoneline Networking

RF
Router Environment

Operational Temperature

Relative Humidity

BER)

2.4000 - 2.4835 GHz
Frequency Hopping
Spread Spectrum
2 and 4-level GFSK
26 dBm

-82 dBm (typical)

-72 dBm (typical)

10/100Base-TX, autosensing, RJ-45
Not Applicable
TNC-Female

0

0

C-450C(320-1130F)

10% - 95% ( non-condensing)
Router Weight 0.6 lbs.
Dimensions

Router
PowerSupply/Network

5½" W x 4½" D x 1½" H

Not Applicable

Interface Unit
Antenna (8 dBi)

20" H x 1¼" Base Diameter

Power Consumption 11 Watts @ 120/240 VAC
In-Line Lightning Arrestor None
External Power Supply 12 VDC
Management Nokia RoofTop Router Management

System, SNMP

36 Nokia RoofTop™ Wireless Routing Installation Guide

Nokia RoofTop Wireless Router Models R242 & R242A Indoor­Mounted Unit (Continued)

Internet Protocols IP, TCP, UDP, ICMP, RIPv1,

RIPv2, SNMP, TFTP, IGMP, ARP,
Proxy-ARP, DHCP Relay, DHCP
Server, NAT

Agency Compliance FCC Class B, FCC CFR 47 Part 15

Nokia RoofTop™ Wireless Routing Installation Guide 37

38 Nokia RoofTop™ Wireless Routing Installation Guide

APPENDIX D Requir ed Minimum Working

Distances for Antennas

The installer must ensure, that the installation is such, that a minimum
separation distance, as indicated in table 1, from persons is guaranteed in
order to comply with exposure guidelines. When co-locating installations
of dissimilar type, the installer must use the MPE distance for whichever
installation has the highest MPE requirement.

Installation Min.

Feeder
Cable
Length (ft)

8dBiomni 0
8dBipanel 0
10 dBi omni 50
10 dBi sector 50
12 dBi sector 50
8 dBi omni with amplifier 0
15 dBi panel 0 41 30 45 55 65 75 80
17 dBi panel 0 4 3 3 5 60 70 80 90 100

Nokia RoofTop™ Wireless Router Installation Guide 39

Max. EIRP at
Individual
Antenna
(dBm)

34 15 20 25 30 35 35

36 20 30 35 40 40 45

Table 1. MPE safety distances

MPE distance (cm) for number
of co-located antennas

12345 6

The system may also be co-located with other systems operating above

1.5GHzwhichhaveamaximumEIRPlessthan57dBm(500W),in
which case the minimum separation distance must either be calculated as
follows...

10/

EIRP

+=

EIRP

10/

RC

54.3/1010distanceMPE

...in which EIRP
of the co-located system and EIRP

is the sum of output power and antenna gain (in dBm)

C

taken from Table 1. Alternatively, an

R

MPE distance of 2 meters may be employed.
Co-location of the antenna for this device with other transmitters

operating below 1.5 GHz or operating with other transmitters above 1.5
GHz with a totalEIRP exceeding 500 Watts or co-location of more than 6
Wireless Routers will require an evaluation for RF exposure based on the
FCC's guidelines as detailed in FCC document OET BULLETIN 65
Edition 97-01 August 1997. This might necessitate a site survey to ensure
compliance with RF exposure requirements.

If more than one system is installed at a site, the installer must inform the
customer of the proper MPE distance.

40 Nokia RoofTop™ Wireless Router Installation Guide

Index

A

Antenna Installation

Grounding 15
Polarization 14
Required Installation Components 13
Safety Guidelines 13
Weatherproofing 16

Jumper Connection 19
Steps 16
Supplies 16

Antenna Selection

Directional Antennas 10
Omnidirectional Antennas 10

F

Fresnel Zone 9
Front Panel

LED Indicators 28

Front Panel Diagram 28

H

Hardware Installation

Antenna Connector 30
Connection

Network 25

Physical Location 24

Physical Mounting 24
Preinstall Requirements 23

L

LAN Interface 26
Line of Sight Analysis

Fresnel Zone 9
Radio Line of Sight 9
Visual Line of Sight 8

P

Power Port 30

S

Site Analysis 6

RF Link Feasibility 6

Site Survey Steps 6

Nokia RoofTop™ Wireless Routing Installation Guide 41
