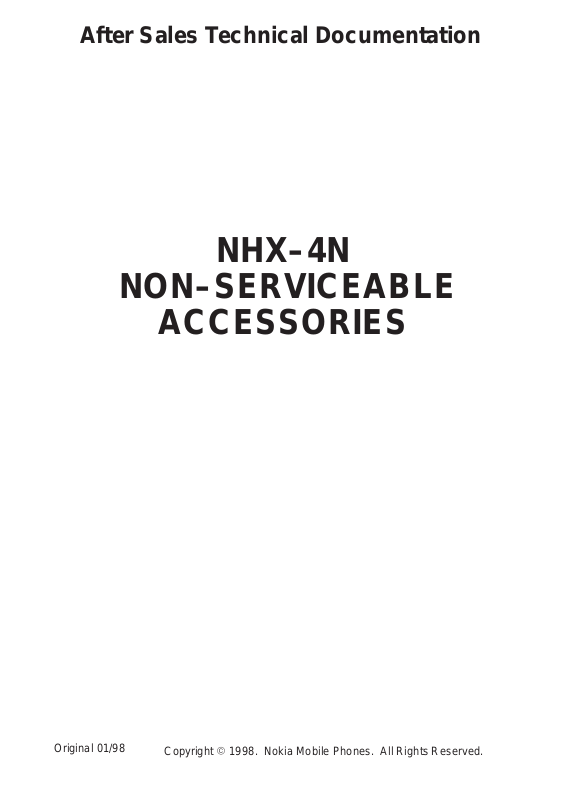

Page 1
After Sales Technical Documentation
NHX–4N
NON–SERVICEABLE
ACCESSORIES
Original 01/98
Copyright 1998. Nokia Mobile Phones. All Rights Reserved.
Page 2
Non–serviceable accessories
PAMS
NHX–4N
Amendment
Number
Technical Documentation
AMENDMENT RECORD SHEET
Date Inserted By Comments
Page 2
Original, 08/97
Page 3
PAMS
Non–serviceable accessories
Technical Documentation
NHX–4N Non–serviceable Accessories
Contents
List of Non–Serviceable Accessories Page 4. . . . . . . . . . . . . . . . . . . .
Battery Packs BBF–3 Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Battery Pack Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AC Travel Charger ACH–8 Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Codes Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of ACH–8 Charger Page 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fast Travel Charger ACH–6 Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Codes Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Fast Travel Charger Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter Charger LCH–6 Page 7. . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Cigarette Lighter Charger Page 7. . . . . . . . . . . . . . . . . . . . . . . . .
Headset HDC–2 Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Headset Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Desk Top Stand CGS–1 Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Desk Top Stand CGS–1 Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . .
Belt Clip BCH–11 Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Belt Clip BCH–11 Page 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wrist Strap SWH–1 Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specification Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Wrist Strap SWH–1 Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NHX–4N
Original, 08/97
Page 3
Page 4
Non–serviceable accessories
PAMS
NHX–4N
List of Non–Serviceable Accessories
Battery Packs BBF–3
The BBF–3 NiMH replacement fixed battery pack provides an acceptable level
of performance in a package (ie including phone) weighing 228 g.
Product Code
Battery pack BBF–3:
Specification
Dimensions (h x w x d):
Weight:
Capacity:
0080188
103 x 45 x 15 mm
109 g
1200 mAh
Technical Documentation
View of Battery Pack
Page 4
Original, 08/97
Page 5
PAMS
Non–serviceable accessories
Technical Documentation
AC Travel Charger ACH–8
Use this durable and economical charger to charge all battery options – simply
plug the charger into a wall outlet and connect the connector to the bottom of
your phone. Check the charging status on the phone display.
The charging time is about 4 h 30 min for the 1200 mAh battery.
You can make calls while charging. However, charging is suspended for the
duration of the call.
The standard charger is available for different voltage levels and comes with
different wall plugs.
Standard charger can also be used as a power supply for the basic stand and
desktop stand.
Product Codes
AC Travel Charger ACH–8E (Euro plug):
AC Travel Charger ACH–8U (USA plug):
AC Travel Charger ACH–8X (UK plug):
NHX–4N
0675089
0675091
0675090
Specification
Dimensions (h x w x d):
Weight:
Cable length:
Output connectors:
Protection:
Input voltage:
View of ACH–8 Charger
ACH–8E ACH–8U ACH–8X
86 x 50 x 44 mm (without plug)
< 300 g
1950 mm
3.0 mm standard d.c. plug
output current limiting, max. 300 mA
output voltage limiting, max. 16 V
(unloaded)
180 to 250 V
Original, 08/97
Page 5
Page 6
Non–serviceable accessories
PAMS
NHX–4N
Fast Travel Charger ACH–6
Extremely light, functionally designed fast & light charger charges your phone
battery quickly. Plug the charger into a wall outlet and connect the connector to
the bottom of your phone. When not using the charger, you can wrap the cord
around it and attach the loose end to the slot on top.
The charging time is approximately 1 h 30 min for the 1200 mAh battery. Check
the charging status on the phone display. You can use your phone also while
charging.
Operating within voltage range 90 V...250 V AC (50 Hz...60 Hz), the Fast Travel
Charger is practically current independent in normal office and household use.
Like standard charger, fast & light charger is compatible with all battery options
and is available with different wall plugs.
The fast & light charger can also be used with basic stand and desktop stand.
Product Codes
Fast Travel Charger ACH–6E (Euro plug):
Fast Travel Charger ACH–6U (USA plug):
Fast Travel Charger ACH–6X (UK plug):
Technical Documentation
0675084
0675085
0675087
Specification
Dimensions (h x w x d):
Weight:
Output cable length:
Output connectors:
Protection:
Input voltage:
View of Fast Travel Charger
ACH–6E
ACH–6U
75 x 29 x 42 mm (without plug)
< 150 g
1950 mm
3.0 mm standard d.c. plug
output current limiting, max. 870 mA
output voltage limiting, max. 11 V
(unloaded)
90 to 250 V
ACH–6X
Page 6
Original, 08/97
Page 7
PAMS
Non–serviceable accessories
Technical Documentation
Cigarette Lighter Charger LCH–6
This small charger’s functional design fits well to most car lighters and interiors.
The rapid cigarette lighter charger can be used with all car accessories provided
for your phone. The charging time for the 1200 mAh battery is about 1 h 30 min,
and you can use your phone freely during charging.
A green light indicates that the cigarette lighter charger is ready for charging.
Check the charging status on the phone display. The input voltage can be 12 or
24 V d.c., negative grounding. Avoid prolonged charging with cigarette lighter
charger when the car engine in not running; this may cause the battery of your car
to drain. Note also that in some cars the cigarette lighter plug is not provided with
electricity if the ignition is switched off. Verify that the green led light is lit.
Product Code
Cigarette Lighter Charger LCH–6:
Specification
NHX–4N
0675076
Dimensions (h x w x d):
Weight:
Cable length:
Connectors: • input:
• output:
Protection:
Voltage: • input:
• output (nom):
Nominal output current:
Charging into empty battery:
View of Cigarette Lighter Charger
29 x 35 x 84 mm
< 70 g
465 mm spiral cable
D 21/23 mm
3.0 mm standard d.c. plug
input fused, output current limit
11.3...35 V
10.3 V
780 mA
>= 300 mA
Original, 08/97
G0675076
Page 7
Page 8
Non–serviceable accessories
PAMS
NHX–4N
Headset HDC–2
The headset HDC–2 provides a convenient handsfree facility which can be
used anywhere. Connect the headset HDC–2 to the headset connector, which
is to the bottom of the phone. When the headset is connected, the internal earphone and microphone are disabled.
Product Code
Headset HDC–2:
Specification
Cord Length 1500 ±50 mm
Weight 13 g
Microphone sensitivity –46.5 ±5dB (0dB=1V/Pa at 1kHz)
Microphone directionality Omni–directional
Microphone supply voltage 5V
Microphone impedence max 2.2 kΩ at 1kHz
Technical Documentation
0694017
Earphone rated/max input 1mW / 5mW
Earphone sound pressure 106 5dB (at 1kHz, 1mW)
Earphone impedence 32 ±7Ω
View of Headset
Page 8
Original, 08/97
Page 9
PAMS
Non–serviceable accessories
Technical Documentation
Desk Top Stand CGS–1
The CGS Desk Top Stand is a passive holder for the NHX–4N transceiver.
There are no electrical connections in this stand.
Product Code
Desk Top Stand CGS 1:
Specification
Passive cradle.
View of Desk Top Stand CGS–1
NHX–4N
0675121
Original, 08/97
Page 9
Page 10
Non–serviceable accessories
PAMS
NHX–4N
Belt Clip BCH–11
The belt clip assembly consists of a stud which is attached to the transceiver,
and a detachable clip for mounting on a belt or similar.
Product Code
Belt Clip BCH–11:
Specification
Plastic construction.
View of Belt Clip BCH–11
Technical Documentation
0694017
Page 10
Original, 08/97
Page 11
PAMS
Non–serviceable accessories
Technical Documentation
Wrist Strap SWH–1
The Wrist Strap SWH–1 is attached to the transceiver as shown in the
illustration below.
Product Code
Wrist Strap SWH–1:
Specification
Length: ca.210mm
View of Wrist Strap SWH–1
0694017
NHX–4N
Original, 08/97
Page 11
Page 12
Non–serviceable accessories
PAMS
NHX–4N
Technical Documentation
This page intentionally left blank.
Page 12
Original, 08/97
