Page 1
Programmes After Market Services
NSD-6 Series Transceivers
General Information
Issue 1 04/01 Nokia Mobile Phones Ltd.
Page 2
NSD-6
General Information PAMS Technical Documentation
Page 2 Nokia Mobile Phones Ltd. Issue 1 04/01
Page 3
NSD-6
PAMS Technical Documentation General Information
Contents
Page No
Product Selection ........................................................................................................... 5
Handportables ..............................................................................................................5
Desktop Option ............................................................................................................6
Basic Car Kit (CARK-64) Options ..............................................................................7
Advanced Hands Free Car Installation (CARK-91) Options ......................................8
Product and Module List................................................................................................ 9
Technical Specifications .............................................................................................. 10
General Specifications of Transceiver NSD-6 ..........................................................10
Issue 1 04/01 Nokia Mobile Phones Ltd. Page 3
Page 4
NSD-6
General Information PAMS Technical Documentation
Page 4 Nokia Mobile Phones Ltd. Issue 1 04/01
Page 5
NSD-6
PAMS Technical Documentation General Information
Product Selection

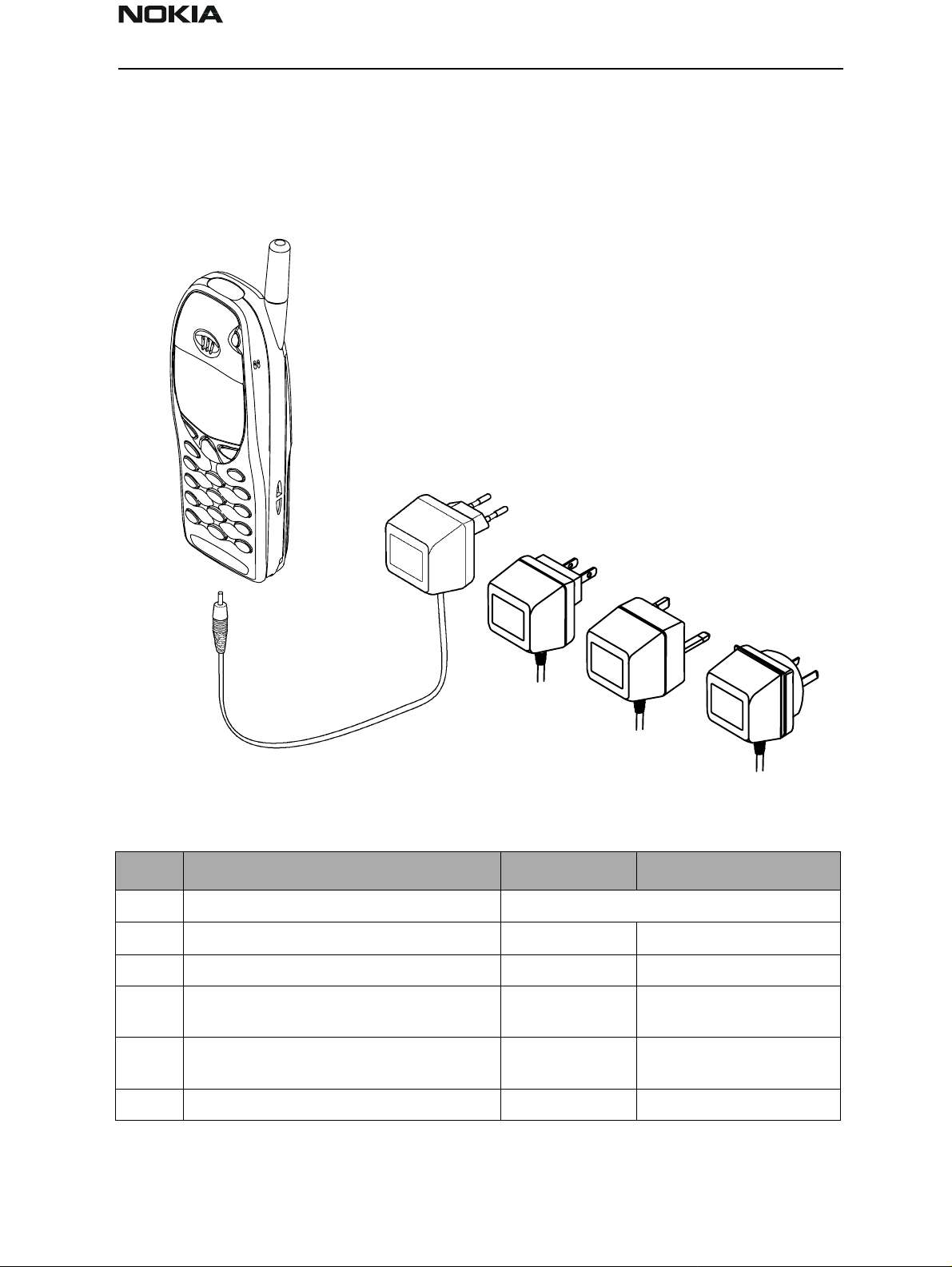

Handportables
The NSD-6HX/6GX is a handportable mobile telephone for the CDMA 800/1900 and
AMPS 800 networks.
1.
2.
ACP–7E
ACP–7U
ACP–7C
ACP–7X
ACP–7H
3.
4.
5.
6.
Item Name Type Code Material Code
1 Transceiver (See Product Variants section)
2 Standard battery (NiMH 900 mAh) BMS-2 0670203
ACP–7A
3 AC Travel Charger (Euro plug) 207-253 Vac ACP-7E 0675144
4 AC Travel Charger (US plug) 108-132 Vac
AC Travel Charger (US plug) 198-242 Vac
5 AC Travel Charger (UK plug) 207-253 Vac
AC Travel Charger (UK plug) 180-220 Vac
6 AC Travel Charger (Australia) 216-264 Vac ACP-7A 0675148
ACP7U
ACP-7C
ACP-7X
ACP-7H
0675143
0675158
0675145
0675146
Issue 1 04/01 Nokia Mobile Phones Ltd. Page 5
Page 6
NSD-6
General Information PAMS Technical Documentation
Desktop Option
The desktop option allows the user to charge the handportable and spare battery from
mains.
2.
6.
3.
7.
4.
1.
5.
Item Name Type Code Material Code
1 Desktop stand DCH-9 0700049
2 AC Travel Charger (Euro plug) 207-253 Vac ACP-7E 0675144
3 AC Travel Charger (US plug) 108-132 Vac
AC Travel Charger (US plug) 198-242 Vac
4 AC Travel Charger (UK plug) 207-253 Vac
AC Travel Charger (UK plug) 180-220 Vac
ACP-7U
ACP-7C
ACP-7X
ACP-7H
8.
9.
0675143
0675158
0675145
0675146
5 AC Travel Charger (Australia) 216-264 Vac ACP-7A 0675148
6 Fast Travel Charger (Euro plug) 90-264 Vac ACP- 9E 0675149
7 Fast Travel Charger (US plug) 90-264 Vac ACP-9U 0675151
8 Fast Travel Charger (UK plug) 90-264 Vac ACP-9X 0675150
9 Fast Travel Charger (Australia) 90-264 Vac ACP-9A 0675152
Page 6 Nokia Mobile Phones Ltd. Issue 1 04/01
Page 7
NSD-6
PAMS Technical Documentation General Information

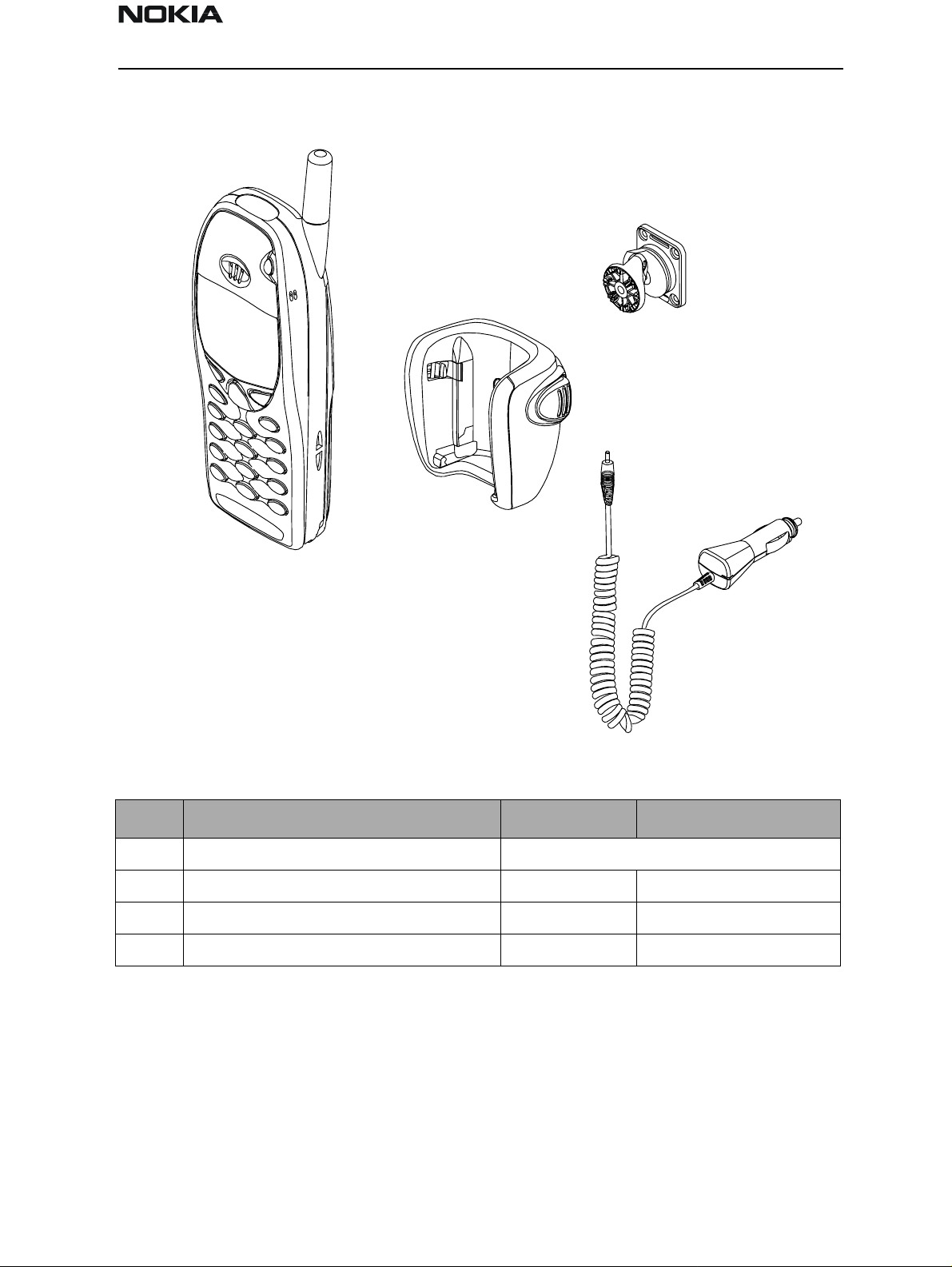

Basic Car Kit (CARK-64) Options
4.
2.
1.
3.
Item Name Type Code Material Code
1 Transceiver (See Product Variants section)
2 Mobile Holder MBC-1 0700060
3 Cigarette Lighter Charger LCH-9 0657120
4 Swivel Mount HHS-9 0620037
Issue 1 04/01 Nokia Mobile Phones Ltd. Page 7
Page 8
NSD-6
General Information PAMS Technical Documentation

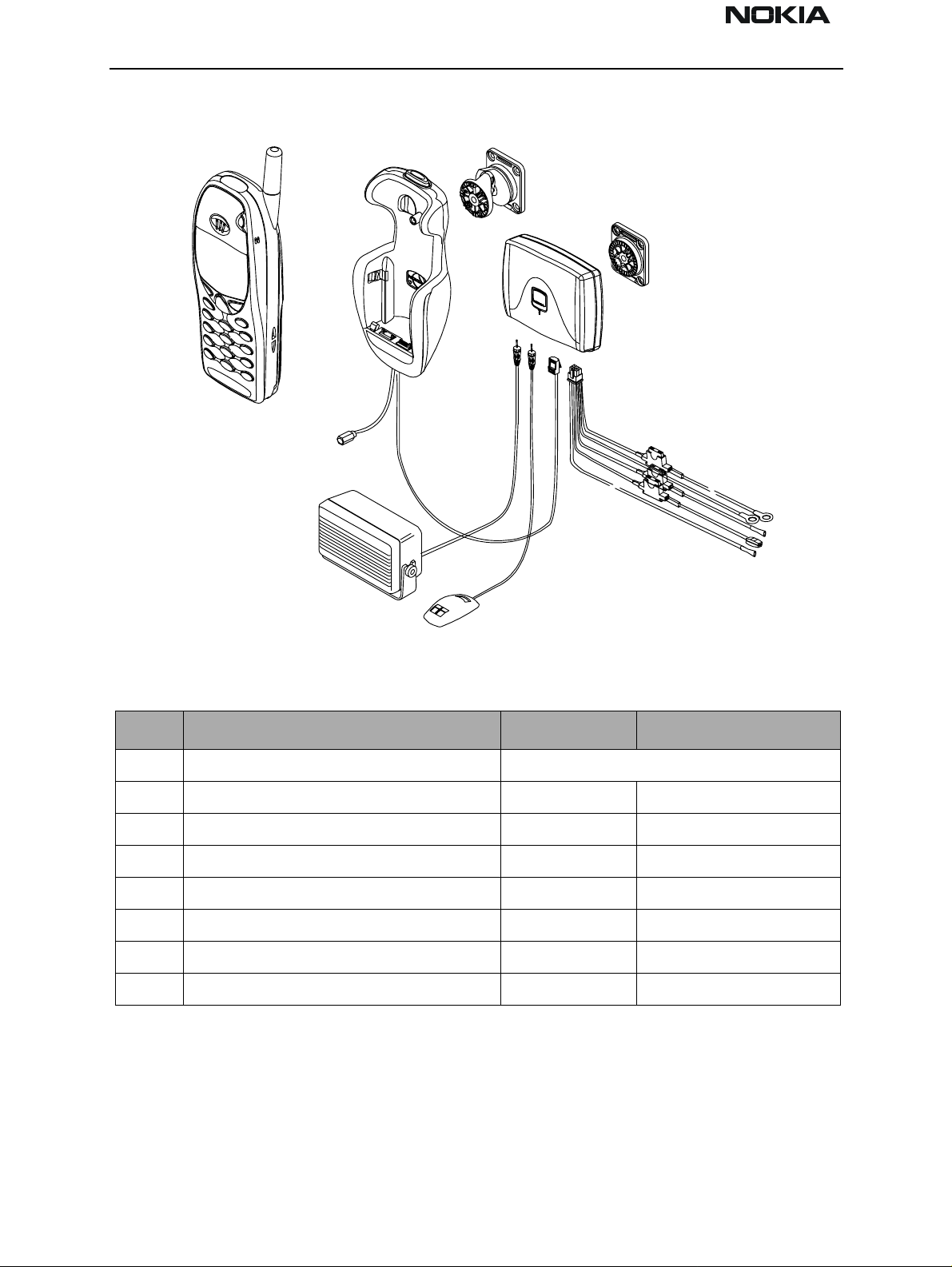

Advanced Hands Free Car Installation (CARK-91) Options
7.
8.
1.
3.
2.
6.
5.
4.
Item Name Type Code Material Code
1 Transceiver (See Product Variants section)
2 Mobile Holder MCC-1 0620043
3 Hands Free Unit HFU-2 0694049
4 Hands Free Microphone HFM-8 0690016
5 Hands Free Speaker HFS-12 0692008
6 Power Cable PCH-4J 0730055
7 Swivel Mount HHS-9 0620037
8 Mounting Plate MKU-1 0620036
Page 8 Nokia Mobile Phones Ltd. Issue 1 04/01
Page 9
NSD-6
PAMS Technical Documentation General Information
Product and Module List
Unit/type: Product code:
Transceiver NSD-6 See Product Variants section
Slim Battery BLS-2 900 mAh 0670 206
Battery BLS-2S 0670306
Standard Battery BMS-2S 900 mAh NiMH 0670 225
Standard Battery BMS-2 900 mAh 0670 203
Vibrator Battery BMS-2V 900 mAh + 0670204
Extended Battery BLS-4 1500 mAh 0670 207
Ultra Slim Battery BPS-2 1100 mAh Li-Polymer 0670353
AC Travel Charger ACP-73 (Eur) 207-253 Vac 0675144
AC Travel Charger ACP-7U (US) 108-132 Vac 0675143
AC Travel Charger ACP-7C (US) 198-242 Vac 0675158
AC Travel Charger ACP-7X (UK) 207-253 Vac 0675145
AC Travel Charger ACP-7H (UK) 180-220 Vac 0675146
AC Travel Charger ACP-7A (Aus) 216-264 Vac 0675148
Fast Travel Charger ACP-9E (Eur) 90-264 Vac 0675149
Fast Travel Charger ACP-9U (US) 90-264 Vac 0675151
Fast Travel Charger ACP-9X (UK) 90-264 Vac 0675150
Fast Travel Charger AC P - 9A (Aus) 90-264 Vac 0675152
Cigarette Lighter Charger LCH-9 0675120
Desktop Stand DCH-9 0675174
Mobile Holder MBC-1 0700060
Mobile Holder MCC-1 0620043
Handsfree Unit HFU-2 0694049
Power Cable PCH-4J 0730055
HF Microphone HFM-8 0690016
HF Speaker HFS-12 0692008
Mounting Plate MKU-1 0620036
Swivel Mount HHS-9 0620037
Headset HDC-9 0694053
Loopset LPS-1 0694060
Belt Clip BCH-12 0720098
Issue 1 04/01 Nokia Mobile Phones Ltd. Page 9
Page 10
NSD-6
General Information PAMS Technical Documentation
Unit/type: Product code:
External Antenna Cable XRC-1 0730103
Data Adapter Cable DLR-3P 0730183
Technical Specifications
General Specifications of Transceiver NSD-6
Parameter Unit
Cellular system CDMA 800 / CDMA1900 / AMPS 800
RX frequency band 869-894 / 1930-1990 / 869-89 4 MHz
TX frequency band 824-849 / 1850-1910 / 824-849 MHz
Duplex spac i ng 45 / 80 / 45 MHz
Number of RF channels - / 1200 / Channel spacing 30 / 50 / 30 kHz
Number of TX power levels -50 dBM to max power
