Nokia E70 Service Manual ssue1

Nokia Customer Care

Service Manual

RM-10;RM-24 (Nokia E70)

Mobile Terminal

Part No: 9246101 (Issue 1)

COMPANY CONFIDENTIAL

RM-10;RM-24

Nokia Customer Care Amendment Record Sheet

Amendment Record Sheet

Amendment No Date Inserted By Comments

Issue 1 05/2006 TSa

Page ii COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Copyright Nokia Customer Care

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 1 COMPANY CONFIDENTIAL Page iii

RM-10;RM-24

Nokia Customer Care Warnings and cautions

Warnings and cautions

Warnings

• IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

• THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

• OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

• BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

• Servicing and alignment must be undertaken by qualified personnel only.

• Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

• Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

• Use only approved components as specified in the parts list.

• Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

• Ensure all cables and wires are repositioned correctly.

• Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

• During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 ESD protection Nokia Customer Care

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 1 COMPANY CONFIDENTIAL Page v

RM-10;RM-24

Nokia Customer Care Care and maintenance

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Company Policy Nokia Customer Care

Company Policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

• Title of the Document + Issue Number/Date of publication

• Latest Amendment Number (if applicable)

• Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 1 COMPANY CONFIDENTIAL Page vii

RM-10;RM-24

Nokia Customer Care Battery information

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the

product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Nokia E70 Service Manual Structure Nokia Customer Care

Nokia E70 Service Manual Structure

1 General Information 2 Parts Lists and Component Layouts 3 Service Software Instructions 4 Service Tools and Service Concepts 5 Disassembly/Reassembly Instructions 6 BB Troubleshooting and Manual Tuning Guide 7 RF Troubleshooting and Manual Tuning Guide 8 Camera Module Troubleshooting 9 System Module 10 Schematics Glossary

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-10;RM-24

Nokia Customer Care Nokia E70 Service Manual Structure

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

1 — General Information

Issue 1 COMPANY CONFIDENTIAL Page 1 –1

RM-10;RM-24

Nokia Customer Care General Information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 General Information Nokia Customer Care

Table of Contents

RM-10/24 product selection..................................................................................................................................1–5

RM-10/24 product features and sales package...................................................................................................1–5

Product and module list........................................................................................................................................1–7

Technical specifications.........................................................................................................................................1–7

Transceiver general specifications..................................................................................................................1–7

Main RF characteristics for triple-band (EGSM900/GSM1800/GSM1900) and WCDMA phones...................1–7

Battery endurance.............................................................................................................................................1–8

Environmental conditions................................................................................................................................1–8

List of Figures

Figure 1 View of RM-10/24....................................................................................................................................1–5

Issue 1 COMPANY CONFIDENTIAL Page 1 –3

RM-10;RM-24

Nokia Customer Care General Information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 General Information Nokia Customer Care

RM-10/24 product selection

Nokia RM-10/24 is a triple band EGSM 900/1800/1900 phone, supporting WCDMA (3GPP Release 4). According to GSM standard 05.05 it responds to class 4 (max. 2W) in EGSM 900, class 1 (1W) in GSM 1800 and

class 1 in GSM 1900. RM-10/24 supports EGPRS (EDGE) class B as well as Bluetooth 1.2 standard. The handset has a full phase 2 Type Approval and it complies with the GSM Type Approval. RM-10/24 also has a full CE approval and FCC approval.

It has an integrated 2.0 Mega pixel (UXGA 1600x1200) Camera The MMS implementation follows the OMA MMS standard release 1.2. WAP 2.0 compatible browser supports XHTML Mobile Profile (MP) and uses a TCP/IP stack to communicate

with a gateway in network. RM-10/24 uses Symbian 8.0a operating system and supports also MIDP Java 2.0 & CLDC1.1, providing a good

platform for 3rd party applications.

Figure 1 View of RM-10/24

RM-10/24 product features and sales package

Imaging

• Active TFT colour display, 352 x 416 pixels, 16M colours

• 64 MB on-board user memory

• MiniSD memory card slot

• USB (Pictbridge), BT wireless technology

Bearers & transport

• WCDMA2000 Max DL=384kbps UL=128kbps, simultaneous voice & packet data

Issue 1 COMPANY CONFIDENTIAL Page 1 –5

RM-10;RM-24

Nokia Customer Care General Information

• GSM Triband World Phone E900/1800/1900 EGPRS (class B, Multislot class 10) (Max DL=236.8 kbps UL=118.4 kbps )

Software platform

• SW platform: Nokia Series 60 3.0

Connectivity

• Integrated WLAN (IEEE 802.11g,WPA2)

• USB 2.0 full-speed

• Bluetooth 1.2

• Pop-Port™ connector with ACI

• IrDA (115 kbps)

Productivity

• SMS, MMS and email

• MS Word, PowerPoint , Excel and Adobe PDF viewers

• PIM (Calendar & Contacts)

• Internet browser

• Video streaming (3GPP)

• Push to Talk

• Logs (last calls , timers and history list)

• Instant messaging

•

JavaTM MIDP 2.0, CLDC 1.13D API, PIM API, File access API

• MP3

• Data Transfer

• Settings Wizard/Access Point Configurator

Sales package

• Transceiver RM-10/24

• BL-6C Li-ion Battery Cell

• ACP-12 Charger

• All-in-one User Guide (warranty card + accessory info + getting started sheet + invitational module for Club Nokia )

• QSG

• CD-ROM

• Stereo Headset HDS-3

• USB Cable CA-53

• MiniSD 64 MB with adapter (not in RM-24 sales package)

• Add-on application guide

Page 1 –6 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 General Information Nokia Customer Care

Product and module list

Module name Type code Notes

System/RF Module 1EM Main PWB with components Flip module 1FF Flip PWB with components. Part

of the flip assy. Display Module Chassis Assy Mechanical Assembly UI Frame Assy Mechanical Assembly SW Module

Technical specifications

Transceiver general specifications

Unit Dimensions (L x W x T) Weight (g)

Transceiver with BL-6C Li-Ion battery

117X53X22mm 128 102 (closed)

Volume (cm3)

Main RF characteristics for triple-band (EGSM900/GSM1800/GSM1900) and WCDMA phones

Parameter Unit

Cellular system EGSM900, GSM1800/1900 and WCDMA Rx frequency band EGSM900: 925 - 960 MHz

GSM1800: 1805 - 1880 MHz GSM1900: 1930 - 1990 MHz WCDMA: 2110 - 2170 MHz

Tx frequency band EGSM900: 880 - 915 MHz

GSM1800: 1710 - 1785 MHz GSM1900: 1850 - 1910 MHz WCDMA: 1920 - 1980 MHz

Output power GSM900: +5 … +33dBm/3.2mW … 2W

GSM1800: +0 … +30dBm/1.0mW … 1W GSM1900: +0 … +30dBm/1.0mW … 1W WCDMA -50 … 24 dBm

Number of RF channels GSM900: 125

GSM1800: 375 GSM1900: 300 WCDMA: 277

Issue 1 COMPANY CONFIDENTIAL Page 1 –7

RM-10;RM-24

Nokia Customer Care General Information

Parameter Unit

Channel spacing 200 kHz Number of Tx power levels GSM900: 15

GSM1800: 16 GSM1900: 16

Battery endurance

Battery Capacity (mAh) Talk time Stand-by

BL-6C 1150 • up to 3.6-7.3 hrs

(GSM)

• up to 2.5-3.9 hrs (WCDMA)

• up to 4.3-6 hours* (VoIP)

Operation times may vary depending on radio access technology, network and usage. *In GSM/WCDMA network: WLAN network supporting 11-54 Mbs; 1-10 users

• 7.2 - 9.3 days (GSM)

• 7.0 - 9.2 days

• 5.1 - 6.2 days* (GSM/

Charging times

ACP-12 LCH-12

~2h ~2h

Environmental conditions

Environmental condition Ambient temperature Notes

Normal operation

-15oC...+55oC

Specifications fulfilled

(WCDMA)

WCDMA and WLAN)

Reduced performance

Intermittent operation

No operation or storage

Charging allowed Long term storage conditions

Page 1 –8 COMPANY CONFIDENTIAL Issue 1

-25oC...-15oC +55oC...+70oC

-40oC...-15oC +70oC...+85 oC

<-40oC...>+85oC

-25oC...+50oC 0oC...+85oC

Operational for shorts periods only

Operation not guaranteed but an attempt to operate does not damage the phone.

No storage or operation: an attempt may damage the phone.

Nokia Customer Care

2 — Parts Lists and Component

Layouts

Issue 1 COMPANY CONFIDENTIAL Page 2 –1

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Table of Contents

Exploded view.........................................................................................................................................................2–5

Exploded view....................................................................................................................................................2–5

Parts lists.................................................................................................................................................................2–6

RM-10 mechanical spare parts list...................................................................................................................2–6

RM-24 mechanical spare parts list...................................................................................................................2–7

RM-10/24 component parts list.......................................................................................................................2–9

Component layouts..............................................................................................................................................2–55

Component layouts - top 1em-25a and 1em-25b........................................................................................2–55

Component layouts - bottom 1em-25a and 1em-25b.................................................................................2–56

List of Tables

Table 1 Component parts list (1 em-25b) .........................................................................................................2–33

List of Figures

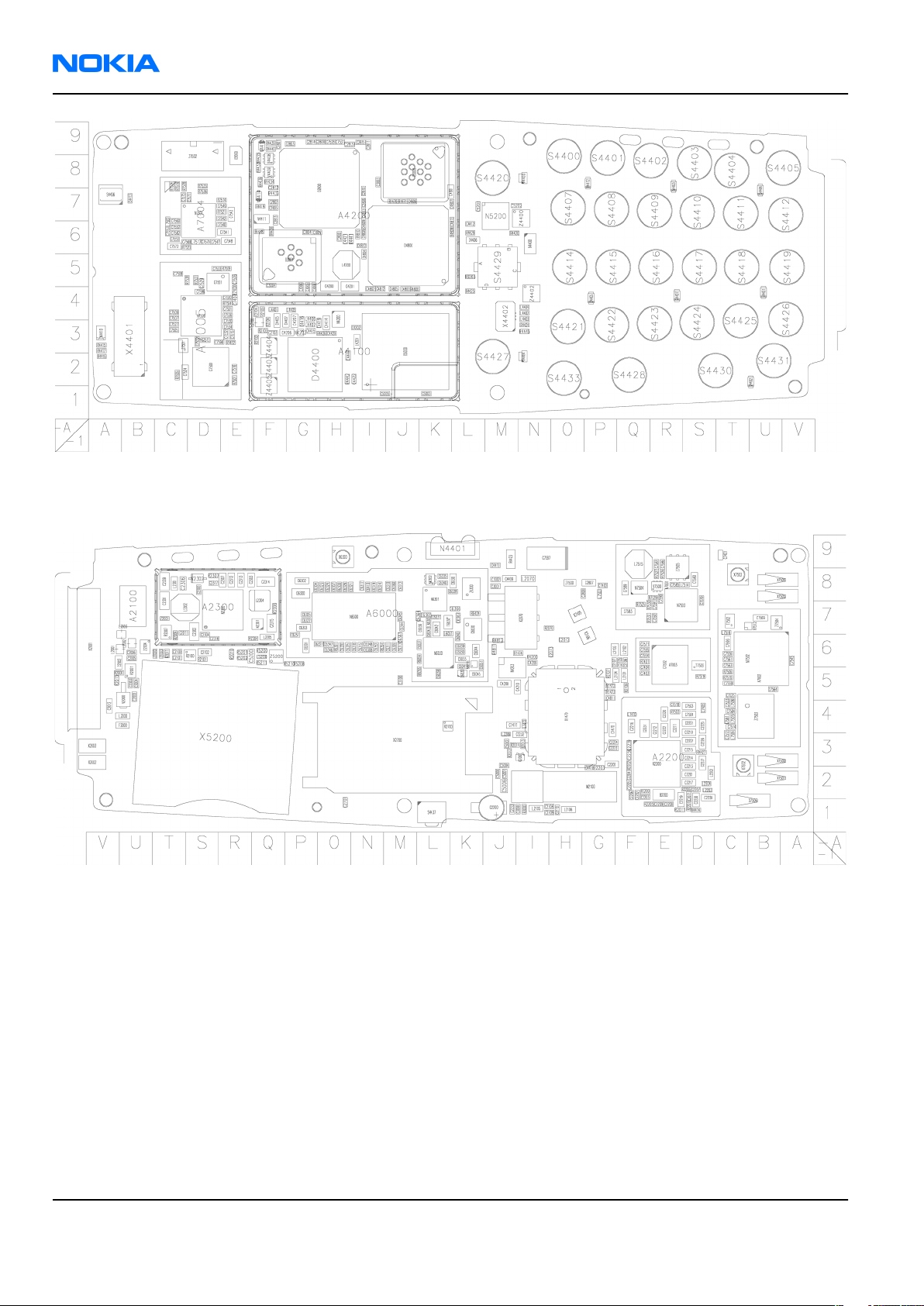

Figure 2 1em-25a.................................................................................................................................................2–55

Figure 3 1em-25b.................................................................................................................................................2–56

Figure 4 1em-25a.................................................................................................................................................2–56

Figure 5 1em-25b.................................................................................................................................................2–57

Issue 1 COMPANY CONFIDENTIAL Page 2 –3

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –4 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Exploded view

Issue 1 COMPANY CONFIDENTIAL Page 2 –5

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Parts lists

RM-10 mechanical spare parts list

• Bold = assembly (assy)

• I0xx = ITEM codes for upper or mono block

• I1xx = ITEM codes for hinge block

• I2xx = ITEM codes for lower block

• I3xx = ITEM codes for soldered spare parts in the upper hinge or lower block and not exchangeable

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS).

To ensure you are always using the latest codes, please check the PWS on a daily basis.

ITEM/CIRCUIT

REF.

QTY PART NAME

A1 1 A-COVER ASSY(I201-I203) I201 1 A-COVER I202 1 SOFT KEYMAT I203 1 WINDOW FRAME / JOYSTICK DECORATION

I204 1 ENGINE QWERTY KEYMAT I205 1 POWER KEY ASSEMBLY I206 4 SCREW M1.8X11 T6

A2 1 FLIP MODULE ASSY(I101-I103;I001-I003;I301) I101 1 FLIP FRAME I102 1 HINGE ASSY

A3 1

1FF Flip PWB ASSY (I001-I003;I301 AND PARTS OF THE SOLDERING

COMPONENTS SECTION) I001 1 T9 DOMESHEET I002 1 FLIP PWB I003 1 FLIP QWERTY DOMESHEET I103 1 COAX CABLE

I004 1 T9 COVER I005 1 T9 KEYMAT I006 1 FLIP QWERTY KEYMAT I207 1 LCD I208 1 LCD BOTTOM SHIELD I209 1 EARPIECE I210 1 JOYSTICK HAT I211 2 SCREW 1.8X5.0 T6 I212 1 ENGINE QWERTY DOMESHEET

Page 2 –6 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

ITEM/CIRCUIT

REF.

A4 1

QTY PART NAME

1EM ENGINE BOARD(I214 - I221 AND PARTS OF THE SOLDERING

COMPONENTS SECTION) I213 1 1EM ENGINE MODULE I214 1 CAMERA MODULE I215 1 CAMERA GASKET I216 1 GSM PA SHIELDING LID I217 1 WCDMA PA SHIELDING LID I218 1 RETU SHIELDING LID I219 1 WLAN BT SHIELDING LID I220 1 TAHVO SHIELDING LID

I221 1 BATTERY DECK I222 1 TYPE LABEL

A5 1 B-COVER ASSY(I222-I227) I223 B-COVER I224 1 VOICE KEY I225 1 MICROPHONE I226 1 DC JACK I227 1 IHF SPEAKER I228 1 IHF LID

I229 1 ANTENNA MODULE I230 1 BATTERY COVER I231 1 WATER INGRESS LABEL

RM-24 mechanical spare parts list

• Bold = assembly (assy)

• I0xx = ITEM codes for upper or mono block

• I1xx = ITEM codes for hinge block

• I2xx = ITEM codes for lower block

• I3xx = ITEM codes for soldered spare parts in the upper hinge or lower block and not exchangeable

Note: For Nokia product codes, please refer to the latest Service Bulletins on the Partner Website (PWS).

To ensure you are always using the latest codes, please check the PWS on a daily basis.

ITEM/CIRCUIT

REF.

QTY PART NAME

A1 1 A-COVER ASSY(I201-I203) I201 1 A-COVER I202 1 SOFT KEYMAT

Issue 1 COMPANY CONFIDENTIAL Page 2 –7

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

ITEM/CIRCUIT

REF.

I203 1 WINDOW FRAME / JOYSTICK DECORATION

I204 1 ENGINE QWERTY KEYMAT I205 1 POWER KEY ASSEMBLY I206 4 SCREW M1.8X11 T6

A2 1 FLIP MODULE ASSY(I101-I103;I001-I003;I301) I101 1 FLIP FRAME I102 1 HINGE ASSY

A3 1

I001 1 T9 DOMESHEET I002 1 FLIP PWB I003 1 FLIP QWERTY DOMESHEET I103 1 COAX CABLE

I004 1 T9 COVER

QTY PART NAME

1FF Flip PWB ASSY (I001-I003;I301 AND PARTS OF THE SOLDERING COMPONENTS SECTION)

I005 1 T9 KEYMAT I006 1 FLIP QWERTY KEYMAT I207 1 LCD I208 1 LCD BOTTOM SHIELD I209 1 EARPIECE I210 1 JOYSTICK HAT I211 2 SCREW 1.8X5.0 T6 I212 1 ENGINE QWERTY DOMESHEET

A4 1

I213 1 1EM ENGINE MODULE I214 1 CAMERA MODULE I215 1 CAMERA GASKET I216 1 GSM PA SHIELDING LID I217 1 WCDMA PA SHIELDING LID I218 1 RETU SHIELDING LID

1EM ENGINE BOARD(I214 - I221 AND PARTS OF THE SOLDERING COMPONENTS SECTION)

I219 1 WLAN BT SHIELDING LID I220 1 TAHVO SHIELDING LID

I221 1 BATTERY DECK

Page 2 –8 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

ITEM/CIRCUIT

REF.

I222 1 TYPE LABEL

A5 1 B-COVER ASSY(I222-I227) I223 B-COVER I224 1 VOICE KEY I225 1 MICROPHONE I226 1 DC JACK I227 1 IHF SPEAKER I228 1 IHF LID

I229 1 ANTENNA MODULE I230 1 BATTERY COVER I231 1 WATER INGRESS LABEL

QTY PART NAME

RM-10/24 component parts list

Component parts list (1 em-25a)

Item Side Grid Description and value

A2100 Bottom U 7 1EM_RIGID PWB RIGID 1EM_LIFTING ~

SHIELD_040_011

A2200 Bottom E 3

A2300 Bottom S 7

A4100 Top I 3

A4200 Top I 7

A6000 Bottom N 7

A7001 Bottom E 8

A7002 Bottom B 5

A7003 Bottom E 6

760 RETU CAN 040-011760 ~ SHIELD_040_011

763 TAHVO CAN 040-011763 ~ SHIELD_040_014

599 SHIELD_040_003

608 BB CAN 040-003608 ~ SHIELD_040_011

766 SHIELD_DMC07007WDCMA PA CAN DMC07007

SHIELD_DMC07005GSM PA CAN DMC07005

SHIELD_DMD114 27 VCO CAN DMD11427 RM-1 ~

COMBO SHIELD 040-014599 ~

WLAN-BT CAN 040-011766 ~

RM-1 ~

SHIELD_040_014

A7004 Top D 7

A7005 Top D 3

Issue 1 COMPANY CONFIDENTIAL Page 2 –9

600 SHIELD_040_005

293

VINKU SHIELD 040-014600 ~

RF ENGINE CAN 040-005293 ~

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CRYSTAL_3.3X1.

B2200 Bottom E 2

C1470 Bottom G 4 0603C

C1471 Bottom J 4 0603C C2000 Bottom U 5 0402C Chipcap 5% NP0 27p

C2002 Bottom V 6 0603C

C2003 Bottom U 5 0402C

C2004 Bottom U 5 0402C

C2005 Bottom U 6 0402C

C2006 Bottom U 6 0402C

C2011 Bottom T 7 0402C

6_H0.9

CRYSTAL 32.768KHZ +-30PPM 12.5PF

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 2U2 K 6V3 0603 2u2

CERCAP X7R 22N K 16V 0402 22n

Chipcap X7R 10% 16V 0402 10n

CHIPCAP NP0 270P J 25V 0402 270p

32.768k Hz

CHIPCAP X5R 470N K 25V

C2012 Bottom V 4 0603C_H0.95 C2071 Bottom D 2 0402C Chipcap 5% NP0 27p C2072 Bottom H 6 0402C Chipcap 5% NP0 10p C2073 Bottom H 6 0402C Chipcap 5% NP0 10p

C2100 Bottom T 6 0402C

C2101 Bottom T 6 0402C

C2102 Bottom S 6 0603C

C2103 Top F 3 0402C

C2104 Top F 4 0402C

C2105 Bottom F 6 0402C

C2106 Bottom F 6 0402C

0603 470n

CHIPCAP X7R 15N K 16V 0402 15n

CHIPCAP X5R 2U2 K 6V3 0603 2u2

Chipcap X7R 10% 50V 0402 1n0

Chipcap X7R 10% 50V

C2107 Bottom G 6 0402C

Page 2 –10 COMPANY CONFIDENTIAL Issue 1

0402 1n0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

Chipcap X7R 10% 50V

C2108 Bottom H 1 0402C

C2109 Bottom H 1 0402C

C2110 Bottom H 1 0402C

C2200 Bottom G 3 0603C

C2201 Bottom D 2 0603C

C2202 Bottom F 2 0402C

C2203 Bottom F 2 0402C

0402 1n0 Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 Chipcap X7R 10% 50V

0402 1n0 Chipcap X7R 10% 50V

C2204 Bottom F 2 0402C

C2205 Bottom F 2 0402C

C2206 Bottom F 2 0402C

C2207 Bottom D 2 0402C C2208 Bottom E 1 0402C Chipcap 5% NP0 27p C2209 Bottom E 1 0402C Chipcap 5% NP0 22p

C2210 Bottom D 4 0603C

C2211 Bottom E 4 0805C_RKNM

C2212 Bottom E 4 0603C

C2213 Bottom D 3 0603C

0402 1n0 Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 16V 0603 1u0

CHIPCAP X5R 4U7 K 25V 0805 4u7

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 1U K 6V3

C2214 Bottom D 3 0603C

C2215 Bottom D 3 0603C

C2216 Bottom F 4 0603C

C2217 Bottom D 2 0603C

Issue 1 COMPANY CONFIDENTIAL Page 2 –11

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 1U K 6V3

C2219 Bottom E 1 0603C

C2220 Bottom E 4 0603C

C2221 Bottom D 4 0603C

C2222 Bottom E 4 0603C

C2223 Bottom G 3 0402C

C2224 Bottom G 3 0402C

C2225 Bottom D 4 0603C

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 Chipcap X7R 10% 16V

0402 10n Chipcap X7R 10% 16V

0402 10n CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

C2226 Bottom D 3 0603C

C2227 Bottom D 3 0603C

C2228 Bottom D 2 0603C

C2230 Bottom D 1 0603C

C2231 Bottom F 4 0805C

C2232 Bottom I 3 0603C C2233 Bottom J 1 0402C Chipcap 5% NP0 27p

C2237 Bottom D 3 0603C C2238 Bottom F 3 0402C Chipcap 5% NP0 27p C2239 Bottom F 3 0402C Chipcap 5% NP0 27p

C2300 Bottom S 8 0402C

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 10U M 6V3

0805 10U CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 22U M 6V3

C2301 Bottom T 8 0805C

C2302 Bottom S 7 0805C

C2303 Bottom R 8 0603C

C2304 Bottom S 6 0402C

Page 2 –12 COMPANY CONFIDENTIAL Issue 1

0805 22u CHIPCAP X5R 22U M 6V3

0805 22u CHIPCAP X5R 1U K 6V3

0603 1u0 Chipcap X7R 10% 16V

0402 10n

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 1U K 6V3

C2306 Bottom T 8 0603C

C2307 Bottom R 8 0603C

C2309 Bottom T 8 0805C

C2312 Bottom R 8 0603C

C2313 Bottom R 8 0603C

C2314 Bottom Q 8 0805C_RKNM

C2315 Bottom Q 7 0805C_RKNM

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 22U M 6V3

0805 22u CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 4U7 K 25V

0805 4u7 CHIPCAP X5R 4U7 K 25V

0805 4u7 Chipcap X7R 10% 50V

C2316 Bottom S 6 0402C C2317 Bottom S 8 0402C Chipcap 5% NP0 27p

C2701 Bottom O 1 0402C_H0.6

C2800 Top H 6 0402C_H0.6

C2801 Top F 9 0402C_H0.6

C2802 Top F 7 0402C_H0.6

C2803 Top G 9 0402C_H0.6

C2804 Top G 6 0402C_H0.6

C2805 Top F 7 0402C_H0.6

C2806 Top I 7 0402C_H0.6

0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3

C2807 Bottom G 8 0603C

C2808 Bottom G 8 0402C_H0.6

C2809 Top H 9 0402C_H0.6

C2810 Top I 7 0402C_H0.6

Issue 1 COMPANY CONFIDENTIAL Page 2 –13

0603 1u0 CHIPCAP X5R 100N M 16V

0402 100n CHIPCAP X5R 100N M 16V

0402 100n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 100N M 16V

C2811 Top I 9 0402C_H0.6

C2812 Top F 8 0402C_H0.6

C2813 Top F 7 0402C_H0.6

C2814 Top G 9 0402C_H0.6

C2815 Top I 9 0402C C2830 Top H 9 0402C Chipcap 5% NP0 10p

C3000 Bottom I 1 0402C_H0.6

C3001 Bottom J 8 0402C_H0.6

0402 100n CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C3002 Bottom J 8 0402C_H0.6

C3003 Top I 8 0402C

C3004 Top F 5 0402C_H0.6

C3005 Top G 4 0402C_H0.6

C3006 Top G 4 0402C_H0.6

C3007 Top G 6 0402C

C3008 Top G 4 0402C_H0.6 C3100 Bottom M 5 0402C Chipcap 5% NP0 27p

C4200 Top H 5 0805C

C4201 Top H 5 0805C

0402 100n Chipcap X7R 10% 16V

0402 10n CHIPCAP X5R 100N M 16V

0402 100n CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 16V

0402 10n CHIPCAP X5R 100N M 16V

0402 100n

CHIPCAP X5R 22U M 6V3 0805 22u

Chipcap X7R 10% 16V

C4202 Top I 3 0402C

C4206 Top G 3 0603C

C4207 Top G 3 0603C

Page 2 –14 COMPANY CONFIDENTIAL Issue 1

0402 10n CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 2U2 K 6V3

C4208 Bottom J 5 0603C

C4209 Bottom I 6 0402C

C4210 Bottom I 5 0603C

C4405 Top F 3 0603C

C4406 Top L 6 0603C

C4407 Top F 3 0603C

C4409 Bottom J 8 0603C

0603 2u2 CHIPCAP X7R 33N K 10V

0402 33n CHIPCAP X5R 2U2 K 6V3

0603 2u2 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 4U7 K 6V3

0603 4u7 CHIPCAP X5R 100N M 16V

C4410 Bottom J 9 0402C_H0.6

C4412 Top L 6 0402C C4413 Top B 7 0402C Chipcap 5% NP0 27p

C4414 Top H 3 0603C

C4415 Top G 3 0402C_H0.6

C4416 Top G 3 0402C_H0.6

C4417 Top H 2 0402C_H0.6

C4418 Bottom G 2 0402C_H0.6

C4419 Top G 3 0402C

C4420 Top H 3 0402C

0402 100n Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap X7R 10% 50V 0402 1n0

Chipcap X7R 10% 50V

0402 1n0 C4421 Top H 6 0402C Chipcap 5% NP0 27p C4422 Top I 2 0402C Chipcap 5% NP0 27p

CHIPCAP X5R 100N M 16V C4800 Top J 4 0402C_H0.6

C4801 Top K 7 0603C

C4802 Top I 4 0402C_H0.6

Issue 1 COMPANY CONFIDENTIAL Page 2 –15

0402 100n

CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 100N M 16V

0402 100n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 100N M 16V

C4803 Top I 7 0402C_H0.6

C4804 Top I 5 0402C_H0.6

C4805 Top J 4 0402C_H0.6

C4806 Top J 7 0402C_H0.6

C4807 Top L 7 0402C_H0.6

C4808 Top I 6 0402C_H0.6

C4809 Top I 6 0402C_H0.6

0402 100n CHIPCAP X5R 100N M 16V

0402 100n

C4810 Top I 6 0402C_H0.6

C4811 Bottom G 5 0402C_H0.6

C4812 Top I 4 0402C_H0.6

C4813 Top L 6 0402C

C5000 Bottom J 2 0402C_H0.6

C5001 Bottom J 2 0402C_H0.6

C5002 Bottom J 3 0402C_H0.6

C5003 Top K 1 0402C_H0.6

C5004 Bottom J 3 0402C_H0.6

C5005 Top I 1 0402C_H0.6

CHIPCAP X5R 100N M 16V 0402 100n

Chipcap X7R 10% 50V 0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3

C5006 Bottom J 2 0603C

C5200 Bottom R 6 0603C

C5201 Top L 7 0402C

Page 2 –16 COMPANY CONFIDENTIAL Issue 1

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 100N K 10V

0402 100n

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 100N K 10V C5202 Top M 7 0402C

C6030 Bottom K 6 0402C Chipcap 5% NP0 100p C6031 Bottom L 7 0402C Chipcap 5% NP0 15p

C6033 Bottom K 6 0603C

C6036 Bottom L 7 0603C

C6037 Bottom L 6 0402C

C6038 Bottom L 5 0402C

C6039 Bottom K 6 0402C

0402 100n

CHIPCAP X5R 4U7 K 6V3

0603 4u7

CHIPCAP X5R 4U7 K 6V3

0603 4u7

CHIPCAP X5R 1U K 6V3

0402 1u0

CHIPCAP X5R 1U K 6V3

0402 1u0

CHIPCAP X5R 100N K 10V

0402 100n

CHIPCAP X5R 100N K 10V C6040 Bottom K 6 0402C

C6041 Bottom K 6 0402C

C6042 Bottom L 7 0603C

C6043 Bottom L 7 0402C

C6044 Bottom K 6 0603C

C6045 Bottom K 5 0603C C6051 Bottom K 6 0402C Chipcap 5% NP0 10p

C6300 Bottom P 8 0805C

C6301 Bottom P 6 0603C

C6302 Bottom P 8 0603C

0402 100n

CHIPCAP X5R 0U47 K 6.3V

0402 0u47

CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 0U47 K 6.3V

0402 0u47

CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 22U M 6V3

0805 22u

CHIPCAP X5R 1U K 16V

0603 1u0

CHIPCAP X5R 2U2 K 6V3

0603 2u2

CHIPCAP X5R 1U K 16V C6303 Bottom P 7 0603C

C6304 Bottom P 8 0402C

C6305 Bottom P 7 0402C

C6307 Bottom O 8 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –17

0603 1u0

CHIPCAP X5R 100N K 10V

0402 100n

CHIPCAP X5R 100N K 10V

0402 100n

CHIPCAP X5R 1U K 6V3

0402 1u0

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

Chipcap X7R 10% 50V

C6308 Bottom N 6 0402C

C6309 Bottom M 6 0402C

C6310 Bottom M 8 0402C

C6311 Bottom M 6 0402C

C6312 Bottom M 8 0402C

C6313 Bottom M 6 0402C

C6314 Bottom N 8 0402C

0402 1n0 Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 100N K 10V

0402 100n chipcap x7r 47n k 10v

0402 47n CHIPCAP X5R 1U5 K 4V

0402 1u5 Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 100N K 10V

0402 100n

C6315 Bottom N 6 0402C

C6317 Bottom N 8 0402C

C6318 Bottom N 6 0402C

C6319 Bottom N 8 0402C

C6320 Bottom O 6 0402C

C6321 Bottom N 8 0402C

C6322 Bottom P 7 0402C

C6323 Bottom O 8 0402C

C6324 Bottom O 8 0402C

C6325 Bottom O 6 0402C

CHIPCAP X5R 100N K 10V 0402 100n

Chipcap X7R 10% 50V 0402 1n0

Chipcap X7R 10% 50V

C6326 Bottom O 8 0402C

C6327 Bottom O 6 0402C

C6330 Bottom K 8 0603C

Page 2 –18 COMPANY CONFIDENTIAL Issue 1

0402 1n0 CHIPCAP X5R 100N K 10V

0402 100n CHIPCAP X5R 4U7 K 6V3

0603 4u7

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP NP0 220P J 25V C6335 Bottom L 8 0402C

C6338 Bottom K 8 0402C Chipcap 5% NP0 47p C6340 Bottom L 8 0402C Chipcap +-0.25pF NP0 6p8 C6344 Bottom M 7 0402C Chipcap +-0.25pF NP0 6p8 C6345 Bottom M 7 0402C Chipcap +-0.25pF NP0 6p8

C6346 Bottom O 6 0402C C6347 Bottom O 6 0402C Chipcap 5% NP0 82p

C6348 Bottom N 6 0402C

C6351 Bottom P 6 0402C C6352 Bottom N 6 0402C Chipcap 5% NP0 150p

0402 220p

Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 6V3

0402 1u0

Chipcap X7R 10% 50V

0402 1n0

CHIPCAP NP0 220P J 25V C6360 Bottom M 8 0402C

C6361 Bottom M 6 0402C C6364 Bottom L 7 0402C Chipcap +-0.25pF NP0 6p8 C6365 Bottom L 7 0402C Chipcap +-0.25pF NP0 6p8 C6366 Bottom K 7 0402C Chipcap +-0.25pF NP0 6p8 C6367 Bottom K 7 0402C Chipcap +-0.25pF NP0 6p8

C6410 Bottom N 8 0402C C7400 Bottom G 8 0402C Chipcap 5% NP0 18p C7401 Bottom C 9 0402C Chipcap +-0.25pF NP0 5p6 C7403 Bottom F 5 0402C Chipcap 5% NP0 18p C7404 Bottom F 5 0402C Chipcap +-0.25pF NP0 2p7 C7405 Bottom D 4 0402C Chipcap 5% NP0 18p C7407 Top E 4 0402C Chipcap X7R 5% 16V 0402 10n C7501 Top E 4 0402C Chipcap 5% NP0 18p

0402 220p

CHIPCAP NP0 220P J 25V

0402 220p

Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 6V3 C7503 Bottom D 4 0603C

C7504 Bottom D 4 0603C

C7505 Top C 3 0402C C7507 Top C 4 0402C Chipcap 5% NP0 18p

Issue 1 COMPANY CONFIDENTIAL Page 2 –19

0603 1u0

CHIPCAP X5R 1U K 6V3

0603 1u0

CHIPCAP X5R 100N K 10V

0402 100n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

C7508 Top C 5 0402C Chipcap 5% NP0 18p C7509 Top C 4 0402C Chipcap +-0.25pF NP0 2p7 C7512 Bottom C 3 0402C Chipcap +-0.25pF NP0 2p7

Chipcap X7R 10% 25V

C7513 Top D 3 0402C C7514 Bottom C 4 0402C Chipcap +-0.25pF NP0 2p7 C7515 Top E 3 0402C Chipcap 5% NP0 10p C7516 Top E 2 0402C Chipcap 5% NP0 150p

C7518 Bottom E 4 0402C C7520 Top E 4 0402C Chipcap 5% NP0 18p C7522 Top D 3 0402C Chipcap 5% NP0 150p C7523 Bottom C 4 0402C Chipcap +-0.25pF NP0 3p9

0402 4n7

CHIPCAP X5R 100N K 10V 0402 100n

CHIPCAP NP0 2N2 G 16V

C7524 Top C 2 0603C C7525 Bottom C 5 0402C Chipcap +-0.25pF NP0 3p9 C7526 Top E 5 0402C Chipcap +-0.25pF NP0 5p6 C7527 Top C 3 0402C Chipcap 5% NP0 100p C7528 Top H 9 0402C Chipcap 5% NP0 22p C7529 Top D 5 0402C Chipcap 5% X7R 1n0

C7530 Top E 3 0402C C7531 Top H 9 0402C Chipcap 5% NP0 22p

C7532 Top E 3 0402C C7533 Top D 5 0402C Chipcap X7R 5% 16V 0402 10n

C7534 Top E 3 0402C

C7536 Top E 4 0402C

0603 2n2

Chipcap X7R 10% 16V 0402 8n2

C7540 Top E 6 0402C Chipcap 5% NP0 18p

CHIPCAP X5R 1U K 6V3

C7541 Top E 6 0603C C7542 Top E 7 0402C Chipcap 5% NP0 18p

C7543 Top E 7 0603C C7545 Bottom A 6 0402C Chipcap +-0.25pF NP0 4p7

Page 2 –20 COMPANY CONFIDENTIAL Issue 1

0603 1u0

CHIPCAP X5R 1U K 6V3 0603 1u0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

C7547 Top D 6 0402C Chipcap +-0.25pF NP0 1p8

CHIPCAP X5R 1U K 6V3 C7548 Top E 6 0603C

C7549 Top E 7 0402C Chipcap 5% NP0 100p C7550 Top C 6 0402C Chipcap +-0.25pF NP0 2p7 C7552 Top C 6 0402C Chipcap +-0.25pF NP0 2p7

C7553 Top C 6 0402C C7554 Bottom F 6 0402C Chipcap +-0.25pF NP0 4p7

C7555 Bottom F 6 0402C C7556 Bottom C 6 0402C Chipcap 5% NP0 10p C7558 Top D 8 0402C Chipcap 5% X7R 1n0

0603 1u0

Chipcap X7R 10% 16V

0402 8n2

CHIPCAP NP0 0P5 C 50V

0402 0p5

C7559 Bottom C 5 0402C Chipcap +-0.25pF NP0 1p0

Chipcap X7R 10% 25V C7560 Top C 6 0402C

C7561 Bottom C 6 0402C Chipcap +-0.25pF NP0 4p7 C7563 Bottom C 6 0402C Chipcap +-0.25pF NP0 4p7 C7564 Bottom B 5 0402C Chipcap 5% X7R 1n0 C7567 Top D 7 0402C Chipcap 5% NP0 15p C7568 Top C 6 0402C Chipcap 5% NP0 150p

C7569 Bottom B 7 0603C C7570 Top D 6 0402C Chipcap 5% NP0 18p

C7571 Bottom F 6 0402C

C7573 Top C 6 0603C C7575 Top C 7 0402C Chipcap 5% NP0 15p C7577 Top D 7 0402C Chipcap 5% NP0 15p

0402 4n7

CHIPCAP X5R 4U7 K 6V3

0603 4u7

CHIPCAP NP0 330P J 50V

0402 330p

CHIPCAP NP0 2N2 G 16V

0603 2n2

C7579 Bottom D 8 0402C Chipcap 5% NP0 10p

CHIPCAP X5R 1U K 6V3 C7580 Bottom D 8 0603C

C7581 Bottom C 4 0402C Chipcap +-0.25pF NP0 4p7 C7582 Top C 6 0402C Chipcap 5% NP0 100p

C7583 Bottom F 7 0603C

Issue 1 COMPANY CONFIDENTIAL Page 2 –21

0603 1u0

CHIPCAP X5R 4U7 K 6V3

0603 4u7

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

C7584 Bottom C 4 0402C Chipcap +-0.25pF NP0 4p7

CHIPCAP NP0 1P0 B 50V

C7585 Bottom E 8 0402C C7586 Bottom E 9 0402C Chipcap 5% NP0 10p C7587 Bottom E 9 0402C Chipcap 5% NP0 10p

C7589 Bottom F 8 0603C C7590 Bottom E 8 0402C Chipcap 5% NP0 10p

C7591 Bottom E 7 0402C C7592 Bottom E 7 0402C Chipcap 5% X7R 3n3

C7593 Bottom C 6 0603C C7596 Top D 4 0402C Chipcap +-0.25pF NP0 2p7

0402 1p0

CHIPCAP X5R 4U7 K 6V3 0603 4u7

CHIPCAP NP0 470P J 6V3 0402 470p

CHIPCAP X5R 4U7 K 6V3 0603 4u7

TANT_C_6.2X3.4_

C7597 Bottom I 9

C7598 Top D 3 0402C

D2800 Top G 7 uBGA_289

D3000 Top J 8

D3001 Top G 5

D4400 Top G 2

D4800 Top J 6 uBGA_289

D5000 Top J 3

D6030 Bottom K 5

H1.7

PBFREEBGA40_6 4MB_66MHZ_MAXFLASH 4MX16 1.8/1.8V

WBGA_60_8.1X6 .6_H0.9

FCBGA121_8.2X8.2LCD CONTROLLER

FBGA133_11.6X

13.1 XBGA_N5_H0.625OR-GATE 2INPUT

CHIPTCAP 150U M 10V 6X3.2X1.5

CHIPCAP NP0 0P5 C 50V 0402 0p5

RAP3G V2.20E-PA UMC8D F761800F 12C027 ~

FBGA44 PBFREE 4Mx16 SDRAM 4X16 1.8V/1.8V

FBGA60 PBFREE 4Mx16

S1D13743 1.8V FBGA121 ~ HELEN3 PS2.0 N3 F761909

C27 UBGA289 ~

COMBO 512 DDR + 1G NAND FBGA133 PBFREE

74LVC1G32YZTR WCSP-5 ~

150u_1 0V

32Mx16 / 128Mx8

0603_FUSE_AVX

F2000 Bottom U 4

G2200 Bottom J 1 BATTER_EECEP

G6030 Bottom K 7

Page 2 –22 COMPANY CONFIDENTIAL Issue 1

2MATS SM FUSE F 2.0A 32V 2A

RTC BACUP CAPAC 311 SIZE FOR 2.6V 4UAH 2.6V

VCTCXO_3.4X2.7 _4P2_H1.0

TCXO 38.4MHZ +-10PPM

2.78V

38.4MH z

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

VCO_FDK_IT_H1.7VCO 3610-4340MHZ 2.7V

G7500 Top D 2

G7501 Top D 5 NKG3176B_H1.0 VCTCXO 38.4MHZ 2.5V 2MA

G7502 Bottom E 6 VCO_FDK_IT_4

L1470 Bottom F 4 FERRITE_0402

L1472 Bottom I 4 FERRITE_0402

L2000 Bottom U 4 0603_BLM

L2001 Bottom U 6 0405_2_MATSU

L2002 Bottom U 6 0405_2_MATSU

L2003 Bottom U 6 0405_2_MATSU

14MA

VCO 3296-3980MHZ FOUR

2.7V 20MA

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERR.BEAD 220R/100M 2A

0R05 0603

CHIP BEAD ARRAY

2X1000R 0405

CHIP BEAD ARRAY

2X1000R 0405

CHIP BEAD ARRAY

2X1000R 0405

3610-43 40MHz

38.4MH z

3296-39 80MHz

600R/ 100MHz

220R/ 100MHz

2x1000 R/ 100MHz

L2070 Bottom I 8 0603_BLM

L2100 Top F 3 0405_2_MATSU

L2101 Bottom F 5 0603_BLM

L2102 Bottom F 6 COIL_0603CS

L2103 Bottom G 6 COIL_0603CS

L2104 Bottom F 5 0603_BLM

L2105 Bottom I 1 0603_BLM

L2106 Bottom H 1 0603_BLM

L2202 Bottom D 2 0603_BLM

FERR.BEAD 220R/100M 2A

0R05 0603

CHIP BEAD ARRAY

2X1000R 0405

FERR.BEAD 220R/100M 2A

0R05 0603

CHIP COIL 33N G

Q40/250MHZ 0603 33nH

CHIP COIL 33N G

Q40/250MHZ 0603 33nH

FERR.BEAD 220R/100M 2A

0R05 0603

FERR.BEAD 220R/100M 2A

0R05 0603

FERR.BEAD 220R/100M 2A

0R05 0603

FERR.BEAD 220R/100M 2A

0R05 0603

220R/ 100MHz

2x1000 R/ 100MHz

220R/ 100MHz

FERRITE BEAD 0.6R 600R/ L2203 Bottom D 2 FERRITE_0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –23

100MHZ 0402

600R/ 100MHz

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

L2204 Bottom D 2 FERRITE_0402

L2205 Bottom Q 6 0603_BLM

L2206 Bottom J 3 FERRITE_0402

L2301 Bottom T 8 0603_BLM

L2302 Bottom T 7 CHOKE_SER400

CHOKE_SER300_

L2304 Bottom Q 8

L4200 Top H 5 CHOKE_SER400

L4201 Top I 3 0603_BLM

L4401 Top F 4 FERRITE_0402

L4402 Top N 4 0402L

H1.5

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

FERR.BEAD 220R/100M 2A 0R05 0603

CHOKE 10U 0.8A 0R24 4X4X1.8 10uH

CHOKE 22U M 0R7 0.35A

3.0x3.0x1.5 22uH CHOKE 10U 0.8A 0R24

4X4X1.8 10uH FERR.BEAD 220R/100M 2A

0R05 0603 FERRITE BEAD 0.6R 600R/

100MHZ 0402 CHIP COIL 22N J Q28/800M

0402 22nH

600R/ 100MHz

220R/ 100MHz

600R/ 100MHz

220R/ 100MHz

600R/ 100MHz

L4403 Top N 4 0402L

L4404 Top N 4 0402L

L4405 Top G 4 FERRITE_0402

L4406 Top G 4 FERRITE_0402

L4407 Top G 3 FERRITE_0402

L5200 Bottom Q 6 FERRITE_0402

L6030 Bottom L 7 0402L

L6031 Bottom L 7 0402L

L7502 Top C 6 0402L

L7503 Bottom G 8 FERRITE_0402

CHIP COIL 22N J Q28/800M 0402 22nH

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 22N J Q28/800M 0402 22nH

CHIP COIL 2N2+-0N3 Q30/800M 0402 2n2H

CHIP COIL 100N J Q16/300M 0402 100nH

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

600R/ 100MHz

Page 2 –24 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIP COIL 27N J Q27/800M L7504 Bottom C 3 0402L

L7505 Bottom C 4 0402L

L7506 Bottom C 4 0402L

L7510 Top D 8 0402L

L7511 Top D 7 0402L

L7512 Top D 7 0402L

L7514 Bottom D 8 0402L

0402 27nH

CHIP COIL 12N J Q31/800M

0402 12nH

CHIP COIL 12N J Q31/800M

0402 12nH

CHIP COIL 4N7 +-0N3

Q28/800M 0402 4n7H

CHIP COIL 10N J Q30/800M

0402 10nH

CHIP COIL 4N7 +-0N3

Q28/800M 0402 4n7H

CHIP COIL 8N2 J

Q28/800MHZ 0402 8n2H

L7515 Bottom F 9 CHOKE_SER400

L7516 Bottom C 7 FERRITE_0402

L7517 Top D 6 0402L

VIBRA_M_KHN4N

M2100 Bottom H 2

N2200 Bottom E 3 TFBGA_108

N2300 Bottom R 7

N2301 Bottom Q 7

N4200 Top H 4

N4202 Top G 3 FC_4_0.99X0.99

X1RA

TFBGA_84_6.15X

6.15 TAHVO V5.2 LF TFBGA84 ~ USMD8_1.69X1.69WHITE LED DRIVER 4LEDS

USMD_10_2.458 X1.899

CHOKE 10U 0.8A 0R24

4X4X1.8 10uH

FERRITE BEAD 0.6R 600R/

100MHZ 0402

CHIP COIL 1N5 +-0N3

Q33/800M 0402 1n5H

SMD VIBRA MOTOR 1.3V

80MA 9000RPM ~

RETU 3.02 TSA1GJWE

TFBGA108 ~

500MW 8BUMP USMD8 ~

DC/DC CONV

LM3661-1.40V/1.05V

NOPB ~

LI VREG 1.5V/150MA

WLCSP4 TK63115B ~

600R/ 100MHz

N4203 Bottom J 5 LLP_6 REG LP3981YDX-3.0 LLP3 ~

HALL IC SWITCH TLE4917 N4400 Top N 6 TSOP_6L_H1.1

N4401 Bottom K 9 CIM_138M7_T

N5200 Top M 7 PBGA_N48

Issue 1 COMPANY CONFIDENTIAL Page 2 –25

TSSOP6 ~

IRDA 1.152 MBITS/S WITH

LIFT PWB ~

LEVEL SHIFT

SN74AVCA406ZQCR 1.8/3V

BGA48 ~

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

N6030 Bottom L 6 uBGA63_4.6X4.6 BRF6150 ~

LI VREG TK63128B 2.8V

N6031 Bottom K 6 FC_4_0.99X0.99

N6300 Bottom N 7 LFBGA_228 N6301 Bottom L 8 RF5924 WLAN RF5924 ES3.5 ~

N6302 Bottom L 8 SOT_666

WLCSP4 ~ WLAN MCM STLC4370 F3

LINEAR EM LFBGA228 ~

TRX2+RX4 PEMD9 N&P 10K/47K 0W12 SOT666 ~

TFBGA_84_6.15X

N7500 Top D 4

N7501 Top D 7 TFBGA64_H1.2

N7502 Bottom B 6 RITSA_PA_REL3

N7503 Bottom E 7 RF9252E2.1

N7504 Bottom F 8 R1470 Top J 7 0402R Resistor 5% 63mW 100R R1471 Top J 7 0402R Resistor 5% 63mW 100R R1472 Bottom G 5 0402R Resistor 5% 63mW 3k3 R1473 Bottom G 5 0402R Resistor 5% 63mW 3k3 R1474 Bottom I 6 0402R Resistor 5% 63mW 33R R2000 Bottom V 5 0402R Resistor 5% 63mW 220R

R2001 Bottom U 5

6.15

USMD10_2.534X

2.026

uBGA11_2.15X1.65ASIP MIC W/ESD RES+CAP

RF ASIC HINKU310A TFBGA84 ~

RF ASIC VINKU314A TFBGA64 ~

PW AMP RF9292E9.2 QUADBAND ~

PW AMP RF9252E8.2 1920-1980MHZ ~

DC CONV SUPA LM2706 PBFREE ~

+ZDI BGA11 ~

uBGA11_1.6X2.15ASIP SILIC USB OTG / ESD

R2007 Bottom T 7 R2009 Bottom T 6 0402R Resistor 5% 63mW 100R R2010 Bottom R 6 0402R Resistor 5% 63mW 220k R2011 Bottom E 1 0402R Resistor 5% 63mW 120k R2012 Bottom J 3 0402R Resistor 5% 63mW 100k R2013 Bottom I 3 0402R Resistor 5% 63mW 330R R2014 Bottom J 3 0402R Resistor 5% 63mW 1M0

R2015 Bottom V 5 0402_VAR

R2070 Bottom I 7 0402_VAR

Page 2 –26 COMPANY CONFIDENTIAL Issue 1

BGA11 ~

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

NTC RES 47K J B=4050 R2071 Bottom T 6 0402_NTH5

+-3% 0402 47k

FLIP_CHIP_8_1.7

R2100 Bottom S 6 R2101 Bottom S 6 0402R Resistor 5% 63mW 220R

R2102 Top F 3 0402R

R2103 Top F 3 0402R

R2104 Top F 3 0402_VAR

R2105 Top F 4 0402_VAR

R2106 Bottom F 5 0402_VAR

R2107 Bottom G 5 0402_VAR R2200 Bottom F 2 0402R Resistor 5% 63mW 100k R2201 Bottom D 1 0402R Resistor 5% 63mW 120k R2202 Bottom F 3 0402R Resistor 5% 63mW 47R

X1.7

ASIP SINGLE ENDED

MICROPHONE INTERF BGA8 ~

Chipres 0W06 jumper

0402 0R

Chipres 0W06 jumper

0402 0R

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

R2203 Bottom G 2 0402R Resistor 5% 63mW 470R R2205 Bottom E 1 0402R CHIPRES 0W06 2M2 J 0402 2M2 R2206 Bottom D 2 0402R Resistor 5% 63mW 4k7 R2304 Bottom Q 6 0402R Resistor 5% 63mW 33R

Chipres 0W06 jumper R2306 Bottom Q 7 0402R

R2307 Bottom S 8 0402R Resistor 5% 63mW 100R

uBGA8_1.47X1.47ASIP SIM INTERFACE

R2700 Bottom L 4 R3000 Bottom I 1 0402R Resistor 5% 63mW 4k7 R4200 Bottom I 6 0402R Resistor 5% 63mW 220k R4414 Bottom D 1 0402R Resistor 5% 63mW 470k R4415 Top A 3 0402R Resistor 5% 63mW 100k

R4416 Top A 2 0402_NTH5 R4417 Top A 3 0402R Resistor 5% 63mW 470k R4418 Top F 6 0402R Resistor 5% 63mW 1k0

0402 0R

**LOW CAP**BGA8 ~

NTC RES 47K J B=4050

+-3% 0402 47k

R4419 Top F 7 0402R Resistor 5% 63mW 100k

Issue 1 COMPANY CONFIDENTIAL Page 2 –27

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

R4420 Top M 6 0402R Resistor 5% 63mW 100R

CHIPRES 0W125 4R7 J

R4423 Bottom J 9 0805R_THERM1 R4424 Top N 3 0402R Resistor 5% 63mW 10k R4425 Top L 4 0402R Resistor 5% 63mW 10k R4426 Top H 3 0402R Resistor 5% 63mW 1k0 R4427 Bottom D 3 0402R Resistor 5% 63mW 4k7 R4428 Top F 6 0402R Resistor 5% 63mW 4k7 R4429 Top L 6 0402R Resistor 5% 63mW 100k

R4432 Top F 7 0402R R4433 Top F 8 0402R Resistor 5% 63mW 1k0 R4434 Top F 8 0402R Resistor 5% 63mW 1k0

0805 4R7

Chipres 0W06 jumper 0402 0R

R4435 Top F 8 0402R Resistor 5% 63mW 47R R4436 Top F 8 0402R Resistor 5% 63mW 10R

CHIP VARISTOR VWM14V

R4439 Top F 9 0402_VAR

R4440 Top F 9 0402_VAR R4441 Top H 6 0402R Resistor 5% 63mW 100R R4442 Top H 2 0402R Resistor 5% 63mW 100R

R4445 Top N 3 0402R R4800 Top J 4 0402R Resistor 5% 63mW 10R R4809 Top L 6 0402R Resistor 5% 63mW 1k0 R4810 Top I 6 0402R Resistor 5% 63mW 10k R4811 Bottom J 6 0402R Resistor 5% 63mW 47R R4812 Bottom J 6 0402R Resistor 5% 63mW 47R R5200 Bottom Q 6 0402R Resistor 5% 63mW 12k R5201 Bottom R 6 0402R Resistor 5% 63mW 56R

VC50V 0402 14V/50V CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

Chipres 0W06 jumper 0402 0R

CHIP VARISTOR VWM14V

R5202 Bottom R 6 0402_VAR R5208 Bottom P 6 0402R Resistor 5% 63mW 100k

R5210 Bottom P 6 0402_VAR R5211 Bottom Q 6 0402R Resistor 5% 63mW 100k R6054 Bottom L 6 0402R Resistor 5% 63mW 100k

Page 2 –28 COMPANY CONFIDENTIAL Issue 1

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V VC50V 0402 14V/50V

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

R6055 Bottom L 5 0402R Resistor 5% 63mW 100k R6065 Top L 5 0402R Resistor 5% 63mW 10k

CHIPRES 0W06 1M F R6300 Bottom O 8 0402R

R6301 Bottom O 6 0402R Resistor 5% 63mW 1k2 R6354 Bottom N 6 0402R Resistor 5% 63mW 3k3 R6424 Bottom K 7 0402R Resistor 5% 63mW 100R R7400 Top E 4 0402R Resistor 5% 63mW 18R R7401 Bottom F 6 0402R Resistor 5% 63mW 10R R7402 Top E 3 0402R Resistor 5% 63mW 10R R7501 Top E 2 0402R Resistor 5% 63mW 1k0 R7503 Bottom E 4 0402R Resistor 5% 63mW 4k7 R7504 Top E 4 0402R CHIPRES 0W06 10K F 0402 10k

100PPM 0402 1M0

R7505 Top C 2 0402R CHIPRES 0W06 8K2 F 0402 8k2 R7506 Bottom C 5 0402R Resistor 5% 63mW 270R R7509 Top E 5 0402R Resistor 5% 63mW 22k

436R/

RES NETWORK 0W04 2DB R7512 Bottom B 7 0404_RAC10

R7514 Top E 7 0402R Resistor 5% 63mW 12k R7516 Bottom C 5 0402R Resistor 5% 63mW 1k0 R7518 Top C 8 0402R Resistor 5% 63mW 470k R7519 Bottom D 5 0402R Resistor 5% 63mW 1k0 R7520 Top D 7 0402R Resistor 5% 63mW 270R R7521 Top E 7 0402R CHIPRES 0W06 10K F 0402 10k R7522 Top C 7 0402R Resistor 5% 63mW 220k

R7523 Top C 6 0402R R7525 Bottom F 7 0402R Resistor 5% 63mW 10R R7526 Bottom E 8 0402R Resistor 5% 63mW 5k6

ATT 0404

CHIPRES 0W06 9K1 F

100PPM 0402 9k1

11R6/43 6R

R7527 Bottom E 8 0402R Resistor 5% 63mW 220R R7528 Top C 8 0402R Resistor 5% 63mW 470k R7529 Bottom E 8 0402R Resistor 5% 63mW 2k2 R7530 Bottom E 7 0402R Resistor 5% 63mW 8k2 R7531 Bottom E 7 0402R Resistor 5% 63mW 8k2 R7534 Top C 8 0402R Resistor 5% 63mW 470k

Issue 1 COMPANY CONFIDENTIAL Page 2 –29

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

SWITCH

SWITCH_EVQWH

S4429 Top M 5

S4436 Top A 7 BUTTON_EVPAA

E50K

MULTIDIRECTIONAL EVQ042Z5003 ~

SWITCH PB LIGHT EVPAA 15V 20MA ~

SWITCH_SKRELX

S4437 Bottom L 1

T6030 Bottom L 7 TRANS_LDB213

T7500 Top D 5 TRANS_LDB15

T7501 Top C 3 TRANS_LDB15

T7502 Bottom C 7 TRANS_LDB15

T7503 Bottom D 6 TRANS_LDB15

V2000 Bottom U 5 CASE_457

V2001 Bottom I 3 VMT3_R V2302 Bottom S 8 SOD323F SCH DI 30V 2A SOD323F ~

V4400 Top N 8 LED_CL270

1_1

SM SW TACT SPST-NO 12VDC 50MA ~

TRANSF BALUN 2400 +-100MHZ ~

TRANSF BALUN 2134 +-90MHZ 0805 ~

TRANSF BALUN 3800 +-550MHZ 0805 ~

TRANSF BALUN 1800 +-100mhz 2x1.25 ~

TRANSF BALUN 3800 +-550MHZ 0805 ~

TVS DI 1PMT16AT3 16V 175W PWRMITE ~

MOSFET N 30V 100MA VMT3 ~

LED WHITE 100MCD 20MA

0DEG ~ V4401 Top U 4 LED_LWL28G LED LW L28G WHITE 0603 ~ V4402 Top U 2 LED_LWL28G LED LW L28G WHITE 0603 ~ V4403 Top R 8 LED_LWL28G LED LW L28G WHITE 0603 ~

LED WHITE 100MCD 20MA V4404 Top N 2 LED_CL270

V4405 Top P 4 LED_LWL28G LED LW L28G WHITE 0603 ~ V4406 Top U 7 LED_LWL28G LED LW L28G WHITE 0603 ~ V4407 Top R 4 LED_LWL28G LED LW L28G WHITE 0603 ~

V4408 Top F 8 SOT_666

V4409 Top F 8 SOT_666

V4410 Top A 3 TRANS_SFH3710

Page 2 –30 COMPANY CONFIDENTIAL Issue 1

0DEG ~

TRX2 N 15V 1A 0W3

LOWSAT SOT666 ~

TRX2 N 15V 1A 0W3

LOWSAT SOT666 ~

SILICON

PHOTOTRANSISTOR

SF3710 SMT 2.1X1.4X ~

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

MFET N&P SI1867DL

V4411 Top F 7 SC70_6_FAIR V4412 Top P 8 LED_LWL28G LED LW L28G WHITE 0603 ~

V4413 Top F 9 SC79

V4414 Top F 7 SC79

V7500 Bottom E 8 SOT_563

SOCKET_DMD10413CAMERA MOD.SOCKET

X1470 Bottom H 4

VIN>1V8 SOT363 ~

SCH DI 1PS79SB31 200MA 30V SOD523 ~

SCHDIX2 RF DETECTOR CT 1PF 0V39 SOT666 ~

2X7POL SPR P1.4 ~

SYSCON_MQ202_

X2001 Bottom V 6

X2002 Bottom V 3

X2003 Bottom V 3

X2060 Top E 8

X2070 Bottom I 7

X2105 Bottom H 7 DMD05906

X2106 Bottom G 6 DMD05906

X2700 Bottom M 3

X4401 Top B 3

X4402 Top M 4 CFX3103_0101E

NK_14R3 CONTACT_PAD_2.

95X1.95 CONTACT_PAD_2.

95X1.95 TRACEABILITY_PADMODULE ID COMPONENT

LYNX_BATT_CON N_H7.0

SIM_CONN_P04_ 100157_001

JST_CO3_00352_ 200_MIRROR

SM SYSTEM CONNECTOR 14POL ~

SM CONN VIBRA SPACER PAD 2.8X1.8 ~

2.8X1.8X0.3 ~ SM BATTERY CONN 3POL

SPR 12V 2A ~ RF-SPACER DMD05906

HD986-TRI ~ RF-SPACER DMD05906

HD986-TRI ~ SM SIM CONN 2X3POL

P2.54 50V 0.5A ~ SM CONN PORTABLE 2X20

P0.4PWB SMD ~ SM COAX CONN RECEP

1X3PIN P0.5 ~

MINISD_SC1S011

X5200 Bottom S 3

X6300 Bottom O 9 COAX_MM8430

X7500 Bottom A 3

X7501 Bottom A 2

X7502 Bottom C 3 COAX_MM8430

Issue 1 COMPANY CONFIDENTIAL Page 2 –31

V1S3

ANT_SPRING_M3 E_563 ANTENNA SPRING CLIP ~

CONN MINISD PUSH-PUSH

3.3V 0.5A ~ CONN SM COAX+ SW F 50R

250V 6GHZ ~

CONN SM COAX+ SW F 50R 250V 6GHZ ~

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CONN SM COAX+ SW F 50R X7503 Bottom C 8 COAX_MM8430

ANT_SPRING_M3

X7504 Bottom A 8

X7505 Bottom A 8

X7506 Bottom B 1

E_563 ANTENNA SPRING CLIP ~ ANT_SPRING_M3

E_563 ANTENNA SPRING CLIP ~

250V 6GHZ ~

Z2000 Bottom T 6 FERRITE_0402

Z2001 Bottom T 7 FERRITE_0402

Z2003 Bottom T 6 FERRITE_0402

Z2004 Bottom U 6 BGA11

uBGA24_2.62X2.62ASIP EMIF10-1K010F2

Z4400 Top N 7

uBGA24_2.62X2.62ASIP EMIF10-1K010F2

Z4402 Top N 4

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4403 Top F 2

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4404 Top F 3

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4405 Top F 2

FLIP_CHIP_16_2.

Z5200 Bottom Q 6

01X2.02_H0.715

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

ASIP 4 LINES AUDIO FILTER

BGA11 ~

**PB-FREE** ~

BGA25 ~

MMC ASP HIGH SPEED

BGA16 ~

600R/ 100MHz

CER FILT 2450+-50MHZ Z6300 Bottom K 8 FILTER_LFB322G

FERRITE_FBMJ1608FERRITE BEAD 0R01 28R/

Z7500 Bottom H 8

FILTER_SAW_2.1

Z7501 Top C 4

Z7502 Top D 8

Z7503 Bottom B 4 ANT_SW_M043B

Z7504 Bottom B 7

Page 2 –32 COMPANY CONFIDENTIAL Issue 1

X1.7_H0.8

DFYK61G95LBJC B

FILTER_SAW_2.1 X1.7_H0.8

3.2X2.5

100MHZ 0603

SAW FILTER 2140+-30MHZ

2.0X1.6X1.0

DUPL

1920-1980/2110-2170M

HZ 9X4.3

ANT.SW+3SAW

880-960/1710-1990MHZ ~

SAW FILTER 897.5

+-17.5MHZ 2.0X1.6

2450MH z

28R/ 100MHz

2140MH z

1920-19 80/2110

-2170M Hz

897.5M Hz

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

ISOLATOR_CEZ0047ISOLATOR 1950+-30MHZ

Z7505 Bottom E 9

13DB 3.3X3.4X1.6 ~

Z7506 Top E 7

Table 1 Component parts list (1 em-25b)

FILTER_SAW_2.1 X1.7_H0.8

SAW FILTER 1950+-30MHZ

2.0X1.6X1.0

Item Side Grid Description and value

A2100 Bottom U 7 1EM_RIGID PWB RIGID 1EM_LIFTING ~

SHIELD_040_011

A2200 Bottom E 3

760 RETU CAN 040-011760 ~ SHIELD_040_011

A2300 Bottom S 7

A4100 Top I 3

763 TAHVO CAN 040-011763 ~ SHIELD_040_014

599

COMBO SHIELD 040-014599 ~

SHIELD_040_003

A4200 Top I 7

608 BB CAN 040-003608 ~ SHIELD_040_011

A6000 Bottom N 7

766 WLAN-BT CAN 040-011766 ~ SHIELD_DMC07007WDCMA PA CAN DMC07007

A7001 Bottom E 8

RM-1 ~

1950MH z

SHIELD_DMC07005GSM PA CAN DMC07005

A7002 Bottom B 5

RM-1 ~

SHIELD_DMD114

A7003 Bottom E 6

27 VCO CAN DMD11427 RM-1 ~ SHIELD_040_014

A7004 Top D 7

A7005 Top D 3

B2200 Bottom E 2

600 VINKU SHIELD 040-014600 ~ SHIELD_040_005

293 CRYSTAL_3.3X1.

6_H0.9

RF ENGINE CAN 040-005293 ~

CRYSTAL 32.768KHZ +-30PPM 12.5PF

32.768k Hz

CHIPCAP X5R 1U K 6V3

C1470 Bottom G 4 0603C

0603 1u0 CHIPCAP X5R 1U K 6V3

C1471 Bottom J 4 0603C

0603 1u0

C2000 Bottom U 5 0402C Chipcap 5% NP0 27p

CHIPCAP X5R 2U2 K 6V3

C2002 Bottom V 6 0603C

0603 2u2 CERCAP X7R 22N K 16V

C2003 Bottom U 5 0402C

0402 22n

Issue 1 COMPANY CONFIDENTIAL Page 2 –33

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CERCAP X7R 22N K 16V

C2004 Bottom U 5 0402C

C2005 Bottom U 6 0402C

C2006 Bottom U 6 0402C

C2011 Bottom T 7 0402C

C2012 Bottom V 4 0603C_H0.95 C2071 Bottom D 2 0402C Chipcap 5% NP0 27p C2072 Bottom H 6 0402C Chipcap 5% NP0 10p C2073 Bottom H 6 0402C Chipcap 5% NP0 10p

C2100 Bottom T 6 0402C

0402 22n Chipcap X7R 10% 16V

0402 10n Chipcap X7R 10% 16V

0402 10n CHIPCAP NP0 270P J 25V

0402 270p CHIPCAP X5R 470N K 25V

0603 470n

CHIPCAP X7R 15N K 16V 0402 15n

C2101 Bottom T 6 0402C

C2102 Bottom S 6 0603C

C2103 Top F 3 0402C

C2104 Top F 4 0402C

C2105 Bottom F 6 0402C

C2106 Bottom F 6 0402C

C2107 Bottom G 6 0402C

C2108 Bottom H 1 0402C

C2109 Bottom H 1 0402C

C2110 Bottom H 1 0402C

CHIPCAP X7R 15N K 16V 0402 15n

CHIPCAP X5R 2U2 K 6V3 0603 2u2

Chipcap X7R 10% 50V 0402 1n0

CHIPCAP X5R 1U K 6V3

C2200 Bottom G 3 0603C

C2201 Bottom D 2 0603C

C2202 Bottom F 2 0402C

Page 2 –34 COMPANY CONFIDENTIAL Issue 1

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 Chipcap X7R 10% 50V

0402 1n0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

Chipcap X7R 10% 50V

C2203 Bottom F 2 0402C

C2204 Bottom F 2 0402C

C2205 Bottom F 2 0402C

C2206 Bottom F 2 0402C

C2207 Bottom D 2 0402C C2208 Bottom E 1 0402C Chipcap 5% NP0 27p C2209 Bottom E 1 0402C Chipcap 5% NP0 22p

C2210 Bottom D 4 0603C

0402 1n0 Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 16V 0603 1u0

C2211 Bottom E 4 0805C_RKNM

C2212 Bottom E 4 0603C

C2213 Bottom D 3 0603C

C2214 Bottom D 3 0603C

C2215 Bottom D 3 0603C

C2216 Bottom F 4 0603C

C2217 Bottom D 2 0603C

C2219 Bottom E 1 0603C

C2220 Bottom E 4 0603C

C2221 Bottom D 4 0603C

CHIPCAP X5R 4U7 K 25V 0805 4u7

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 1U K 6V3

C2222 Bottom E 4 0603C

C2223 Bottom G 3 0402C

C2224 Bottom G 3 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –35

0603 1u0 Chipcap X7R 10% 16V

0402 10n Chipcap X7R 10% 16V

0402 10n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 1U K 6V3

C2225 Bottom D 4 0603C

C2226 Bottom D 3 0603C

C2227 Bottom D 3 0603C

C2228 Bottom D 2 0603C

C2230 Bottom D 1 0603C

C2231 Bottom F 4 0805C

C2232 Bottom I 3 0603C

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 10U M 6V3

0805 10U CHIPCAP X5R 1U K 6V3

0603 1u0

C2233 Bottom J 1 0402C Chipcap 5% NP0 27p

CHIPCAP X5R 1U K 6V3

C2237 Bottom D 3 0603C C2238 Bottom F 3 0402C Chipcap 5% NP0 27p C2239 Bottom F 3 0402C Chipcap 5% NP0 27p

C2300 Bottom S 8 0402C

C2301 Bottom T 8 0805C

C2302 Bottom S 7 0805C

C2303 Bottom R 8 0603C

C2304 Bottom S 6 0402C

C2306 Bottom T 8 0603C

C2307 Bottom R 8 0603C

0603 1u0

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 22U M 6V3 0805 22u

CHIPCAP X5R 1U K 6V3 0603 1u0

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 22U M 6V3

C2309 Bottom T 8 0805C

C2312 Bottom R 8 0603C

C2313 Bottom R 8 0603C

C2314 Bottom Q 8 0805C_RKNM

Page 2 –36 COMPANY CONFIDENTIAL Issue 1

0805 22u CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 4U7 K 25V

0805 4u7

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 4U7 K 25V

C2315 Bottom Q 7 0805C_RKNM

C2316 Bottom S 6 0402C C2317 Bottom S 8 0402C Chipcap 5% NP0 27p

C2701 Bottom O 1 0402C_H0.6

C2800 Top H 6 0402C_H0.6

C2801 Top F 9 0402C_H0.6

C2802 Top F 7 0402C_H0.6

C2803 Top G 9 0402C_H0.6

0805 4u7 Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

C2804 Top G 6 0402C_H0.6

C2805 Top F 7 0402C_H0.6

C2806 Top I 7 0402C_H0.6

C2807 Bottom G 8 0603C

C2808 Bottom G 8 0402C_H0.6

C2809 Top H 9 0402C_H0.6

C2810 Top I 7 0402C_H0.6

C2811 Top I 9 0402C_H0.6

C2812 Top F 8 0402C_H0.6

C2813 Top F 7 0402C_H0.6

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C2814 Top G 9 0402C_H0.6

C2815 Top I 9 0402C C2830 Top H 9 0402C Chipcap 5% NP0 10p

Issue 1 COMPANY CONFIDENTIAL Page 2 –37

0402 100n Chipcap X7R 10% 50V

0402 1n0

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 100N M 16V

C3000 Bottom I 1 0402C_H0.6

C3001 Bottom J 8 0402C_H0.6

C3002 Bottom J 8 0402C_H0.6

C3003 Top I 8 0402C

C3004 Top F 5 0402C_H0.6

C3005 Top G 4 0402C_H0.6

C3006 Top G 4 0402C_H0.6

0402 100n CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 16V

0402 10n CHIPCAP X5R 100N M 16V

0402 100n CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 16V

C3007 Top G 6 0402C

C3008 Top G 4 0402C_H0.6 C3100 Bottom M 5 0402C Chipcap 5% NP0 27p

C4200 Top H 5 0805C

C4201 Top H 5 0805C

C4202 Top I 3 0402C

C4206 Top G 3 0603C

C4207 Top G 3 0603C

C4208 Bottom J 5 0603C

C4209 Bottom I 6 0402C

0402 10n CHIPCAP X5R 100N M 16V

0402 100n

CHIPCAP X5R 22U M 6V3 0805 22u

Chipcap X7R 10% 16V 0402 10n

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 2U2 K 6V3 0603 2u2

CHIPCAP X7R 33N K 10V 0402 33n

CHIPCAP X5R 2U2 K 6V3

C4210 Bottom I 5 0603C

C4405 Top F 3 0603C

C4406 Top L 6 0603C

C4407 Top F 3 0603C

Page 2 –38 COMPANY CONFIDENTIAL Issue 1

0603 2u2 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 4U7 K 6V3

C4409 Bottom J 8 0603C

C4410 Bottom J 9 0402C_H0.6

C4412 Top L 6 0402C C4413 Top B 7 0402C Chipcap 5% NP0 27p

C4414 Top H 3 0603C

C4415 Top G 3 0402C_H0.6

C4416 Top G 3 0402C_H0.6

C4417 Top H 2 0402C_H0.6

0603 4u7 CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C4418 Bottom G 2 0402C_H0.6

C4419 Top G 3 0402C

C4420 Top H 3 0402C C4421 Top H 6 0402C Chipcap 5% NP0 27p C4422 Top I 2 0402C Chipcap 5% NP0 27p

C4800 Top J 4 0402C_H0.6

C4801 Top K 7 0603C

C4802 Top I 4 0402C_H0.6

C4803 Top I 7 0402C_H0.6

C4804 Top I 5 0402C_H0.6

0402 100n Chipcap X7R 10% 50V

0402 1n0 Chipcap X7R 10% 50V

0402 1n0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 1U K 6V3 0603 1u0

CHIPCAP X5R 100N M 16V 0402 100n

CHIPCAP X5R 100N M 16V

C4805 Top J 4 0402C_H0.6

C4806 Top J 7 0402C_H0.6

C4807 Top L 7 0402C_H0.6

C4808 Top I 6 0402C_H0.6

Issue 1 COMPANY CONFIDENTIAL Page 2 –39

0402 100n CHIPCAP X5R 100N M 16V

0402 100n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 100N M 16V

C4809 Top I 6 0402C_H0.6

C4810 Top I 6 0402C_H0.6

C4811 Bottom G 5 0402C_H0.6

C4812 Top I 4 0402C_H0.6

C4813 Top L 6 0402C

C5000 Bottom J 2 0402C_H0.6

C5001 Bottom J 2 0402C_H0.6

0402 100n CHIPCAP X5R 100N M 16V

0402 100n Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 100N M 16V

0402 100n CHIPCAP X5R 100N M 16V

C5002 Bottom J 3 0402C_H0.6

C5003 Top K 1 0402C_H0.6

C5004 Bottom J 3 0402C_H0.6

C5005 Top I 1 0402C_H0.6

C5006 Bottom J 2 0603C

C5200 Bottom R 6 0603C

C5201 Top L 7 0402C

C5202 Top M 7 0402C C6030 Bottom K 6 0402C Chipcap 5% NP0 100p C6031 Bottom L 7 0402C Chipcap 5% NP0 15p

0402 100n CHIPCAP X5R 100N M 16V

0402 100n CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 100N K 10V

0402 100n CHIPCAP X5R 100N K 10V

0402 100n

CHIPCAP X5R 4U7 K 6V3

C6033 Bottom K 6 0603C

C6036 Bottom L 7 0603C

C6037 Bottom L 6 0402C

C6038 Bottom L 5 0402C

Page 2 –40 COMPANY CONFIDENTIAL Issue 1

0603 4u7 CHIPCAP X5R 4U7 K 6V3

0603 4u7 CHIPCAP X5R 1U K 6V3

0402 1u0 CHIPCAP X5R 1U K 6V3

0402 1u0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

CHIPCAP X5R 100N K 10V

C6039 Bottom K 6 0402C

C6040 Bottom K 6 0402C

C6041 Bottom K 6 0402C

C6042 Bottom L 7 0603C

C6043 Bottom L 7 0402C

C6044 Bottom K 6 0603C

C6045 Bottom K 5 0603C

0402 100n CHIPCAP X5R 100N K 10V

0402 100n CHIPCAP X5R 0U47 K 6.3V

0402 0u47 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 0U47 K 6.3V

0402 0u47 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0

C6051 Bottom K 6 0402C Chipcap 5% NP0 10p

CHIPCAP X5R 22U M 6V3

C6300 Bottom P 8 0805C

C6301 Bottom P 6 0603C

C6302 Bottom P 8 0603C

C6303 Bottom P 7 0603C

C6304 Bottom P 8 0402C

C6305 Bottom P 7 0402C

C6307 Bottom O 8 0402C

C6308 Bottom N 6 0402C

C6309 Bottom M 6 0402C

0805 22u CHIPCAP X5R 1U K 16V

0603 1u0 CHIPCAP X5R 2U2 K 6V3

0603 2u2 CHIPCAP X5R 1U K 16V

0603 1u0 CHIPCAP X5R 1U K 6V3

0402 1u0 CHIPCAP X5R 100N K 10V

0402 100n CHIPCAP X5R 1U K 6V3

0402 1u0 Chipcap X7R 10% 50V

0402 1n0 Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 100N K 10V

C6310 Bottom M 8 0402C

C6311 Bottom M 6 0402C

C6312 Bottom M 8 0402C

C6313 Bottom M 6 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –41

0402 100n chipcap x7r 47n k 10v

0402 47n CHIPCAP X5R 1U5 K 4V

0402 1u5 Chipcap X7R 10% 50V

0402 1n0

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIPCAP X5R 100N K 10V

C6314 Bottom N 8 0402C

C6315 Bottom N 6 0402C

C6317 Bottom N 8 0402C

C6318 Bottom N 6 0402C

C6319 Bottom N 8 0402C

C6320 Bottom O 6 0402C

C6321 Bottom N 8 0402C

0402 100n CHIPCAP X5R 100N K 10V

0402 100n Chipcap X7R 10% 50V

0402 1n0 Chipcap X7R 10% 50V

C6322 Bottom P 7 0402C

C6323 Bottom O 8 0402C

C6324 Bottom O 8 0402C

C6325 Bottom O 6 0402C

C6326 Bottom O 8 0402C

C6327 Bottom O 6 0402C

C6330 Bottom K 8 0603C

C6335 Bottom L 8 0402C C6338 Bottom K 8 0402C Chipcap 5% NP0 47p C6340 Bottom L 8 0402C Chipcap +-0.25pF NP0 6p8

0402 1n0 Chipcap X7R 10% 50V

0402 1n0 CHIPCAP X5R 100N K 10V

0402 100n CHIPCAP X5R 4U7 K 6V3

0603 4u7 CHIPCAP NP0 220P J 25V

0402 220p

C6344 Bottom M 7 0402C Chipcap +-0.25pF NP0 6p8 C6345 Bottom M 7 0402C Chipcap +-0.25pF NP0 6p8

Chipcap X7R 10% 50V

C6346 Bottom O 6 0402C C6347 Bottom O 6 0402C Chipcap 5% NP0 82p

C6348 Bottom N 6 0402C

Page 2 –42 COMPANY CONFIDENTIAL Issue 1

0402 1n0

CHIPCAP X5R 1U K 6V3 0402 1u0

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

Chipcap X7R 10% 50V

C6351 Bottom P 6 0402C C6352 Bottom N 6 0402C Chipcap 5% NP0 150p

C6360 Bottom M 8 0402C

C6361 Bottom M 6 0402C C6364 Bottom L 7 0402C Chipcap +-0.25pF NP0 6p8 C6365 Bottom L 7 0402C Chipcap +-0.25pF NP0 6p8 C6366 Bottom K 7 0402C Chipcap +-0.25pF NP0 6p8 C6367 Bottom K 7 0402C Chipcap +-0.25pF NP0 6p8

C6410 Bottom N 8 0402C C7400 Bottom G 8 0402C Chipcap 5% NP0 18p

0402 1n0

CHIPCAP NP0 220P J 25V 0402 220p

Chipcap X7R 10% 50V 0402 1n0

C7401 Bottom C 9 0402C Chipcap +-0.25pF NP0 2p2 C7403 Bottom F 5 0402C Chipcap 5% NP0 18p C7404 Bottom F 5 0402C Chipcap +-0.25pF NP0 2p7 C7405 Bottom D 4 0402C Chipcap 5% NP0 18p C7407 Top E 4 0402C Chipcap X7R 5% 16V 0402 10n C7501 Top E 4 0402C Chipcap 5% NP0 18p

CHIPCAP X5R 1U K 6V3

C7503 Bottom D 4 0603C

C7504 Bottom D 4 0603C

C7505 Top C 3 0402C C7507 Top C 4 0402C Chipcap 5% NP0 18p C7508 Top C 5 0402C Chipcap 5% NP0 18p C7509 Top C 4 0402C Chipcap +-0.25pF NP0 2p7 C7512 Bottom C 3 0402C Chipcap +-0.25pF NP0 2p7

C7513 Top D 3 0402C

0603 1u0 CHIPCAP X5R 1U K 6V3

0603 1u0 CHIPCAP X5R 100N K 10V

0402 100n

Chipcap X7R 10% 25V

0402 4n7 C7514 Bottom C 4 0402C Chipcap +-0.25pF NP0 2p7 C7515 Top E 3 0402C Chipcap 5% NP0 10p C7516 Top E 2 0402C Chipcap 5% NP0 150p

CHIPCAP X5R 100N K 10V C7518 Bottom E 4 0402C

Issue 1 COMPANY CONFIDENTIAL Page 2 –43

0402 100n

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

C7520 Top E 4 0402C Chipcap 5% NP0 18p C7522 Top D 3 0402C Chipcap 5% NP0 150p C7523 Bottom C 4 0402C Chipcap +-0.25pF NP0 3p9

CHIPCAP NP0 2N2 G 16V

C7524 Top C 2 0603C C7525 Bottom C 5 0402C Chipcap +-0.25pF NP0 3p9 C7526 Top E 5 0402C Chipcap +-0.25pF NP0 5p6 C7527 Top C 3 0402C Chipcap 5% NP0 100p C7528 Top H 9 0402C Chipcap 5% NP0 22p C7529 Top D 5 0402C Chipcap 5% X7R 1n0

C7530 Top E 3 0402C C7531 Top H 9 0402C Chipcap 5% NP0 22p

0603 2n2

Chipcap X7R 10% 16V 0402 8n2

Chipcap X7R 10% 16V

C7532 Top E 3 0402C C7533 Top D 5 0402C Chipcap X7R 5% 16V 0402 10n

C7534 Top E 3 0402C

C7536 Top E 4 0402C C7540 Top E 6 0402C Chipcap 5% NP0 18p

C7541 Top E 6 0603C C7542 Top E 7 0402C Chipcap 5% NP0 18p

C7543 Top E 7 0603C C7545 Bottom A 6 0402C Chipcap +-0.25pF NP0 4p7 C7547 Top D 6 0402C Chipcap +-0.25pF NP0 1p8

C7548 Top E 6 0603C C7549 Top E 7 0402C Chipcap 5% NP0 100p

0402 8n2

Chipcap X7R 10% 16V 0402 8n2

CHIPCAP X5R 1U K 6V3 0603 1u0

C7550 Top C 6 0402C Chipcap +-0.25pF NP0 2p7 C7552 Top C 6 0402C Chipcap +-0.25pF NP0 2p7

Chipcap X7R 10% 16V

C7553 Top C 6 0402C C7554 Bottom F 6 0402C Chipcap +-0.25pF NP0 4p7

C7555 Bottom F 6 0402C

Page 2 –44 COMPANY CONFIDENTIAL Issue 1

0402 8n2

CHIPCAP NP0 0P5 C 50V 0402 0p5

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

C7556 Bottom C 6 0402C Chipcap 5% NP0 10p C7559 Bottom C 5 0402C Chipcap +-0.25pF NP0 1p0

Chipcap X7R 10% 25V C7560 Top C 6 0402C

C7561 Bottom C 6 0402C Chipcap +-0.25pF NP0 4p7 C7563 Bottom C 6 0402C Chipcap +-0.25pF NP0 4p7 C7564 Bottom B 5 0402C Chipcap 5% X7R 1n0 C7568 Top C 6 0402C Chipcap 5% NP0 150p

C7569 Bottom B 7 0603C C7570 Top D 6 0402C Chipcap 5% NP0 18p

C7571 Bottom F 6 0402C

0402 4n7

CHIPCAP X5R 4U7 K 6V3

0603 4u7

CHIPCAP NP0 330P J 50V

0402 330p

CHIPCAP NP0 2N2 G 16V C7573 Top C 6 0603C

C7575 Top C 7 0402C Chipcap 5% NP0 15p C7577 Top D 7 0402C Chipcap 5% NP0 15p C7581 Bottom C 4 0402C Chipcap +-0.25pF NP0 4p7 C7582 Top C 6 0402C Chipcap 5% NP0 100p C7584 Bottom C 4 0402C Chipcap +-0.25pF NP0 4p7

C7593 Bottom C 6 0603C C7596 Top D 4 0402C Chipcap +-0.25pF NP0 2p7

TANT_C_6.2X3.4_

C7597 Bottom I 9

C7598 Top D 3 0402C

D2800 Top G 7 uBGA_289

D3000 Top J 8

H1.7

PBFREEBGA40_6 4MB_66MHZ_MAXFLASH 4MX16 1.8/1.8V

0603 2n2

CHIPCAP X5R 4U7 K 6V3

0603 4u7

CHIPTCAP 150U M 10V

6X3.2X1.5

CHIPCAP NP0 0P5 C 50V

0402 0p5

RAP3G V2.20E-PA UMC8D

F761800F 12C027 ~

FBGA44 PBFREE 4Mx16

150u_10 V

WBGA_60_8.1X6

D3001 Top G 5

D4400 Top G 2

D4800 Top J 6 uBGA_289

Issue 1 COMPANY CONFIDENTIAL Page 2 –45

.6_H0.9 FCBGA121_8.2X8.2LCD CONTROLLER

SDRAM 4X16 1.8V/1.8V

FBGA60 PBFREE 4Mx16

S1D13743 1.8V FBGA121 ~

HELEN3 PS2.0 N3 F761909

C27 UBGA289 ~

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

FBGA133_11.6X

D5000 Top J 3

D6030 Bottom K 5

F2000 Bottom U 4

G2200 Bottom J 1 BATTER_EECEP

G6030 Bottom K 7

G7500 Top D 2 G7501 Top D 5 NKG3176B_H1.0 VCTCXO 38.4MHZ 2.5V 2MA 38.4MHz

G7502 Bottom E 6 VCO_FDK_IT_4

L1470 Bottom F 4 FERRITE_0402

L1472 Bottom I 4 FERRITE_0402

13.1 XBGA_N5_H0.625OR-GATE 2INPUT

0603_FUSE_AVX 2MATS SM FUSE F 2.0A 32V 2A

VCTCXO_3.4X2.7 _4P2_H1.0

VCO_FDK_IT_H1.7VCO 3610-4340MHZ 2.7V

COMBO 512 DDR + 1G NAND FBGA133 PBFREE

74LVC1G32YZTR WCSP-5 ~

RTC BACUP CAPAC 311 SIZE FOR 2.6V 4UAH 2.6V

TCXO 38.4MHZ +-10PPM

2.78V 38.4MHz

14MA

VCO 3296-3980MHZ FOUR

2.7V 20MA FERRITE BEAD 0.6R 600R/

100MHZ 0402 FERRITE BEAD 0.6R 600R/

100MHZ 0402

32Mx16/ 128Mx8

3296-39 80MHz

600R/ 100MHz

L2000 Bottom U 4 0603_BLM

L2001 Bottom U 6 0405_2_MATSU

L2002 Bottom U 6 0405_2_MATSU

L2003 Bottom U 6 0405_2_MATSU

L2070 Bottom I 8 0603_BLM

L2100 Top F 3 0405_2_MATSU

L2101 Bottom F 5 0603_BLM

L2102 Bottom F 6 COIL_0603CS

L2103 Bottom G 6 COIL_0603CS

L2104 Bottom F 5 0603_BLM

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP BEAD ARRAY 2X1000R 0405

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP BEAD ARRAY 2X1000R 0405

FERR.BEAD 220R/100M 2A 0R05 0603

CHIP COIL 33N G Q40/250MHZ 0603 33nH

FERR.BEAD 220R/100M 2A 0R05 0603

220R/ 100MHz

2x1000R /100MHz

220R/ 100MHz

2x1000R /100MHz

220R/ 100MHz

FERR.BEAD 220R/100M 2A

L2105 Bottom I 1 0603_BLM

Page 2 –46 COMPANY CONFIDENTIAL Issue 1

0R05 0603

220R/ 100MHz

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

L2106 Bottom H 1 0603_BLM

L2202 Bottom D 2 0603_BLM

L2203 Bottom D 2 FERRITE_0402

L2204 Bottom D 2 FERRITE_0402

L2205 Bottom Q 6 0603_BLM

L2206 Bottom J 3 FERRITE_0402

L2301 Bottom T 8 0603_BLM

L2302 Bottom T 7 CHOKE_SER400

CHOKE_SER300_

L2304 Bottom Q 8

L4200 Top H 5 CHOKE_SER400

H1.5

FERR.BEAD 220R/100M 2A

0R05 0603

FERR.BEAD 220R/100M 2A

0R05 0603

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERR.BEAD 220R/100M 2A

0R05 0603

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERR.BEAD 220R/100M 2A

0R05 0603

CHOKE 10U 0.8A 0R24

4X4X1.8 10uH

CHOKE 22U M 0R7 0.35A

3.0x3.0x1.5 22uH

CHOKE 10U 0.8A 0R24

4X4X1.8 10uH

220R/ 100MHz

600R/ 100MHz

220R/ 100MHz

600R/ 100MHz

220R/ 100MHz

L4201 Top I 3 0603_BLM

L4401 Top F 4 FERRITE_0402

L4402 Top N 4 0402L

L4403 Top N 4 0402L

L4404 Top N 4 0402L

L4405 Top G 4 FERRITE_0402

L4406 Top G 4 FERRITE_0402

L4407 Top G 3 FERRITE_0402

L5200 Bottom Q 6 FERRITE_0402

L6030 Bottom L 7 0402L

FERR.BEAD 220R/100M 2A

0R05 0603

FERRITE BEAD 0.6R 600R/

100MHZ 0402

CHIP COIL 22N J Q28/800M

0402 22nH

CHIP COIL 22N J Q28/800M

0402 22nH

CHIP COIL 22N J Q28/800M

0402 22nH

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

FERRITE BEAD 0.6R 600R/

100MHZ 0402

CHIP COIL 22N J Q28/800M

0402 22nH

220R/ 100MHz

600R/ 100MHz

Issue 1 COMPANY CONFIDENTIAL Page 2 –47

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

CHIP COIL 2N2+-0N3

L6031 Bottom L 7 0402L

L7502 Top C 6 0402L

Q30/800M 0402 2n2H CHIP COIL 100N J

Q16/300M 0402 100nH

L7503 Bottom G 8 FERRITE_0402

L7504 Bottom C 3 0402L

L7505 Bottom C 4 0402L

L7506 Bottom C 4 0402L

L7516 Bottom C 7 FERRITE_0402

L7517 Top D 6 0402L

VIBRA_M_KHN4N

M2100 Bottom H 2

N2200 Bottom E 3 TFBGA_108

N2300 Bottom R 7

N2301 Bottom Q 7

X1RA

TFBGA_84_6.15X

6.15 TAHVO V5.2 LF TFBGA84 ~ USMD8_1.69X1.69WHITE LED DRIVER 4LEDS

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 27N J Q27/800M 0402 27nH

CHIP COIL 12N J Q31/800M 0402 12nH

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

CHIP COIL 1N5 +-0N3 Q33/800M 0402 1n5H

SMD VIBRA MOTOR 1.3V 80MA 9000RPM ~

RETU 3.02 TSA1GJWE TFBGA108 ~

500MW 8BUMP USMD8 ~

600R/ 100MHz

DC/DC CONV

USMD_10_2.458

N4200 Top H 4

N4202 Top G 3 FC_4_0.99X0.99 N4203 Bottom J 5 LLP_6 REG LP3981YDX-3.0 LLP3 ~

N4400 Top N 6 TSOP_6L_H1.1

N4401 Bottom K 9 CIM_138M7_T

N5200 Top M 7 PBGA_N48 N6030 Bottom L 6 uBGA63_4.6X4.6 BRF6150 ~

N6031 Bottom K 6 FC_4_0.99X0.99

Page 2 –48 COMPANY CONFIDENTIAL Issue 1

X1.899

LM3661-1.40V/1.05V NOPB ~

LI VREG 1.5V/150MA WLCSP4 TK63115B ~

HALL IC SWITCH TLE4917 TSSOP6 ~

IRDA 1.152 MBITS/S WITH LIFT PWB ~

LEVEL SHIFT SN74AVCA406ZQCR 1.8/3V BGA48 ~

LI VREG TK63128B 2.8V WLCSP4 ~

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

WLAN MCM STLC4370 F3 N6300 Bottom N 7 LFBGA_228

N6301 Bottom L 8 RF5924 WLAN RF5924 ES3.5 ~

N6302 Bottom L 8 SOT_666

LINEAR EM LFBGA228 ~

TRX2+RX4 PEMD9 N&P

10K/47K 0W12 SOT666 ~

TFBGA_84_6.15X

N7500 Top D 4

N7501 Top D 7 TFBGA64_H1.2

N7502 Bottom B 6 RITSA_PA_REL3 R1470 Top J 7 0402R Resistor 5% 63mW 100R R1471 Top J 7 0402R Resistor 5% 63mW 100R R1472 Bottom G 5 0402R Resistor 5% 63mW 3k3 R1473 Bottom G 5 0402R Resistor 5% 63mW 3k3 R1474 Bottom I 6 0402R Resistor 5% 63mW 33R R2000 Bottom V 5 0402R Resistor 5% 63mW 220R

R2001 Bottom U 5

R2007 Bottom T 7 R2009 Bottom T 6 0402R Resistor 5% 63mW 100R

6.15

uBGA11_2.15X1.65ASIP MIC W/ESD RES+CAP

uBGA11_1.6X2.15ASIP SILIC USB OTG / ESD

RF ASIC HINKU310A

TFBGA84 ~

RF ASIC VINKU314A

TFBGA64 ~

PW AMP RF9292E9.2

QUADBAND ~

+ZDI BGA11 ~

BGA11 ~

R2010 Bottom R 6 0402R Resistor 5% 63mW 220k R2011 Bottom E 1 0402R Resistor 5% 63mW 120k R2012 Bottom J 3 0402R Resistor 5% 63mW 100k R2013 Bottom I 3 0402R Resistor 5% 63mW 330R R2014 Bottom J 3 0402R Resistor 5% 63mW 1M0

CHIP VARISTOR VWM14V R2015 Bottom V 5 0402_VAR

R2070 Bottom I 7 0402_VAR

R2071 Bottom T 6 0402_NTH5

FLIP_CHIP_8_1.7

R2100 Bottom S 6 R2101 Bottom S 6 0402R Resistor 5% 63mW 220R

R2102 Top F 3 0402R

X1.7

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

NTC RES 47K J B=4050

+-3% 0402 47k

ASIP SINGLE ENDED

MICROPHONE INTERF BGA8 ~

Chipres 0W06 jumper

0402 0R

Issue 1 COMPANY CONFIDENTIAL Page 2 –49

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

Chipres 0W06 jumper

R2103 Top F 3 0402R

R2104 Top F 3 0402_VAR

R2105 Top F 4 0402_VAR

R2106 Bottom F 5 0402_VAR

R2107 Bottom G 5 0402_VAR R2200 Bottom F 2 0402R Resistor 5% 63mW 100k R2201 Bottom D 1 0402R Resistor 5% 63mW 120k R2202 Bottom F 3 0402R Resistor 5% 63mW 47R R2203 Bottom G 2 0402R Resistor 5% 63mW 470R

0402 0R CHIP VARISTOR VWM14V

VC50V 0402 14V/50V CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

R2205 Bottom E 1 0402R CHIPRES 0W06 2M2 J 0402 2M2 R2206 Bottom D 2 0402R Resistor 5% 63mW 4k7 R2304 Bottom Q 6 0402R Resistor 5% 63mW 33R

Chipres 0W06 jumper

R2306 Bottom Q 7 0402R R2307 Bottom S 8 0402R Resistor 5% 63mW 100R

uBGA8_1.47X1.47ASIP SIM INTERFACE

R2700 Bottom L 4 R3000 Bottom I 1 0402R Resistor 5% 63mW 4k7 R4200 Bottom I 6 0402R Resistor 5% 63mW 220k R4414 Bottom D 1 0402R Resistor 5% 63mW 470k R4415 Top A 3 0402R Resistor 5% 63mW 100k

R4416 Top A 2 0402_NTH5 R4417 Top A 3 0402R Resistor 5% 63mW 470k R4418 Top F 6 0402R Resistor 5% 63mW 1k0 R4419 Top F 7 0402R Resistor 5% 63mW 100k

0402 0R

**LOW CAP**BGA8 ~

NTC RES 47K J B=4050 +-3% 0402 47k

R4420 Top M 6 0402R Resistor 5% 63mW 100R

CHIPRES 0W125 4R7 J

R4423 Bottom J 9 0805R_THERM1 R4424 Top N 3 0402R Resistor 5% 63mW 10k R4425 Top L 4 0402R Resistor 5% 63mW 10k R4426 Top H 3 0402R Resistor 5% 63mW 1k0

Page 2 –50 COMPANY CONFIDENTIAL Issue 1

0805 4R7

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

R4427 Bottom D 3 0402R Resistor 5% 63mW 4k7 R4428 Top F 6 0402R Resistor 5% 63mW 4k7 R4429 Top L 6 0402R Resistor 5% 63mW 100k

Chipres 0W06 jumper R4432 Top F 7 0402R

R4433 Top F 8 0402R Resistor 5% 63mW 1k0 R4434 Top F 8 0402R Resistor 5% 63mW 1k0 R4435 Top F 8 0402R Resistor 5% 63mW 47R R4436 Top F 8 0402R Resistor 5% 63mW 10R

R4439 Top F 9 0402_VAR

R4440 Top F 9 0402_VAR

0402 0R

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V R4441 Top H 6 0402R Resistor 5% 63mW 100R R4442 Top H 2 0402R Resistor 5% 63mW 100R

Chipres 0W06 jumper R4445 Top N 3 0402R

R4800 Top J 4 0402R Resistor 5% 63mW 10R R4809 Top L 6 0402R Resistor 5% 63mW 1k0 R4810 Top I 6 0402R Resistor 5% 63mW 10k R4811 Bottom J 6 0402R Resistor 5% 63mW 47R R4812 Bottom J 6 0402R Resistor 5% 63mW 47R R5200 Bottom Q 6 0402R Resistor 5% 63mW 12k R5201 Bottom R 6 0402R Resistor 5% 63mW 56R

R5202 Bottom R 6 0402_VAR R5208 Bottom P 6 0402R Resistor 5% 63mW 100k

R5210 Bottom P 6 0402_VAR R5211 Bottom Q 6 0402R Resistor 5% 63mW 100k

0402 0R

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

CHIP VARISTOR VWM14V

VC50V 0402 14V/50V

R6054 Bottom L 6 0402R Resistor 5% 63mW 100k R6055 Bottom L 5 0402R Resistor 5% 63mW 100k R6065 Top L 5 0402R Resistor 5% 63mW 10k

CHIPRES 0W06 1M F R6300 Bottom O 8 0402R

R6301 Bottom O 6 0402R Resistor 5% 63mW 1k2 R6354 Bottom N 6 0402R Resistor 5% 63mW 3k3

Issue 1 COMPANY CONFIDENTIAL Page 2 –51

100PPM 0402 1M0

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

R6424 Bottom K 7 0402R Resistor 5% 63mW 100R R7400 Top E 4 0402R Resistor 5% 63mW 18R R7401 Bottom F 6 0402R Resistor 5% 63mW 10R R7402 Top E 3 0402R Resistor 5% 63mW 10R R7501 Top E 2 0402R Resistor 5% 63mW 1k0 R7503 Bottom E 4 0402R Resistor 5% 63mW 4k7 R7504 Top E 4 0402R CHIPRES 0W06 10K F 0402 10k R7505 Top C 2 0402R CHIPRES 0W06 8K2 F 0402 8k2 R7506 Bottom C 5 0402R Resistor 5% 63mW 270R R7509 Top E 5 0402R Resistor 5% 63mW 22k

436R/

R7512 Bottom B 7 0404_RAC10

RES NETWORK 0W04 2DB ATT 0404

11R6/43

6R R7514 Top E 7 0402R Resistor 5% 63mW 12k R7516 Bottom C 5 0402R Resistor 5% 63mW 1k0 R7518 Top C 8 0402R Resistor 5% 63mW 470k R7519 Bottom D 5 0402R Resistor 5% 63mW 1k0 R7521 Top E 7 0402R CHIPRES 0W06 10K F 0402 10k

CHIPRES 0W06 9K1 F

R7523 Top C 6 0402R R7528 Top C 8 0402R Resistor 5% 63mW 470k R7534 Top C 8 0402R Resistor 5% 63mW 470k

R7535 Top D 8 0402R

R7536 Top D 7 0402R

R7537 Top D 5 0402R

R7538 Top C 5 0402R

100PPM 0402 9k1

Chipres 0W06 jumper 0402 0R

SWITCH

SWITCH_EVQWH

S4429 Top M 5

S4436 Top A 7 BUTTON_EVPAA

S4437 Bottom L 1

Page 2 –52 COMPANY CONFIDENTIAL Issue 1

E50K

SWITCH_SKRELX 1_1

MULTIDIRECTIONAL EVQ042Z5003 ~

SWITCH PB LIGHT EVPAA 15V 20MA ~

SM SW TACT SPST-NO 12VDC 50MA ~

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

TRANSF BALUN 2400

T6030 Bottom L 7 TRANS_LDB213

T7501 Top C 3 TRANS_LDB15

T7502 Bottom C 7 TRANS_LDB15

T7503 Bottom D 6 TRANS_LDB15

V2000 Bottom U 5 CASE_457

V2001 Bottom I 3 VMT3_R V2302 Bottom S 8 SOD323F SCH DI 30V 2A SOD323F ~

V4400 Top N 8 LED_CL270

+-100MHZ ~ TRANSF BALUN 3800

+-550MHZ 0805 ~ TRANSF BALUN 1800

+-100mhz 2x1.25 ~ TRANSF BALUN 3800

+-550MHZ 0805 ~ TVS DI 1PMT16AT3 16V

175W PWRMITE ~ MOSFET N 30V 100MA

VMT3 ~

LED WHITE 100MCD 20MA

0DEG ~ V4401 Top U 4 LED_LWL28G LED LW L28G WHITE 0603 ~ V4402 Top U 2 LED_LWL28G LED LW L28G WHITE 0603 ~ V4403 Top R 8 LED_LWL28G LED LW L28G WHITE 0603 ~

LED WHITE 100MCD 20MA V4404 Top N 2 LED_CL270

V4405 Top P 4 LED_LWL28G LED LW L28G WHITE 0603 ~ V4406 Top U 7 LED_LWL28G LED LW L28G WHITE 0603 ~ V4407 Top R 4 LED_LWL28G LED LW L28G WHITE 0603 ~

V4408 Top F 8 SOT_666

V4409 Top F 8 SOT_666

V4410 Top A 3 TRANS_SFH3710

V4411 Top F 7 SC70_6_FAIR V4412 Top P 8 LED_LWL28G LED LW L28G WHITE 0603 ~

0DEG ~

TRX2 N 15V 1A 0W3

LOWSAT SOT666 ~

TRX2 N 15V 1A 0W3

LOWSAT SOT666 ~

SILICON

PHOTOTRANSISTOR

SF3710 SMT 2.1X1.4X ~

MFET N&P SI1867DL

VIN>1V8 SOT363 ~

SCH DI 1PS79SB31 200MA V4413 Top F 9 SC79

V4414 Top F 7 SC79

SOCKET_DMD10413CAMERA MOD.SOCKET

X1470 Bottom H 4

Issue 1 COMPANY CONFIDENTIAL Page 2 –53

30V SOD523 ~

SCH DI 1PS79SB31 200MA

30V SOD523 ~

2X7POL SPR P1.4 ~

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Item Side Grid Description and value

SYSCON_MQ202_

X2001 Bottom V 6

X2002 Bottom V 3

X2003 Bottom V 3

X2060 Top E 8

X2070 Bottom I 7

X2105 Bottom H 7 DMD05906

X2106 Bottom G 6 DMD05906

X2700 Bottom M 3

X4401 Top B 3

X4402 Top M 4 CFX3103_0101E

NK_14R3 CONTACT_PAD_2.

95X1.95 CONTACT_PAD_2.

95X1.95 TRACEABILITY_PADMODULE ID COMPONENT

LYNX_BATT_CON N_H7.0

SIM_CONN_P04_ 100157_001

JST_CO3_00352_ 200_MIRROR

SM SYSTEM CONNECTOR 14POL ~

SM CONN VIBRA SPACER PAD 2.8X1.8 ~

2.8X1.8X0.3 ~ SM BATTERY CONN 3POL

SPR 12V 2A ~ RF-SPACER DMD05906

HD986-TRI ~ RF-SPACER DMD05906

HD986-TRI ~ SM SIM CONN 2X3POL

P2.54 50V 0.5A ~ SM CONN PORTABLE 2X20

P0.4PWB SMD ~ SM COAX CONN RECEP

1X3PIN P0.5 ~

MINISD_SC1S011

X5200 Bottom S 3

X6300 Bottom O 9 COAX_MM8430

X7500 Bottom A 3

X7501 Bottom A 2

X7502 Bottom C 3 COAX_MM8430

X7506 Bottom B 1

Z2000 Bottom T 6 FERRITE_0402

Z2001 Bottom T 7 FERRITE_0402

Z2003 Bottom T 6 FERRITE_0402

Z2004 Bottom U 6 BGA11

V1S3

ANT_SPRING_M3 E_563 ANTENNA SPRING CLIP ~

CONN MINISD PUSH-PUSH

3.3V 0.5A ~ CONN SM COAX+ SW F 50R

250V 6GHZ ~

CONN SM COAX+ SW F 50R 250V 6GHZ ~

FERRITE BEAD 0.6R 600R/ 100MHZ 0402

ASIP 4 LINES AUDIO FILTER BGA11 ~

600R/ 100MHz

Page 2 –54 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Item Side Grid Description and value

uBGA24_2.62X2.62ASIP EMIF10-1K010F2

Z4400 Top N 7

uBGA24_2.62X2.62ASIP EMIF10-1K010F2

Z4402 Top N 4

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4403 Top F 2

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4404 Top F 3

uBGA25_2.47X2.47ASIP 10-CH ESD EMI FILTER

Z4405 Top F 2

**PB-FREE** ~

BGA25 ~

FLIP_CHIP_16_2.

Z5200 Bottom Q 6

Z6300 Bottom K 8 FILTER_LFB322G

Z7500 Bottom H 8

Z7502 Top D 8

Z7503 Bottom B 4 ANT_SW_M043B

Z7504 Bottom B 7

01X2.02_H0.715

FERRITE_FBMJ1608FERRITE BEAD 0R01 28R/

DFYK61G95LBJC B

FILTER_SAW_2.1 X1.7_H0.8

Component layouts

Component layouts - top 1em-25a and 1em-25b

MMC ASP HIGH SPEED

BGA16 ~

CER FILT 2450+-50MHZ

3.2X2.5 2450MHz 28R/

100MHZ 0603 DUPL

1920-1980/2110-2170MH Z 9X4.3

ANT.SW+3SAW 880-960/1710-1990MHZ ~

SAW FILTER 897.5 +-17.5MHZ 2.0X1.6

100MHz 1920-19

80/21102170MHz

836.5MH z

Figure 2 1em-25a

Issue 1 COMPANY CONFIDENTIAL Page 2 –55

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

Figure 3 1em-25b

Component layouts - bottom 1em-25a and 1em-25b

Figure 4 1em-25a

Page 2 –56 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Parts Lists and Component Layouts Nokia Customer Care

Figure 5 1em-25b

Issue 1 COMPANY CONFIDENTIAL Page 2 –57

RM-10;RM-24

Nokia Customer Care Parts Lists and Component Layouts

(This page left intentionally blank.)

Page 2 –58 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

3 — Service Software

Instructions

Issue 1 COMPANY CONFIDENTIAL Page 3 –1

RM-10;RM-24

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –2 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

Table of Contents

Phoenix installation steps in brief........................................................................................................................3–5

Installing Phoenix...................................................................................................................................................3–6

Updating Phoenix installation..............................................................................................................................3–8

Uninstalling Phoenix..............................................................................................................................................3–9

Repairing Phoenix installation...........................................................................................................................3–11

Phone data package overview............................................................................................................................3–11

Installing phone data package...........................................................................................................................3–12

Uninstalling phone data package.......................................................................................................................3–15

Configuring users in Phoenix..............................................................................................................................3–17

Managing connections in Phoenix......................................................................................................................3–17

Installing flash support files for FPS-10.............................................................................................................3–19

Updating FPS-10 flash prommer software........................................................................................................3–22

List of Figures

Figure 6 Dongle not found.....................................................................................................................................3–6

Figure 7 Disclaimer text.........................................................................................................................................3–7

Figure 8 InstallShield Wizard Complete...............................................................................................................3–8

Figure 9 Installation interrupted..........................................................................................................................3–9

Figure 10 Remove program.................................................................................................................................3–10

Figure 11 Finish uninstallation...........................................................................................................................3–10

Figure 12 Repair program...................................................................................................................................3–11

Figure 13 Data package setup information.......................................................................................................3–13

Figure 14 Data package destination folder.......................................................................................................3–14

Figure 15 InstallShield Wizard Complete...........................................................................................................3–15

Figure 16 Uninstalling phone data package......................................................................................................3–16

Figure 17 Finishing data package uninstallation..............................................................................................3–16

Figure 18 Phoenix login.......................................................................................................................................3–17

Figure 19 New user configured..........................................................................................................................3–17

Figure 20 Select mode: Manual...........................................................................................................................3–18

Figure 21 Connections list...................................................................................................................................3–19

Figure 22 Connection information.....................................................................................................................3–19

Figure 23 Product support module information (example from RM-1)..........................................................3–19

Figure 24 Flash update welcome dialog............................................................................................................3–20

Figure 25 Flash installation interrupted............................................................................................................3–20

Figure 26 Flash destination folder......................................................................................................................3–21

Figure 27 Finish flash update..............................................................................................................................3–22

Figure 28 Prommer SW update finished............................................................................................................3–23

Figure 29 Prommer maintenance window........................................................................................................3–23

Figure 30 Flash directory window......................................................................................................................3–24

Issue 1 COMPANY CONFIDENTIAL Page 3 –3

RM-10;RM-24

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –4 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

Phoenix

installation steps in brief

Prerequisites

Recommended hardware requirements:

• Computer processor: Pentium 700 MHz or higher

• RAM 256 MB

• Disk space 100-300 MB Supported operating systems:

•

Windows 2000

•

Windows XP

Service Pack 3 or higher

Service Pack 1 or higher

Context

Phoenix

is a service software for reprogramming, testing and tuning phones.

Phoenix

• Service software support for all phone models included in the package

• Flash update package files for programming devices

• All needed drivers for:

The phone model specific data package includes all changing product specific data:

• Product software binary files

• Files for type label printing

• Validation file for the faultlog repair data reporting system

• All product specific configuration files for

To use

installation contains:

• PKD-1 (DK2) dongle

• DKU-2 USB cable

Note: Separate installation packages for flash update files and drivers are also available, but it is

not necessary to use them unless there are updates between separate update packages are used, they should be used after installed.

Note:

Uninstallation should be made from the

Phoenix

, you need to:

and phone data packages should only be used as complete installation packages.

Phoenix

software components

Windows

Control Panel.

Phoenix

service software releases. If

and data packages have been

Steps

1. Connect a PKD-1 (DK2) dongle to the computer parallel port.

2. Install

3. Install the phone-specific data package.

4. Configure users.

5. Manage connection settings (depends on the tools you are using).

• Update FPS-10 software

• Activate SX-4 smart card, if you need tuning and testing functions.

Issue 1 COMPANY CONFIDENTIAL Page 3 –5

Phoenix

Note: There is no need to activate FPS-10.

Note: When FPS-10 is used only for product software updates, SX-4 smart card is not needed.

.

RM-10;RM-24

Nokia Customer Care Service Software Instructions

Results

Phoenix

is ready to be used with FPS-10 flash prommer and other service tools.

Installing

Phoenix

Prerequisites

• Check that a dongle is attached to the parallel port of your computer.

• Download the computer (in

• Close all other programs.

• Depending on your operating system, administrator rights may be required to install

• If uninstalling or rebooting is needed at any point, you will be prompted by the InstallShield program.

Phoenix

C:\TEMP

installation package (for example,

, for instance).

phoenix_service_sw_2004_39_x_xx.exe

Phoenix

) to your

.

Context

At some point during the installation procedure, you may get the following message:

Figure 6 Dongle not found

This may be a result of a defective or too old PKD-1 dongle. Check the COM/parallel ports used. After correcting the problem, you can restart the installation. For more detailed information, please refer to

Tip: Each feature in

program. Press the F1 key or the feature’s Help button to activate a Help file.

Phoenix

has its own Help function, which can be activated while running the

Phoenix

Help files.

Steps

1. To start the installation, run the application file (for example,

2. In the

Welcome

dialogue, click Next.

phoenix_service_sw_2004_39_x_xx.exe

).

Page 3 –6 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

3. Read the disclaimer text carefully and click Yes.

Figure 7 Disclaimer text

4. Choose the destination folder. The default folder

C:\ProgramFiles\Nokia\Phoenix

is recommended.

5. To continue, click Next. To choose another location, click Browse (not recommended).

6. Wait for the components to be copied. The progress of the installation is shown in the

Setup Status

window.

7. Wait for the drivers to be installed and updated. The process may take several minutes to complete. If the operating system does not require rebooting, the PC components are registered right away. If the operating system requires restarting your computer, the Install Shield Wizard will notifies about it. Select Yes... to reboot the PC immediately or No... to reboot the PC manually afterwards. After the reboot, all components are registered.

Note:

Phoenix

does not work, if the components have not been registered.

Issue 1 COMPANY CONFIDENTIAL Page 3 –7

RM-10;RM-24

Nokia Customer Care Service Software Instructions

8. To end the installation, click Finish.

Figure 8 InstallShield Wizard Complete

Next actions

After the installation,

• installing phone model specific data package for

• configuring users and connections FPS-10 flash prommer can be used after updating their flash update package files.

Updating

Phoenix

can be used after:

Phoenix

installation

Context

• If you already have the software when new versions are released.

• To update

• When you are updating, for example, from version a14_2004_16_4_47 to a15_2004_24_7_55, the update will take place automatically without uninstallation.

• Always use the latest available versions of both can be found in the phone model specific Technical Bulletins and phone data package (shown during installation).

• If you try to update to a15_2004_24_7_55), you are asked if you want to uninstall the existing version. In this case you can choose between a total uninstallation or a repair installation in a similar way when choosing to uninstall the application from the

Phoenix

, you need to follow the same steps as when installing it for the first time.

Phoenix

Windows

service software installed on your computer, you need to update the

Phoenix

with the same version you already have (for example, a15_2004_24_7_55

Control Panel.

and the phone-specific data package. Instructions

readme.txt

files

• If you try to install an older version (for example, downgrade from a15_2004_24_7_55 to a14_2004_16_4_47), installation will be interrupted.

Page 3 –8 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

Figure 9 Installation interrupted

• Always follow the instructions on the screen.

Steps

1. Download the installation package to your computer hard disk.

2. Close all other programs.

3. Run the application file (for example,

phoenix_service_sw_2004_39_x_xx.exe

).

Results

A new

Phoenix

version is installed and driver versions are checked and updated.

Uninstalling

Phoenix

Context

You can uninstall

Phoenix

service software manually from the

Windows

Control Panel.

Steps

1. Open the Windows Control Panel, and choose Add/Remove Programs.

Issue 1 COMPANY CONFIDENTIAL Page 3 –9

RM-10;RM-24

Nokia Customer Care Service Software Instructions

2. To uninstall

Phoenix

, choose Phoenix Service Software→Change/Remove→Remove .

Figure 10 Remove program

The progress of the uninstallation is shown.

3. If the operating system does not require rebooting, click Finish to complete.

Figure 11 Finish uninstallation

Page 3 –10 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

If the operating system requires rebooting, InstallShield Wizard will notify you. Select Yes... to reboot the PC immediately and No... to reboot the PC manually afterwards.

Repairing

Phoenix

installation

Context

If you experience any problems with the service software or suspect that files have been lost, use the repair function before completely reinstalling

Note: The original installation package (for example,

must be found on your PC when you run the repair setup.

Phoenix

.

phoenix_service_sw_a15_2004_24_7_55.exe

Steps

1. Open Windows Control Panel→Add/Remove Programs .

2. Choose Phoenix Service Software→Change/Remove .

3. In the following view, select Repair.

)

Figure 12 Repair program

Phoenix

The procedure is the same as when updating

4. To complete the repair, click Finish.

reinstalls components and registers them.

Phoenix

.

Phone data package overview

Each product has its own data package (DP). The product data package contains all product-specific data files to make the Phoenix service software and tools usable with a certain phone model.

The phone data package contains the following:

• Product software binary files

Issue 1 COMPANY CONFIDENTIAL Page 3 –11

RM-10;RM-24

Nokia Customer Care Service Software Instructions

• Files for type label printing

• Validation file for the fault log repair data reporting system

• All product-specific configuration files for Phoenix software components

Data files are stored in C:\Program Files\Nokia\Phoenix (default).

Installing phone data package

Prerequisites

• A phone-specific data package contains all data required for the to be used with a certain phone model.

• Check that a dongle is attached to the parallel port of your computer.

• Install

Phoenix

service software.

Phoenix

service software and service tools

• Download the installation package (for example, in C:\TEMP).

• Close all other programs.

(XX-XX = type designator of the product) If you already have

released.

Note: Often

version of available versions of both. Instructions can be found in phone-specific Technical Bulletins and

readme.txt

Phoenix

files of data packages.

installed on your computer, you will need to update it when a new version is

and the phone-specific data package come in pairs, meaning that a certain

can only be used with a certain version of a data package. Always use the latest

XX-XX_dp_EA_v_1_0.exe

Steps

1. To start the installation, run the application file (for example,

Wait for the installation files to be extracted.

) to your computer (for example,

XX-XX_dp_EA_ v_1_0.exe

),

Page 3 –12 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

2. Click Next.

3. In the following view you can see the contents of the data package. Read the text carefully. There is information about the

Phoenix

version required with this data package.

Figure 13 Data package setup information

4. To continue, click Next.

Issue 1 COMPANY CONFIDENTIAL Page 3 –13

RM-10;RM-24

Nokia Customer Care Service Software Instructions

5. Choose the destination folder, and click Next to continue.

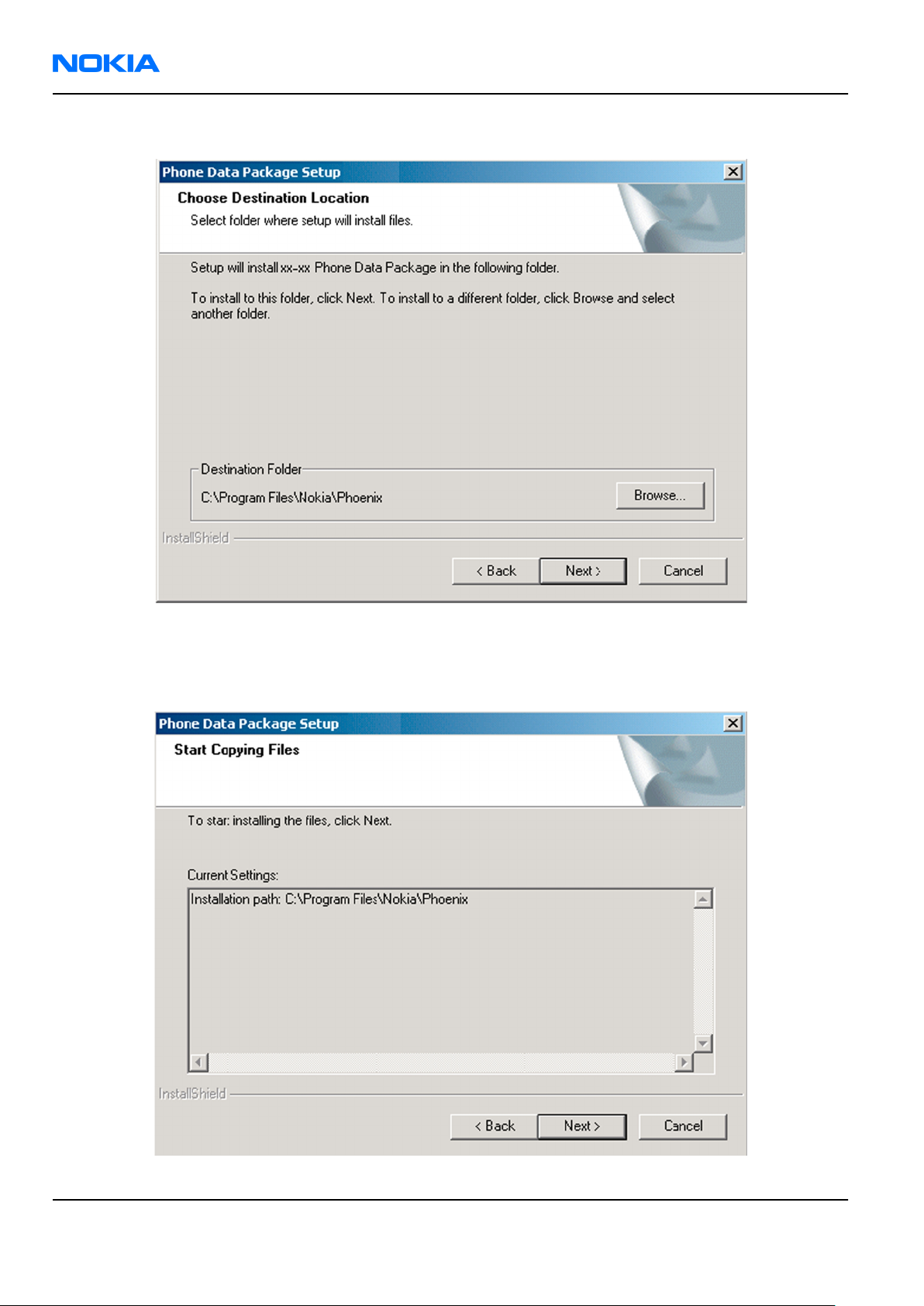

Figure 14 Data package destination folder

The InstallShield Wizard checks where

6. To start copying the files, click Next.

Phoenix

is installed, and the directory is shown.

Page 3 –14 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

Phone model specific files are installed. Please wait.

7. To complete the installation, click Finish.

Figure 15 InstallShield Wizard Complete

Next actions

Phoenix

• Configuring users

• Managing connections

FPS-10 can be used after updating their flash update package files.

can be used for flashing phones and printing type labels after:

Uninstalling phone data package

Context

There is no need to uninstall an older version of a data package, unless instructions to do so are given in the

readme.txt

Please read all related documents carefully.

file of the data package and bulletins related to the release.

Steps

1. Locate the data package installation file (e.g.

2. To start the uninstallation procedure, double-click the data package installation file.

XX-XX_dp_EA_v_1_0.exe

) from your computer.

Issue 1 COMPANY CONFIDENTIAL Page 3 –15

RM-10;RM-24

Nokia Customer Care Service Software Instructions

3. To uninstall the data package, click OK or to interrupt the uninstallation, click Cancel.

Figure 16 Uninstalling phone data package

4. When the data package is uninstalled, click Finish.

Figure 17 Finishing data package uninstallation

Alternative steps

• You can also uninstall the data package manually from

Control Panel→Add/Remove Programs→xx-xx* Phone Data Package . (*= type designator of the phone).

Page 3 –16 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

Configuring users in

Phoenix

Steps

1. Start

2. To add a new user, or to edit existing ones, click Maintain.

3. To add a new user, click New.

4. Type in the name and initials of the user, and click OK.

5. Select the desired user from the

Phoenix

If the user ID is already configured, select s/he from the

The user is added to the user name list.

service software, and log in.

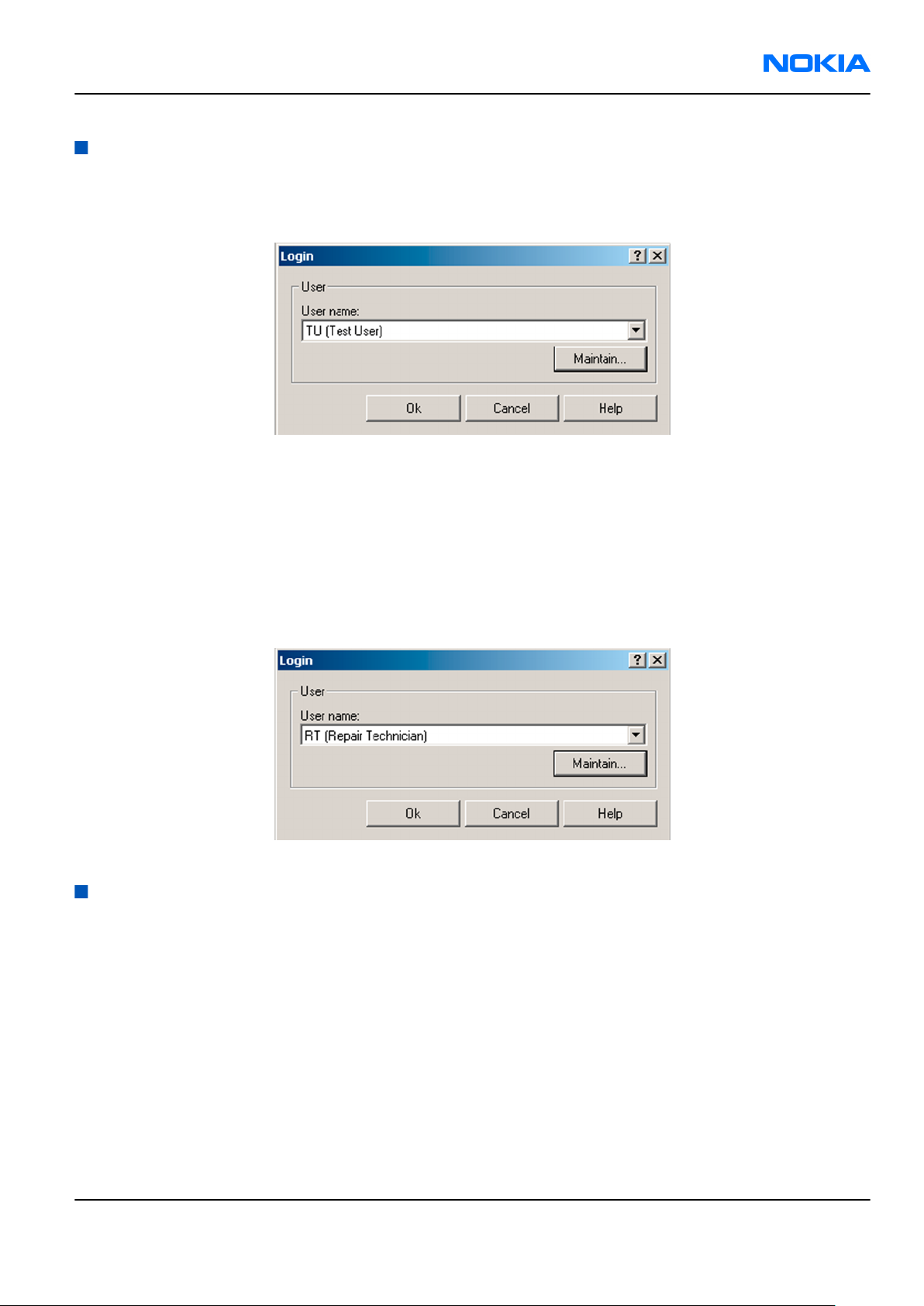

Figure 18 Phoenix login

User name

drop-down list, and click OK.

User name

drop-down list, and click OK.

Figure 19 New user configured

Managing connections in

Phoenix

Context

With the Manage Connections feature you can edit and delete existing connections or create new ones.

Note: After choosing the desired connection, and connecting the phone to a PC for the first time,

allow the PC to install the USB device drivers first. Please note that this may take some time to complete.

If there are problems after the driver installation, check that the USB connection is active from the Windows Control Panel. If the problem persists, contact the local PC support.

Steps

1. Start

2. Choose File→Manage Connections... .

Issue 1 COMPANY CONFIDENTIAL Page 3 –17

Phoenix

, and log in.

RM-10;RM-24

Nokia Customer Care Service Software Instructions

3. To add a new connection, click Add.

4. Select Manual mode, and click Next to continue.

If you want to create the connection using the Connection Wizard, connect the tools and a phone to your PC. The wizard will automatically try to configure the correct connection.

Figure 20 Select mode: Manual

i For an FPS-10 flash prommer with a USB Connection, choose the following connection settings:

• Media: FPS-10 USB

• DEVICE_INDEX: 0

• SERIAL_NUM: See Serial No from the label attached to the bottom of FPS-10

• ACTIVE_MEDIA: USB

ii For an FPS-10 flash prommer with a LAN connection, choose the following connection settings:

• Media: FPS-10 TCP/IP

• NET_SERV_NAME: Click Scan.... Choose your own FPS-10 device based on the correct MAC address.

See Serial No from the label attached to the bottom of your FPS-10.

• PORT_NUM: Use the default value, and click Next.

• PROTOCOL_FAMILY: Use the default value, and click Next.

• SOCKET TYPE: Use the default value, and click Next.

• TX_BUFFER_SIZE: Use the default value, and click Next.

• RX_BUFFER_SIZE: Use the default value, and click Next.

iii For an FPS-8 flash prommer, choose the following connection settings:

• Media: FPS-8

• PORT_NUM: COM Port where FPS-8 is connected

• COMBOX_DEF_MEDIA: FBUS

Page 3 –18 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

iv For a plain USB connection, choose the following connection settings:

Note: First connect the DKU-2 USB cable between the PC USB port and phone.

• Media: USB

5. To complete the configuration, click Finish.

6. Click the connection you want to activate. Use the up/down arrows located on the right hand side to move it on top of the list, then click Apply.

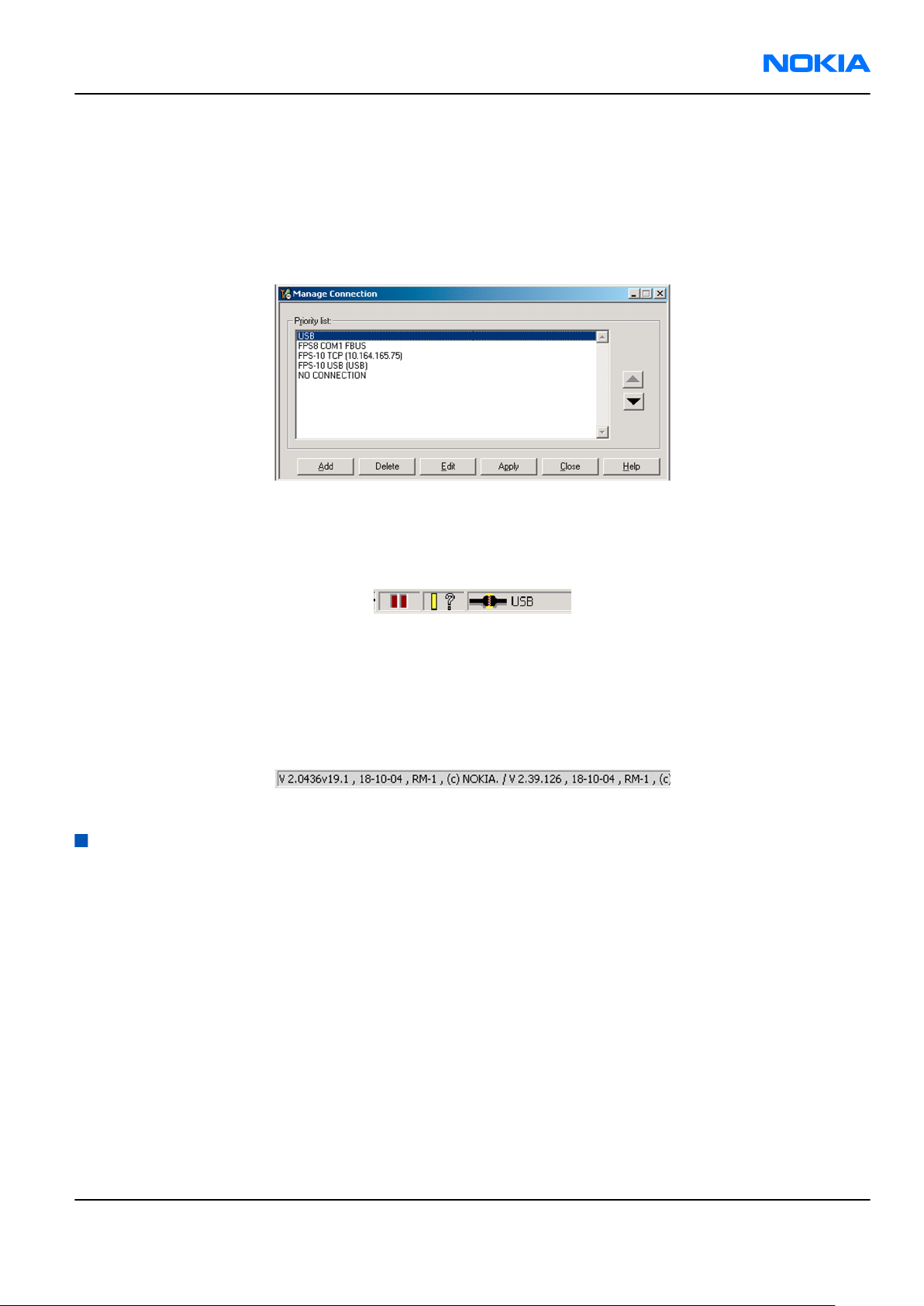

Figure 21 Connections list

The connection is activated, and it can be used after closing the The connection information is shown at the right hand bottom corner of the screen.

Figure 22 Connection information

7. To use the connection, connect the phone to your PC with correct service tools. Make sure the phone is switched on, and then choose File→Scan Product .

Manage Connection

window.

Results

The product support module information appears in the status bar:

Figure 23 Product support module information (example from RM-1)

Installing flash support files for FPS-10

Prerequisites

Note: You need to install flash support files for FPS-10 only, if you don’t have the latest Phoenix

available or the flash support files have changed after the latest Phoenix release.

• Flash support files are installed automatically, when you install Phoenix. Use Phoenix packages later than

June 2005.

• Normally it is enough to install Phoenix and the phone-specific data package because the Phoenix

installation always includes the latest flash update package files for FPS-10.

• A separate installation package for flash support files is available, and the files can be updated according

to this instruction, if updates appear between new Phoenix / data package releases

Context

If you are not using a separate installation package, you can skip this section and continue with "Updating

FPS-10 flash prommer software" (page 3–22) after installing a new phone data package.

Issue 1 COMPANY CONFIDENTIAL Page 3 –19

RM-10;RM-24

Nokia Customer Care Service Software Instructions

Steps

1. To begin installation, double- click

flash_update_x_yy.exe

.

Figure 24 Flash update welcome dialog

If the same version of Flash Update package already exists, and you want to reinstall it, the previous package is first uninstalled. Restart installation again after that.

2. If you try to downgrade the existing version to older ones, the setup will be aborted. If you really want

to downgrade, uninstall newer files manually from Control Panel and then rerun the installation again.

Figure 25 Flash installation interrupted

If an older version exists on your PC and it needs to be updated, click Next to continue installation.

Page 3 –20 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

3. It is highly recommended to install the files to the default destination folder

\Phoenix

. Click Next to continue.

C:\Program Files\Nokia

Figure 26 Flash destination folder

When installing the flash update files for the first time you may choose another location by selecting Browse. However, this is not recommended.

Issue 1 COMPANY CONFIDENTIAL Page 3 –21

RM-10;RM-24

Nokia Customer Care Service Software Instructions

4. To complete the installation procedure, click Finish .

Figure 27 Finish flash update

Next actions

FPS-10 flash prommers must be updated using Phoenix!

Updating FPS-10 flash prommer software

Steps

1. Start

2. Choose Flashing→Prommer maintenance .

3. When the new flash update package is installed to the computer you will be asked to update the files to

4. Alternatively you can update the FPS-10 flash prommer software by clicking the Update button.

Phoenix Service Software

your Prommer. To update the files, click Yes. Click OK if the computer informs you about an unsafe removal of the device.

and log in, manage connection correctly for your flash prommer.

Page 3 –22 COMPANY CONFIDENTIAL Issue 1

RM-10;RM-24 Service Software Instructions Nokia Customer Care

5. Wait until you are notified that update has been successful; the procedure will take a couple of minutes. Click OK to close the

Update Done

window.

Figure 28 Prommer SW update finished

6. If you are using the FPS-10 flash prommer, check that it is detected from the progress info. Check also the status leds in the FPS-10. The MODE2 led (green), VBAT and POWER leds (red) should be lit. If you are using LAN connection, the LAN led (yellow) should be blinking.

7. Check that your FPS-10 flash prommer has enough memory. Flashing the SU-18 with FPS-10 needs at least 128 MB of SRAM memory in the prommer.

Figure 29 Prommer maintenance window

Issue 1 COMPANY CONFIDENTIAL Page 3 –23

RM-10;RM-24

Nokia Customer Care Service Software Instructions

Alternative steps

• You can update FPS-10 SW by clicking the Update button and selecting the appropriate fpsxupd.ini file

in

C:\Program Files\Nokia\Phoenix\Flash

• All files can be loaded separately to the prommer used. To do this, click the right mouse button in the

Flash box files

window and select the file type to be loaded.

.

Figure 30 Flash directory window

More information can be found in Phoenix Help.

Page 3 –24 COMPANY CONFIDENTIAL Issue 1

Nokia E70 Service Manual ssue1

Specifications and Main Features

Frequently Asked Questions

User Manual

Amendment Record Sheet

Copyright

Warnings and cautions

ESD protection

Care and maintenance

Company Policy

Battery information

Nokia E70 Service Manual Structure

RM-10/24 product selection

RM-10/24 product features and sales package

Product and module list

Technical specifications

Transceiver general specifications

Main RF characteristics for triple-band (EGSM900/GSM1800/GSM1900) and WCDMA phones

Battery endurance

Environmental conditions

Exploded view

Exploded view

Parts lists

RM-10 mechanical spare parts list

RM-24 mechanical spare parts list

RM-10/24 component parts list

Component layouts

Component layouts - top 1em-25a and 1em-25b

Component layouts - bottom 1em-25a and 1em-25b

Phone data package overview

Installing phone data package

Uninstalling phone data package

Installing flash support files for FPS-10

Updating FPS-10 flash prommer software
