RM-612, RM-624
Service Manual Level 1&2
SERVICE MANUAL
Level 1&2
RM-612 / RM-624
Nokia C6-00
Transceiver characteristics
Band
GSM/EDGE 850/900/1800/1900
WCDMA 900/1900/2100, 850/1900/2100
Display
3.2”nHD screen with up to 16M colors
Camera
5 Mpix
Operating System
Symbian OS version 9.4
Series 60 5
th
Edition
Connectivity
HSDPA/WCDMA (up to 3.6Mbits)
Dual Transfer Mode (DTM) support
WLAN
Bluetooth wireless technology 2.0 + EDR
compliant
3.5 mm AV Connector
High Speed Micro USB Interface
Nokia DC jack
Transceiver with BL-4J battery pack
Talk time Standby time
GSM:
Up tp 11 hours
WCDMA:
Up to 5 hours
Note: Talk times are network dependent
GSM:
Up to 400 hours
WCDMA:
Up to 400 hours
1
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 2
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
Table of Contents
Change history ......................................................................................................................................................................................... 3
1. Copyright .......................................................................................................................................................................................... 4
2. Warnings and cautions ............................................................................................................................................................... 5
2.1 Warnings ................................................................................................................................................................................ 5
2.2 Cautions .................................................................................................................................................................................. 5
3. ESD protection ................................................................................................................................................................................ 6
4. Care and maintenance ................................................................................................................................................................ 7
5. Battery information ..................................................................................................................................................................... 8
6. Exploded view ................................................................................................................................................................................ 9
7. Service devices .............................................................................................................................................................................10
8. SW-update .....................................................................................................................................................................................11
9. Disassembly instructions .........................................................................................................................................................12
10.Assembly Hints .............................................................................................................................................................................21
11.Solder Components ....................................................................................................................................................................23
2
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 3
Service Manual Level 1&2
CHANGE HISTORY
Status Version No. Date Comments
Approved 1.0 19.4.2010
The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to
carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA
service suppliers, and the content of it is confidential. Please note that NOKIA provides also other
guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and
comply with the given instructions.
While every endeavor has been made to ensure the accuracy of this document, some errors may
exist. If you find any errors or if you have further suggestions, please notify NOKIA using the
address below:
Nokia Care Academy
service.manuals@nokia.com
Please keep in mind also that this documentation is continuously being updated and modified,
so watch always out for the newest version.
Nokia C6-00
RM-612, RM-624
3
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 4
1. COPYRIGHT
Copyright © 2010 Nokia. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of the contents in this document in
any form without the prior written permission of Nokia is prohibited.
Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of
Nokia Corporation. Other product and company names mentioned herein may be trademarks or
tradenames of their respective owners.
Nokia operates a policy of continuous development. Nokia reserves the right to make changes
and improvements to any of the products described in this document without prior notice.
Under no circumstances shall Nokia be responsible for any loss of data or income or any special,
incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no
warranties of any kind, either express or implied, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. Nokia reserves the right to revise this
document or withdraw it at any time without prior notice.
The availability of particular products may vary by region.
IMPORTANT
This document is intended for use by qualified service personnel only.
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
4
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 5
2. WARNINGS AND CAUTIONS
Please refer to the phone’s user guide for instructions relating to operation, care and
maintenance including important safety information. Note also the following:
2.1 Warnings
1. CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE
MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS,
EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE
DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF
ENERGY.
2. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN
POTENTIALLY EXPLOSIVE ATMOSPHERES, EG PETROL STATIONS (SERVICE STATIONS), BLASTING
AREAS ETC.
3. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY
INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT
A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS.
OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
2.2 Cautions
1. Servicing and alignment must be undertaken by qualified personnel only.
2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist
3. Use only approved components as specified in the parts list.
4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing
5. Ensure all cables and wires are repositioned correctly
strap is worn.
and alignment.
5
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 6
3. ESD PROTECTION
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
Nokia requires that service points have sufficient ESD protection (against static
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SIM card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All electronic parts of the product are susceptible to ESD. Resistors, too, can be
damaged by static electricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.
6
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 7
4. CARE AND MAINTENANCE
This product is of superior design and craftsmanship and should be treated with care. The
suggestions below will help you to fulfil any warranty obligations and to enjoy this product for
many years.
Keep the phone and all its parts and accessories out of the reach of small children.
Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can
contain minerals that will corrode electronic circuits.
Do not use or store the phone in dusty, dirty areas. Its moving parts can be
damaged.
Do not store the phone in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
Do not store the phone in cold areas. When it warms up (to its normal temperature),
moisture can form inside, which may damage electronic circuit boards.
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
Do not drop, knock or shake the phone. Rough handling can break internal circuit
boards.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
phone.
Do not paint the phone. Paint can clog the moving parts and prevent proper
operation.
Use only the supplied or an approved replacement antenna. Unauthorised antennas,
modifications or attachments could damage the phone and may violate regulations
governing radio devices.
All of the above suggestions apply equally to the product, battery, charger or any accessory.
7
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 8
5. BATTERY INFORMATION
Note: A new battery’s full performance is achieved only after two or three complete charge and
discharge cycles! The battery can be charged and discharged hundreds of times but it will
eventually wear out.
When the operating time (talk-time and standby time) is noticeably shorter than normal, it is
time to buy a new battery. Use only batteries approved by the phone manufacturer and
recharge the battery only with the chargers approved by the manufacturer.
Unplug the charger when not in use. Do not leave the battery connected to a charger for longer
than a week, since overcharging may shorten its lifetime.
If left unused a fully charged battery will discharge itself over time Temperature extremes can
affect the ability of your battery to charge.
For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by
leaving the product switched on until it turns itself off (or by using the battery discharge facility
of any approved accessory available for the product).
Do not attempt to discharge the battery by any other means Use the battery only for its
intended purpose.
Never use any charger or battery which is damaged.
Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object
(coin, clip or pen) causes direct connection of the + and - terminals of the battery (metal strips
on the battery) for example when you carry a spare battery in your pocket or purse.
Shortcircuiting the terminals may damage the battery or the connecting object.
Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions,
will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C
and 25°C (59°F and 77°F).
A phone with a hot or cold battery may temporarily not work, even when the battery is fully
charged. Batteries’ performance is particularly limited in temperatures well below freezing.
Do not dispose batteries in a fire! Dispose of batteries according to local regulations (e.g.
recycling).
Do not dispose as household waste.
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
8
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 9
6. EXPLODED VIEW
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
SPARE A-COVER/TOUCH PANEL
A1
(I0001 - I0004)
A-COVER
I0001
EARPIECE
I0004
LCD
I0006
CARE UI FLEX/SLIDE ASSY
A2
(I0008, I0101 - I0102, I0201)
DYNAMIC FPC
AND UI FPC ASSEMBLY
I0101
QWERTY FRAME
I0202
WINDOW
I0002
TOUCH MODULE
I0003
FUNCTION KEYMAT
I0005
FUNCTION DOMESHEET
I0008
DYNAMIC FPC HOLDER
I0201
SLIDE MODULE
I0102
SCREW M1.4x2.5 TORX+ 4
I0103
QWERTY KEYMAT
I0203
LIGHT SWAP PACKAGE
A3
(I0204 - I0206)
LIGHT SWAP PWB
CAMERA MODULE
GPS / BT / WLAN ANTENNA
B-COVER ASSY
A4
(I0208 - I0216)
FLASH LED ASSY
IHF SPEAKER
IHF ADHESIVE
BATTERY COVER
Ver. 1.0
9
I0205
I0207
USB DOOR
I0217
I0219
I0214
I0212
I0213
AV JACK
I0211
I0222
VOLUME BUTTON
I0208
Confidential
Copyright © 2010 NOKIA All rights reserved
Only available as
assembly
QWERTY DOMESHEET
I0204
ANTENNA ASSEMBLY
I0218
LOCK KEY
I0209
DC JACK
I0210
B-COVER
I0216
SD DOOR
I0215
TYPE LABEL
I0206
SCREW M1.6x5.0 TORX+ 6
I0220
SCREW M1.4x3.4 TORX+ 4
I0221
These parts can not be
reused after removal
Version 1.0 ISSUE 1
A3
Page 10
7. SERVICE DEVICES
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
FLS-5 Flash Device
CA-101 Service Cable
AC-8 Travel Charger
BL-4J Battery
SS-210 v2.0 Camera removal tool
NMP standard toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on NOKIA
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on NOKIA
Online.
10
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 11
8. SW-UPDATE
Flash concept - (Point of Sales)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
For further information please refer to the corresponding “Service Concept e-learning” on NOL!
11
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 12
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
9. DISASSEMBLY INSTRUCTIONS
1) Nokia C6-00 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-210 v2.0 camera
removal tool, AV plug and the 2 mm charger plug.
3) Protect the A-COVER with protective film to avoid
scratches.
5) Unscrew the five TORX+ size 6 screws in the order
shown. Do not use them again. Discard them.
4) Open the locking mechanism of the BATTERY
COVER. Lift up the bottom end of the BATTERY COVER
and pull it direction shown to remove it.
6) Unscrew the three TORX+ size 4 screws in the
order shown. Do not use them again. Discard them.
12
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 13
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
7) Open the USB DOOR. 8) Use the SRT-6 to release the clip on the top side
of the phone holding the B-COVER.
9) Release also the second clip on the bottom end of
10) The B-COVER can now be separated.
the phone with the SRT-6.
11) Remove the LOCK KEY with tweezers. 12) Open the DYNAMIC FLEX CONNECTOR by using the
SRT-6. Be careful not to damage the connector or
components nearby!
13
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 14
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
13) Lift up the shown side of the ENGINE BOARD and
pull it to the direction shown.
15) Insert the SS-210 v2.0 camera removal tool on
top of the CAMERA.
14) Remove the ENGINE BOARD.
16) A) Press the CAMERA down a little bit with the
black plastic parts of the SS-210 v2.0, otherwise
socket locking pins are damaged when metal plates
are pressed down. B) Press metal sheets down.
17) Press metal plates from the sides to tighten
them to the CAMERA and then lift up and remove
the CAMERA.
14
Confidential
Copyright © 2010 NOKIA All rights reserved
18) Use the dental tool to peel out one corner of the
QWERTY DOMESHEET. Be careful not to injure
yourself with the sharp end of the dental tool!
Version 1.0 ISSUE 1
Page 15
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
19) Peel off and remove the QWERTY DOMESHEET. Do
not use it again. Discard it.
21) Separate the QWERTY KEYMAT from the QWERTY
FRAME.
20) Remove the QWERTY FRAME and the QWERTY
KEYMAT.
22) Unscrew the three TORX+ size 4 screws in the
order shown. Do not use them again. Discard them.
23) Use the SRT-6 to open the clip holding the A-
24) Open also the second clip with the SRT-6.
COVER.
15
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 16
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
25) Carefully pull the SLIDE MODULE to the direction
shown to release the remaining clips.
26) Lift up the right side of the A-COVER to get
access to the TOUCH CONNECTOR. Use the SS-93 to
open the TOUCH CONNECTOR. Be careful not to
damage the connector or components nearby!
27) Remove the A-COVER. 28) Protect the LCD with protective film.
29) Protect also the other side of the A-COVER
window with protective film.
30) Lever out the EARPIECE with the dental tool and
remove it with tweezers. The EARPIECE cannot be
reused. Discard it.
16
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 17
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
31) Remove also the EARPIECE ADHESIVE by using
dental tool. Do not use it again. Discard it.
32) Loosen the adhesive between the SLIDE MODULE
and the FUNCTION KEY SUPPORT with the SRT-6.
33) Turn the FUNCTION KEY SUPPORT as shown. 34) Use the SS-93 to open the locking mechanism of
the LCD connector.
35) Pull out the LCD connector with tweezers. 36) Carefully insert the sharp end of the SS-93 under
the LCD and loosen the LCD adhesive. Be very careful
not to damage the LCD.
17
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 18
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
31) Remove the LCD. 32) Lift up the DC JACK with a DC plug. Remove it
with the tweezers.
33) Lift up and remove the USB DOOR. 34) Use an AV plug to lift the AV JACK. Remove it
with the tweezers.
35) To remove the ANTENNA ASSEMBLY, push the
36) Remove the ANTENNA ASSEMBLY.
shown clip with the sharp end of the SS-93.
18
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 19
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2

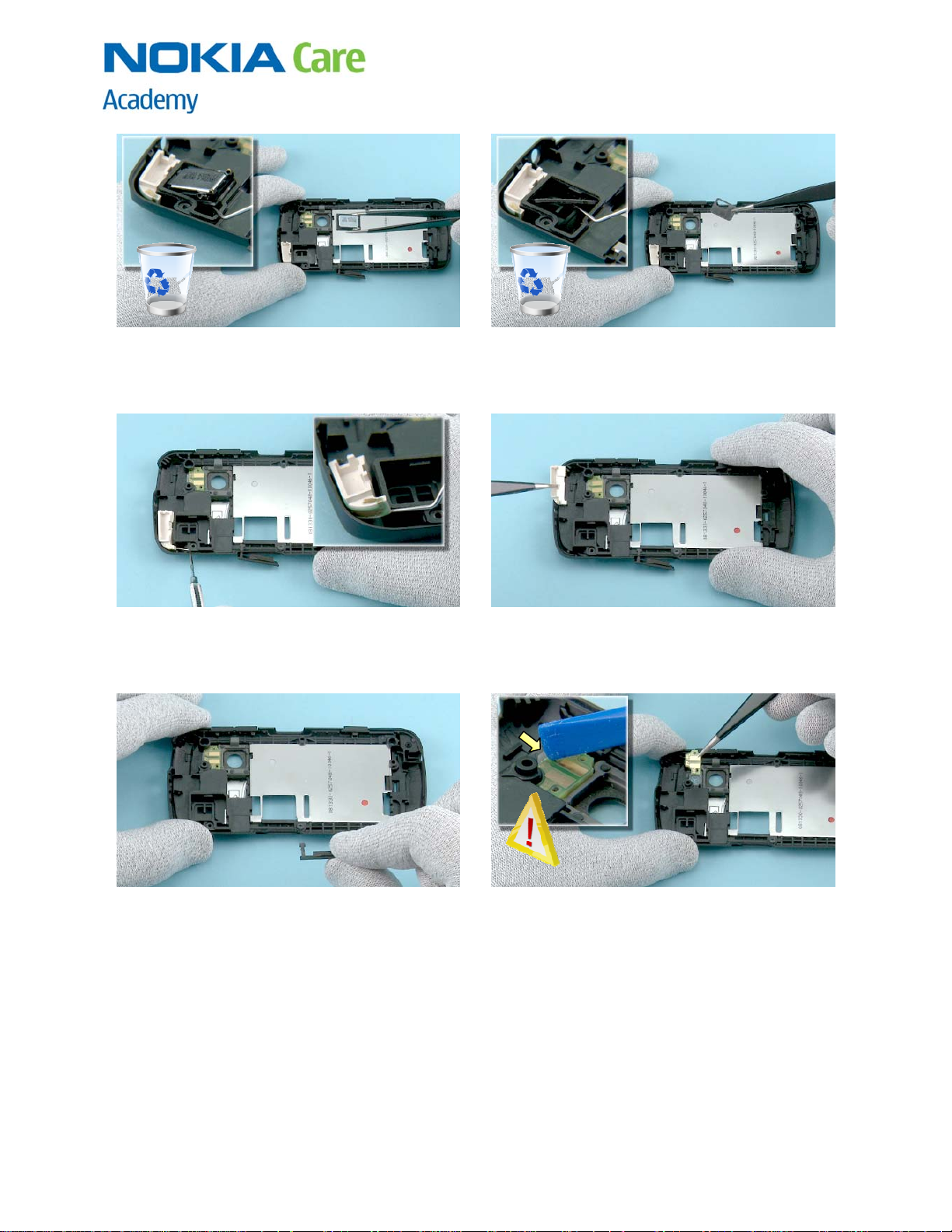

37) Lever out the IHF SPEAKER with the dental tool.
Remove the IHF SPEAKER with tweezers. Do not use
it again. Discard it.
39) Lift up the GPS / BT / WLAN ANTENNA with the
dental tool as shown.
38) Remove also the IHF ADHESIVE with the dental
tool. Do not use it again. Discard it.
40) Remove the GPS / BT / WLAN ANTENNA with the
tweezers.
41) Pull out and remove the SD DOOR. 42) Carefully push the shown clip with the SS-93 so
that the FLASH LED ASSY is released. Then lift up and
remove the FLASH LED ASSY with the tweezers.
19
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 20
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
43) Lever out the VOLUME BUTTON with dental tool
and remove it with the tweezers.
44) Nokia C6-00 disassembly is now complete.
-END OF DISASSEMBLY-
20
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 21
10. ASSEMBLY HINTS
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
1) To align the QWERTY DOMESHEET correctly to the
ENGINE BOARD, you should use the QWERTY KEYMAT
as the assembling jig. Place the QWERTY DOMESHEET
to the QWERTY KEYMAT as shown. Make sure that
shown alignment pins are aligned correctly.
3) Then lower down the left side of the ENGINE
BOARD. Check that the alignment pin is aligned
correctly.
2) Place the right side of the ENGINE BOARD to the
WERTY DOMESHEET. Make sure the alignment pin is
correctly aligned.
4) Lift up the ENGINE BOARD and check that the
QWERTY DOMESHEET is placed properly.
5) Tighten the three screws to the torque of 12 Ncm
in the order shown.
21
Confidential
Copyright © 2010 NOKIA All rights reserved
6) Tighten the three screws to the torque of 17 Ncm
in the order shown.
Version 1.0 ISSUE 1
Page 22
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
7) Tighten the five screws to the torque of 20 Ncm
in the order shown.
22
Confidential
Copyright © 2010 NOKIA All rights reserved
Version 1.0 ISSUE 1
Page 23
11. SOLDER COMPONENTS
V2426 V2427 V2428 V2431V2429
Nokia C6-00
RM-612, RM-624
Service Manual Level 1&2
TOP
F1400
X2700
V2430
BOTTOM
X6003
X6001
X7591
X7590X6401 G2200 F2000
X1451 X2400
Ver. 1.0
23
S2551S2550 S2555 V2001
Confidential
Copyright © 2010 NOKIA All rights reserved
S2554
X6002
Version 1.0 ISSUE 1
Loading...
