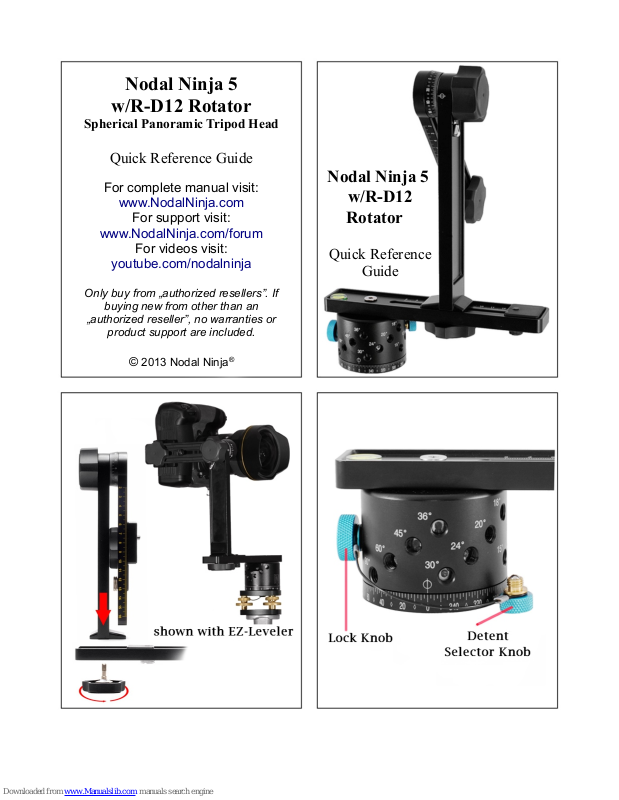

Page 1
Nodal Ninja 5
w/R-D12 Rotator
Spherical Panoramic Tripod Head
Quick Reference Guide
For complete manual visit:
www.NodalNinja.com
For support visit:
www.NodalNinja.com/forum
For videos visit:
youtube.com/nodalninja
Only buy from „authorized resellers”. If
buying new from other than an
„authorized reseller”, no warranties or
product support are included.
© 2013 Nodal Ninja
®
Nodal Ninja 5
w/R-D12
Rotator
Quick Reference
Guide
Page 2
Features
Combined specs:
- Weight: 995 gr (2 lb 3 oz).
- Folded size: 205 mm x 119 mm (4 3/4 x
8 1/4").
- Material: Anodized Aluminium.
- Base Color: Non-glare black.
- Load Limit: 10 kgs (22 lbs).
- Upper Arm 15 degree lock stops.
R-D12 Rotator
Mounting threads = 3/8 inch.
Diameter of 62 mm, height: 49 mm.
Premium quality aluminium alloy.
- Precision CNC machined components.
- Lubricated bearings for smooth rotation.
- Laser engraved markings.
- Detent interval can be changed quickly.
- Knob for locking rotation.
- Retainer wire so you don't lose the
knobs.- Small nadir footprint.
- Fine 2.5 degree rotation markings.
12 selectable increments =
no. of stops around
7.5 degrees = 48 stops
10 degrees = 36 stops
12 degrees = 30 stops
15 degrees = 24 stops
18 degrees = 20 stops
20 degrees = 18 stops
24 degrees = 15 stops
30 degrees = 12 stops
36 degrees = 10 stops
45 degrees = 8 stops
60 degrees = 6 stops
90 degrees = 4 stops
Revised: September 2013 | © Nodal Ninja
®
