NOCO NLP5 User guide

Download

Page 1

12V

2Ah

NLP5

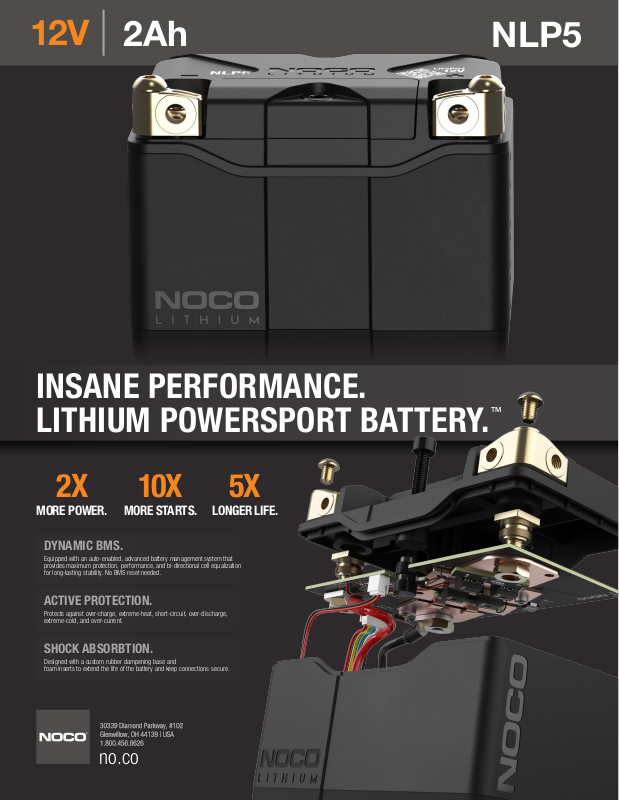

INSANE PERFORMANCE. LITHIUM POWERSPORT BATTERY.

MORE POWER.

DYNAMIC BMS.

Equipped with an auto-enabled, advanced battery management system that provides maximum protection, performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

ACTIVE PROTECTION.

Protects against over-charge, extreme-heat, short-circuit, over-discharge, extreme-cold, and over-current.

SHOCK ABSORBTION.

Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.

10X

MORE STARTS.

LONGER LIFE.

no.co

Page 2

UNIVERSAL MOUNTING.

User Guide & Warranty

READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result in a SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging device. D

o not attempt to jump start, charge, or discharge the battery if damaged or frozen. Never charge or discharge the product outside its operating temperatures. Never over-charge or over-discharge the battery. Never exceed the maximum charging currents of the battery. Never incinerate.

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Eye Injury.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

and contact poison control immediately.

For more information

and support visit:

DANGER

User Guide & Warranty

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging device. D

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Eye Injury.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

and contact poison control immediately.

For more information

and support visit:

DANGER

User Guide & Warranty

For more information and support visit:

Modular spacers can be added to alter the size and allow the battery to be safely and securely mounted. A removable mounting block allows the battery to ﬁt more applications. The threaded insert enables direct-mounting for additional simplicity and security.

Removable Mounting Block

Threaded Insert M6-1 Thread Size.

Hex Screw M6 -1x16mm

FEMALE. SIDE.

T O P.

FRONT.

MULTI-CONNECTION TERMINALS.

Equipped with premium IP 66 waterproof copper PCB plates. NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.

RAPID RECHARGE.

Use the Lithium mode on a Genius charger to fully

recharge an NLP battery in minutes. See Genius

models and charging times below.

COMPATABLE SIZES.

BCI SIZES

BTZ7S BTZ8V B T X5 L- B S B T X7 L-B S

YUASA SIZES

YTZ7S YTZ8V Y TX 5L- BS Y TX 7L- BS

WHAT'S IN THE BOX

3.35"

(85mm)

*Access ories not to scale w ith NLP 5

M6 Hex Sc rew

1mm x 8mm

M6 Hex Sc rew

1mm x 10mm

User Guide

DANGER

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging

o not attempt to jump start, charge, or discharge the battery if damaged or frozen.

device. D Never charge or discharge the product outside its operating temperatures. Never over-charge or over-discharge the battery. Never exceed the maximum charging currents of the battery. Never incinerate.

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

Eye Injury.

and contact poison control immediately.

User Guide & Warranty

For more information and support visit:

M6 Hex Sc rew

1mm x 16mm

Hex Key

ETX SIZES

No Compatable Sizes.

2.76"

(70mm)

LxWxH Minimum.

4.45"

(113 mm)

(1) 0.79" 2 0mm Spacer (1) 0.94" 24mm S pacer

4.45” x 2.76 ” x 3.35” (113mm x 70mm x 88mm)

NLP5 Battery

20mm Spacer

24mm Spacer

LxWxH Maximum.

4.45” x 2.76 ” x 5.1” (113mm x 70mm x 129mm)

RECHARGE TIME

GENIUS1

GENIUS2

GENIUS5

GENIUS10

120 Minutes

60 Minutes

24 Minutes

TECHNICAL SPECIFICATIONS

BCI SIZE:

CHEMISTRY:

NOMINAL VOLTAGE:

AMP-HOURS:

WATT-HOURS (WH):

STARTING CURRENT:

CHARGING

VOLTAGE (V):

CHARGING

CURRENT (A):

OPERATING

TEMPERATURE:

CHARGING

TEMPERATURE:

STORAGE

TEMPERATURE:

LITHIUM

CONTENT:

INTERNAL

BATTERY WEIGHT:

WEIGHT:

VOLUMETRICS:

Lithium Iron Phosphate (LiFePO4)

12.8

25.6

250

14.6V

6A (Max)

-20ºC to 60ºC

-10ºC to 50ºC

-20ºC to 60ºC

2.4 g

0.61 lbs (0.28 kg)

1.5 lbs (0.69 kg)

Retail Packaging:

Dimensions:

5.87” x 4.17” x 4.65” Weight: 2.44 lbs UPC: 0-46221-19007-6

Inner Carton:

Dimensions:

6.02” x 4. 37” x 5.04” Weight: 2.56 lbs

N/A

Master Carton:

Dimensions:

13.50” x 6.18” x 10.63” Weight: 15.9 3 lbs Quantity: 6 UCC: 10046221190073

Units Per Pallet:

378 Unit s
