NOCO NLP14 User guide

Download

Page 1

12V

4Ah

NLP14

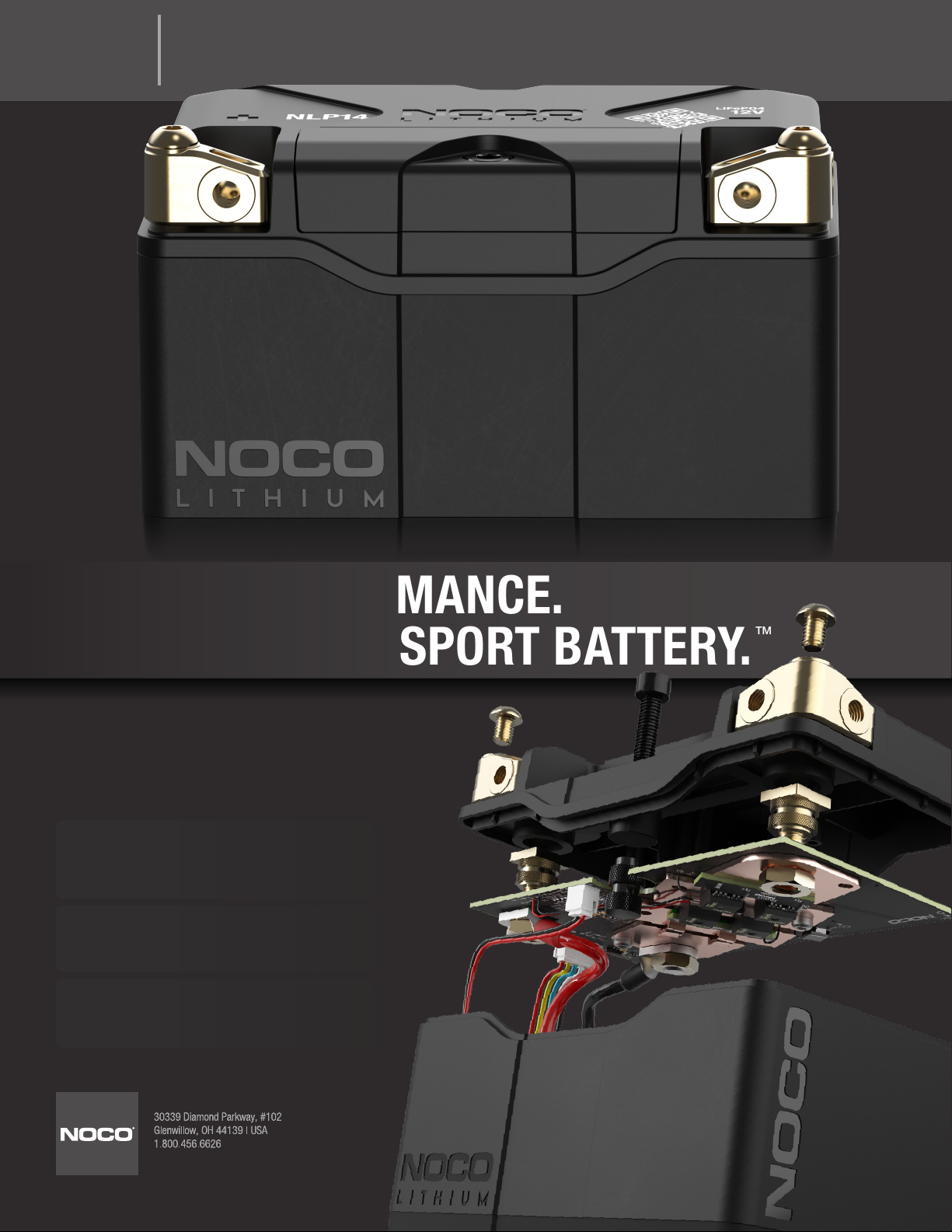

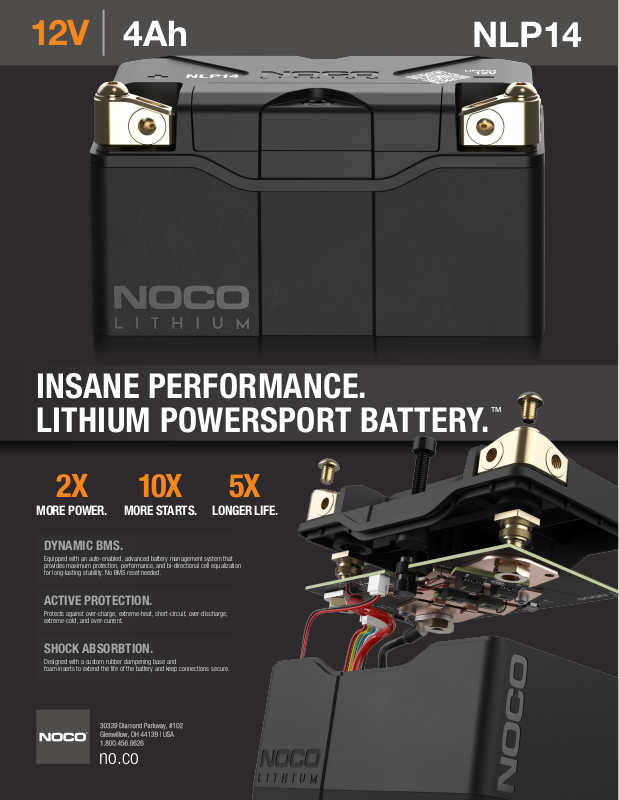

INSANE PERFORMANCE. LITHIUM POWERSPORT BATTERY.

MORE POWER.

DYNAMIC BMS.

Equipped with an auto-enabled, advanced battery management system that provides maximum protection, performance, and bi-directional cell equalization for long-lasting stability. No BMS reset needed.

ACTIVE PROTECTION.

Protects against over-charge, extreme-heat, short-circuit, over-discharge, extreme-cold, and over-current.

SHOCK ABSORBTION.

Designed with a custom rubber dampening base and foam inserts to extend the life of the battery and keep connections secure.

10X

MORE STARTS.

LONGER LIFE.

no.co

Page 2

UNIVERSAL MOUNTING.

User Guide & Warranty

READ AND UNDERSTAND ALL SAFETY INFORMATION BEFORE USING THIS PRODUCT. Failure to follow these safety instructions may result in ELECTRICAL SHOCK, EXPLOSION, FIRE, which may result in a SERIOUS INJURY, DEATH, or PROPERTY DAMAGE.

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging device. D

o not attempt to jump start, charge, or discharge the battery if damaged or frozen. Never charge or discharge the product outside its operating temperatures. Never over-charge or over-discharge the battery. Never exceed the maximum charging currents of the battery. Never incinerate.

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Eye Injury.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

and contact poison control immediately.

For more information and support visit:

DANGER

User Guide & Warranty

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging device. D

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Eye Injury.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

and contact poison control immediately.

For more information

and support visit:

DANGER

User Guide & Warranty

For more information and support visit:

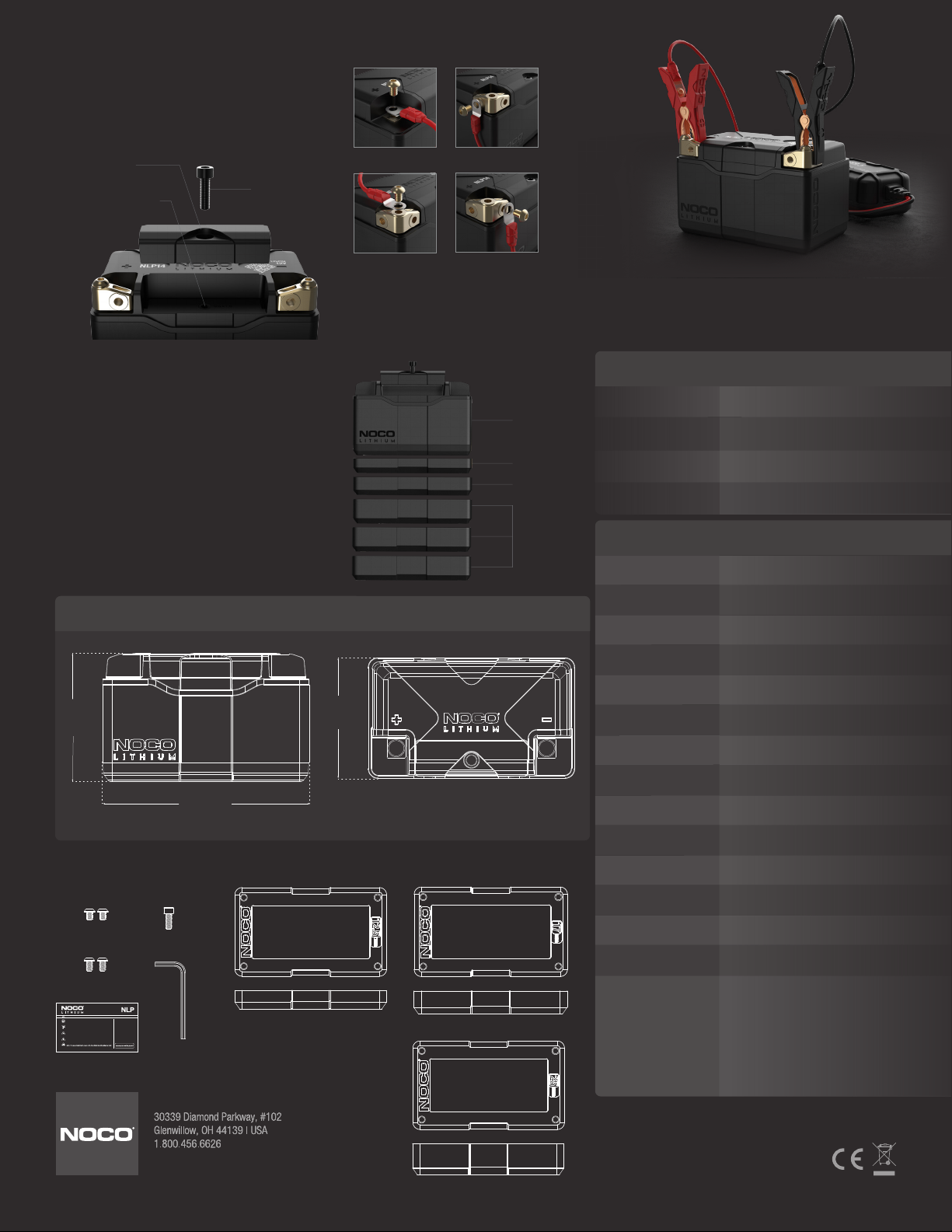

Modular spacers can be added to alter the size and allow the battery to be safely and securely mounted. A removable mounting block allows the battery to ﬁt more applications. The threaded insert enables direct-mounting for additional simplicity and security.

FEMALE. SIDE.

Removable Mounting Block

Threaded Insert M8-1.25 Thread Size.

COMPATABLE SIZES.

BCI SIZES

BT 12A -B S BT Z10S BT Z14S BT Z12S BT X14 BT14B-4 BTX12- BS BTX14- BS BTX16- BS BTX20CH-BS BTX16-BS-1 B16A -AB

YUASA SIZES

GY Z16H YT X14H YTX20C H YT Z10S YT Z12S YT Z14S YTX14H-BS YTX20CH-BS YTX12 YT X14 YT 12A- BS YT X12- BS KM X14-B S YT X14-B S YT X16-B S YTX16 -BS -1 HY B16A-A B

WHAT'S IN THE BOX

Hex Screw M6 -1x20mm

ETX SIZES

ET X12 ET X14 ET X16L

T O P.

FRONT.

MULTI-CONNECTION TERMINALS.

Equipped with premium IP 66 waterproof copper PCB plates. NLP Terminals can be mounted from the front, side, or top, and can be removed altogether depending on the application.

NLP14 Battery

12.5mm Spacer

17mm Spacer

25 mm Spacers

RAPID RECHARGE.

Use the Lithium mode on a Genius charger to fully

recharge an NLP battery in minutes. See Genius

models and charging times below.

RECHARGE TIME

GENIUS1

GENIUS2

GENIUS5

GENIUS10

240 Minutes

120 Minutes

48 Minutes

24 Minutes

TECHNICAL SPECIFICATIONS

BCI SIZE:

CHEMISTRY:

NOMINAL VOLTAGE:

AMP-HOURS:

Lithium Iron Phosphate (LiFePO4)

12.8

3.64"

(92.5mm)

*Access ories not to scale w ith NLP 14

M6 Hex Sc rew

1mm x 8mm

M6 Hex Sc rew

1mm x 10mm

User Guide

DANGER

Electrical Shock. Product is an electrical device that can shock and cause serious injury. Do not

submerge in water or get wet.

Explosion. Never short-circuit the battery terminals. Do not use with an incompatible charging

o not attempt to jump start, charge, or discharge the battery if damaged or frozen.

device. D Never charge or discharge the product outside its operating temperatures. Never over-charge or over-discharge the battery. Never exceed the maximum charging currents of the battery. Never incinerate.

Fire. The product is an electrical storage device that can emit heat. Do not cover product or place objects on top of the product. Keep the product away from combustible materials.

Wear eye protection when operating product. Batteries can explode and cause ﬂying

Eye Injury.

and contact poison control immediately.

User Guide & Warranty

For more information and support visit:

M6 Hex Sc rew

1mm x 20mm

Hex Key

no.co

5.87"

(149 mm)

3.43"

(87mm)

LxWxH Minimum.

5.87” x 3. 43” x 3.6 4” (149mm x 87mm x 92 .5mm)

LxWxH Maximum.

5.87” x 3. 43” x 7.78” (149mm x 87mm x 197.5mm)

(1) 0.49" 12.5mm S pacer (1) 0.67" 17mm Spacer

(3) 0.98 " 25mm Space rs

WATT-HOURS (WH):

STARTING CURRENT:

CHARGING

VOLTAGE (V):

CHARGING

CURRENT (A):

OPERATING

TEMPERATURE:

CHARGING

TEMPERATURE:

STORAGE

TEMPERATURE:

LITHIUM

CONTENT:

INTERNAL

BATTERY WEIGHT:

WEIGHT:

VOLUMETRICS:

-20ºC to 60ºC

-10ºC to 50ºC

-20ºC to 60ºC

1.16 lbs (0.53 kg)

2.58 lbs (1.17kg)

Retail Packaging:

Dimensions:

6.06” x 4.41” x 8.11” Weight: 4.0 5 lbs. UPC: 0-46221-19009-0

Inner Carton:

Dimensions:

8.35” x 6. 22” x 4.76” Weight: 4. 24 lbs

51.2

500

14.6V

12A (Max)

4.8 g

Master Carton:

Dimensions:

13.0” x 8.82” x 10. 32” Weight: 17.70 lbs Quantity: 4 UCC: 10046221190097

Units Per Pallet:

180 U nits
