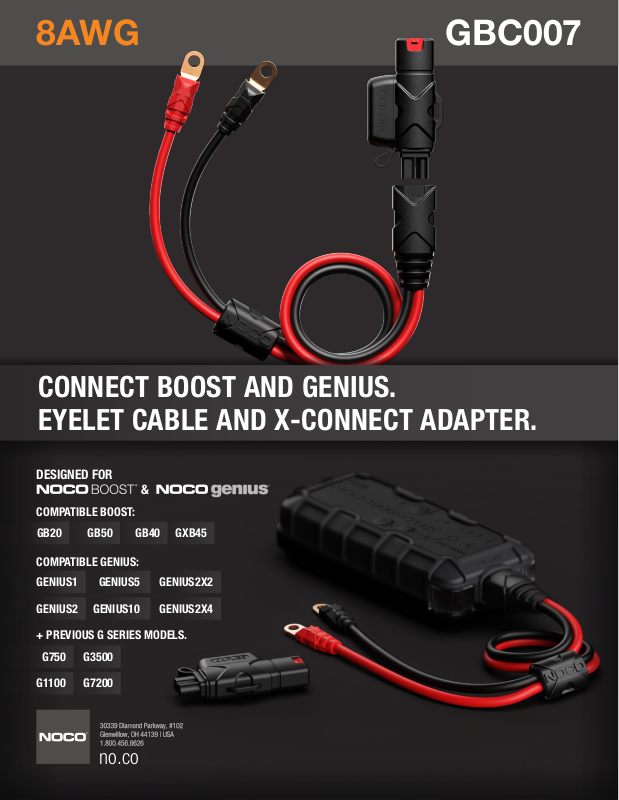

Page 1
8AWG
GBC007
CONNECT BOOST AND GENIUS.
EYELET CABLE AND X-CONNECT ADAPTER.
DESIGNED FOR
&
COMPATIBLE BOOST:
GB20
COMPATIBLE GENIUS:
GENIUS1 GENIUS5
GENIUS2 GENIUS10
+ PREVIOUS G SERIES MODELS.
G750
G1100
GB50
G3500
G7200
GB40
GXB45
GENIUS2X2
GENIUS2X4
no.co
Page 2
RUGGED.
FOR EXTREME ENVIRONMENTS.
HEAVY DUTY DESIGN.
Dirt, Water, UV and Impact resistant.
MAXIMUM PERFORMANCE.
Made fro m durable, h eat sta bilized 8 AWG silico ne wire th at maintains its
flexibilit y in cold weather env ironmen ts. The eyelets inc lude a lie- flat desig n for
seamles s installations with M6 (1/4-inch) ho le size.
QUICK AND EASY TRANSITIONS.
MAXIMUM PERFORMANCE.
Boost Connect
TO BATTERY TO CHARGER
WHAT'S IN THE BOX
Adapter
Heavy- duty batter y eyelet cable with c harger ad apter des igned to be h ard-mo unted
and lef t for conve nience. C ompatible with GB 20, GB40, GB50, an d GBX4 5 NOCO B oost
Ultra Safe Li thium Jump S tarters.
X-Connect
TECHNICAL SPECIFICATIONS
MADE FOR BOOST.
WIRE SIZE:
INPUT:
8 AWG
Boost Female Connector
& X-Connect Connector
no.co
18.5 in (470mm)
2.75 in (70mm)
.03 in
(19.8mm)
OUTPUT:
WEIGHT:
VOLUMETRICS:
Heavy Duty Eyelets (1/4-Inch M6)
0.42 lbs (.19kg)
Retail
Packaging:
Dimensions: 1.6”x5.1”x3.2”
Weight: 0.50 lbs
UPC: 0-46221-16017-8
Inner Carton:
Dimensions: 1.8”x5.4”x3.5”
Weight: 0.55 lbs
COMPATIBLE PRODUCTS
BOOST JUMP
STARTERS:
GENIUS
CHARGERS:
GB20, GB40, GB50, GBX45
GENIUS1, GENIUS2, GENIUS5,
GENIUS10, GENIUS2X2, GENIUS2X4,
G750, G1100, G3500, G7200
Master Carton:
Dimensions:
11.3 ”x11.9 ”x11.6 ”
Weight: 20.48 lbs
Quantity: 36
UCC: 100 46221160175
Units Per Pallet:
3,456 Units
