Model No.: V216B1-DE01

TFT LCD Preliminary Specification

MODEL NO.:V216B1-DE01

www.panelook.com

Preliminary

(Rev: A2.0)

Customer:

Approved by:

Note:

Approved By

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Checked By

Reviewed By

ASSEMBLY LCD TV LCM Division

R&D Dept. QA Dept.

TV LCM Marketing and Sale Dept.

1

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

Preliminary

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION ------------------------------------------------------- 4

1.1 OVERVIEW

1.2 FEATURES

1.3GENERAL SPECIFICATIONS

1.4 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 PACKAGE STORAGE

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 TFT LCD MODULE

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

3.2.1 LED UNIT CHARACTERISTICS

3.2.2 LED CHARACTERISTICS

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

5. PIN CONNECTION ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 LVDS DATA MAPPING TABLE

5.3 BACKLIGHT UNIT

5.4 COLOR DATA INPUT ASSIGNMENT

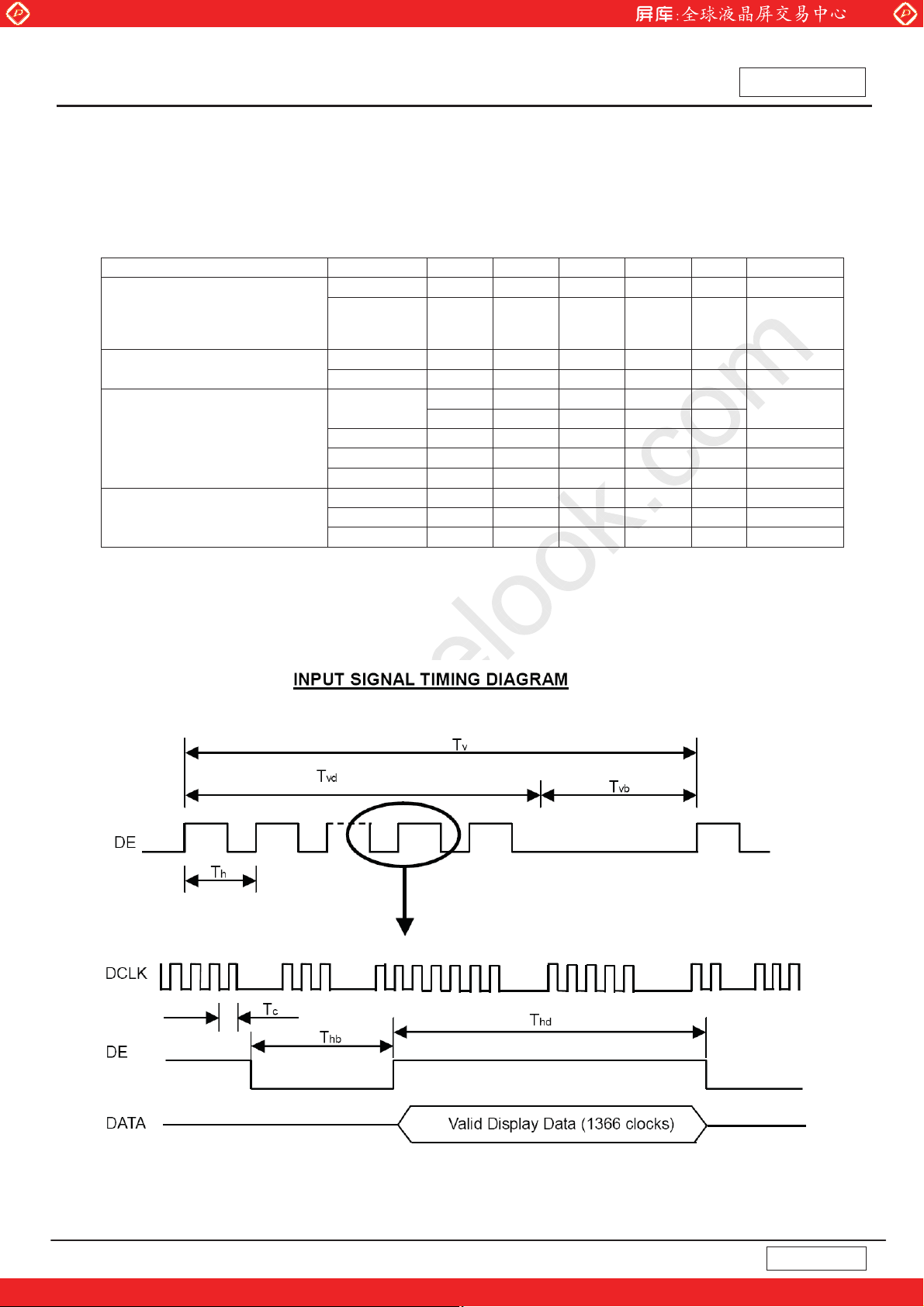

6. INTERFACE TIMING ------------------------------------------------------- 16

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 19

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. DEFINITION OF LABELS ------------------------------------------------------- 23

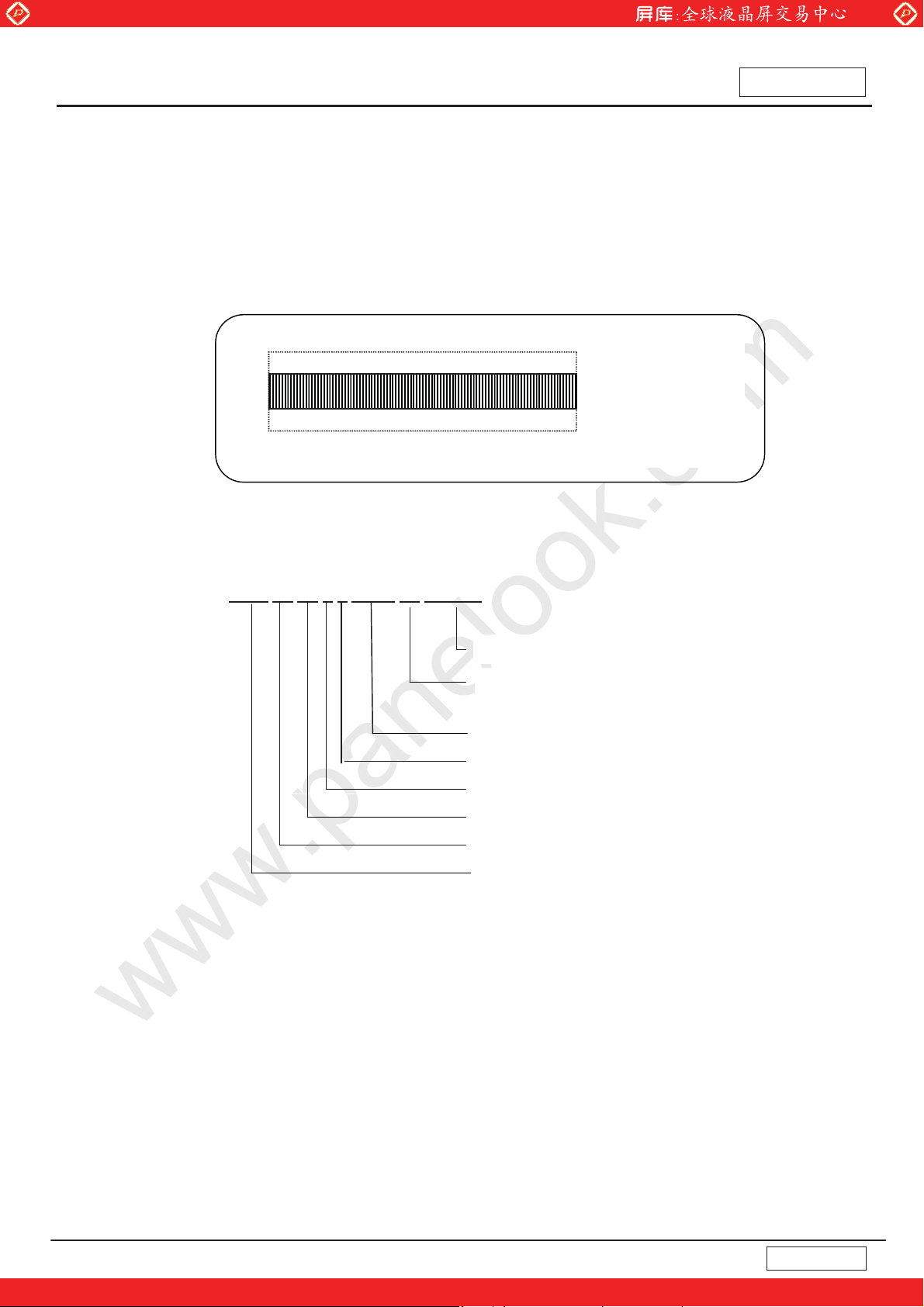

8.1 ASSEMBLY LCD MODULE LABEL

9. PACKAGING ------------------------------------------------------- 24

9.1 PACKING SPECIFICATIONS

9.2 PACKING METHOD

10. PRECAUTIONS ------------------------------------------------------- 26

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

10.3 STORAGE PRECAUTIONS

11. MECHANICAL CHARACTERISTICS -------------------------------------------------------- 27

2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

Version Date

Ver 1.0 6, Apr ’10

Page

(New)

All

Section Description

All Preliminary Specification was first issued.

www.panelook.com

REVISION HISTORY

Preliminary

3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V216B1-DE01 is a 21.6” TFT Liquid Crystal Display module with LED Backlight unit and 1ch-LVDS interface.

This module supports 1366 x 768 WXGA format and can display 16.7M colors (6-bit+HI-FRC colors). The LED

driver module for backlight is not built-in.

1.2 FEATURES

- High Brightness 250 nits

- Ultra-high contrast ratio 800:1

- Faster Response Time (Gray to Gray Average 6.5ms)

- High Color Saturation NTSC 80%

- wide Viewing Angle: 170(H)/160(V) (CR>10) with TN Technology

www.panelook.com

Preliminary

- DE (Data Enable) Only Mode

- LVDS (Low Voltage Differential Signaling) Interface

- Color Reproduction (Nature Color)

1.3 GENERAL

Item Specification Unit Note Active Area 477.42 (H) x 268.42(V) (21.6" diagonal) mm Bezel Opening Area 481.5 (H) x 272.5 (V) mm Driver Element a-si TFT active matrix - Pixel Number 1366 x R.G.B. x 768 pixel Pixel Pitch (Sub Pixel) 0.1165(H) x 0.3495 (V) mm Pixel Arrangement RGB vertical stripe - Display Col ors 16.7M color Display Operation Mode TN / Normally White - Surface Treatment Anti-Glare coating (Haze 25%),Hard coating (3H) -

1.4 MECHANICAL SPECIFICATIONS

Item Min Typ Max Unit

Horizontal(H) 501 mm

(1)

Module Size

Weight - TBD - g

Vertical(V) 297 mm

Depth(D)rear 10.7 mm

Depth(D)Max

4

-

13.9

-

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

p

80 60

0 0

0

90 80

60

Issued Date: 2010/4/6

Model No.: V216B1-DE01

2. ABSOLUTE MAXIMUM RATINGS

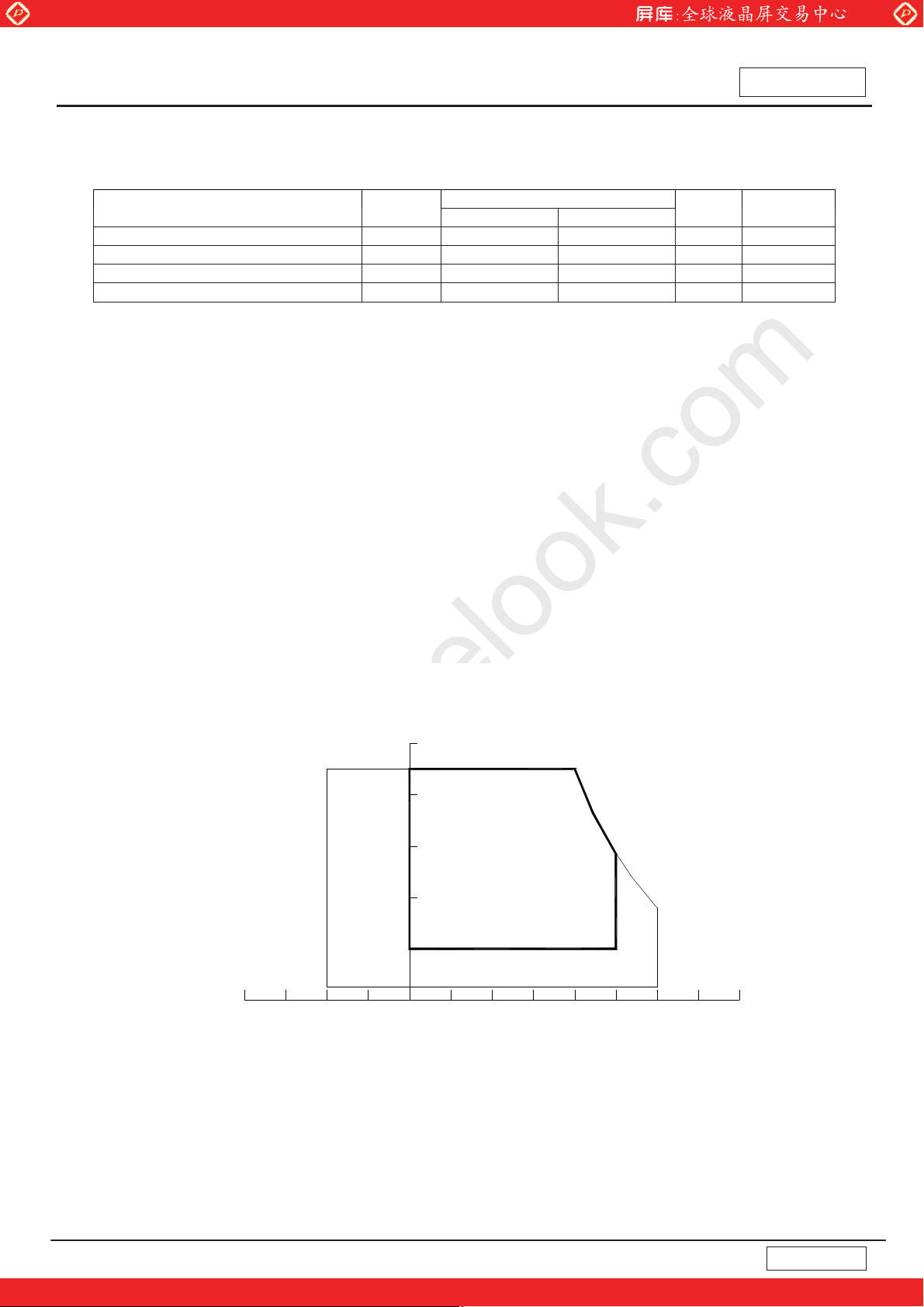

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock(Non-Operating) S Altitude Storage V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The maximum operating temperature is based on the test condition that the surface temperature of

display area is less than or equal to 65 ºC with LCD module alone in a temperature controlled

www.panelook.com

Preliminary

Value

Min. Max.

- 50 G (3),(5)

NOP

- 1.0 G (4),(5)

NOP

Unit Note

chamber. Thermal management should be considered in your product design to prevent the surface

temperature of display area from being over 65 ºC. The range of operating temperature may

degrade in case of improper thermal management in your product design.

Note (3) 11ms, half-sine wave, 1 time for ±X, ±Y, ±Z.

Note (4) 10~200Hz, 10 min, 1time each X,Y,Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so

that the module would not be twisted or bent by the fixture.

Relative Humidity (%RH)

100

O

40

20

10

erating Range

Storage Range

2

-40

Temperature (ºC)

-20 4

5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

2.2 PACKAGE STORAGE

When storing modules as spares for a long time, the following precaution is necessary.

(a) Do not leave the module in high temperature, and high humidity for a long time. It is highly recommended to

www.panelook.com

Preliminary

store the module with temperature from 0 to 35

(b) The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or Fluorescent

ght.

li

 at normal humidity without condensation.

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 TFT LCD MODULE

Item

Power Supply Voltage

Logic Input Voltage

Value

Symbol

Min Max

Vcc 4.5 5.5

Vin -0.3 3.6

Unit

Note

V

6

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

3. ELECTRICAL CHARACTERISTICS

www.panelook.com

Preliminary

3.1 TFT LCD MODULE Ta =25±2ºC

Parameter

Power Supply Voltage

Power Supply Ripple Voltage

Rush Current

Power Supply Current

LVDS Interface

Differential Input High

Differential Input Low

White - 0.5 A

Black - 0.85 0.95 A

Vertical Stripe

Common Input Voltage

Terminating Resistor

Input High Threshold Voltage

Input Low Threshold Voltage

Note (1) The module should be always operated within above ranges.

Note (2) Measurement Conditions:

Symbol

V

CC

V

RP

I

RUSH

I

CC

V

LVTH

V

LVTL

V

LVC

R

T

V

I

H

V

I

L

Val ue

Min. Typ. Max.

4.5 5.0 5.5 V (1)

- - 150 mV

- - 3.0 A (2)

- 0.75 - A

+100

1.125 1.25 1.375 V

-

-100

- 100 - ohm

2.7 - 3.3 V CMOS 0 - 0.7 V

Unit Note

mV

(3)

7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

www.panelook.com

Preliminary

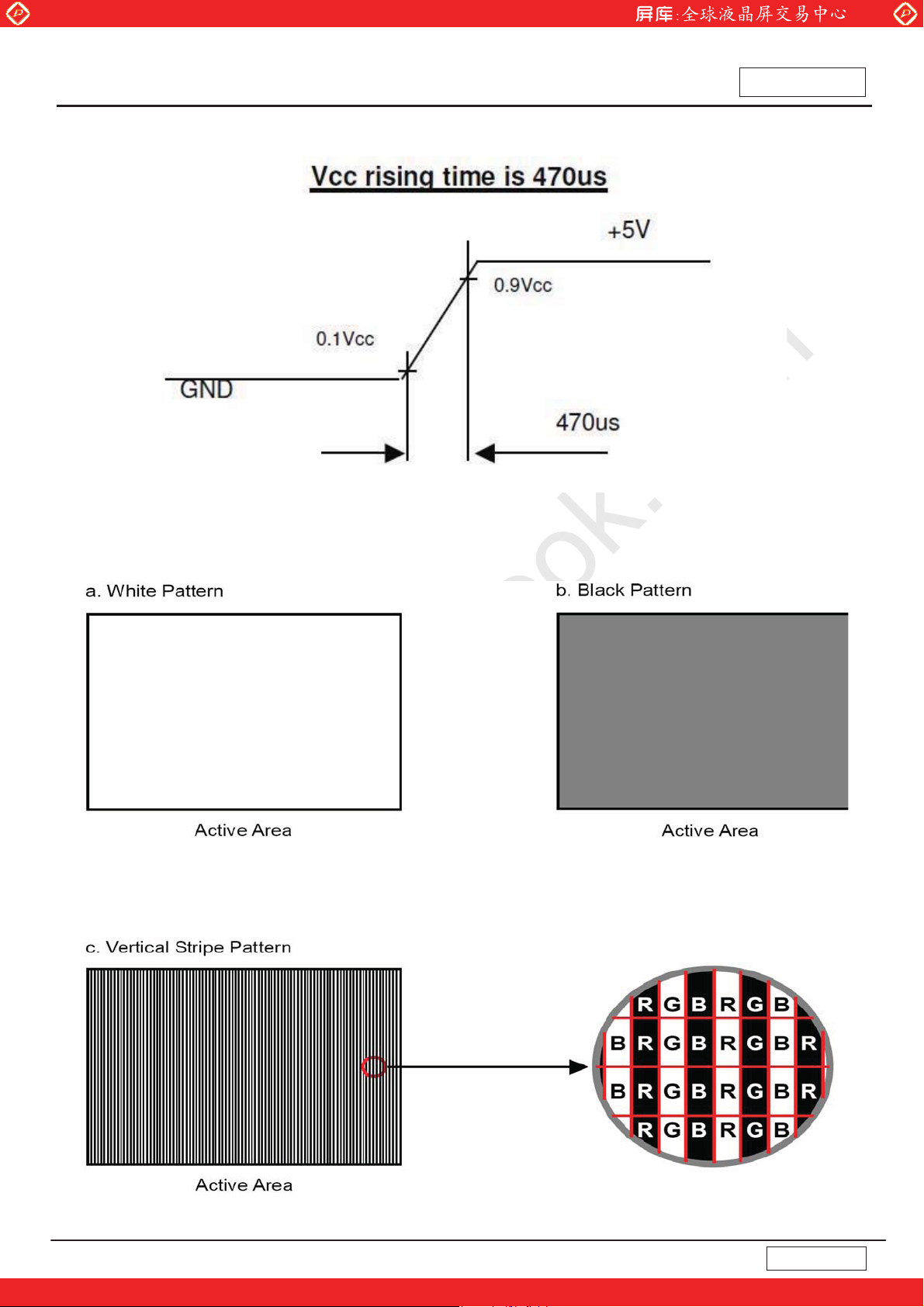

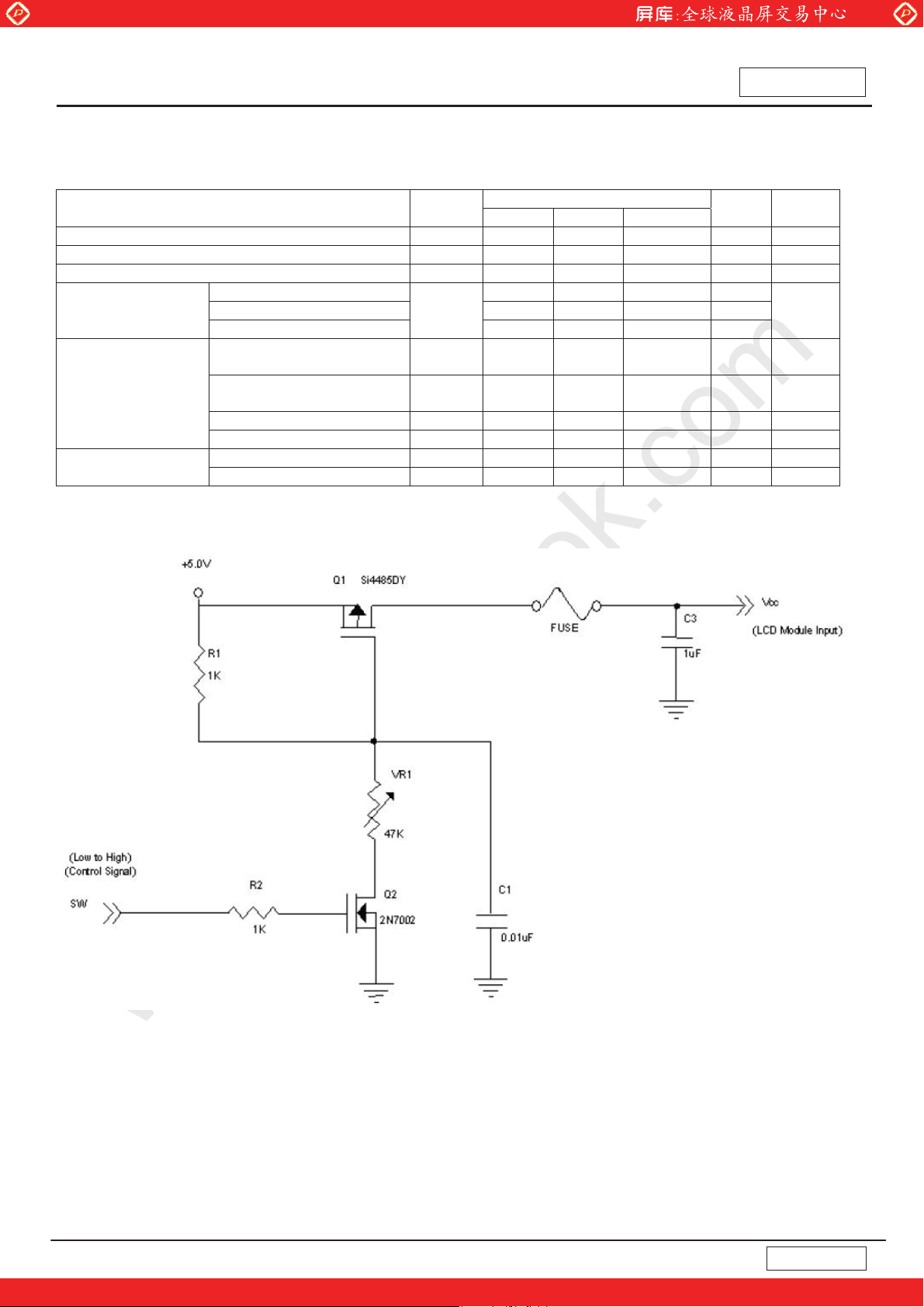

Note (3) The specified power supply current is under the conditions at Vcc=5V,Ta=25±2

ºC,fv=60HZ,whereas a power dissipation check pattern below is displayed.

8

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

3.2 BACKLIGHT UNIT

www.panelook.com

Preliminary

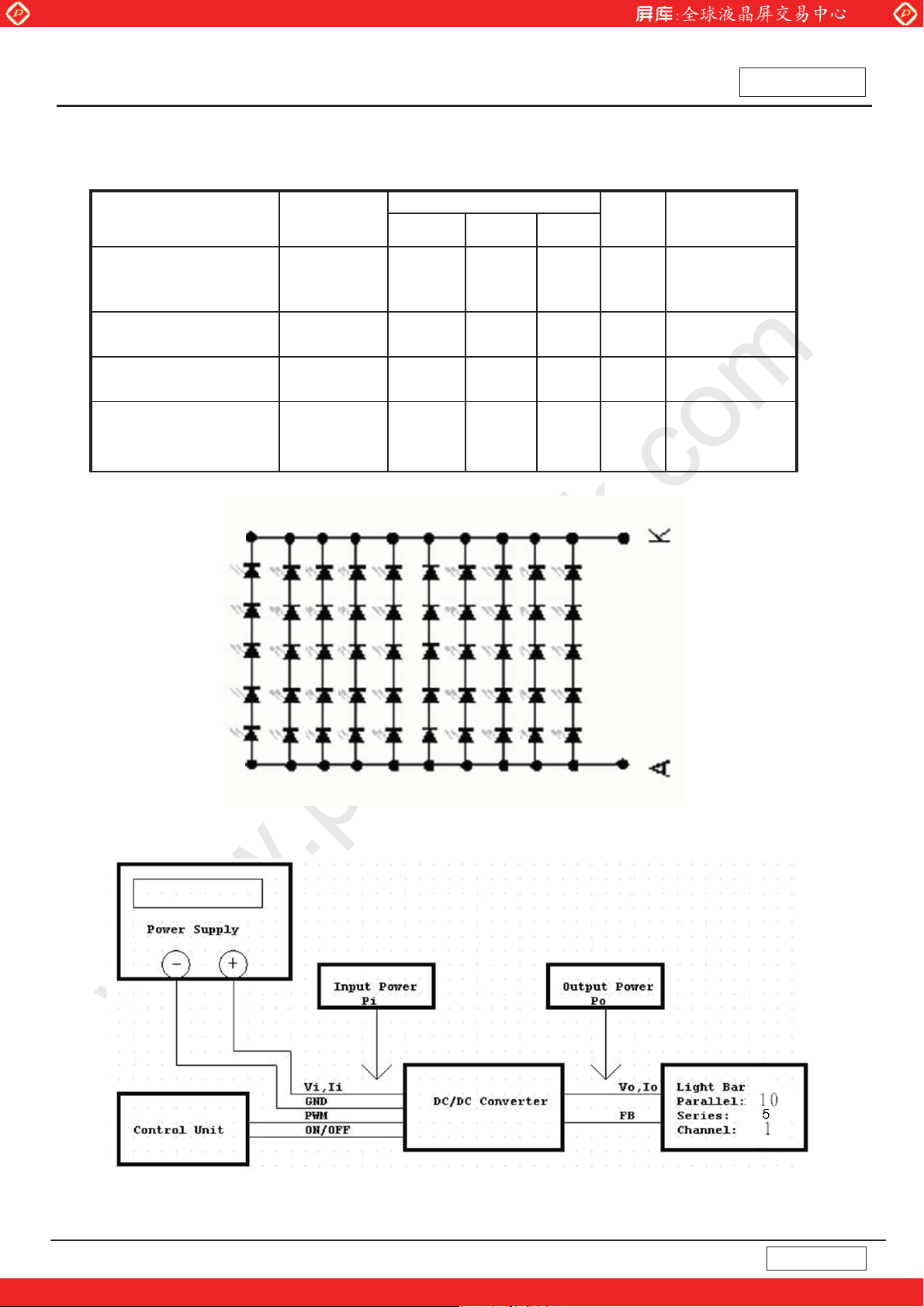

3.2.1 LED UNIT CHARACTERISTICS (

Ta = 25 ± 2 ºC)

Valu

Parameter Symbol

Vo

Po

L

LED

Io

1

LED Light Bar

Input Voltage

Power Consumption

LED Life Time

LED Light Bar

Input Current

NOTE(1): LED light Bar consists of one channels 10-GROUPS parallel LEDs, each of which is 5-serial LEDs.

Min Typ Max

-

15.5

-

- 9.3 -

100000 - -

- 600

-

Unit Note

(1),(Duty 100%)

VDC

W

H

mADC

(1),(Duty 100%)

(2)

LED current is measure by utilizing a high frequency current meter as shown below:

9

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

Preliminary

NOTE(2): The lifetime of LED is defined as the time when it continues to operate under the condition atTa=25±2 and

I=??mA(Per EA)until the brigtness

3.2.2 LED CHARACTERISTICS



50%

of its original value

10

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

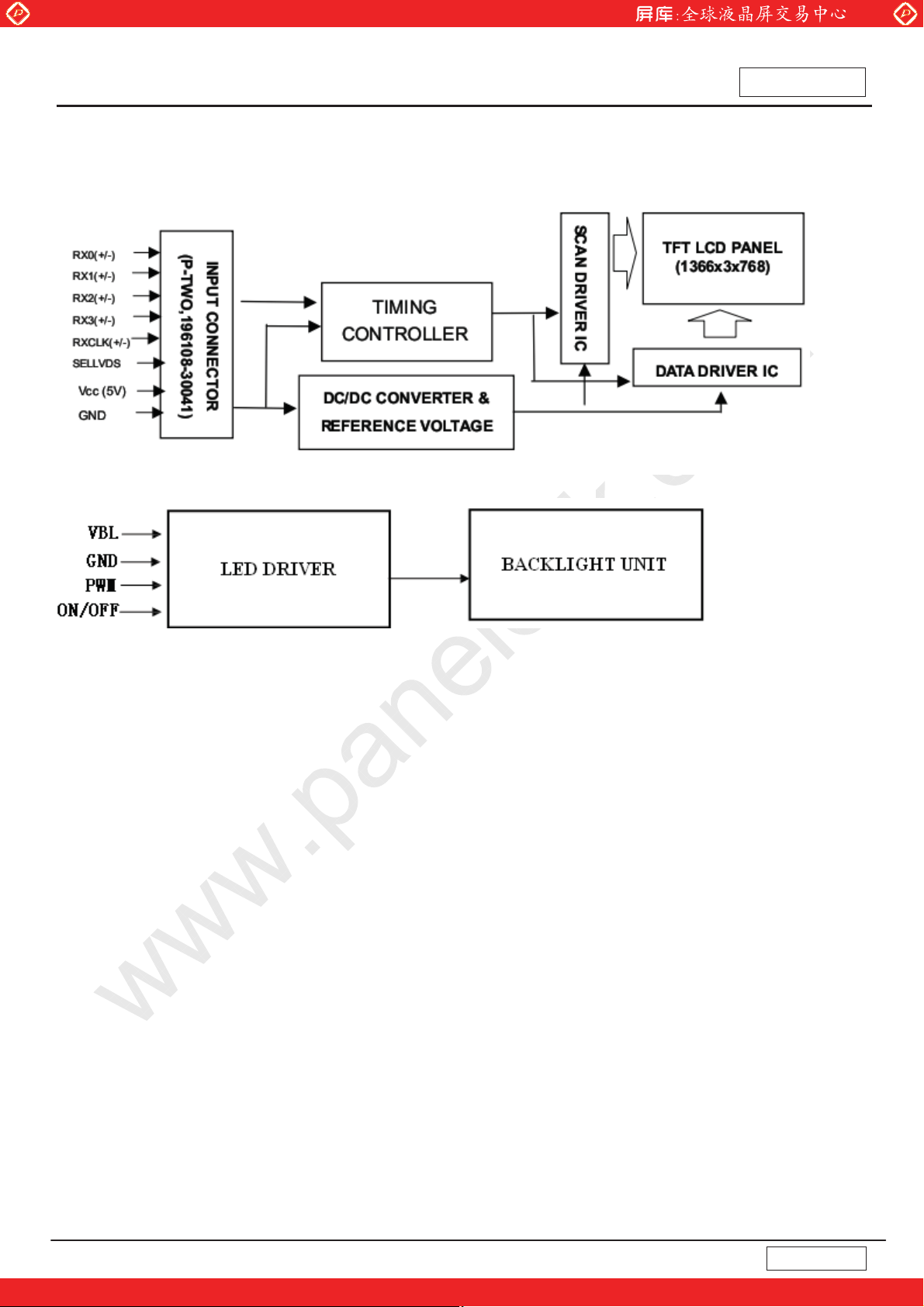

4. BLOCK DIAGRAM

4.1TFT LCD MODULE

www.panelook.com

Preliminary

11

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

p

ply

Issued Date: 2010/4/6

Model No.: V216B1-DE01

5. PIN CONNECTION

5.1 TFT LCD MODULE

Pin No.

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

Symbol

RXCLK-

RXCLK+

GND

SELLVDS

NC NC

NC GND RX0-

RX0+

GND RX1-

RX1+

GND RX2-

RX2+

GND

RX3-

RX3+

GND

NC

NC GND GND GND

VCC VCC VCC VCC VCC

www.panelook.com

Description No connection No connection No connection Ground Negative transmission data of pixel 0 Positive transmission data of pixel 0 Ground Negative transmission data of pixel 1 Positive transmission data of pixel 1 Ground Negative transmission data of pixel 2 Positive transmission data of pixel 2 Ground Negative of clock Positiv e of clock Ground Negative transmission data of pixel 3 Positive transmission data of pixel 3 Ground No connection Select LVDS data format No connection Ground Ground Ground Power supply: +5V Power supply: +5V Power su Power supply: +5V Power supply: +5V

: +5V

Preliminary

Note

(2) (2) (2)

(2) (3) (2)

Note (1) Connector part no.: P-TWO 196108-30041 (1.0mm FFC) or compatible

Note (2) Reserved for CMO internal use, please leave it open

Note (3) Low: JEIDA data format. High/open: VESA data format.

Note (4) Logic level voltage definition: Low: 0V, High: 3.3V

ODSEL

L or Open Lookup table was optimized for 60 Hz frame rate.

H

Lookup table was optimized for 50 Hz frame rate.

Note

12

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

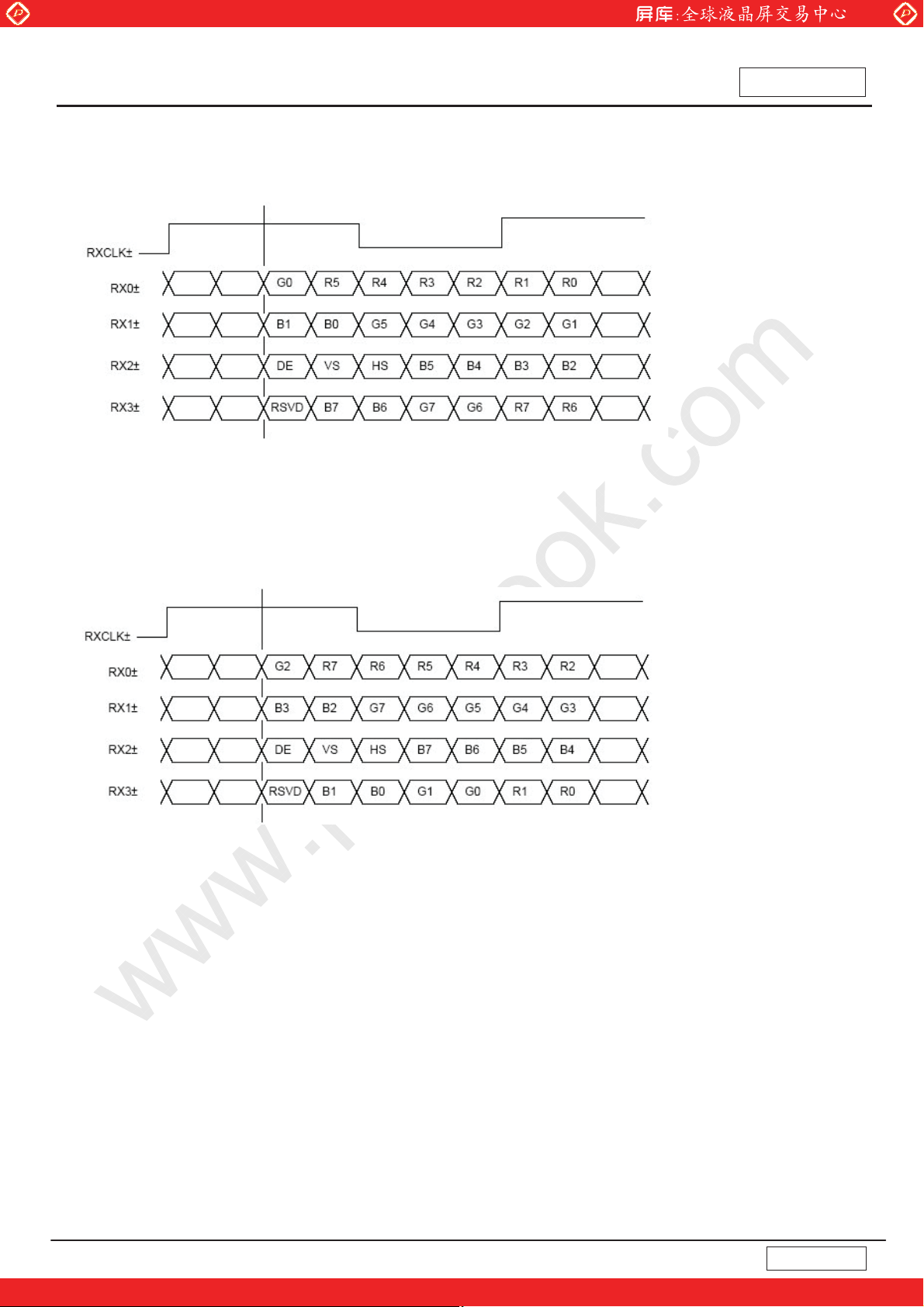

5.2 LVDS DATA MAPPING TABLE

www.panelook.com

Preliminary

SELLVDS = L (JEIDA)

SELLVDS = H or Open (VESA)

R0~R7: Pixel R Data (7; MSB, 0; LSB) G0~G7:

Pixel G Data (7; MSB, 0; LSB) B0~B7:

Pixel B Data (7; MSB, 0; LSB)

DE: Data enable signal

Notes(1) RSVD(reserved)pins on the transmitter shall be “H” or( “L” or OPEN)

13

Version 1 .0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

5.3 BACK LIGHT UNIT

The pin configuration for the housing and leader wire is shown in the table below.

Pin No. Symbol Description

1 V 2 V

The Backlight interface is PHR-2(JST).

www.panelook.com

DC

LED Annold

FB

LED Cathode

Preliminary

Wir

l

PINK

WHITE

r

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the

color. The higher the binary input, the brighter the color. The table below provides the assignment of color versus

data input.

14

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

www.panelook.com

Preliminary

Data Si gnal

Red Green Blue

Basic

Colors

Gray

Scal e

Of Red

Black

Red

Green

Blue

Cyan

Magenta

Yel l ow

White

Red(0) / Dark

Red(1)

Red(2)

:

Red(253)

Red(254)

Red(255)

Green(0) / Dark

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

Gray

Scal e

Of

Green

Gray

Scal e

Of

Blue

Green(1)

Green(2)

:

Green(253)

Green(254)

Green(255)

Blue(0) / Dark

Blue(1)

Blue(2)

:

Blue(253)

Blue(254)

Blue(255)

0

:

0

:

0

Note (1) 0: Low Level Voltage, 1: High Level Voltage

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

:

0

1

0

1

:

1

0

1

0

1

15

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

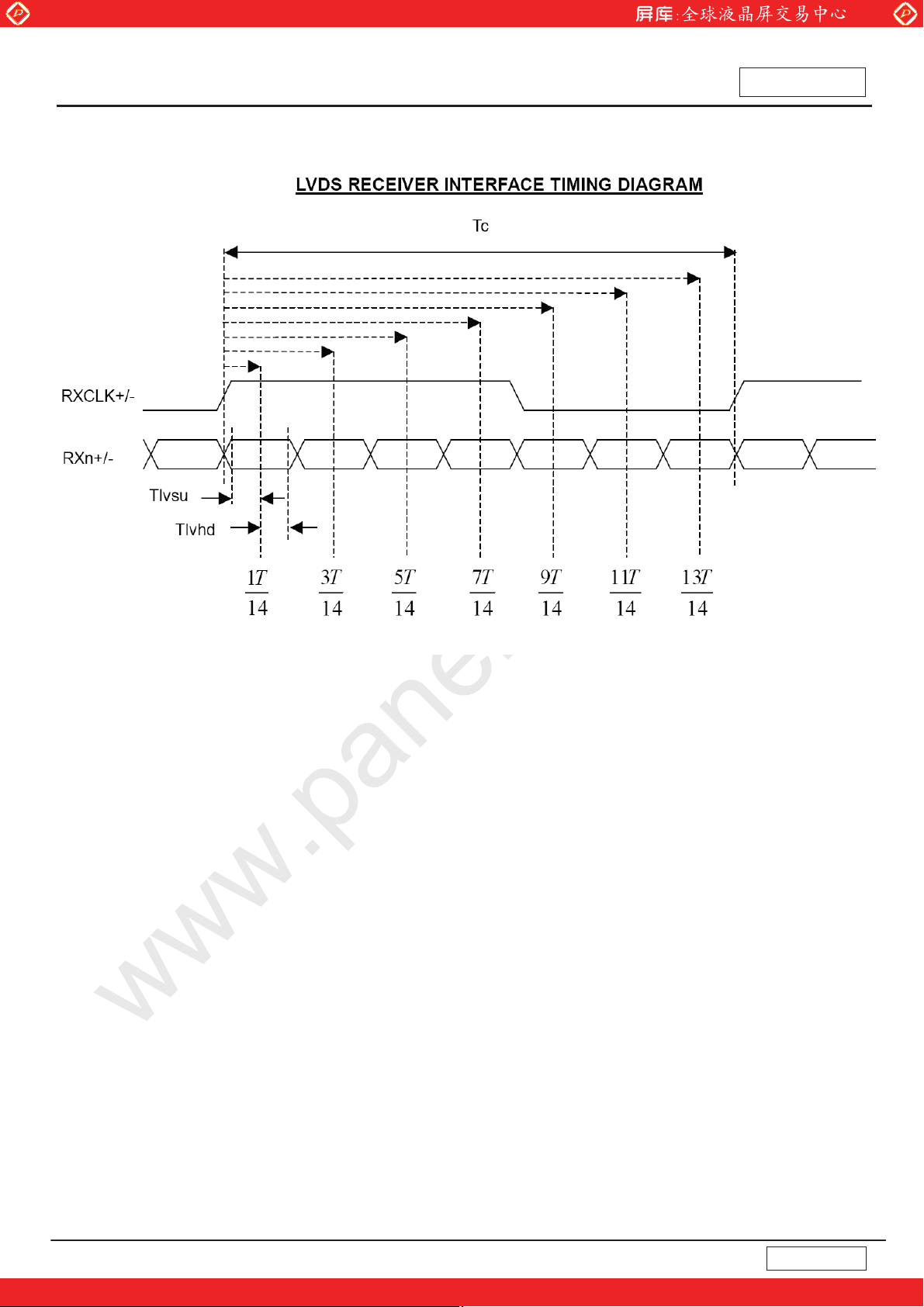

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

www.panelook.com

Preliminary

The input signal timing specifications are shown as the following table and timing diagram

Signal

LVDS Receiver Clock

LVDS Receiver Data

Vertical Active Display Term

Horizontal Active Display Term

Frequency Input cycle to

cycle jitter Setup Time Tlvsu 600 - - ps

Hold Time Tlvhd 600 - - ps

Frame Rate

To ta l Display Blank To ta l Display Blank

Item

Symbol Min.

1/Tc

Trcl

Fr5 Fr6

Tv Tvd Tvb

Th Thd Thb

60

-

47

57 778 768

10

1442 1366

76

Typ.

806 768

1560 1936 1366 1366

194

76

50 60

38

Max. Unit

-

82

200

53

63 888 768 120

570

Note

MHZ

ps

Hz Hz Th Tv=Tvd+Tvb Th Th

Tc Th=Thd+Thb Tc Tc

(2)

-

Note(1) Since this module is operated in DE only mode, Hsync and Vsync input signals should be set to

low logic level. Otherwise, this module would operate abnormally.

(2) Please refer to 5.1 for detail information.

16

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

www.panelook.com

Preliminary

17

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

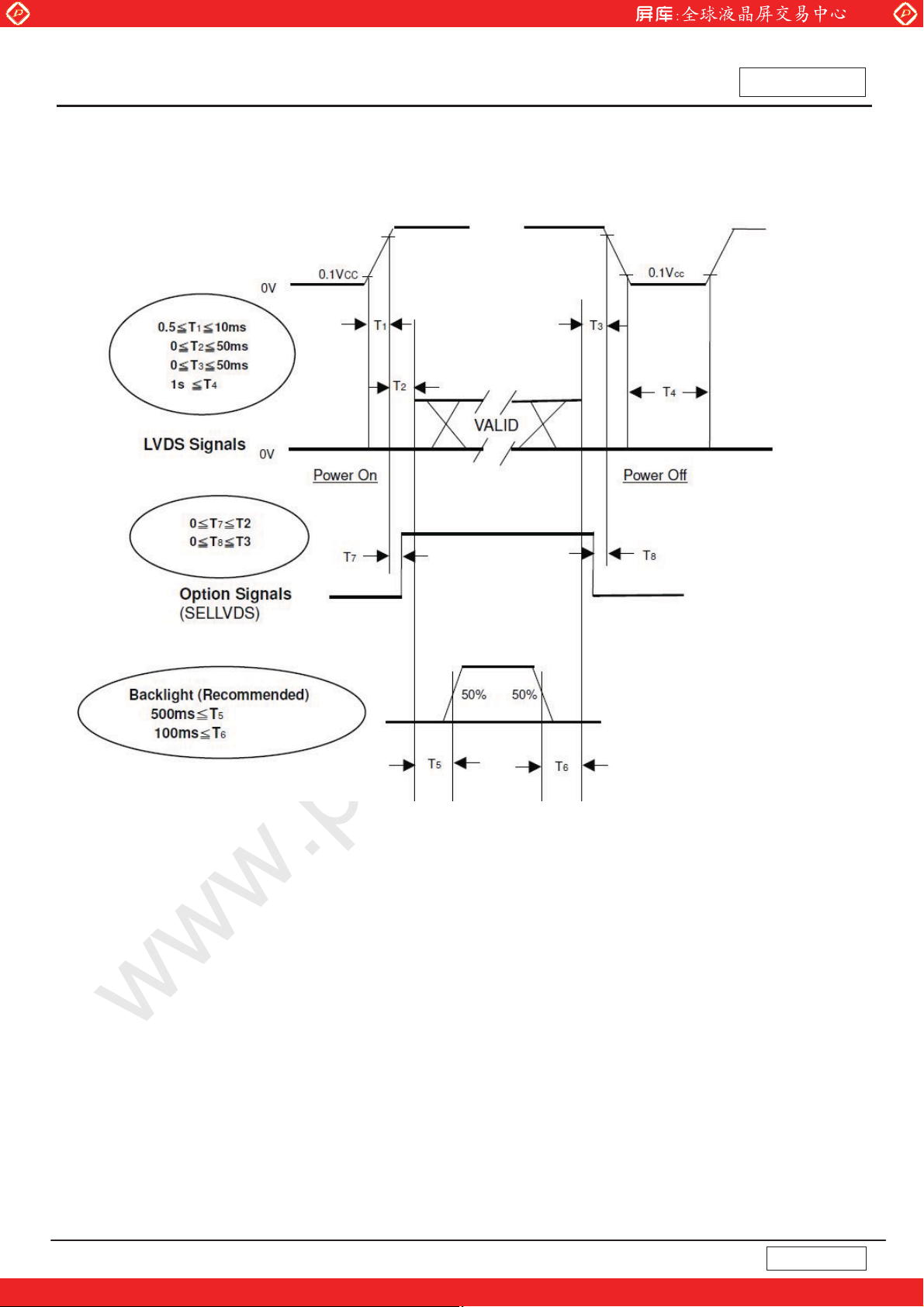

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the

diagram below.

www.panelook.com

Preliminary

Power ON/OFF Sequence

Note (1) The supply voltage of the external system for the module input should follow the definition of Vcc.

Note (2) Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation or the LCD turns off before the backlight turns off, the display may momentarily become

abnormal screen.

Note (3) In case of Vcc is in off level, please keep the level of input signals on the low or high impedance.

If T2<0,

that maybe cause electrical overstress failures.

Note (4) T4 should be measured after the module has been fully discharged between power off and on period. Note (5) Interface signal shall not be kept at high impedance when the power is on.

18

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

δ

(7)

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta 25±2 oC Ambient Humidity Ha 50±10 %RH Supply Voltage VCC 5.0 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" LED Current IL 60 ± 0.5 mA Oscillating Frequency (Inverter) FW 63±3 KHz

Frame rate Fr 60 Hz

7.2 OPTICAL CHARACTERISTICS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should be

measured under the test conditions described in 7.1 and stable environment shown in Note (6).

Item

Contrast Ratio CR (600) (800)

Response Time

Center Luminance of White

White Variation Cross Talk

Color

Chromaticity

Viewing Angle

Green

White

Color Gamut

Horizontal

Vertical

Red

Blue

Symbol

Gray to gray

average

L

C

W

CT Rx

Ry Gx Gy

Bx

By

Wx 0.285 - Wy CG θx+

θx-

θY+

θY-

Condition

θx=0°, θY =0°

Viewing Angle at

Normal Direction

CR≥20

Min.

-

80% 85%- -

-

Typ

-0.03

Typ.

(0.642) (0.332) (0.277) (0.592)

(0.145)

(0.066)

0.293

75 75 70 70

(6.5)

250

-

80 85 85 80 80

Preliminary

Max. Unit Note

-

(12)

-

4.0

Typ

+0.03

-

ms (3)

cd/m

%

% NTSC

Deg.

- (2)

2

-

(4)

(5)

(6)

(1)

19

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

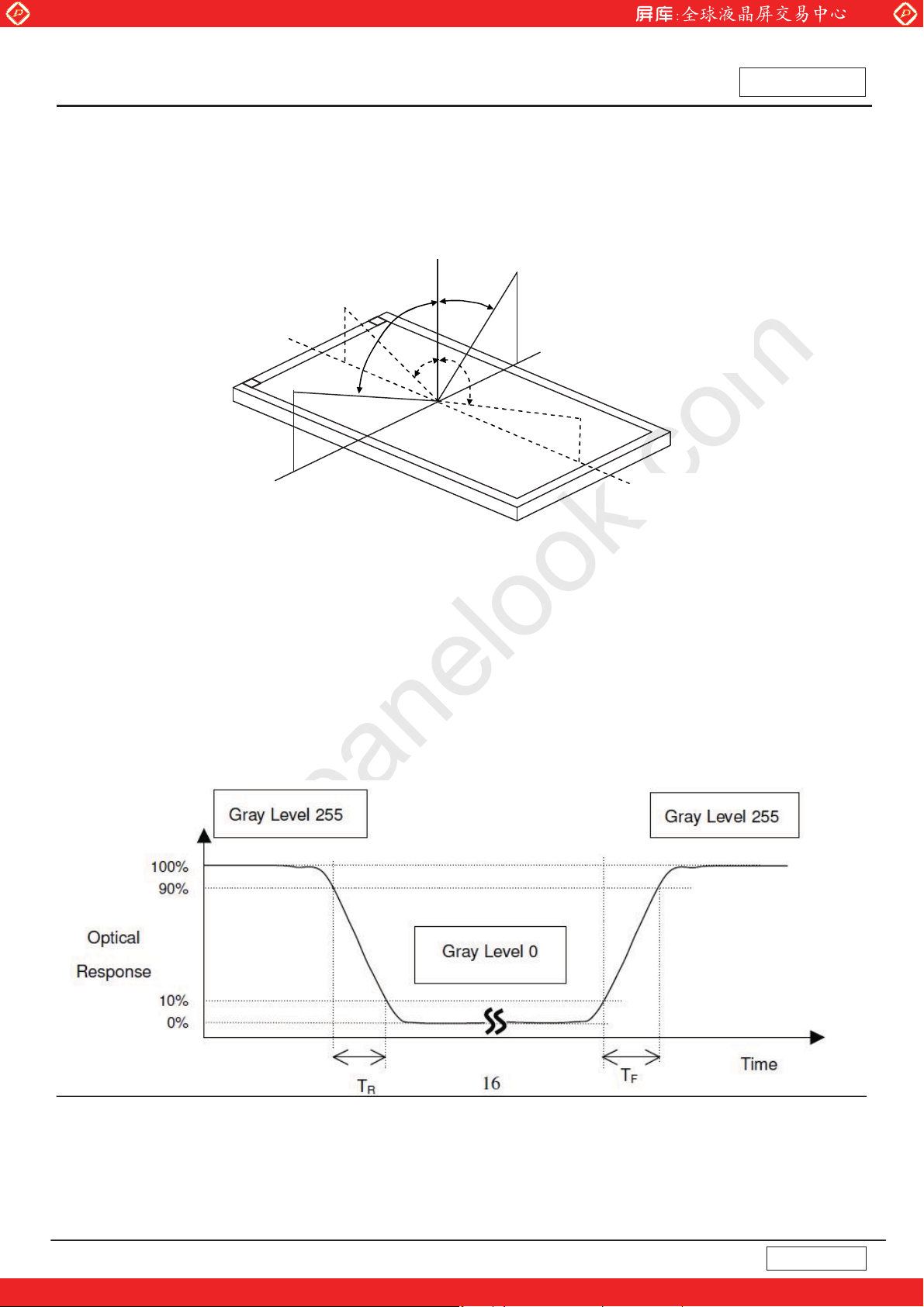

Note (1) Definition of Viewing Angle (θx, θy):

Viewing angles are measured by EZ-Contrast 160R (Eldim)

www.panelook.com

Preliminary

Note (2) Definition of Contrast Ratio (CR):

θX- = 90º

6 o’clock

y- = 90º

θ

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0

L255: Luminance of gray level 255

L 0: Luminance of gray level 0

x-

y-

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

12 o’clock direction

y+

y+ = 90º

θ

x+

θX+ = 90º

CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in

Note (7).

Note (3) Definition of Response Time (T

R, TF):

The driving signal means the signal of luminance 0%, 20%, 40%, 60%, 80%, 100%. Gray

to gray average time means the average switching time of luminance 0%,20%,

40%, 60%, 80%, 100% to each other.

20

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

A

(

A

(

Issued Date: 2010/4/6

Model No.: V216B1-DE01

www.panelook.com

Preliminary

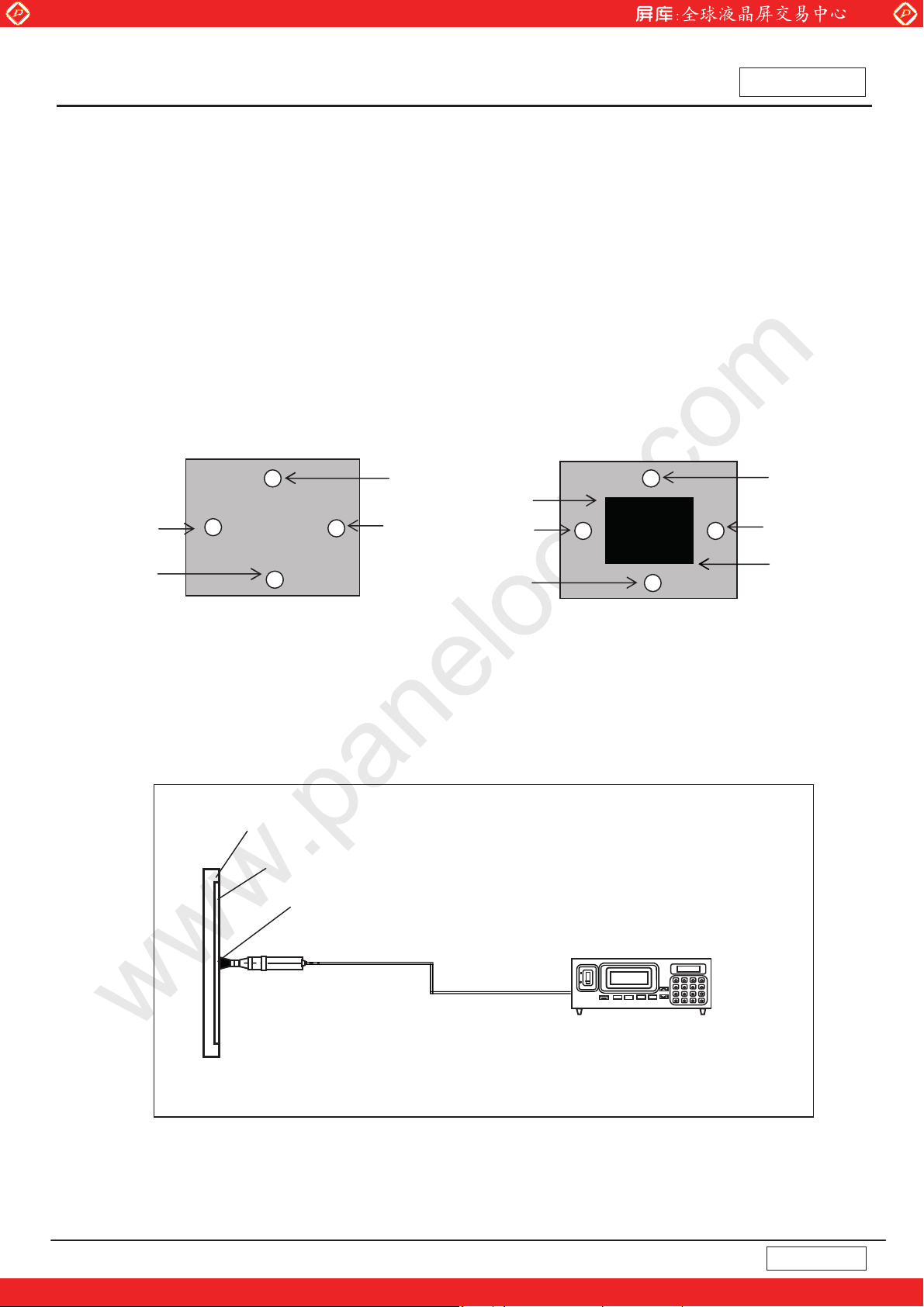

Note (4) Definition of Luminance of White (LC,, L

Measure the luminance of gray level 255 at center point and 5 points

LC = L (5),

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

where L (X) is corresponding to the luminance of the point X at the figure in Note (7).

Note (5) Definition of Cross Talk (CT):

CT = | Y

– YA | / YA × 100 (%)

B

Where:

= Luminance of measured location without gray level 0 pattern (cd/m2)

Y

A

= Luminance of measured location with gray level 0 pattern (cd/m2)

Y

B

(0, 0)

ctive Area

Y

(D/8,W/2)

A, L

Gray 128

Y

(D/2,7W /8)

A, D

Y

A, U

Y

A, R

D,W)

):

AVE

(D/2,W /8)

(7D/8,W/2)

(D/4,W/4)

Y

(D/8,W/2)

B, L

Y

(D/2,7W /8)

B, D

0, 0)

ctive Area

Gray 0

Gray 128

Y

(D/2,W /8)

B, U

Y

(7D/8,W/2)

B, R

(3D/4,3W/4)

(D,W)

Note (6) Measurement Setup:

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature

change during measuring. In order to stabilize the luminance, the measurement should be

executed after lighting Backlight for 1 hour in a windless room.

LCD Module

LCD Panel

Center of the Screen

Display Color Analyzer

(Minolta CA210)

Light Shield Room

(Ambient Luminance < 2 lux)

21

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

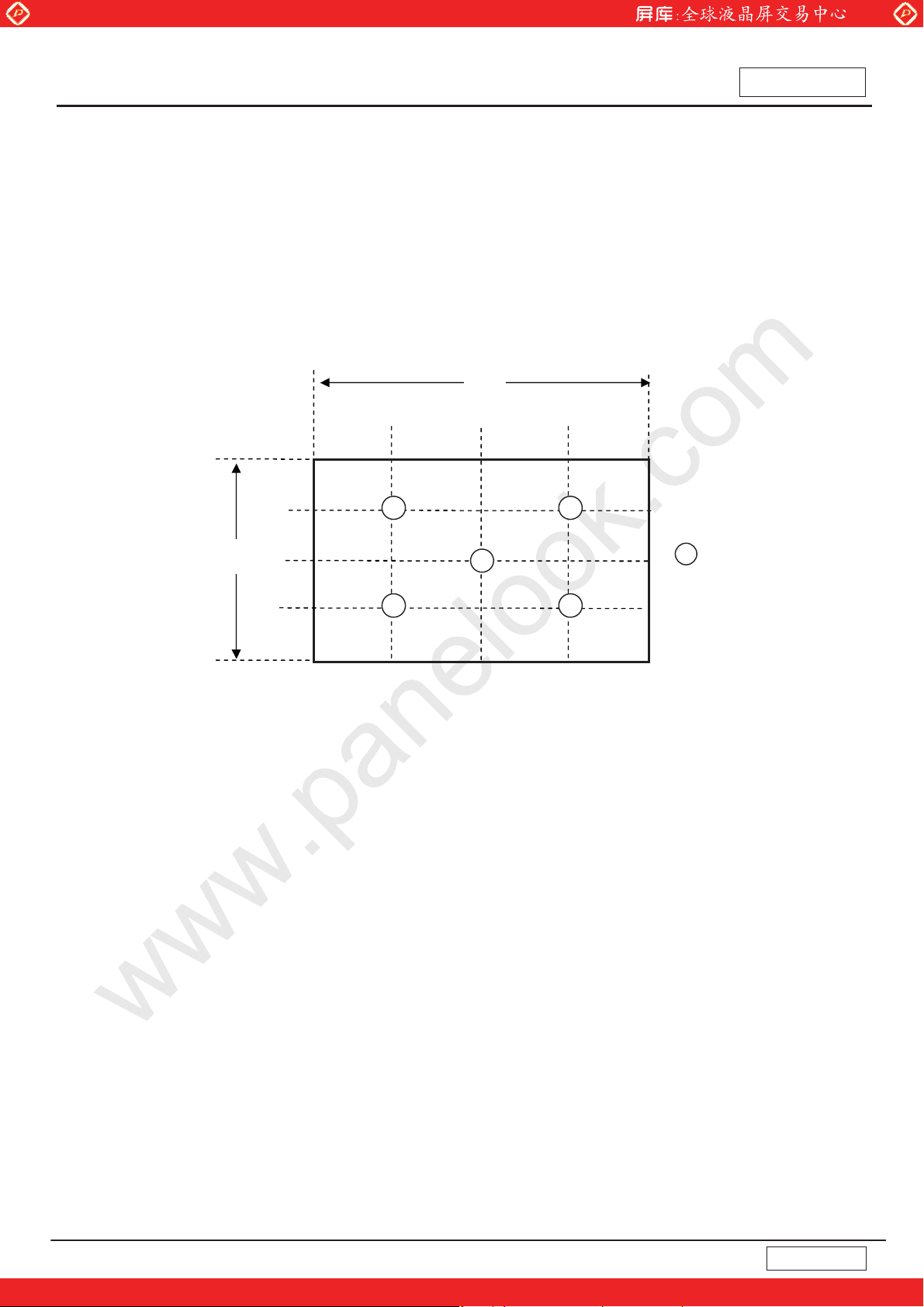

Note (7) Definition of White Variation (δW) :

Measure the luminance of gray level 255 at 5 points

δW = Maximum [L (1), L (2), L (3), L (4), …L(5) / Minimum [L (1), L (2), L (3), L (4)…(L5)

www.panelook.com

Preliminary

W

W/4

W/2

3W /4

Vertical Line

Horizontal Line

D

D/4 D/2 3D/4

1 2

: Test Point

5

3 4

Active Area

X

X=1 to 5

22

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

8. DEFINITION OF LABELS

8.1 ASSEMBLY LCD MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

V216B1-DE01 Rev. XX.X

X X X X X X X X X Y M D X X N N N N

MADE IN CHINA

DL216BT-A02

RoHS

Preliminary

(a) Model Name:V216B1-DE01

(b) Revise: Rev. XX.X, for example:A2.0,A2.1…etc.

(c) Serial ID: X X X

(d)

XX XX X X Y M D XX N N N N

Serial No.

Internal Use

Year, Month, Date

Internal Use

Place of production

Internal Use

Product size

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

st

Day: 1~9, A~Y, for 1

(b) Revision Code: Cover all the change

(c) Serial No.: Manufacturing sequence of product

to 31st, exclude I ,O, and U.

23

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

9. PACKAGING

9.1 PACKING SPECIFICATIONS

(1) 8PCS LCD modules / 1 Box

(2) Box dimensions: 568mm(L)*410mm(W)*300mm(H)

(3) Weight: approximately Kg (8 modules per box)

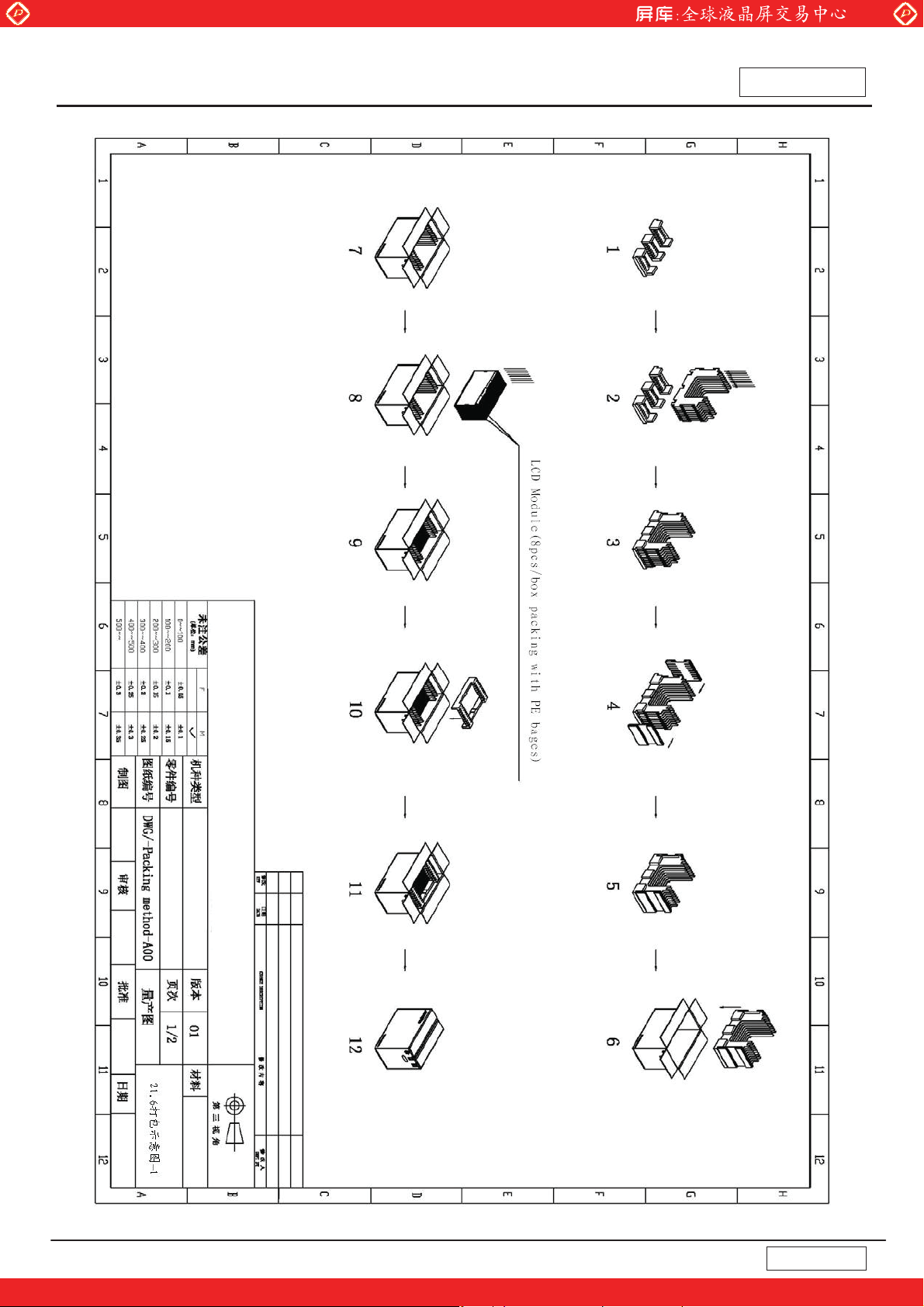

9.2 PACKING METHOD

a. Opencell surface should keep the same direction to the marked of base triangle

b. When placed pallets ,the obverse of boxes should put inside.

c. PP Belt:W13mm*T0.6mm

d. Corner Protector: L1130mm*H50mm*W50mm

Preliminary

e.Film W360mm*T0.05mm

f.Pallet:TBD

24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

www.panelook.com

Preliminary

25

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: 2010/4/6

Model No.: V216B1-DE01

Preliminary

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) It is recommended to assemble or to install a module into the user’s system in clean working areas.

The dust and oil may cause electrical short or worsen the polarizer.

(3) Do not apply pressure or impulse to the module to prevent the damage of LCD panel and backlight.

(4) Always follow the correct power-on sequence when the LCD module is turned on. This can prevent the

damage and latch-up of the CMOS LSI chips.

(5) Do not plug in or pull out the I/F connector while the module is in operation.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) Moisture can easily penetrate into LCD module and may cause the damage during operation.

(9) High temperature or humidity may deteriorate the performance of LCD module. Please store LCD

modules in the specified storage conditions.

(10) When ambient temperature is lower than 10ºC, the display quality might be reduced. For example, the

response time will become slow, and the starting voltage of CCFL will be higher than that of room

temperature.

10.2 SAFETY PRECAUTIONS

(1) The startup voltage of a backlight is over 1000 Volts. It may cause an electrical shock while assembling

with the inverter. Do not disassemble the module or insert anything into the backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

10.3 STORAGE PRECAUTIONS

When storing modules as spares for a long time, the following precaution is necessary.

(1) Do not leave the module in high temperature, and high humidity for a long time.

It is highly recommended to store the module with temperature from 0 to 35 at normal humidity without 

condensation.

(2) The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or fluorescent

light.

26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com

Global LCD Panel Exchange Center

Issued Date: 2010/4/6

Model No.: V216B1-DE01

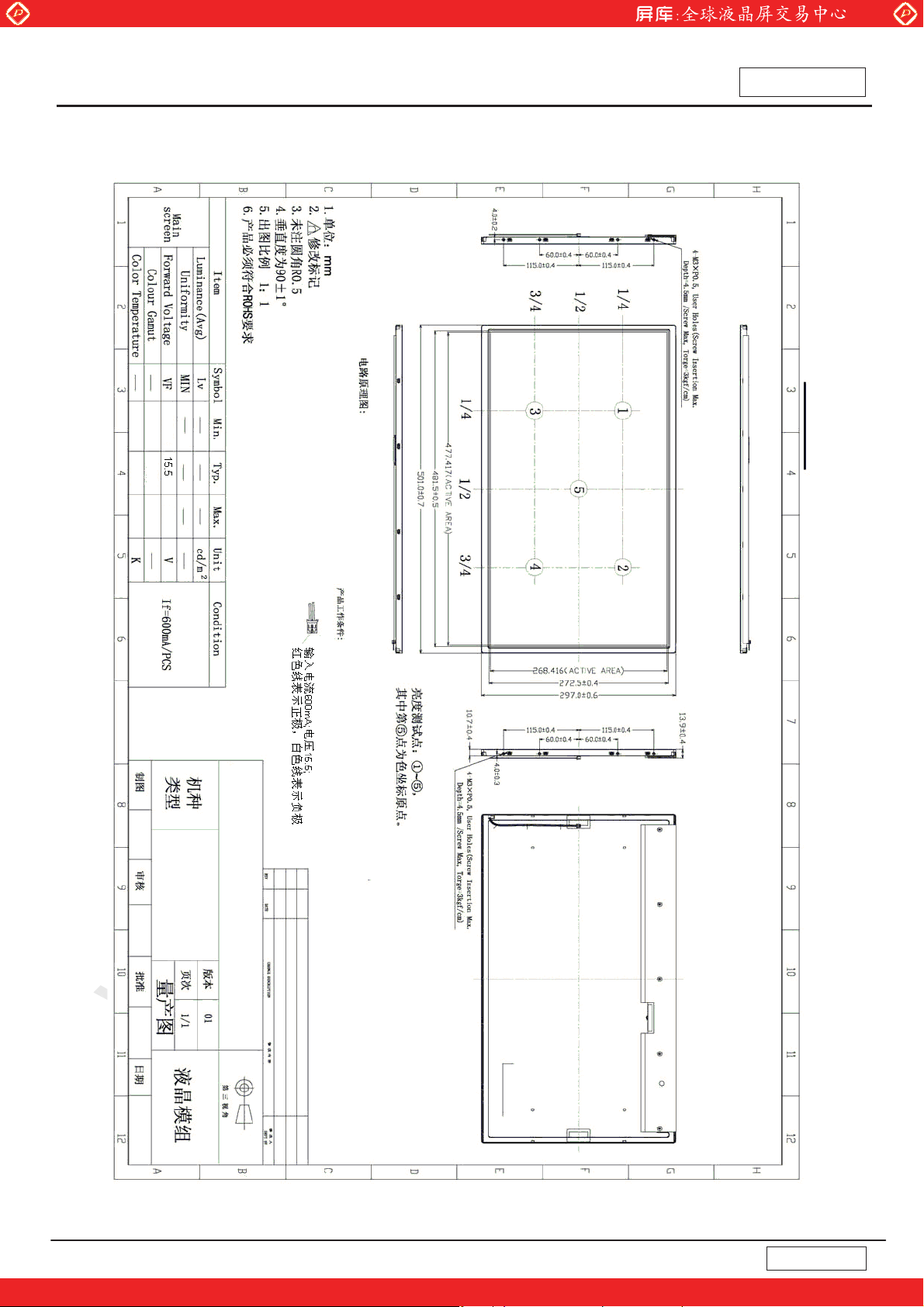

11. MECHANICAL CHARACTERISTICS

www.panelook.com

Preliminary

27

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1 .0

www.panelook.com
