Thank you for selecting our quality air conditioner. Please be sure to read this user manual carefully before
using. Any enquiries should be directed to NOBO on 1800 my nobo or 1800 69 6626 in the fi rst instance.

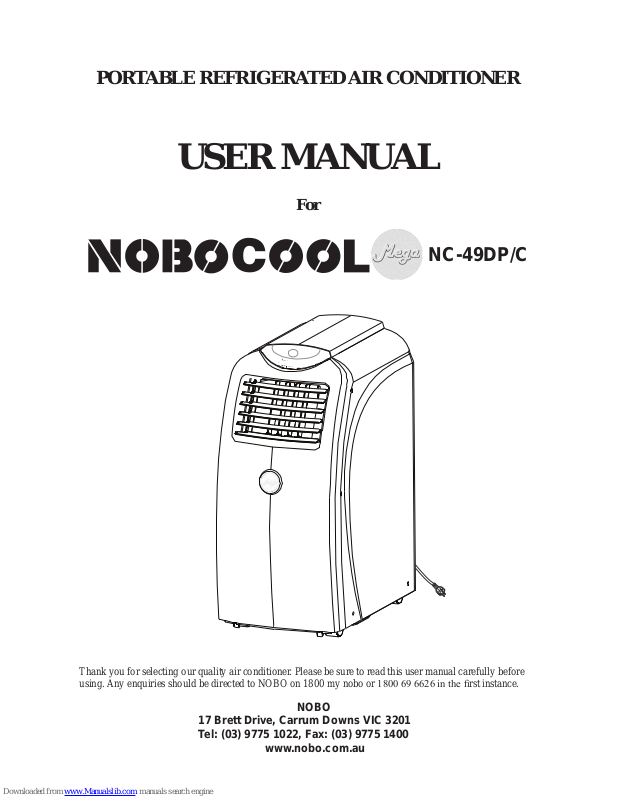

PORTABLE REFRIGERATED AIR CONDITIONER
USER MANUAL
For
NC-49DP/C
NOBO
17 Brett Drive, Carrum Downs VIC 3201
Tel: (03) 9775 1022, Fax: (03) 9775 1400
www.nobo.com.au
1
Important Issues Regarding the Proper Use of
this Air Conditioner
Please contact NOBO on 1800 my nobo or 1800 69 6626 for advice
before returning unit to the place of purchase.
Use this air conditioner only as described in this instruction manual.
si ecnailppa sihT • fitted with a special safety device. When the compressor switches off or when the appliance
is first turned on, this device prevents the compressor from switching on again for at least three minutes.
dluohs dna ylno noitautis citsemod a ni etarepo ot derutcafunam dna dengised neeb sah renoitidnoc ria sihT •
not be used for other purposes.
• The appliance is not intended for use by young children or infirm persons unless they have been adequately
supervised by a responsible person to ensure they can use the appliance safely. Young children should be
supervised to ensure that they do not play with the appliance.
• Never use the air conditioner in damp rooms (eg bathrooms and laundries)
ylbatius a yb dellatsni droc wen a htiw decalper eb tsum ti ,degamad si droc rewop eht fI • qualified person or
NOBO serviceman.
• This air conditioner is designed to be connected to a standard 10 amp power supply outlet.
• Do not pull on or place strain on the power cord when using the appliance.
eht no hctiws ffo/no eht esU .gulp rewop eht tuo gnillup ro gnitresni yb ecnailppa eht pots ro etarepo ton oD •
air conditioner control panel or the remote control.
rehto htiw teltuo ylppus rewop eht erahs ro droc noisnetxe na esu ton od ,sdrazah ytefas laitnetop ot euD •
appliances. Do not connect to multiple power outlets on extension leads.
• Do not rest hot or heavy objects on the appliance.
elpmaxe rof ,snoitarepo ecnanetniam ro gninaelc erofeb teltuo rewop eht morf tinu eht gulpnu syawlA •
filter cleaning.
• Do not place the air conditioner or plastic window slider in direct sunlight.
• For maximum cooling efficiency keep the exhaust hose as short and as free of bends as possible.
• Clean the filters at least once every two weeks.
• Do not splash the unit with water.
• Do not move the unit by pulling the exhaust hose attached to the back of the unit.
• Do not move air conditioner when it is operating.
• Do not use the unit with the air intake and outlet grills closed, covered or obstructed.
.41 egap no snoitcurtsni eht htiw ecnadrocca ni nap retaw eht niard ,renoitidnoc ria eht gnitropsnart erofeB •
After transportation, wait at least one hour before switching the unit on.
ton od ,elgna na ta tinu eht eruces ,elbissop ton si siht fI .noitisop lacitrev a ni detropsnart eb dluohs tinu ehT •
lay it horizontally.
• Do not operate the air conditioner outdoors or in areas open to the outdoors.
,)gniht ro nosrep a no yltcerid ria looc tup ot ylpmis( relooc tops a sa desu gnieb ylno si renoitidnoc ria eht fI •
do not connect the rear exhaust outlet.
,noitarepo tcerroc fo setunim 01 retfa teltuo ria pot eht fo tuo gnimoc ria looc tuohtiw snur rosserpmoc eht fI •
switch off the unit and contact NOBO immediately.
,ton si ti fI .teltuo raer mottob eht morf dellepxe eb syawla dluohs ria toh ,gninnur si rosserpmoc eht nehW •
switch off and contact NOBO immediately.
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOBOCOOL NC-49DP/C
• At high temperatures to protect the unit from overheating the compressor may stop. Air will flow out of the
front air outlet but it will not be cooled. In this event, switch off the appliance for approximately one hour to
enable the thermal cut out to self reset. The unit may then be operated in the normal manner.
CONTENTS
Introduction ........................................................................................ 3
Installation .......................................................................................... 6
Control panel ...................................................................................... 10
Operation of control panel ................................................................. 10
Operation of remote control ............................................................... 12
Water drainage methods ..................................................................... 14
Maintenance and service .................................................................... 15
Trouble shooting ................................................................................ 17
2
NOBOCOOL NC-49DP/C
Specifications ...................................................................................... 18
3
NOBOCOOL NC-49DP/C
INTRODUCTION
This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling dehumidifying
(drying) and fan ventilation, and can be moved from room to room and transported from building to building easily.
The air conditioner can maintain set room indoor air temperatures between 18°C and 32°C. The set room temperature is
displayed on the remote control and in the control panel on the unit. This does not mean that the air conditioner will necessarily
reduce the actual room temperature to the set room temperature.
HOW YOUR NOBOCOOL PORTABLE
AREFRIGER TED
AIR CONDITIONER WORKS
Hot air is blown outside through the exhaust hose, using the
window kit supplied with the air conditioner.
Air from the room is drawn into the air conditioner, cooled by
refrigeration, and blown into the room through the front grill.
Hot air must be exhausted outside the room being cooled,
or you will not cool the room.
VARIABLES INFLUENCING THE COOLING
EFFECTIVENESS OF THIS AIR CONDITIONER
The ability of the air conditioner to cool the air in your room depends
on a number of variables. The critical variables are:
1. Orientation of the room to the sun.
Rooms facing North and West are exposed to the midday and afternoon
sun, and are the hottest in the house. Rooms facing the morning sun
(East), and away from the sun (South), are the coolest in the house.
2
3. Air Draughts
4. Multi Storey Buildings
. Insulation
Insulated roofs and walls reduce the amount of heat entering the room.
Windows admit heat into the room. This heat can be reduced if the windows are
protected from the direct sun (eg by outside blinds, well lined inside curtains, pergolas, thick foliage etc).
Rooms protected from draughts are more easily cooled. Windows and doors must be kept closed.
In multi storey buildings, upper storey rooms are usually hotter and therefore harder to cool than
ground floor rooms.
SIZING
GUIDE
In general, the higher the cooling capacity (BTU/kW) of an air conditioner, the bigger the room it
will cool.
This 17,000 BTU air conditioner, subject to the variables explained in box 2, can effectively cool
rooms with a floor area of between 16 and 36 square metres.
N
S
EW
afternoon
sun
morning
sun
1
2
3
Example 1:
Uninsulated upper storey
room with one West facing
external wall.
In this example, the air
conditioner is suitable for
effectively cooling a room
of up to 16 square metres.
Example 2:
Insulated ground floor
room with external
walls facing East
and/or South.
In this example, the air
conditioner is suitable for
effectively cooling a room
of up to 36 square metres.
4m
4m
Example of maximum
room size
4m x 4m = 16m
2
6m
6m
Example of maximum
room size
6m x 6m = 36m
2
MEGA
cool air
room air
hot air
(outside)
NOBOCOOL NC-49DP/C
GUIDELINES FOR OPTIMISING COOLING EFFECTIVENESS
NOBOCOOL portable refrigerated air conditioners have an independent Austalian tested cooling capacity of 5030 watts
(5.0kW) or 17,000 BTU. This is suffi cient to cool rooms up to a maximum of 36 square metres in fl oor area.
• Do not place the air conditioner or plastic window slider in direct sunlight. Close all curtains in the room being cooled.
•
For maximum cooling (COOLING MODE), set the temperature at 18°C and the fan at HIGH. After approximately
3 minutes, the compressor will turn on (indicated by the green LED marked on the control panel) and cooled
air will come out of the air outlet. Cooled air will only come out of the air outlet when the LED on the control panel
is illuminated.
•
In COOLING MODE the air conditioner will not cool unless the set temperature is below the existing room temperature.
• In COOLING MODE once the existing room temperature reaches the set temperature, the fan continues operating and
the compressor switches on and off to maintain the set temperature within the room.
• For maximum cooling output keep the exhaust hose as short and as straight as possible. Minimise bends which can
reduce the maximum cooling capacity of the air conditioner. Elevate the air conditioner if necessary.
• Make sure the air intake and outlet grills are unobstructed.
• Clean the fi lters at least once every two weeks.
o
4
TIPS ON GETTING THE MOST OUT OF YOUR NOBOCOOL
MEGA PORTABLE AIR CONDITIONER
Portable air conditioners are not designed to cool large open spaces.
To maximise the cooling effectiveness in an enclosed room:
• Turn the air conditioner on early in the day before the room heats up. It is more
efficient for the air conditioner to maintain the room at a comfortable temperature
than it is to reduce an already hot room to a comfortable level.
• Close all doors, windows, curtains and external blinds of the room being cooled.
• Seal or block major draughts.
4
NOBOCOOL NC-49DP/C
5
NAME OF EACH PART AND FUNCTION
FRONT (Fig.1)
1. Control panel
2. Up/down manually adjusted air fins
3. Air outlet
4. Left/Right auto air swinging fins
5. Rolling castor
6. Cable (power cord and plug)
BACK (Fig.2)
1. Hot air outlet grill
2. Low air inlet grill
3. High air inlet grill
4. Power cord hooks
5. Water tank/chassis
6. Water tank drain outlet
7. Plug
Fig.1
Fig.2
6
5
4
2
1
3
2
3
4
7
5
6
1
NOBOCOOL NC-49DP/C
INSTALLATION
SELECTION OF INSTALLATION LOCATION (Fig.3)
Place the portable air conditioner in a flat location where the air inlets and outlets cannot be covered up. Place the
unit no less than 50cm away from a wall or other obstacle.
INSTALLATION ACCESSORIES
6
50cm
50cm
Fig. 3
user manual
remote
control
batteries
50cm clearance at back to
allow for air outlet hose.
50cm clearance required for air inlet.
Only 20cm clearance required from this face
as it does not contain air inlet or outlet.
NOBOCOOL NC-49DP/C
Fig. 17
Fig. 5
7
Fig. 4
window
slider
window
adapter
hose
outlet
hose hose
inlet
ASSEMBLY OF EXHAUST HOSE, HOSE INLET, HOSE OUTLET, WINDOW ADAPTOR
AND WINDOW SLIDER (Fig.4)
• Fully extend each end of the exhaust hose by about 10cm and attach the hose inlet and hose outlet to opposite ends by
rotating the inlet/outlet in a counter clockwise direction approximately 3 to 4 turns, making sure that the hose wire is
well threaded into the hose inlet and outlet. The hose inlet and outlet cannot be installed unless the hose ends have been
fully extended.
• Attach the window adaptor to the hose outlet by pressure fi t.
• Clip the window adaptor into the window slider. Take care to not break the tabs on the window adaptor when
disconnecting from the window slider.
MOUNTING OF ASSEMBLED AIR EXHAUST HOSE (Fig.5)
• Take care not to damage the hose inlet when attaching/detatching at the back
of the Air Conditioner.
• Slide the hose inlet (square end) in the direction indicated by the arrow onto
the fi xing lugs on hot air outlet grill at the back of the appliance. Install
carefully and do not force.
• Place the hose outlet to the nearest window. The length of the air exhaust
hose is between 600mm to 1500mm; use the minimum length when working.
• When mounting, try to keep the air exhaust hose horizontal and do not extend
its length by attaching it to another hose as this reduces the cooling effi ciency
of the appliance. If hose needs to be extended, use as few bends as possible.
• Consider elevating the unit in order to keep the hose as straight as possible.
NOBOCOOL NC-49DP/C
8
ATTENTION
• The exhaust hose should be not longer than 1.5metres.
• Never bend the exhaust hose excessively when the appliance is working.
• Elevate the unit if possible to keep the exhaust hose straight.
• Always keep the exhaust hose at its shortest length and as straight as possible when the appliance is working.
This will ensure maximum cooling output.
• Never move the appliance by pulling the air exhaust hose attached to the back of the appliance.
• Do not move the air conditioner when it is operating.
Correct exhaust hose mounting shown below. If mounting in the wall, the height of the hole should be 17cm~130cm.
(Fig. 6)
If the air exhaust hose needs to be bent, the correct method is shown below. (Fig. 7)
Incorrect or excessive bending of the exhaust hose will cause loss of cooling and possible malfunction. (Fig. 8)
Fig. 8
Fig. 7
Fig. 6
17cm
NOBOCOOL NC-49DP/C
WINDOW SLIDER KIT INSTALLATION (Fig. 9, Fig. 10, Fig. 11 and Fig. 12)
The window slider kit has been designed to fit most standard "vertical" and "horizontal" window applications. It may
be necessary for you to improvise/modify some aspects of the installation procedures for certain types of
windows. Some window types may require the use of cardboard fillers and/or duct tape to install.
Please refer to illustration for minimum and maximum window openings.
Additional complete window kits may be purchased from NOBO to enable pre-installation in windows in other rooms.
Insert Altitude unlimited drawing here – awning window and sliding door Fig 11 and 12
01 .giF9 .giF
21 .giF11 .giF
Window slider length
Min. 85cm
Max. 123cm
Gaps can be sealed using
cardboard and duct tape.
Window (Door) slider height
Max. 123cm
Standard door height 210cm.
Gap can be sealed using
cardboard and duct tape.
Additional window sliders
can also be purchased to ll
this gap.
9
NOBOCOOL NC-49DP/C
CONTROL PANEL
A. ON/OFF button.
B. MODE button. to select modes of cooling / dry / fan.
C. FAN SPEED button, to select fan speed of High / Med / Low / Auto.
D. SWING button, to switch on/off left/right auto swing function.
E. TIMER button.
F. INCREASE button, to increase temperature / time.
G. DECREASE button, to decrease temperature / time.
H. TIMER INDICATOR LIGHT, lights up and keeps flashing to indicate the timer is in operation.
I. LCD DISPLAY, displays set temperature or timer hours.
L / M / N / O. FAN SPEED LIGHTS of High / Med / Low / Auto.
Q. FAN MODE LIGHT, illuminated when in FAN mode.
P. COMPRESSOR OPERATING LIGHT, illuminated when compressor is operating.
R. DRY MODE LIGHT, illuminated when in DRY mode.
S. COOLING MODE LIGHT, illuminated when in COOLING mode.
OPERATION OF CONTROL PANEL
The operating temperature ranges for cooling and dehumidifying are 18°C - 32°C. A temperature within this range may be set,
but the room may not necessarily reach this set temperature.
.
If the appliance is turned off during cooling or dry operation and turned on again immediately, the unit will wait
at least 3 minutes before restarting the compressor.
POWER SUPPLY
Do not connect the portable air conditioner to a power supply outlet which is also being used for other
electrical appliances.
Insert the power plug securely into the power supply outlet and turn power on. The air conditioner will
beep after 2 seconds. Press the on/off button on the display panel (or remote) to start air conditioner.
10
NOBOCOOL NC-49DP/C
COOLING MODE
Press ON/OFF button to turn the appliance on.
Press MODE button to select COOLING mode.
Set the temperature with INCREASE/DECREASE buttons.
To select fan speed, press
The set temperature will remain displayed in the control panel.
FAN SPEED button repeatedly until the required speed is selected
(High/Med/Low/Auto). Auto fan speed adjusts the fan speed automatically b etw een HIGH, MEDIUM
and LOW settings according to the variance between set temperature and room temperature.
NB: In
NB:
COOLING mode, the appliance automatically removes excess moisture from the atmosphere.
In COOLING mode, the exhaust hose must be connected to allow warm air to be expelled from the room being cooled.
DRY (DEHUMIDIFYING) MODE
Keep the windows and doors closed for an effective dehumidification.
When used as dehumidifier only, keep the air exhaust hose disconnected from the back of the unit.
Press
Compressor light will be permanently illuminated in this mode after approximately 3 minutes.
ON/OFF button to turn the appliance on.
Press MODE button to select DRY mode, the fan speed will always be at Auto and can not be
adjusted in DRY mode and the control panel will display “dh”.
FAN MODE
Press ON/OFF button to turn the appliance on
Press MODE button to select FAN mode.
To select fan speed, press FAN SPEED button repeatedly until the required speed is selected (HIGH,
MED, LOW ). The fan speed AUTO can not be selected in FAN mode.
NB: In FAN mode, the exhaust hose does not need to be connected.
SETTING THE TIMER
This timer can be used to delay the appliance start up or shutdown. This avoids wasting electricity by optimizing
operating periods.
PROGRAMMED SHUTDOWN
With the appliance on, press TIMER button, the time remaining until shutdown is displayed on LCD.
Set the time when you want the appliance to switch off with INCREASE and DECREASE buttons
(from 30 minutes to 24 hours).
During the first ten hours you can select half hour intervals. For times longer than ten hours, one hour
intervals can be selected.
Press TIMER button again to confirm the timer setting, the TIMER INDICATOR LIGHT lights up and
keeps flashing to indicate the timer is activated.
At the end of the set time the appliance switches off automatically.
To cancel the TIMER setting, press TIMER button again.
PROGRAMMED STARTUP
Turn on the Appliance and select the required mode, for example, COOLING 25° C, fan speed HIGH.
Press ON/OFF button to switch into STANDBY.
Press TIMER button, the time is displayed on LCD display.
Set the time remaining until startup with INCREASE and DECREASE buttons, (from 30 minutes
to 24 hours).
During the first ten hours you can select half hour intervals. For times longer than ten hours one hour
intervals can be selected.
Press TIMER button again to confirm the timer setting, the TIMER INDICATOR LIGHT lights up and
keeps flashing to indicate the timer is activated. The time remaining (in hours) will also be shown
on LCD display.
At the end of the set time the appliance switches on automatically and operates in the selected mode,
for example COOLING 25°C, fan speed HIGH.
To cancel the TIMER setting, press the ” TIMER ” button again.
11
NOBOCOOL NC-49DP/C
OPERATION OF REMOTE CONTROL
THE REMOTE CONTROL
INSERTING THE BATTERIES
Slide and remove the protective cover (see Fig 13).
Insert two new batteries (not rechargeable) and
make sure the (+) and (-) are in the correct position.
Replace the cover.
If the remote control is not used for long periods, remove the batteries.
CORRECT USE
• Point the remote control towards the front of the air conditioner. (see Fig 14)
• Maximum distance: approximately 7 metres (without any obstacles
between the remote control and the receiver).
• Do not drop remote control, expose it to direct sunlight or leave it near
sources of heat.
COOL
DRY
FAN
HIGH
MED
LOW
SWING
TIMER ON TIMER OFF
MODE
FAN
SWING
ON/OFF
TIMER
AUTO
TIMER selection
MODE selection
FAN speed selection
temperature/time display
FAN speed button
press this button to select fan
speed of AUTO, HIGH, MED or LOW
SWING button
press this button to switch the
automatic swing function on/off
TIMER button
press this button to set
automatic startup / shutdown
SPARE button
does not perform any function
MODE button
press this button to select the
modes of COOL, DRY or FAN
ON/OFF button
These buttons are used
to increase / decrease
the set temperature / time
press this button to switch the
appliance on/off
Fig. 13
Fig. 14
Fig. 15
12
NOBOCOOL NC-49DP/C
COOLING MODE (Fig. 16)
Press the ” ON /OFF” button to turn the appliance on.
Press the ”MODE” button to select COOL.
Set the temperature using the ” ” button.
To select fan speed, press the ”FAN” button repeatedly
until the required speed is selected ( HIGH, MED, LOW, AUTO ).
NB: In COOLING mode, the appliance automatically removes excess
moisture from the atmosphere.
NB:
DRY (DEHUMIDIFYING) MODE (Fig. 17)
When used as dehumidifier only, keep the air exhaust hose disconnected.
Press the ”ON /OFF” button to turn the appliance on.
Press the “ MODE ” button to select DRY, the fan speed will always be
at AUTO and cannot be adjusted in DRY mode.
FAN MODE (Fig. 18)
Press the ”ON /OFF” button to turn the appliance on
Press the ”MODE” button to select FAN .
To select fan speed, press the “FAN” button repeatedly until the required
speed is selected ( HIGH, MED, LOW ). Fan speed AUTO can not be selected.
NB: In FAN mode, the exhaust hose does not need to be connected.
SETTING THE TIMER (Fig. 19)
This timer can be used to delay the appliance start up or shutdown.
This avoids wasting electricity by optimising operating periods.
PROGRAMMED SHUTDOWN
With the appliance on, press the “TIMER” button, the time and
Set the time remaining until shutdown with the “ ” buttons
(from 30 minutes to 24 hours).
During the first ten hours you can select half hour intervals. For times longer
than ten hours, one hour intervals can be selected
Press the “TIMER” button again to confirm the timer setting, the TIMER INDICATOR LIGHT lights up
and keeps flashing to indicate the timer is activated.
At the end of the set time the appliance switches off automatically.
To cancel the TIMER setting, press the ” TIMER ” button again.
PROGRAMMED STARTUP
Turn on the appliance and select the required mode, for example Cooling mode, 25°C, fan speed HIGH.
Press ON/OFF button to switch into STANDBY.
Press the ”TIMER” button twice , the time and the “h” symbol are displayed.
Set the time remaining until startup with the ” “ buttons (from 30 minutes to 24 hours) .
During the first ten hours you can select half hour intervals. For times longer than ten
hours one hour intervals can be selected.
Press the ”TIMER” again to confirm the timer setting, the TIMER INDICATOR LIGHT lights up
and keeps flashing to indicate the timer is activated.
At the end of the set time the appliance switches on automatically and operates in the selected mode,
for example Cooling mode, 25°C, fan speed HIGH.
To cancel the TIMER setting, press the ” TIMER ” button again.
In COOLING mode, the exhaust hose must be connected to allow warm
air to be expelled from the room being cooled.
the “h” symbol are displayed.
COOL
DRY
FAN
HIGH
MED
LOW
SWING
TIMER ON TIMER OFF
AUTO
COOL
DRY
FAN
HIGH
MED
LOW
SWING
TIMER ON TIMER OFF
AUTO
COOL
DRY
FAN
HIGH
MED
LOW
SWING
TIMER ON TIMER OFF
AUTO
COOL
DRY
FAN
HIGH
MED
LOW
SWING
TIMER ON TIMER OFF
AUTO
h
Fig. 16
Fig. 17
Fig. 18
Fig. 19
13
NOBOCOOL NC-49DP/C
WATER DRAINAGE METHODS
WATER DRAINAGE (Fig. 20)
Turn the air conditioner off using the on/off switch on the unit or remote control. Then drain the water tank by
unplugging the drain outlet and allowing the water to flow onto the drain pan. The drain pan will not hold the full
contents of the water tank. A number of fills of the drain pan are required. It may be easier (after 3 or 4 pans have
been drained in order to avoid accidental spillage when shifting the air conditioner) to wheel the unit outside,
remove the drain plug and drain the water onto the ground.
The water tank is considered sufficiently drained when no more water flows from the drain outlet.
Restart the air conditioner by pressing the on/off button. Ensure that the unit is in COOL or DRY mode. The
compressor will start approximately 3 minutes after the unit is switched on.
NOTE: To completely drain all water from the water tank, tilt the unit by lifting it slightly upwards from the front
until no more water drains from the outlet.
This air conditioner is equipped with the very latest MIST technology which means that the water tank does not have
to be emptied. This has been verified by independent testing conducted both in Australia and overseas under extremely
humid conditions. Water drainage will generally only be required at the end of the season (see End of Season Operations
- page 15).
However, the mist technology does not operate when the unit is in dehumidifying (dry mode). Thus, the tank may require
emptying on occasions when operating for long periods in this mode.
As a safety measure, to positively prevent water spillage in dehumidifying mode when the mist motor is not operating,
the air conditioner is equipped with a fail safe device if the water tank fills. The unit will completely stop including both .
fan and compressor. The control panel LED displays “ Ft” as mentioned in the Section on “Self – Diagnosis” – Page 17.
The compressor and fan will not restart until the tank has been drained.
Before draining the water tank (pan) take care not to move the air conditioner as water may spill onto the floor.
Fig. 20
14
NOBOCOOL NC-49DP/C
MAINTENANCE AND SERVICE
MAINTENANCE METHODS
• Before undertaking cleaning or maintenance, turn the appliance off by pressing the ON/OFF button,
then always unplug the appliance from the power supply outlet.
• Do not use chemical solvent to clean the surface of the unit. Never spray insecticides or similar in the
vicinity of the unit.
• Clean the surface of the unit with a damp cloth, then dry with a duster or similar.
CLEANING THE AIR FILTER
Clean the dust filter once every two weeks of operation. This will keep the air conditioner working efficiently.
• Slide out the air filter from the side as shown in Fig.21.
• Wash the air filter by immersing it gently into warm (about 40°C or 104°F) water with a dishwashing
detergent.
• Rinse the filter of detergent and dry it thoroughly in a shaded place.
• Insert the filters back into their original positions.
15
Fig. 21
NOBOCOOL NC-49DP/C
END OF SEASON OPERATIONS (Fig. 22)
• Switch off the unit and disconnect the plug from the power supply outlet.
• Remove the plug from the drain outlet to drain the water onto the drain pan and dispose of
the water. Tilt the unit by lifting it at the front to ensure all water is removed from the water tank. Then
operate the unit in fan mode for half a day until the pipe is dry.
• Wind the cable around the cable hooks on the back of the appliance.
• Wrap the appliance with the plastic bag and keep it in a dry place.
16
Fig. 22
Power cord hook
Power cord
Plug
NOBOCOOL NC-49DP/C
•
Standard air exhaust hose has been
extended longer than 1.5m?
•
Remove extension, always keep
standard hose length less than
1.5 metres
TROUBLE SHOOTING
Before seeking repair or service, please check the following.
Note: In COOLING MODE, the compressor is operating when cooled air comes out of the air outlet and the
compressor light on the control panel is illuminated. In DRY MODE, the compressor operates continuously and
compressor light is permanently illuminated.
PROBLEM CHECK ACTION
No power to Air Conditioner
•
Is A/C plugged into power supply
outlet?
•
Has fuse blown (circuit breaker
switched off) or A/C switched off?
•
Insert power plug securely into
power supply outlet and turn
power on
•
Turn A/C off, replace fuse wire
(or turn on circuit breaker), turn
A/C back on
Power to Air Conditioner, but unit
does not operate.
Air Conditioner does not cool
after turning on.
•
Is timer on?
•
Wait for timer to count down or
cancel timer setting by pressing
•
Is compressor light illuminated?
•
Wait 3 minutes from turning on,
safety device prevents compressor
(which provides cooling) being
turned on for about 3 minutes.
TIMER button
The compressor and fan has stopped.
•
Is “Ft” displayed on LCD?
•
Drain water
Air Conditioner not cooling
satisfactorily.
•
Has the temperature been set low
enough?
•
Air exhaust hose blocked?
•
Air exhaust hose bent over?
•
Air exhaust hose detached?
•
Window/door opened?
•
Air inlet/outlet blocked?
•
Air filters dirty?
•
Fan speed set at low?
•
Cooling power not enough for the
conditions of area or room?
•
Reduce Temperature setting
•
Clear blockage
•
Always keep the hose at its
shortest length and as straight as
possible
•
Connect the hose
•
Close the windows/doors to
room being cooled
•
Clear blockage
•
Clean air filter
•
Set suitable higher speed
•
Ensure A/C is suitable for
conditions of area and room
Air Conditioner vibrates.
•
Is it leaning or unbalanced?
•
Place on level floor
Lt/PF/Ft appears on the display.
•
See self-diagnosis section
17
NOBOCOOL NC-49DP/C
18
SELF DIAGNOSIS
The Appliance has a self diagnosis system to identify a number of malfunctions. Follow the proposed action when
the code is displayed.
Lt
(LOW TEMPERATURE)
Frost protection
When the appliance is operating in dehumidifying mode,
this device prevents the formation of ice. The appliance
starts up again automatically when the defrosting process
is complete.
PF
(PROBE FAILURE)
Sensor damaged
If this is displayed contact Nobo on 1800 my nobo
or 1800 69 6626
,
.
Ft
(FULL TANK)
The water tank is full
Empty the internal tank, see the section on “Water
Drainage Method. This is a fail safe display due to protect
against spilling water, when the air conditioner is used in
dry mode and the mist motor is not operating.
.
SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Rated voltage 240Volts
Rated power input 2300Watts
Refrigerant R410a
Cooling capacity 5030Watts
LIMIT CONDITIONS OF AIR CONDITIONING
Room ambience in air conditioning
Temperature 21 C - 32 C (cooling)
Relative humidity 60% - 90% (cooling)
SIZE OF APPLIANCE
width 365mm
height 775mm
depth 568mm
O O
Loading...
