NOBLEX

SERVICE MANUAL

29TC656F

1. Caution……………………………………………………………2

2. Specification………………………………………………………6

3. BOM List………………………………………………………….9

4. Alignment Procedure………………………………………….…46

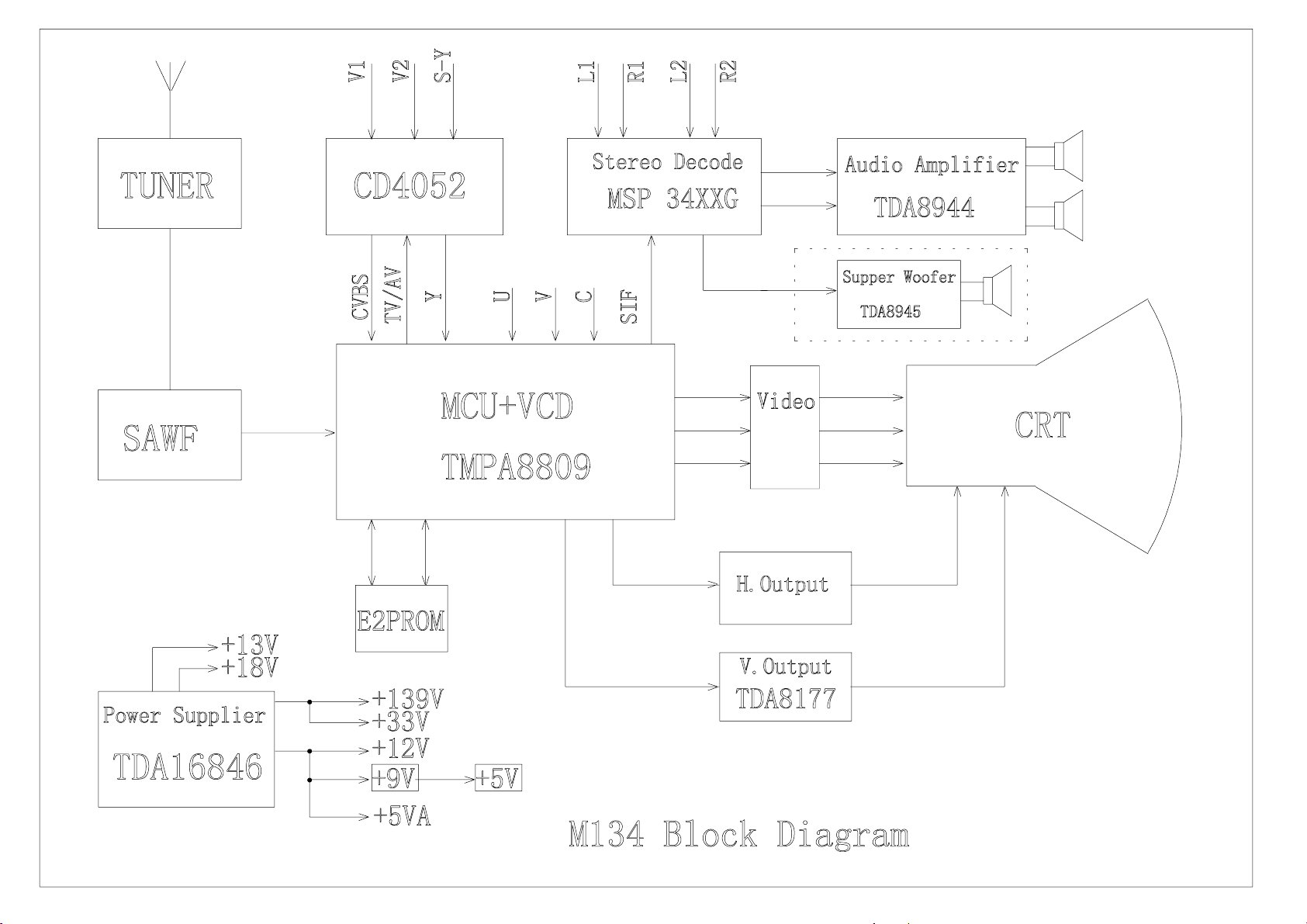

5. Block Diagram……………………………………………………50

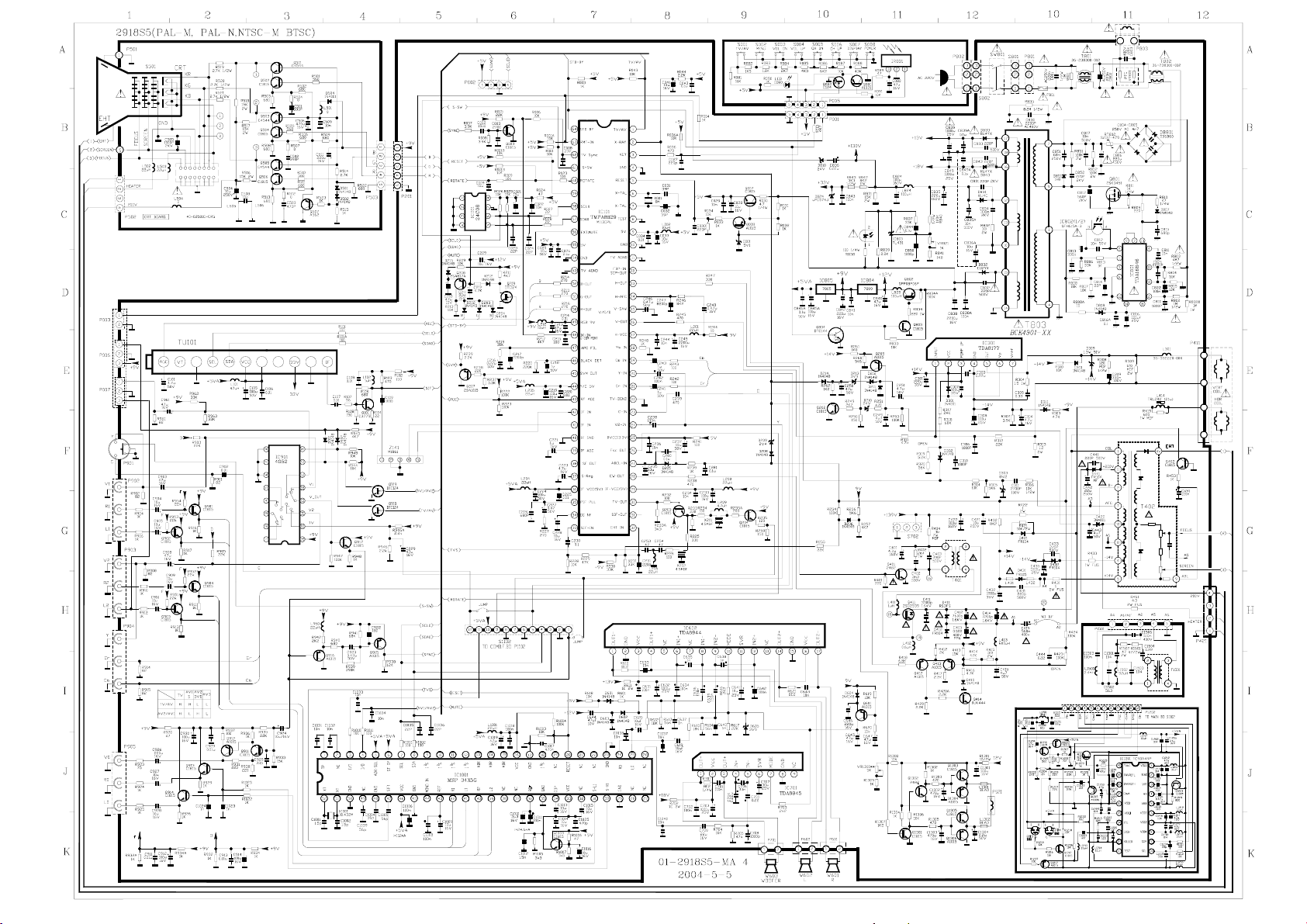

6. Schematic Diagram………………………………………………51

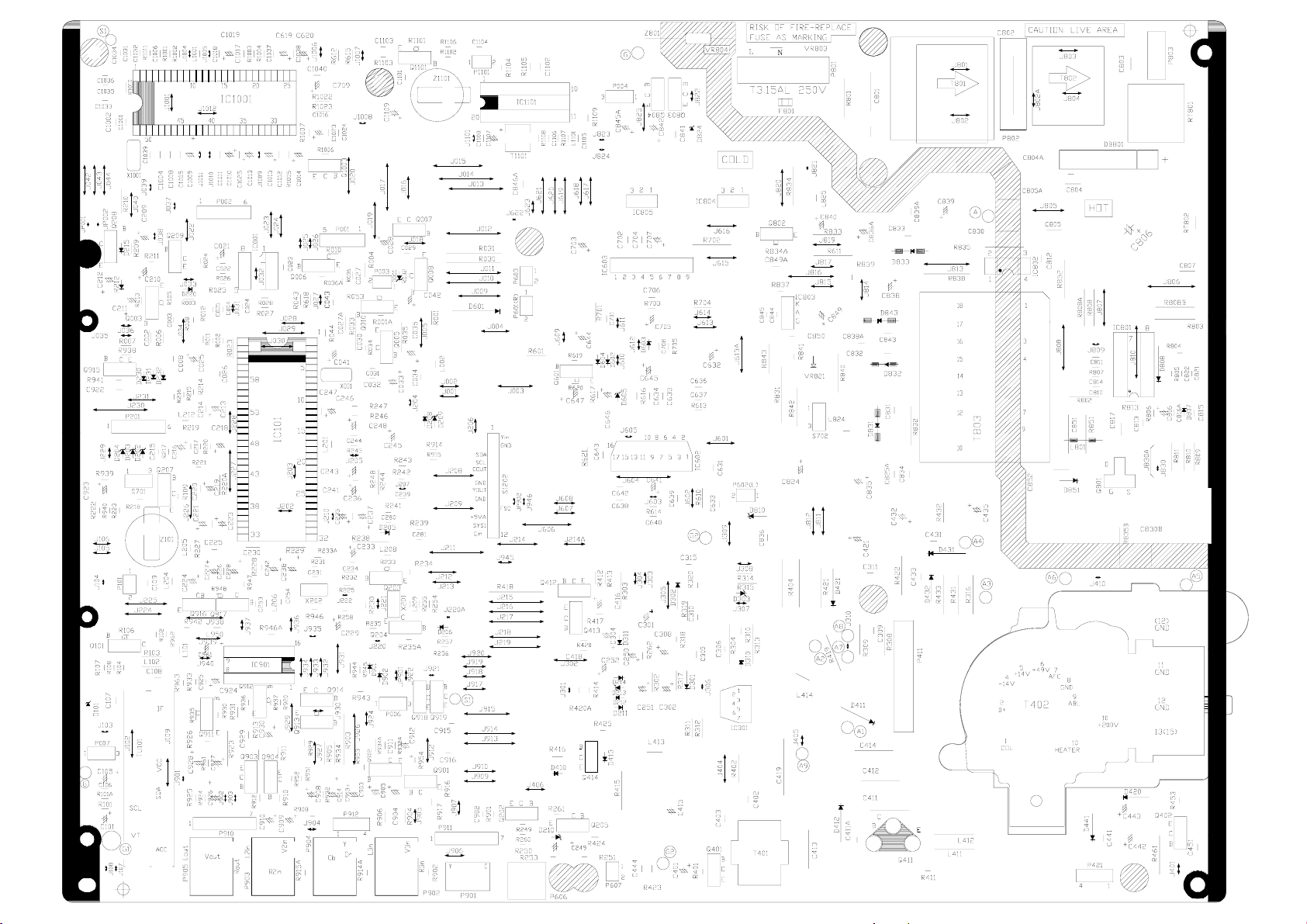

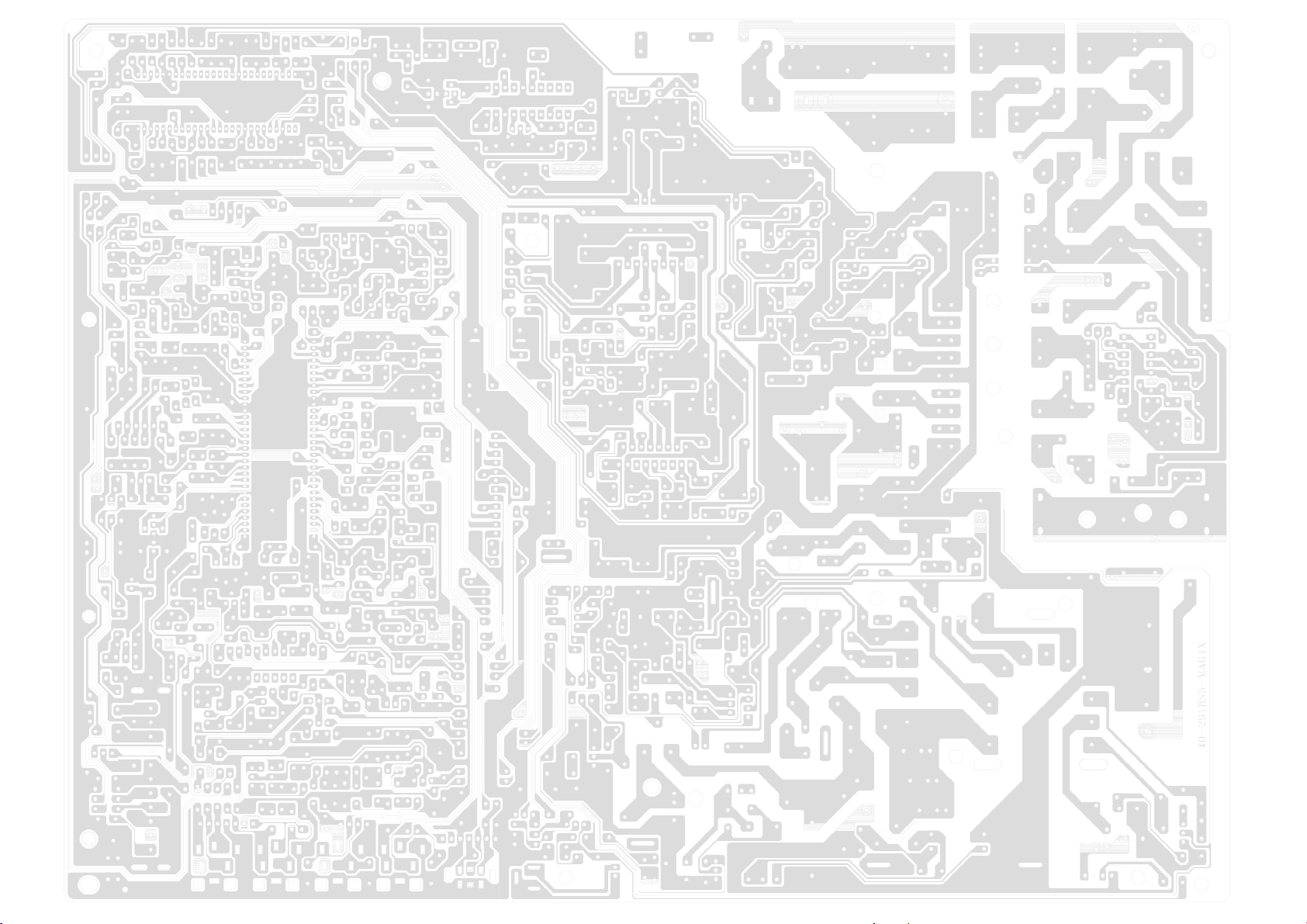

7. PCB Layout………….……………………………………………52

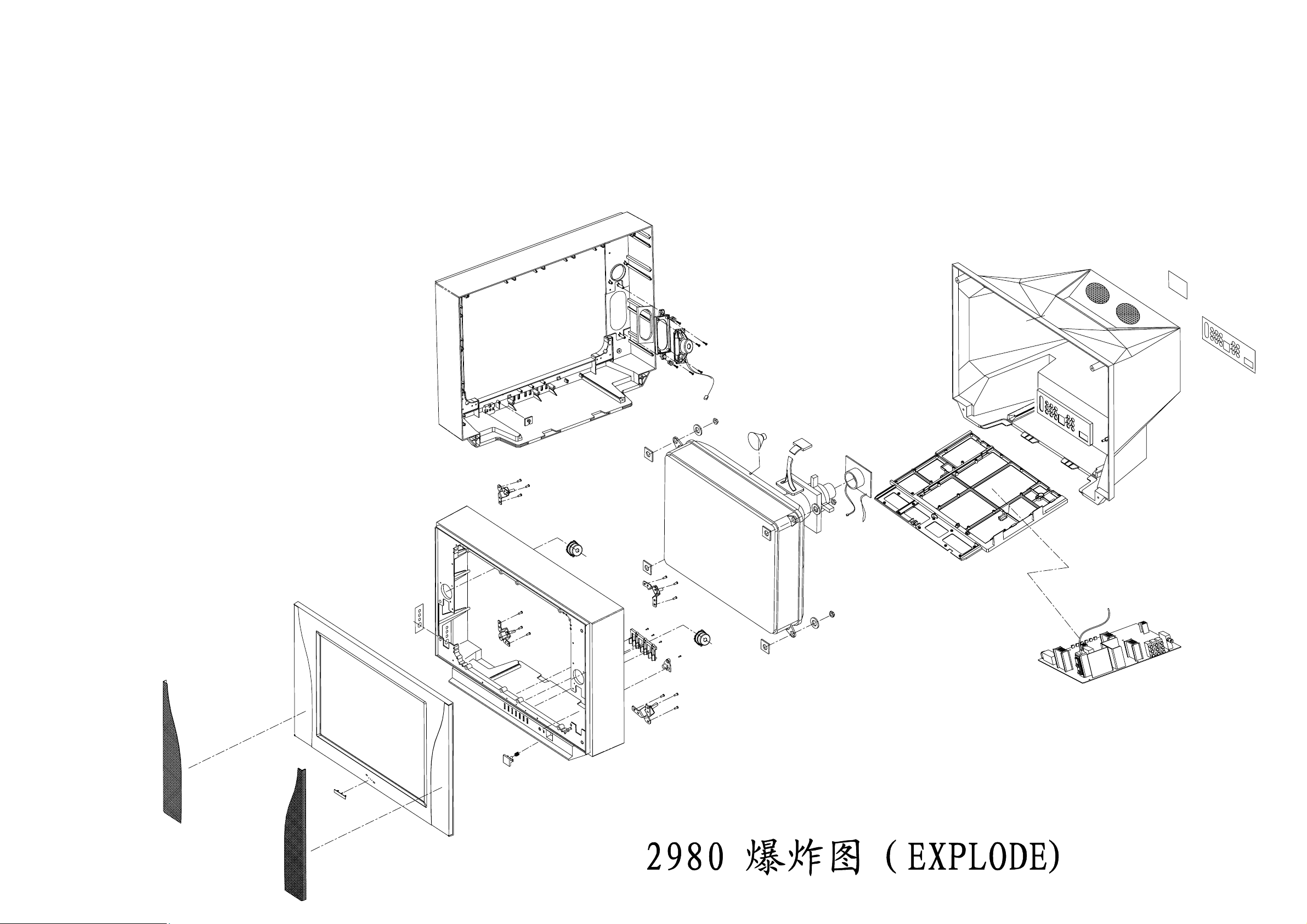

8. Exploded View Diagram………………………………………….54

This manual is the latest at the time of printing, and does not include the mo difi cat io n w hich ma y b e made af ter the pri nti ng, by the consta nt improvement of product.

CAUTION:

Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION: TO REDUCE THE RISK OF

CAUTION

RISK RISK OF OF ELECTRIELECTRICC

SHOCK SHOCK DO DO NOT NOT OPEN.OPEN.

The lighting flash with arrowhead symbol, with an equilateral triangle is intended to alert the user to the presence of uninsulated voltage within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the person.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

dangerous

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

Read all of these instructions. Save these instructions for later use . Follow all Warnings and Instructions marked on the audio equipment.

1. Read Instructions- All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be followed.

FOR YOUR PERSONAL SAFETY

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to qualified service personnel.

2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to traffic or abuse. This may result in a shock or fire hazard.

4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage points or short out par ts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.

6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet and refer servicing to qualified service personnel.

7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to qualified service personnel.

8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.

9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and should use a mounting kit approved by the manufacturer.

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PROTECTION AND LOCATION OF YOUR SET

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a

wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.

12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.

14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to protect it from overheating. These openings must not be blocked or covered.

Never cover the slots or openings with cloth or other material. Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc. Never place the set near or over a radiator or heat register. Never place the set in enclosure, unless proper ventilation is provided.

a built-in

PROTECTION AND LOCATION OF YOUR SET

15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No. 70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrode, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONALELECTRICAL CODE

ANTENNA LEAD- INWIRE

GROUND CLAMP

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONALELECTRICAL CODE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NECSECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PARTH)

15.2. Note to CATV system installer : (Only for the television set with CATV reception)

This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides

installer s guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning and power-line surges.

OPERATION OF YOUR SET

18.

This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.

19. If the television set does not operate normally by following the operating instructions, unplug this television set from the wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the television set to normal operation.

20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on a holiday, turn the television set and unplug the television set from the wall outlet.

off

IF THE SET DOES NOT OPERATE PROPERLY

21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions, do not attempt any further adjustment. Unplug the set and call your dealer or service technician.

22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for service, unplug the set and have it checked by a professional service technician.

23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being turned on or off. If the snapping or popping is continuous or frequent, unplug the set and consult your dealer or service technician.

FOR SERVICE AND MODIFICATION

24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.

25. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

26. Upon completion of any service or repairs to the television set, ask the service technician to perform routine safety checks to determine that the television is in safe operating condition.

PFS2 FORMAT-1 Report

play

ype

(

g (

)

Date: 2004-6-16 14:06

ProductView......:

ort by............:

Specs / Products SRF NO./ODF NO.

MasterData Customer Id Version Status Brand EAN UPC Rece

tion +Tunin +Tunin +Tunin +Fre +Channels

+IF Fre +TV Systems Off Air

+Add S +TV S +Sound S Picture - Processin +Scan +Scan Modes +Wide Screen Switchin +Combfilter +Picture Control

+Pict Enhancement +Pict Noise Reduction Picture - Dis +Display T +Screen Format +Size +Deflection S +Tube Technology (CRT onl +CRT Defl +CRT Gun +CRT Ma +Resolution +Coatin +White Point Sound +Leaflet Power +RMS Power Intern +RMS Power Extern +Surround Sound +Sound Features

- presets/channels

- technolo

- Indication

Bands

stems Ext In

stems Multi

stems

Visual)" - size/vis. cm

stem (CRT onl

n field

only for D.V. sets

Product:@ 29TC656F

ON44025902

NEWSAN S.A.

0.1 WG Archived NOBLEX \ \

181 PLL

--FS TUNER VHF:2-13, UHF:14-69, CATV: 1-13, A-W.W+1--W+84,A-5---A-1,5A PICTURE 45.75MHz PAL M/N NTSC M (3.58 -

4.433)

--PAL NTSC AV STEREO, BTSC

Standard 4:3

COMB-F,VM 4 Picture Modes, Brightness, Color, Contrast, Tint, Sharpness Cont Var Black Stretch

---

DV - CRT - FSQ 4:3 29"

Black Matrix, Iron

Stand Gun Normal

Mute, BTSC

+Sound Control Sound - S +S +S +S User Interface +Interface Name +Voice Control +Menu +Menu Colours +Menu Languages

+Special Features

+PP Features

2004-6-16 14:09 2980 PFS 1 of 3

eakers eaker configuration eakers used eaker Size

erational Features

Volume, AVL,

2 speakers Normal Range

2980

Cursor Control

Spanish, English, Portuguese, French V-Chip, CCD, Channel lock, Child Lock, Note Book,Calendar, Favorite Channel

Date: 2004-6-16 14:06

(

)

(

)

ypenr

(

)

(

)

(

)

(

)

(

)

(

)

ProductView......:

ort by............:

Specs / Products

+Tuning/Install Features

+Clock/Timer Functions +Local Controls Front +Local Controls To +Indicators - screen +Indicators - front +Numb of Loc Cont +Number of Ind. +Local Controls (Old)

Remote Control +Remote Control - sco +Remote Control - t +Remote Control - t +Remote Control - features Connectors Rea +Scart RGB+Y/C+CVBS +Scart RGB+CVBS +Scart CVBS+Y/C +Com +In Y/C+Cinch +In Y/C+Cinch(CVBS+Mo +In Y/C+Cinch(St +In BNC (CVBS +In Cinch(CVBS+St +In Cinch +Out Cinch +Out Cinch +Out Cinch Audio Stereo +Out Cinch Audio Mono +Out Cinch Dolb +Di +Louds +Control Busses +Feature Slot +ITV Smart Port +Terr. Antenna in Guide + IR Blaster Jack Connectors Fron +In Cinch (CVBS + St +In Cinch (CVBS+Mo +Headphone Out

onent In (Y/U/V) Cinch

CVBS+Mo

CVBS+St CVBS+Mo

Audio Out

eakers

incl Mains

CVBS+St

Surround

Product:@ 29TC656F

Auto Store, Factory Mode, Language Selection, Service Mode Sleep timer

Channel +-, Tact Switch, Vol +-, TV/AV, MENU

TV Standard

--X

75 Ohms (F type)

Connectors Side +In Y/C + Cinch +In Y/C + Cinch Stereo +In Cinch +IN Cinch (CVBS + Mo +Headphone Out Connectors To Connectors Mechanical

lin

St +Cabinet Name +Confi +Gra +Cabinet Colour and Finish +Mechanics +S General +Se +Chassis +Software Deliver +Software Version +Mains Volta +Mains Fre +T Power Consum Power Consum Power Consum

2004-6-16 14:09 2980 PFS 2 of 3

uration

hics/Logo's

eaker Visibilit

ment

e Mains Cord

CVBS+St

CVBS + St

Mode

uenc

tion (P)TV in On tion SB in Watts tion Semi SB in W

2980 Symm NOBLEX

Standard

Standard 4:3 M134

110-240V 50/60Hz ARGENTINA PLUG

Less than 6

Date: 2004-6-16 14:06

)

quip

ging

guag

quip

ging

ype

(

ype

)

ProductView......:

ort by............:

Specs / Products

+Power in "ON" for +Power in Standb +Power in "OFF" for Wei Weight (P)TV (excl. Package Weight AVUnit excl Packagin +INDICATION on BACKCOVE +Channel Final E +Packa +Documents and manuals +Lan +Cables Su +Antenna Su +Stand Su +Aux E Packa Packa Packa Miscellaneous +EAN Indication +A +Tests +Local Inte

+Service Call-Rate PIP/POP +T +Features Di +Transmission Built-in Data S +Text Standard + +Nbr bck +Text Technolo +Digital Data handlin +Program Guide Built-in Clock/Timer +T +Features Built-in Radio +T Built-in PC displa +PC Synch +PC Control Built-in DVD drive +T +T Phased Out Items +Tuner/Frontend +Sensitivit +CRT EHT +Li +Accoun +XX(Radio Antenna in +Non Volatile Memor +In Y/C + Cinch(CVBS+Mo Version of deck

ht (P)TV (incl. Packagin

ment

es DFU

- width cm

- height cm

- depth cm

robation

arious Perf. Param.

ital Reception

Tele)text Features

rnd page / Mem Size

e of Medium e of Dec

htning Protection

for

- methods

lied

m Supplied

ration

stem

Product:@ 29TC656F

Batteries for RC (2 x AA)

No PIP/POP n/a

2004-6-16 14:09 2980 PFS 3 of 3

Item No. Description Quantity Req. Designator Remarks 08-002980-FRY ASS'Y - PACKING FOR F/R CAB. 1 74-090060-50D POLYBAG (90CMX60CMX0.5MM) 1 74-120120-8CD POLYBAG (120CMX120CM) 1 74-145120-8CD POLYBAG (145CMX120CM) 1 74-339010-50C EPE BOARD (800mmX530mmX5mm) 1.27 74-339020-50C EPE BOARD (800mmX600mmX5mm) 0.25 74-339030-50C EPE BOARD (1200MMX300MMX5MM) 1.333 76-001497-0AF CARTON BOX LWH 640X460X360MM 0.028 76-002980-0AF CARTON BOX LWH 820X650X560MM 0.0625 . 76-002980-0AP CARTON BOX LWH 820X600X600MM 0.25 76-002980-0AR CARTON BOX LWH 820X660X600MM 0.333 76-346740-01A CARTON SHEET LWH 440X620X3MM 0.032 77-090060-6WC BUBBLE BAG (90cmX60cm) 1 77-120120-6WC BUBBLE BAG (120cmX120cm) 0.5 08-0029S6-MAY ASS'Y - MAIN BD 1 10-0BY228-F0X DIODE BY228 1 D411 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D412 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D421 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D441 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D431 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D432 10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D202 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D203 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D204 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D205 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D602 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D603 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D604 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D206

Item No. Description Quantity Req. Designator Remarks 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D410 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 R212 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D215 10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D310 10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D303 10-HS5V1B-DBX DIODE 500mW 5.1HSB 1 D001 11-2SA817-AAX TRANSISTOR 2SA817AY 1 Q208 11-DD2603-RAX TRANSISTOR 3DD2603-R 1 Q414 11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q209 11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q918 11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q919 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q008 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q412 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q413 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q601 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q912 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q915 11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q916 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q003 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q007 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q901 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q203 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q204 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q402 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q911 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q913 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q914 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q917 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q902 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q903 11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q904

Item No. Description Quantity Req. Designator Remarks 11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401 11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101 13-000040-52P IC 4052 1 IC901 13-00M24C-08P IC EEPROM 8K M24C08 (WRITE) 1 IC001 13-0TDA81-77S IC TDA8177 1 IC301 18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1 R244 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R002 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R023 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R232 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R937 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R245 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R234 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R101A 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R920 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R003 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R004 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R031 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R032 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R248 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R911 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R453 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R904 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R906 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R910 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R912 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R924 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R925 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R926 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R929 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R932

Item No. Description Quantity Req. Designator Remarks 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R932A 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R934 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R934A 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R936 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R601 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R948 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R033 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R913 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R916 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R917 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R239 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R006 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R011 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R012 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R025 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R026 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R043 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R213 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R228 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R314 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R619 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R944 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R945 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R618 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R209 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R034 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R310 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R620 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R947 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R222 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R223

Item No. Description Quantity Req. Designator Remarks 18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R254 18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/-5% 1 R235 18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R938 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R102 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R108 18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R258 18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R933 18-CB0201-JNX RES. C.F. 200 OHM 1/6W +/-5% 1 R235A 18-CB0202-JNX RES. C.F. 2K OHM 1/6W +/-5% 1 R412 18-CB0220-JNX RES. C.F. 22 OHM 1/6W +/-5% 1 R104 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R401 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R930 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R931 18-CB0122-JNX RES. C.F. 1.2k OHM 1/6W +/-5% 1 R420A 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R616 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R942 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R946 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R946A 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R044 18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R417 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R005 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R951 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R617 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R903 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R905 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R952 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R953 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R935 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R954 18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R255 18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R220

Item No. Description Quantity Req. Designator Remarks 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R214 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R215 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R216 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R241 18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R227 18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R219 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R225 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R233 18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R247 18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R233A 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R230 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R613 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R614 18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R231 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R007 18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R008 18-CB0394-JNX RES. C.F. 390K OHM 1/6W +/-5% 1 R939 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R024 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R036 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R103 18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R238 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R211 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R010 18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R257 18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R229 18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R107 18-CB0562-JNX RES. C.F. 5.6k OHM 1/6W +/-5% 1 R256 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R940 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R106 18-CB0562-JNX RES. C.F. 5.6k OHM 1/6W +/-5% 1 R418 18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R941

Item No. Description Quantity Req. Designator Remarks 18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R923 18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R902 18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R908 18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R246 18-CB0829-JNX RES. C.F. 8.2 OHM 1/6W +/-5% 1 R610 18-CB0829-JNX RES. C.F. 8.2 OHM 1/6W +/-5% 1 R621 18-CD0479-JNX RES. C.F. 4.7 OHM 1/4W +/-5% 1 R030 18-DD0103-FNX RES. M.F. 10K OHM 1/4W +/-1% 1 R311 18-DD0183-FNX RES. M.F. 18K OHM 1/4W +/-1% 1 R312 18-DD0392-FNX RES. M.F. 3.9K OHM 1/4W +/-1% 1 R302 18-DD0682-FNX RES.C.C. 1/4W 6.8KOHM +/-1% 1 R303 18-FF0242-JGX RES. M.O. 2.4K OHM 1W +/-5% 1 R402 18-FF0681-JGX RES. M.O. 680 OHM 1W +/-5% 1 R419 18-FG0103-JHX RES. M.O. 10K OHM 2W +/-5% 1 R421 18-FG0399-JHX RES. M.O. 3.9 OHM 2W +/-5% 1 R415 18-GM0302-KUX1 RES.C.C.7W 3KOHM +/-10% 1 R404 18-RG0109-JHX RES. WIRE ROUND 1 OHM 2W +/-5% 1 R422 18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R611 25-264610-M1X CAP. ELEC 4.7UF 50V +/-20% NP 1 C415 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C021 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C025 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C028 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C033 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C041 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C228 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C619 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C620 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C904 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C905 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C909 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C910

Item No. Description Quantity Req. Designator Remarks 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C924 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C927 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C928 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C209 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C219 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C233 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C912 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C914 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C930 25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% 1 C645 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C926 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C646 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C213 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C229 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C903 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C908 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C644 25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C632 25-BDA102-M1X CAP. ELEC 1000 UF 25V +/-20% 1 C435 25-BDB100-M1X CAP. ELEC 10 UF 25V +/-20% 1 C641 25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C301 25-BEA221-M1X CAP. ELEC 220 UF 35V +/-20% 1 C308 25-BEB101-M1X CAP. ELEC 100 UF 35V +/-20% 1 C302 25-BFB100-M1X CAP. ELEC 10 UF 50V +/-20% 1 C237 25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C105 25-BFB101-M1X CAP. ELEC 100 UF 50V +/-20% 1 C224 25-BFB108-M1X CAP. ELEC 0.1 UF 50V +/-20% 1 C211 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C218 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C248 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C221 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C241

Item No. Description Quantity Req. Designator Remarks 25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C243 25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C227 25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C923 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C101 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C223 25-BJB479-M1X CAP. ELEC 4.7 UF 160V +/-20% 1 C401 25-GFB228-K1X CAP. ELEC 0.22 UF 50V +/-10% 1 C216 25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C246 25-GLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C421 25-GLA220-M1X CAP. ELEC 22UF 250V +/-20% 1 C442 26-ABC104-ZFX CAP. CER 0.1 UF 50V +80-20% F 1 C230 26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C441 26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C433 26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1 C402 26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C403 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C109 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C226 26-EBP272-KBX CAP. CER 2700pF 50V +/-10% B 1 C003 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C915 26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C916 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C022 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C029 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C034 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C106 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C107 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C108 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C214 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C220 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C225 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C027 26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C234

+ 37 hidden pages
