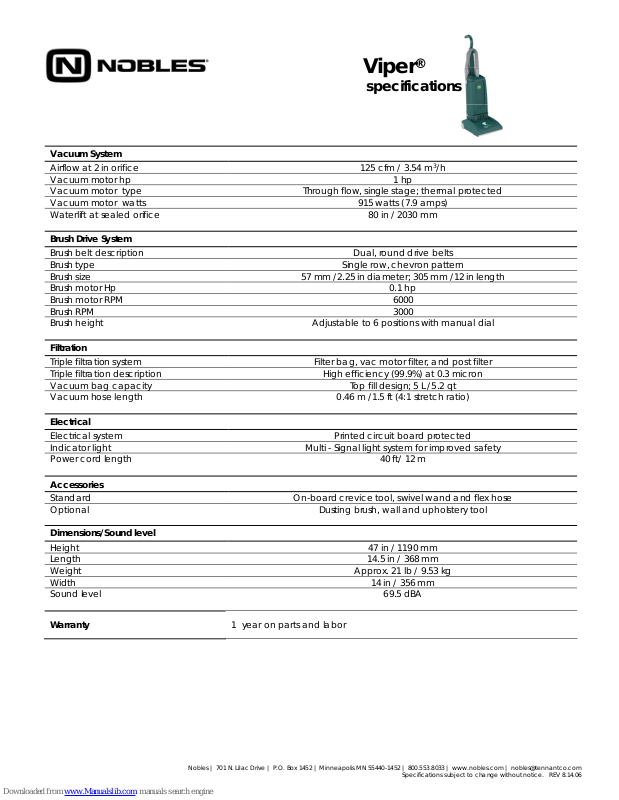

Viper
®
Vacuum System
Airflow at 2 in orifice 125 cfm / 3.54 m3/h
Vacuum motor hp 1 hp
Vacuum motor type Through flow, single stage; thermal protected
Vacuum motor watts 915 watts (7.9 amps)
Waterlift at sealed orifice 80 in / 2030 mm
Brush Drive System
Brush belt description Dual, round drive belts
Brush type Single row, chevron pattern
Brush size 57 mm /2.25 in diameter ; 305 mm /12 in length
Brush motor Hp 0.1 hp
Brush motor RPM 6000
Brush RPM 3000
Brush height Adjustable to 6 positions with manual dial
Filtration
Triple filtration system Filter bag, vac motor filter, and post filter
Triple filtration description High efficiency (99.9%) at 0.3 micron
Vacuum bag capacity Top fill design; 5 L /5.2 qt
Vacuum hose length 0.46 m /1.5 ft (4:1 stretch ratio)
Electrical
Electrical system Printed circuit board protected
Indicator light Multi - Signal light system for improved safety
Power cord length 40 ft/ 12 m
Accessories
Standard On-board crevice tool, swivel wand and flex hose
Optional Dusting brush, wall and upholstery tool
Dimensions/Sound level
Height 47 in / 1190 mm
Length 14.5 in / 368 mm
Weight Approx. 21 lb / 9.53 kg
Width 14 in / 356 mm
Sound level 69.5 dBA
specifications
Warranty
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440- 1452 | 800.553.8033 | www.nobles.com | [email protected]
1 year on parts and labor
Specifications subject to change without notice. REV 8.14.06
