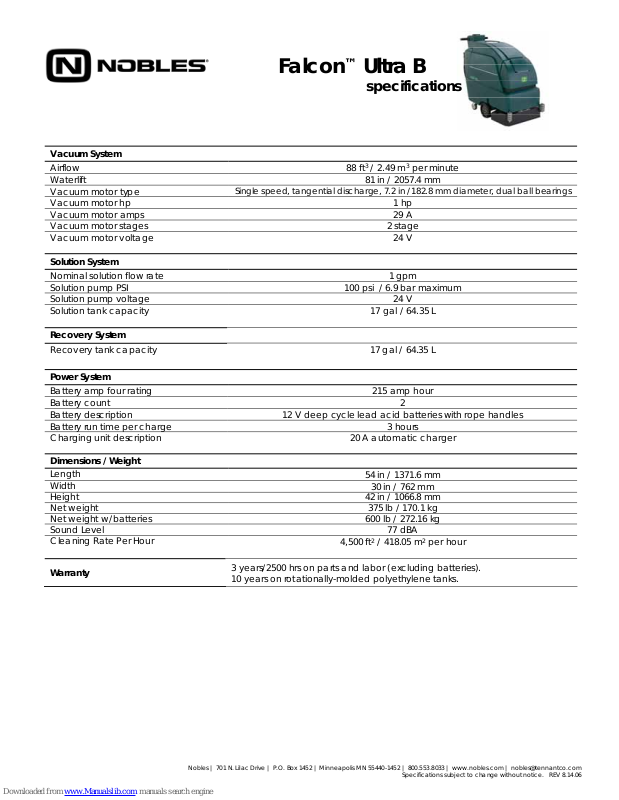

Falcon™ Ultra B
Vacuum System
Airflow
Waterlift 81 in / 2057.4 mm
Vacuum motor type
Vacuum motor hp 1 hp
Vacuum motor amps 29 A
Vacuum motor stages 2 stage
Vacuum motor voltage 24 V
Solution System
Nominal solution flow rate 1 gpm
Solution pump PSI 100 psi / 6.9 bar maximum
Solution pump voltage 24 V
Solution tank capacity 17 gal / 64.35 L
Recovery System
Recovery tank capacity 17 gal / 64.35 L
Power System
Battery amp four rating 215 amp hour
Battery count 2
Battery description 12 V deep cycle lead acid batteries with rope handles
Battery run time per charge 3 hours
Charging unit description 20 A automatic charger
Dimensions / Weight
Length
Widt h
Height 42 in / 1066.8 mm
Net weight 375 lb / 170.1 kg
Net weight w/batteries 600 lb / 272.16 kg
Sound Level
Cleaning Rate Per Hour
Warranty
Single speed, tangential discharge, 7.2 in /182.8 mm diameter, dual ball bearings
3 years/2500 hrs on parts and labor (excluding batteries).
10 years on rotationally-molded polyethylene tanks.
specifications
3
88 ft
/ 2.49 m3 per minute
54 in / 1371.6 mm
30 in / 762 mm
77 dBA
4,500 ft
2
/ 418.05 m2 per hour
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
