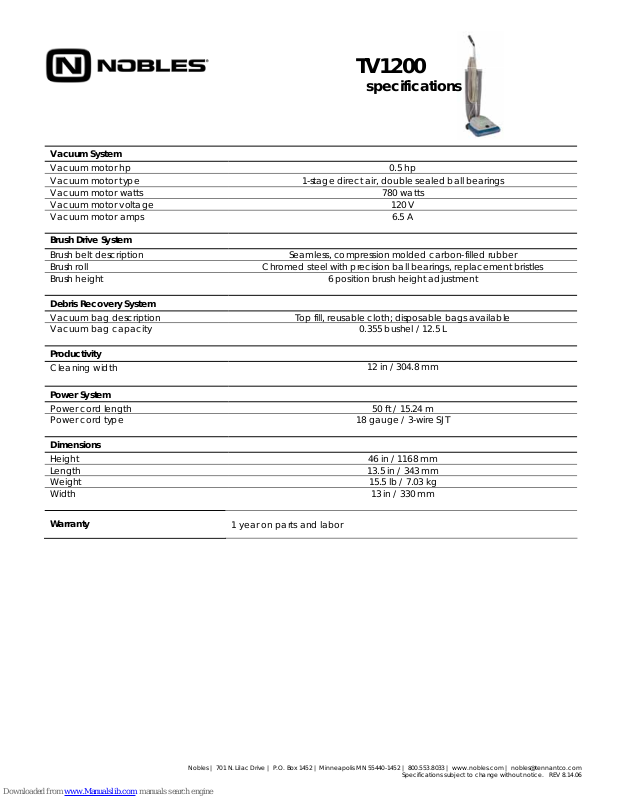

Page 1
TV1200
Vacuum System
Vacuum motor hp 0.5 hp
Vacuum motor type 1-stage direct air, double sealed ball bearings
Vacuum motor watts 780 watts
Vacuum motor voltage 120 V
Vacuum motor amps 6.5 A
Brush Drive System
Brush belt description Seamless, compression molded carbon-filled rubber
Brush roll Chromed steel with precision ball bearings, replacem ent bristles
Brush height 6 position brush height adjustment
Debris Recovery System
Vacuum bag description Top fill, reusable cloth; disposable bags av ailable
Vacuum bag capacity 0.355 bushel / 12.5 L
Productivity
Cleaning width
Power System
Power cord length 50 ft / 15.24 m
Power cord type 18 gauge / 3-wire SJT
Dimensions
Height 46 in / 1168 mm
Length 13.5 in / 343 mm
Weight 15.5 lb / 7.03 kg
Width 13 in / 330 mm
specifications
12 in / 304.8 mm
Warranty
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
1 year on parts and labor
Specifications subject to change without notice. REV 8.14.06
