Page 1

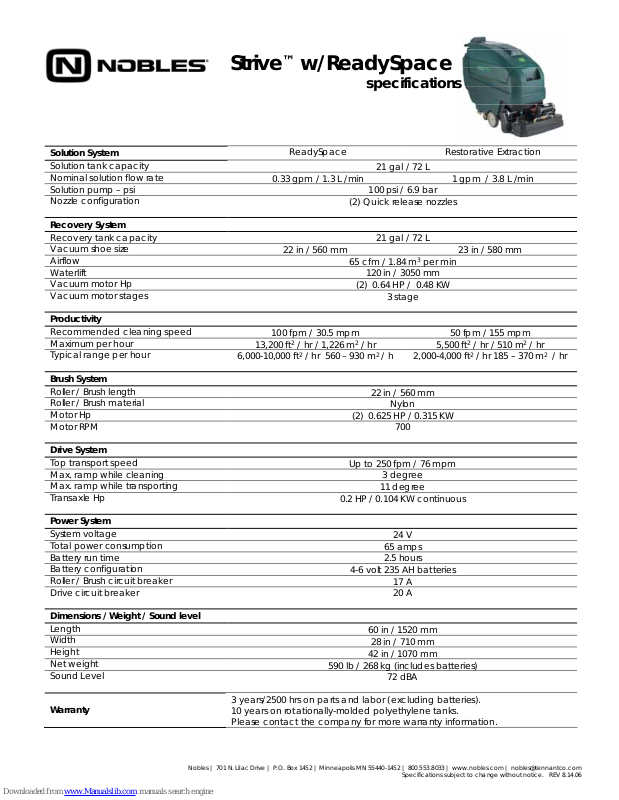

Strive™ w/ReadySpace
specifications
21 gal / 72 L
100 psi / 6.9 bar
(2) Quick release nozzles
Solution System
Solution tank capacity
Nominal solution flow rate
Solution pump – psi
Nozzle configuration
ReadySpace Restorative Extraction
0.33 gpm / 1.3 L /min 1 gpm / 3.8 L /min
Recovery System
Recovery tank capacity
Vacuum shoe size
Airflow
Waterlift
Vacuum motor Hp
Vacuum motor stages
22 in / 560 mm
21 gal / 72 L
23 in / 580 mm
65 cfm / 1.84 m
120 in / 3050 mm
(2) 0.64 HP / 0.48 KW
3 stage
Productivity
Recommended cleaning speed
Maximum per hour
Typical range per hour
6,000-10,000 ft
100 fpm / 30.5 mpm 50 fpm / 155 mpm
13,200 ft
2
/ hr / 1,226 m2 / hr 5,500 ft2 / hr / 510 m2 / hr
2
/ hr 560 – 930 m2 / h 2,000-4,000 ft2 / hr 185 – 370 m2 / hr
Brush System
Roller / Brush length
Roller / Brush material
Motor Hp
Motor RPM
22 in / 560 mm
Nylon
(2) 0.625 HP / 0.315 KW
700
Drive System
Top transport speed
Max. ramp while cleaning
Max. ramp while transporting
Transaxle Hp
Up to 250 fpm / 76 mpm
3 degree
11 degree
0.2 HP / 0.104 KW continuous
Power System
System voltage
Total power consumption
Battery run time
Battery configuration
Roller / Brush circuit breaker
Drive circuit breaker
4-6 volt 235 AH batteries
24 V
65 amps
2.5 hours
17 A
20 A
Dimensions / Weight / Sound level
Length
Width
Height
Net weight
Sound Level
590 lb / 268 kg (includes batteries)
60 in / 1520 mm
28 in / 710 mm
42 in / 1070 mm
72 dBA
3 years/2500 hrs on parts and labor (excluding batteries).
Warranty
10 years on rotationally-molded polyethylene tanks.
Please contact the company for more warranty information.
3
per min
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
