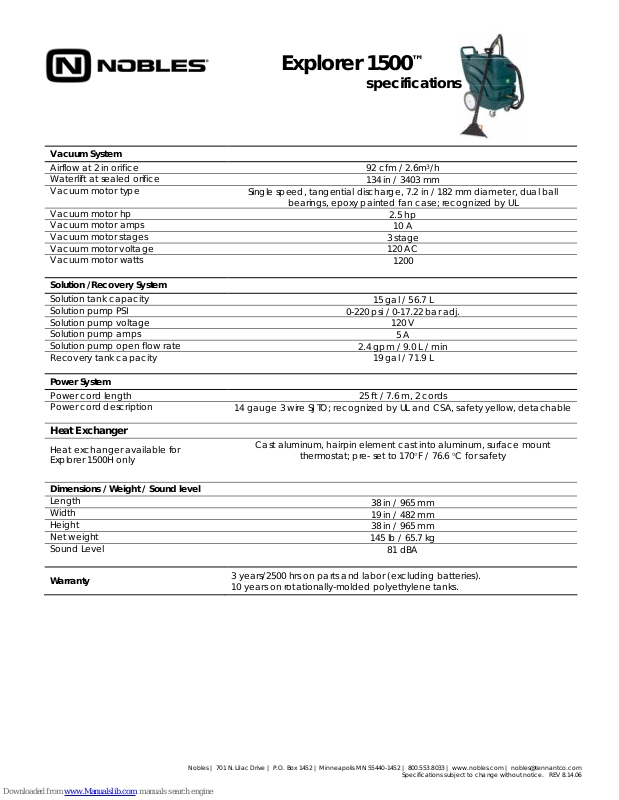

Explorer 1500™
Vacuum System
Airflow at 2 in orifice
Waterlift at sealed orifice
Vacuum motor type
Vacuum motor hp
Vacuum motor amps
Vacuum motor stages
Vacuum motor voltage
Vacuum motor watts
Solution /Recovery System
Solution tank capacity
Solution pump PSI
Solution pump voltage
Solution pump amps
Solution pump open flow rate
Recovery tank capacity
Power System
Power cord length
Power cord description
Heat Exchanger
Heat exchanger available for
Explorer 1500H only
Dimensions / Weight / Sound level
Length
Width
Height
Net weight
Sound Level
Warranty
specifications
92 cfm / 2.6m
3
/h
134 in / 3403 mm
Single speed, tangential discharge, 7.2 in / 182 mm diameter, dual ball
bearings, epoxy painted fan case; recognized by UL
2.5 hp
10 A
3 stage
120 AC
1200
15 gal / 56.7 L
0-220 psi / 0-17.22 bar adj.
120 V
5 A
2.4 gpm / 9.0 L / min
19 gal / 71.9 L
25 ft / 7.6 m, 2 cords
14 gauge 3 wire SJTO; recognized by UL and CSA, safety yellow, detachable
Cast aluminum, hairpin element cast into aluminum, surface mount
thermostat; pre- set to 170°F / 76.6 °C for safety
38 in / 965 mm
19 in / 482 mm
38 in / 965 mm
145 lb / 65.7 kg
81 dBA
3 years/2500 hrs on parts and labor (excluding batteries).
10 years on rotationally-molded polyethylene tanks.
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
