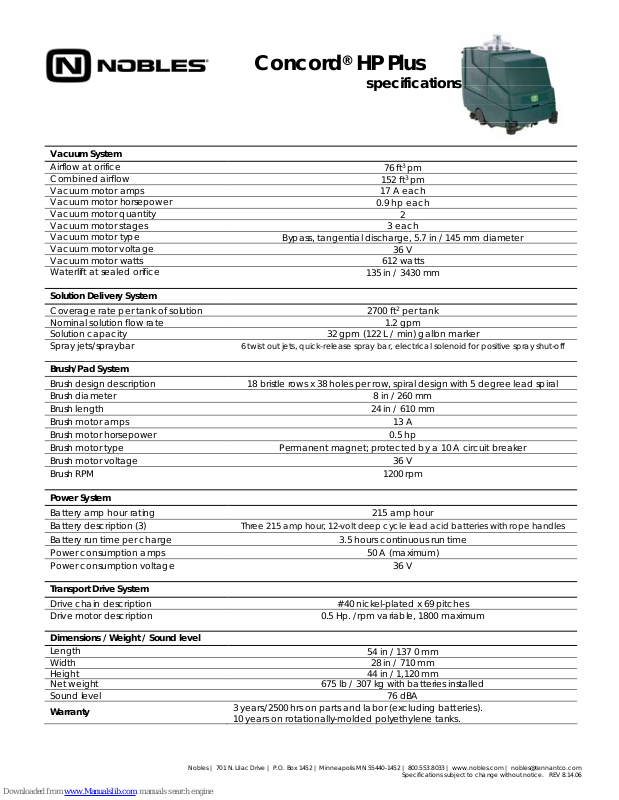

Concord® HP Plus
specifications
Vacuum System
Airflow at orifice
Combined airflow
Vacuum motor amps
Vacuum motor horsepower
Vacuum motor quantity
Vacuum motor stages
Vacuum motor type
Vacuum motor voltage
Vacuum motor watts
Waterlift at sealed orifice
Bypass, tangential discharge, 5.7 in / 145 mm diameter
135 in / 3430 mm
3
76 ft
pm
3
152 ft
pm
17 A each
0.9 hp each
2
3 each
36 V
612 watts
Solution Delivery System
Coverage rate per tank of solution 2700 ft2 per tank
Nominal solution flow rate 1.2 gpm
Solution capacity 32 gpm (122 L / min) gallon marker
Spray jets/spraybar
6 twist out jets, quick-release spray bar, electrical solenoid for positive spray shut-off
Brush/Pad System
Brush design description 18 bristle rows x 38 holes per row, spiral design with 5 degree lead spiral
Brush diameter 8 in / 260 mm
Brush length 24 in / 610 mm
Brush motor amps 13 A
Brush motor horsepower 0.5 hp
Brush motor type Permanent magnet; protected by a 10 A circuit breaker
Brush motor voltage 36 V
Brush RPM 1200 rpm
Power System
Battery amp hour rating 215 amp hour
Battery description (3)
Three 215 amp hour, 12-volt deep cycle lead acid batteries with rope handles
Battery run time per charge 3.5 hours continuous run time
Power consumption amps 50 A (maximum)
Power consumption voltage 36 V
Transport Drive System
Drive chain description #40 nickel-plated x 69 pitches
Drive motor description 0.5 Hp. /rpm variable, 1800 maximum
Dimensions / Weight / Sound level
Length
54 in / 137 0 mm
Width 28 in / 710 mm
Height 44 in / 1,120 mm
Net weight 675 lb / 307 kg with batteries installed
Sound level 76 dBA
Warranty
3 years/2500 hrs on parts and labor (excluding batteries).
10 years on rotationally-molded polyethylene tanks.
Nobles | 701 N. Lilac Drive | P.O. Box 1452 | Minneapolis MN 55440-1452 | 800.553.8033 | www.nobles.com | [email protected]
Specifications subject to change without notice. REV 8.14.06
