Owner’s Manual

NUTV5 / NUTV5-S

What’s Included

SENS – Gain settings:

NOTE: This is NOT a volume control.

This control is used to match the input of the ampliﬁer to the source unit. The higher the sensitivity the sooner the amp will reach maximum output.

While this ampliﬁer is designed to be water-resistant, it should never be submerged under water or subjected to high-pressure water spray. Do not install where it will be directly exposed to the elements.

Heaving an ampliﬁer sealed to the elements at IPX6 level means that heat generated inside the amp has nowhere to escape. Playing hard with your NA4 will get it Hot. That’s ﬁne and normal. But, avoid touching the ampliﬁer’s surface during or right after use.

As already noted, the NA4 control panel was preset to be used with the NOAM N5 and NOAM NSUB. In case you need to make adjustment to the gain settings, please follow these steps:

Your NA4 ampliﬁer is an IPX6 waterproof level.

POWER OUTPUT AT 4 Ω

FREQUENCY RANGE

Your

Speciﬁcations:

Though this is a Marine IPX6 rated ampliﬁer, whenever possible, mount the ampliﬁer in a dry, well-ventilated location that does not interfere with other factory installed electronic devices. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.

1. Turn the gain control (SENS) all the way down counterclockwise.

2. Turn your NR controller ON.

3. If you are using your phone or MP3 player to stream music to your NR controller, tune

both audio source and NR controller to MAX volume.

4. Slowly increase the gain control. Stop when you hear slight audio distortion.

Introduction

NA4 Ampliﬁer:

NR Controller:

NUTV5 NUTV5-S

N5 - Pair of 5.25” Marine speakers

NR – Waterproof Bluetooth Controller

NA4 – 4 channels Marine Ampliﬁer

All wires and mounting accessories

NSUB – 8” Subwoofer

NR – Waterproof Bluetooth Controller

NA4 – 4 channels Marine Ampliﬁer

N5 - Pair of 5.25” Marine speakers

* Detailed accessory list for each speakers, controller and ampliﬁer can be found inside each component’s manual.

Both NUTV5 & NUTV5-S were built as a system. All included components of the unit; Speakers, ampliﬁer & controller were designed and tuned to match one another and function as a full audio system.

The NA4 is an IPX6 waterproof, state of the art, Class D, 4-channel full range ampliﬁer with fully variable high pass and low pass crossovers enabling it to drive a wide variety of either full range speakers or subwoofers.

This manual will explain how to install your unit as a whole. Detailed instructions for each; NA4 ampliﬁer, NR controller and N5/NSUB speakers can be found separately inside your NUTV5 / NUTV5-S package. *We strongly recommend to take the time and read each of the manuals*

Thank you for purchasing a NOAM Marine audio system. Your stereo system has been designed and manufactured to exacting standards in order to ensure years of musical enjoyment. At NOAM we plan and design our products so you can install it by yourself and save the extra dollars for a professional installation. But, for maximum performance, we highly recommend that you have your new NUTV5 / NUTV5-S installed by a professional audio shop. Professional audio dealer has the training, expertise and installation equipment to ensure optimum performance from this product. Should you decide to install the system yourself, please take the time to read all manuals thoroughly to familiarize yourself with its installation requirements and setup procedures. If you have

any questions regarding the instructions written in any of the manuals or any aspect of your

opesystem’s ration, please contact your authorized NOAM

dealer for assistance or directly to us at

sales@noamaudio.com

The NR Bluetooth controller is your head unit. The NR features Bluetooth streaming and AUX input. Rated at IPX7 waterproof level, your NR will endure wild weather conditions for years.

Do not increase any “Input Sens.” setting for any ampliﬁer channel or channel pair in the system beyond the maximum level established during this procedure. Doing so will result in audible distortion and possible speaker damage.

Waterproof:

CROSSOVER RANGE

GAIN RANGE

S/N RATIO REF 1W AT 4 Ω

TOTAL HARMONIC DISTORTION

WATERPROOF LEVEL

POWER OUTPUT AT 4 Ω BRIDGED

POWER OUTPUT AT 2 Ω

60W x 4

20Hz-20KHz

40Hz-500Hz

0.2V-5.0V

>90dB

0.07%

IPX66

180W x 2

90W x 4

10 3

N5 Speakers: Control Panel Settings and Adjustments:

NA4 modes:

default settings:

2 Stereo Front + 1 Bridged Mono Rear Output

supplied with your kit or in case of distortion, your default settings should be perfect.

Filter mode and Sensitivity (‘GAIN’) settings:

Filter mode:

HPF - (High-Pass) Conﬁgures Filter to Attenuate Frequencies BELOW the Selected Filter Frequency.

LPF - (Low-Pass) Conﬁgures Filter to Attenuate Frequencies ABOVE the Selected Filter Frequency.

FULL - Full-Range Operation of Input Signals

As mentioned, Your NA4 ampliﬁer’s control panel was preset to ﬁt the N5 Full-range speakers and NSUB subwoofer supplied with the NUTV5/NUTV5-S stereo system. Unless

avoid adjusting the gain and crossover settings of the ampliﬁer.

The pair of N5 speakers features front 5.25” Water-proof Speaker and 20 mm PEI Diaphragm tweeter. On the back, you’ll ﬁnd a passive radiator for increased bass experience.

NSUB Subwoofer:

The NSUB is the very ﬁrst roll cage mounted subwoofer. Equipped with 8” Marine Subwoofer Speaker on the front and pair of 3”x6” passive radiator on the back. * only included in the NUTV5-S model.

Smart Handle:

Both the N5 and NSUB speakers uses our Smart Handle. we created the smart handle with the ease of use in mind. The main purpose of the smart handle is to allow super-fast and easy installation of the NSUB & N5 speakers.

* THIS MANUAL AND OTHERS CAN ALSO BE FOUND ON OUR WEBSITE UNDER ‘SUPPORT’ SECTION *

WWW.NOAMAUDIO.COM

4 channels stereo mode:

2 Stereo Front + 2 Stereo Rear Output

Using the ampliﬁer with 4 full range speakers Will require you to change the settings. * Input gain (SENS) should be tested and tuned In accordance with the used speakers and audio Source. ** Crossover control should be tuned to ‘FULL’

2 bridged stereo output:

Using the ampliﬁer for 2 briged, full range speakers, Will require you to change the settings. * Input gain (SENS) should be tested and tuned In accordance with the used speakers and audio Source. ** Crossover control should be tuned to ‘FULL’

Rear / Left +

Rear / Left - // Sub-

Rear / Right + // Sub+

Rear / Right -

Front / Left +

Front / Left -

Rear / Right + // Sub+

Rear / Left - // Sub-

Front / Left +

Front / Left -

Front / Right -

Front / Right +

Rear / Right + // Sub+

Rear / Left - // Sub-

Front / Right +

Front / Left -

Front / Right -

Front / Right +

4 9

A. Installation Applications:

The NUTV5 / NUTV5-S is designed for operation with 12 volts, negative-ground electrical systems. Using this product in systems with positive ground and/or voltages other than 12V may result in damage to the product and will void the warranty.

B. Safety Considerations:

C. Battery and charging:

• Though this is a Marine IPX6 rated ampliﬁer, whenever possible, mount the ampliﬁer in a dry, well-ventilated location that does not interfere with other factory installed electronic devices. If a dry environment is not available, a location that is not exposed to heavy splashing may be used.

• While this ampliﬁer is designed to be water-resistant, it should never be submerged under water or subjected to high-pressure water spray. Do not install where it will be directly exposed to the elements.

reasons you might want to re-tune and readjust it. Take your time and make only one adjustment at a time. It may take some time to get the system fully adjusted. During this time, the amp is drawing current from the battery. You should check the battery voltage from time to time and recharge it if it gets low.

Ampliﬁers will put an increased load on the vehicle’s battery and charging system. We recommend checking your alternator and battery condition to ensure that the electrical system has enough capacity to handle the increased load of your stereo system. Stock electrical systems which are in good condition should be able to handle the extra load of the NA4 ampliﬁer without problems, although battery and alternator life can be reduced slightly. To maximize the performance of your ampliﬁer, we suggest the use of a heavy-duty battery and an energy storage capacitor

• Securely mount the ampliﬁer so that it does not come loose in the event of a collision/sudden jolt or as a result of repeated vibrations during normal operation.

• Check before drilling to make sure that you will not be drilling into an exterior panel/hull, fuel tank, gas/brake line, wiring harness, or other vital system.

Do not mount the ampliﬁer in the engine compartment or in any areas of extreme heat. Mounting the unit in the engine compartment will void your warranty.

• Protect all system wires from sharp edges (metal, ﬁberglass, etc.) by carefully routing them, tying them down and using grommets and loom where appropriate.

• Secure all wiring as needed, using cable ties or wire clamps to protect them from moving parts and sharp edges.

Do not run system wiring outside or underneath the vehicle/vessel. This is an extremely dangerous practice, which can result in severe damage/injury.

More about the NA4 Ampliﬁer

Get to know your NA4

The NA4 ampliﬁer is state of the art Class D ampliﬁer designed to

audio system. The NA4 is a 4-channel full range ampliﬁer with fully variable high pass and low pass crossovers enabling it to drive a wide variety of either full range speakers or subwoofers. The NA4 ampliﬁer is meant to work with the NOAM NR Bluetooth controller. The NR controller is your audio source head-unit, able to trigger your ampliﬁer ON/OFF.

What’s Included

• NA4 - 4 channels Marine ampliﬁer

1. Input – waterproof DIN plug allows you to connect your NA4 ampliﬁer to the NOAM NR Bluetooth controller/receiver.

2. Red / positive power wire – includes a 40A fuse and fuse holder.

3. Black / ground power wire.

4. Blue / remote Turn On - *optional – you don’t need to use it in order to power your NA4 ampliﬁer

5. Output channels

• 8’ power wire

• 40A fuse and fuse holder

• 4 pcs of mounting screws

Red +12V

Black Ground

Blue Remote

Green/Black Rear Left - / Sub -

Purple Rear Right + / Sub +

White/Black Front Left -

Grey Front Right +

Grey/Black Front Right -

White Front Left +

Purple/Black Rear Right -

Green Rear Left +

Rear Left - / Sub Rear Right + / Sub + Front Left Front Right +

Front Right Front Left + Rear Right Rear Left +

Red

Black

Blue

Green/Black

1 2 3 4

+12V Ground Remote

Rear Left - / Sub -

Purple

Rear Right + / Sub +

White/Black

Front Left -

Grey

Front Right +

Grey/Black

Front Right -

White

Front Left +

Purple/Black

Rear Right -

Green

Rear Left +

WIRE# COLOR CODE FUNCTIONE

8 5

Refer to section D

TROUBLESHOOTING

Power/Protect Indicator:

This indicator will light up RED upon initial amp start up. If all connections are OK, within 3-5 seconds the light will turn to BLUE. If a condition of protect (short circuit, over/under voltage) occurs the light will turn to RED until the condition of protect is resolved.

Problem Cause Solution

It just doesn’t sound right

Ampliﬁer doesn’t turn on

Balance Reversed

Output Distorted

a while

Blowing Fuses

Whining or ticking noise while the engine is ON

Speaker are connected to the wrong output Refer to section E of this owner manual

Control panel settings are wrong Refer to section E of this owner manual

Controller wasn’t turned ON

Did you remember to press and hold the controller’s power button for 3-5 seconds?

Faulty fuse

Remove fuse and check with continuity meter. Replace if necessary.

Poor connection integrity

Check “+12V” and “Ground” leads for pinched wires; ensure tight connections.

Speaker Wire L & R Reversed Correct Speaker Wire Orientation

NR/Audio player Volume Set Too High L

Ampliﬁer Gain Set Too High Lower Ampliﬁer Gain (SENS)

ower NR/Audio player Volume

Overheating condition (Thermal Protection)

Make sure ampliﬁer mounting area has adequate space for ventilation and heat dissipation.

Excessive Output Levels Lower the Volume

Amp is defective Contact us at sales@noamaudio.

com

The ampliﬁer is picking up a

lternator

or radiated noise

Turn Down input gain (SENS)

ove the audio cables away from the

power wires

Check the alternator and/or voltage regulator. Test for weak battery or add water to the battery

PWR PRT

Red

Black

Blue

Green/Black

Purple

White/Black

Grey

Grey/Black

White

Purple/Black

Green

+12V

Ground

Remote

Rear Left - / Sub -

Rear Right + / Sub +

Front Left -

Front Right +

Front Right -

Front Left +

Rear Right -

Rear Left +

Rear Left - / Sub -

Rear Right + / Sub +

Front Left -

Front Right +

Front Right -

Front Left +

Rear Right -

Rear Left +

Red

Black

Blue

Green/Black

123

+12V

Ground

Remote

Rear Left - / Sub -

Purple

Rear Right + / Sub +

White/Black

Front Left -

Grey

Front Right +

Grey/Black

Front Right -

White

Front Left +

Purple/Black

Rear Right -

Green

Rear Left +

WIRE# COLOR CODE FUNCTIONE

6 7

D. Installation Procedure/Connections E. Control Panel Settings and Adjustments:

This is your default control panel settings:

If you feel unsure about installing this system yourself, have it installed by a qualiﬁed technician.

Before installation Disconnect the NEGATIVE battery post connection and secure the disconnected cable to prevent accidental reconnection during installation. This is an essential safety precaution during installation!

Avoid running power wires near the low-level input cables, antenna, power leads, sensitive equipment or harnesses. The power wires carry substantial current and could induce noise into the audio system.

1. Connect the RED power lead to the positive (+12V) battery post.

The ampliﬁer’s settings and controls are located on the side panel beneath a gasketed, protective cover. Remove the ﬁve Allen head screws from the center panel to access the controls and make adjustments. Replace cover when ﬁnished and mount the ampliﬁer.

Your NA4 ampliﬁer’s control panel was preset to ﬁt the N5 Full-range speakers and NSUB subwoofer supplied with the NUTV5/NUTV5-S stereo system. Unless you use

adjusting the gain and crossover settings of the ampliﬁer.

These settings are true for both NUTV5 and NUTV5-S models. Even if you bought the NUTV5 without the NOAM NSUB, your ampliﬁer’s REAR channels are still set to the NSUB subwoofer bridge mode.

Since the control panel is preset, please make sure you connect your speakers to the right output channels.

IMPORTANT! Your NA4 ampliﬁer control panel was preset to work as part of the NUTV5 / NUTV5-S audio system.

3. Fuse. Your NA4 already includes a 40A fuse. The NA4 power wires are 8’ long, while the Fuse housing located on the Red/Positive power wire at 5’ of wire from the ampliﬁer.

4. Connect the NR male controller DIN plug to the NA4’s female DIN plug. * Powering the NA4 ampliﬁer. Long pressing your NR controller’s power button for few seconds will trigger both the NR controller and the NA4 ampliﬁer ON/OFF.

5. Run the speakers wires to the ampliﬁer’s output. Make sure about correct polarity when connecting your speakers to the ampliﬁer. speaker’s Red wire (+) should connect to color (+) output channels. speakers’s Black wire (-) should be connected to color / Black (-) output channels.

Speaker connection color codes:

6. If you haven t already done so, mount the amp now.

7. Now you should be good to go and play tunes for the ﬁrst time.

2. We strongly recommend to run the Black/Ground power cable to the negative (-12V) battery post.

Blue / Remote Turn-On wire is not required for installing or running your NA4 ampliﬁer. The NR controller is able to power trigger your ampliﬁer

You have plenty of power wire length before the fuse holder (5’). Strive to leave no more than 18” (45.7 cm) of wire between the fuse holder and the battery positive (+12V) terminal. You can cut the remaining wire.

FRONT – N5 Speakers (or other full range speakers)

REAR – NSUB subwoofer

The FRONT channels are set to power your N5 full range speakers. Make sure you connect the pair of N5 speakers to the FRONT output channels.

The REAR channels are set to power your NSUB subwoofer. Make sure you connect the NSUB subwoofer to the REAR output channels.

Rear Left - / Sub -

Rear Right + / Sub + Front Left Front Right +

Front Right Front Left + Rear Right Rear Left +

Red

Black

Blue

Green/Black

1 2 3 4

+12V Ground Remote

Rear Left - / Sub -

Purple

Rear Right + / Sub +

White/Black

Front Left -

Grey

Front Right +

Grey/Black

Front Right -

White

Front Left +

Purple/Black

Rear Right -

Green

Rear Left +

WIRE# COLOR CODE FUNCTIONE

Front / Right + Grey

Front / Left + White

Front / Left - White/Black

Front / Right - Grey/Black

Rear / Right + // Sub+ Purple

Rear / Left - // Sub- Green/Black

158mm (6.22”)

214.37mm (8.44”)

38.1mm (1.5”) or

44.45mm (.75”) or

46.99mm (1.85”) or

50.8mm (2”)

25mm (1.0”)

56.8mm (2.24”)

1 pair - N5 speakers 1 pair - Smart handle screw 1 pair - Flange nut 2 pair - of each 1.5”, 1.75”, 1.85” & 2” rubber inserts 2 pair - aluminum mounting bands

Mounting Dimensions(enclosure):

Power Rating: 150 W MAX /75 W RMS Sensitivity: 90 dB @ 1W/1M MidBass: 5.25” Water-proof Speaker Tweeter : 20 mm PEI Diaphragm Nominal Impedance: 4 ohm

Length: 214.4mm(8.44”) Width: 158mm(6.22”) Height: 236.9mm(9.33”)

N5 5.25” Tower speaker 150W/75W RMS Power Handling

Thank you for choosing NOAM N5 Marine speakers.

the creation of these speakers. all while great sound and ease of use are on our mind to lead the way.

Your N5 speakers went through Three rounds Of QC before being packed. If and at any given time, you have any questions Or concerns, please feel free to contact us at: sales@noamaudio.com

Enjoy Your Ride!

esab gnitnuoM

mounting band

rubber insert

Step 2: Hold the speaker in place where the mounting base ﬁts the open space of the mounting band.

Step 1: After choosing the desired location, place the rubber insert around the bar while its open part is at the bottom. Then, slide the mounting band over the rubber insert and bar.

follow these instructions to avoid scratching your bar.

Step 3: Slide the smart handle screw through the mounting band and base and screw it to the Flange nut on the other end. While opened, turn the smart handle clockwise.

Step 3.1: Push the smart handle to a closed position to tight the mounting band on to the speaker’s mounting base.

where you can push to close it by hand.

* note: screw the smart handle to a point

ﬁnal tightening can be done easily using a Wrench. see step 3.2.

Step 3.2: Using a 13mm nut Wrench, tight the Flange nut for a safe and secure grip of the speaker to the bar. note: after tightening the Flange nut, it will be impossible to open the smart handle by hand. Use a nut wrench to loosen the smart handle’s grip.

Step 4: Setting angle (optional): Using a Phillips screwdriver to loosen the 2 screws found on the speaker’s base will allow you to rotate the speaker to a desired angle. After setting the right angle, screw the 2 screws back to ﬁx the angle.

70° Clamp Rotation

Phillips

Screw

‘closed’ position

‘opened’ position

Black SPKR (–)

Red SPKR (+)

Speaker Wiring

Tower tube

Tower Tube Wiring Detail

12 ft. 2 conductor speaker wire

Speaker Wiring:

The N5 has a long 12 feet wiring, well protected in a wiring sleeve.

- You can cut the wires to a desired length for a clean installation. But, make sure to do so only after you ﬁnished installing your entire audio system, including its ampliﬁer.

- Connect the speaker wires to your ampliﬁer ensuring correct polarity; Red to positive and Black to negative.

Running your N5 wiring:

Option A: Easiest way to run the N5’s wires would be by running it along and attached to the Bike’s cage/body all the way to the ampliﬁer’s location. Use a cable tie to ensure a strong grip of the wires to the Bike’s body.

Option B - Tube wiring: for the cleanest installation, you might want to choose running the wire’s sleeves through the Bike’s tubes. If you did choose to drill a hole to run the speaker wire through any location, be careful not to drill into other wiring or existing mechanisms. Any time a wire is run through a hole, it is necessary to insert a rubber or plastic grommet to protect the wire from damage.

Importnt featurs of the N5

Please read before first use

The Smart Handle

The smart handle is a ﬁrst of its kind. we created the smart handle with the ease of use in mind. The main purpose of the smart handle is to allow super fast and easy installation of the N5 speakers.

The smart handle will allow you to install the speaker without the need of using any tools. But, we do recommend to use a nut wrench to complete the installation of the N5. As described later on pages 4 and 5 of this user manual, after closing the smart handle, a 13mm nut wrench will help you achieving a super strong grip of the mounting clamp to the bar.

Roll Cage/Bar ﬁtment:

The N5 comes with 4 pairs of rubber

inserts and 2 Aluminum mounting bands.

The mounting system of the N5 is built

to ﬁt 1.5”, 1.75”, 1.85” & 2” bars.

Thus, the N5 will ﬁt most UTV’s models.

* Before installing please measure is your roll cage’s diameter.

Rubber Inserts: Each rubber insert has its intended size written on it.

Band should be used for 1.5” & 1.75” bars while the bigger one should be used

for 1.85” & 2” bars.

The 2 photos on the middle and left shows the right way of installation. After tightening the mounting band, you should see a gap between the mounting band and the speaker’s mounting base. This gap is meant to insure a high tension and super strong grip on your roll cage/bar. If after tightening the mounting bracket, you get a full contact between the mounting band and the speaker’s mounting base, it means you are probably using the wrong rubber insert size. Please measure your bar’s diameter and use the right insert size in accordance. Each rubber insert has its intended size written on it (1.5”/1.75”/1.85”/2”)

Strong And Secure Grip

38.1mm (1.5”) or

44.45mm (.75”) or

46.99mm (1.85”) or

50.8mm (2”)

38.1mm (1.5”) or

44.45mm (.75”) or

46.99mm (1.85”) or

50.8mm (2”)

Mounting Dimensions(enclosure+mounting clamp)

Power Rating: 250 W MAX / 125 W RMS Sensitivity: 87 dB @ 1W/1M MidBass: 8” Marine Subwoofer Speaker

Nominal Impedance: 4 ohm

Length: 345mm(13.58”) Width: 118.1mm/198.8mm(4.65”/7.83”) Height: 334.8mm/254.1mm(13.18”/10”)

Thank you for choosing NOAM NSUB Marine subwoofer. We invested a lot of thought, time and eort into the creation of this subwoofer. all while great sound and ease of use are on our mind to lead the way.

Your NSUB subwoofer went through Three rounds Of QC before being packed. If and at any given time, you have any questions Or concerns, please feel free to contact us at: sales@noamaudio.com

Enjoy Your Ride!

. 1 pcs - NSUB subwoofer . 1 pcs- Smart handle screw . 1 pcs- Flange nut . 1 pcs - of each 1.5”, 1.75”, 1.85” & 2” rubber inserts . 1 pcs- aluminum mounting bands

mounting band

rubber insert

Mounting base

M8(13mm) WRENCH

Step 2: Hold the speaker in place where the mounting base ﬁts the open space of the mounting band.

Step 3: Slide the smart handle screw through the mounting band and base and screw it to the Flange nut on the other end. While opened, turn the smart handle clockwise.

‘closed’ position

‘opened’ position

Step 1: After choosing the desired location, place the rubber insert around the bar while its open part is at the bottom. Then, slide the mounting band over the rubber insert and bar.

follow these instructions to avoid scratching your bar.

Step 3.1: Push the smart handle to a closed position to tight the mounting band on to the speaker’s mounting base.

where you can push to close it by hand.

* note: screw the smart handle to a point

ﬁnal tightening can be done easily using a Wrench. see step 3.2.

subwooder positioning: using a Phillips screwdriver, you can unscrew the mounting base and screw it back for a monitor position or ﬂat position. Best practice: If you plan to install the NSUB over your head, we advise to use the ﬂat mounting position

Flat mounting position

Monitor mounting position

Phillips

Sc rew

Black SPKR (–)

Red SPKR (+)

Speaker Wiring

Tower tube

Tower Tube Wiring Detail

12 ft. 2 conductor speaker wire

Speaker Wiring:

The NSUB has a long 12 feet wiring, well protected in a wiring sleeve.

- You can cut the wires to a desired length for a clean installation. But, make sure to do so only after you ﬁnished installing your entire audio system, including its ampliﬁer.

- Connect the speaker wires to your ampliﬁer ensuring correct polarity; Red to positive and Black to negative.

Running your NSUB wiring:

Option A: Easiest way to run the NSUB’s wires would be by running it along and attached to the Bike’s cage/body all the way to the ampliﬁer’s location. Use a cable tie to ensure a strong grip of the wires to the Bike’s body.

Importnt featurs of the NSUB

Please read before first use

The Smart Handle

The smart handle will allow you to install the speaker without the need of using any tools. But, we do recommend to use a nut wrench to complete the installation of the NSUB. As described later on pages 4 and 5 of this user manual, after closing the smart handle, a 13mm nut wrench will help you achieving a super strong grip of the mounting clamp to the bar.

Roll Cage/Bar ﬁtment:

The NSUB comes with 4 pairs of rubber

inserts and 2 Aluminum mounting bands.

The mounting system of the NSUB is built

to ﬁt 1.5”, 1.75”, 1.85” & 2” bars.

Thus, the NSUB will ﬁt most UTV’s models.

* Before installing please measure is your roll cage’s diameter.

Rubber Inserts: Each rubber insert has its intended size written on it.

Band should be used for 1.5” & 1.75” bars while the bigger one should be used

Aluminum Band: the NSUB has 2 Aluminum band in 2 dierent sizes. Smaller

for 1.85” & 2” bars.

Strong And Secure Grip

www.noamaudio.com

Visit us at www.noamaudio.com

and sign up to our newsleer to

stay tuned. we are always working

new excing products just for you!

Bluetooth Receiver

Introducon

Installaon

Thank you for choosing NOAM NR

Bluetooth remote controller. We invested

a lot of me and eﬀort planning and designing the perfect cotroller for your

audio system.

The NR controller went through three rounds of QC before being packed. If at any given me you have any quesons or concerns, please feel free

to contact us at: sales@noamaudio.com

Enjoy your ride!

NR wires and plugs diagram

Amplifier-Controller DIN plug

Remote In - Blue Wire

The remote-in is an extra feature we added to the NR. Connecting the remote-in wire to a remote-out wire of another device will allow this device to trigger your NR ON/OFF. *note. It’s an optional feature only. You don’t need to use this wire in order to run your NR.

The NR controller has a DIN plug. This plug can be connected directly to the NOAM NA2 & NA4 amplifiers. Remote power triggering: The NR is able to power the NA amplifiers. whenever you turn the NR ON or OFF the NA2/4 amplifier will do the same.

Aux input - optional

If you already had a peripheral music device on your bike such as satellite radio, MP3 player or GPS, you will take the audio output from that device and plug it into the female 1/8” mini plug. * When not in use, please keep the AUX plug sealed by keeping the protective cap closed.

Remote In

Aux input

Setup

Pairing bluetooth Deuice

Bluetooth trouble Shoong Guide

AUX Input

Main Key pad Controls

The play pause buon allows you to pause your Bluetooth device from playing. Press the same buon again and your device will start to play.

The "track up" buon allows you to "skip forward" to the next song saved on your Bluetooth device. Pressing the "track down" buon once allows you to go back to the start of the song your’re currently listening to. Press it a second me and go to the start of the song on your device before the one your’re listening to.

The Volume Up/Volume Down buons will control the volume level of your Tunes, best pracce: set your audio source’s Volume at around 85% (on your phone, MP3 player etc) and control the volume using the NR controller

Make sure volume is up on Bluetooth sources Conﬁrm Pairing if no sound.

Press and hold the AUX/POWER buon for few second to turn the NOAM NR ON. Do the same to turn it OFF. As menoned above, double tap it to switch between Aux and

Bluetooth modes.

Go to settings on your phone and place Bluetooth setting into ”discoverable”mode. Search for (NOAM NR)device. On phone select (NOAM NR) to pair device. Once a device is paired each time this device is seen by the NOAM NR it will outomatically reconnect to the device. If no device is present the NOAM NR outomatically goes into pairing mode and will present itself as discoverable for the next device present.

Please Note: Once NOAM NR sees power, it will always try and pair as shown by the flashing POWER BUTTON. If you do not have a paired device with you while riding, the light will continue to flash.

Connect AUX Input with any media player(MP3 player, Smartphone, Headunit) Double tap AUX/Power button rapidly to switch between Bluetooth source and AUX input source. When NOAM NR is switchod to AUX input source, the Green LED stays on. Double tap the AUX/POWER button agian and the Green light will shut off, indicating the unit is now out of AUX mode. The bluetooth device can now once agian be used and controlled by the key pad. Note: When the unit is in AUX mode, the buttons on the control panel do not control anything to do with the peripheral audio device!

Supplied Hardware

Dash or Flush (Rear) mount

plate

Handlebar mount plate

not necessary for NUTV5/NUTV5-S models

SS304 Hexagon Socket Head Screw M6 x 8mm

not necessary for NUTV5/NUTV5-S models

2 x SS304 Cross Head Screw M4 x 8mm

Handlebar mount bracket and pair of rubber rings

not included in the NUTV5 and NUTV5-S

audio systems

Surface mount plate

Installaon

STEP 1: Slide the NR cables through the Handlebar mount plate and screw the plate to the back of the NR, using the 2 M4 cross head screw.

STEP 2: Use the M6 Hexagon socket head screw to screw the handlebar bracket to the back of the NR.

For a 7/8'' bar - use the Thick rubber ring For a 1'' bar - use the Thin rubber ring For a 1.25'' bar - place the bracket directly on the bar (no rubber inserts

required).

Handlebar mount: This method

will allow you to mount your NR on round 7/8'' , 1'' & 1.25'' handlebar.

STEP 2: Peel oﬀ the 3M scker's cover

STEP3: Place the NR on a perfectly ﬂat surface.

Installaon

Mounng yor NOAM NR

The NR controller has 3 mounng opons:

1. Dash or Flush (Rear) mount

2. Surface mount

3. Handlebar mount (not available in the NUTV5 and NUTV5-S units)

Dash or Flush (Rear) mount: This method will

allow the controller to sit ﬂush to the mounng surface. This requires a perfectly ﬂat surface and ideally should have access to the rear of the mounng plate.

STEP 1: Slide the NR cables through the Flush mount plate and screw the plate to the back of the NR, using the 2 M4 cross head screw.

STEP 2: Using a 2.75'' (70mm) hole saw, drill a hole in your selected locaon. *Ensure you have at least 1 inch of clearance on the back side of your selected mounng locaon.

Surface mount: This method will allow you to

mount the NR on any perfectly ﬂat surface. Using this method will not require any cung or drilling of the surface.

STEP 1: Place the NR cables in the rail found on the inner side of the surface mount plate, and screw the plate to the back of the NR, using the 2 M4 cross head screw. Then sck the 3M Scker on the back of the surface mount plate.

STEP 3: Slide the NR through the hole.

STEP 3: Mount the bracket on the handlebar

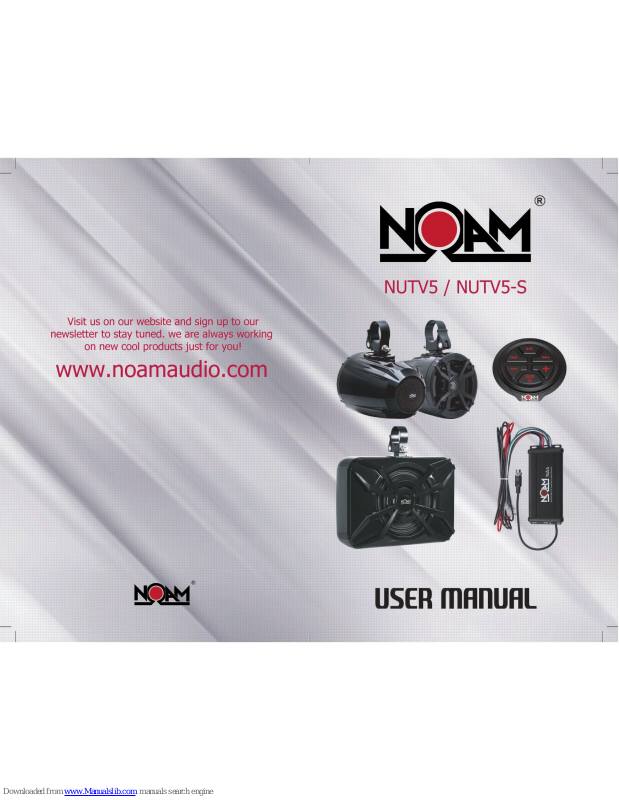

Noam NUTV5, NUTV5-S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
