NM Engineering 658858 User Manual

Download

Page 1

[1] Stainless Steel Intake Pipe Bracket

[1] SS Duct Support Bracket

[1] Silicone Turbo Inlet Hose

[2] M8 Washers [1] 25mm SS Hose Clamp

[1] Aluminum or Carbon Intake Pipe

[1] Air Filter

[3] #44 SS Hose Clamps

[2] M8 Lock nuts [1] #28 SS Hose Clamp

[2] SS Button Head Bolts M6 x 16mm

[1] SS Button Head Bolt M6 x 10mm

[2] M6 Lock Nuts

[1] T25 TORX Driver

[1] T30 TORX Driver

[1] 7mm Nut Driver

[1] Screwdriver

[1] 10mm Socket or Wrench

[1] 13mm Socket or Wrench

[1] 4mm Hex key wrench

[1] Needle nose pliers

[1] Degreaser or contact cleaner

[1] Clean shop rag

[1] 8mm Nut Driver

[1] Heat Gun

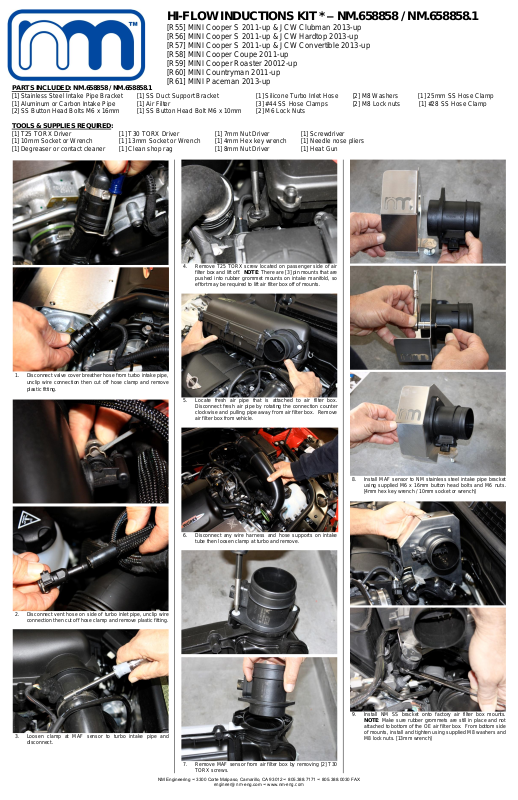

HI-FLOW INDUCTIONS KIT * – NM.658858 / NM.658858.1

[R55] MINI Cooper S 2011-up & JCW Clubman 2013-up [R56] MINI Cooper S 2011-up & JCW Hardtop 2013-up [R57] MINI Cooper S 2011-up & JCW Convertible 2013-up [R58] MINI Cooper Coupe 2011-up [R59] MINI Cooper Roaster 20012-up [R60] MINI Countryman 2011-up [R61] MINI Paceman 2013-up

PARTS INCLUDED: NM.658858 / NM.658858.1

TOOLS & SUPPLIES REQUIRED:

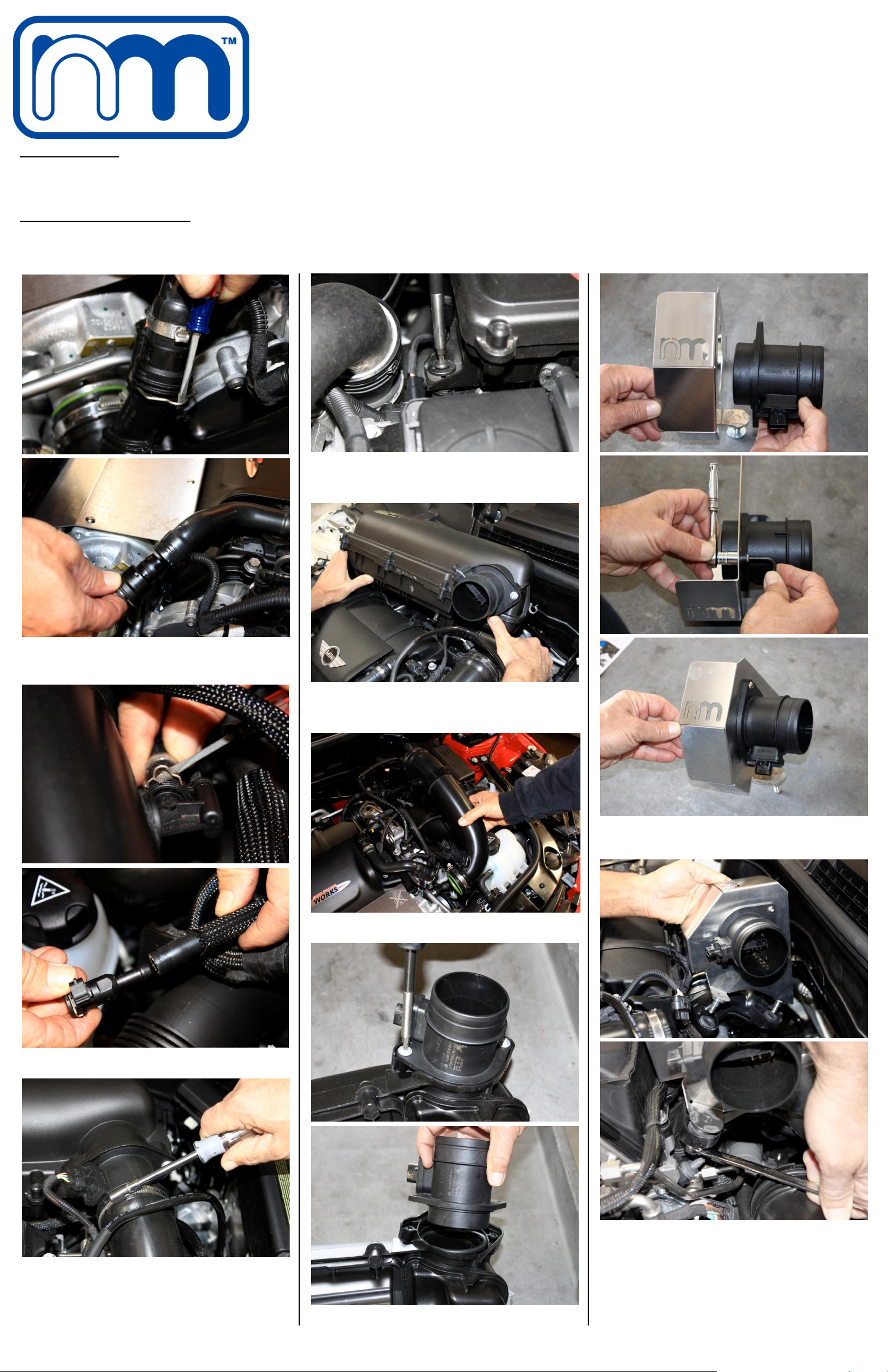

1. Disconnect valve cover breather hose from turbo intake pipe, unclip wire connection then cut off hose clamp and remove plastic fitting.

4. Remove T25 TORX screw located on passenger side of air filter box and lift off. NOTE: There are [3] pin mounts that are pushed into rubber grommet mounts on intake manifold, so effort may be required to lift air filter box off of mounts.

5. Locate fresh air pipe that is attached to air filter box. Disconnect fresh air pipe by rotating the connection counter clockwise and pulling pipe away from air filter box. Remove air filter box from vehicle.

2. Disconnect vent hose on side of turbo inlet pipe, unclip wire connection then cut off hose clamp and remove plastic fitting.

6. Disconnect any wire harness and hose supports on intake tube then loosen clamp at turbo and remove.

8. Install MAF sensor to NM stainless steel intake pipe bracket using supplied M6 x 16mm button head bolts and M6 nuts. [4mm hex key wrench / 10mm socket or wrench]

3. Loosen clamp at MAF sensor to turbo intake pipe and disconnect.

7. Remove MAF sensor from air filter box by removing [2] T30 TORX screws.

NM Engineering ∞ 3300 Corte Malpaso, Camarillo, CA 93012 ∞ 805.388.7171 ∞ 805.388.0030 FAX

engineer@nm-eng.com ∞ www.nm-eng.com

9. Install NM SS bracket onto factory air filter box mounts. NOTE: Make sure rubber grommets are still in place and not attached to bottom of the OE air filter box. From bottom side of mounts, install and tighten using supplied M8 washers and M8 lock nuts. [13mm wrench]

Page 2

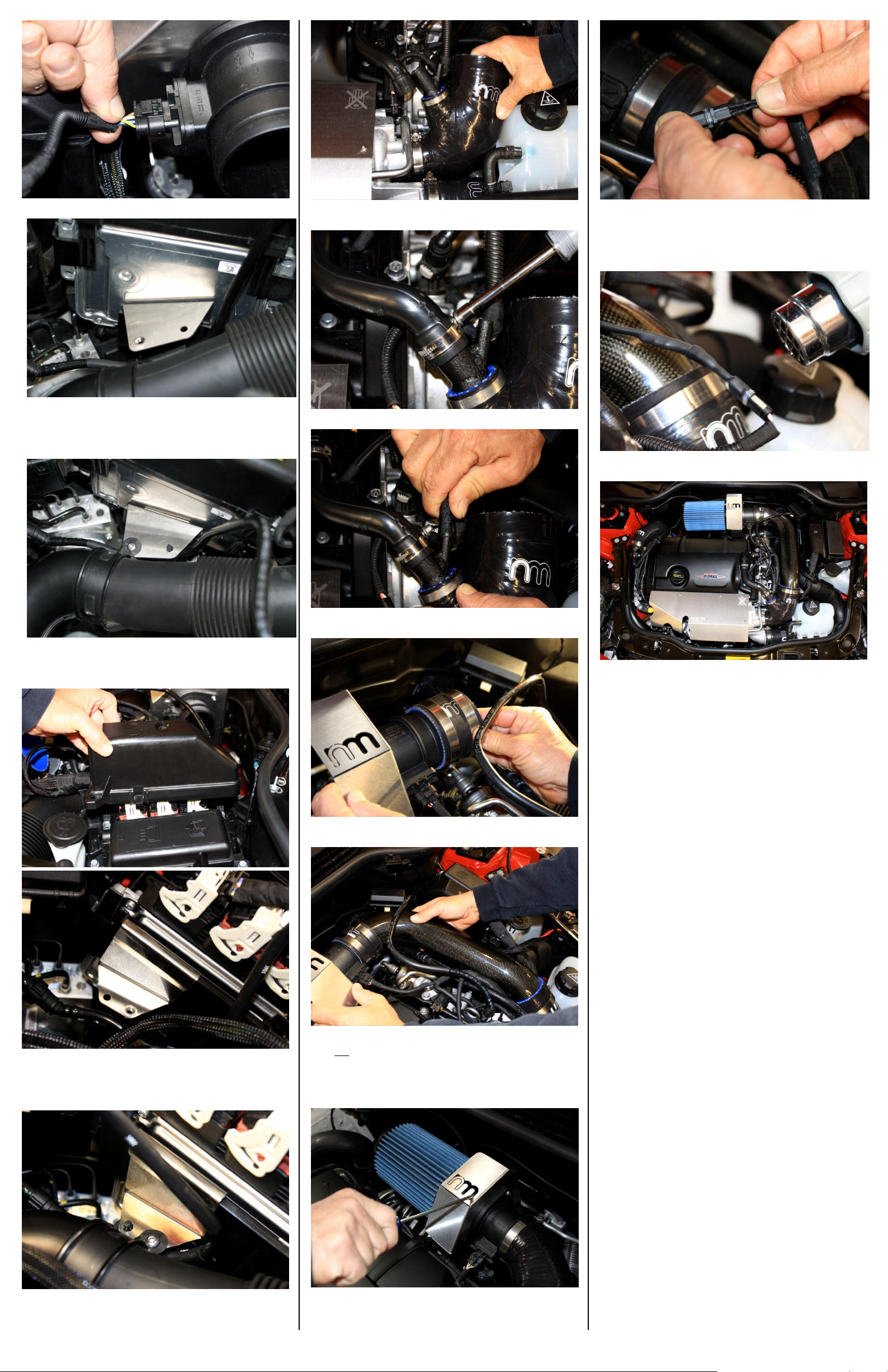

10. Reconnect MAF sensor electrical connector.

15. Loosely install silicone turbo inlet hose onto turbo using supplied #28 hose clamp. NOTE: Do not tighten at this time.

21. Locate previously disconnected heater wires from breather hose and vent hose. The supplied resistor harness connects to the front connector that attached to the valve cover breather hose. The other supplied resistor harness connects to the rear connector that attached to the vent hose on the factory intake pipe.

11. 2011-3/2012 EARLY N18 Remove protective film from double-sided tape on stainless steel fresh air hose bracket. Slide bracket down between ECU and black plastic ECU mount, while keeping double stick tape from touching. With bracket pushed all the way down, press against ECU.

12. 2011-3/2012 Early N18 Attach brake booster line holder to forward mounting hole in bracket. Secure fresh air pipe to rearward mounting hole using supplied M6 x 10mm button head bolt. [4mm hex key wrench]

13. 3/2012-UP N18 ECU cover removal: Remove 10mm hex bolt then push inward on tabs to remove cover. Remove protective film from double-sided tape on stainless steel intake duct support bracket. Hook bracket on top edge of black plastic case for ECU, positioning at back corner.

14. 3/2012-UP N18 Attach brake booster line holder to rearward mounting hole in bracket. Secure fresh air pipe to forward mounting hole using supplied M6 x 10mm button head bolt. [4mm hex key wrench]

NM Engineering ∞ 3300 Corte Malpaso, Camarillo, CA 93012 ∞ 805.388.7171 ∞ 805.388.0030 FAX

16. Connect breather hose with 25mm clamp supplied.

17. Install vent hose to “Y” breather adapter. NOTE: Spray inside of hose with WD-40 or equivalent to ease installation.

18. Install and tighten silicone hose coupler onto MAF sensor using supplied #44 hose clamp.

19. Loosely install supplied #44 clamps onto both silicone hose ends, then install air intake pipe into silicone turbo inlet hose first and then into MAF sensor hose. Adjust as necessary for clearance, paying close attention to clearance of silicone turbo inlet hose and coolant reservoir bottle. Tighten all clamps. NOTE: Do not forget to tighten #28 hose clamp from Step 14. Connect breather hose to cylinder head cover.

20. Using degreaser or contact cleaner and shop rag, clean inner mounting flange of NM filter. Install NM filter onto MAF sensor and tighten with long skinny screwdriver thru logo cutout or from back side of bracket.

engineer@nm-eng.com ∞ www.nm-eng.com

22. Heat shrink on supplied tubing to both connectors to weather seal.

23. Double check complete installation.
