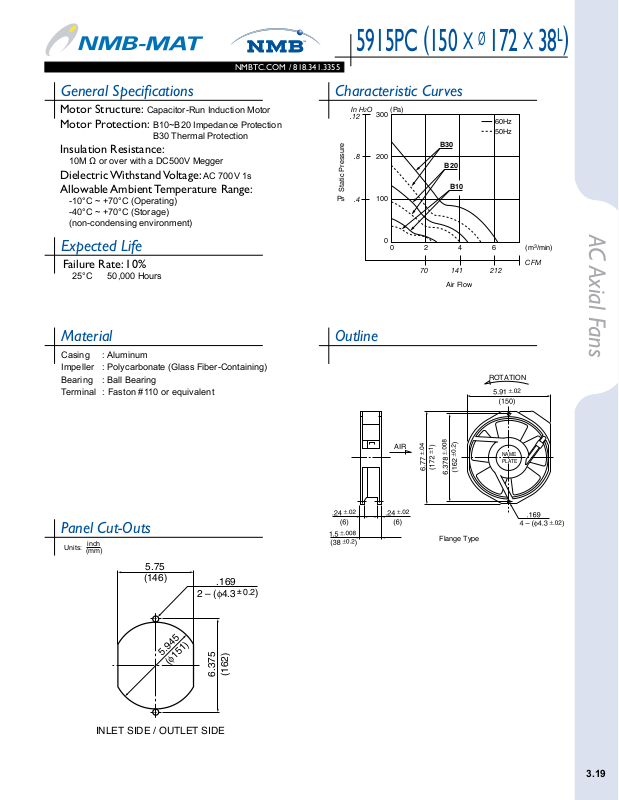

NMB Technologies 5915PC Catalog Page

NMBTC.COM / 818.341.3355

6.375

(162)

INLET SIDE / OUTLET SIDE

(F151)

5.945

5.75

(146)

.169

2 – (F4.3

±

0.2

)

0

100

200.8

.12

.4

70 141 212

300

0 2 4 6

Air Flow

Static Pressure

Ps

(Pa)

(m

3

/min)

CFM

In H

2O

B10

B30

60Hz
50Hz

B20

Flange Type

NAME
PLATE

AIR

ROTATION

5915PC

(

150

X Ø

172

X

38

L

)

General Specications

Motor Structure: Capacitor-Run Induction Motor
Motor Protection: B10~B20 Impedance Protection

B30 Thermal Protection

Insulation Resistance:

10M Ω or over with a DC500V Megger

Dielectric Withstand Voltage: AC 700V 1s
Allowable Ambient Temperature Range:

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)
(non-condensing environment)

Expected Life

Failure Rate: 10%

25°C 50,000 Hours

Material

Casing : Aluminum
Impeller : Polycarbonate (Glass Fiber-Containing)
Bearing : Ball Bearing
Terminal : Faston #110 or equivalent

Characteristic Curves

AC Axial Fans

Outline

Panel Cut-Outs

inch

Units:

(mm)

3.19

AC Axial Fans

NMBTC.COM / 818.341.3355

5915PC

(

150

X Ø

172

Specications

Rated Frequency Starting Current Input Speed Max. Max. Static Noise Mass

MODEL Voltage Voltage Power Air Flow Pressure

5915PC

**

5915PC-12T-B30-A00
115 60 75 0.360 32.0 3200 212.0 6.00 .865 215.6 56.0 800

5915PC

**

5915PC

**

5915PC-23T-B30-A00
230 60 145 0.190 35.0 3200 212.0 6.00 .865 215.6 56.0 800

5915PC

**

5915PC

**

5915PC-12T-B20-A00
115 60 75 0.210 22.0 2600 166.0 4.70 .472 117.6 50.0 800

5915PC

**

5915PC

**

5915PC-23T-B20-A00
230 60 145 0.140 26.0 2600 166.0 4.70 .472 117.6 50.0 800

5915PC

**

5915PC

**

5915PC-12T-B10-A00
115 60 75 0.190 18.0 1650 102.3 2.90 .243 60.7 38.0 800

5915PC

**

5915PC

**

5915PC-23T-B10-A00
230 60 145 0.110 18.0 1650 102.3 2.90 .243 60.7 38.0 800

5915PC

**

Rotation: Counterclockwise Airow Outlet: Air Out Over Struts *1: Maximum Values in Free Air

**

*3: Minimum Values in Free Air

(

-10T-B30-B00
100 60 65 0.440 33.0 3200 212.0 6.00 .865 215.6 56.0 800

-20T-B30-B00
200 60 130 0.210 33.0 3200 212.0 6.00 .865 215.6 56.0 800

-22T-B30-B00
220 60 145 0.180 38.0 3200 212.0 6.00 .865 215.6 56.0 800

-24T-B30-A00
240 60 155 0.170 34.0 3200 212.0 6.00 .865 215.6 56.0 800

-10T-B20-B00
100 60 65 0.230 23.0 2600 166.0 4.70 .472 117.6 50.0 800

-20T-B20-B00
200 60 130 0.140 23.0 2600 166.0 4.70 .472 117.6 50.0 800

-22T-B20-B00
220 60 145 0.130 26.0 2600 166.0 4.70 .472 117.6 50.0 800

-24T-B20-A00
240 60 145 0.110 26.0 2600 166.0 4.70 .472 117.6 50.0 800

-10T-B10-B00
100 60 65 0.020 18.0 1650 102.3 2.90 .243 60.7 38.0 800

-20T-B10-B00
200 60 130 0.130 18.0 1650 102.3 2.90 .243 60.7 38.0 800

-22T-B10-B00
220 60 130 0.120 18.0 1650 102.3 2.90 .243 60.7 38.0 800

-24T-B10-A00
240 60 145 0.110 18.0 1650 102.3 2.90 .243 60.7 38.0 800

Contact NMB for Availability *2: Average Values in Free Air

V) (Hz)

100 50 65 0.470 37.0 2700 176.5 5.00 .629 156.8 52.0 800

115 50 75 0.380 35.0 2700 176.5 5.00 .629 156.8 52.0 800

200 50 130 0.236 34.0 2700 176.5 5.00 .629 156.8 52.0 800

220 50 145 0.210 40.0 2700 176.5 5.00 .629 156.8 52.0 800

230 50 145 0.180 35.0 2700 176.5 5.00 .629 156.8 52.0 800

240 50 155 0.180 34.0 2700 176.5 5.00 .629 156.8 52.0 800

100 50 65 0.250 22.0 2200 141.2 4.00 .393 98.0 46.0 800

115 50 75 0.200 21.0 2200 141.2 4.00 .393 98.0 46.0 800

200 50 130 0.120 22.0 2200 141.2 4.00 .393 98.0 46.0 800

220 50 145 0.110 23.0 2200 141.2 4.00 .393 98.0 46.0 800

230 50 145 0.120 23.0 2200 141.2 4.00 .393 98.0 46.0 800

240 50 145 0.100 22.0 2200 141.2 4.00 .393 98.0 46.0 800

100 50 65 0.170 16.0 1400 84.7 2.40 .173 43.1 35.0 800

115 50 75 0.160 16.0 1400 84.7 2.40 .173 43.1 35.0 800

200 50 130 0.110 16.0 1400 84.7 2.40 .169 42.1 35.0 800

220 50 130 0.100 16.0 1400 84.7 2.40 .169 42.1 35.0 800

230 50 145 0.090 16.0 1400 84.7 2.40 .169 43.1 35.0 800

240 50 145 0.090 16.0 1400 84.7 2.40 .169 42.1 35.0 800

(V)

(A)

*1

(W

+10%

)

(min-1)*3 CFM (m3/min)

-20%

*3

in H2O (Pa)*3 (dB)*2 (g)

X

38

L

)

3.20
