NLT NL204153AM21-24A Specification

Download

Page 1

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

1/45

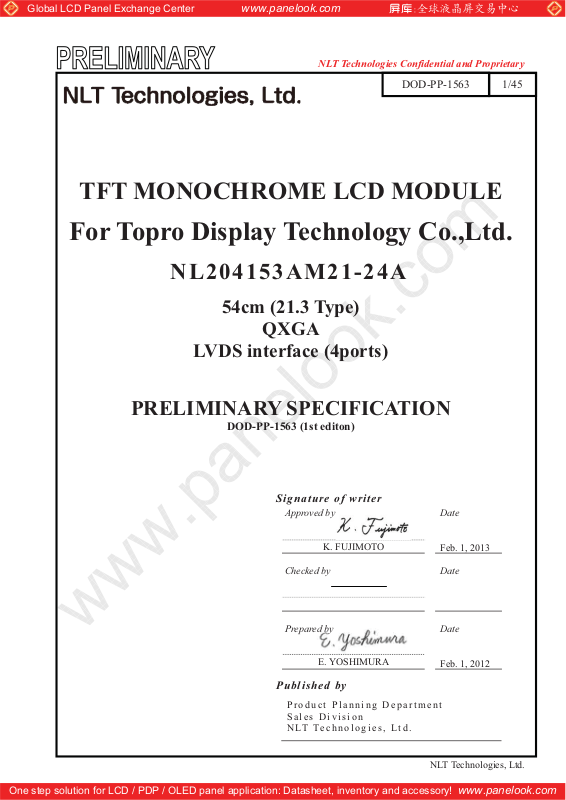

TFT MONOCHROME LCD MODULE

For Topro Display Technology Co.,Ltd.

NL204153AM21-24A

54cm (21.3 Type)

QXGA

LVDS interface (4ports)

PRELIMINARY SPECIFICATION

DOD-PP-1563 (1st editon)

Signature of writer

Approved by

K. FUJIMOTO

Checked by

Prepared by

E. YOSHIMURA

Published by

Date

Feb. 1, 2013

Date

Feb. 1, 2012

Product Planning Department Sales Division NLT Technologies, Ltd.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 2

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

INTRODUCTION

x WARRANTY

NLT Technologies, Ltd. (hereinafter called "NLT") warrants that this product meets the product specifications set forth in this document. If this product under normal operation is found to be non-conforming to the product specifications, and such non-conformance is promptly notified to NLT within one (1) year after the delivery date, and further such non-conformance is solely attributable to NLT, NLT shall repair the non-conforming product or replace it with a conforming one, free of charge. However, this warranty does not apply to any non-conformance resulting from any one of the following:

1) Unauthorized or improper repair, maintenance or modification

2) Operation or use against specifications, instructions or warnings given by NLT

3) Any other causes attributable to customer

In case NLT repairs or replaces a product after the one (1) year warranty period, NLT shall be entitled to charge for such repair or replacement. Those replaced parts shall be covered with six (6)-month warranty period from the replacement day. Non-conforming products may be replaced with substitutes instead of repair when the manufacture of this product has been terminated.

EXCEPT AS EXPRESSLY SET FORTH HEREIN, NLT DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND DISCLAIMS ANY REMEDIES.

2/45

x MAINTENANCE

The specifications of maintenance parts are subject to change with equivalent or better quality. NLT will not accept maintenance for only mounting parts on circuit board (e.g. connector, fuse, capacitor, resistor, etc.) or only parts for backlight (e.g. reflector sheet, light guide plate, etc.). but for a whole module by unit.

If NLT plans to discontinue this product, NLT shall inform it to customers in six (6)-month advance from the issued date of official announcement. In addition, after the product discontinuation, NLT may replace a product with a whole product not repairing parts.

x CHANGE CONTROL

For the purpose of product improvement, this product design is subject to change for improvement in specifications, appearance, parts, circuits and so on. In case that the design change affects the product specifications, NLT shall inform it to customers in advance.

x HANDLING OF DOUBTFUL POINTS

Any question arising out of, or in connection with, this SPECIFICATION or any matter not stipulated herein will be settled each time upon consultation between both parties.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 3

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

CONTENTS



INTRODUCTION ..........................................................................................................................................2

1. OUTLINE.................................................................................................................................................... 5

1.1 STRUCTURE AND PRINCIPLE .......................................................................................................... 5

1.2 APPLICATION....................................................................................................................................... 5

1.3 FEATURES ............................................................................................................................................5

2. GENERAL SPECIFICATIONS ................................................................................................................ 6

3. BLOCK DIAGRAM................................................................................................................................... 7

4. DETAILED SPECIFICATIONS...............................................................................................................8

4.1 MECHANICAL SPECIFICATIONS...................................................................................................... 8

4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................8

4.3 ELECTRICAL CHARACTERISTICS................................................................................................... 9

4.3.1 LCD panel signal processing board............................................................................................... 9

4.3.2 LED Driver board........................................................................................................................ 10

4.3.3 LED Driver board current wave .................................................................................................. 10

4.3.4 Power supply voltage ripple ........................................................................................................11

4.3.5 Fuse.............................................................................................................................................. 11

4.4 POWER SUPPLY VOLTAGE SEQUENCE........................................................................................ 12

4.4.1 LCD panel signal processing board.............................................................................................12

4.4.2 LED driver board.........................................................................................................................12

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS ........................................................ 13

4.5.1 LCD panel signal processing board.............................................................................................13

4.5.2 LED driver board.........................................................................................................................17

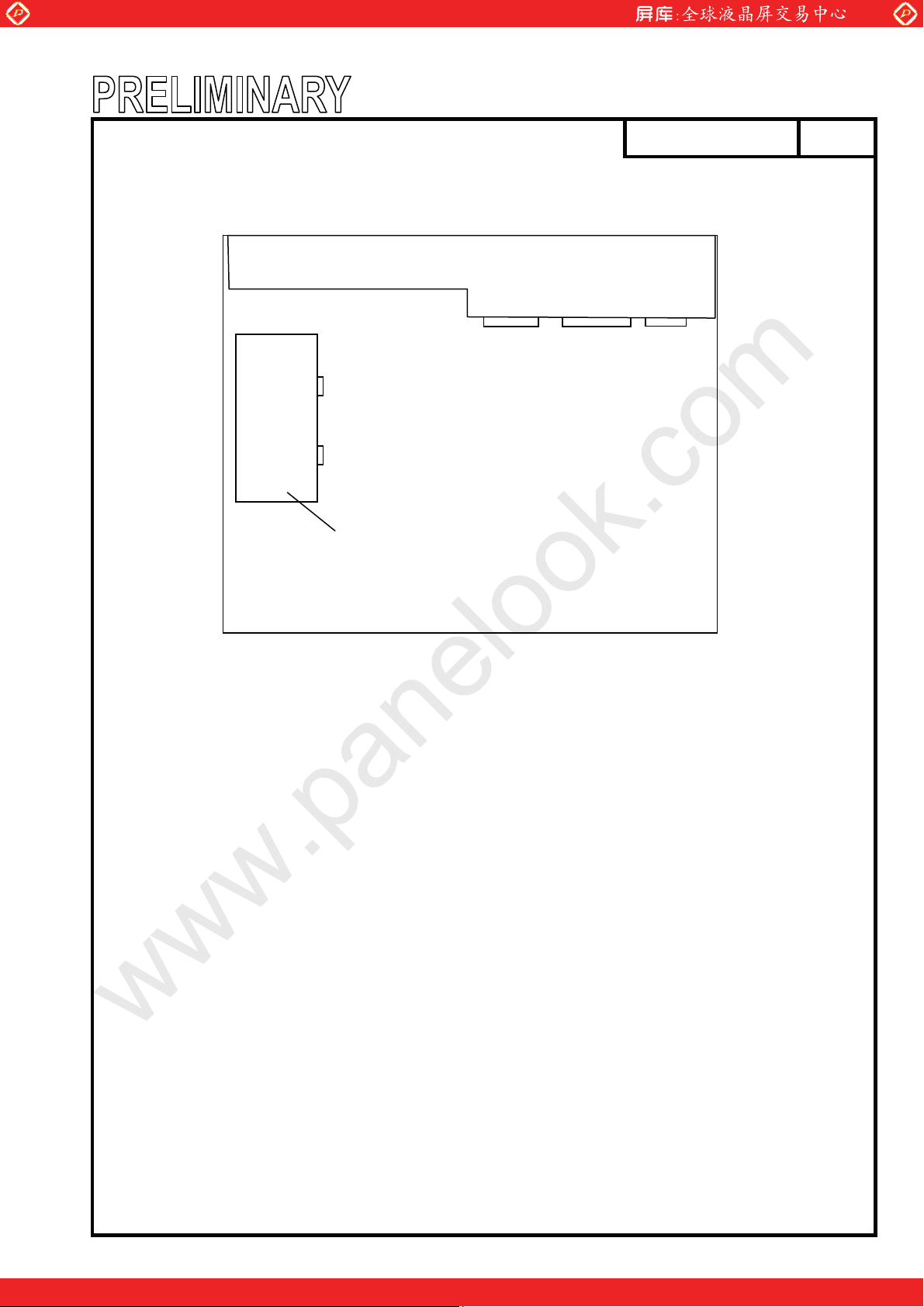

4.5.3 Positions of socket ....................................................................................................................... 18

4.6 LUMINANCE CONTROL .................................................................................................................. 19

4.6.1 Luminance control methods ........................................................................................................19

4.6.2 Detail of

4.7 METHOD OF CONNECTION FOR LVDS TRANSMITTER............................................................ 21

4.8 DISPLAY GRAYSCALE AND INPUT DATA SIGNALS .................................................................. 23

4.9 INPUT SIGNAL TIMINGS ................................................................................................................. 24

4.9.1 Timing characteristics.................................................................................................................. 24

4.9.2 Input signal timing chart.............................................................................................................. 24

4.10 LVDS DATA TARANSMISSION METHOD .................................................................................... 25

4.11 LVDS Rx AC SPEC............................................................................................................................ 25

4.12 DISPLAY POSITION......................................................................................................................... 26

4.13 PIXEL ARRANGNMENT ................................................................................................................. 27

4.14 OPTICS ..............................................................................................................................................28

4.14.1 Optical characteristics................................................................................................................ 28

4.14.2 Definition of contrast ratio......................................................................................................... 29

4.14.3 Definition of luminance uniformity........................................................................................... 29

4.14.4 Definition of color uniformity ................................................................................................... 29

4.14.5 Definition of response times...................................................................................................... 30

4.14.6 Definition of viewing angles ..................................................................................................... 30

4.15 DEFECT CRITERIA.......................................................................................................................... 31

4.15.1 Display specifications................................................................................................................31

4.15.2 Appearance specifications ......................................................................................................... 34

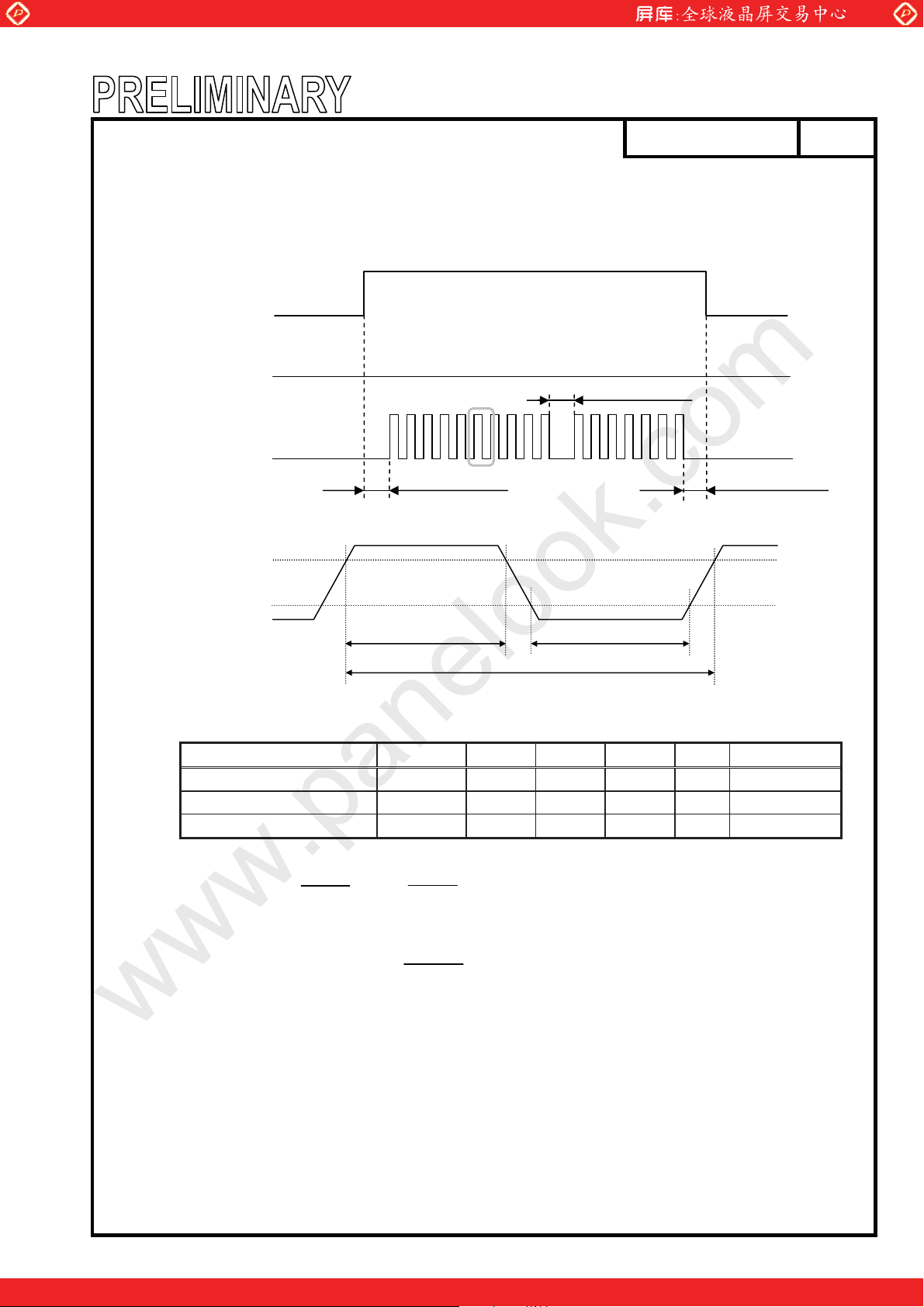

BRTP timing ................................................................................................................. 20

3/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 4

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

4/45

CONTENTS

5. ESTIMATED LUMINANCE LIFETIME.............................................................................................. 35

6. PRODUCT INSPECTIONS .................................................................................................................... 35

7. RELIABILITY TESTS ............................................................................................................................ 36

8. MARKINGS.............................................................................................................................................. 37

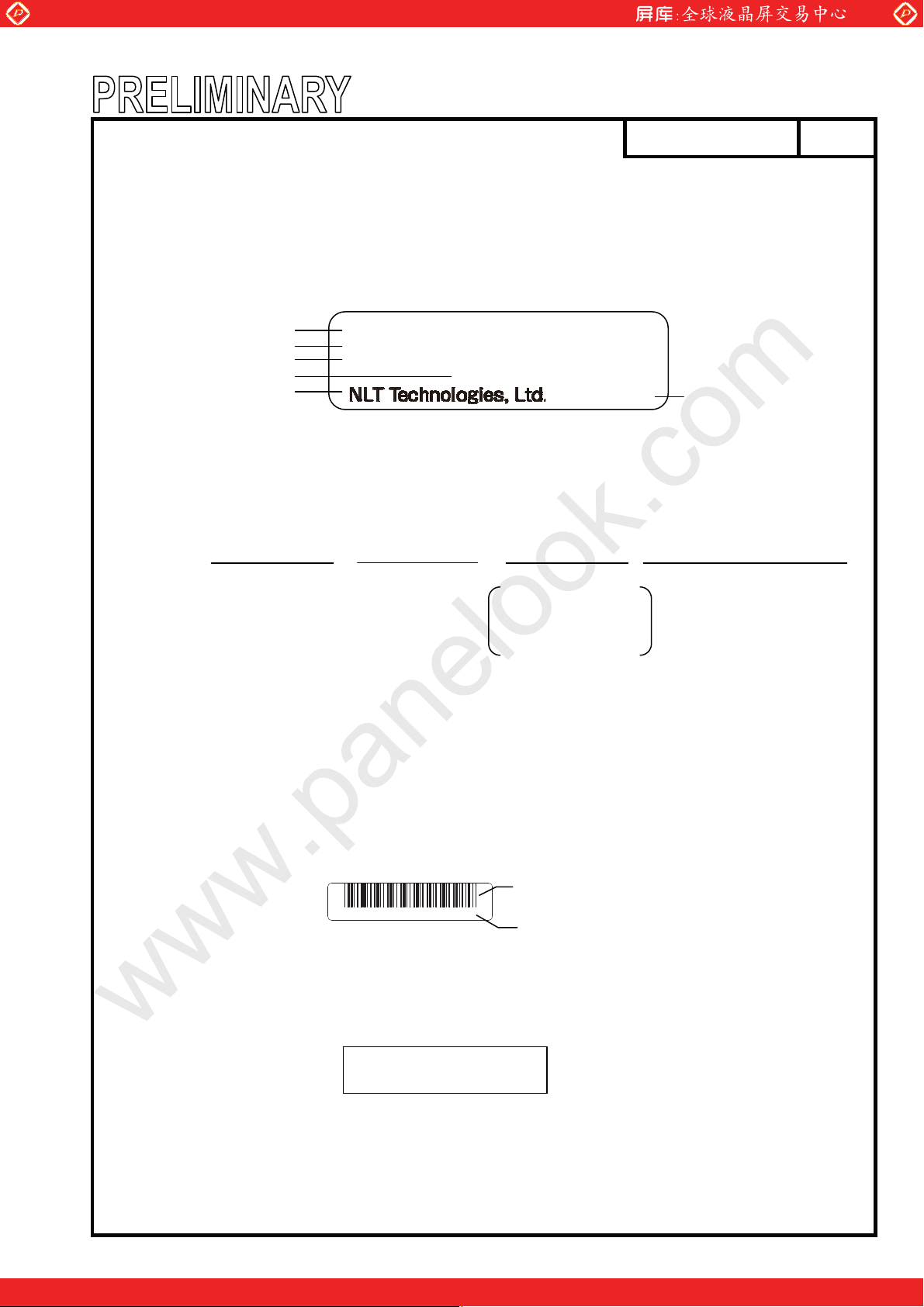

8.1 NAMEPLATE LABEL......................................................................................................................... 37

8.2 BARCODE LABEL ............................................................................................................................. 37

8.3 OTHER MARKINGS........................................................................................................................... 37

9. PACKING, TRANSPORTATION AND DELIVERY............................................................................ 38

9.1 PACKING BOX ...................................................................................................................................38

9.2 INSPECTION RECORD SHEET ........................................................................................................38

9.3 TRANSPORTATION............................................................................................................................ 38

9.4 SIZE AND WEIGHT FOR PACKING BOXES................................................................................... 38

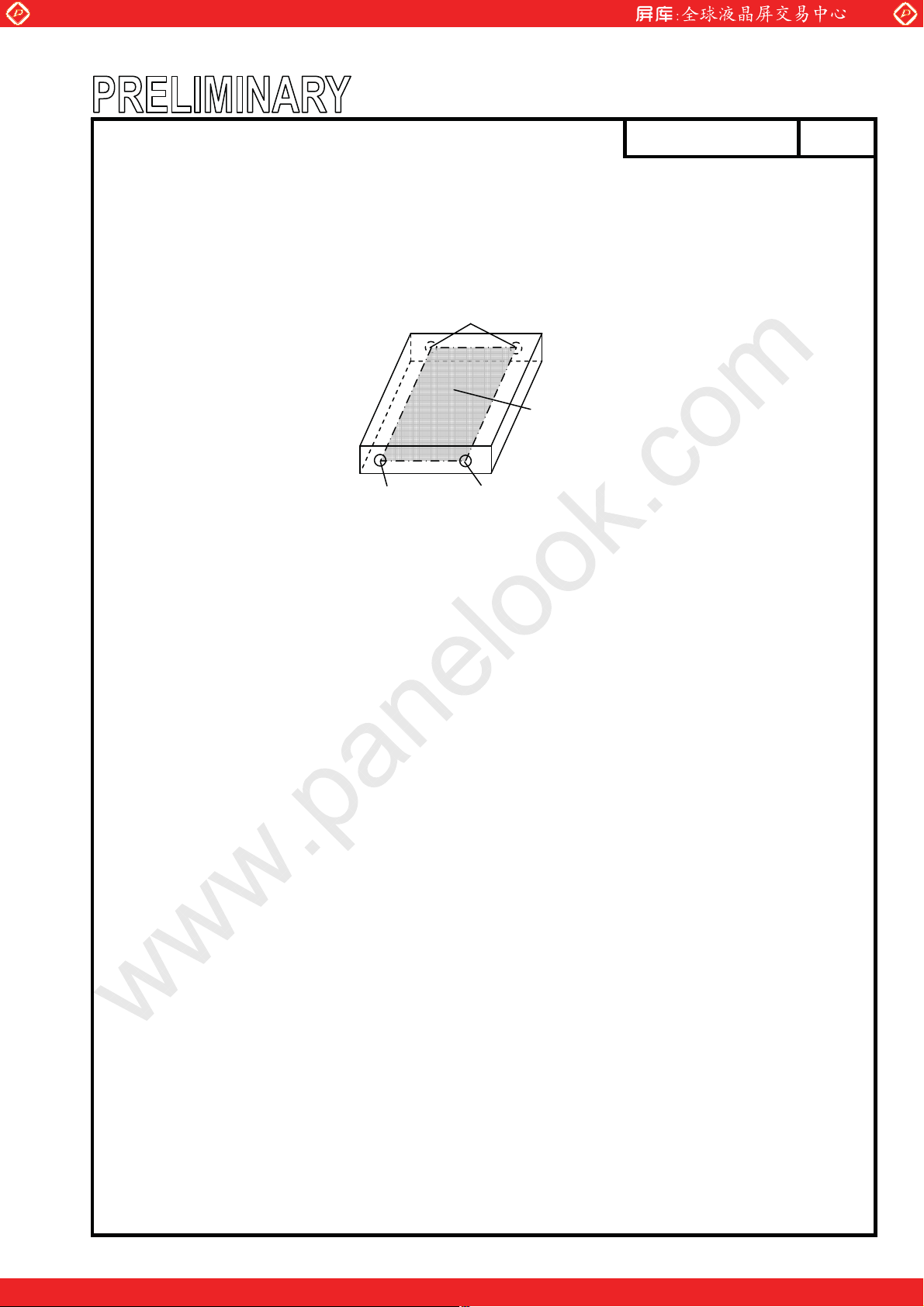

9.5 OUTLINE FIGURE FOR PACKING ..................................................................................................39

10. PRECAUTIONS ..................................................................................................................................... 40

10.1 MEANING OF CAUTION SIGNS.................................................................................................... 40

10.2 CAUTIONS........................................................................................................................................ 40

10.3 ATTENTIONS .................................................................................................................................... 40

10.3.1 Handling of the product............................................................................................................. 40

10.3.2 Environment .............................................................................................................................. 41

10.3.3 Characteristics ...........................................................................................................................42

10.3.4 Others ........................................................................................................................................ 42

11. OUTLINE DRAWINGS ......................................................................................................................... 43

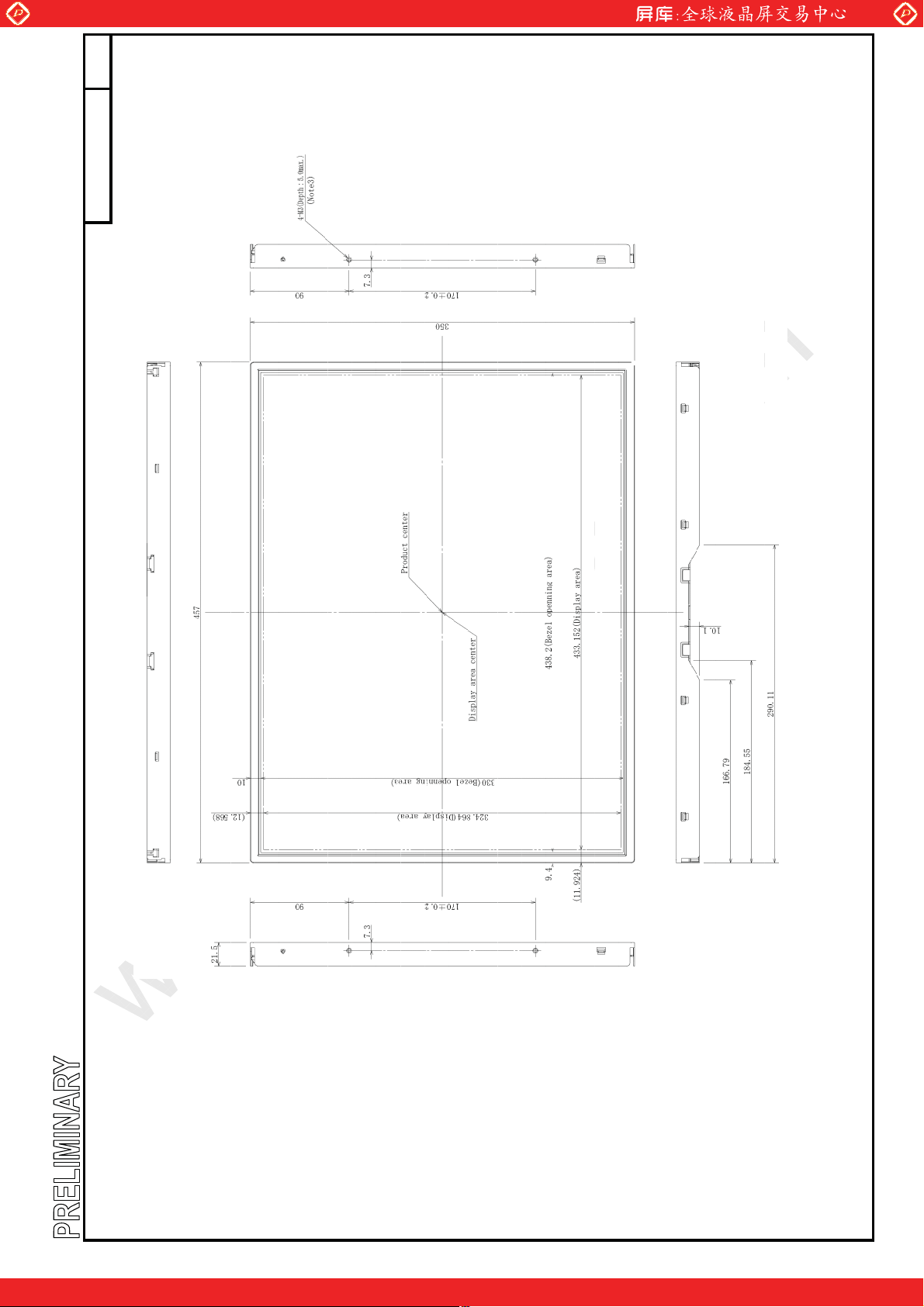

11.1 FRONT VIEW .................................................................................................................................... 43

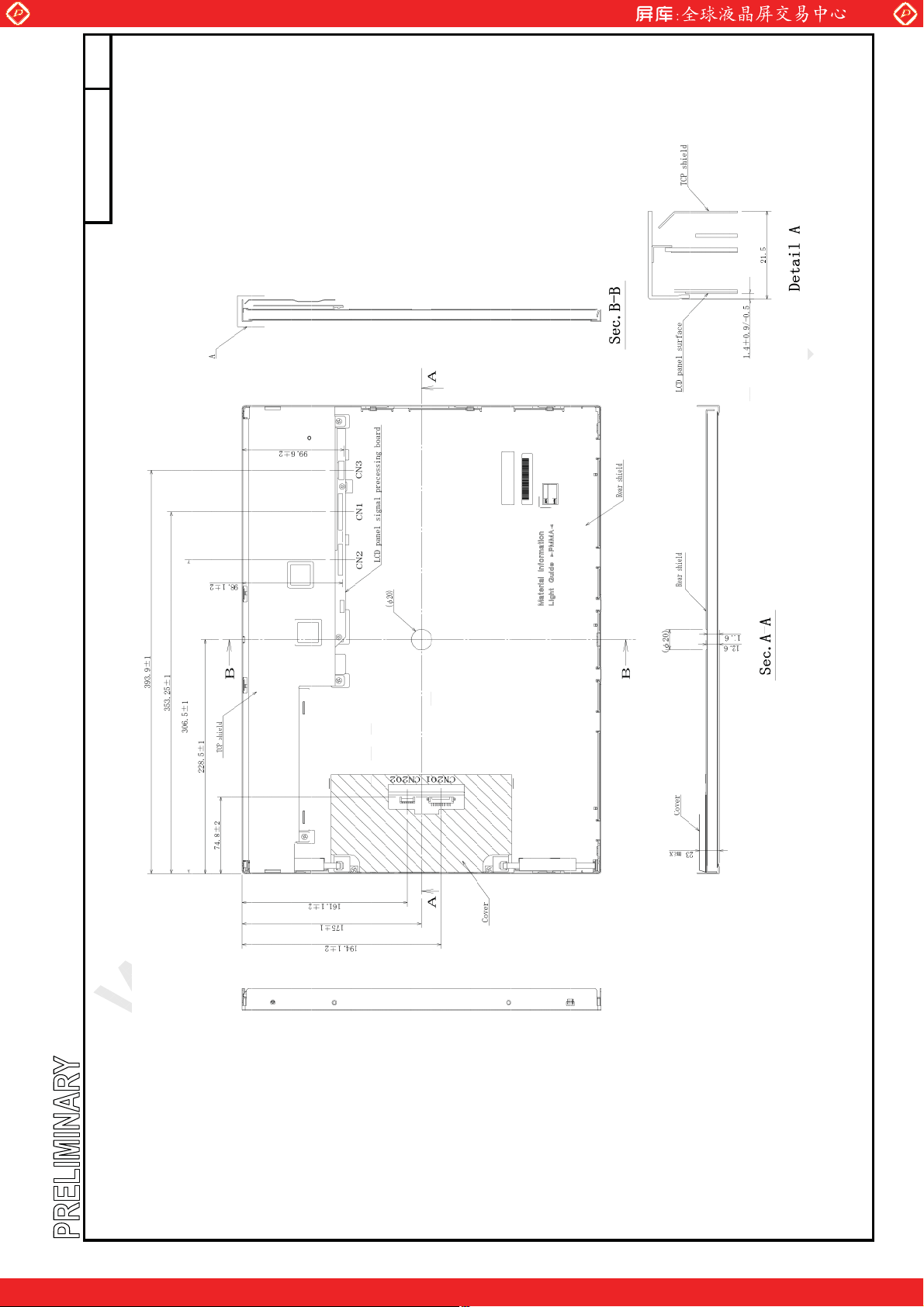

11.2 REAR VIEW ...................................................................................................................................... 44

REVISION HISTORY ................................................................................................................................. 45



NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 5

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

Monochrome LCD module NL204153AM21-24A is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.

The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a monochrome-filter glass substrate.

Grayscale data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual TFT arrays.

The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Monochrome images are created by regulating the amount of transmitted light through the TFT array.

1.2 APPLICATION

x Monochrome monitor system

1.3 FEATURES

DOD-PP-1563

5/45

x Ultra-wide viewing angle (Super Fine TFT (SFT))

x High luminance

x High contrast

x Low reflection

x 1,024 gray scales per 1 sub-pixel (10-bit)

x LVDS interface

x Small foot print

x LED backlight type

x LED driver circuit Built-in

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 6

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



2. GENERAL SPECIFICATIONS

Display area

Diagonal size of display

Drive system

Display grayscale

Pixel

Pixel arrangement

Sub-pixel pitch

Pixel pitch

Module size 457.0 (W) u 350.0 (H) u 21.5 (D) mm (typ.)

Weig ht

Contrast ratio

Viewing angle

433.152 (H) u 324.864 (V) mm

54cm (21.3 inches)

a-Si TFT active matrix

1,024 gray scales per 1 sub-pixel (10-bit) (3,072 gray scales per 1 pixel)

2,048 (H) u 1,536 (V) pixels (1 pixel consists of 3 sub-pixels (LCR).)

LCR vertical stripe

0.0705 (H) u 0.2115 (V) mm

0.2115 (H) u 0.2115 (V) mm

2,700 g (typ.)

1,400:1 (typ.)

At the contrast ratio t 10:1

x Horizontal: Right side 88q (typ.), Left side 88q (typ.) x Vertical: Up side 88q (typ.), Down side 88q (typ.)

DOD-PP-1563

6/45

Designed viewing direction

Polarizer surface

Polarizer pencil-hardness

Response time

Luminance

Signal system

Power supply voltage

Backlight

Power consumption

Viewing angle with optimum grayscale (Jล DICOM): Normal axis

Antiglare

2H (min.) [by JIS K5600]

Ton+Toff (10%

40ms (typ.)

At the maximum luminance control

1,700cd/m

4 ports LVDS interface (Characteristics of AC receiver THC63LVD104Su2pcs, THine Electronics, Inc. or equivalent) [LCR 10-bit signals, Data enable signal (DE), Dot clock (CK)]

LCD panel signal processing board: 12.0V LED driver board: 12.0V

LED backlight type built in LED Driver Circuit

At checkered flag pattern, the maximum luminance control

37.0W (typ.)

Note1: When the product luminance is 450cd/m

(typ.)

(perpendicular) Note1

90%)

, the gamma characteristic is designed to Jล DICOM.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 7

Global LCD Panel Exchange Center

                     

                 

www.panelook.com

NLT Technologies Confidential and Proprietary

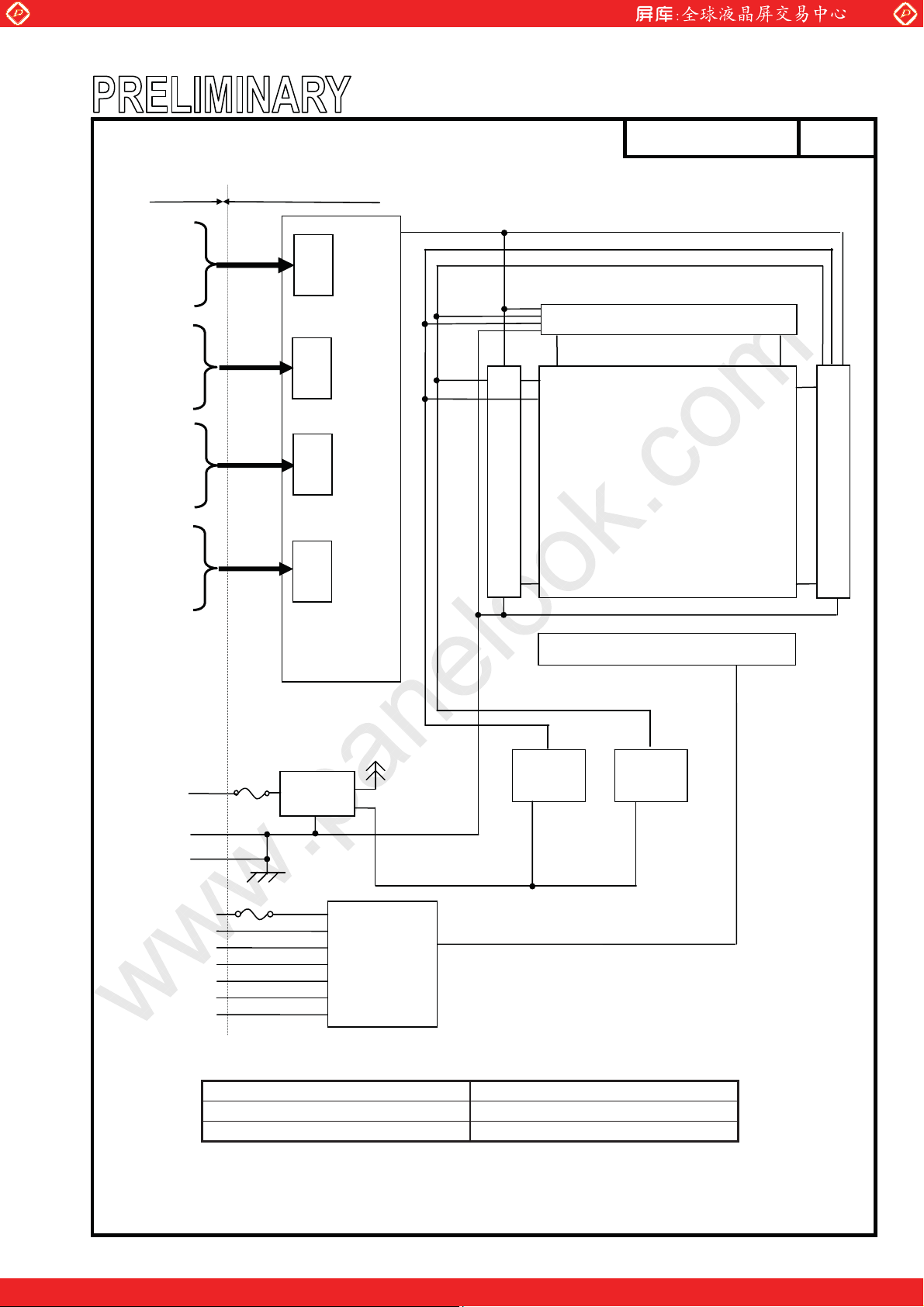

3. BLOCK DIAGRAM



I/F

DA0+/– DA1+/– DA2+/–

CKA+/–

DA3+/–

DA4+/-

DB0+/– DB1+/– DB2+/–

CKB+/–

DB3+/–

DB4+/-

Note 3

DC0+/– DC1+/– DC2+/–

CKC+/–

DC3+/–

DC4+/-

DD0+/– DD1+/– DD2+/–

CKD+/–

DD3+/–

DD4+

Note 3

VDD

GND

VDDB

BRTC BRTH

BRTI

BRTP

PWSEL

GNDB

ote1, Note2

Note1: Relations between GND (Signal ground), FG (Frame ground) and GNDB (LED driver board

ground) in the LCD module are as follows.

GND - FG Connected

GND - GNDB Not connected

FG - GNDB Not connected

Note2 GND, FG and GNDB must be connected to customer equipment's ground, and it is recommended

that these grounds be connected together in customer equipment.

Note3 Each pair of the LVDS signal has a 100: terminating resistance between D+ and D-.

LCD module (product)

LVDS

receiver

LVDS

receiver

LVDS

receiver

LVDS

receiver

DC/DC

Fuse

Converter

Fuse

LED Driver

Controller

board

V-driver

Power

supply for

gradation

1536

DOD-PP-1563

H-driver

6144 lines

TFT LCD panel

lines

H: 2048 u 3 (L, C, R) V: 1536

Backlight

Power

supply for

COM

7/45

V-driver

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 8

Global LCD Panel Exchange Center



www.panelook.com

NLT Technologies Confidential and Proprietary

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

Parameter Specification Unit

Module size

Display area

Weight 2,700 (typ.), 2,980 (max.) g

Note1: Excluding warpage of the cover for LED driver board. Note2: See "11. OUTLINE DRAWINGS".

4.2 ABSOLUTE MAXIMUM RATINGS



Parameter Symbol Rating Unit Remarks

Power supply

voltage

LCD panel signal processing board VDD -0.3 to +14.0 V

LED driver board VDDB -0.3 to +15.0 V

LCD panel signal processing board

457.0 r0.5 (W) u 350.0 r0.5 (H) u 21.5 (typ., D)

23.0 (max., D)

433.152 (H) u 324.864 (V)

Note1

Vi -0.3 to +2.8 V VDD= 12.0V

DOD-PP-1563

Note1, Note2

Note2 mm

8/45

Input voltage

for signals

Operating temperature

BRTI signal VBI -0.3 to +1.5 V

BRTP signal VBP -0.3 to +5.5 V

LED driver board

BRTC signal VBC -0.3 to +5.5 V

PWSEL signal VBS -0.3 to +5.5 V

Storage temperature Tst -20 to +60

Front surface TopF 0 to +60

Rear surface TopR 0 to + 60

d 95

Relative humidity

Note4

Absolute humidity

Note4

Operating altitude -

Storage altitude -

d 85

d 70

d 73

Note5

d 5,100

d 13,600

g/m

VDDB= 12.0V

Ta d 40qC

40qC < Ta d 50qC

50qC < Ta d 55qC

Ta > 55 qC

0qC d Ta d 55qC

-20qC d Ta d 60qC

Note2

Note3

Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, DB4+/-,

CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-, DD2+/-, DD3+/-,

DD4+/-, CKD+/-,BSEL. Note2: Measured at LCD panel surface (including self-heat) Note3: Measured at LCD module's rear shield surface (including self-heat) Note4: No condensation Note5: Water amount at Ta= 55°C and RH= 70%

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 9

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

4.3 ELECTRICAL CHARACTERISTICS



4.3.1 LCD panel signal processing board

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDD 10.8 12.0 13.2 V -

Power supply current IDD -

Permissible ripple voltage VRP - - 100 mVp-p for VDD

Differential input threshold voltage

Input voltage swing VI 0 - 2.4 V Note4

Terminating resistance RT - 100 -

Note1: Checkered flag pattern (by EIAJ ED-2522) Note2: Pattern for maximum current Note3: Common mode voltage for LVDS driver Note4: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, DB4+/-, CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-,

DD2+/-, DD3+/-, DD4+/-, CKD+/-

DOD-PP-1563

590

Note1

High VTH - - +100 mV

Low VTL -100 - - mV

980

Note2

mA at VDD= 12.0V

at VCM= 1.2V Note3, Note4

9/45

(Ta= 25qC)

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 10

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

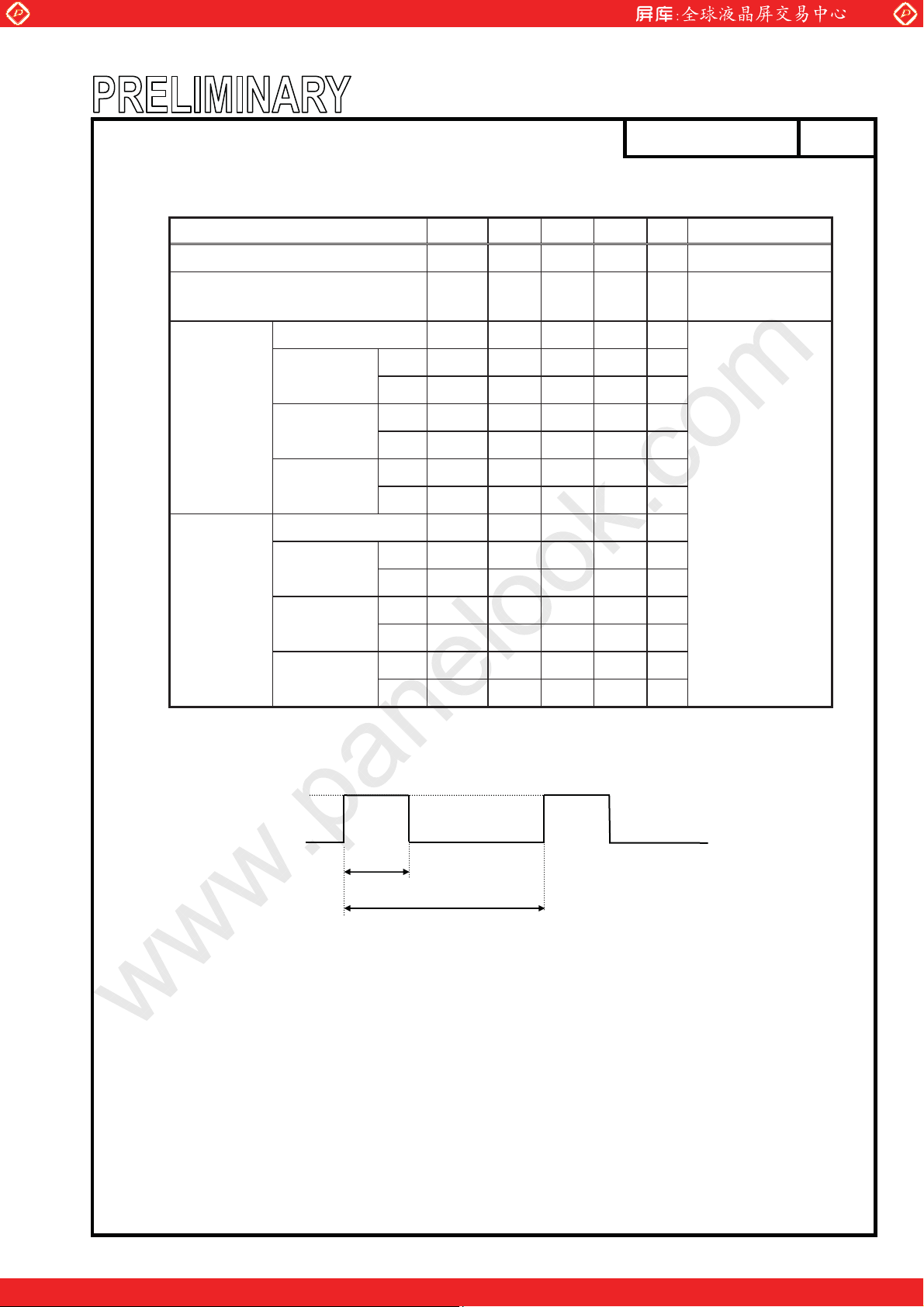

4.3.2 LED Driver board



Input voltage

for signals

Input current

for signals

DOD-PP-1563

10/45

(Ta= 25qC)

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VDDB 11.4 12.0 12.6 V -

VDDB= 12.0V,

Power supply current IDDB - 2,500 3,300

BRTI signal VBI 0 - 1.0 V

High VBPH 2.0 - 5.25 V

BRTP signal

Low VBPL 0 - 0.8 V

High VBCH 2.0 - 5.25 V

BRTC signal

Low VBCL 0 - 0.8 V

High VBSH 2.0 - 5.25 V

PWSEL signal

Low VBSL 0 - 0.8 V

BRTI signal IBI -200 - -100

High IBPH - - 1,000

BRTP signal

Low IBPL -600 - -

High IBCH - - 300

BRTC signal

Low IBCL -300 - -

At the maximum

luminance control

P$

PWSEL signal

 

4.3.3 LED Driver board current wave



2,500 mA (typ.)

0mA

Duty:At the maximum luminance control 100% to at the minimum luminance control 1%. Luminance control frequency: 270Hz (typ.)

Note1: Luminance control frequency indicate the input pulse frequency, when select the external

pulse control. See "4.6.2 Detail of BRTP timing".

Note2: The power supply lines (VDDB and GNDB) have large ripple voltage during luminance

control. There is the possibility that the ripple voltage produces acoustic noise and signal wave noise in audio circuit and so on. Put a capacitor (5,000 to 6,000PF) between the power supply lines (VDDB and GNDB) to reduce the noise, if the noise occurred in the circuit.

High IPSH - - 1,000

Low IPSL -600 - -

Duty

Luminance control frequency

P$

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 11

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



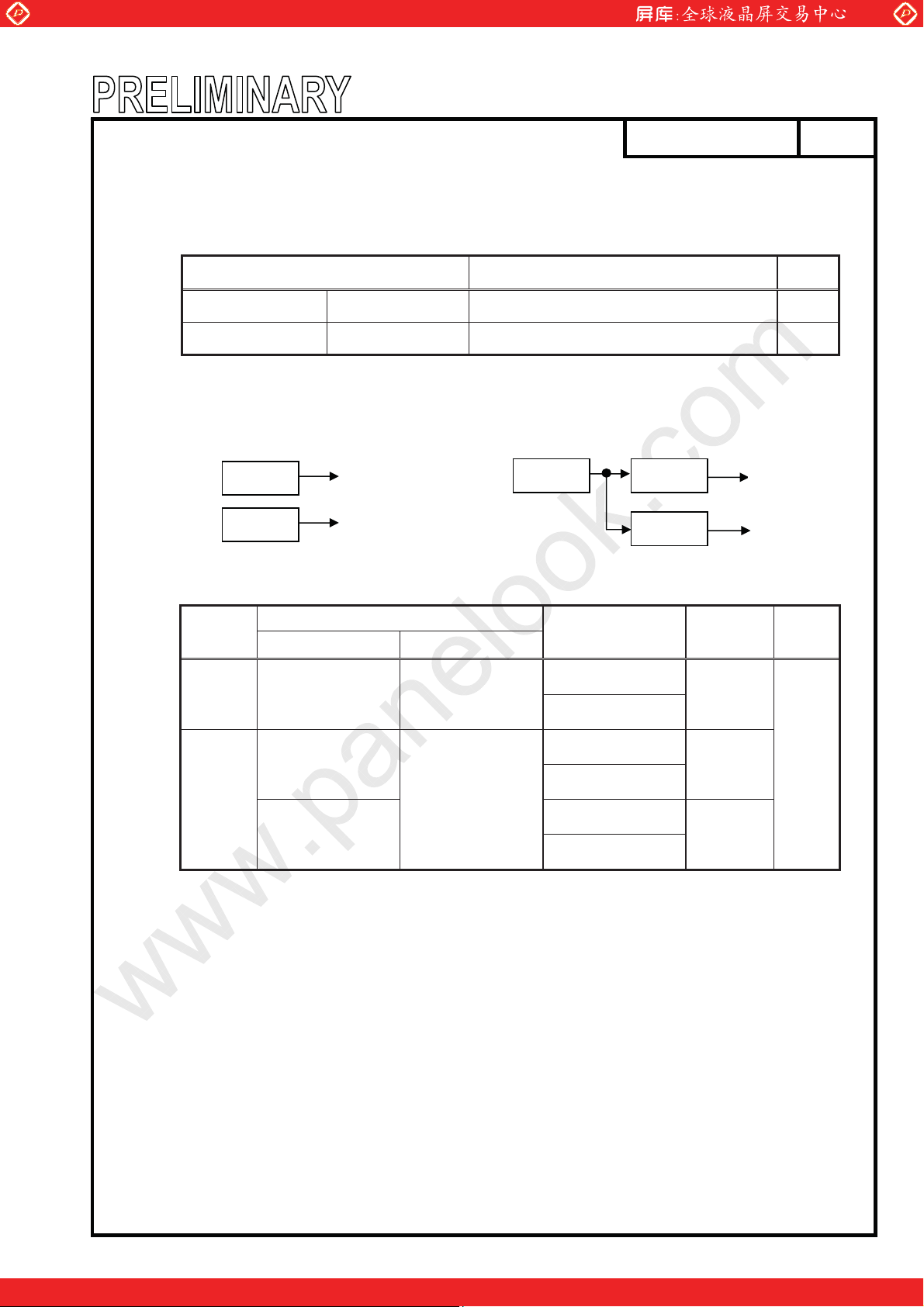

4.3.4 Power supply voltage ripple



This product works, even if the ripple voltage levels are beyond the permissible values as following

the table, but there might be noise on the display image.



VDD 12.0V

VDDB 12.0V

Note1: The permissible ripple voltage includes spike noise. Note2: The load variation influence does not include. 



Example of the power supply connection

a) Separate the power supply b) Put in the filter

Power

4.3.5 Fuse



Parameter

Power supply voltage

VDD

VDDB

Type  Supplier

Fuse

DOD-PP-1563

Ripple voltage Note1

(Measure at input terminal of power supply)

d 100

d 200

Power

Rating

Filter

Fusing current

11/45

Unit

mVp-p

VDD

VDDB

Remarks

VDD FCC16202AB

CCF1N10

VDDB

TF16AT5.00T

KAMAYA

ELECTRIC Co., Ltd.

KOA Corporation

2.0 A

32 V

10A

60V

5.0A

32V

4.0A, 5 seconds maximum

20 A, 1 seconds maximum

10 A, 5 seconds maximum

Note1

Note1: The power supply capacity should be more than the fusing current. If it is less than the

fusing current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may occur.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 12

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



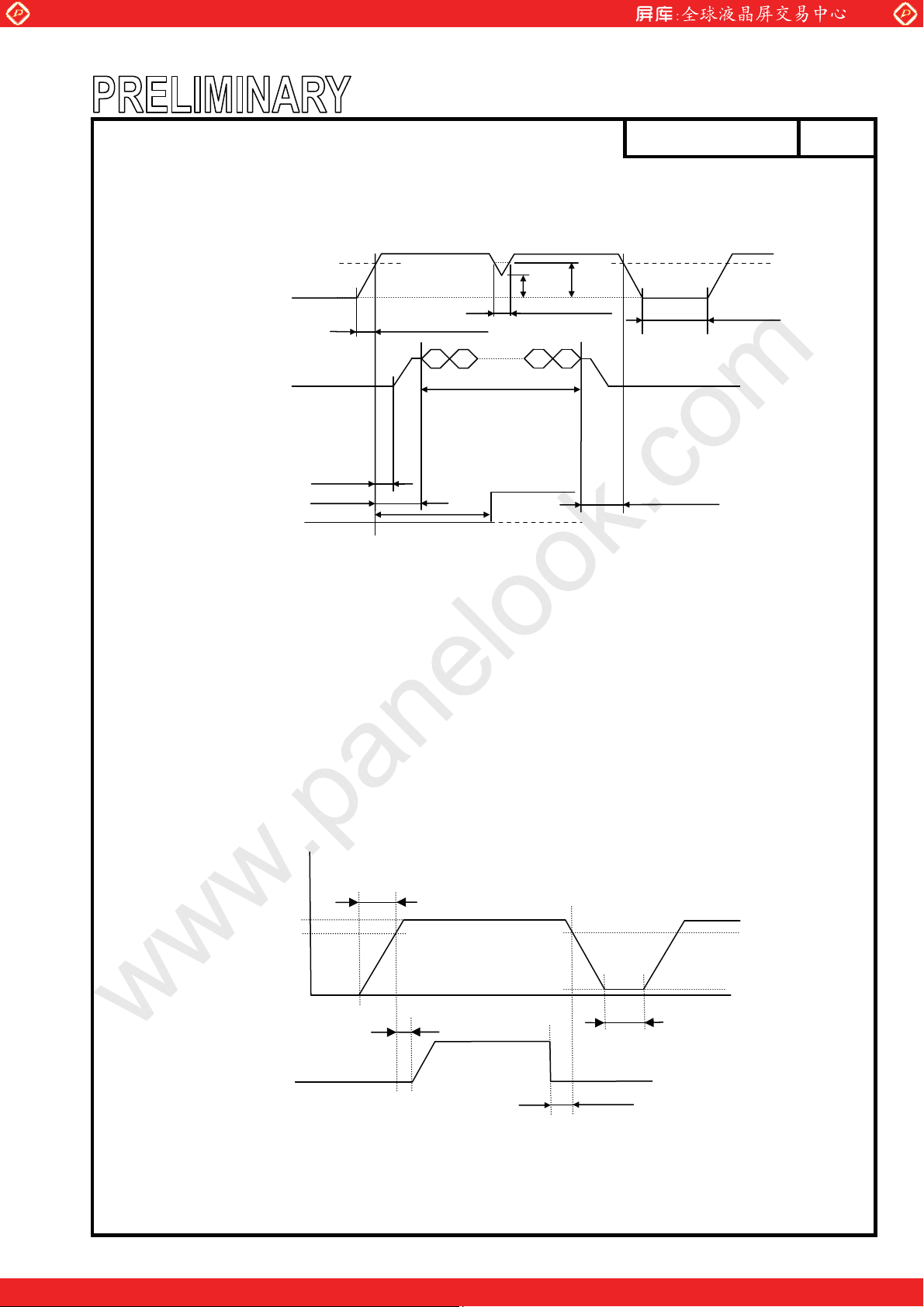

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

ON OFF ON



VDD Note1



10.8V

   

LVDS Signals *1,*2 Note2

    

t > 10ms

t> 10ms



*1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,

DB4+/-, CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-, DD2+/-, DD3+/-, DD4+/-, CKD+/-

*2: LVDS signals should be measured at the terminal of 100 : resistance.



Note1: If there is a voltage variation (voltage drop) at the rising edge of VCC below 10.8V, there is

a possibility that a product does not work due to a protection circuit.

Note2: LVDS signals must be set to Low or High-impedance, except the VALID period (See above

sequence diagram), in order to avoid the circuitry damage.

If some of signals are cut while this product is working, even if the signal input to it once

again, it might not work normally. If a customer stops the display and function signals, VDD also must be shut down.

Note3: The backlight should be turned on within the valid period of LVDS signals, in order to

avoid unstable data display.

0.1ms < Tr < 80ms

VALID period

t  450ms

10.8V

9.6V

VDD dip < 20ms

Display on screen

DOD-PP-1563

Toff > 200ms

0ms < t < 35ms

12/45

10.8V

4.4.2 LED driver board

  

VDDB

     

BRTC

  

Note1: The backlight should be turned on within the valid period of LVDS signals, in order to

Note2: If tr is more than 100 ms, the backlight will be turned off by a protection circuit for LED

Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

Voltage

0.1ms < tr

12.0V

11.4V

avoid unstable data display.

driver board.

d 100 ms

0ms < t

OFF

11.4V

Under than 1.2V

Time

200ms < t

0ms < t

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 13

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



DOD-PP-1563

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

CN1 socket (LCD module side): FI-RE51S-HF (Japan Aviation Electronics Industry Limited (JAE)) Adaptable plug: FI-RE51HL (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Signal Remarks

1 GND Ground 2 GND Ground 3 GND Ground

4 DA0-

5 DA0+

6 GND Ground Note1

7 DA18 DA1+

9 GND Ground Note1 10 DA211 DA2+ 12 GND Ground Note1 13 CKA14 CKA+ 15 GND Ground Note1 16 DA317 DA3+ 18 GND Ground Note1 19 DA420 DA4+ 21 GND Ground Note1 22 DB023 DB0+ 24 GND Ground Note1 25 DB126 DB1+ 27 GND Ground Note1 28 DB229 DB2+ 30 GND Ground Note1 31 CKB32 CKB+ 33 GND Ground Note1 34 DB335 DB3+ 36 GND Ground Note1 37 DB438 DB4+ 39 GND Ground Note1

Pixel data A0 LVDS differential data input Note2

Pixel data A1 LVDS differential data input Note2

Pixel data A2 LVDS differential data input Note2

Pixel clock A LVDS differential data input Note2

Pixel data A3 LVDS differential data input Note2

Pixel data A4 LVDS differential data input Note2

Pixel data B0 LVDS differential data input Note2

Pixel data B1 LVDS differential data input Note2

Pixel data B2 LVDS differential data input Note2

Pixel clock B LVDS differential data input Note2

Pixel data B3 LVDS differential data input Note2

Pixel data B4 LVDS differential data input Note2

Note1

13/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 14

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

40 GND Ground Note1 41 RSEV 42 RSEV - Keep this pin Open. 43 RSEV - Keep this pin Open. 44 RSEV - Keep this pin Open. 45 GND Ground Note1 46 GND 47 GND Ground Note1 48 RSEV - Keep this pin Open. 49 RSEV - Keep this pin Open. 50 RSEV

51 GND Ground Note1

Ground Note1

- Keep this pin Open.

Keep this pin Open.

DOD-PP-1563

14/45

CN1: Insert surface side

Connector

PCB

1 2 3 4  48 49 50 51

Note1: All GND terminals should be used without any non-connected lines. Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal

processing board and LVDS transmitter.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 15

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



DOD-PP-1563

15/45

CN2 socket (LCD module side): FI-RE41S-HF (Japan Aviation Electronics Industry Limited (JAE)) Adaptable plug: FI-RE41HL (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Signal Remarks

1 GND Ground

2 GND Ground

3 GND Ground

4 DC0-

5 DC0+

6 GND Ground Note1

7 DC1-

8 DC1+

9 GND Ground Note1 10 DC211 DC2+ 12 GND Ground Note1 13 CKC14 CKC+ 15 GND Ground Note1 16 DC317 DC3+ 18 GND Ground Note1 19 DC420 DC4+ 21 GND Ground Note1 22 DD023 DD0+ 24 GND Ground Note1 25 DD126 DD1+ 27 GND Ground Note1 28 DD229 DD2+ 30 GND Ground Note1 31 CKD32 CKD+ 33 GND Ground Note1 34 DD335 DD3+ 36 GND Ground Note1 37 DD438 DD4+ 39 GND Ground Note1 40 GND Ground Note1

41 GND Ground Note1

Pixel data C0 LVDS differential data input Note2

Pixel data C1 LVDS differential data input Note2

Pixel data C2 LVDS differential data input Note2

Pixel clock C LVDS differential data input Note2

Pixel data C3 LVDS differential data input Note2

Pixel data C4 LVDS differential data input Note2

Pixel data D0 LVDS differential data input Note2

Pixel data D1 LVDS differential data input Note2

Pixel data D2 LVDS differential data input Note2

Pixel clock D LVDS differential data input Note2

Pixel data D3 LVDS differential data input Note2

Pixel data D4 LVDS differential data input Note2

Note1

CN2: Insert surface side

Connector

PCB

1 2 3 4  38 39 40 41

Note1: All GND terminals should be used without any non-connected lines. Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal

processing board and LVDS transmitter.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 16

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

16/45

CN3 socket (LCD module side): IL-Z-12PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE)) Adaptable plug: IL-Z-12S S125C (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Function Description

1 VDD 2 VDD 3 VDD 4 VDD 5 VDD 6 VDD

7 GND 8 GND 9 GND

10 GND

11 GND

12 GND

Power supply Note1

Signal ground Note1

CN3: Insert surface side

Connector

PCB

12 11  2 1

Note1: All VDD and GND terminals should be used without any non-connected lines.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 17

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

17/45

4.5.2 LED driver board

CN201 socket (LCD module side): DF3Z-10P-2H (2) (HIROSE ELECTRIC Co,.Ltd.) Adaptable plug: DF3-10S-2C (HIROSE ELECTRIC Co,.Ltd.)

Pin No. Symbol Function Description

1 GNDB 2 GNDB 3 GNDB 4 GNDB 5 GNDB 6 VDDB 7 VDDB 8 VDDB 9 VDDB

10 VDDB

LED driver board ground Note1

Power supply Note1

Note1: All VDDB and GNDB terminals should be used without any non-connected lines.

CN202 socket (LCD module side): IL-Z-9PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE)) Adaptable plug: IL-Z-9S-S125C3 (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Function Description

1 GNDB 2 GNDB 3 N.C. - Keep this pin Open.

4 BRTC

5 BRTH 6 BRTI 7 BRTP BRTP signal 8 GNDB LED driver board ground Note1

9 PWSEL Selection of luminance control signal method

LED driver board ground Note1

Backlight ON/OFF control signal

Luminance control terminal

High or Open: Backlight ON Low Backlight OFF

Note2

Note2, Note3

Note1: All GNDB terminals should be used without any non-connected lines. Note2: See "4.6 LUMINANCE CONTROL ". Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 18

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

4.5.3 Positions of socket

                      

1 CN202 9

m Insert direction

10 CN201 1

LED driver board

Rear side

1 41

Insert

direction



CN2

1 51



CN1

Insert

direction

DOD-PP-1563

12 1



CN3

Insert

direction

18/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 19

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



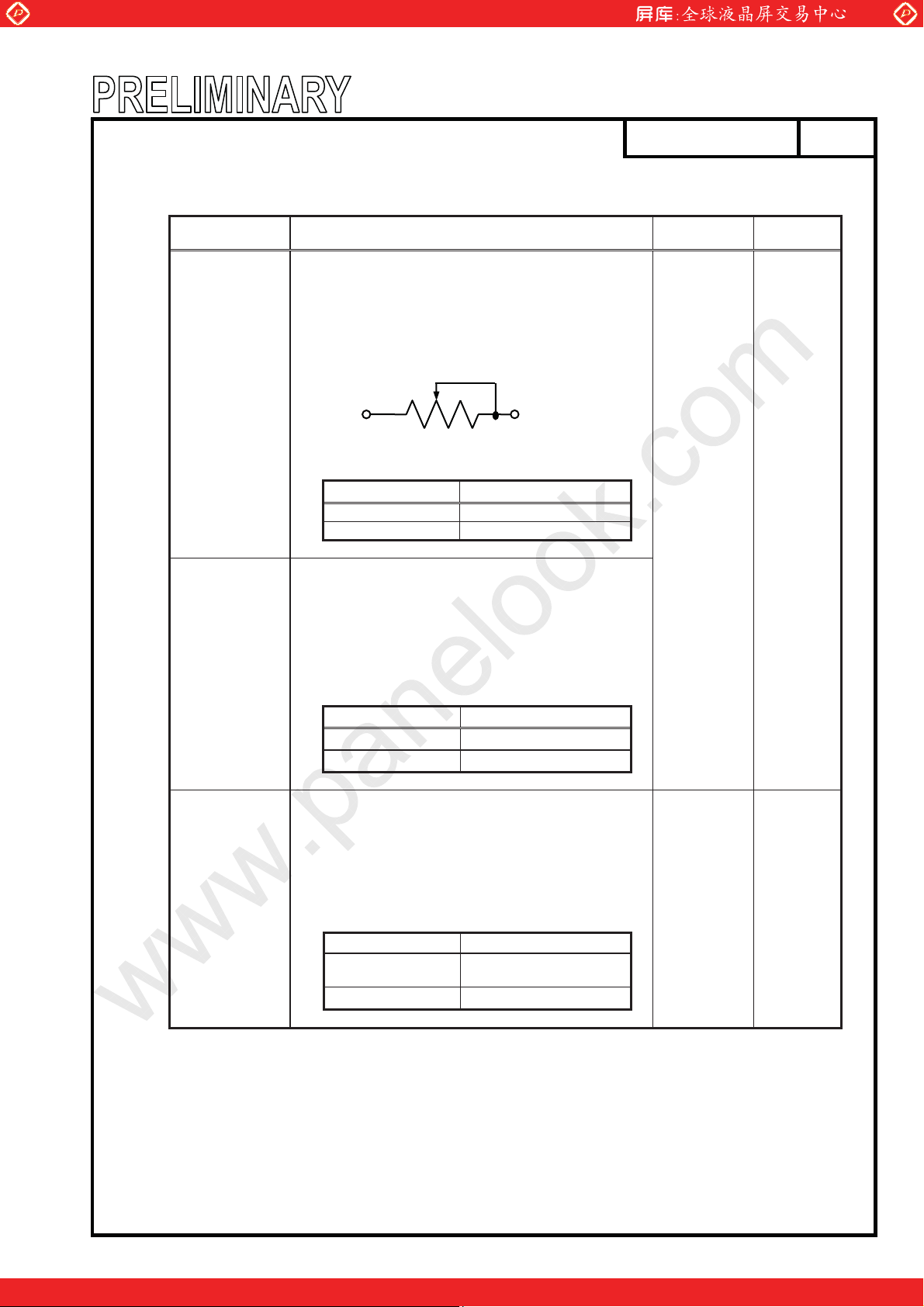

4.6 LUMINANCE CONTROL

4.6.1 Luminance control methods

Method Adjustment and luminance ratio

Variable resistor control

Note1

x Adjustment

The variable resistor (R) for luminance control should be 10k:r5%, 1/10W. Minimum point of the resistance is the minimum luminance and maximum point of the resistance is the maximum luminance. The resistor (R) must be connected between BRTH-BRTI terminals.

BRTH

x Luminance ratio Note3

Resistance Luminance ratio

x Adjustment

0 k:

10 k:

BRTI

0% (Min. Luminance)

100% (Max. Luminance)

DOD-PP-1563

PWSEL

terminal

High or Open Open

BRTP

terminal

19/45

Voltage control method works, when BRTH terminal is 0V and VBI voltage is input between BRTI-BRTH terminals. This control method can carry out continuation adjustment of

Voltage control

Note1

Pulse width modulation

Note1 Note2 Note4

luminance. Luminance is the maximum when BRTI terminal is Open

x Luminance ratio Note3

BRTI Voltage (VBI) Luminance ratio

0 V 0% (Min. Luminance)

1.0 V 100% (Max. Luminance)

x Adjustment

Pulse width modulation (PWM) method works, when PWSEL terminal is Low and PWM signal (BRTP signal) is input into BRTP terminal. The luminance is controlled by duty ratio of BRTP signal.

x Luminance ratio Note3

Duty ratio Luminance ratio

0.01

1.0 100% (Max. Luminance)

1% (Min. Luminance)

(At frequency: 325 Hz)

Low BRTP signal

Note1: In case of the variable resistor control method and the voltage control method, noises may appear

on the display image depending on the input signals timing for LCD panel signal processing board.

Use PWM method, if interference noises appear on the display image!

Note2: The LED driver board will stop working, if the Low period of BRTP signal is more than 50ms

while BRTC signal is High or Open. Then the backlight will not turn on anymore, even if BRTP signal is input again. This is not out of order. The LED driver board will start to work when power

is supplied again. Note3: These data are the target values. Note4: See "4.6.2 Detail of BRTP timing".

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 20

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



4.6.2 Detail of BRTP timing



(1) Timing diagrams

x Outline chart

BRTC

PWSEL (Low)

BRTP

x Detail of A part

VBPH

BRTP

VBPL

DOD-PP-1563

0ms ҇tPWL ҇50ms

0ms ҇tPWL ҇50ms 0ms ҇tPWL ҇50ms

20/45

(2) Each parameter

Parameter Symbol min. typ. max. Unit Remarks

PWM frequency f

PWM duty ratio DR

PWM pulse width tPWH 30 - -

Note1: Definition of parameters is as follows.

PWM

Note2: A recommended f

Note3: Depending on the frequency used, so noise may appear on the screen, please conduct a

thorough evaluation.

Note4: While the BRTC signal is high, do not set the tPWH (PWM pulse width) is less than

30Ps. It may cause abnormal working of the backlight. In this case, turn the backlight off and then on again by BRTC signal.

Note5: Regardless of the PWM frequency, both PWM duty ratio and PWM pulse width must be

always more than the minimum values.

tPW

tPWH

PWM

tPWH

DL=

PWM

tPW

value is as follows.

tPW

185 - 1,000 Hz Note1,2,3

1 - 100 % Note4,5

tPWL

2n-1

= u fv

PWM

(n= integer, fv= frame frequency of LCD module)

Note1,4,5

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 21

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

4.7 METHOD OF CONNECTION FOR LVDS TRANSMITTER



Transmitter Pin Assign Dual type LVDS Tx CN1

Single type

LVDS Tx

TE6 -

CLK CLK

THC63LVD1023B

odd

Pixel

data

even

Pixel

data

Bit mapping

LA4 TA0 R14 - LA5 TA1 R15 LA6 TA2 R16 LA7 TA3 R17 LA8 TA4 R18 LA9 TA5 R19 CA4 TA6 G14 CA5 TB0 G15 CA6 TB1 G16 CA7 TB2 G17 CA8 TB3 G18 CA9 TB4 G19 RA4 TB5 B14 RA5 TB6 B15 RA6 TC0 B16 RA7 TC1 B17 RA8 TC2 B18

RA9 TC3 B19 Hsync TC4 Hsync Vsync TC5 Vsync

DE TC6 DE LA2 TD0 R12 LA3 TD1 R13 CA2 TD2 G12 CA3 TD3 G13 RA2 TD4 B12 RA3 TD5 B13 N.C. TD6 - LA0 TE0 R10 LA1 TE1 R11 CA0 TE2 G10 CA1 TE3 G11 RA0 TE4 B10 RA1 TE5 B11 N.C.

CLK CLK CLK

LB4 TA0 R14 - LB5 TA1 R15 LB6 TA2 R16 LB7 TA3 R17 LB8 TA4 R18 LB9 TA5 R19 CB4 TA6 G14 CB5 TB0 G15 CB6 TB1 G16 CB7 TB2 G17 CB8 TB3 G18 CB9 TB4 G19 RB4 TB5 B14 RB5 TB6 B15 RB6 TC0 B16 RB7 TC1 B17 RB8 TC2 B18 RB9 TC3 B19

Hsync TC4 Hsync Vsync TC5 Vsync

DE TC6 DE LB2 TD0 R12 LB3 TD1 R13 CB2 TD2 G12 CB3 TD3 G13 RB2 TD4 B12 RB3 TD5 B13 N.C. TD6 - LB0 TE0 R10 LB1 TE1 R11 CB0 TE2 G10 CB1 TE3 G11 RB0 TE4 B10 RB1 TE5 B11 N.C. TE6 -

CLK

  

Thine

DOD-PP-1563

Output

Connector

ATA-  4 DA0-

ATA+  5 DA0+

ATB-  7 DA1-

ATB+  8 DA1+

ATC-  10 DA2-

ATC+  11 DA2+

ATD-  16 DA3-

ATD+  17 DA3+

AT E -

AT E +

ATCLK-  13 CKAATCLK+  14 CKA+

BTA-  22 DB0-

BTA+  23 DB0+

BTB-  25 DB1-

BTB+  26 DB1+

BTC-  28 DB2-

BTC+  29 DB2+

BTD-  34 DB3-

BTD+  35 DB3+

BTE-

BTE+

BTCLKBTCLK+

Pin No.



 

- -

19 DA4-

20 DA4+

- -

37 DB4-

38 DB4+

- -

31 CKB32 CKB+

21/45

Signal

Name

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 22

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



DOD-PP-1563

22/45



odd

Pixel

data

even

Pixel

data

Transmitter Pin Assign

Bit mapping

LC4 TA0 R14 - LC5 TA1 R15 LC6 TA2 R16 LC7 TA3 R17 LC8 TA4 R18 LC9 TA5 R19 CC4 TA6 G14 CC5 TB0 G15 CC6 TB1 G16 CC7 TB2 G17 CC8 TB3 G18 CC9 TB4 G19 RC4 TB5 B14 RC5 TB6 B15 RC6 TC0 B16 RC7 TC1 B17 RC8 TC2 B18 RC9 TC3 B19

Hsync TC4 Hsync Vsync TC5 Vsync

DE TC6 DE LC2 TD0 R12 LC3 TD1 R13 CC2 TD2 G12 CC3 TD3 G13 RC2 TD4 B12 RC3 TD5 B13 N.C. TD6 - LC0 TE0 R10 LC1 TE1 R11 CC0 TE2 G10 CC1 TE3 G11 RC0 TE4 B10 RC1 TE5 B11 N.C.

CLK CLK CLK

LD4 TA0 R14 - LD5 TA1 R15 LD6 TA2 R16 LD7 TA3 R17 LD8 TA4 R18 LD9 TA5 R19 CD4 TA6 G14 CD5 TB0 G15 CD6 TB1 G16 CD7 TB2 G17 CD8 TB3 G18 CD9 TB4 G19 RD4 TB5 B14 RD5 TB6 B15 RD6 TC0 B16 RD7 TC1 B17 RD8 TC2 B18 RD9 TC3 B19

Hsync TC4 Hsync Vsync TC5 Vsync

DE TC6 DE LD2 TD0 R12 LD3 TD1 R13 CD2 TD2 G12 CD3 TD3 G13 RD2 TD4 B12 RD3 TD5 B13 N.C. TD6 - LD0 TE0 R10 LD1 TE1 R11 CD0 TE2 G10 CD1 TE3 G11 RD0 TE4 B10 RD1 TE5 B11 N.C. TE6 -

CLK

Dual type LVDS Tx CN2

Single type

LVDS Tx

TE6 -

CLK CLK

Thine

THC63LVD1023B

Output

Connector

CTA-  4 DC0-

CTA+  5 DC0+

CTB-  7 DC1-

CTB+  8 DC1+

CTC-  10 DC2-

CTC+  11 DC2+

CTD-  16 DC3-

CTD+  17 DC3+

CTE-

CTE+

CTCLK-  13 CKCCTCLK+  14 CKC+

DTA- 

DTA+  23 DD0+

DTB-  25 DD1-

DTB+  26 DD1+

DTC-  28 DD2-

DTC+  29 DD2+

DTD-  34 DD3-

DTD+  35 DD3+

DTE-

DTE+

DTCLK-

DTCLK+

Pin No.



 

Signal

Name

- -

19 DC4-

20 DC4+

- -

37 DD4-

38 DD4+

- -

31 CKD32 CKD+

Note1: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 23

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



DOD-PP-1563

4.8 DISPLAY GRAYSCALE AND INPUT DATA SIGNALS

This product can display 1,024 gray scales in each LCR sub-pixel and 3,072 gray scales per 1 pixel. Also the relation between display gray scale and input data signals is as follows.

Data signal (0: Low level, 1: High level)

Display

gray scale

Left sub-pixel gray scale

Center sub-pixel gray scale

Right sub-pixel gray scale

LA9 LA8 LA7 LA6 LA5 LA4 LA3 LA2 LA1 LA0 CA9 CA8 CA7 CA6 CA5 CA4 CA3 CA2 CA1 CA0 RA9 RA8 RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0

LB9 LB8 LB7 LB6 LB5 LB4 LB3 LB2 LB1 LB0 CB9 CB8 CB7 CB6 CB5 CB4 CB3 CB2 CB1 CB0 RB9 RB8 RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0

LC9 LC8 LC7 LC6 LC5 LC4 LC3 LC2 LC1 LC0 CC9 CC8 CC7 CC6 CC5 CC4 CC3 CC2 CC1 CC0 RD9 RC8 RC7 RC6 RC5 RC4 RC3 RC2 RC1 RC0

LD9 LD8 LD7 LD6 LD5 LD4 LD3 LD2 LD1 LD0 CD9 CD8CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0 RD9 RD8 RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0

Black

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0

dark

n p

1 1 1 1 1 1 1 1 0 1

bright

: :

1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1

White

Black

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

dark

n p

0 0 0 0 0 0 0 0 0 0

bright

: :

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

White

Black

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

dark

n p

0 0 0 0 0 0 0 0 0 0

bright

: :

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

White

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0

: 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 1 0

: 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 0

1 1 1 1 1 1 1 1 1 1

23/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 24

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



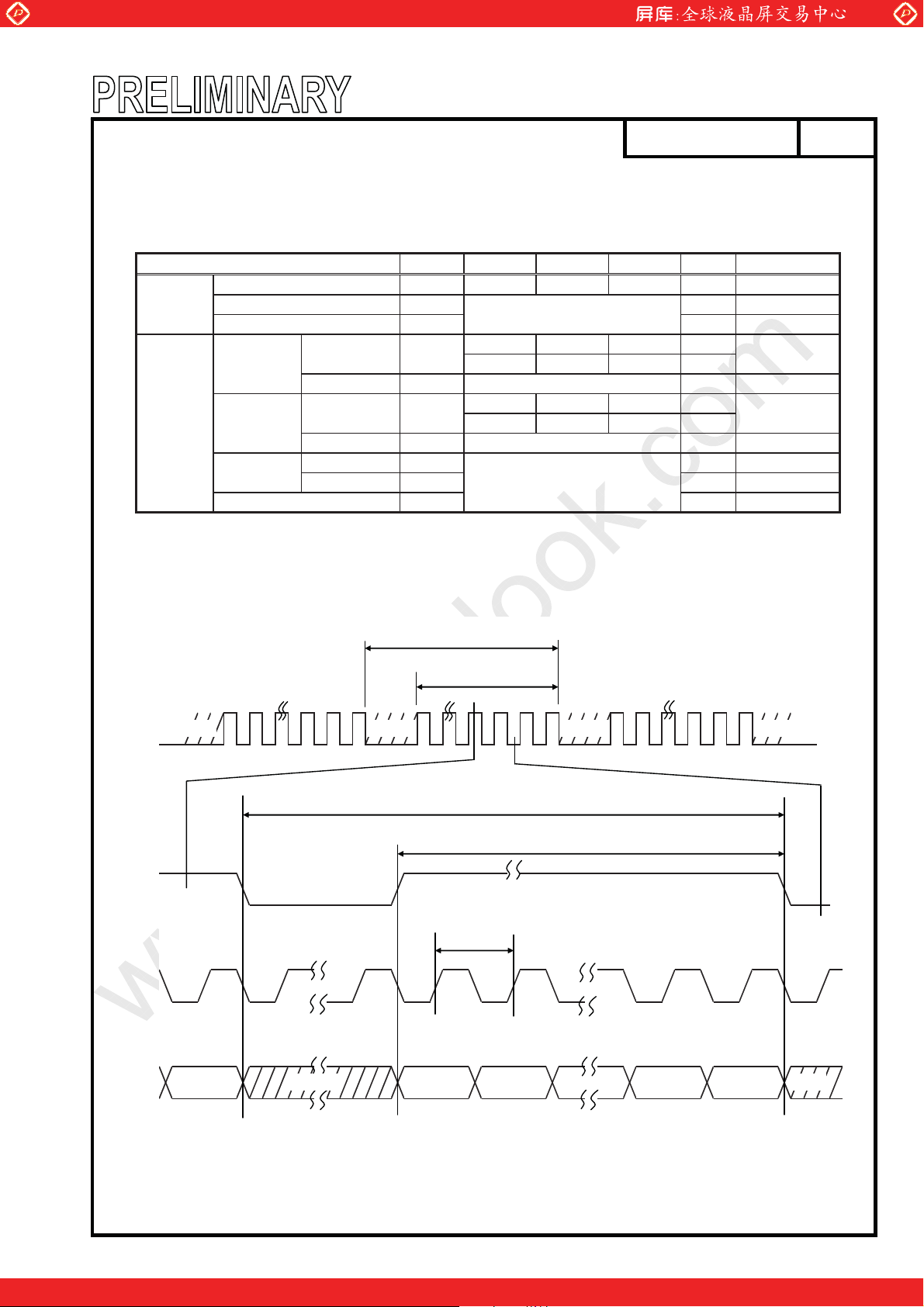

4.9 INPUT SIGNAL TIMINGS

4.9.1 Timing characteristics

fv=60Hz

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/ tc 60.0 65.0 66.0 MHz -

CLK

Duty - - -

Rise time, Fall time -

Horizontal

Vertical

CLK-DE

Rise time, Fall time -

Note1: During operation, fluctuation of horizontal cycle should be within r1 CLK.

 

4.9.2 Input signal timing chart

DOD-PP-1563

See the data sheet of LVDS transmitter.

Cycle th

Display period thd 512 CLK -

Cycle tv

Display period tvd 1536 H -

Setup time - ns -

Hold time - ns -

10.34 10.34 10.77

640 672 700 CLK

15.47 16.667 17.9 ms

1547 1612 1628 H

See the data sheet of LVDS transmitter.

ns Ps

96,72kHz(typ.) Note1

60.0Hz(typ.)

ns -

24/45

CLK

DATA (A), (B), (C), (D)

Invalid Invalid Invalid Invalid

tvd = 1,536H (fixed)

thd = 512CLK (fixed)

InvalidInvalid

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 25

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



4.10 LVDS DATA TARANSMISSION METHOD

LA(9:0)

Pixel Data A

CA(9:0) RA(9:0)

D0 (9:0)

Pixel Data B

LB(9:0) CB(9:0) RB(9:0)

D1 (9:0) D3 (9:0)

LC(9:0)

Pixel Data C

CC(9:0) RC(9:0)

D1024 (9:0)

Pixel Data D

LD(9:0) CD(9:0) RD(9:0)

D1025 (9:0)

D2 (9:0)

D1026 (9:0)

D1027 (9:0)

DOD-PP-1563

D4 (9:0)

D5 (9:0)

D1028 (9:0)

D1029 (9:0)

25/45

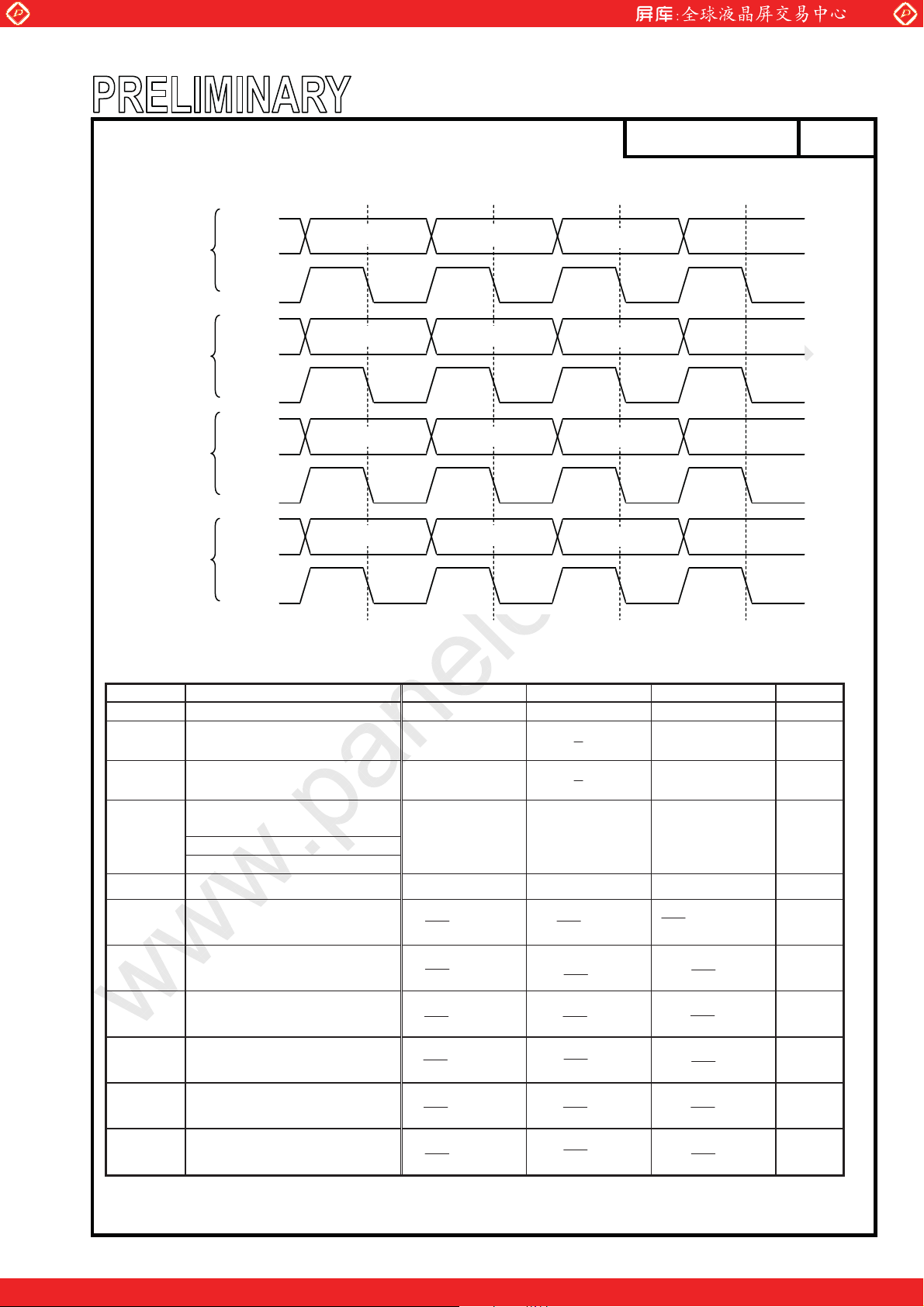

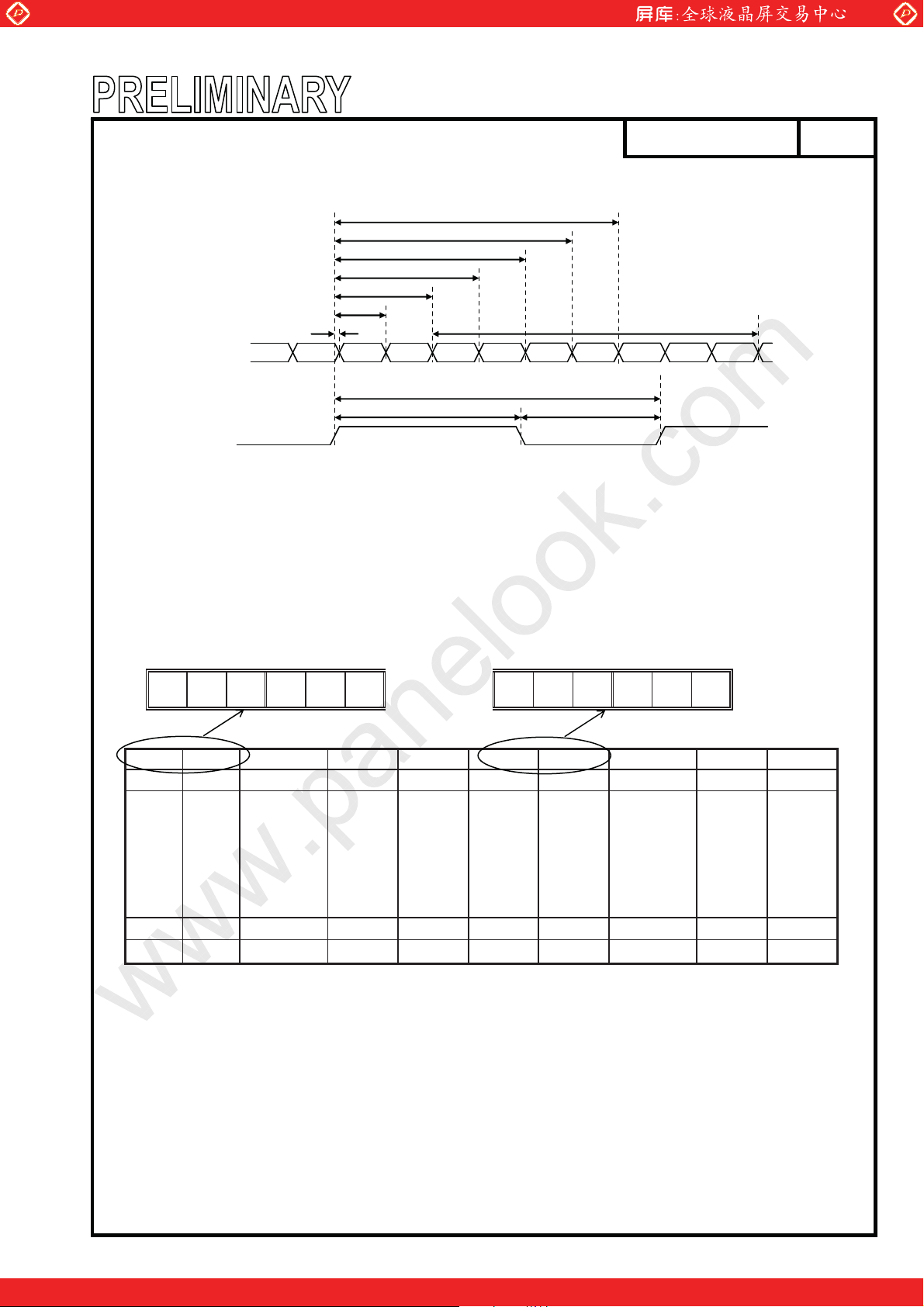

4.11 LVDS Rx AC SPEC

Symbol Parameter min. typ. max. Units

RCLKx_P Period 11.76 - 40.0 ns

RCIP

RCLKx_P High pulse width -

RCIH

RCLKx_P Low pulse width -

RCIL

RCIPt

Receiver Data Input Margin

RMG

fCLKIN= 60MHz fCLKIN= 65MHz

-0.65 - 0.65 ns

fCLKIN= 66MHz

Input Data Position0 -| t

RIP1

RCIP

Input Data Position1

RIP0

Input Data Position2 ns

RIP6

Input Data Position3 ns

RIP5

Input Data Position4 ns

RIP4

| 0.0 +| t

RMG

|t|

RMG



|t|

RMG

2

|t|

RMG

3

|t|

RMG

4

RCIP

- ns

| ns

RMG

RCIP

|t|

RMG



RCIP

|t|

RMG

2

||t

RMG

3

|t|

RMG

4

RCIP

Input Data Position5 ns

RIP3

Input Data Position6 ns

RIP2

RCIP

||t

RMG

5

||t

RMG

6

RCIP

5

6

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

||t

RMG

||t

RMG

www.panelook.com

Page 26

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

RAx_P/N RBx_P/N RCx_P/N RDx_P/N

Rex_P/N

RCLKx_P

tRIP1

4.12 DISPLAY POSITION

Odd pixel: LA,LC = Left data Even pixel: LB,LD = Left data CA,CC = Center data CB,CD = Center data RA,RC = Right data RB,RD = Right data

tRIP0

tRIP6

tRIP5

tRCIH

tRIP4

tRIP3

D<6>

tRIP2

D<5> D<4> D<3> D<2> D<1>’ D<0>’

tRCIP

tRCIL

DOD-PP-1563

Current Cycle

D<1> D<0>

26/45



1, 1535 2, 1535

1, 1536 2, 1536

 

D (1, 1) D (2, 1) D (1025, 1) D (1026, 1)

LA CA RA LB CB RB LC CC RC LD CD RD

1, 1 2, 1

1, 2 2, 2

x x x

xxx xxx

x x x

xxx xxx

1023, 1 1024, 1 1025, 1 1026, 1

1023, 2 1024, 2 1025, 2 1026, 2

x x x

1023, 1535 1024, 1535 1025, 1535 1026, 1535

1023, 1536 1024, 1536 1025, 1536 1026, 1536

x x x

xxx xxx

x x x

xxx xxx

2047, 1535 2048, 1535

2047, 1536 2048, 1536

2047, 1 2048, 1

2047, 2 2048, 2

x x x

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 27

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



4.13 PIXEL ARRANGNMENT

1 2 2,048

L C R L C R

• • • • • •

1,536

L C R L C R • • • • • • • L C R

• • • • • • •

DOD-PP-1563

LC R

•• •

27/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 28

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

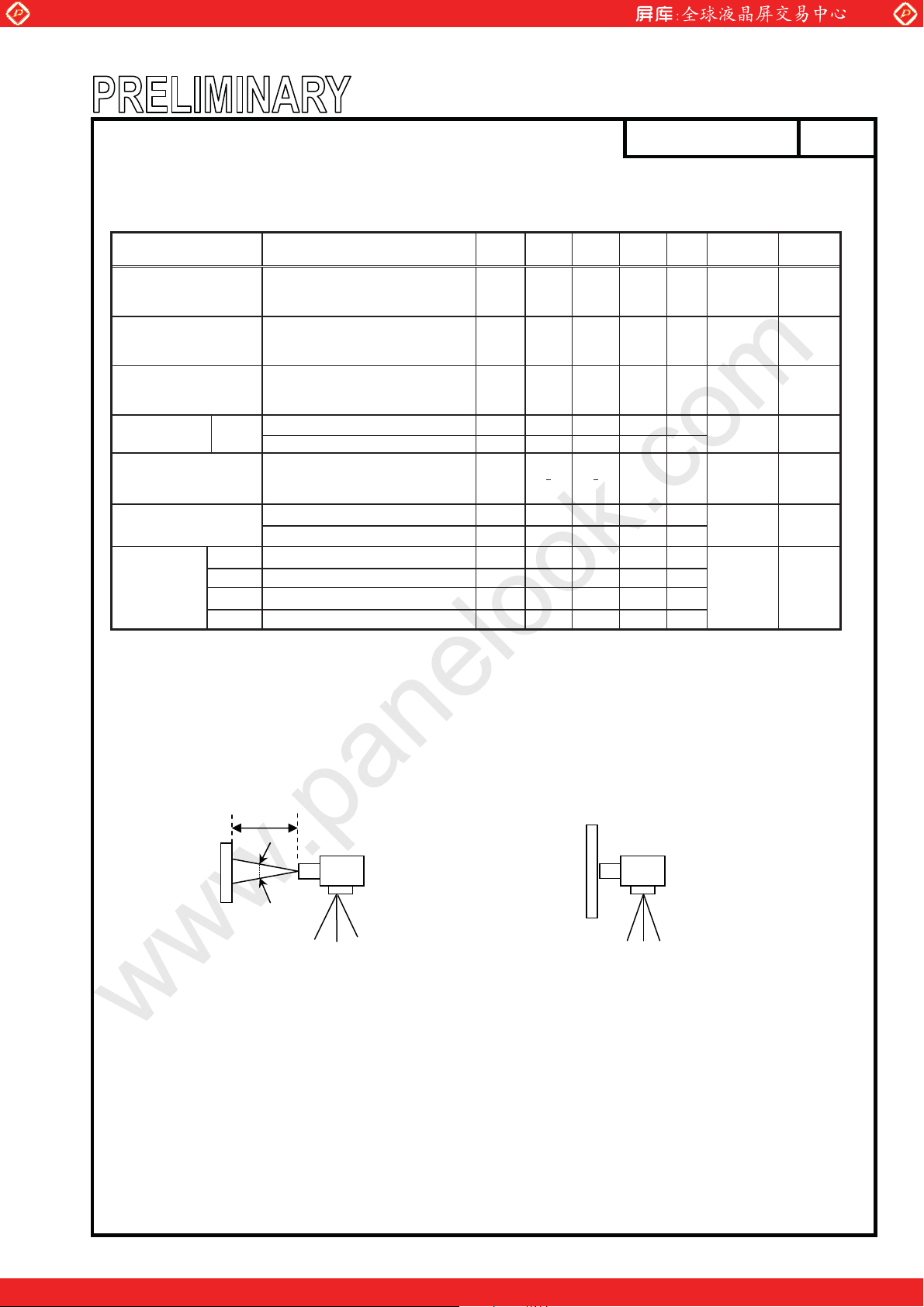

4.14 OPTICS

4.14.1 Optical characteristics (Note1, Note2)

Parameter Condition Symbol min. typ. max. Unit

Luminance

Contrast ratio

Luminance uniformity

Chromaticity White

Color uniformity

Response time

Right

Viewing

angle

Left

Down

TR= 0q, TL= 0q, TU= 0q, TD= 0q

TR= 0q, TL= 0q,TU= 0q, TD=

White at center

White/Black at center

1023/1023 gray scale

x coordinate Wx 0.269 0.299 0.329 y coordinate Wy 0.285 0.315 0.345 -

818/1023 gray scale

0q

Black to White Ton - 20 30 ms

White to Black Toff - 20 30 ms

TU= 0qޔTD= 0qޔCR t 10 TU= 0qޔTD= 0qޔCR t 10

TR= 0qޔTL= 0qޔCR t 10 TR= 0qޔTL= 0qޔCR t 10

L 1,250 1,700 - cd/m

CR 1,000 1,400 - -

LU1023 80 - - %

u’v’ -

TL TU TD

- 0.01 - SR-3

70 88 -

Note1: These are initial characteristics. Note2: Measurement conditions are as follows.

Ta= 25

qC, VDD= 12.0V, VDDB= 12.0V, PWM: Duty 100%, Display mode: QXGA,

Horizontal cycle= 1/96.72 kHz, Vertical cycle= 1/60.0 Hz

Measuring instrument

BM-5A

SR-3

BM-5A

SR-3

BM-5A

SR-3

BM-5A Note9

BM-5A

q q q

Contrast

28/45

Remarks

Note3

Note3 Note5

Note4 Note6

Note3 Note8

Note4 Note7

Note3

Note10

Optical characteristics are measured at luminance saturation 20minutes after the product works in the dark room. Also measurement methods are as follows.

50cm

Photodetector (BM-5A, BM-5A-10000

or SR-3)

LCD module

(Product)

Note3: Product surface temperature at the maximum luminance control: TopF = 29qC Note4: Product surface temperature at 450cd/m

LCD module

(Product)

luminance control: TopF = 27qC

Photodetector (EZ Contrast)

Temperature difference in display area: 10qC

Note5: See "4.14.2 Definition of contrast ratio". Note6: See "4.14.3 Definition of luminance uniformity". Note7: See "4.14.4 Definition of color uniformity". Note8: These coordinates are found on CIE 1931 chromaticity diagram. Note9: See "4.14.5 Definition of response times". Note10: See "4.14.6 Definition of viewing angles".

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 29

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

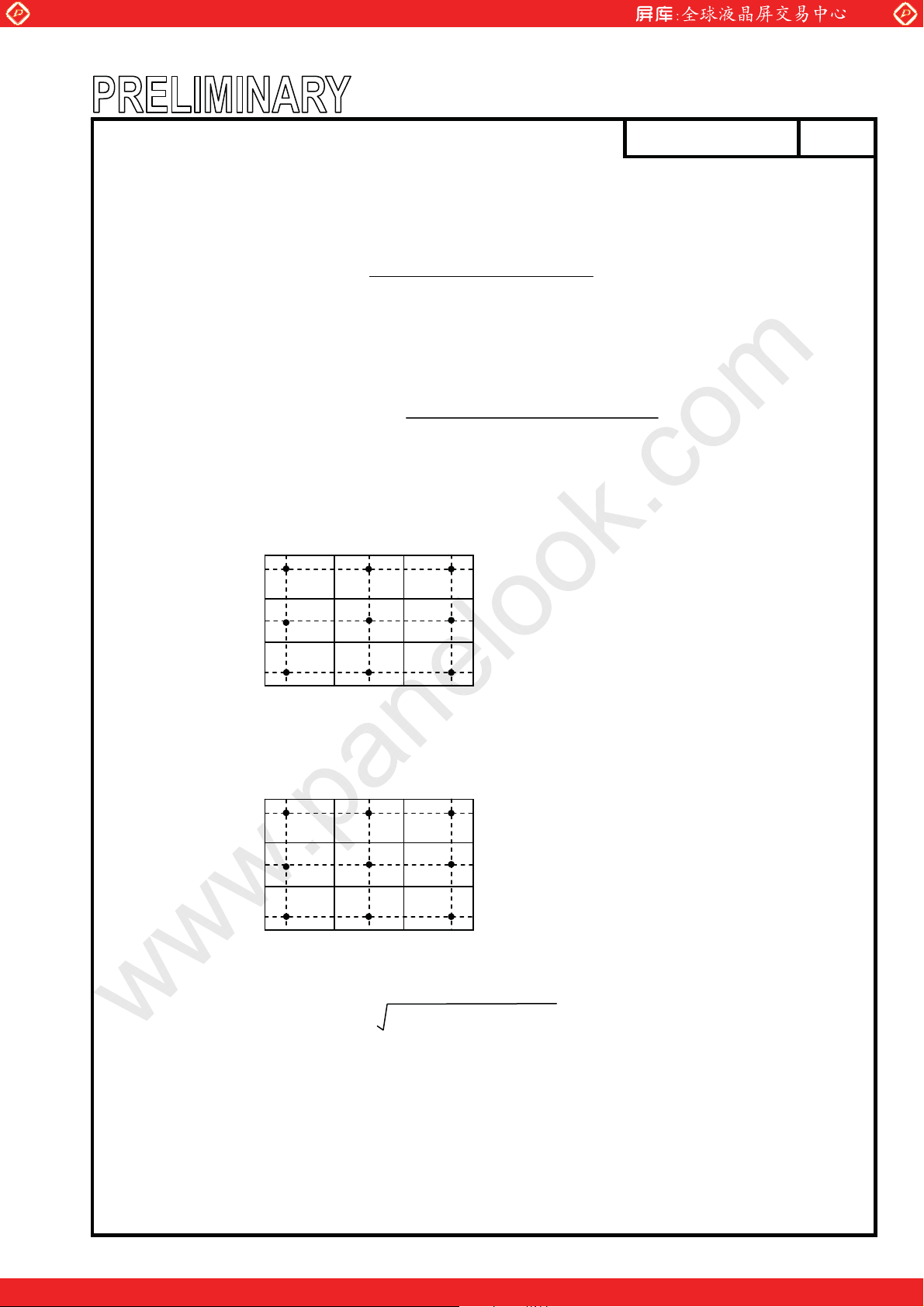

4.14.2 Definition of contrast ratio



The contrast ratio is calculated by using the following formula.

 

Contrast ratio (CR) =



4.14.3 Definition of luminance uniformity



The luminance uniformity is calculated by using following formula.



Luminance uniformity (LUxx) =



xx: 1023 gray scale.



The luminance is measured at near the 9 points shown below.

153

204

཰

      

768

1,382

ཱི

ྲྀ



4.14.4 Definition of color uniformity

Luminance of white screen Luminance of black screen

Minimum luminance from ཰ Maximum luminance from ཰

1,024

ཱ

ུ

ཷ

1,843

ི

ཱུ

ླྀ

DOD-PP-1563

to ླྀ

to ླྀ

29/45

The color (u', v') is measured at near the 9 points shown below



204 1,024

1,843

 

153

཰

ཱ

ི

   

768

1,382

ཱི

ྲྀ

ུ

ཷ

ཱུ

ླྀ

The color uniformity in each measuring point is calculated by using the following formula.

Color uniformity(u’v’)= (u’

, v’x: u’, v’ value at measuring point x.

u’

, v’y: u’, v’ value at measuring point y.

u’

- u’y)2+ (v’x - v’y)

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 30

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

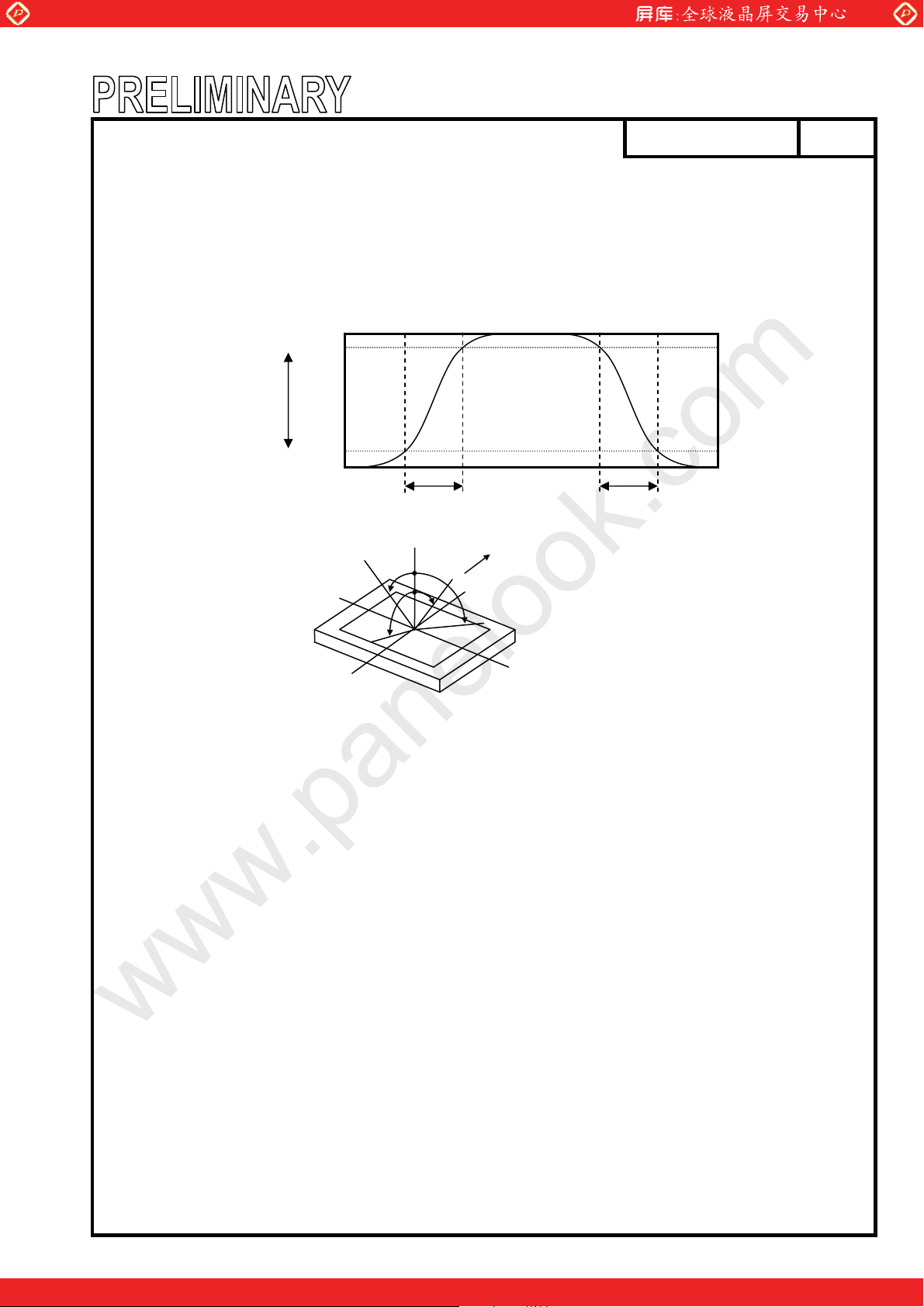

4.14.5 Definition of response times

Response time is measured at the time when the luminance changes from "black" to "white", or "white" to "black" on the same screen point, by photo-detector. Ton is the time when the luminance changes from 10% up to 90%. Also Toff is the time when the luminance changes from 90% down to 10% (See the following diagram.). Product surface temperature at the maximum luminance control: TopF= 35qC

   

White

 

Luminance

 

Black

 

4.14.6 Definition of viewing angles

       

100%

90%

10%

ormal axis (Perpendicular)

Left

Lower

Ton

Upper

12 o’clock

Right

DOD-PP-1563

Tof f

30/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 31

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



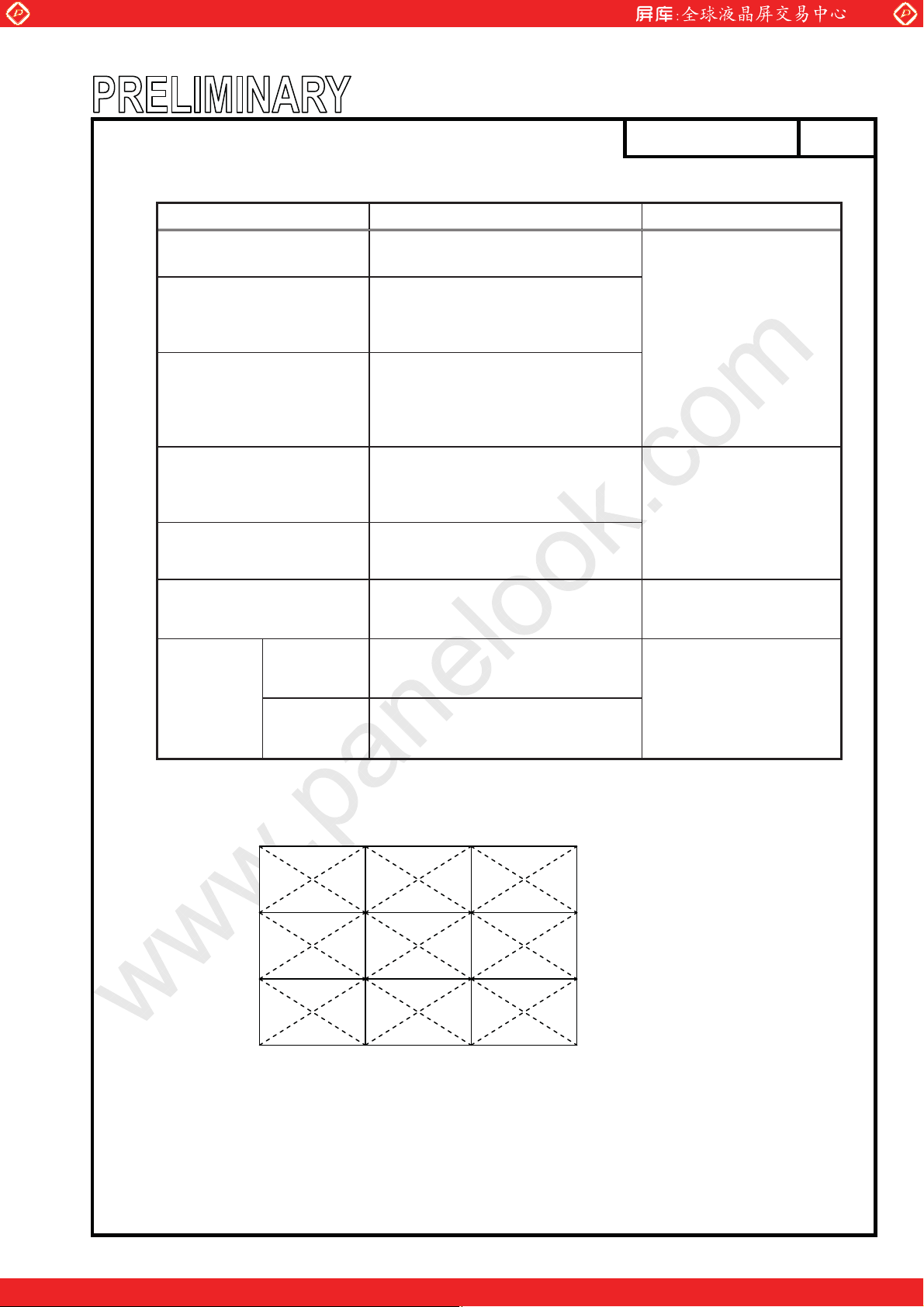

4.15 DEFECT CRITERIA



4.15.1 Display specifications

Defect pattern Condition Criteria Remarks

Line defect - 0 line -

Bright dots

Dark dots

Note4

Close defect dots

Total Bright dots + Dark dots 20dots -

1pixel

L, C, R

DOD-PP-1563

(Note1)

Full bright dots Note2 1 dot -

Single defect dot 15dots -

Half bright dots

Note3

Single defect dot 15dots -

Linked defect dots (D = 0 mm)

Close 2 same color bright dot Distance between each bright

1 sub pixel

Linked defect dots (D = 0 mm)

Note5

2 defect dots 1set Note6

3 defect dots or more 0 set Note7

2 defect dots 8set Note6

3 -5 defect dots 1set Note7

dots 6.5mm

L, C, R 4 sets each

Note8

31/45

Note1: Inspection conditions are as follows.

Temperature

Inspection viewing distance 20 cm (The distance between the inspector's eye and screen.)

Inspection direction

Inspection illumination 60 lx (at a display surface)

Luminance 400cd/m

Note2: Definition of full bright dot

The full bright dot can be recognized at 160/255 gray scale in full screen in spite of bright dot size.

Note3: Definition of half bright dot

The half bright dot can be recognized at 60/255 gray scale in full screen and the defect area is larger than 1/3 of a sub-pixel.

Note4: Definition of dark dot

The dark dot can be recognized at 400cd/m sub-pixel.

Note5: D is the distance between defect dots.

25 r 5 qC

0qdTR d 20q, 0qdTL d 20q

0qdTU d 20q

and the defect area is larger than 1/3 of a

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 32

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

Note6: Linked 2 dots

L C

L C R

C R

R L

DOD-PP-1563

Counted as NG

The following combinations are also counted.

L C R

C R

32/45

Not counted

Combinations of bright and dark dots Combinations other than linked 2 defect dots

L C

L C R

C R

R L

Etc.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 33

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

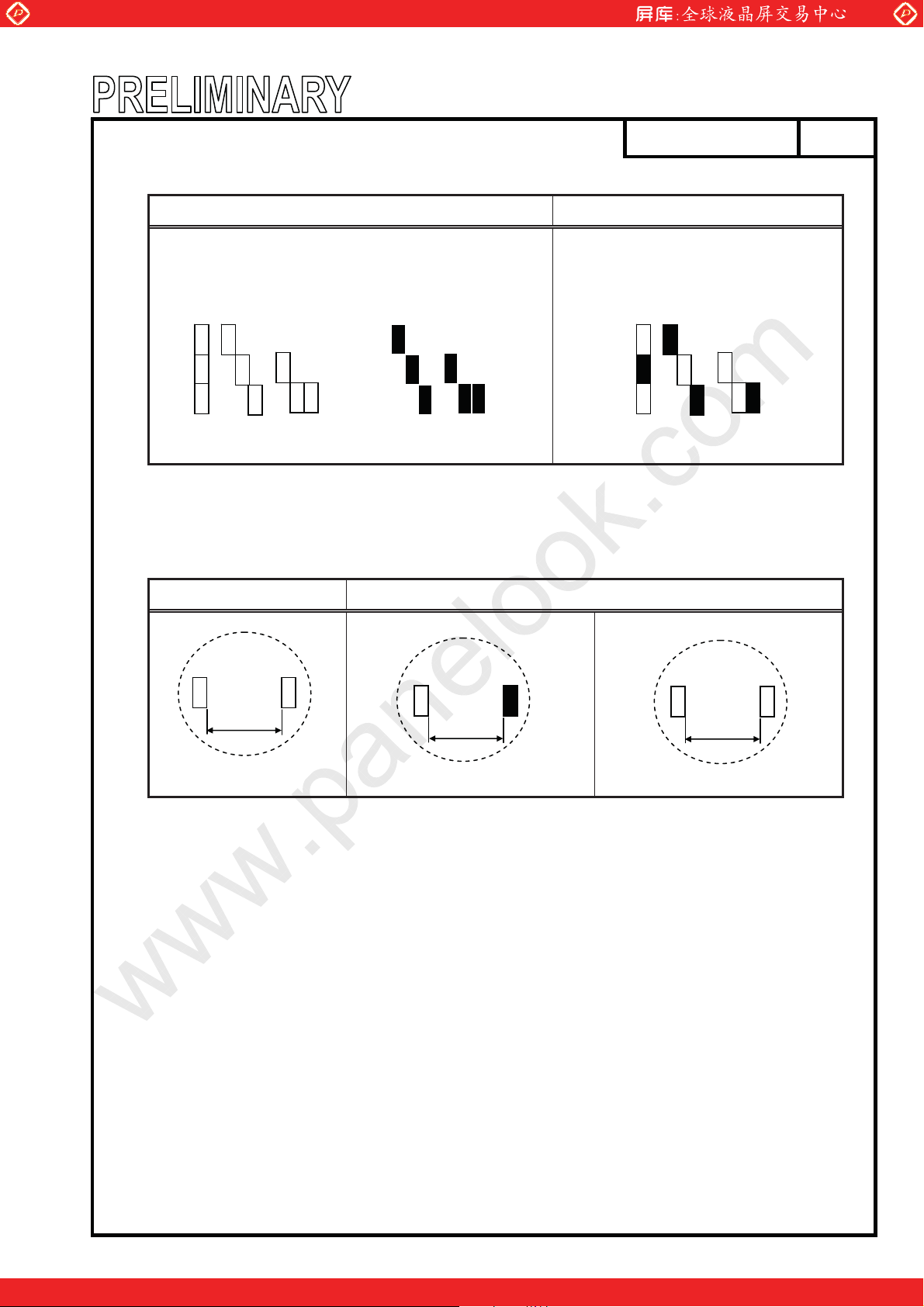

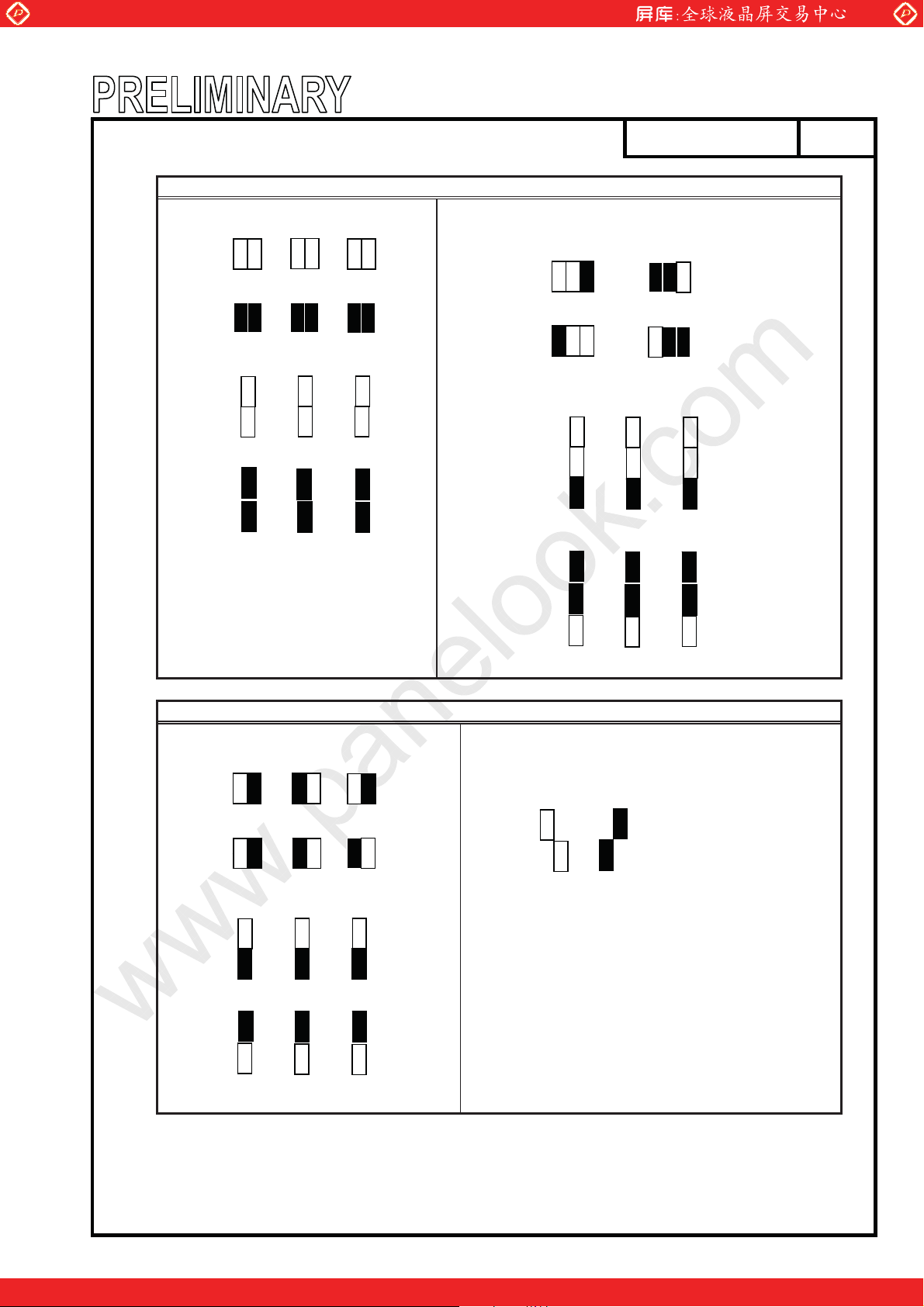

Note7: Linked 3-5 dots

Note8: Close 2 same color bright dots

Counted as NG Not counted

All of dots are bright dots and dark dots (The Defect criteria for linked 4 or 5 dots are under discussion.)

Etc.

Counted as NG Not counted

Combinations of bright and dark dots Combinations of different color dots

Etc.

DOD-PP-1563

Combinations of bright and dark dots

Etc.

33/45

6.5mm

L C

6.5mm

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 34

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

 

4.15.2 Appearance specifications

Defect pattern Condition Note1 Criteria

Impure ingredient

Stains

Dust

Bubbles, Wrinkles, Dent

Panel dent

Polarizer scratch

Shape Specified label must be put. There must not be a missing part.

Note1: Definition of symbols is as follows.

d: Average diameter

(This diameter is the average length of a long axis and a short axis in each defect pattern.)

Width, L: Length, S: Area

Dot shape

Line shape

d <0.2mm Allowed

0.2 mm d d < 0.3 mm d 10 points

0.3 mm d d d 0.5 mm d 3 points

d > 0.5mm

Linked impure ingredient

W < 0.05 mm

0.05 mm d W d 0.1 mm

W > 0.1 mm

d d0.2mm

0.2 mm < d d 0.5 mm d 2 points

d > 0.5mm 0 point

d d0.2mm

0.2 mm < d ҇ 0.5 mm

d > 0.5mm 0 point

S d 0.2 mm

S > 0.2 mm

DOD-PP-1563

L < 0.7 mm

0.7 mmd L d 1.0 mm d 4 points

L > 1.0 mm

0 point

Allowed

d 2 points

Allowed

34/45

0 point

Note2: Inspection conditions are as follows.

Temperature

Inspection viewing distance 20cm (The distance between the inspector's eye and screen.)

Inspection direction

Illumination 700 lx (at an inspection desk surface)

25 r 5 qC

0qdTR d 45q, 0qdTL d 45q

0qdTU d 45q, 0qdTD d 45q

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 35

Global LCD Panel Exchange Center



www.panelook.com

NLT Technologies Confidential and Proprietary



5. ESTIMATED LUMINANCE LIFETIME

The luminance lifetime is the time from initial luminance to half-luminance.

This lifetime is the estimated value, and is not guarantee value.

Condition

25qC (Ambient temperature of the product)

Continuous operation, PWM: Duty 100%

LED elementary

substance

60qC (Temperature of the product front or rear panel)

Continuous operation, PWM: Duty 100%

Note1: Life time expectancy is mean time to half-luminance. Note2: Estimated luminance lifetime is not the value for an LCD module but the value for LED

elementary substance.

Note3: By ambient temperature, the lifetime changes particularly. Especially, in case the product

works under high temperature environment, the lifetime becomes short.

 

6. PRODUCT INSPECTIONS

DOD-PP-1563

Estimated luminance lifetime

(Life time expectancy)

Note1, Note2, Note3

70,000

60,000

35/45

Unit

The following inspections are carried out for products, before shipment

(1) 100% inspection

x Power supply current x Display x Appearance

(2) Sampling inspection

x White luminance x Contrast ratio x Luminance uniformity

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 36

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary



RELIABILITY TESTS



High temperature and humidity

Thermal shock

(Non operation)

Mechanical shock

(Non operation)

Low pressure

Note1: Display and appearance are checked under environmental conditions equivalent to the

inspection conditions of defect criteria. Note2: Luminance: 450cd/m Note3: See the following figure for discharge points

DOD-PP-1563

Test item Condition Judgment Note1

཰ 60 r 2qC, RH= 60%, 240hours

(Operation)

Heat cycle

(Operation)

Vibration

ESD

(Operation)

Non-operation

Operation

ཱ Display data is white. Note2 ཰ 0 r 3qC 1hour

60 r 3qC 1hour

ཱ 50cycles, 4hours/cycle ི Display data is white. Note2 ཰ -20 r 3qC 30minutes

60 r 3qC 30minutes

ཱ 100cycles, 1hour/cycle ི Temperature transition time is within 5

minutes.

཰ 5 to 100Hz, 11.76m/s ཱ 1 minute/cycle ི X, Y, Z directions ཱི 10 times each directions ཰ 294m/s ཱ X, Y, Z directions ི 3 times each directions

཰ 150pF, 150:, r10kV ཱ 9 places on a panel surface Note3 ི 10 times each places at 1 sec interval

཰ 15 kPa (Equivalent to altitude 13,600m) ཱ -20qCr3qC 24 hours ི +60qCr3qC 24 hours

཰ 53.3kPa (Equivalent to altitude 5,100m) ཱ 0qCr3qC 24 hours ི +60qCr3qC 24 hours Note2

at luminance control.

, 11ms

No display malfunctions

No display malfunctions No physical damages

No display malfunctions

36/45

 

{{

{

  

{

  

{

   



NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 37

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

8. MARKINGS

The various markings are attached to this product. See "11 OUTLINE DRAWINGS" for attachment

positions.

8.1 NAMEPLATE LABEL

Nameplate label

Note1 Lot number

Type name

Panel number

Inspection date

Company emblem

MODEL: NL204153AM21-24A

LOT : A3210036 PANEL:

*************

**.**.**/

MADE IN JAPAN

Country of manufacture

Note2

Note1: The meaning of lot number

x Example: A3210036

A 3 2 10036

Revision

1 letter

(Alphabet)

Manufacturing year

1 figure of the A.D. end

numbers

(e.g.: A.D 2013 is 3.)

Manufacturing month

1 letter

Jan. to Sep.: Number of month

October: A

November: B

December: C

Production number

Multi-letter

37/45

Note2: Do not attach anything such as label and so on, on the nameplate! In case repair the product,

NLT needs the contents of nameplate such as the lot number, inspection date and so on, to identify the warranty period with individual product. If NLT cannot decipher the contents of nameplate, such repair shall be entitled to charge. Also NLT may give a new lot number to repair products.

8.2 BARCODE LABEL

Barcode label

Barcode

*************

(Label code: 39)

Panel number Note1

Note1: The same panel number is given to barcode label and nameplate label.

8.3 OTHER MARKINGS

Material information marking for diffuser

Material Information

Light Guide >PMMA<

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 38

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

9. PACKING, TRANSPORTATION AND DELIVERY

NLT will pack products to deliver to customer in accordance with NLT's packing specifications, and will deliver products to customer in such a condition that products will not suffer from a damage during transportation. The delivery conditions are as follows.

9.1 PACKING BOX

(1) Inner packing box

5 products are packed as the maximum in an inner packing box (See "9.5 OUTLINE FIGURE FOR PACKING"). The type name and quantity are shown on outside of the inner packing box, either labeling or printing. In case the inner packing box with products is dropped from a height of 40cm or more, there is a risk of damage to products.

In case of shipping the product out of Japan, the product must not be transported only with the inner box, because there is a high risk of damage. Be sure to use an outer packing box which is shown below!

(2) Outer packing box

The inner box with products is packed in an outer packing box A or an outer packing box B (See "9.5 OUTLINE FIGURE FOR PACKING"). The type name and quantity are shown on outside of the outer packing box, either labeling or printing. In case the outer packing box with products is dropped from a height of 40cm or more, there is a risk of damage to products.

38/45

Outer packing box is used only when shipping the product out of Japan.

9.2 INSPECTION RECORD SHEET

Inspection record sheets are included in an inner packing box with products. It is summarized to a number of products for pass/fail assessment.

9.3 TRANSPORTATION

The product is transported by vehicle, aircraft or ship.

9.4 SIZE AND WEIGHT FOR PACKING BOXES

Parameter

Size

Weight 2.5 (typ.) 1.9 (typ.) kg

Total weight

Inner packing box Outer packing box

364(W) u 524(H) u 619(D) (typ.) 397(W) u 576(H) u 647(D) (typ.)

16.0 (typ.)

(with 5 products)

Packing box type

17.9 (typ.)

(with an inner packing box and 5 products)

Unit

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 39

Global LCD Panel Exchange Center

(

)

www.panelook.com

NLT Technologies Confidential and Proprietary

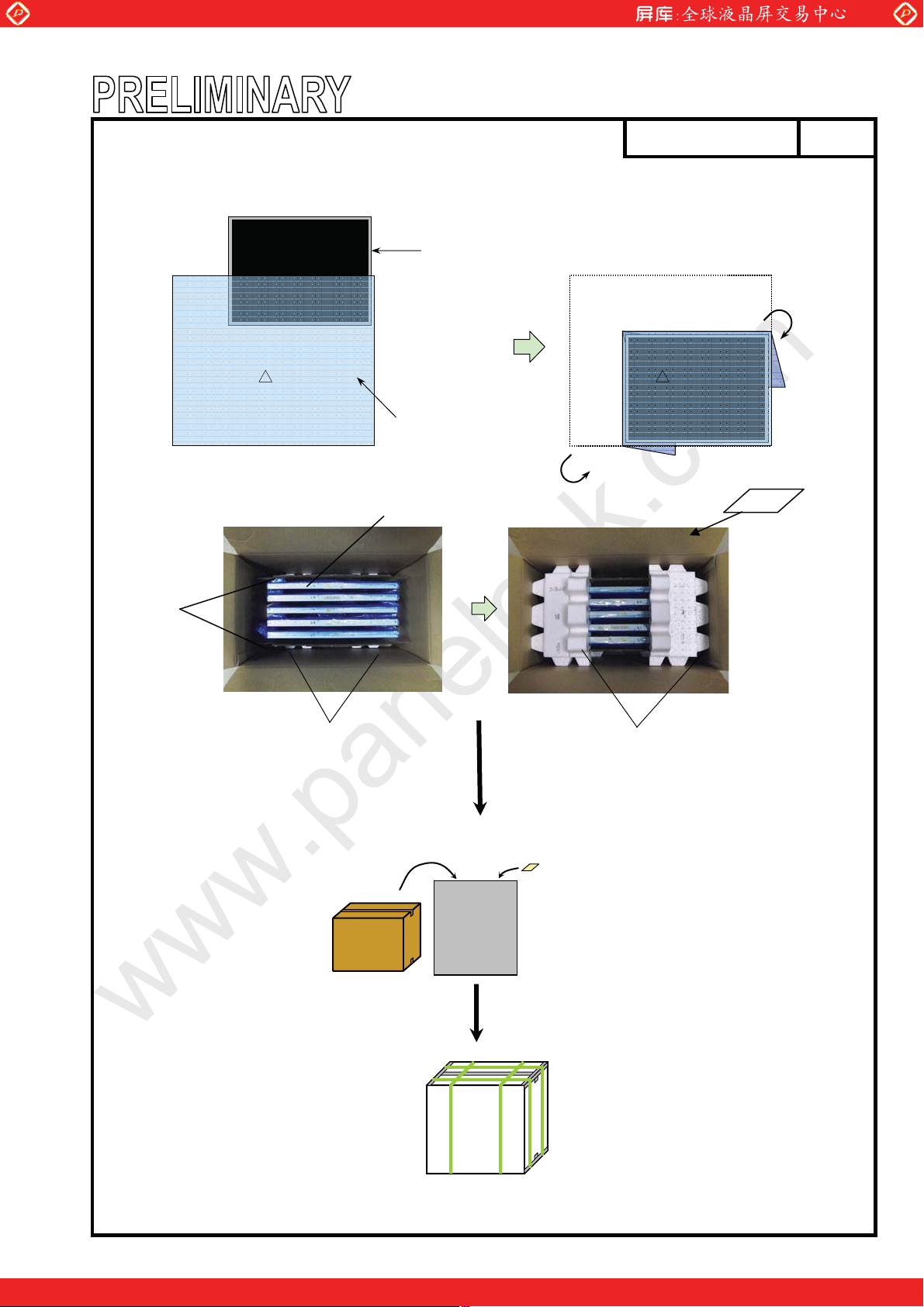

9.5 OUTLINE FIGURE FOR PACKING

ATTENTI

1$5'48'

(14

ELECTROS

SENSIT

DEVI

㕒㔚᳇

LCD module

LCD module (Product)

Antistatic pouch

DOD-PP-1563

ATTENTI

1$5'48'

(14

ELECTROS

SENSIT

DEVI

㕒㔚᳇

Handling manual Inspection record shee.

39/45

Partition board

Inner packing box

Carton box

Inner pad

Overseas delivery

Moisture absorber

Bag for moisture absorber

Outer packing box A

(Carton box)

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 40

Global LCD Panel Exchange Center



www.panelook.com

NLT Technologies Confidential and Proprietary

10. PRECAUTIONS

10.1 MEANING OF CAUTION SIGNS

The following caution signs have very important meaning. Be sure to read "10.2 CAUTIONS" and

"10.3 ATTENTIONS"!

This sign has the meaning that a customer will be injured or the product will sustain

damage if the customer practices wrong operations.

This sign has the meaning that a customer will be injured if the customer practices wrong

operations.

10.2 CAUTIONS

Do not shock and press the LCD panel and the backlight! There is a danger of breaking,

because they are made of glass. (Shock: Equal to or no greater than 294m/s or no greater than 11ms, Pressure: Equal to or no greater than 19.6N (

DOD-PP-1563

and equal to

16mm jig))

40/45

10.3 ATTENTIONS

10.3.1 Handling of the product

཰ Take hold of both ends without touching the circuit board when the product (LCD module) is picked

up from inner packing box to avoid broken down or misadjustment, because of stress to mounting parts on the circuit board.

ཱ Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage. ི When the product is put on the table temporarily, display surface must be placed downward. ཱི When handling the product, take the measures of electrostatic discharge with such as earth band, ionic

shower and so on, because the product may be damaged by electrostatic.

ུ The torque for product mounting screws must never exceed 0.735Nm. Higher torque might result in

distortion of the bezel. And the length of product mounting screws must be d 5.0mm.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 41

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

㩷

DOD-PP-1563

41/45

㩷

ཱུ The product must be installed using mounting holes without undue stress such as bends or twist (See

outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or twist described above and undue stress to any portion may cause display mura. Recommended installing method: Ideal plane "A" is defined by one mounting hole (datum point) and other mounting holes. The ideal plane "A" should be the same plane within r0.3 mm.

 

Mounting hole

  

Product

 

Ideal plane "A"

    

Mounting hole (Datum point) Mounting hole



ྲྀ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it with

a soft dry cloth.

ཷ Do not push or pull the interface connectors while the product is working. ླྀ When handling the product, use of an original protection sheet on the product surface (polarizer) is

recommended for protection of product surface. Adhesive type protection sheet may change color or characteristics of the polarizer.

ཹ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of

thin layer and the construction of LCD panel. But, if you contact with liquid crystal by any chance, please wash it away with soap and water.

10.3.2 Environment

཰ Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases.

Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and sunlight, when storing the product.

ཱ In order to prevent dew condensation occurred by temperature difference, the product packing box

must be opened after enough time being left under the environment of an unpacking room. Evaluate the storage time sufficiently because dew condensation is affected by the environmental temperature and humidity. (Recommended leaving time: 6 hours or more with the original packing state after a customer receives the package)

ི Do not operate in high magnetic field. If not, circuit boards may be broken. ཱི This product is not designed as radiation hardened.

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 42

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

10.3.3 Characteristics

The following items are neither defects nor failures.



཰ Response time, luminance and color may be changed by ambient temperature. ཱ Display mura, flickering, vertical streams or tiny spots may be observed depending on display

patterns.

ི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

saver, if the fixed pattern is displayed on the screen.

ཱི The display color may be changed depending on viewing angle because of the use of condenser sheet

in the backlight.

ུ Optical characteristics may be changed depending on input signal timings.

10.3.4 Others

཰ All GND, GNDB, VDD and VDDB terminals should be used without any non-connected lines. ཱ Do not disassemble a product or adjust variable resistors. ི Pack the product with the original shipping package, in order to avoid any damages during

transportation, when returning the product to NLT for repairing and so on.

ཱི The LCD module by itself or integrated into end product should be packed and transported with

display in the vertical position. Otherwise the display characteristics may be degraded.

DOD-PP-1563

42/45

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 43

Global LCD Panel Exchange Center

43/45

www.panelook.com

DOD-PP-1563

NLT Technologies Confidential and Proprietary

(Unit: mm)

NLT Technologies, Ltd.

r0.5mm.

Note1: Not shown tolerances of the dimensions are

Note2: The torque for product mounting screws must never exceed 0.735Nm.

Note3: The length of product mounting screws from surface of plate must be d 5.0mm.

Note4: The values in parentheses are for reference.

11.1 FRONT VIEW

11. OUTLINE DRAWINGS

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 44

Global LCD Panel Exchange Center

44/45

DOD-PP-1563

NLT Technologies Confidential and Proprietary

www.panelook.com

(Unit: mm)

NLT Technologies, Ltd.

r0.5mm.

Note1: Not shown tolerances of the dimensions are

Note2: The torque for product mounting screws must never exceed 0.735Nm.

Note3: The values in parentheses are for reference.

Note4: The length of product mounting screws from surface of plate must be d 5.0mm.

11.2 REAR VIEW

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Page 45

Global LCD Panel Exchange Center

www.panelook.com

NLT Technologies Confidential and Proprietary

DOD-PP-1563

45/45

REVISION HISTORY

The inside of latest specifications is revised to the clerical error and the major improvement of previous edition. Only a changed part such as functions, characteristic value and so on that may affect a design of customers, are described especially below.

Edition

1st

edition

Prepared

date

Feb. 1, 2013

Revision contents

New issue

Signature of writer

Approved by

K. FUJIMOTO

Revision contents and signature

Checked by

Prepared by

E. YOSHIMURA

Issued

date

NLT Technologies, Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
