NL204153AC21-22
54cm (21.3 Type)
QXGA
LVDS interface (4 ports)
PRELIMINARY DATA SHEET
DOD-PP-1507 (1st edition)
All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.
Document Number: DOD-PP-1507 (1st edition)
Published date: October 2012 CP (N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
¤ NLT Technologies, Ltd.
2012 All rights reserved.
www.panelook.com
Page 2
Global LCD Panel Exchange Center
The Copyright to this document belongs to NLT Technologies, Ltd. (hereinafter called "NLT"). No part of
this document will be used, reproduced or copied without prior written consent of NLT.
NLT does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products described
herein except for that directly attributable to mechanisms and workmanship thereof. No license, express or
implied, is granted under any patent, copyright or other intellectual property right of NLT.
Some electronic products would fail or malfunction at a certain rate. In spite of every effort to enhance
reliability of products by NLT, the possibility of failures and malfunction might not be avoided entirely. To
prevent the risks of damage to death, human bodily injury or other property arising out thereof or in
connection therewith, each customer is required to take sufficient measures in its safety designs and plans
including, but not limited to, redundant system, fire-containment and anti-failure.
www.panelook.com
NL204153AC21-22
INTRODUCTION
The products are classified into three grades: "Standard", "Special", and "Specific".
Each quality grade is designed for applications described below. Any customer who intends to use a
product for application other than that of Standard is required to contact an NLT sales representative in
advance.
The Standard: Applications as any failure, malfunction or error of the products are free from any damage
to death, human bodily injury or other property (Products Safety Issue) and not related the safety of the
public (Social Issues), like general electric devices.
Examples: Office equipment, audio and visual equipment, communication equipment, test and
measurement equipment, personal electronic equipment, home electronic appliances, car
navigation system (with no vehicle control functions), seat entertainment monitor for vehicles
and airplanes, fish finder (except marine radar integrated type), PDA, etc.
The Special: Applications as any failure, malfunction or error of the products might directly cause any
damage to death, human bodily injury or other property (Products Safety Issue) and the safety of the public
(Social Issues) and required high level reliability by conventional wisdom.
Examples: Vehicle/train/ship control system, traffic signals system, traffic information control system, air
traffic control system, surgery/operation equipment monitor, disaster/crime prevention system,
etc.
The Specific: Applications as any failure, malfunction or error of the products might severe cause any
damage to death, human bodily injury or other property (Products Safety Issue) and the safety of the public
(Social Issues) and developed, designed and manufactured in accordance with the standards or quality
assurance program designated by the customer who requires extremely high level reliability and quality.
Examples: Aerospace system (except seat entertainment monitor), nuclear control system, life support
system, etc.
The quality grade of this product is the "Standard" unless otherwise specified in this document.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Page 3
Global LCD Panel Exchange Center
INTRODUCTION ....................................................................................................................................2
1. OUTLINE..............................................................................................................................................4
1.1 STRUCTURE AND PRINCIPLE.....................................................................................................4
1.2 APPLICATION................................................................................................................................. 4
1.3 FEATURES.......................................................................................................................................
2. GENERAL SPECIFICATIONS ..........................................................................................................5
3. BLOCK DIAGRAM ............................................................................................................................. 6
4. DETAILED SPECIFICATIONS .........................................................................................................
4.1 MECHANICAL SPECIFICATIONS................................................................................................7
4.2 ABSOLUTE MAXIMUM RATINGS ..............................................................................................7
4.3 ELECTRICAL CHARACTERISTICS.............................................................................................
4.3.1 LCD panel signal processing board ........................................................................................... 8
4.3.2 LED Driver board ......................................................................................................................9
4.3.3 LED Driver board current wave.................................................................................................
4.3.4 Power supply voltage ripple.......................................................................................................10
4.3.5 Fuse............................................................................................................................................10
4.4 POWER SUPPLY VOLTAGE SEQUENCE ....................................................................................
4.4.1 LCD panel signal processing board ........................................................................................... 11
4.4.2 LED driver board .......................................................................................................................12
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.....................................................
4.5.1 LCD panel signal processing board ........................................................................................... 13
4.5.2 LED driver board .......................................................................................................................16
4.5.3 Positions of socket .....................................................................................................................
4.6 LUMINANCE CONTROL............................................................................................................... 18
4.6.1 Luminance control methods.......................................................................................................18
4.6.2 Detail of BRTP timing ...............................................................................................................19
4.7 METHOD OF CONNE
4.8 DISPLAY COLORS AND INPUT DATA SIGNALS ......................................................................22
4.9 INPUT SIGNAL TIMINGS..............................................................................................................
4.9.1 Timing characteristics ................................................................................................................23
4.9.2 Input signal timing chart ............................................................................................................ 23
4.10 LVDS DATA TARANSMISSION METHOD ................................................................................
4.11 DISPLAY POSITIONS...................................................................................................................24
4.12 PIXEL ARRANGNMENT .............................................................................................................25
4.13 OPTICS...........................................................................................................................................
4.13.1 Optical characteristics..............................................................................................................26
4.13.2 Definition of contrast ratio.......................................................................................................27
4.13.3 Definition of luminance uniformity.........................................................................................
4.13.4 Definition of response times .................................................................................................... 27
4.13.5 Definition of viewing angles.................................................................................................... 28
5. ESTIMATED LUMINANCE LIFETIME..........................................................................................
6. RELIABILITY TESTS.........................................................................................................................29
7. PRECAUTIONS ...................................................................................................................................30
7.1 MEANING OF CAUTION SIGNS ..................................................................................................
7.2 CAUTIONS ......................................................................................................................................30
7.3 ATTENTIONS ..................................................................................................................................30
7.3.1 Handling of the product .............................................................................................................
7.3.2 Environment...............................................................................................................................31
7.3.3 Characteristics............................................................................................................................ 32
7.3.4 Others.........................................................................................................................................
8. OUTLINE DRAWINGS.......................................................................................................................33
8.1 FRONT
8.2 REAR VIEW ....................................................................................................................................
VIEW .................................................................................................................................. 33
www.panelook.com
NL204153AC21-22
CONTENTS
4
7
8
9
11
13
17
CTION FOR LVDS TRANSMITTER........................................................ 20
23
24
26
27
28
30
30
32
34
REVISION HISTORY .............................................................................................................................35
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Page 4
Global LCD Panel Exchange Center
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL204153AC21-22 is composed of the amorphous silicon thin film transistor
liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT
array glass substrate and a color-filter glass substrate.
Color data signals from a host system (e.g. signal generator, etc.) are modulated into best form for
active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual
TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.
www.panelook.com
NL204153AC21-22
1.2 APPLICATION
x Color monitor system
1.3 FEATURES
x Ultra-wide viewing angle (Adoption of Ultra-Advanced Super Fine TFT (UA-SFT))
x Wide color gamut
x High luminance
x High contrast
x Low reflection
x 1,024 gray scale in each R, G, B sub-pixel (10-bit), 1,073,741,824 colors
x LVDS interface
x Selectable LVDS data input map
x Small foot print
x Long life LED backlight type with an LED driver board
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Page 5
Global LCD Panel Exchange Center
2. GENERAL SPECIFICATIONS
www.panelook.com
NL204153AC21-22
Display area
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Sub-pixel pitch
Pixel pitch
Module size
Weig ht
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
Polarizer pencil-hardness
433.152 (H) u 324.864 (V) mm
54cm (21.3 inches)
a-Si TFT active matrix
1,073,741,824 colors
2,048 (H) u 1,536 (V) pixels (1 pixel consists of 3 sub-pixels (RGB).)
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.0705 (H) u 0.2115 (V) mm
0.2115 (H) u 0.2115 (V) mm
457.0 (W) u 350.0 (H) u 21.5 (D) mm (typ.)
2,700g (typ.)
1,400:1 (typ.)
At the contrast ratio t 10:1
x Horizontal: Right side 88q (typ.), Left side 88q (typ.)
x Vertical: Up side 88q (typ.), Down side 88q (typ.)
Viewing angle with optimum grayscale (JลDICOM): normal axis
(perpendicular) Note1
Antiglare
2H (min.) [by JIS K5600]
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
At LCD panel center
72 % (typ.) [against NTSC color space]
Ton+Toff (10%
40ms (typ.)
At the maximum luminance control
800cd/m
4 ports LVDS interface.
(Characteristics of AC receiver THC63LVD104Su2pcs, THine Electronics,
Inc. or equivalent)
[RGB 10-bit signals, Data enable signal (DE), Dot clock (CK)]
LCD panel signal processing board: 12.0V
LED driver board: 12.0V
2
LED backlight type with LED driver board
At checkered flag pattern, the maximum luminance control
58W (typ.)
Note1: When the product luminance is 450cd/m
(typ.)
mo
90%)
2
, the gamma characteristic is designed to JลDICOM.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Page 6
Global LCD Panel Exchange Center
/
/
N

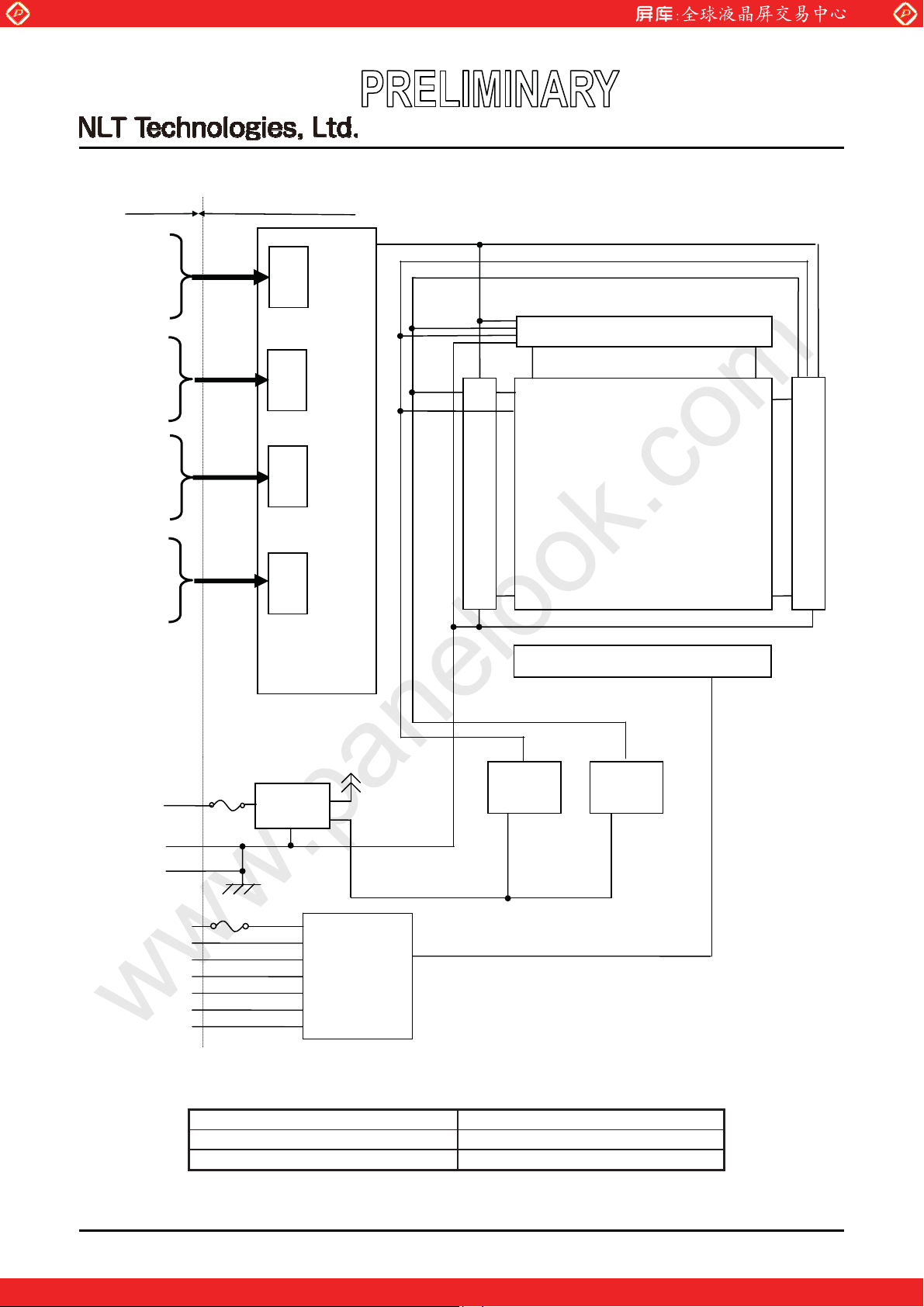

3. BLOCK DIAGRAM
I/F
DA0+/–
DA1+/–
DA2+/–
CKA+/–
DA3+/–
DA4+/-
DB0+/–
DB1+/–
DB2+/–
CKB+/–
DB3+/–
DB4+
DC0+/–
DC1+/–
DC2+/–
CKC+/–
DC3+/–
DC4+/-
DD0+/–
DD1+/–
DD2+/–
CKD+/–
DD3+/–
DD4+
-
-
LCD module (product)
Note 3
Note 3
Note 3
Note 3
LVDS
receiver
LVDS
receiver
LVDS
receiver
LVDS
receiver
www.panelook.com
Controller
V-driver
1536
H-driver
6144 lines
lines
H: 2048 u 3 (R, G, B)
V: 1536
NL204153AC21-22
TFT LCD panel
V-driver
Backlight
VDD
GND
FG
VDDB
BRTC
BRTH
BRTI
BRTP
PWSEL
GNDB
ote1, Note2
Fuse
Fuse
DC/DC
Converter
Power
supply for
gradation
LED Driver
board
Power
supply for
COM
Note1: Relations between GND (Signal ground), FG (Frame ground) and GNDB (LED driver board
ground) in the LCD module are as follows.
GND - FG Connected
GND - GNDB Not connected
FG - GNDB Not connected
Note2 GND, FG and GNDB must be connected to customer equipment's ground, and it is recommended
that these grounds be connected together in customer equipment.
Note3 Each pair of the LVDS signal has a 100: terminating resistance between D+ and D-.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
www.panelook.com
NL204153AC21-22
Module size
Display area
Weight 2,700 (typ.), 2,980 (max.) g
457.0 r0.5 (W) u 350.0 r 0.5 (H) u 21.5 (typ., D)
433.152 (H) u 324.864 (V)
Note1: Excluding warpage of the cover for LED driver board.
Note2: See "8. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage
for signals
LCD panel signal processing board VDD -0.3 to +14.0 V
LED driver board VDDB -0.3 to +15.0 V
LCD panel signal processing board
Note1
BRTI signal VBI -0.3 to +1.5 V
BRTP signal VBP -0.3 to +5.5 V
LED driver board
BRTC signal VBC -0.3 to +5.5 V
PWSEL signal VBS -0.3 to +5.5 V
23.0 (max. D)
Vi -0.3 to +2.8 V VDD= 12.0V
Note1, Note2
Note2 mm
VDDB= 12.0V
mm
-
Storage temperature Note6 Tst -20 to +60
Operating temperature Note6
Relative humidity
Note4 Note6
Absolute humidity
Note4 Note6
Operating altitude -
Storage altitude -
Front surface TopF 0 to +60
Rear surface TopR 0 to +60
d 95
RH
AH
d 85
d 70
d 73
Note5
d 5,100
d 13,600
qC
qC
qC
%
%
%
g/m
m
m
40qC < Ta d 50qC
50qC < Ta d 55qC
3
-20qC d Ta d 60qC
-
Note2
Note3
Ta d 40qC
Ta > 55 qC
0qC d Ta d 55qC
Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,
DB4+/-, CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-,
DD2+/-, DD3+/-, DD4+/-, CKD+/-,BSEL.
Note2: Measured at LCD panel surface (including self-heat)
Note3: Measured at LCD module's rear shield surface (including self-heat)
Note4: No condensation
Note5: Water amount at Ta= 55°C and RH= 70%
Note6: The image quality may cause degradation in case of rapid change humidity and temperature.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 8
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VDD 10.8 12.0 13.2 V -
www.panelook.com
NL204153AC21-22
(Ta= 25qC)
Power supply current IDD -
Permissible ripple voltage VRP - - 100 mVp-p for VDD
Differential input threshold
voltage
Input voltage swing VI 0 - 2.4 V Note4
Terminating resistance RT - 100 -
High VTH - - +100 mV
Low VTL -100 - - mV
590
Note1
980
Note2
mA at VDD= 12.0V
at VCM= 1.2V
Note3, Note4
:
-
Note1: Checkered flag pattern (by EIAJ ED-2522)
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS driver
Note4: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,
DB4+/-, CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-,
DD2+/-, DD3+/-, DD4+/-, CKD+/-
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Page 9
Global LCD Panel Exchange Center
4.3.2 LED Driver board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VDDB 11.4 12.0 12.6 V -
Power supply current IDDB - 4,200 5,800 mA
BRTI signal VBI 0 - 1.0 V
www.panelook.com
NL204153AC21-22
(Ta= 25qC)
VDDB= 12.0V,
At the maximum
luminance control
BRTP signal
Input voltage
for signals
Input current
for signals
BRTC signal
PWSEL signal
BRTI signal IBI -200 - -100
BRTP signal
BRTC signal
PWSEL signal

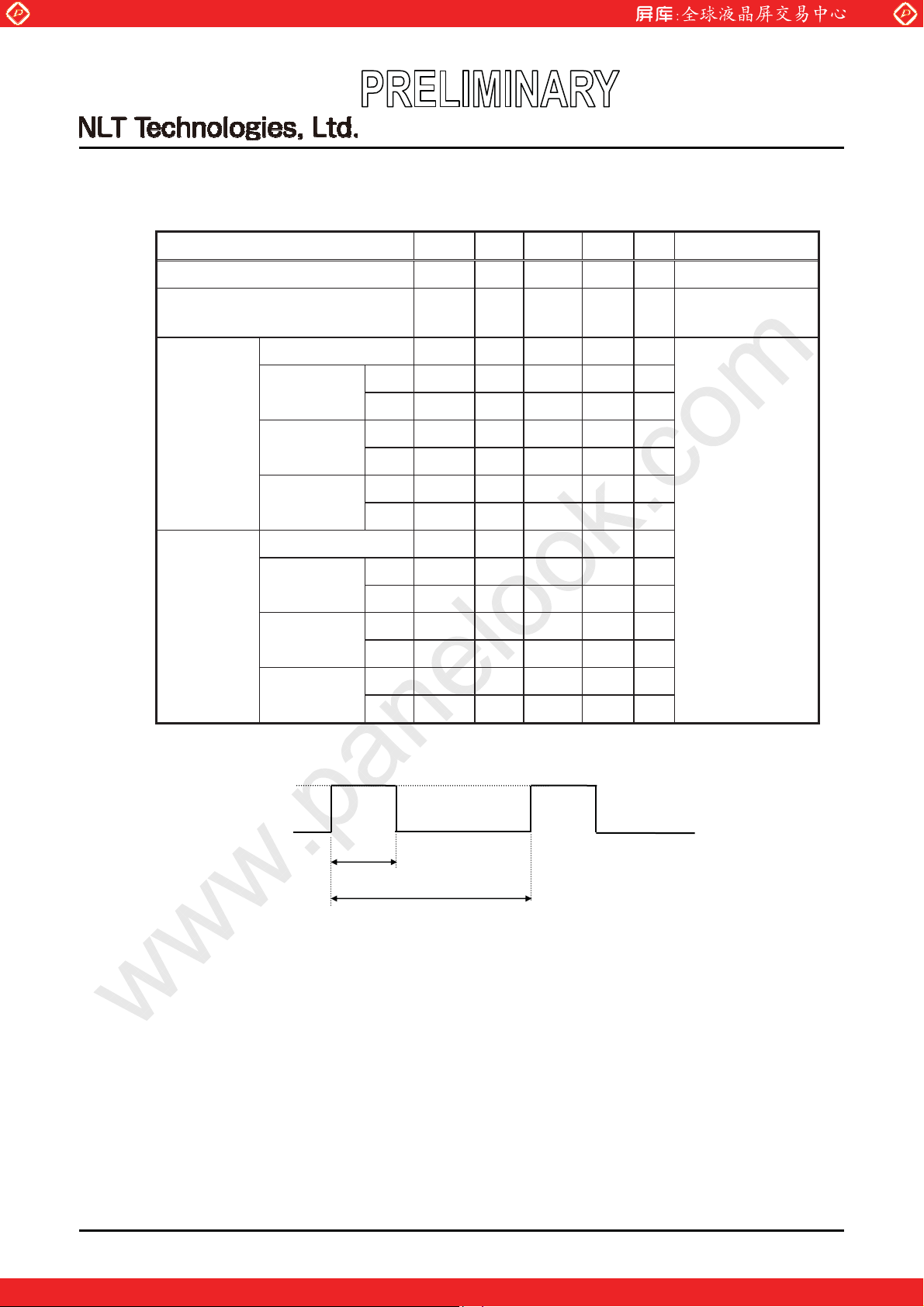

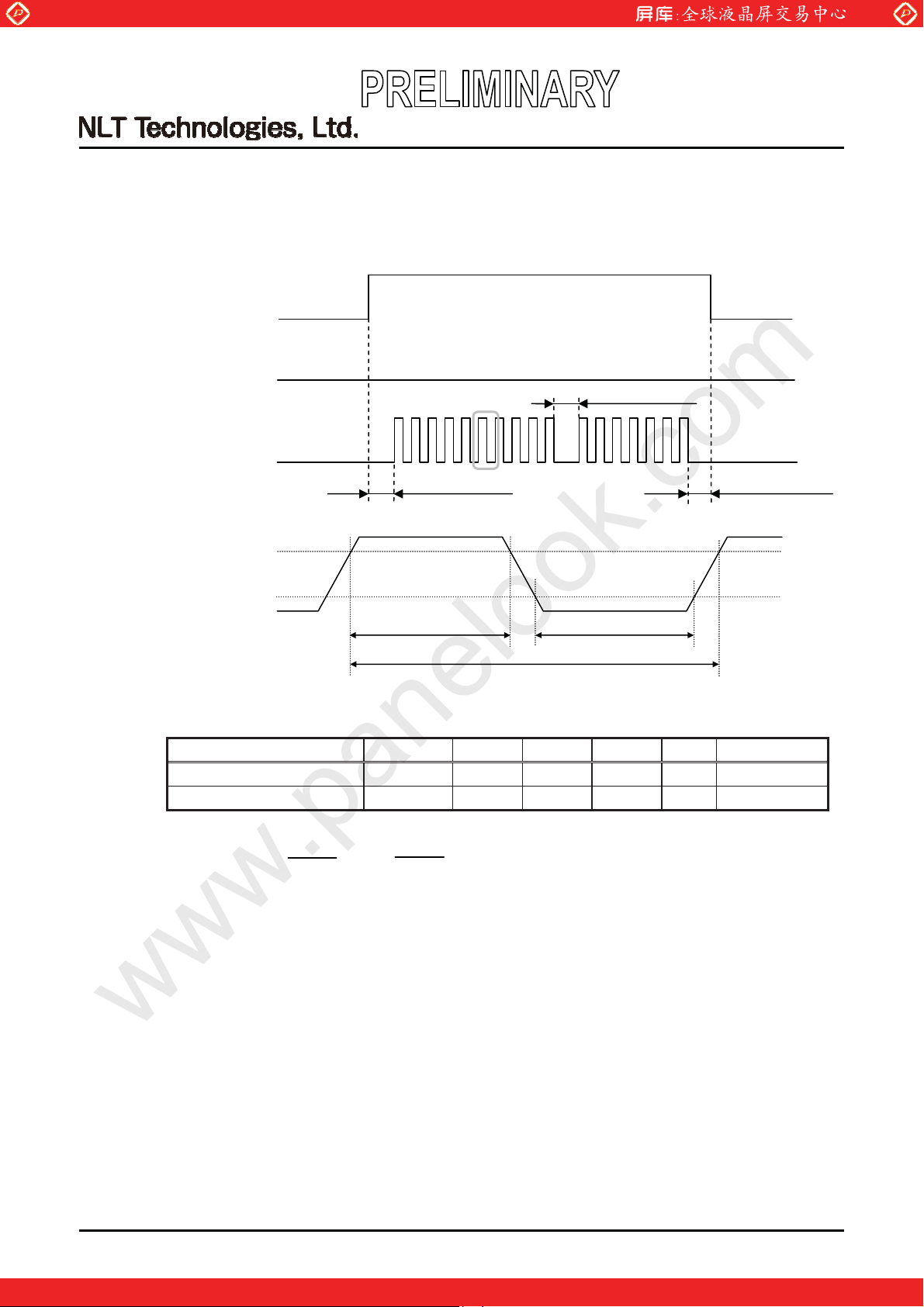

4.3.3 LED Driver board current wave
4,200 mA (typ.)
High VBPH 2.0 - 5.25 V
Low VBPL 0 - 0.8 V
High VBCH 2.0 - 5.25 V
Low VBCL 0 - 0.8 V
High VBSH 2.0 - 5.25 V
Low VBSL 0 - 0.8 V
PA
High IBPH - - 1,000
Low IBPL -600 - -
High IBCH - - 300
Low IBCL -300 - -
High IPSH - - 1,000
Low IPSL -600 - -
PA
PA
PA
PA
PA
PA
-
0mA
Duty
Luminance control
Duty:At the maximum luminance control 100% to at the minimum luminance control 1%.
Luminance control frequency: 270Hz (typ.)
Note1: Luminance control frequency indicate the input pulse frequency, when select the external
pulse control. See "4.6.2 Detail of BRTP timing".
Note2: The power supply lines (VDDB and GNDB) have large ripple voltage during luminance
control. See "4.3.4 Power supply voltage ripple ".
There is the possibility that the ripple voltage produces acoustic noise and signal wave noise in
audio circuit and so on. Put a capacitor (5,000 to 6,000˩F) between the power supply lines
(VDDB and GNDB) to reduce the noise, if the noise occurred in the circuit.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
9
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
4.3.4 Power supply voltage ripple
This product works, even if the ripple voltage levels are beyond the permissible values as following
the table, but there might be noise on the display image.
www.panelook.com
NL204153AC21-22
Note1: The permissible ripple voltage includes spike noise.
4.3.5 Fuse
Parameter
Power supply voltage
VDD 12.0V
VDDB 12.0V
(Measure at input terminal of power supply)
Ripple voltage Note1
Example of the power supply connection
a) Separate the power supply b) Put in the filter
Power
Power
VDD
VDDB
Power
Fuse
Type Supplier
VDD FCC16202AB
KAMAYA
ELECTRIC Co., Ltd.
d 100
d 200
Rating
2.0 A
32V
Filter
Filter
Fusing
current
4.0A,
5 seconds
maximum
Unit
mVp-p
mVp-p
VDD
VDDB
Remark
s
20 A,
1 seconds
maximum
10 A,
5 seconds
maximum
Note1
VDDB
10A
CCF1N10
60V
KOA Corporation
5.0A
TF16AT5.00T
32V
Note1: The power supply capacity should be more than the fusing current. If it is less than the
fusing current, the fuse may not blow in a short time, and then nasty smell, smoke and so on
may occur.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10
www.panelook.com
Page 11
Global LCD Panel Exchange Center

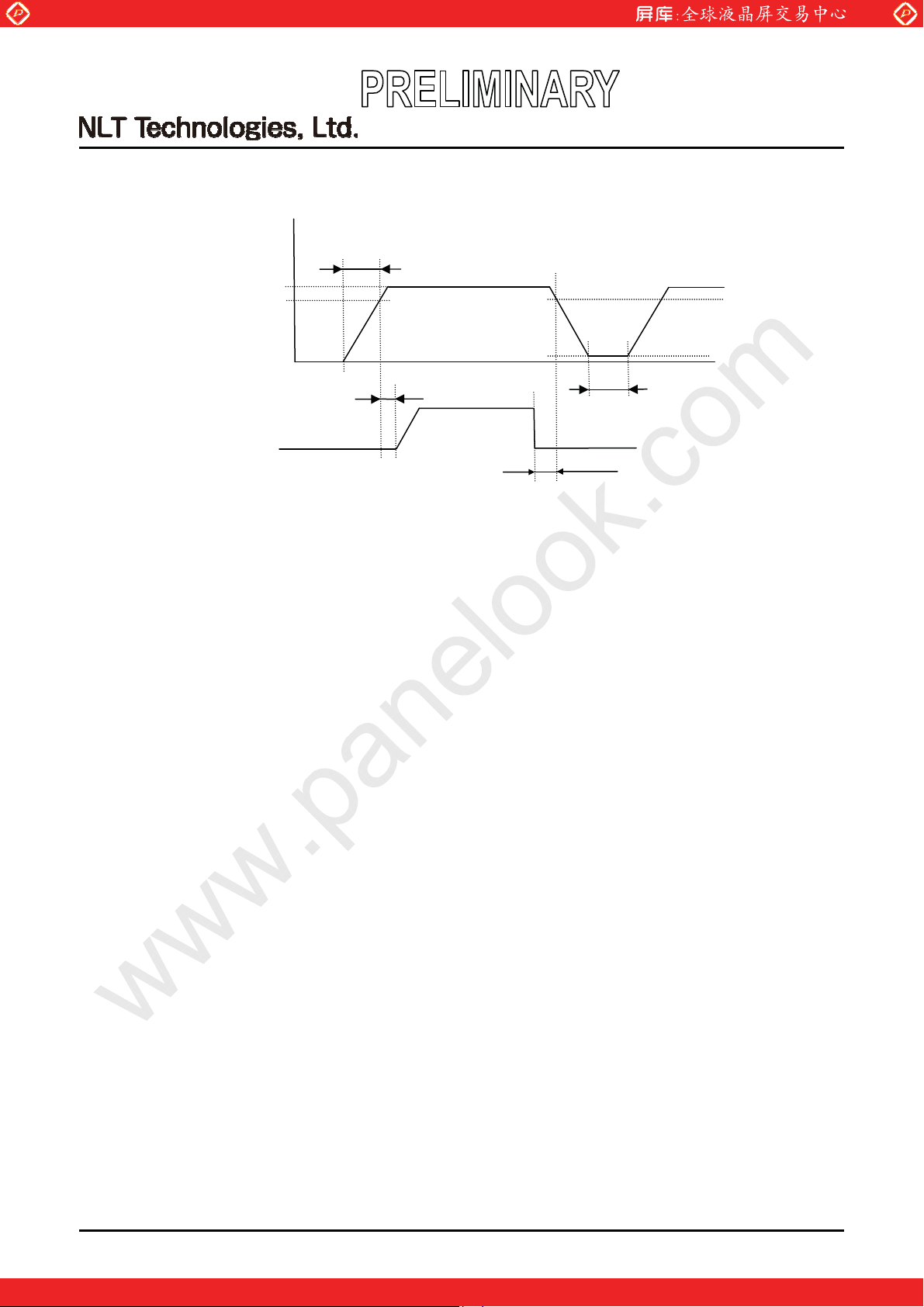

4.4 POWER SUPPLY VOLTAGE SEQUENCE
4.4.1 LCD panel signal processing board
VDD
Note1
10.8V
0V
LVDS Signals *1,*2
Note2
0V
www.panelook.com
NL204153AC21-22
ON OFF ON
10.8V
9.6V
VDD dip < 20ms
0.1ms < Tr < 80ms
VALID period
Toff > 200ms
10.8V
t > 10ms
t> 10ms
Display on screen
t 450ms
*1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, DA4+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-,
DB4+/-, CKB+/-, DC0+/-, DC1+/-, DC2+/-, DC3+/-, DC4+/-, CKC+/-, DD0+/-, DD1+/-,
DD2+/-, DD3+/-, DD4+/-, CKD+/-
*2: LVDS signals should be measured at the terminal of 100 : resistance.
0ms < t < 35ms
Note1: If there is a voltage variation (voltage drop) at the rising edge of VCC below 10.8V, there is a
possibility that a product does not work due to a protection circuit.
Note2: LVDS signals must be set to Low or High-impedance, except the VALID period (See above
sequence diagram), in order to avoid the circuitry damage.
If some of signals are cut while this product is working, even if the signal input to it once
again, it might not work normally. If a customer stops the display and function signals,
VDD also must be shut down.
Note3: The backlight should be turned on within the valid period of LVDS signals, in order to avoid
unstable data display.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
11
www.panelook.com
Page 12
Global LCD Panel Exchange Center
4.4.2 LED driver board
Voltage
VDDB
12.0V
11.4V
www.panelook.com
0.1ms < tr
d 100 ms
OFF
NL204153AC21-22
ON
11.4V
0V
0ms < t
BRTC
Note1: The backlight should be turned on within the valid period of LVDS signals, in order to avoid
unstable data display.
Note2: If tr is more than 100 ms, the backlight will be turned off by a protection circuit for LED
driver board.
Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.
200ms < t
0ms < t
Under than 1.2V
Time
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
www.panelook.com
Page 13
Global LCD Panel Exchange Center
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS
4.5.1 LCD panel signal processing board
CN1 socket (LCD module side): FI-RE51S-HF (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-RE51HL (Japan Aviation Electronics Industry Limited (JAE))
Pin No. Symbol Signal Remarks
1 GND Ground
2 GND Ground
3 GND Ground
4 DA0-
5 DA0+
6 GND Ground Note1
7 DA18 DA1+
9 GND Ground Note1
10 DA211 DA2+
12 GND Ground Note1
13 CKA14 CKA+
15 GND Ground Note1
16 DA317 DA3+
18 GND Ground Note1
19 DA420 DA4+
21 GND Ground Note1
22 DB023 DB0+
24 GND Ground Note1
25 DB126 DB1+
27 GND Ground Note1
28 DB229 DB2+
30 GND Ground Note1
31 CKB32 CKB+
33 GND Ground Note1
34 DB335 DB3+
36 GND Ground Note1
37 DB438 DB4+
39 GND Ground Note1
www.panelook.com
NL204153AC21-22
Note1
Pixel data A0 LVDS differential data input Note2
Pixel data A1 LVDS differential data input Note2
Pixel data A2 LVDS differential data input Note2
Pixel clock A LVDS differential data input Note2
Pixel data A3 LVDS differential data input Note2
Pixel data A4 LVDS differential data input Note2
Pixel data B0 LVDS differential data input Note2
Pixel data B1 LVDS differential data input Note2
Pixel data B2 LVDS differential data input Note2
Pixel clock B LVDS differential data input Note2
Pixel data B3 LVDS differential data input Note2
Pixel data B4 LVDS differential data input Note2
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Page 14
Global LCD Panel Exchange Center
40 GND Ground Note1
41 RSEV 42 RSEV - Keep this pin Open.
43 RSEV - Keep this pin Open.
44 RSEV - Keep this pin Open.
45 GND Ground Note1
46 GND
47 GND Ground Note1
48 RSEV - Keep this pin Open.
49 RSEV - Keep this pin Open.
50 RSEV
51 GND Ground Note1

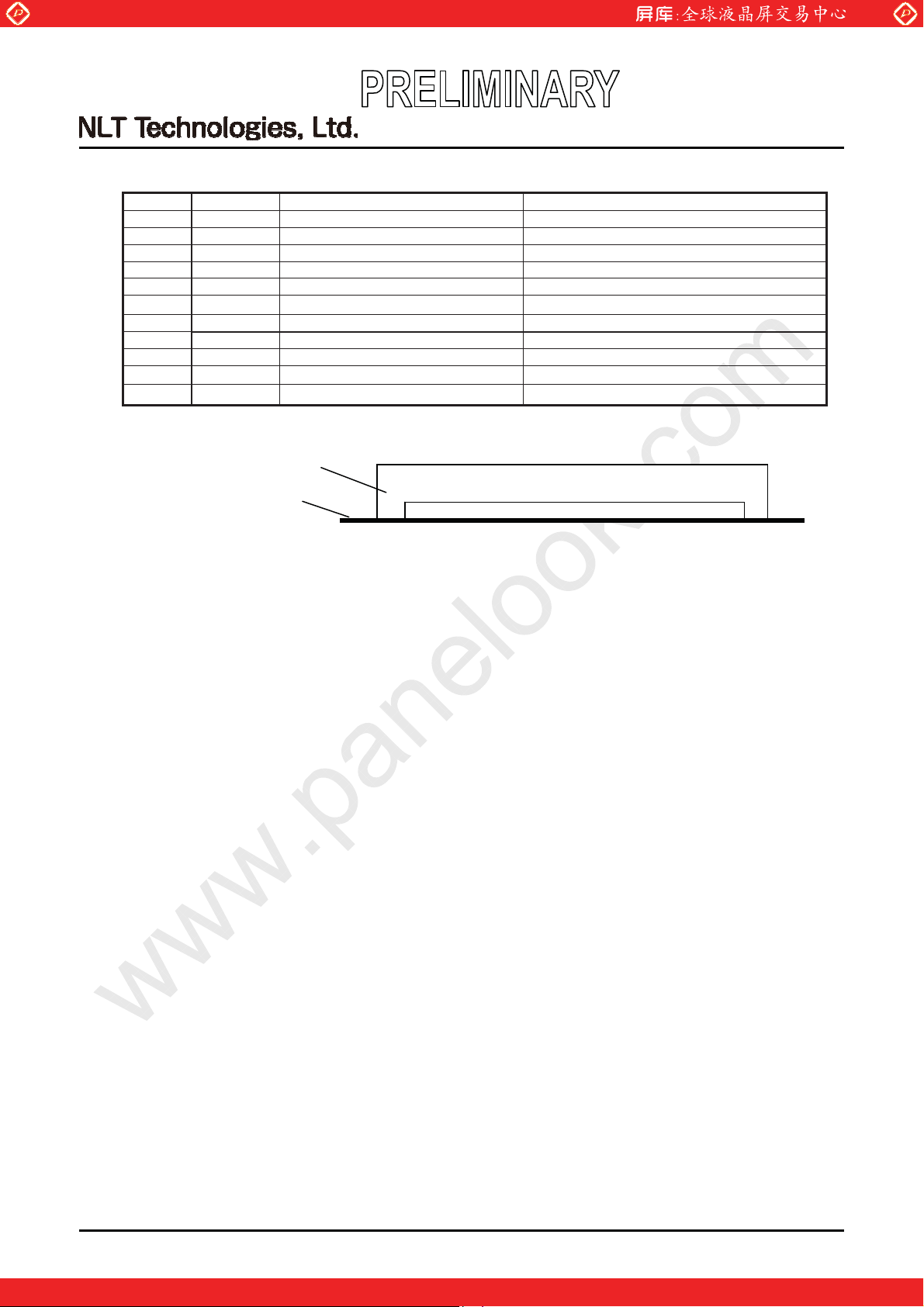

CN1: Insert surface side
Connector
www.panelook.com
NL204153AC21-22
Continued
Keep this pin Open.
Ground Note1
- Keep this pin Open.
PCB
1 2 3 4 ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ48 49 50 51
Note1: All GND terminals should be used without any non-connected lines.
Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal
processing board and LVDS transmitter.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Page 15
Global LCD Panel Exchange Center
CN2 socket (LCD module side): FI-RE41S-HF (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-RE41HL (Japan Aviation Electronics Industry Limited (JAE))
Pin No. Symbol Signal Remarks
1 GND Ground
2 GND Ground
3 GND Ground
4 DC0-
5 DC0+
6 GND Ground Note1
7 DC1-
8 DC1+
9 GND Ground Note1
10 DC211 DC2+
12 GND Ground Note1
13 CKC-
14 CKC+
15 GND Ground Note1
16 DC3-
17 DC3+
18 GND Ground Note1
19 DC4-
20 DC4+
21 GND Ground Note1
22 DD023 DD0+
24 GND Ground Note1
25 DD126 DD1+
27 GND Ground Note1
28 DD229 DD2+
30 GND Ground Note1
31 CKD32 CKD+
33 GND Ground Note1
34 DD3-
35 DD3+
36 GND Ground Note1
37 DD4-
38 DD4+
39 GND Ground Note1
40 GND Ground Note1
41 GND Ground Note1
www.panelook.com
NL204153AC21-22
Note1
Pixel data C0 LVDS differential data input Note2
Pixel data C1 LVDS differential data input Note2
Pixel data C2 LVDS differential data input Note2
Pixel clock C LVDS differential data input Note2
Pixel data C3 LVDS differential data input Note2
Pixel data C4 LVDS differential data input Note2
Pixel data D0 LVDS differential data input Note2
Pixel data D1 LVDS differential data input Note2
Pixel data D2 LVDS differential data input Note2
Pixel clock D LVDS differential data input Note2
Pixel data D3 LVDS differential data input Note2
Pixel data D4 LVDS differential data input Note2

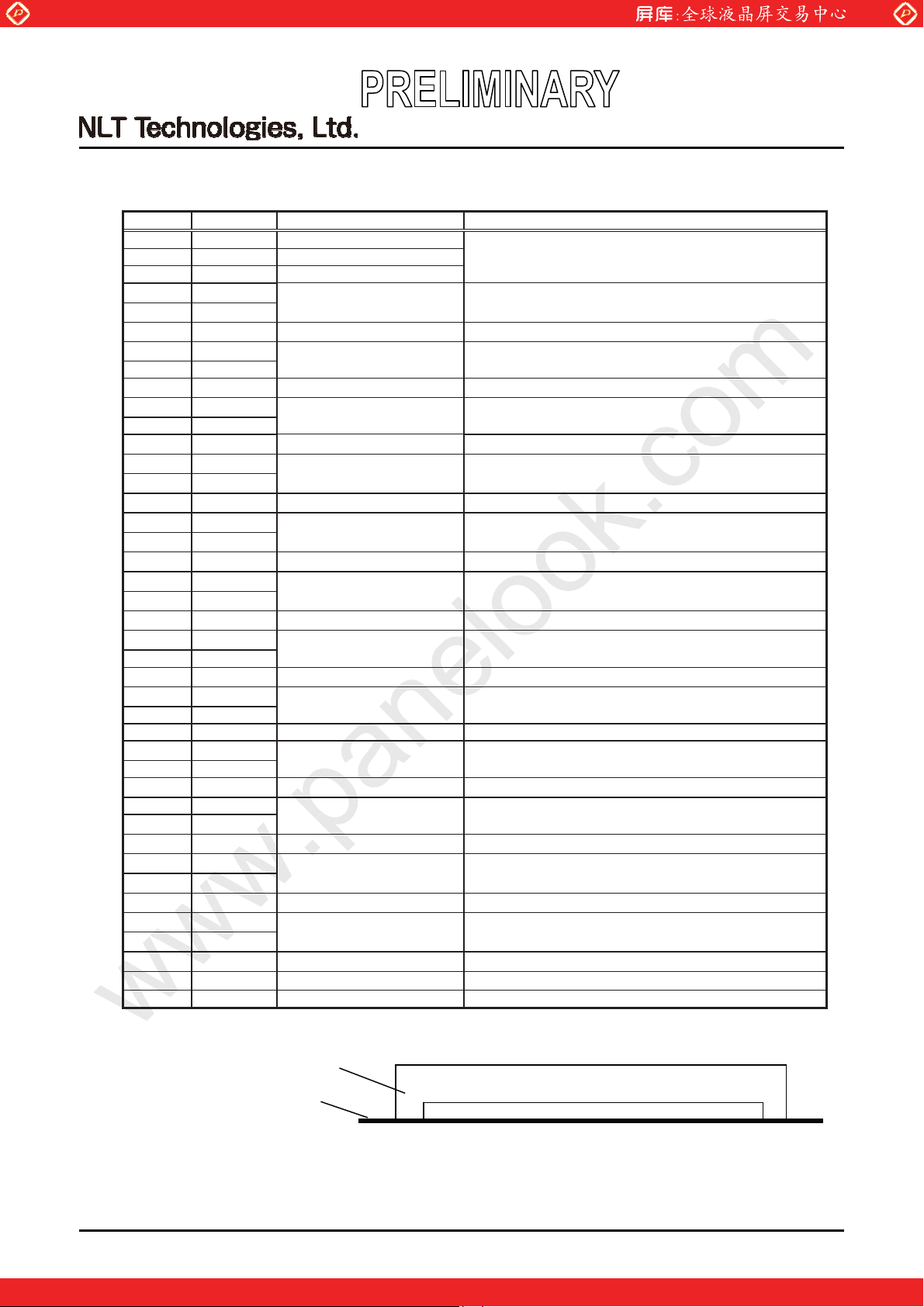

CN2: Insert surface side
Connector
PCB
1 2 3 4 ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ ವ8 39 40 41
Note1: All GND terminals should be used without any non-connected lines.
Note2: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel signal
processing board and LVDS transmitter.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Page 16
Global LCD Panel Exchange Center
CN3 socket (LCD module side): IL-Z-12PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: IL-Z-12S-S125C (Japan Aviation Electronics Industry Limited (JAE))
Pin No. Symbol Function Description
1 VDD
2 VDD
3 VDD
4 VDD
5 VDD
6 VDD
7 GND
8 GND
9 GND
10 GND
11 GND
12 GND
www.panelook.com
NL204153AC21-22
Power supply Note1
Signal ground Note1
CN3: Insert surface side
Connector
PCB
12 11 ವವವವವವ 2 1
Note1: All VDD and GND terminals should be used without any non-connected lines.
4.5.2 LED driver board
CN201 socket (LCD module side): DF3Z-10P-2H (2) (HIROSE ELECTRIC Co,.Ltd.)
Adaptable plug: DF3-10S-2C (HIROSE ELECTRIC Co,.Ltd.)
Pin No. Symbol Function Description
1 GNDB
2 GNDB
3 GNDB
4 GNDB
5 GNDB
6 VDDB
7 VDDB
8 VDDB
9 VDDB
10 VDDB
LED driver board ground Note1
Power supply Note1
Note1: All VDDB and GNDB terminals should be used without any non-connected lines.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
16
www.panelook.com
Page 17
Global LCD Panel Exchange Center
CN202 socket (LCD module side): IL-Z-9PL-SMTYE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: IL-Z-9S-S125C3 (Japan Aviation Electronics Industry Limited (JAE))
Pin No. Symbol Function Description
1 GNDB
2 GNDB
3 N.C. - Keep this pin Open.
4 BRTC Backlight ON/OFF control signal
5 BRTH
6 BRTI
7 BRTP BRTP signal
8 GNDB LED driver board ground Note1
9 PWSEL Selection of luminance control signal method
Note1: All GNDB terminals should be used without any non-connected lines.
Note2: See "4.6.1 LUMINANCE CONTROL ".
Note3: When VDDB is 0V or BRTC is Low, PWSEL must be set to Low or Open.
www.panelook.com
NL204153AC21-22
LED driver board ground Note1
High or Open: Backlight ON
Low: Backlight OFF
Luminance control terminal
Note2
Note2, Note3

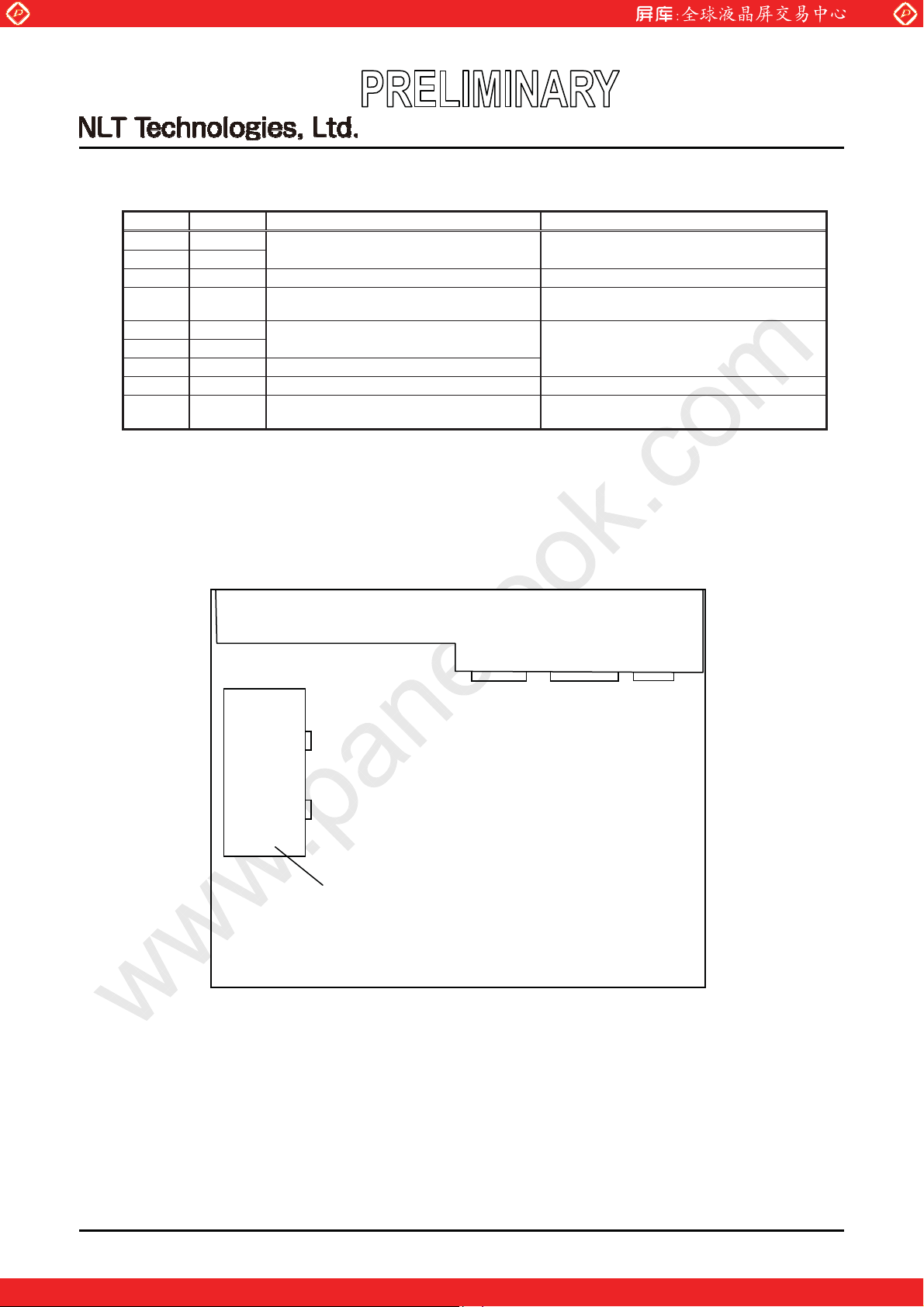

4.5.3 Positions of socket
1
CN202
9
m Insert direction
10
CN201
1
LED driver board
Rear side
1 41
Insert
direction
CN2
1 51
CN1
Insert
direction
12 1
CN3
Insert
direction
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
17
www.panelook.com
Page 18
Global LCD Panel Exchange Center

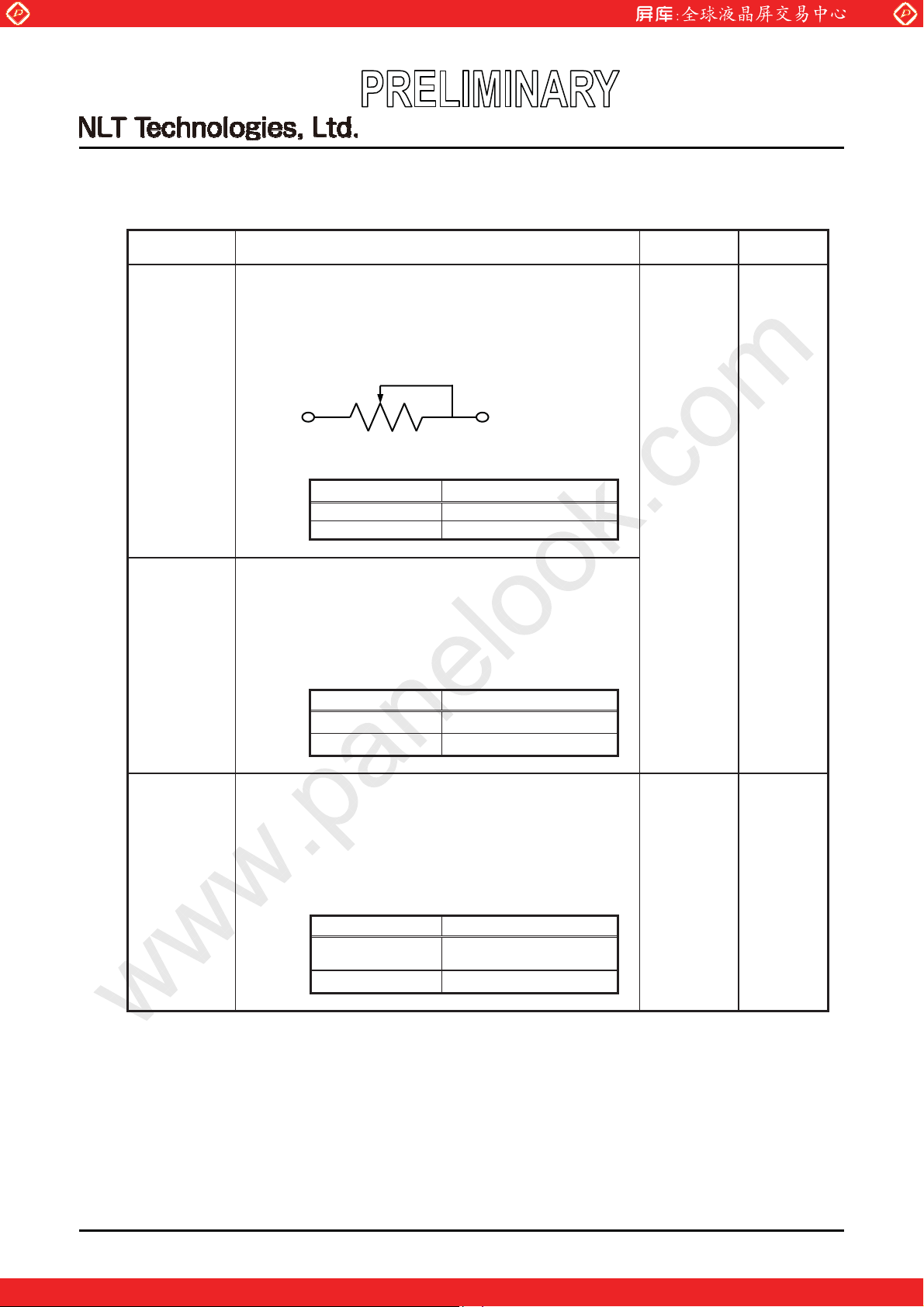

4.6 LUMINANCE CONTROL
4.6.1 Luminance control methods
Method Adjustment and luminance ratio
The variable resistor (R) for luminance control should be 10k:
r5%, 1/10W. Minimum point of the resistance is the minimum
luminance and maximum point of the resistance is the maximum
The resistor (R) must be connected between BRTH-BRTI terminals.
Va r ia b l e
resistor control
www.panelook.com
x Adjustment
luminance.
NL204153AC21-22
PWSEL
terminal
BRTP
terminal
Note1
Voltage control
Note1
Pulse width
modulation
Note1
Note2
Note4
BRTH
Voltage control method works, when BRTH terminal is 0V and VBI
voltage is input between BRTI-BRTH terminals. This control
method can carry out continuation adjustment of luminance.
Luminance is the maximum when BRTI terminal is Open.
BRTI Voltage (VBI) Luminance ratio
Pulse width modulation (PWM) method works, when PWSEL
terminal is Low and PWM signal (BRTP signal) is input into BRTP
terminal. The luminance is controlled by duty ratio of BRTP signal.
R
x Luminance ratio Note3
Resistance Luminance ratio
0:
10 k:
x Adjustment
x Luminance ratio Note3
0V 0% (Min. Luminance)
1.0V 100% (Max. Luminance)
x Adjustment
x Luminance ratio Note3
Duty ratio Luminance ratio
0.01
1.0 100% (Max. Luminance)
BRTI
0%(Min. Luminance)
100% (Max. Luminance)
1% (Min. Luminance)
(At frequency: 325 Hz)
High or Open Open
Low BRTP signal
Note1: In case of the variable resistor control method and the voltage control method, noises may appear
on the display image depending on the input signals timing for LCD panel signal processing
board.
Use PWM method, if interference noises appear on the display image!
Note2: The LED driver board will stop working, if the Low period of BRTP signal is more than 50ms
while BRTC signal is High or Open. Then the backlight will not turn on anymore, even if BRTP
signal is input again. This is not out of order. The LED driver board will start to work when power
is supplied again.
Note3: These data are the target values.
Note4: See "4.6.2 Detail of BRTP timing".
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Page 19
Global LCD Panel Exchange Center
4.6.2 Detail of BRTP timing
(1) Timing diagrams
x Outline chart
BRTC
www.panelook.com
NL204153AC21-22
PWSEL (Low)
BRTP
x Detail of A part
VBPH
BRTP
VBPL
(2) Each parameter
Parameter Symbol min. typ. max. Unit Remarks
Luminance control frequency FL 185 - 1,000 Hz Note1, Note2
External PWM pulse width tPWH 30 - -
Note1: Definition of parameters is as follows.
tPWH
A
tPW
0ms d tPWL d 50ms
tPWL
Ps
0ms d tPWL d 50ms 0ms d tPWL d 50ms
Note1, Note3
FL=
1
tPW
,
DL=
tPWH
tPW
Note2: See the following formula for luminance control frequency.
Luminance control frequency= 1/tv u (n+0.25)
n = 1, 2, 3 · · · · · ·
tv: Vertical cycle (See "4.9.1 Timing characteristics".)
The interference noise of luminance control frequency and input signal frequency
for LCD panel signal processing board may appear on a display. Set up luminance
control frequency so that the interference noise does not appear!
Note3: See "4.6.1 Luminance control methods".
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
19
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
NL204153AC21-22

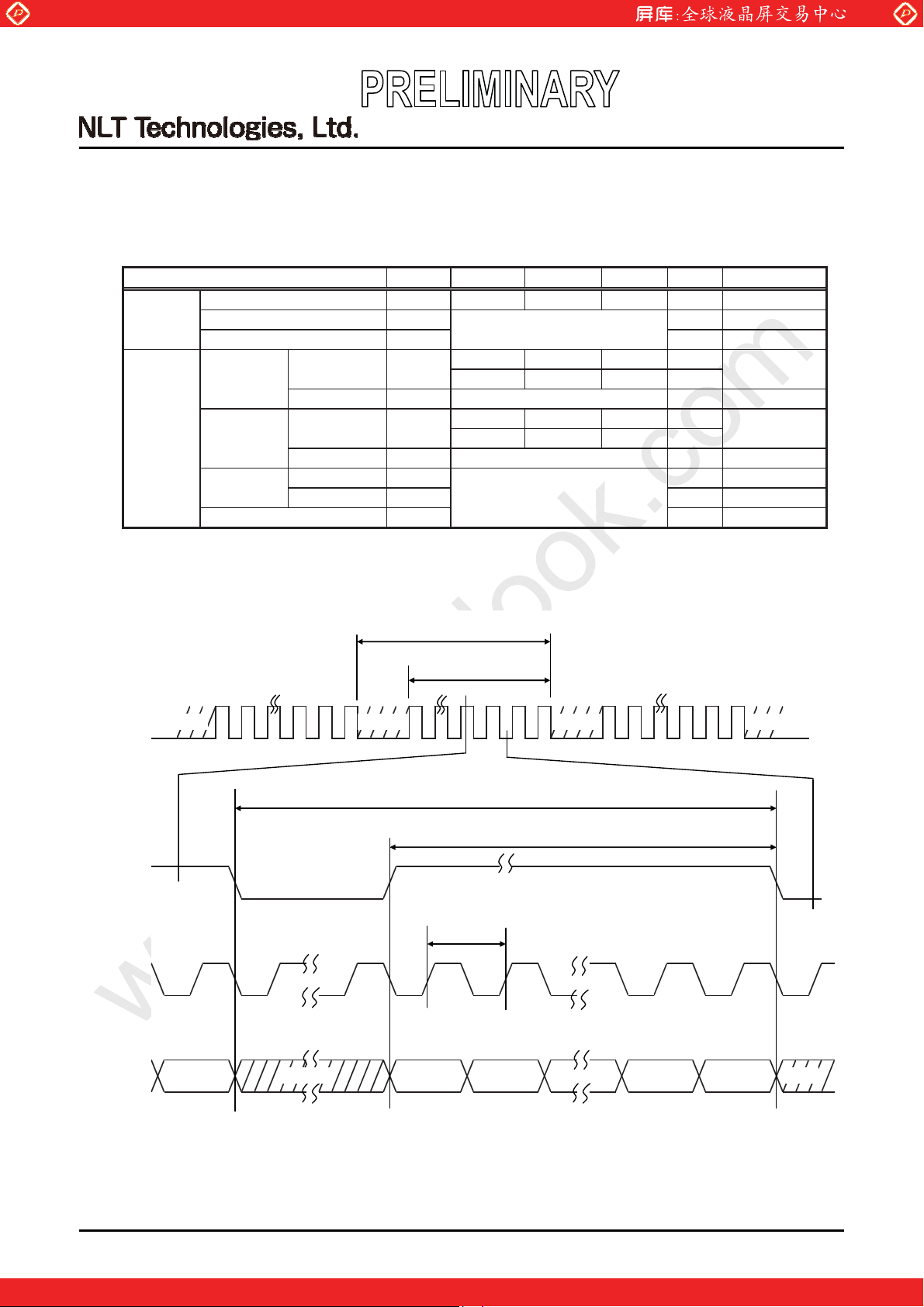

4.7 METHOD OF CONNECTION FOR LVDS TRANSMITTER
Transmitter Pin Assign
Dual type LVDS Tx CN1
Single type
LVDS Tx
TE6 -
CLK CLK
Thine
THC63LVD1023B
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
odd
Pixel
data
A
even
Pixel
data
B
Bit mapping
RA4 TA0 R14 - RA5 TA1 R15
RA6 TA2 R16
RA7 TA3 R17
RA8 TA4 R18
RA9 TA5 R19
GA4 TA6 G14
GA5 TB0 G15
GA6 TB1 G16
GA7 TB2 G17
GA8 TB3 G18
GA9 TB4 G19
BA4 TB5 B14
BA5 TB6 B15
BA6 TC0 B16
BA7 TC1 B17
BA8 TC2 B18
BA9 TC3 B19
Hsync TC4 Hsync
Vsync TC5 Vsync
DE TC6 DE
RA2 TD0 R12
RA3 TD1 R13
GA2 TD2 G12
GA3 TD3 G13
BA2 TD4 B12
BA3 TD5 B13
N.C. TD6 -
RA0 TE0 R10
RA1 TE1 R11
GA0 TE2 G10
GA1 TE3 G11
BA0 TE4 B10
BA1 TE5 B11
N.C.
CLK CLK CLK
RB4 TA0 R14 - RB5 TA1 R15
RB6 TA2 R16
RB7 TA3 R17
RB8 TA4 R18
RB9 TA5 R19
GB4 TA6 G14
GB5 TB0 G15
GB6 TB1 G16
GB7 TB2 G17
GB8 TB3 G18
GB9 TB4 G19
BB4 TB5 B14
BB5 TB6 B15
BB6 TC0 B16
BB7 TC1 B17
BB8 TC2 B18
BB9 TC3 B19
Hsync TC4 Hsync
Vsync TC5 Vsync
DE TC6 DE
RB2 TD0 R12
RB3 TD1 R13
GB2 TD2 G12
GB3 TD3 G13
BB2 TD4 B12
BB3 TD5 B13
N.C. TD6 -
RB0 TE0 R10
RB1 TE1 R11
GB0 TE2 G10
GB1 TE3 G11
BB0 TE4 B10
BB1 TE5 B11
N.C. TE6 -
CLK
Output
Connector
ATA- 4 DA0-
ATA+ 5 DA0+
ATB- 7 DA1-
ATB+ 8 DA1+
ATC- 10 DA2-
ATC+ 11 DA2+
ATD- 16 DA3-
ATD+ 17 DA3+
ATE-
ATE+
ATCLK- 13 CKA-
ATCLK+ 14 CKA+
BTA- 22 DB0-
BTA+ 23 DB0+
BTB- 25 DB1-
BTB+ 26 DB1+
BTC- 28 DB2-
BTC+ 29 DB2+
BTD- 34 DB3-
BTD+ 35 DB3+
BTE-
BTE+
BTCLKBTCLK+
Pin No.
19 DA4-
20 DA4+
37 DB4-
38 DB4+
31 CKB32 CKB+
Signal
Name
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
20
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
NL204153AC21-22
odd
Pixel
data
C
even
Pixel
data
D
Transmitter Pin Assign
Bit mapping
RC4 TA0 R14 - RC5 TA1 R15
RC6 TA2 R16
RC7 TA3 R17
RC8 TA4 R18
RC9 TA5 R19
GC4 TA6 G14
GC5 TB0 G15
GC6 TB1 G16
GC7 TB2 G17
GC8 TB3 G18
GC9 TB4 G19
BC4 TB5 B14
BC5 TB6 B15
BC6 TC0 B16
BC7 TC1 B17
BC8 TC2 B18
BC9 TC3 B19
Hsync TC4 Hsync
Vsync TC5 Vsync
DE TC6 DE
RC2 TD0 R12
RC3 TD1 R13
GC2 TD2 G12
GC3 TD3 G13
BC2 TD4 B12
BC3 TD5 B13
N.C. TD6 -
RC0 TE0 R10
RC1 TE1 R11
GC0 TE2 G10
GC1 TE3 G11
BC0 TE4 B10
BC1 TE5 B11
N.C.
CLK CLK CLK
RD4 TA0 R14 - RD5 TA1 R15
RD6 TA2 R16
RD7 TA3 R17
RD8 TA4 R18
RD9 TA5 R19
GD4 TA6 G14
GD5 TB0 G15
GD6 TB1 G16
GD7 TB2 G17
GD8 TB3 G18
GD9 TB4 G19
BD4 TB5 B14
BD5 TB6 B15
BD6 TC0 B16
BD7 TC1 B17
BD8 TC2 B18
BD9 TC3 B19
Hsync TC4 Hsync
Vsync TC5 Vsync
DE TC6 DE
RD2 TD0 R12
RD3 TD1 R13
GD2 TD2 G12
GD3 TD3 G13
BD2 TD4 B12
BD3 TD5 B13
N.C. TD6 -
RD0 TE0 R10
RD1 TE1 R11
GD0 TE2 G10
GD1 TE3 G11
BD0 TE4 B10
BD1 TE5 B11
N.C. TE6 -
CLK
Dual type LVDS Tx CN2
Single type
LVDS Tx
TE6 -
CLK CLK
Thine
THC63LVD1023B
Output
Connector
CTA- 4 DC0-
CTA+ 5 DC0+
CTB- 7 DC1-
CTB+ 8 DC1+
CTC- 10 DC2-
CTC+ 11 DC2+
CTD- 16 DC3-
CTD+ 17 DC3+
CTE-
CTE+
CTCLK- 13 CKCCTCLK+ 14 CKC+
DTA-
DTA+ 23 DD0+
DTB- 25 DD1-
DTB+ 26 DD1+
DTC- 28 DD2-
DTC+ 29 DD2+
DTD- 34 DD3-
DTD+ 35 DD3+
DTE-
DTE+
DTCLKDTCLK+
Pin No.
19 DC4-
20 DC4+
37 DD4-
38 DD4+
31 CKD32 CKD+
Signal
Name
- -
- -
- -
- -
- -
- -
- -
- -
- -
- -
Note1: Twist pair wires with 100: (Characteristic impedance) should be used between LCD panel
signal processing board and LVDS transmitter.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
21
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
4.8 DISPLAY COLORS AND INPUT DATA SIGNALS
This product can display 1,073,741,824 colors equivalent with 1,024 gray scale in each R, G, B sub-pixel.
Also the relation between display colors and input data signals is as follows.
Display colors
Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Blue
Magent
Green
Basic Colors
Cyan
Yellow
White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Black
dark
bright
Red gray scale
Black
dark
bright
Green gray scale
Green
Black
dark
bright
Blue gray scale
Blue
RA9 RA8 RA7 RA6 RA5 RA4 RA3 RA2 RA1 RA0
RB9 RB8 RB7 RB6 RB5 RB4 RB3 RB2 RB1 RB0
RC9 RC8 RC7 RC6 RC5 RC4 RC3 RC2 RC1 RC0
RD9 RD8 RD7 RD6 RD5 RD4 RD3 RD2 RD1 RD0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
Red
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
a
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
n
p
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red
1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0
n
p
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0
n
p
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 1
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1
www.panelook.com
NL204153AC21-22
Data signal (0: Low level, 1: High level)
GA9 GA8 GA7 GA6 GA5 GA4 GA3 GA2 GA1 GA0
GB9 GB8 GB7 GB6 GB5 GB4 GB3 GB2 GB1 GB0
GC9 GC8 GC7 GC6 GC5 GC4 GC3 GC2 GC1 GC0
GD9 GD8 GD7 GD6 GD5 GD4 GD3 GD2 GD1 GD0
: : :
: : :
: : :
: : :
: : :
: : :
BA9 BA8 BA7 BA6 BA5 BA4 BA3 BA2 BA1 BA0
BB9 BB8 BB7 BB6 BB5 BB4 BB3 BB2 BB1 BB0
BC9 BC8 BC7 BC6 BC5 BC4 BC3 BC2 BC1 BC0
BD9 BD8 BD7 BD6 BD5 BD4 BD3 BD2 BD1 BD0
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
www.panelook.com
Page 23
Global LCD Panel Exchange Center

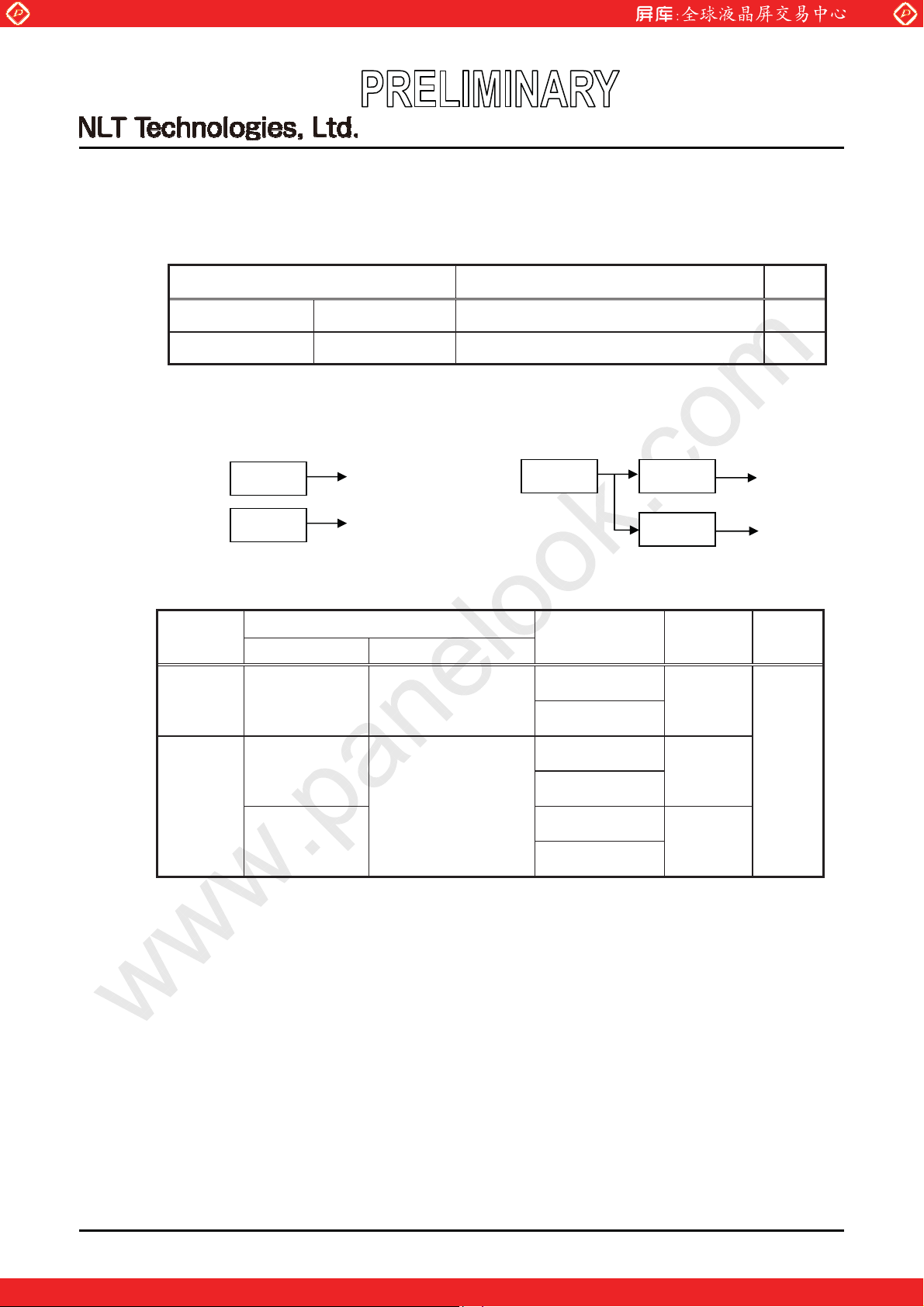

4.9 INPUT SIGNAL TIMINGS
4.9.1 Timing characteristics
fv=60Hz
Parameter Symbol min. typ. max. Unit Remarks
Frequency 1/ tc 60.0 65.0 66.0 MHz -
CLK
DE
Horizontal
Ve r ti c a l
CLK-DE
Duty - - -
Rise time, Fall time -
Display period thd 512 CLK -
Display period tvd 1536 H -
Rise time, Fall time -
Note1: The sum of jitter and skew of horizontal period should be within r1 CLK.
www.panelook.com
NL204153AC21-22
See the data sheet of LVDS
transmitter.
Cycle th
Cycle tv
Setup time - ns -
Hold time - ns -
10.34 10.34 10.77
640 672 700 CLK
15.47 16.667 17.9 ms
1547 1612 1628 H
See the data sheet of LVDS
transmitter.
ns Ps
96,72kHz(typ.)
Note1
60.0Hz(typ.)
ns -

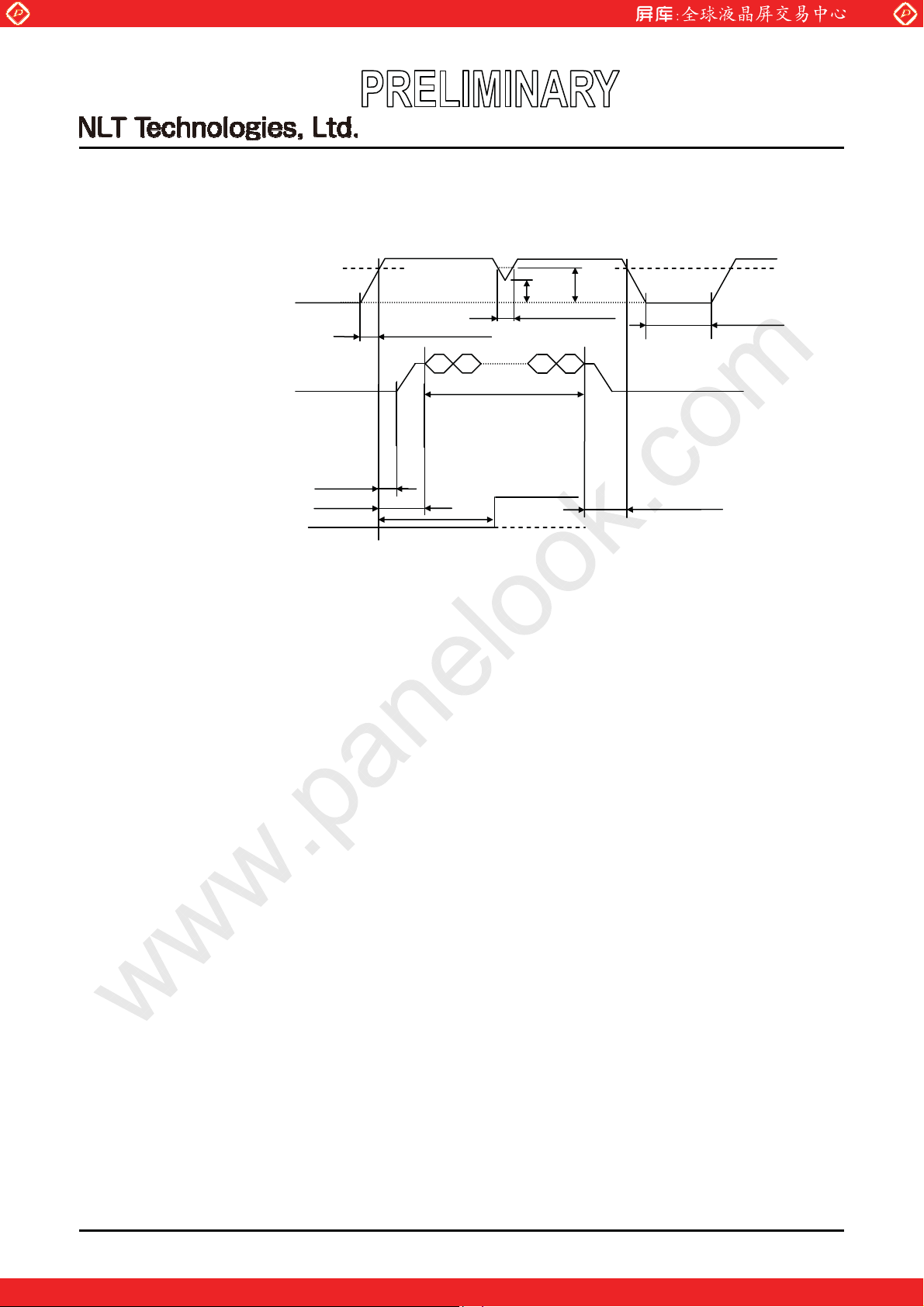

4.9.2 Input signal timing chart
DE
DE
CLK
Invalid Invalid Invalid Invalid
tv
tvd = 1,536H (fixed)
th
thd = 512CLK (fixed)
tc
DATA (A), (B), (C), (D)
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
InvalidInvalid
23
www.panelook.com
Page 24
Global LCD Panel Exchange Center

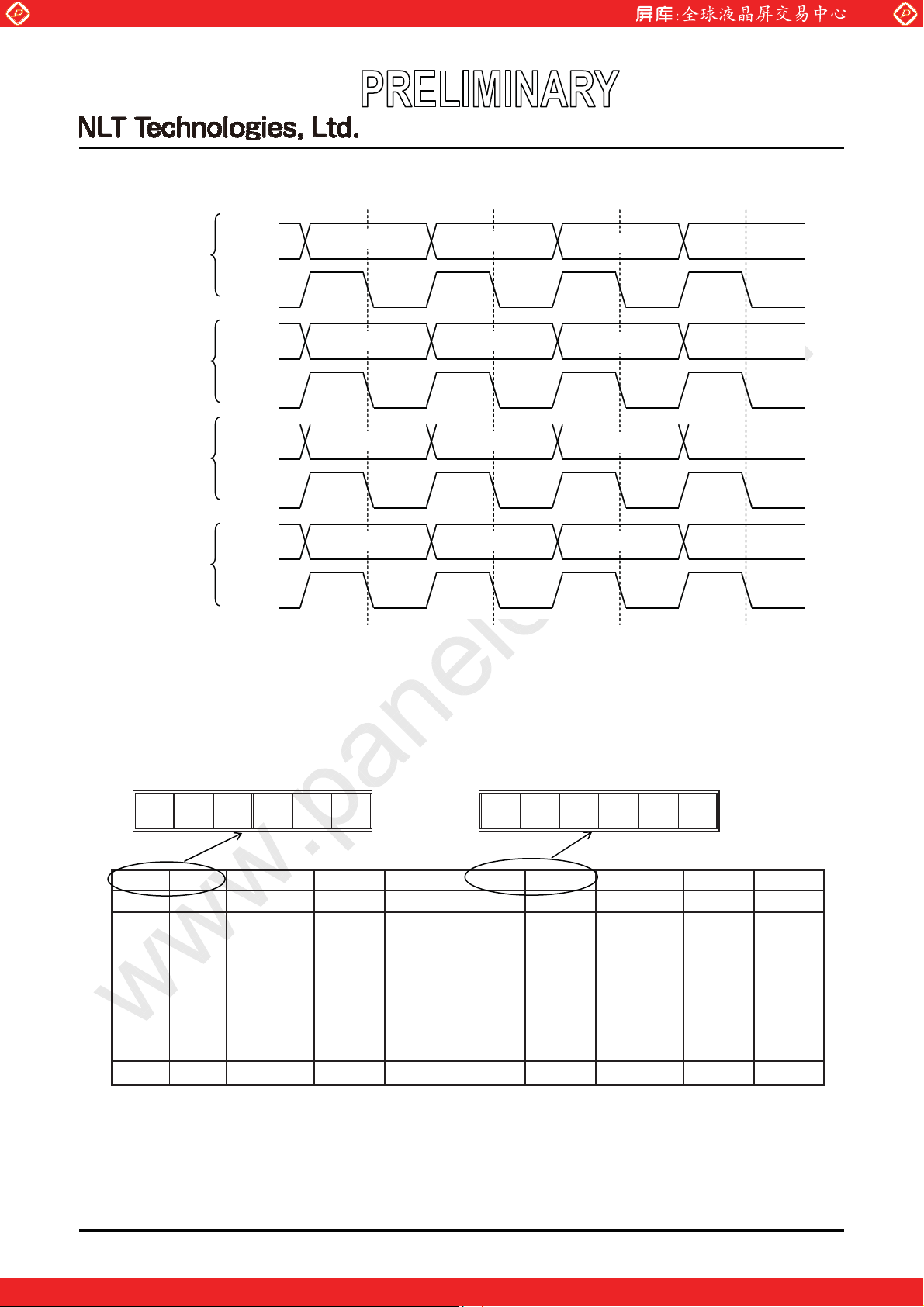

4.10 LVDS DATA TARANSMISSION METHOD
www.panelook.com
NL204153AC21-22
RA(9:0)
Pixel Data A
GA(9:0)
BA(9:0)
CLK
RB(9:0)
Pixel Data B
GB(9:0)
BB(9:0)
CLK
RC(9:0)
Pixel Data C
GC(9:0)
BC(9:0)
CLK
RD(9:0)
Pixel Data D
GD(9:0)
BD(9:0)
CLK
4.11 DISPLAY POSITIONS
D0 (9:0)
D2 (9:0)
D1 (9:0) D3 (9:0)
D1024 (9:0)
D1025 (9:0)
D1026 (9:0)
D1027 (9:0)
D4 (9:0)
D5 (9:0)
D1028 (9:0)
D1029 (9:0)
Odd pixel: RA,RC= Red date Even pixel: RB,RD=Red date
GA,GC=Green date GB,GD=Green date
BA,BC=Blue date BB,BD=Blue date
D (1, 1) D (2, 1) D (1025, 1) D (1026, 1)
RA GA BA RB GB BB RC GC BC RD GD BD
1, 1 2, 1
1, 2 2, 2
x
x
x
1, 1535 2, 1535
1, 1536 2, 1536
x
x
x
xxx
xxx
x
x
x
xxx
xxx
1023, 1 1024, 1 1025, 1 1026, 1
1023, 2 1024, 2 1025, 2 1026, 2
x
x
x
1023, 1535 1024, 1535 1025, 1535 1026, 1535
1023, 1536 1024, 1536 1025, 1536 1026, 1536
x
x
x
x
x
x
x
x
x
xxx
xxx
x
x
x
xxx
xxx
2047, 1 2048, 1
2047, 2 2048, 2
x
x
x
2047, 1535 2048, 1535
2047, 1536 2048, 1536
x
x
x
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
24
www.panelook.com
Page 25
Global LCD Panel Exchange Center
4.12 PIXEL ARRANGNMENT
www.panelook.com
NL204153AC21-22
1,536
1 2 2,048
R G B R G B
1
• • • • • •
R G B R G B • • • • • • • R G B
• • • • • • •
• • • • • • •
RGB
•••
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
25
www.panelook.com
Page 26
Global LCD Panel Exchange Center
4.13 OPTICS

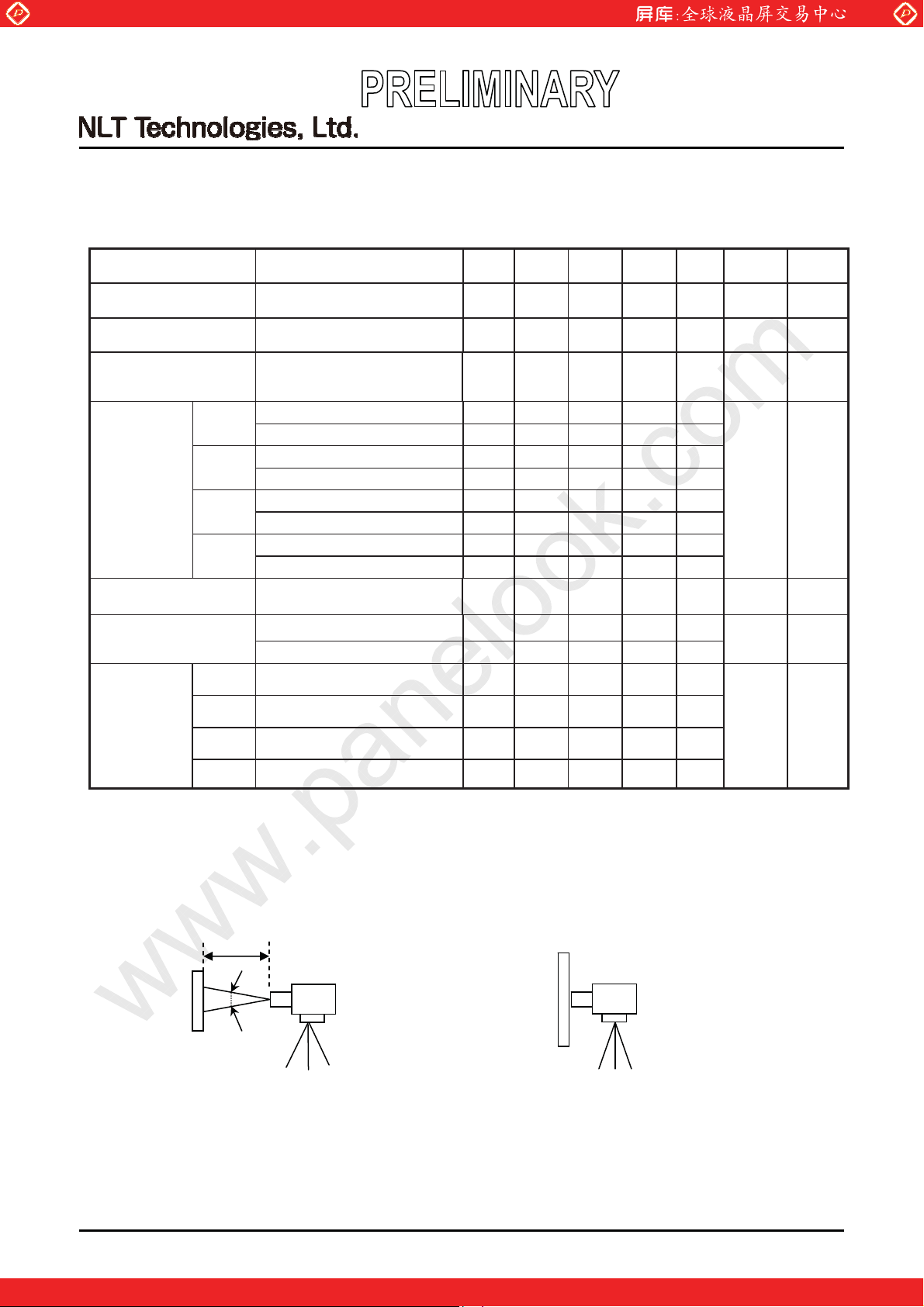

4.13.1 Optical characteristics
Parameter Condition Symbol min. typ. max. Unit
Luminance
Contrast ratio
Luminance uniformity
White
Red
Chromaticity
Green
Blue
Color gamut
Response time
TR= 0q, TL= 0q,TU= 0q, TD= 0q
White/Black at center
TR= 0q, TL= 0q,TU= 0q, TD= 0q
1023/1023 gray scale
= 0q, TL= 0q,TU= 0q, TD= 0q
TR
TR= 0q, TL= 0q,TU= 0q, TD= 0q
at center, against NTSC color space
www.panelook.com
NL204153AC21-22
White at center
x coordinate Wx 0.269 0.299 0.329
y coordinate Wy 0.285 0.315 0.345
x coordinate Rx - 0.65 -
y coordinate Ry - 0.33 -
x coordinate Gx
y coordinate Gy
x coordinate Bx
y coordinate By
Black to White Ton - 20 30 ms
White to Black Toff - 20 30 ms
L 600 800 - cd/m
CR 1,000 1,400 - -
LU1023 80 - - %
-
-
-
0.29
-
0.60
-
0.15
-
0.07
-
C 65 72 - % SR-3 Note3
- -
- -
- -
- -
(Note1, Note2)
Measuring
instrument
BM-5A
2
or SR-3
BM-5A
or SR-3
BM-5A
or
SR-3
SR-3
BM-5A
Remarks
Note3
Note3
Note5
Note4
Note6
Note3
Note7
Note8
Note9
Viewing angle
Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.
LCD module
(Product)
Note3: Product surface temperature at the maximum luminance control: TopF = 32qC ,TopR = 43qC
Note4: Product surface temperature at 450cd/m
Right
Left
Up
Down
Ta= 25
TU= 0q, TD= 0q, CRt 10 TR
TU= 0q, TD= 0q, CRt 10 TL
TR= 0q, TL= 0q, CRt 10 TU
TR= 0q, TL= 0q, CRt 10 TD
qC, VDD= 12.0V, VDDB= 12.0V, PWM: Duty 100%, Display mode: QXGA,
70 88 -
70 88 -
70 88 -
70 88 -
q
q
q
q
BM-5A
or
EZ
Contrast
Note3
Note10
Horizontal cycle= 1/96.72 kHz, Vertical cycle= 1/60.0 Hz
Optical characteristics are measured at luminance saturation 20minutes after the product
works in the dark room. Also measurement methods are as follows.
50cm
Photodetector (EZ Contrast)
1q
Photodetector (BM-5A or SR-3)
or equivalent
2
luminance control: TopF = 30qC TopR = 38qC
LCD module
(Product)
Temperature difference in display area: 10qC
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
26
www.panelook.com
Page 27
Global LCD Panel Exchange Center
Note5: See "4.13.2 Definition of contrast ratio".
Note6: See "4.13.3 Definition of luminance uniformity".
Note7: These coordinates are found on CIE 1931 chromaticity diagram.
Note8: See "4.13.4 Definition of response times".
Note9: Product surface temperature TopF= 35qC
Note10 See "4.13.5 Definition of viewing angles".
4.13.2 Definition of contrast ratio
The contrast ratio is calculated by using the following formula.
www.panelook.com
NL204153AC21-22
Contrast ratio (CR) =
Luminance of white screen
Luminance of black screen
4.13.3 Definition of luminance uniformity
The luminance uniformity is calculated by using following formula.
Luminance uniformity (LUxx) =
Minimum luminance from to ླྀ
Maximum luminance from to ླྀ
xx: 1023 gray scale.

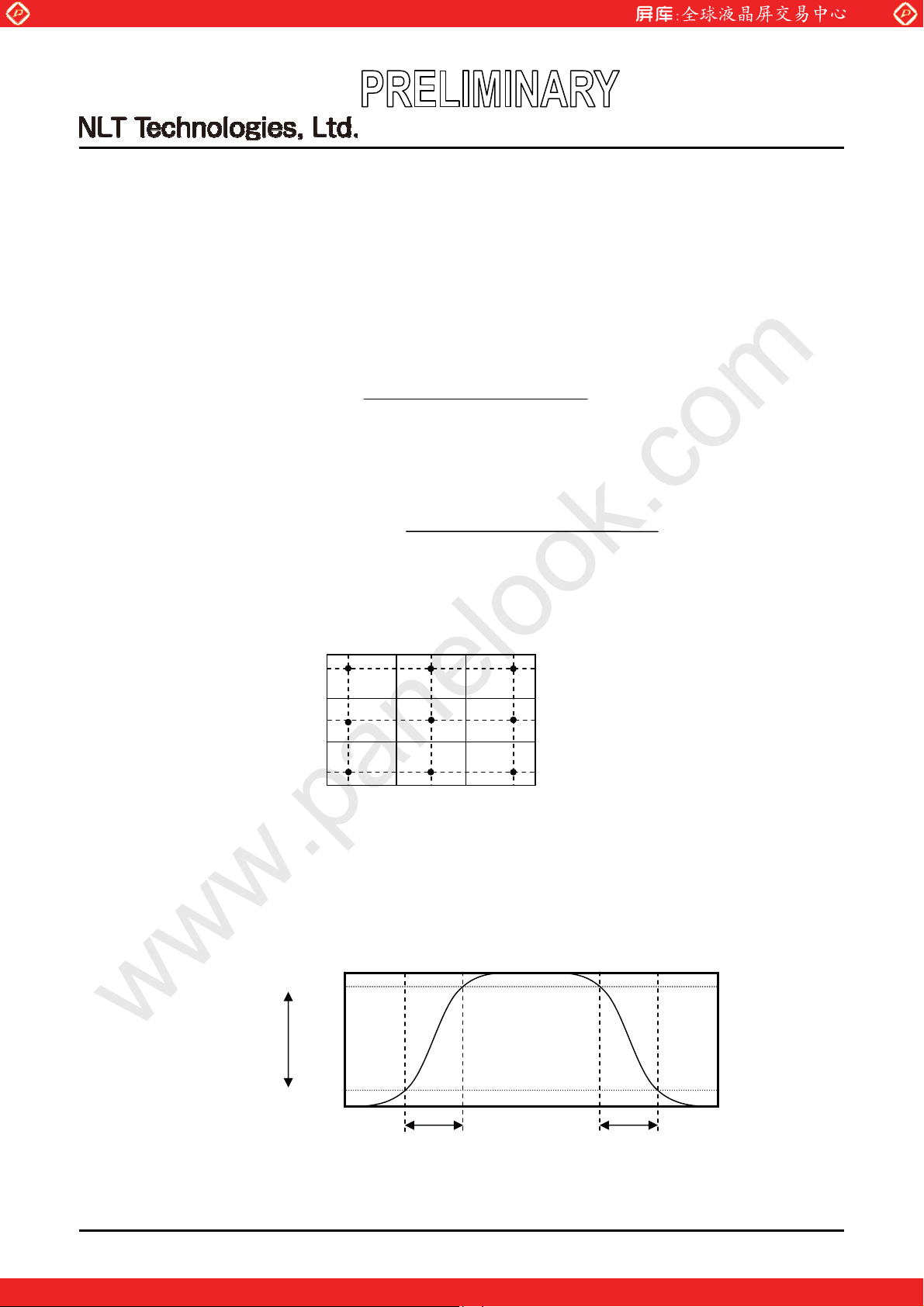

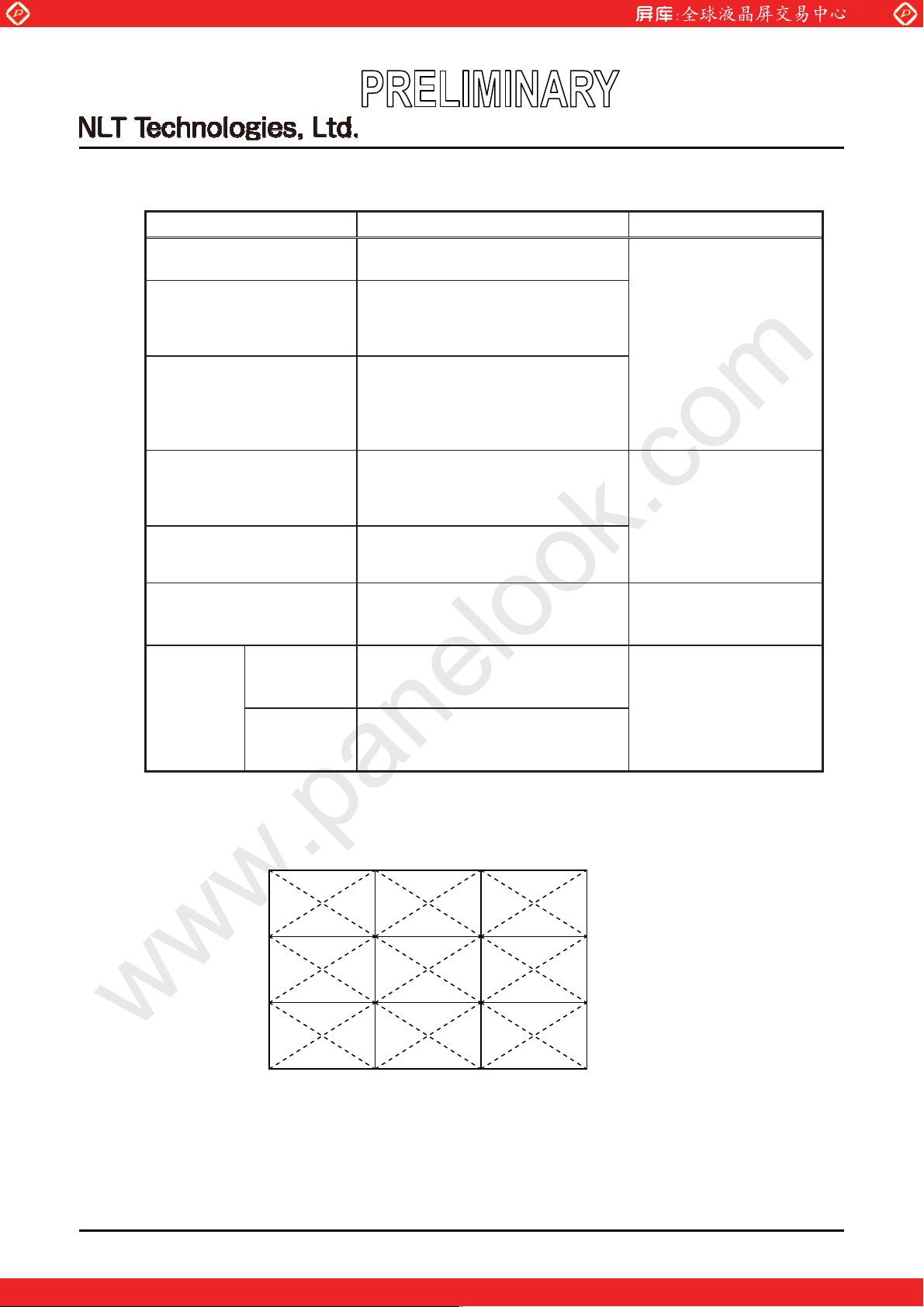

The luminance is measured at near the 9 points shown below.
153
768
1,382
204
ཱི
ྲྀ
1,024
ཱ
ུ
ཷ
1,843
ི
ཱུ
ླྀ
4.13.4 Definition of response times
Response time is measured at the time when the luminance changes from "black" to "white", or
"white" to "black" on the same screen point, by photo-detector. Ton is the time when the luminance
changes from 10% up to 90%. Also Toff is the time when the luminance changes from 90% down to
10% (See the following diagram.).
100%
White
Luminance
Black
90%
10%
0%
Ton
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
Tof f
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
27
www.panelook.com
Page 28
Global LCD Panel Exchange Center
N

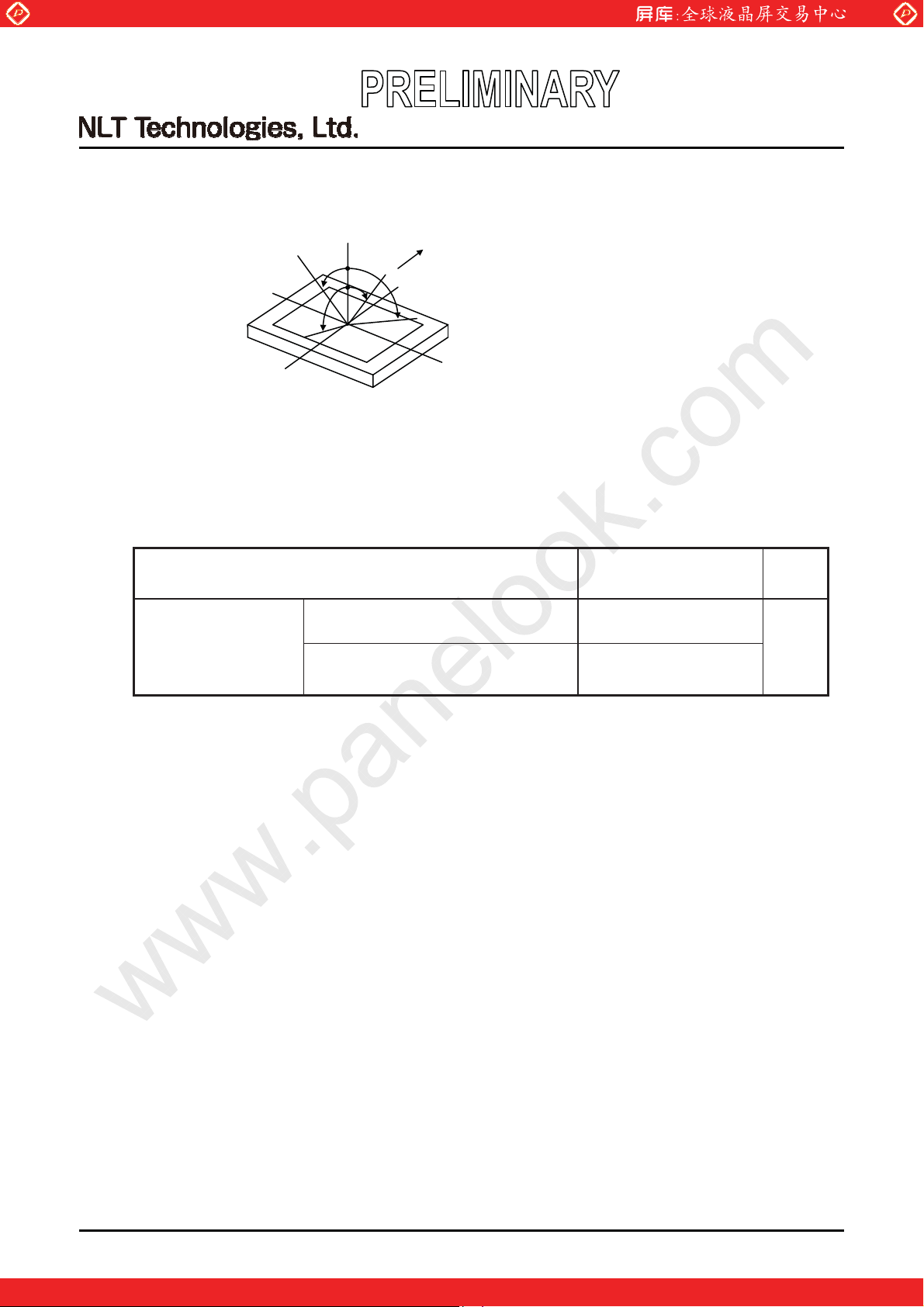

4.13.5 Definition of viewing angles
ormal axis (Perpendicular)
Left
TD
TL
www.panelook.com
12 o’clock
TU
Upper
TR
NL204153AC21-22
Lower
5. ESTIMATED LUMINANCE LIFETIME
The luminance lifetime is the time from initial luminance to half-luminance.
This lifetime is the estimated value, and is not guarantee value.
Condition
25qC (Ambient temperature of the product)
Continuous operation, PWM: Duty 100%
LED elementary substance
60qC (Temperature of the product front or
Continuous operation, PWM: Duty 100%
Note1: Life time expectancy is mean time to half-luminance.
Note2: Estimated luminance lifetime is not the value for an LCD module but the value for LED
elementary substance.
Note3: By ambient temperature, the lifetime changes particularly. Especially, in case the product
works under high temperature environment, the lifetime becomes short.
Right
rear panel)
Estimated luminance lifetime
(Life time expectancy)
Note1, Note2, Note3
70,000
60,000
Unit
h
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
28
www.panelook.com
Page 29
Global LCD Panel Exchange Center
6. RELIABILITY TESTS
Test item Condition Judgment Note1
www.panelook.com
NL204153AC21-22
High temperature and humidity
(Operation)
Heat cycle
(Operation)
Thermal shock
(Non operation)
Vibration
(Non operation)
Mechanical shock
(Non operation)
ESD
(Operation)
Non-operation
Low pressure
Operation
60 r 2qC, RH= 60%, 240hours
ཱ Display data is white. Note2
0 r 3qC 1hour
60 r 3qC 1hour
ཱ 50cycles, 4hours/cycle
ི Display data is white. Note2
-20 r 3qC 30minutes
60 r 3qC 30minutes
ཱ 100cycles, 1hour/cycle
ི Temperature transition time is within 5
minutes.
5 to 100Hz, 11.76m/s
ཱ 1 minute/cycle
ི X, Y, Z directions
ཱི 10 times each directions
294m/s
ཱ X, Y, Z directions
ི 3 times each directions
150pF, 150:, r10kV
ཱ 9 places on a panel surface Note3
ི 10 times each places at 1 sec interval
15kPa (Equivalent to altitude 13,600m)
ཱ -20qCr3qC 24 hours
ི +60qCr3qC 24 hours
53.3kPa (Equivalent to altitude 5,100m)
ཱ 0qCr3qC 24 hours
ི +60qCr3qC 24 hours Note2
2
, 11ms
2
No display malfunctions
No display malfunctions
No physical damages
No display malfunctions
No display malfunctions
Note1: Display and appearance are checked under environmental conditions equivalent to the
inspection conditions of defect criteria.
Note2: Luminance: 450cd/m
2
at luminance control.
Note3: See the following figure for discharge points
{{
{
{
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
{
{
{
{
{
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
29
www.panelook.com
Page 30
Global LCD Panel Exchange Center
I
!
7. PRECAUTIONS
7.1 MEANING OF CAUTION SIGNS
The following caution signs have very important meaning. Be sure to read "7.2 CAUTIONS" and
"7.3 ATTENTIONS"!
This sign has the meaning that a customer will be injured or the product will sustain
!
7.2 CAUTIONS
damage if the customer practices wrong operations.
This sign has the meaning that a customer will be injured if the customer practices
wrong operations.
www.panelook.com
NL204153AC21-22
Do not shock and press the LCD panel and the backlight! There is a danger of breaking,
because they are made of glass. (Shock: Equal to or no greater than 294m/s
or no greater than 11ms, Pressure: Equal to or no greater than 19.6N (
7.3 ATTENTIONS
7.3.1 Handling of the product
Take hold of both ends without touching the circuit board when the product (LCD module) is picked
up from inner packing box to avoid broken down or misadjustment, because of stress to mounting
parts on the circuit board.
ཱ Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage.
ི When the product is put on the table temporarily, display surface must be placed downward.
ཱི When handling the product, take the measures of electrostatic discharge with such as earth band, ionic
shower and so on, because the product may be damaged by electrostatic.
ུ The torque for product mounting screws must never exceed 0.735Nm. Higher torque might result in
distortion of the bezel. And the length of product mounting screws must be d 5.0mm.
2
and equal to
16mm jig))
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
30
www.panelook.com
Page 31
Global LCD Panel Exchange Center
ཱུ The product must be installed using mounting holes without undue stress such as bends or twist (See
outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends or twist
described above and undue stress to any portion may cause display mura.

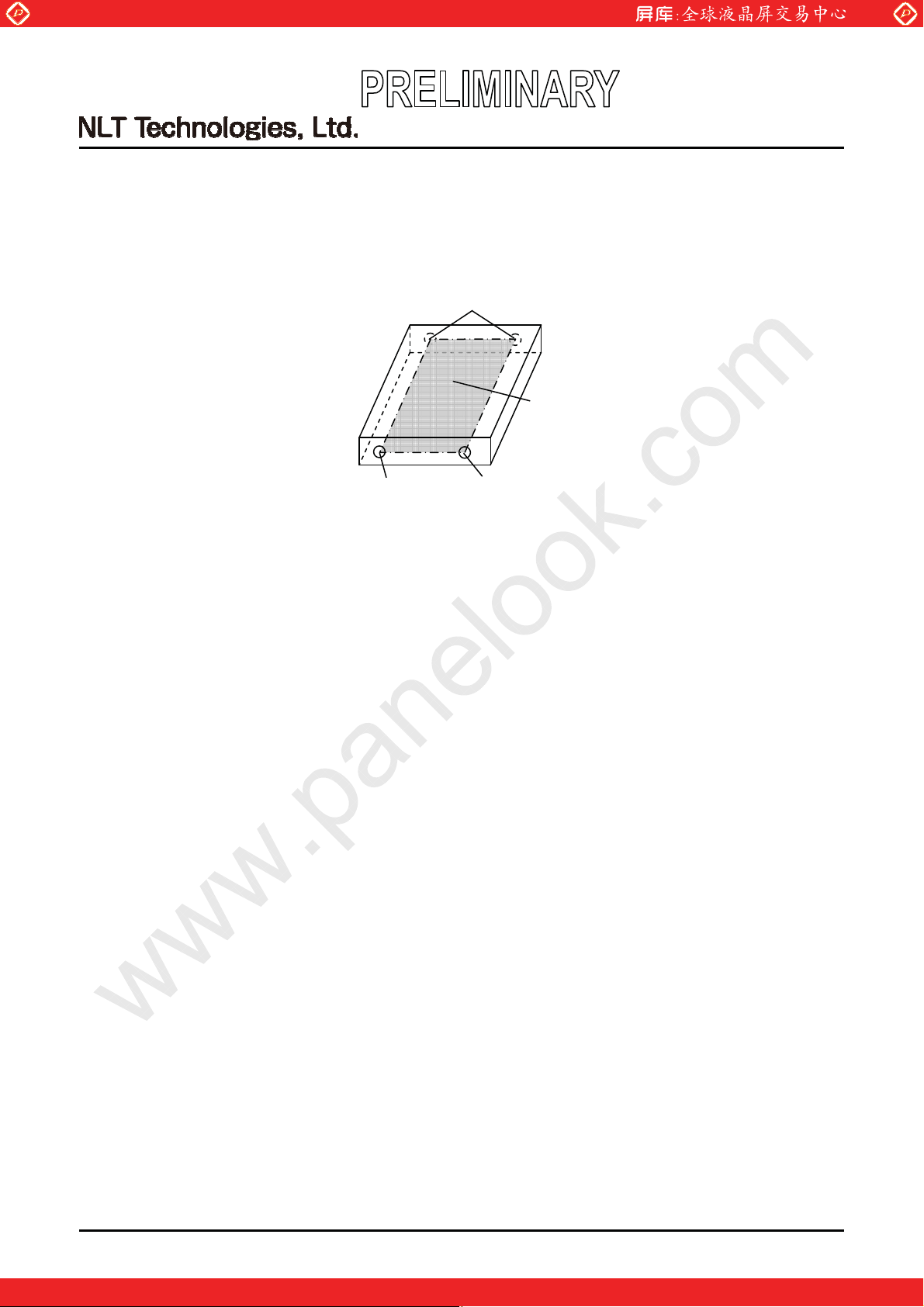

Recommended installing method: Ideal plane "A" is defined by one mounting hole (datum point)
and other mounting holes. The ideal plane "A" should be the same plane within r0.3 mm.
www.panelook.com
NL204153AC21-22
Mounting hole
Product
Ideal plane "A"
Mounting hole (Datum point) Mounting hole
ྲྀ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it with
a soft dry cloth.
ཷ Do not push or pull the interface connectors while the product is working.
ླྀ When handling the product, use of an original protection sheet on the product surface (polarizer) is
recommended for protection of product surface. Adhesive type protection sheet may change color or
characteristics of the polarizer.
ཹ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of
thin layer and the construction of LCD panel. But, if you contact with liquid crystal by any chance,
please wash it away with soap and water.
7.3.2 Environment
Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases.
Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and
sunlight, when storing the product.
ཱ In order to prevent dew condensation occurred by temperature difference, the product packing box
must be opened after enough time being left under the environment of an unpacking room. Evaluate
the storage time sufficiently because dew condensation is affected by the environmental temperature
and humidity. (Recommended leaving time: 6 hours or more with the original packing state after a
customer receives the package)
ི Do not operate in high magnetic field. If not, circuit boards may be broken.
ཱི This product is not designed as radiation hardened.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
31
www.panelook.com
Page 32
Global LCD Panel Exchange Center
7.3.3 Characteristics
The following items are neither defects nor failures.
Response time, luminance and color may be changed by ambient temperature.
ཱ Display mura, flickering, vertical streams or tiny spots may be observed depending on display
patterns.
ི Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen
saver, if the fixed pattern is displayed on the screen.
ཱི The display color may be changed depending on viewing angle because of the use of condenser sheet
in the backlight.
ུ Optical characteristics may be changed depending on input signal timings.
7.3.4 Others
www.panelook.com
NL204153AC21-22
All GND, GNDB, VDD and VDDB terminals should be used without any non-connected lines.
ཱ Do not disassemble a product or adjust variable resistors.
ི Pack the product with the original shipping package, in order to avoid any damages during
transportation, when returning the product to NLT for repairing and so on.
ཱི The LCD module by itself or integrated into end product should be packed and transported with
display in the vertical position. Otherwise the display characteristics may be degraded.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
32
www.panelook.com
Page 33
Global LCD Panel Exchange Center
NL204153AC21-22
www.panelook.com
33
Unit: mm
Note1: Not shown tolerances of the dimensions are r0.5mm.
Note2: The torque for product mounting screws must never exceed 0.735Nm.
Note3: The values in parentheses are for reference.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
Note4: The length of product mounting screws from surface of plate must be d 5.0mm.

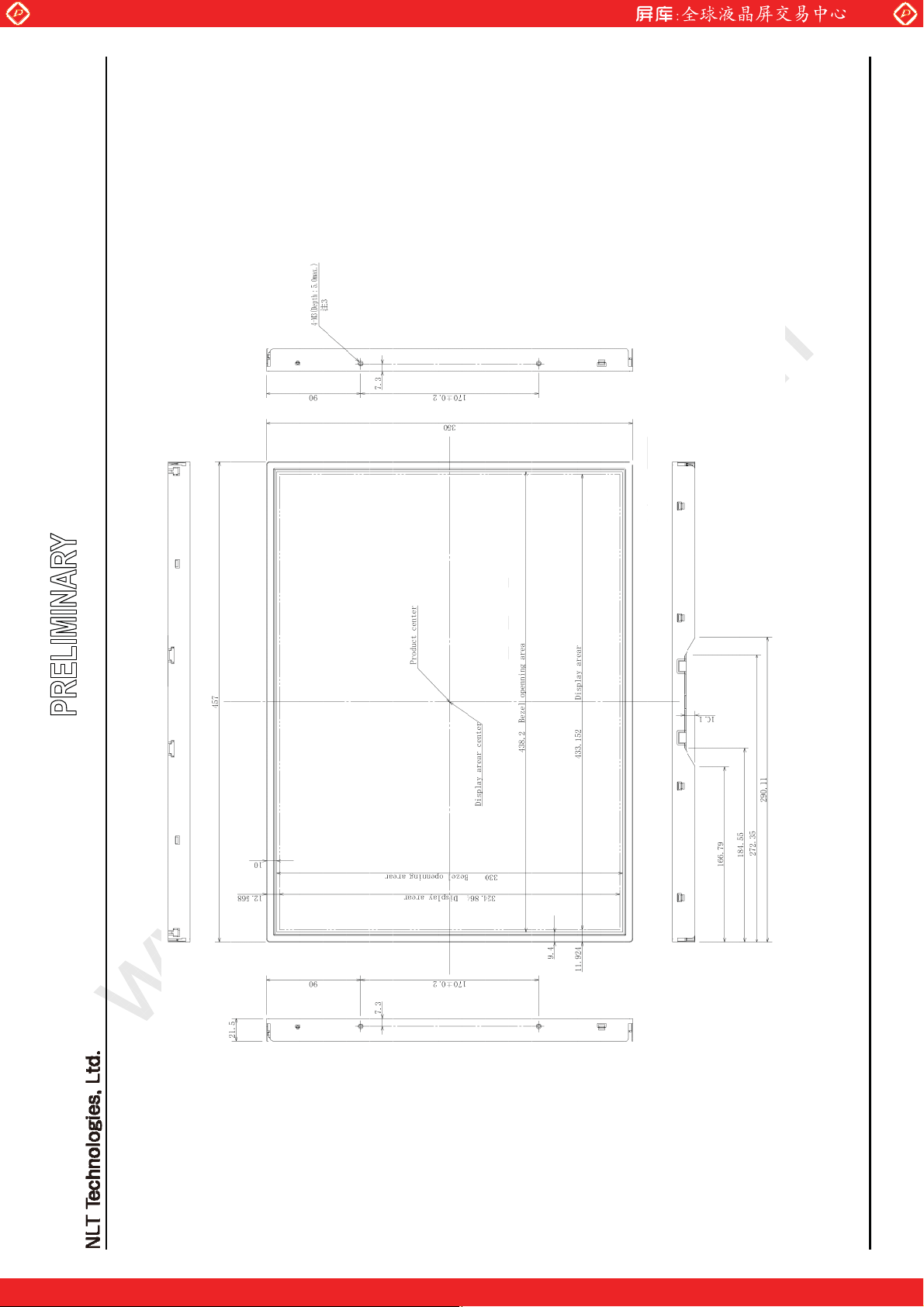

8.1 FRONT VIEW
8. OUTLINE DRAWINGS
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 34
Global LCD Panel Exchange Center
NL204153AC21-22
www.panelook.com
34
Unit: mm
Note1: Not shown tolerances of the dimensions are r0.5mm.
Note2: The torque for product mounting screws must never exceed 0.735Nm.
Note3: The values in parentheses are for reference.
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
Note4: The length of product mounting screws from surface of plate must be d 5.0mm.

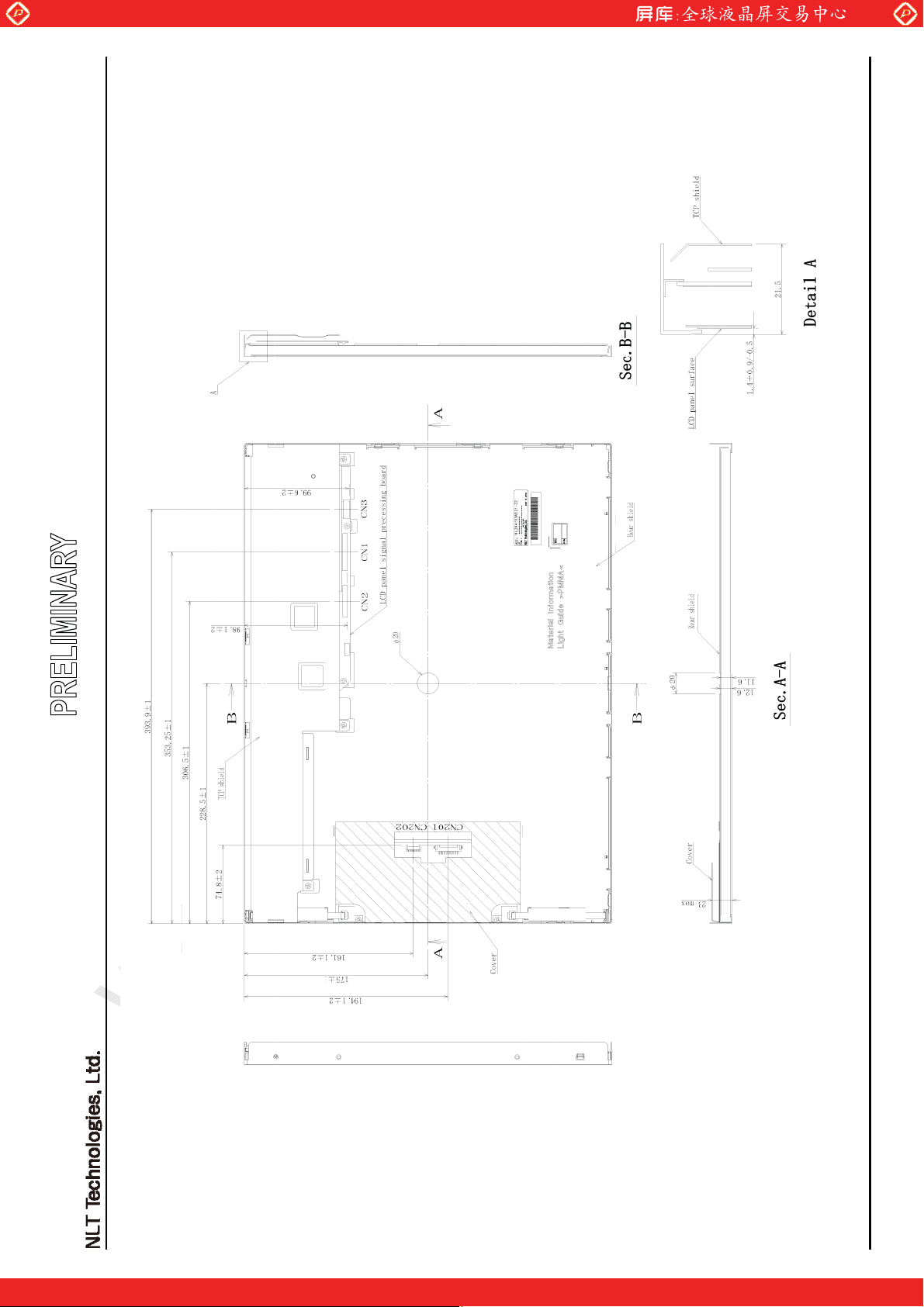

8.2 REAR VIEW
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 35
Global LCD Panel Exchange Center
The inside of latest specifications is revised to the clerical error and the major improvement of previous
edition. Only a changed part such as functions, characteristic value and so on that may affect a design of
customers, are described especially below.
www.panelook.com
NL204153AC21-22
REVISION HISTORY
Edition
1st
edition
Document
number
DOD-PP1507
Prepared
date
Oct. 19,
2012
Revision contents
New issue
Signature of writer
Approved by
K. FUJIMOTO
Revision contents and signature
Checked by
Prepared by
E. YOSHIMURA
PRELIMINARY DATA SHEET DOD-PP-1507 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
35
www.panelook.com
Loading...
