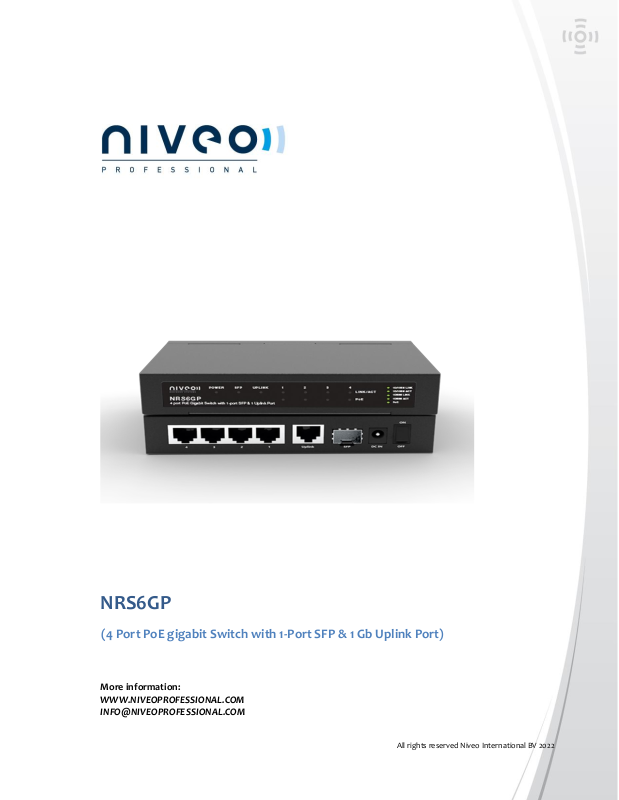

Page 1
All rights reserved Niveo International BV 2022

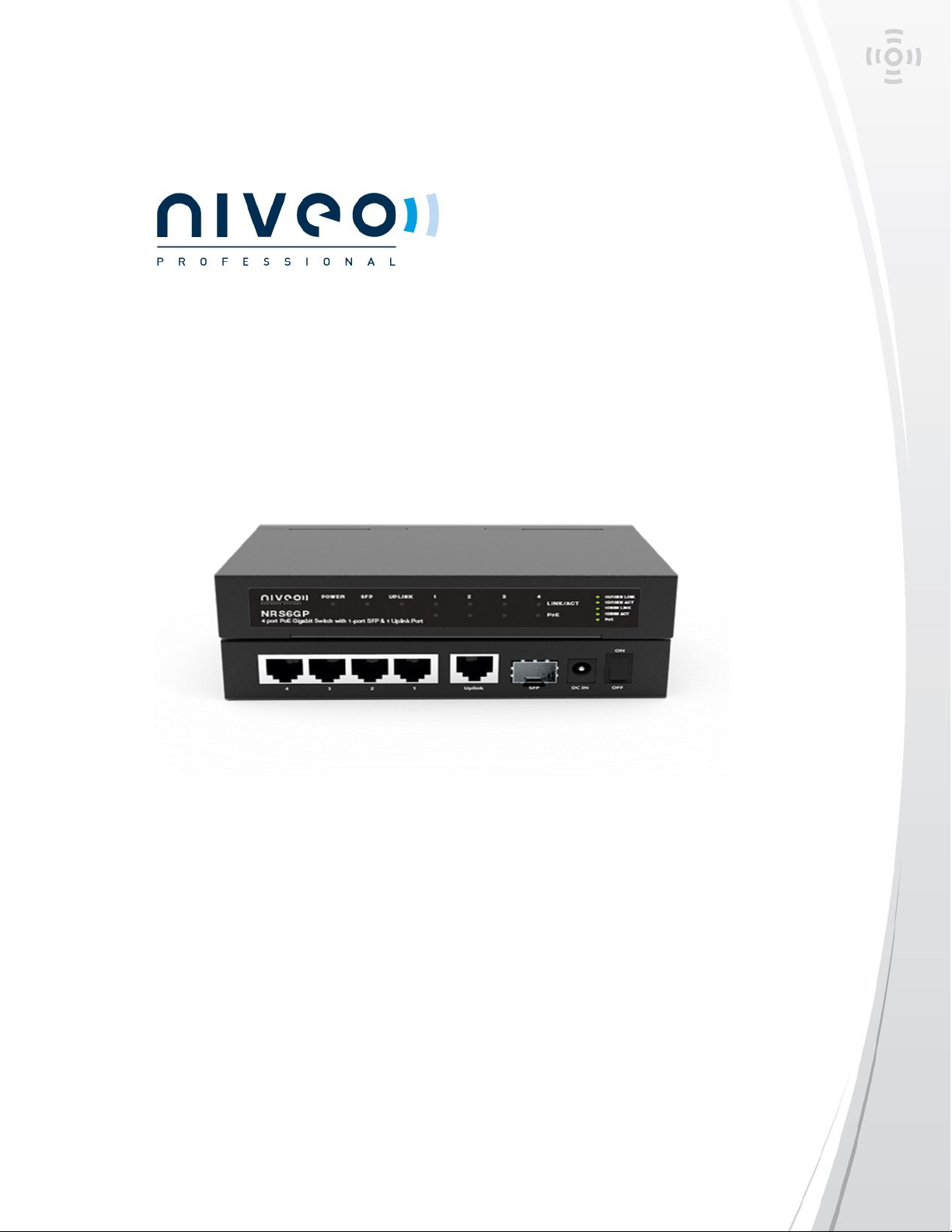

NRS6GP
(4 Port PoE gigabit Switch with 1-Port SFP & 1 Gb Uplink Port)
More information:
WWW.NIVEOPROFESSIONAL.COM
[email protected]
Page 2
All rights reserved Niveo International BV 2022
Product Specification
The NRS6GP provides 5 Gigabit ports combined with a 1 SFP port, making it the
ideal device for small commercial and residential integrations. Offering PoE+ for
powering a wide array of devices.The rock solid fanless design is built to last in
every modern installation.
Technical Specifications
Model No.
NRS6GP
I/O ports
1*10/100/1000Mbps RJ-45 port
4*10/100/1000Mbps PoE +RJ-45 ports
1* SFP port
Standard
IEEE 802.3 10Base T Ethernet
IEEE 802.3u 100Base TX(Fast Ethernet)
IEEE 802.3ab 1000Base T(Gigabit Ethernet)
IEEE 802.3z 1000base SX LX
IEEE 802.3x Flow control
IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
LED Define
PWR
• Green: Power is on
• Not illuminated: Power is off
LAN/Uplink port
• Green(Solid): indicate the port isoperating at 1000
Mbps
• Green(Blinking): indicate the activity is occurring
• Orange(Solid): indicate the port is operating at
10/100 Mbps
• Orange(Blinking): indicate the activity is occurring
PoE interfaces
• Orange: PoE in Use
SFP interfaces
• Green: SFP is linking
MAC table
2K
Buffer Memory
128KB
PoE Budget
65W
Jumbo Frame
9k bytes
Switching
Fabric
12Gbps
Power Input
External UL certified power supply: 100-240VAC, 50/60Hz
55v DC, 1.3A
Page 3
All rights reserved Niveo International BV 2022
Dimension
147(L)*106(W)*28(H)mm
FAN Design
Fan-less
Temperature
Operating: 0℃~40℃
Storage : -20℃~70℃
Humidity
10%~90% RH(non-condensing)
Safety
LVD EN60950-1: 2011+A2: 2013
EMC
FCC Part 15,Subpart B:ANSI C63.4-2014 (Class B)
CE EN55032: 2015+AC:2020
EN55035: 2017+A11:2020
