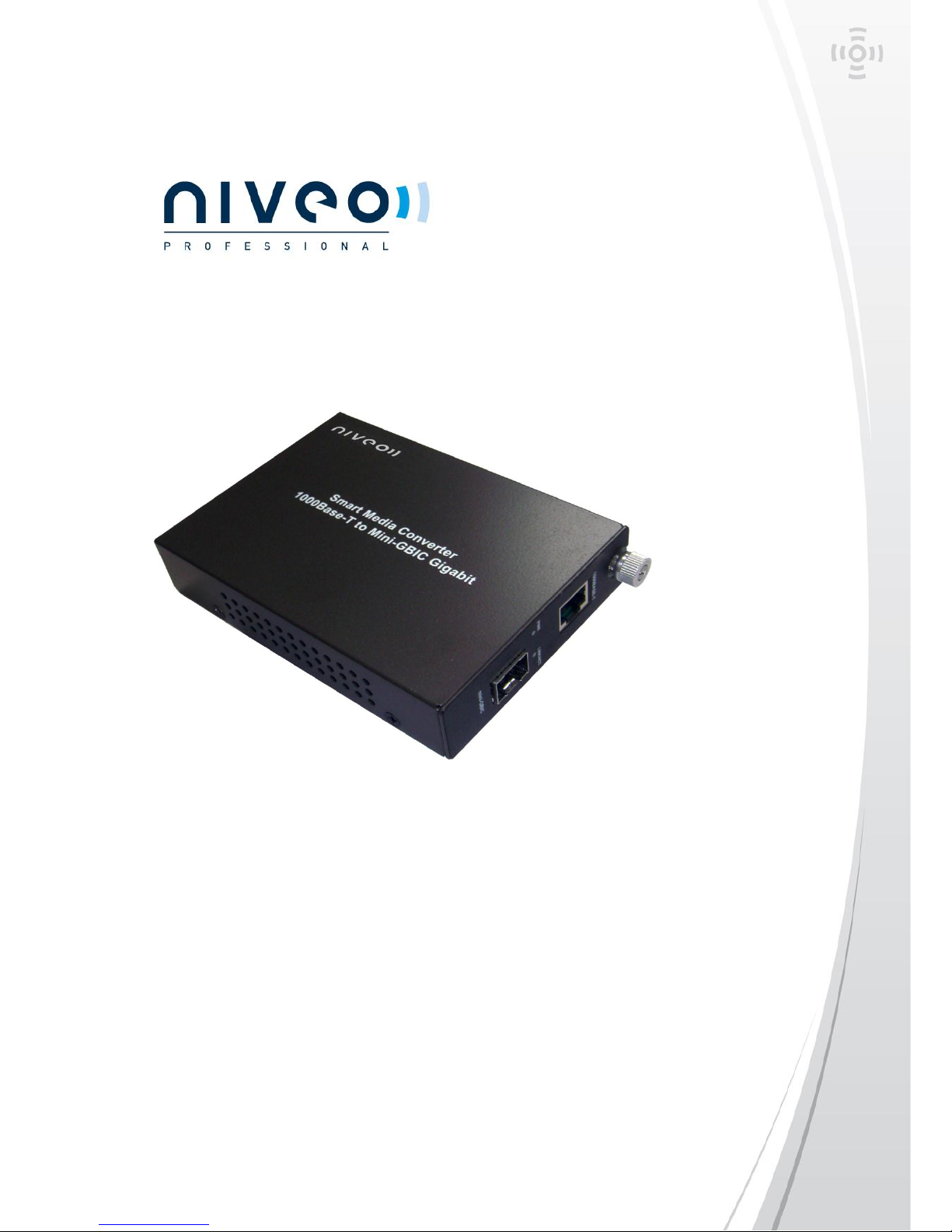

NMC1002
(Niveo 1000Base-T to mini-GBIC Smart Gigabit Media Converter)
Page 2
All rights reserved Netstar Products BV 2011
Product Specification
Introduction
The NMC1002 provides one channel media conversion between 1000Base-T
and 1000Base-SX/LX through mini-GBIC module. NMC1002 is a Plug-andPlay device, it provides optional management module (MOD-SNMP) that can
control this media converter through the chassis system (RP-MCR116), the
device can be controlled through Web Browser, SNMP and terminal emulation
program.
The management module will detect the default reset on the DIP switches and
display out the status, also the management module can control the function
through the chassis system.
Features
• Compliant with IEEE 802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX
Gigabit Ethernet Standards
• Provides one 1000Base-T port, one mini-GBIC port supporting either multi mode or single-mode fiber
• Supports Full Duplex and Auto-negotiation mode for Fiber port
• Front panel diagnostic LED indications
• Provides Dip Switch to setting: Fiber (Auto/Manual), LLR (Enable/Disable)
• Provides 19" system chassis for up to 16-converter with Redundant Power
Supply for optional expansion use
• Supports LLCF (Link Loss Carry Forward, Link Pass Through)
• Supports LLR (Link Loss Return) for Fiber port
• Monitor the status of duplex/ link for both media via management module
MOD-MCSNMP through Media Converter Chassis System (MCR116)
• Set Duplex force, LLR on/off for Fiber, ports on/off via the MOD-MCSNMP
through MCR116
• Provides link down source port information
Page 3
All rights reserved Netstar Products BV 2011
Specification
Standards
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX
IEEE 802.3z 1000Base-LX
Ports
1 * 1000Base-T with RJ-45 connector
1 * 1000Base-SX/LX with SC connector
Protocol
CSMA/CD
Data Transfer Rate
2000Mbps (Full Duplex)
Network 1000Base-T
Media
1000Base-SX:
Multi-mode
100Base-FX
4 pair Cat.5, EIA/TIA-568 100-ohm screened twisted-
pair (STP), up to 100m
62.5/125μm Multi-mode fiber optic cable
50/125μm Multi-mode fiber optic cable
62.5/125μm Multi-mode fiber optic cable
9/125μm Single-mode fiber optic cable
Dip Switch
Auto-negotiation or Manual for FX
LLR enable or disable for FX
LEDs Indicator
Per unit: Power
Per port: Link/Activity
Power Supply
External Power Adapter DC 7.5V/1.5A
Consumption: 6W (max.)
Environment
Operating Temperature: 0ºC~45ºC
Operating Humidity: 10%~90%
Dimension
120 * 88 * 25 mm
Certifications
FCC, CE, GOST-R
