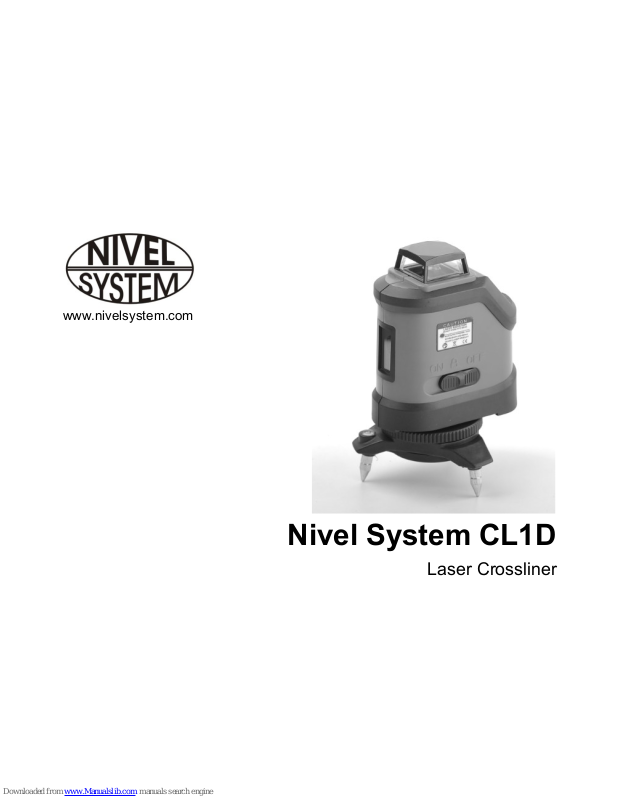

Nivel System CL1D
Laser Crossliner
HOW TO OPERATE THE UNIT
RIGHT SIDE: Pendulum Lock
This Cross Line Laser is a precision instrument and should be treated with care.
When not in use, the pendulum should always be in the Off position (figure 1),
To lock the pendulum allows the Cross Line Laser to better withstand vibration
and trauma incurred during transportation or if the unit is dropped.
Figure 1
MIDDLE SIDE-Locked Line Angle
In the locked line angel position (figure 2), the pendulum is in the locked position
and will not automatically level. When in the locked line position, both two laser
lines will be on and flash slowly. The Red Lock LED will be on as well.
Figure 2
LEFT SIDE-Automatic Leveling
When the pendulum is unlocked (figure 3), the pendulum is free to automatically
level, In order for the Cross Line Laser to automatically level, the base of the unit
needs to be within 3.5°of level.
Figure 3
Control Panel:
Pulse Indicator
Low Power
Indicator
Pulse Mode
(with detector)
Line Selection
Utilities of Panel
-Pulse Mode: It can make the laser diode with PULSE(The pulse indicator will be
on). The laser line is able to be picked up by detector after this function is
activated.
-Line Selection: By pressing Line Selection can make a various change/collocation
of laser lines. The sequence of it is as below:
After switch on the laser, the H laser will be on.
Press Line Selection for one time, H line off, V line will on.
Press Line Selection for two times, Both H & V lines will be on simultaneously
Press Line Selection for three times, it will turn to the situation when the laser is
switched on. (H line emits)
For graphic illustration please refer to figure 4.
H
V1
Figure 4
Alarm Functions
Out Level Alarm:
When the pendulum is unlocked and the Cross Line Laser is within 3.5°of level,
the unit will be in automatic leveling range, in this situation no LED light will be on.
When the base of the unit locates outside the 3.5°leveling range the laser beam
will flash meanwhile an audibly warning will be sent out from Cross Line Laser.
Low Battery Alarm:
The Green battery LED will be on and keep flashing slowly when the working
voltage is ＜3V. At this situation the batteries are required to be replaced.
What is included with your Red Beam Palm Laser
1. Instrument CL1D
2. Laser sensor (with bracket)
3. Laser target
4. Rotatable base
5. Alkaline batteries
6. Plastic case
7. Manual
Specification:
Accuracy
±1mm/5m
Leveling Range
±3.5°
Working Range/With Detector
15m/60m with detector
Tripod Thread
1/4"
Laser Type
635 nm, laser class II
Beam display / planes
horizontal (360°), vertical (90°)
Operating Temperature
-10℃ to 50℃
Storage Temperature
-20℃ to 60℃
Dimension
110x60x121 mm
Protection Class Spray Water/Dust
IP44
Net Weight
0.8kg
