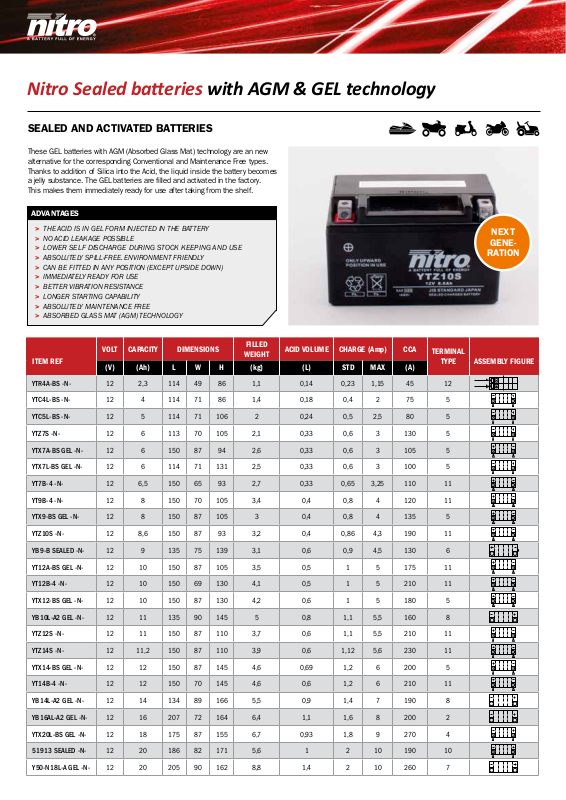

Nitro Sealed baeries with AGM & GEL technology

SEALED AND ACTIVATED BATTERIES

These GEL batteries with AGM (Absorbed Glass Mat) technology are an new
alternative for the corresponding Conventional and Maintenance Free types.
Thanks to addition of Silica into the Acid, the liquid inside the battery becomes
a jelly substance. The GEL batteries are lled and activated in the factory.
This makes them immediately ready for use after taking from the shelf.

ADVANTAGES

> THE ACID IS IN GEL FORM INJECTED IN THE BATTERY
> NO ACID LEAKAGE POSSIBLE
> LOWER SELF DISCHARGE DURING STOCK KEEPING AND USE
> ABSOLUTELY SPILL-FREE. ENVIRONMENT FRIENDLY
> CAN BE FITTED IN ANY POSITION (EXCEPT UPSIDE DOWN)
> IMMEDIATELY READY FOR USE
> BETTER VIBRATION RESISTANCE
> LONGER STARTING CAPABILITY
> ABSOLUTELY MAINTENANCE FREE
> ABSORBED GLASS MAT (AGM) TECHNOLOGY

NEXT

GENE-

RATION

VOLT CAPACITY DIMENSIONS

ITEM REF

YTR4A-BS -N- 12 2,3 114 49 86 1,1 0,14 0,23 1,15 45 12

YTC4L-BS -N- 12 4 114 71 86 1,4 0,18 0,4 2 75 5

YTC5L-BS -N- 12 5 114 71 106 2 0,24 0,5 2,5 80 5

YTZ7S -N- 12 6 113 70 105 2,1 0,33 0,6 3 130 5

YTX7A-BS GEL -N- 12 6 150 87 94 2,6 0,33 0,6 3 105 5

YTX7L-BS GEL -N- 12 6 114 71 131 2,5 0,33 0,6 3 100 5

YT7B-4 -N- 12 6,5 150 65 93 2,7 0,33 0,65 3,25 110 11

YT9B-4 -N- 12 8 150 70 105 3,4 0,4 0,8 4 120 11

YTX9-BS GEL -N- 12 8 150 87 105 3 0,4 0,8 4 135 5

YTZ10S -N- 12 8,6 150 87 93 3,2 0,4 0,86 4,3 190 11

YB9-B SEALED -N- 12 9 135 75 139 3,1 0,6 0,9 4,5 130 6

YT12A-BS GEL -N- 12 10 150 87 105 3,5 0,5 1 5 175 11

YT12B-4 -N- 12 10 150 69 130 4,1 0,5 1 5 210 11

YTX12-BS GEL -N- 12 10 150 87 130 4,2 0,6 1 5 180 5

YB10L-A2 GEL -N- 12 11 135 90 145 5 0,8 1,1 5,5 160 8

(V) (Ah) L W H (kg) (L) STD MAX (A)

FILLED

WEIGHT

ACID VOLUME CHARGE (Amp) CCA

TERMINAL

TYPE ASSEMBLY FIGURE

YTZ12S -N- 12 11 150 87 110 3,7 0,6 1,1 5,5 210 11

YTZ14S -N- 12 11,2 150 87 110 3,9 0,6 1,12 5,6 230 11

YTX14-BS GEL -N- 12 12 150 87 145 4,6 0,69 1,2 6 200 5

YT14B-4 -N- 12 12 150 70 145 4,6 0,6 1,2 6 210 11

YB14L-A2 GEL -N- 12 14 134 89 166 5,5 0,9 1,4 7 190 8

YB16AL-A2 GEL -N- 12 16 207 72 164 6,4 1,1 1,6 8 200 2

YTX20L-BS GEL -N- 12 18 175 87 155 6,7 0,93 1,8 9 270 4

51913 SEALED -N- 12 20 186 82 171 5,6 1 2 10 190 10

Y50-N18L-A GEL -N- 12 20 205 90 162 8,8 1,4 2 10 260 7

Baery terminal types

TERMINAL

TYPE

1

2

3

4

FRONT SIDE TOP

TERMINAL

TYPE

10

11

12

13

FRONT SIDE TOP

5

6

7

8

9

14

15

16

17
