USER GUIDE
Preliminary
Page 2
© Copyright 2009, NITGEN&COMPANY Co., Ltd.
All rights reserved. `
z
Unauthorized reproduction of part or all of this manual’s content in any form is
prohibited.
z
Product specifications may change without prior notice to improve functionality.
z
NITGEN&COMPANY the NITGEN logo are registered trademarks of
NITGEN.&COMPANY
z
Other names and trademarks belong to respective companies.
z
The font used in this product is Naver’s “Nanum”.
NITGEN&COMPANY Customer Service Center
Tel: +82.2.513.2150
Fax: +82.2.513.2191
Email: [email protected]
Page 3
3
Table of Contents
CHAPTER 1 GETTING STARTED........................................... 4
P
RODUCT INTRODUCTION
......................
오류
! 책갈피가 정의되어 있지 않습니다
.
P
RODUCT COMPONENT
......................................................................................... 5
S
YSTEM CONFIGURATION
...................................................................................... 9
P
RODUCT DESCRIPTION
........................................................................................ 6
LCD D
ISPLAY
...................................................................................................... 7
CHAPTER 2 ADMINISTRATOR MENU .................................. 11
E
NTERING ADMINISTRATOR MENU
....................................................................... 12
U
SER MANAGEMENT
........................................................................................... 15
UI & S
OUND SETTING
......................................................................................... 18
N
ETWORK SETTING
............................................................................................. 19
S
YSTEM SETTING
................................................................................................ 21
T
ERMINAL INFORMATION DISPLAY
........................................................................ 23
F
ACTORY DEFAULT
............................................................................................. 23
CHAPTER 3 GENERAL USER.............................................. 25
D
OOR OPENING
.................................................................................................. 26
A
UTHENTICATION IN ATTENDANCE MODE
.............................................................. 28
C
HANGING USER INFORMATION
........................................................................... 30
APPENDIX........................................................................ 31
A
PPENDIX
.......................................................................................................... 32
T
ROUBLESHOOTING
............................................................................................ 32
P
RODUCT SPECIFICATIONS
.................................................................................. 35
Page 4
4
Chapter 1
Getting Started
Product Introduction - 5
Product Components - 6
System Configuration - 7
Product Description - 9
Page 5
5
Product Component

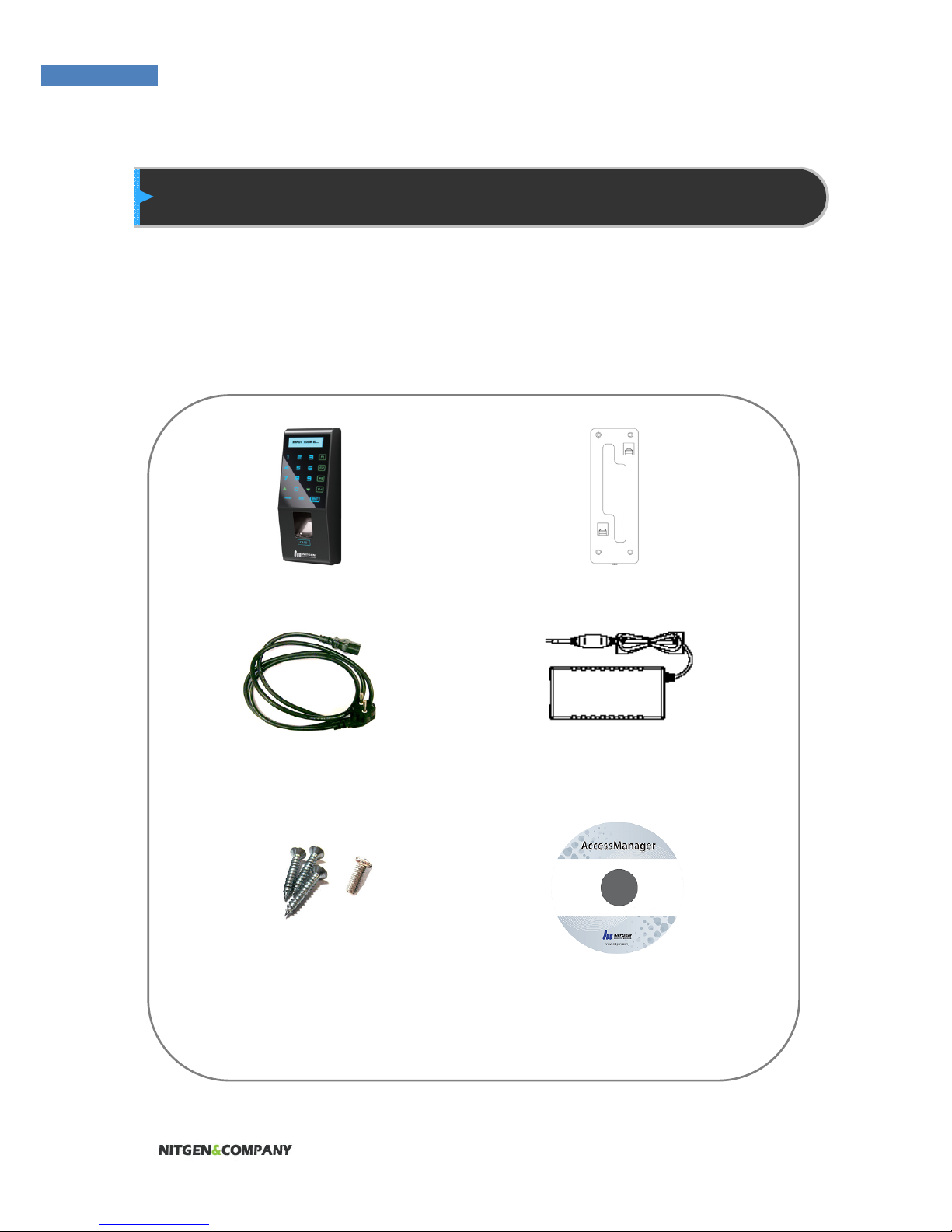

The FingkeyAccessTM includes the following components. For
detailed information about installation, see the installation guide. If
any of the following items is missing, contact the Customer Support
Team.
Terminal Installation Bracket
Power Cord Adapter
Bolts Software CD
Page 6
6

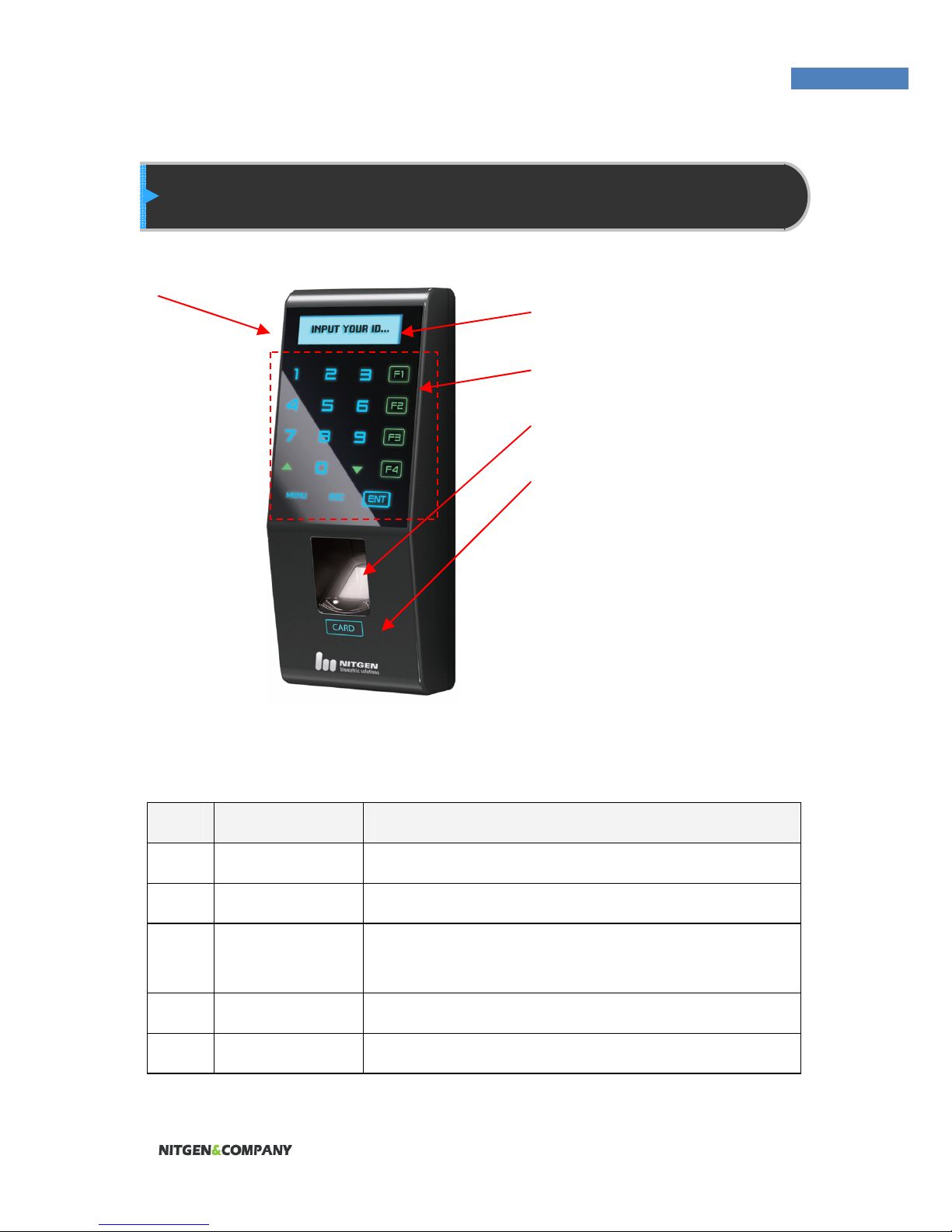

Product Description
.
No. Name Description
1 LCD The user can get information from it
2 Touch Panel The user can handle all inputs by touching.
3 Fingerprint Input The user places his/her finger for authentication.
4 Card Input The user places his/her card for authentication.
5 Reset Button The user can make the system reset manually.
(1) LCD
(2) Touch Panel
(3) Fingerprint Input
(4) Card Input
(5) Reset button
Page 7
7

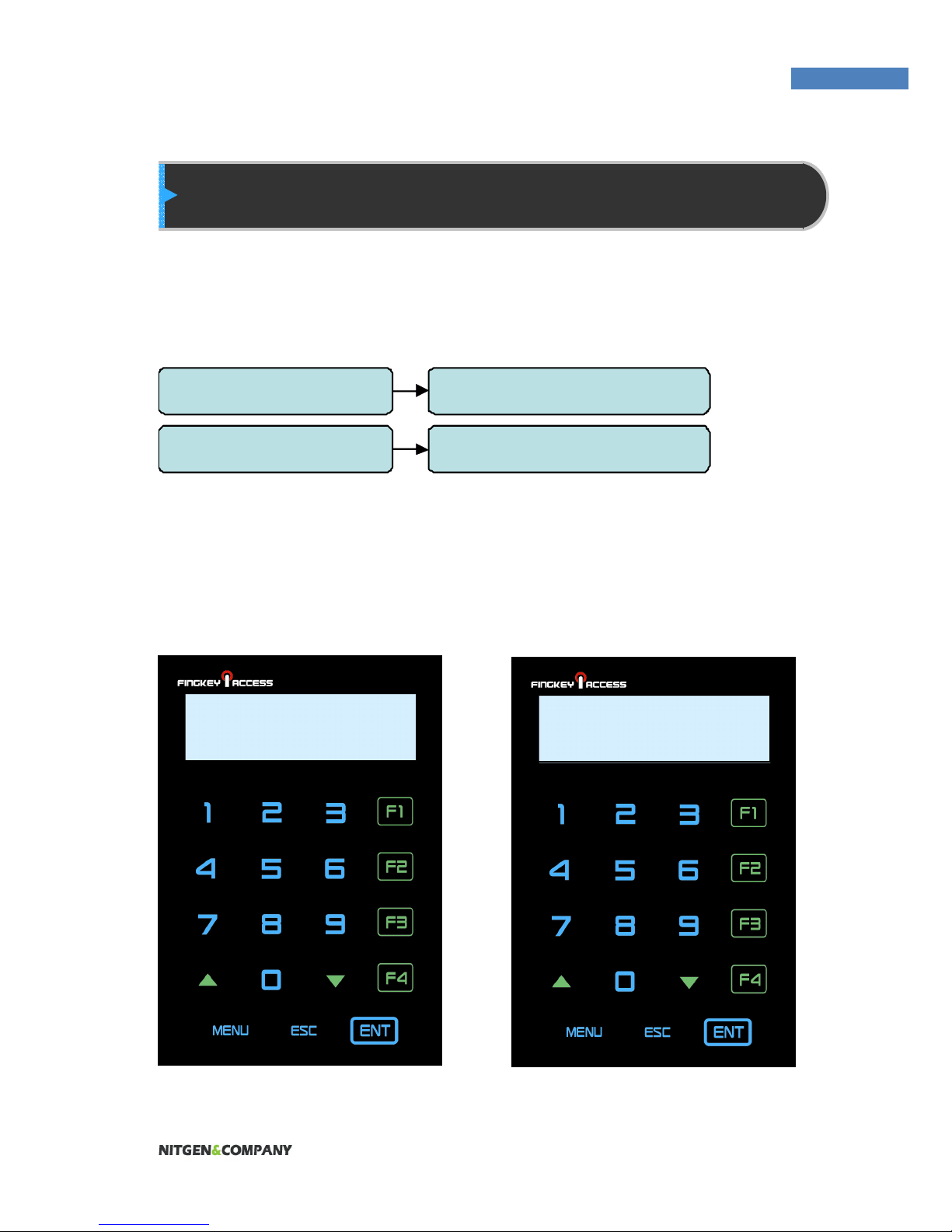

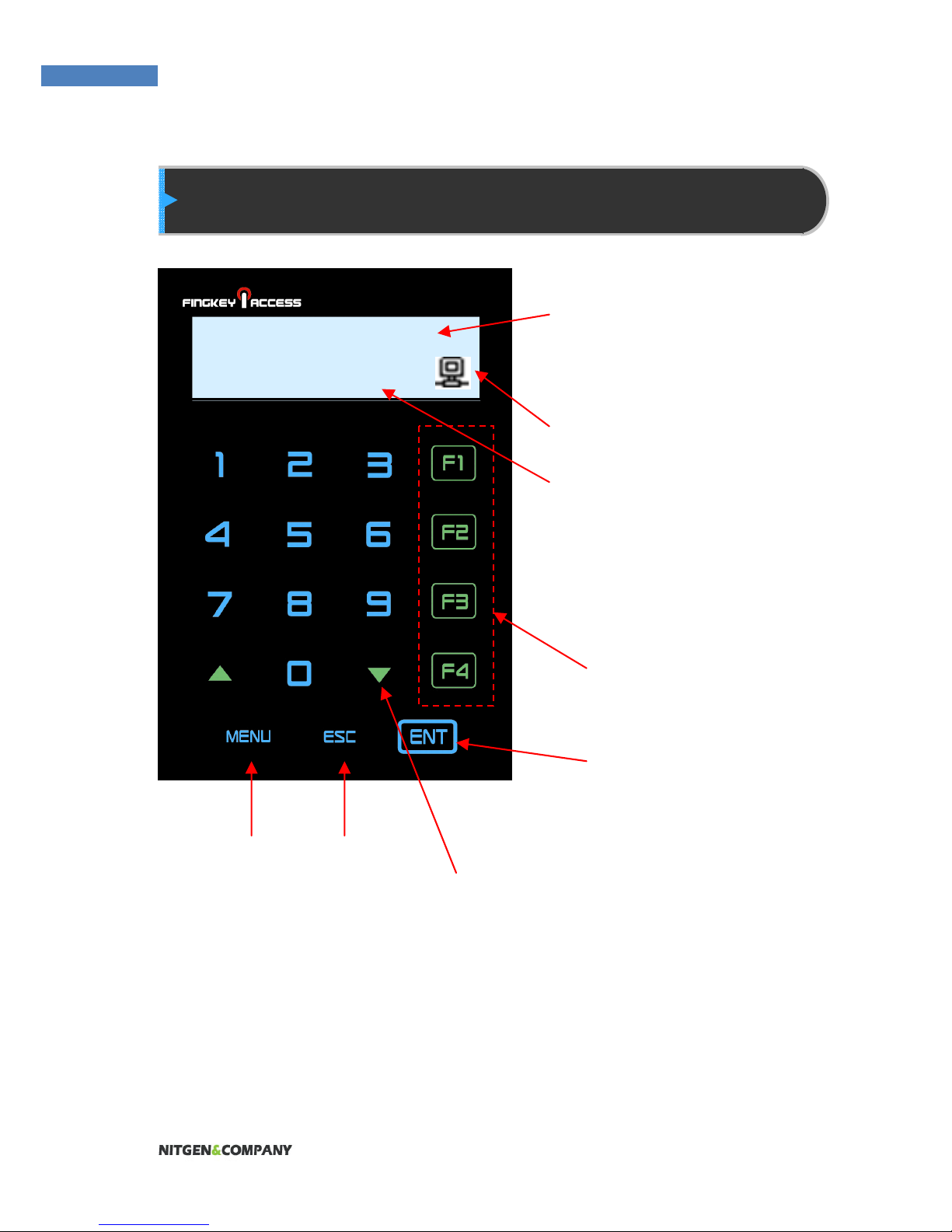

LCD Display & Touch Pads
(2) Network connection status
(1) Initial message
(3) Time: Displays the present
FINGKEY ACCESS
09:12:34
FINGKEY ACCESS
09:12:34

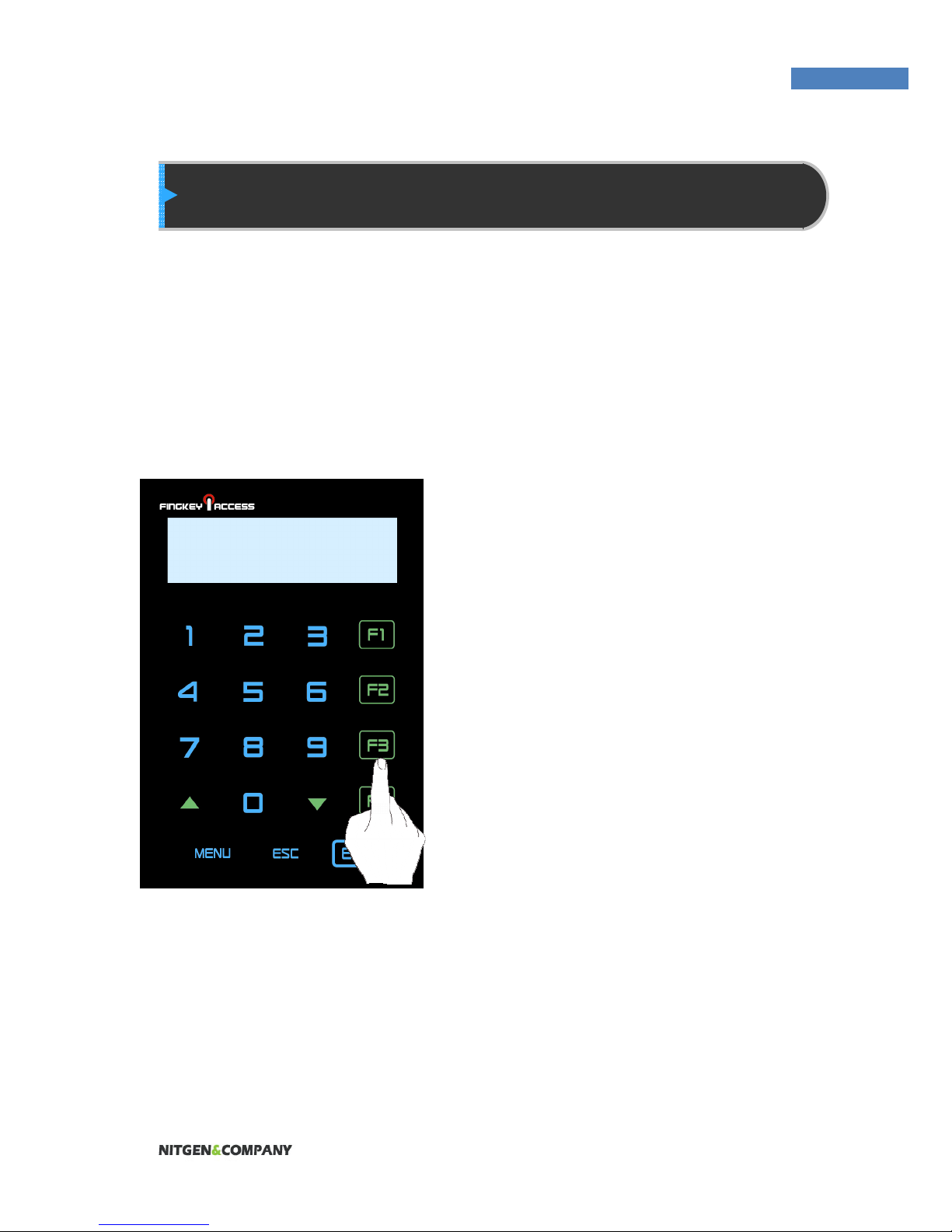

(7) Escape
(5) ENTER Key
(4) Function Keys
(8) Menu
(6) Cursor Key
Page 8
8
Fingerprint Reading
Scan fingerprints as described below for fingerprint registration and
authentication to prevent authentication errors.

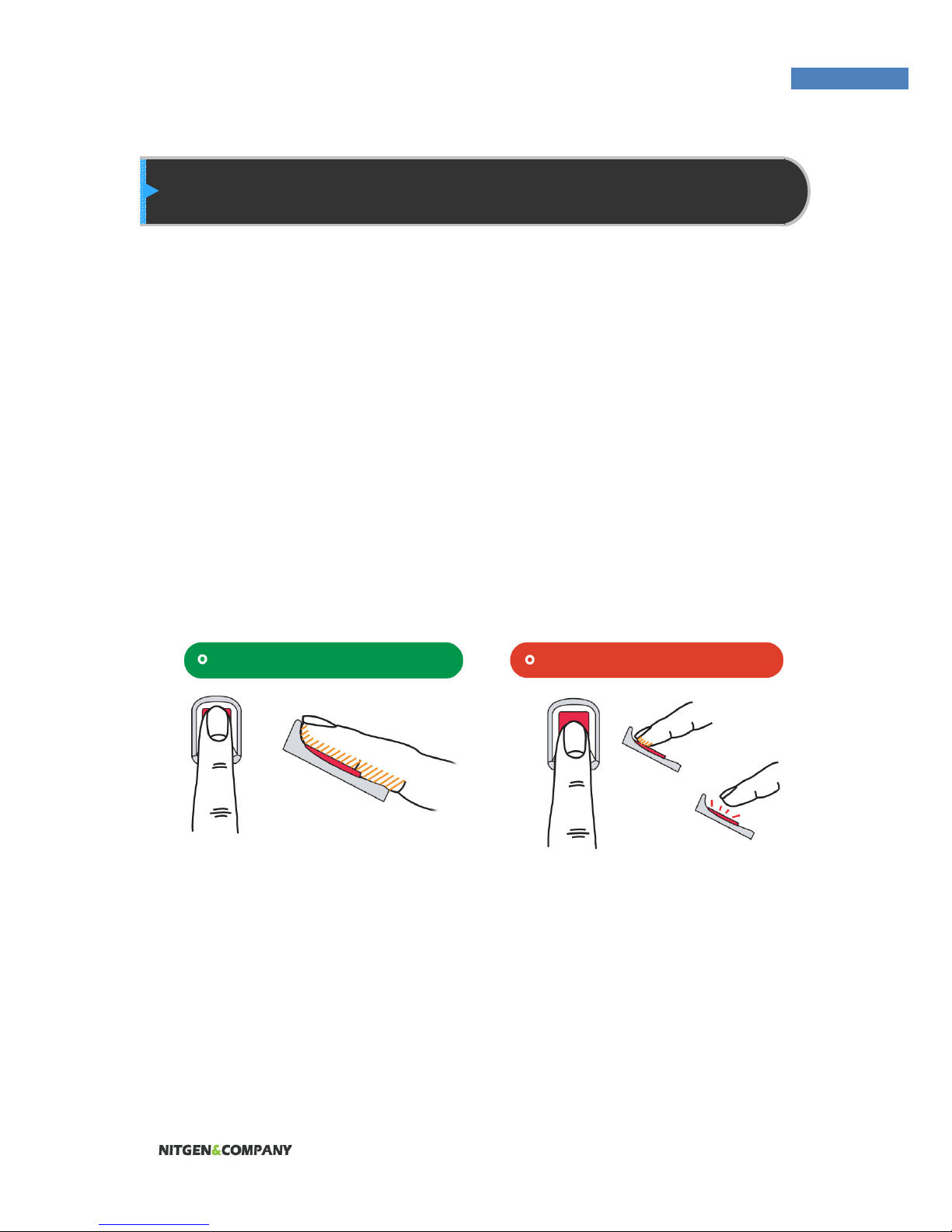

① Maximize the finger area scanned and press evenly (70 ~ 80%
of full pressure).
② Place the “core” of the fingerprint at the center of the scanner.
The core is usually opposite the whitish half-moon on the bottom
of the fingernail. Therefore, place the half-moon part at the
center of the scanner when scanning.
Correct Incorrect
Page 9
9
System Configuration
The Access Control Terminal (FingkeyAccessTM) can function either
in the network or stand-alone mode. In stand-alone mode, all
functions are available and the terminal does not need to be
connected to the network. In network mode, multiple terminals are
connected to the server through TCP/IP links and the terminals can
be managed by the administrator.
To use FingkeyAccess
TM
in network mode, a server and a
management program (AccessManager Professional) must be
installed.

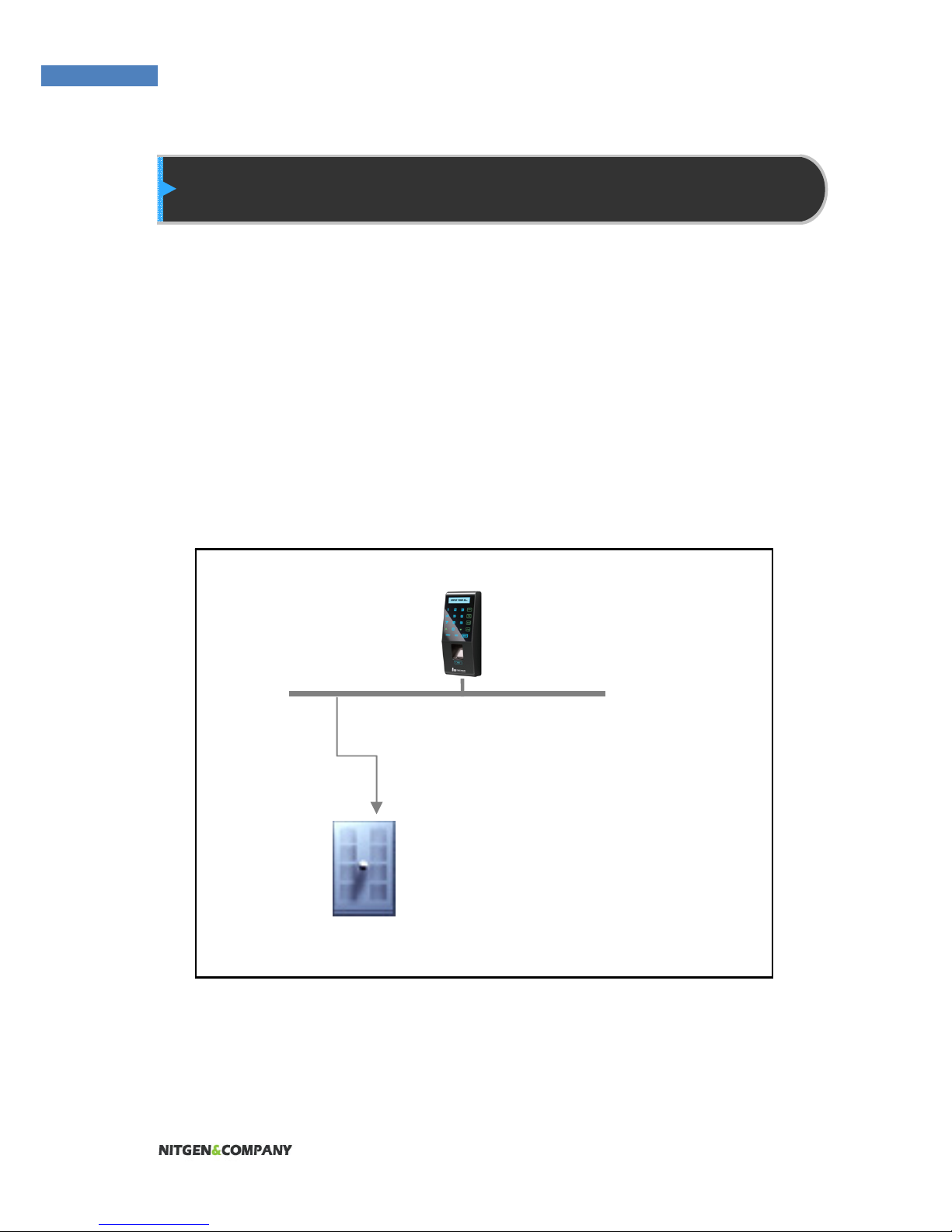

Stand-alone Mode
Page 10
10
Item Functions
Server PC
1. Server S/W : AccessManager Professional
2. Terminal management, communication and
log data collection
3. User profile and log data DB
4. Authentication
Client PC
1. Client S/W: AccessManager
2. User registration and management
3. Terminal status and event monitoring
Terminal
1. User registration, modification, deletion
and checking
2. Consecutive registration of card-only users
3. Warning/Alarm handling
4. Door control
TCP/IP

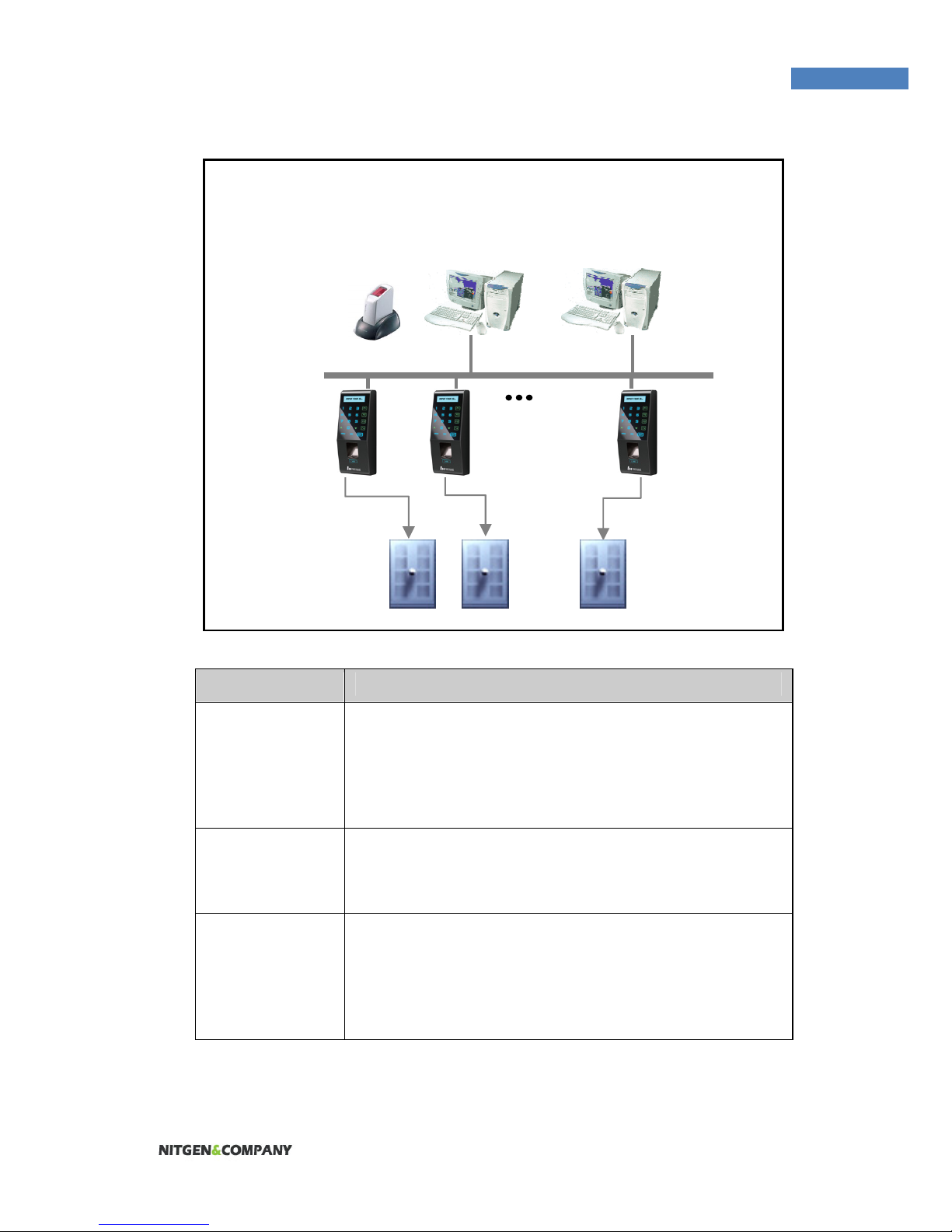

Server PC
Client PC
Network Mode
Page 11
11
Chapter 2
Administrator menu
Entering Administrator Menu - 15
User Management - 19
UI & Sound Setting - 29
Network Setting - 34
Serial Connection - 39
Authentication Option Setting - 40
Terminal Information Display - 52
USB Memory Connection - 56
Terminal Reset and Firmware Update - 61
Page 12
12
1. If no administrator was designated and only general users were
registered in network mode, all users will be allowed to enter the
Management menu.
2. If 1:N authentication is used, an administrator with a registered
fingerprint can enter the Administrator menu using fingerprint
authentication without entering his ID.
Entering Administrator Menu
Terminal users include general users and administrators. General
users are only allowed to open the door while the administrator can
use the Administrator menu to control the door as well as the
terminal’s functions.

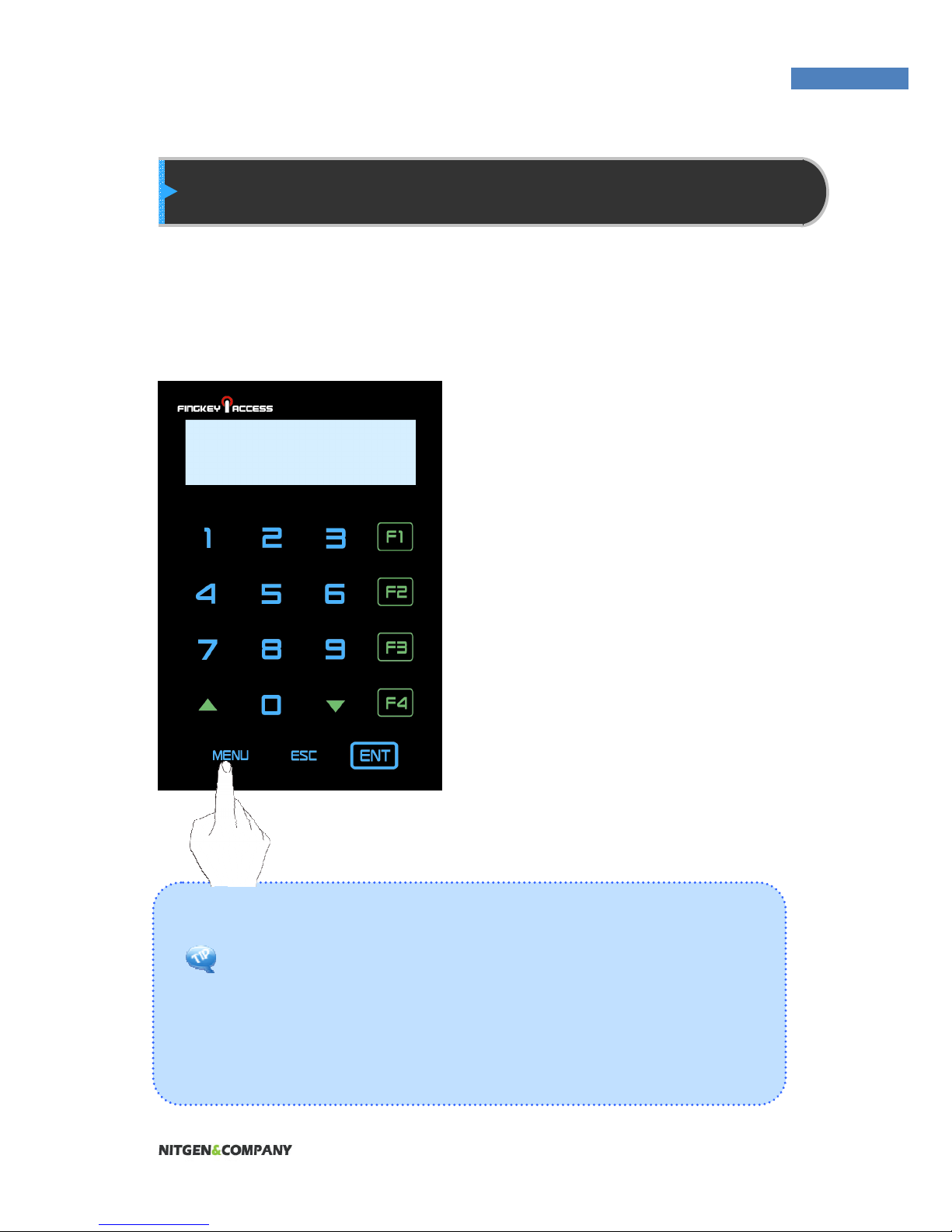

1. To enter the Administrator
menu, touch the “MENU”
button at the lower of the
touch pad.
2. Input the administrator ID and
follow the authentication
process. The Administrator
menu will be displayed.
Because no users have yet
been registered, any user
can enter the Administrator
menu. At least one
administrator for should be
registered for security
purposes.
INPUT M ASTER ID
: 0324
Page 13
13
The Administrator menu has seven submenus as shown below.
The following describes each sub menu:
Higher menu Detailed Menu
Sub menu
1 User registration
2 User info change
3 User deletion
1 User
Management
4 Deletion of all users
1 Sensor brightness (1~100)
1 1:1 mode 2 Security level
2 1:N mode
(Please try menu 3
times after setting
number 1)
3 Capture mode
4 Time setting for
fingerprint input
5 AUTO-ON setting
1 Whether to use 1:N
time setting or not
6 1:N time setting
2 Time setting
(“time setting”
possible only when it
is on)
2 Fingerprint
sensor setting
7 FreeScan
1 Language
2 Button tone
3
UI setting
3 Function Key
Display
Page 14
14
1 Log storing
2 RF card
1 OFF
2 26BIT
3 WIEGAND
3 34BIT
4 Function key setting
5 Authentication
mode
6 Time setting
7 Terminal mode
4 System Setting
8 Time zone
1 Terminal ID
1 DHCP yes or no?
2 Terminal IP
3 Sebnet Mask
4 Gateway
2TCP/IP
5 Server IP
3 Time limit
5 Network
4 Port setting
1 Number of users 6 Information
2 Firmware version
1DB Format
2 Factory format
3 Number of
registered
fingerprints
4 Number of
characters in ID
7 Factory default
5 Reset terminal
Page 15
15
User Management
The administrator can register, delete and change users with the
User menu.
User Registration
The maximum number of users that can be registered is the 2,000
templates. (1,000 uesrs)
User Change
User IDs are unique and cannot be changed. However, group,
privilege, fingerprint, and authentication type can be changed in the
“Modify” menu. Users can only be changed in stand-alone mode. In
network mode, the server management program must be used to
change users.
User Deletion
In network mode, the User menu does not support deletion of certain
or all users. The administrator can only delete all users registered at
a certain terminal by selecting “Reset Æ User Data.”
1.User Manager 1. Register User
1.User Manager 2. Modify User
1.User Manager 3. Delete User
4. Delete All
Page 16
16
Fingerprint Sensor Setting
Settings related to fingerprint sensor options such as security level,
fingerprint capture time, capture mode, LFD precision, and sensor
brightness can be configured.
Sensor Option
If the fingerprint is too bright or dark, the brightness, contrast, and
gain can be adjusted. In 1:N mode, the terminal’s basic sensor
settings will be applied even though individual sensor options were
set during user registration.
Select the “Brightness”, “Contrast”, or “Gain” tab, and select the
value by moving your finger on the slider.
Authentication Security Level
The security level is set according to the authentication method. The
security level for 1:1 authentication is between 1 and 9, and the
default is 5. The security level for 1:N authentication is between 5
and 9, and the default is 8. If the security level is too high,
authentication failure rate may rise, and if it security level is too low,
the misreading rate may rise. Therefore, the default level should be
used. This level applies to all users except those who chose different
security levels when registering.
2.FP Option 1. Brightness
2.FP Option 2. Secu. Level
Page 17
17
Capture Mode
Set whether to distinguish fake fingerprints, to what degree of
precision. “Low”, “High”, or “Not in Use” are available.
Authentication Limit Time
The fingerprint input waiting time is between 3 and 9 seconds, and
the default is 5 seconds.
Auto-On Setting
1:N Authentication Time
If 1:N authentication is being used, the time can be set during which
all user fingerprints are searched. The input value can be between
three to nine seconds, with the default being three seconds. If the
search fails after the specified time, a “Matching timeout” error will
occur.
2.FP Option 3. Capture Mode
2.FP Option 4. Sensor Timeout
2.FP Option 5. Auto-On Check
2.FP Option 6. 1:N Timeout
Page 18
18
UI & Sound Setting
Language and Buzzer
The user can change the language, buzzer.
Function Key display mode
Based on this setting, the display for Function key will be showed
differently. For example,
SETTING = OFF SETTING = Mode2
3.UI Option 1. Language
3.UI Option 2. Buzz er
F3 :
1234
Check In :
1234
Page 19
19
1)
Network Setting
The FingkeyAccessTM terminal can function either in network or
stand-alone mode. Wireline networks are supported in the network
mode. If the DHCP option is deactivated, the terminal IP, subnet
mask, and gateway must be inputted manually. For more information,
contact the service team.
Terminal ID
Enter a unique terminal ID between 1 and 2000. The same terminal
ID cannot be used in the same server.
TCP/IP Setting
After selecting network mode, TCP/IP must be configured to connect
to the server.
Press “on” in the “DHCP” menu to decide to use DHCP. When using
DHCP, enter into the server IP and port information of the server with
AccessManager Professional installed.
5.Network 1. T ermi n al ID
5.Network 2. T CP/ IP
Page 20
20
What is DHCP (Dynamic Host Configuration Protocol)?
The DHCP server automatically allocates and manages settings for TCP/IP
communication. If DHCP is on, related information such as terminal IP,
subnet mask, and gateway are automatically allocated.
Time Limit
Don’t set this value too short.
Port Setting
Enter the port number to be used for communication between the
server and the terminal. The default value is “7332” and the user can
choose between 2000 and 65535. When changing the port data in
the terminal, change the communication setting of AccessManager
Professional accordingly.
5.Network 4. Port Setting
5.Network 3. N/W Timeout
Page 21
21
System Setting
Settings related to system such as log storing, RF card, Wiegand,
Function key, time, terminal mode and timezone.
Saving Logs
The administrator can save logs that arise during user authentication.
To save logs, select “Save Logs” and change “No” to “Yes.” The logs
can be checked by selecting “Info” Æ “Log”, or by using the
“AccessManager Professional” program.
Card
To use card authentication to authenticate users, do the following.
Select the card type – MIFARE, HID
Wiegand
It decides whether to use Wiegand communication protocol to send
authentication results and user ID to a server.
4.System Option 1. LOG
4.System Option 2. RF Card
4.System Option 3. Wiegand
Page 22
22
Time and Attendance mode
Time and attendance mode, the user must press a function key and
perform the user authentication process when opening the door. The
entry logs will be sent with the function key data to the server
management program.
Depending on the function key, user attendance records can be
classified into “Coming to work”, “Leaving work”, “Going out”, and
“Returning” for efficient attendance management.
Time Zone
The “Time Zone” menu is used to restrict or allow entry during certain
time periods. Using this function, you can make timezone function
enable or not.
4.System Option 4. Function Mode
4.System Option 8. Timezone Mode
Page 23
23
Terminal Information Display
The administrator can check the firmware version and number of
users.
Factory Default
DB Format
All DB are formatted. When format is completed, the system goes
back to the initial screen.
Factory Format
Factory Format is a command to restore all information stored within
a terminal into initial values including user DB, option DB, log
information and logo. Therefore, the function should be used with an
extreme caution.
6.Infomation 1. # of User
2. F/W version
Page 24
24
Fixed Option
In the “Fixed Option” menu, the number of fingerprint scans to be
inputted during fingerprint registration and the ID length can be
configured. These settings cannot be changed of registered users
already exist. To change these settings, the administrator must
delete all users registered at the terminal.
To change the number of fingerprint scans required for user
fingerprint registration, select “Template Count” and input the number.
The default is 2, and the administrator can choose 1 or 2.
Reset Terminal
Terminals can be reset without disassembling. Please choose 『yes』
in a confirmation screen to reset a terminal.
Page 25
25
Chapter 3
General User
Door Opening - 65
Authentication in Attendance Mode - 67
Changing User Information - 69
Page 26
26
Door Opening
A user registered at the terminal can open the door in two ways
depending on whether 1:N authentication is used.
1:1 Authentication
The user enters his ID and scans his fingerprint, and the scanned
fingerprint is compared 1:1 to the registered fingerprint that matches
the ID. This method allows for quick authentication.
In 1:1 authentication mode, the user presses “Authentication” on the
lower left, and enters his ID. Then, the user continues the
authentication process using the registered means – fingerprint, card,
or password.
1:N Authentication
In 1:N authentication, the user does not need to input his ID. Instead,
the scanned fingerprint is authenticated by searching all fingerprints
in the DB. The process is simpler than 1:1 authentication, but if there
are a lot of users, it may take more time.
① Fingerprint Authentication
The user is authenticated by scanning his fingerprint without entering
his ID.
Page 27
27
In 1:N authentication, the password user is authenticated in
the same wa
y
s as in 1:1 authentication.
② Card Authentication
The user is authenticated only by scanning his card without entering
his ID.
If 1:N authentication is not activated, the user will be asked to input
his ID after he presses “Authentication” on the terminal.
Page 28
28
Authentication in Attendance Mode
In attendance mode, all users shall press the functions keys in order
to be authenticated. All logs are transmitted to the server. If the users
Do not press function keys, the attendance types –coming to office,
leaving office, leave, and return –may not be recorded so that the
user shall press the function keys in order to be authenticated.
Using Attendance Mode
General/Simple
In attendance mode, function keys
are displayed on the lower-right of
the initial screen.
1. In Simple or General
Attendance mode, the user
must press a function key and
input his ID to be authenticated.
Function keys are as follows:
F1: Coming to work
F2: Leaving work
F3: Going out
F4: Returning
2. After the user presses a function
key, the key will be included in
the server log data which will be
used by the attendance
management program.
F3- INPUT ID
: 0324
Page 29
29
To use 1:N authentication in attendance mode, enter the
attendance key and perform authentication without inputting an ID.
Using Extended Attendance
Mode (Not available)

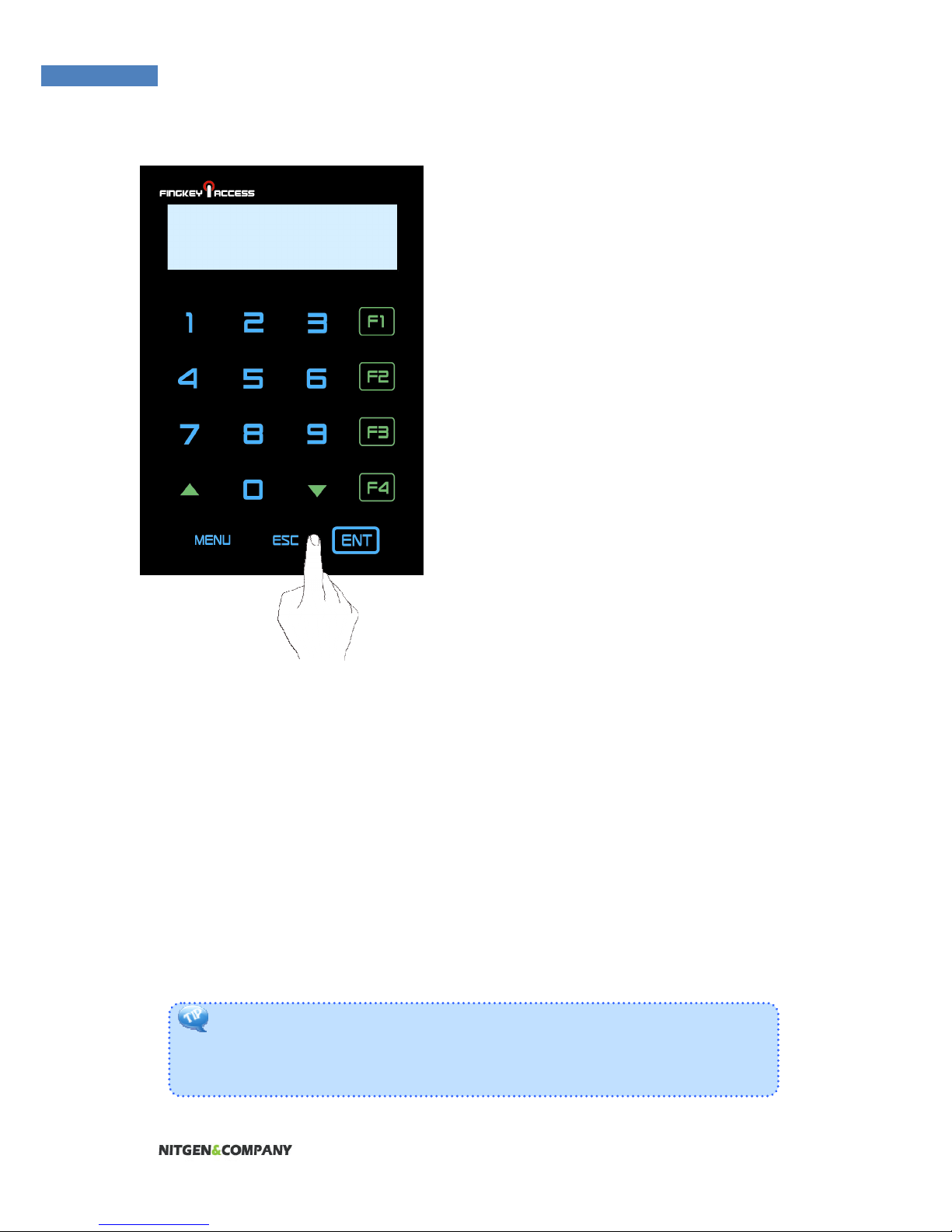

In Extended Attendance Mode, the
initial main screen will be displayed
as shown on the left.
1. Select a function key, and press
arrow keys to change function
number.
2. Enter the user ID and press
“Enter” to authenticate.
F13- INPUT ID
: 0324
Page 30
30
Changing User Information
The administrator can change passwords, fingerprints, and card
information of registered users using the terminal’s Administrator
menu or the server program. To change user information, contact the
administrator.
Page 31
31
Appendix
Troubleshooting - 71
Product Specifications - 75
Page 32
32
Appendix
Troubleshooting
<If fingerprint authentication takes too long>
1. If the terminal uses 1:N authentication in network mode,
server overload may occur, resulting in slow authentication
and recognition. In this case, a dedicated server should be
used.
2. Check if the finger and the sensor are clean. Clean the finger
and the sensor. If the user’s finger is hurt, the user must
register another fingerprint.
3. If the fingerprint is not clean, lower the security level of the
user and use the 1:1 authentication method.
4. Input the user’s ID in 1:1 mode and check if the user exists.
<If fingerprint is not registered>
If the finger is too dry or humid, fingerprint image quality may be
poor and may not register. Dry or moisturize the finger before
registering the fingerprint.
<If RF card authentication fails>
1. Check your RF card type matches with the RF option of
Terminal.
Page 33
33
<If network connection cannot be established>
1. Check if the network setting is correct.
2. Check the TCP/IP setting.
① IP address of the server where AccessManager
Professional is installed.
② The server and the terminal must use the same port.
④ Related settings if DHCP is not used.
3. Synchronize the terminal and the server settings.
Page 34
34
<If the door does not open after authentication>
1. Check the time period during which access is allowed.
2. Check JP1 jumper status is correct. (refer to install guide)
<If users cannot be registered>
In default configuration, this product operates in network mode
which requires a proper network connection for user registration.
Check the network connection, or disable network mode to not use
the network.
<If the product is unstable or does not function>
1. In the terminal by selecting “Menu” Æ “Reset” menu.
2. Restart the server if the server management program is in
use.
3. If the terminal buttons do not function, restart the terminal by
pushing external reset button located right side of terminal.
4. If the problem remains after the above actions are taken,
contact the Customer Support Team.
Page 35
35
Product Specifications
Item Description
LCD 128*32 B/W Graphic STN
CPU 200MHz 32Bit RISC
Memory 16MB RAM, 8MB Nand Flash
Sensor OPP06 Optical, 500DPI(LFD, Auto-On)
Authentication Rate 1:1 – Less than 1 second
1:N -
FAR/FRR 0.001% /0.1%
Number of users 1,000 fingerprint templates (Two templates
per user)
Communication
Method
TCP/IP, RS-485, Wiegand
Dimensions 178(L) x 77(W) x 50(H) mm
Power
Input: AC 100V ~ 240V, 50/60 Hz
Output: DC 12V, 3A
Door Dead Bolt, Strike, EM Lock, Automatic Door,
Fire Alarm
Temperature/Humidity IP65 Class, -20 ~ 60℃
Supplementary
Features
Buzzer announcement
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in Which case the user may be required to take adequate measures.
Page 36
36
INFORMATION TO THE USER (15.105(a))
For Class A digital device
INFORMATION TO THE USER
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
WARNING (Part 15.21)
Any changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
Loading...
