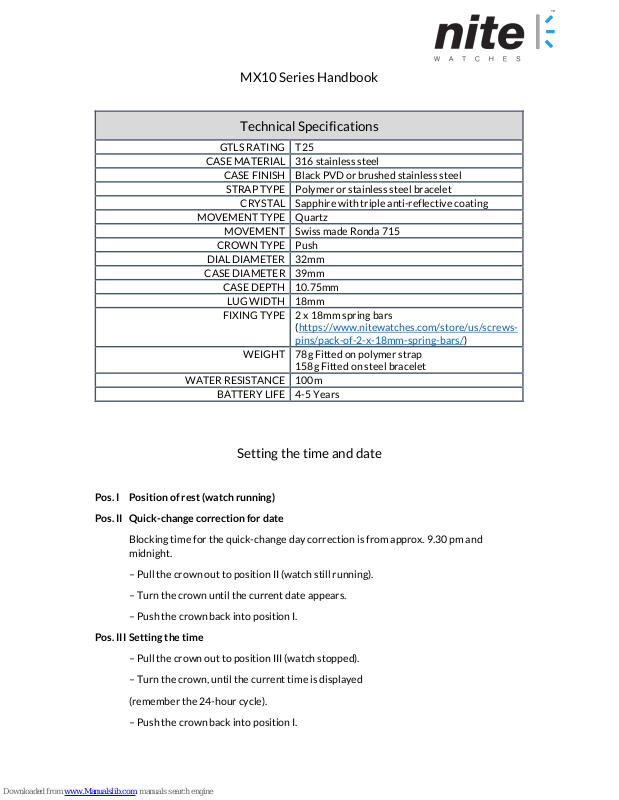

MX10 Series Handbook
Technical Specifications
GTLS RATING
T25
CASE MATERIAL
316 stainless steel
CASE FINISH
Black PVD or brushed stainless steel
STRAP TYPE
Polymer or stainless steel bracelet
CRYSTAL
Sapphire with triple anti-reflective coating
MOVEMENT TYPE
Quartz
MOVEMENT
Swiss made Ronda 715
CROWN TYPE
Push
DIAL DIAMETER
32mm
CASE DIAMETER
39mm
CASE DEPTH
10.75mm
LUG WIDTH
18mm
FIXING TYPE
2 x 18mm spring bars
(https://www.nitewatches.com/store/us/screws-
pins/pack-of-2-x-18mm-spring-bars/)
WEIGHT
78g Fitted on polymer strap
158g Fitted on steel bracelet
WATER RESISTANCE
100m
BATTERY LIFE
4-5 Years
Setting the time and date
Pos. I Position of rest (watch running)
Pos. II Quick-change correction for date
Blocking time for the quick-change day correction is from approx. 9.30 pm and
midnight.
– Pull the crown out to position II (watch still running).
– Turn the crown until the current date appears.
– Push the crown back into position I.
Pos. III Setting the time
– Pull the crown out to position III (watch stopped).
– Turn the crown, until the current time is displayed
(remember the 24-hour cycle).
– Push the crown back into position I.
Page 2
Strap fitting/options
The MX10 models can be fitted with a polymer strap or a stainless steel bracelet.
With a 18mm lug width and 18mm spring bar fixing, straps are easily interchangeable using a
forked spring bar tool.
The MX10 straps exclusively available through nitewatches.com can be found here:
https://www.nitewatches.com/store/us/straps/mx10
The stainless-steel bracelet can be adjusted in length by adding or removing links and by also
using the 3-micro adjustment on the buckle part of the strap.
If you have any questions about the MX10 series then please email us on [email protected].
